1. USERS MANUAL
2. Users Manual

Users Manual

WMX

5.8 WiMAX Outdoor Subscriber Unit

User’s Guide

Document Number TR

WMX5.8

June 2008

FastFind Links

Preface

Table of Contents

Basic Installation

Advanced Configuration

TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

No part of this publication may be reproduced or transmitted in any form or by any

electronic or mechanical means, including photocopying and recording, or stored in a

database or retrieval system for any purpose, without the express written permission of

Tranzeo Wireless Technologies Inc.

Tranzeo Wireless Technologies Inc. reserves the right to make changes to this document

at any time without notice and assumes no responsibility for its use. Tranzeo Wireless

Technologies Inc. products or services can only be ordered under the terms and

conditions of Tranzeo Wireless Technologies Inc.’s applicable agreements, including

license agreements. All of the features described in this document may not be currently

available. Refer to the most recent product announcement or contact Tranzeo Wireless

Technologies Inc. for information about feature and product availability.

This document contains the most current information available at the time of

publication. When new and/or revised information becomes available, this document

may be updated and made available to all registered users.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE

CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS

COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

Trademarks

Tranzeo, the Tranzeo logo, and TR-WMX-5.8 are trademarks of Tranzeo Wireless

Technologies Inc.

All other brand or product names are or may be trademarks or service marks of and are

used to identify products or services of their respective owners.

Product Version

This document revision applies to TR-WMX-5.8 Outdoor WiMAX Subscriber Units 1.11xx

and higher running firmware version 3.0 and higher.

Document Revision Level

Revision Date Description

A1 June 2008 Initial Release

Changes in this Revision

Not applicable (initial release).

TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

iii

Preface

Welcome to the Tranzeo TR-WMX-5.8 Outdoor WiMAX Subscriber Unit User’s Guide. The

TR-WMX-5.8 Outdoor WiMAX Subscriber Unit supports point-to-multipoint

communication with an IEEE 802.16-2004-compliant WiMAX base station. This guide

contains all the information you need to install and configure the TR-WMX-5.8 Outdoor

WiMAX Subscriber Unit.

Purpose and Audience

This guide is designed for anyone who installs, configures, deploys, or prepares a site for

the TR-WMX-5.8 WiMAX Subscriber Unit. This guide is intended for the following

audiences:

 Customers with a technical knowledge of and experience with networks and the

Internet.

 Network administrators who install, configure, and manage Tranzeo TR-WMX-5.8

WiMAX Subscriber Units.

 Network administrators who install, configure, and manage other Tranzeo or similar

products, but are unfamiliar with the Tranzeo TR-WMX-5.8 WiMAX Subscriber Unit.

Models and Configurations

The TR-WMX-5.8 WiMAX Subscriber Unit is available in a variety of models and

configurations. The following table lists some of the models available.

TR-WMX-5.8 Models and Configurations

Model Number Configuration and Description

TR-WMX-5.8-16 5.8 GHz subscriber unit with integrated 16dBi antenna

TR-WMX-5.8-20 5.8 GHz subscriber unit with integrated 20 dBi antenna

TR-WMX-5.8-24 5.8 GHz subscriber unit with integrated 24 dBi antenna

TR-WMX-5.8-N 5.8 GHz subscriber unit with N-type connector

In this document, the term “TR-WMX-5.8” is used to refer collectively to the

family of TR-WMX-5.8 Outdoor WiMAX Subscriber Unit products. If information

in this document pertains to certain models, the particular model number will

be used.

Preface

TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

TR-WMX-5.8 Features

The TR-WMX-5.8 is designed for quick installation. The following list summarizes the key

features of the TR-WMX-5.8.

 Complies with IEEE 802.16-2004 for communication with WiMAX base stations that

support this standard.

 Supports multiple duplex modes and channel bandwidths.

 Power-over-Ethernet (PoE) capabilities allow data and power to be supplied to the unit

using a single Ethernet cable.

 Includes an external or embedded antenna.

 External signal strength LEDs allow the antenna to be aligned for optimal received signal

strength from the base station, without having to use a computer to log in to the unit.

Summary of Chapters

This guide contains the following chapters.

 Chapter 1, Basic Installation includes instructions for getting the TR-WMX-5.8 WiMAX

Subscriber Unit up and running as quickly as possible.

 Chapter 2, Advanced Configuration describes how to perform advanced configuration

activities using the Web-based Configurator.

 Chapter 3, Viewing Status Information describes how to use the Configurator to

view/change status information about TR-WMX-5.8.

 Chapter 4, Configuring Administrative Settings describes how to use the Configurator

to view change the device name and location; enable or disable Web, SSH, and Telnet

access to the TR-WMX-5.8; enable or disable the TR-WMX-5.8 status LEDs; and change

the user name and password for logging in to the Configurator.

 Appendix A, Factory Default Configuration Settings lists the factory default

configuration settings for the TR-WMX-5.8.

 Appendix B, Upgrading Firmware describes how to upgrade the TR-WMX-5.8 firmware.

Release Notes

The Release Notes provided with your TR-WMX-5.8 contain information that may not

have been available when this User’s Guide was written. We recommend you read the

Release Notes before installing and configuring your TR-WMX-5.8.

Preface

TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

Document Conventions

This document uses the following conventions to draw your attention to certain

information.

Safety and Warnings

This document also uses the following symbols to draw your attention to certain

information.

Icon Meaning Description

Note Notes emphasize or supplement important points of the main text.

Tip Tips provide helpful information, guidelines, or suggestions.

Caution Cautions indicate that failure to take a specified action could result in damage to the

software or hardware.

WARNING Warnings indicate that failure to take a specified action could result in loss of

communications or serious damage to hardware.

DANGER Danger warns users of possible injury or death if instructions are not followed.

ELECTRIC SHOCK

HAZARD

This symbol warns users of electric shock hazard. Failure to take appropriate

precautions such as not opening or touching hazardous areas of the equipment could

result in injury or death.

Electrostatic

Sensitive

The ESD symbol warns users that the equipment is sensitive to electrostatic discharge

(ESD) and could be damaged if users do not take appropriate precautions such as using

a grounded wrist strap when touching or handling the equipment.

Typographic Conventions

The following typographic conventions are used in this document.

Convention Description

Bold Indicates text on a window, other than the window title, including menus, menu options,

buttons, fields, and labels.

Italic Indicates a variable, which is a placeholder for actual text provided by the user or system.

screen font Indicates text that is displayed on screen or entered by the user.

Preface

TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

Contact Information

For more information about the TR-WMX-5.8 or other products from Tranzeo Wireless

Technologies Inc., please contact us using any of the following methods:

 Web site: Our Web site contains valuable information about our products. We encourage

you to visit us at http://www.tranzeo.com.

 Sales: Our Sales Department can be reached by phone or email:

– Phone: +1 866 872-6936

– Email: sales@tranzeo.com

 Fax calls: Requests for information can be sent to our 24-hour fax number:

+1 604 460 6005.

 Technical support: Technical support, the customer-satisfaction arm of Tranzeo

Wireless Technologies Inc., is available by phone, live chat, email, and fax. For more

information, see Appendix C.

TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

vii

Contents

1 BASIC INSTALLATION ..................................................................................................................................1

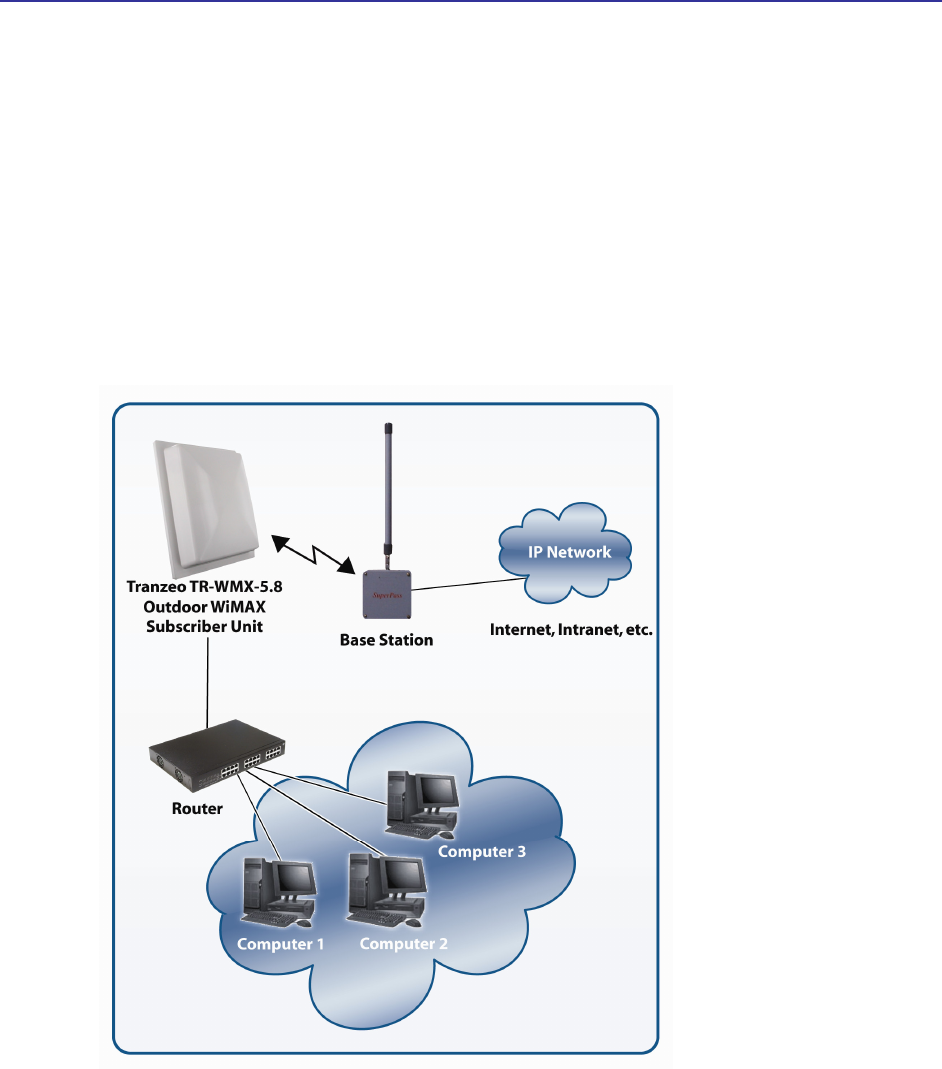

1.1 SAMPLE CONFIGURATION ...............................................................................................................................2

1.2 UNPACKING ...................................................................................................................................................3

1.3 USER-SUPPLIED ITEMS ...................................................................................................................................3

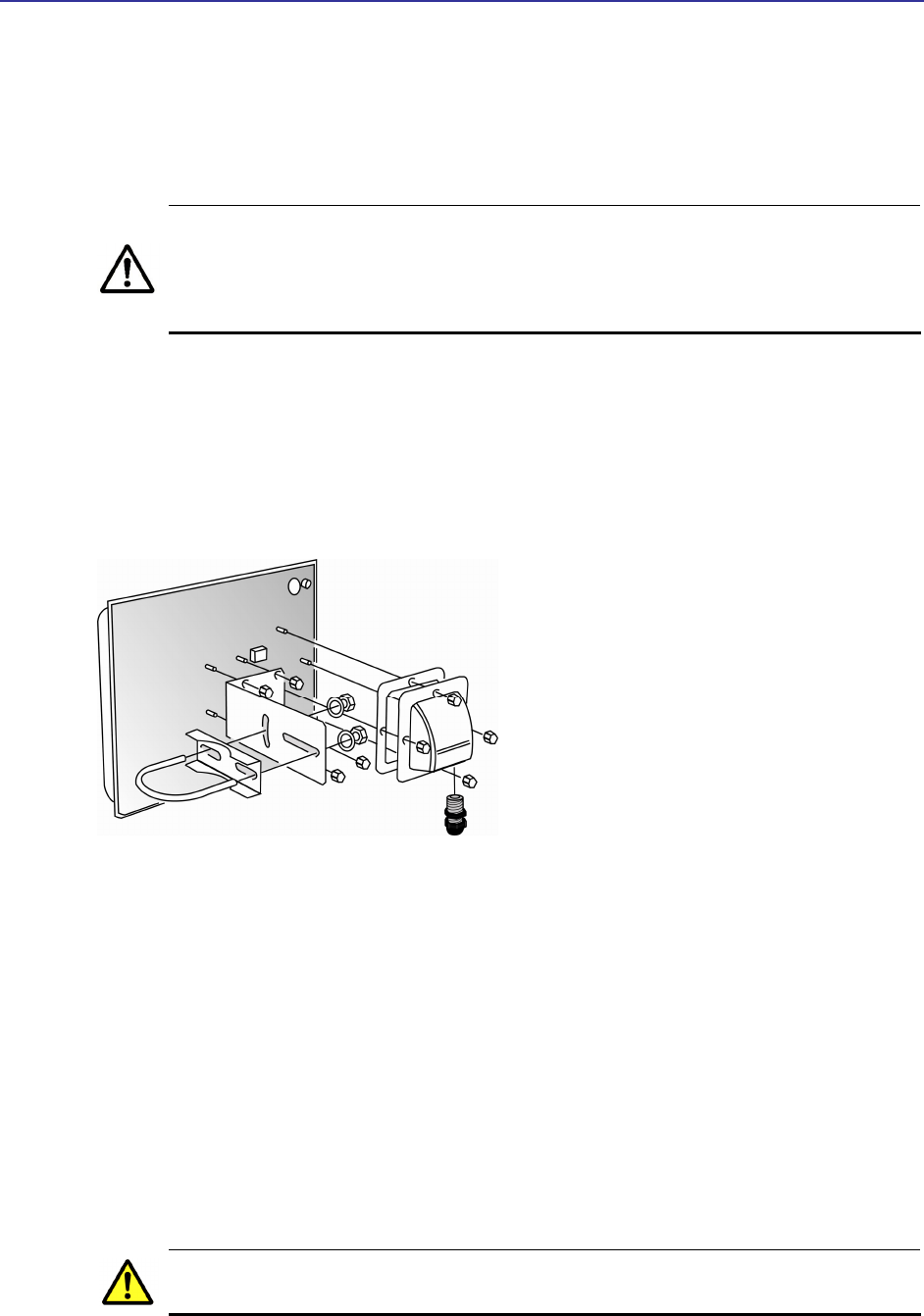

1.4 INSTALLING THE TR-WMX-5.8......................................................................................................................4

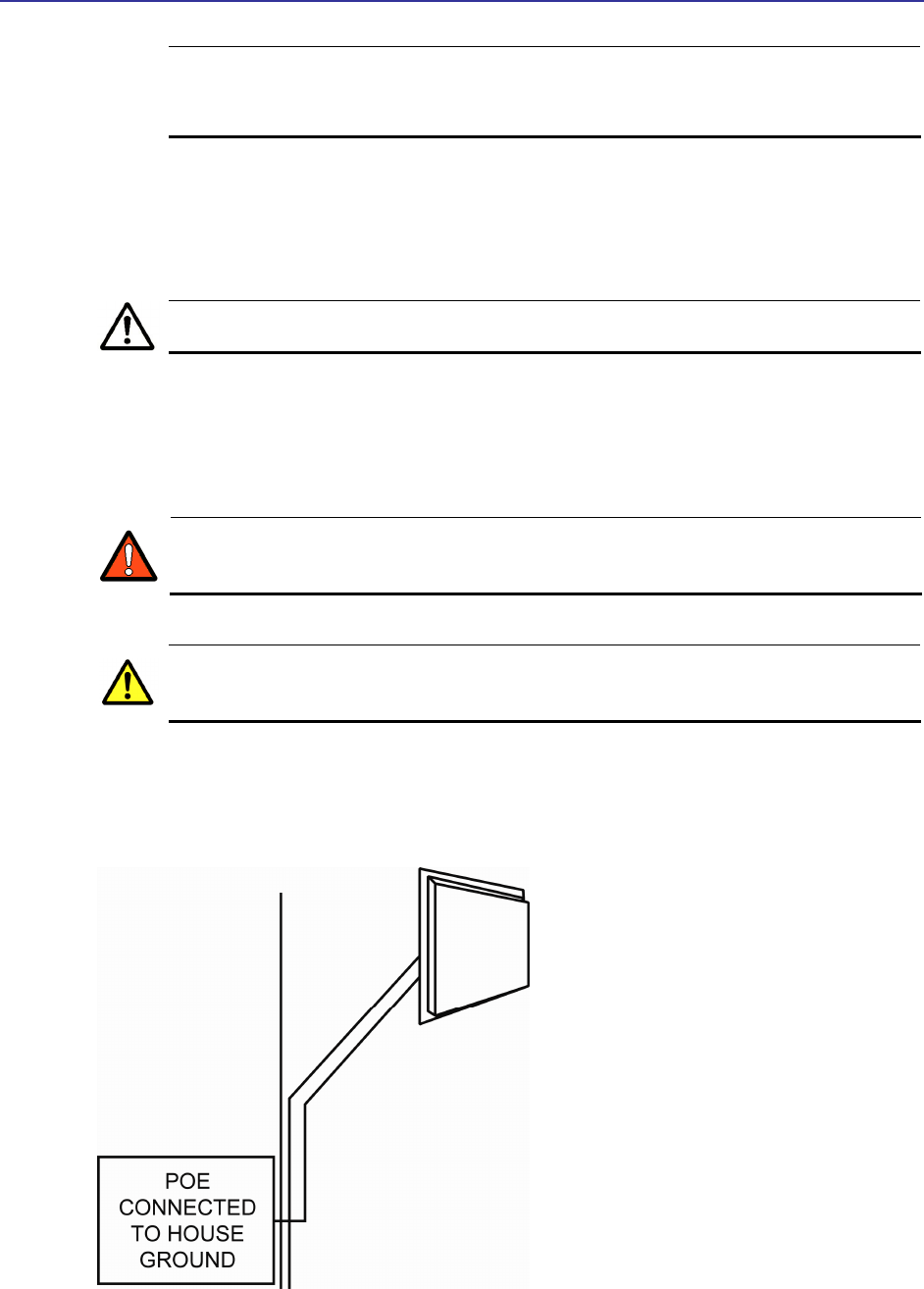

1.4.1 Installation Best Practices ......................................................................................................................6

1.5 CONFIGURING THE TR-WMX-5.8...................................................................................................................7

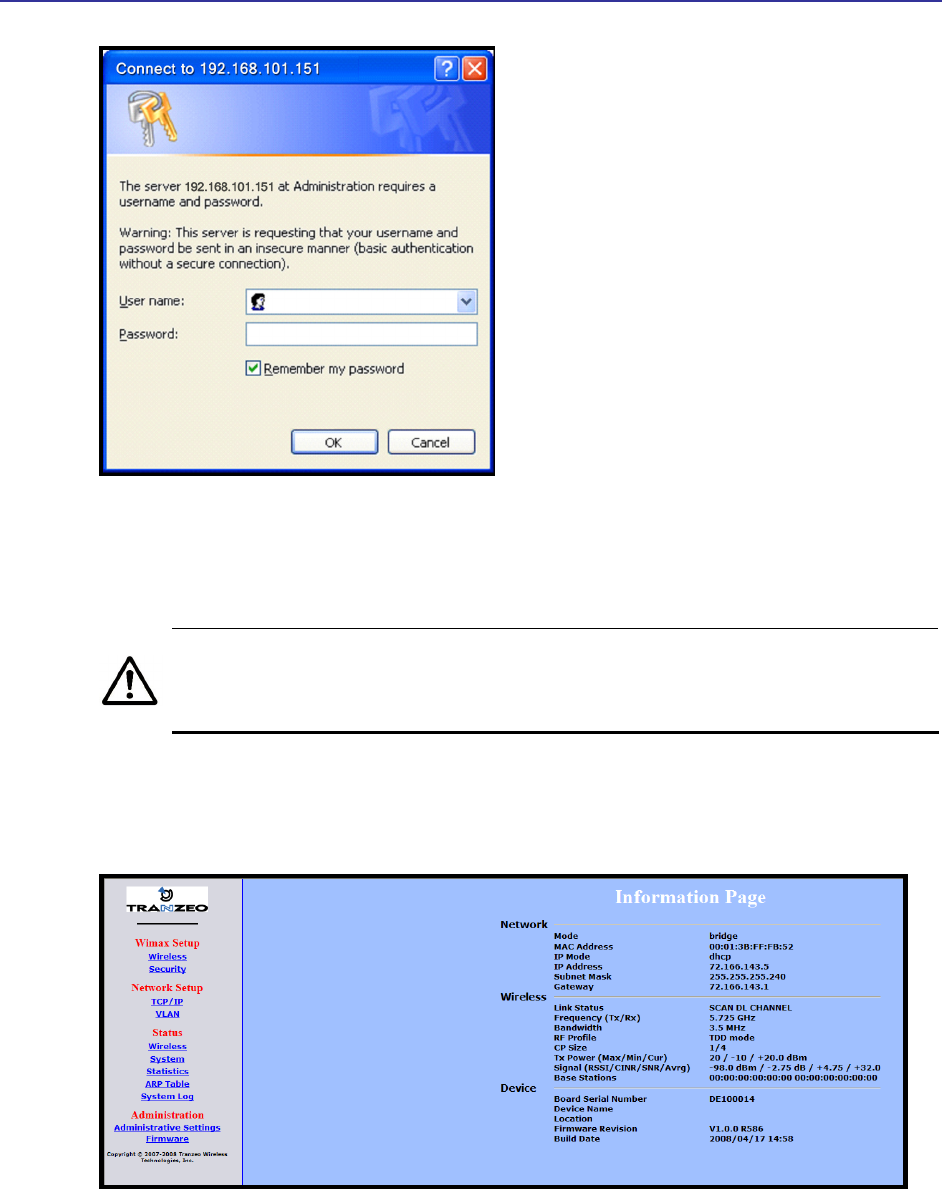

1.5.1 Logging in to the Configurator................................................................................................................7

1.5.2 Specifying Wireless Settings....................................................................................................................9

1.5.3 Specifying Network Setup Settings.........................................................................................................11

1.6 MONITORING TR-WMX-5.8 STATUS ............................................................................................................13

1.6.1 Viewing Status Information...................................................................................................................13

1.6.2 Status LEDS .........................................................................................................................................14

2 ADVANCED CONFIGURATION ..................................................................................................................15

2.1 UNDERSTANDING THE PAGES IN THE CONFIGURATOR ....................................................................................16

2.2 ENTERING WIMAX SETUP SETTINGS............................................................................................................18

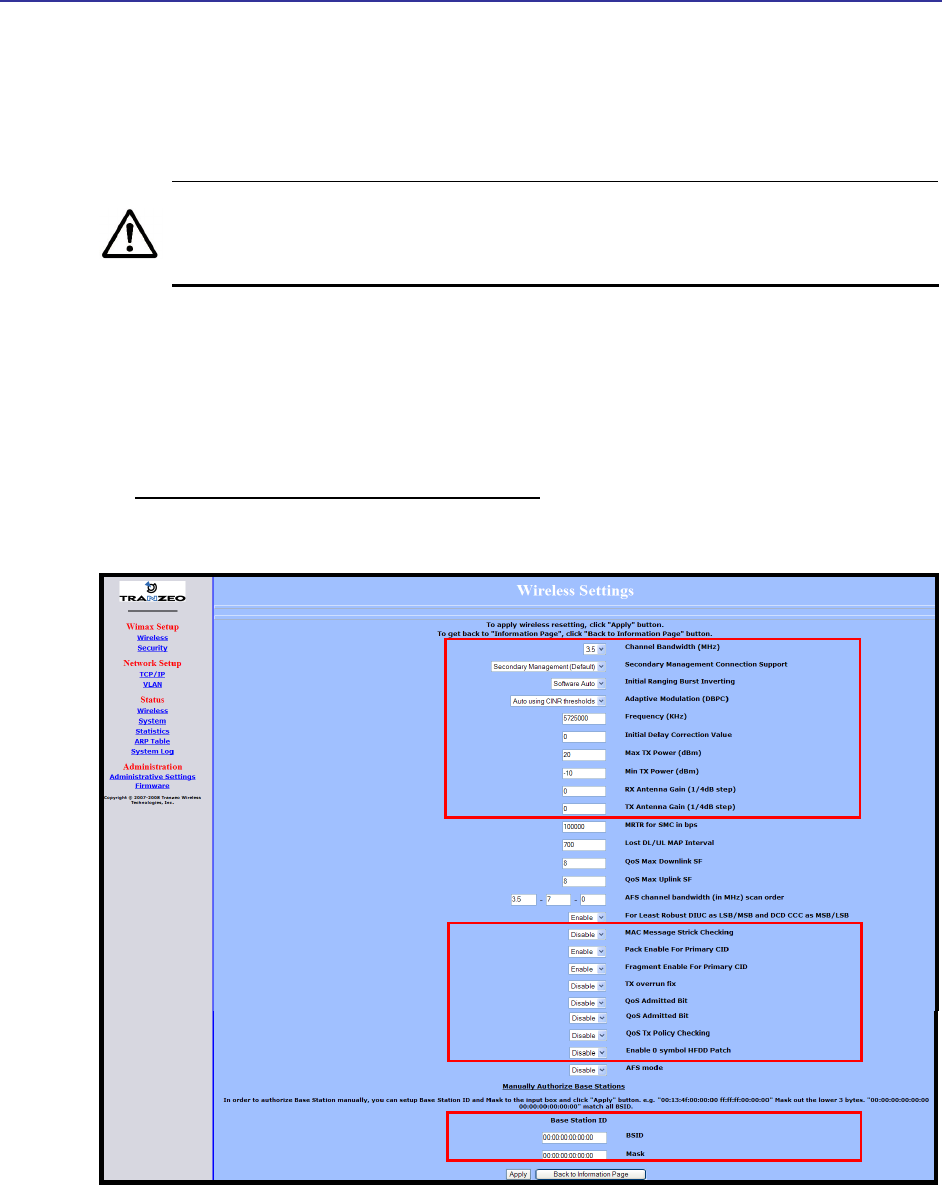

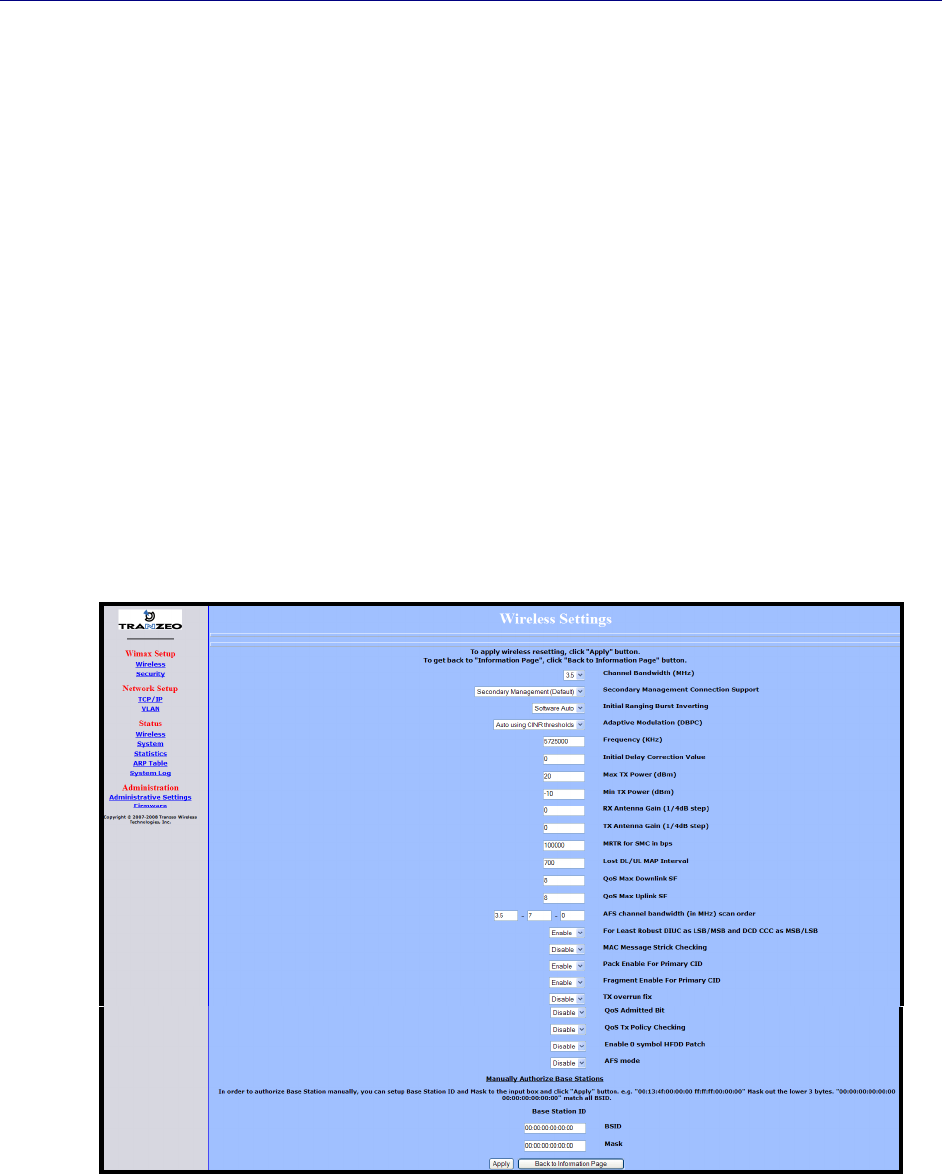

2.2.1 Entering Wireless Settings ....................................................................................................................18

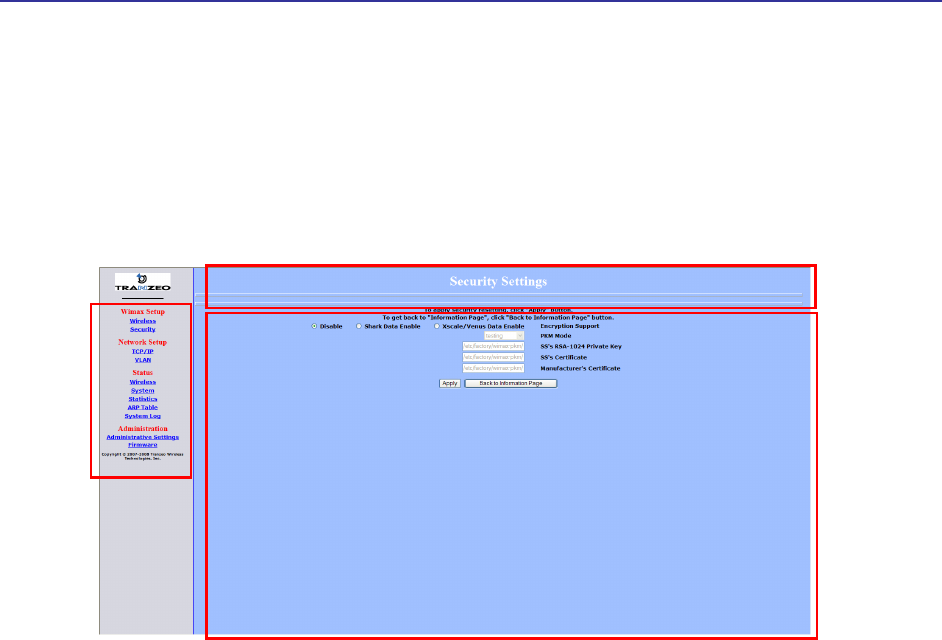

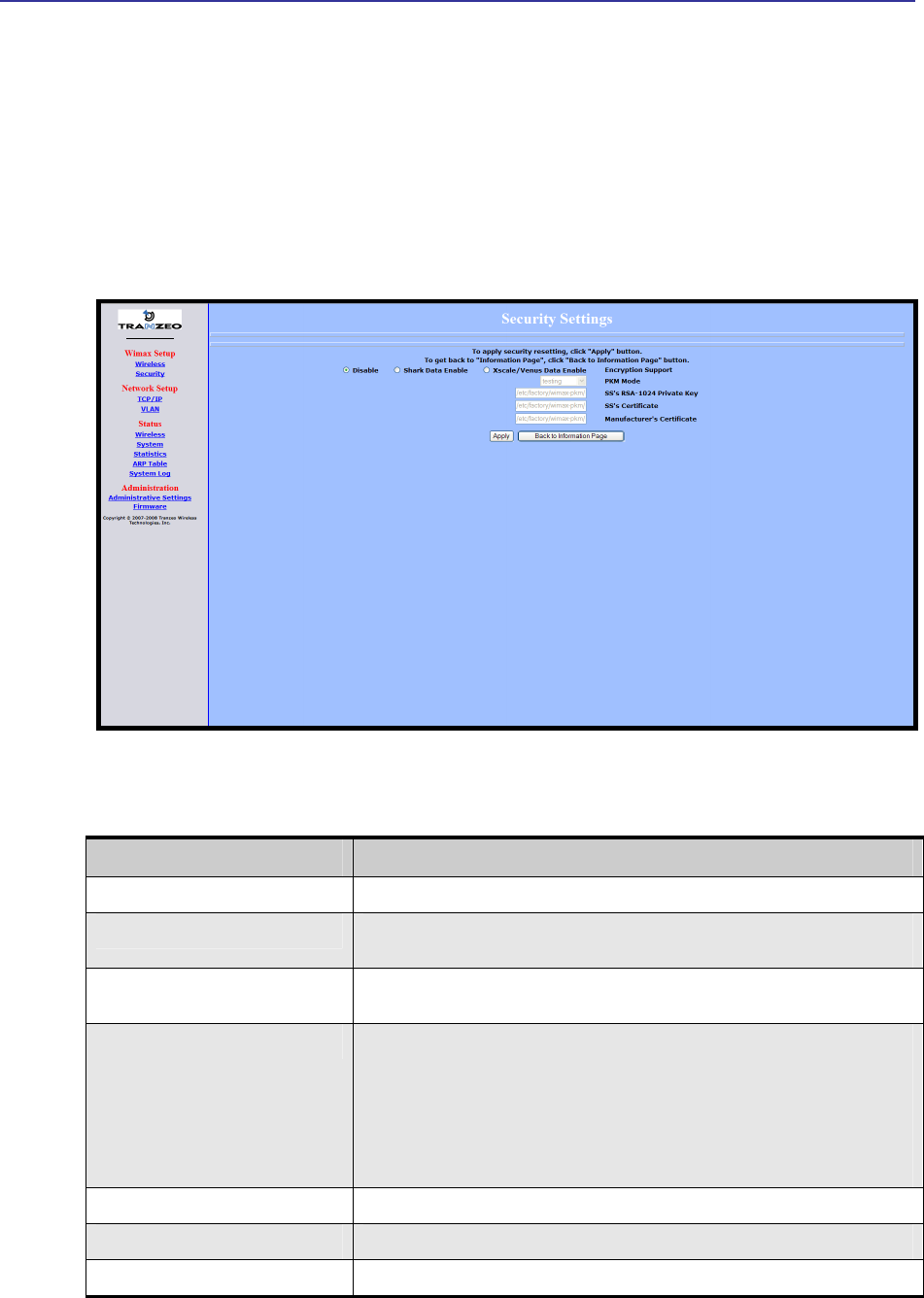

2.2.2 Setting Security Settings........................................................................................................................21

2.3 ENTERING NETWORK SETUP SETTINGS .........................................................................................................22

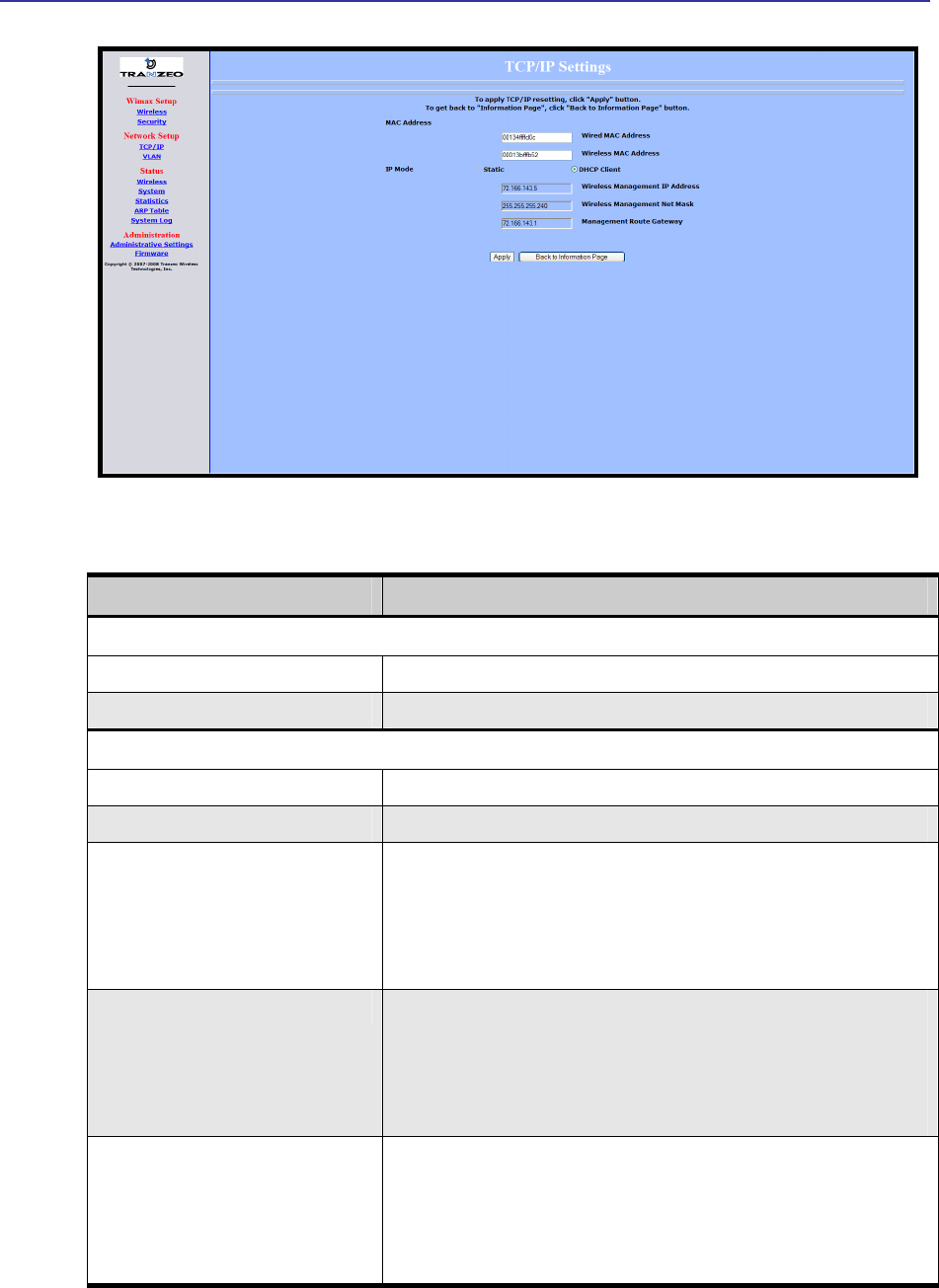

2.3.1 Entering TCP/IP Settings......................................................................................................................22

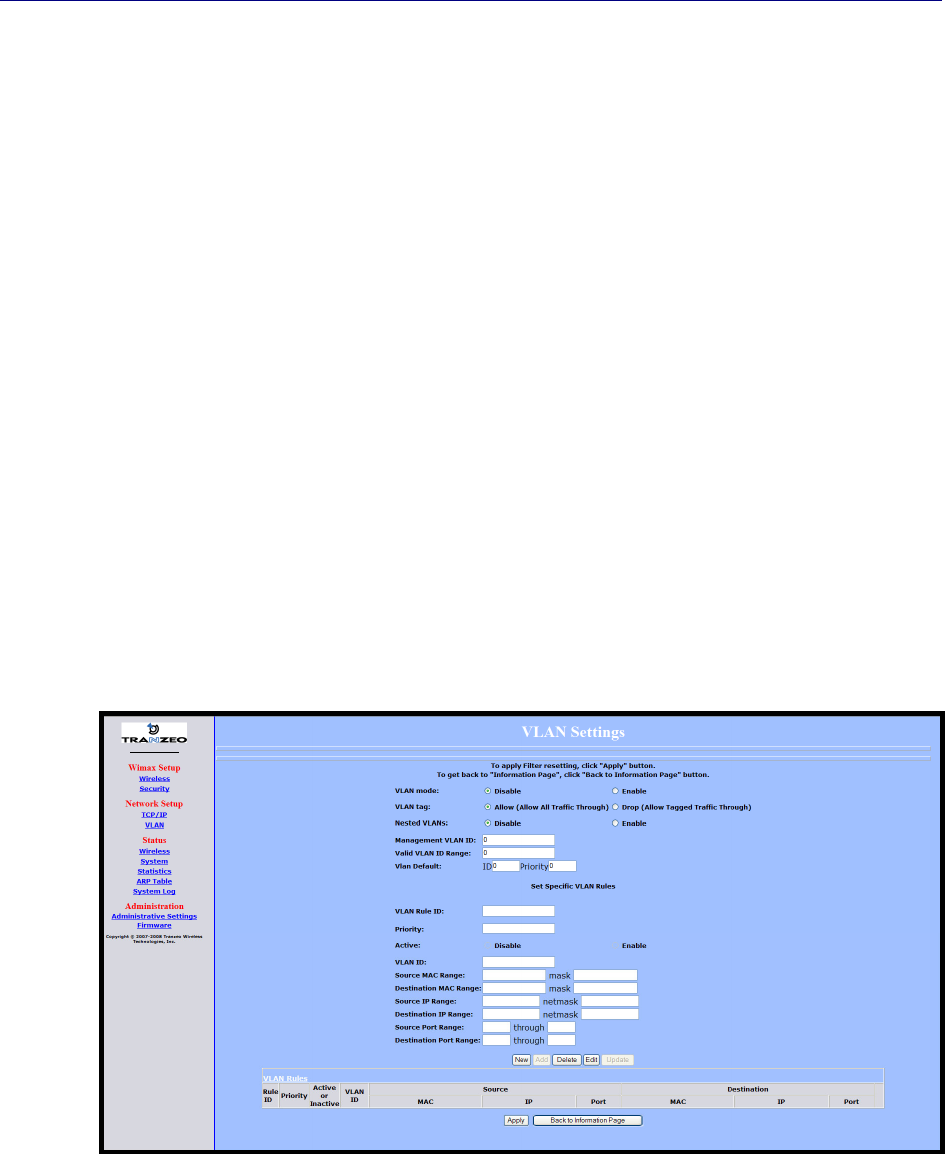

2.3.2 VLAN Settings ......................................................................................................................................24

3 VIEWING STATUS INFORMATION ...........................................................................................................27

3.1 INFORMATION PAGE .....................................................................................................................................28

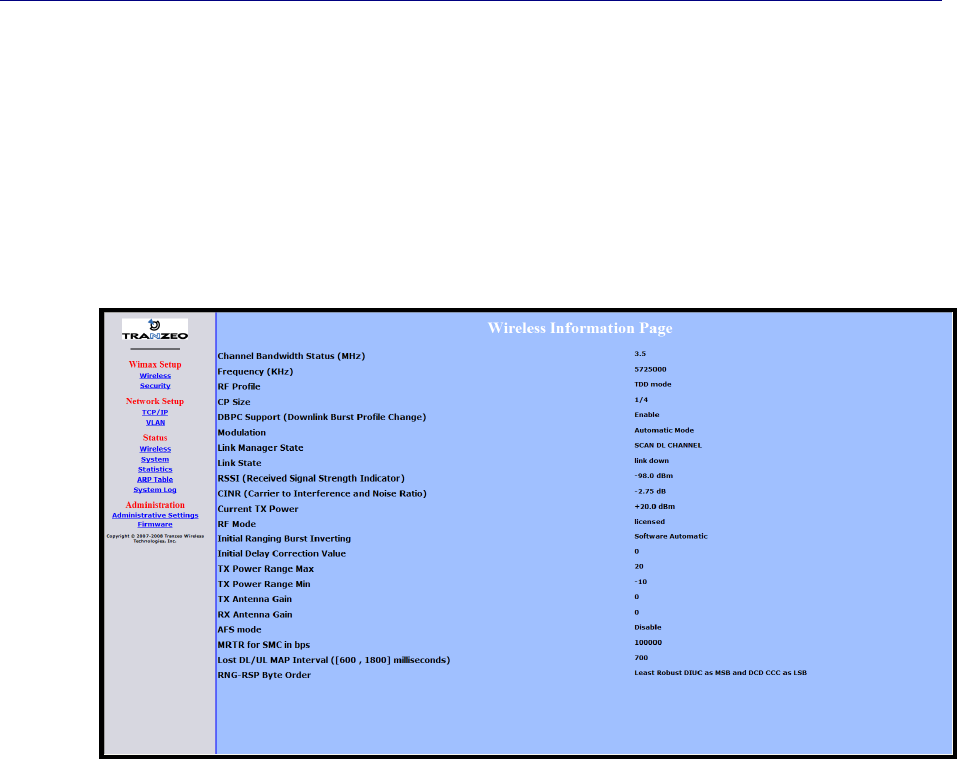

3.2 WIRELESS INFORMATION PAGE.....................................................................................................................30

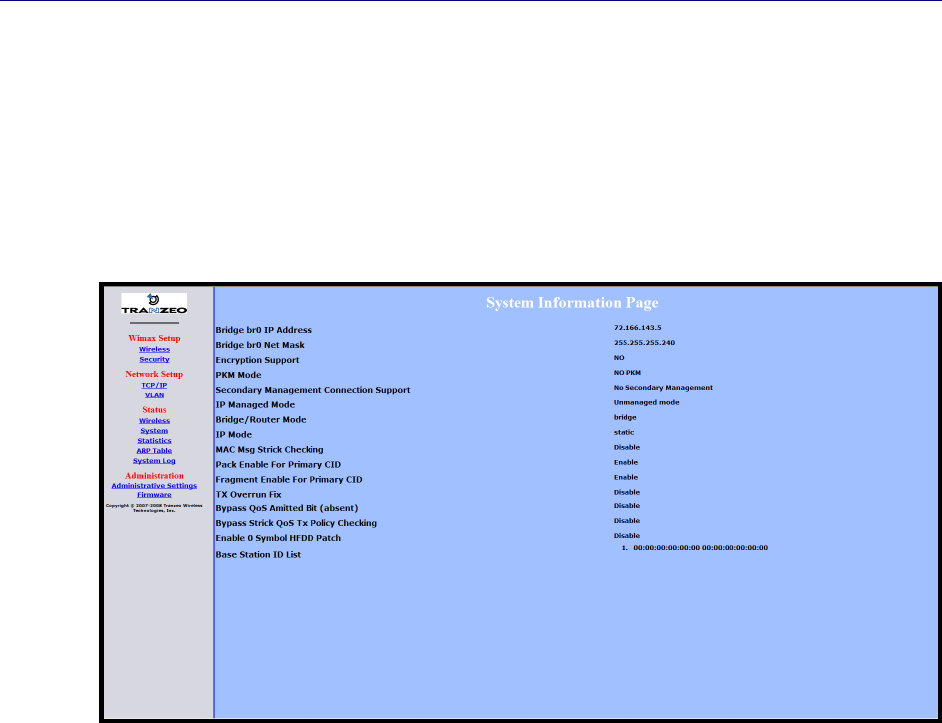

3.3 SYSTEM INFORMATION PAGE........................................................................................................................32

3.4 STATISTICS INFORMATION PAGE ...................................................................................................................34

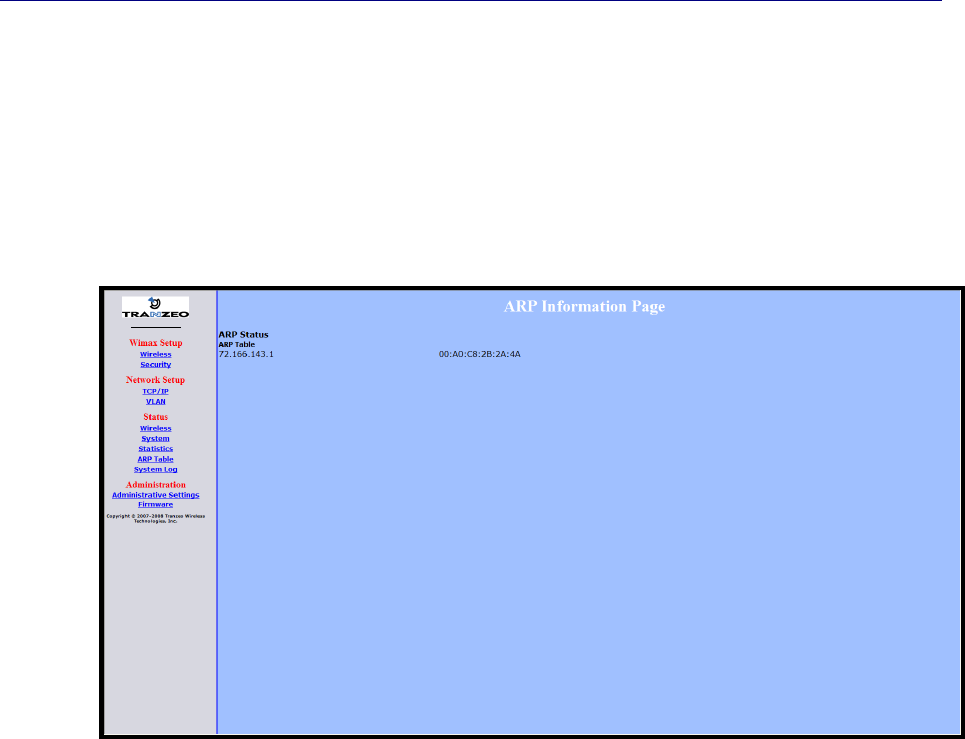

3.5 ARP INFORMATION PAGE.............................................................................................................................36

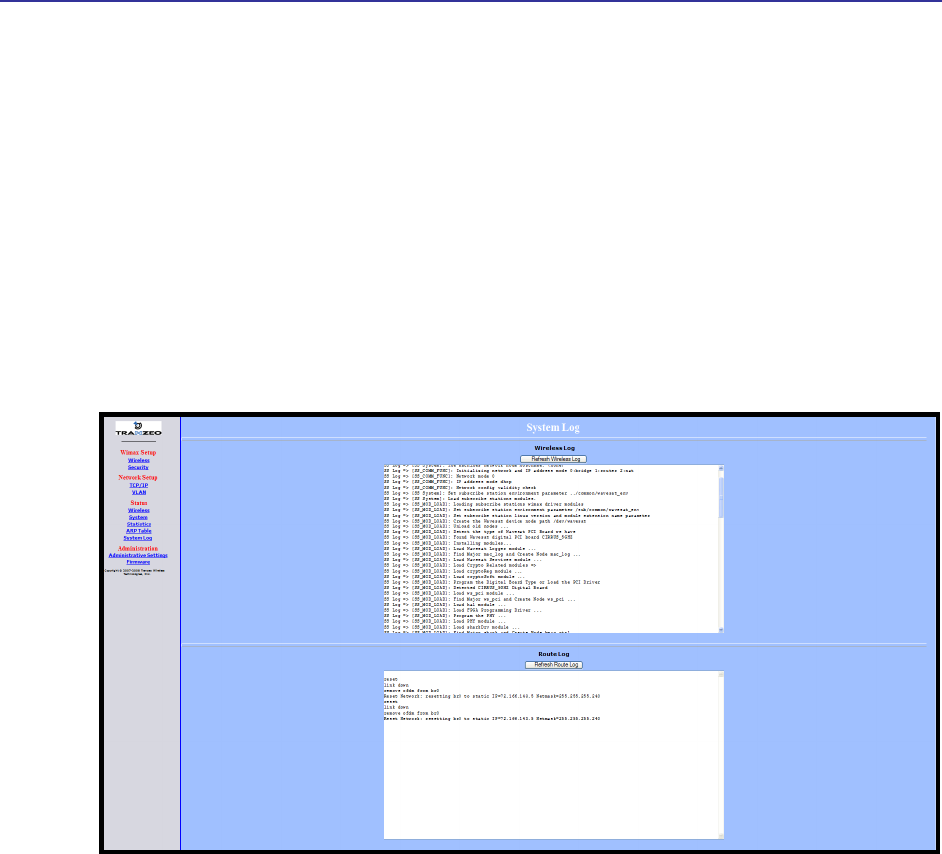

3.6 SYSTEM LOG................................................................................................................................................37

4 CONFIGURING ADMINISTRATIVE SETTINGS .....................................................................................39

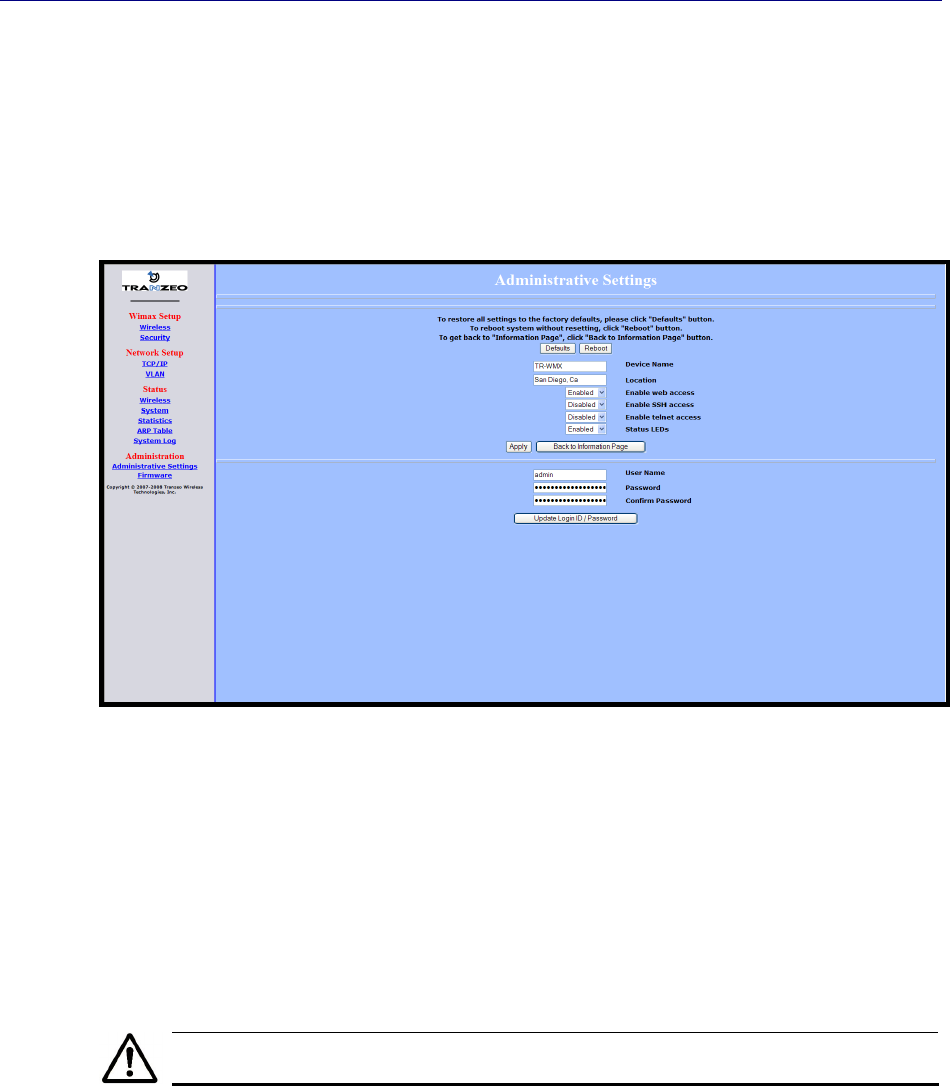

4.1 DISPLAYING THE ADMINISTRATIVE SETTINGS PAGE ......................................................................................40

4.2 RETURNING TO FACTORY DEFAULT SETTINGS...............................................................................................40

4.3 REBOOTING THE TR-WMX-5.8 UNIT............................................................................................................41

4.4 CHANGING DEVICE CONFIGURATION SETTINGS.............................................................................................41

Table of Contents

TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

viii

4.4.1 Changing the Device Name and Location..............................................................................................41

4.4.2 Enabling or Disabling Web, SSH, and Telnet Access .............................................................................42

4.4.3 Enabling or Disabling the Status LEDs .................................................................................................42

4.4.4 Changing Log In Settings......................................................................................................................43

A FACTORY DEFAULT CONFIGURATION SETTINGS.........................................................................45

A.1 DEFAULT WIRELESS SETTINGS.....................................................................................................................45

A.2 DEFAULT SECURITY SETTINGS .....................................................................................................................46

A.3 DEFAULT TCP/IP SETTINGS.........................................................................................................................46

A.4 DEFAULT VLAN SETTINGS..........................................................................................................................46

A.5 DEFAULT ADMINISTRATIVE SETTINGS..........................................................................................................46

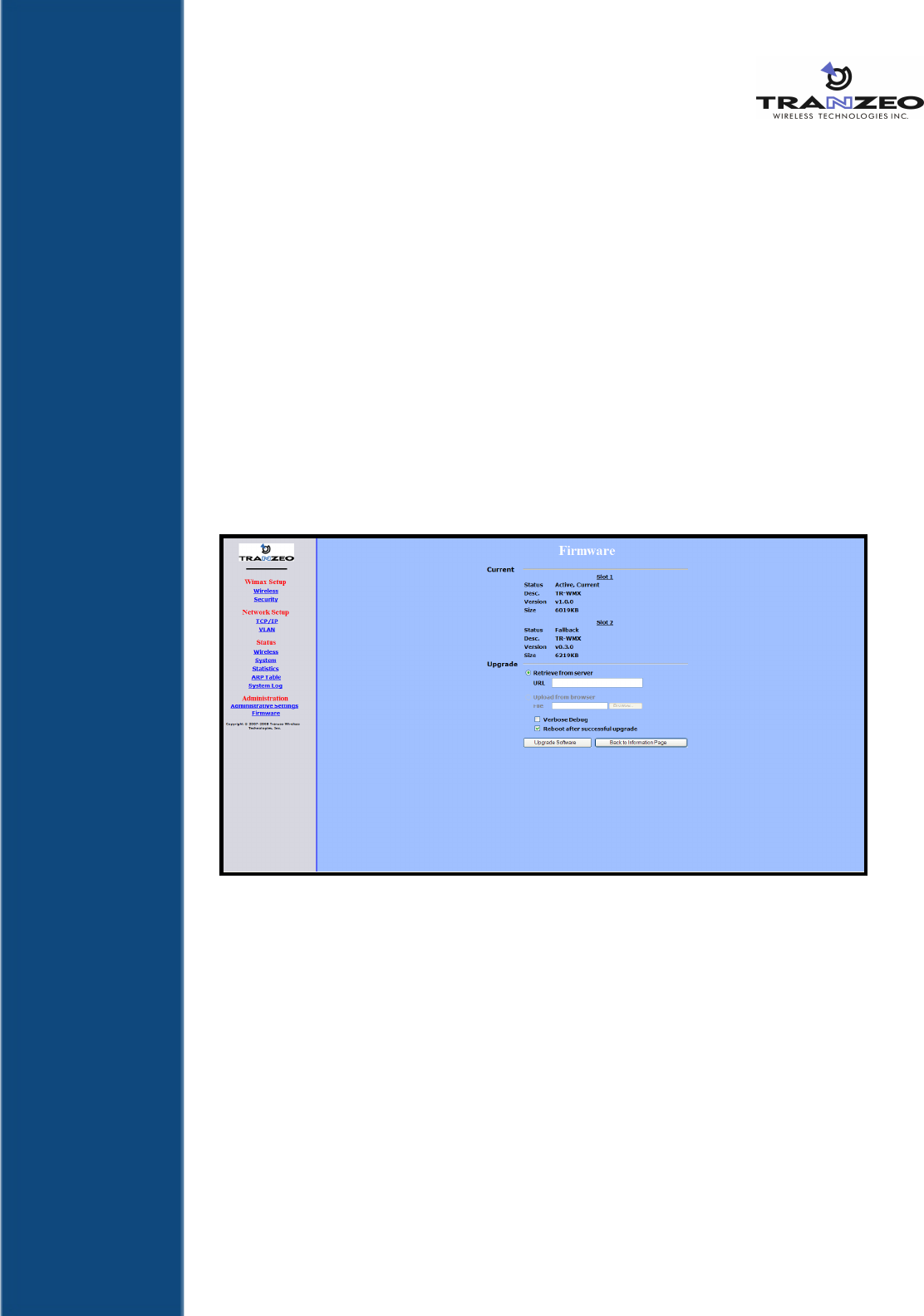

B UPGRADING FIRMWARE ........................................................................................................................47

C TECHNICAL SUPPORT.............................................................................................................................49

C.1 WEB PORTAL ..............................................................................................................................................49

C.2 TELEPHONE SUPPORT ..................................................................................................................................49

C.3 LIVE CHAT ..................................................................................................................................................49

C.4 EMAIL .........................................................................................................................................................50

C.5 FAX ............................................................................................................................................................50

GLOSSARY ........................................................................................................................................................51

COMPLIANCE INFORMATION .....................................................................................................................53

5 GHZ ANTENNAS .............................................................................................................................................53

PROFESSIONAL INSTALLATION REQUIRED ...........................................................................................................53

GEOGRAPHICAL RESTRICTIONS ..........................................................................................................................53

DECLARATION OF CONFORMITY .........................................................................................................................54

INDEX.................................................................................................................................................................55

Table of Contents

TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

List of Figures

FIGURE 1-1. EXAMPLE OF A TR-WMX-5.8 CONFIGURATION ...........................................................................................2

FIGURE 1-2. ATTACHING THE BOOT COVER TO THE TR-WMX-5.8..................................................................................4

FIGURE 1-3. SAMPLE TR-WMX-5.8 INSTALLATION........................................................................................................5

FIGURE 1-4. LOGIN PAGE...........................................................................................................................................8

FIGURE 1-5. EXAMPLE OF AN INFORMATION PAGE ..........................................................................................................8

FIGURE 1-6. WIRELESS SETTINGS PAGE........................................................................................................................9

FIGURE 1-7. TCP IP SETTINGS .................................................................................................................................12

FIGURE 1-8. STATUS LINKS ON THE CONFIGURATOR.....................................................................................................13

FIGURE 2-1. AREAS ON THE CONFIGURATOR PAGE.......................................................................................................17

FIGURE 2-2. WIRELESS SETTINGS PAGE......................................................................................................................18

FIGURE 2-3. SECURITY SETTINGS PAGE ......................................................................................................................21

FIGURE 2-4. TCP/IP SETTINGS PAGE........................................................................................................................23

FIGURE 2-5. VLAN SETTINGS PAGE ..........................................................................................................................24

FIGURE 3-1. INFORMATION PAGE...............................................................................................................................28

FIGURE 3-2. WIRELESS INFORMATION PAGE ................................................................................................................30

FIGURE 3-3. SYSTEM INFORMATION PAGE ...................................................................................................................32

FIGURE 3-4. STATISTICS INFORMATION PAGE ..............................................................................................................34

FIGURE 3-5. ARP INFORMATION PAGE .......................................................................................................................36

FIGURE 3-6. SYSTEM LOG PAGE ................................................................................................................................37

FIGURE 4-1. ADMINISTRATIVE SETTINGS PAGE.............................................................................................................40

Table of Contents

TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

List of Tables

TABLE 1-1. PIN ASSIGNMENTS FOR THE TR-WMX-5.8 10/100 ETHERNET PORT ....................................................... 6

TABLE 1-2. WIRELESS SETTINGS ............................................................................................................................10

TABLE 1-3. TCP/IP SETTINGS ................................................................................................................................12

TABLE 1-4. TR-WMX-5.8 LEDS............................................................................................................................14

TABLE 2-1. FIELDS AND BUTTONS IN THE WIRELESS SETTINGS PAGE ......................................................................19

TABLE 2-2. FIELDS AND BUTTONS IN THE SECURITY SETTINGS PAGE.......................................................................21

TABLE 2-3. FIELDS AND BUTTONS IN THE TCP/IP SETTINGS PAGE...........................................................................23

TABLE 2-4. FIELDS AND BUTTONS IN THE VLAN SETTINGS PAGE ...........................................................................25

TABLE 3-1. INFORMATION PAGE.............................................................................................................................29

TABLE 3-2. WIRELESS INFORMATION PAGE ............................................................................................................31

TABLE 3-3. SYSTEM INFORMATION PAGE ...............................................................................................................33

TABLE 3-4. STATISTICS INFORMATION PAGE...........................................................................................................35

TABLE C-1. TELEPHONE SUPPORT HOURS AND NUMBERS .......................................................................................49

TABLE C-2. LIVE CHAT SUPPORT HOURS................................................................................................................49

1 Basic Installation

This chapter provides instructions for getting your TR-WMX-5.8 up and running as quickly

as possible.

The topics covered in this chapter are:

 Section 1.1, Sample Configuration (page 2)

 Section 1.2, Unpacking (page 3)

 Section 1.3, User-Supplied Items (page 3)

 Section 1.4, Installing the TR-WMX-5.8 (page 4)

 Section 1.6, Monitoring TR-WMX-5.8 Status (page 13)

Chapter 1, Basic Installation

2 TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

1.1 Sample Configuration

Figure 1-1 shows a configuration example where the TR-WMX-5.8 is connected to the

uplink (WAN) interface on an Ethernet router, hub, or switch. In this configuration, the

TR-WMX-5.8 communicates wirelessly with a base station using its WiMAX interface,

while communicating at 10/100 Mbps with the attached Ethernet device. The TR-WMX-

5.8 also receives its power from the Ethernet connection, eliminating the need to run a

power cable to the TR-WMX-5.8. In this way, the Ethernet device serves as the bridge

between the attached computers and the TR-WMX-5.8.

Figure 1-1. Example of a TR-WMX-5.8 Configuration

Unpacking

TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

1.2 Unpacking

After receiving your TR-WMX-5.8, perform the following steps to ensure that your

contents arrived safely.

 Inspect the outer shipping container for damage during shipping. Report any sign of

damage to the appropriate shipping carrier.

 Remove the contents from the shipping container.

One TR-WMX-5.8 WiMAX Subscriber Unit

One Power over Ethernet (POE) adapter

An 18 VAC, 24 VAC, or other adapters

One L bracket, boot cover with gasket, and U bolt kit (outdoor unit only)

Inspect your contents thoroughly and compare them to the checked items on the inside

of the shipping carton. If any item is missing or damaged, contact the shipping carrier.

1.3 User-Supplied Items

To complete your installation, please provide the following items:

 One 3/8 wrench

 One 3/4 wrench

 One RJ-45 crimper

 A Category 5 Ethernet LAN cable (straight-through or crossover) that is sufficiently long

to bring the signal from the device to the POE adapter

 Two RJ-45 jacks

 One #6 grounding wire

 A personal computer (PC) with a Web browser

 An IEEE 802.16-2004-compliant WiMAX base station

Chapter 1, Basic Installation

4 TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

1.4 Installing the TR-WMX-5.8

The TR-WMX-5.8 can be mounted either horizontally or vertically. Before you install the

unit, determine whether the TR-WMX-5.8 will be mounted horizontally or vertically.

The TR-WMX-5.8 must be installed by a trained professional, value added

reseller, or systems integrator who is familiar with RF cell planning issues and

the regulatory limits defined by the FCC for RF exposure, specifically those

limits outlined in sections 1.1307.

The following procedure describes how to install the TR-WMX-5.8 Outdoor Subscriber

Unit.

1. Mount the TR-WMX-5.8 at the desired location.

2. Attach the boot cover, L bracket, and U bolt to the TR-WMX-5.8, as shown in Figure

1-2.

Figure 1-2. Attaching the Boot Cover to the TR-WMX-5.8

3. To power the TR-WMX-5.8:

– Connect one end of a Category 5 Ethernet LAN cable to the TR-WMX-5.8 Ethernet

port.

– Connect the other end of the cable to the port labeled CPE on the supplied PoE

adapter.

– Connect the supplied AC adapter to the PoE adapter.

– Plug the AC adapter into an electrical outlet. The TR-WMX-5.8 performs its self-

test for about 30 seconds. Then the TR-WMX-5.8 LEDs show the status of the unit

(see section 1.6.2).

Do not connect a device other than the TR-WMX-5.8 to the CPE port. Network

equipment that does not support PoE can be damaged permanently by

Installing the TR-WMX-5.8

TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

connecting to a PoE source. Most Ethernet interfaces on PCs, laptop/notebook

computers, and other network equipment (such as Ethernet switches and

routers) do not support PoE.

4. If your unit has an external antenna, turn off power to the TR-WMX-5.8, then attach

the antenna to the TR-WMX-5.8 antenna connector. Mount the antenna in a location

that provides the best communication with the base station.

Be sure to turn off power to the TR-WMX-5.8 before mounting the antenna.

5. Use the Ground terminal on the TR-WMX-5.8 to ground the unit (for best practices,

see section 1.4.1).

When used in Norway, Finland, or Sweden, this equipment must be installed

in a Restricted Access Location.

This equipment is intended for installation by trained / competent service

personnel only.

Figure 1-3 show an example of the TR-WMX-5.8 installed.

Figure 1-3. Sample TR-WMX-5.8 Installation

Chapter 1, Basic Installation

6 TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

1.4.1 Installation Best Practices

Observe the following best practices when installing the TR-WMX-5.8.

 The TR-WMX-5.8 10/100 Ethernet port auto-senses the cable connected to it and adjusts

automatically. The Ethernet connector is protected with a weatherproof housing. Pin

assignments for this connector are shown in Table 1-1.

 Always try to run the Category 5 cable and LMR inside the mounting pole whenever

possible. This helps to insulate the cable form any air surges.

 Keep all runs as straight as possible. Never put a full loop into the cables.

 The TR-WMX-5.8 antenna’s grounding system must be installed according to Article 810-

15, 810-20, and 810-21 of the National Electric Code, ANSI/NFPA No. 70-1993 or

applicable National or Local Wiring Codes / Rules. Test all grounds to ensure that they are

using a proper Ground. If you use an electrical socket for Ground, use a socket tester,

such as Radio Shack 22-1412. We recommend you obtain a copy of the National Electric

Code Guide and follow its guidelines. If you are in doubt or have questions about the

antenna grounding system, contact a local licensed electrician. Alternatively, you can

drive your own rod and bond it to the house Ground; this way, you will know that at

least one rod is correctly grounded in the system.

 Never attach a Grounding wire when the TR-WMX-5.8 is powered. If the Ground is to be

attached to an existing electrical circuit, turn off the circuit before attaching the wire.

 Never install radio equipment, such as the TR-WMX-5.8, during an electrical storm. In

addition, to protect your system against damage from lightning, design the system so it

does not attract lightning (it cannot repel lightning, either). National, state, and local

codes are designed to protect life, limb, and property and must always be obeyed. When

in doubt, consult local and national electrical codes or contact an electrician or

professional trained in the design of grounding systems.

Table 1-1. Pin Assignments for the TR-WMX-5.8 10/100 Ethernet Port

Pin Signal Standard Wire Color

1 Tx+ White/Orange

2 Tx- Orange

3 Rx+ White/Green

4 PoE V+ Blue

5 PoE V+ White/Blue

6 Rx- Green

7 Gnd White/Brown

8 Gnd Brown

Configuring the TR-WMX-5.8

TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

1.5 Configuring the TR-WMX-5.8

After installing the TR-WMX-5.8, use the procedures in the following sections to

configure it using its Configurator.

1.5.1 Logging in to the Configurator

Your TR-WMX-5.8 provides a Web-based Configurator for performing advanced

configuration activities. After you install your TR-WMX-5.8, use the following procedure

to launch the Configurator.

1. Use an Ethernet cable to connect the Ethernet port on the PoE to a network-

interface card (NIC) in a PC or network hub.

The TR-WMX-5.8 Ethernet port is equipped with an auto-sensing Ethernet port

that allows both regular and cross-over cables to be used.

2. Start your Web browser and point it to one of the following default IP addresses:

http://192.168.101.151 or http://192.168.0.1. The Login page in Figure

1-4 appears, with your cursor in the User name field.

The default IP address is the same for all TR-WMX units. Therefore, do not

simultaneously connect multiple unconfigured TR-WMX units to a common

Local Area Network (LAN) and try to access them using the default IP address.

To connect to the Configurator, your PC’s IP address must be on the same

subnet (192.168.101.xxx, where xxx is a number from 1 to 253) as the TR-

WMX-5.8, and the PC’s netmask must be set to 255.255.255.0.

Chapter 1, Basic Installation

8 TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

Figure 1-4. Login Page

3. Enter the default username admin and default case-sensitive password default in

the appropriate fields.

For security, every typed password character appears as a bullet (•). For

additional security, we recommend you change the default password (see

section 4.4.4).

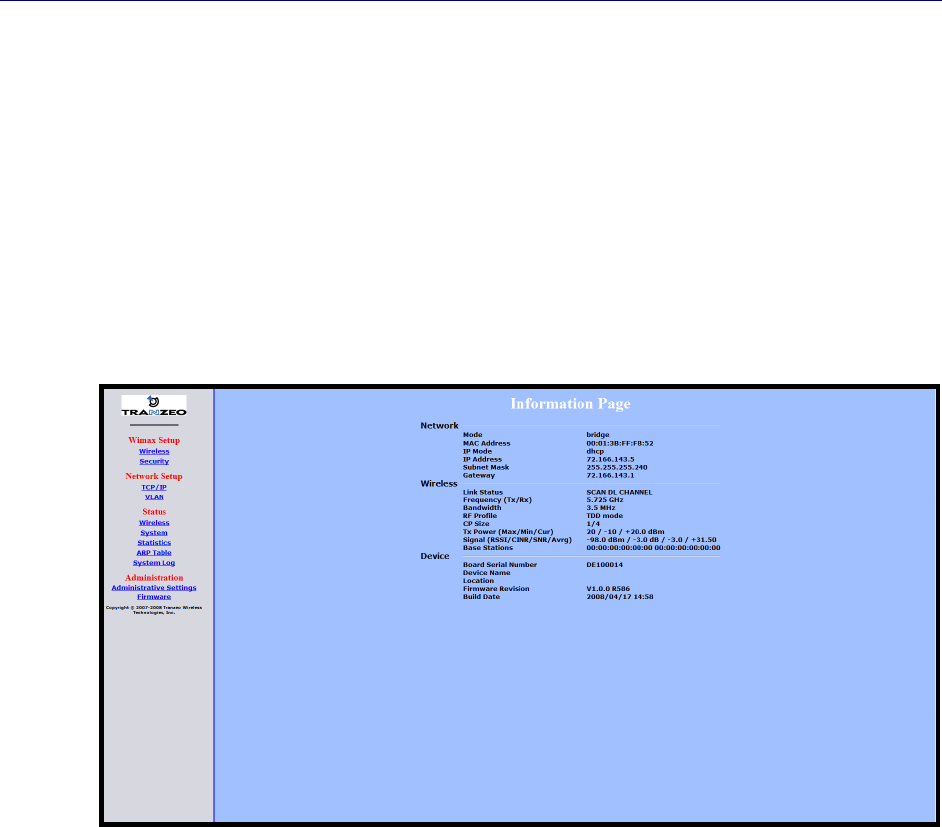

4. Click the OK button to log in. The Information Page appears (see Figure 1-5). This

read-only page displays network, wireless, and device information about your

installation. For more information about this page, see section 3.1.

Figure 1-5. Example of an Information Page

Configuring the TR-WMX-5.8

TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

1.5.2 Specifying Wireless Settings

After logging in to the Configurator, use the following procedure to set the TR-WMX-5.8

wireless settings.

The default configuration settings for most parameters should work well for

the majority of installations. Only those settings that should be confirmed or

adjusted as part of the quick-start instructions are described in this section.

1. In the left pane, under WiMAX Setup, click Wireless. The Wireless Settings page

appears (see Figure 1-6).

2. Set the three groups of parameters as indicated in Table 1-2 and Figure 1-6.

3. Click the Apply button. A page tells you that your configuration changes have been

saved, but will not be applied until you reboot the TR-WMX-5.8.

4. Do not reboot the TR-WMX-5.8 at this time. Instead, proceed to section 1.5.3 on

page 11.

Figure 1-6. Wireless Settings Page

∂

•

Chapter 1, Basic Installation

10 TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

Table 1-2. Wireless Settings

Parameter Choose This Setting

Group ∂ Parameters in Figure 1-6

Channel Bandwidth (MHz) Select 3.5MHz (default) 5MHz, 7MHz, or 10MHz whichever

best suits your application’s bandwidth needs and is allowed

by your license. The base station must be set to the same

bandwidth.

Secondary Management Connection Support Confirm that the default setting (Secondary Management

Support) is selected. If not, select it.

Initial Ranging Burst Inverting Confirm that the default setting (Software Auto) is selected. If

not, select it.

Adaptive Modulation (DBPC) Confirm that the default setting (Auto using CINR thresholds)

is selected. If not, select it.

Frequency (KHz) Sets the frequency, in kHz. Range is 5725000 – 5925000 in

increments of 500kHz. Default is 5725000 (5.72 GHz).

Initial Delay Correction Value Confirm that the default setting (0) is selected. If not, select it.

Max TX Power (dBm) This value should match the TR-WMX-5.8 antenna.

Examples:

• TR-WMX-5.8-14: specify a value that is 14db less than

the max EIRP setting. If the max EIRP setting is 30dBm,

for example, set Max Tx Power to 16dBm.

• TR-WMX-5.8-17: specify a value that is 17db less than

the max EIRP setting. If the max EIRP setting is 30dBm,

for example, set Max Tx Power to 13dBm.

• TR-WMX-5.8-20: specify a value that is 20db less than

the max EIRP setting. If the max EIRP setting is 30dBm,

for example, set Max Tx Power to 10dBm.

The Max Tx Power value cannot exceed 20dBm. Default

setting is 20.

Note: When setting the Max Tx Power value, do not exceed

the max EIRP allowed by your license. When adding the

values for Tx Antenna Gain and Max Tx Power, the sum of

these values must equal or be less than the max EIRP that

your license allows. The gain of the internal antenna is 17dB,

requiring the Max Tx Power to be set to (max EIRP – 17).

Min Tx Power (dBm) Confirm that the default setting (-10) is selected. If not, select

it.

Rx Antenna Gain (1/4dB step) Confirm that the default setting (0) is selected. If not, select it.

Tx Antenna Gain (1/4dB step) Confirm that the default setting (0) is selected. If not, select it.

Group • Parameters in Figure 1-6

MAC Message Strict Checking Confirm that the default setting (Disable) is selected. If not,

select it.

Pack Enable for Primary CID Confirm that the default setting (Enable) is selected. If not,

select it.

Fragment Enable for Primary CID Confirm that the default setting (Enable) is selected. If not,

select it.

Configuring the TR-WMX-5.8

TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

Parameter Choose This Setting

Tx Overrun Fix Confirm that the default setting (Disable) is selected. If not,

select it.

QoS Admitted Bit Confirm that the default setting (Disable) is selected. If not,

select it.

QoS Tx Policy Checking Confirm that the default setting (Disable) is selected. If not,

select it.

Enable 0 Symbol HDD Patch Confirm that the default setting (Disable) is selected. If not,

select it.

Group ÷ Parameters in Figure 1-6

BSID and Mask Use the standard format for MAC addresses (six 2-digit

hexadecimal numbers separated by colons) to enter the base

station ID. Example: “12:34:56:78:9a:bc”. You can enter up to

8 base station addresses, separating each by pressing the

Enter key. To match all BSIDs, mask out the lower 3 bytes.

"00:00:00:00:00:00 00:00:00:00:00:00" .

1.5.3 Specifying Network Setup Settings

After specifying wireless settings, use the following procedure to specify the network

setup settings.

1. In the left pane, under Network Setup, click TCP/IP. The TCP/IP Settings page

appears (see Figure 1-7).

2. If the TR-WMX-5.8 is set to unmanaged mode (No Secondary Management), set the

parameters in Table 1-3 (these parameters are highlighted in orange in Figure 1-7).

Otherwise, skip to step 3 below.

By default, the TR-WMX-5.8 is set to use secondary managed mode. In this

mode, the settings in Table 1-3 are set automatically and the fields are

unavailable. If you switch to unmanaged mode (No Secondary Management),

you can specify the settings in Table 1-3 manually. To change between the

two modes, use Secondary Management Connection Support on the Wireless

Settings page (see section 2.2.1).

Chapter 1, Basic Installation

12 TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

Figure 1-7. TCP IP Settings

Table 1-3. TCP/IP Settings

Parameter Choose This Setting

Wireless Management IP Address Secondary managed mode: This value is set automatically and the field is

unavailable.

Unmanaged mode: Set this parameter to an unused value in the subnet to which

the base station is connected.

Wireless Management Net Mask Secondary managed mode: This value is set automatically and the field is

unavailable.

Unmanaged mode: Set this value to match that of the subnet to which the base

station is connected.

Management Route Gateway Secondary managed mode: This value is set automatically and the field is

unavailable.

Unmanaged mode: Set this value to be the router on the subnet to which the base

station is connected.

3. Click the Apply button. When the next page appears, click the Reboot button to

reboot the TR-WMX-5.8 and put your saved settings into effect.

Rebooting disconnects the TR-WMX-5.8 and any connections currently running.

It may take 60 seconds before the TR-WMX-5.8 s running and accessible again.

The Status LED flashes while the unit reboots and goes ON when the unit

completes the reboot process.

Congratulations! You have now completed the installation procedures for your TR-WMX-

5.8 node. Your TR-WMX-5.8 unit is now ready for use.

By default, security is disabled on the TR-WMX-5.8. To enable security, see

section 2.2.2.

Monitoring TR-WMX-5.8 Status

TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

1.6 Monitoring TR-WMX-5.8 Status

There are two ways to monitor the status of your TR-WMX-5.8:

 Viewing status pages through the TR-WMX-5.8 Configurator

 Watching the status LEDS on the rear panel of the TR-WMX-5.8

1.6.1 Viewing Status Information

You can view TR-WMX-5.8 status information by clicking the links under Status in the

left pane of the Configurator. To display the system information, for example, click

System. For more information, see Chapter 3.

The values shown in the status pages are not updated dynamically. To refresh

the values shown, reload the Web page.

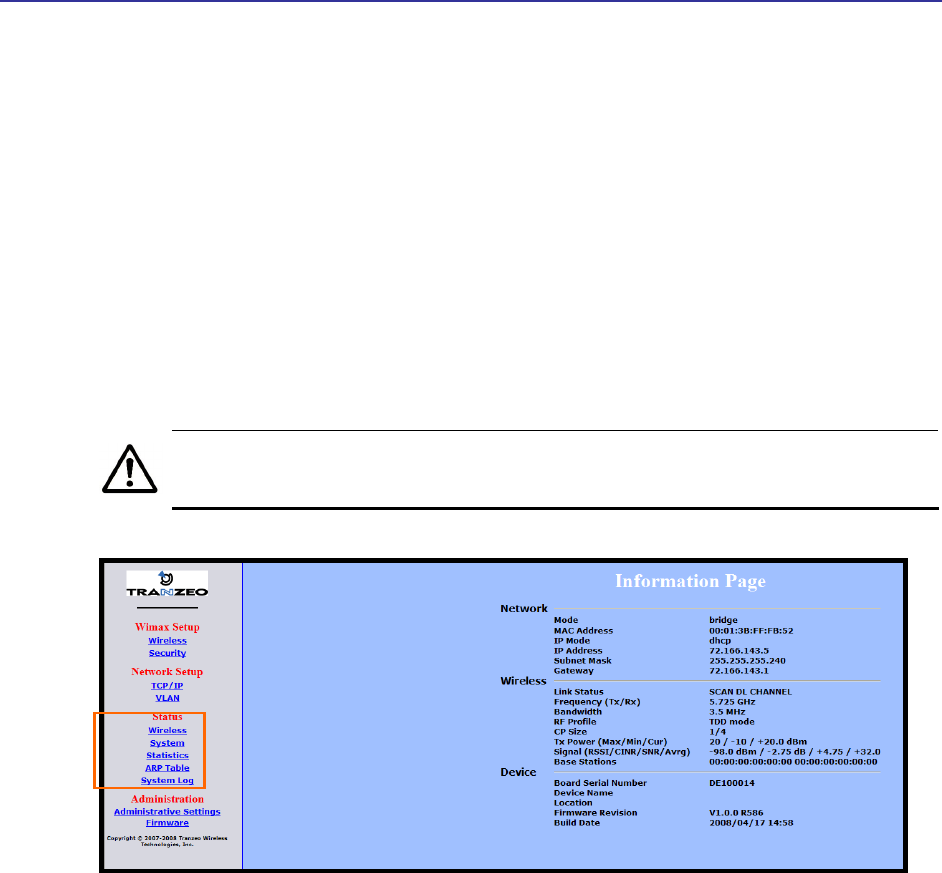

Figure 1-8. Status Links on the Configurator

Status Links

Chapter 1, Basic Installation

14 TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

1.6.2 Status LEDS

The rear of the TR-WMX-5.8 has 9 LEDs that show the unit’s status. Table 1-4 describes

the functions of the LEDs.

The TR-WMX-5.8 status LEDs can be disabled from the Administrative Settings

page (see section 4.4.3).

Table 1-4. TR-WMX-5.8 LEDs

LED Description

Radio ON = connection with a base station has been established.

OFF = connection with a base station has not been established.

LAN ON = a connection to the Ethernet port has been established.

Flash = connection is in use.

OFF = a connection to the Ethernet port has not been established.

Status ON = TR-WMX-5.8 is fully operational.

Blink = TR-WMX-5.8 is booting or shutting down.

Signal Indicates the received signal strength from a base station.

1 LED blinking = there is no link between the TR-WMX-5.8 and the base station.

1 LED ON = RSSI ≤ -96dBm

2 LEDs ON = -95dBm ≤ RSSI -86 dBm

3 LEDs ON = -85dBm ≤ RSSI ≤ -76 dBm

4 LEDs ON = -75dBm ≤ RSSI ≤ -61 dBm

5 LEDs ON = RSSI ≥ -60 dBm

Power ON = TR-WMX-5.8 is receiving power.

OFF = TR-WMX-5.8 is not receiving power.

2 Advanced Configuration

This chapter describes how to perform advanced configuration activities using the TR-

WMX-5.8 Configurator.

This chapter is for expert users who understand networking concepts and

terminology. You do not need to perform these activities to use your TR-

WMX-5.8, nor should you undertake these procedures if you are a novice

user. Performing the instructions in Chapter 1 is all that is required to start

using your TR-WMX-5.8.

The topics covered in this chapter are:

 Section 2.1, Understanding the Pages in the Configurator (page 16)

 Section 2.2, Entering WiMAX Setup Settings (page 18)

 Section 2.3, Entering Network Setup Settings (page 22)

Chapter 2, Advanced Configuration

16 TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

2.1 Understanding the Pages in the Configurator

The TR-WMX-5.8 Configurator is a Web-based utility that provides an intuitive user

interface for viewing and changing configuration and status settings.

The page header at the top of the page shows the name of the page. The navigation

panel on the left side provides links you can click to display the pages in the

Configurator. The links are organized into the following categories:

 WiMAX Setup - lets you access the pages for viewing and configuring the TR-WMX-5.8

wireless and security settings. See section 2.2.

 Network Setup – lets you access the pages for viewing and configuring the TR-WMX-5.8

TCP/IP and VLAN settings. See section 2.3.

 Administration – lets you view and configure administrative settings (see section 4) and

upgrade the TR-WMX-5.8 firmware (see Appendix B).

Pages with user-configurable settings have an Apply button at the bottom of the page.

The same pages, and the Firmware page, have a Back to Information Page button.

 After you change configuration settings on a page, click Apply before going to another

page; otherwise, your changes will be discarded. Clicking Apply saves in memory all

changes made on the currently displayed page. When you click this button, another page

appears with a Reboot button. You can either click the Reboot button to reboot the TR-

WMX-5.8 and have the new configuration settings take effect, or change settings on

other pages and reboot after all of your configuration changes are complete.

Rebooting disconnects the TR-WMX-5.8 and any connections currently running.

It may take up to 60 seconds before the TR-WMX-5.8 is running and accessible

again. When you reboot the TR-WMX-5.8, the Status LED flashes while the

unit reboots and goes ON when the unit completes the reboot process.

Another way to reboot the unit is by using the Reboot button on the

Administration Settings page (see section 4.3).

 The Back to Information Page lets you redisplay the Information Page. This page lets

you view the TR-WMX-5.8’s current network, wireless, and device settings (see section

3.1). This page is the first page that appears when you log in to the Configurator.

The main panel is the viewing area on the page. When you select a link in the navigation

panel, the fields of the page are displayed in the main panel. This is where you view

and change the TR-WMX-5.8 configuration settings.

Understanding the Pages in the Configurator

TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

The remaining sections describe the Configurator pages you can use to view and change

the TR-WMX-5.8 configuration and status. These sections assume you used the

procedure in section 1.5.1 to log in to the Configurator.

Figure 2-1. Areas on the Configurator Page

Navigation

Panel

Main Area

Page Header

Chapter 2, Advanced Configuration

18 TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

2.2 Entering WiMAX Setup Settings

The Configurator provides two menu selections for entering WiMAX setup settings:

 Wireless lets you set wireless settings for the TR-WMX-5.8. See section 2.2.1.

 Security lets you set security settings for the TR-WMX-5.8. See section 2.2.2.

If you change any of the settings on these pages, click the Apply button at the bottom

of the page to reboot the TR-WMX-5.8 and have your settings take effect.

2.2.1 Entering Wireless Settings

Clicking the Wireless link under WiMAX Setup in the left pane of the Configurator

displays the Wireless Settings page. Use this page to select the wireless settings for the

TR-WMX-5.8. Figure 2-2 shows this page, and Table 2-1 describes the fields and buttons

on it.

Figure 2-2. Wireless Settings Page

Entering WiMAX Setup Settings

TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

Table 2-1. Fields and Buttons in the Wireless Settings Page

Field Description

Channel Bandwidth (MHz) Select the value that best suits your application’s bandwidth needs and is allowed by

your license. Choices are:

• 3.5 MHz (default)

• 5 MHz

• 7 MHz

• 10 MHz

Secondary Management Connection

Support

Determines whether the TR-WMX-5.8 is configured for Static or DHCP Client mode.

Choices are:

• No Secondary Management Support – unmanaged mode. This setting requires

you to set the TR-WMX-5.8 IP addresses manually. This setting makes the

Management Net Mask, and Management Route Gateway fields available on

the TCP/IP Settings page.

• Secondary Management (Default) – Secondary managed mode. Select this

setting if the TR-WMX-5.8 IP addresses will be set automatically by a DHCP

server. This setting makes Management Net Mask, and Management Route

Gateway fields on the TCP/IP Settings page unavailable. (default)

Initial Ranging Burst Inverting This feature is provided for Engineering development use, and is an undocumented

feature. Please do not change from the default selection of Software Auto.

Adaptive Modulation (DBPC) Matches the downlink modulation used to the link conditions. Adaptive modulation,

operates in conjunction with the downlink burst power control (DBPC) which adjusts

the CPE transmit power to that requested by the base station. Fixed modulations

can be selected or adaptive algorithms based on CINR or based on error rates can

be used to determine when the downlink modulation is adjusted. Choices are::

• Disable DBPC

• Auto using CINR thresholds (default)

• Auto using BER thresholds

• Fixed to BPSK–1/2

• Fixed to QPSK–1/2

• Fixed to QPSK–3/4

• Fixed to QAM16–1/2

• Fixed to QAM16–3/4

• Fixed to QAM64–2/3

• Fixed to QAM64–3/4

Frequency (KHz) Sets the frequency, in kHz. Range is 5725000 – 5925000 in increments of 500kHz.

Default is 5725000 (5.72 GHz).

Initial Delay Correction Value 0 (default)

Max TX Power (dBm) The maximum transmit power at which the unit can operate, specified in dBm. This

value added to the Tx Antenna Gain cannot exceed the EIRP that the operator

license allows. Range is -10 to 20dBm. Default is 20dBm.

Min Tx Power (dBm) The minimum transmit power at which the unit can operate, specified in dBm. Range

is -10 to 20dBm. Default is -10dBm.

Chapter 2, Advanced Configuration

20 TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

Field Description

Rx Antenna Gain (1/4dB step) The gain of the Rx antenna, in dB. The gain of the internal antenna is 17dB. Default

is 0dB.

Tx Antenna Gain (1/4dB step) The gain of the Rx antenna, in dB. The gain of the internal antenna is 17dB. Default

is 0dB.

MRTR for SMC in bps Sets the minimum reserved traffic rate for the secondary management channel.

Default is 100000.

Lost DL/UL MAP Interval Sets the time in seconds that the CPE will maintain the link to the BS using the last

DL or UL MAP received. Default is 700.

QoS Max Downlink SF Sets the maximum number of downlink service flows the CPE will support. Default is

8.The maximum possible SF for downlink and uplink service flows, combined is 60.

QoS Max Uplink SF Sets the maximum number of uplink service flows the CPE will support. Default is

8.The maximum possible SF for downlink and uplink service flows, combined is 60.

AFS channel bandwidth (in MHz) scan

order

This feature is provided for Engineering development use, and is an undocumented

feature. Please do not change from the default selection.

For Least Robust DIUC as LSB/MSB and

DCD CCC as MSB/LSB

This feature is provided for Engineering development use, and is an undocumented

feature. Please do not change from the default selection.

MAC Message Strict Checking This feature is provided for Engineering development use, and is an undocumented

feature. Please do not change from the default selection.

Pack Enable for Primary CID This feature is provided for Engineering development use, and is an undocumented

feature. Please do not change from the default selection.

Fragment Enable for Primary CID This feature is provided for Engineering development use, and is an undocumented

feature. Please do not change from the default selection.

Tx Overrun Fix This feature is provided for Engineering development use, and is an undocumented

feature. Please do not change from the default selection.

QoS Admitted Bit This feature is provided for Engineering development use, and is an undocumented

feature. Please do not change from the default selection.

QoS Tx Policy Checking This feature is provided for Engineering development use, and is an undocumented

feature. Please do not change from the default selection.

Enable 0 Symbol HDD Patch This feature is provided for Engineering development use, and is an undocumented

feature. Please do not change from the default selection.

AFS Mode This feature is provided for Engineering development use, and is an undocumented

feature. Please do not change from the default selection.

BSID and Mask Use the standard format for MAC addresses (six 2-digit hexadecimal numbers

separated by colons) to enter the base station ID. Example: “12:34:56:78:9a:bc”.

You can enter up to 8 base station addresses, separating each by pressing the

Enter key. To match all BSIDs, mask out the lower 3 bytes. "00:00:00:00:00:00

00:00:00:00:00:00" .

Entering WiMAX Setup Settings

TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

2.2.2 Setting Security Settings

Clicking the Security link under WiMAX Setup in the left pane of the Configurator

displays the Security Settings page. Use this page to select the security settings for the

TR-WMX-5.8. The first selection on this page lets you select the encryption method to

be used. Depending on your selection, the remaining fields on the page are either

enabled or disabled. Figure 2-3 shows this page, and Table 2-2 describes the fields and

buttons on it.

Figure 2-3. Security Settings Page

Table 2-2. Fields and Buttons in the Security Settings Page

Field Description

Disable Disables the TR-WMX-5.8 security settings on this page. This is the default setting.

Shark Data Enable This feature is provided for Engineering development use, and is an undocumented

feature. Please do not change from the default selection.

Xscale/Venus Data Enable This feature is provided for Engineering development use, and is an undocumented

feature. Please do not change from the default selection.

PKM Mode Enable the privacy key management (PKM) protocol used to distribute and maintain

private keys for traffic encryption. Choices are:

• Testing – select this setting if the TR-WMX-5.8 will be used for testing/evaluation

purposes. (default)

• Operational – select this setting if the TR-WMX-5.8 will be used for network

operations.

SS's RSA-1024 Private Key Specify the path where the RAS 1024 private key is located.

SS's Certificate Specify the path where the subscriber station’s certificate is located.

Manufacturer's Certificate Specify the path where the manufacturer’s certificate is located.

Chapter 2, Advanced Configuration

22 TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

2.3 Entering Network Setup Settings

The Configurator provides two menu selections for entering network setup settings:

 TCP/IP lets you set the MAC address and IP mode for the TR-WMX-5.8. See section 2.3.1.

 VLAN lets you set the virtual LAN (VLAN) settings for the TR-WMX-5.8. See section 2.3.2.

If you change any of the settings on these pages, click the Apply button at the bottom

of the page to reboot the TR-WMX-5.8 and have your settings take effect.

2.3.1 Entering TCP/IP Settings

Clicking the TCP/IP link under Network Setup in the left pane of the Configurator

displays the TCP/IP Settings page. Use this page to select the wireless settings for the

TR-WMX-5.8. Figure 2-4 shows this page, and Table 2-3 describes the fields and buttons

on it.

By default, the TR-WMX-5.8 is set to secondary managed mode. In this mode,

the IP Mode settings in Table 2-3 are set automatically and the fields are

unavailable. If you switch to unmanaged mode (No Secondary Management),

you can specify these settings manually. To change between the two modes,

use Secondary Management Connection Support on the Wireless Settings

page (see section 2.2.1).

If you change the unit’s MAC address from those assigned when the unit was

shipped and noted on the Subscriber Unit label, please ensure that the MAC of

the Wireless MAC address is a lower number than the Wired MAC address.

Entering Network Setup Settings

TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

Figure 2-4. TCP/IP Settings Page

Table 2-3. Fields and Buttons in the TCP/IP Settings Page

Field Description

MAC Address

Wired MAC Address The TR-WMX-5.8’s wired MAC address.

Wireless MAC Address The TR-WMX-5.8’s wireless MAC address.

IP Mode

Static The TR-WMX-5.8 IP address will be set manually and remain static.

DHCP Client The TR-WMX-5.8 IP address will be set automatically using DHCP.

Wireless Management IP Address The wireless management IP address of the TR-WMX-5.8.

• Secondary managed mode: This value is set automatically and the field is

unavailable.

• Unmanaged mode: Set this value to an unused IP address in the subnet to

which the base station is connected.

Wireless Management Net Mask The wireless management netmask of the TR-WMX-5.8.

• Secondary managed mode: This value is set automatically and the field is

unavailable.

• Unmanaged mode: Set this value to match that of the subnet to which the

base station is connected.

Management Route Gateway The wireless management gateway of the TR-WMX-5.8.

• Secondary managed mode: This value is set automatically and the field is

unavailable.

• Unmanaged mode: Set this value to be the router on the subnet to which the

base station is connected.

Chapter 2, Advanced Configuration

24 TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

2.3.2 VLAN Settings

A VLAN is an administrative grouping of network devices that is logically segmented, by

functions, project teams, or applications rather than a physical or geographical basis.

VLANs provide the segmentation services traditionally provided by routers in LAN

configurations. For example, all workstations and servers used by a particular workgroup

team can be connected to the same VLAN, regardless of their physical connections to

the network. In this way, you can use VLANs to reconfigure the network through

software rather than physically unplugging and moving devices or wires.

Clicking the VLAN link under Network Setup in the left pane of the Configurator

displays the VLAN Settings page. Use this page to select the security settings for the TR-

WMX-5.8. Figure 2-5 shows this page, and Table 2-4 describes the fields and buttons on

it.

The VLAN Settings page is divided into four areas:

 The top area lets you enable and configure the management VLAN.

 The middle area lets you define rules for the management VLAN.

 Buttons below the rules area let you add, edit, delete, and update a management VLAN.

 The bottom of the page shows the VLAN rules that have been defined.

Figure 2-5. VLAN Settings Page

Entering Network Setup Settings

TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

Table 2-4. Fields and Buttons in the VLAN Settings Page

Field Description

VLAN Mode Lets you enable or disable VLAN mode. Choices are:

• Enable – enables VLAN mode, enabling the settings on this page.

• Disable – disables VLAN mode, disabling the settings on this page. (default)

VLAN Tag Tagging refers to the IEEE 802.1Q header that is inserted into the standard Ethernet header.

Choices are:

• Allow – a Tag Header is added to the frame after the destination and source MAC

addresses. This information is preserved as the frame moves through the network..

(default)

• Drop – a Tag Header is not added to the frame.

Nested VLANs Nested VLANs (also known as VLAN double tagging) are used to overlay a private Layer 2

network over a public Layer 2 network. This provides simple access to an infrastructure of

network service providers in networks. With a nested VLAN configuration, each customer is

given a customer-ID, which is a unique identifier within the service provider infrastructure.

Traffic from individual customers is tagged with the customer-ID and segregated from other

customer’s traffic.

• Disable – disables nested VLANs. (default)

• Enable – enables nested VLANs.

Management VLAN ID The numeric identifier for the management VLAN. Default is 0.

Valid VLAN ID Range To specify a range of VLAN IDs, enter the first and last numbers, separated by a dash (for

example, 100-200). Default is 0.

VLAN Default The default ID and priority of the VLAN. Defaults are 0 for ID and Priority.

Set Specific VLAN Rules

VLAN Rule ID You can create a VLAN identification matching rule that is based on a single VLAN ID or

priority, a range of IDs or priorities, or any ID or priority.

Priority Specify a single VLAN priority, a range of VLAN priorities, or a VLAN priority for any traffic

flow.

• To specify a single VLAN priority, enter a number between 0 and 7 (0 has the highest

priority and 7 has the lowest priority).

• To specify a range of VLAN priorities, enter the first and last numbers, separated by a

dash (for example, 1-3).

• To match any traffic flow that has a VLAN priority tag, type the word any.

Active Select whether the rule is enabled or disabled. Choices are:

• Disable – rule is not in effect.

• Enable – rule is in effect.

VLAN ID Enter the VLAN ID of the rule you want to edit or delete.

Source MAC Range The range of source MAC addresses to which the rule applies and corresponding mask.

Destination MAC Range The range of destination MAC addresses to which the rule applies and corresponding mask.

Chapter 2, Advanced Configuration

26 TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

Set Specific VLAN Rules (continued)

Field Description

Source IP Range The range of source IP addresses to which the rule applies and corresponding mask.

Destination IP Range The range of destination IP addresses to which the rule applies and corresponding mask.

Source Port Range The range of source ports to which the rule applies and corresponding mask.

Destination Port Range The range of destination ports to which the rule applies and corresponding mask.

Button Description

New Click this button to set up a new rule for the management VLAN. After clicking this button,

complete the Set Specific VLAN Rules section on this page and click Add. The new rule

appears under VLAN Rules at the bottom of this page.

Add After setting up a new rule, click this button to add the rule to the VLAN Rules list at the

bottom of the page.

Delete Lets you delete a rule. In the VLAN Rule ID field, enter the ID for the rule you want to delete.

Then click Delete to delete the rule.

Note: No precautionary message appears before deleting a rule, so be sure you do not need

the rule before you delete it.

Edit Lets you modify a rule. In the VLAN Rule ID field, enter the ID for the rule you want to edit.

Then click Edit, change the settings, and click Update.

Update Click this button after editing a rule.

3 Viewing Status Information

The Configurator provides a Status section that lets you display status pages for

monitoring the TR-WMX-5.8. This section describes how to use these pages to monitor

the TR-WMX-5.8.

The topics covered in this chapter are:

 Section 3.1, Information Page (page 28)

 Section 3.2, Wireless Information Page (page 30)

 Section 3.3, System Information Page (page 32)

 Section 3.4, Statistics Information Page (page 34)

 Section 3.5, ARP Information Page (page 36)

 Section 3.6, System Log (page 37)

Chapter 3, Viewing Status Information

28 TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

3.1 Information Page

The Information Page is the first page that appears when you log in to the Configurator.

You can also display this page from another page in the Configurator by clicking the

Back to Information Page button at the bottom of the pages in the WiMAX Setup,

Network Setup, and Administration sections.

The Information Page is a read-only page that displays network, wireless, and device

information. Figure 3-1 shows this page and Table 3-1 describes the fields on it.

Figure 3-1. Information Page

Information Page

TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

Table 3-1. Information Page

Field Description

Network

Mode TR-WMX-5.8 operating mode (for example, bridge, router, etc.).

MAC Address TR-WMX-5.8 Media Access Control (MAC) address, as defined on the TCP/IP Settings page (see

section 2.3.1).

IP Mode IP mode of the TR-WMX-5.8, as defined on the TCP/IP Settings page (see section 2.3.1).

IP Address IP address of the TR-WMX-5.8.

Subnet Mask Subnet mask of the TR-WMX-5.8.

Gateway Gateway mask of the TR-WMX-5.8.

Wireless

Link Status Shows whether the TR-WMX-5.8 is connected to the base station.

Frequency (Tx/Rx) TR-WMX-5.8 transmit and receive frequencies, as defined on the Wireless Settings page (see

section 2.2.1).

Bandwidth Bandwidth used by the TR-WMX-5.8.

RF Profile TR-WMX-5.8 duplex method, as defined on the Wireless Settings page (see section 3.2).

CP Size TR-WMX-5.8 cyclic prefix size, as define on the Wireless Settings page (see section 3.2).

Tx Power (Max/Min/Cur) TR-WMX-5.8 maximum, minimum, and current transmit power levels, in dBm. The maximum and

minimum settings are defined on the Wireless Settings page (see section 3.2).

Signal

(RSSI/CINR/SNR/Avrg)

RSSI, CINR, SNR, and average signal strength, in dBm.

• RSSI - the higher the value, the higher the transmit rate (up to the maximum). Conversely, the

lower the RSSI, the lower the transmission speed until 0 is reached (no connectivity).

• CINR - the higher the value, the more throughput a link can maintain.

• SNR - the lower the value means the desired signal is nearly indistinguishable from the

unwanted noise.

• Avrg - the average of the RSSI, CINR, and SNR values.

Base Stations MAC address with which the TR-WMX-5.8 is communicating, as defined on the Wireless Settings

page (see section 3.2).

Device

Board Serial Number Serial number of the TR-WMX-5.8 printed circuit board.

Device Name Name of the TR-WMX-5.8 unit, as defined on the Administrative Settings page (see section 4.4.1).

Default is TR-WMX.

Location Location of the TR-WMX-5.8, as defined on the Administrative Settings page (see Chapter 4).

Firmware Revision Revision number of the firmware used by the TR-WMX-5.8.

Build Date Build date of the firmware used by the TR-WMX-5.8.

Chapter 3, Viewing Status Information

30 TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

3.2 Wireless Information Page

The Wireless Information page shows information about the TR-WMX-5.8’s wireless

operation. The user-configurable information on this page can be set using the Wireless

Settings page (see section 2.2.1). Figure 3-2 shows this page and Table 3-2 describes the

fields on it.

Figure 3-2. Wireless Information Page

Wireless Information Page

TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

Table 3-2. Wireless Information Page

Field Description

Channel Bandwidth

Status (MHz)

Bandwidth, in MHz, of theTR-WMX-5.8, as defined on the Wireless Settings page (see section

2.2.1).

Frequency (KHz) Frequency, in kHz, of theTR-WMX-5.8, as defined on the Wireless Settings page (see section

2.2.1).

RF Profile RF profile of theTR-WMX-5.8, as defined on the Wireless Settings page (see section 2.2.1).

CP Size Cycle prefix size, as defined on the Wireless Settings page (see section 2.2.1).

Modulation Modulation used by theTR-WMX-5.8.

Link Manager State Shows where in the network connection process the CPE is. For example if the CPE is scanning

for a BS downlink message, receiving a DHCP address assignment, or if the CPE to BS link is

operational.

Link State Shows whether the TR-WMX-5.8 link is up or down.

RSSI (Received Signal

Strength Indicator)

Strength of the Received Signal Strength Indicator, in dBm, received by your TR-WMX-5.8. The

higher the value, the higher the transmit rate (up to the maximum). Conversely, the lower the RSSI,

the lower the transmission speed until 0 is reached (no connectivity).

CINR (Carrier to

Interference and Noise

Ratio)

Carrier to Interference and Noise Ratio, in dB, for your TR-WMX-5.8. The higher the value, the

more throughput a link can maintain.

Current TX Power Current transmit power, in dBm, for your TR-WMX-5.8.

RF Mode Current radio-frequency mode (licensed or unlicensed) for your TR-WMX-5.8.

Initial Ranging Burst

Inverting

This feature is provided for Engineering development use, and is an undocumented feature.

Initial Delay Correction

Value

This feature is provided for Engineering development use, and is an undocumented feature.

TX Power Range Max The maximum transmit power range of the TR-WMX-5.8, as defined on the Wireless Settings page

(see section 2.2.1).

TX Power Range Min The minimum transmit power range of the TR-WMX-5.8, as defined on the Wireless Settings page

(see section 2.2.1).

TX Antenna Gain The maximum transmit antenna gain of the TR-WMX-5.8, as defined on the Wireless Settings page

(see section 2.2.1).

RX Antenna Gain The minimum transmit antenna gain of the TR-WMX-5.8, as defined on the Wireless Settings page

(see section 2.2.1).

AFS Mode This feature is provided for Engineering development use, and is an undocumented feature.

MRTR for SMC in bps The minimum reserved traffic rate for the secondary management channel.

Lost DL/UL MAP Interval

([600 , 1800]

milliseconds)

The time in seconds that the CPE will maintain the link to the BS using the last DL or UL MAP

received.

RNG-RSP Byte Order This feature is provided for Engineering development use, and is an undocumented feature.

Chapter 3, Viewing Status Information

32 TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

3.3 System Information Page

The System Information page shows information about the TR-WMX-5.8’s wireless

configuration settings and operation. Figure 3-3 shows this page and Table 3-3 describes

the fields on it.

Figure 3-3. System Information Page

System Information Page

TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

Table 3-3. System Information Page

Field Description

Bridge br0 IP Address Wired IP address of the TR-WMX-5.8, as defined on the TCP/IP Settings page (see section 2.3.1).

Bridge br0 Net Mask Wired netmask of the TR-WMX-5.8, as defined on the TCP/IP Settings page (see section 2.3.1).

Encryption Support Shows whether encryption is enabled or disabled on the TR-WMX-5.8, as defined on the Security

Settings page (see section 2.2.2).

PKM Mode Shows whether private key management is enabled or disabled on the TR-WMX-5.8, as defined on

the Security Settings page (see section 2.2.2).

Secondary Management

Connection Support

Shows whether the secondary management support has been enabled.

IP Managed Mode Shows whether an IP address has been assigned to the CPE using DHCP operating over the IEEE

802.16 secondary management channel.

Bridge/Router Mode Shows whether the TR-WMX-5.8 is configured for bridge or router mode, as defined on the TCP/IP

Settings page (see section 2.3.1).

IP Mode Shows whether IP mode is set to static or DHCP setting, as defined on the TCP/IP Settings page

(see section 2.3.1).

MAC Msg Strict Checking Shows whether MAC Message Strict Checking is enabled or disabled, as defined on the Wireless

Settings page (see section 2.2.1).

Pack Enable For Primary

CID

Shows whether Pack Enable for Primary CID is enabled or disabled, as defined on the Wireless

Settings page (see section 2.2.1).

Fragment Enable For

Primary CID

Shows whether Fragment Enable For Primary CID is enabled or disabled, as defined on the

Wireless Settings page (see section 2.2.1).

TX Overrun Fix Shows whether TX Overrun Fix is enabled or disabled, as defined on the Wireless Settings page

(see section 2.2.1).

Bypass QoS Admitted Bit

(Absent)

Shows whether Bypass QoS Admitted Bit (Absent) is enabled or disabled.

Bypass Strict QoS Tx

Policy Checking

Shows whether Bypass Strict QoS Tx Policy Checking is enabled or disabled.

Enable 0 Symbol HFDD

Patch

Shows whether Enable 0 Symbol HFDD Patch is enabled or disabled, as defined on the Wireless

Settings page (see section 2.2.1).

Base Station ID List Shows the base station ID list, as defined on the Wireless Settings page (see section 2.2.1).

Chapter 3, Viewing Status Information

34 TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

3.4 Statistics Information Page

The Statistics Information page shows statistics of the wired and wireless packets sent

and received by the TR-WMX-5.8. Figure 3-4 shows this page and Table 3-4 describes the

fields on it.

Figure 3-4. Statistics Information Page

Statistics Information Page

TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

Table 3-4. Statistics Information Page

Field Description

Wired Received (Rx) and transmitted (Tx) statistics for the TR-WMX-5.8’s wired interface.

• Bytes – number of bytes transmitted (Tx) or received (Rx) by the TR-WMX-5.8 on the wired

network.

• Packets – number of packets transmitted (Tx) or received (Rx) the TR-WMX-5.8 on the wired

network.

• Errs – number of transmit/receive errors detected by the TR-WMX-5.8 on the wired network.

• Drop – number of dropped transmitted (Tx) or received (Rx) packets detected by the TR-

WMX-5.8 on the wired network.

• Fifo – number of transmitted (Tx) or received (Rx) packets first in/first out between the TR-

WMX-5.8 and the wired network.

• Frame – number of frames transmitted (Tx) or received (Rx) by the TR-WMX-5.8 on the wired

network.

• Colls – number of collisions(shown for Tx only).

• Carrier - status of the link pulse (i.e., if it is connected).

• Compressed – number of compressed frames transmitted (Tx) or received (Rx) by the TR-

WMX-5.8 on the wired network

• Muilticast – number of multicast frames transmitted (Tx) or received (Rx) by the TR-WMX-5.8

on the wired network

Wireless Received (Rx) and transmitted (Tx) statistics for the TR-WMX-5.8’s wireless interface.

• Bytes – number of bytes transmitted (Tx) or received (Rx) by the TR-WMX-5.8 on the wireless

network.

• Packets – number of packets transmitted (Tx) or received (Rx) the TR-WMX-5.8 on the

wireless network.

• Errs – number of transmit/receive errors detected by the TR-WMX-5.8 on the wireless

network.

• Drop – number of dropped transmitted (Tx) or received (Rx) packets detected by the TR-

WMX-5.8 on the wireless network.

• Fifo – number of transmitted (Tx) or received (Rx) packets first in/first out between the TR-

WMX-5.8 and the wireless network.

• Frame – number of frames transmitted (Tx) or received (Rx) by the TR-WMX-5.8 on the

wireless network.

• Colls – number of collisions(shown for Tx only).

• Carrier - status of the link pulse (i.e., if it is connected).

• Compressed – number of compressed frames transmitted (Tx) or received (Rx) by the TR-

WMX-5.8 on the wireless network

• Muilticast – number of multicast frames transmitted (Tx) or received (Rx) by the TR-WMX-5.8

on the wireless network

Chapter 3, Viewing Status Information

36 TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

3.5 ARP Information Page

The TR-WMX-5.8 has an Address Resolution Protocol (ARP) table that automatically maps

the TR-WMX-5.8 IP address to the MAC address of a switch. The ARP Information page

shows the TR-WMX-5.8 IP address and the corresponding MAC address of the switch. For

example, the page in Figure 3-5 shows that the TR-WMX-5.8’s IP address is

72.166.143.1, which corresponds to the MAC address 00:A0:C8:2B:2A:4A.

Figure 3-5. ARP Information Page

System Log

TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

3.6 System Log

The TR-WMX-5.8 has separate logs that contain information about the unit’s wireless

and router operations. Using the System Information page, you can view the information

in these logs.

 The Wireless Log area shows wireless information recorded in the wireless log.

 The Router Log area shows router information recorded in the router log.

Both areas have a Refresh button that can be used to update the information displayed

in the respective areas on this page.

Figure 3-6 shows this page.

Figure 3-6. System Log Page

Chapter 3, Viewing Status Information

38 TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

This page intentionally left blank.

4 Configuring Administrative Settings

The Configurator has an Administration link that lets you perform a variety of

administrative tasks, such as:

 Restoring the TR-WMX-5.8 to its factory defaults

 Rebooting the TR-WMX-5.8 without returning the unit to its factory default settings.

 Changing the device name and location.

 Enabling or disabling Web, SSH, and Telnet access.

 Enabling or disabling the TR-WMX-5.8 status LEDs.

 Changing the user name and password required to log in to the Configurator.

The topics covered in this chapter are:

 Section 4.1, Displaying the Administrative Settings Page (page 40)

 Section 4.2, Returning to Factory Default (page 40)

 Section 4.3, Rebooting the TR-WMX-5.8 Unit (page 41)

 Section 4.4, Changing Device Configuration Settings (page 41)

Chapter 4, Configuring Administrative Settings

40 TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

4.1 Displaying the Administrative Settings Page

All administrative tasks are performed from the Administrative Settings page. To display

the Administrative Settings page, click the Administrative Settings link under

Administration in the navigation panel of the Configurator. Figure 4-1 shows the

Administrative Settings page.

Figure 4-1. Administrative Settings Page

4.2 Returning to Factory Default Settings

Using the Defaults button on the Administrative Settings page, you can return the TR-

WMX-5.8 to the settings that were in effect when you powered it up for the first time.

When you click this button, a precautionary message tells you that proceeding will

remove any custom settings you set and return all parameters to their factory default

settings. You can then click OK to continue or Cancel to cancel the operation.

For a complete list of the TR-WMX-5.8’s default settings, see Appendix A.

Rebooting the TR-WMX-5.8 Unit

TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

4.3 Rebooting the TR-WMX-5.8 Unit

The Reboot button on the Administrative Settings page provides one way to reboot the

TR-WMX-5.8 (the other way is using the Apply and Reboot button described in section

2.1). If you change any TR-WMX-5.8 configuration settings, you must use one of these

methods to reboot the TR-WMX-5.8 and put the settings into effect.

When you click this button, a precautionary message tells you that proceeding will

reboot the TR-WMX-5.8. You can then click OK to continue or Cancel to cancel the

operation.

Rebooting disconnects the TR-WMX-5.8 and any connections currently running.

It may take up to 60 seconds before the TR-WMX-5.8 is running and accessible

again. When you reboot the TR-WMX-5.8, the Status LED flashes while the

unit reboots and goes ON when the unit completes the reboot process.

4.4 Changing Device Configuration Settings

Using the Administrative Settings page, you can:

 Change the TR-WMX-5.8 device name and location

 Enable or disable Web, SSH, and Telnet access

 Enable or disable the TR-WMX-5.8 LEDs

4.4.1 Changing the Device Name and Location

The TR-WMX-5.8 device name is the name used to identify the device. The device name

appears on the Information Page (see section 3.1). If your installation has a number of

devices, you will probably want to assign a unique device name to each TR-WMX-5.8.

To change the device name:

1. On the Administrative Settings page, delete the current name shown in the Device

Name field and enter a new name.

2. To change the location, delete the current location shown in the Location field and

enter a new location.

3. Click the Apply button to save your changes. When the next page appears, either:

– Click the Reboot button to reboot the TR-WMX-5.8 and apply the settings.

– Change settings on other pages, then reboot the TR-WMX-5.8 to apply all the

new settings.

Chapter 4, Configuring Administrative Settings

42 TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

4.4.2 Enabling or Disabling Web, SSH, and Telnet Access

Using the Administrative Settings page, you can enable or disable Web access, SSH

access, and Telnet access to the TR-WMX-5.8.

 If you disable Web access, you will not be able to access the TR-WMX-5.8 using a browser.

 If you disable SSH access, you will not be able to access the TR-WMX-5.8 via an SSH

session.

 If you disable Telnet access, you will not be able to access the TR-WMX-5.8 using a

Telnet session.

To enable or disable Web, SSH, and Telnet access to the TR-WMX-5.8, use the following

procedure.

1. To enable or disable Web access to the TR-WMX-5.8, click the down arrow next to

Enable Web Access and select Enable or Disable from the drop-down list.

2. To enable or disable SSH access to the TR-WMX-5.8, click the down arrow next to

Enable SSH Access and select Enable or Disable from the drop-down list.

3. To enable or disable Telnet access to the TR-WMX-5.8, click the down arrow next to

Enable telnet Access and select Enable or Disable from the drop-down list.

4. Click the Apply button to save your changes. Then either:

– Click the Reboot button on the next page that appears to apply the settings and

reboot the TR-WMX-5.8 at this time.

– Change any other configuration settings you want to modify. When finished,

apply all the new and reboot the TR-WMX-5.8.

4.4.3 Enabling or Disabling the Status LEDs

Using the Administrative Settings page, you can enable or disable the 10 status LEDs on

the rear panel of the TR-WMX-5.8. By default, the LEDs are configured to be ON. This

means they show the status of the TR-WMX-5.8 as described in Table 1-4 on page 14. If

the TR-WMX-5.8 will be installed in a location where the LEDs cannot be observed, you

can disable them and rely on the status screens described in Chapter 3 to assess the

status of the TR-WMX-5.8.

To enable or disable the status LEDs on the TR-WMX-5.8, use the following procedure.

1. Click the down arrow next to Status LEDs and select Enable or Disable from the

drop-down list.

2. Click the Apply button to save your changes. Then either:

– Click the Reboot button on the next page that appears to apply the settings and

reboot the TR-WMX-5.8 at this time.

– Change any other configuration settings you want to modify. When finished,

apply all the new and reboot the TR-WMX-5.8.

Changing Device Configuration Settings

TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

4.4.4 Changing Log In Settings

Using the Administrative Settings page, you can change the user name and password

used to log in to the Configurator. For security purposes, we recommend you change the

default password.

1. To change the user name, click in the User Name field, delete the name shown, and

enter a new user name.

2. To change the log in password, click in the Password field, delete the entry, and

enter a new password.

3. Click in the Confirm Password field, delete the entry, and enter the same password

you typed in step 2.

For security, every typed password character appears as a bullet (•).

5. Click the Apply button to save your changes. When the next page appears, either:

– Click the Reboot button to reboot the TR-WMX-5.8 and apply the settings.

– Change settings on other pages, then reboot the TR-WMX-5.8 to apply all the

new settings.

Chapter 4, Configuring Administrative Settings

44 TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

This page intentionally left blank.

A Factory Default Configuration Settings

This appendix lists the factory default configuration settings that are in effect when you

unpack the TR-WMX-5.8 or reset it to factory default settings.

A.1 Default Wireless Settings

Setting Default Setting Default

Channel Bandwidth (MHz) 3.5 QoS Max Downlink SF 8

Secondary Management

Connection Support

Secondary Management

(Default)

Initial Ranging Burst Inverting Software Auto AFS channel bandwidth (in

MHz) scan order

35-7-0

Adaptive Modulation (DBPC) Auto using CINR thresholds For Least Robust DIUC as

LSB/MSB and DCD CCC as

MSB/LSB

Enable

Frequency (KHz) 5725000 MAC Message Strict

Checking

Disable

Initial Delay Correction Value 0 Pack Enable For Primary

CID

Enable

Max TX Power (dBm) 20 Fragment Enable For

Primary CID

Enable

Min TX Power (dBm) -10 TX overrun fix Disable

RX Antenna Gain (1/4dB

step)

0 QoS Admitted Bit Disable

TX Antenna Gain (1/4dB

step)

0 QoS Tx Policy Checking Disable

MRTR for SMC in bps 100000 Enable 0 symbol HFDD

Patch

Disable

Lost DL/UL MAP Interval 700 AFS mode Disable

Appendix A, Factory Default Configuration Settings

46 TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

A.2 Default Security Settings

Setting Default

Encryption Support Disable

A.3 Default TCP/IP Settings

Setting Default

IP Mode

DHCP Client Enabled

A.4 Default VLAN Settings

Setting Default

VLAN Mode Disable

VLAN Tag Allow (Allow All Traffic Through)

Nested VLANs Disable

Management VLAN ID 0

Valid VLAN ID Range 0

Vlan Default ID = 0, Priority = 0

A.5 Default Administrative Settings

Setting Default

Device Name TR-WMX

Location San Diego, Ca

Enable Web Access Enabled

Enable SSH Access Disabled

Enable Telnet Access Disabled

Status LEDs Enabled

User Name Admin

Password Default

Confirm Password default

B Upgrading Firmware

From time to time, Tranzeo Wireless Technologies, Inc. makes new firmware available

for the TR-WMX-5.8. The firmware may add new features to the TR-WMX-5.8 and/or fix

problems.

This appendix describes how to upgrade the firmware for the TR-WMX-5.8.

1. Log in to the Configurator (see section 1.5.1).

2. In the left pane, under Administration, click Firmware. The Firmware page appears

(see Figure B-1). The Current section shows information about the current firmware

installed. The Upgrade section is where you specify the new firmware you want to

install. :f

Figure B-1. Firmware Page

3. To view the output of what is happening throughout the firmware upgrade process,

check Verbose Debug.

4. To reboot the TR-WMX-5.8 after its firmware has been upgraded, check Reboot

after successful upgrade.

5. Under Upgrade, select retrieve from server (if it is not already selected).

6. In the URL field, enter the Uniform Resource Locator (URL) of the FTP server where

the new firmware file is located.

7. Log in to the server and download the firmware file.

Appendix B, Upgrading Firmware

48 TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

8. After the firmware file has been downloaded, upload it to the TR-WMX-5.8 using

your browser. Under Upload from browser, click the Browse, select the firmware

file, and click OK.

9. Click Upgrade Software to start the upgrade procedure. If you checked Reboot

after successful upgrade, the TR-WMX-5.8 reboots automatically following the

firmware upgrade; otherwise, you must manually reboot the TR-WMX-5.8 to have

the new firmware upgrade take effect.

C Technical Support

Technical support is available through the Internet and by phone, live chat, email, and

fax.

C.1 Web Portal

The Tranzeo Support Web site http://support.tranzeo.com is the main portal to help you

maximize your experience with your Tranzeo product. The site provides valuable

support contact information, including support files and guides and the latest support

news. We encourage you to check this site frequently, even if you do not have support

issues.

C.2 Telephone Support

In-house telephone support is available during the hours and at the telephone numbers

shown in Table C-1. Voice mail is available during non-telephone hours.

Table C-1. Telephone Support Hours and Numbers

Location Telephone Hours Telephone Number

Americas 1:00 AM to 5:00 PM PST +1 888 460 6366

(Toll free USA and Canada)

Europe, Africa, Middle East 9:00 AM to 1:00 AM GMT +353-61-775-702

Americas outside the USA and Canada +1 604 460 6366

Australia, Asia +1 604 460 6366

C.3 Live Chat

Live chat offers one-to-one chat support with a Tranzeo support representative

allows you to receive real-time answers to your questions. Live chat is available

during the hours and numbers shown in Table C-2.

Table C-2. Live Chat Support Hours

Location Live Chat Hours

Americas 1:00 AM to 5:00 PM PST

Europe, Africa, Middle East 9:00 AM to 1:00 AM GMT

Appendix C, Technical Support

50 TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

C.4 Email

Technical support can be reached by email at support@tranzeo.com. RMA requests

should be addressed to rma@tranzeo.com.

C.5 Fax

Faxes can be sent to our 24-hour fax number at +1 604 460 6005.

Glossary

ARP Address Resolution Protocol, a network layer protocol used to convert an

IP address into a physical (DLC) address, such as an Ethernet address. A

host wishing to obtain a physical address broadcasts an ARP request onto

the TCP/IP network. The host on the network that has the IP address in

the request replies with its physical hardware address.

CINR Carrier to Interference and Noise Ratio, a measure of quality for wireless

signals.

CPE Customer Premises Equipment, communications equipment that resides

on the customer's premises and is owned or leased by the customer.

Gateway A node on a network that serves as an entrance to another network.

IEEE Institute of Electrical and Electronics Engineers (pronounced I-triple-E),

an organization that develops standards for the computer, networking,

and electronics industries.

MAC Address Media Access Control address, a hardware address that uniquely

identifies each node of a network.

PKM Privacy key management, a protocol used to authenticate nodes on the

network, and distribute and maintain private keys used for traffic

encryption.

PoE Power over Ethernet, a solution where electrical current is run to

networking hardware over an Ethernet Category 5 or higher data cable.

No additional AC power cord is needed, minimizing the amount of cables

needed and the hassle of installing extra outlets.

RSA Rivest, Shamir, and Adelman, a public-key encryption technology that

requires an extraordinary amount of computer processing power and

time to break. The RSA algorithm has become the de facto standard for

industrial-strength encryption, especially for data sent over the Internet.

RSSI Received Signal Strength Indicator, a circuit or signal that indicates the

strength of an incoming signal into a receiver, such as your TR-WMX-5.8.

SNR Signal-to-Noise Ratio, the ratio of the amplitude of a desired analog or

digital data signal to the amplitude of noise in a transmission channel at

a specific point in time.

Glossary

52 TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

SSH Secure Shell, a program to log into another computer over a network to

execute commands in a remote machine, and to move files from one

machine to another. SSH provides strong authentication and secure

communications over insecure channels, protecting a network from

attacks such as IP spoofing, IP source routing, and DNS spoofing.

Subnet mask A mask used to determine the subnet to which an IP address belongs.

Subscriber

station

A fixed station used by a subscriber for communication within a central

office station.

Telnet A terminal emulation program for TCP/IP networks that runs on your

computer and connects your PC to a device (such as your TR-WMX-5.8

unit. You can then enter commands through the Telnet program and they

will be executed at the TR-WMX-5.8 unit.

URL Uniform Resource Locator, the global address of documents and other

resources on the World Wide Web. www.tranzeo.com is an example of a

URL.

VLAN Virtual Local Area Network, a network of computers that behave as if

they are connected to the same wire even though they may actually be

physically located on different segments of a LAN. With VLANs, a

computer can physically move to another location while remaining on the

same VLAN, without any hardware reconfiguration.

Compliance Information

This device has been designed to operate with the antennas having a maximum gain of

32 dB. Antennas not included in this list or having a gain greater than 32 dB are strictly

prohibited for use with this device. The required antenna impedance is 50 ohms.

5 GHz Antennas

 TR-5.8-32DB-ANT - 32 dBi Dish Antenna

 TR-GD58-26 - 26 dBi Grid Antenna

This device has been tested and found to comply with the limits for a Class B digital

device pursuant to Part 15 of the FCC rules, and Industry Canada requirements.

Operation is subject to the following two conditions: (1) this device may not cause

interference, and (2) this device must accept any interference, including interference

that may cause undesired operation of the device.

To reduce potential radio interference to other users, the antenna type and its gain

should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not

more than that permitted for successful communication.

This device must be installed so that there is a minimum of 139 cm between the

antenna and any person.

Professional Installation Required

This product must be professionally installed and configured in accordance with local

regulations and safety codes.

Geographical Restrictions

This product is intended to be used in the following countries:

 North America

 South America

 Australia

 Africa

The following restrictions apply to the use of this product:

 This device may not be used in a geographical location that requires the use of Dynamic

Frequency Selection unless approved by the local authorities.

 The user of this product must ensure that it complies with the EIRP limits specified by

local regulations.

Compliance Information

54 TR-WMX-5.8 Outdoor Subscriber Unit User's Guide

Declaration of Conformity

“Hereby, Tranzeo Wireless Technologies, declares that this TR-WMX-58 is in compliance

with the essential requirements and other relevant provisions of Directive 1999/5/EC.”

To obtain a copy of the Declaration of Conformity, contact Tranzeo Wireless

Technologies at the following: http://www.tranzeo.com/conformity.php.

Index

Administrative settings

displaying the Administrative Settings page, 40

Administrative Settings page, 40

Advanced configuration

network setup, 22

TCP/IP settings, 22

VLAN settings, 24

WiMAX setup, 18

security settings, 21

wireless settings, 18

ARP Page, 36

Changing

device name, 41

password, 43

user name, 43

Components, 3

Configurations, iii

Configurator

Administrative Settings page, 40

ARP Page, 36

changing device name, 41

changing log in settings, 43

enabling or disabling Web, SSH, and Telnet access, 42

Information Page, 28

logging in, 7

network settings, 11

pages, 16

rebooting the TR-WMX-5.8, 41

returning to factory default settings, 40

Router Log, 37

security settings, 21

Statistics Information Page, 34

System Information Page, 32

System Log, 37

TCP/IP settings, 22

VLAN settings, 24

Wireless Page, 30

wireless settings, 9, 18

Configuring the TR-WMX-5.8

administrative settings, 40

Configuring TR-WMX-5.8, 7

logging in to the Configurator, 7

network settings, 11

wireless settings, 9

Connecting the TR-WMX-5.8, 4

Contact information, vi

Conventions

safety, v

typographic, v

warning, v
