Traxxas LP TRX1022 Intelligent battery charger User Manual
Traxxas LP Intelligent battery charger
Users manual
owner’s manual
NiMH / LiPo Fast Charger
2• EZ-PEAK LIVE DUAL
Important warnings for users of Lithium Polymer
(LiPo) batteries:
Lithium Polymer (LiPo) batteries are significantly
more volatile than other rechargeable batteries.
• ONLY use a Lithium Polymer (LiPo) balance charger
with a balance adapter port to charge LiPo batteries.
Never use NiMH or NiCad-type chargers or charge
modes to charge LiPo batteries.
DO NOT charge with
a NiMH-only charger.
The use of a NiMH or NiCad
charger or charge mode will damage the batteries
and may cause fire and personal injury.
•
Never charge LiPo battery packs in series or parallel.
Charging packs in series or parallel may result in
improper charger cell recognition and an improper
charging rate that may lead to overcharging, cell
imbalance, cell damage, and fire.
• ALWAYS inspect your LiPo batteries carefully before
charging. Look for any loose leads or connectors,
damaged wire insulation, damaged cell packaging,
impact damage, fluid leaks, swelling (a sign of
internal damage), cell deformity, missing labels, or
any other damage or irregularity.
Thank you for purchasing the Traxxas EZ-Peak Live Dual™ charger. This charger features exclusive Traxxas
innovations that make charging batteries easier and safer than ever. If you have any questions or concerns
about your charger, please contact our customer support team for fast, friendly answers and solutions.
CHARGING AND DISCHARGING BATTERIES HAS
THE POTENTIAL FOR FIRE, EXPLOSION, SERIOUS INJURY, AND PROPERTY
DAMAGE IF NOT PERFORMED PER THE INSTRUCTIONS. BEFORE USE, READ AND FOLLOW
ALL MANUFACTURER’S INSTRUCTIONS, WARNINGS, AND PRECAUTIONS. NEVER ALLOW
CHILDREN UNDER THE AGE OF 14 TO CHARGE OR USE LIPO BATTERIES WITHOUT THE
SUPERVISION OF A RESPONSIBLE, KNOWLEDGEABLE ADULT.
WARNING! CAUTION! DANGER!
FIRE HAZARD!
EZ-PEAK LIVE DUAL •3
If any of these conditions (see page 2) are observed,
do not charge or use the battery pack. Follow the
disposal instructions included with your battery to
properly and safely dispose of the battery.
• Do not store or charge LiPo batteries with or
around other batteries or battery packs of any type,
including other LiPos.
• Store and transport your LiPo batteries in a cool
dry place. Do not store in direct sunlight. Do not
allow the storage temperature to exceed 140°F or
60°C such as in the trunk of a car or the cells may be
damaged and create a fire risk.
• Do NOT disassemble LiPo batteries or cells.
• Do NOT attempt to build your own LiPo battery
pack from loose cells.
Charging and handling precautions for all battery
types:
• ALWAYS proceed with caution and use good
common sense at all times.
• Charge only NiMH packs or 2s–4s LiPo battery packs.
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety. Children require
adult supervision while using this charger.
• DO NOT let any exposed battery contacts or wires
touch each other. This will cause the battery to
short circuit and create the risk of fire.
• While charging, ALWAYS place the battery in a
fire retardant/fire proof container and on a non-
flammable surface such as concrete.
• DO NOT operate the charger inside of an
automobile.
WARNING! CAUTION! DANGER! (continued)
FIRE HAZARD!
4• EZ-PEAK LIVE DUAL
• NEVER charge batteries on wood, cloth, carpet or on
any other flammable material.
• ALWAYS charge batteries in a well-ventilated area.
• REMOVE flammable items and combustible
materials from the charging area.
• DO NOT leave the charger and batteries
unattended while charging, discharging, or
any time that the charger is ON with batteries
connected. If there are any signs of a malfunction or
in the event of an emergency, unplug the charger
from the power source and disconnect the batteries
from the charger.
• Remote monitoring via the EZ-Peak Live App is not a
substitute for being present to watch over and tend
to batteries being charged. Batteries being charged
should always be visible and monitored in person in
case there is an unexpected problem that requires
immediate attention.
• DO NOT operate the charger in a cluttered space, or
place objects on top of the charger or batteries.
• If any battery or battery cell is damaged in any way,
do NOT charge, discharge, or use the battery.
• Keep a Class D fire extinguisher nearby in case of fire.
• BEFORE you charge, ALWAYS confirm that the
charger settings exactly match the type (chemistry),
specification, and configuration of the battery to be
charged.
• DO NOT exceed the battery manufacturer’s maximum
recommended charge rate.
• DO NOT disassemble, crush, short circuit, or expose
the batteries or cells to flame or any other source of
ignition.
• If a battery gets hot to the touch during the charging
process, disconnect the battery from the charger and
discontinue charging immediately.
• ALWAYS unplug the charger and disconnect the
batteries when not in use.
WARNING! CAUTION! DANGER! (continued)
FIRE HAZARD!
EZ-PEAK LIVE DUAL •5
• Never attempt to charge more batteries than the
charger was designed to charge.
• DO NOT disassemble the charger.
• REMOVE the batteries from your model or device
before charging.
• DO NOT expose the charger to water or moisture.
• ALWAYS store battery packs safely out of the reach
of children and pets.
• If the charger power cord is damaged, it must be
replaced by Traxxas in order to avoid a hazard.
• DO NOT charge batteries under ANY of the
following conditions:
- Batteries that are hot to the touch.
- Batteries that are not expressly stated by the
manufacturer to be suitable to accept the power
output (voltage and amperage) the charger
delivers during the charging process.
- Batteries that are damaged or defective in any way.
Examples of damage or defects include,
but are not limited to, batteries with dented cells,
damaged or frayed wires, loose connections,
fluid leaks, corrosion, plugged vents, swelling,
cell deformity, impact damage, melted
components, or any other signs of damage.
- Battery packs that have been altered from original
manufacturer configuration.
- Non-rechargeable batteries (explosion hazard).
- Batteries that have missing or unreadable labels,
preventing you from properly identifying the
battery type and specifications.
WARNING! CAUTION! DANGER! (continued)
FIRE HAZARD!
6• EZ-PEAK LIVE DUAL

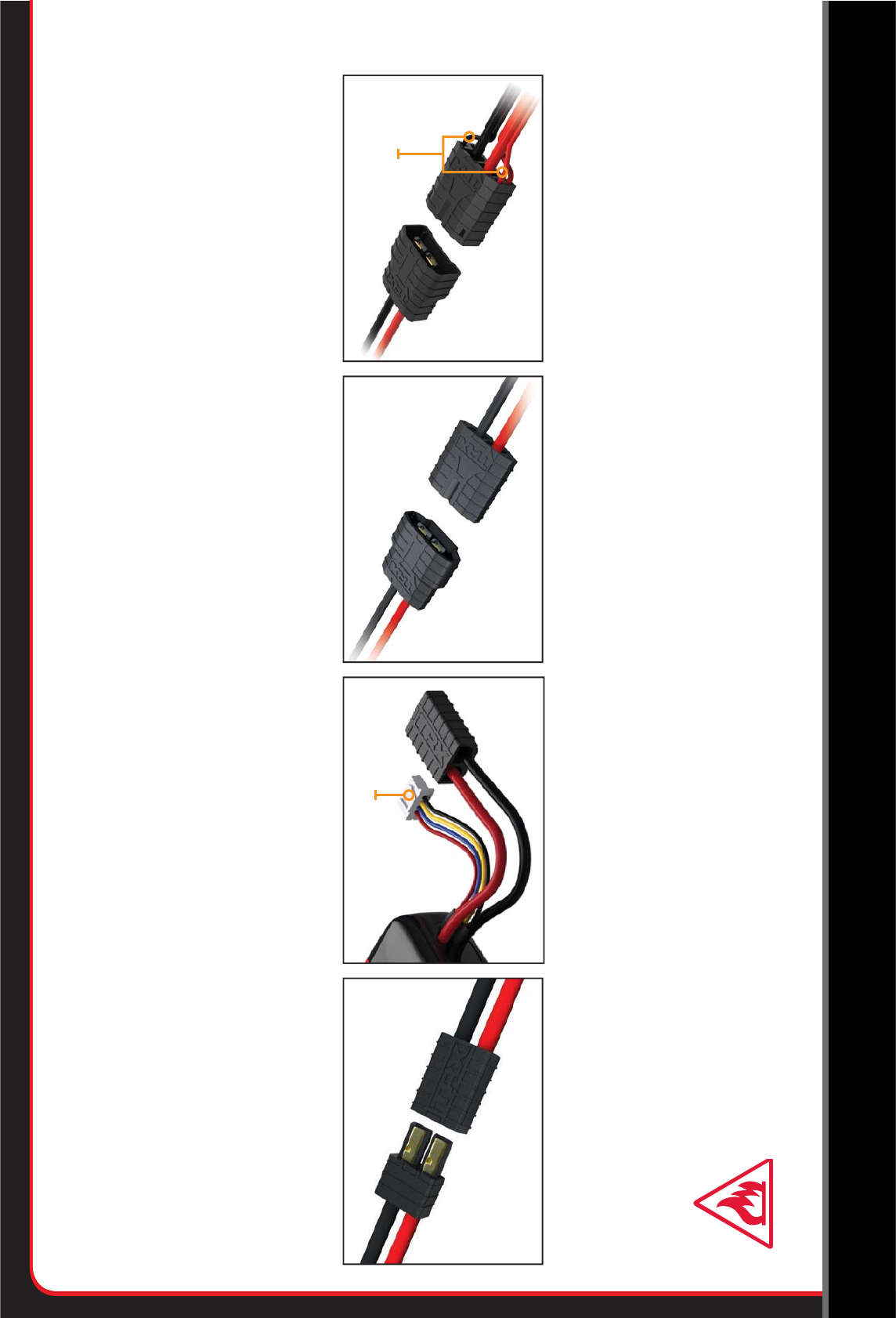

Know your connectors
First Generation Traxxas
High-Current Connector
Traxxas High-Current
Connector (4S) with iD and
integrated balance wires
Traxxas High-Current
Connector with iD
LiPo Balance Connector
(without iD)
Balance Connector Integrated
Balance Wires
WARNING: FIRE HAZARD!
If you have a battery that is labeled as or appears to be a LiPo but it does not have a balance
connector, do not attempt to charge the battery.
Updating Firmware

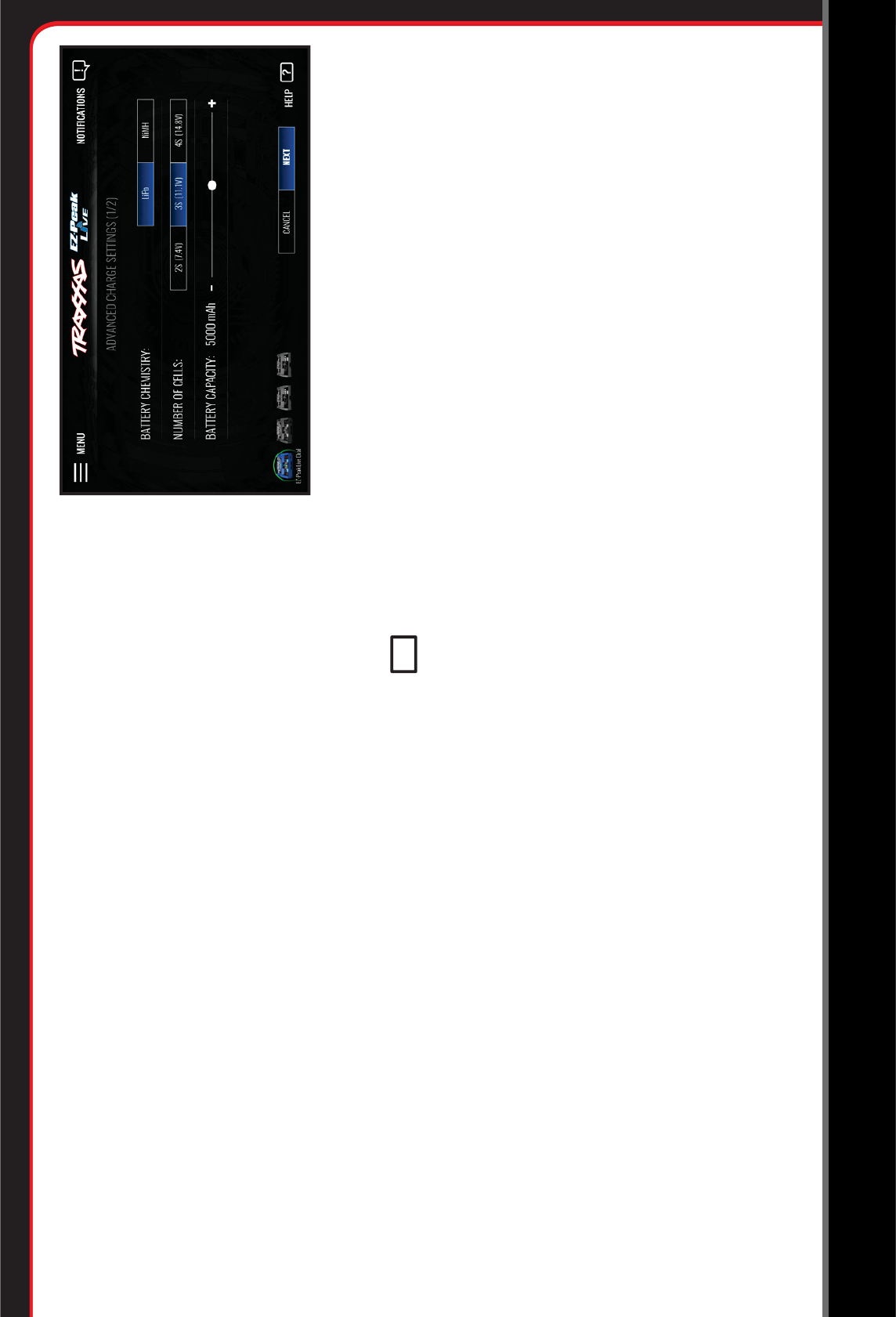

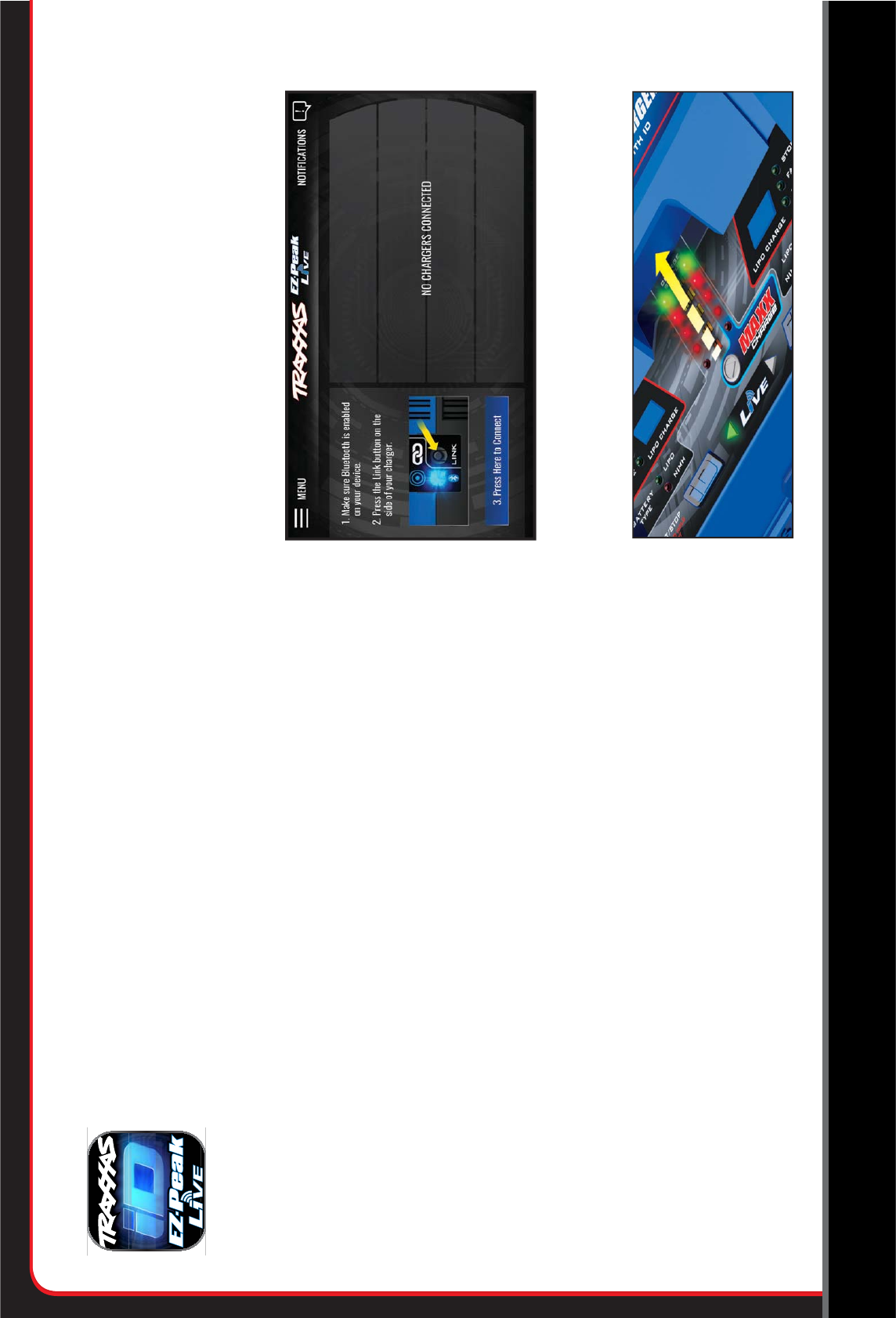

Your EZ-Peak Live Dual charger has the ability to receive firmware updates that can add new features and

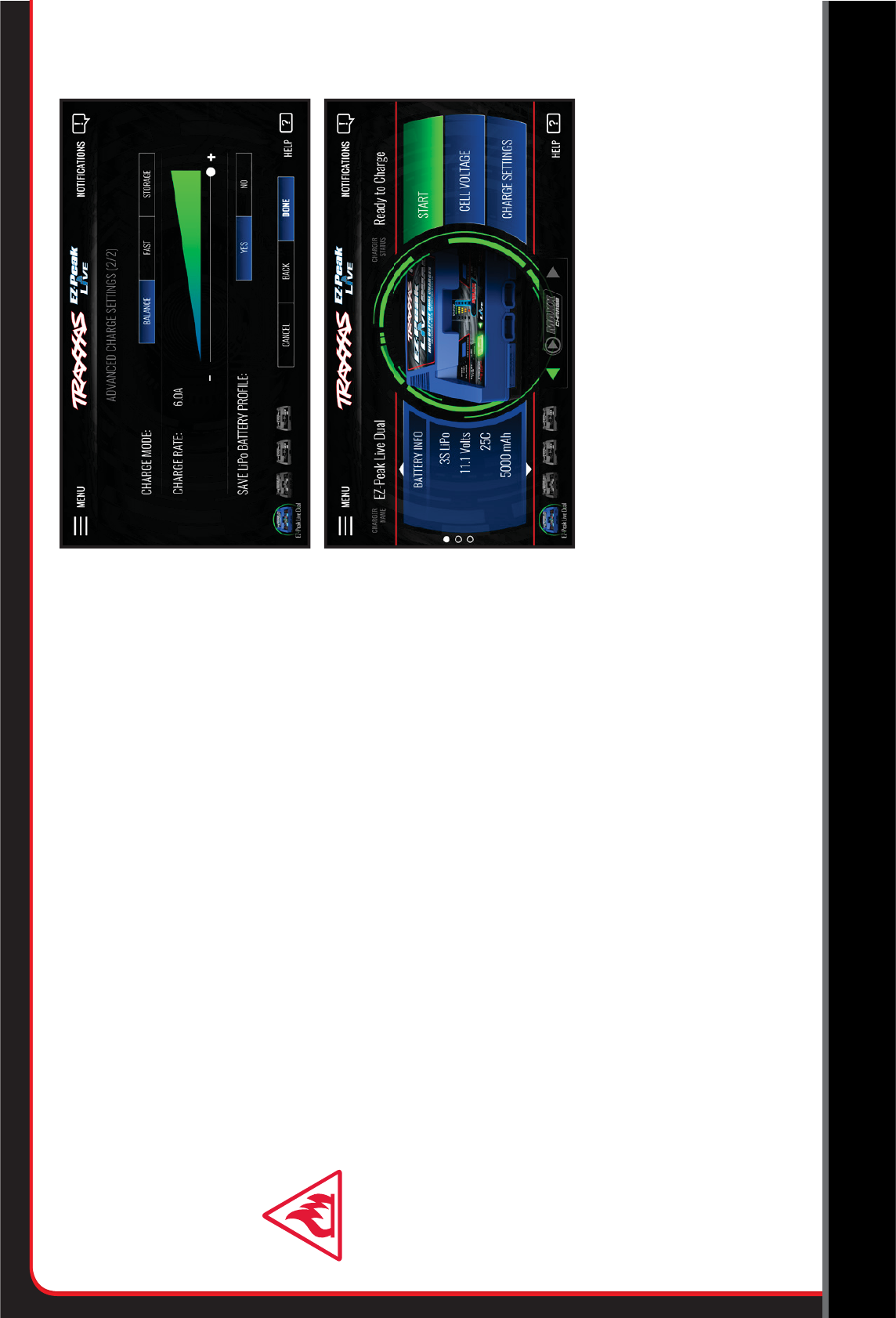

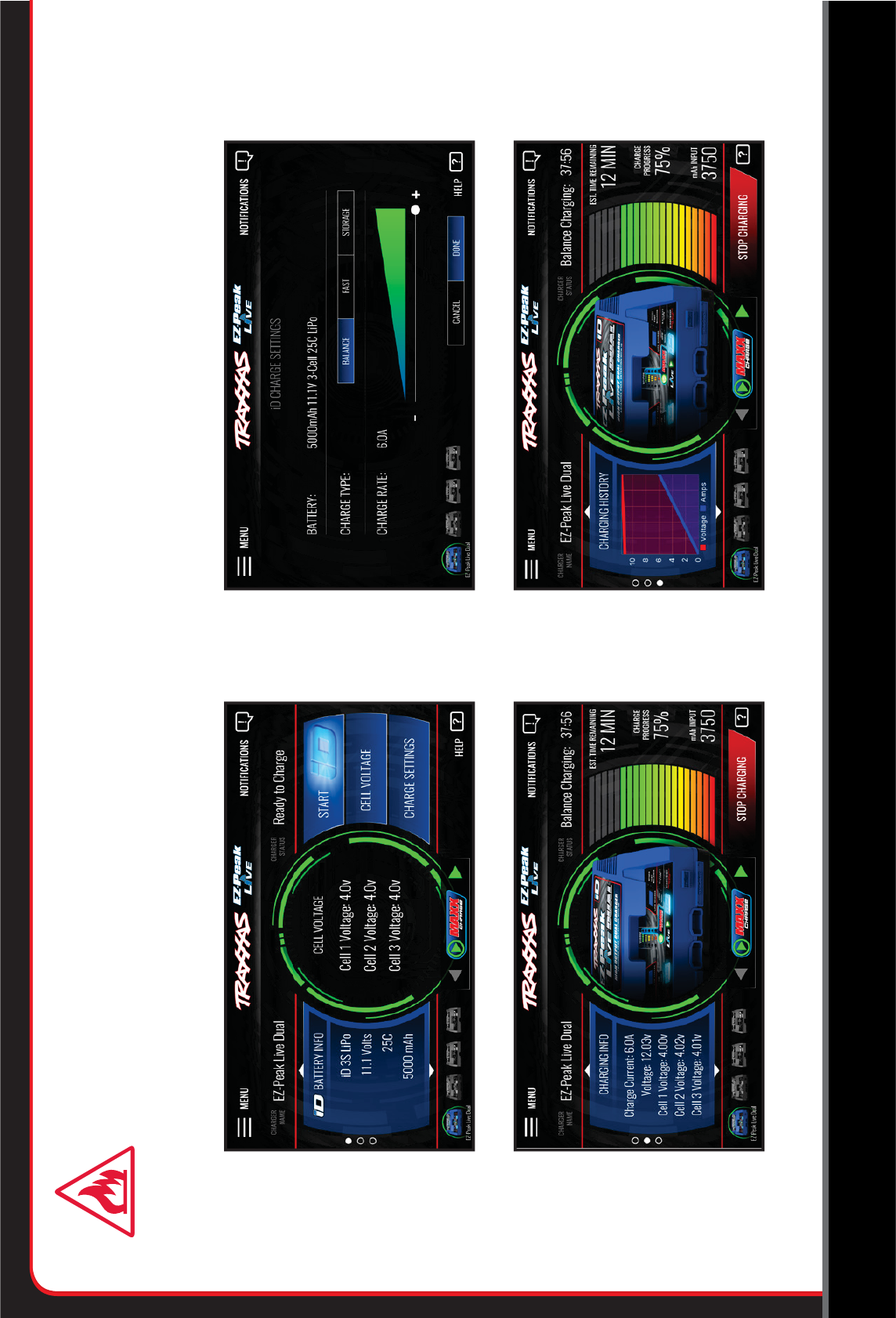

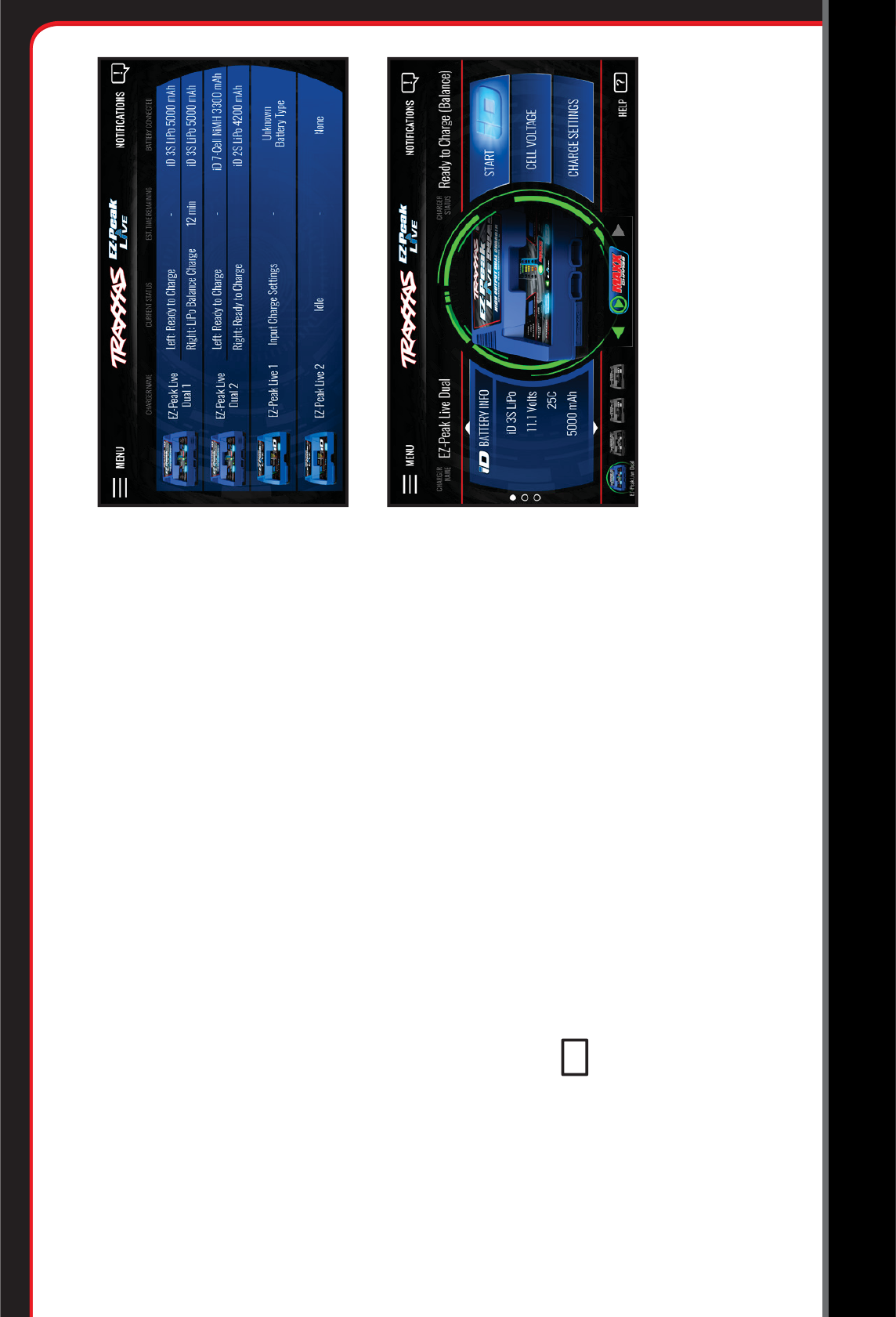

capabilities. Firmware updates are performed via the EZ-Peak Live App (see Traxxas EZ-Peak Live Application
on page 16). Visit Traxxas.com for the latest firmware updates and instructions for how to install them on
your charger.
EZ-PEAK LIVE DUAL •7
LiPo (Lithium Polymer) batteries
are made from stacks of flat
rectangular cells so the battery
pack is rectangular, blocky, and has
square corners. LiPo batteries also
have balance connectors. For older Traxxas batteries
with first generation High-Current Connectors, the
balance connector and the multi-colored balance
wires are separate. For Traxxas iD batteries, the
balance wires are integrated into the iD High-Current
Connector (see Know your connectors on page 6).
NiMH (Nickel-Metal Hydride)
batteries are constructed using
5, 6, 7, or 8 round battery cells
that are soldered together and
wrapped with heat shrink material.
NiMH batteries do not have a separate
balance wire.

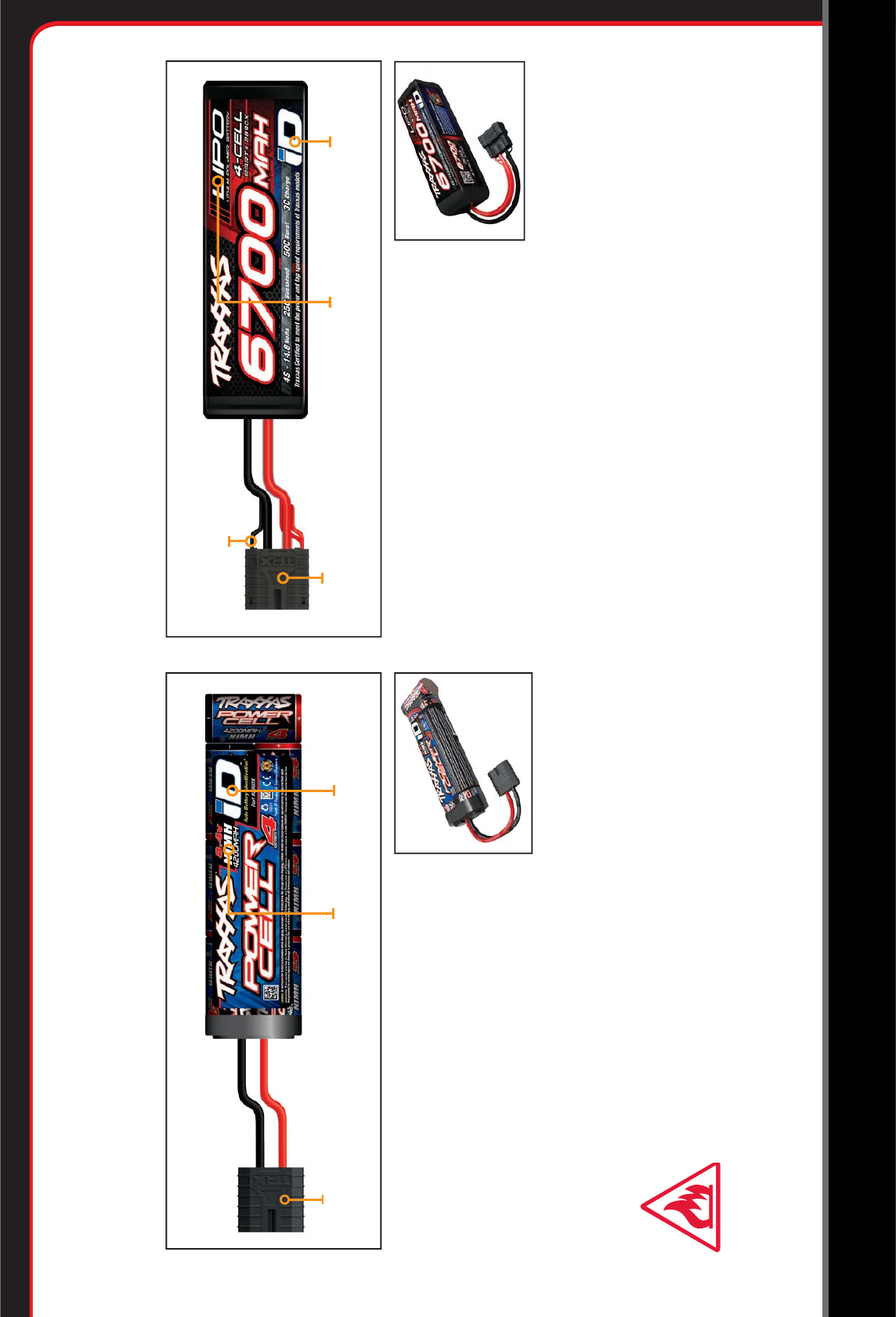

Know your Batteries
The EZ-Peak Live Dual is able to charge two different types (chemistries) of batteries: NiMH and LiPo.
Batteries are normally clearly labeled, but they can also be visually identified as a confirmation step.
iD LogoBattery Type
Traxxas High-Current
Connector with iD
NiMH Battery
iD LogoBattery Type
Traxxas High-Current
Connector with iD
LiPo Battery
Balance Wires
WARNING: FIRE HAZARD!
Do not attempt to charge any battery that
has a missing or unreadable label that
prevents you from properly identifying
the battery type and specifications.
8• EZ-PEAK LIVE DUAL

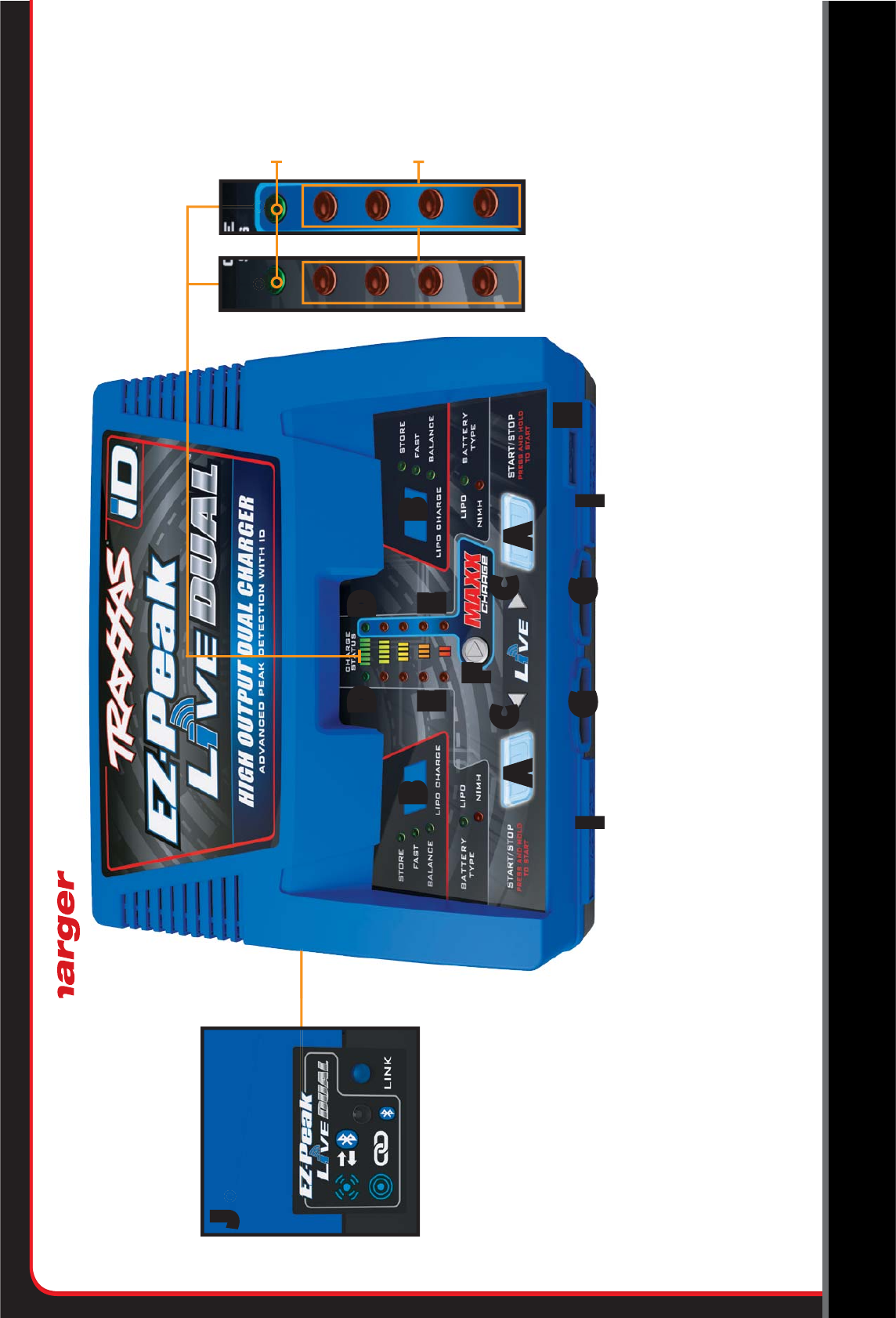

Know your Charger
A. Start/Stop Button
B. LiPo Charge Mode Select
C. App Live LED
D. Charge Status LED
E. Charge Progress LEDs
A
B
C
G
I
D
E

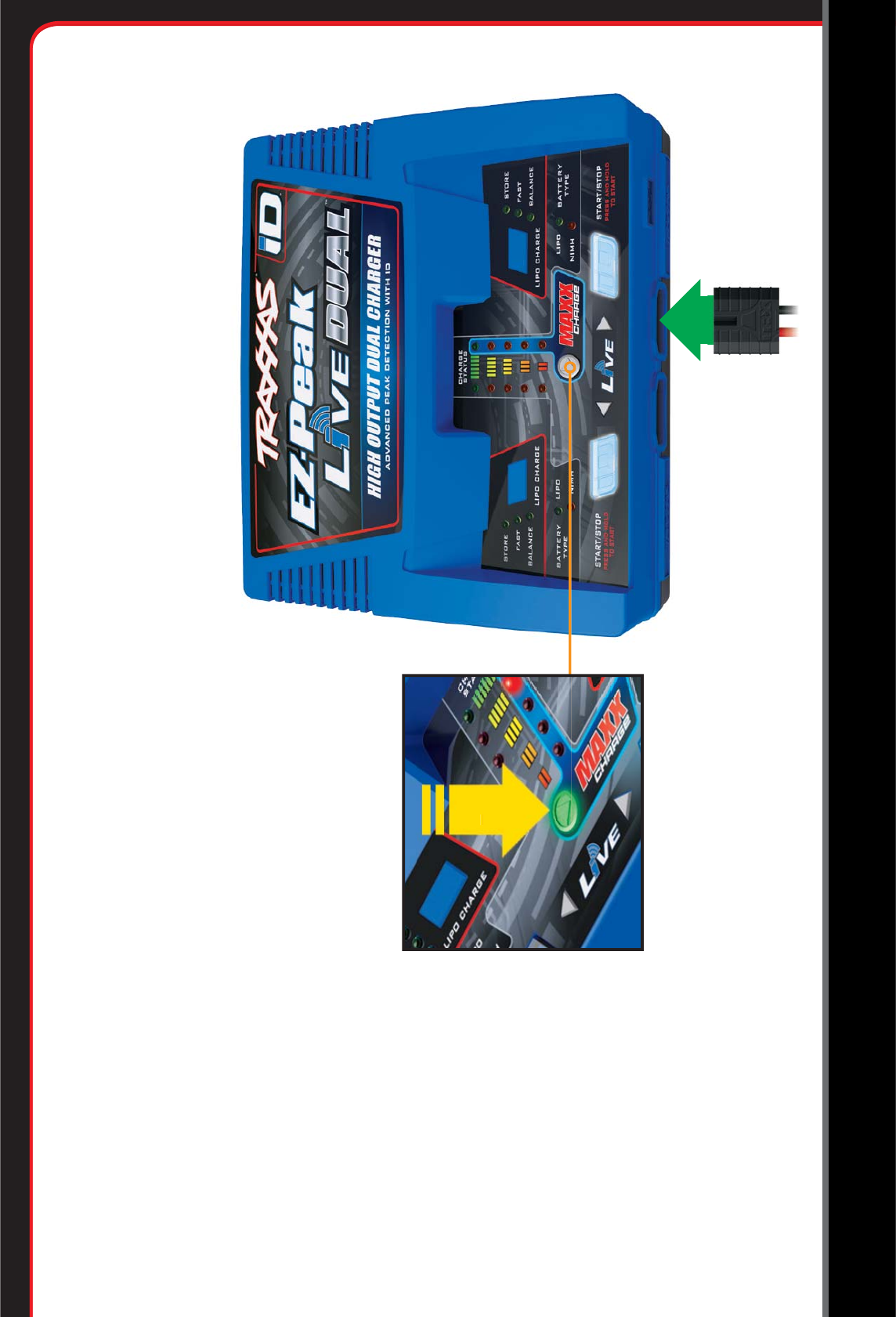

F. MAXX Charge Button
G. Charger Output Ports (Traxxas High-Current Connector)
H. Charger Output Port (USB) (pull to remove cover)
I. 2s/3s/4s LiPo Balance Ports (pull to remove cover)
J. Bluetooth® Button
J
GI
D
EB
C
A
H
F
Charge
Status
Charge
Progress
EZ-PEAK LIVE DUAL •9
Charger Specifications
AC Input Power 100-240V, 50-60Hz, 2.35A
Charger Output 200W, 4-17V
Traxxas iD Battery Type Capacity EZ-Peak Live Dual™ Maximum Charge Rate
5-cell NiMH 1200-1800mAh 2A
6-cell NiMH
1200-1800mAh 2A
3000-4200mAh 4A
4300-5000mAh 5A
7-cell NiMH 3000-4200mAh 4A
4300-5000mAh 5A
8-cell NiMH 3000-4200mAh 4A
4300-5000mAh 5A
2-cell LiPo, 7.4v 2200-10000mAh 16A
3-cell LiPo,11.1v 1400-8400mAh 16A
4-cell LiPo, 14.8v 5000-6700mAh 13.4A
10 • EZ-PEAK LIVE DUAL

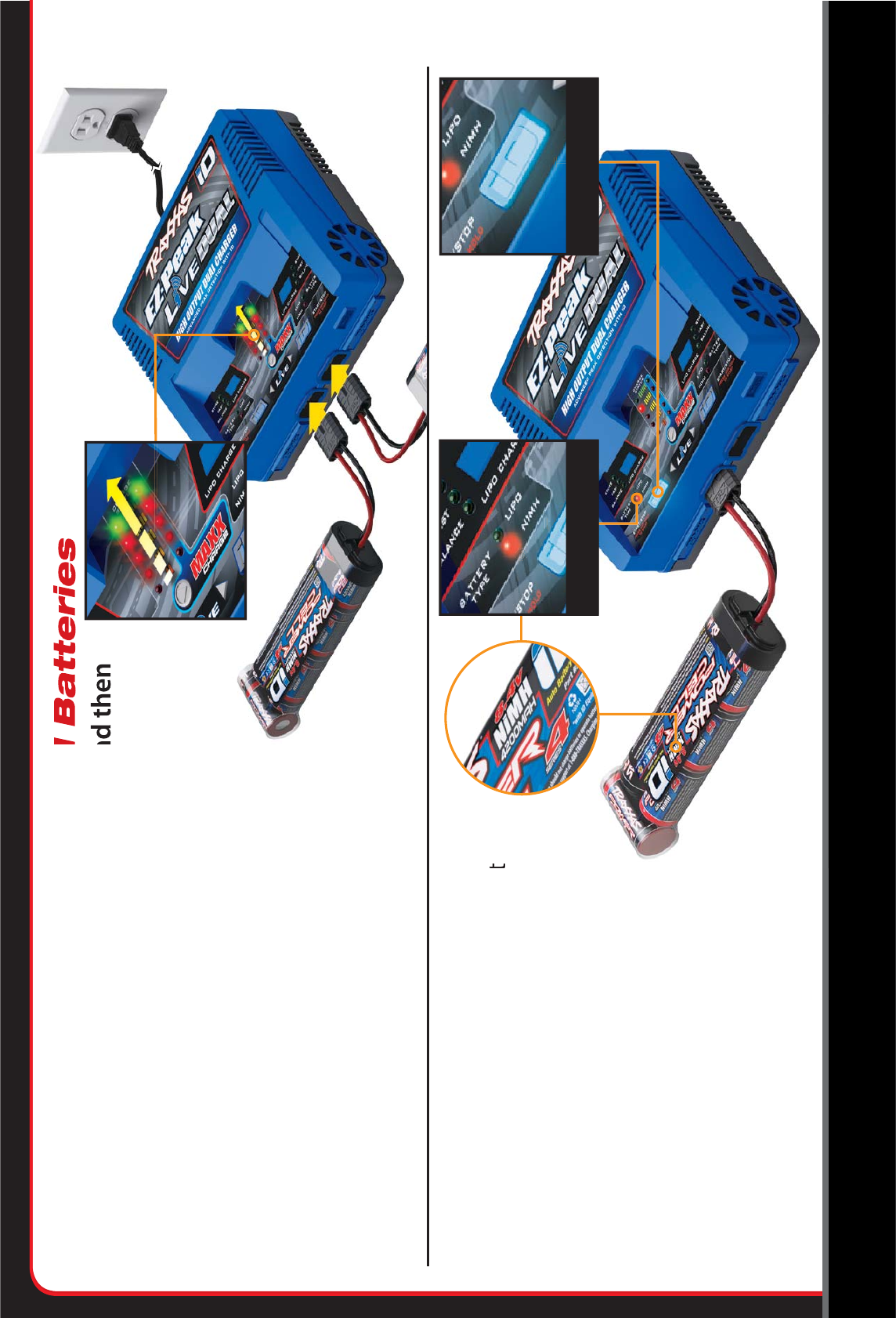

Charging Traxxas iD NiMH Batteries
1. Plug the charger into an AC wall outlet, and then
connect the NiMH batter(ies) as shown
2. Verify the charge settings
Confirm that the red NiMH LED is lit
for the connected NiMH batter(ies).
The Start button(s) will light blue
indicating that iD batter(ies) are
connected and ready to charge.
The charger will recognize the iD batter(ies)
and show you the charge settings.
Battery Type Start
NiMH with iD
EZ-PEAK LIVE DUAL •11
Charging Complete
(solid)

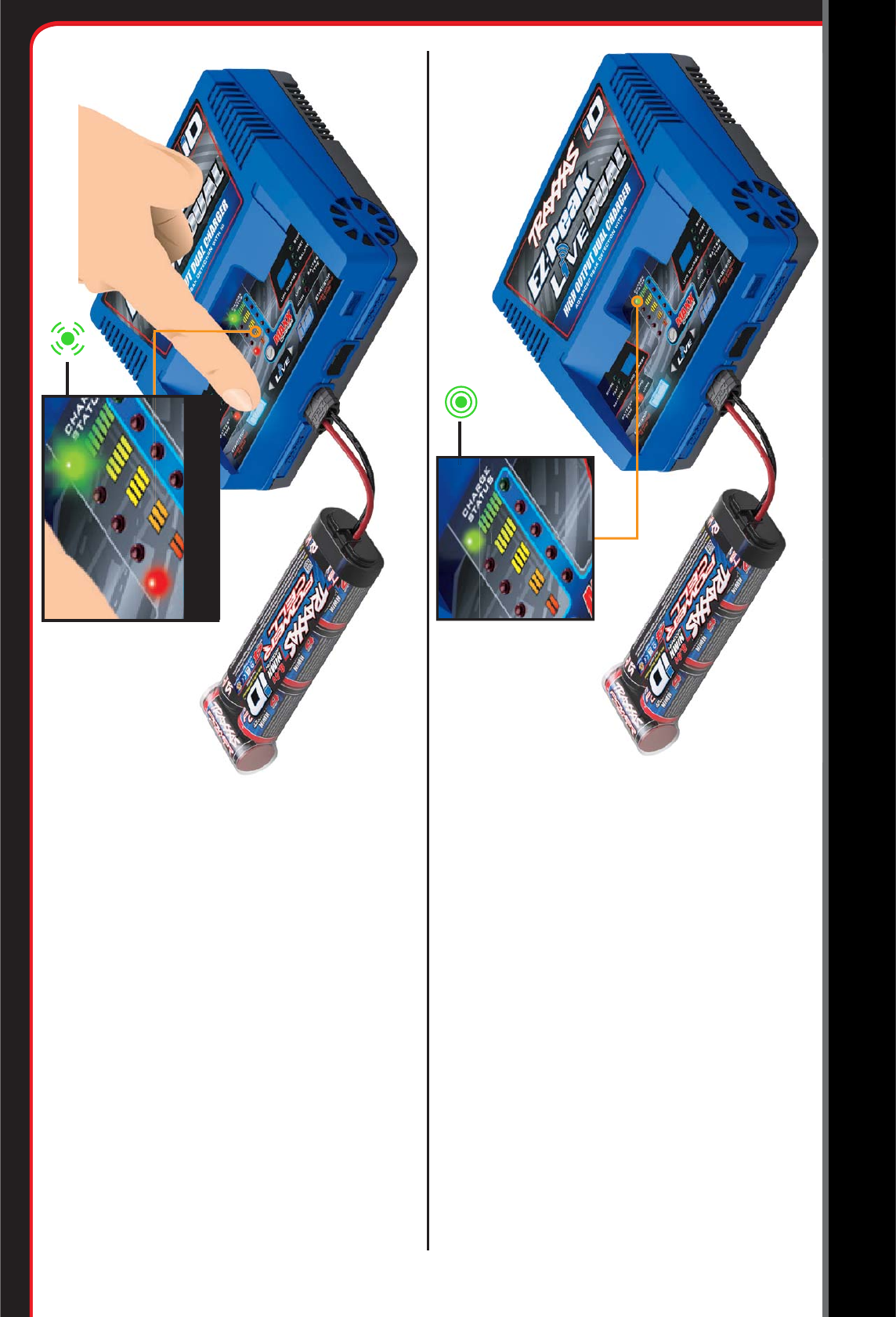

3. Charging
Press and hold the Start button for 2
seconds. The charger will play a tone
and the green progress LED will flash,
indicating that charging has started.
The red charge progress LEDs will light
as the batter(ies) charge. Press the Start
button at any time to stop charging.
The charger will play a tone, indicating
that charging has been canceled.
4. Charge cycle complete
Charging (flashing)
Charge Cycle Progress
The charger will play a “charge complete”
tone to indicate charging is complete. The
alert tone will play 3 times and stop.
The EZ-Peak Live Dual will trickle charge
your NiMH batter(ies) at a minimum of
100mA for 12 hours after the charge
cycle is complete.
12 • EZ-PEAK LIVE DUAL
Charging Traxxas iD LiPo Batteries

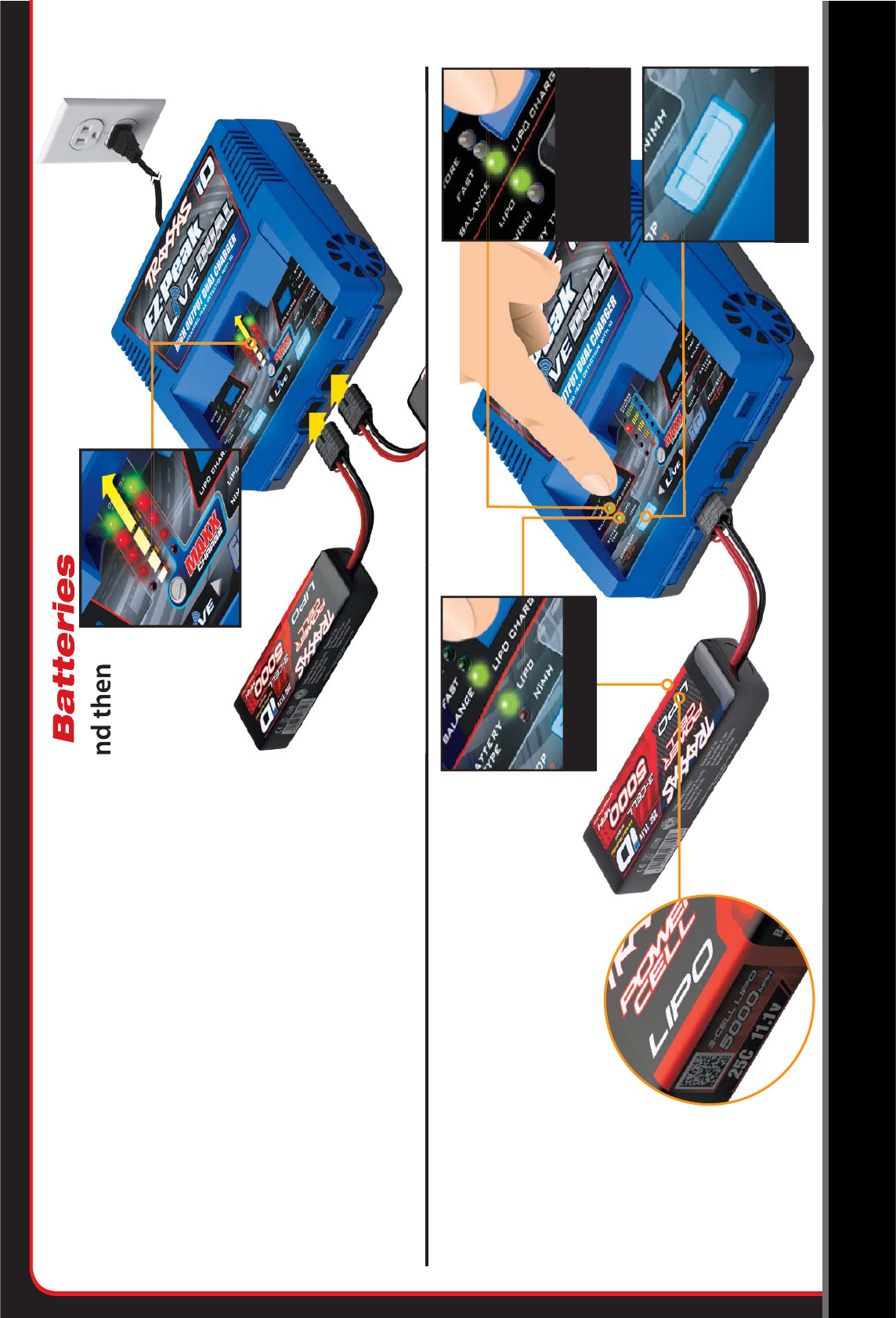

1. Plug the charger into an AC wall outlet, and then
connect the LiPo batter(ies) as shown
The charger will recognize the iD batter(ies)
and show you the charge settings.
2. Verify the charge settings
Charge Mode
(the default is
Balance)
Battery Type
LiPo with iD
Confirm that the green LiPo LED is lit for
the connected LiPo batter(ies). The Start
button(s) will light blue indicating that
iD batter(ies) are connected and
ready to charge.
Start
EZ-PEAK LIVE DUAL •13
The default LiPo charge setting is Balance Charge. You can change the LiPo charge setting, if desired.
Storage Charge
Makes it easy to charge or discharge batteries to the proper storage
voltage. Use this mode whenever batteries will be stored unused for
more than 7 days.
Fast Charge
Fast charges your batteries without balancing the cells. Stops charging
when the batteries are fully charged or when the first cells reach peak
voltage. Depending on the batteries, this may reduce the charge time
by a few minutes.
Balance Charge (recommended)
Always balance charge your LiPo batteries for maximum capacity,
voltage, and battery life. This is the default setting for Traxxas iD
batteries. The EZ-Peak Live Dual performs a balance charge quickly and
efficiently.
3. Select LiPo charging mode
WARNING: FIRE HAZARD!
The fast charge LiPo setting is for occasional use only. LiPo
batteries that become severely out of balance over time can
create a hazard if one or more cells are discharged below
the recommended safe voltage during use. See additional
warnings and precautions in the beginning of this manual.
14 • EZ-PEAK LIVE DUAL
4. Charging
Press and hold the Start button for 2
seconds. The charger will play a tone
and the green progress LED will flash,
indicating that charging has started.
The red charge progress LEDs will light
as the batter(ies) charge. Press the Start
button at any time to stop charging.
The charger will play a tone, indicating
that charging has been canceled.
Charging (flashing)
Charge Cycle Progress
5. Charge cycle complete
The charger will play a “charge complete”
tone to indicate charging is complete.
The alert tone will play 3 times and stop.
Charging Complete
(solid)
EZ-PEAK LIVE DUAL •15
MAXX charge allows you to charge high capacity batteries at a faster charge rate. Use this feature to charge
your 5000 mAh NiMH batteries at 5 amps and your LiPo batteries at a “2C” charge rate (2C is 2 times the
capacity; 4000 mAh x 2 = 8000 mAh or 8 amps). Charging priority is given to the right charger output port
once the MAXX charge button is pressed; the left charger output port remains active, but will charge the
connected battery at a decreased charge rate.
Press the
MAXX charge button. The button will
flash for 3 seconds, and then turn solid green
to indicate MAXX charge is active.
Follow the
charging steps for Traxxas iD NiMH or LiPo batteries.
Charging Traxxas iD Batteries using MAXX charge
16 • EZ-PEAK LIVE DUAL
The EZ-Peak Live App installs on your Apple® iPhone®, iPad®, iPod touch®, or Android™ device
and links to your charger via built-in Bluetooth®. The EZ-Peak Live App (available in the Apple
App Storeor on Google Play™) gives you access to additional features, such as a high-definition
graphical user interface, remote monitoring and alerts for up to 4 chargers, detailed live charging
information, and access to full manual controls (see Advanced Mode on page 19).
Remote monitoring via the
EZ-Peak Live App is not a substitute for being present to watch over and tend to batteries being charged.
Please see the warning about this on page 18.
Linking the App to the Charger
1. Plug the charger into an AC wall outlet. Open the EZ-Peak Live
App on your mobile device.
2. Press the Bluetooth® Link button on the side of the charger.
The blue LED will blink.
3. Within 10 seconds, tap the “Press Here to Connect” button in
the app.
4. The Bluetooth® icon in the status bar will turn blue and the
blue Bluetooth® LED on the side of the charger will glow solid.
5. The EZ-Peak Live charger and the EZ-Peak Live App are now
paired. The charger and app will automatically connect
when the charger is powered up and the app is running.
Note: When the paired charger is selected using the EZ-Peak Live
App, the left or right App Live LED on the charger will glow solid
green to indicate which output port is active within the app.
Traxxas EZ-Peak Live Application
Note:
The EZ-Peak Live App is updated
frequently, and the actual screens may vary
from the images shown.
EZ-PEAK LIVE DUAL •17
Charging Traxxas iD NiMH or LiPo Batteries
using the EZ-Peak Live App
When EZ-Peak Live Dual is connected, you have the ability to
configure the charger remotely from the app or you can use the
buttons on the charger. EZ-Peak Live Dual will not allow you to
start the charging process remotely via the app. It is important
to verify visually at the charger that the connected batter(ies)
match the charge mode indicated on the face of charger. Once
your charge settings are visually confirmed by you, press and hold
the Start button on the charger for 2 seconds to begin charging.
Once charging has started, you can view charge progress and
stop the charging process at any time from the app. When the
charge process is completed, the EZ-Peak Live App will play the
charge complete alert tone. These alerts can be adjusted in the
app settings. Follow the on-screen prompts to move through the
information screens provided in the app. If you have questions, tap
the Help button ? in the lower right of the app display.
iD Battery Specifications
Connected Chargers (up to 4)
iD-Only Safety Lock
The EZ-Peak Live App contains a passcode-protected safety lock that limits the charger to iD-only operation,
even when connected to the app on another iOS® or Android™ device. This feature allows the charger to be
locked so that inexperienced users (such as children) do not have access to manual settings for the charger and
the risks associated with using manual settings (see Warnings on page 2).
18 • EZ-PEAK LIVE DUAL
Cell Voltage Checker
Charge Status Charging History
LiPo Charge Settings
WARNING: FIRE HAZARD!
Never leave batteries unattended while charging. Remote monitoring via the EZ-Peak Live App
is not a substitute for being present to watch over and tend to batteries being charged. Batteries
being charged should always be visible and monitored in person in case there is an unexpected
problem that requires immediate attention.
EZ-PEAK LIVE DUAL •19
Advanced Mode
Advanced Mode allows you to choose and configure the charge settings for the charger. Advanced Mode
is needed for charging batteries that are not equipped with iD technology. It is not possible to manually
configure your charge settings without the Traxxas EZ-Peak Live App connected to the charger.
1. Open the EZ-Peak Live App on your mobile device; plug the charger into an AC wall outlet,
and then connect the batter(ies) as shown
IN ADVANCED MODE, THE USER SELECTS THE
BATTERY CHEMISTRY AND CHARGE MODE. THIS CREATES THE RISK OF FIRE
AND POSSIBLE INJURY TO YOURSELF AND OTHERS RESULTING FROM ACCIDENTALLY
CHOOSING TO CHARGE A LIPO BATTERY IN NIMH MODE. ALWAYS MAKE SURE TO SELECT
THE BATTERY TYPE THAT MATCHES THE CONNECTED BATTERY. ALSO, TO HELP PREVENT
ACCIDENTALLY SELECTING THE WRONG BATTERY TYPE, NEVER ATTEMPT TO CHARGE
LIPO BATTERIES WITH MISSING OR DAMAGED BALANCE CONNECTORS. IF YOU DO NOT
UNDERSTAND THE TERMINOLOGY USED IN THESE INSTRUCTIONS, KNOW WHAT TYPE OF
BATTERIES YOU HAVE, OR WHAT THIS WARNING MEANS, DO NOT USE ADVANCED
MODE; INSTEAD, CONTACT TRAXXAS FOR MORE INFORMATION.
WARNING! CAUTION! DANGER!
FIRE HAZARD!
20 • EZ-PEAK LIVE DUAL
LiPo Only
NiMH battery LiPo battery
with balance plug connected
Advanced Mode (manual settings)
Advanced Mode must be enabled by the user.
Follow the on-screen prompts in the EZ-Peak Live App.
EZ-PEAK LIVE DUAL •21
2. Use the EZ-Peak Live App to select the battery type,
charging mode, battery capacity, and charge rate.
The EZ-Peak Live application has several methods to manually
input the charge settings for Traxxas batteries that are not
equipped with iD:
1. Manual configuration screen (shown right)
2. Manual configuration wizard (recommended)
The manual configuration wizard takes you through the setup
process by asking you questions about the batter(ies) that you
are charging.
Follow the instructions in the app.
Tap the Help button ? in
the lower right of the app display for more detail.
Note that in Advanced Mode, once the charge settings are configured, the charge process cannot be started
from the app. Once the app sends these charge settings to the charger, the Start button(s) will blink green
indicating that it is ready for you to verify the connected batter(ies). Press and hold the Start button(s) to begin
the charging process.
22 • EZ-PEAK LIVE DUAL
Note: If the LiPo battery type is selected, a balance plug
connection is required by the charger and the EZ-Peak Live App
before displaying the LiPo charging options. Once the charger
detects a balance plug connection, the EZ-Peak Live App will
display the charging options and you can select your preferred
charging mode:
Balance, Fast, or Storage Charge
.
WARNING: FIRE HAZARD!
If the LiPo and NiMH LEDs alternately blink, then
the balance connector is either disconnected or
damaged. This creates the risk of fire or possible
injury to youself and others. DO NOT attempt to
charge this LiPo battery.
EZ-PEAK LIVE DUAL •23
3. Charging
Press and hold the Start button for 2
seconds. The charger will play a tone
and the green progress LED will flash,
indicating that charging has started.
The red charge progress LEDs will light
as the batter(ies) charge. Press the Start
button at any time to stop charging.
The charger will play a tone, indicating
that charging has been canceled.
4. Charge cycle complete
The charger will play a “charge complete”
tone to indicate charging is complete. The
alert tone will play 3 times and stop.
Charging Complete (solid)
Charging (flashing)
Charge Cycle Progress
24 • EZ-PEAK LIVE DUAL
Error Code Explanation Solution
The detected battery
type does not match the
charger conguration.
a. Press the Battery iD Start/Stop button to return to charger conguration.
b. Verify that the battery matches the selected type (LiPo or NiMH).
c. Verify that the balance connector is plugged into the charger (if charging a non-iD LiPo
battery) or fully plugged into the charger (if charging an iD LiPo battery).
d. Inspect the battery for any signs of damage.
The battery or cell voltage
is too high or too low to
charge safely.
a. Verify that the balance connector is plugged into the charger (if charging a non-iD
LiPo battery).
b. Disconnect the battery and check its condition. Ensure it is within safe voltage levels.
c. Use the EZ-Peak Live App to verify charge settings.
The charge cycle
timed out without
reaching the target
battery voltage.
Disconnect the battery and check its condition.
The Traxxas battery iD
is detected but is not
readable by the charger
or the charger detected a
potential battery iD error.
Contact Traxxas Customer Support.
The internal charger
temperature is too high. Power o the charger and allow it to cool before attempting to charge the battery again.
Charger Error Codes
If the charger detects an error during the charge process, the charge status LEDs will ash an error code.
EZ-PEAK LIVE DUAL •25
Error Code Explanation Solution
Balance connector is
either disconnected or
damaged.
Disconnect the battery. DO NOT attempt to charge this battery. Contact Traxxas Customer
Support.
Charger Error Codes (continued)
26 • EZ-PEAK LIVE DUAL
Warranty Information
Traxxas electronic components are warranted to be free from defects in materials and workmanship for a period
of 30 days from the date of purchase. Limitations: Any and all warranty coverage does not cover replacement
of parts and components damaged by abuse, neglect, improper or unreasonable use, crash damage, water or
excessive moisture, chemical damage, improper or infrequent maintenance, accident, unauthorized alteration or
modification or items that are considered consumable. Traxxas will not pay for the cost of shipping or transportation
of a defective component to us. This warranty is limited to the charger only and does not cover batteries, vehicles
and other accessories used in conjunction with the charger.
Traxxas Lifetime Electronics Warranty
After the expiration date of the warranty period, Traxxas will repair electronic components for a flat rate. Please
visit Traxxas.com/support for a current schedule of warranty costs and fees. The covered repairs are limited to
non-mechanical components that have NOT been subjected to abuse, misuse, or neglect. Products damaged
by intentional abuse, misuse, or neglect may be subject to additional charges. Traxxas liability, in no case, shall
be greater than the actual purchase price of this product. For replacement, product must be returned in brand
new condition, with packaging and itemized sales receipt.
Specifications are subject to change without notice. Every effort has been made to ensure the accuracy of
this Owner’s Manual and its contents; however, Traxxas cannot be held responsible for typographical or other
errors.
Apple, the Apple logo, iPhone, iPad, iPod touch, and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Android and Google Play are trademarks of Google Inc.
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Traxxas is under license. Other trademarks and trade
names are those of their respective owners.
EZ-PEAK LIVE DUAL •27
FCC Compliance
This device contains a module that complies with the limits for a Class B digital device as described in part 15 of the FCC rules.
Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
The limits for a Class B digital device are designed to provide reasonable protection against harmful interference in residential
settings. This product generates, uses and can radiate radio frequency energy, and, if not operated in accordance with the
instructions, may cause harmful interference to radio communications. The user is cautioned that changes or modifications not
expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Canada, Industry Canada (IC)
This Class B digital apparatus complies with Canadian ICES-003 and RSS-210. This device complies with Industry Canada license
exempt RSS standard(s). Operation is subject to the following two conditions: This device may not cause interference, and This
device must accept any interference, including interference that may cause undesired operation of the device.
Radio Frequency (RF) Exposure Statement
This equipment complies with radio frequency exposure limits set forth by FCC and Industry Canada for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the
radiator and your body or bystanders and must not be co-located or operating in conjunction with any other antenna or
transmitter.
Declaration of Conformity for RED Directive
Traxxas LP hereby declares that this product is in compliance with Directive 2014/53/EU.
The full text of the EU Declaration of Conformity is available online at:
https://traxxas.com/compliance
Signed: ___________________________ Date: ___________________
October 19, 2017
EZ-PEAK LIVE DUAL •27
FCC Compliance
This device contains a module that complies with the limits for a Class B digital device as described in part 15 of the FCC rules.
Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
The limits for a Class B digital device are designed to provide reasonable protection against harmful interference in residential
settings. This product generates, uses and can radiate radio frequency energy, and, if not operated in accordance with the
instructions, may cause harmful interference to radio communications. The user is cautioned that changes or modifications not
expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Canada, Industry Canada (IC)
This Class B digital apparatus complies with Canadian ICES-003 and RSS-210. This device complies with Industry Canada license
exempt RSS standard(s). Operation is subject to the following two conditions: This device may not cause interference, and This
device must accept any interference, including interference that may cause undesired operation of the device.
Radio Frequency (RF) Exposure Statement
This equipment complies with radio frequency exposure limits set forth by FCC and Industry Canada for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the
radiator and your body or bystanders and must not be co-located or operating in conjunction with any other antenna or
transmitter.
Declaration of Conformity for RED Directive
Traxxas LP hereby declares that this product is in compliance with Directive 2014/53/EU.
The full text of the EU Declaration of Conformity is available online at:
https://traxxas.com/compliance
Signed: ___________________________ Date: ___________________
October 19, 2017
EZ-PEAK LIVE DUAL •27
FCC Compliance
This device contains a module that complies with the limits for a Class B digital device as described in part 15 of the FCC rules.
Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
The limits for a Class B digital device are designed to provide reasonable protection against harmful interference in residential
settings. This product generates, uses and can radiate radio frequency energy, and, if not operated in accordance with the
instructions, may cause harmful interference to radio communications. The user is cautioned that changes or modifications not
expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Canada, Industry Canada (IC)
This Class B digital apparatus complies with Canadian ICES-003 and RSS-210. This device complies with Industry Canada license
exempt RSS standard(s). Operation is subject to the following two conditions: This device may not cause interference, and This
device must accept any interference, including interference that may cause undesired operation of the device.
Radio Frequency (RF) Exposure Statement
This equipment complies with radio frequency exposure limits set forth by FCC and Industry Canada for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the
radiator and your body or bystanders and must not be co-located or operating in conjunction with any other antenna or
transmitter.
Declaration of Conformity for RED Directive
Traxxas LP hereby declares that this product is in compliance with Directive 2014/53/EU.
The full text of the EU Declaration of Conformity is available online at:
https://traxxas.com/compliance
Signed: ___________________________ Date: ___________________
October 19, 2017
6250 TRAXXAS WAY, McKINNEY, TX 75070
1-888-TRAXXAS
171019 HKC17008-R00
Part #2973
owner’s manual
Entire contents ©2017 Traxxas. All rights reserved.
No part of this manual may be reproduced or distributed in print or electronic media without
the express written permission of Traxxas. Specifications are subject to change without notice.
