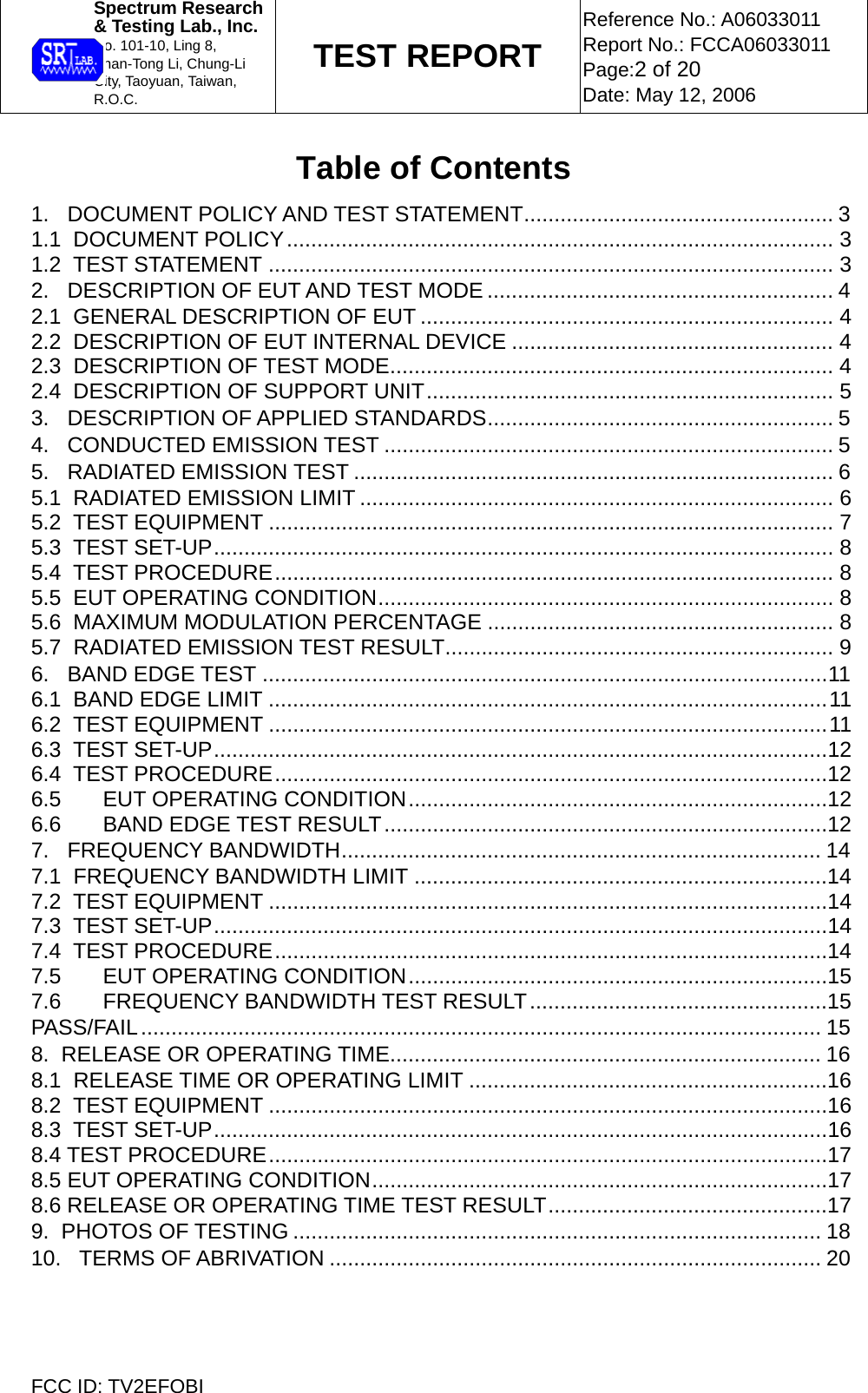

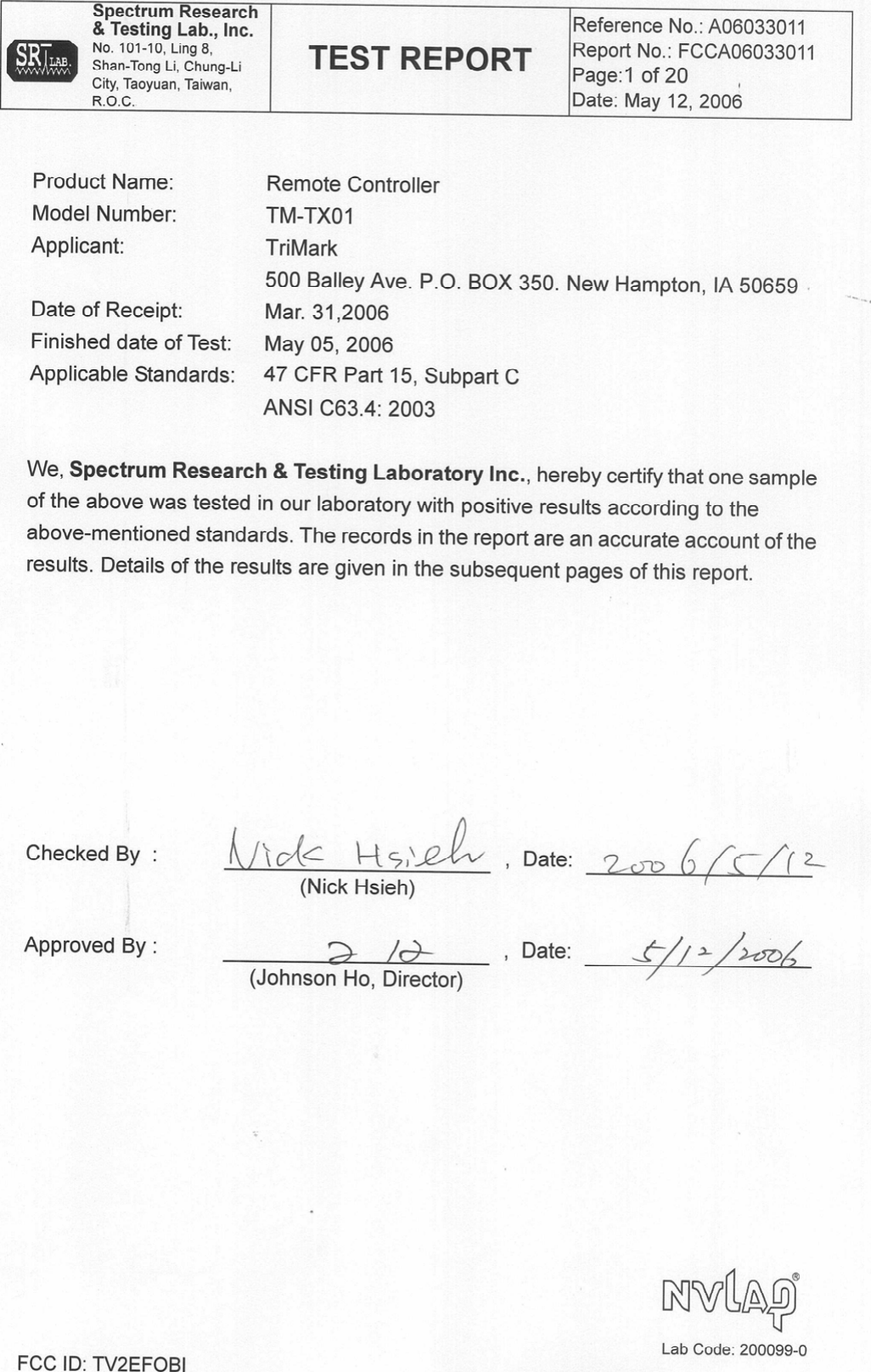

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A06033011 Report No.: FCCA06033011 Page:2 of 20 Date: May 12, 2006 FCC ID: TV2EFOBI Table of Contents 1. DOCUMENT POLICY AND TEST STATEMENT................................................... 3 1.1 DOCUMENT POLICY.......................................................................................... 3 1.2 TEST STATEMENT ............................................................................................. 3 2. DESCRIPTION OF EUT AND TEST MODE ......................................................... 4 2.1 GENERAL DESCRIPTION OF EUT .................................................................... 4 2.2 DESCRIPTION OF EUT INTERNAL DEVICE ..................................................... 4 2.3 DESCRIPTION OF TEST MODE......................................................................... 4 2.4 DESCRIPTION OF SUPPORT UNIT................................................................... 5 3. DESCRIPTION OF APPLIED STANDARDS......................................................... 5 4. CONDUCTED EMISSION TEST .......................................................................... 5 5. RADIATED EMISSION TEST ............................................................................... 6 5.1 RADIATED EMISSION LIMIT .............................................................................. 6 5.2 TEST EQUIPMENT ............................................................................................. 7 5.3 TEST SET-UP...................................................................................................... 8 5.4 TEST PROCEDURE............................................................................................ 8 5.5 EUT OPERATING CONDITION........................................................................... 8 5.6 MAXIMUM MODULATION PERCENTAGE ......................................................... 8 5.7 RADIATED EMISSION TEST RESULT................................................................ 9 6. BAND EDGE TEST .............................................................................................11 6.1 BAND EDGE LIMIT ............................................................................................11 6.2 TEST EQUIPMENT ............................................................................................11 6.3 TEST SET-UP.....................................................................................................12 6.4 TEST PROCEDURE...........................................................................................12 6.5 EUT OPERATING CONDITION.....................................................................12 6.6 BAND EDGE TEST RESULT.........................................................................12 7. FREQUENCY BANDWIDTH............................................................................... 14 7.1 FREQUENCY BANDWIDTH LIMIT ....................................................................14 7.2 TEST EQUIPMENT ............................................................................................14 7.3 TEST SET-UP.....................................................................................................14 7.4 TEST PROCEDURE...........................................................................................14 7.5 EUT OPERATING CONDITION.....................................................................15 7.6 FREQUENCY BANDWIDTH TEST RESULT.................................................15 PASS/FAIL................................................................................................................ 15 8. RELEASE OR OPERATING TIME....................................................................... 16 8.1 RELEASE TIME OR OPERATING LIMIT ...........................................................16 8.2 TEST EQUIPMENT ............................................................................................16 8.3 TEST SET-UP.....................................................................................................16 8.4 TEST PROCEDURE............................................................................................17 8.5 EUT OPERATING CONDITION...........................................................................17 8.6 RELEASE OR OPERATING TIME TEST RESULT..............................................17 9. PHOTOS OF TESTING ....................................................................................... 18 10. TERMS OF ABRIVATION ................................................................................. 20

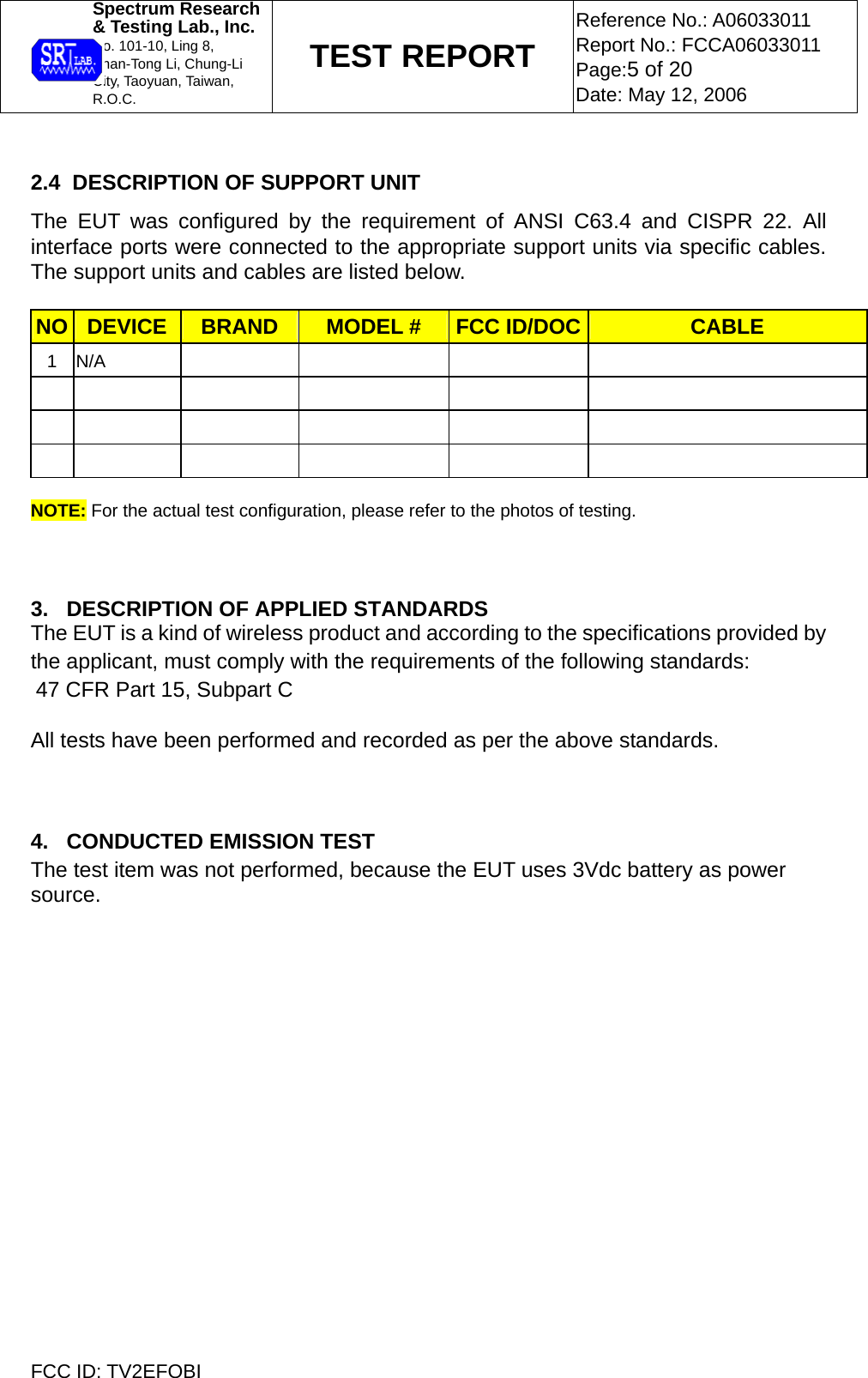

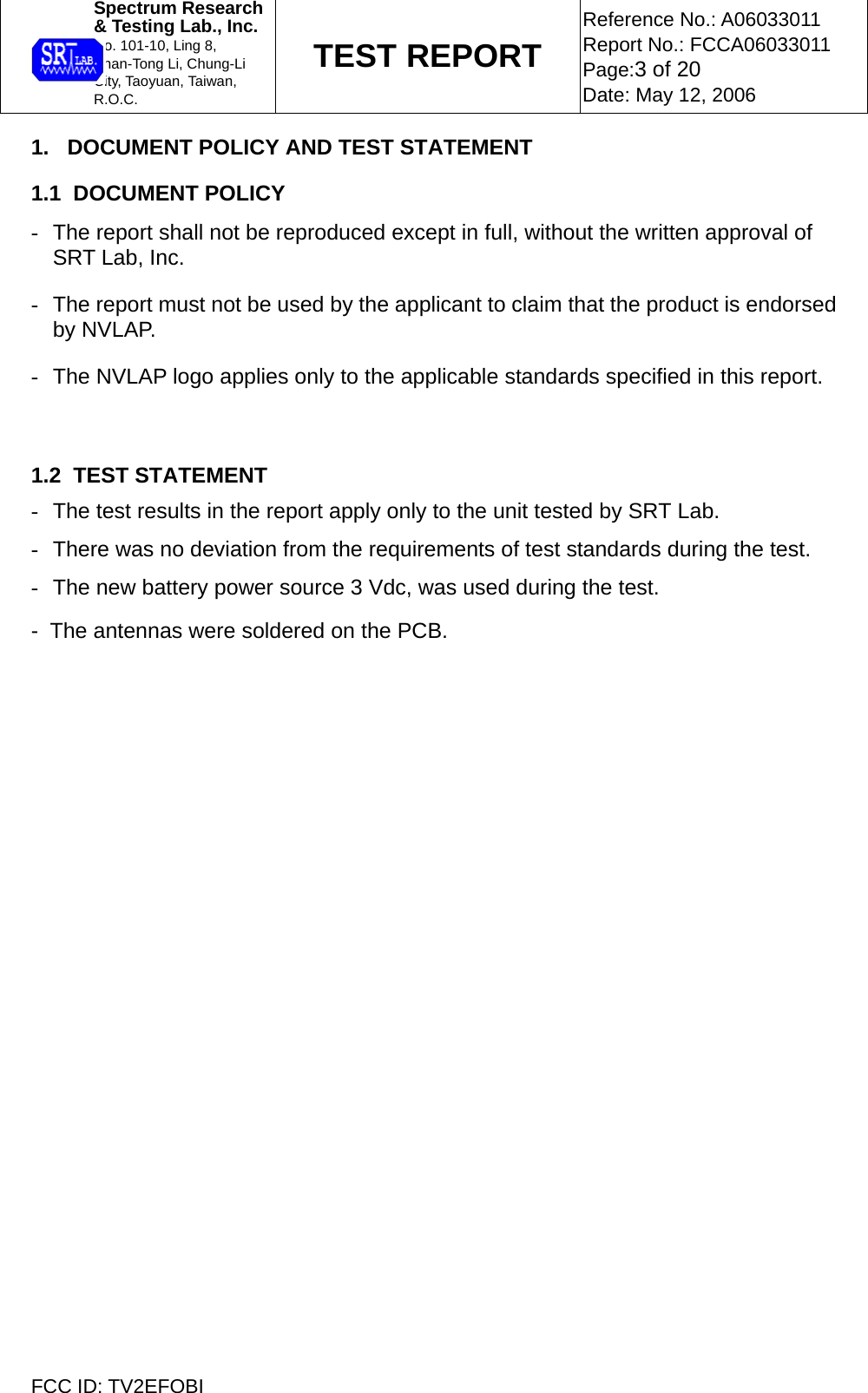

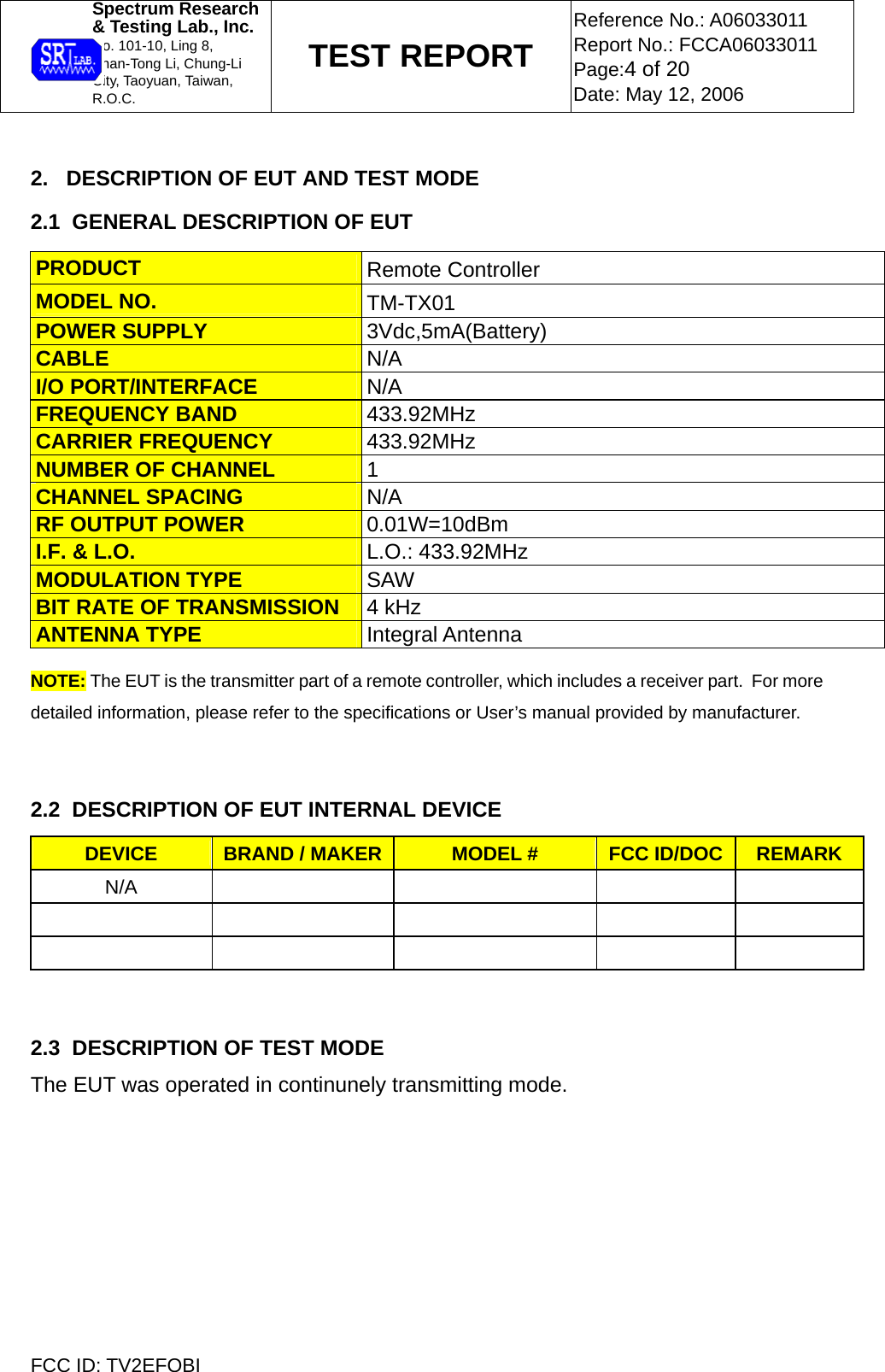

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A06033011 Report No.: FCCA06033011 Page:6 of 20 Date: May 12, 2006 FCC ID: TV2EFOBI 5. RADIATED EMISSION TEST 5.1 RADIATED EMISSION LIMIT FCC part15C 15.209 limits of radiated emission measurement for frequency below 1000 MHz FREQUENCY (MHz) DISTANCE (m) FIELS STRENGTH (dBµV/m) 30 - 88 3 40.0 88 - 216 3 43.5 216 - 960 3 46.0 ABOVE 960 3 54.0 FCC part15C 15.231(b) limit of fundamental and spurious emissions measurement. FREQUENCY (MHz) Field Strength of Fundamental (microvolts/meter) Field Strength of Spurious Emissions (microvolts/meter) 40.66-40.70 2250 225 70-130 1250 125 130-174 1250 to 3750 (NOTE 5) 125 to 375 (NOTE 7) 174-260 3750 375 (NOTE 7) 260-470 3750 to 12500 (NOTE 6) 375 to 1250 Above 470 12500 1250 NOTE: 1. The lower limit shall apply at the transition frequencies. 2. Emission level (dBµV/m) = 20 log Emission level (µV/m). 3.In the emission tables above, the tighter limit applies at the band edges. 4. Distance refers to the distance between measuring nstrument, antenna, and the closest point of any part of the device or system. 5. Limit = 20log(56.81818(F) - 6136.3636) ; F : Fundamental Frequency (MHz) 6. Limit = 20log(41.667 x F – 7083.3333) ; F : Fundamental Frequency (MHz) 7. Limit = The Limit of Fundamental Frequency – 20dB 8. The maximum permitted unwanted emission level is 20 dB below the maximum permitted fundamental level.

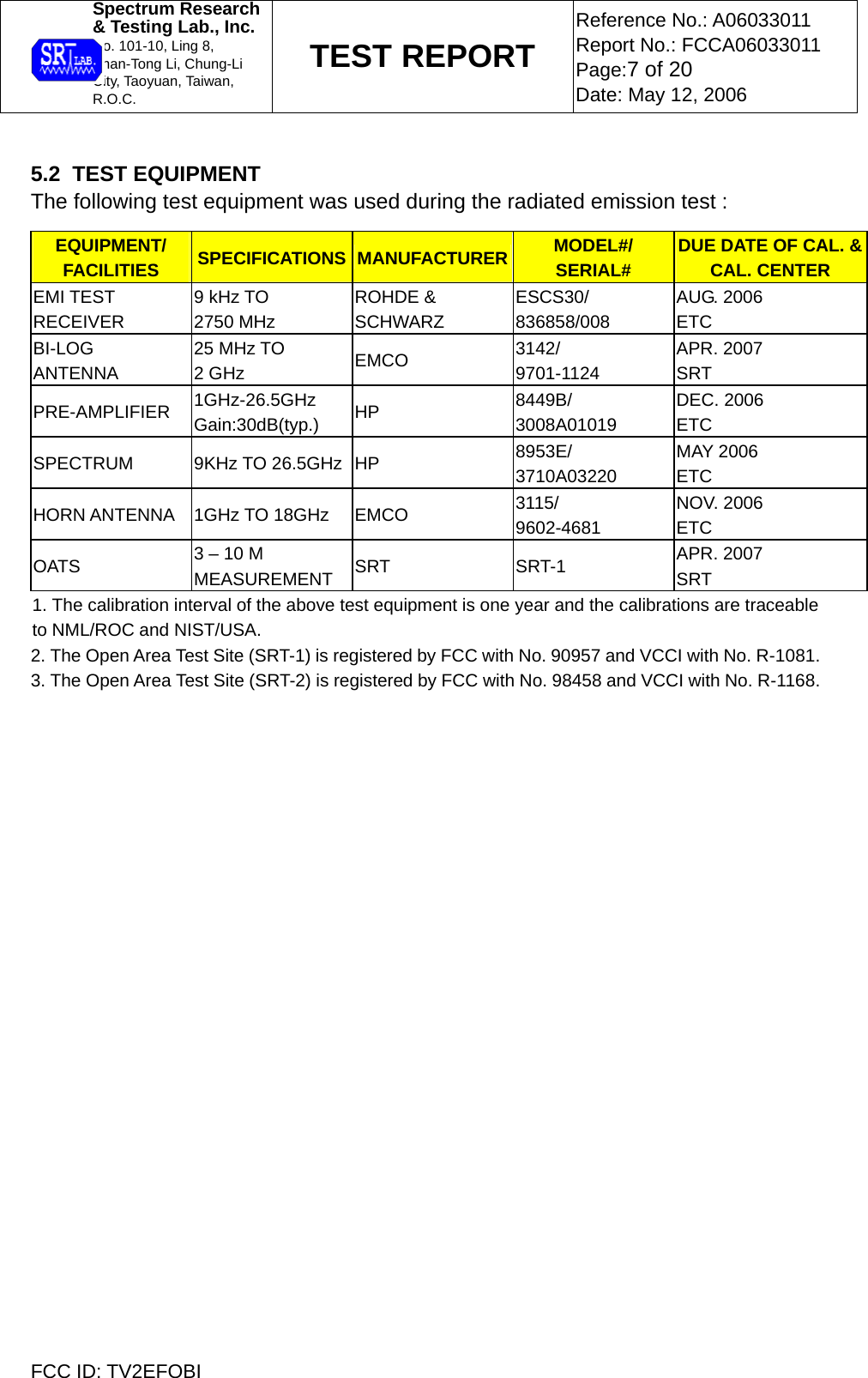

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A06033011 Report No.: FCCA06033011 Page:7 of 20 Date: May 12, 2006 FCC ID: TV2EFOBI 5.2 TEST EQUIPMENT The following test equipment was used during the radiated emission test : EQUIPMENT/ FACILITIES SPECIFICATIONS MANUFACTURER MODEL#/ SERIAL# DUE DATE OF CAL. & CAL. CENTER EMI TEST RECEIVER 9 kHz TO 2750 MHz ROHDE & SCHWARZ ESCS30/ 836858/008 AUG. 2006 ETC BI-LOG ANTENNA 25 MHz TO 2 GHz EMCO 3142/ 9701-1124 APR. 2007 SRT PRE-AMPLIFIER 1GHz-26.5GHz Gain:30dB(typ.) HP 8449B/ 3008A01019 DEC. 2006 ETC SPECTRUM 9KHz TO 26.5GHz HP 8953E/ 3710A03220 MAY 2006 ETC HORN ANTENNA 1GHz TO 18GHz EMCO 3115/ 9602-4681 NOV. 2006 ETC OATS 3 – 10 M MEASUREMENT SRT SRT-1 APR. 2007 SRT 1. The calibration interval of the above test equipment is one year and the calibrations are traceable to NML/ROC and NIST/USA. 2. The Open Area Test Site (SRT-1) is registered by FCC with No. 90957 and VCCI with No. R-1081. 3. The Open Area Test Site (SRT-2) is registered by FCC with No. 98458 and VCCI with No. R-1168.

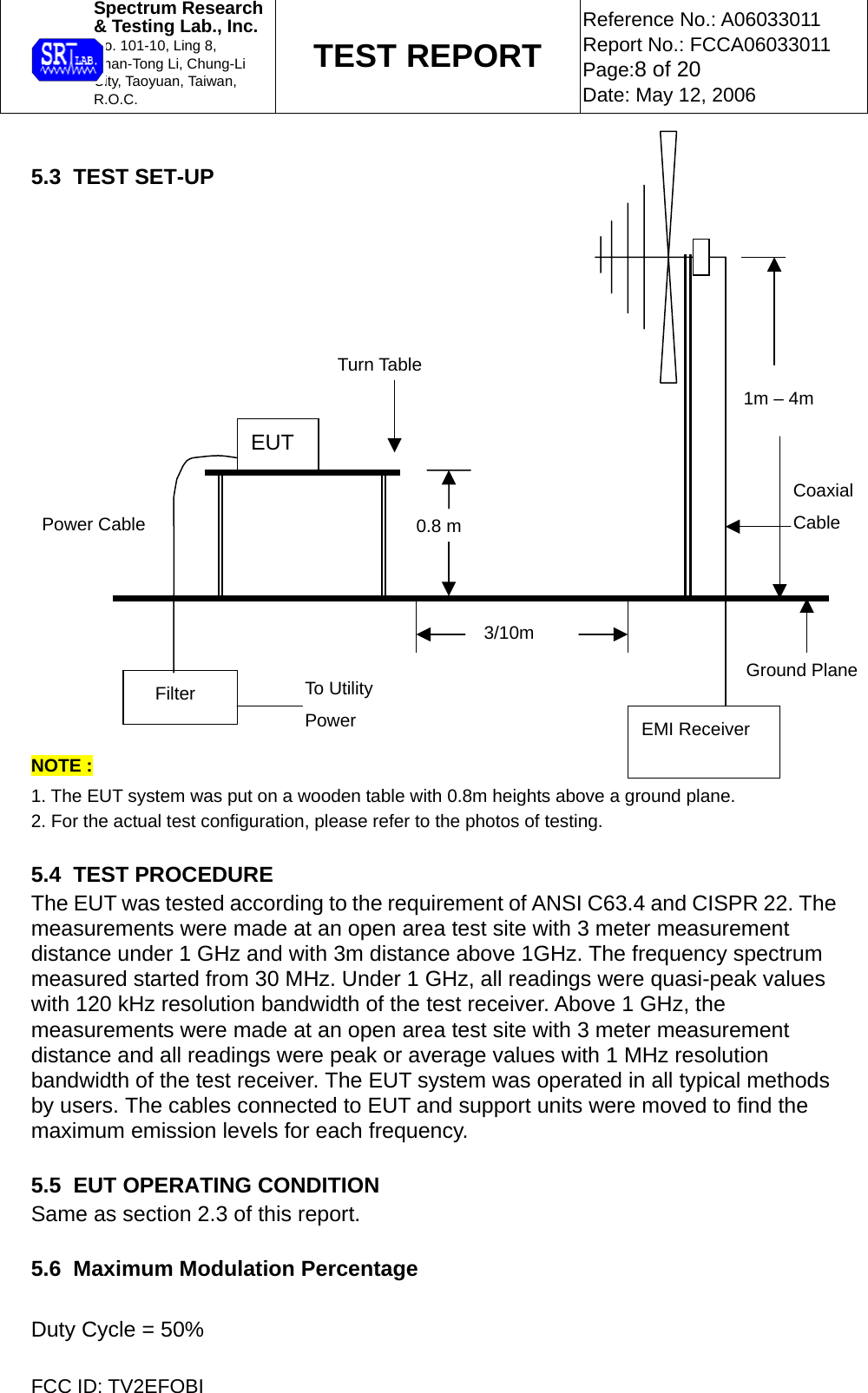

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A06033011 Report No.: FCCA06033011 Page:8 of 20 Date: May 12, 2006 FCC ID: TV2EFOBI 5.3 TEST SET-UP NOTE : 1. The EUT system was put on a wooden table with 0.8m heights above a ground plane. 2. For the actual test configuration, please refer to the photos of testing. 5.4 TEST PROCEDURE The EUT was tested according to the requirement of ANSI C63.4 and CISPR 22. The measurements were made at an open area test site with 3 meter measurement distance under 1 GHz and with 3m distance above 1GHz. The frequency spectrum measured started from 30 MHz. Under 1 GHz, all readings were quasi-peak values with 120 kHz resolution bandwidth of the test receiver. Above 1 GHz, the measurements were made at an open area test site with 3 meter measurement distance and all readings were peak or average values with 1 MHz resolution bandwidth of the test receiver. The EUT system was operated in all typical methods by users. The cables connected to EUT and support units were moved to find the maximum emission levels for each frequency. 5.5 EUT OPERATING CONDITION Same as section 2.3 of this report. 5.6 Maximum Modulation Percentage Duty Cycle = 50% EMI Receiver Filter To Utility Power EUT Ground Plane 3/10m 0.8 m CoaxialCable Turn Table 1m – 4mPower Cable

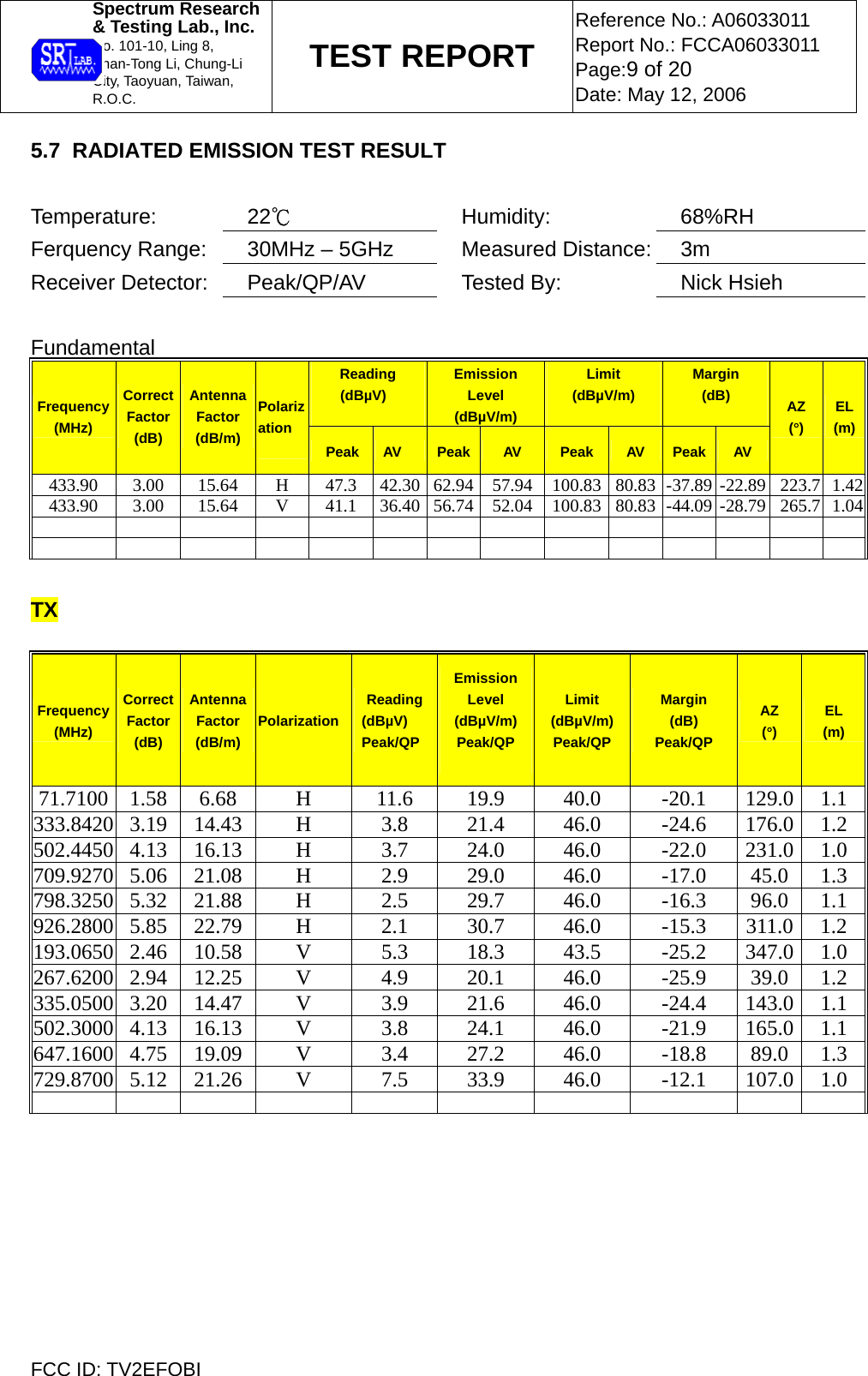

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A06033011 Report No.: FCCA06033011 Page:9 of 20 Date: May 12, 2006 FCC ID: TV2EFOBI 5.7 RADIATED EMISSION TEST RESULT Temperature: 22℃ Humidity: 68%RH Ferquency Range: 30MHz – 5GHz Measured Distance: 3m Receiver Detector: Peak/QP/AV Tested By: Nick Hsieh Fundamental Reading (dBµV) Emission Level (dBµV/m) Limit (dBµV/m) Margin (dB) Frequency (MHz) Correct Factor (dB) Antenna Factor (dB/m) Polarization Peak AV Peak AV Peak AV Peak AV AZ (°) EL(m)433.90 3.00 15.64 H 47.3 42.30 62.94 57.94 100.83 80.83 -37.89 -22.89 223.7 1.42433.90 3.00 15.64 V 41.1 36.40 56.74 52.04 100.83 80.83 -44.09 -28.79 265.7 1.04 TX Frequency (MHz) Correct Factor (dB) Antenna Factor (dB/m) Polarization Reading (dBµV) Peak/QP Emission Level (dBµV/m) Peak/QP Limit (dBµV/m) Peak/QP Margin (dB) Peak/QP AZ (°) EL (m) 71.7100 1.58 6.68 H 11.6 19.9 40.0 -20.1 129.0 1.1 333.8420 3.19 14.43 H 3.8 21.4 46.0 -24.6 176.0 1.2 502.4450 4.13 16.13 H 3.7 24.0 46.0 -22.0 231.0 1.0 709.9270 5.06 21.08 H 2.9 29.0 46.0 -17.0 45.0 1.3 798.3250 5.32 21.88 H 2.5 29.7 46.0 -16.3 96.0 1.1 926.2800 5.85 22.79 H 2.1 30.7 46.0 -15.3 311.0 1.2 193.0650 2.46 10.58 V 5.3 18.3 43.5 -25.2 347.0 1.0 267.6200 2.94 12.25 V 4.9 20.1 46.0 -25.9 39.0 1.2 335.0500 3.20 14.47 V 3.9 21.6 46.0 -24.4 143.0 1.1 502.3000 4.13 16.13 V 3.8 24.1 46.0 -21.9 165.0 1.1 647.1600 4.75 19.09 V 3.4 27.2 46.0 -18.8 89.0 1.3 729.8700 5.12 21.26 V 7.5 33.9 46.0 -12.1 107.0 1.0

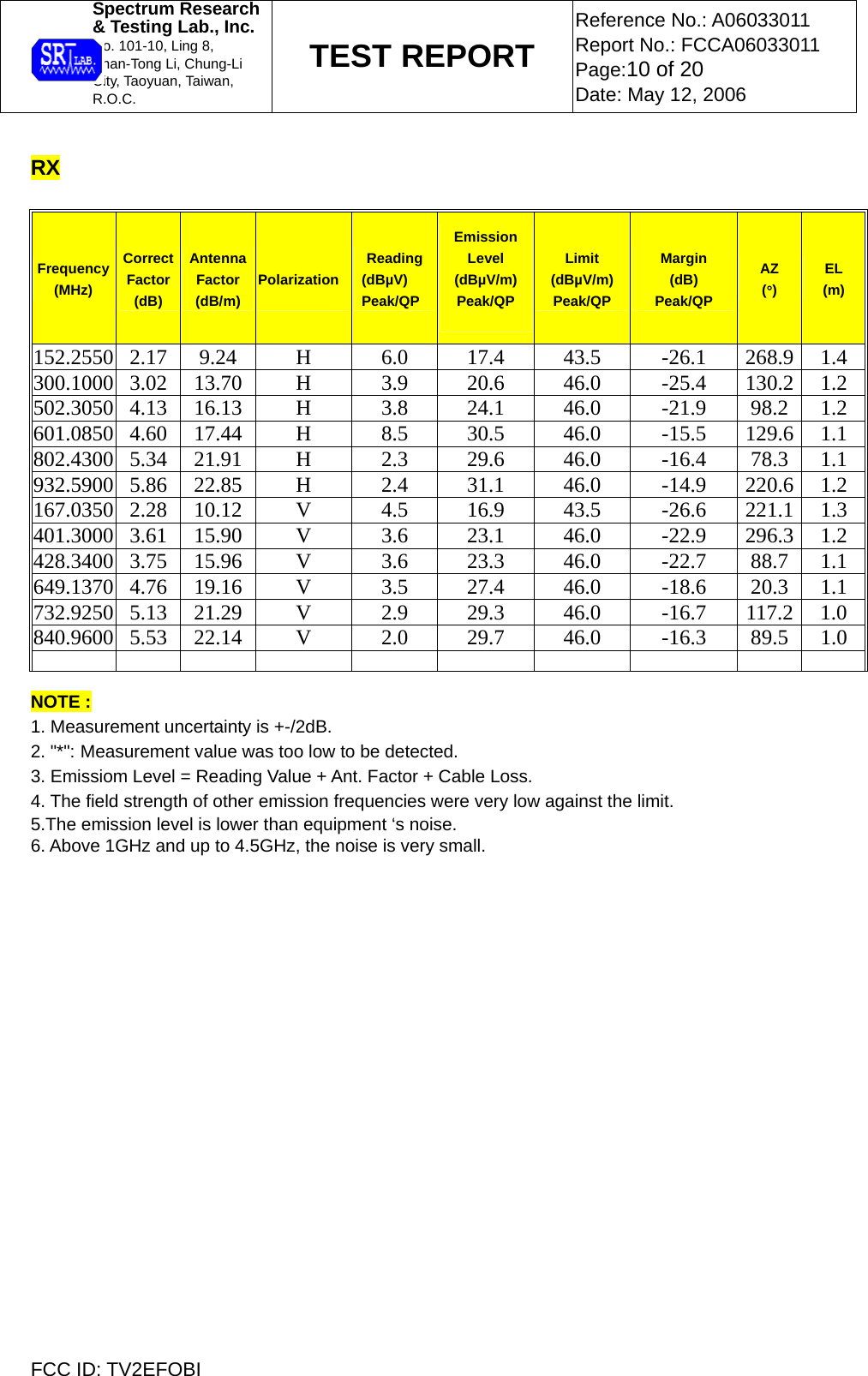

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A06033011 Report No.: FCCA06033011 Page:10 of 20 Date: May 12, 2006 FCC ID: TV2EFOBI RX Frequency (MHz) Correct Factor (dB) Antenna Factor (dB/m) Polarization Reading (dBµV) Peak/QP Emission Level (dBµV/m) Peak/QP Limit (dBµV/m) Peak/QP Margin (dB) Peak/QP AZ (°) EL (m) 152.2550 2.17 9.24 H 6.0 17.4 43.5 -26.1 268.9 1.4 300.1000 3.02 13.70 H 3.9 20.6 46.0 -25.4 130.2 1.2 502.3050 4.13 16.13 H 3.8 24.1 46.0 -21.9 98.2 1.2 601.0850 4.60 17.44 H 8.5 30.5 46.0 -15.5 129.6 1.1 802.4300 5.34 21.91 H 2.3 29.6 46.0 -16.4 78.3 1.1 932.5900 5.86 22.85 H 2.4 31.1 46.0 -14.9 220.6 1.2 167.0350 2.28 10.12 V 4.5 16.9 43.5 -26.6 221.1 1.3 401.3000 3.61 15.90 V 3.6 23.1 46.0 -22.9 296.3 1.2 428.3400 3.75 15.96 V 3.6 23.3 46.0 -22.7 88.7 1.1 649.1370 4.76 19.16 V 3.5 27.4 46.0 -18.6 20.3 1.1 732.9250 5.13 21.29 V 2.9 29.3 46.0 -16.7 117.2 1.0 840.9600 5.53 22.14 V 2.0 29.7 46.0 -16.3 89.5 1.0 NOTE : 1. Measurement uncertainty is +-/2dB. 2. "*": Measurement value was too low to be detected. 3. Emissiom Level = Reading Value + Ant. Factor + Cable Loss. 4. The field strength of other emission frequencies were very low against the limit. 5.The emission level is lower than equipment ‘s noise. 6. Above 1GHz and up to 4.5GHz, the noise is very small.

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A06033011 Report No.: FCCA06033011 Page:11 of 20 Date: May 12, 2006 FCC ID: TV2EFOBI NOTE : 1. Measurement uncertainty is +-/2dB. 2. "*": Measurement value was too low to be detected. 3. Emissiom Level = Reading Value + Ant. Factor + Cable Loss. 4. The field strength of other emission frequencies were very low against the limit. 5.The emission level is lower than equipment ‘s noise. 6. Above 1GHz and up to 4.5GHz, the noise is very small. 6. BAND EDGE TEST 6.1 BAND EDGE LIMIT FCC part15C 15.231(b) limit of fundamental and spurious emissions measurement. FREQUENCY (MHz) Field Strength of Fundamental (microvolts/meter) Field Strength of Spurious Emissions (microvolts/meter) 40.66-40.70 2250 225 70-130 1250 125 130-174 1250 to 3750 (NOTE 4) 125 to 375 (NOTE 6) 174-260 3750 375 260-470 3750 to 12500 (NOTE 5) 375 to 1250 (NOTE 6) Above 470 12500 1250 NOTE: 1. The lower limit shall apply at the transition frequencies. 2. Emission level (µV/m) = 20 log Emission level (µV/m). 3.In the emission tables above, the tighter limit applies at the band edges. 4. Limit = 20log(56.81818(F) - 6136.3636) ; F : Fundamental Frequency (MHz) 5. Limit = 20log(41.667(F) – 7083.3333) ; F : Fundamental Frequency (MHz) 6. Limit = The Limit of Fundamental Frequency – 20dB 7. The maximum permitted unwanted emission level is 20 dB below the maximum permitted fundamental level. 6.2 TEST EQUIPMENT The following test equipment was used during the radiated emission test : EQUIPMENT/ FACILITIES SPECIFICATIONS MANUFACTURER MODEL#/ SERIAL# DUE DATE OF CAL. & CAL. CENTER SPECTRUM 9 kHz TO 7GHz ROHDE & SCHWARZ FSP7/ 839511/010 MAR. 2007 ETC NOTE: 1. The calibration interval of the above test equipment is one year and the calibrations are traceable to NML/ROC and NIST/USA.

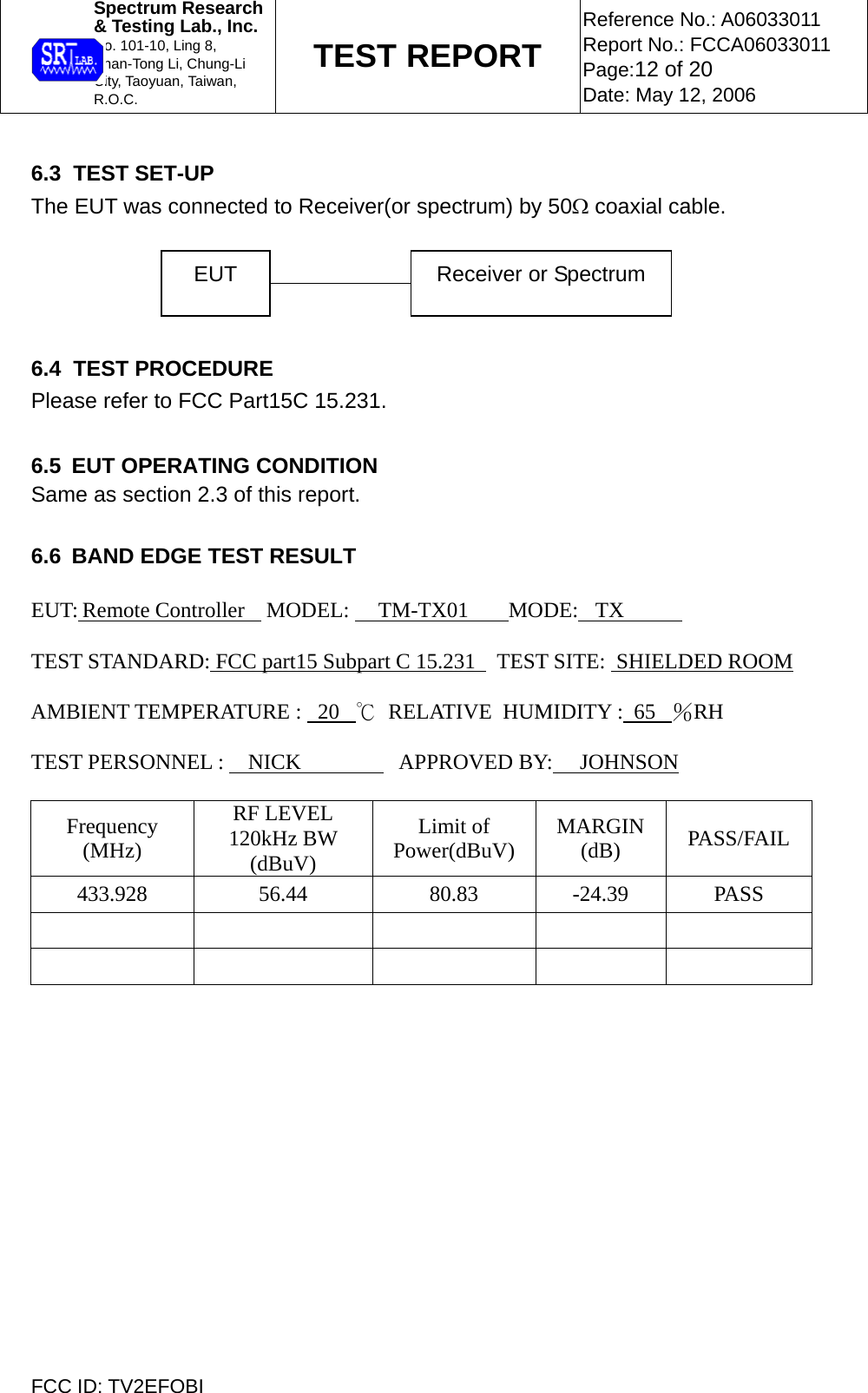

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A06033011 Report No.: FCCA06033011 Page:12 of 20 Date: May 12, 2006 FCC ID: TV2EFOBI 6.3 TEST SET-UP The EUT was connected to Receiver(or spectrum) by 50Ω coaxial cable. 6.4 TEST PROCEDURE Please refer to FCC Part15C 15.231. 6.5 EUT OPERATING CONDITION Same as section 2.3 of this report. 6.6 BAND EDGE TEST RESULT EUT: Remote Controller MODEL: TM-TX01 MODE: TX TEST STANDARD: FCC part15 Subpart C 15.231 TEST SITE: SHIELDED ROOM AMBIENT TEMPERATURE : 20 ℃ RELATIVE HUMIDITY : 65 ％RH TEST PERSONNEL : NICK APPROVED BY: JOHNSON Frequency (MHz) RF LEVEL 120kHz BW (dBuV) Limit of Power(dBuV) MARGIN (dB) PASS/FAIL 433.928 56.44 80.83 -24.39 PASS EUT Receiver or Spectrum

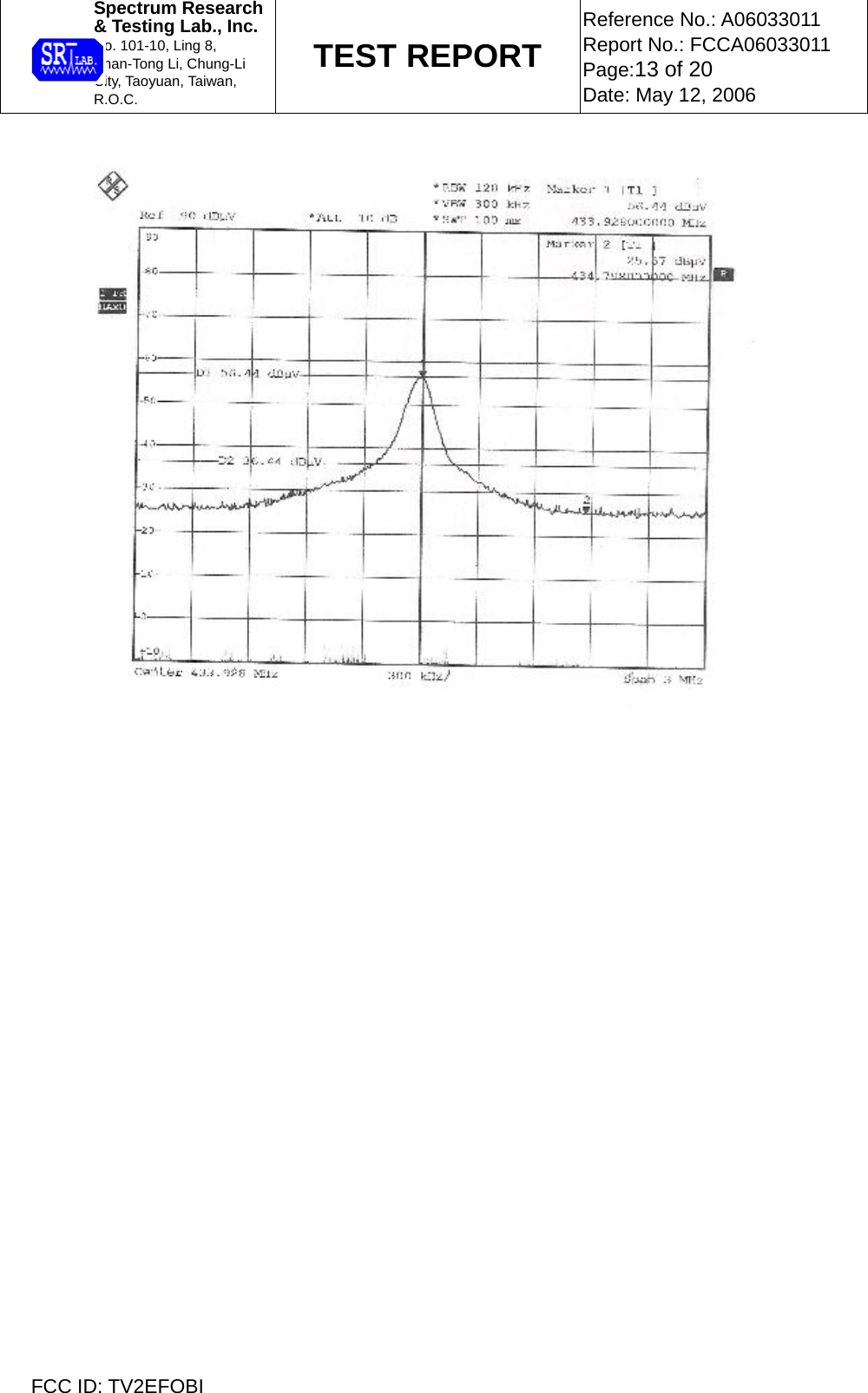

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A06033011 Report No.: FCCA06033011 Page:13 of 20 Date: May 12, 2006 FCC ID: TV2EFOBI

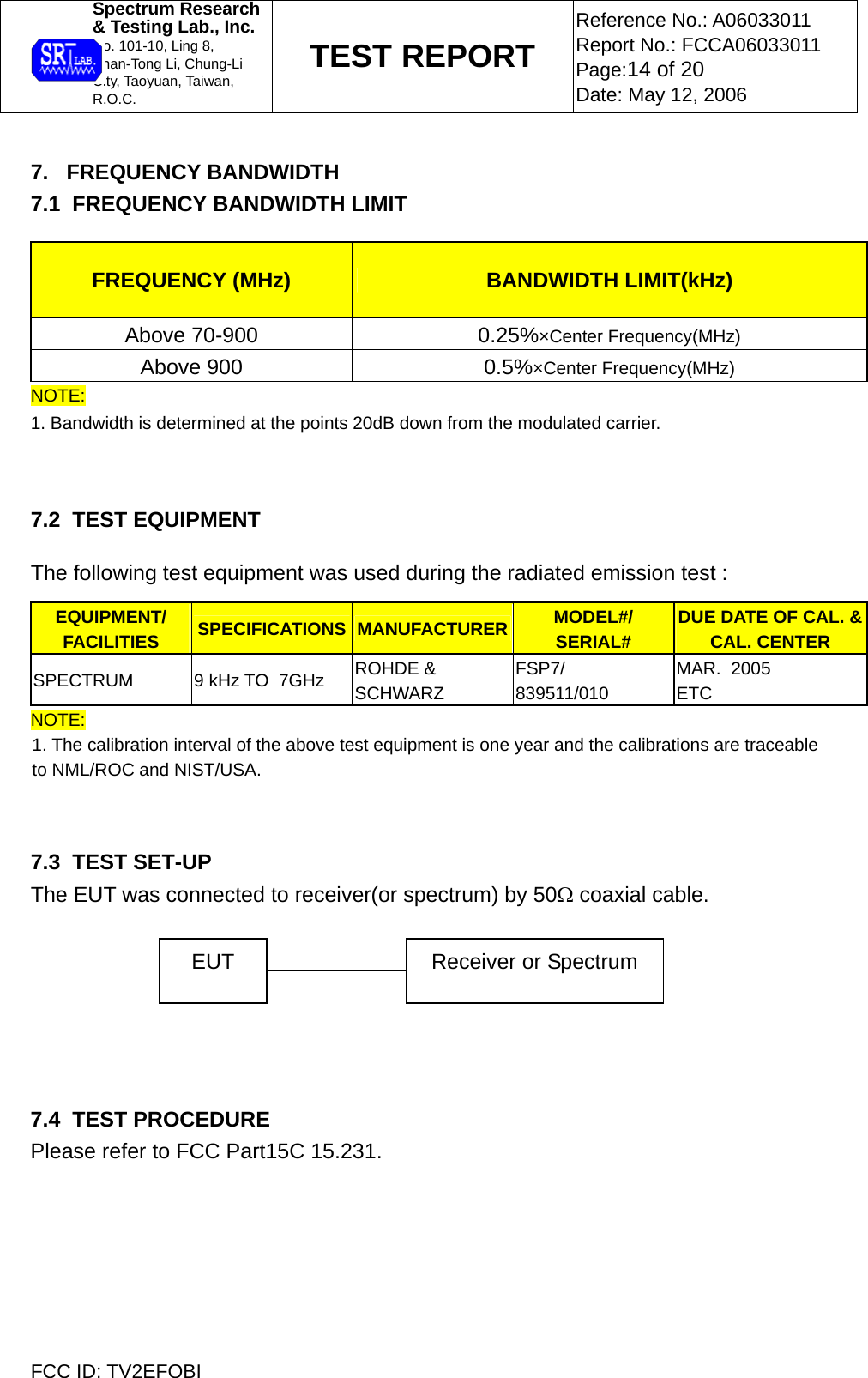

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A06033011 Report No.: FCCA06033011 Page:14 of 20 Date: May 12, 2006 FCC ID: TV2EFOBI 7. FREQUENCY BANDWIDTH 7.1 FREQUENCY BANDWIDTH LIMIT FREQUENCY (MHz) BANDWIDTH LIMIT(kHz) Above 70-900 0.25%×Center Frequency(MHz) Above 900 0.5%×Center Frequency(MHz) NOTE: 1. Bandwidth is determined at the points 20dB down from the modulated carrier. 7.2 TEST EQUIPMENT The following test equipment was used during the radiated emission test : EQUIPMENT/ FACILITIES SPECIFICATIONS MANUFACTURER MODEL#/ SERIAL# DUE DATE OF CAL. & CAL. CENTER SPECTRUM 9 kHz TO 7GHz ROHDE & SCHWARZ FSP7/ 839511/010 MAR. 2005 ETC NOTE: 1. The calibration interval of the above test equipment is one year and the calibrations are traceable to NML/ROC and NIST/USA. 7.3 TEST SET-UP The EUT was connected to receiver(or spectrum) by 50Ω coaxial cable. 7.4 TEST PROCEDURE Please refer to FCC Part15C 15.231. EUT Receiver or Spectrum

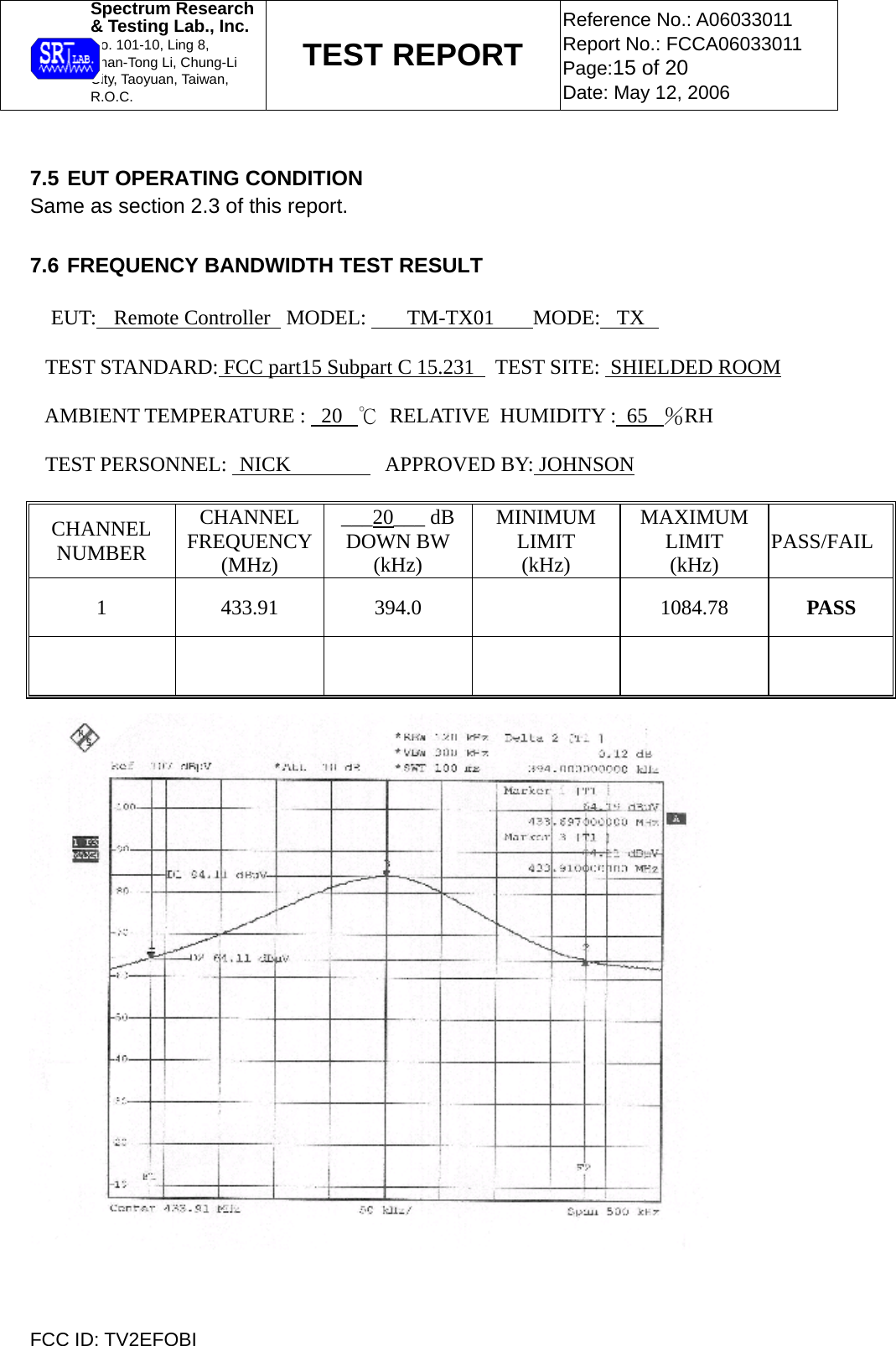

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A06033011 Report No.: FCCA06033011 Page:15 of 20 Date: May 12, 2006 FCC ID: TV2EFOBI 7.5 EUT OPERATING CONDITION Same as section 2.3 of this report. 7.6 FREQUENCY BANDWIDTH TEST RESULT EUT: Remote Controller MODEL: TM-TX01 MODE: TX TEST STANDARD: FCC part15 Subpart C 15.231 TEST SITE: SHIELDED ROOM AMBIENT TEMPERATURE : 20 ℃ RELATIVE HUMIDITY : 65 ％RH TEST PERSONNEL: NICK APPROVED BY: JOHNSON CHANNEL NUMBER CHANNEL FREQUENCY (MHz) ___20___ dB DOWN BW (kHz) MINIMUM LIMIT (kHz) MAXIMUM LIMIT (kHz) PASS/FAIL 1 433.91 394.0 1084.78 PASS

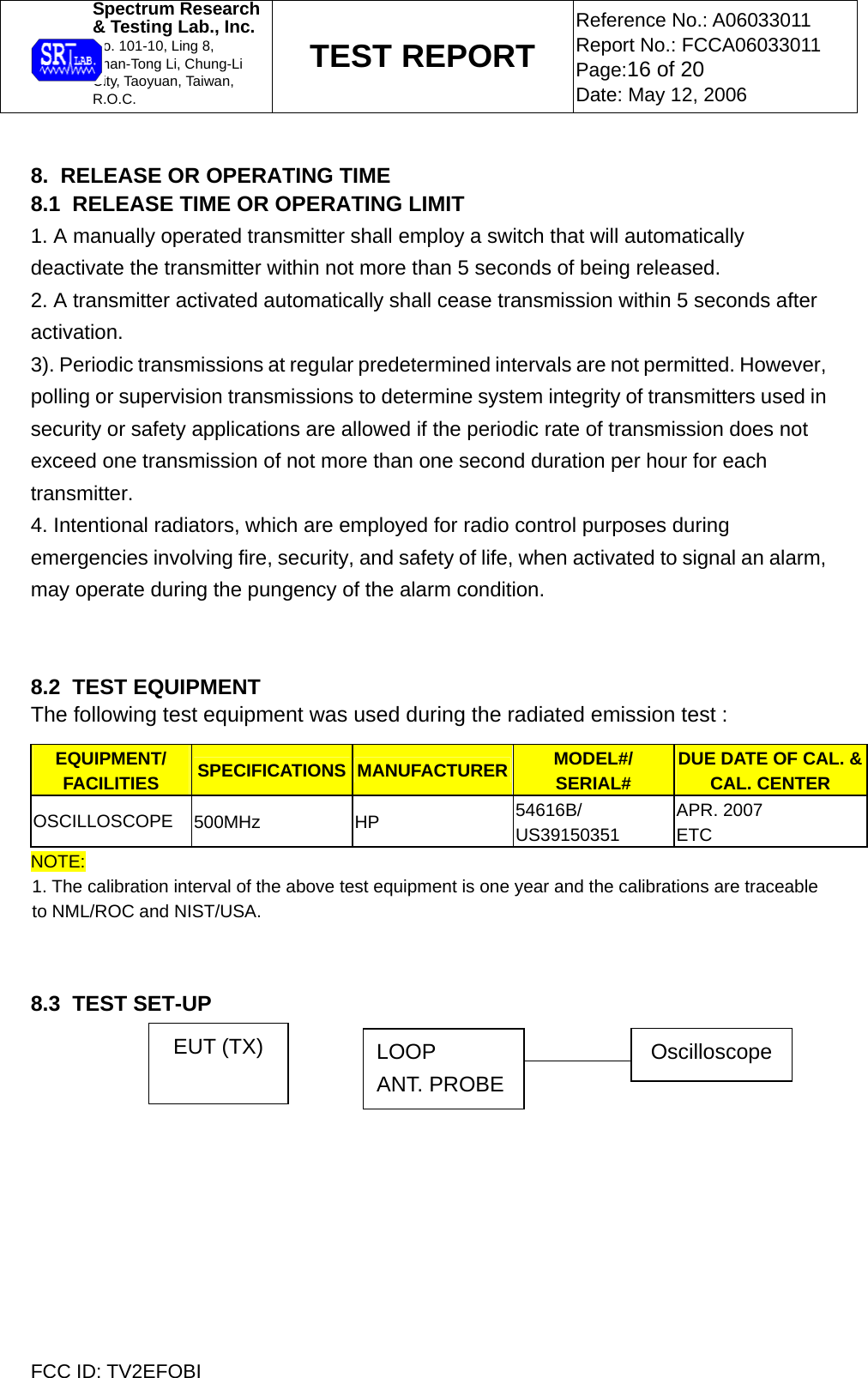

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A06033011 Report No.: FCCA06033011 Page:16 of 20 Date: May 12, 2006 FCC ID: TV2EFOBI 8. RELEASE OR OPERATING TIME 8.1 RELEASE TIME OR OPERATING LIMIT 1. A manually operated transmitter shall employ a switch that will automatically deactivate the transmitter within not more than 5 seconds of being released. 2. A transmitter activated automatically shall cease transmission within 5 seconds after activation. 3). Periodic transmissions at regular predetermined intervals are not permitted. However, polling or supervision transmissions to determine system integrity of transmitters used in security or safety applications are allowed if the periodic rate of transmission does not exceed one transmission of not more than one second duration per hour for each transmitter. 4. Intentional radiators, which are employed for radio control purposes during emergencies involving fire, security, and safety of life, when activated to signal an alarm, may operate during the pungency of the alarm condition. 8.2 TEST EQUIPMENT The following test equipment was used during the radiated emission test : EQUIPMENT/ FACILITIES SPECIFICATIONS MANUFACTURER MODEL#/ SERIAL# DUE DATE OF CAL. & CAL. CENTER OSCILLOSCOPE 500MHz HP 54616B/ US39150351 APR. 2007 ETC NOTE: 1. The calibration interval of the above test equipment is one year and the calibrations are traceable to NML/ROC and NIST/USA. 8.3 TEST SET-UP EUT (TX) OscilloscopeLOOP ANT. PROBE

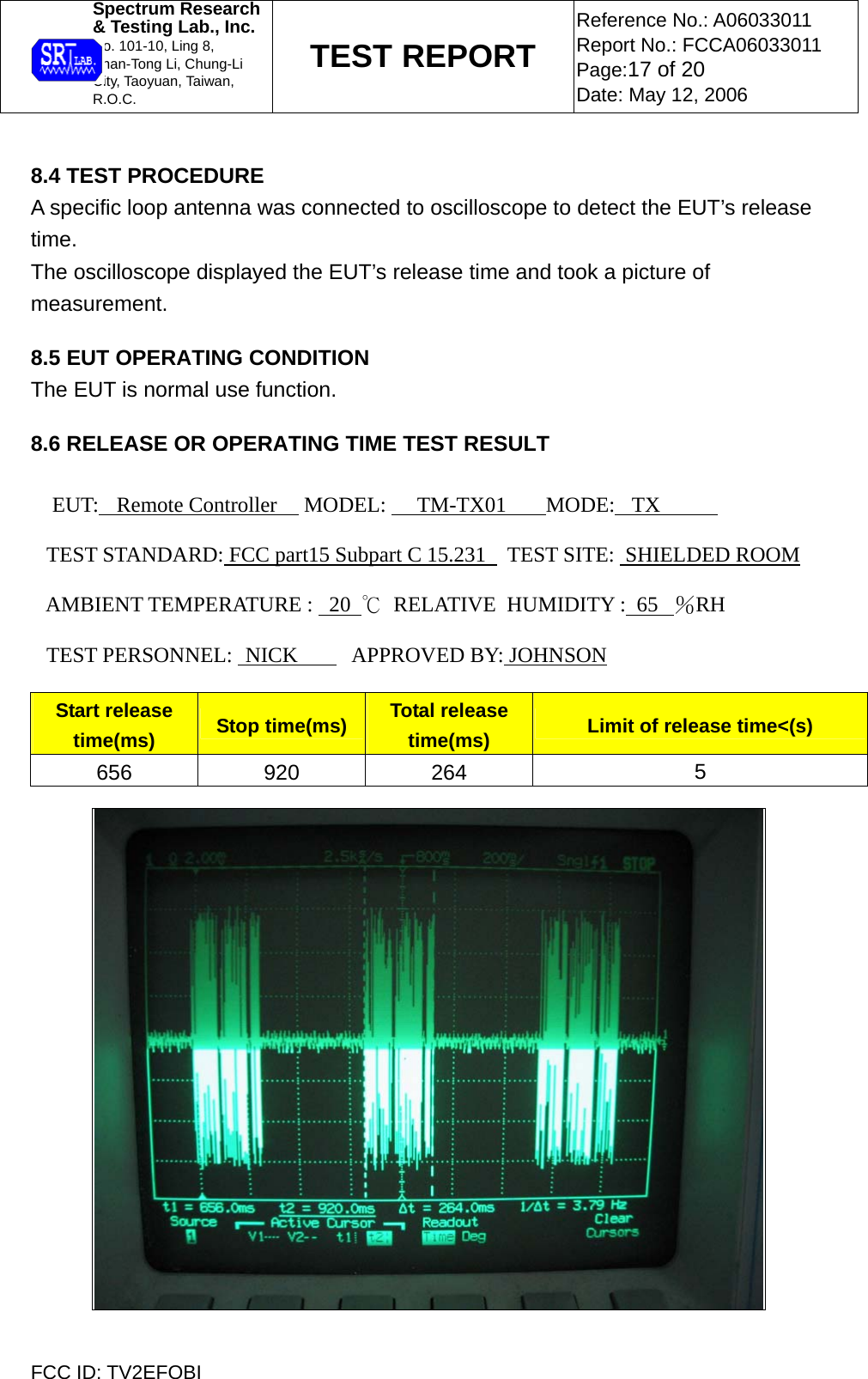

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A06033011 Report No.: FCCA06033011 Page:17 of 20 Date: May 12, 2006 FCC ID: TV2EFOBI 8.4 TEST PROCEDURE A specific loop antenna was connected to oscilloscope to detect the EUT’s release time. The oscilloscope displayed the EUT’s release time and took a picture of measurement. 8.5 EUT OPERATING CONDITION The EUT is normal use function. 8.6 RELEASE OR OPERATING TIME TEST RESULT EUT: Remote Controller MODEL: TM-TX01 MODE: TX TEST STANDARD: FCC part15 Subpart C 15.231 TEST SITE: SHIELDED ROOM AMBIENT TEMPERATURE : 20 ℃ RELATIVE HUMIDITY : 65 ％RH TEST PERSONNEL: NICK APPROVED BY: JOHNSON Start release time(ms) Stop time(ms) Total release time(ms) Limit of release time<(s) 656 920 264 5

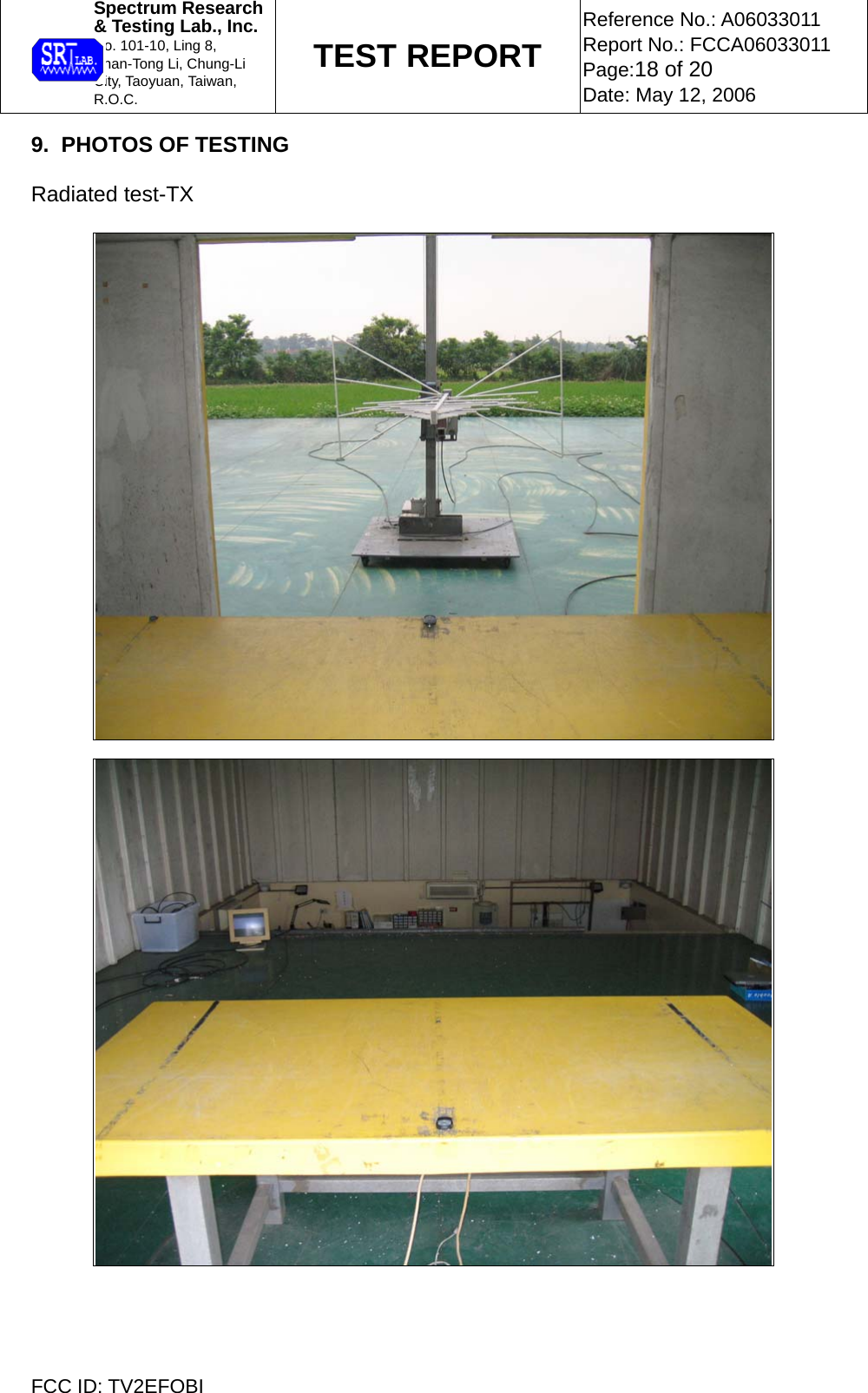

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A06033011 Report No.: FCCA06033011 Page:18 of 20 Date: May 12, 2006 FCC ID: TV2EFOBI 9. PHOTOS OF TESTING Radiated test-TX

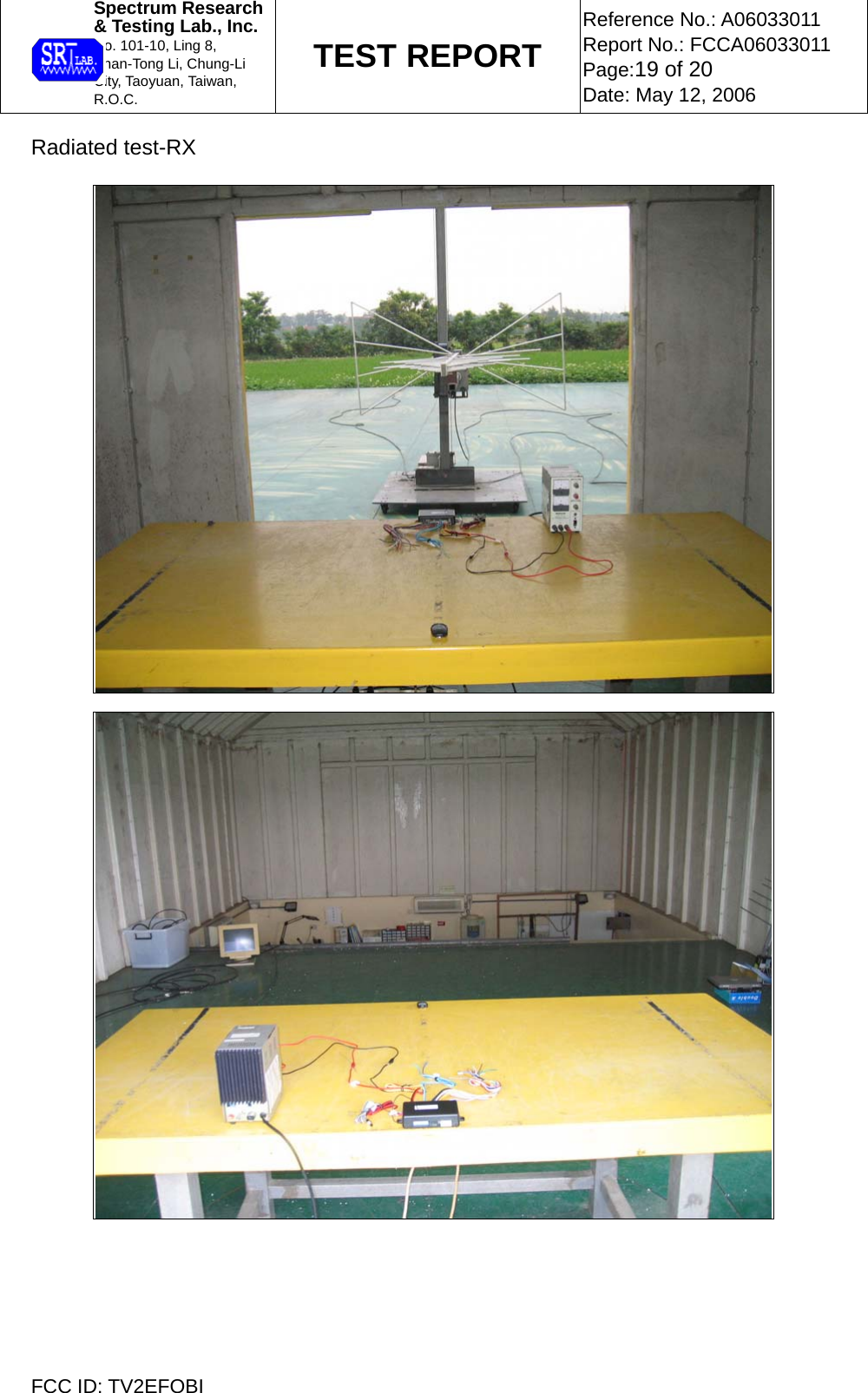

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A06033011 Report No.: FCCA06033011 Page:19 of 20 Date: May 12, 2006 FCC ID: TV2EFOBI Radiated test-RX

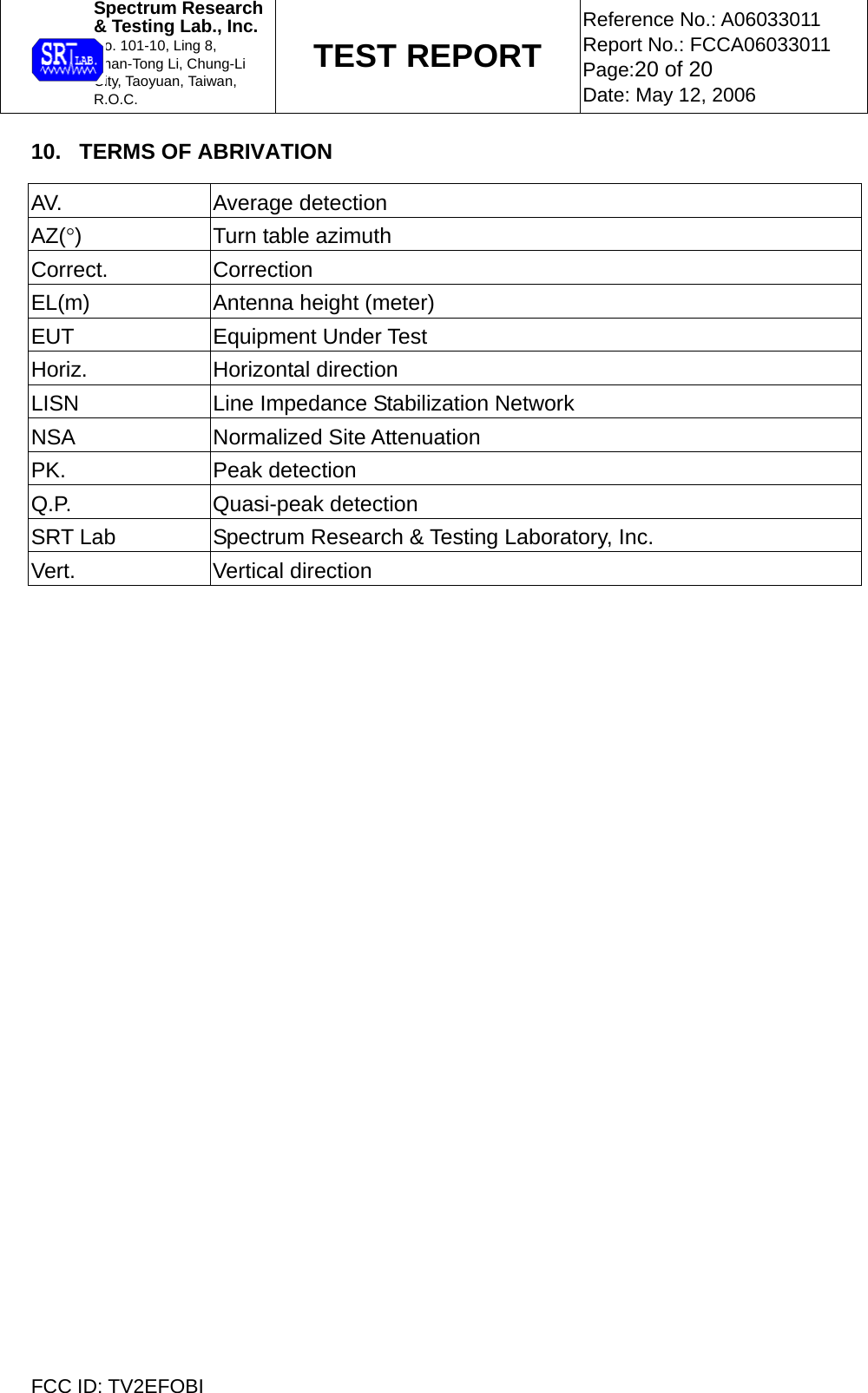

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.: A06033011 Report No.: FCCA06033011 Page:20 of 20 Date: May 12, 2006 FCC ID: TV2EFOBI 10. TERMS OF ABRIVATION AV. Average detection AZ(°) Turn table azimuth Correct. Correction EL(m) Antenna height (meter) EUT Equipment Under Test Horiz. Horizontal direction LISN Line Impedance Stabilization Network NSA Normalized Site Attenuation PK. Peak detection Q.P. Quasi-peak detection SRT Lab Spectrum Research & Testing Laboratory, Inc. Vert. Vertical direction
