TEST REPORT
Reference No.: A06033011
Report No.: FCCA06033011
Page:2 of 20
Date: May 12, 2006
FCC ID: TV2EFOBI
Table of Contents
1. DOCUMENT POLICY AND TEST STATEMENT................................................... 3
1.1 DOCUMENT POLICY.......................................................................................... 3
1.2 TEST STATEMENT ............................................................................................. 3
2. DESCRIPTION OF EUT AND TEST MODE ......................................................... 4
2.1 GENERAL DESCRIPTION OF EUT .................................................................... 4
2.2 DESCRIPTION OF EUT INTERNAL DEVICE ..................................................... 4
2.3 DESCRIPTION OF TEST MODE......................................................................... 4
2.4 DESCRIPTION OF SUPPORT UNIT................................................................... 5
3. DESCRIPTION OF APPLIED STANDARDS......................................................... 5
4. CONDUCTED EMISSION TEST .......................................................................... 5
5. RADIATED EMISSION TEST ............................................................................... 6
5.1 RADIATED EMISSION LIMIT .............................................................................. 6
5.2 TEST EQUIPMENT ............................................................................................. 7
5.3 TEST SET-UP...................................................................................................... 8
5.4 TEST PROCEDURE............................................................................................ 8
5.5 EUT OPERATING CONDITION........................................................................... 8
5.6 MAXIMUM MODULATION PERCENTAGE ......................................................... 8
5.7 RADIATED EMISSION TEST RESULT................................................................ 9

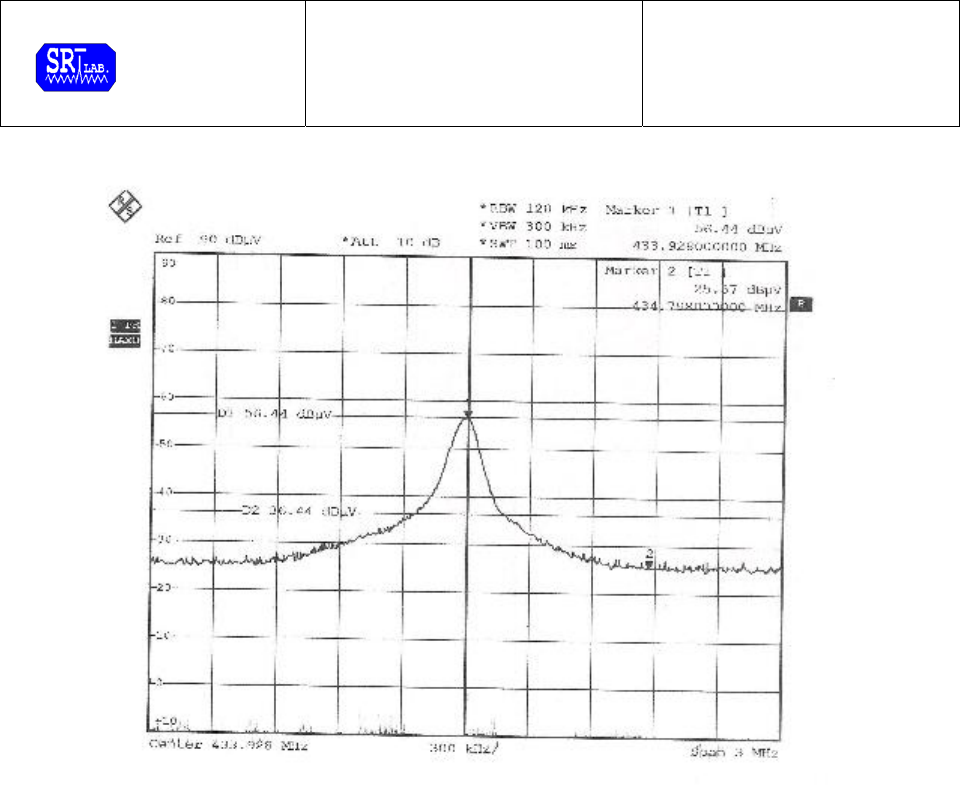

6. BAND EDGE TEST .............................................................................................11
6.1 BAND EDGE LIMIT ............................................................................................11
6.2 TEST EQUIPMENT ............................................................................................11
6.3 TEST SET-UP.....................................................................................................12
6.4 TEST PROCEDURE...........................................................................................12
6.5 EUT OPERATING CONDITION.....................................................................12
6.6 BAND EDGE TEST RESULT.........................................................................12
7. FREQUENCY BANDWIDTH............................................................................... 14
7.1 FREQUENCY BANDWIDTH LIMIT ....................................................................14
7.2 TEST EQUIPMENT ............................................................................................14
7.3 TEST SET-UP.....................................................................................................14
7.4 TEST PROCEDURE...........................................................................................14
7.5 EUT OPERATING CONDITION.....................................................................15
7.6 FREQUENCY BANDWIDTH TEST RESULT.................................................15
PASS/FAIL................................................................................................................ 15
8. RELEASE OR OPERATING TIME....................................................................... 16
8.1 RELEASE TIME OR OPERATING LIMIT ...........................................................16
8.2 TEST EQUIPMENT ............................................................................................16
8.3 TEST SET-UP.....................................................................................................16
8.4 TEST PROCEDURE............................................................................................17
8.5 EUT OPERATING CONDITION...........................................................................17
8.6 RELEASE OR OPERATING TIME TEST RESULT..............................................17

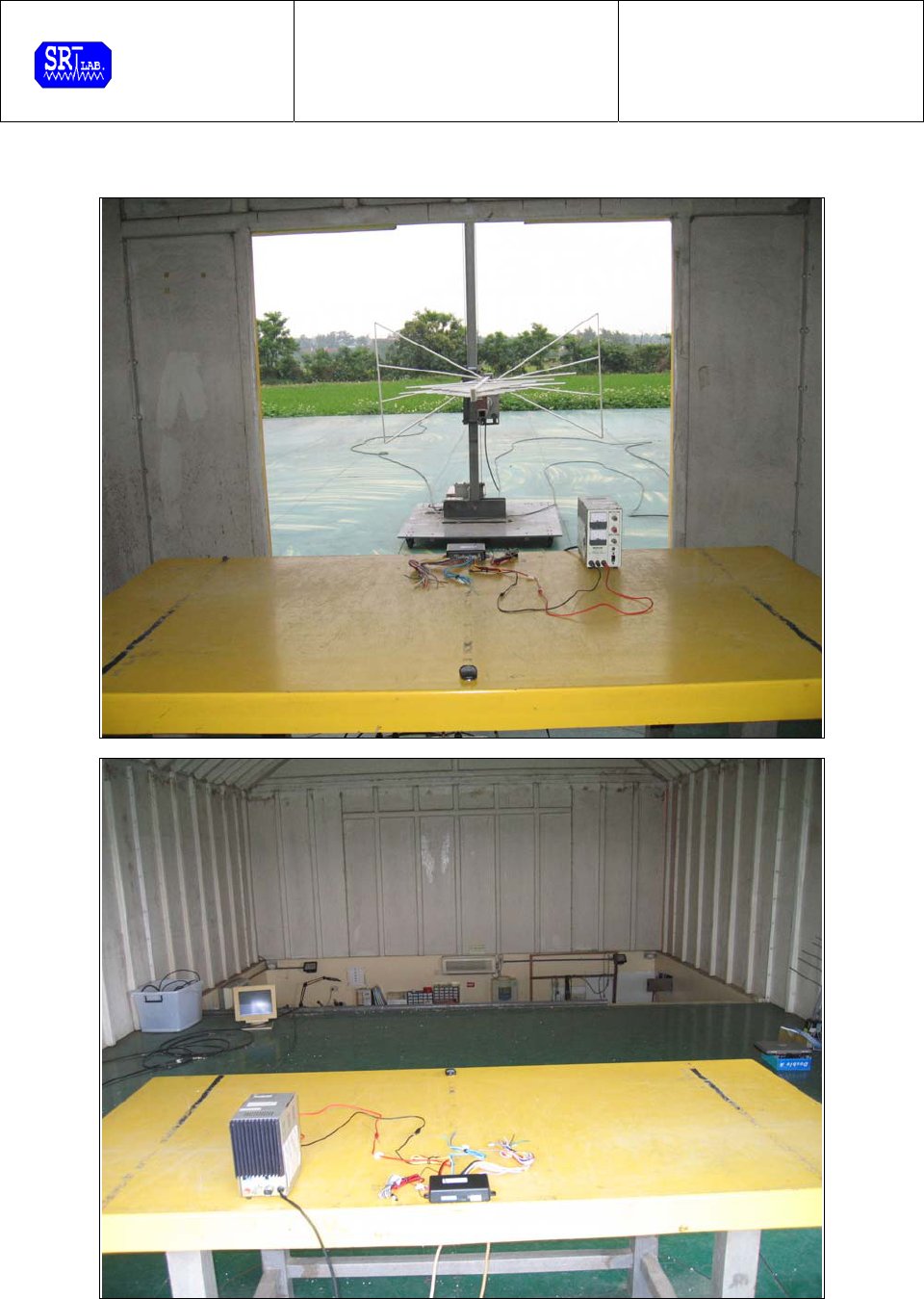

9. PHOTOS OF TESTING ....................................................................................... 18
10. TERMS OF ABRIVATION ................................................................................. 20
Spectrum Research
& Testing Lab., Inc.
No. 101-10, Ling 8,
Shan-Tong Li, Chung-Li
City, Taoyuan, Taiwan,
R.O.C.
TEST REPORT
Reference No.: A06033011
Report No.: FCCA06033011
Page:3 of 20
Date: May 12, 2006
FCC ID: TV2EFOBI
1. DOCUMENT POLICY AND TEST STATEMENT
1.1 DOCUMENT POLICY
- The report shall not be reproduced except in full, without the written approval of
SRT Lab, Inc.
- The report must not be used by the applicant to claim that the product is endorsed
by NVLAP.
- The NVLAP logo applies only to the applicable standards specified in this report.
1.2 TEST STATEMENT
- The test results in the report apply only to the unit tested by SRT Lab.
- There was no deviation from the requirements of test standards during the test.
- The new battery power source 3 Vdc, was used during the test.
- The antennas were soldered on the PCB.
Spectrum Research
& Testing Lab., Inc.
No. 101-10, Ling 8,
Shan-Tong Li, Chung-Li
City, Taoyuan, Taiwan,
R.O.C.
TEST REPORT
Reference No.: A06033011
Report No.: FCCA06033011
Page:4 of 20
Date: May 12, 2006
FCC ID: TV2EFOBI
2. DESCRIPTION OF EUT AND TEST MODE
2.1 GENERAL DESCRIPTION OF EUT
PRODUCT Remote Controller
MODEL NO. TM-TX01
POWER SUPPLY 3Vdc,5mA(Battery)
CABLE N/A
I/O PORT/INTERFACE N/A
FREQUENCY BAND 433.92MHz
CARRIER FREQUENCY 433.92MHz
NUMBER OF CHANNEL 1
CHANNEL SPACING N/A
RF OUTPUT POWER 0.01W=10dBm
I.F. & L.O. L.O.: 433.92MHz
MODULATION TYPE SAW
BIT RATE OF TRANSMISSION 4 kHz
ANTENNA TYPE Integral Antenna
NOTE: The EUT is the transmitter part of a remote controller, which includes a receiver part. For more
detailed information, please refer to the specifications or User’s manual provided by manufacturer.
2.2 DESCRIPTION OF EUT INTERNAL DEVICE
DEVICE BRAND / MAKER MODEL # FCC ID/DOC REMARK
N/A
2.3 DESCRIPTION OF TEST MODE
The EUT was operated in continunely transmitting mode.
Spectrum Research
& Testing Lab., Inc.
No. 101-10, Ling 8,
Shan-Tong Li, Chung-Li
City, Taoyuan, Taiwan,
R.O.C.
TEST REPORT
Reference No.: A06033011
Report No.: FCCA06033011
Page:5 of 20
Date: May 12, 2006
FCC ID: TV2EFOBI
2.4 DESCRIPTION OF SUPPORT UNIT
The EUT was configured by the requirement of ANSI C63.4 and CISPR 22. All
interface ports were connected to the appropriate support units via specific cables.
The support units and cables are listed below.
NO DEVICE BRAND MODEL # FCC ID/DOC CABLE
1 N/A
NOTE: For the actual test configuration, please refer to the photos of testing.
3. DESCRIPTION OF APPLIED STANDARDS
The EUT is a kind of wireless product and according to the specifications provided by
the applicant, must comply with the requirements of the following standards:
47 CFR Part 15, Subpart C
All tests have been performed and recorded as per the above standards.
4. CONDUCTED EMISSION TEST
The test item was not performed, because the EUT uses 3Vdc battery as power
source.
Spectrum Research
& Testing Lab., Inc.
No. 101-10, Ling 8,
Shan-Tong Li, Chung-Li
City, Taoyuan, Taiwan,
R.O.C.
TEST REPORT
Reference No.: A06033011
Report No.: FCCA06033011
Page:6 of 20
Date: May 12, 2006
FCC ID: TV2EFOBI
5. RADIATED EMISSION TEST
5.1 RADIATED EMISSION LIMIT
FCC part15C 15.209 limits of radiated emission measurement for frequency below
1000 MHz
FREQUENCY (MHz) DISTANCE (m) FIELS STRENGTH (dBµV/m)
30 - 88 3 40.0
88 - 216 3 43.5
216 - 960 3 46.0
ABOVE 960 3 54.0
FCC part15C 15.231(b) limit of fundamental and spurious emissions measurement.
FREQUENCY (MHz) Field Strength of
Fundamental
(microvolts/meter)
Field Strength of Spurious
Emissions
(microvolts/meter)
40.66-40.70 2250 225
70-130 1250 125
130-174 1250 to 3750 (NOTE 5) 125 to 375 (NOTE 7)
174-260 3750 375 (NOTE 7)
260-470 3750 to 12500 (NOTE 6) 375 to 1250
Above 470 12500 1250
NOTE:
1. The lower limit shall apply at the transition frequencies.
2. Emission level (dBµV/m) = 20 log Emission level (µV/m).
3.In the emission tables above, the tighter limit applies at the band edges.
4. Distance refers to the distance between measuring nstrument,
antenna, and the closest point of any part of the device or system.
5. Limit = 20log(56.81818(F) - 6136.3636) ; F : Fundamental Frequency (MHz)
6. Limit = 20log(41.667 x F – 7083.3333) ; F : Fundamental Frequency (MHz)
7. Limit = The Limit of Fundamental Frequency – 20dB
8. The maximum permitted unwanted emission level is 20 dB below the maximum permitted
fundamental level.
Spectrum Research
& Testing Lab., Inc.
No. 101-10, Ling 8,
Shan-Tong Li, Chung-Li
City, Taoyuan, Taiwan,
R.O.C.
TEST REPORT
Reference No.: A06033011
Report No.: FCCA06033011
Page:7 of 20
Date: May 12, 2006
FCC ID: TV2EFOBI
5.2 TEST EQUIPMENT
The following test equipment was used during the radiated emission test :
EQUIPMENT/
FACILITIES SPECIFICATIONS MANUFACTURER MODEL#/
SERIAL#
DUE DATE OF CAL. &
CAL. CENTER
EMI TEST
RECEIVER
9 kHz TO
2750 MHz
ROHDE &
SCHWARZ
ESCS30/
836858/008
AUG. 2006
ETC
BI-LOG
ANTENNA
25 MHz TO
2 GHz EMCO 3142/
9701-1124
APR. 2007
SRT
PRE-AMPLIFIER 1GHz-26.5GHz
Gain:30dB(typ.) HP 8449B/
3008A01019
DEC. 2006
ETC
SPECTRUM 9KHz TO 26.5GHz HP 8953E/
3710A03220
MAY 2006
ETC
HORN ANTENNA 1GHz TO 18GHz EMCO 3115/
9602-4681
NOV. 2006
ETC
OATS 3 – 10 M
MEASUREMENT SRT SRT-1
APR. 2007
SRT
1. The calibration interval of the above test equipment is one year and the calibrations are traceable
to NML/ROC and NIST/USA.
2. The Open Area Test Site (SRT-1) is registered by FCC with No. 90957 and VCCI with No. R-1081.
3. The Open Area Test Site (SRT-2) is registered by FCC with No. 98458 and VCCI with No. R-1168.
Spectrum Research
& Testing Lab., Inc.
No. 101-10, Ling 8,
Shan-Tong Li, Chung-Li
City, Taoyuan, Taiwan,
R.O.C.
TEST REPORT
Reference No.: A06033011
Report No.: FCCA06033011
Page:8 of 20
Date: May 12, 2006
FCC ID: TV2EFOBI

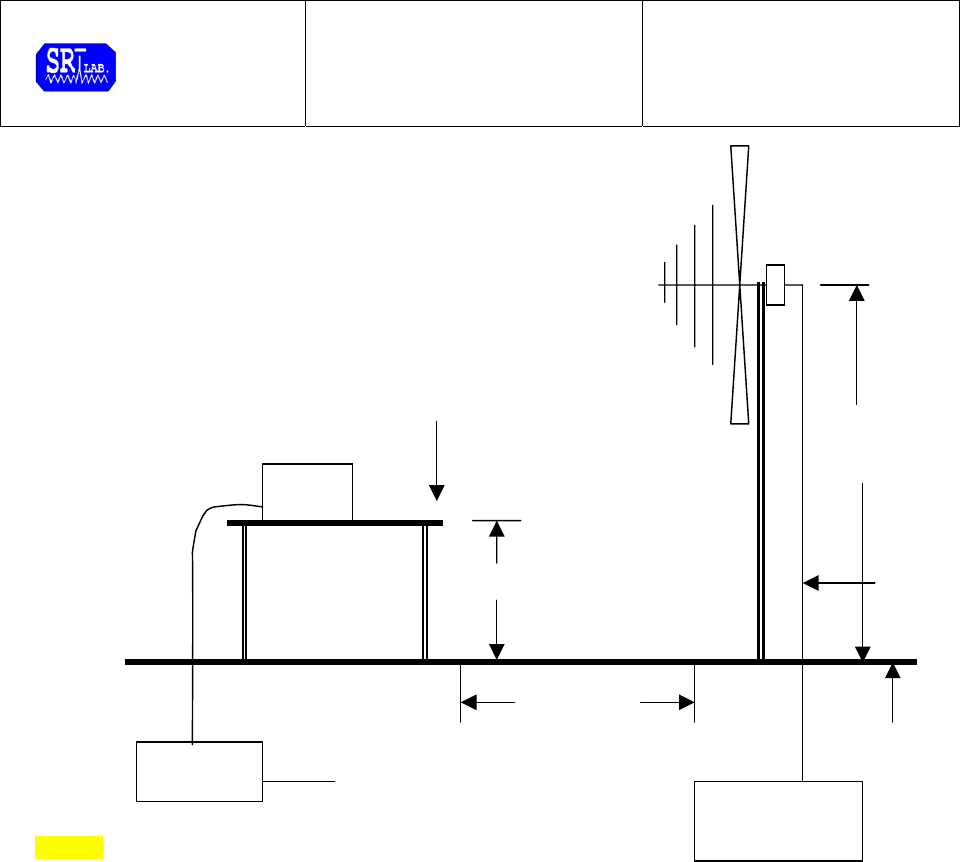

5.3 TEST SET-UP
NOTE :
1. The EUT system was put on a wooden table with 0.8m heights above a ground plane.
2. For the actual test configuration, please refer to the photos of testing.
5.4 TEST PROCEDURE
The EUT was tested according to the requirement of ANSI C63.4 and CISPR 22. The
measurements were made at an open area test site with 3 meter measurement
distance under 1 GHz and with 3m distance above 1GHz. The frequency spectrum
measured started from 30 MHz. Under 1 GHz, all readings were quasi-peak values
with 120 kHz resolution bandwidth of the test receiver. Above 1 GHz, the
measurements were made at an open area test site with 3 meter measurement
distance and all readings were peak or average values with 1 MHz resolution
bandwidth of the test receiver. The EUT system was operated in all typical methods
by users. The cables connected to EUT and support units were moved to find the
maximum emission levels for each frequency.
5.5 EUT OPERATING CONDITION
Same as section 2.3 of this report.

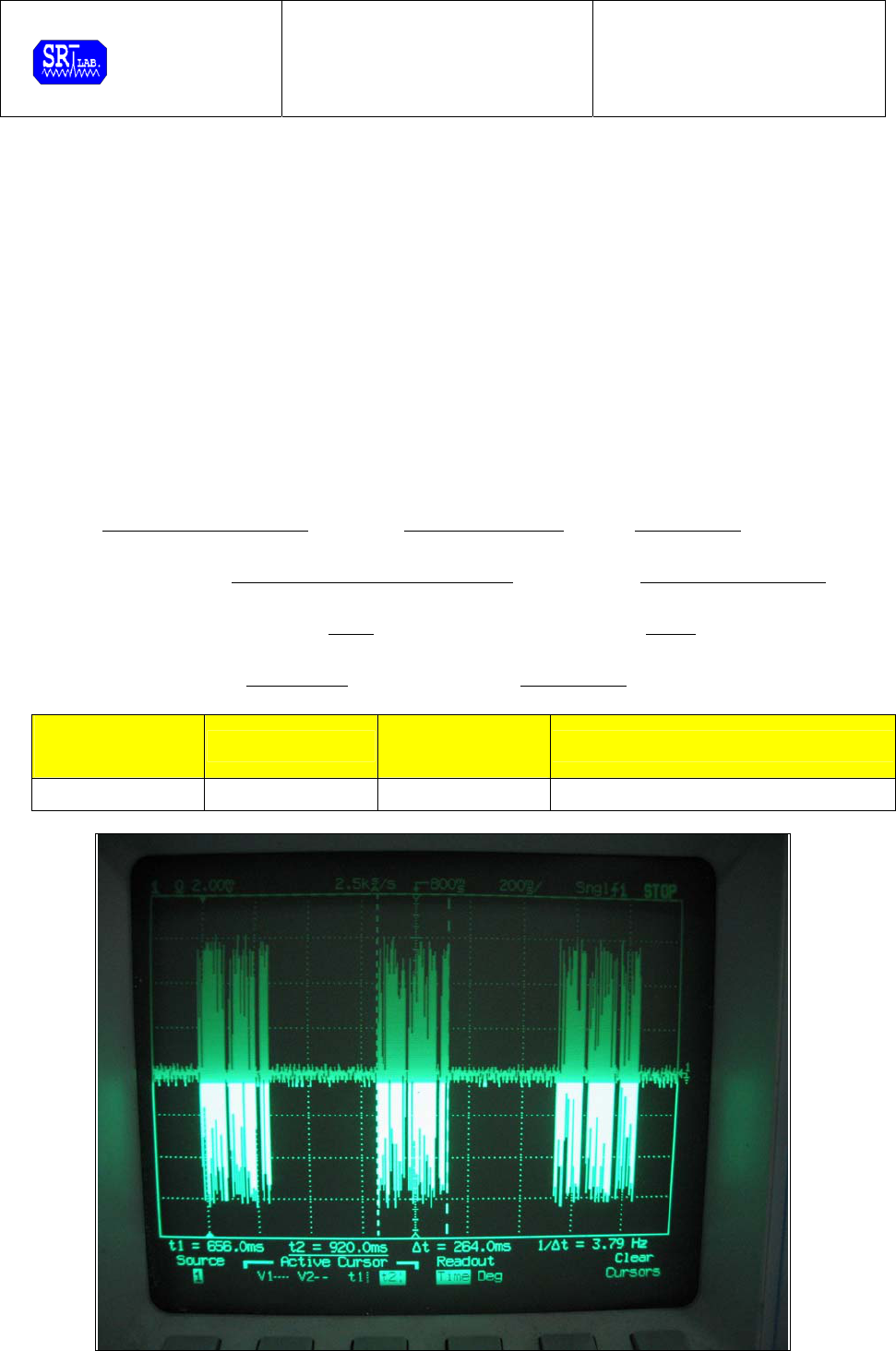

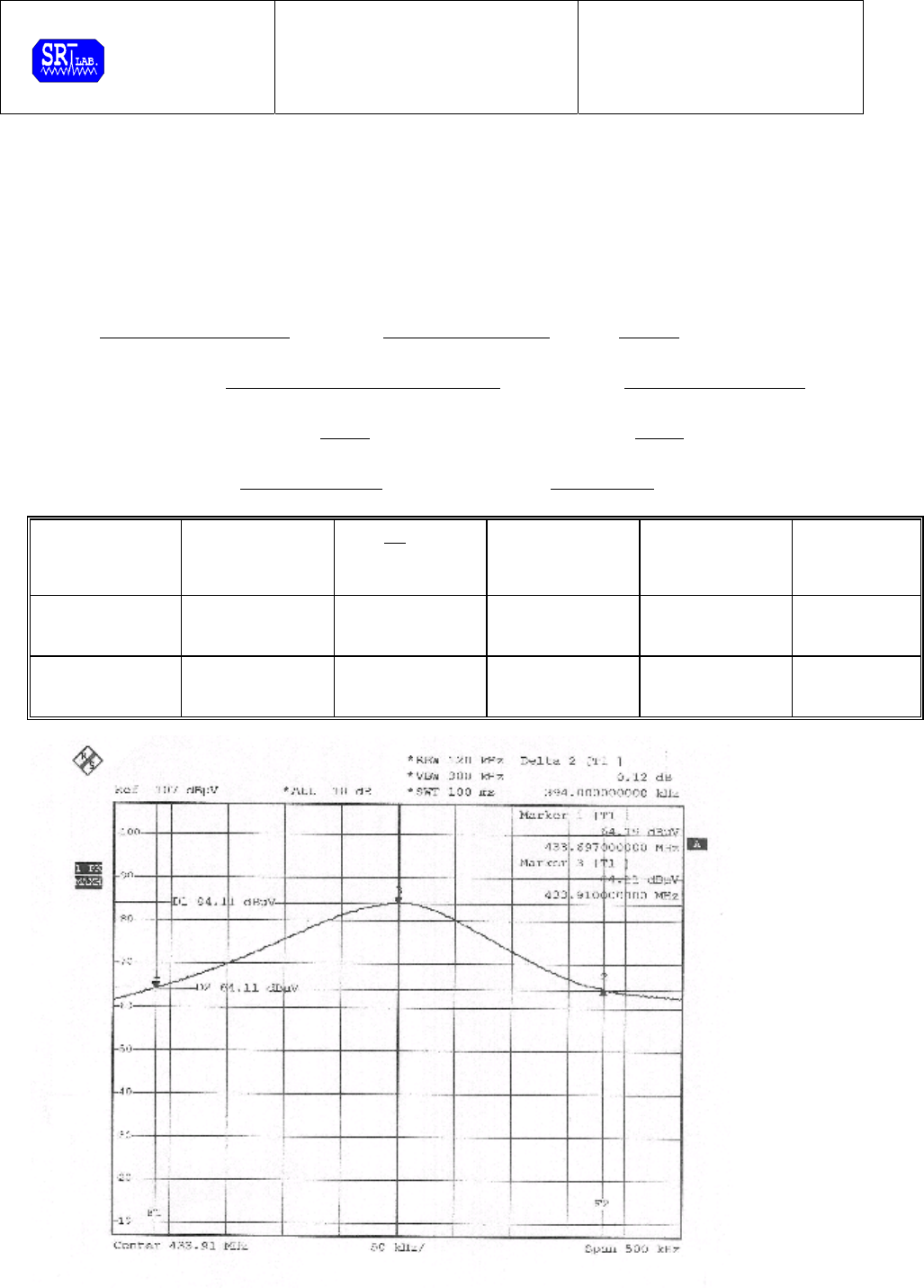

5.6 Maximum Modulation Percentage
Duty Cycle = 50%
EMI Receiver
Filter To Utility
Power
EUT
Ground Plane
3/10m
0.8 m
Coaxial
Cable
Turn Table
1m – 4m
Power Cable
Spectrum Research
& Testing Lab., Inc.
No. 101-10, Ling 8,
Shan-Tong Li, Chung-Li
City, Taoyuan, Taiwan,
R.O.C.
TEST REPORT
Reference No.: A06033011
Report No.: FCCA06033011
Page:9 of 20
Date: May 12, 2006
FCC ID: TV2EFOBI
5.7 RADIATED EMISSION TEST RESULT
Temperature: 22℃ Humidity: 68%RH
Ferquency Range: 30MHz – 5GHz Measured Distance: 3m
Receiver Detector: Peak/QP/AV Tested By: Nick Hsieh
Fundamental
Reading
(dBµV)
Emission
Level
(dBµV/m)
Limit
(dBµV/m)
Margin
(dB)
Frequency
(MHz)
Correct
Factor
(dB)
Antenna
Factor
(dB/m)
Polariz
ation
Peak AV Peak AV Peak AV Peak AV
AZ
(°)
EL
(m)
433.90 3.00 15.64 H 47.3 42.30 62.94 57.94 100.83 80.83 -37.89 -22.89 223.7 1.42
433.90 3.00 15.64 V 41.1 36.40 56.74 52.04 100.83 80.83 -44.09 -28.79 265.7 1.04
TX
Frequency
(MHz)
Correct
Factor
(dB)
Antenna
Factor
(dB/m)
Polarization
Reading
(dBµV)
Peak/QP
Emission
Level
(dBµV/m)
Peak/QP
Limit
(dBµV/m)
Peak/QP
Margin
(dB)
Peak/QP
AZ
(°)
EL
(m)
71.7100 1.58 6.68 H 11.6 19.9 40.0 -20.1 129.0 1.1
333.8420 3.19 14.43 H 3.8 21.4 46.0 -24.6 176.0 1.2
502.4450 4.13 16.13 H 3.7 24.0 46.0 -22.0 231.0 1.0
709.9270 5.06 21.08 H 2.9 29.0 46.0 -17.0 45.0 1.3
798.3250 5.32 21.88 H 2.5 29.7 46.0 -16.3 96.0 1.1
926.2800 5.85 22.79 H 2.1 30.7 46.0 -15.3 311.0 1.2
193.0650 2.46 10.58 V 5.3 18.3 43.5 -25.2 347.0 1.0
267.6200 2.94 12.25 V 4.9 20.1 46.0 -25.9 39.0 1.2
335.0500 3.20 14.47 V 3.9 21.6 46.0 -24.4 143.0 1.1
502.3000 4.13 16.13 V 3.8 24.1 46.0 -21.9 165.0 1.1
647.1600 4.75 19.09 V 3.4 27.2 46.0 -18.8 89.0 1.3
729.8700 5.12 21.26 V 7.5 33.9 46.0 -12.1 107.0 1.0
Spectrum Research
& Testing Lab., Inc.
No. 101-10, Ling 8,
Shan-Tong Li, Chung-Li
City, Taoyuan, Taiwan,
R.O.C.
TEST REPORT
Reference No.: A06033011
Report No.: FCCA06033011
Page:10 of 20
Date: May 12, 2006
FCC ID: TV2EFOBI
RX
Frequency
(MHz)
Correct
Factor
(dB)
Antenna
Factor
(dB/m)
Polarization
Reading
(dBµV)
Peak/QP
Emission
Level
(dBµV/m)
Peak/QP
Limit
(dBµV/m)
Peak/QP
Margin
(dB)
Peak/QP
AZ
(°)
EL
(m)
152.2550 2.17 9.24 H 6.0 17.4 43.5 -26.1 268.9 1.4
300.1000 3.02 13.70 H 3.9 20.6 46.0 -25.4 130.2 1.2
502.3050 4.13 16.13 H 3.8 24.1 46.0 -21.9 98.2 1.2
601.0850 4.60 17.44 H 8.5 30.5 46.0 -15.5 129.6 1.1
802.4300 5.34 21.91 H 2.3 29.6 46.0 -16.4 78.3 1.1
932.5900 5.86 22.85 H 2.4 31.1 46.0 -14.9 220.6 1.2
167.0350 2.28 10.12 V 4.5 16.9 43.5 -26.6 221.1 1.3
401.3000 3.61 15.90 V 3.6 23.1 46.0 -22.9 296.3 1.2
428.3400 3.75 15.96 V 3.6 23.3 46.0 -22.7 88.7 1.1
649.1370 4.76 19.16 V 3.5 27.4 46.0 -18.6 20.3 1.1
732.9250 5.13 21.29 V 2.9 29.3 46.0 -16.7 117.2 1.0
840.9600 5.53 22.14 V 2.0 29.7 46.0 -16.3 89.5 1.0
NOTE :
1. Measurement uncertainty is +-/2dB.
2. "*": Measurement value was too low to be detected.
3. Emissiom Level = Reading Value + Ant. Factor + Cable Loss.
4. The field strength of other emission frequencies were very low against the limit.
5.The emission level is lower than equipment ‘s noise.
6. Above 1GHz and up to 4.5GHz, the noise is very small.
Spectrum Research
& Testing Lab., Inc.
No. 101-10, Ling 8,
Shan-Tong Li, Chung-Li
City, Taoyuan, Taiwan,
R.O.C.
TEST REPORT
Reference No.: A06033011
Report No.: FCCA06033011
Page:11 of 20
Date: May 12, 2006
FCC ID: TV2EFOBI
NOTE :
1. Measurement uncertainty is +-/2dB.
2. "*": Measurement value was too low to be detected.
3. Emissiom Level = Reading Value + Ant. Factor + Cable Loss.
4. The field strength of other emission frequencies were very low against the limit.
5.The emission level is lower than equipment ‘s noise.
6. Above 1GHz and up to 4.5GHz, the noise is very small.
6. BAND EDGE TEST
6.1 BAND EDGE LIMIT
FCC part15C 15.231(b) limit of fundamental and spurious emissions measurement.
FREQUENCY (MHz) Field Strength of
Fundamental
(microvolts/meter)
Field Strength of Spurious
Emissions
(microvolts/meter)
40.66-40.70 2250 225
70-130 1250 125
130-174 1250 to 3750 (NOTE 4) 125 to 375 (NOTE 6)
174-260 3750 375
260-470 3750 to 12500 (NOTE 5) 375 to 1250 (NOTE 6)
Above 470 12500 1250
NOTE:
1. The lower limit shall apply at the transition frequencies.
2. Emission level (µV/m) = 20 log Emission level (µV/m).
3.In the emission tables above, the tighter limit applies at the band edges.
4. Limit = 20log(56.81818(F) - 6136.3636) ; F : Fundamental Frequency (MHz)
5. Limit = 20log(41.667(F) – 7083.3333) ; F : Fundamental Frequency (MHz)
6. Limit = The Limit of Fundamental Frequency – 20dB
7. The maximum permitted unwanted emission level is 20 dB below the maximum permitted
fundamental
level.
6.2 TEST EQUIPMENT
The following test equipment was used during the radiated emission test :
EQUIPMENT/
FACILITIES SPECIFICATIONS MANUFACTURER MODEL#/
SERIAL#
DUE DATE OF CAL. &
CAL. CENTER
SPECTRUM 9 kHz TO 7GHz ROHDE &
SCHWARZ
FSP7/
839511/010
MAR. 2007
ETC
NOTE:
1. The calibration interval of the above test equipment is one year and the calibrations are traceable
to NML/ROC and NIST/USA.
Spectrum Research
& Testing Lab., Inc.
No. 101-10, Ling 8,
Shan-Tong Li, Chung-Li
City, Taoyuan, Taiwan,
R.O.C.
TEST REPORT
Reference No.: A06033011
Report No.: FCCA06033011
Page:12 of 20
Date: May 12, 2006
FCC ID: TV2EFOBI
6.3 TEST SET-UP
The EUT was connected to Receiver(or spectrum) by 50Ω coaxial cable.
6.4 TEST PROCEDURE
Please refer to FCC Part15C 15.231.
6.5 EUT OPERATING CONDITION
Same as section 2.3 of this report.
6.6 BAND EDGE TEST RESULT
EUT: Remote Controller MODEL: TM-TX01 MODE: TX
TEST STANDARD: FCC part15 Subpart C 15.231 TEST SITE: SHIELDED ROOM
AMBIENT TEMPERATURE : 20 ℃ RELATIVE HUMIDITY : 65 ％RH
TEST PERSONNEL : NICK APPROVED BY: JOHNSON
Frequency
(MHz)
RF LEVEL
120kHz BW
(dBuV)
Limit of
Power(dBuV) MARGIN
(dB) PASS/FAIL
433.928 56.44 80.83 -24.39 PASS
EUT Receiver or Spectrum
Spectrum Research
& Testing Lab., Inc.
No. 101-10, Ling 8,
Shan-Tong Li, Chung-Li
City, Taoyuan, Taiwan,
R.O.C.
TEST REPORT
Reference No.: A06033011
Report No.: FCCA06033011
Page:13 of 20
Date: May 12, 2006
FCC ID: TV2EFOBI
Spectrum Research
& Testing Lab., Inc.
No. 101-10, Ling 8,
Shan-Tong Li, Chung-Li
City, Taoyuan, Taiwan,
R.O.C.
TEST REPORT
Reference No.: A06033011
Report No.: FCCA06033011
Page:14 of 20
Date: May 12, 2006
FCC ID: TV2EFOBI
7. FREQUENCY BANDWIDTH
7.1 FREQUENCY BANDWIDTH LIMIT
FREQUENCY (MHz) BANDWIDTH LIMIT(kHz)
Above 70-900 0.25%×Center Frequency(MHz)
Above 900 0.5%×Center Frequency(MHz)
NOTE:
1. Bandwidth is determined at the points 20dB down from the modulated carrier.
7.2 TEST EQUIPMENT
The following test equipment was used during the radiated emission test :
EQUIPMENT/
FACILITIES SPECIFICATIONS MANUFACTURER MODEL#/
SERIAL#
DUE DATE OF CAL. &
CAL. CENTER
SPECTRUM 9 kHz TO 7GHz ROHDE &
SCHWARZ
FSP7/
839511/010
MAR. 2005
ETC
NOTE:
1. The calibration interval of the above test equipment is one year and the calibrations are traceable
to NML/ROC and NIST/USA.
7.3 TEST SET-UP
The EUT was connected to receiver(or spectrum) by 50Ω coaxial cable.
7.4 TEST PROCEDURE
Please refer to FCC Part15C 15.231.
EUT Receiver or Spectrum
Spectrum Research
& Testing Lab., Inc.
No. 101-10, Ling 8,
Shan-Tong Li, Chung-Li
City, Taoyuan, Taiwan,
R.O.C.
TEST REPORT
Reference No.: A06033011
Report No.: FCCA06033011
Page:15 of 20
Date: May 12, 2006
FCC ID: TV2EFOBI
7.5 EUT OPERATING CONDITION
Same as section 2.3 of this report.
7.6 FREQUENCY BANDWIDTH TEST RESULT
EUT: Remote Controller MODEL: TM-TX01 MODE: TX
TEST STANDARD: FCC part15 Subpart C 15.231 TEST SITE: SHIELDED ROOM
AMBIENT TEMPERATURE : 20 ℃ RELATIVE HUMIDITY : 65 ％RH
TEST PERSONNEL: NICK APPROVED BY: JOHNSON
CHANNEL
NUMBER
CHANNEL
FREQUENCY
(MHz)
___20___ dB
DOWN BW
(kHz)
MINIMUM
LIMIT
(kHz)
MAXIMUM
LIMIT
(kHz) PASS/FAIL
1 433.91 394.0 1084.78
PASS
Spectrum Research
& Testing Lab., Inc.
No. 101-10, Ling 8,
Shan-Tong Li, Chung-Li
City, Taoyuan, Taiwan,
R.O.C.
TEST REPORT
Reference No.: A06033011
Report No.: FCCA06033011
Page:16 of 20
Date: May 12, 2006
FCC ID: TV2EFOBI
8. RELEASE OR OPERATING TIME
8.1 RELEASE TIME OR OPERATING LIMIT
1. A manually operated transmitter shall employ a switch that will automatically
deactivate the transmitter within not more than 5 seconds of being released.
2. A transmitter activated automatically shall cease transmission within 5 seconds after
activation.
3). Periodic transmissions at regular predetermined intervals are not permitted. However,
polling or supervision transmissions to determine system integrity of transmitters used in
security or safety applications are allowed if the periodic rate of transmission does not
exceed one transmission of not more than one second duration per hour for each
transmitter.
4. Intentional radiators, which are employed for radio control purposes during
emergencies involving fire, security, and safety of life, when activated to signal an alarm,
may operate during the pungency of the alarm condition.
8.2 TEST EQUIPMENT
The following test equipment was used during the radiated emission test :
EQUIPMENT/
FACILITIES SPECIFICATIONS MANUFACTURER MODEL#/
SERIAL#
DUE DATE OF CAL. &
CAL. CENTER
OSCILLOSCOPE 500MHz HP 54616B/
US39150351
APR. 2007
ETC
NOTE:
1. The calibration interval of the above test equipment is one year and the calibrations are traceable
to NML/ROC and NIST/USA.
8.3 TEST SET-UP
EUT (TX) Oscilloscope
LOOP
ANT. PROBE
Spectrum Research
& Testing Lab., Inc.
No. 101-10, Ling 8,
Shan-Tong Li, Chung-Li
City, Taoyuan, Taiwan,
R.O.C.
TEST REPORT
Reference No.: A06033011
Report No.: FCCA06033011
Page:17 of 20
Date: May 12, 2006
FCC ID: TV2EFOBI
8.4 TEST PROCEDURE
A specific loop antenna was connected to oscilloscope to detect the EUT’s release
time.
The oscilloscope displayed the EUT’s release time and took a picture of
measurement.
8.5 EUT OPERATING CONDITION
The EUT is normal use function.
8.6 RELEASE OR OPERATING TIME TEST RESULT
EUT: Remote Controller MODEL: TM-TX01 MODE: TX
TEST STANDARD: FCC part15 Subpart C 15.231 TEST SITE: SHIELDED ROOM
AMBIENT TEMPERATURE : 20 ℃ RELATIVE HUMIDITY : 65 ％RH
TEST PERSONNEL: NICK APPROVED BY: JOHNSON
Start release
time(ms) Stop time(ms) Total release
time(ms) Limit of release time<(s)
656 920 264 5
Spectrum Research
& Testing Lab., Inc.
No. 101-10, Ling 8,
Shan-Tong Li, Chung-Li
City, Taoyuan, Taiwan,
R.O.C.
TEST REPORT
Reference No.: A06033011
Report No.: FCCA06033011
Page:18 of 20
Date: May 12, 2006
FCC ID: TV2EFOBI
9. PHOTOS OF TESTING

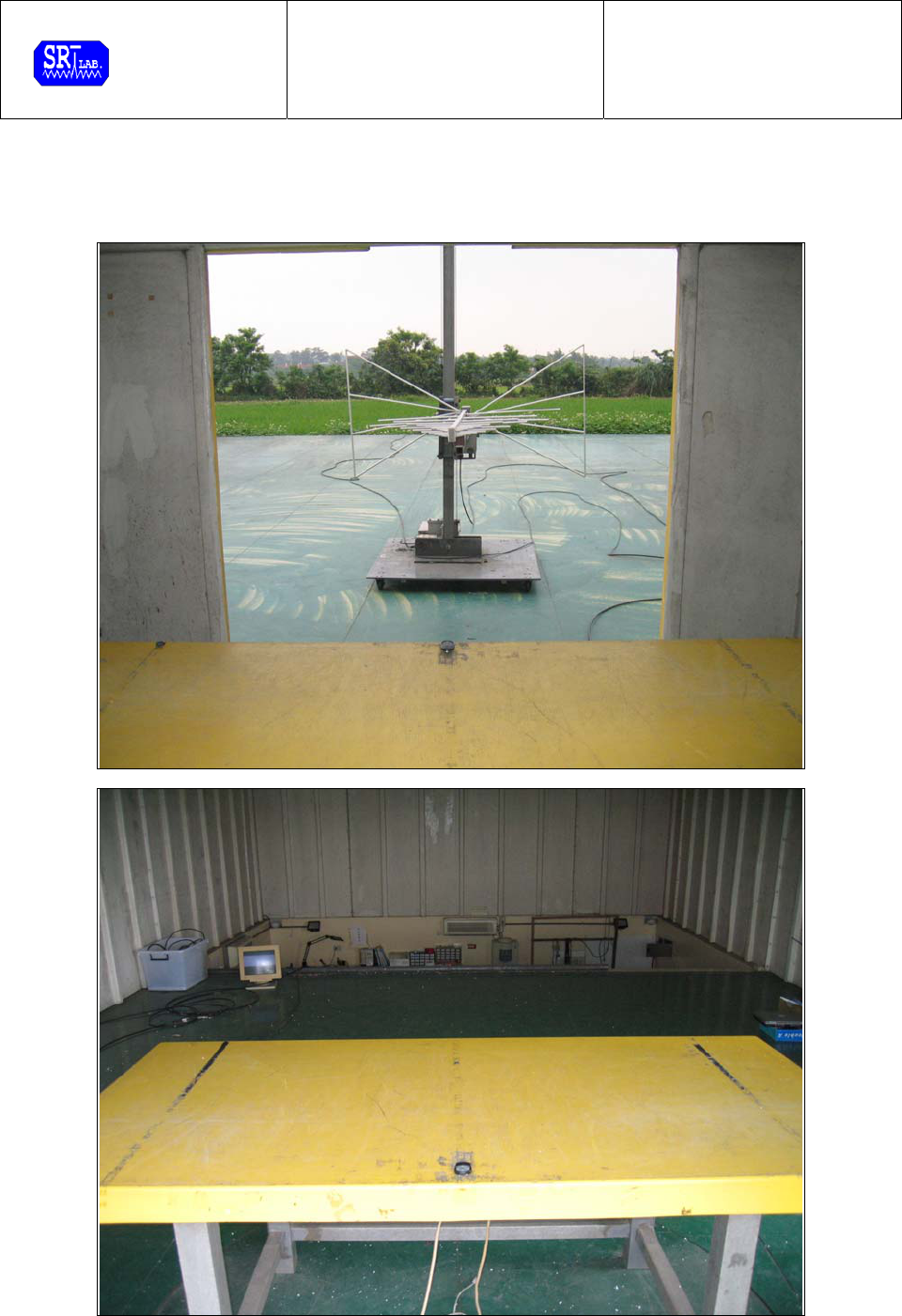

Radiated test-TX
Spectrum Research
& Testing Lab., Inc.
No. 101-10, Ling 8,
Shan-Tong Li, Chung-Li
City, Taoyuan, Taiwan,
R.O.C.
TEST REPORT
Reference No.: A06033011
Report No.: FCCA06033011
Page:19 of 20
Date: May 12, 2006
FCC ID: TV2EFOBI
Radiated test-RX
Spectrum Research
& Testing Lab., Inc.
No. 101-10, Ling 8,
Shan-Tong Li, Chung-Li
City, Taoyuan, Taiwan,
R.O.C.
TEST REPORT
Reference No.: A06033011
Report No.: FCCA06033011
Page:20 of 20
Date: May 12, 2006
FCC ID: TV2EFOBI
10. TERMS OF ABRIVATION
AV. Average detection
AZ(°) Turn table azimuth
Correct. Correction
EL(m) Antenna height (meter)
EUT Equipment Under Test
Horiz. Horizontal direction
LISN Line Impedance Stabilization Network
NSA Normalized Site Attenuation
PK. Peak detection
Q.P. Quasi-peak detection
SRT Lab Spectrum Research & Testing Laboratory, Inc.
Vert. Vertical direction
