TriMark ERX4 Car machine User Manual

TriMark Corporation Car machine Users Manual

Users Manual

0
TriMarkCorporation
Generation3EAskSystem
FCCgeneralinformationdoc
Contents
36163‐02.......................................................................................................................................................1
GeneralSpecifications...............................................................................................................................1
FOBFCCversion........................................................................................................................................1
WiringDiagram.........................................................................................................................................1
BlockDiagram...........................................................................................................................................1
36160IOModule..........................................................................................................................................2
PinLayout..................................................................................................................................................2
GeneralSpecifications...............................................................................................................................2
IOModuleFCCversion..............................................................................................................................3
Wiringdiagram..........................................................................................................................................3
ModelNo.:38848‐01,38846‐01,38846‐02,38846‐03,38846‐04
38847‐01,38847‐02,38847‐03,38847‐04,36160‐01
1
36163‐02
GeneralSpecifications
AllbuttonpressesCreatea433MHzbroadcast
ThereisaPassive3D125KHzreceiver
Power  3Vbattery
Current(quiescent) 15‐30uA
Active(rms) 18mA
FOBFCCversion
FCCversionwillgointotransmitmodewhenbutton2or4ispressed,andwillexittransmitmodeon
anotherpress.Thisistoconservebattery.

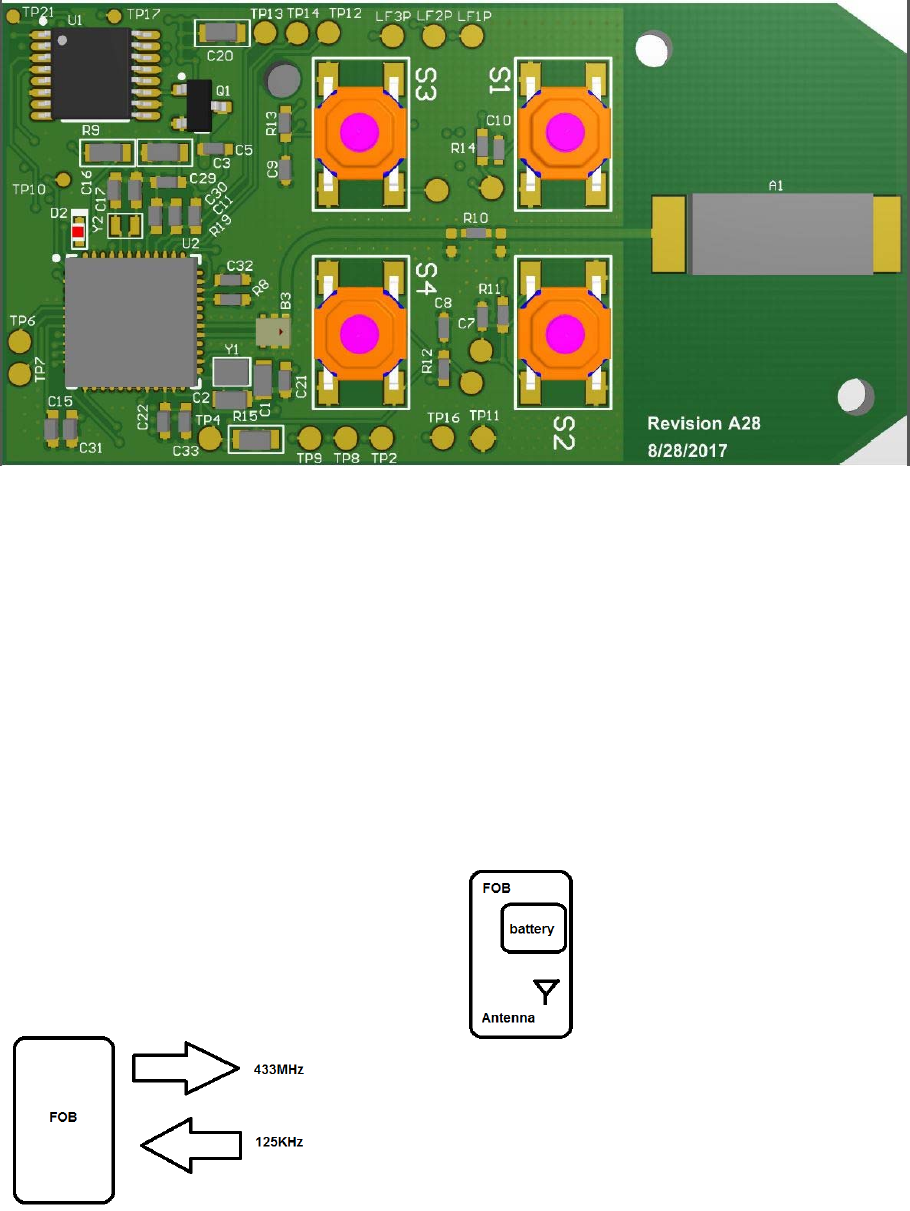

WiringDiagram
InserttheDL2032batteryintotheholderofthePCB
BlockDiagram
2
36160IOModule
PinLayout
GeneralSpecifications
Allactivesarepresentlysetto12V
InputActivated ReactionfromHardwareTests
PROG_IN_1 PROG_OUT_1activateswhilePROG_IN_1isactive.
PROG_IN_2 PROG_OUT_2activateswhilePROG_IN_2isactive.
PROG_IN_3 PROG_OUT_3activates whilePROG_IN_3isactive.
PROG_IN_4 PROG_OUT_4activateswhilePROG_IN_4isactive.
FobButton1 PROG_OUT_1activateswhilefobbutton1ispressed.
FobButton2 PROG_OUT_2activateswhilefobbutton2ispressed.
FobButton3 PROG_OUT_3activateswhilefobbutton3ispressed.
FobButton4 PROG_OUT_4activateswhilefobbutton4ispressed.
DoorHandleTouch RELAY_20A_2activatesfor500msecwhentheLFmodulesensesahandletouch.
3
PowerSupply    6.5Vto16V
Nominal12V
QuiescentCurrent(noload)  311uA
 Nominal(load)   2.5mA
OnBoardrelays(active)  30A
 Normal(Actuator)  5A
AllANT125arebi‐directional.Theycanbepluggedineitherway
IOModuleFCCversion
LFwillconstantlygeneratea125KHzwaveonchannel1aslongasitispluggedin.Donotleaveon
morethan4hoursatatime.Channels2and3usethesamecircuit,butwillnotbeon.

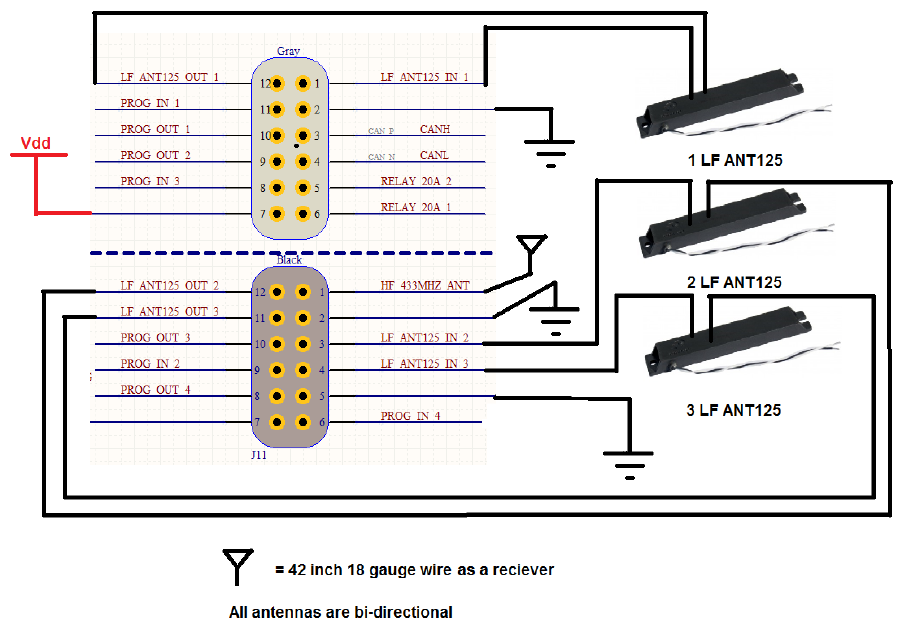

Wiringdiagram
4
This device complies with Industry Canada licence-exempt RSS-210 standard.
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Le manuel d'utilisation des appareils radio exempts de licence doit contenir
l'énoncé qui suit, ou l'équivalent, à un endroit bien en vue et/ou sur les appareils :
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux
conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même
si le brouillage est susceptible d'en compromettre le fonctionnement.
Federal Communication Commission Interference Statement
ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassB
digitaldevice,pursuanttoPart15oftheFCCRules.Theselimitsaredesignedto
providereasonableprotectionagainstharmfulinterferenceinaresidential
installation.
Thisequipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnot
installedandusedinaccordancewiththeinstructions,maycauseharmful
interferencetoradiocommunications.However,thereisnoguaranteethat
interferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescause
harmfulinterferencetoradioortelevisionreception,whichcanbedeterminedby
turningtheequipmentoffandon,theuserisencouragedtotrytocorrectthe
interferencebyoneofthefollowingmeasures:
.Reorientorrelocatethereceivingantenna.
.Increasetheseparationbetweentheequipmentandreceiver.
.Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe
receiverisconnected.
.Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
FCC Caution:Toassurecontinuedcompliance,anychangesormodificationsnot
expresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser's
authoritytooperatethisequipment.(Example‐useonlyshieldedinterfacecables
whenconnectingtocomputerorperipheraldevices).
