Tricheer Technology FS040U LTE USB Modem User Manual FS040U Manual FCC update 20170904
Shanghai Tricheer Technology Co.,Ltd. LTE USB Modem FS040U Manual FCC update 20170904
User manual
FS040U
User Manual
2
Table of Contents
User Manual ...................................................................... 1
1 Introduction .................................................................... 4
2 RNDIS(web UI)................................................................ 5
1 Description for RNDIS Interface .............................. 5
3 RAS/MBIM(PC client) ..................................................... 8
1 Description for Client Interface ................................ 8
Activate Client .................................................... 8
Introduction to Interface ..................................... 9
2 Connection ............................................................ 11
Automatically connect to the network ............... 11
Customized Network Connection ..................... 11
3 Setting ................................................................... 13
Connection ....................................................... 13
PIN Management ............................................. 13
Language Setting ............................................. 14
Network Connection ......................................... 14
Diagnostics ...................................................... 15
4 Network recording ................................................. 15
Network recording ............................................ 15
5 FAQ ....................................................................... 16
3
4 FCC Regulations .......................................................... 18
5 Remark ......................................................................... 20
4
1 Introduction
The product is designed to enable PC users access to the Internet via
UMTS/HSPA/LTE networks. It uses a standard USB interface for a fast
simple connection to your PC.
System Requirements
Item Description
OS
Windows Windows 7,8,10 and higher (Mac OS not
support)
Linux
Linux kernel version
RAS：2.6.x / 3.x / 4.x / later
NDIS : 3.4 upper / 4.x / later
MBIM : 3.8 upper / 4.x / later
RNDIS：2.6.x / 3.x / 4.x / later
The product has two work modes, RNDIS(web UI) and RAS/MBIM(PC
client).
5
2 RNDIS(web UI)
1 Description for RNDIS Interface
6

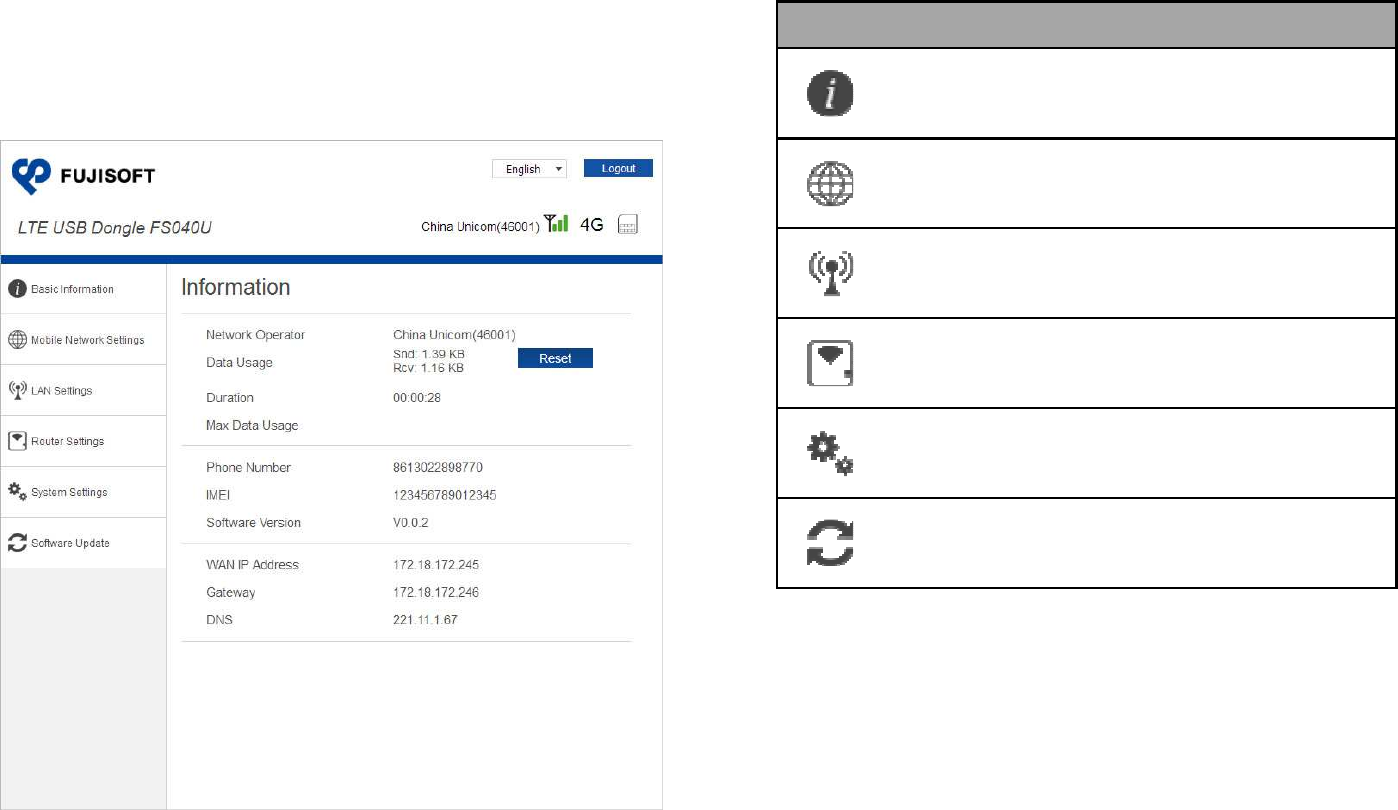

Icons and functions defined:
Status information display and advanced settings area.
Icon Explanation
Basic Information
Mobile Network Settings
LAN Settings
Router Settings
System Settings
Update
7

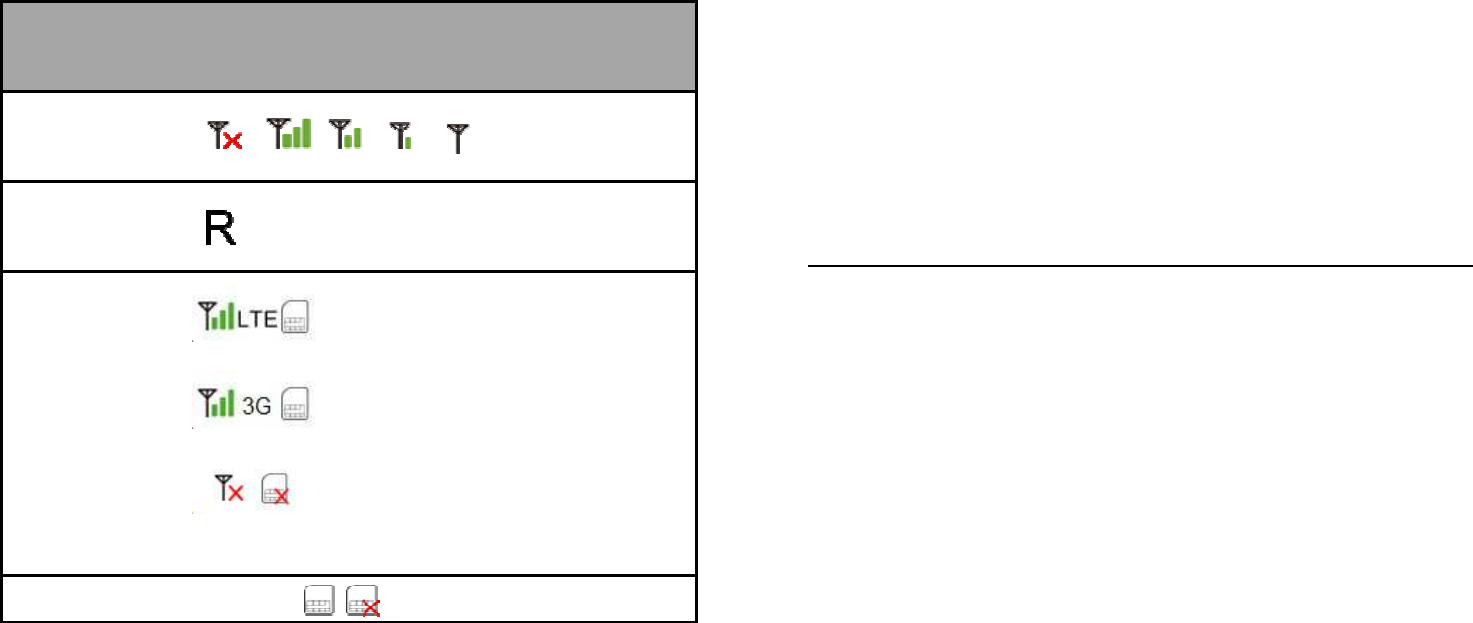

Status
Information
Description
Network
signal Signal display
Roaming
status
Connection
Status
Connected
Connected
Unconnected
SIM Card Status
8
3 RAS/MBIM(PC client)
1 Description for Client Interface
Activate Client
To activate client, please double-click the shortcut icon of client on the
desktop.
Note:
Operational Instruction for PIN: If the user activates PIN under the
setting menu, it shall be required to input the correct PIN while
using the application procedure (totally 3 times to input PIN, if the
number is wrongly-input after 3 times, thus, PUK should be used
to decode the PIN, and the input of PUK is only 10 times, if the
number is wrongly-input after 10 times, (U)SIM will be locked or
damaged, Please contact the local operator for settlement).
(U)SIM is provided by the network operator. Please contact the
operator for more information.
9
Introduction to Interface
1. Function Icon
The definition of function icon provided by client is as follows:
Shortcut icon Description
Connection
Setting
Network recording
2. Status Information
The status information displayed by client is as follows:
Status
Information
Description
Network signal Indicates the signal strength of the current
connected network
Network types
Displays when supporting HSPA
Displays when supporting UMTS
Display “No device” when the device can’t be
found.
Display “No (U)SIM ” when the (U)SIM can’t
be found.
10
Device and
Network
information
Display “Invalid” when the (U)SIM is invalid.
Display “Searching” when searching the
network.
Display “No service” when the network can’t
be found.
Display the name of network operator after
successful network registration.
Network
connection
status
Indicates network has been connected.
Indicates network hasn’t been
connected.
3. Tray Icon
Click on to close the main window, The main window can be
reopened by double clicking on the tray icon.
The icon context menu in the tray area:
Open: open the main window.
About: display the information of software version.
Exit: exit from the application software.
11
2 Connection
Auto-connection and customized-connection modes are provided to
access to the network.
Automatically connect to the n
etwork
If using the default connection configuration, you should connect by
dialing according to the default connection profiles.
1. Connect
Select connection mode: click on <Connect> for auto connection.
After the completion of connection, under the window status
bar will turn into .
2. Disconnect
Click on <Disconnect> to disconnect the connection.
Customized Network Connection
Click on under the main windows, select <Connection setting> to
set up customized-connection.
12
1. New
Input the value of various parameters in the <New> area box, and the
profiles file is added into the connection profile list.
Note:
Please contact the network operator for profile information.
2. Predefined List
Select a profile in the predefined list and then add it into the connection
profile
list.
3. Edit
Select one profile in the available list and then to edit.
4. Delete
Select one profile in the available list and then to delete it.
5. Set default
Select one item from the list of available connection profile(s).
Click on <Set Default> to set default;
Enter into the connection interface to establish corresponding
connection.
13
3 Setting
Connection
Click on <Connection > to display available connection profile.
1. Sound
Enabled/Disable sound prompts when Internet connection or
disconnecting.
2. Connection Setting
Please refer to “Connection”. For customized-connection network
information
PIN Management
1. Enabled PIN
Click on <Enabled PIN> to select Enable/Disable and activate
PIN launching or close dialog box;
Input the correct PIN;
Click on <Ok> to prompt the launching or closing PIN.
14
2. Modify PIN
Click on <Modify PIN> to enter into the PIN modification window
Input the original PIN;
Input new PIN and re-input for confirmation, and click on <Ok>.
Note:
It can be allowed only the PIN enabled.
Language Setting
Click on <Language setting> to select language, and the window will
display the selected language when restart the client.
Network Connection
Network Mode
Click on <Network Mode>to select, network mode defaulted is
auto;
Click on <Auto>/<
1x only >/<
3G only > to relevant network
mode.
15
Diagnostics
Click on <
Diagnostics > to launch the window of diagnosis information.
Click on <Export> to export this information which will be saved as*.txt
file.
4 Network recording
Network recording
The user can view the network recording.
16
5 FAQ
1. Q: Which operation systems does the software support?
A: It supports Windows 10, Windows 8, Windows 7.
2. Q: I cannot install applications？
A: The reasons are shown below:
1.
If automatic installation unfinished, please check whether
the antivirus and security software is working. If it is, close it
and reinstall. To those which cannot be disabled, close the
monitor program and do not start it until installation finished.
2. On some PCs, installation of the driver may take a long
time because of the PC configuration. So please wait and do
not cancel or unplug the device during installation. If it failed,
uninstall the driver first and then reinstall it.
3. Q: The (U)SIM does not register any networks
A: The reasons are shown below:
1. Unstable local signal;
2. The software is an old version;
3. Hardware problem.
You may:
1. Try to logon from another location;
17
2. Update the software;
3. Check the hardware or use another data card and retry.
4. Q: Why does the prompt “Unavailable connection profile”
appear?
A: Please add a connection profile manually.
5. Q: It failed to connect to the internet
A: Please make sure the connection profile and settings are
correct.
6. Q: The connection speed and data transfer rates are too slow
A: Please check the local network signal strength.
7. Q: Why can I only save part of the name when adding a new
contact?
A: The inputted character exceed the maximum length of
(U)SIM
8. Q: Does it support roaming?
A: This depends on the local operator. Please check with your
local operator or service provider.
18
4 FCC Regulations
FCC Regulations:
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2)this device must accept any interference received,
including interference that may cause undesired operation.
This device has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiated radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to
19
which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Caution: Changes or modifications not expressly approved by the party
responsible
for compliance could void the user‘s authority to operate the equipment.
RF Exposure Information (SAR)
This device meets the government’s requirements for exposure to radio
waves. This device is designed and manufactured not to exceed the
emission limits for exposure to radio frequency (RF) energy set by the
Federal Communications Commission of the U.S. Government. The
exposure standard for wireless device employs a unit of measurement
known as the Specific Absorption Rate, or SAR. The SAR limit set by the
FCC is 1.6W/kg. *Tests for SAR are conducted using standard operating
positions accepted by the FCC with the device transmitting at its highest
certified power level in all tested frequency bands. Although the SAR is
determined at the highest certified power level, the actual SAR level of
the device while operating can be well below the maximum value. This
is because the device is designed to operate at multiple power levels so
as to use only the poser required to reach the network. In general, the
closer you are to a wireless base station antenna, the lower the power
output. SAR compliance has been established in the host product(s)
20
(laptop computers), tested at 5mm separation distance to the human
body, and tested with USB slot configurations including Horizontal-UP,
Horizontal-Down, Vertical-Front, Vertical-Back. This device can be used
in host product(s) with substantially similar physical dimensions,
construction, and electrical and RF characteristics. The highest SAR
value, tested per FCC RF exposure guidelines for USB dongle, as
described in this user guide, is 1.13W/kg. The FCC has granted an
Equipment Authorization for this device with all reported SAR levels
evaluated as in compliance with the FCC RF exposure guidelines. SAR
information on this device is on file with the FCC and can be found
under the Display Grant section of www.fcc.gov/oet/ea/fccid after
searching on.
FCC ID: 2ANKMFS040U.
5 Remark
For more detailed information of the product, please click <Help> file of
the Setting Menu under the main window.
