REFERENCE MANUAL
Copernicus™ GPS Receiver
For Modules with firmware version 2.01 (or later)
Part Number 58052-00
NORTH AMERICA
Trimble Navigation Limited
Corporate Headquarters
935 Stewart Drive
Sunnyvale, CA 94086
+1-800-787-4225
+1-408-481-7741
EUROPE
Trimble Navigation Europe
Phone: +49-6142-2100-161
KOREA
Trimble Export Ltd, Korea
Phone: +82 2 555 5361
CHINA
Trimble Navigation Ltd, China
Phone: +86-21-6391-7814
TAIWAN
Trimble Navigation, Taiwan
Phone: +886-02-85096574
www.trimble.com
Corporate Office
Trimble Navigation Limited
935 Stewart Drive
Sunnyvale, CA 94085
U.S.A.
Phone: +1-408-481-8000, 1-800-827-8000
www.trimble.com
Support
+1-800-767-4822 (USA and Canada)
+1-913-338-8225 (International)
Copyright and Trademarks
© 2007 Trimble Navigation Limited. All rights reserved. No
part of this manual may be copied, reproduced, translated, or
reduced to any electronic medium or machine-readable form
for any use other than with the Copernicus™ GPS Receiver.
The Globe & Triangle logo, Trimble, Colossus, FirstGPS, and
Lassen, are trademarks of Trimble Navigation Limited.
The Sextant logo with Trimble is a trademark of Trimble
Navigation Limited, registered in the United States Patent and
Trademark Office.
All other trademarks are the property of their respective
owners.
Release Notice
This is the October 2007 release (Revision B) of the
Copernicus™ GPS Receiver System Designer Reference
Manual, part number 58052-00.
The following limited warranties give you specific legal rights.
You may have others, which vary from state/jurisdiction to
state/jurisdiction.
Waste Electrical and Electronic Equipment (WEEE)
Notice
This Trimble product is furnished on an OEM basis. By
incorporating this Trimble product with your finished goods
product(s) you shall be deemed the “producer” of all such
products under any laws, regulations or other statutory scheme
providing for the marking, collection, recycling and/or
disposal of electrical and electronic equipment (collectively,
“WEEE Regulations”) in any jurisdiction whatsoever, (such as
for example national laws implementing EC Directive 2002/96
on waste electrical and electronic equipment, as amended), and
shall be solely responsible for complying with all such
applicable WEEE Regulations.
Restriction on Hazardous Substances
As of July 1, 2006, the Product is compliant in all material
respects with DIRECTIVE 2002/95/EC OF THE EUROPEAN
PARLIAMENT AND OF THE COUNCIL of 27 January 2003
on the restriction of the use of certain hazardous substances in
electrical and electronic equipment (RoHS Directive) and
Amendment 2005/618/EC filed under C(2005) 3143, with
exemptions for lead in solder pursuant to Paragraph 7 of the
Annex to the RoHS Directive applied. The foregoing is limited
to Product placed on the market in the Member States of the
European Union on or after 1 July 2006. Trimble has relied on
representations made by its suppliers in certifying this Product
as RoHS compliant.
Hardware Limited Warranty
Trimble warrants that this Trimble hardware product (the
“Product”) shall be free from defects in materials and
workmanship and will substantially conform to Trimble’s
applicable published specifications for the Product for a period
of one (1) year, starting from the date of delivery. The warranty
set forth in this paragraph shall not apply to software/firmware
products.
Software and Firmware License, Limited Warranty
This Trimble software and/or firmware product (the
“Software”) is licensed and not sold. Its use is governed by the
provisions of the applicable End User License Agreement
(“EULA”), if any, included with the Software. In the absence
of a separate EULA included with the Software providing
different limited warranty terms, exclusions, and limitations,
the following terms and conditions shall apply. Trimble
warrants that this Trimble Software product will substantially
conform to Trimble’s applicable published specifications for
the Software for a period of ninety (90) days, starting from the
date of delivery.
Warranty Remedies
Trimble's sole liability and your exclusive remedy under the
warranties set forth above shall be, at Trimble’s option, to
repair or replace any Product or Software that fails to conform
to such warranty (“Nonconforming Product”), or refund the
purchase price paid by you for any such Nonconforming
Product, upon your return of any Nonconforming Product to
Trimble in accordance with Trimble’s standard return material
authorization procedures.
Warranty Exclusions and Disclaimer
These warranties shall be applied only in the event and to the
extent that: (i) the Products and Software are properly and
correctly installed, configured, interfaced, maintained, stored,
and operated in accordance with Trimble’s relevant operator's
manual and specifications, and; (ii) the Products and Software
are not modified or misused.
The preceding warranties shall not apply to, and Trimble shall
not be responsible for defects or performance problems
resulting from (i) the combination or utilization of the Product
or Software with products, information, data, systems or
devices not made, supplied or specified by Trimble; (ii) the
operation of the Product or Software under any specification
other than, or in addition to, Trimble's standard specifications
for its products; (iii) the unauthorized modification or use of
the Product or Software; (iv) damage caused by accident,
lightning or other electrical discharge, fresh or salt water
immersion or spray; or (v) normal wear and tear on
consumable parts (e.g., batteries).
THE WARRANTIES ABOVE STATE TRIMBLE'S ENTIRE
LIABILITY, AND YOUR EXCLUSIVE REMEDIES, RELATING
TO PERFORMANCE OF THE PRODUCTS AND SOFTWARE.
EXCEPT AS OTHERWISE EXPRESSLY PROVIDED HEREIN,
THE PRODUCTS, SOFTWARE, AND ACCOMPANYING
DOCUMENTATION AND MATERIALS ARE PROVIDED “AS-
IS” AND WITHOUT EXPRESS OR IMPLIED WARRANTY OF
ANY KIND BY EITHER TRIMBLE NAVIGATION LIMITED OR
ANYONE WHO HAS BEEN INVOLVED IN ITS CREATION,
PRODUCTION, INSTALLATION, OR DISTRIBUTION,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, TITLE, AND NONINFRINGEMENT.
THE STATED EXPRESS WARRANTIES ARE IN LIEU OF ALL
OBLIGATIONS OR LIABILITIES ON THE PART OF TRIMBLE
ARISING OUT OF, OR IN CONNECTION WITH, ANY
PRODUCTS OR SOFTWARE. SOME STATES AND
JURISDICTIONS DO NOT ALLOW LIMITATIONS ON
DURATION OR THE EXCLUSION OF AN IMPLIED
WARRANTY, SO THE ABOVE LIMITATION MAY NOT APPLY
TO YOU.
TRIMBLE NAVIGATION LIMITED IS NOT RESPONSIBLE FOR
THE OPERATION OR FAILURE OF OPERATION OF GPS
SATELLITES OR THE AVAILABILITY OF GPS SATELLITE
SIGNALS.
Limitation of Liability
TRIMBLE’S ENTIRE LIABILITY UNDER ANY PROVISION
HEREIN SHALL BE LIMITED TO THE GREATER OF THE
AMOUNT PAID BY YOU FOR THE PRODUCT OR SOFTWARE
LICENSE OR U.S.$25.00. TO THE MAXIMUM EXTENT
PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL
TRIMBLE OR ITS SUPPLIERS BE LIABLE FOR ANY
INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES WHATSOEVER UNDER ANY CIRCUMSTANCE OR
LEGAL THEORY RELATING IN ANY WAY TO THE
PRODUCTS, SOFTWARE, AND ACCOMPANYING
DOCUMENTATION AND MATERIALS, (INCLUDING,
WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS
PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS
INFORMATION, OR ANY OTHER PECUNIARY LOSS),
REGARDLESS OF WHETHER TRIMBLE HAS BEEN ADVISED
OF THE POSSIBILITY OF ANY SUCH LOSS AND
REGARDLESS OF THE COURSE OF DEALING WHICH
DEVELOPS OR HAS DEVELOPED BETWEEN YOU AND
TRIMBLE. BECAUSE SOME STATES AND JURISDICTIONS
DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL
DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO
YOU.
Copernicus GPS Receiver 1
Table of Contents
Table of Contents 1
1 STARTER KIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Receiver Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Starter Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Starter Kit Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Interface Unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Serial Port Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Removing the Reference Board from the Interface Unit. . . . . . . . . . . . . . . . 13
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Using a Passive Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Quick Start Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Trimble GPS Monitor Toolkit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

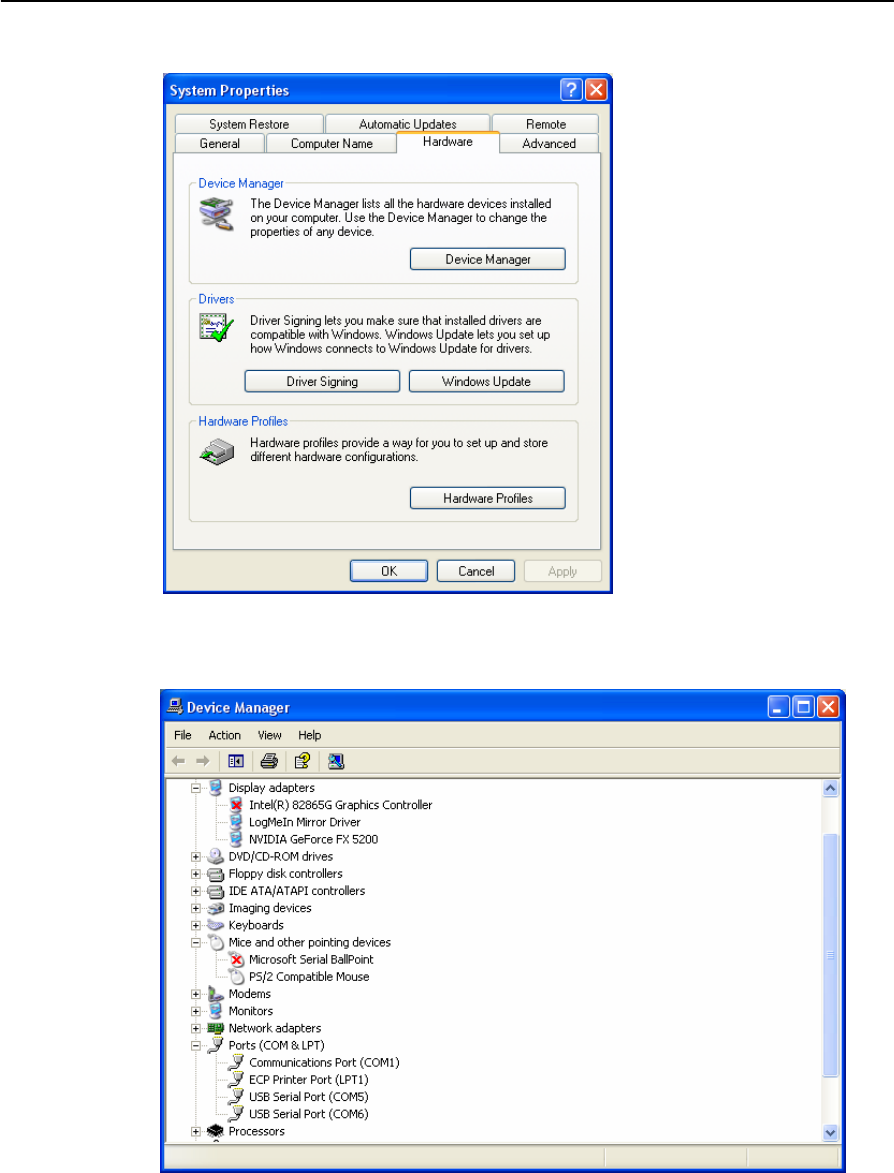

Install the FTDI USB/Serial Driver Software . . . . . . . . . . . . . . . . . . . . . 17

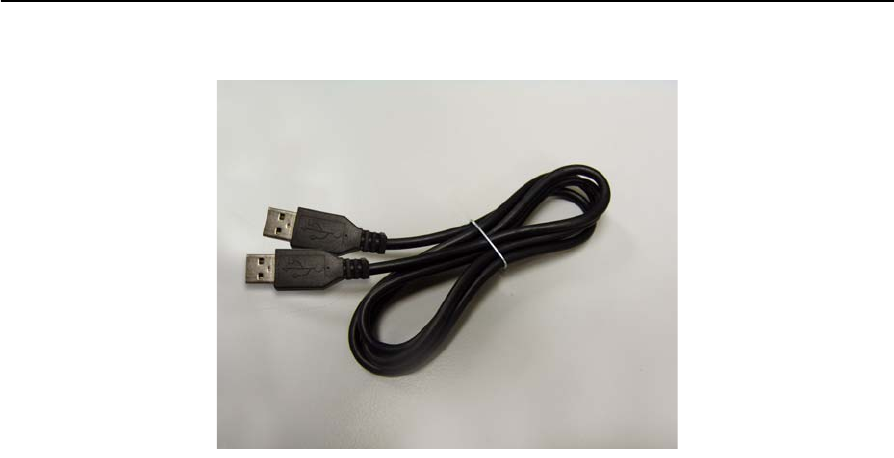

Connect the PC via the USB Cable . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Start the TGM Application. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Connect to the GPS Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Configure GPS Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Configure Output Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Configure GPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Configure PPS Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Configure NMEA Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Configure TAIP Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Creating a Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

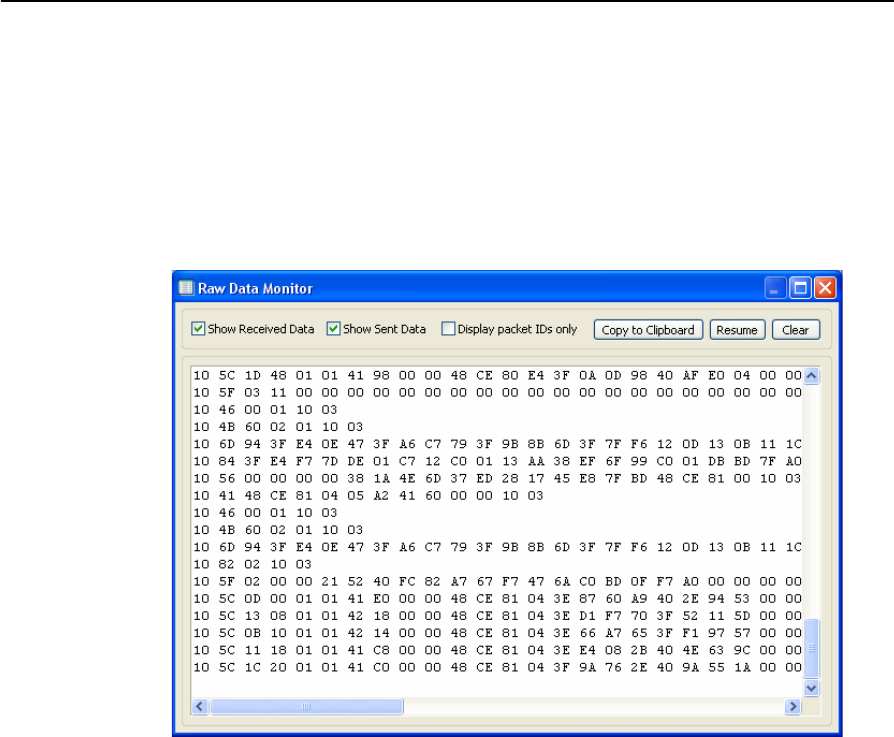

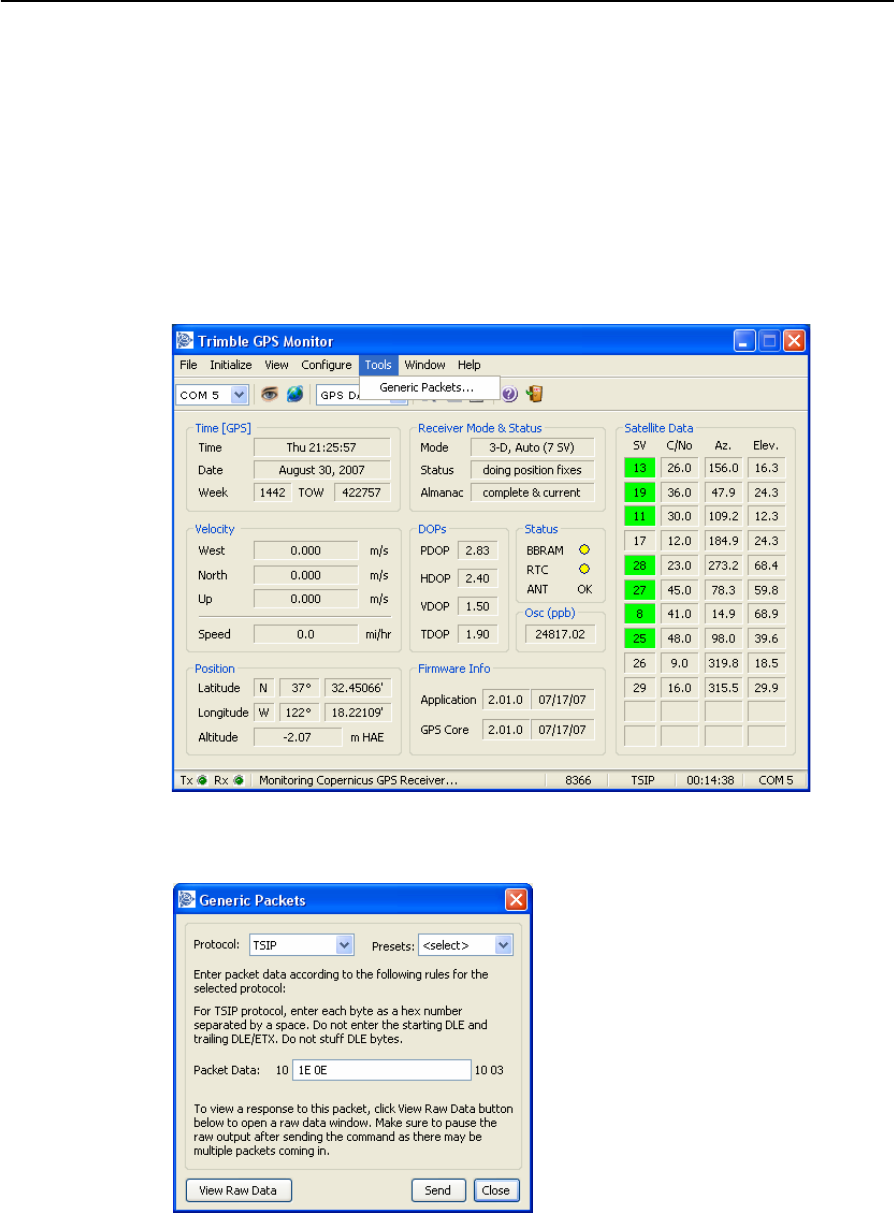

Sending Raw Data to device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
2 PRODUCT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . 31
Key Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Physical. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
MTBF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Absolute Minimum and Maximum Limits . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Normal Operating Conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Power Consumption Over Temperature and Voltage . . . . . . . . . . . . . . . . . . . . . 39
Run Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
ESD Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Table of Contents
2 Copernicus GPS Receiver
3 INTERFACE CHARACTERISTICS . . . . . . . . . . . . . . . . . . . . . 41
Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Pin Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Detailed Pin Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Protocols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Serial Port Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
GPS Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Serial Time Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
A-GPS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

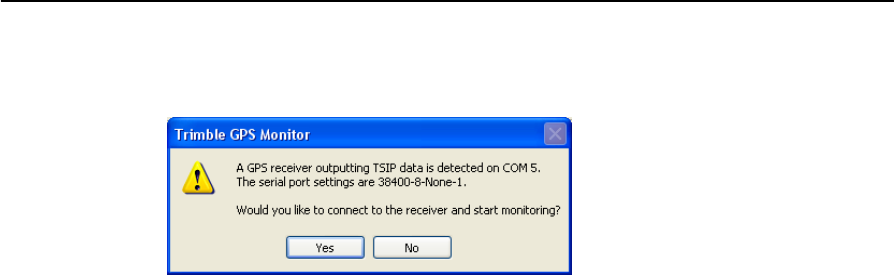

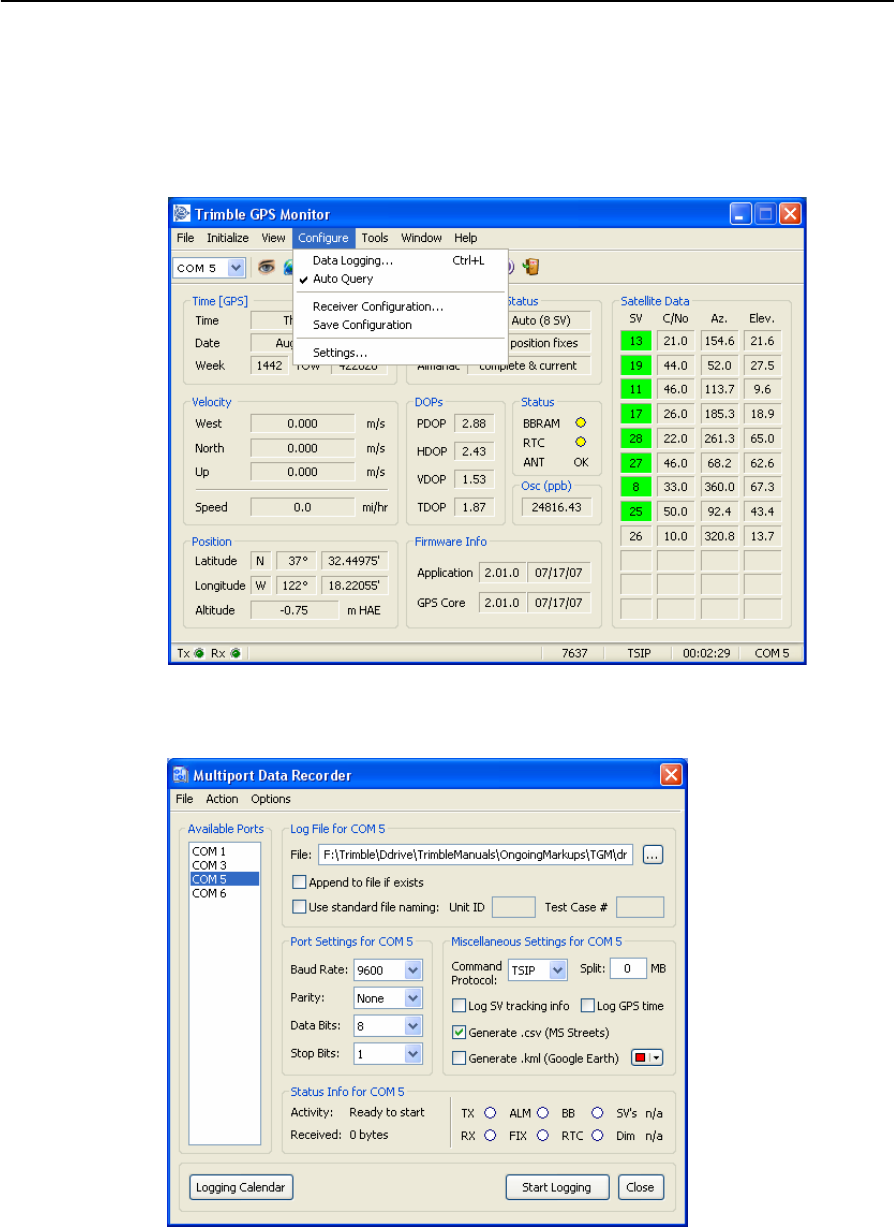

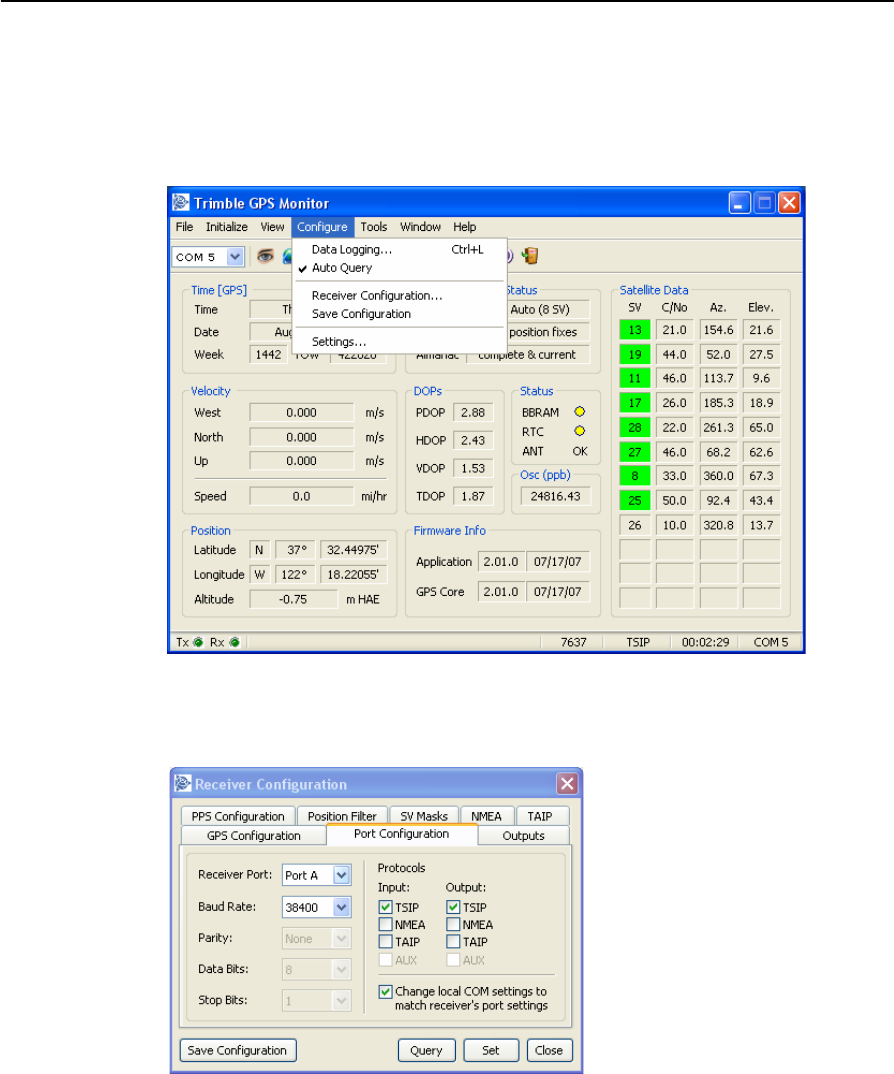

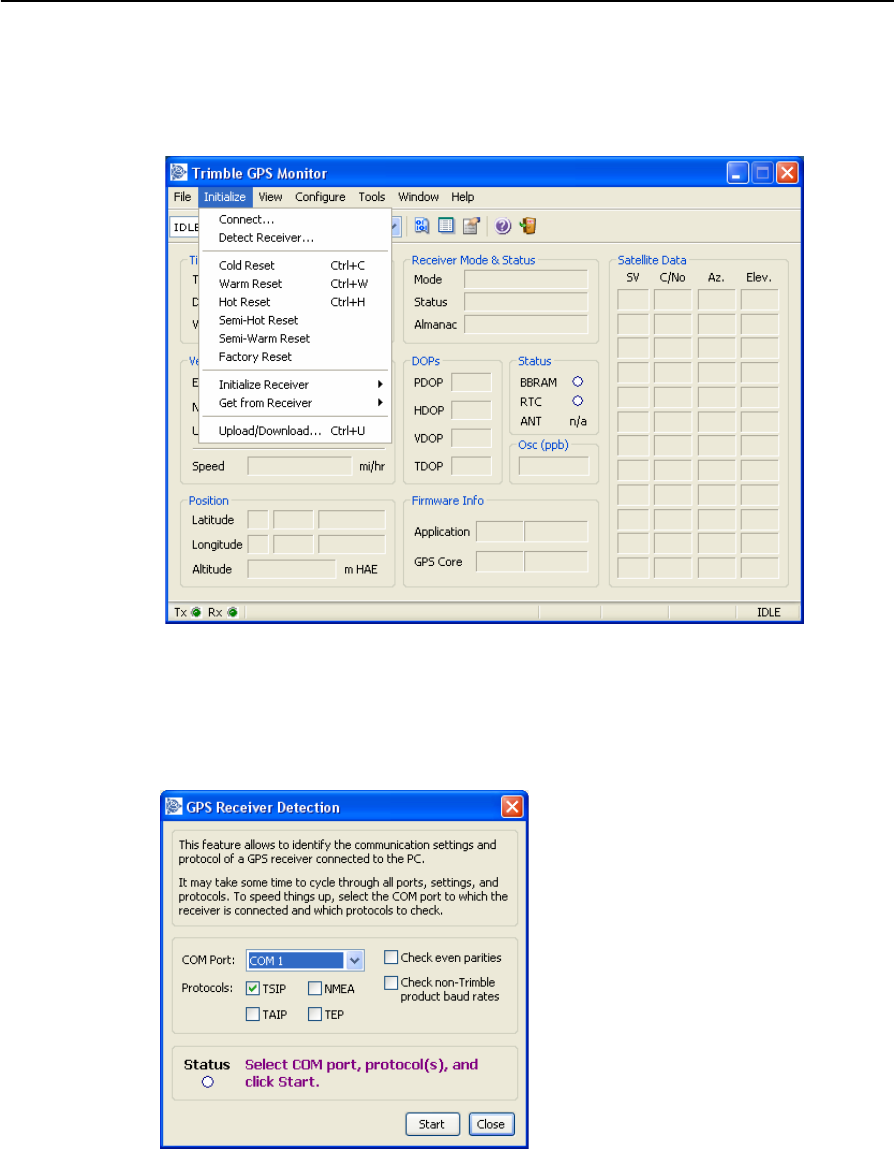

Enabling A-GPS with the Trimble GPS Monitor Application (TGM) . . . . . . . . 50
Enabling A-GPS with TSIP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Pulse-Per-Second (PPS). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
4 OPERATING MODES . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Copernicus Receiver Operating Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Run Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Standby Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Monitor Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Changing the Run/Standby Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

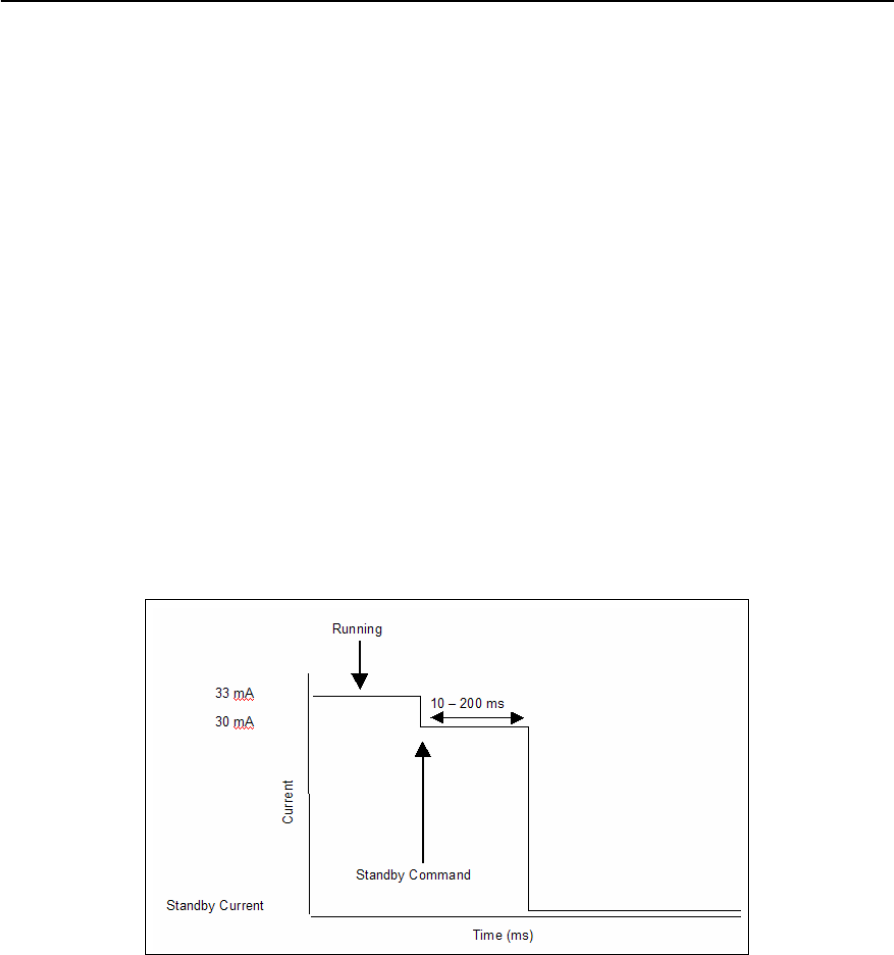

Copernicus Standby Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Using the XSTANDBY Pin to Switch Modes . . . . . . . . . . . . . . . . . . . . . 56
Using Serial Ports to Switch Modes . . . . . . . . . . . . . . . . . . . . . . . . . . 56
18-Hour RTC Roll Over . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Saving Almanac, Ephemeris and Position to Flash Memory . . . . . . . . . . . . . . . . . 59
Graceful Shutdown. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
SBAS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
WAAS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Number of channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Acquisition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Usage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Almanac collection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Ephemeris collection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

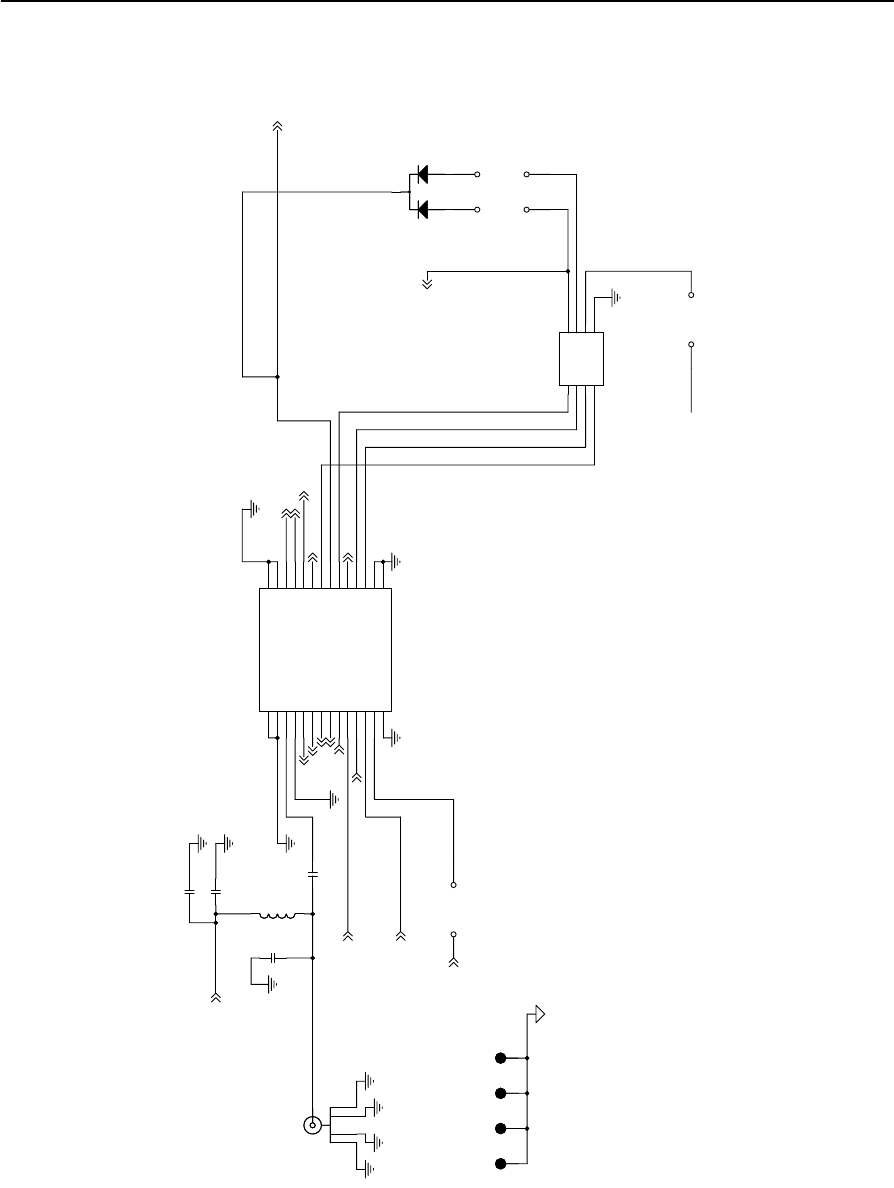

5 APPLICATION CIRCUITS. . . . . . . . . . . . . . . . . . . . . . . . . . 61

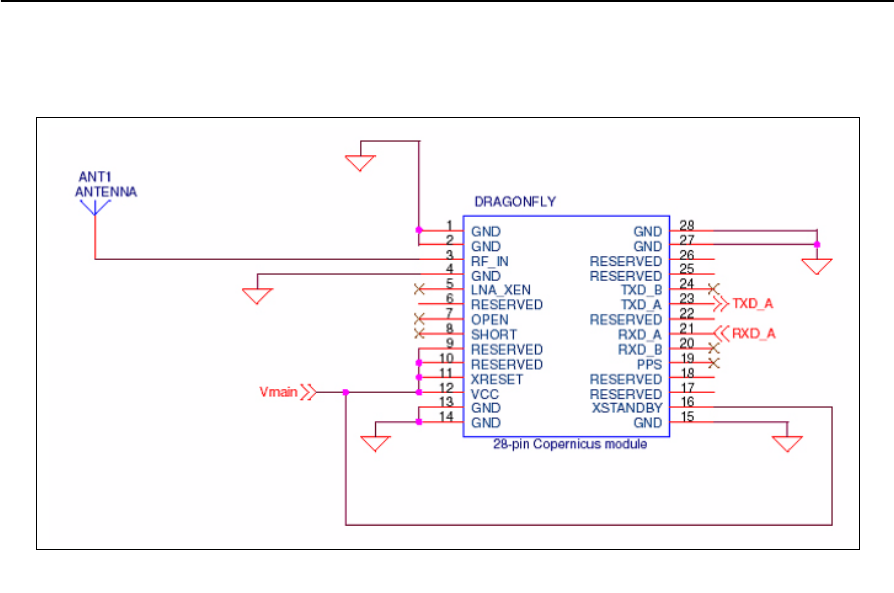

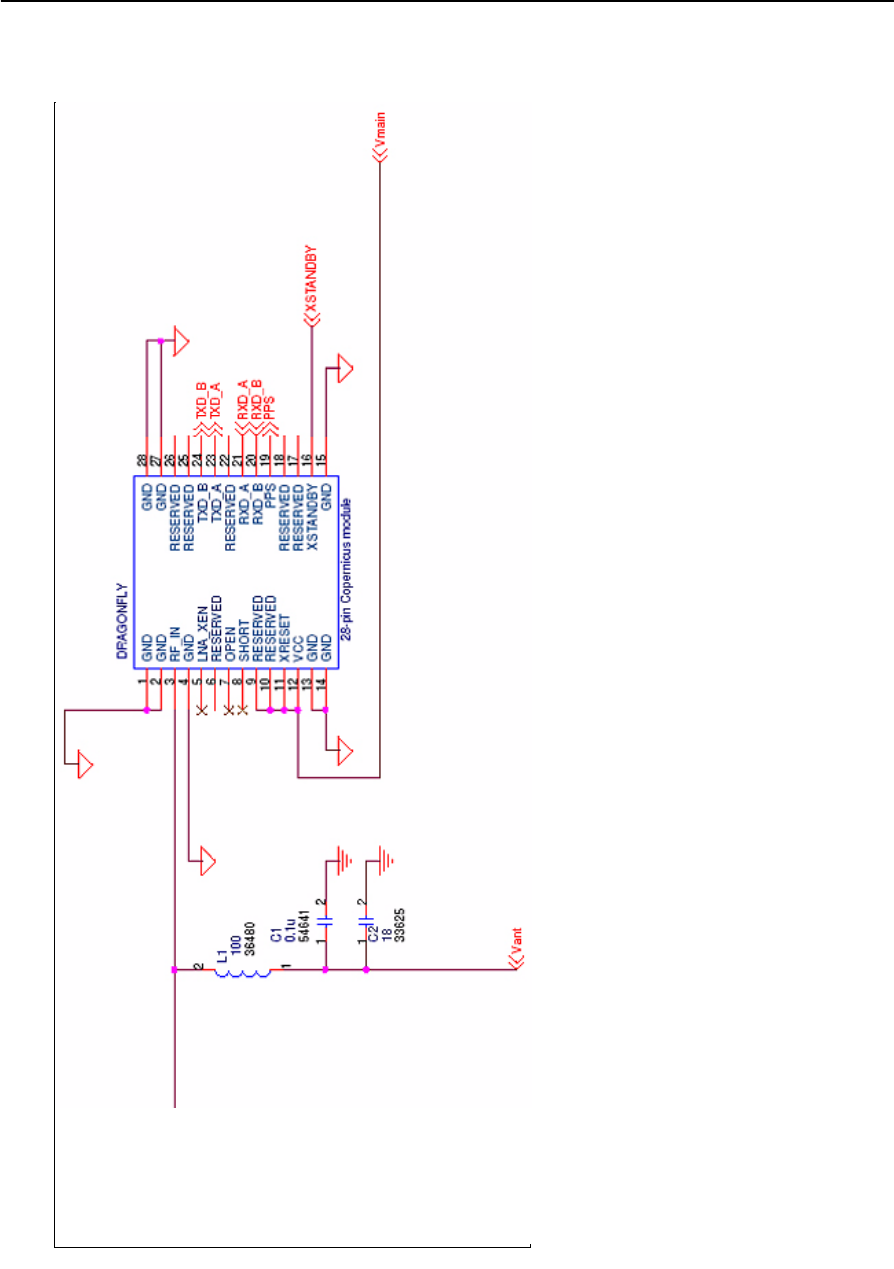

Passive antenna—Minimum Connections . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Active Antenna—Full Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Active Antenna—No Antenna Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
6 RF LAYOUT CONSIDERATIONS . . . . . . . . . . . . . . . . . . . . . . 69
General Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Design considerations for RF Track Topologies . . . . . . . . . . . . . . . . . . . . . . . 72
PCB Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

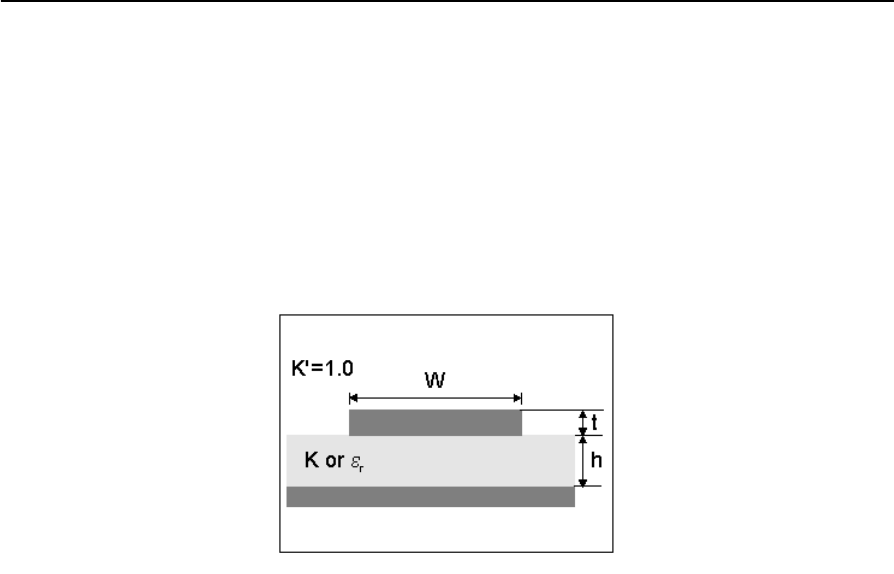

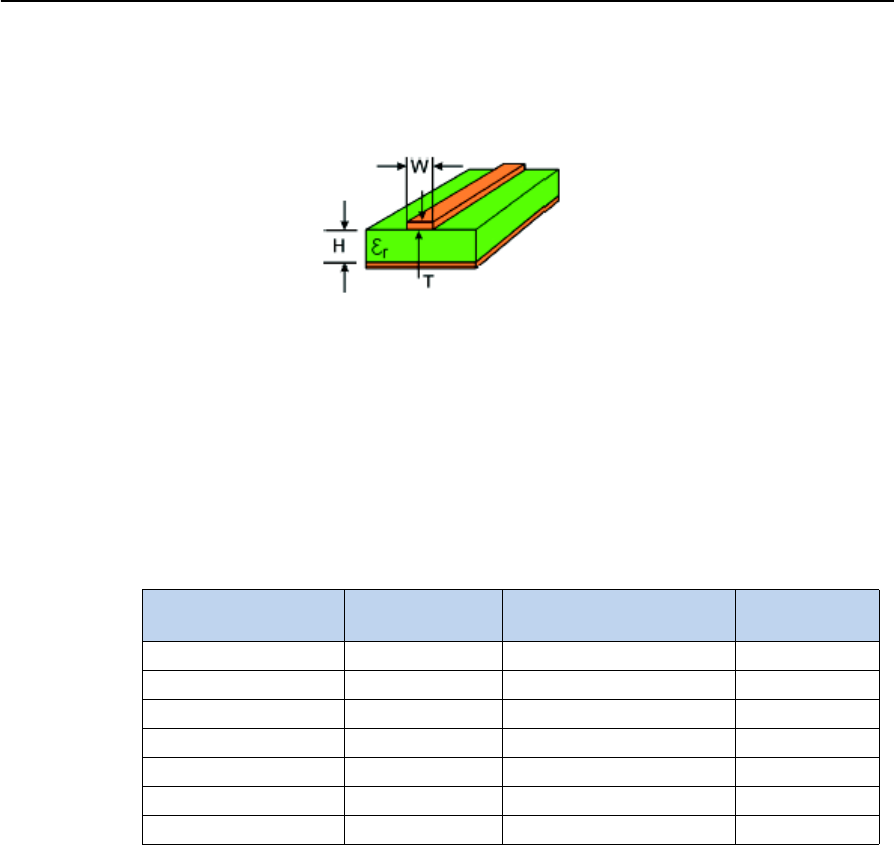

Microstrip Transmission Lines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Stripline Transmission Lines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Copernicus GPS Receiver 3
Table of Contents
7 MECHANICAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . 77

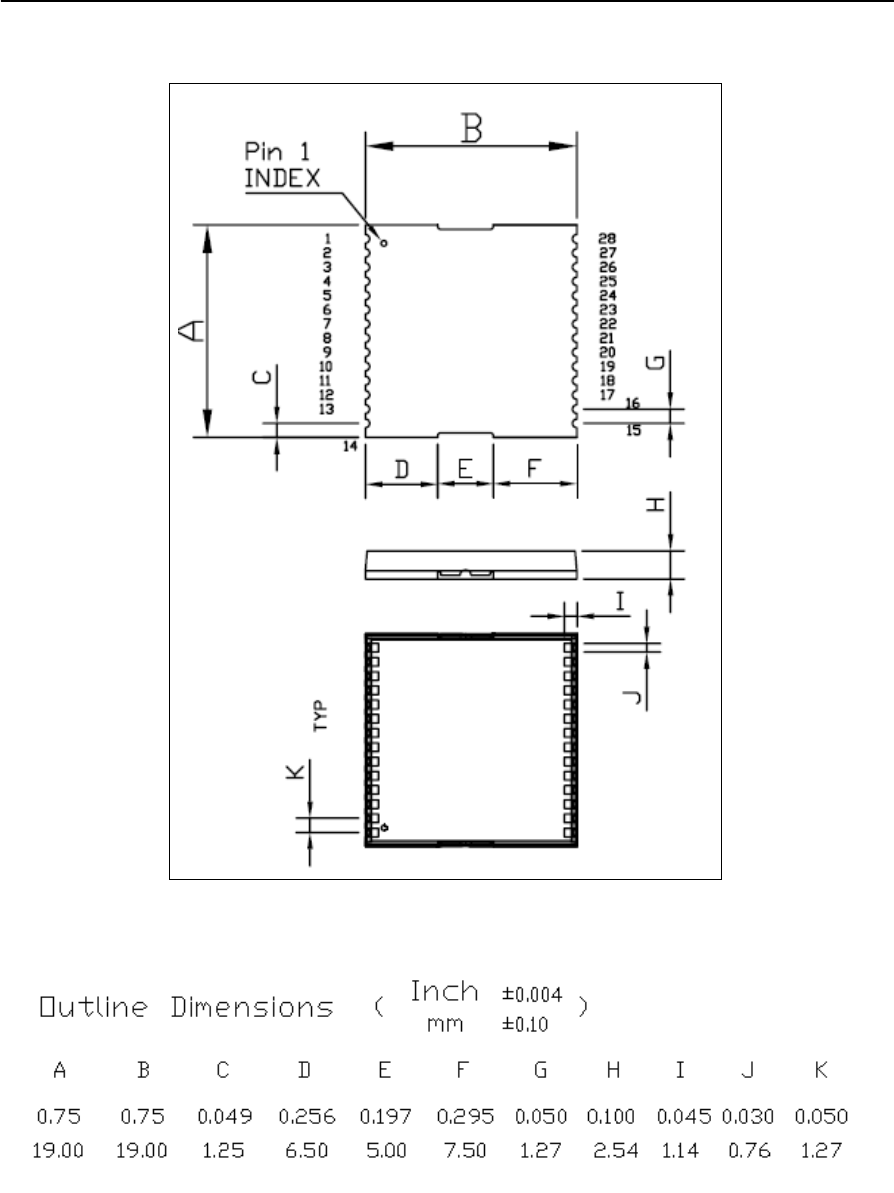

Mechanical Outline Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Soldering the Copernicus GPS Receiver to a PCB . . . . . . . . . . . . . . . . . . . . . . 79

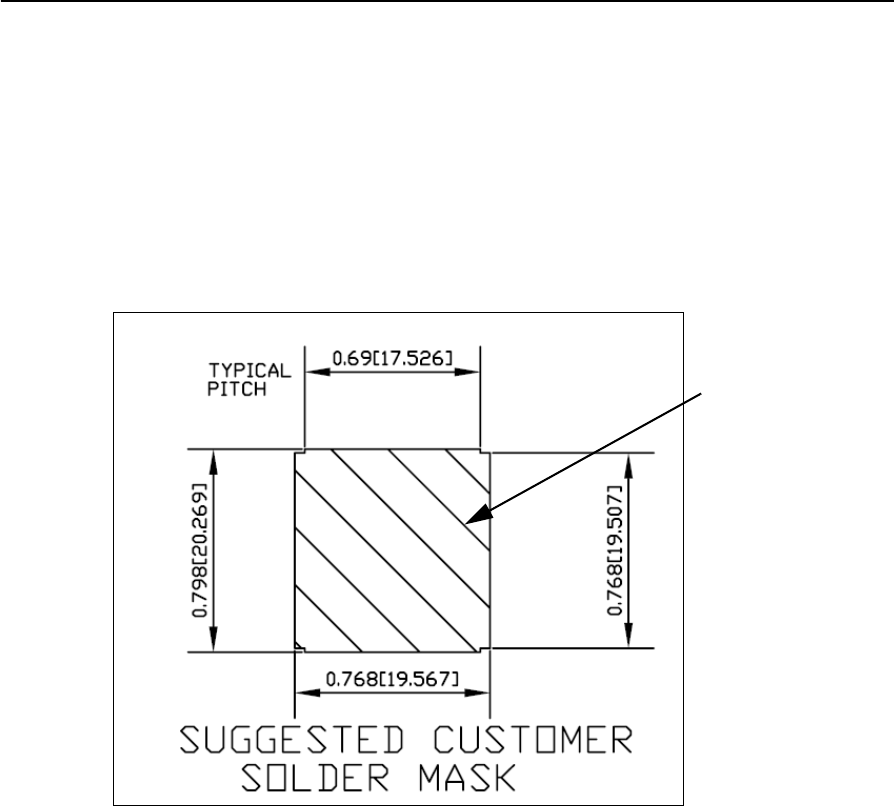

Solder mask . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

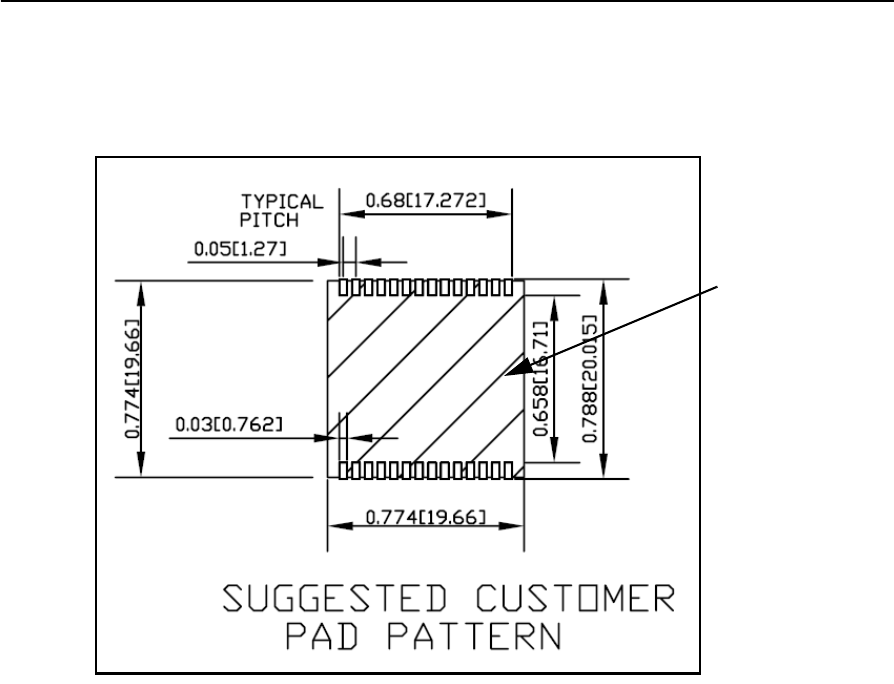

Pad Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

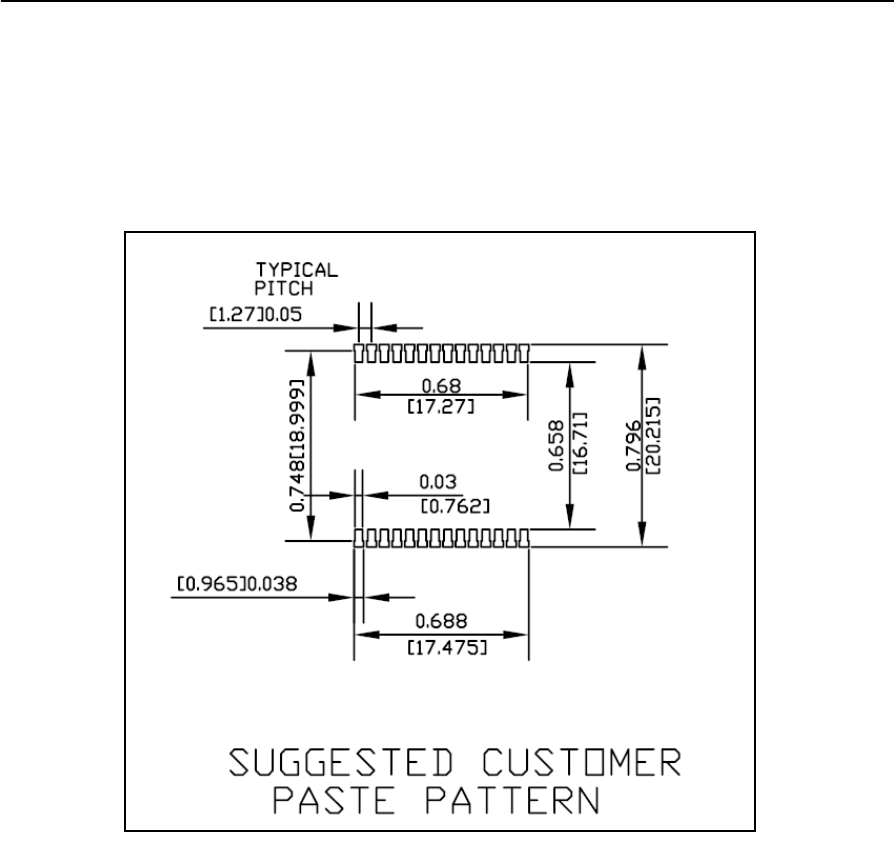

Paste Mask . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
8 PACKAGING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

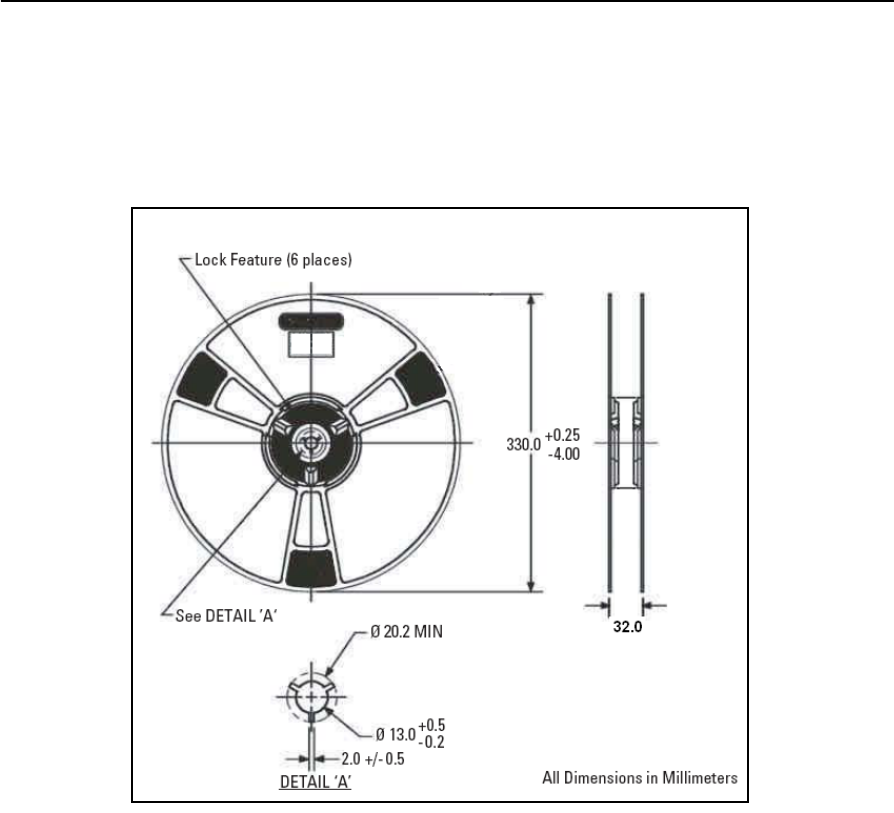

Reel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

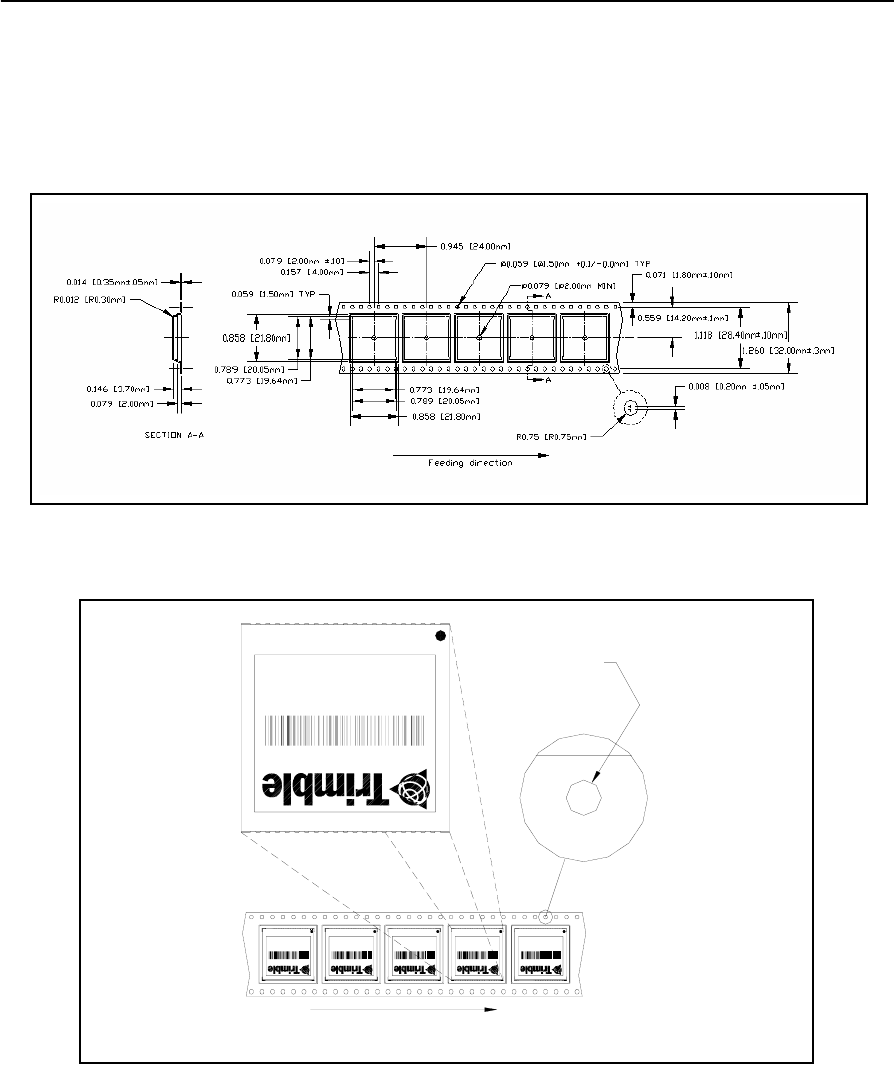

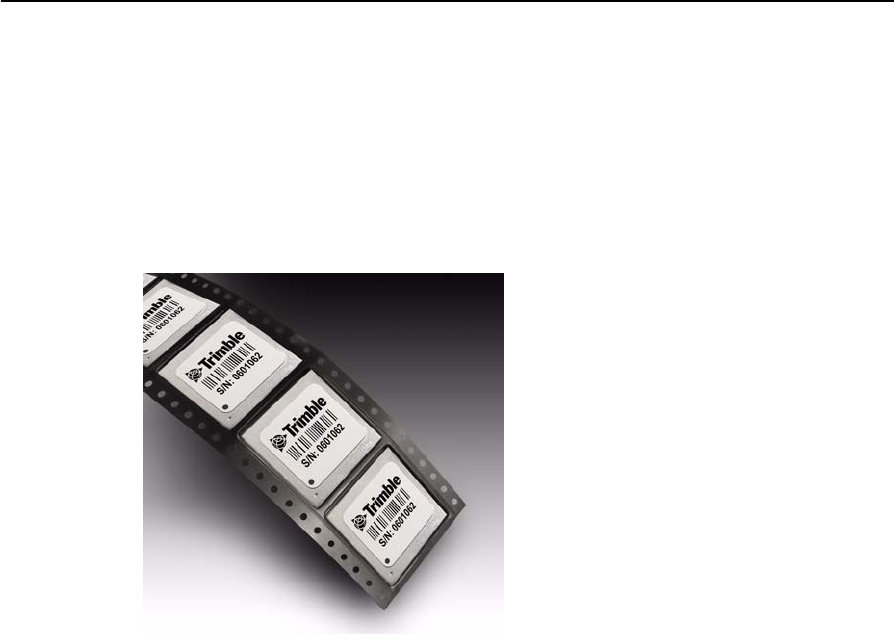

Tapes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
9 SHIPPING and HANDLING . . . . . . . . . . . . . . . . . . . . . . . . . 87
Shipping and Handling Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Shipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Moisture Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Floor Life. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Moisture Precondition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Baking Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Soldering Paste . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Solder Reflow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Recommended Soldering Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Optical Inspection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Soldering Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Repeated Reflow Soldering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Wave Soldering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Hand Soldering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Rework . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Conformal Coating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Grounding the Metal Shield. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
10 COPERNICUS REFERENCE BOARD . . . . . . . . . . . . . . . . . . . 95
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

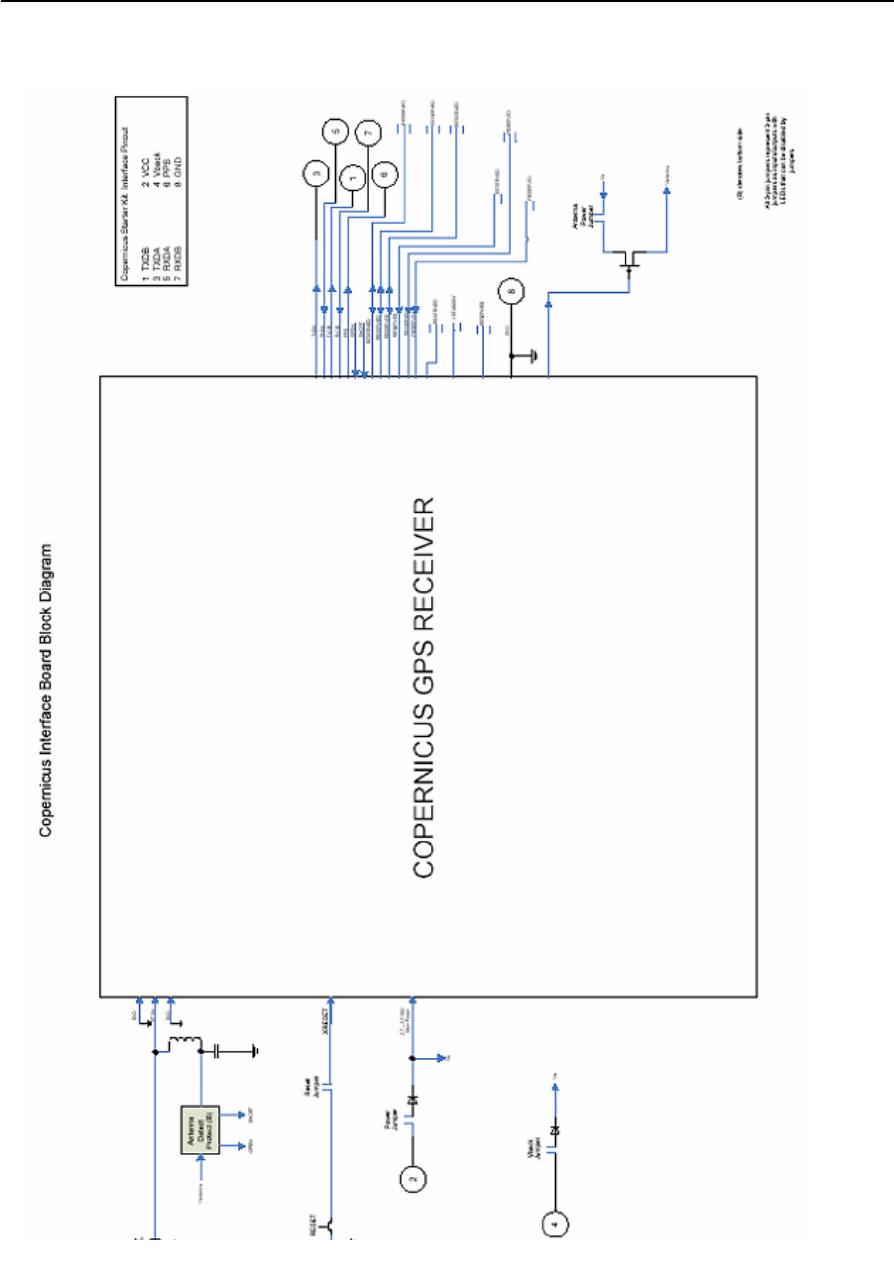

Reference Board Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

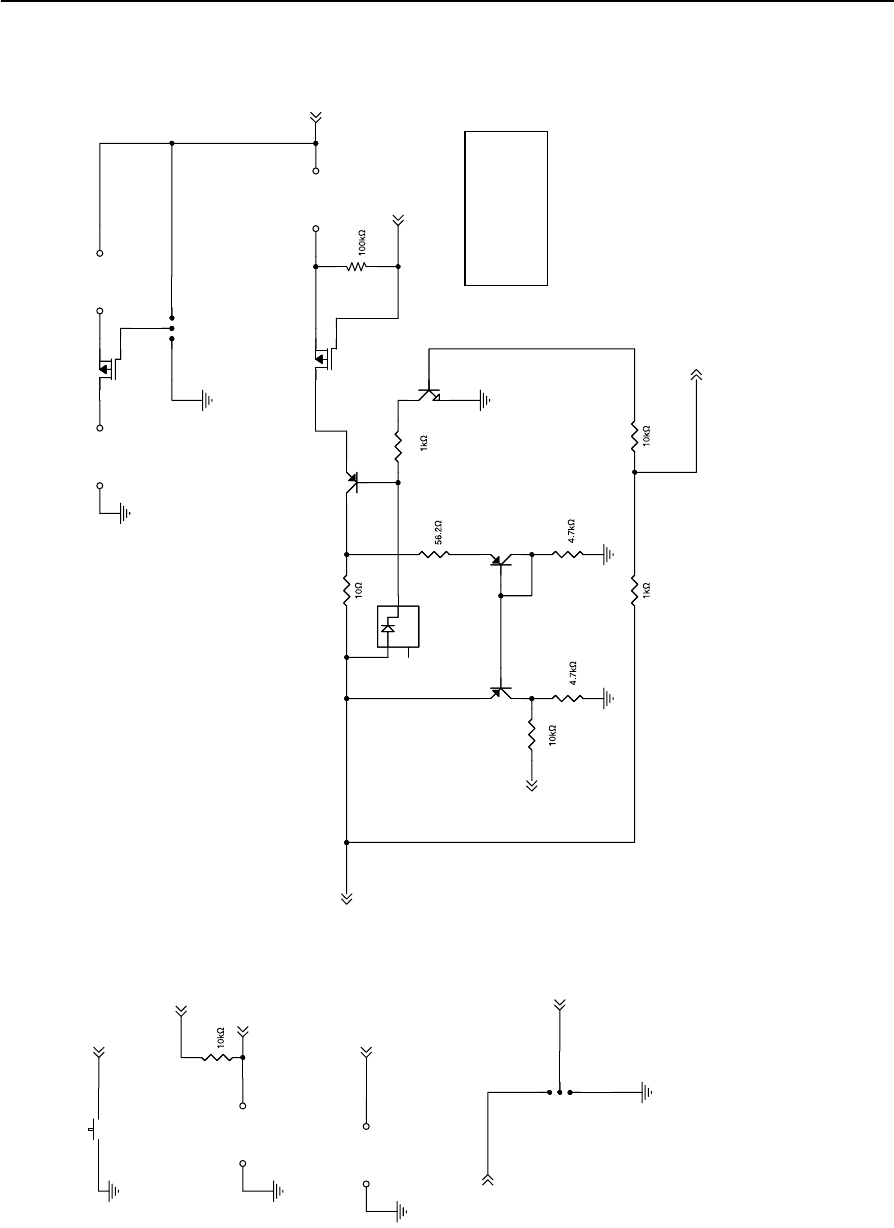

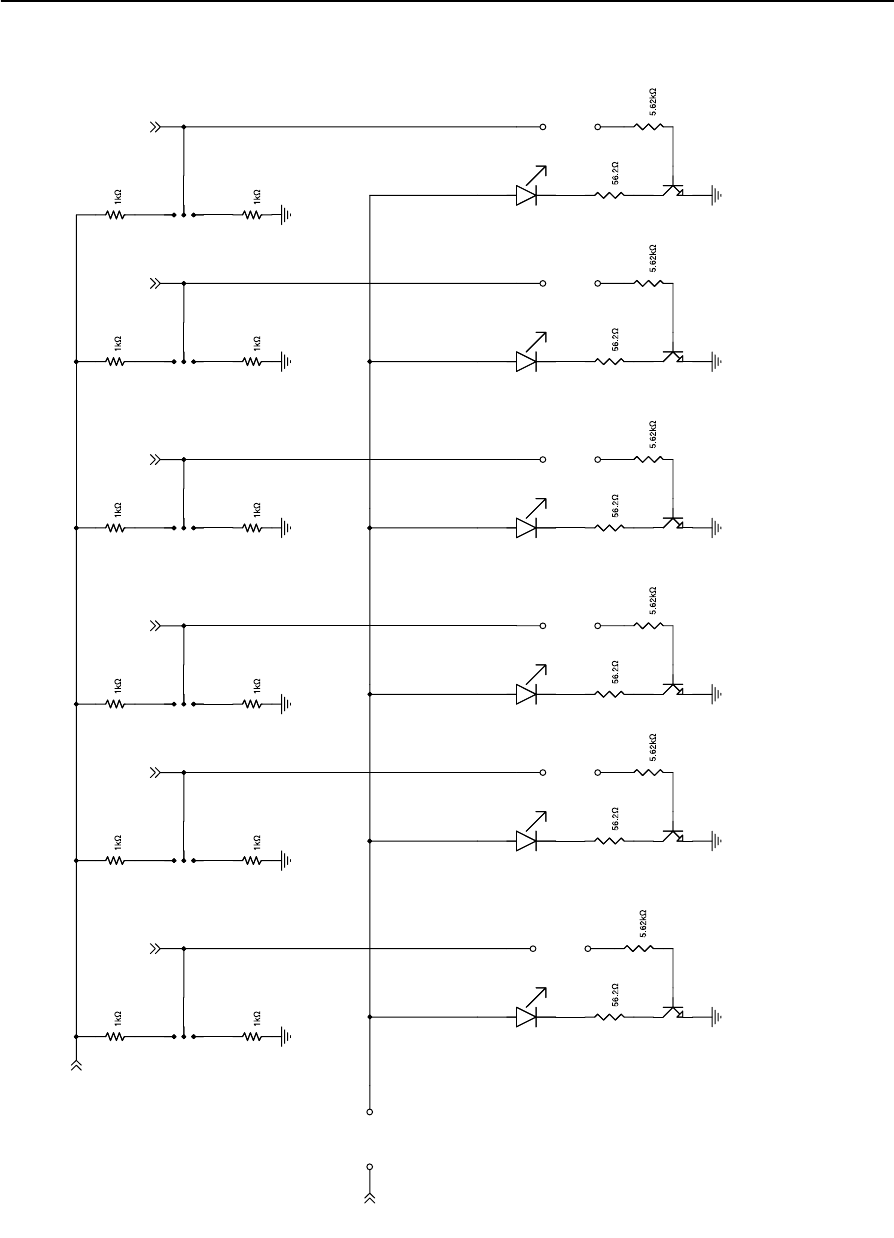

Reference Board Schematic (page 1 of 3) . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Reference Board Schematic (page 2 of 3) . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Reference Board Schematic (page 3 of 3) . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Reference Board I/O and Power Connector . . . . . . . . . . . . . . . . . . . . . . . . . 102
Reference Board Power Requirement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Reference Board Jumper Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

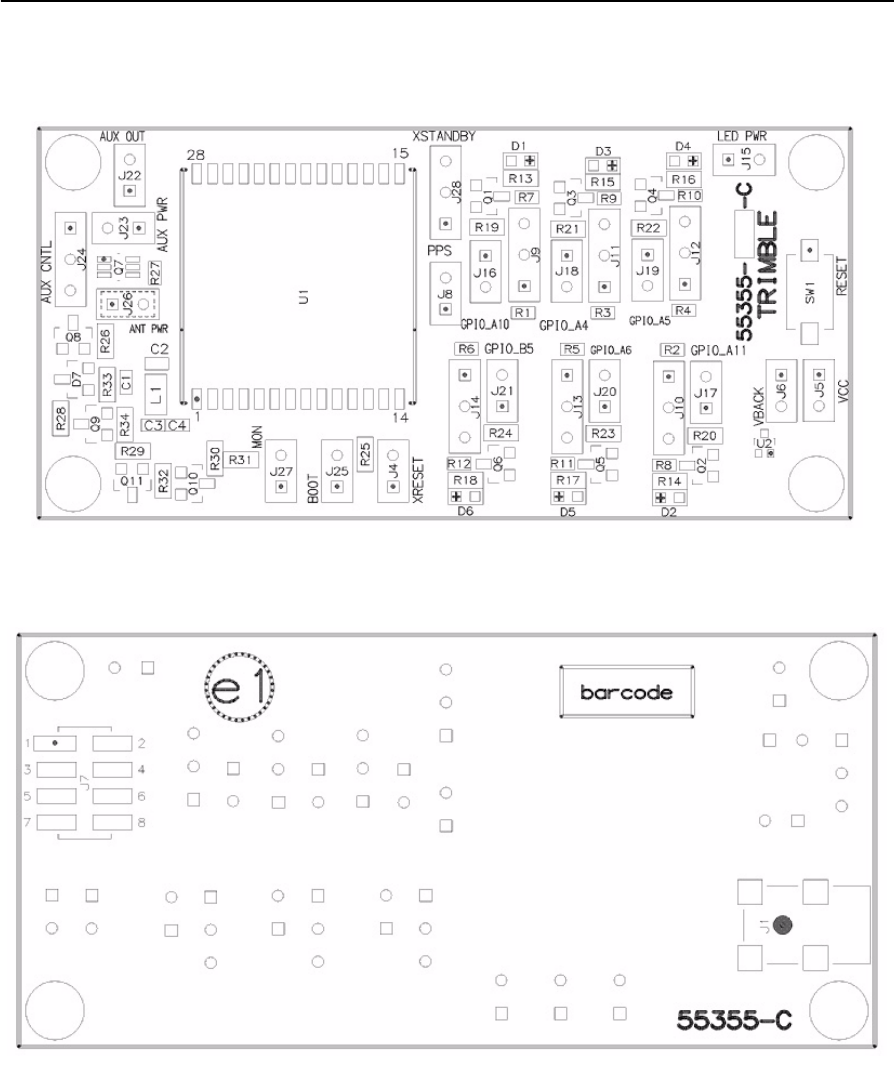

Reference Board Component Locations Drawing . . . . . . . . . . . . . . . . . . . . . . 104
Table of Contents
4 Copernicus GPS Receiver
11 FIRMWARE UPGRADE . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Software Architecture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Boot Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Firmware Binary File Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Firmware Loading Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Pseudo-code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Pseudo-Code Explanation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Error Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Monitor Interface Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Protocol Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Data Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Monitor Mode Packet Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . 112
ENQ, ACK, NAK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Packet ID – 0x96 (Boot ROM Version Report) . . . . . . . . . . . . . . . . . . . . 112
Packet ID – 0x8F (Erase Firmware Section). . . . . . . . . . . . . . . . . . . . . . 113
FlashLoader Tool Reference Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
File and Folder Structure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Source Code Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Compiling and Generating the Executable. . . . . . . . . . . . . . . . . . . . . . . 117
A TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP) . . . . . . . . . 119
Interface Scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Run Mode Packet Structure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Automatic Output Packets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Automatic Position and Velocity Reports. . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Initialization Packets to Speed Start-up. . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Packets Output at Power-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Timing Packets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Satellite Data Packets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Backwards Compatibility to Lassen iQ . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Recommended TSIP Packets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Command Packets Sent to the Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Report Packets Sent by the Receiver to the User . . . . . . . . . . . . . . . . . . . . . . . 128
Key Setup Parameters or Packet BB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Dynamics Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Elevation Mask. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Packet Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Packet Descriptions Used in Run Mode . . . . . . . . . . . . . . . . . . . . . . . . 131
Command Packet 0x1E - Clear Battery Backup, then Reset. . . . . . . . . . . . . . 133
Command Packet 0x1F - Request Software Versions . . . . . . . . . . . . . . . . . 133
Command Packet 0x21 - Request Current Time. . . . . . . . . . . . . . . . . . . . 133
Command Packet 0x23 - Initial Position (XYZ ECEF) . . . . . . . . . . . . . . . . 133
Command Packet 0x24 - Request GPS Receiver Position Fix Mode . . . . . . . . . 134
Command Packet 0x25 - Initiate Soft Reset & Self Test . . . . . . . . . . . . . . . 134
Copernicus GPS Receiver 5
Table of Contents
Command Packet 0x26 - Request Health . . . . . . . . . . . . . . . . . . . . . . . 134
Command Packet 0x27 - Request Signal Levels. . . . . . . . . . . . . . . . . . . . 134
Command Packet 0x2B - Initial Position (Latitude, Longitude, Altitude). . . . . . . 134
Command Packet 0x2D - Request Oscillator Offset. . . . . . . . . . . . . . . . . . 135
Command Packet 0x2E - Set GPS Time . . . . . . . . . . . . . . . . . . . . . . . . 135
Command Packet 0x31 - Accurate Initial Position (XYZ ECEF) . . . . . . . . . . . 135
Command Packet 0x32 - Accurate Initial Position,
(Latitude, Longitude, Altitude) . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Command Packet 0x35 - Set Request I/O Options . . . . . . . . . . . . . . . . . . 136
Command Packet 0x37 - Request Status and Values of Last Position and Velocity. . 139
Command Packet 0x38 - Request/Load Satellite System Data . . . . . . . . . . . . 139
Command Packet 0x3A - Request Last Raw Measurement . . . . . . . . . . . . . . 140
Command Packet 0x3C - Request Current Satellite Tracking Status . . . . . . . . . 140
Report Packet 0x41 - GPS Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Report Packet 0x42 - Single-Precision Position Fix, XYZ ECEF . . . . . . . . . . . 141
Report Packet 0x43 - Velocity Fix, XYZ ECEF . . . . . . . . . . . . . . . . . . . . 142
Report Packet 0x45 - Software Version Information . . . . . . . . . . . . . . . . . 142
Report Packet 0x46 - Health of Receiver . . . . . . . . . . . . . . . . . . . . . . . 143
Report Packet 0x47 - Signal Levels for all Satellites . . . . . . . . . . . . . . . . . 144
Report Packet 0x4A - Single Precision LLA Position Fix. . . . . . . . . . . . . . . 145
Report Packet 0x4B - Machine/Code ID and Additional Status . . . . . . . . . . . . 146
Report Packet 0x4D - Oscillator Offset . . . . . . . . . . . . . . . . . . . . . . . . 146
Report Packet 0x4E - Response to Set GPS Time . . . . . . . . . . . . . . . . . . . 147
Report Packet 0x55 - I/O Options . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Report Packet 0x56 - Velocity Fix, East-North-Up (ENU) . . . . . . . . . . . . . . 148
Report Packet 0x57 - Information About Last Computed Fix . . . . . . . . . . . . . 149
Report Packet 0x58 - Satellite System Data/Acknowledge from Receiver . . . . . . 149
Report Packet 0x5A - Raw Measurement Data . . . . . . . . . . . . . . . . . . . . 152
Report Packet 0x5F . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Report Packet 0x5C - Satellite Tracking Status . . . . . . . . . . . . . . . . . . . . 153
Report Packet 0x6D - All-In-View Satellite Selection. . . . . . . . . . . . . . . . . 154
Command Packet 0x7A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Report Packet 0x7B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Command Packet 0x7E - TAIP Message Output . . . . . . . . . . . . . . . . . . . 155
Command Packet 0x82 - SBAS Correction Status . . . . . . . . . . . . . . . . . . . . . . 157
Report Packet 0x83 - Double-Precision XYZ Position Fix and Bias Information. . . 158
Report Packet 0x84 - Double-Precision LLA Position Fix and Bias Information. . . 158
Packets 0x8E and 0x8F - Superpacket . . . . . . . . . . . . . . . . . . . . . . . . . 159
Command Packet 0xBB - Navigation Configuration . . . . . . . . . . . . . . . . . 159
Command Packet 0xBC - Protocol Configuration. . . . . . . . . . . . . . . . . . . 159
Command Packet 0xC0 - Graceful Shutdown and Go To Standby Mode . . . . . . . 160
Command Packet 0xC1 - Set Bit Mask for GPIOs in Standby Mode . . . . . . . . . 162
Command Packet 0xC2 - SBAS SV Mask. . . . . . . . . . . . . . . . . . . . . . . 164
TSIP Superpackets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Command Packet 8E-15 - Set/Request Datum. . . . . . . . . . . . . . . . . . . . . 165
Command Packet 0x8E-17 - Request Last Position or Auto-Report Position in UTM
Single Precision Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Table of Contents
6 Copernicus GPS Receiver
Command Packet 8E-18 - Request Last Position or Auto Report Position in UTM
Double Precision Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Command Packet 0x8E-20 - Request Last Fix with Extra Information . . . . . . . . 167
Command Packet 0x8E-26 - Non-Volatile Memory Storage . . . . . . . . . . . . . 167
Command Packet 0x8E-2A - Request Fix and Channel Tracking Info, Type 1 . . . . 167
Command Packet 0x8E-2B - Request Fix and Channel Tracking Info, Type 2 . . . . 168
Command Packet 8E-4A - Set/Request Lassen iQ GPS Cable Delay
and PPS Polarity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Command Packet 0x8E-4F - Set PPS Width. . . . . . . . . . . . . . . . . . . . . . 168
Report Packet 0x8F-15 - Current Datum Values. . . . . . . . . . . . . . . . . . . . 169
Report Packet 8F-17 - UTM Single Precision Output . . . . . . . . . . . . . . . . . 170
Report Packet 8F-18 - UTM Double Precision Output . . . . . . . . . . . . . . . . 171
Report Packet 0x8F-20 - Last Fix with Extra Information (binary fixed point) . . . . 172
Report Packet 0x8F-26 - Non-Volatile Memory Status . . . . . . . . . . . . . . . . 174
Report Packet 0x8F-2A - Fix and Channel Tracking Info, Type 1 . . . . . . . . . . 174
Report Packet 0x8F-2B - Fix and Channel Tracking Info, Type 2. . . . . . . . . . . 176
Report Packet 0x8F-4F - Set PPS Width. . . . . . . . . . . . . . . . . . . . . . . . 178
Datums . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
B TRIMBLE ASCII INTERFACE PROTOCOL (TAIP) . . . . . . . . . . . . . 185
Protocol Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Message Format. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Start of a New Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Message Qualifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Message Identifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Data String . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Vehicle ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Checksum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Message Delimiter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Sample PV Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .189
Time and Distance Reporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Latitude and Longitude Conversion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Message Data Strings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
AL Altitude/Up Velocity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .193
CP Compact Position Solution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
ID Identification Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
IP Initial Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
LN Long Navigation Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
PR Protocol. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
PT Port Characteristic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
PV Position/Velocity Solution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
RM Reporting Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .201
RT Reset Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
ST Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
TM Time/Date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
VR Version Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .206
Copernicus GPS Receiver 7
Table of Contents
X1 Extended Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Communication Scheme for TAIP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Query for Single Sentence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Scheduled Reporting Frequency Interval . . . . . . . . . . . . . . . . . . . . . . . 208
The Response to Query or Scheduled Report . . . . . . . . . . . . . . . . . . . . . 208
The Set Qualifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Sample Communication Session. . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
C NMEA 0183 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
The NMEA 0183 Communication Interface . . . . . . . . . . . . . . . . . . . . . . . . . 213
NMEA 0183 Message Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Field Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Invalid Command Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Checksum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Exception Behavior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
Power-up with No Back-up Data on SRAM . . . . . . . . . . . . . . . . . . . . . . 216
Power-up with Back-up Data on SRAM. . . . . . . . . . . . . . . . . . . . . . . . 216
Interruption of GPS Signal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
General NMEA Parser Requirements . . . . . . . . . . . . . . . . . . . . . . . . . 217
NMEA 0183 Message Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
NMEA 0183 Message Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
GGA - GPS Fix Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
GLL - Geographic Position - Latitude/Longitude . . . . . . . . . . . . . . . . . . . 221
GSA - GPS DOP and Active Satellites . . . . . . . . . . . . . . . . . . . . . . . . 221
GSV - GPS Satellites in View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
RMC - Recommended Minimum Specific GPS/Transit Data . . . . . . . . . . . . . 223
VTG - Track Made Good and Ground Speed . . . . . . . . . . . . . . . . . . . . . 223
ZDA - Time & Date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
AH - Almanac Health . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
AL - Almanac Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
AS - Almanac Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
BA - Antenna Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
CR - Configure Receiver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
EM - Enter Monitor Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
EP - Ephemeris. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
IO Ionosphere . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
KG - Set Initial Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
NM - Automatic Message Output . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
PS - PPS Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
PT - Serial Port Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
RT - Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
SG - Set Bit Mask for GPIOs in Standby Mode.. . . . . . . . . . . . . . . . . . . . 236
SV - Set Bit Mask for SBAS SV. . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
TF - Receiver Status and Position Fix . . . . . . . . . . . . . . . . . . . . . . . . . 239
UT - UTC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
VR - Version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241
Table of Contents
8 Copernicus GPS Receiver
CHAPTER
1
Copernicus GPS Receiver 5
STARTER KIT 1
In this chapter:
Receiver Overview
Starter Kit
Antenna
Quick Start Guide
Trimble GPS Monitor
Toolkit
The Copernicus GPS module is a drop-in
receiver solution that provides position,
velocity, and time data in a choice of three
protocols.
This chapter provides a detailed description of
the starter kit components and instructions for
getting started with interface, hardware setup,
and configuration procedures.
1 STARTER KIT
6 Copernicus GPS Receiver
Receiver Overview
Trimble's Copernicus™ GPS receiver delivers proven performance and Trimble
quality for a new generation of position-enabled products. The Copernicus GPS
features the Trimble revolutionary TrimCore™ software technology enabling
extremely fast startup times and high performance in foliage canopy, multipath and
urban canyon environments.
Designed for the demands of automated, pick and place, high-volume production
processes, the Copernicus is a complete 12-channel GPS receiver in a 19mm x 19mm
x 2.54mm, thumbnail-sized shielded unit. The small, thin, single-sided module is
packaged in tape and reel for pick and place manufacturing processes; 28 reflow-
solderable edge castellations provide interface to your design without costly I/O and
RF connectors. Each module is manufactured and factory tested to Trimble's highest
quality standards.
The ultra-sensitive Copernicus GPS receiver can acquire GPS satellite signals and
generate fast position fixes with high accuracy in extremely challenging
environments and under poor signal conditions. The module consumes less than
94mW typically at full power with continuous tracking. It has been designed to meet
restrictions on the use of hazardous substances under the RoHS European Directive.
The Copernicus GPS receiver provides position, velocity and time data in a choice of
three protocols: TSIP, TAIP, and NMEA. Trimble's TSIP protocol offers complete
control over receiver operation and provides detailed satellite information. The TAIP
protocol is an easy-to-use ASCII protocol designed specifically for track and trace
applications. The bi-directional NMEA 0183 v3.0 protocol offers industry-standard
data messages and a command set for easy interface to mapping software.
Compatible with active or passive antenna designs, the Copernicus GPS receiver is
perfect for portable handheld, battery-powered applications. The receiver's small size
and low power requirement make it ideal for use in Bluetooth appliances, sport
accessories, personal navigators, cameras, computer and communication peripherals,
as well as vehicle and asset tracking, navigation, and security applications.
Copernicus GPS Receiver 7
STARTER KIT 1
Starter Kit
The Copernicus GPS Starter Kit provides everything you need to get started
integrating state-of-the-art GPS capability into your application. The reference board
provides a visual layout of the Copernicus GPS receiver on a PCB including the RF
signal trace, the RF connector, and the I/O connections of the 28 signal pins. In
addition, the starter kit contains a power converter, power adapter, a GPS antenna,
and software to evaluate the ease with which you can add Copernicus GPS to your
application.
Starter Kit Components
The RoHS compliant (lead-free) Copernicus GPS Starter Kit includes the following:
•Interface unit with reference board and Copernicus GPS receiver
•AC/DC power supply converter
•Universal power adapters for the major standard wall outlets

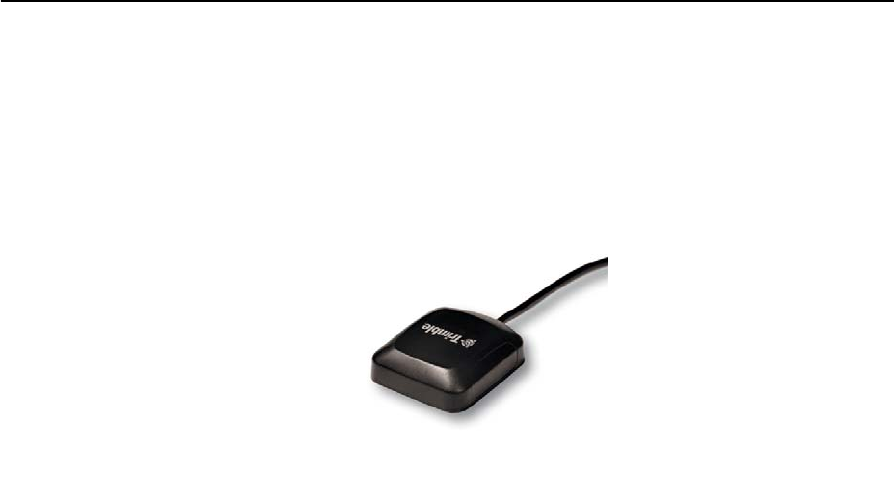

•Magnetic-mount GPS antenna, 3.3 V, MCX connector, 5 meter cable
•USB cable
•Cigarette lighter adapter power cable
•Copernicus GPS SMT receivers (3 pieces)
•14 Jumpers
•Quick Start Guide
•CD containing the SW tools and the Copernicus GPS Reference Manual
1 STARTER KIT
8 Copernicus GPS Receiver
Interface Unit

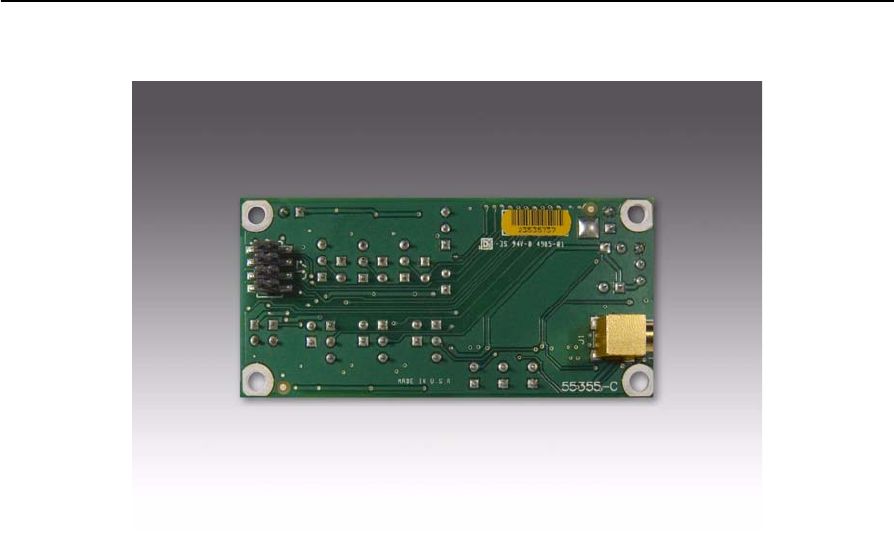

Inside the starter kit interface unit, the Copernicus GPS reference board sits on a shelf
supported by 4 standoffs above the motherboard. The antenna transition cable is
mounted to the outside of the unit and connects to the MCX connector on the
reference board. An 8-wire ribbon cable interfaces the power and I/O between the
reference board and motherboard.

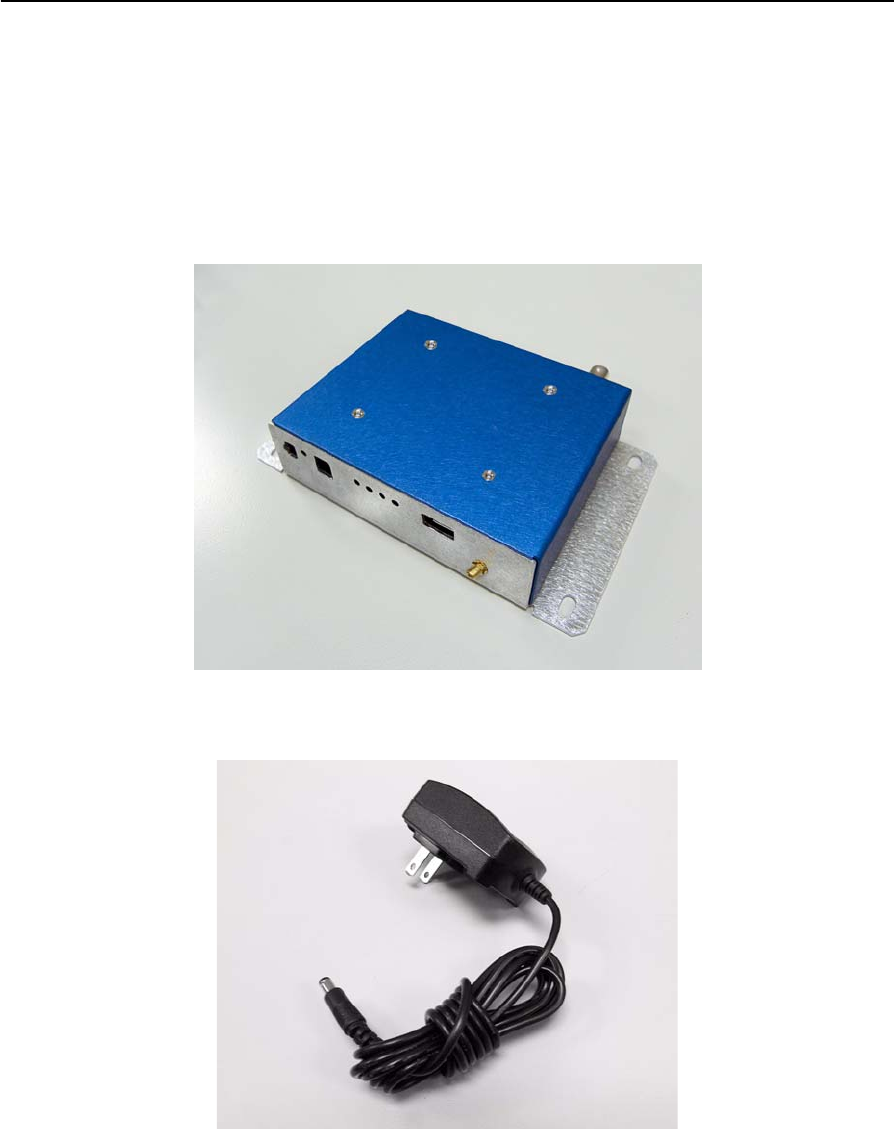

Figure 1.1 Starter Kit Interface Unit
Figure 1.2 AC/DC Power Supply Converter
Copernicus GPS Receiver 9
STARTER KIT 1
Figure 1.3 USB Cable
1 STARTER KIT
10 Copernicus GPS Receiver
Serial Port Interface
The Copernicus GPS interface unit has a dual port USB interface that is available
through a single A-type USB connection. Before the starter kit can be used with a
USB 2.0-equipped Microsoft Windows (2000, XP)-based PC, the appropriate USB
2.0 drivers must be installed on the PC.
Loading the FTDI Driver
The Copernicus GPS uses a USB 2.0 interface chip from Future Technology Devices
International Ltd. (FTDI). The FTDI driver must be downloaded and installed on
your PC before you can run the Trimble GPS Monitor (TGM) application used to
communicate with the Copernicus GPS.
1. Use the following URL to access the FTDI drivers:
http://www.ftdichip.com/Drivers/VCP.htm
2. Download and install the appropriate VCP (Virtual COM Port) driver for your
operating system (Win'98 / ME /2000 / XP). Select the option with FT2232C
series support. Follow the instructions provided on the Web site and with the
driver. (http://www.ftdichip.com/Documents/InstallGuides.htm)
3. Use the supplied USB cable to connect the Copernicus GPS interface unit to
your PC. The FTDI driver automatically assigns two (2) virtual COM ports to
the USB port. Use the Windows Device Manager to determine which COM
Ports have been assigned to the USB port.
Default Settings
The default settings on the interface unit USB Port are provided in Table 1.1.
Table 1.1 Serial Port Default Settings
Virtual
Ports
Port
Direction
Protocol Baud Rate Data Bits Parity Stop Bits Flow
Control
ATXD-A
RXD-A
TSIP-Out
TSIP-IN
38.4 K
38.4 K
8
8
None
None
1
1
NO
NO
BTXD-B
RXD-B
NMEA-Out
NMEA-IN
4800
4800
8
8
None
None
1
1
NO
NO
Copernicus GPS Receiver 11
STARTER KIT 1
Interface Connections
Following is a description of the Copernicus GPS interface unit (numbered references
correlate to numbers in the image below).
Figure 1.4 Front side of the Interface Unit
1. Antenna Connector
The antenna connector is an MCX type connector that is intended to be used
with the supplied 3.0V antenna. This interfaces to the Copernicus GPS
reference board antenna connector.
2. USB Connector
The USB connector is an A-type USB connector that is USB 2.0 and 1.1
compatible. This connection can also be used to power the starter kit and GPS
receiver.
When using the USB connection for power, the PC should be running on AC
power (not battery power) to ensure proper voltage levels to the interface unit.
3. Port A-TX LED
When blinking red, user is transmitting data to the Copernicus GPS receiver on
port A.
4. Port A-RX LED
When blinking red, the Copernicus GPS receiver is transmitting data to the
user device on port A.
5. Port B-TX LED
When blinking red, user is transmitting data to the Copernicus GPS receiver on
port B.
6. Port B-RX LED
When blinking red, the Copernicus GPS receiver is transmitting data to the
user device on port B.
8 6 5 4 3 2
1
9
7
1 STARTER KIT
12 Copernicus GPS Receiver
7. Power Connector
The power connector (barrel connector) is located on the front right side of the
starter kit. The power connector connects to the AC/DC power converter
supplied with the starter kit. The power converter converts 100 -240 VAC To
12 or 24VDC. The power connector can accept 9 to 32 VDC.
8. Power LED
The Power LED indicates when main power, VCC, is available to the receiver.
Main power is controlled by the Power Switch (#8). When the switch is in the
ON position the LED illuminates Green and VCC is supplied to the receiver.
When the switch is in the OFF position the LED is not lit and the receiver is
powered only by the standby regulator or battery.
Note – For the Copernicus GPS receiver to operate with standby power, the power
source must be from the main power connector (#6) (not from the USB connector).
9. Power Switch
The power switch is used to enable or disable VCC to the receiver.
10. PPS BNC (located on the backside of the interface unit)
The BNC connector provides a 5V TTL level PPS pulse output by the receiver.
The output configuration is controlled by the receiver, not the starter kit driver
circuit. This output is able to drive a 50ohm load.
Note – The Copernicus GPS receiver reference board contains a number of
configuration jumpers for use with various Trimble GPS receivers. Jumpers JP5 and
JP15 must be in place for use with Copernicus GPS receiver.
Copernicus GPS Receiver 13
STARTER KIT 1
Removing the Reference Board from the Interface Unit
Follow this procedure to remove the Copernicus GPS reference board from the
interface unit:.
1. Before disassembling the interface unit, disconnect the unit from any external
power source and confirm that both you and your work surface are properly
grounded for ESD protection.
2. Remove the four screws, which secure the bottom plate of the interface unit to
the base of the metal enclosure. Set the bottom plate aside.
3. Remove the two screws securing the Copernicus GPS reference board to the
standoffs. These screws are located at opposite ends of the receiver module.
1 STARTER KIT
14 Copernicus GPS Receiver
Antenna
The Copernicus GPS Starter Kit comes with an active mini magnetic mount 3.0 V
GPS antenna. This antenna mates with the MCX connector on the interface unit. The
reference board supplies power to the active antenna through the RF transition cable.
Using a Passive Antenna
To test performance with a passive antenna (not supplied in the Copernicus GPS
Starter Kit) the passive antenna should be connected directly to the MCX connector
on the reference board, to ensure minimal signal loss. Since the passive antenna has
no LNA, the antenna detection and short circuit will not report a true antenna
condition. If the passive antenna is a (DC open) patch antenna, the FW reports an
antenna open condition. If the antenna power jumper is removed, the antenna is
reported as shorted.
Copernicus GPS Receiver 15
STARTER KIT 1
Quick Start Guide
1. Confirm that you have the following:
–The Copernicus GPS Starter Kit.
–Windows desktop or laptop computer with a USB port.
2. Connect the computer’s power cable to the power converter.
3. Plug the power cable into the interface unit.
Figure 1.5 Connecting Power
4. Plug the power cable into a wall outlet.
5. Connect the magnetic mount GPS antenna to the interface unit.
Figure 1.6 Antenna Connection
6. Place the antenna on the window sill or put the antenna outside.
1 STARTER KIT
16 Copernicus GPS Receiver
7. Connect the USB cable to the USB connector on the interface unit.
Figure 1.7 Connecting the PC
8. Power-on your computer.
9. Insert the CD found in the starter kit box into your computer CD drive.
10. Install the Trimble GPS Monitor Program from the supplied CD. (see Trimble
GPS Monitor Toolkit, page 17).
11. Download and install the appropriate FTDI driver on your PC (see Install the
FTDI USB/Serial Driver Software, page 17).
12. Execute the Trimble GPS Monitor Program.
13. Select one of the USB virtual COM ports. Either the TSIP or NMEA data
stream is visible on your monitor. To view the other protocol, select a different
USB virtual COM port.
Copernicus GPS Receiver 17
STARTER KIT 1
Trimble GPS Monitor Toolkit
The Trimble GPS Monitor Tookit is designed to assist you in configuring your
Trimble GPS receiver. The application works with a standard RS-232 serial interface
or the USB interface supplied in the Copernicus GPS starter kit.
TGM includes helpful features such as “Detect Receiver” to test a GPS receiver port
for protocol and baud rate in the event that these settings are lost, the ability to log the
output of multiple GPS devices simultaneously, and the ability send and view
received raw data.
Prior to using the TGM application with a USB interface, you must first download
and install the FTDI USB serial driver software (see instructions below).
Note – The Trimble GPS Monitor application (TGM) replaces many of the previous
“monitor” and “chat” programs used for Trimble Embedded and Resolution T
products.
Install the FTDI USB/Serial Driver Software
The Copernicus GPS starter kit uses a USB 2.0 dual serial port emulator interface
chip from Future Technology Devices International Ltd. (FTDI). Prior to using the
TGM application with a USB interface, you must first download and install the FTDI
USB serial driver software on your PC.
1. Confirm that you have the following:
–A PC with Windows Vista, Windows XP Service Pack 2, or Windows
2000 Service Pack 4 installed and a free USB port.
–Internet access to complete the installation
2. Download the software for your Trimble product from the Trimble Support
web site http://www.trimble.com/support.shtml, and select the relevant product
link and then the Software Tools option.
3. Select and Save all files to a directory on the hard drive.
4. Install the FTDI driver on your PC.
5. Locate the file called “CDM_Setup.exe” you just saved, and double click it. If
properly installed you should see a FTDI CDM Driver Installation popup
window with the message “FTDI CDM Drivers have been successfully
installed”. Click the OK button.
1 STARTER KIT
18 Copernicus GPS Receiver
Connect the PC via the USB Cable

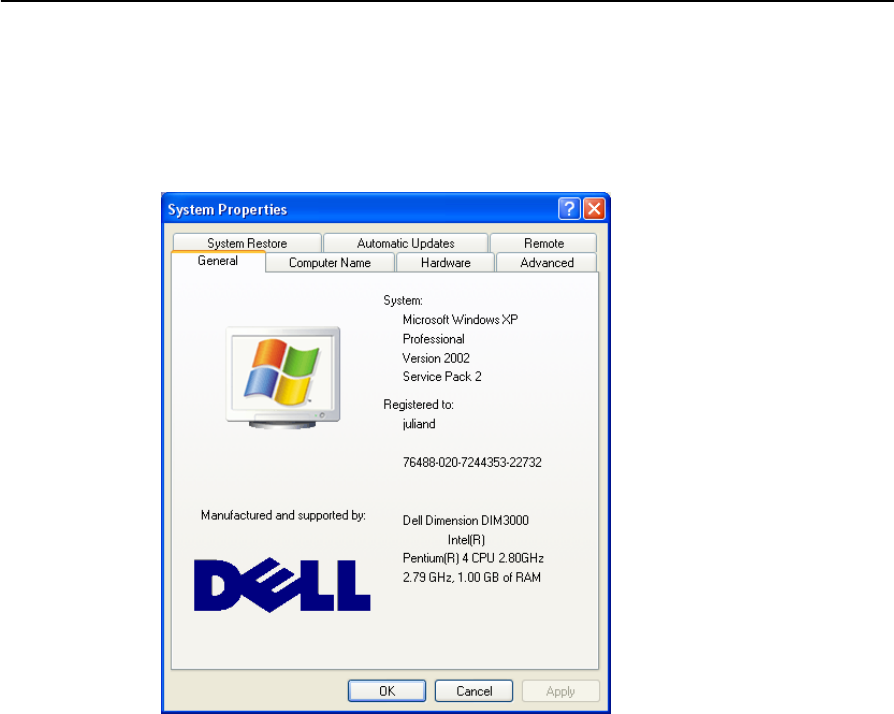

1. Right-click the MyComputer icon.
2. Select the Properties option to view the System Properties Window.
3. Select the Hardware tab.
Copernicus GPS Receiver 19
STARTER KIT 1
4. Click the Device Manager button.
5. Open the Ports (Com & LPT) section and note down the two USB Serial Port
COM numbers. In the example above they are COM5 and COM6. In general
Port A of the GPS device will be on the lower COM number and Port B will be
on the higher.
1 STARTER KIT
20 Copernicus GPS Receiver
Start the TGM Application
1. Go to the directory in which the Trimble GPS Monitor application is stored and
open the application. The main window displays.
Copernicus GPS Receiver 21
STARTER KIT 1
Connect to the GPS Receiver
1. Select Initialize > Detect Receiver
2. Select the port and protocol being used on the module.
If you do not know which protocol is being used you can select TSIP, TAIP and
NMEA. TGM will try each in turn at different baud rates.
1 STARTER KIT
22 Copernicus GPS Receiver
3. Click on Yes to accept the discovered connection parameters.
Copernicus GPS Receiver 23
STARTER KIT 1
Configure GPS Ports
1. Select the Configure pull down menu from the main screen, and select
Receiver Configuration.
2. Select the Port Configuration tab.
3. Select the required receiver port, baud rate, parity, data bits and stop bits.
4. Select one input and one output protocol.
5. Click the Set button.
6. If the configuration is to be permanent, click Save Configuration.
1 STARTER KIT
24 Copernicus GPS Receiver
Configure Output Formats
1. Select the Configure pull down menu from the main screen.
2. Select Receiver Configuration.
3. Select the Outputs tab.
4. After selecting the required setup options, click on Set.
5. If the configuration is to be permanent, click Save Configuration.
Configure GPS
1. Select the Configure pull down menu from the main screen.
2. Select Receiver Configuration.
3. Select the GPS Configuration tab.
4. After selecting the required setup options, click on Set.
5. If the configuration is to be permanent, click Save Configuration.
Copernicus GPS Receiver 25
STARTER KIT 1
Configure PPS Output
1. Select the Configure pull down menu from the main screen.
2. Select Receiver Configuration.
3. Select the PPS Configuration tab.
Note – Always ON – the PPS is present even without a GPS fix, it will free run until
fix is obtained. Fixed-based – the PPS will only be output when the receiver has a fix.
4. After selecting the required setup options, click on Set.
5. If the configuration is to be permanent, click Save Configuration.
Configure NMEA Output
1. Select the Configure pull down menu from the main screen.
2. Select Receiver Configuration.
3. Select the NMEA tab.
4. After selecting the required setup options, click on Set.
5. If the configuration is to be permanent, click Save Configuration.
1 STARTER KIT
26 Copernicus GPS Receiver
Configure TAIP Output
1. Select the Configure pull down menu from the main screen.
2. Select Receiver Configuration.
3. Select the TAIP tab.
4. After selecting the required setup options, click on Set.

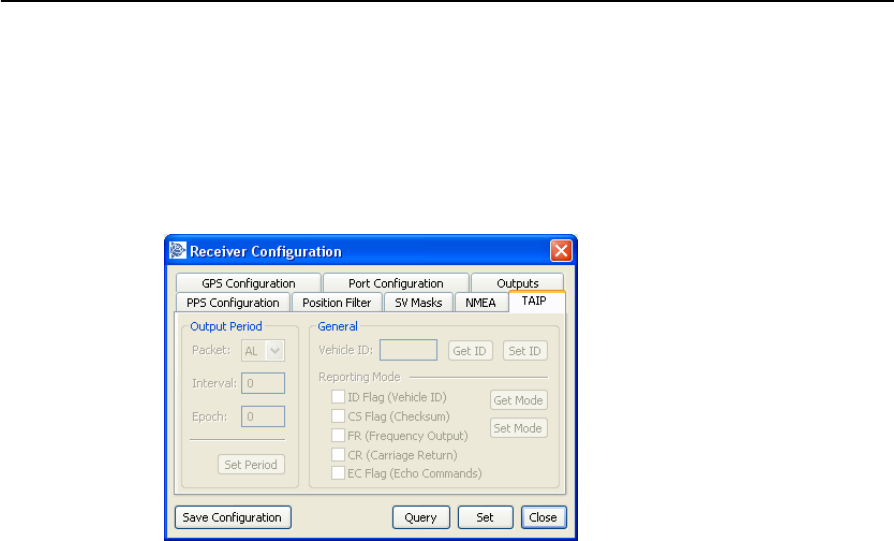

5. If the configuration is to be permanent, click Save Configuration.
Note – This screen can only be edited if TAIP is enabled as a port output.
Copernicus GPS Receiver 27
STARTER KIT 1
Creating a Log
Follow these steps to log the output of the GPS receiver.
1. Select Configure > Data Logging
2. From the available ports select the com port that connects to your device.
1 STARTER KIT
28 Copernicus GPS Receiver
3. Create a filename and path in the file field. Use standard file naming if
appropriate with the Unit ID and Test Case number
4. Select the correct protocol and logging options.
5. Click Start Logging.
Sending Raw Data to device
1. From the Tools Menu select the Generic Packets option.
2. Select the required protocol to send the raw data.
Copernicus GPS Receiver 29
STARTER KIT 1
3. Select one of the provided messages from the Presets pull down, or enter your
own data in the Packet Data field.
Note – If entering your own message in the Packet Data, the TGM only requires the
user data not the surrounding start and end bytes. In the example above TSIP user
data is being entered, but TGM already adds the starting DLE and ending DLE/ETX.
4. Click View Raw Data.
5. To view the sent and received data, select the Show Sent Data box.
1 STARTER KIT
30 Copernicus GPS Receiver
CHAPTER
2
Copernicus GPS Receiver 31
PRODUCT DESCRIPTION 2
In this chapter:
Key Features
Specifications
Interface
MTBF
Absolute Minimum and
Maximum Limits
Normal Operating
Conditions
Power Consumption Over
Temperature and Voltage
ESD Protection
Ordering Information
This chapter describes the Copernicus GPS
Receiver features and performance
specifications.
2 PRODUCT DESCRIPTION
32 Copernicus GPS Receiver
Key Features
The Copernicus module is a complete 12-channel GPS receiver in a 19mm x 19mm x
2.54mm, thumbnail-sized shielded unit. The small, thin, single-sided module is
packaged in tape and reel for pick and place manufacturing processes; 28 reflow-
solderable edge castellations provide interface to your design without costly I/O and
RF connectors. Each module is manufactured and factory tested to Trimble's highest
quality standards.
•Thumbnail-sized, 19 mm W x 19 mm L (0.75" W x 0.75" L)
•Ultra-thin design, 2.54 mm H (0.1")
•Fast manufacturing: Pick & place assembly, Tape & reel packaging, Reflow
solderable
•No I/O or RF connector; 28 Edge castellations
•Ultra-low power usage, less than 94 mW (typical)
•Highly sensitive:
−150 dBm Tracking Sensitivity
−142 dBm Acquisition Sensitivity
•Fast TTFF (cold start): 39.7 sec
•Supports active or passive antenna designs
•12-channel simultaneous operation
•Supports SBAS
•Supports NMEA 0183, TSIP and TAIP protocols
•Reference board and starter kit available
•RoHS compliant (lead-free)
Copernicus GPS Receiver 33
PRODUCT DESCRIPTION 2
Block Diagram
Figure 2.1 Copernicus GPS Block Diagram
2 PRODUCT DESCRIPTION
34 Copernicus GPS Receiver
Specifications
Performance
Interface
Performance Specifications
L1 (1575.42 MHz) frequency, C/A code, 12-channel, continuous
tracking receiver
Update Rate
TSIP 1 Hz
NMEA 1 Hz
TAIP 1 Hz
Accuracy (24 hour static)
Horizontal (without SBAS) <2.5 m 50%, <5 m 90%
Horizontal (with SBAS) <2.0 m 50%, <4 m 90%
Altitude (without SBAS) <5 m 50%, <8 m 90%
Altitude (with SBAS) <3 m 50%, <5 m 90%
Velocity 0.06 m/sec
PPS (static) ±100 ns RMS
Acquisition (Autonomous Operation)
Reacquisition 2 sec
Hot Start 3.1 sec
Warm Start 35.4 sec
Cold Start 39.4 sec
Out of the Box 41 sec
Sensitivity
Tracking -150 dBm
Acquisition -142 dBm
Operational
Speed Limit 515 m/s
Interface Characteristics
Connectors 28 surface mount edge castellations
Serial Port 2 serial ports (transmit/receive)
PPS 3.0 V CMOS-compatible TTL-level pulse, once
per second
Protocols Supports the Trimble Standard Interface
Protocol (TSIP), the Trimble ASCII Interface
Protocol (TAIP), and the National Marine
Electronics Association (NMEA) 0183 v3.0
Bi-directional NMEA Messages
Copernicus GPS Receiver 35
PRODUCT DESCRIPTION 2
Electrical
Physical
Environmental

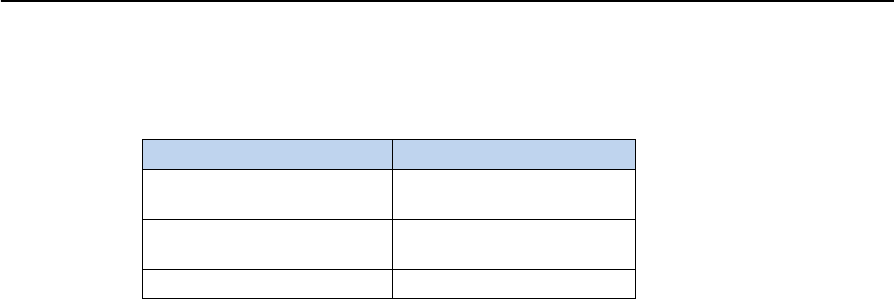

Electrical Specifications
Prime Power +2.7 VDC to 3.3 VDC
Power Consumption (typ.) 30.7 mA (82.9 mW) @ 2.7 V
(typ.) 31.3 mA (93.9 mW) @ 3.0 V
Backup Power +2.7 VDC to +3.3 VDC
Ripple Noise Max 50 mV, peak-to-peak from 1 Hz to 1 MHz
Physical Specifications
Enclosure Metal shield
Dimensions 19 mm W x 19 mm L x 2.54 mm H (0.75" W x
0.75" L x 0.1" H)
Weight 1.7 grams (0.06 ounce) including shield
Environmental Specifications
Operating Temperature -40° C to +85° C
Storage Temperature -55° C to +105° C
Vibration 0.008 g2/Hz 5 Hz to 20 Hz
0.05 g2/Hz 20 Hz to 100 Hz
-3 dB/octave 100 Hz to 900 Hz
Operating Humidity 5% to 95% R.H. non-condensing, at +60° C
2 PRODUCT DESCRIPTION
36 Copernicus GPS Receiver
MTBF
The Mean Time Between Failures (MTBF) of the GPS receiver module was
calculated based on parts count - serial reliability using Telecordia Analysis and
Industry field data for the PCB and Trimble Navigation's field return data (i.e. similar
product or technology parts). This is generally referred to as the Trimble Navigation
Reliability Database, and it consists of the following components:
•Repair Center Data and Field Assessment Analysis
•Supplier FIT goals collected through Commodities Engineering
•Commercial Databases (i.e. Telecordia and MIL-STD-217)
•Trirnble Navigation's Internal Qualification Test Data
•Assumed Duty Cycle, 8760 hours per year
•MTBF at Rated Duty Cycle, 819050 hours MTBF
Copernicus GPS Receiver 37
PRODUCT DESCRIPTION 2
Absolute Minimum and Maximum Limits
Absolute maximum ratings indicate conditions beyond which permanent damage to
the device may occur. Electrical specifications shall not apply when operating the
device outside its rated operating conditions.
Note – See Copernicus Standby Current, page 55 for information on the standby
current.

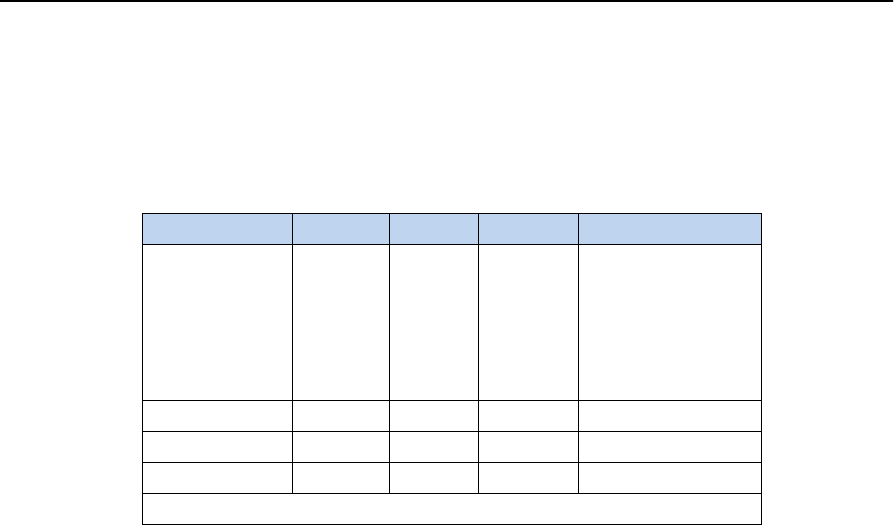

Parameter Min Max Unit
Power Supply
Power Supply Voltage (VCC) on
Pin 12
-0.3 3.6 V
STANDBY Voltage (VCC) on Pin
12 *
-0.3 3.6 V
Antenna
Input Power at RF Input +10 dBm
Input Gain at RF Input 0 (passive
antenna)
36 dB
Input / Output Pin Threshold Levels
Input Pin Voltage (RXD-A, RXD-B, Open, Short, Reserved Pins, Xreset, Xstandby)
Status Min Max Unit
High 2.0 3.6 V
Low 0 0.8 V
Output Pin Voltage (TXD-A, TXD-B, LNA_XEN)
Status Min Max Unit
High (loh = 1 mA) 0.8 * VCC VCC V
Low (lol = 1 mA) 0 0.22 * VCC V
2 PRODUCT DESCRIPTION
38 Copernicus GPS Receiver
Normal Operating Conditions
Minimum and maximum limits apply over full operating temperature range unless
otherwise noted.
* The rise time to VCC MUST be greater than 140 μsecs. The user can use one source of power on Pin 12 (VCC) for both
main and Standby power.
** If using two sources of power, the Main and Standby power must be connected to VCC via an external diode-pair.
During the Standby Mode, the main power can be removed so the unit can be run on Standby power. Standby power
must be at least 0.3V less than main power. The voltage at Pin 12 must be 2.7V to 3.3V including the diode voltage drop.
(See Chapter 5 for information on application circuits.)

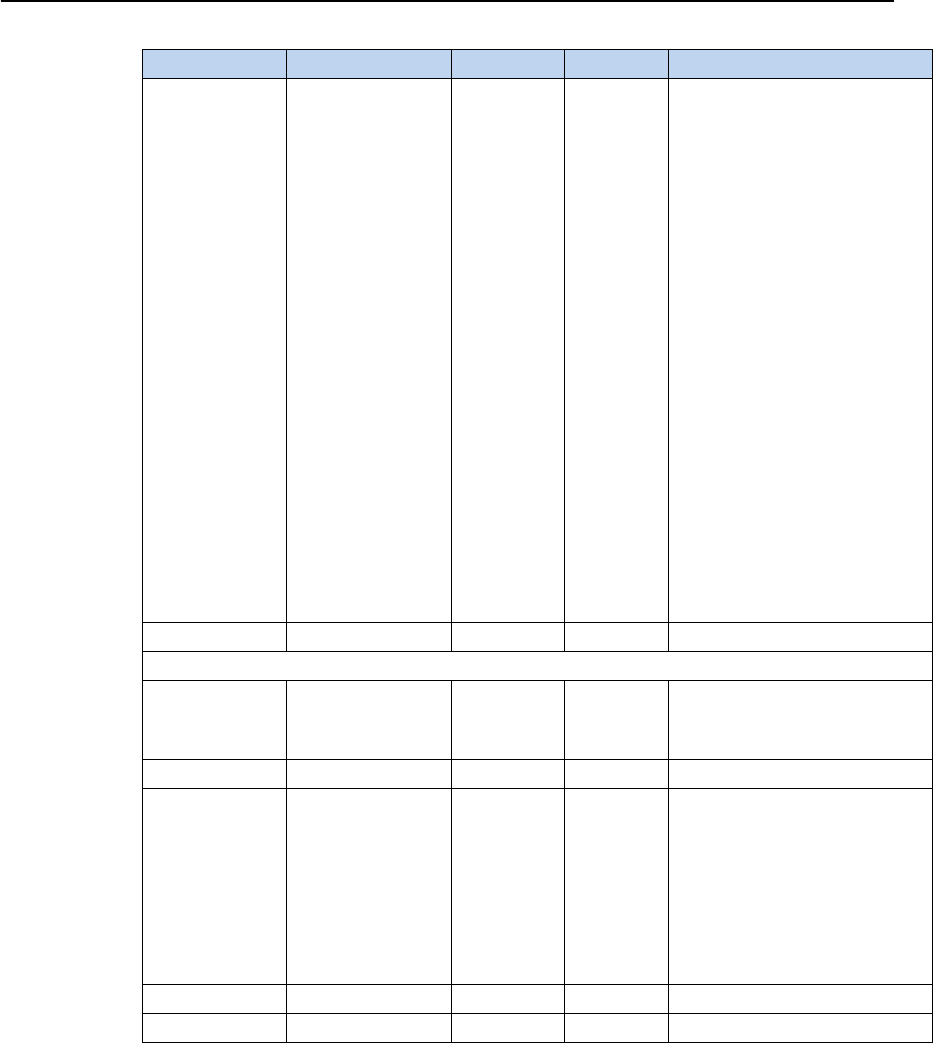

Parameter Conditions Min Typ Max Unit
Primary Supply Voltage * The rise time to VCC MUST
be greater than 140 μsecs
2.7 3.3 * V
Current Draw
Continuous Tracking,
Max: 85° C, 3.3 V
Min: -40° C, 2.7V
Typ: 25° C, 3.0 V
23.9 34.8 38.3 mA
Power Consumption
Continuous Tracking,
Max: 85° C, 3.3 V
Min: -40° C, 2.7V
Typ: 25° C, 3.0 V
79 93.9 115 mW
Power Consumption
Absolute Maximum
50
165
mA
mW
Current Draw **
Standby Mode
Max: 85° C,
Min: -40° C
Typ: 25° C, 3.0 V
7.1 8.5 60 uA
Current Draw Standby
Mode RTC Service
30
Please see section
Serial Port Activity
mA
Supply Ripple Noise 1Hz to 1MHz
GPS TCXO
Frequency ±5kHz
50
1
mVpp
mVpp
Hardware RESET Assert XRESET pin to clear
STANDBY memory
100 us
Copernicus GPS Receiver 39
PRODUCT DESCRIPTION 2
Power Consumption Over Temperature and Voltage
Run Mode
(Tracking with Almanac Complete): < 90 mW average @ 2.7 VDC, -40 to 85° C
Standby Mode: < 30 μW @ 3.0 VDC, typical at 25° C, < 200 μW under all
conditions except during service time for the 18-hour real time clock roll over.
ESD Protection
ESD testing was performed using JDEC test standard JESD-A114C.01. All inputs
and outputs are protected to ±500 volts ESD level. The RF IN pin is protected up to
1kV.If a higher level of compliance is required, additional electrostatic and surge
protection must be added.

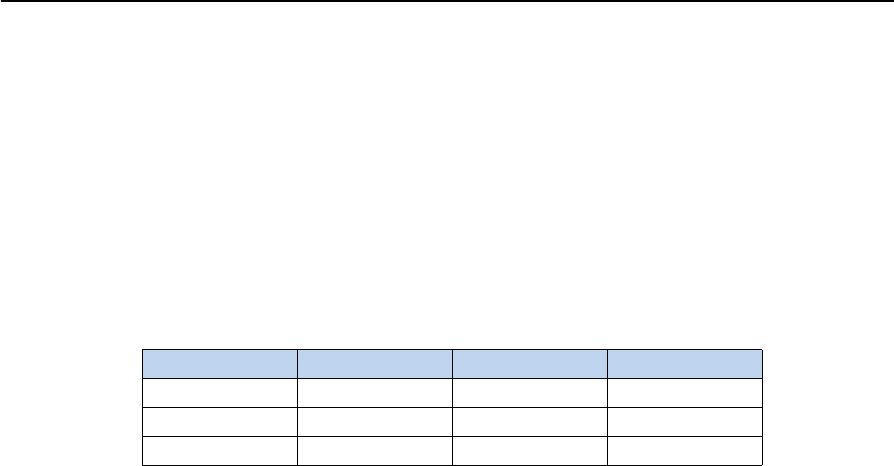

At 2.7 volts Avg Current (mA) Avg power consumption (mW)
-40° C 29.7 80.2
Room Temp 30.7 82.9
85° C 31.5 85.1
At 3.0 volts Avg Current (mA) Avg power consumption (mW)
-40° C 30.3 90.9
Room Temp 31.3 93.4
85° C 34.9 104.7
At 3.3 volts Avg Current (mA) Avg power consumption (mW)
-40° C 31.5 104
Room temp 31.4 104
85 v 31.9 105
2 PRODUCT DESCRIPTION
40 Copernicus GPS Receiver
Ordering Information

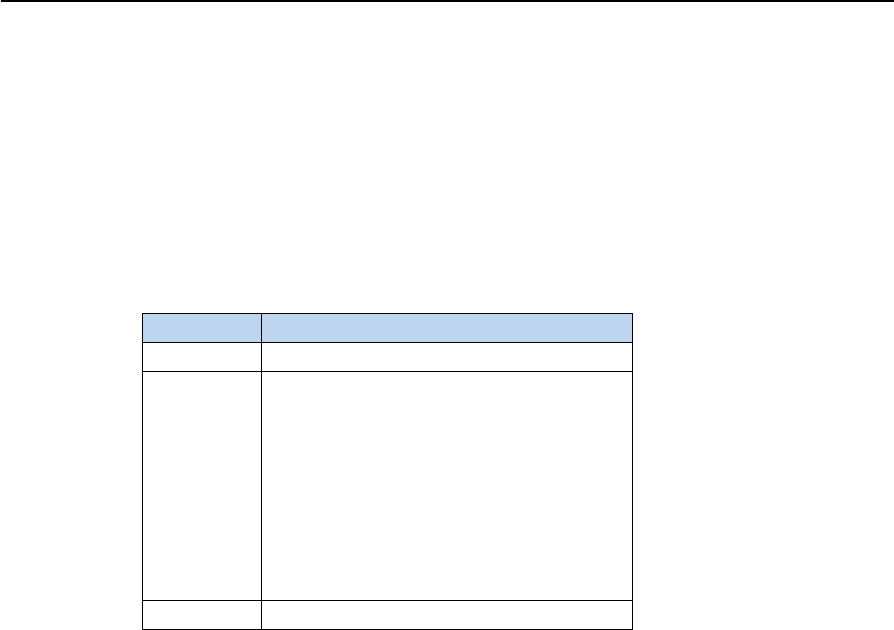

Ordering Information
Copernicus GPS Receiver Module Single module in metal enclosure
P/N 58048-10
Reference Board P/N 58054-10
Copernicus GPS module mounted on a carrier
board with I/O and RF connectors for evaluation
purposes, including the RF circuitry with the
antenna open detection, as well as antenna
short detection and protection.
Starter Kit RoHS (Lead-free version): P/N 58050-20
Includes Copernicus Reference Board mounted
on interface motherboard in a durable metal
enclosure, AC/DC power converter, compact
magnetic-mount GPS antenna, serial interface
cable, cigarette lighter adapter, TSIP, NMEA,
and TAIP protocols.
CHAPTER
3
Copernicus GPS Receiver 41
INTERFACE CHARACTERISTICS 3
In this chapter:
Pin Assignments
Pin Description
Serial Port Default Settings
GPS Timing
A-GPS
Pulse-Per-Second (PPS)
This chapter provides a detailed description of
the Copernicus GPS Receiver interface.
3 INTERFACE CHARACTERISTICS
42 Copernicus GPS Receiver
Pin Assignments

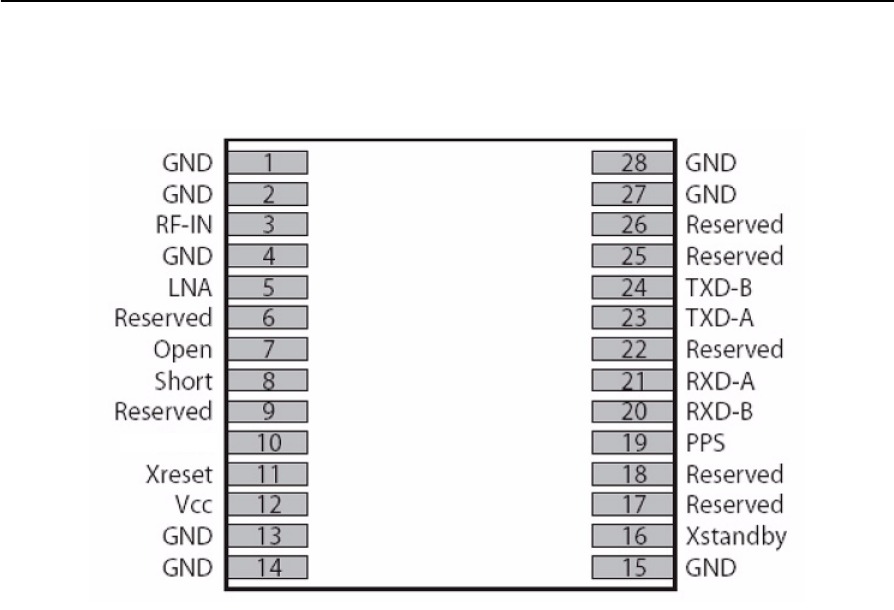

Figure 3.1 Copernicus Pin Assignments
Reserved
Copernicus GPS Receiver 43
INTERFACE CHARACTERISTICS 3
Pin Description

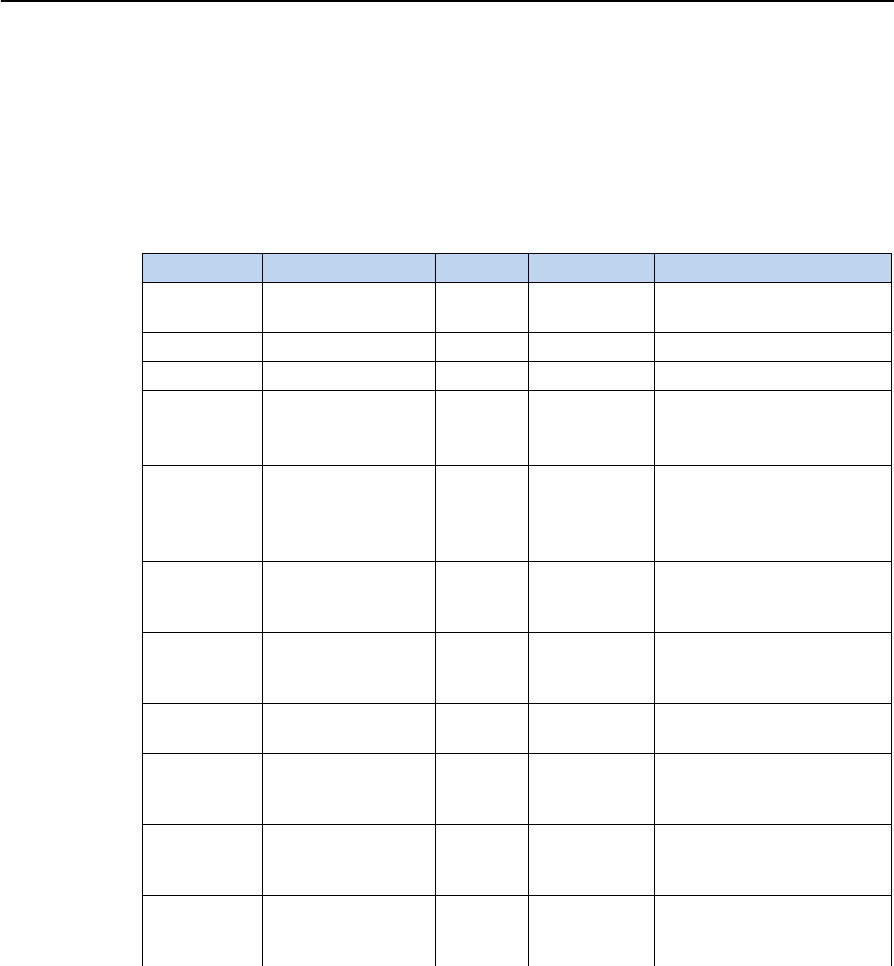

Table 3.1 Pin Description
G: Ground; I: Input; O: Output; P: Power
Pin Name Description Function Note
1 GND Ground G Signal ground. Connect to common ground.
2 GND RF Ground G One of two RF grounds adjacent to RF input.
Connect to RF ground system.
3 RF Input GPS RF input I 50-ohm unbalanced (coaxial) RF input.
4 GND RF Ground G One of two RF grounds adjacent to RF input.
Connect to RF ground system.
5 LNA_XEN LNA Enable O Can be used with active antennas only. Active
low logic level signal to control external LNA.
6 Reserved Reserved I/O Do not connect.
7 OPEN Antenna OPEN I Logic level from external antenna detection
circuit. See “Antenna Detect Truth Table”.
8 SHORT Antenna SHORT I Logic level from external antenna detection
circuit. See “Antenna Detect Truth Table”.
9 Reserved Reserved I Connect to VCC.
10 Reserved Reserved I Connect to VCC.
11 XRESET Reset I Active low logic level reset. Connect to VCC
with or without a pullup resistor, if not used.
12 VCC Supply voltage P Module power supply 2.7 - 3.3 VDC
13 GND Ground G Signal ground. Connect to common ground.
14 GND Ground G Signal ground. Connect to common ground.
15 GND Ground G Signal ground. Connect to common ground.
16 XSTANDBY Run/Standby I Selects “RUN” or “STANDBY” mode. Connect
to VCC if not used (run only).
17 Reserved Reserved I/O Do not connect.
18 Reserved Reserved I/O Do not connect.
19 PPS Pulse per second O Logic level timing signal at 1 Hz. Do not
connect if not used.
20 RXD_B Serial port B receive I Logic level secondary serial port receive.
21 RXD_A Serial port A receive I Logic level primary serial port receive.
22 Reserved Reserved I/O Do not connect.
23 TXD_A Serial port A transmit O Logic level primary serial port transmit.
24 TXD_B Serial port B transmit O Logic level secondary serial port transmit.
25 Reserved Reserved I/O Do not connect.
26 Reserved Reserved I/O Do not connect.
27 GND Ground G Signal ground. Connect to common ground.
28 GND Ground G Signal ground. Connect to common ground.
3 INTERFACE CHARACTERISTICS
44 Copernicus GPS Receiver
Detailed Pin Descriptions
RF Input
The RF input pin is the 50 ohm unbalanced GPS RF input, and can be used with
active or passive antennas.
Passive antennas: The RF input pin may be connected by a low-loss 50 ohm
unbalanced transmission system to the passive GPS antenna if loss is minimal
(< 2 dB). It is recommend that you use an external LNA with a passive antenna.
Active Antennas: The RF input pin can also be connected to the output of an external
low-noise amplifier, which is amplifying GPS signals from the antenna. The gain of
the LNA must be great enough to overcome transmission losses from the LNA output
to this pin. The specification for noise figure for the module is < 3 dB at room
temperature and < 4 dB over the specified temperature range, -40 to +85 C. The
external LNA must be located such that the loss from the GPS antenna connection to
the LNA input is minimized, preferably < 1 dB. The noise figure of the LNA should
be as low as possible, preferably< 2 dB. This specification is provided to enable a
cascaded noise figure design calculation. Active antennas must be powered with a
single bias-Tee circuit.
LNA_XEN
This logic level output can be used to control power to an external LNA or other
circuitry. The logic of this signal is such that when the module is running (not in
standby), this signal is low. During “STANDBY” mode, this signal is high. This pin
may be used to control the gate of a p-channel FET used as a switch.
Open/Short Pins

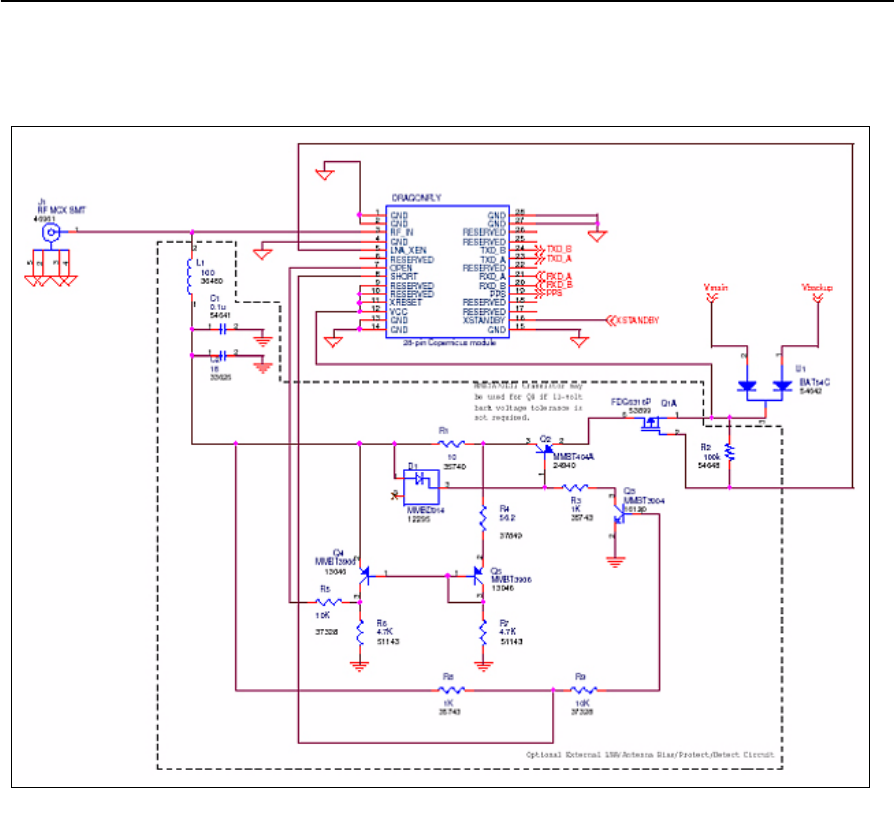

When using an active antenna, it is recommended that you implement an antenna
detection circuit with short circuit protection. There are two pins provided for
reporting the antenna status: OPEN and SHORT.
The logic level inputs outlined in Table 3.2 may be used with a detection circuit (with
or without protection) to monitor the status of the external LNA of an active antenna
by the module.
The truth table for the logic of these signals is provided in Table 3.2. These input pins
conform to the Input / Output Pin threshold levels specified in.
A typical active antenna draws between 10 to 20mA.The antenna Protect/Detect
circuit will trip as a short circuit at around 100mA. It is best to keep the antenna
current below 75mA. An open circuit will be determined if the antenna current falls
below approximately 2mA.
Copernicus GPS Receiver 45
INTERFACE CHARACTERISTICS 3
Table 3.2 Antenna Status Truth Table
When using a passive antenna with the SHORT and OPEN pins floating, the receiver
will report an open condition. If a normal condition from the receiver is desired when
using a passive antenna, set the logic levels of the SHORT pin High and the OPEN
pin Low.
XRESET
This logic-level, active low input is used to issue hardware or power-on reset to the
module. It may be connected to external logic or to a processor to issue reset. To reset
the module, take this pin low for at least 100 microseconds. This pin must be tied to
VCC with a resistance of less than 10 K Ohms if not used.
The hardware reset deletes all the information saved in SRAM (position time,
almanac, ephemeris and customers' user set configurations if not previously saved in
non-volatile Flash memory) and restarts the Copernicus receiver. See Absolute
Minimum and Maximum Limits, page 37 for pin threshold values.
VCC
This is the primary voltage supply pin for the module. This pin also provides power
during Standby Mode (Backup Mode). To setup separate power supplies for main
power and Standby Mode (Backup Mode) power, an external diode-pair must be
provided.
XSTANDBY
This logic level input is used to control the RUN/STANDBY state of the module. If
this signal is High, the unit will run normally. If this signal is Low, the unit will go to
“STANDBY” mode. See Absolute Minimum and Maximum Limits, page 37 for pin
threshold values.
PPS
Pulse-per-second. This logic level output provides a 1 Hz timing signal to external
devices. The positive going 4.2 usec pulse width is controllable by TSIP packet 0x8E-
4F. The cable delay and polarity is controllable by TSIP packet 0x8E-4A. The PPS
mode is set by TSIP packet 0x35. This output meets the input/output pin threshold
specifications (see Absolute Minimum and Maximum Limits, page 37.)
Condition of logic signals
ANTENNA REPORTS SHORT OPEN
Antenna Open Reported 1 1
Antenna Normal Reported 1 0
Antenna Shorted Reported 0 0
Undefined 0 1
3 INTERFACE CHARACTERISTICS
46 Copernicus GPS Receiver
RXD_A and RXD_B
These logic level inputs are the primary (A) and secondary (B) serial port receive
lines (data input to the module). This output meets the input/output pin threshold
specifications (see Absolute Minimum and Maximum Limits, page 37.) The baud rate
for the two ports is under software control.
TXD_A and TXD_B
These logic level outputs are the primary (A) and secondary (B) serial port transmit
lines (data moving away from the module). This output meets the input/output pin
threshold specifications (see Absolute Minimum and Maximum Limits, page 37.)
The baud rate for the two ports is under firmware control.
Reserved Pins
There are 8 reserved pins on the Copernicus GPS Receiver. For the recommended pin
connections for these reserved pins, see Table 3.1.
Protocols

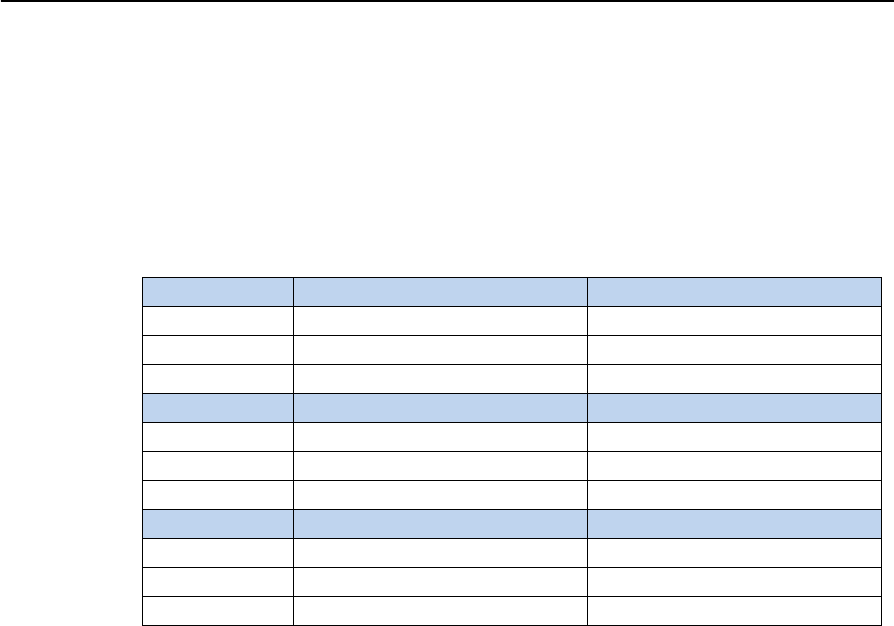

Table 3.3 Copernicus GPS Receiver Available protocols
Protocols Specification Direction Serial Port
Support
NMEA NMEA 0183 v3.0; Bi-
directional with extended
NMEA sentences
Input / Output Both Serial Ports
TSIP (Trimble
Standard Interface
Protocol)
Trimble propriety binary
protocol
Input / Output Both Serial Ports
TAIP (Trimble ASCII
Interface Protocol)
Trimble propriety ASCII
protocol
Input / Output Both Serial Ports
Copernicus GPS Receiver 47
INTERFACE CHARACTERISTICS 3
Serial Port Default Settings
The Copernicus GPS Receiver supports two serial ports. The default settings are
provided in the table below.
Table 3.4 Copernicus GPS Receiver Serial Port Default Settings
Note – Data Bits, Parity, Stop Bits and Flow Control are not configurable. Only
Protocol and Baud rates are configurable. Detailed descriptions of these protocols
are defined in the Appendices.
Port Port
Direction Pin # Protocol Characteristics
Baud Rate Data Bits Parity Stop Bits Flow Control
ATXD-A 23 TSIP-Out 38.4 K 8 None 1 NO
RXD-A 21 TSIP-IN 38.4 K 8 None 1 NO
BTXD-B 24 NMEA-Out 4800 8 None 1 NO
RXD-B 20 NMEA-IN 4800 8 None 1 NO
3 INTERFACE CHARACTERISTICS
48 Copernicus GPS Receiver
GPS Timing
In many timing applications, such as time/frequency standards, site synchronization
systems, and event measurement systems, GPS receivers are used to discipline local
oscillators.
The GPS constellation consists of 24 orbiting satellites. Each GPS satellite contains a
highly-stable atomic (Cesium) clock, which is continuously monitored and corrected
by the GPS control segment. Consequently, the GPS constellation can be considered a
set of 24 orbiting clocks with worldwide 24-hour coverage.
GPS receivers use the signals from these GPS clocks to correct their internal clock
which is not as stable or accurate as the GPS atomic clocks. GPS receivers like the
Copernicus GPS output a highly accurate timing pulse (PPS) generated by an internal
clock which is constantly corrected using the GPS clocks. This timing pulse is
synchronized to UTC within ±100 ns rms.
In addition to serving as a highly accurate stand-alone time source, GPS receivers are
used to synchronize distant clocks in communication or data networks. This
synchronization is possible since all GPS satellite clocks are corrected to a common
master clock. Therefore, the relative clock error is the same, regardless of which
satellite or satellites are used. For timing applications requiring a common clock, GPS
is the ideal solution.
Position and time errors are related by the speed of light. Therefore, a position error
of 100 meters corresponds to a time error of approximately 333 ns. The hardware and
software implementation affects the GPS receiver's PPS accuracy level. The
receiver's clocking rate determines the PPS steering resolution.
Serial Time Output
Time must be taken from the timing messages in the TSIP, TAIP, or NMEA protocols
because position messages contain a timestamp which is usually 1 to 2 seconds in the
past.
Table 3.5 Serial Time Output
Note – GPS time differs from UTC (Universal Coordinated Time) by a variable,
integer number of seconds UTC=(GPS time)-(GPS UTC offset).
As of January 2006, the GPS UTC offset was 14 seconds. The offset has historically
increased by 1 second about every 18 months. System designers should plan to read
the offset value as a part of the timing interface to obtain UTC. The GPS week
number is in reference to a base week (Week #0), starting January 6, 1980.
Protocol Timing Message
TSIP Report packets 41 and 8F-21
TAIP TM message
NMEA ZDA message
Copernicus GPS Receiver 49
INTERFACE CHARACTERISTICS 3
Acquiring the Correct Time
To acquire the correct time:
1. Confirm that the almanac is complete and the receiver is generating 3D fixes.
This will eliminate the UTC offset jump.
2. Confirm that the receiver is configured for the late PPS option (i.e., it is only
outputting a PPS on a 3D fix).
3. Capture the time from TSIP packet 0x41 or TSIP packet 0x8F-20 (if using
TSIP).
4. Once time is acquired, on the next PPS add 1 to the whole second to read the
correct time.
Note – The minimum time resolution is 1 second.
3 INTERFACE CHARACTERISTICS
50 Copernicus GPS Receiver
A-GPS
The Copernicus GPS Receiver is equipped with assisted GPS (A-GPS), which
enables the receiver to obtain a position fix within seconds using almanac, ephemeris,
time, and position data. This position data can be uploaded to the device via TSIP
packets or the Trimble GPS Monitor (TGM) application. When A-GPS is enabled, the
Copernicus GPS Receiver can achieve fast start-up times characteristic of a hot start.
Follow the procedures below to download current almanac, ephemeris, time, and
position information, and then upload this data to the starter kit module via TGM or
TSIP (to upload position data within the customer application).
CWarning – To ensure proper format of the ephemeris file and almanac file, a Trimble receiver must
be used to gather this data. Almanac files from non-Trimble receivers may not be in proper format
and thus may not work, (i.e. almanac files downloaded from the Internet).
Enabling A-GPS with the Trimble GPS Monitor Application (TGM)
1. Attach the Copernicus GPS interface unit to your PC.
2. Place the GPS antenna where there is a clear view of sky.
3. Allow the starter kit to run and calculate fixes.
4. On the main screen, wait for the almanac indicator to turn green confirming
that the receiver has collected a current almanac.
Note – It takes 12,5 minutes of uninterrupted Copernicus operation to collect
almanac from the satellites.
5. Click on the initialized pull-down menu and use the download features on the
bottom of the pull-down to download the almanac, position, time and
ephemeris files on your PC.
6. Now that you have collected these files, you can upload them using the upload
features on the initialize pull-down window in TGM.
Note – The collected ephemeris is only good for approximately 2 hours.
Copernicus GPS Receiver 51
INTERFACE CHARACTERISTICS 3
Enabling A-GPS with TSIP
1. Allow the receiver to run long enough to collect a current almanac.
Note – It takes 12,5 minutes of uninterrupted Copernicus operation to collect
almanac from the satellites.
2. Use packet 0 x 26 to request the health of the receiver. The response packets
0x46 and 0x4B indicate when the almanac is complete and current.
3. Use packet 0x38 to request the almanac and the ephemeris. The receiver
responds with packet 0 x 58.
4. Use packet 0 x 21 to request time from the receiver. The receiver responds with
packet 0x 41. This data can be used to set your own off-board clock.
5. Use packets 0x42, 0x4A, 0x83 0r 0x84 to request a position from the receiver.
To upload this information back to the receiver, follow this procedures in the
specified order:
1. Upload the time using TSIP packet 0x2E. Wait for upload confirmation report
packet 0x41.
2. Upload position using TSIP packet 0x31 or 0x32. No confirmation report
packet available.
3. Upload the ephemeris using TSIP packet 0x38. Wait for the upload
confirmation report TSIP packet 0x58.
Note – See Appendix A for details on the TSIP protocol.
3 INTERFACE CHARACTERISTICS
52 Copernicus GPS Receiver
Pulse-Per-Second (PPS)
The Copernicus GPS receiver provides a CMOS compatible TTL level Pulse-Per-
Second (PPS). The PPS is a positive pulse available on pin 19 of the Copernicus GPS
Receiver. The rising edge of the PPS pulse is synchronized with respect to UTC. The
timing accuracy is ±100 rms when valid position fixes are being reported.
The precise UTC or GPS time is reported in TSIP message 0x41 and NMEA message
EDA. The line reports are sent within 500ms after the corresponding PPS.
The rising edge of the pulse is typically less than 6 nanoseconds. The distributed
impedance of the attached signal line and input circuit can affect the pulse shape and
rise time. The PPS can drive a load up to 1mA without damaging the module. The
falling edge of the pulse should not be used.
The Copernicus' default PPS output mode is Always On, sometimes called or “Early
PPS”. In Always On mode, PPS is output immediately after main power is applied.
The PPS is driven by the Real Time Clock (RTC) until the receiver acquires GPS time
from the satellite and begins outputting fixes. In Always On mode, the PPS continues
even if the receiver loses GPS lock. The drift of the PPS, when the Copernicus GPS
receiver is not tracking satellites, is unspecified and should not be used for
synchronization.
The PPS output modes can be controlled with TSIP packet 0x35 and NMEA “PS”
Packet. The modes are Always On (default), Fix Based, or Always Off. Cable delay
compensation is available through the use of TSIP packet 0x8E-4A and NMEA “PS”
Packet. PPS pulse width is controlled by TSIP packet 0x8E-4F and the NMEA “PS”
Packet.
After a specific mode is selected, it can be stored in non-volatile memory (FLASH)
using TSIP command 0x8E-26.
Note – PPS can be configured as positive or negative polarity; factory default is
positive. The PPS pulse width is also configurable; factory default is 4.2
microseconds.
CHAPTER
4
Copernicus GPS Receiver 53
OPERATING MODES 4
In this chapter:
Copernicus Receiver
Operating Modes
Run Mode
Standby Mode
Monitor Mode
Changing the Run/Standby
Modes
18-Hour RTC Roll Over
Saving Almanac, Ephemeris
and Position to Flash
Memory
WAAS
This chapter describes the primary Copernicus
GPS Receiver operating modes and provides
guidelines for receiver operation.
4 OPERATING MODES
54 Copernicus GPS Receiver
Copernicus Receiver Operating Modes
Table 4.1 Copernicus GPS Receiver Operating Modes
Run Mode
The RUN mode is the continuous tracking or the normal mode.
Standby Mode
The Copernicus GPS Receiver provides a Standby Mode in which the module's RAM
memory is kept alive and the real-time clock is running while the rest of the receiver
is turned off. RAM memory is used to store the GPS almanac, ephemeris, and last
position.
Using this information, together with the time information provided by the real-time
clock, the receiver normally provides faster startup times. The type of start-up after
Standby Mode depends on the state of the receiver prior to entering Standby Mode
and on the length of time the receiver spent in the Standby Mode.
If the receiver has almanac, ephemeris, and position information before entering
Standby Mode, and the time spent in Standby Mode is less than two hours, the
receiver will typically perform a hot start.
If the receiver has all of the information listed above, but the time spent in Standby
Mode is more than two hours, the receiver will typically perform a warm start.
The GPS almanac, ephemeris and recent position are automatically stored in non-
volatile Flash memory. Even without time, the receiver can use the information stored
in Flash memory to shorten the start-up time. In all cases, the receiver will use all of
the available information to do the fastest start-up possible.
Note – In the Standby Mode, the power consumption of the unit is very low. See
Copernicus Standby Current, page 55.
Monitor Mode
Monitor Mode is the operating mode for upgrading the firmware stored in the Flash
memory. See Chapter 11 for the firmware upgrade procedure.
Operating Modes Description
Run Mode Continuous tracking or
normal mode
Standby Mode Backup power or low
power mode
Monitor Mode Flash upgrading mode
Copernicus GPS Receiver 55
OPERATING MODES 4
Changing the Run/Standby Modes
There are two methods you can follow to switch the receiver between the Run Mode
and the Standby Mode. Only one of these methods may be used at a time.
1. Using the XSTANDBY pin or
2. Using the serial ports under user control
Note – If you are using the XSTANDBY pin, do not use the serial ports for controlling
the modes. If you are using the serial port option, the XSTANDBY pin should always
be held high. You cannot use serial ports to switch to RUN mode if the XSTANDBY
pin was used to enter STANDBY mode.
Copernicus Standby Current
When the Copernicus GPS Receiver is sent a command to go into Standby Mode,
there is a period of time between 10 and 200 ms (milli seconds) when the power
supply still has to supply almost full operating current. Only after this period has
elapsed will the current draw go down to the specified standby current which is
typically 8.5 uA (micro Amps).
4 OPERATING MODES
56 Copernicus GPS Receiver
Using the XSTANDBY Pin to Switch Modes
The first method for putting the receiver into Standby Mode or exiting this mode back
to the Run Mode is through the pin XSTANDBY, pin #16. As long as the pin is held
high, the receiver will operate normally in Run Mode.
Entering Standby Mode
When the pin is taken low, the receiver will go to the STANDBY mode.
Exiting Standby Mode
When the pin is taken high again, the receiver will perform a hot or warm restart and
return to normal operation. The receiver will hot start if the ephemeris is still valid.
Note – Excessive noise on the XSTANDBY pin could trigger the receiver to reset.
Using Serial Ports to Switch Modes
The second method for putting the receiver into Standby Mode is with TSIP packet
0xC0 or NMEA packet RT.
There are two possible conditions that would trigger the receiver to exit Standby
Mode and reset to normal operations:
1. Serial port activity
2. Exit after X elapsed seconds
Copernicus GPS Receiver 57
OPERATING MODES 4
Serial Port Activity
When the receiver enters Standby Mode through the software protocol commands,
the first condition for exiting Standby Mode is using serial port A activity or serial
port B activity. The condition is identical for both ports A and B.
To ensure the receiver detects and responds to serial port activity, issue a NULL
character on the selected serial port to bring the unit out of Standby Mode. In Standby
Mode, the receiver samples for serial port activity at a rate of 32.768 kHz. A NULL
character will bring the selected RX line low for 9 bits so even at the highest baud rate
of 115200, a NULL character should be detectable at the sample rate.
There are two exceptions where serial activity may not trigger the unit to exit Standby
Mode:
•During the 3 seconds following the command to enter Standby Mode.
The Copernicus GPS receiver may not detect serial port activity during the 3
seconds immediately after receiving a software command to enter Standby
Mode. During that 3 seconds, the unit is processing the shut-down command
and will ignore serial port activity. Therefore the minimum time between
issuing the shut-down command and the use of serial port activity to return the
unit to Run Mode is 3 seconds. Standby time cannot be less than 3 seconds.
•During the 10 msec RTC service time.
During the 10 msec RTC service time, there exists a 91.6 μsec window where
the receiver cannot detect serial port activity. Using a series of three NULL
characters in a row should ensure that the unit responds. (See 18-Hour RTC
Roll Over, page 58 for an explanation of the RTC service time.)
Exit after X elapsed seconds.
The second condition that will trigger the receiver to exit Standby Mode is the elapse
of a pre-defined time. When the receiver is placed into the Standby Mode using
protocol commands, the receiver can be made to exit the Standby Mode after a
defined elapsed time using TSIP command Packet 0xC0 or NMEA packet RT. In this
case, the user specifies the number of seconds the receiver should stay in Standby
Mode. After this time has elapsed, the unit will perform a reset and start operating
normally.
Note – These conditions are provided to the receiver in the serial command packet,
and the user can specify any combination of these conditions as desired. For exiting
the Standby Mode, either of the 2 methods can be applied. The first one that occurs
will bring the receiver to the RUN Mode to start normal operations.
4 OPERATING MODES
58 Copernicus GPS Receiver
18-Hour RTC Roll Over
If the Standby Mode lasts longer than 18 hours, a special condition will occur. The
real-time clock has a maximum time count of 18 hours, so that every 18 hours the
receiver must briefly power on the processor and read the elapsed time before the
real-time clock rolls over.
The Diagram below describes the Copernicus GPS Receiver current draw levels after
initiating a Standby command, as well as the service time for the 18-hour real time
clock roll over.
Figure 4.1 Current Draw Levels in Standby Mode
During the 10 msec RTC service is time, there exists a 91.6 μsec window where the
receiver cannot detect state transitions on the RX pins. If NULL characters are being
used to bring the unit out of Standby as described earlier, using three NULL
characters in a row should ensure that one of the NULL characters happens outside of
the vulnerable window so that the serial port activity is detected.
Figure 4.2 Issuing three (3) NULL Characters for Exiting Standby Mode
IMAGE TO COME
3 Null 91.6 μsec
= 70 μsec
Copernicus GPS Receiver 59
OPERATING MODES 4
Saving Almanac, Ephemeris and Position to Flash Memory
The Almanac, Ephemeris, and recent Position data contained in RAM is
automatically saved to Flash memory.
Graceful Shutdown
The Graceful Shutdown command is issued using TSIP packet 0xC0 or NMEA
command RT with the store RAM to flash flag enabled. The reset type will depend on
the Graceful Shutdown command parameters. On start-up, the unit will use the
almanac, ephemeris, and position from RAM first. If RAM is not available, the unit
will use the almanac from the Flash Memory.
SBAS
The Satellite Based Augmentation System (SBAS) includes implementation of the
current standard for WAAS and the European Geostationary Navigation Overlay
Service (EGNOS) operated by the European Space Agency and other compatible
systems that will come online in the future.
WAAS
Wide Area Augmentation System (WAAS) is an extremely accurate navigation
system developed for civil aviation by the Federal Aviation Administration (FAA).
The system augments GPS to provide the additional accuracy, integrity, and
availability necessary to enable users to rely on GPS for all phases of flight for all
qualified airports within the WAAS coverage area.
The worst-case accuracy is within 7.6 meters of the true position 95% of the time.
This is achieved via a network of ground stations located throughout North America,
which monitor and measure the GPS signal. Measurements from the reference
stations are routed to two master stations, which generate and send the correction
messages to geostationary satellites. Those satellites broadcast the correction
messages back to Earth, where WAAS-enabled GPS receivers apply the corrections to
their computed GPS position.
Number of channels
The Copernicus GPS Receiver tracks one WAAS satellite at a time. When acquiring
and tracking a WAAS satellite, one tracking channel is set aside for this purpose,
leaving eleven tracking channels which are used for the GPS satellites.
4 OPERATING MODES
60 Copernicus GPS Receiver
Acquisition
The Copernicus GPS Receiver will acquire a WAAS satellite after it has a GPS-based
position fix. After a two minute position fix outage, the Copernicus module will stop
tracking and acquiring the WAAS satellite. The WAAS satellite will be re-acquired
after a GPS-based position fix is re-established.
Usage
The Copernicus GPS Receiver will only use the data from a WAAS satellite for
position fix corrections. It shall not use a WAAS satellite for the position solution
computation.
Almanac collection
The Copernicus GPS Receiver collects WAAS almanac data and automatically stores
the WAAS Satellite location, and abbreviated almanac and health data to BBRAM
and NVS storage.
Ephemeris collection
The Copernicus GPS Receiver will NOT collect or store WAAS ephemeris data. The
module stores 1 set of WAAS corrections.
CHAPTER
5
Copernicus GPS Receiver 61
APPLICATION CIRCUITS 5
In this chapter:
Passive antenna—Minimum
Connections
Active Antenna—Full
Connection
Active Antenna—No
Antenna Status
This chapter describes the Copernicus GPS
Receiver passive and active antenna
connections.
5 APPLICATION CIRCUITS
62 Copernicus GPS Receiver
Passive antenna—Minimum Connections
Figure 5.1 Passive Antenna - Minimum Connections
The minimum connection set for the Copernicus GPS Receiver is illustrated in
Figure 5.1. Following is a description of the schematic.
•A passive antenna is used. The Copernicus GPS Receiver has an on-board
LNA and an Automatic Gain Control circuit.
•The Pin LNA_XEN is not necessary and not connected.
•No Antenna open and short detection or protection is provided.
•If the Open (Pin 7) and Short (Pin 8) are kept unconnected (floating), the
Copernicus GPS Receiver reports an open antenna condition. If a normal
condition report is desired, tie Open low and Short high. (See Table 3.2).
•There is no HW reset ability through the pin XRESET, since XRESET pin is
tied High to VCC.
•There is no HW initiated Standby Mode through the Pin XSTANDBY, since
XSTANDBY pin is tied High to VCC. The software serial command to
Standby Mode will still apply.
•There is no separate power for STANDBY power.
•One serial port is utilized.
IMAGE TO COME
Copernicus GPS Receiver 63
APPLICATION CIRCUITS 5
Figure 5.2 Passive antenna - HW Activated Standby Mode Available
Following is a description of the schematic:
•Passive Antenna is used. The Copernicus GPS Receiver has an on-board LNA
and an Automatic Gain Control circuit.
•The Pin LNA_XEN is not necessary and not connected.
•There is no HW reset ability through the pin XRESET, since XRESET pin is
tied High to VCC.
•HW initiated Standby Mode through the Pin XSTANDBY is possible, since
XSTANDBY pin is not tied High to VCC. The software serial command to
Standby Mode can still be used as a second method to force the module into
Standby Mode.
•There is no separate power for STANDBY power.
•One serial port is utilized.
•No Antenna open and short detection or protection is provided. When Open
(Pin 7) and Short (Pin 8) are kept unconnected (floating), the Copernicus GPS
Receiver reports an open antenna condition. If a normal condition is desired, tie
Open Low and Short High. See Table 3.2.
5 APPLICATION CIRCUITS
64 Copernicus GPS Receiver
Active Antenna—Full Connection
Figure 5.3 Active antenna - Full connection
Following is a description of the schematic with antenna detection, when using a
second source to power the unit when in Standby Mode.
•An active antenna is used.
•The Pin LNA_XEN is connected.
•HW reset ability through the pin XRESET is possible, since XRESET pin is
not tied High to VCC.
•HW initiated Standby Mode through the Pin XSTANDBY is possible, since
XSTANDBY pin is not tied High to VCC. Serial Command to Standby Mode
can still apply as the second method to force the module to Standby Mode.
•A second power source for the standby voltage is applied (see the note below).
•Both serial ports are utilized.
Copernicus GPS Receiver 65
APPLICATION CIRCUITS 5
•Antenna open and short detection and protection is provided. The combination
of the two pins Open (Pin 7) and Short (Pin 8) report the antenna status (see
Table 3.2).
Note – When using two power sources, main and standby, an external diode pair must
be used to OR the Vcc and Vbackup power to ensure that the voltage at the module
VCC pin is always 2.7-3.3 VDC.
Table 5.2 Component Information
Component Description Manufacturer Part Number
C1 18 PF, 0402 capacitor,
C0G
KEMET C0402C180J5GAC
C2 0.1 uF, 0402 capacitor,
X7R
CAL-CHIP GMC04X7R104K16NTLF
J1 MCX Connector Johnson Components 133-3711-312
L1 100 nH, 0603 inductor,
surface mount
Coil Craft 0603CS - R10XJLU
Q2 PNP Transistor Central Semiconductor CMPT404A
(MMBTA70LT1 may be
used if 12 Volt back
voltage tolerance is not
required)
Q3 NPN Transistor Philips MMBT3904
Q4 PNP Transistor Philips MMBT3906
Q5 PNP Transistor Philips MMBT3906
U1 Dual schottky diode Diodes Inc. BAT 54 CT
DI Switching Diode ON Semiconductor MMBD914LTIG
5 APPLICATION CIRCUITS
66 Copernicus GPS Receiver
Active Antenna—No Antenna Status
Figure 5.4 Active antenna - No Antenna Status
Copernicus GPS Receiver 67
APPLICATION CIRCUITS 5
Following is a description of this schematic without antenna detection or a separate
power source for Standby Mode:
•An active Antenna is used.
•The Pin LNA_XEN is not connected.
•There is no HW reset ability through the pin XRESET, since XRESET pin is
tied High to VCC.
•HW initiated Standby Mode through the Pin XSTANDBY is possible, since
XSTANDBY pin is not tied High to VCC. Serial Command to Standby Mode
can still apply as the second method to force the module to Standby Mode.
•There is no separate power for STANDBY power.
•Both serial ports are utilized.
•Antenna open and short detection or protection is not provided. If pins 7 and 8
are left floating, they will cause the unit to report an antenna open condition
(see Table 3.2).
5 APPLICATION CIRCUITS
68 Copernicus GPS Receiver
CHAPTER
6
Copernicus GPS Receiver 69
RF LAYOUT CONSIDERATIONS 6
In this chapter:
General Recommendations
Design considerations for
RF Track Topologies
PCB Considerations
This chapter outlines RF design considerations
for the Copernicus GPS Receiver.
6 RF LAYOUT CONSIDERATIONS
70 Copernicus GPS Receiver
General Recommendations
The design of the RF transmission line that connects the GPS antenna to the
Copernicus GPS Receiver is critical to system performance. If the overall RF system
is not implemented correctly, the Copernicus GPS Receiver performance may be
degraded.
The radio frequency (RF) input on the Copernicus GPS module is a 50 ohm,
unbalanced input. There are ground castellations, pins 2 and 4, on both sides of the
RF input castellation, on pin 3. This RF input may be connected to the output of an
LNA which has a GPS antenna at its input or to a passive antenna via a low-loss 50
ohm, unbalanced transmission line system.
In the case where the GPS antenna must be located any significant distance from the
Copernicus GPS Receiver, the use of an LNA at the antenna location is necessary to
overcome the transmission losses from the antenna to the Copernicus GPS module. It
is recommended that in the case of a passive antenna, the transmission line losses
from the antenna to the module be less than 2 dB. Otherwise an LNA should be added
to the system.
The specifications for the external LNA required can be determined as follows. The
specification of noise figure for the Copernicus GPS module is 3 dB at room
temperature and 4 dB over the temperature range −40 C to ±85 C. The noise figure for
this external LNA should be as low as possible, with a recommended maximum of
1.5 dB. It is recommended that the gain of this LNA exceed the loss as measured from
the LNA output to the module input by 10 dB. For example, if the loss from the
external LNA output is 10 dB, the recommended minimum gain for the LNA is 20
dB. In order to keep losses at the LNA input to a minimum, it is recommended that
the antenna be connected directly to the LNA input, with as minimum loss as
possible.
Connections to either the LNA output or to a passive antenna must be made using a
50 ohm unbalanced transmission system. This transmission system may take any
form, such as microstrip, coaxial, stripline or any 50 ohm characteristic impedance
unbalanced, low-loss system.
It is important to keep any noise sources with frequencies at or near 1575 MHz away
from the RF input. In the case of a passive antenna, it is important that the antenna is
not placed in a noisy location (such as too close to digital circuitry) or performance
may be degraded. Shielded transmission line systems (stripline, coaxial) may be used
to route this signal if noise ingress is a concern.
If an active antenna is used and it is desired to power this antenna from the RF
transmission line, a bias-tee will be required at the Copernicus GPS module end. A
simple series inductor (that is parallel resonant at 1575 MHz) and shunt capacitor
(series resonant at 1575 MHz) to which the bias voltage is supplied is sufficient. An
open/short detection and over current protection circuit may also be employed. Please
see Chapter 5, APPLICATION CIRCUITS.
Copernicus GPS Receiver 71
RF LAYOUT CONSIDERATIONS 6
In the printed circuit board (PCB) layout, it is recommended to keep the copper layer
on which the Copernicus GPS Receiver is mounted clear of solder mask and copper
(vias or traces) under the module. This is to insure mating of the castellations between
the Copernicus GPS module and the board to which it is mounted, and that there is no
interference with features beneath the Copernicus GPS Receiver causing it to lift
during the re-flow solder process.
For a microstrip RF transmission line topology, it is recommended that the layer
immediately below the one to which the Copernicus GPS Receiver is mounted be
ground plane. Pins 2 and 4 should be directly connected to this ground plane with low
inductance connections. Pin 3, the RF input, can be routed on the top layer using the
proper geometry for a 50 ohm system.
6 RF LAYOUT CONSIDERATIONS
72 Copernicus GPS Receiver
Design considerations for RF Track Topologies
The following items need to be considered for the Copernicus GPS Receiver RF
layout:
•PCB track connection to the RF antenna input must have impedance of 50
ohms.
•PCB track connection to the RF antenna input must be as short as possible.
•If an external antenna is used, PCB track connection to the RF antenna input
must transition from the circuit board to the external antenna cable, which is
typically a RF connector.
• If there are any ground planes on the same layer as the microstrip trace, please
refer to the Coplaner Waveguide design. Not covered in this manual.
•PCB track connection to the RF antenna input must be routed away from
potential noise sources such as oscillators, transmitters, digital circuits,
switching power supplies and other sources of noise.
•RF and bypass grounding must be direct to the ground plane through its own
low-inductance via
•Active or passive antennas may be used. If using a passive antenna the
connection to the antenna input shall be very short. It is possible to mount the
patch antenna on the same PCB as the Copernicus GPS module. Designers
must be aware of noise generating circuitry and proper design precautions
taken (shielding,.).
The PCB track connection to the RF antenna input must not have:
•Sharp bends.
•Components overlaying the track.
•Routing between components to avoid undesirable coupling.
Copernicus GPS Receiver 73
RF LAYOUT CONSIDERATIONS 6
PCB Considerations
The minimum implementation is a two-layer PCB substrate with all the RF signals on
one side and a solid ground plane on the other. Multilayer boards can also be used.
Two possible RF transmission line topologies include microstrip and stripline.
Microstrip Transmission Lines
Figure 6.1 Microstrip Transmission Lines
Ground Plane Design Recommendation
Use a complete ground plane immediately under the PCB layer on which the
Copernicus module is mounted. Around the signal tracks on the same layer as the
module, flood or “copper pour” and connect to the ground plane using low inductance
vias. A single ground plane is adequate for both analog and digital signals.
Design of Microstrip Transmission Line
Connections to either the LNA output or to a passive antenna must be made using a
50 ohm unbalanced transmission system. The PCB parameters that affect impedance
are:
•Track width (W)
•PCB substrate thickness (H)
•PCB substrate permittivity (εr)
6 RF LAYOUT CONSIDERATIONS
74 Copernicus GPS Receiver
•To a lesser extent, PCB copper thickness (T) and proximity of same layer
ground plane.
Figure 6.2 PCB Microstrip Topology
Table 6.1 shows typical track widths for an FR4 material PCB substrate (permittivity
εr of 4.6 at 1.5 GHz) and different PCB thickness. One ounce copper is assumed for
the thickness of the top layer. If a Multi layer PCB is used, the thickness is the
distance from signal track to nearest ground plane.
Table 6.1 Typical Track Widths for an FR4 material PCB Substrate in Microstrip
Topology
Microstrip Design Recommendations
It is recommended that the antenna connection PCB track be routed around the
outside of the module outline, kept on a single layer and have no bends greater than
45 degrees. It is not recommended, for production reasons, to route the track under
the module.
Substrate Material Permittivity Substrate Thickness
H (mm) Track Width
W (MM)
1.6 2.91
1.2 2.12
1.0 1.81
FR4 4.6 0.8 1.44
0.6 1.07
0.4 0.71
0.2 0.34
Copernicus GPS Receiver 75
RF LAYOUT CONSIDERATIONS 6
Stripline Transmission Lines
.
Figure 6.3 Stripline Transmission Lines
Ground plane design in stripline topology
•The stripline topology requires three PCB layers: two for ground planes and
one for signal. One of the ground plane layers may be the layer to which the
Copernicus GPS module is mounted. If this is the case,
•The top layer must be flooded with ground plane and connected to all ground
castellations on the Copernicus GPS module.
•The RF input should be connected to the signal layer below using a via.
•The layer below the signal layer is the second ground plane.
•Connect the two ground planes with vias typically adjacent to the signal trace.
•Other signals of the Copernicus GPS module may be routed to additional layer
using vias.
For the symmetric stripline topology where the signal trace is equal distance from
each ground plane, the following table applies:.
Table 6.2 Typical track widths for an FR4 material PCB substrate in Stripline topology
Substrate Material Permittivity Substrate Thickness
H (mm) Track Width
W (MM)
1.6 0.631
1.2 0.438
1.0 0.372
FR4 4.6 0.8 0.286
0.6 0.2
0.4 0.111
0.2 N/A
6 RF LAYOUT CONSIDERATIONS
76 Copernicus GPS Receiver
CHAPTER
7
Copernicus GPS Receiver 77
MECHANICAL SPECIFICATIONS 7
In this chapter:
Mechanical Outline
Drawing
Soldering the Copernicus
GPS Receiver to a PCB
This chapter provides product drawings and
instructions for soldering the Copernicus GPS
Receiver to a PCB.
7 MECHANICAL SPECIFICATIONS
78 Copernicus GPS Receiver
Mechanical Outline Drawing
Figure 7.1 Copernicus GPS Receiver, Footprint
Figure 7.2 Copernicus GPS Receiver, Outline Dimensions
IMAGE TO COME Top View
Bottom View
Copernicus GPS Receiver 79
MECHANICAL SPECIFICATIONS 7
Soldering the Copernicus GPS Receiver to a PCB
Solder mask
When soldering the Copernicus GPS Receiver to a PCB, keep an open cavity
underneath the Copernicus module (i.e., do not place copper traces or solder mask
underneath the module). The diagram below illustrates the required user solder mask.
The units in brackets, [ ], are in millimeters.
Figure 7.3 Solder Mask Diagram
No solder mask
or copper traces
under the unit.
7 MECHANICAL SPECIFICATIONS
80 Copernicus GPS Receiver
Pad Pattern
Below is the required user pad pattern. The units in brackets, [ ], are in millimeters.
Figure 7.4 Pad Pattern Diagram
No solder mask
or copper traces
under the unit.
Copernicus GPS Receiver 81
MECHANICAL SPECIFICATIONS 7
Paste Mask
To ensure good mechanical bonding with sufficient solder to form a castellation
solder joint, use a solder mask ratio of 1:1 with the solder pad. When using a 5 ±1 Mil
stencil to deposit the solder paste, we recommend a 4 Mil toe extension on the stencil.
The units in brackets, [ ], are in millimeters.
Figure 7.5 Paste Mask Diagram
7 MECHANICAL SPECIFICATIONS
82 Copernicus GPS Receiver
CHAPTER
8
Copernicus GPS Receiver 83
PACKAGING 8
In this chapter:
Introduction
Reel
Tapes
Follow the instructions in this chapter to ensure
the integrity of the packaged and shipped
Copernicus GPS Receiver modules.
8 PACKAGING
84 Copernicus GPS Receiver
Introduction
The Copernicus GPS modules is packaged in tape and reel for mass production. The
reel is sealed in a moisture proof Dry Pack bag. Please follow all the directions
printed on the package for handling and baking.
The Copernicus GPS modules are packaged in two quantities: reel with 100 pieces
and reel with 500 pieces.
Figure 8.1 Copernicus GPS Receiver Packaged in Tape
Copernicus GPS Receiver 85
PACKAGING 8
Reel
The 13-inch reel that can be mounted in a standard feeder for the surface mount pick
and place machine. The reel dimensions are the same regardless of the quantity on the
reel.
Figure 8.2 Reel Diagram
Weight
100 pcs with reel packaging + desiccant + humidity indicator = approximately
0.79Kg (1.74 lbs.)
500 pcs with reel packaging + desiccant + humidity indicator = approximately
1.47Kg (3.24 lbs.)
100 pcs with reel packaging + desiccant + humidity indicator + white pizza box =
approximately 1.02Kg (2.24 lbs.)
500 pcs with reel packaging + desiccant + humidity indicator + white pizza box =
approximately 1.70Kg (3.74 lbs.)
8 PACKAGING
86 Copernicus GPS Receiver
Tapes
The tape dimensions illustrated in the diagram below are in inches. The metric units
appear in brackets [ ].
Figure 8.3 Tape Diagram
Figure 8.4 Feeding Direction Diagram
Feeding direction
ROUND HOLE
S/N 05011234
52979-00-D
Made in China
52979-00-D
S/N 0501 1234
Made in China
S/N 05011234
52979-00-D
Made in China
S/N 05011234
52979-00-D
Made in China
S/N 0501 1234
52979-00-D
Made in China
S/N 05011234
52979-00-D
Made in China
CHAPTER
9
Copernicus GPS Receiver 87
SHIPPING and HANDLING 9
In this chapter:
Shipping and Handling
Guidelines
Moisture Precondition
Baking Procedure
Soldering Paste
Solder Reflow
Recommended Soldering
Profile
Optical Inspection
Cleaning
Soldering Guidelines
Rework
Conformal Coating
Grounding the Metal Shield
This chapter provides detailed guidelines for
shipping and handling the Copernicus GPS
Receiver to ensure compliance with the product
warranty.
9 SHIPPING and HANDLING
88 Copernicus GPS Receiver
Shipping and Handling Guidelines
Handling
The Copernicus GPS module is shipped in tape and reel for use with an automated
surface mount machine. This is a lead-free module with silver plating. Do not allow
bodily fluids or lotions to come in contact with the bottom of the module.
CWARNING – The Copernicus GPS module is packed according to ANSI/EIA-481-B and J-
STD-033A. All of the handling and precaution procedures must be followed. Deviation
from following handling procedures and precautions voids the warranty.
Shipment
The reel of Copernicus GPS modules is packed in a hermetically sealed moisture
barrier bag (DryPac) then placed in an individual carton. Handle with care to avoid
breaking the moisture barrier.
Storage
The shelf life for the sealed DryPac is 12 months and it must be stored at <40 °C and
<90% relative humidity.
Moisture Indicator
A moisture indicator is packed individually in each DryPac to monitor the
environment. All five indicating spots are shown blue from the factory. If the
indicator shows pink, follow the instructions printed on the indicator and bake as
necessary. See Baking Procedure, page 90 for baking instructions.
Floor Life
The reel of Copernicus GPS modules is vacuum sealed in a moisture barrier bag
(DryPac). Once the bag is opened, moisture will bond with the modules. In a
production floor environment, an open reel needs to be processed within 72 hours,
unless it is kept in a nitrogen purged dry chamber. If the moisture indicator has
changed to pink, follow the baking instructions printed on the moisture barrier.
The Copernicus GPS is a lead free component for RoHS compliance. This unit is also
plated with immersion silver for better solderability. The silver may tarnish over time
and show yellow in color, but tarnish should not affect the solderability.
CWARNING – Operators should not touch the bottom silver solder pads by hand or with
contaminated gloves. No hand lotion or regular chlorinated faucet water can be in
contact with this module before soldering.
Copernicus GPS Receiver 89
SHIPPING and HANDLING 9
Moisture Precondition
Precautions must be taken to minimize the effects of the reflow thermal stress on the
module. Plastic molding materials for integrated circuit encapsulation are
hygroscopic and absorb moisture dependent on the time and the environment.
Absorbed moisture will vaporize during the rapid heating of the solder reflow
process, generating pressure to all the interface areas in the package, followed by
swelling, delamination, and even cracking of the plastic. Components that do not
exhibit external cracking can have internal delamination or cracking which affects
yield and reliability.
Figure 9.1 Moisture Precondition Label
9 SHIPPING and HANDLING
90 Copernicus GPS Receiver
Baking Procedure
If baking is necessary, Trimble recommends baking in a nitrogen purge oven.
Temperature: 125 °C
Duration: 24 Hours.
After Baking: Store in a nitrogen-purged cabinet or dry box to prevent
absorption of moisture.
CWARNING – Do not bake the units within the tape and reel packaging.Repeated baking
processes will reduce the solderablity.
Soldering Paste
The Copernicus GPS module itself is not hermetically sealed, Trimble strongly
recommends using the “No Clean” soldering paste and process. The castellation
solder pad on this module is plated with silver plating. Use Type 3 or above soldering
paste to maximize the solder volume. An example is provided below.
Solder paste: Kester EM909
Alloy composition: Sn96.5Ag3Cu.5 (SAC305) 96.5% Tin/ 3%Silver/ 0.5%
Copper
Liquidus Temperature:221 °C
Stencil Thickness: 5 Mil (0.005")
Stencil opening requires 4-mil toe over paste in the X and Y directions.
Note – Consult solder paste manufacturer and the assembly process for the approved
procedures.
Solder Reflow
A hot air convection oven is strongly recommended for solder reflow. For the lead-
free solder reflow, we recommend using a nitrogen-purged oven to increase the solder
wetting. Reference IPC-610D for the lead free solder surface appearance.
CWARNING – Follow the thermal reflow guidelines from the IPC-JEDEC J-STD-020C.
The size of this module is 916.9 mm3. According to J-STD-020C, the peak
component temperature during reflow is 245 +0 °C.
Copernicus GPS Receiver 91
SHIPPING and HANDLING 9
Recommended Soldering Profile
Figure 9.2 Recommended Soldering Profile
Select the final soldering thermal profile very carefully. The thermal profile depends
on the choice of the solder paste, thickness and color of the carrier board, heat
transfer, and size of the penalization.
CWARNING – For a double-sided surface-mount carrier board, the unit must be placed on
the secondary side to prevent falling off during reflow.
Optical Inspection
After soldering the Copernicus GPS module to the carrier board, follow IPC-610
specification to visually inspect using 3X magnification lens to verify the following:
•Each pin is properly aligned with mount pad.
•Pads are properly soldered.
•No solder is bridged to the adjacent pads. X-ray the bottom pad if necessary.
9 SHIPPING and HANDLING
92 Copernicus GPS Receiver
Cleaning
When the Copernicus GPS module is attached to the user board, a cleaning process
voids the warranty. Please use a “no-clean” process to eliminate the cleaning process.
The silver plated Copernicus GPS module may discolor with cleaning agent or
chlorinated faucet water. Any other form of cleaning solder residual may cause
permanent damage and will void the warranty.
Soldering Guidelines
Repeated Reflow Soldering
The Copernicus GPS lead-free silver plated module can withstand two-reflow solder
processes. If the unit must mount on the first side for surface-mount reflow, add glue
on the bottom of the module to prevent falling off when processing the second side.
Wave Soldering
The Copernicus GPS module cannot soak in the solder pot. If the carrier board is
mixed with through-hole components and surface mount devices, it can be processed
with one single lead-free wave process. The temperature of the unit will depend on
the size and the thickness of the board. Measure the temperature on the module to
ensure that it remains under 180 °C.
Hand Soldering
For the lead-free Copernicus GPS module, use a lead-free solder core, such as Kester
275 Sn96.5/Ag3/Cu0.5. When soldering the module by hand, keep the soldering iron
below 260 °C.
Rework
The Copernicus GPS module can withstand one rework cycle. The module can heat
up to the reflow temperature to precede the rework. Never remove the metal shield
and rework on the module itself.
Conformal Coating
Conformal coating on the Copernicus GPS module is not allowed. Conformal coating
will void the warranty.
Copernicus GPS Receiver 93
SHIPPING and HANDLING 9
Grounding the Metal Shield
The Copernicus GPS Receiver is designed with numerous ground pins that, along
with the metal shield, provide the best immunity to EMI and noise. Any alteration by
adding ground wires to the metal shield is done at the customer's own risk and may
void the warranty.
9 SHIPPING and HANDLING
94 Copernicus GPS Receiver
CHAPTER
10
Copernicus GPS Receiver 95
COPERNICUS REFERENCE BOARD 10
In this chapter:
Reference Board Block
Diagram
Reference Board Schematic
(page 1 of 3)
Reference Board Schematic
(page 2 of 3)
Reference Board Schematic
(page 3 of 3)
Reference Board I/O and
Power Connector
Reference Board Power
Requirement
Reference Board Jumper
Table
Reference Board
Component Locations
Drawing
This chapter provides schematics for the
Copernicus GPS Receiver board.
10 COPERNICUS REFERENCE BOARD
96 Copernicus GPS Receiver
Introduction
The Copernicus surface-mount GPS receiver is installed on a carrier board defined as
the Copernicus Reference Board. This board can also be used as a design reference,
providing a visual layout of the Copernicus module on a PCB including the RF signal
trace, RF connector, and the I/O connections of the 28 signal pins. The reference
board demonstrates how an 8-pin header connector can be connected to the I/O and
power sections of Copernicus, and how an RF connector can be attached to the RF
section. An antenna open and short detection and protection application circuit has
also been included on the reference board. The Copernicus GPS reference board is
RoHS compliant (lead-free).
Figure 10.1 Copernicus Reference Board, Frontside
IMAGE TO COME
Copernicus GPS Receiver 97
COPERNICUS REFERENCE BOARD 10
Figure 10.2 Copernicus GPS Reference Board, Backside
The Copernicus GPS reference board is installed on the starter kit motherboard to
facilitate testing and evaluation of the Copernicus GPS Receiver. It provides
everything the user needs to get started integrating state-of-the-art GPS capability
into an application.
IMAGE TO COME
10 COPERNICUS REFERENCE BOARD
98 Copernicus GPS Receiver
Reference Board Block Diagram
Copernicus GPS Receiver 99
COPERNICUS REFERENCE BOARD 10
Reference Board Schematic (page 1 of 3)
Note – Reference board schematics may differ from the recommendations outlined in
Table 3.1 due to the test mode requirements for Trimble’s internal use.
PPS
PPS
BOOT
Vmain
XRESET
MONITOR
Vant
VLED
GPIO_A5
LNA_XEN XSTANDBY
GPIO_A6
SHRT
GPIO_A11
OPN
GPIO_B5
GPIO_A10
GPIO_A4
Minimum length 50 ohm trace
1: TXDB 2: 3.3V
3: TXDA 4: Vback
5: RXDA 6: PPS
7: RXDB 8: GND
NOTE: 24 jumpers are
required to be included
on the BOM and in the
Assembly Drawing.
*C1 and C4 are impedance matching components,
values depend on the PBC layout.
Copernicus RF_IN is internally DC-decoupled.
C4*
18pF
U1
Copernicus
U1
GND1
1
GND3
2
RF_IN
3
GND5
4
PPS
19
LNA_XEN
5
GPIO_A10
18
GPIO_A11
17
OPEN
7
MONITOR
9
SHORT
8
BOOT
10
XRESET
11
GND25
14
VCC 12
TXD_B 24
GPIO_A5 22
TXD_A 23
RXD_A 21
GND24 13
GND26 15
GND27 27
GPIO_B5 6
GPIO_A6 26
GPIO_A4 25
XSTANDBY 16
RXD_B 20
GND28 28
L1
100nH
MTG2 MTG3
8 pin 2mm
J7
1
3
5
7
2
4
6
8
C1
18pF
J8
PPS
12
J5
VCC
1 2
J6
Vback
1 2
C3*
1pF
MTG1 MTG4
U2
BAT54C
3
1
2
C2
0.1µF
J4
XRESET
1 2
RF MCX
J1
1
3
2
4
5
10 COPERNICUS REFERENCE BOARD
100 Copernicus GPS Receiver
Reference Board Schematic (page 2 of 3)
Vmain
LEDPWR
VLED
GPIO_A4 GPIO_A5 GPIO_A6 GPIO_B5
GPIO_A11
GPIO_A10
Vmain
R18
R11
J13
GPIO_A6
1
2
3
R6
R12
J14
GPIO_B5
1
2
3
R19
D1
GPIO_A10 LED
12
R1
D2
GPIO_A11 LED
12
Q1
MGSF1N02LT1
1
2 3
D3
GPIO_A4 LED
12
D4
GPIO_A5 LED
12
R7
Q2
MGSF1N02LT1
1
2 3
D5
GPIO_A6 LED
12
J9
GPIO_A10
1
2
3
Q3
MGSF1N02LT1
1
23
D6
GPIO_B5 LED
12
R3
R20
J12
GPIO_A5
1
2
3
Q4
MGSF1N02LT1
1
2 3
R9
Q5
MGSF1N02LT1
1
2 3
R10
Q6
MGSF1N02LT1
1
2 3
J11
GPIO_A4
1
2
3
R21
R4
J16
GPIO_A10
1 2
R22
J17
GPIO_A11
1 2
J15
LED Power
1
2
J18
GPIO_A4
1 2
R23
R2
J19
GPIO_A5
1 2
R24
J20
GPIO_A6
1 2
R8
J21
GPIO_B5
1 2
R13
J10
GPIO_A11
1
2
3
R15R14 R16
R5
R17
Copernicus GPS Receiver 101
COPERNICUS REFERENCE BOARD 10
Reference Board Schematic (page 3 of 3)
Figure 10.3 Copernicus Reference Board Schematic (Page 3)
BOOT
MONITOR
XRESET
Vmain
LNA_XEN
Vant
SHRT
OPN
XSTANDBY
Vmain
Vmain
State OPN SHRT
OPEN 1 1
SHORT 0 0
OK 0 1
Undefined 1 0
MMBTA70LT1 transistor may
be used for Q8 if 12-volt
back voltage tolerance is
not required.
Low to reset
Low to FLASH
High to RUN
Must be
pulled high
to run (R25)
OPEN = FLASH
Low to start
in MONITOR
High for
NORMAL start
OPEN =
NORMAL start
High to RUN
Low to force
to STANDBY
OPEN = RUN
NOTE: OPEN and SHORT
signal logic is not valid
(indicates antenna short)
when Antenna Power jumper
is removed or LNA_XEN is
high.
BOOT
J25
1 2
J27
MONITOR
1 2
J24
Aux Cntl
1
2
3
SW1
RESET_SW
1 2
J26
Antenna Power
12
D7
MMBD914
1
3
2
R26
Q8
MMBT404A
1
2
3
R34
R28
Q7A
FDG6316P
1
2
6
Q10
MMBT3906
1
23
Q7B
FDG6316P
4
5
3
Q11
MMBT3906
1
23
R30
J28
3-pin header
1
2
3
R25
Q9
MMBT3904
1
2 3
J23
Aux Power
1
2
R33
R32
R31
R29
J22
Aux Output
1
2
R27
10 COPERNICUS REFERENCE BOARD
102 Copernicus GPS Receiver
Reference Board I/O and Power Connector
The Copernicus GPS reference board power and data I/O functions are integrated into
a single 8-pin header connector designated J7. The J7 connector uses 0.15 inch (3.8
mm) high pins on 0.0787 inch (2 mm) spacing. See the Copernicus GPS reference
board schematics, earlier in this chapter.
Table 10.1 Copernicus Reference Board Pin Description.
Reference Board Power Requirement
The Copernicus GPS reference board requires +3.0 VDC to 3.6 VDC. The receiver
power is supplied through pin 2 of the I/O connector.
The Copernicus GPS reference board also provides an input for back-up power used
when Copernicus is put in Standby mode and prime power is turned off. Back-up
power is used to keep the Copernicus RAM memory alive and to power the real-time
clock. RAM memory is used to store the GPS almanac, ephemeris, last position, and
user configuration data, including port parameters.
Pin # Function Description
1 TXD-B Port B transmit, CMOS/TTL
2 VCC 3.0 VDC to 3.6 VDC
3 TXD-A Port A transmit, CMOS/TTL
4 VBack 3.0 VDC to 3.3 VDC
The STANDBY supply shall be at least 0.3V less than
VCC.
5 RXD-A Port A receive, CMOS/TTL
6 1 PPS Pulse-Per-Second, CMOS/TTL
7 RXD-B Port B receive, CMOS/TTL
8 GND Ground, Power and Signal
Copernicus GPS Receiver 103
COPERNICUS REFERENCE BOARD 10
Reference Board Jumper Table
Table 10.2 Copernicus Reference Board Jumper Table
* See Copernicus Reference Board Schematics in this chapter.
Note – See Table 3.1 for pin numbers. indicates pin 1.
Reference Designator Name Description
J1 RF Input MCX Jack (Female Connector)50 Ohms
unbalanced
J4 XRESET Normal Operation: Jumper in place (connects
XRESET to VCC)
Reset Operation: Removing the Jumper and
asserting pin 2 of J4 low for greater than 100 usec
resets the unit. *Switch SW1 can also reset the
unit. Please see below.
SW1 Reset Switch Press the button resets the unit.
J5 VCC Normal Operation: Jumper in place (Applies
VCC to unit)
Test M ode: Jumper may be removed and ampere
meter may be inserted for current measurement.
J6 Vback Normal Operation: Jumper in place.(Applies
VBack to unit). The user can use VCC as the
STANDBY Supply.
J7 8-Pin Header See Table 10 for Reference Board pin Description.
J8 PPS Normal Operation: Jumper in place.(It outputs
PPS at pin 9 of both DB9 connectors of the Starter
Kit through J7 pin 6 of the Reference Board).
J9-J21 Reserved Reserved
J25 Reserved Reserved
Normal Operation: No Jumper (Run Mode).
J27 Reserved Reserved
J28 XSTANDBY Normal Operation: Jumper between pins 1 and
2 of the jumper J28 (Run Mode). *
Standby Mode: Jumper between pins 2 and 3 of
J28. *For external control, Jumper may be
removed and pin 2 of the jumper can be
externally controlled, e.g. via a host processor.
J22-24 Spare Spare driver transistor
J26 Antenna
Power
Normal Operation: Jumper in place.(Active
antenna powered from VCC).If a separate power
supply is desired for active antenna, jumper may
be removed and an external antenna power can
be applied to pin 2 of J26. *
10 COPERNICUS REFERENCE BOARD
104 Copernicus GPS Receiver
Reference Board Component Locations Drawing
Figure 10.4 Copernicus Reference Board, Top Side
Figure 10.5 Copernicus Reference Board Schematic, Bottom Side
CHAPTER
11
Copernicus GPS Receiver 105
FIRMWARE UPGRADE 11
In this chapter:
This chapter describes an
interface for programming
(loading) firmware into the
Copernicus GPS receiver.
The interface can be used
to develop a tool to
upgrade firmware in the
field. Sample source code
of a tool for Microsoft®
Windows is available to
demonstrate
implementation of the
interface described in this
document.
Software Architecture
Boot Monitor
Firmware Binary File
Format
Firmware Loading
Procedure
Monitor Interface Protocol
FlashLoader Tool Reference
Guide
This chapter describes an interface for
programming (loading) firmware into the
Copernicus GPS receiver. The interface can be
used to develop a tool to upgrade firmware in the
field. Sample source code of a tool for
Microsoft® Windows is available to
demonstrate implementation of the interface
described in this document.
The information contained in this chapter is
applicable only to the Copernicus GPS receiver
developed by the Advanced Devices group of
Trimble Navigation Ltd. It may not be relevant
to other products.
11 FIRMWARE UPGRADE
106 Copernicus GPS Receiver
Software Architecture
The Flash memory chip of the GPS receiver is divided into several functional
sections. The Boot ROM section is loaded during production and cannot be changed
or erased without special packets with password protection. The User Data section is
maintained by the application. The Copernicus GPS Receiver Firmware section holds
the main software application, and can be erased and loaded with a newer version
through the GPS receiver’s serial port.
Boot Monitor
The boot monitor module is a part of the Boot ROM section. It provides facilities to
perform checksum verification and RAM tests, and to read/write data from/to a
specified location in RAM or Flash, thus allowing the user to update the firmware.
The GPS receiver will enter the boot monitor mode if either of the following
conditions occurs:
•Application firmware checksum verification failed at power-up;
•RAM test failed at power-up;
•A special protocol packet is issued by the user.
Once the system is in the monitor mode, a special Monitor protocol is used to
communicate with the Copernicus GPS Receiver (here after referred as the Target).
The necessary details about this protocol are presented in Appendix A.
To return from the monitor to the normal GPS operating mode (i.e. execute the
application firmware), either
•Cycle the main power or
•Toggle the reset pin, or
•Send a “Restart Target” packet described on page 115.
The default settings for the Copernicus GPS receiver’s serial ports in the monitor
mode are:
•Serial port A: 38400 baud, 8 data bits, 1 stop bit, and no parity
•Serial port B: 4800 baud, 8 data bits, 1 stop bit, and no parity
Table 11.1 Functional Software Components and Memory Map
Word Address Software Component/Section
0x3FC000 – 0x3FFFFF Boot ROM
0x3F8000 – 0x3FBFFF <reserved>
0x3E0000 – 0x3F7FFF User Data
0x360000 – 0x3DFFFF Copernicus GPS Firmware
0x300000 – 0x35FFFF <reserved>
Copernicus GPS Receiver 107
FIRMWARE UPGRADE 11
Firmware Binary File Format
The firmware is distributed as a 16 Mbit binary file that includes the whole Flash
image, i.e. the Copernicus GPS Firmware, Boot ROM, and all the other Flash
sections. The Monitor protocol requires that the actual loadable raw data bytes be sent
to the target to program into Flash. The loadable data is expected to be sent in a
sequential manner, in the order from the lowest to the highest loading address. Data
will be programmed starting at the base address specified when initiating firmware
loading. Therefore, the GPS Firmware portion of the binary file must be extracted
prior to sending it to the target. Appendix A provides a reference to example source
code that shows how to extract data from the binary file.
Firmware Loading Procedure
This section describes the procedure for loading firmware into the Flash chip of the
Copernicus GPS receiver (referred to as “target” throughout this document).
The following pseudo-code shows the general sequence of steps. The details of each
step are provided later in this section.Appendix A provides a reference to the sample
C source code that shows how to implement this pseudo-code.
Pseudo-code
Load Firmware to Target:
{
Read the firmware BIN file, extract the application firmware, and
load into a memory buffer.
Set local serial port settings depending on serial port used.
For Port A, set 38400-8-none-1; for Port B, set 4800-8-none-1;
If using TSIP, establish connection using the TSIP protocol:
Send TSIP version request packet 0x1F;
Wait for TSIP version response packet 0x45;
If TSIP version response packet not received:
Exit/power-cycle target and repeat from beginning;
If using NMEA, establish connection using NMEA protocol:
Send NMEA version request packet VR;
Wait for NMEA version response packet VR;
If NMEA version response packet not received:
Exit/power-cycle target and repeat from beginning;
Force target into Monitor mode;
11 FIRMWARE UPGRADE
108 Copernicus GPS Receiver
Send “force-to-monitor” command (TSIP or NMEA depending on the
port used);
Wait 0.5 secs to let the target switch to the monitor mode;
Establish connection to target using Monitor mode protocol:
Send hand-shaking packet ENQ;
Wait for response packet ACK;
If ACK packet not received:
Exit/power-cycle target and repeat from beginning;
If the local host’s hardware can support it, change Monitor mode
baud rate and local serial port settings to 115200 baud for faster
loading:
Send “Change Baud” packet 0x86;
Wait 0.5 secs
Change local serial port settings;
Send hand-shaking packet ENQ;
Wait for response packet ACK;
If ACK packet not received:
Exit/power-cycle target and repeat from beginning;
Send “Erase Firmware” packet 0x8F;
Wait for response packet ACK;
If ACK packet not received:
Exit/power-cycle target and repeat from beginning;
Send “Start Firmware Programming” packet 0x8B;
Wait for response packet ACK;
If ACK packet not received:
Exit/power-cycle target and repeat from beginning;
Send firmware data bytes, one word (2 bytes) at a time. For faster loading, data
can be sent up to 200 bytes at a time (must be a multiple of 2 bytes).
Wait for response packet ACK after all data has been sent;
If NAK packet received:
Try again starting with the “Erase Firmware” step;
If ACK packet not received at all:
Power-cycle target and repeat from beginning;
If ACK packet received:
Send “Restart Target” packet 0x8C;
Loading was successful;
}
Copernicus GPS Receiver 109
FIRMWARE UPGRADE 11
Pseudo-Code Explanation
The following provides details about the steps shown in the above pseudo-code for
the firmware loading procedure.
1. Read firmware BIN file and load into a memory buffer.
(See Appendix A for an example function that shows how this is achieved.)
2. Establish a serial port connection to the target in the TSIP or NMEA mode.
Communication with the target over its serial port must be established first.
Change the local host’s port settings to match those of the target. Refer to the
GPS receiver’s user manual for details.
If using TSIP, issue a TSIP version request (packet 0x1F) and wait for the
response (packet 0x45). The receipt of the packet 0x45 shows that the host port
settings and the target port settings match and the host is communicating with
the target. If the packet 0x45 is not received, the host and target port settings
are not in agreement.
If using NMEA, issue NMEA version request (packet VR) and wait for the
response. The user manual includes the TSIP and NMEA protocol
specification. The receipt of the response of the packet VR shows that the host
port settings and the target port settings match and the host is communicating
with the target. If the response of the packet VR is not received, the host and
target port settings are not in agreement.
In some cases, the target may enter the monitor mode automatically when
power is applied. For example, if the previous firmware loading process has
not been finished, the firmware checksum won’t match, and the target will
automatically start up in the monitor mode. In such cases, Step 2 will fail, and
the loading procedure should continue at Step 4 as described below.
3. Force the target into the monitor mode.
Assuming the communication has been established, issue the “Force to
Monitor” command. If using TSIP, the following byte string (hex values) must
be sent to the target to force it into the monitor mode:
10 1E 4D 10 03
If using NMEA, the following character string must be sent to the target to
force it into the monitor mode:
$PTNLSEM*
Once the system is in the monitor mode, a special Monitor protocol is used to
communicate with the Copernicus GPS Receiver.
See the Appendices in this manual for detailed information on both TSIP and
NMEA Force to Monitor commands.
After issuing the command, wait 0.5 seconds before proceeding with the next
step to allow the target to switch to the monitor mode and be ready to accept
Monitor mode commands.
11 FIRMWARE UPGRADE
110 Copernicus GPS Receiver
4. Establish a serial port connection to the target in the Monitor mode.
Once the target enters the monitor mode, it changes the GPS receiver’s serial
port settings to 38400 baud (port A) or 4800 baud (port B), 8 data bits, 1 stop
bit, and no parity. To establish communication to the target in the monitor
mode, the local host’s settings must be changed to the same value, and the ENQ
packet sent to the target. The target will respond with ACK to indicate the
communication has been established. Refer to Section ENQ, ACK, NAK for
details on this packet.
5. Change baud rate for faster loading.
If the local host’s hardware can support higher baud rates, it is better to change
the baud rate to maximum possible for the fastest loading time. First send
“Change Baud” Monitor Mode packet 0x86 to the target with the desired baud
rate. See page 113 for details on this packet. Wait 0.5 seconds to let the packet
be transmitted, change the local baud rate to the same settings, and send ENQ
packet to the target. The target will respond with ACK at the new baud rate to
indicate the communication has been established.
6. Erase firmware section.
Before the firmware can be programmed, the GPS firmware section in Flash
must be erased. The “Erase Firmware Section” Monitor Mode packet 0x8F
must be sent to the target. The target will respond with ACK when the section
is erased. See page page 113 for details on this packet.
7. Send size and start address of the firmware.
In this step, the size and start (base) address of the firmware is sent to the target
using the “Start Firmware Programming” Monitor Mode packet 0x8B. This
packet initiates the firmware loading process. The target will respond with
ACK as soon as this packet is received. See page 114 for details on this packet.
8. Send firmware data.
Once the “Start Firmware Programming” packet is sent, the target expects a
stream of 2-byte words. The host must send this data one word at a time, with
the most significant byte of each word sent first. There is no protocol
formatting for this data stream. For faster loading, data can be sent up to 200
bytes at a time. Note that whatever the size, it must be a multiple of 2 bytes.
See Appendix A for example source code, which shows how this is done. Once
the target received and programmed all of the data into Flash, it will send ACK
to indicate success. If NAK is received, an error occurred, and the process must
be repeated from Step 6.
9. Restart the target.
Once firmware loading is complete, the “Restart Target” Monitor Mode packet
0x8C should be issued to reset the GPS receiver. Upon reset, the new firmware
will start up. See page 115 for details on this packet.
Copernicus GPS Receiver 111
FIRMWARE UPGRADE 11
Error Recovery
The GPS receiver is designed in such way that the system will not be damaged during
a firmware update. When there is an unexpected error while loading firmware, the
target can always be restarted by cycling the main power. At power-up, the target will
automatically enter the monitor mode if the firmware loading process has not
completed successfully. In such a case, the host will able to repeat the firmware
loading procedure as described above.
If the Boot Code in the Flash memory is inadvertently overwritten, the module can
become unusable. See Warning at the end of the description of the Monitor Mode
Packet ID – 0x8B.
Monitor Interface Protocol
Protocol Format
The following packet structure is used by the Monitor Mode Protocol:
Byte 0 – start of new packet (value: 0x02)
Byte 1 – delimiter byte (value: 0x00)
Byte 2 – packet ID
Byte 3 – size (in bytes) of packet data (DATA field only)
Bytes 4 … N – packet data
Byte N+1 – packet checksum NOTE 1.
Byte N+2 – end of packet (value: 0x03)
Note – The checksum is computed as the sum of all bytes from the packet ID to the
end of the packet data truncated to an 8-bit value, i.e.:
CHKSM = (unsigned char)(ID + LEN + DATA[0] + … + DATA[N-1]);
Data Transmission
Data values are transmitted with the most significant byte of the value sent first. For
example, transmitting a 4-byte memory address 0x004101F0 means sending byte
0x00 first, 0x41 second, 0x01 third, and 0xF0 last.
Table 11.2 Monitor Mode Protocol
BYTE 0 BYTE 1 BYTE 2 BYTE 3 BYTES 4 … N BYTE N+1 BYTE N+2
STX
0x02
NULL_C
0x00
ID LEN DATA CHKSM ETX
0x03
11 FIRMWARE UPGRADE
112 Copernicus GPS Receiver
Monitor Mode Packet Descriptions
ENQ, ACK, NAK
ENQ, ACK, and NAK are special bytes that are sent out without being formatted as
described in Protocol Format, page 111.
The target responds to a formatted packet with either ACK (hex byte: 0x06) or NAK
(hex byte: 0x15) unless specified otherwise. ACK indicates a successful operation.
NAK indicates a failure in executing the command.
ENQ (hex byte: 0x05) provides a simple hand-shaking mechanism to verify that the
target is alive and running in the Monitor Mode. The target sends ACK for every
ENQ received.
Packet ID – 0x76 (Boot ROM Version Query)
This packet requests the boot ROM version information. Upon receiving this packet,
the target replies with packet 0x96.
Packet ID – 0x96 (Boot ROM Version Report)
This packet is sent by the target in response to packet 0x76. It returns Boot ROM
version information.
Note – The field “Year” is 2 bytes long with the most significant byte sent first.
Table 11.3 Boot ROM Version Query
BYTE 0 BYTE 1 BYTE 2 BYTE 3 BYTE 4 BYTE 5
0x02 0x00 0x76 0x00 0x76 0x03
Table 11.4 Boot ROM Version Report
BYTE 0 BYTE 1 BYTE 2 BYTE 3 BYTE 4 BYTE 5 BYTE 6 BYTE 7 BYTES 8-9 BYTE 10 BYTE 11
0x02 0x00 0x96 0x06 Major
Ver
Minor
Ver
Month Day Year CHKSM 0x03
Copernicus GPS Receiver 113
FIRMWARE UPGRADE 11
Packet ID – 0x86 (Change Baud Rate)
This packet forces the target system to change the serial baud rate to the specified
rate. The valid baud rate values are listed in the table below. The target system returns
ACK in the old baud rate before the change and another ACK in the new baud rate if
the change succeeds. If the baud rate change fails, the unit returns NAK in the old
baud rate.
Packet ID – 0x8F (Erase Firmware Section)
This packet initiates the erase operation on the target. It only erases the firmware
portion of the Flash chip. The target returns either ACK or NAK indicating the result
of the operation.
Table 11.5 Change Baud Rate
BYTE 0 BYTE 1 BYTE 2 BYTE 3 BYTE 4 BYTE 5
0x02 0x00 0x86 Baud CHKSM 0x03
Table 11.6 Change Baud Rate
Parameter Data Type Description
Baud Rate Byte Baud Rate:
5 – 2400 bps
6 – 4800 bps
7 – 9600 bps
8 – 19200 bps
9 – 38400 bps
10 – 57600 bps
11 – 115200 bps
Table 11.7 Erase Firmware Section
BYTE 0 BYTE 1 BYTE 2 BYTE 3 BYTE 4 BYTE 5
0x02 0x00 0x8F 0x00 0x8F 0x03
11 FIRMWARE UPGRADE
114 Copernicus GPS Receiver
Packet ID – 0x8B (Start Firmware Programming)
This packet initiates firmware loading. It has two parameters. The first parameter (4-
byte value) contains the size of the firmware in bytes. This is the actual number of
bytes that will be written to Flash. The second parameter contains the starting address
in Flash where the data will be written.
Once the target receives this packet, it will respond with ACK and wait for the actual
data, one word at a time. Each word must be sent with the most significant byte first.
All data from the host will be written to the target in the order in which it is received.
The target will not recognize any other packets until the loading is completed. If
successful, the target will return ACK upon completion, or NAK if an error has
occurred.
CWARNING – The target does not check validity of the starting address nor the size. It is
the host’s responsibility to ensure that all parameters are within the system specification.
If incorrect specification of the starting address overwrites Boot Code, the module will be
unusable.
Table 11.8 Start Firmware Programming
BYTE 0 BYTE 1 BYTE 2 BYTE 3 BYTES 4-7 BYTES 8-11 BYTE 12 BYTE 13
0x02 0x00 0x8B 0x08 Size Address CHKSM 0x03
Table 11.9 Start Firmware Programming
Parameter Data Type Description
Size unsigned long Size of loadable data in bytes.
Address unsigned long Starting physical address
where data will be written to.
Copernicus GPS Receiver 115
FIRMWARE UPGRADE 11
Packet ID – 0x8C (Restart Target)
This packet returns the target from the monitor to the normal operating mode. As at
startup, the target will initialize all system resources and perform all system tests. The
target returns ACK to acknowledge the received packet before the execution.
This packet is designed to bring the receiver from the monitor mode to the normal
mode after a firmware update.
Note – This packet also clears all BBRAM sections to guarantee a cold start after a
firmware update.
Table 11.10 Restart Target
BYTE 0 BYTE 1 BYTE 2 BYTE 3 BYTE 4 BYTE 5
0x02 0x00 0x8C 0x00 0x8C 0x03
11 FIRMWARE UPGRADE
116 Copernicus GPS Receiver
FlashLoader Tool Reference Guide
Introduction
Flash Loader is a tool for Microsoft Windows that loads firmware into the Flash chip
of the GPS receiver. This tool is used to upload new firmware into the Copernicus
GPS Receiver mounted on the Reference Board installed in the Copernicus Starter
Kit.
The source code of the tool is documented to provide an example of how to develop a
custom application to perform firmware updates. It shows how to use the Monitor
protocol to implement the firmware loading procedure (see Firmware Loading
Procedure, page 107). It can be used, for example, to develop a program to update
firmware remotely over a network connection.
FlashLoader has been created using the Microsoft Visual C++® v6.0 development
environment. It uses the MFC framework to implement the graphical user interface.
While the compiled executable of the tool is provided together with the source code,
Microsoft Visual C++ v6.0 or .NET is required to re-compile the source files and
generate a fresh executable if desired.
File and Folder Structure
The FlashLoader tool directory contains the following 3 sub-directories:
•bin – contains the FlashLoader binary executable file;
•mak – contains the project files for Microsoft Visual C++ v6.0 and .NET
development environments;
•src – contains the C++ source and header files.
Source Code Reference
All source code files referenced in this section are located in the src directory of the
FlashLoader tool distribution. The source files are fully commented throughout.
Parsing Firmware BIN File
The function LoadBinFile() defined in Util.cpp shows how to parse the firmware BIN
file, extract the loadable data, and store into a local buffer for sending to the target.
Creating Packets in the Monitor Protocol Format
The functions GetXxxxxPkt() defined in Util.cpp show how to format various packets
using the monitor interface protocol.
Copernicus GPS Receiver 117
FIRMWARE UPGRADE 11
Loading Firmware to the Target
The function FlashProgrammingThread() defined in FlashLoaderDlg.cpp shows how
to implement the firmware loading procedure described above.
Compiling and Generating the Executable
The FlashLoader tool can be re-compiled using the provided project make files.
If using Microsoft Visual C++ v6.0, open the workspace file FlashLoader.dsw located
in the mak directory of the tool distribution. From the main menu, select Build
Æ
Rebuild All. This will compile the source files, generate the executable, and place it in
the bin directory.
If using Microsoft Visual C++ .NET, open the solution file FlashLoader.sln located in
the mak directory of the tool distribution. From the main menu, select Build
Æ
Rebuild Solution. This will compile the source files, generate the executable, and
place it in the bin directory.
11 FIRMWARE UPGRADE
118 Copernicus GPS Receiver
APPENDIX
A
Copernicus GPS Receiver 119
TRIMBLE STANDARD INTERFACE
PROTOCOL (TSIP) A
In this appendix:
Interface Scope
Run Mode Packet Structure
Appendix , Automatic Output
Packets
Automatic Position and Velocity
Reports
Initialization Packets to Speed
Start-up
Packets Output at Power-Up
Timing Packets
Satellite Data Packets
Backwards Compatibility to
Lassen iQ
Recommended TSIP Packets
Command Packets Sent to the
Receiver
Report Packets Sent by the
Receiver to the User
Key Setup Parameters or Packet
BB
Packet Descriptions
Command Packet 0x82 - SBAS
Correction Status
TSIP Superpackets
Datums
The Trimble Standard Interface Protocol (TSIP)
provides the system designer with over 20
commands that may be used to configure a GPS
receiver for optimum performance in a variety of
applications. TSIP enables the system designer
to customize the configuration of a GPS module
to meet the requirements of a specific
application.
This appendix provides the information needed
to make judicious use of the powerful features
TSIP has to offer, to greatly enhance overall
system performance, and to reduce the total
development time. The provided reference tables
will help you determine which packets apply to
your application. See page 129 for a detailed
description of key setup parameters. Application
guidelines are provided for each TSIP Command
Packet, beginning on page 131.
A TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP)
120 Copernicus GPS Receiver
Interface Scope
The Trimble Standard Interface Protocol is used extensively in Trimble receiver
designs. The protocol was originally created for the Trimble Advanced Navigation
Sensor (TANS) and is colloquially known as the TANS protocol even though the
protocol applies to many other devices.
The Lassen IQ GPS Receiver has two serial I/O communications ports. These are bi-
directional control and data ports. The data I/O port characteristics, protocol
definitions, and other options are user programmable and can be stored in non-
volatile FLASH memory.
The TSIP protocol is based on the transmission of packets of information between the
user equipment and the unit. Each packet includes an identification code (1 byte,
representing 2 hexadecimal digits) that identifies the meaning and format of the data
that follows. Each packet begins and ends with control characters.
This document describes in detail the format of the transmitted data, the packet
identification codes, and all available information over the output channel to allow
the user to choose the data required for his particular application. As will be
discussed, the receiver transmits some of the information (position and velocity
solutions, etc.) automatically when it is available, while other information is
transmitted only on request. Additional packets may be defined for particular
products and these will be covered in the specifications for those products as
necessary.
The Copernicus Monitor included in the Tool Kit is designed to exercise many of the
TSIP packets.
Run Mode Packet Structure
TSIP packet structure is the same for both commands and reports. The packet format
is:
<DLE> <id> <data string bytes> <DLE> <ETX>
Where:
•<DLE> is the byte 0x10
•<ETX> is the byte 0x03
•<id> is a packet identifier byte, which can have any value excepting <ETX>
and <DLE>.
The bytes in the data string can have any value. To prevent confusion with the frame
sequences <DLE> <ID> and <DLE> <ETX>, every <DLE> byte in the data string is
preceded by an extra <DLE> byte ('stuffing'). These extra <DLE> bytes must be added
('stuffed') before sending a packet and removed after receiving the packet. Notice that
a simple <DLE> <ETX> sequence does not necessarily signify the end of the packet,
as these can be bytes in the middle of a data string. The end of a packet is <ETX>
preceded by an odd number of <DLE> bytes.
Copernicus GPS Receiver 121
TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP) A
Multiple-byte numbers (integer, float, and double) follow the ANSI/IEEE Std. 754
IEEE Standard for binary Floating-Point Arithmetic. They are sent most-significant
byte first. This may involve switching the order of the bytes as they are normally
stored in Intel based machines. Specifically:
•UINT8 = Byte: An 8 bit unsigned integer.
•UINT16 = Word: A 16 bit unsigned integer.
•INT16 = Integer: A 16 bit integer.
•INT32 = Long: A 32 bit integer.
•UINT32 = ULong: A 32 bit unsigned integer.
•Single — Float, or 4 byte REAL has a precision of 24 significant bits, roughly
6.5 digits.
•Double — 8 byte REAL has a precision of 52 significant bits. It is a little better
than 15 digits.
Automatic Output Packets
The Lassen IQ GPS Receiver is configured to automatically output the following
packets. For minimal system implementations, these output packets provide all of the
information required for operation including time, position, velocity, and receiver and
satellite status and health. Position and velocity are reported using one or more of the
packets listed below, depending on the selected I/O options. While there are other
packets automatically output, the following packets provide the information most
commonly used. No input packets are required.
Table A.1 Automatic Output Packets
Output Packet ID Description Reporting
Interval
0x41 GPS time 1 second
0x42, 0x83, 0x4A, 0x84, 0x8F-
20
position (choose packet with I/O options) 1 second
0x43, 0x56, 0x8F-20 velocity (choose packet with I/O options) 1 second
0x46 health of receiver 1 second
0x4B machinecode/status (includes antenna fault
detect)
1 second
0x6D all-in-view satellite selection, DOPs, Fix Mode 1 second
0x82 SBAS fix mode (always the last packet of the
fix information)
1 second
A TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP)
122 Copernicus GPS Receiver
Automatic Position and Velocity Reports
The receiver automatically outputs position and velocity reports at set intervals.
Automatic report packets are controlled by Packet 35. Setting the control bits as
indicated in the table below allows you to control which position and velocity packets
are output.
Table A.2 Automatic Position and Velocity Reports
Note – In packets 0x42, 0x83, 0x4A, 0x84, 0x43, 0x56, 0x8F-17 and 0x8F-18 when
the Time of Fix parameter is reported as -1, this means that the fix information is not
calculated by the Copernicus GPS Receiver, but comes from another source such as
SRAM, Flash Memory or user input. In Packet 8F-20, this information is denoted by
the Invalid Fix parameter: being set to 1 denotes that the fix comes from another
source besides the Copernicus GPS Receiver.
Report
Packet ID
Request
Settings
Packet 0x35, Byte 0 Packet 0x35, Byte 1
Bit 9 Bit 1 Bit 4 Bit 5 Bit 0 Bit 1
0x42 single precision
XYZ position
10
0x83 double-precision
XYZ position
11
0x4A single-precision
LLA position
10
0x84 double-precision
LLA position
1
(default)
1
0x43 velocity fix (XYZ,
ECEF)
1
0x56 velocity fix (ENU) 1(default)
0x8F-20 LLA and ENU 1
Copernicus GPS Receiver 123
TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP) A
Initialization Packets to Speed Start-up
If you are not supplying the receiver with battery power when main power is off, you
can still “warm-start” the receiver by sending the following sequence of commands
after the receiver has completed its internal initialization and has sent Packet 82. Hot
start times can be achieved using packet 0x38-06 to upload the ephemeris. Only time
and position are necessary for the hot start since the almanac and ephemeris are
stored in flash. Position is also stored in flash which improves first fix accuracy.
Table A.3 Initialization Packets to Speed Start-up
Packets Output at Power-Up
The following table lists the messages output by the receiver at power-up. After
completing its self-diagnostics, the receiver automatically outputs a series of packets
which indicate the initial operating condition of the receiver. Messages are output as
listed in the table below. After Packet 82 is output, the sequence is complete and the
receiver is ready to accept commands.
Table A.4 Packets Output at Power-up
Input Byte Description
0x2E Initial Time
0x38 Almanac (for each SV)
0x38 Ephemeris
0x38 Ionosphere Page
0x38 UTC Corrections
0x38 Almanac Health
0x2B Initial Position
Output ID Description Notes
0x45 software version --
0x46 receiver health --
0x4B machine code/status --
As chosen, default: 0x84,
0x56
position/velocity output As chosen, see
Table A.2.
0x41 GPS time
0x82 SBAS fix mode See command
0xBB to
enable/disable
SBAS
A TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP)
124 Copernicus GPS Receiver
Timing Packets
If you are using the Lassen IQ GPS Receiver as a timing reference, you may need to
implement the following TSIP control commands.
Table A.5 Timing Packets
Satellite Data Packets
The following packets contain a variety of GPS satellite data.
Table A.6 Satellite Data Packets
Backwards Compatibility to Lassen iQ
The following General Packets and Differences between TSIP Used in Lassen iQ/SQ
and Copernicus GPS Receiver
•0x41, 0x46, 0x4B automatic packets are output every 1 second instead of every
5 seconds.
•DGPS is not supported in the Copernicus GPS Receiver. Thus, the following
packets are not supported:
0x60 /0x61
0x65/0x85
•0x69 / 0x89 not available. The Lassen IQ GPS Receiver is a high sensitivity
receiver.
•0x70 packet is not supported in the Copernicus GPS Receiver. The Copernicus
GPS Receiver supports only Kalman Filter and it can not be turned off. No PV
filter is available in Copernicus Module.
•Packet 0xC0 – Graceful Shutdown and Go To Standby Mode is supported in
the Copernicus GPS Receiver.
•In “Key Setup Parameters of Packet BB”, BB packet is still the same, but:
Cannot set signal mask.
Fix mode/DOP mask/DOP switch/DGPS correction age are not supported.
Input ID Description Output ID
0x21 get the current GPS time 0x41
0x38-05 request UTC parameters 0x58-05
Input ID Description Output ID
0x27 request signal levels 0x47
0x38 request/load satellite system data 0x58
0x3C request tracking status 0x5C
Copernicus GPS Receiver 125
TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP) A
The dynamic modes are Land, Sea and Air
•In packet description of 0xBB, Navigation Configuration:
Byte 1, only value 0, automatic is supported
Byte 2, is now used for SBAS
Byte 3, only values 1, 2, and 3 are supported
Bytes 9-12, change AMU mask (not supported)
Bytes 13-21 are changed to reserved.
•In packet 0x1E:
byte 0 - add 0x4D for enter Monitor Mode. The response packet is 0x5F-FF-
‘*’-‘*’-‘*’-‘ ‘-‘M’-‘O’-‘N’-‘I’-‘T’-‘O’-‘R’-‘ ‘-‘*’-‘*’-‘*’.
•0x35/0x55 packets – “Filtered PR’s in 5A” is not supported.
•0x3A/0x5A packets, Raw Measurement diagnostic packets have been added to
the Copernicus GPS Receiver.
•0x45 packet, Byte 9, “Year number minus 1900” instead of “Year number
minus 2000.
•In the 0x7A packet of the Copernicus GPS Receiver, the NMEA sentences TF
and BA have been added.
•0xBC, Protocol Configuration:
Byte 1, Two new baud rates have been added: value 10 (57600 baud), and
value 11 (115200 baud)
Byte 3, only value 3 (8 data bits) is supported.
Byte 4, only value 0 (No Parity) is supported.
Byte 5, only value 0 (1 Stop Bit) is supported.
•8E-4A, PPS Configuration:
Byte 3, Polarity, BYTE, 0 = Positive, 1 = Negative
•0x8E-17/0x8E-18, Set/Request UTM output are supported in Copernicus GPS
Receiver.
•The new packet 0x1C has been added to the Copernicus GPS Receiver. Lassen
iQ FW v1.16 also supports this packet.
A TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP)
126 Copernicus GPS Receiver
Recommended TSIP Packets
Table A.7 Recommended TSIP Packets
Note – Automatic output is determined by packet 0x35. See Table A.4 to determine
messages output at startup.
Function Description Input Output
Protocol and port setup set/query port configuration 0xBC 0xBC
set/query NMEA configuration 0x7A 0x7B
set/query I/O options (autoreport and
format options)
0x35 0x55
Navigation GPS time 0x21 0x41
position & velocity (superpacket) 0x8E-20 or
0x37 or
auto
0x8F-20
double-precision LLA 0x37/auto 0x84
double-precision XYZ ECEF 0x37/auto 0x83
ENU velocity 0x37/auto 0x56
XYZ ECEF velocity 0x37/auto 0x43
Satellite and tracking
information
query receiver state (health) 0x26 0x46,
0x4B
query current satellite selection 0x24 0x6D
query signal levels 0x27 0x47
query satellite information (azimuth,
elevation, etc.)
0x3C 0x5C
Receiver settings query software version 0x1C 0x1C-81
query receiver ID & error status 0x26 0x4B,
0x46
set/query receiver configuration 0xBB 0xBB
GPS System query/load GPS system data 0x38 0x58
Initialization full reset (clear battery backup and/or
non-volatile settings)
0x1E
soft reset 0x25
set GPS time 0x2E 0x4E
set approx. LLA 0x2B
set approx. XYZ ECEF 0x23
set exact LLA 0x32
set exact XYZ ECEF 0x31
Copernicus GPS Receiver 127
TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP) A
Command Packets Sent to the Receiver
The table below summarizes the command packets sent to the receiver. The table
includes the input Packet ID, a short description of each packet, and the associated
response packet. In some cases, the response packets depend on user-selected options.
These selections are covered in the packet descriptions beginning on page 131
Table A.8 Command Packets Sent to the Receiver
Note – Automatic output is determined by packet 0x35. See Table A.4 to determine
which messages are output at power-up. No response sent if data is not available.
Input ID Packet Description Output ID
0x1C Hardware and firmware versions numbers 0x1C-81
0x1E clear battery back-up/reset See Note 1
0x1F software version 0x45
0x21 current time 0x41
0x23 initial position (XYZ ECEF) --
0x24 request receiver position fix mode 0x6D
0x25 soft reset & self-test See Note 1
0x26 receiver health 0x46, 0x4B
0x27 signal levels 0x47
0x2B initial position (LLA) --
0x2D oscillator offset 0x4D
0x2E set GPS time 0x4E
0x31 accurate initial position (XYZ ECEF) --
0x32 accurate initial position --
0x35 I/O options 0x55
0x37 status and values of last position and velocity 0x57
0x38 load or request satellite system data 0x58
0x3C tracking status 0x5C, see Note 2
0x7A set/request NMEA output configuration 0x7B
0x8E-20 last fix with extra information (fixed point) 0x8F-20
0x8E-26 store settings in Flash memory. 0x8F-26
0x8E-4A Set Copernicus GPS Cable Delay and PPS Polarity 0x8F-4A
0xBB set receiver configuration 0xBB
0xBC set port configuration 0xBC
0xC0 go to BBRAM backup state and/or store BBRAM to flash
0xC1 Bit mask for GPIOs in Standby Mode 0xC1
0xC2 SBAS SV Mask 0xC2
A TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP)
128 Copernicus GPS Receiver
Report Packets Sent by the Receiver to the User
The table below summarizes the packets output by the receiver. The auto response
and power-up packets may depend on user-selected options (see Table A.22).
Table A.9 Report Packets Sent by the Receiver to the User
Output ID Packet Description Input ID
0x1C-81 Hardware and firmware version numbers 0x1C
0x41 GPS time 0x21, auto
0x42 single-precision XYZ position 0x37, auto
0x43 velocity fix (XYZ ECEF) 0x37, auto
0x45 software version information 0x1F, power-up
0x46 health of Receiver 0x26, auto, power-up
0x47 signal level for all satellites 0x27
0x4A single-precision LLA position 0x37, auto
0x4B machine code/status 0x26, auto, power-up
0x4D oscillator offset 0x2D
0x4E response to set GPS time 0x2E
0x55 I/O options 0x35
0x56 velocity fix (ENU) 0x37, auto
0x57 information about last computed fix 0x37
0x58 GPS system data/acknowledge 0x38
0x5C satellite tracking status 0x3C
0x6D all-in-view satellite selection 0x24, auto
0x82 SBAS position fix mode 0x62, auto
0x83 double-precision XYZ auto, 0x37
0x84 double-precision LLA auto, 0x37
0x8F-20 last fix with extra information (fixed point) auto, 0x37, 0x8E-20
0x8F-2A Request Fix and Channel Tracking info, Type 1 0x8E-2A
0x8F-2B Request Fix and Channel Tracking info, Type 2 0x8E-2B
0x8F-4A Set Copernicus GPS Cable Delay and PPS polarity 0x8E-4A
0xBB GPS navigation configuration 0xBB
0xBC receiver port configuration 0xBC
0xC1 Bit Mask for GPIOs in Standby Mode 0xC1
0xC2 SBAS SV Mask 0xC2
Copernicus GPS Receiver 129
TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP) A
Key Setup Parameters or Packet BB
Selecting the correct operating parameters has significant impact on receiver
performance. Packet 0xBB (set receiver configuration) controls the key setup
parameters.
The default operating parameters allow the receiver to perform well in almost any
environment. The user can optimize the receiver to a particular application if the
vehicle dynamics and expected level of obscuration are understood. If the receiver is
then taken out of this environment, the specifically tuned receiver may not operate as
well as a receiver with the default options
Table A.10 Key Setup Parameters or Packet BB.
The default values in Table A.10 allow the receiver to operate well under the most
varied and demanding conditions. A user may choose to change the default
parameters if the receiver is only required to perform in a specific or limited
environment. The user should be warned that when the receiver is exposed to
operating conditions which are different from the conditions described by the user
setup, then the performance may be degraded.
Initially, the user must consider the environment in which the receiver is expected to
operate. There is a trade-off between how frequently a position fix is output versus
the absolute accuracy of the fix. The user must decide which takes priority and then
make the appropriate selections. This becomes increasingly important when frequent
satellite blockages are expected, as in downtown “urban canyon” environments and
heavily foliated areas.
Following is a description of the key fields in Packet 0xBB.
Dynamics Code
The feature default is LAND mode, where the receiver assumes a moderate dynamic
environment. In this case, the satellite search and re-acquisition routines are
optimized for vehicle type environments. In SEA mode, the search and re-acquisition
routines assume a low acceleration environment. In AIR mode, the search and re-
acquisition routines are optimized for high acceleration conditions.
Parameter Factory Default
Dynamics code Land
Elevation mask 5°
SBAS on/off WAAS_Auto
A TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP)
130 Copernicus GPS Receiver
Elevation Mask
This is the minimum elevation angle for satellites to be used in a solution output by
the receiver. Satellites which are near the horizon are typically more difficult to track
due to signal attenuation, and are also generally less accurate due to higher variability
in the ionospheric and tropospheric corruption of the signal. When there are no
obstructions, the receiver can generally track a satellite down to near the horizon.
The benefit of a low elevation mask is that more satellites are available for use in a
solution resulting in a better PDOP. The current mask is set to five degrees and
provides a reasonable trade-off of the benefits and drawbacks. High accuracy users
may prefer a mask angle around ten degrees, where the ionosphere and troposphere
begin to be more predictable
Copernicus GPS Receiver 131
TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP) A
Packet Descriptions
Packet Descriptions Used in Run Mode
Command Packet 0x1C - Firmware Version 01
The command packet 0x1C: 01 may be issued to obtain the firmware version. The
product name is “Copernicus GPS Receiver”. The packet format is defined in the
following table.
Table A.11 Command Packet 0x1C
Table A.12 Report Packet 0x1C: 81
Byte Item Type Value Definition
0 Packet ID U8 0x1C Packet ID 0x1C
1 Sub-code U8 0x01 Sub-code 0x01 for
software component
version information
request
Byte Item Type Value Definition
0 Packet ID U8 0x1C Packet ID 0x1C
1 Sub-code U8 0x81 Sub-code 0x81 for software
component version
information report
2 Reserved U8 Any Reserved
3 Major version U8 Any Firmware major version
4 Minor version U8 Any Firmware minor version
5 Build number U8 Any Firmware build number
6 Month U8 1-12 Firmware build month
7 Day U8 1-31 Firmware build Day
8…9 Year U16 Any Firmware build Year
10 Length of first
module name
U8 Any The length of the product
name (L1)
11… (10+L1) Product name U8 String Product name in ASCII
A TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP)
132 Copernicus GPS Receiver
Command Packet 0x1C: 03 - Hardware Component Version Information
•The command packet 0x1C: 03 may be issued to obtain the hardware
component version information.
•The report packet is of variable length, depending on the length of the
hardware ID.
•The serial number, build date fields, and the hardware ID are programmed into
the Copernicus GPS at production.
•The hardware code for Copernicus GPS Receiver is 1002.
•ID for Copernicus GPS Receiver is COPERNICUS GPS RECEIVER.
The packet format is defined below.
Table A.13 Command Packet 0x1C:03
Report Packet 0x1C: 83 - Hardware Component Version Information
Table A.14 Report Packet 0x1C:83
Byte Item Type Value Definition
0 Packet ID U8 0x1C Packet ID 0x1C
1 Sub-code U8 0x03 Sub-code 0x03 for hardware
component version information
request
Byte Item Type Value Definition
0 Packet ID U8 0x1C Packet ID 0x1C
1 Sub-code U8 0x83 Sub-code 0x83 for hardware
component version information
report
2…5 Serial
number
U32 Any Board serial number
6 Build day U8 1-31 Day of the board's build date
7 Build
month
U8 1-12 Month of the board's build date
8…9 Build year U16 Any Year of the board's build date
10 Build hour U8 0-23 Hour of the board's build date
11…12 Hardware
Code
U16 Any Hardware Code associated with
Hardware ID
13 Length of
Hardware
ID
U8 Any The length of the Hardware ID (L)
14... (13+L) Hardware
ID
U8 String Hardware ID string in ASCII
Copernicus GPS Receiver 133
TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP) A
Command Packet 0x1E - Clear Battery Backup, then Reset
This packet commands the GPS receiver to clear all battery back-up data and to
perform a software reset. This packet contains one data byte.
Table A.15 Command Packet 0x1E
CWARNING – All almanac, ephemeris, current position, mode, and communication port
setup information are reset to the default values when executing the “Factory Reset”
command. In normal use this packet should not be sent.
Command Packet 0x1F - Request Software Versions
This packet requests information about the version of software running in the
Navigation and Signal Processors. This packet contains no data. The GPS receiver
returns Packet 0x45.
Command Packet 0x21 - Request Current Time
This packet requests current GPS time. This packet contains no data. The GPS
receiver returns Packet 0x41.
Command Packet 0x23 - Initial Position (XYZ ECEF)
This packet provides the GPS receiver with an approximate initial position in XYZ
coordinates. This packet is useful if the user has moved more than about 1,000 miles
since the previous fix. (Note that the GPS receiver can initialize itself without any
data from the user; this packet merely reduces the time required for initialization.)
This packet is ignored if the receiver is already calculating positions. The data
format is shown below.
Note – To initialize using the Latitude-Longitude-Altitude representation, use
Command Packet 0x2B.
Table A.16 Command Packet 0x23
Byte Item Type Value Definition
0 Reset mode UINT 8 0x4B
0x46
0x4D
Cold start: Erase BBRAM and
restart
Factory reset: Erase BBRAM and
Flash and restart
Enter Monitor Mode
Byte Item Type Units
0-3 X Single Meters
4-7 Y Single Meters
8-11 Z Single Meters
A TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP)
134 Copernicus GPS Receiver
Command Packet 0x24 - Request GPS Receiver Position Fix Mode
This packet requests current position fix mode of the GPS receiver. This packet
contains no data. The GPS receiver returns Packet 0x6D.
Command Packet 0x25 - Initiate Soft Reset & Self Test
This packet commands the GPS receiver to perform a software reset. The GPS
receiver performs a self-test as part of the reset operation. This packet contains no
data. Following completion of the reset, the receiver will output the start-up messages
(see Table A.4). The GPS receiver sends Packet 0x45 only on power-up and reset (or
on request); thus if Packet 0x45 appears unrequested, then either the GPS receiver
power was cycled or the GPS receiver was reset.
Command Packet 0x26 - Request Health
This packet requests health and status information from the GPS receiver. This packet
contains no data. The GPS receiver returns Packet 0x46 and 0x4B.
Command Packet 0x27 - Request Signal Levels
This packet requests signal levels for all satellites currently being tracked. This packet
contains no data. The GPS receiver returns
Packet 0x47.
Command Packet 0x2B - Initial Position (Latitude, Longitude, Altitude)
This packet provides the GPS receiver with an approximate initial position in latitude
and longitude coordinates (WGS-84). This packet is useful if the user has moved
more than about 1,000 miles since the previous fix. (Note that the GPS receiver can
initialize itself without any data from the user; this packet merely reduces the time
required for initialization.) This packet is ignored if the receiver is already
calculating positions. The data format is shown in the table below.
Note – To initialize with ECEF position, use Command Packet 0x23.
Table A.17 Command Packet 0x2B
Byte Item Type Units
0-3 Latitude Single Radians, north
4-7 Longitude Single Radians, east
8-11 Altitude Single Meters
Copernicus GPS Receiver 135
TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP) A
Command Packet 0x2D - Request Oscillator Offset
This packet requests the calculated offset of the GPS receiver master oscillator. This
packet contains no data. The GPS receiver returns Packet 0x4D. This packet is used
mainly for service. The permissible oscillator offset varies with the particular GPS
receiver unit.
Command Packet 0x2E - Set GPS Time
This packet provides the approximate GPS time of week and the week number to the
GPS receiver. The GPS receiver returns Packet 0x4E. The data format is shown
below. The GPS week number reference is Week # 0 starting January 6, 1980. The
seconds count begins at the midnight which begins each Sunday morning. This packet
is usually not required when the battery back-up voltage is applied as the internal
clock keeps time to sufficient accuracy. This packet is ignored if the receiver has
already calculated the time from tracking a GPS satellite.
Note – See report Packet 41 for information on the Extended GPS week number.
Command Packet 0x31 - Accurate Initial Position (XYZ ECEF)
This packet is identical in content to Packet 0x23. This packet provides an initial
position to the GPS receiver in XYZ coordinates. However, the GPS receiver assumes
the position provided in this packet to be accurate. This packet is used for satellite
acquisition aiding in systems where another source of position is available. For
acquisition aiding, the position provided by the user to the GPS receiver in this packet
should be accurate to a few kilometers. For high-accuracy time transfer, position
should be accurate to a few meters.
Table A.18 Command Packet 0x2E Data Formats
Byte Item Type Units
0-3 GPS time of week Single Seconds
4-5 Extended GPS week number INT16 Weeks
Table A.19 Command Packet 0x31 Data Format
Byte Item Type Units
0-3 X-axis Single Meters
4-7 Y-axis Single Meters
8-11 Z-axis Single Meters
A TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP)
136 Copernicus GPS Receiver
Command Packet 0x32 - Accurate Initial Position,
(Latitude, Longitude, Altitude)
This packet is identical in content to Packet 0x2B. This packet provides the GPS
receiver with an accurate initial position in latitude, longitude, and altitude
coordinates. However, the GPS receiver assumes the position provided in this packet
to be accurate. This packet is used for satellite acquisition aiding in systems where
another source of position is available. For acquisition aiding, the position provided
by the user to the GPS receiver in this packet should be accurate to a few kilometers.
For high-accuracy time transfer, position should be accurate to a few meters.
Command Packet 0x35 - Set Request I/O Options
This packet requests the current I/O options and allows the I/O options to be set. To
request the options settings without any changes, send the packet with no data bytes.
To change the options settings, include four data bytes with the values. The I/O
options, their default settings, and the byte values for all possible configurations are
shown below.
The Set/Request I/O options are stored in battery-backed memory. To store them in
non-volatile RAM (Flash), use the 0x8E-26 command. The GPS receiver returns
Packet 0x55.
These abbreviations are used in the following table:
•ALT Altitude
•ECEF Earth-centered, Earth-fixed
•XYZ Coordinates
•LLA Latitude, Longitude, Altitude
•HAE Height Above Ellipsoid
•WGS-84 Earth Model (ellipsoid)
•MSL Geoid Mean Sea Level
•UTC Coordinated Universal Time
Table A.20 Command Packet 0x32 Data Format
Byte Item Type Units
0-3 Latitude Single Radians, North
4-7 Longitude Single Radians, East
8-11 Altitude Single Meters
Copernicus GPS Receiver 137
TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP) A
This packet can also be used to set the Automatic output to 1/second for packets 0x47
and 0x5A.
Table A.21 Command Packet 0x35 Data Format
Byte Bit Item Type Value Definition
Position
0 0 (LSB) XYZ ECEF Bit 0
1
XYZ ECEF output off
XYZ ECEF output on
1 LLA Output Bit 0
1
LLA output off
LLA output on
2 LLA ALT
Output
Bit 0
1
HAE (See Note)
MSL geoid
3 Reserved
4 Precision-of-
position
output
Bit 0
1
Send single-precision packet
Send double-precision packet
5 Super Packet
Output
Bit 0
1
Output no Super Packets
Output all enabled Super
Packets
6-7 Reserved
A TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP)
138 Copernicus GPS Receiver
Note – Packet 8E must be used to specify which Superpackets are output.
The Lassen iQ GPS supports automatic output of 0x5A messages for backwards
compatibility with older TSIP applications.
Velocity
1 0 XYZ ECEF Bit 0
1
XYZ ECEF output off
XYZ ECEF output on
1 ENU Output Bit 0
1
ENU output off
ENU output on
2-7 Reserved
Timing
2 0 Time Type Bit 0
1
GPS Time
UTC
1-4 Reserved
5-6 PPS Mode Bits 00
01
10
11
Always On
Fix Based
Always Off
Reserved
7 Reserved
Auxiliary/Pseudo Range Measurements
30 Raw
Measurement
Bit 0
1
Raw measurements off
Raw measurements on
1 Reserved
2 Reserved
3 Signal Level
Unit
Bit 0
1
Output AMUs
Output dB Hz
4 Reserved
5 Signal levels
for all
satellites
Bit 0
1
Signal levels Off
Signal levels On
6-7 Reserved
Byte Bit Item Type Value Definition
Copernicus GPS Receiver 139
TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP) A
Command Packet 0x37 - Request Status and Values of Last Position and
Velocity
This packet requests information regarding the last position fix and should only be
used when the receiver is not automatically outputting positions. The GPS receiver
returns Report Packet 0x57 followed by the position/velocity packets specified in
Command Packet 0x35.
Command Packet 0x38 - Request/Load Satellite System Data
This packet requests current satellite data (almanac, ephemeris, etc.) or permits
loading initialization data from an external source (for example, by extracting
initialization data from an operating GPS receiver unit via a data logger or computer
and then using that data to initialize a second GPS receiver unit). The GPS receiver
returns Packet 0x58. (Note that the GPS receiver can initialize itself without any data
from the user; it merely requires more time.)
To request data without loading data, use only bytes 0 through 2; to load data, use all
bytes. Before loading data, observe the caution notice below. The data formats are
located in Report Packet 0x58.
CWARNING – Loading all satellite data at once sends a lot of bytes to the unit, which
could overwhelm the unit’s serial receive buffer. Always wait for the acknowledge packet
before sending the next data block.
Table A.22 Command Packet 0x38 Data Formats
Byte Item Type Value Definition
0 Operation UINT8 1
2
Request data from Lassen IQ
GPS Receiver; Load data into
Lassen IQ GPS Receiver
1 Type of data UINT8 2
3
4
5
6
Almanac
Health page, T_oa, WN_oa
Ionosphere
UTC
Ephemeris
2 Sat PRN# UINT8 0
1 - 32
Data that is not satellite - ID
specific
Satellite PRN number
3 Length (n) UINT8 Number of bytes of data to be
loaded
4 to n+3 Data UINT8 Satellite data
A TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP)
140 Copernicus GPS Receiver
Command Packet 0x3A - Request Last Raw Measurement
This packet requests the most recent raw measurement data for one specified satellite.
The GPS receiver returns packet 0x5A if data is available.
.
Command Packet 0x3C - Request Current Satellite Tracking Status
This packet requests the current satellite tracking status. The GPS receiver returns
Packet 0x5C if data is available.
Report Packet 0x41 - GPS Time
This packet provides the current GPS time of week and the week number. The GPS
receiver sends this packet in response to Packet 0x21 and during an automatic packets
update cycle. The data format is shown below.
Note – UTC time lags behind GPS time by an integer number of seconds; UTC =
(GPS time) - (GPS UTC offset).
CWARNING – GPS week number runs from 0 to 1023 and then cycles back to week #0.
week # 0 began January 6, 1980. The first cycle back to week #0 was on August 22, 1999.
The extended GPS week number however, does not cycle back to 0. For example: the
week # for August 22, 1999 = 1024; the Week # for April 1, 2002 = 1160.
Table A.23 Command Packet 0x3C Data Format
Byte Item Type Value Definition
0 Satellite # UINT8 0
1 - 32
All satellites in the current track
set.
Desired satellite.
Table A.24 Command Packet 0x3C Data Format
Byte Item Type Value Definition
0 Satellite # UINT8 0
1 - 32
All satellites in the current track
set.
Desired satellite.
Table A.25 Report Packet 0x41 Data Formats
Byte Item Type Units
0-3 GPS time of week Single seconds
4-5 Extended GPS week number INT16 weeks
6-9 GPS UTC offset Single seconds
Copernicus GPS Receiver 141
TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP) A
The seconds count begins with “0” each Sunday morning at midnight GPS time. A
negative indicated time-of-week indicates that time is not yet known; in that case, the
packet is sent only on request. The following table shows the relationship between the
information in Packet 0x41, and the Packet 0x46 status code.
Note – Before using the GPS time from Packet 0x41, verify that the Packet 0x46
status code is 00 (“Doing position fixes”). This will ensure the most accurate GPS
time.
Report Packet 0x42 - Single-Precision Position Fix, XYZ ECEF
This packet provides current GPS position fix in XYZ ECEF coordinates. If the I/O
“position” option is set to XYZ ECEF
(byte 0: bit 0, Packet 0x35)and the I/O Precision-of-Position Output (byte 0: bit 4,
Packet 0x35) is set to single-precision, then the GPS receiver sends this packet each
time a fix is computed. The data format is shown below.
The time-of-fix is in GPS time or UTC as selected by the I/O “timing” option. Packet
83 provides a double-precision version of this information.
Table A.26 Packets 0x41 and 0x46 Status Code Relationships
Approximate
Time Accuracy
Time Source Sign (TOW) Packet 46
Status Code
none no time at all - 0x01
unknown approximate time from
real-time clock or Packet
2E
+0x01
20-50 msec + clock
drift
time from satellite + 0x02 - 0x0C
full accuracy time from GPS solution + 0x00
Table A.27 Report Packet 0x42 Data Formats
Byte Item Type Units
0-3 X Single meters
4-7 Y Single meters
8-11 Z Single meters
12-15 Time-of-fix Single seconds
A TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP)
142 Copernicus GPS Receiver
Report Packet 0x43 - Velocity Fix, XYZ ECEF
This packet provides current GPS velocity fix in XYZ ECEF coordinates. If the I/O
velocity option is set to XYZ ECEF (byte 1, bit 0, Packet 0x35), then the GPS
receiver sends this packet each time a fix is computed. The data format is shown
below.
The time-of-fix is in GPS time or UTC as selected by the I/O “timing” option (byte 2,
bit 0, Packet 0x35).
Report Packet 0x45 - Software Version Information
This packet provides information about the version of software in the Navigation and
Signal Processors. The GPS receiver sends this packet after power-on and in response
to Packet 0x1F.
The first 5 bytes refer to the Navigation Processor and the second 5 bytes refer to the
Signal Processor.
Table A.28 Report Packet 0x43 Data Formats
Byte Item Type Units
0-3 X velocity Single meters/second
4-7 Y velocity Single meters/second
8-11 Z velocity Single meters/second
12-15 bias rate Single meters/second
16-19 time-of-fix Single seconds
Table A.29 Report Packet 0x45 Data Formats
Byte Item Type
0 Major version number UINT8
1 Minor version number UINT8
2 Month UINT8
3Day UINT8
4 Year number minus 1900 UINT8
5 Major revision number UINT8
6 Minor revision number UINT8
7 Month UINT8
8Day UINT8
9 Year number minus 2000 UINT8
Copernicus GPS Receiver 143
TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP) A
Report Packet 0x46 - Health of Receiver
This packet provides information about the satellite tracking status and the
operational health of the receiver. The receiver sends this packet after power-on or
software-initiated resets, in response to Packet 0x26 and, every second. Packet 0x4B
is always sent along with this packet.
The error codes in Byte 1 of Packet 0x46 are encoded into individual bits within the
byte. The bit positions are shown below.
Table A.30 Report Packet 0x46 Data Formats
Byte Bit Item Type Value Definition
0 Status code UINT8 0x00
0x01
0x02
0x03
0x04
0x08
0x09
0x0A
0x0B
0x0C and above
Doing position fixes
Don't have GPS time yet
Reserved
PDOP is too high
The chosen SV is unusable
No usable satellites
Only 1 usable satellite
Only 2 usable satellites
Only 3 usable satellites
Fix criteria not met
1 0 Battery
backup
Bit 0
1
OK
BBRAM was not available at
start-up
14Antenna
feedline
fault
Bit 0
1
OK
Short or open detected
1 5 Type of fault Bit 0
1
Open detected
Short detected
A TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP)
144 Copernicus GPS Receiver
Report Packet 0x47 - Signal Levels for all Satellites
This packet provides received signal levels for all satellites currently being tracked or
on which tracking is being attempted (i.e., above the elevation mask and healthy
according to the almanac). The receiver sends this packet only in response to Packet
0x27. The data format is shown below.
Up to 12 satellite number/signal level pairs may be sent, indicated by the count field.
Signal level is normally positive. If it is zero then that satellite has not yet been
acquired. If it is negative then that satellite is not currently in lock. The absolute value
of signal level field is the last known signal level of that satellite.
Note – The signal level provided in this packet is a linear measurement of the signal
strength after correlation or de-spreading. Units, either AMU or dBHz, are controlled
by Packet 0x35.
Table A.31 Report Packet 0x47 Data Formats
Byte Item Type
0 Count UINT8
1 Satellite number 1 UINT8
2- 5 Signal level 1 Single
6 Satellite number 2 UINT8
7-10 Signal level 2 Single
(etc.) (etc.) (etc.)
Copernicus GPS Receiver 145
TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP) A
Report Packet 0x4A - Single Precision LLA Position Fix
This packet provides current GPS position fix in LLA (latitude, longitude, and
altitude) coordinates. If the I/O Position option is set to LLA and the I/O Precision-of-
Position Output is set to single-precision (all controlled by Packet 35), then the
receiver sends this packet each time a fix is computed. Command Packet 35 controls
position output (XYZ or LLA) and (single or double) output precision. The data
format is shown in below.
The default datum is WGS-84. Altitude is referred to the datum ellipsoid or the MSL
Geoid, depending on which I/O “LLA altitude” option is selected. The time-of-fix is
in GPS time or UTC, depending on which I/O “timing” option is selected. This packet
is also sent at start-up with a negative time-of-fix to report the current known
position. Packet 0x84 provides a double-precision version of this information
CWARNING – When converting from radians to degrees, significant and readily visible
errors will be introduced by use of an insufficiently precise approximation for the
constant PI). The value of the constant PI as specified in ICD-GPS-200 is 3.1415926535898.
Single precision LLA has a quantization of approximately 2 meters.
Table A.32 Report Packet 0x4A Data Formats
Byte Item Type Units
0-3 Latitude Single radians; + for north, - for south
4-7 Longitude Single radians; + for east, - for west
8-11 Altitude Single meters (HAE or MSL)
2-15 Clock Bias Single meters
6-19 Time-of-Fix Single seconds (GPS or UTC)
A TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP)
146 Copernicus GPS Receiver
Report Packet 0x4B - Machine/Code ID and Additional Status
The receiver transmits this packet in response to packets 0x25 and 0x26 and following
a change in state. In conjunction with Packet 0x46, “health of receiver,” this packet
identifies the receiver and may present status messages. The machine ID can be used
by equipment communicating with the receiver to determine the type of receiver to
which the equipment is connected. Then the interpretation and use of packets can be
adjusted accordingly.
The status codes are encoded into individual bits within the bytes. The bit positions
and their meanings are listed in the table below.
Report Packet 0x4D - Oscillator Offset
This packet provides the current value of the receiver master oscillator offset in Hertz
at carrier. This packet contains one single precision number. The receiver sends this
packet in response to Packet 0x2D. The permissible offset varies with the receiver
unit.
Table A.33 Report Packet 0x4B Data Formats
Byte Item Type/ Definition
0Machine IDUINT896
1 Status 1 UINT8 See Table A.1
2 Status 2 UINT8 Bit 0 set = Superpackets supported
Table A.34 Report Packet 0x4B Bit Positions and Descriptions
Status 1 Bit
Positions
Meaning if bit value = 1
0 (LSB) Not used
1 Real-time Clock was not available at power-up.
2 Not used
3 The almanac stored in the receiver is not complete and
current.
4-7 Not used
Copernicus GPS Receiver 147
TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP) A
Report Packet 0x4E - Response to Set GPS Time
Indicates whether the receiver accepted the time given in a Set GPS time packet. the
receiver sends this packet in response to Packet 0x2E. This packet contains one byte.
Report Packet 0x55 - I/O Options
These abbreviations apply to the following table: ALT (Altitude), ECEF (Earth-
centered, Earth-fixed), XYZ (coordinates), LLA (latitude, longitude, altitude), HAE
(height above ellipsoid), WGS-84 (Earth model (ellipsoid)), MSL geoid (Earth (mean
sea level) mode), and UTC (coordinated universal time).
Table A.35 Report Packet 0x4E Data Formats
Value Meaning
ASCII “Y” The receiver accepts the time entered via Packet 2E. The
receiver has not yet received the time from a satellite.
ASCII “N” The receiver does not accept the time entered via Packet
2E. The receiver has received the time from a satellite and
uses that time. The receiver disregards the time in Packet
0x2E.
Table A.36 Command Packets 0x55 and 0x35 Data Descriptions
Byte Bit Item Type Value Definition
Position
00XYZ ECEF Bit 0
1
XYZ ECEF output off
XYZ ECEF output on
0 1 LLA Output Bit 0
1
LLA output off
LLA output on
0 2 LLA ALT Output Bit 0
1
HAE (WGS-84 datum)
MSL geoid
0 3 Reserved
0 4 Precision-of-
position output
Bit 0
1
Send single-precision packet.
Send double-precision packet.
0 5 Super Packet
Output
Bit 0
1
Output no Super Packets.
Output all enabled Super
Packets.
0 6-7 Reserved
Velocity
10XYZ ECEF Bit 0
1
XYZ ECEF output off
XYZ ECEF output on
1 1 ENU output Bit 0
1
ENU output off
ENU output on
1 2-7 Reserved
Timing
2 0 Time Type Bit 0
1
GPS Time
UTC
1-4 Reserved
5-6 PPS Mode
A TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP)
148 Copernicus GPS Receiver
Notes – See the associated superpacket output, described later in this appendix.
Packet 8E must be used to specify which superpacket is to be output.
Automatic output of 0x5A raw measurement messages is supported in the Lassen IQ
GPS Receiver for backwards compatibility with older TSIP applications.
Report Packet 0x56 - Velocity Fix, East-North-Up (ENU)
If East-North-Up (ENU) coordinates have been selected for the I/O “velocity” option
(see Packet 0x35), the receiver sends this packet under the following conditions:
•Each time that a fix is computed
•In response to Packet 0x37 (last known fix)
The data format is shown below.
The time-of-fix is in GPS or UTC time as selected by the I/O “timing” option.
7 Reserved
Auxiliary/Pseudo Range Measurements
3 0 Raw Measurement Bit 0
1
Raw measurements off
Raw measurements on
1 Reserved
2 Reserved
3 Signal Level Unit Bit 0
1
Output AMUs
Output dB Hz
4 Reserved
5 Sig levels for SVs Bit 0
1
Signal levels Off
Signal levels On
6-7 Reserved
Table A.37 Report Packet 0x56 Data Formats
Byte Item Type Units
0-3 East Velocity Single m/s; + for east, - for west
4-7 North Velocity Single m/s; + for north, - for south
8-11 Up Velocity Single m/s; + for up, - for down
12-15 Clock Bias Rate Single m/s
16-19 Time-of-Fix Single seconds (GPS or UTC)
Table A.36 Command Packets 0x55 and 0x35 Data Descriptions (continued)
Byte Bit Item Type Value Definition
Copernicus GPS Receiver 149
TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP) A
Report Packet 0x57 - Information About Last Computed Fix
This packet provides information concerning the time and origin of the previous
position fix. The receiver sends this packet, among others, in response to Packet 0x37.
The data format is shown below.
Report Packet 0x58 - Satellite System Data/Acknowledge from Receiver
This packet provides GPS data (almanac, ephemeris, etc.). The receiver sends this
packet in response to Packet 0x38 (acknowledges the loading of data). The data
format is shown below..
Table A.38 Report Packet 0x57 Data Formats
Byte Item Type Units Byte 0 Value/Velocity
0Source of
information
UINT8 -- 00 temporary no fix
01 good current fix
1 Mfg. diagnostic UINT8 --
2-5 Time of last fix Single seconds, GPS time
6-7 Week of last fix INT16 weeks, GPS time
Table A.39 Report Packet 0x58 Data Formats
Byte Item Type Value Definition
0 Operation UINT8 1
2
Request data from receiver;
Load data into receiver
1 Type of data UINT8 2
3
4
5
6
Almanac
Health page, T_oa, WN_oa
Ionosphere
UTC
Ephemeris
2 Sat PRN# UINT8 0
1 - 32
Data that is not satellite - ID specific
satellite PRN number
3 Length (n) UINT8 Number of bytes of data to be loaded
4 to n+3 Data
Table A.40 Report Packet 0x58 Almanac Data
Byte Item Type Definition / ICD-GPS-200
4 t_oa_raw UINT8 Sec 20.3.3.5.1.2
5 SV_HEALTH UINT8 Sec 20.3.3.5.1.2
6-9 e Single Sec 20.3.3.5.1.2
10-13 t_oa Single Sec 20.3.3.5.1.2
14-17 i_o Single Sec 20.3.3.5.1.2
18-21 OMEGADOT Single Sec 20.3.3.5.1.2
22-25 sqrt_A Single Sec 20.3.3.5.1.2
26-29 OMEGA_0 Single Sec 20.3.3.5.1.2
30-33 omega Single Sec 20.3.3.5.1.2
34-37 M_0 Single Sec 20.3.3.5.1.2
A TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP)
150 Copernicus GPS Receiver
Note – All angles are in radians. If data is not available, t_zc is set to -1.0.
38-41 a_f0 Single Sec 20.3.3.5.1.2
42-45 a_f1 Single Sec 20.3.3.5.1.2
46-49 Axis Single Sec 20.3.3.5.1.2
50-53 n Single Sec 20.3.3.5.1.2
54-57 OMEGA_n Single Sec 20.3.3.5.1.2
58-61 ODOT_n Single Sec 20.3.3.5.1.2
62-65 t_zc Single Sec 20.3.3.5.1.2. see Note 2.
66-67 weeknum INT16 Sec 20.3.3.5.1.2
68-69 wn_oa INT16 Sec 20.3.3.5.1.2
Table A.41 Report Packet 0x58 Almanac Health Data
Byte Item Type Definition/ ICD-GPS-200
4 week # for
health
UINT8 Sec 20.3.3.5.1.3
5-36 SV_health UINT8 Sec 20.3.3.5.1.3
37 t_oa for health UINT8 Sec 20.3.3.5.1.3
38 current t_oa UINT8 units = seconds/2048
39-40 current week # INT16
Table A.42
Byte Item Type Definition / IDC-GPS-200
4-11 --- --- not used
12-15 alpha_0 Single Sec 20.3.3.5.1.9
16-19 alpha_1 Single Sec 20.3.3.5.1.9
20-23 alpha_2 Single Sec 20.3.3.5.1.9
24-27 alpha_3 Single Sec 20.3.3.5.1.9
28-31 beta_0 Single Sec 20.3.3.5.1.9
32-35 beta_1 Single Sec 20.3.3.5.1.9
36-39 beta_2 Single Sec 20.3.3.5.1.9
40-43 beta_3 Single Sec 20.3.3.5.1.9
Table A.43
Byte Item Type Definition / IDC-GPS-200
4-16 --- --- not used
17-24 A_0 Double Sec 20.3.3.5.1.8
25-28 A_1 Single Sec 20.3.3.5.1.8
29-30 delta_t_LS Integer Sec 20.3.3.5.1.8
31-34 t_ot Single Sec 20.3.3.5.1.8
35-36 WN t Integer Sec 20.3.3.5.1.8
Table A.40 Report Packet 0x58 Almanac Data
Copernicus GPS Receiver 151
TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP) A
37-38 WN_LSF Integer Sec 20.3.3.5.1.8
39-40 DN Integer Sec 20.3.3.5.1.8
41-42 delta_t_LSF Integer Sec 20.3.3.5.1.8
Table A.44
Byte Item Type Definition / IDC -GPS-200
4 sv_number UINT8 SV PRN number
5-8 t_ephem Single time of collection (note, if data is
missing or invalid, t_ephem will be
negative)
9-10 weeknum INT16 Sec 20.3.3.3, Table 20-I
11 codeL2 UINT8 Sec 20.3.3.3, Table 20-I
12 L2Pdata UINT8 Sec 20.3.3.3, Table 20-I
13 SVacc_raw UINT8 Sec 20.3.3.3, Table 20-I
14 SV_health UINT8 Sec 20.3.3.3, Table 20-I
15-16 IODC INT16 Sec 20.3.3.3, Table 20-I
17-20 T_GD Single Sec 20.3.3.3, Table 20-I
21-24 t_oc Single Sec 20.3.3.3, Table 20-I
25-28 a_f2 Single Sec 20.3.3.3, Table 20-I
29-32 a_f1 Single Sec 20.3.3.3, Table 20-I
33-36 a_f0 Single Sec 20.3.3.3, Table 20-I
37-40 SVacc Single Sec 20.3.3.3, Table 20-I
41 IODE UINT8 Sec 20.3.3.4
42 fit_interval UINT8 Sec 20.3.3.4
43-46 C_rs Single Sec 20.3.3.4
47-50 delta_n Single Sec 20.3.3.4
51-58 M_0 Double Sec 20.3.3.4
59-62 C_uc Single Sec 20.3.3.4, radians
63-70 e Double Sec 20.3.3.4
71-74 C_us Single Sec 20.3.3.4, radians
75-82 sqrt_A Double Sec 20.3.3.4
83-86 t_oe Single Sec 20.3.3.4
87-90 C_ic Single Sec 20.3.3.4, radians
91-98 OMEGA_0 Double Sec 20.3.3.4
99-102 C_is Single Sec 20.3.3.4, radians
103-110 i_0 Double Sec 20.3.3.4
111-114 C_rc Single Sec 20.3.3.4
115-122 omega Double Sec 20.3.3.4
123-126 OMEGADOT Single Sec 20.3.3.4
127-130 IDOT Single Sec 20.3.3.4
131-138 Axis Double = (sqrt_A)2
Table A.43
Byte Item Type Definition / IDC-GPS-200
A TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP)
152 Copernicus GPS Receiver
Report Packet 0x5A - Raw Measurement Data
This packet provides raw GPS measurement data. If the I/O Auxiliary options has
been selected, the receive sends this data automatically as measurements are taken.
The data format is shows in the table below.
Note – Packet 0x5A provides the raw satellite signal measurement information used
in computing a fix.
Satellite PRN (Byte 0) is a unique identification number for each of the 32 GPS
satellites. The integer millisecond of the pseudo-range has valid values of 0 to 19
milliseconds. If the pseudo-range is out of bounds, this is indicated by setting Bit 7 of
Byte 4 to 1.
The codephase (Byte 9) value is the average delay over the sample interval of the
received C/A code and is measured with respect to the receiver’s millisecond timing
reference. Thus, it includes all receiver satellite, and propagation biases and errors. It
is expressed in 1/16th of a C/A code chip.
The Doppler (Byte 13) value is apparent carrier frequency offset averaged over the
sample interval. It is measured with respect to the nominal GPS L1 frequency of
1575.42 MHz, referenced to the receiver’s internal oscillator. Thus int includes all
receiver and satellite clock frequency errors. It is expressed in Hertz at the L1 carrier.
The time of measurement (Byte 17) is the center of the sample interval adjusted by
adding the receiver supplied codephase (module mS) to a user determined integer
number of mS between user and satellite.
139-146 n Double derived from delta_n
147-154 r1me2 Double = sqrt(1.0-e2)
155-162 OMEGA_n Double derived from OMEGA_0,
OMEGADOT
163-170 ODOT_n Double derived from OMEGADOT
Table A.45 Report Packet 0x5A Data Formats
Byte Item Type Units
0 Satellite PRN number UINT8 ----
1-3 reserved
4 Integer msec of pseudo-
range
If Bit 7 =1, pseudo-range is
out of bounds
UINT 8 msec
5 Signal level Single AMU or dBHz
9 Code phase Single 1/16th chip
13 Doppler Single hertz
17 Time of Measurement Double sec
Table A.44 (continued)
Byte Item Type Definition / IDC -GPS-200
Copernicus GPS Receiver 153
TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP) A
The receiver codephase is expressed in 1/16th of a C/A code chip. This corresponds
to:
1/16 x C/A code chip = 977.517ns/16 = 61.0948 ns
= 61.0948 x speed of light, m/s
= 18.3158 meter
Note – The receiver occasionally adjusts its clock to maintain time accuracy within 1
msec. At this time, all pseudo-range values for all satellites are adjusted upward or
downward by one millisecond. Report packet 0x5A checks packet 0x83 or 0x84 for
clock bias.
Report Packet 0x5F
For Trimble diagnostic use only, please ignore.
Report Packet 0x5C - Satellite Tracking Status
This packet provides tracking status data for a specified satellite. Some of the
information is very implementation-dependent and is provided mainly for diagnostic
purposes. The receiver sends this packet in response to Packet 0x3C. The data format
is shown below.
Table A.46 Report Packet 0x5C Data Formats
Byte Bit Item Type Value Definition
0 Satellite
PRN
number
UINT8 number
1 - 32
1 0-2 reserved Bits reserved
1 3-7 Channel Bits 0-11
2 Acquisition
flag
UINT8 0
1
2
Never acquired
Tracking
Re-opened search
3 Ephemeris
flag
UINT8 0
1
Flag not set
Ephemeris is decoded
4-7 Signal
level
Single Same as in Packet 0x47
8-11 GPS time
of last
measurem
ent
Single <0
>0
No measurements have been taken.
Center of the last measurement
taken from this satellite.
12-15 Elevation Singles radians Approximate elevation of this
satellite above the horizon.
Updated about every 15 sec.s. Used
for searching and computing
measurement correction factors.
A TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP)
154 Copernicus GPS Receiver
Report Packet 0x6D - All-In-View Satellite Selection
This packet provides a list of satellites used for position fixes by the GPS receiver.
The packet also provides the PDOP, HDOP, and VDOP of that set and provides the
current mode (automatic or manual, 3-D or 2-D). This packet has variable length
equal to 16+nSVs where “nSVs” is the number of satellites used in the solution.
The GPS receiver sends this packet in response to Packet 0x24. The data format is
shown below.
Note – The Lassen IQ GPS Receiver sends this packet automatically after a position
fix or every second if no position fix occurs.
Command Packet 0x7A
The NMEA message determines whether or not a given NMEA message will be
output. If the bit for a message is set, the message will be sent every “interval”
second. Use the values shown below to determine the NMEA interval and message
mask. While fixes are being generated, the output order is: ZDA, GGA, GLL, VTG,
GSA, GSV, RMC.
16-19 Azimuth Single radians Approximate azimuth from true
north to this satellite. Updated
typically about every 3 to 5
minutes. Used for computing
measurement correction factors.
20-23 reserved UINT8 0
Table A.47 Report Packet 0x6D Data Formats
Byte Bit Item Type Value Definition
00-2DimensionUINT83
4
2D
3D
03 0
1
Auto
Manual
04-7 -nSVs
1-4 PDOP Single PDOP
5-8 HDOP Single HDOP
9-12 VDOP Single VDOP
13-16 TDOP Single TDOP
(16+nSVvs) SV PRN UINT8
Table A.48 Command Packet 0x7A and Report Packet 0x7B Data Formats
Byte Bit Item Type Value Definition
0SubcodeUINT80
1 Interval UINT8 1-255 Fix interval in seconds
Table A.46 Report Packet 0x5C Data Formats (continued)
Byte Bit Item Type Value Definition
Copernicus GPS Receiver 155
TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP) A
Report Packet 0x7B
This packet provides the NMEA settings and interval.
Command Packet 0x7E - TAIP Message Output
TSIP packet 0x7E is used to setup the output configuration for TAIP messages. This
packet expands the features similar to what have been provided by packet 0x8E-40
found in some older generation Trimble receiver products.The settings provided by
the packet can be divided into 4 groups:
1. Reporting Flags – byte 1.
2. The Top-of-Hour Offset – byte 2,3. This setting applies to all eight messages
included in this packet. (If different values have to be applied to each message
individually, use the Time-Distance feature from TAIP protocol.)
3. Automatic Output Intervals for the 8 commonly used messages – bytes 4 - 19
4. Device ID – bytes 20-23.
This packet provides the capability to set the output frequencies for the eight
commonly used messages individually. This is the same as the F<message
type><output interval> command in TAIP. In contrast to packet 0x8E-40, the settings
in this packet are not just for the so-called Heartbeat messages, meaning the output
2Reserved
3Reserved
4DRMC Bit 0
1
Off
On
41TF Bit 0
1
Off
On
45BA Bit 0
1
Off
On
4 6-7 Reserved
50GGA Bit 0
1
Off
On
51GLL Bit 0
1
Off
On
52VTG Bit 0
1
Off
On
53GSV Bit 0
1
Off
On
54GSA Bit 0
1
Off
On
55ZDA Bit 0
1
Off
On
5 6-7 Reserved
Table A.48 Command Packet 0x7A and Report Packet 0x7B Data Formats
Byte Bit Item Type Value Definition
A TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP)
156 Copernicus GPS Receiver
frequency settings are not only applied when the receiver is not generating a position
fix. In practice, this packet provides a comprehensive but straightforward means to
set up the TAIP output configuration. It can also be used to reset the output
configuration. For example, if any of these eight messages was set up as Time-
Distance mode from the TAIP protocol, this packet would reset any such message
back to plain periodic output mode or no automatic output mode (frequency=0).
For customization, the settings in this packet can be stored into the Flash by either
TSIP packet 0x8E-26 or TAIP command SRTSAVE_CONFIG. The flash storage
commands store the latest output configuration which may be set up by either this
packet or any other commands from the TAIP protocol. For example, if this packet
was executed first from the TSIP protocol and then the Lassen iQ GPS was switched
to TAIP protocol and the output settings were changed (e.g. changed to Time-
Distance mode), or vise-versa, then the latest settings would be stored into the Flash
(when the flash storage command is used).
Note – See Appendix D for a full explanation of the TAIP protocol messages.
Note – 0 second period means the corresponding message is not to be output at all.
Byte Bit Item Type Value Definition Defaul
t
0 Subcode UINT8 0 Setting the packet 0
1 0 ID Flag Bit 0/1 On/Off 0
1 CS Flag Bit 0/1 On/Off 1
2 EC Flag Bit 0/1 On/Off 1
3 FR Flag Bit 0/1 On/Off 1
4 CR Flag Bit 0/1 On/Off 0
5-7 Reserved
2,3 TOH UINT16 0-3599 Top of hour offset 0
4,5 AL output
period
UINT16 0-3599 Auto output period for AL
(sec)
0 (see
note)
6.7 CP output
period
UINT16 0-3599 Auto output period for CP
(sec)
0
8,9 ID output
period
UINT16 0-3599 Auto output period for ID (sec) 0
10,11 LN output
period
UINT16 0-3599 Auto output period for LN
(sec)
0
12,13 PV output
period
UINT16 0-3599 Auto output period for PV
(sec)
0
14,15 ST output
period
UINT16 0-3599 Auto output period for ST (sec) 0
16,17 TM output
period
UINT 16 0-3599 Auto output period for TM
(sec)
0
18,19 VR output
period
UINT 16 0-3599 Auto output period for VR
(sec)
0
20-23 Veh ID String See TAIP ID Vehicle ID “0000”
Copernicus GPS Receiver 157
TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP) A
Command Packet 0x82 - SBAS Correction Status
This packet provides the SBAS position fix mode of the receiver. This packet
contains only one data byte to specify the mode. If SBAS is enabled in packet 0xBB,
Copernicus will acquire a SBAS satellite after it has a GPS-based position fix. The
packet is sent in response to Packet 0x62.
* To allow the user to disable/enable individual SBAS SVs:
TSIP - new packet, 0xC2, bytes 0-4 for SBAS SV bit masks
NMEA - new packet, SV, field 0 is for GPS SV bit masks, field 1 is for SBAS SV bit
masks
$PTNLRSV, xxxxxxxx,xxxxxxxx
10 C2 00 04 80 00 10 03
Table A.49 Command Packet 0x82 - SBAS Correction Status
Byte Bit Item Type Value Definition
0 0 (LSB) Last fix status Bit 0
1
0 not corrected, 1 SBAS
corrected
1 Reserved Bit 0 Reserved
2 Last fix
correction
source
Bit 0
1
0 is no correction, 1 is
SBAS corrected
3 Reserved Bit 0 Reserved
4 Reserved Bit 0 Reserved
5 Reserved Bit 0 Reserved
6 Reserved Bit 0 Reserved
7 Reserved Bit 0 Reserved
A TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP)
158 Copernicus GPS Receiver
Report Packet 0x83 - Double-Precision XYZ Position Fix and Bias
Information
This packet provides current GPS position fix in XYZ ECEF coordinates. If the I/O
Position option is set to XYZ ECEF and the I/O Precision of Position option is set to
Double (see Packet 0x35), the receiver sends this packet each time a fix is computed.
The data format is shown below.
The time-of-fix is in GPS time or UTC, as selected by the I/O “timing” option.
Packet 42 provides a single-precision version of this information.
Report Packet 0x84 - Double-Precision LLA Position Fix and Bias
Information
This packet provides current GPS position fix in LLA coordinates. If the I/O Position
option is set to LLA and the Precision of Position option is set to Double (see Packet
0x35), the receiver sends this packet each time a fix is computed. The data format is
shown below.
The time-of-fix is in GPS time or UTC, as selected by the I/O “timing” option.
CWARNING – When converting from radians to degrees, significant and readily visible
errors will be introduced by use of an insufficiently precise approximation for the
constant p (PI). The value of the constant PI as specified in ICD-GPS-200 is
3.1415926535898.
Table A.50 Report Packet 0x83 Data Formats
Byte Item Type Units
0-7 X Double meters
8-15 Y Double meters
16-23 Z Double meters
24-31 clock bias Double meters
32-35 time-of-fix Single seconds
Table A.51 Report Packet 0x84 Data Formats
Byte Item Type Units
0-7 latitude Double radians; + for north,
- for south
8-15 longitude Double radians; + for east,
- for west
16-23 altitude Double meters
24-31 clock bias Double meters
32-35 time-of-fix Single seconds
Copernicus GPS Receiver 159
TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP) A
Packets 0x8E and 0x8F - Superpacket
See page 159 for information on Packets 0x8E and 0x8F.
Command Packet 0xBB - Navigation Configuration
In query mode, Packet 0xBB is sent with a single data byte and returns Report Packet
0xBB.
Note – This Command Packet replaces Packets 0x2C, 0x62, 0x75, and 0x77.
TSIP Packet 0xBB is used to set GPS Processing options. The table below lists the
individual fields within the 0xBB Packet.
Note – The dynamic limits for Dynamics Codes are:
Land: acceleration < 10m/s2; velocity < 120m/s; altitude < 9000m
Sea: acceleration < 10m/s2; velocity < 45m/s; altitude < 9000m
Air: acceleration < 10m/s2; velocity < 515m/s; altitude < 50000m
Note – Byte #2 is for all SBAS, not just WAAS.
Command Packet 0xBC - Protocol Configuration
TSIP Packet 0xBC is used to query the port characteristics. In query mode, Packet
0xBC is sent with a single data byte and returns Report Packet 0xBC. (See Table A.4
for information on saving the settings to non-volatile memory.)
Table A.52 Command Packet 0xBB Query Mode Data Format
Byte # Item Ty pe Value Definition Default
0 Subcode UINT8 0x00 Query mode
Table A.53 Command and Report Packet 0xBB Field Descriptions
Byte # Item Type Value Definition Default
0 Subcode UINT8 0x00 Query mode 0x03
1 Reserved
2SBAS UINT80
1
WAAS_OFF
WAAS_AUTO
WAAS_AUT
O
3 Dynamics Code UINT8 1
2
3
Land
Sea
Air
Land
4 Reserved
5-8 Elevation Mask Single 0.0 - 1.57
(radian)
Lowest satellite
elevation for fixes
0.0873 (5o)
9-12 Reserved
13-16 Reserved
17-20 Reserved
21 Reserved
22-39 Reserved
A TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP)
160 Copernicus GPS Receiver
TSIP Packet 0xBC is used to set the communication parameters on port A. The table
below lists the individual fields within the Packet 0xBC and provides query field
descriptions. The BC command settings are retained in battery-backed RAM.
Note – The Copernicus GPS receiver requires that the input and output baud rates be
identical.
Command Packet 0xC0 - Graceful Shutdown and Go To Standby Mode
TSIP Packet 0xC0 is used to issue a reset or graceful shutdown to the unit and/or
command the unit into Standby Mode.
Table A.54 Command Packet 0xBC Port Characteristics
Byte Bit Item Type Value Definition
0 Port to Set UINT 8 0
1
0xFF
Port A
Port B
Current port
1 Input Baud Rate UINT 8 2
3
4
5
6
7
8
9
10
11
Reserved
Reserved
Reserved
Reserved
4800 baud
9600 baud
19200 baud
38400 baud
57600 baud
115200 baud
2 Output Baud Rate UINT 8 As above As above (Note 1)
3 # Data Bits UINT 8 3 8 bits
4Parity UINT 80None
5 # Stop Bits UINT 8 0 1 bit
6 Flow Control UINT 8 0 0 = none
70TAIP Bit 0
1
Off
On
1 TSIP input Bit 0
1
Off
On
2NMEA input Bit 0
1
Off
On
3 Reserved
4-7 Reserved
80TAIP Bit 0
1
Off
On
1 TSIP output Bit 0
1
Off
On
2 NMEA output Bit 0
1
Off
On
3-7 Reserved
9 Reserved
Copernicus GPS Receiver 161
TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP) A
The table below lists the individual fields within the Packet 0xC0 and provides query
field descriptions. Any combination of conditions in byte 2 can be specified for
starting up the unit from standby mode. The condition that happens first will trigger
the unit to start up. If byte 2, bit 2 is set to 1, then byte 3 must be greater than 0.
Byte Bit Item Type Value Definition
0 Reset type or
go to standby
mode
BYTE 'H'
‘W’
‘C’
‘S’
‘F’
hot start
warm start
cold start
standby mode
factory reset
1 Store BBRAM
to Flash flag
BYTE 0 Reserved
1 Reserved
2 Store user configuration to
Flash Memory
3 Store user configuration to
Flash memory
4Erase Almanac, ephemeris
and last position from Flash
Memory
5 Erase user configuration
from Flash Memory
6Erase Almanac, ephemeris,
last position and user
configuration from Flash
Memory
2 0 Start-up from
Standby Mode
condition flags
BYTE 0
1
1=start up on serial port A
activity
10
1
1=start up on serial port B
activity
20
1
1=start up after RTC alarm
elapsed
3-4 Number of
seconds to stay
in Standby
mode
UINT32 0 to 2147483647
or
0 to (231 - 1)
seconds
A TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP)
162 Copernicus GPS Receiver
Command Packet 0xC1 - Set Bit Mask for GPIOs in Standby Mode
Users may designate individual pins for pull-down and pull-up while the unit is in
Standby Mode. This allows the user to select external pull-down or pull-up resistors
to suit their application.
Examples:
•In serial port configuration, one option would be to power down the serial port
during standby in which case the corresponding GPIOs would be pull-downs.
•To keep the serial port running during standby, the corresponding GPIOs would
be set to pull-ups.
Note – The pins that are not connected should remain in their default state, pull-
down.
Use bit 5 of byte 1 to select the pull-down or pull-up resistor for the XTANDBY pin
as appropriate for the application. Unlike the other GPIOs, the selection of the pull-
down or pull-up resistor is applied during Run Mode.
Examples:
•When the XSTANDBY pin is tied to main power, as shown in the reference
design, select the pull-down resistor for the XTANDBY pin so when main
power is removed, XTANDBY is immediately pulled low to go into Standby
Mode.
•When the XTANDBY pin is controlled with GPIO on the user’s processor, the
pull-down or pull-up resistor may be selected depending on the GPIO state.
Copernicus GPS Receiver 163
TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP) A
Table A.55 Command Packet 0xC1
The settings will be saved to flash when the user issues the command to “Save User
Configuration to Flash”.
Byte Bit Item Type Value Definition
Position
0 0 (LSB) Pin 6,
Reserved
Bit 0 Reserved
1 Pin 7, OPEN Bit 0
1
0 is pull-down, 1
is pull-up, default
is pull-down
2 Pin 8, SHORT Bit 0
1
0 is pull-down, 1
is pull-up, default
is pull-down
3 Pin 17,
Reserved
Bit 0
1
0 is pull-down, 1
is pull-up, default
is pull-down
4 Pin 18,
Reserved
Bit 0
1
0 is pull-down, 1
is pull-up, default
is pull-down
5 Bit 5, Pin 19,
PPS
Bit 0
1
0 is pull-down, 1
is pull-up, default
is pull-down
6 Pin 20, RxDB Bit 0
1
0 is pull-down, 1
is pull-up, default
is pull-down
7 Pin 21, RxDA Bit 0
1
0 is pull-down, 1
is pull-up, default
is pull-down
1 0 Pin 22,
Reserved
Bit 0
1
0 is pull-down, 1
is pull-up, default
is pull-down
1 Pin 23, TxDA Bit 0
1
0 is pull-down, 1
is pull-up, default
is pull-down
2 Pin 24, TxDB Bit 0
1
0 is pull-down, 1
is pull-up, default
is pull-down
3 Pin 25,
Reserved
Bit 0 0 is pull-down, 1
is pull-up, default
is pull-down
4 Pin 26,
Reserved
Bit 0
1
0 is pull-down, 1
is pull-up, default
is pull-down
5 Pin 16,
XSTANDBY
Bit 0
1
0 is pull-down, 1
is pull-up, default
is pull-up
6-7 Reserved Bit Reserved
A TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP)
164 Copernicus GPS Receiver
Command Packet 0xC2 - SBAS SV Mask.
This packet provides the SBAS SV bit mask in four bytes. The user data packet
contains four bytes to specify 19 possible SBAS prn numbers. Bit 0 represents PRN
120.
Available WAAS PRN numbers are 135 and 138.
Message format is:
<DLE> <id> <byte 3> <byte 2> <byte 1> <byte 0> <DLE> <ETX>
To disable WAAS PRN 135 send 10 C2 00 00 80 00 10 03
To disable WAAS PRN 138 send 10 C2 00 04 00 00 10 03
To enable all WAAS send 10 C2 00 00 00 00 10 03
Copernicus GPS Receiver 165
TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP) A
TSIP Superpackets
Several packets have been added to the core TSIP protocol to provide additional
capability for OEM receivers. In OEM Packets 0x8E and their 0x8F responses, the
first data byte is a sub-code which indicates the superpacket type. For example, in
Packet 0x8E-15, 15 is the sub-code that indicates the superpacket type. Therefore the
ID code for OEM packets is 2 bytes long followed by the data. Command packet
0x35 is used to enable superpackets.
Command Packet 8E-15 - Set/Request Datum
This packet allows the user to change the default datum from WGS-84 to one of 180
selected datums. The datum is a set of 5 parameters which describe an ellipsoid to
convert the GPS receiver’s internal coordinate system of XYZ ECEF into Latitude,
Longitude, and Altitude (LLA). This affects all calculations of LLA in packets 0x4A
and 0x84.
The datum can be changed to match coordinates with another system such as a map.
Most maps are marked with the datum used. In the US, the most popular datum for
maps is NAD-27. You may choose a datum optimized for the local shape of the earth,
however optimized datums are truly local and provide very different results when
used outside of the area for which they are intended. WGS-84 is an excellent general
ellipsoid valid around the world. To request the current datum setting, one data byte is
sent. Report Packet 0x8F is returned.
Table A.56 Command Packet 8E-15
To change to one of the internally held datums, the packet must contain exactly 2
bytes representing the integer value of the index of the desired datum.
Table A.57 Command Packet 8E-15
Note – To request the current datum, send Packet 8E015 with no data bytes.
Byte Type Meaning
0 Superpacket 0x15
Byte Type Meaning
0 Superpacket ID 0x15
1-2 INT16 Datum index
A TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP)
166 Copernicus GPS Receiver
Command Packet 0x8E-17 - Request Last Position or Auto-Report Position
in UTM Single Precision Format
This packet requests Packet 0x8F-17 or marks it for automatic output. If only the first
byte (packet sub-code 0x17) is sent, an 0x8F-17 report containing the last available
data will be sent immediately. If two bytes are sent, the packet is marked/unmarked
for auto report according to the value of the second byte as shown in the table below.
To retain the auto-report setting for this packet, first set the setting accordingly and
then save to non-volatile memory by issuing the packet 0x8E-26.
Table A.58 Command Packet 0x8E-17
Command Packet 8E-18 - Request Last Position or Auto Report Position in
UTM Double Precision Format
This packet requests Packet 0x8F-18 or marks it for automatic output. If only the first
byte (packet sub-code 0x18) is sent, an 0x8F-18 report containing the last available
data will be sent immediately. If two bytes are sent, the packet is marked/unmarked
for auto report according to the value of the second byte as shown in below. To retain
the auto-report setting for this packet, first set the setting accordingly and then save to
non-volatile memory by issuing the packet 0x8E-26.
Table A.59 Command Packet 8E-18
Byte Item Type Value Definition
0 Packet sub-code UINT8 0x17 Packet sub-code
1 Mark for auto-
report
UINT8 0,1 0=do not mark for auto-
report
1=mark for auto-report
Byte Item Type Value Definition
0 Packet sub-code UINT8 0x18 Packet sub-code
1 Mark for auto-
report
UINT8 0,1 0=do not mark for auto-
report
1=mark for auto-report
Copernicus GPS Receiver 167
TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP) A
Command Packet 0x8E-20 - Request Last Fix with Extra Information
This packet requests Packet 0x8F-20 or marks it for automatic output. If only the first
byte (20) is sent, an 0x8F-20 report containing the last available fix will be sent
immediately. If two bytes are sent, the packet is marked/unmarked for auto report
according to the value of the second byte as shown in below. 0x37 can also be used
for requesting 0x8F-20 if the 0x8F-20 is scheduled for auto output.
Note – Auto-report requires that superpacket output is enabled. Refer to Command
Packet 35.
Command Packet 0x8E-26 - Non-Volatile Memory Storage
The 0x8E-26 command is issued with no data to cause the current settings to be saved
to non-volatile memory. The 0x8F-26 report is generated after the values have been
saved.
Command Packet 0x8E-2A - Request Fix and Channel Tracking Info, Type 1
This packet requests Packet 0x8F-2A or marks it for automatic output. If only the first
byte (packet sub-code 0x2A) is sent, an 0x8F-2A report containing the last available
data will be sent immediately. If two bytes are sent, the packet is marked/unmarked
for auto report according to the value of the second byte as shown in below.
To retain the auto-report setting for this packet, first set the setting accordingly and
then save to non-volatile memory by issuing the packet 0x8E-26.
Table A.62 Command Packet 0x8E-2A
Table A.60 Command Packet 0x8E-20 Field Descriptions
Byte Item Type Definition
0 Sub-packet id UINT8 0x20
1 Mark for Auto-report (See Packet
35 byte 0 bit 5)
UINT8 0 = do not auto-
report
1 = mark for auto-
report
Table A.61 Command Packet 0x8E-26 Definitions
Byte # Item Type Value Definition
0 Subcode UINT8 0x26 Save Settings
Byte Item Type Value Definition
0 Packet sub-code UINT8 0x2A Packet sub-code
1 Mark for Auto-
report
UINT8 0,1 0 = do not auto-report
1 = mark for auto-report
A TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP)
168 Copernicus GPS Receiver
Command Packet 0x8E-2B - Request Fix and Channel Tracking Info, Type 2
This packet requests Packet 0x8F-2B or marks it for automatic output. If only the first
byte (packet sub-code 0x2B) is sent, an 0x8F-2B report containing the last available
data will be sent immediately. If two bytes are sent, the packet is marked/unmarked
for auto report according to the value of the second byte as shown in below.
To retain the auto-report setting for this packet, first set the setting accordingly and
then save to non-volatile memory by issuing the packet 0x8E-26.
Table A.63 Command Packet 0x8E-2B
Command Packet 8E-4A - Set/Request Lassen iQ GPS Cable Delay
and PPS Polarity
Using this packet, you can query and control the Lassen iQ GPS cable delay
characteristics. The receiver responds to a query or control command with packet 8F-
4A. The packet contains 16 bytes.
Table A.64 Command Packet 8E-4A
Command Packet 0x8E-4F - Set PPS Width
This command packet sets the PPS width to a value in the range of 100 microseconds
to 500 milliseconds. The receiver returns packet 0x8F-4F. The current PPS width can
be requested by sending this packet with no data bytes except the subcode byte.
Table A.65 Command Packet 0x8E-4F
Byte Item Type Value Definition
0 Packet sub-code UINT8 0x2B Packet sub-code
1 Mark for Auto-report UINT8 0,1 0 = do not auto-report
1 = mark for auto-report
Byte Item Type Meaning
0 Sub-packet ID BYTE Always 0x4A
1 Reserved
2 Reserved
3 Polarity BYTE 0 Positive
1 Negative
4-11 PPS Offset of Cable Delay DOUBLE Seconds (default=0.0)
12-15 Reserved
Byte Item Type Value Meaning
0 Subcode BYTE 0x4F
1-8 PPS width DOUBLE Seconds
Copernicus GPS Receiver 169
TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP) A
Report Packet 0x8F-15 - Current Datum Values
This packet contains 43 data bytes with the values for the datum currently in use, and
is sent in response to Packet 0x8E-15. Both the datum index and the 5 double
precision values for that index will be returned.
Table A.66 Report Packet 0x8F-15
Note – A complete list of datums is provided at the end of this appendix. Eccentricity
Squared is related to flattening by the following equation: e2=2p-p2.
Byte Type Meaning
0 UINT8 ID for this sub-packet
(always x15)
1-2 INT16 Datum index
3-10 Double DX
11-18 Double DY
19-26 Double DZ
27-34 Double A=axis
35-42 Double Eccentricity Squared
A TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP)
170 Copernicus GPS Receiver
Report Packet 8F-17 - UTM Single Precision Output
This packet reports position in UTM (Universal Transverse Mercator) format. The
UTM coordinate system is typically used for U.S. and international topographical
maps.
The UTM coordinate system lays out a world-wide grid consisting of the following:
•60 North/South zones in 6° increments, extending eastward from the
International Data Line.
•10 East/West zones in 8° increments, extending above and below the equator.
Coordinates within these boundaries cover all surface locations from 80° South to 84°
North and encircle the earth. Locations are indicated by offset from the equator and in
the zones east of the International Date Line. These offsets are known as Northing
and Easting, and are expressed in meters. UTM is not usable in polar regions.
Table A.67 Report Packet 8F-17
Byte Item Type Value
0Subcode 0x17
1 Gridzone Designation Char
2-3 Gridzone INT16
4-7 Northing Single Meters
8-11 Easting Single Meters
12-15 Altitude Single Meters
16-19 Clock Bias Single Meters
20-23 Time of Fix Single Seconds
Copernicus GPS Receiver 171
TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP) A
Report Packet 8F-18 - UTM Double Precision Output
This packet reports position in UTM (Universal Transverse Mercator) format. The
UTM coordinate system is typically used for U.S. and international topographical
maps.
The UTM coordinate system lays out a world-wide grid consisting of the following:
•60 North/South zones in 6° increments, extending eastward from the
International Data Line.
•10 East/West zones in 8° increments, extending above and below the equator.
Coordinates within these boundaries cover all surface locations from 80° South to 84°
North and encircle the earth. Locations are indicated by offset from the equator and in
the zones east of the International Date Line. These offsets are known as Northing
and Easting, and are expressed in meters. UTM is not usable in polar regions.
Table A.68 Report Packet 8F-18
Byte Item Type Value
0Subcode 0x17
1 Gridzone Designation Char
2-3 Gridzone INT16
4-7 Northing Double Meters
8-11 Easting Double Meters
12-15 Altitude Double Meters
16-19 Clock Bias Double Meters
20-23 Time of Fix Single Seconds
A TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP)
172 Copernicus GPS Receiver
Report Packet 0x8F-20 - Last Fix with Extra Information
(binary fixed point)
This packet provides complete information about the current position velocity fix in a
compact, fixed-length 56-byte packet. The fields are fixed-point with precision
matched to the receiver accuracy. It can be used for automatic position/velocity
reports. The latest fix can also be requested by 0x8E-20 or 0x37 commands.The data
format is shown below.
Table A.69 Report Packet 0x8F-20 Data Formats
Byte Bit Item Type Value Definition
0 Sub-packet id UINT8 Id for this sub-packet (always
0x20)
1 Reserved UINT8 Reserved
2-3 East velocity INT16 0.005 m/s or 0.020 m/s
See Note 1.
4-5 North velocity INT16 0.005 m/s or 0.020 m/s
See Note 1.
6-7 Up velocity INT16 0.005 m/s or 0.020 m/s
See Note 1.
8-11 Time Of Week UINT32 GPS Time in milliseconds
12-15 Latitude INT32 -230 to 230 WGS-84 latitude, 2-31
semicircle (-90° - 90°)
16-19 Longitude UINT32 0 to 232 WGS-84 longitude, 2-31
semicircle (0° - 360°)
20-23 Altitude INT32 Altitude above WGS-84
ellipsoid, mm.
24 0 Velocity Scaling 0
1
0.005 m/s2
0.020 m/s2
1-7 reserved
25 reserved
26 Datum Datum index + 1, 0=unknown
27 0 Invalid Fix Bit 0
1
No (Valid Fix)
Yes (Invalid Fix)
1 Reserved Bit 0 Reserved
2 Fix Dimension Bit 0
1
3D
2D
3 Alt Hold Bit 0
1
Last 3D Altitude
User-entered altitude
4 Filtered Bit 0
1
Unfiltered
Filtered
5-7 reserved
28 NumSVs UINT8 Number of satellites used for
fix. Will be zero if no fix avail.
29 UTC Offset UINT8 Number of leap seconds
between UTC and GPS time.
30-31 Week INT16 GPS time of fix, weeks.
Copernicus GPS Receiver 173
TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP) A
Note – Velocity scale controlled by byte 24, bit 1. Overflow = 0x8000.
32 0-5 PRN 1 UINT8 1-32 PRN of first satellite
6-7 reserved
33 IODE 1 UINT8 IODE of first satellite
34 0-5 PRN 2 UINT8 1-32 PRN of second satellite
6-7 reserved
35 IODE 2 UINT8 IODE of second satellite
36 0-5 PRN 3 UINT8 1-32 PRN of third satellite
6-7 reserved
37 IODE 3 UINT8 IODE of third satellite
38 0-5 PRN 4 UINT8 1-32 PRN of fourth satellite
6-7 reserved
39 IODE 4 UINT8 IODE of fourth satellite
40 0-5 PRN 5 UINT8 1-32 PRN of fifth satellite
6-7 reserved
41 IODE 5 UINT8 IODE of fifth satellite
42 0-5 PRN 6 UINT8 1-32 PRN of sixth satellite
6-7 reserved
43 IODE 6 UINT8 IODE of sixth satellite
44 0-5 PRN 7 UINT8 1-32 PRN of seventh satellite
6-7 reserved
45 IODE 7 UINT8 IODE of seventh satellite
46 0-5 PRN 8 UINT8 1-32 PRN of eighth satellite
6-7 reserved
47 IODE 8 UINT8 IODE of eighth satellite
48 0-5 PRN 9 UINT8 1-32 PRN of ninth satellite
6-7 reserved
49 IODE 9 UNIT8 IODE of ninth satellite
50 0-5 PRN 10 UINT8 1-32 PRN of tenth satellite
6-7 reserved
51 IODE 10 UNIT8 IODE of tenth satellite
52 0-5 PRN 11 UINT8 1-32 PRN of eleventh satellite
6-7 reserved
53 IODE 11 UNIT8 IODE of eleventh satellite
54 0-5 PRN 12 UINT8 1-32 PRN of twelfth satellite
6-7 reserved
55 IODE 12 UINT8 IODE of twelfth satellite
56-63 Ionospheric parameters
Table A.69 Report Packet 0x8F-20 Data Formats (continued)
Byte Bit Item Type Value Definition
A TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP)
174 Copernicus GPS Receiver
Report Packet 0x8F-26 - Non-Volatile Memory Status
This report will be issued after an 0x8E-26 command.
Table A.70 Report Packet 0x8F-26
Report Packet 0x8F-2A - Fix and Channel Tracking Info, Type 1
This packet provides compact fix and channel tracking information. This packet can
be requested or set up for automatic output by 0x8E-2A. Total packet length
(including header DLE, packet ID 0x8F, packet data as described below and trailing
DLE/ETX bytes): 168 bytes.
Table A.71 Report Packet 0x8F-2A
Byte Item Type Value Definition
0 Subcode UINT8 0x26 Save settings
1-4 Reserved
Byte Offset Item Type Value Definition
0 Packet sub-code UINT8 0x2A Packet sub-code (always 0x2A).
1 <reserved> UINT8 0x00 Reserved for future use.
2 <reserved> UINT8 0x00 Reserved for future use.
3 GPS Week Number UINT16 0 to
1023
10-bit GPS week number of
measurement (in weeks).
5 GPS Millisecond UINT32 0 to
603799999
GPS time of week of
measurement (in milliseconds).
9 Fractional GPS
Nanosecond
INT32 -500000 to
500000
Fractional part of the GPS
millisecond (in nanoseconds).
See Note 1.
13 Altitude INT32 Any Altitude above WGS-84
ellipsoid (in millimeters).
17 Receiver Status
Code
UINT8 Any 0x00 - Doing position fixes
0x01 - Don't have GPS time yet
0x03 - PDOP is too high
0x08 - No usable satellites
0x09 - Only 1 usable satellite
0x0A - Only 2 usable satellites
0x0B - Only 3 usable satellites
Other values indicate internal
status codes when the receiver
is not generating valid position
fixes.
Copernicus GPS Receiver 175
TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP) A
Note – This value is valid only if Bit 7 of the Receiver Health byte is not set. To
compute the complete GPS time of measurement to 1 ns resolution, use the following
formula:
GPS Time of Measurement (nanosec) = GPS Millisec*1000000 + Fractional GPS
Nanosec
Note – The channel tracking block (12 bytes in length) is repeated for all 12 channels.
18 Receiver Health UINT8 Bit-masks Bit 0 - if set, antenna line fault
is detected.
Bit 1 - if set, antenna line is
shorted; if not set, antenna line
is open. This bit is valid only if
Bit 0 is set.
Bit 2 - if set, the current fix is 2-
D; if not set, the fix is 3-D. This
bit is valid only if Receiver
Status Code byte is 0x00.
Bit 3 - if set, the current fix is
SBAS-corrected. This bit is valid
only if Receiver Status Code
byte is 0x00.
Bit 4 - if set, BBRAM was not
available at power-up.
Bit 5 - if set, Real-Time Clock
was not available at power-up.
Bit 6 - if set, the almanac stored
in the receiver is not complete
and current.
Bit 7 - if set, the measurement
clock bias is unknown.
19 <reserved> UINT 8 0x00 Reserved for future use
Channel Tracking information for Channels 0...11 (N) NOTE2
20+N*12 Satellite ID UINT8 1 to 32, or
120 to 138
Satellite PRN (GPS or SBAS).
21+N*12 Signal Strength UINT8 0 to 55 Signal strength (in dB-Hz).
22+N*12 Acquisition Status UINT16 Bit-masks Bit 0 - if set, Doppler is valid.
Bit 1 - if set, code phase is valid.
Bit 2 - if set, time ambiguity is
resolved.
Bit 3 - if set, measurement is
valid.
Other bits are reserved.
24+N*12 Pseudo Range UINT32 any Pseudo range (in cm).
28+N*12 Range Rate INT32 any Range rate (in millimeters/sec).
Byte Offset Item Type Value Definition
A TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP)
176 Copernicus GPS Receiver
Report Packet 0x8F-2B - Fix and Channel Tracking Info, Type 2
This packet provides compact fix and channel tracking information. This packet can
be requested or set up for automatic output by 0x8E-2B. Total packet length
(including header DLE, packet ID 0x8F, packet data as described below and trailing
DLE/ETX bytes): 88 bytes.
Table A.72 Report Packet 0x8F-2B
Byte Offset Item Type Value Definition
0 Packet sub-code UINT8 0x2B Packet sub-code (always
0x2B).
1 <reserved> UINT8 0x00 Reserved for future use.
2 <reserved> UINT8 0x00 Reserved for future use.
3 GPS week number UINT16
1023
0 to 10-bit GPS week number of
measurement (in weeks).
5 GPS millisecond UINT32 0 to
603799999
GPS time of week of
measurement (in
milliseconds).
9 Latitude INT32 -230 to 230 Latitude (WGS-84), 2-31
semicircle (-90° - 90°). See
Note 1.
13 Longitude UINT32 0 to 232 Longitude (WGS-84), 2-31
semicircle (0° - 360°). See
Note 1.
17 Altitude INT32 any Altitude above WGS-84
ellipsoid (in millimeters).
21 East/West Velocity INT32 any East/West velocity (in mm/s).
Positive value - East velocity;
negative - West.
25 North/South
Velocity
INT32 any North/South velocity (in
mm/s). Positive value - North
velocity; negative - South.
29 Up/Down Velocity INT32 any Up/Down velocity (in mm/s).
Positive value - Up velocity;
negative - Down.
Copernicus GPS Receiver 177
TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP) A
33 Receiver Status
Code
UINT8 Any 0x00 - Doing position fixes
0x01 - Don't have GPS time
yet
0x03 - PDOP is too high
0x08 - No usable satellites
0x09 - Only 1 usable satellite
0x0A - Only 2 usable
satellites
0x0B - Only 3 usable
satellites
Other values indicate
internal status codes when
the receiver is not
generating valid position
fixes.
34 Receiver Health UINT8 Bit-masks Bit 0 - if set, antenna line
fault is detected.
Bit 1 - if set, antenna line is
shorted; if not set, antenna
line is open. This bit is valid
only if Bit 0 is set.
Bit 2 - if set, the current fix is
2-D; if not set, the fix is 3-D.
This bit is valid only if
Receiver Status Code byte is
0x00.
Bit 3 - if set, the current fix is
SBAS-corrected. This bit is
valid only if Receiver Status
Code byte is 0x00.
Bit 4 - if set, BBRAM was not
available at power-up.
Bit 5 - if set, Real-Time Clock
was not available at power-
up.
Bit 6 - if set, the almanac
stored in the receiver is not
complete and current.
Bit 7 - if set, the
measurement clock bias is
unknown.
35 <reserved> UINT8 0x00 Reserved for future use.
Channel Tracking information for Channels 0…11 (N) NOTE 2
36+N*4 Satellite ID UINT8 1 to 32, or 120
to 138
Satellite PRN (GPS or SBAS).
37+N*4 Signal Strength UINT8 0 to 55 Signal strength (in dB-Hz).
Byte Offset Item Type Value Definition
A TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP)
178 Copernicus GPS Receiver
Note – To convert to radians, multiply the received latitude or longitude value by
(PI/231). For longitude, if the converted value is greater than PI, subtract 2*PI (PI =
3.1415926535898) to bring the final value to the (-PI…+PI) range.
The channel tracking block (4 bytes in length) is repeated for all 12 channels.
Report Packet 0x8F-4F - Set PPS Width
Note – This report packet is output after the command packet 0x8E-4E has been
executed. See the corresponding command packet for information about the data
formats.
38+N*4 Measurement
Status
UINT8 Bit-masks Bit 2 - if set, time ambiguity
is resolved (channel is
acquired).
Bit 4 - if set, ephemeris is
decoded.
Other bits are reserved.
39+N*4 Fix Mode / Rejection
Code
UINT8 Any 0x00 - SV is used in
computing the current
position fix.
0x01…0xFF - SV is not used
in fix. The value indicates
the internal “rejection”
code.
Byte Offset Item Type Value Definition
Copernicus GPS Receiver 179
TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP) A
Datums
Reference: DMA TR 8350.2 Second Edition, 1 Sept. 1991. DMA Technical Report,
Department of Defense World GEodetic System 1984, Definition and Relationships
with Local Geodetic Systems.
Trimble Datum Local Geodetic Datum
Index Name
0WGS-84
6WGS-72
7 NAD-83
8 NAD-02
9 Mexican
10 Hawaii
11 Astronomic
12 U.S. Navy
Trimble Datum Local Geodetic Datum
Index Name Code
15 Adindan Mean Solution (Ethiopia and Sudan) ADI-M
16 Adindan Ethiopia ADI-A
17 Adindan Mali ADI-C
18 Adindan Senegal ADI-D
19 Adindan Sudan ADI-B
20 Afgooye Somalia AFG
23 ARC 1950 Mean Solution ARF-M
24 ARC 1950 Botswana ARF-A
25 ARC 1950 Lesotho ARF-B
26 ARC 1950 Malawi ARF-C
27 ARC 1950 Swaziland ARF-D
28 ARC 1950 Zaire ARF-E
29 ARC 1950 Zambia ARF-F
30 ARC 1950 Zimbabwe ARF-G
31 ARC 1960 Mean Solution ARS
32 ARC 1960 Kenya ARS
33 ARC 1960 Tanzania ARS
45 Cape South Africa CAP
47 Carthage Tunisia CGE
82 Liberia 1964 Liberia LIB
87 Massawa Eritrea (Ethiopia) MAS
88 Merchich Morocco MER
90 Minna Nigeria MIN-B
94 Schwarzeck Namibia SCK
118 Old Egyptian 1907 Egypt OEG
A TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP)
180 Copernicus GPS Receiver
Trimble Datum Local Geodetic Datum
Index Name Code
1Tokyo
21 Ain El Abd 1970 Bahrain Island AIN-A
51 Djakarta (Batavia) Sumatra (Indonesia) BAT
71 Hong Kong 1963 Hong Kong HKD
72 Indian 1975 Thailand INH -A
73 Indian India and Nepal IND-I
77 Kandawala Sri Lanka KAN
79 Kertau 1948 West Malaysia and Singapore KEA
91 Nahrwan Masirah Island (Oman) NAH-A
92 Nahrwan United Arab Emirates NAH-B
93 Nahrwan Saudi Arabia NAH-C
124 Oman Oman FAH
143 Quatar National Qatar QAT
161 South Asia Singapore SOA
164 Timbalai 1948 Brunei and East Malaysia (Sarawak and Sabah) TIL
165 Tokyo Mean Solution (Japan, Okinawa and South Korea) TOY-M
166 Tokyo South Korea TOY-B
167 Tokyo Okinawa TOY-C
176 Hu-Tzu-Shan Taiwan HTN
179 Tokyo GIS Coordinates TOY-B
Trimble Datum Local Geodetic Datum
Index Name Code
5 Australian Geodetic 1966 Australia and Tasmania AUA
14 Australian Geodetic 1984 Australia and Tasmania AUG
39 Australian Geodetic 1966 Australia and Tasmania AUA
Trimble Datum Local Geodetic Datum
Index Name Code
4 European 1950 Mean Solution EUR-M
13 European 1950 Mean Solution EUR-M
54 European 1950 Mean Solution EUR-M
55 European 1950 Cyprus EUR-E
56 European 1950 Egypt EUR-F
57 European 1950 England, Ireland, Scotland, Shetland Islands EUR-G
58 European 1950 England, Ireland, Scotland, Shetland Islands EUR-K
59 European 1950 Greece EUR-B
60 European 1950 Iran EUR-H
61 European 1950 Sardinia EUR-I
62 European 1950 Sicily EUR-J
63 European 1950 Norway and Finland EUR-C
Copernicus GPS Receiver 181
TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP) A
64 European 1950 Portugal and Spain EUR-D
65 European 1979 Mean Solution EUS
74 Ireland 1965 Ireland IRL
125 Ordnance Survey of Great Britain Mean Solution OGB-M
126 Ordnance Survey of Great Britain England OGB-M
127 Ordnance Survey of Great Britain Isle of Man OGB-M
128 Ordnance Survey of Great Britain Scotland and Shetland
Islands
OGB-M
129 Ordnance Survey of Great Britain Wales OGB-M
145 Rome 1940 Sardinia MOD
Trimble Datum Local Geodetic Datum
Index Name Code
0WGS-84
2 North American 1927 Mean Solution (CONUS) NAS-C
3 Alaska Canada
46 Cape Canaveral Mean Solution (Florida and Bahamas) CAC
96 NAD 27 Western United States NAS-B
97 NAD 27 Eastern United States NAS-A
98 NAD 27 Alaska NAS-D
99 NAD 27 Bahamas NAS-Q
100 NAD 27 San Salvador NAS-R
101 NAD 27 Canada NAS-E
102 NAD 27 Alberta BC NAS-F
103 NAD 27 East Canada NAS-G
104 NAD 27 Manitoba Ontario NAS-H
105 NAD 27 Northwest Territories Saskatchewan NAS-I
106 NAD 27 Yukon NAS-J
107 NAD 27 Canal Zone NAS-O
108 NAD 27 Caribbean NAS-P
109 NAD 27 Central America NAS-N
110 NAD 27 Cuba NAS-T
111 NAD 27 Greenland NAS-U
112 NAD 27 Mexico NAS-V
113 NAD 83 Alaska NAR-A
114 NAD 83 Canada NAR-B
115 NAD 83 CONUS NAR-C
116 NAD 83 Mexico and Central America NAR-D
Trimble Datum Local Geodetic Datum
Index Name Code
A TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP)
182 Copernicus GPS Receiver
Trimble Datum Local Geodetic Datum
Index Name Code
42 Bogota Observatory Columbia BOO
43 Compo Inchauspe 1969 Argentina CAI
49 Chua Astro Paraguay CHU
50 Corrego Alegre Brazil COA
132 Provisional South Chilean 1963 Southern Chile (near 53ºS) HIT
133 Provisional South American 1956 Mean Solution (Bolivia,
Chile, Columbia, Ecuador, Guyana, Peru, Venezuela)
PRP-M
134 Provisional South American 1956 Bolivia, Chile PRP-A
135 Provisional South American 1956 Northern Chile (near
19ºS)
PRP-B
136 Provisional South American 1956 Southern Chile (near
43ºS)
PRP-C
137 Provisional South American 1956 Columbia PRP-D
138 Provisional South American 1956 Ecuador PRP-E
139 Provisional South American 1956 Guyana PRP-F
140 Provisional South American 1956 Peru PRP-G
141 Provisional South American 1956 Venezuela PRP-H
149 South American 1969 Mean Solution (Argentina, Bolivia,
Brazil, Chile, Columbia, Ecuador, Guyana, Paraguay, Peru,
Trinidad Tobago, Venezuela)
SAN-M
150 South American 1969 Argentina SAN-A
151 South American 1969 Bolivia SAN-B
152 South American 1969 Brazil SAN-C
153 South American 1969 Chile SAN-D
154 South American 1969 Columbia, SAN-E
155 South American 1969 Ecuador (Excluding Galapagos
Islands)
SAN-F
156 South American 1969 Guyana SAN-G
157 South American 1969 Paraguay SAN-H
158 South American 1969 Peru SAN-I
159 South American 1969 Trinidad and Tobago SAN-K
160 South American 1969 Venezuela SAN-L
171 Zanderij Surinam ZAN
Trimble Datum Local Geodetic Datum
Index Name Code
34 Ascension Island 1958 Ascension Island ASC
37 Astro Dos 71 /4 St. Helena Island SHB
41 Bermuda 1957 Bermuda Islands BER
70 Hjorsey 1955 Iceland HJO
81 L.C.5 Astro 1961 Cayman Brac Island LCF
86 Selvagem Grande 1938 Salvage Islands SGM
Copernicus GPS Receiver 183
TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP) A
95 Naparima, BWI Trinidad and Tobago NAP
117 Observatorio Meteorologico 1939 Corvo and Flores Islands
(Azores)
FLO
130 Pico De Las Nieves Canary Islands PLN
142 Puerto Rico Puerto Rico and Virgin Islands PUR
144 Qornoq South Greenland QUO
146 Santa Braz Sao Miguel, Santa Maria Islands (Azores) SAO
148 Sapper Hill 1943 East Falkland Islands SAP
162 Porto Santo 1936 Porto Santo and Madera Islands POS
163 Graciosa Base Southwest 1948 Faial, Graciosa, Pico, San
Jorg, and Terceira Islands (Azores)
GRA
168 Tristan Astro 1968 Tristan Da Cunha TDC
Trimble Datum Local Geodetic Datum
Index Name Code
22 Anna 1 Astro 1965 Cocos Islands ANO
66 Gan 1970 Republic of Maldives GAA
75 ISTS 073 Astro 1969 Diego Garcia IST
78 Kerguelen Island 1949 Kerguelen Island KEG
80 Reunion Mascarene Island REU
85 Mahe 1971 Mahe Island MIK
Trimble Datum Local Geodetic Datum
Index Name Code
35 Astro Beacon E 1945 Iwo Jima ATF
36 Astro Tern Island (FRIG) 1961 Tern Island TRN
38 Astronomical Station 1952 Marcus Island TRN
40 Bellevue (IGN) Efate Erromango Island IBE
44 Canton Astro1966 Phoenix Island CAO
48 Chatham Island Astro 1971 Chatham Island (New Zealand) CHI
52 Dos 1968 Gizo Island (New Georgia Islands) GIZ
53 Easter Island 1967 Easter Island EAS
67 Geodetic Datum 1948 New Zealand GEO
68 Guam 1963 Guam GUA
69 Gux 1 Astro Guadalcanal Islands DOB
76 Johnstone Island 1961 Johnstone Island JOH
83 Luzon Philippines LUZ-A
84 Luzon Mindanao Island LUZ-B
89 Midway Astro 1961 Midway Islands MID
119 Old Hawaiian Mean Solution OHA-M
120 Old Hawaiian Hawaii OHA-A
Trimble Datum Local Geodetic Datum
Index Name Code
A TRIMBLE STANDARD INTERFACE PROTOCOL (TSIP)
184 Copernicus GPS Receiver
This report will be issued after an 0x8E-26 command.
121 Old Hawaiian Kauai OHA-B
122 Old Hawaiian Maui OHA-C
123 Old Hawaiian Oahu OHA-D
131 Pitcairn Astro 1967Pitcairn Island PIT
147 Santo (DOS) 1952 Espirito Santo Island SAE
169 Viti Levu 1916 Viti Levu Island (Fiji Islands) MVS
170 Wake Eniwetok 1960 Marshall Islands ENW
Trimble Datum Local Geodetic Datum
Index Name Code
172 Bukit Rimpah Bangka and Belitung Islands (Indonesia) BUR
173 Camp Area Astro Camp McMurdo Area, Antarctica CAZ
174 Gunung Segara Kalimantan (Indonesia) GSE
175 Herat North Afghanistan HEN
Table A.73 Report Packet 0x8F-26—Non-Volatile Memory Status
Byte Item Type Value Definition
0 Subcode UINT8 0x26 Save Settings
1-4 reserved
Trimble Datum Local Geodetic Datum
Index Name Code
APPENDIX
B
Copernicus GPS Receiver 185
TRIMBLE ASCII INTERFACE PROTOCOL
(TAIP) B
In this appendix:
Protocol Overview
Message Format
Sample PV Message
Time and Distance Reporting
Latitude and Longitude
Conversion
Message Data Strings
Communication Scheme for TAIP
This appendix describes the Trimble ASCII
Interface Protocol (TAIP), Trimble’s digital
communication interface.
B TRIMBLE ASCII INTERFACE PROTOCOL (TAIP)
186 Copernicus GPS Receiver
Protocol Overview
Trimble ASCII Interface Protocol (TAIP) is a Trimble-specified digital
communication interface based on printable ASCII characters over a serial data link.
TAIP was designed specifically for vehicle tracking applications but has become
common in a number of other applications because of its ease of use. TAIP supports
both scheduled and polled responses.
TAIP messages may be scheduled for output at a user specified rate starting on a
given epoch from top of the hour. For communication robustness, the protocol
optionally supports checksums on all messages. It also provides the user with the
option of tagging all messages with the unit's user specified identification number
(ID). This greatly enhances the functional capability of the unit in a network
environment. Additionally, given the printable ASCII format of all communication,
TAIP is ideal for use with mobile data terminals, modems, and portable computers.
Although, receivers incorporating this protocol are shipped from the factory with a
specific serial port setting, the port characteristics are fully programmable through
TAIP messages.
The Copernicus GPS Receiver supports the following TAIP messages.
Message Description
AL Altitude/Up Velocity
CP Compact Position Solution
ID Identification Number
IP Initial Position
LN Long Navigation Message
PR Protocol
PT Port Characteristic
PV Position/Velocity Solution
RM Reporting Mode
RT Reset Mode
ST Status
TM Time/Date
VR Version Number
Copernicus GPS Receiver 187
TRIMBLE ASCII INTERFACE PROTOCOL (TAIP) B
Message Format
All TAIP communication uses printable, uppercase ASCII characters. The interface
provides the means to configure the output of various sentences in response to queries
or on a scheduled basis. Each sentence has the following general format:
>ABB{C}[;ID=DDDD][;*FF]<
where:.
Start of a New Message
The > character (ASCII code 62 decimal) is used to specify the start of a new
sentence.
Message Qualifier
A one character message qualifier is used to describe the action to be taken on the
message. The following table lists the valid qualifiers.
Note – All TAIP message characters must be in uppercase.
Message Description
> Start of new message
A Message qualifier
BB Two character message identifier
C Data string
DDDD Optional 4 character vehicle ID
FF Optional 2 character checksum
< Delimiting character
{x} Signifies that x can occur any number
of times
[x] Signifies that x may optionally occur
once
Qualifier Action
Q Query for a single sentence (sent to GPS receiver)
R Response to a query or a scheduled report (from the
receiver)
F Schedule reporting frequency interval in seconds
S Enables equipment to be initialized, and sets various
message types
D Specify a minimum distance traveled and a minimum and
maximum time interval for the next report
B TRIMBLE ASCII INTERFACE PROTOCOL (TAIP)
188 Copernicus GPS Receiver
Message Identifier
A unique two character message identifier consisting of alphabetical characters is
used to identify type messages. For example: PR for Protocol or VR for Version
Number.
Data String
The format and length of a data string is dictated by the message qualifier and the
message identifier. The data string may contain any printable ASCII character with
the exception of the >, <, and ; characters. Detailed descriptions of each message
format are provided in the specific message sections of this Appendix. Most messages
are length sensitive and unless otherwise specified, field separators, including spaces
are not used.
Vehicle ID
A vehicle identification (ID) may optionally be used in all the communications with
the receiver. Each receiver in the fleet may be assigned a four character alpha-
numeric ID and be forced to output that ID in all messages. The default is: ID set to
0000 and the ID Flag set to F (false). The receiver will check all incoming messages
for ID. If no ID is specified, the receiver will accept the message. If the ID is included
in messages but does not compare with the ID previously set, the message will be
ignored. This applies even when the ID Flag is turned off.
Checksum
The checksum field provides for an optional two digit hex checksum value, which is
computed as XOR of all characters from the beginning of the sentence up to and
including the * character. If provided, the checksum is always the last element of the
sentence before the message delimiter. The default mode of operation is to include
checksum in sentences. The use of checksums can help in instances where the
communication channel is noisy.
Example
The following message used to set the vehicle ID flag includes checksum.
>SRM;ID_FLAG=T;*6F<
In this example, the checksum (6F) was generated by XOR'ing the ASCII codes for >
and S then XOR'ing that result with the ASCII code for R and so forth, up to and
including the * character.
Message Delimiter
The < character signifies end of a sentence and is used as the message delimiter.
Copernicus GPS Receiver 189
TRIMBLE ASCII INTERFACE PROTOCOL (TAIP) B
Sample PV Message
The Position/Velocity Solution (PV) message is one of the more commonly used
TAIP messages and most receivers using TAIP are set by default to output the PV
message once every 5 seconds.
The following analysis of a typical PV message is provided to further explain the
TAIP message protocol.
>RPV15714+3739438-1220384601512612;ID=1234;*7F<.
Note – See PV Position/Velocity Solution, page 200, for more detail on the
interpretation of this message.
ID Meaning
> Start of message delimiter
R Response qualifier
PV PV message identifier
15714 GPS time of day
+3739438 Latitude
-12203846 Longitude
015 Speed
126 Heading
1 Source of data
2 Age of data
;ID=1234 Vehicle ID
;*7F Checksum
< End of message delimiter
B TRIMBLE ASCII INTERFACE PROTOCOL (TAIP)
190 Copernicus GPS Receiver
Time and Distance Reporting
The ’D’ message qualifier allows you to specify a minimum distance traveled as well
as a minimum and maximum time interval for the next report. Units that are stationed
at a fixed location can be programmed to report only when the unit moves “off
station” or after a certain elapsed time since last report, but no more often than the
specified minimum time interval.
The message format used with the ’D’ qualifier is shown below:
>DAABBBBCCCCEEEEFFFF[;ID=GGGG][;*HH]<
The distance ‘D’ in the message refers to the radial distance. A message would be
issued if the receiver has moved farther than a radius of ‘D’ away from where it was
previously reported. If the accumulated distance traveled is longer than ‘D’ but the
final location is still within the radius of ‘D’ (e.g. circling many times around a closed
perimeter of radius smaller than ‘D’), then no message would be issued.
Note – If BBBB = 0, then the message output is disabled. If FFFF = 0, maximum time
feature is disabled (the unit will only report if current position is greater than or equal
to the delta distance specified in EEEE).
Example
When the message: >DPV0030000505000900;ID=0105< is sent to the GPS receiver,
it specifies that vehicle number 105 (GGGG = 0105) is to report the Position Velocity
message (AA = PV) whenever its current position differs from the previously reported
position by at least 500 meters (EEEE = 0500), but no more often than every 30
seconds (BBBB = 0030) or less often than every 15 minutes (FFFF = 0900 seconds).
The minimum and maximum time-out reports are to be issued with a 5 second offset
(CCCC = 0005) from the top of the hour. The optional checksum was not used in this
example. The square brackets, [...], shown in the format description above are used to
indicate optional data. The brackets themselves are never included in the actual TAIP
message string.
ID Meaning
> Start of message delimiter
D Distance message qualifier
AA Message to report (i.e. PV means Position Velocity message)
BBBB Minimum time (seconds) interval between reports
(Tinterval)
CCCC Report epoch (number of seconds from top of the hour)
EEEE Delta distance (meters) from last reported distance
FFFF Maximum time (seconds) interval between reports (Tmax)
GGGG Optional vehicle identification number (user selected)
HH Optional checksum
< End of message delimiter
Copernicus GPS Receiver 191
TRIMBLE ASCII INTERFACE PROTOCOL (TAIP) B
Latitude and Longitude Conversion
The TAIP protocol reports latitude as positive north decimal degrees and longitude as
positive east decimal degrees, using the WGS-84 datum. For your application, you
may wish to convert to degrees, minutes and seconds. The following example
illustrates the conversion of decimal degrees to degrees, minutes and seconds.
Example
Given latitude and longitude in decimal degrees,
Latitude: +37.39438o
Longitude: -122.03846o
Convert latitude by multiplying the decimal fraction of degrees by 60 to convert to
minutes,
0.39438 x 60 = 23.6628 minutes
Retain the integer (23) portion as the minutes then multiply the decimal fraction by 60
to convert to seconds,
0.6628 x 60 = 39.768 seconds
Since the sign of the latitude in this example is positive the result is,
Latitude: N 37o 23' 39.77"
The longitude is converted in the same fashion,
Longitude: W 122o 02' 18.46"
Note – At the earth's equator, one degree of latitude and longitude represents 68.7
miles; therefore, 0.00001 degrees represents approximately 3.6 feet or 1.1 meters. Each
second represents approximately 100.76 ft.
(30.7 m).
B TRIMBLE ASCII INTERFACE PROTOCOL (TAIP)
192 Copernicus GPS Receiver
Message Data Strings
The following table lists all the TAIP messages currently defined and comments
regarding their application. The data string format of each message is described in the
following pages.
Note – The Lassen PT GPS does not support these (*) TAIP messages.
All TAIP message characters must be in uppercase.
Identifie
r
Message Format Frequency
and Distance
Query Response
Report
Set
AL Altitude/Vertical Velocity X X X X
*AP Auxiliary Port
Characteristic
n/a n/a n/a n/a
CP Compact Position Solution X X X X
*DC Differential Corrections n/a n/a n/a n/a
ID Vehicle ID X X X X
IP Initial Position X X X X
LN Long Navigation Message X X X
PR Protocol X X X
PT Port Characteristic X X X X
PV Position/Velocity Solution X X X X
RM Reporting Mode X X X X
RT Reset X
ST Status X X X
TM Time/Date X X X
VR Version Number X X X X
Copernicus GPS Receiver 193
TRIMBLE ASCII INTERFACE PROTOCOL (TAIP) B
AL Altitude/Up Velocity
Note – The first character of altitude or vertical velocity (S) is “+” or “-”.
Data String Format:
AAAA(S)BBBBB(S)CCCDE
.
Altitude is above mean sea level in WGS-84. The GPS time of day is the time of fix
rounded to the nearest second. This message contains data obtained from the last 3
dimensional fix and may not be current.
Note – The data in this message is to be considered invalid and should not be used if
the Age of Data Indicator is equal to 0 (signifying data not available).
Item # of Char Units Format Value
GPS Time of Day 5 Sec AAAAA
Altitude 6 Meter (S)BBBBB
Vertical Velocity 4 MPH (S)CCC
Fix Mode 1 n/a D 0=2D GPS
1=3D GPS
2-8 reserved
9=no fix avail.
Age of Data
Indicator
1 n/a E 2=Fresh,<10 sec.
1=Old,>10 sec.
0=Not available
Total # of Characters is 17
B TRIMBLE ASCII INTERFACE PROTOCOL (TAIP)
194 Copernicus GPS Receiver
CP Compact Position Solution
Note – The first character of latitude or longitude “(S)” is “+” or “-”.
Data String Format:
AAAAA(S)BBCCCC(S)DDDEEEEFG
Position is in latitude (positive north) and longitude (positive east) WGS-84. The GPS
time of day is the time of fix rounded to the nearest second.
Note – The data in this message is to be considered invalid and should not be used, if
the Age of Data Indicator is equal to 0 (signifying that data is not available).
Item # of Char Units Format Value
GPS Time of Day 5 Sec AAAAA
Latitude 7 Deg (S)BBCCCC
Longitude 8 Deg (S)DDDEEEE
Fix Mode 1 n/a F 0=2D GPS
1=3D GPS
2-8 reserved
9=no fix avail.
Age of Data
Indicator
1 n/a G 2=Fresh,<10 sec.
1=Old,>10 sec.
0=Not available
Total number of characters is 22
Copernicus GPS Receiver 195
TRIMBLE ASCII INTERFACE PROTOCOL (TAIP) B
ID Identification Number
Data String Format:
AAAA
This message is used to report or set the vehicle's (or receiver’s) unique, four
character, alpha-numeric, user assigned ID. The default at cold start is 0000.
Example
The following message will set the vehicle ID to 101.
>SID0101<
The following is simply a response to a query for vehicle ID.
>RID0101<
Note – The receiver will always check incoming messages for ID and compare with the
vehicle ID set in the receiver’s memory. If no ID is included in the message, the
receiver will assume a match and accept the message. If the message sent to the receiver
does contain a vehicle ID but that ID does not match the ID previously set in the receiver, the
message will be ignored. This process is followed even when the ID_Flag is turned off (refer to
the message RM).
Item # of Char Units Format
Vehicle ID 4 n/a AAAA
Total number of characters is 4
B TRIMBLE ASCII INTERFACE PROTOCOL (TAIP)
196 Copernicus GPS Receiver
IP Initial Position
Data String Format:
(S)AA(S)BBB(S)CCCC
This is a very coarse initial position that can be used to aid the receiver in obtaining
its first fix. This is particularly useful with a receiver that does not have battery
backup enabled. In such cases, every time the unit is powered up, it goes through a
complete cold-start and it has absolutely no knowledge of where it is. Providing this
message improves performance by decreasing the time to first fix and enhances the
accuracy of the initial two dimensional navigation solutions by providing a reference
altitude. In case of units with battery backed memory, sending this message is only
helpful if the unit has moved more than 1,000 miles since its previous fix. In either
case, the receiver can initialize itself appropriately without any data from the user; it
merely requires more time.
Note – For all the above values, the first character (S) specifies the sign
“+” or “-”.
Example:
The following message will set the initial position to 37o North, 122o West, altitude
10 meters.
>SIP+37-122+0001<
Item # of Char Units Format
Initial Latitude 3 Deg (S)AA
Initial Longitude 4 Deg (S)BBB
Initial Altitude 5 10 meters (S)CCCC
Total number of characters is 12
Copernicus GPS Receiver 197
TRIMBLE ASCII INTERFACE PROTOCOL (TAIP) B
LN Long Navigation Message
Note – The first character of latitude, longitude, altitude or vertical speed (S) is“+” or “-”.
Data String Format:
AAAAA.BBB(S)CCDDDDDDD(S)EEEFFFFFFF(S)GGGGGGHHIIIJ(S)KKKLM
MMNOOPPQQPPQQ...PPQQRRRRRRRRRRXT
Note – At least 2 satellites are required to get the LN Message.
Position is in degrees, minutes, and decimal minutes. Latitude is (positive north);
longitude is (positive east) WGS-84. Heading is in degrees from True North
increasing eastwards. The GPS time of day is the time of fix rounded to the nearest
second.
Note – The data in this message is to be considered invalid and should not be used if
the Age of Data Indicator is equal to 0 (signifying data not available).
Item # of
Char
Units Format Value
GPS Time of Day 8 Sec AAAAA.BBB
Latitude 10 Deg (S)CC.DDDDDDD
Longitude 11 Deg (S)EEE.FFFFFFF
Altitude above
MSL
9 Ft (S)GGGGGG.HH
Horizontal speed 4 MPH lll.J
Vertical speed 5 MPH (S)KKK.L
Heading 4 Deg MMM.N
Number of SVs
used
2n/aOO
SV ID (see note) 2 n/a PP
IODE (see note) 2 n/a QQ
Reserved 10 n/a RRRRRRRRRR
Fix Mode 1 n/a X 0=2D GPS
1=3D GPS
2-8 reserved
9=no fix avail.
Age of Data
indicator
1 n/a T 2=fresh,<10 sec.
1=old,>10 sec.
0=not available
Total number of characters is 65 + 4x (number of SVs used)
B TRIMBLE ASCII INTERFACE PROTOCOL (TAIP)
198 Copernicus GPS Receiver
PR Protocol
The protocol message (PR) is the method used to control which I/O protocols are
active on the serial ports.
•Off
•Input only
•Output only
•Both input and output
The PR data string format is:
[;TAIP=xy] [;TSIP=xy] [;NMEA=xy]
Sending the following message will set the receiver to TAIP-IN and TAIP-OUT on
PORT A and NMEA-OUT on Port B.
>SPR;TAIP=TF;TSIP=FF;NMEA=FO
Note – Bi-directional TSIP, TAIP and NMEA are supported on Ports 1 and 2.
If a protocol is not implemented within the application, x and/or y will have the value
N, and any set message for that protocol is ignored.
It is possible to turn off all input processing on a port. If this is done, neither TAIP nor
TSIP can be used to change the active protocols.
If you do not use battery back-up and you do not have the settings saved in FLSAH
memory, all port characteristics will reset to the default after power is removed.
Item # of Char Units Format Value
Port A protocol 1 n/a X T = Both in and out
I = Input only
O = Output only
F = Off
N = Not available
Port B protocol 1 n/a y T = Both in and out
I = Input only
O = Output only
F = Off
N = Not available
Copernicus GPS Receiver 199
TRIMBLE ASCII INTERFACE PROTOCOL (TAIP) B
PT Port Characteristic
This message defines the characteristics for the TAIP port.
Data String Format:
AAAA,B,C,D
Most TAIP using receivers use the following default port characteristics
•4800 baud
•8 data bits
•1 stop bit
•No parity
Note – The characteristics set by this message will be stored in the receiver’s battery backed
ram. The Lassen iQ receiver family of receivers do not include an internal battery but
provide a battery back-up input line that may be used to retain memory when main
power is removed.
If you do not use battery back-up, all port characteristics will reset to either the
default settings after power is removed, or to the settings previously stored in Flash.
The PT command uses commas between data fields.
Item # of Char Units Format Value
Baud Rate 4 n/a AAAA 4800 - 4800 bps
9600 - 9600 bps
1920 - 19200 bps
3840 - 38400 bps
5760 - 57600 bps
1152 - 115200 bps
# of data bits 1 n/a B
# of stop bits 1 n/a C 1
Parity 1 n/a D “N” = None
Total number of characters is 10 (includes commas)
B TRIMBLE ASCII INTERFACE PROTOCOL (TAIP)
200 Copernicus GPS Receiver
PV Position/Velocity Solution
Note – The first character of latitude or longitude “(S)” is “+” or “-”.
Data String Format:
AAAAA(S)BBCCCCC(S)DDDEEEEEFFFGGGHI
Position is in latitude (positive north) and longitude (positive east) WGS-84. Heading
is in degrees from True North increasing eastwards. The GPS time of day is the time
of fix rounded to the nearest second.
Note – The data in this message is to be considered invalid and should not be used if the Age
of Data Indicator is equal to 0 (signifying data not available).
Item # of Char Units Format Value
GPS Time of Day 5 Sec AAAAA
Latitude 8 Deg (S)BBCCCCC BB=degrees
CCCC=decimal
degrees
Longitude 8 Deg (S)DDDEEEEE DDD=degrees
EEEE=decimal
degrees
Speed 3 MPH FFF
Heading 3 Deg. GGG
Fix Mode 1 n/a H 0=2D GPS
1=3D GPS
2-8 reserved
9=no fix avail.
Age of Data
Indicator
1 n/a I 2=fresh,<10 sec.
1=old,>10 sec.
0=not available
Total number of characters is 30
Copernicus GPS Receiver 201
TRIMBLE ASCII INTERFACE PROTOCOL (TAIP) B
RM Reporting Mode
Data String Format:
[;ID_FLAG= A][;CS_FLAG= B][;EC_FLAG= C] [;FR_FLAG= D]
[;CR_FLAG=E]
ID Flag determines whether the unit is to include the vehicles ID with each report.
CS Flag determines whether the unit is to include a checksum as part of each
message.
EC Flag, when set, will cause the unit to echo back all complete and properly
formatted set commands with a response qualifier. This provides an easy way to
verify that the unit did in fact receive the intended data.
FR Flag indicates whether the unit is to report messages automatically per their
individually scheduled frequency. When set to false, the unit will only respond when
queried for a specific message.
CR Flag, when set to True, will cause the receiver to append a carriage return and line
feed [CR] [LF] to the end of each message output. This is useful when viewing the
unencoded receiver responses on a terminal or a PC.
The default value at start-up for ID flag and the CR flag is false; the default for CS,
EC and FR flags is true.
Example
The following command will turn checksums off and carriage return on:
>SRM;CS_FLAG=F;CR_FLAG=T<
Note – Notice the use of semicolon before the flag name.
Item # of Char Units Format Value
ID Flag 1 n/a A T = True
F = False
CS Flag 1 n/a B T = True
F = False
EC Flag 1 n/a C T = True
F = False
FR Flag 1 n/a D T = True
F = False
CR Flag 1 n/a E T = True
F = False
B TRIMBLE ASCII INTERFACE PROTOCOL (TAIP)
202 Copernicus GPS Receiver
RT Reset Mode
Data String Format:
Any one of the following data strings can be set. Upper case characters are required.
[ ]
[COLD]
[FACTORY]
[SAVE_CONFIG]
The following procedure is used to change the Lassen iQ receiver protocol from TSIP
to TAIP:
1. Use the TSIP 0x7E command to setup the TAIP output configuration.
2. Change the protocol to TAIP using TSIP command 0xBC.
3. Save the TAIP settings to Flash memory using the TAIP command
>SRTSAVE_CONFIG<.
Message Description
>SRT< Warm Start
>SRTCOLD< Cold Start
>SRTFACTORY< Factory Reset
>SRTSAVE_CONFIG< Save settings to Flash memory
Copernicus GPS Receiver 203
TRIMBLE ASCII INTERFACE PROTOCOL (TAIP) B
ST Status
Data String Format:
AABCDDEFGG
Note – This message provides information about the satellite tracking status and the
operational health of the receiver. This information is contained in five status bytes
which are output as five 2 digit hexadecimal values. The data format and the
meanings of the hex characters are given in the following tables.
Item # of Char Units Format Definition
Tracking Status Code 2 n/a AA (see table below)
Error Codes - Nibble 1 1 n/a B (see table below)
Error Codes - Nibble 2 1 n/a C (see table below)
Machine ID 2 n/a DD
Error Code - Nibble 3 1 n/a E (not currently
used)
Error Code - Nibble 4 1 n/a F (see table below)
Reserved 2 n/a GG (see table below)
Value AA Meaning
00 Doing position fixes
01 Don’t have GPS time yet
02 Not used
03 PDOP is too high
08 No usable satellites
09 Only 1 usable satellite
OA Only 2 usable satellites
OB Only 3 usable satellites
OC Chosen satellite is unusable
Value B Meaning
0 No problems reported
2 Antenna feedline open fault
6 Antenna feedline short fault
B TRIMBLE ASCII INTERFACE PROTOCOL (TAIP)
204 Copernicus GPS Receiver
Note – After the status is detected, this bit remains set until the receiver is reset.
Value C Meaning
0 No problems reported
1 Battery-back-up failed; RAM not available at
power-up (see Note below).
Value DD Meaning
DD Displays the machine ID
Value E Meaning
Not used Not used
Value F Meaning
0 No problems reported
2 RTC not available at power-up (see Note
below)
8 Stored almanac not complete and current
A RTC not available; stored almanac not
complete and current
Value GG Meaning
Not used Reserved
Copernicus GPS Receiver 205
TRIMBLE ASCII INTERFACE PROTOCOL (TAIP) B
TM Time/Date
Data String Format:
AABBCCDDDEEFFGGGGHHIJJKLLLLL
.
This message outputs the time and date as computed by the GPS receiver. The time is
most accurate when the unit is doing fixes. It is less accurate but still usable when the
unit is not doing fixes but the Number of Usable SVs is one or more. If the GPS UTC
offset is available, the time will be in UTC. If not, the time will be in GPS.
Note – GPS UTC Time Offset is the difference between GPS and UTC time standards
in seconds. The UTC time of Day is only valid if the GPS UTC Offset Valid Flag is
indicating valid.
Note – The TM message is not supported under the Set qualifier.
Item # of Char Units Format Value
Hours 2 Hour AA
Minutes 2 Min BB
Seconds 5 Sec CC.DDD
Date; Day 2 Day EE
Date; Month 2 Month FF
Date; Year 4 Year GGGG
GPS UTC Time
Offset
2SecHH
Fix Mode 1 n/a f 0=2D GPS
1=3D GPS
2-8 reserved
9=no fix avail.
Number of
usable satellites
2n/aJJ
GPS UTC Offset
flag
1 n/a K (1 = valid)
(0 = invalid)
Reserved 5 n/a LLLLL
Total number of characters is 28
B TRIMBLE ASCII INTERFACE PROTOCOL (TAIP)
206 Copernicus GPS Receiver
VR Version Number
Data String Format:
XXXXXXX; VERSION A.AA (BB/BB/BB);
.
Item # of Char Units Format
Product Name variable n/a n/a
Major version number 4 n/a A.AA
Major release date 8 n/a BB/BB/BB
Copernicus GPS Receiver 207
TRIMBLE ASCII INTERFACE PROTOCOL (TAIP) B
X1 Extended Status
The Lassen iQ receiver does not support this message.
B TRIMBLE ASCII INTERFACE PROTOCOL (TAIP)
208 Copernicus GPS Receiver
Communication Scheme for TAIP
Communication with the unit takes place in four different ways. Message qualifiers
are used to differentiate between these.
Query for Single Sentence
The query (Q) message qualifier is used to query the GPS receiver to respond
immediately with a specific message. The format is:
>QAA[;ID=BBBB][;*CC]<
where AA is the requested message identifier. Messages supported by this qualifier
are
AL, AP, CP, ID, IP, LN, PT, PV, RM, ST, TM, and VR.
Scheduled Reporting Frequency Interval
The scheduled reporting frequency interval (F) message qualifier is used to tell the
unit how often and when to report a specific message. The format is:
>FAABBBBCCCC[;ID=DDDD][;*FF]<
where sending this sentence tells the unit to report message specified by the two digit
identifier AA at the time interval of BBBB seconds with time epoch at CCCC
seconds from top of the hour. Specifying time interval of 0000 stops scheduled
reporting of the message. The default is 0000 time interval for all messages except
PV. The output frequency for PV at cold-start is set at once every five seconds, zero
seconds from top of the hour. Messages supported by this qualifier are AL, AP, CP,
ID, IP, LN, PT, PV, RM, ST, TM, and VR.
Note – The Copernicus GPS Receiver does not support the AP TAIP message.
The data specified by this qualifier is the timing of the message output and may be different
from the time tag of the data in the message.
The Response to Query or Scheduled Report
The response (R) qualifier carry various types of data between the unit and the user
equipment. The format is:
>RAA[{B}][;ID=CCCC][;*DD]<
where AA is the two character message identifier and {B} specifies the data string
within the message. For the format of {B}, please refer to the message definitions in
the previous section. Messages supported by the response qualifier are AL, AP, CP,
ID, IP, LN, PT, PV, RM, ST, TM, and VR.
Note – The Lassen PT GPS does not support the AP TAIP message.
Copernicus GPS Receiver 209
TRIMBLE ASCII INTERFACE PROTOCOL (TAIP) B
The Set Qualifier
The set (S) qualifier enables the user equipment to initialize/set-up various types of
data in the GPS unit. The format is:
>SAA[{B}][;ID=CCCC][;*DD]<
where AA is the two character message identifier and {B} specifies the data string
within the message. For the format of {B}, please refer to the message definitions in
the previous section. Note that all the messages have very specific formats and are
length dependent.
Messages normally supported by the set qualifier are AL, AP, CP, DC, DD, ID, IP,
LN, PT, PV, and RM.
The set qualifier may be used with the AL, CP, LN, or PV message to set more precise
initial position data into the GPS receiver than can be set with the IP message.
Note – The Lassen PT GPS does not support the AP TAIP message.
Sample Communication Session
The following is a sample communication session to illustrate how message qualifiers
are used. Query the receiver for version number for the TAIP firmware:
>QVR<
The receiver responds with a message in the following form:
>RVR CT COPERNICUS APP; VERSION 01.05 (05/23/06);*6E<
Note – The receiver identified its product name, firmware version number, core signal
processing version number, and release dates, then included the checksum for the
message (the default for the CS Flag is TRUE). Also notice that the receiver did
respond to our query even though we did not send a checksum.
Query the receiver for its ID number:
>QID<
The receiver will respond (assuming factory default settings):
>RID0000;*70<
Set the ID to match the number for a vehicle in your fleet and then tell the receiver to
include the Vehicle ID in its responses:
>SID1234<
>SRM;ID_FLAG=T<
The Lassen iQ receiver receiver is set by default to report the PV message once every
5 seconds. To schedule the PV message from vehicle 1234 to respond once every 10
seconds, starting at 5 seconds after the top of the hour, use the following command:
>FPV00100005;ID=1234<
B TRIMBLE ASCII INTERFACE PROTOCOL (TAIP)
210 Copernicus GPS Receiver
The receiver will check the ID included in the message for a match with its own and
then reschedule the PV message. At the next scheduled time, the receiver will
respond with:
>RPV15714+3739438-1220384601512612;ID=1234;*7F<
Note – The Lassen PT GPS does not support the AP TAIP message.
The time given in the message is the time of the last GPS fix
(04:21:54 GPS), not necessarily the time of the message response. If the time of last
fix is 10 or more seconds old, the age flag will be set
to 1.
APPENDIX
C
Copernicus GPS Receiver 211
NMEA 0183 C
In this appendix:
Overview
The NMEA 0183 Communication
Interface
NMEA 0183 Message Format
Field Definitions
Checksum
Exception Behavior
NMEA 0183 Message Options
NMEA 0183 Message Formats
This appendix provides a brief overview of the
NMEA 0183 protocol, and describes both the
standard and optional messages offered by the
Copernicus GPS Receiver.
C NMEA 0183
212 Copernicus GPS Receiver
Overview
NMEA 0183 is a simple, yet comprehensive ASCII protocol which defines both the
communication interface and the data format. The NMEA 0183 protocol was
originally established to allow marine navigation equipment to share information.
Since it is a well established industry standard, NMEA 0183 has also gained
popularity for use in applications other than marine electronics. The Copernicus GPS
receiver supports the latest release of NMEA 0183, Version 3.0 (July 1, 2000). The
primary change in release 3.0 is the addition of the mode indicators in the GLL,
RMC, and VTG messages. In addition, the Copernicus GPS supports bi-directional
NMEA with the description of the Trimble proprietary NMEA sentences found in this
Appendix
For those applications requiring output only from the GPS receiver, the standard
NMEA 0183 sentences are a popular choice. Many standard application packages
support the standard NMEA output messages. With the addition of the Trimble
proprietary bi-directional NMEA, the user can now gain complete control of the
Copernicus module including configuration and program control.
The standard NMEA output only messages are: GGA, GLL, GSA, GSV, RMC, VTG,
and ZDA.
NMEA National Office
7 Riggs Ave.,
Severna Park, MD 21146
+1-410-975-9425
info@nmea.org
Copernicus GPS Receiver 213
NMEA 0183 C
The NMEA 0183 Communication Interface
The Copernicus GPS receiver can be configured for NMEA on either port A or port
B, at any baud rate. Below are the default NMEA characteristics for Port B of the
Copernicus GPS receiver.
Table C.1 Signal Characteristics
NMEA 0183 Message Format
The NMEA 0183 protocol covers a broad array of navigation data. The entire
protocol encompasses over 50 messages, but only a sub-set of these messages apply
to a GPS receiver like the Copernicus GPS Receiver. The NMEA message structure is
described below.
$IDMSG,D1,D2,D3,D4,.......,Dn*CS[CR][LF]
“$” The “$” signifies the start of a message.
ID The identification is a two letter mnemonic which describes the
source of the navigation information. The GP identification signifies
a GPS source.
MSG The message identification is a three letter mnemonic which
describes the message content and the number and order of the data
fields.
“,” Commas serve as delimiters for the data fields.
Dn Each message contains multiple data fields (Dn) which are delimited
by commas. The length of the fields can be variable.
“*” The asterisk serves as a checksum delimiter.
CS The checksum field contains two ASCII characters which indicate
the hexadecimal value of the checksum.
[CR][LF] The carriage return [CR] and line feed [LF] combination terminate
the message.
NMEA 0183 standard messages vary in length, but each message is limited to 79
characters or less. This length limitation excludes the “$” and the [CR][LF]. The
standard message data field block, including delimiters, is limited to 74 characters or
less.
Note – Trimble proprietary messages can exceed 79 characters and the data field
block of these messages can exceed 74 characters.
Signal Characteristic NMEA Standard
Baud Rate 4800
Data Bits 8
Parity None (Disabled)
Stop Bits 1
C NMEA 0183
214 Copernicus GPS Receiver
Field Definitions
Many of the NMEA data fields are of variable length, and the user should always use
the comma delimiter to parse the NMEA message date field. The table below
specifies the definitions of all field types in the NMEA messages supported by
Trimble.
Table C.2 Field Definitions
Type Symbol Definition
Status A Single character field:
A=Yes, data valid, warning flag clear
V=No, data invalid, warning flag set
Special Format Fields
Latitude llll.lll Fixed/variable length field:
Degreesminutes.decimal-2 fixed digits of degrees, 2 fixed
digits of minutes and a variable number of digits for
decimal-fraction of minutes. Leading zeros always included
for degrees and minutes to maintain fixed length. The
decimal point and associated decimal-fraction are optional if
full resolution is not required.
Longitude yyyyy.yyy Fixed/Variable length field:
Degreesminutes.decimal-3 fixed digits of degrees, 2 fixed
digits of minutes and a variable number of digits for
decimal-fraction of minutes. Leading zeros always included
for degrees and minutes to maintain fixed length. The
decimal point and associated decimal-fraction are optional if
full resolution is not required.
Time hhmmss.ss Fixed/Variable length field:
hoursminutesseconds.decimal-2 fixed digits of minutes, 2
fixed digits of seconds and a variable number of digits for
decimal-fraction of seconds. Leading zeros always included
for hours, minutes, and seconds to maintain fixed length.
The decimal point and associated decimal-fraction are
optional if full resolution is not required.
Defined Some fields are specified to contain pre-defined constants,
most often alpha characters. Such a field is indicated in this
standard by the presence of one or more valid characters.
Excluded from the list of allowable characters are the
following that are used to indicated field types within this
standard:
“A”, “a”, “c”, “hh”, “hhmmss.ss”, “llll.ll”, “x”, “yyyyy.yy”
Numeric Value Fields
Variable x.x Variable length integer or floating numeric field. Optional
leading and trailing zeros. The decimal point and associated
decimal-fraction are optional if full resolution is not
required (example: 73.10=73.1=073.1=73).
Fixed HEX hh Fixed length HEX numbers only, MSB on the left
Information Fields
Fixed Alpha aa Fixed length field of upper-case or lower-case alpha
characters
Fixed number xx Fixed length field of numeric characters
Copernicus GPS Receiver 215
NMEA 0183 C
Note – Spaces are only used in variable text fields.
Units of measure fields are appropriate characters from the Symbol column (see
Table C.2), unless a specified unit of measure is indicated.
Fixed length field definitions show the actual number of characters. For example, a
field defined to have a fixed length of 5 HEX characters is represented as hhhhh
between delimiters in a sentence definition.
Invalid Command Set
In the case that a command is sent with incorrect data, the NMEA sentence
$PTNLRxx,V*xx is a generic response.
Checksum
The checksum is the last field in an NMEA sentence and follows the checksum
delimiter character “*”. The checksum is the 8 bit exclusive OR (no start or stop bits)
of a character in the sentence including “,” between but not including the “$” and the
“*” delimiters. The hexadecimal value of the most significant and less significant 4
bits of the result is converted to two ASCII characters (0-9, A0F (upper case)) for
transmission. The most significant character is transmitted first. Examples of the use
of the checksum field are:
$GPGLL,5057.970,N,00146,110,E,142451,A*27<CR><LF>
$GPVTG,089,0,T,,,15,2,N,,*7F<CR><LF>
C NMEA 0183
216 Copernicus GPS Receiver
Exception Behavior
When no position fix is available, some of the data fields in the NMEA messages will
be blank. A blank field has no characters between the commas. There are three
general cases when no fix is available: at power-up without back-up data on SRAM
(cold start); at power-up with without back-up data on SRAM (warm start); and when
the GPS signal is temporarily blocked. These three cases have different NMEA
output behavior in the Copernicus GPS Receiver. This section describes the behavior
for the current product. The specification for this behavior may change in future
products.
Power-up with No Back-up Data on SRAM
In this case, no previous fix is available in battery-backed memory. If the output
message list and output rate has been customized (using TSIP command packet
0x7A) and stored in Flash memory, then at power-up the receiver will output the
messages according to the customized setting. Otherwise, GGA and VTG messages
are output every second. Before fixes are available, the message fields will be empty.
Power-up with Back-up Data on SRAM
In this case, a previous fix is available in battery-backed memory at power-up. If the
output message list and output rate has been customized (using TSIP command
packet 0x7A) and stored in Flash memory, then at power-up the receiver will output
the messages according to the customized setting. Otherwise, GGA and VTG
messages are output every second. Before fixes are available, the message fields will
be empty except for the Time field, assuming the back-up battery power is present so
that time can be tracked continuously by the RTC (Real Time Clock).
Interruption of GPS Signal
If the GPS signal is interrupted temporarily, the NMEA will continue to be output
according to the user-specified message list and output rate. Position and velocity
fields will be blank until the next fix, but most other fields will be filled.
Copernicus GPS Receiver 217
NMEA 0183 C
General NMEA Parser Requirements
•When no position fix is available, some of the data fields in the NMEA
messages will be blank (i.e., no characters between commas), but selected
messages will output every second.
•Trimble varies the number of digits of precision in variable length fields, so
customer parsers should be able to handle variable lengths.
•NMEA parsers should be built to be forward-compatible. Future versions of a
standard message may have more fields or more choices per field.
•Checksum matching is strongly recommended.
•9600 baud may be required if GSV messages are output.
•When multiple NMEA settings are implemented, save them to Flash memory.
•For GGA, GLL, RMC messages, time is GPS time (not UTC) until leap second
parameter is known. There is no way to tell which time your are running in,
until the time output suddenly decreases by 14 seconds (or by the current
offset).
•For GGA, GLL, RMC messages, if the datum is changed, there is no regular
DTM warning of non-WGS-84 datum as required by NMEA 2.1. You must
query the datum for this information.
C NMEA 0183
218 Copernicus GPS Receiver
NMEA 0183 Message Options
The Copernicus GPS Receiver can output any or all of the messages listed in
Table C.3 and Table C.4. In its default configuration (as shipped from the factory), the
Copernicus GPS Receiver outputs two messages: GGA and VTG. These messages are
output at a 1 second interval with the “GP” ID and checksums. These messages are
output at all times during operation, with or without a fix. If a different set of
messages has been selected (using Packet 0x7A), and this setting has been stored in
Flash memory (using Packet 0x8E-26), the default messages are permanently
replaced until the receiver is returned to the factory default settings.
Another methodology for changing NMEA output messages is using the Trimble
proprietary NMEA commands listed in Table C.4. Use the NM command to select the
NMEA message, and the RT command to store the message in Flash Memory.
Note – The user can configure a custom mix of the messages listed in Table C.4. See
command packets 0xBC, 0x7A, and 8E-26 in Appendix A, and the NM and RT
command descriptions in this Appendix for details on configuring NMEA output.
CWARNING – If too many messages are specified for output, you may need to increase the
unit’s baud rate.
.
Table C.3 Copernicus GPS Receiver NMEA 0183 Messages
Message Description
Default
Output
GGA GPS fix data
GLL Geographic position - Latitude/Longitude
GSA GPS DOP and active satellites
GSV GPS satellites in view
RMC Recommended minimum specific GPS/Transit data
Default
Output
VTG Track made good and ground speed
ZDA Time & Date
Copernicus GPS Receiver 219
NMEA 0183 C
Table C.4 Copernicus GPS Receiver Proprietary NMEA Messages
Message Description
AH Query or set Almanac Health
AL Query or set almanac data for a specific satellite
AS Query or set almanac status
BA Query and response to antenna status
CR Query or set GPS receiver configuration information
EM Set receiver into Monitor Mode. Set only.
EP Query or set ephemeris data for a specific satellite
IO Query or set ionosphere data.
KG Set initial position and time info data for to aid
navigation startup
NM Query or set NMEA automatic message output
control
PS Query or set PPS configuration
PT Query or set serial port configuration
RT Set Reset type (cold
TF Query or set receiver status and position fix
information
UT Query or set UTC data
VR Query and response to version information
C NMEA 0183
220 Copernicus GPS Receiver
NMEA 0183 Message Formats
GGA - GPS Fix Data
The GGA message includes time, position and fix related data for the GPS receiver.
$GPGGA,hhmmss.ss,llll.lllll,a,nnnnn.nnnnn,b,t,uu,
v.v,w.w,M,x.x,M,y.y,zzzz*hh <CR><LF>
Table C.5 GGA - GPS Fix Data Message Parameters
Field # Description
1 UTC of Position (when UTC offset has been decoded by the receiver)
2,3 Latitude, N (North) or S (South)
4,5 Longitude, E (East) or W (West)
6 GPS Quality Indicator: 0=invalid fix, 1=GPS fix, no SBAS correction, 2=SBAS
corrected fix
7 Number of Satellites in Use
8 Horizontal Dilution of Precision (HDOP)
9, 10 Antenna Altitude in Meters, M = Meters
11, 12 Geoidal Separation in Meters, M=Meters. Geoidal separation is the difference
between the WGS-84 earth ellipsoid and mean-sea-level. “-” = mean-sea-level
surface below WG-84 ellipsoid surface
13 Age of Differential GPS Data. Time in seconds since the last Type 1 or 9 Update
14 Differential Reference Station ID (0000 to 1023)
hh Checksum
Copernicus GPS Receiver 221
NMEA 0183 C
GLL - Geographic Position - Latitude/Longitude
The GLL message contains the latitude and longitude of the present vessel position,
the time of the position fix and the status.
$GPGLL,llll.lllll,a,yyyyy.yyyyy,a,hhmmss.ss,A,i*hh<CR>
<LF>
GSA - GPS DOP and Active Satellites
The GSA messages indicates the GPS receiver's operating mode and lists the
satellites used for navigation and the DOP values of the position solution.
$GPGSA,a,x,xx,xx,xx,xx,xx,xx,xx,xx,xx,xx,xx,
xx,x.x,x.x,x.x*hh<CR><LF>
Table C.6 GLL - Geographic Position - Latitude / Longitude Message Parameters
Field Description
1,2 Latitude, N (North) or S (South)
3,4 Longitude, E (East) or W (West)
5 UTC of position (when UTC offset has been decoded by the
receiver)
6 Status: A = Valid, V= Invalid
7 Mode Indicator
A=Autonomous Mode
D=Differential Mode
E=Estimated (dead reckoning) Mode
M=Manual Input Mode
S=Simulated Mode
N-Data Not Valid
hh Checksum
Table C.7 GSA - GPS DOP and Active Satellites Message Parameters
Field # Description
1 Mode: M = Manual, A = Automatic. In manual mode, the receiver
is forced to operate in either 2D or 3D mode. In automatic mode,
the receiver is allowed to switch between 2D and 3D modes
subject to the PDOP and satellite masks.
2 Current Mode: 1 = fix not available, 2 = 2D, 3 = 3D
3 to 14 PRN numbers of the satellites used in the position solution. When
less than 12 satellites are used, the unused fields are null
15 Position dilution of precision (PDOP)
16 Horizontal dilution of precision (HDOP)
17 Vertical dilution of precision (VDOP)
hh Checksum
C NMEA 0183
222 Copernicus GPS Receiver
GSV - GPS Satellites in View
The GSV message identifies the GPS satellites in view, including their PRN number,
elevation, azimuth and SNR value. Each message contains data for four satellites.
Second and third messages are sent when more than 4 satellites are in view. Fields #1
and #2 indicate the total number of messages being sent and the number of each
message respectively.
$GPGSV,x,x,xx,xx,xx,xxx,xx,xx,xx,xxx,xx,xx,xx,
xxx,xx,xx,xx,xxx,xx*hh<CR><LF>
Table C.8 GSV - GPS Satellites in View Message Parameters
Field # Description
1 Total number of GSV messages
2 Message number: 1 to 3
3 Total number of satellites in view
4 Satellite PRN number
5 Satellite elevation in degrees (90° Maximum)
6 Satellite azimuth in degrees true (000 to 359)
7 Satellite SNR (C/No), null when not tracking
8,9,10,11 PRN, elevation, azimuth and SNR for second satellite
12,13,14,15 PRN, elevation, azimuth and SNR for third satellite
16,17,18,19 PRN, elevation, azimuth and SNR for fourth satellite
hh Checksum
Copernicus GPS Receiver 223
NMEA 0183 C
RMC - Recommended Minimum Specific GPS/Transit Data
The RMC message contains the time, date, position, course, and speed data provided
by the GPS navigation receiver. A checksum is mandatory for this message and the
transmission interval may not exceed 2 seconds. All data fields must be provided
unless the data is temporarily unavailable. Null fields may be used when data is
temporarily unavailable.
$GPRMC,hhmmss.ss,A,llll.lllll,a,yyyyy.yyyyy,a,
x.x,x.x,xxxxxx,x.x,a,i*hh<CR><LF>
VTG - Track Made Good and Ground Speed
The VTG message conveys the actual track made good (COG) and the speed relative
to the ground (SOG).
$GPVTG,x.x,T,x.x,M,x.x,N,x.x,K,i*hh<CR><LF>
Table C.9 RMC - Recommended Minimum Specific GPS / Transit Data Message
Parameters
Field # Description
1 UTC of Position Fix (when UTC offset has been decoded by the
receiver).
2 Status: A = Valid, V = navigation receiver warning
3,4 Latitude, N (North) or S (South).
5,6 Longitude, E (East) or W (West).
7 Speed over the ground (SOG) in knots
8 Track made good in degrees true.
9 Date: dd/mm/yy
10,11 Magnetic variation in degrees, E = East / W= West
12 Position System Mode Indicator; A=Autonomous,
D=Differential, E=Estimated (Dead Reckoning), M=Manual
Input, S=Simulation Mode, N=Data Not Valid
hh Checksum (Mandatory for RMC)
Table C.10 VTG - Track Made Good and Ground Speed Message Parameters
Field # Description
1 Track made good in degrees true.
2 Track made good in degrees magnetic.
3,4 Speed over the ground (SOG) in knots.
5,6 Speed over the ground (SOG) in kilometer per hour.
7 Mode Indicator: A=Autonomous Mode, D=Differential Mode,
E=Estimated (dead reckoning) Mode, M=Manual Input Mode,
S=Simulated Mode, N-Data Not Valid
hh Checksum
C NMEA 0183
224 Copernicus GPS Receiver
ZDA - Time & Date
The ZDA message contains Time of Day in UTC: the day, the month, the year and the
local time zone.
$GPZDA,hhmmss.ss,xx,xx,xxxx,,*hh<CR><LF>
Note – Fields #5 and #6 are null fields in the Copernicus GPS Receiver output. A
GPS receiver cannot independently identify the local time zone offsets.
CWARNING – If UTC offset is not available, time output will be in GPS time until the UTC
offset value is collected from the GPS satellites. When the offset becomes available, the
time will jump to UTC time.
Note – The time can be used as a timetag for the 1PPS. The ZDA message comes out
100-500 msec after the PPS.
Table C.11 ZDA - Time & Date Message Parameters
Field # Description
1 UTC (when UTC offset has been decoded by the receiver)
2 Day (01 to 31)
3 Month (01 to 12)
4 Year
5Null (empty)
6Null (empty)
hh Checksum
Copernicus GPS Receiver 225
NMEA 0183 C
AH - Almanac Health
This sentence can be used to query or set almanac health data. Since the maximum
number of bytes that can be contained in a single NMEA sentence is less than the
total almanac health length, the almanac health must be sent in two sentences. The
two sentences have to be sent or received together in correct sequence. After
receiving the query, the receiver sends out two messages.
Message 1
$PTNLaAH,1,hh,hhhhhhhh,hhhhhhhh,hhhhhhhh,hhhhhhhh,
hh,hh,x.x*hh<CR><LF>
Message 2
$PTNLaAH,2,hh,hhhhhhhh,hhhhhhhh,hhhhhhhh,hhhhhhhh,hh,hh,x.x*hh<CR><LF>
Table C.12 Almanac Health, Message 1
Field Description
a Mode (Q = query; S = set; R = Response)
hh Week number for health, variable length integer, 4 digits maximum
hhhhhhhh Satellite 1 - 4 health, one byte for each satellite, HEX data conforming to
GPS ICD 200.
hhhhhhhh Satellite 5 - 8 health, one byte for each satellite, HEX data conforming to
GPS ICD 200.
hhhhhhhh Satellite 9 - 12 health, one byte for each satellite, HEX data conforming
to GPS ICD 200.
hhhhhhhh Satellite 13 - 16 health, one byte for each satellite, HEX data conforming
to GPS ICD 200.
hh t_oa, HEX data conforming to GPS ICD 200.
Table C.13 Almanac Health, Message 2
Field Description
a Mode (Q = query; S = set; R = Response)
hh Week number for health, variable length integer, 4 digits maximum
hhhhhhhh Satellite 17 - 20 health, one byte for each satellite, HEX data conforming
to GPS ICD 200.
hhhhhhhh Satellite 21 - 24 health, one byte for each satellite, HEX data conforming
to GPS ICD 200.
hhhhhhhh Satellite 25 - 28 health, one byte for each satellite, HEX data conforming
to GPS ICD 200.
hhhhhhhh Satellite 29 - 32 health, one byte for each satellite, HEX data conforming
to GPS ICD 200.
hh t_oa, HEX data conforming to GPS ICD 200.
C NMEA 0183
226 Copernicus GPS Receiver
AL - Almanac Page
This sentence can be used to query or set almanac data for a specific satellite.
Following is the query format:
$PTNLQAL,xx*hh<CR><LF>
Following is the set or response format.
$PTNLaAL,xx,x.x,hh,hhhh,hh,hhhh,hhhh,hhhhhh,hhhhhh,hhhhhh,hhhhhh,hhh,hhh*
hh<CR><LF>
Table C.14 Almanac Page
Field Description
xx Satellite ID
Table C.15 Almanac Page, Set or Response Format
Field Description
a Mode (S = set; R = Response).
xx Satellite ID, 01-32.
x.x GPS week number, variable length integer, 4 digits maximum.
hh SV health, HEX data conforming to GPS ICD 200.
hhhh Eccentricity, HEX data conforming to GPS ICD 200.
hh t_oa, almanac reference time, HEX data conforming to GPS ICD 200.
hhhh sigma_I,HEX data conforming to GPS ICD 200.
hhhh OMEGADOT, HEX data conforming to GPS ICD 200.
hhhhhh root_a, HEX data conforming to GPS ICD 200.
hhhhhh Omega, HEX data conforming to GPS ICD 200.
hhhhhh Omega_0, HEX data conforming to GPS ICD 200.
hhhhhh M_O, HEX data conforming to GPS ICD 200.
hhh a_fO, HEX data conforming to GPS ICD 200.
hhh a_fl, HEX data conforming to GPS ICD 200.
Copernicus GPS Receiver 227
NMEA 0183 C
AS - Almanac Status
This sentence can be used to query or set almanac status. The format is:
$PTNLaAS,hh,xxxx,hh,hh,hh,hh,hh*hh<CR><LF>
The corresponding response for the Set is:
$PTNLRAS,a*hh<CR><LF>
where 'a' means action status: A = success; V= failure
BA - Antenna Status
This sentence can be used to query the antenna connection status. This sentence
should only be issued when the antenna detection circuit is implemented.
The Query sentence format is:
$PTNLQBA*hh<CR><LF>
The Response to query sentence format is:
$PTNLARBA,a,b*hh<CR><LF>
Table C.16 Query Almanac Status
Field Description
a Mode (Q = query; S = Set)
Hh TimeOfAlm. Time of almanac.
xxxx Week number of almanac
hh HaveTimeOfAlm
hh HaveAlmHealth
hh NeedAlmHealth. Need Almanac Health.
hh NeedIonUtc.
hh HaveAlm
Table C.17 Antenna Status
Field Description
a Status (0 = status unavailable, 1 = status available)
b Antenna feedline fault:
0 = normal
1 = open
2 = short
C NMEA 0183
228 Copernicus GPS Receiver
CR - Configure Receiver
This sentence can query or set NMEA receiver configuration information.
$PTNLaCR,x.x,x.x,x.x,x.x,x.x,a,a,a,a*hh<CR><LF>
EM - Enter Monitor Mode
This sentence is used to set the Copernicus GPS Receiver into Monitor Mode. This is
Set only, no query supported.
The sentence format is:
$PTNLSEM*hh<CR><LF>
This sentence will be used by the Firmware Uploading Program.
Table C.18 Configure Receiver
Field Description
a Mode (Q = query; S = set; R = Response)
x.x Reserved
x.x Elevation mask in degrees (default = 5 degrees)
x.x Reserved
x.x Reserved
x.x Reserved
a Constellation Mode, default is 0
0 - AUTO
a Dynamics, default is 1
1=land
2=sea
3=air
a Reserved.
a 0=WAAS_OFF, 1=WAAS_AUTO
(this applies to all SBAS)
Copernicus GPS Receiver 229
NMEA 0183 C
EP - Ephemeris
This sentence can be used to query or set ephemeris data for a specific satellite. Since
the maximum number of bytes that can be contained in a single NMEA sentence is
less than the total ephemeris data length, the ephemeris data must be sent in three
sentences. The three sentences have to be sent or received together in correct
sequence.
Following is the query format:
$PTNLQEP,xx*hh<CR><LF>
After receiving the query, the receiver should send out three messages. Following is
the first message of ephemeris format:
$PTNLaEP,1,xx,x.x,x.x,hh,hh,hh,hh,hhh,hh,hhhh,hh,h
hhh,hhhhhh,x.x*hh<CR><LF>
Following is the second sentence of ephemeris format:
$PTNLaEP,2,xx,hh,hh,hhhh,hhhh,hhhhhhhh,hhhh,hhhhhhhh,hhhh,hhhhhhhh,hhhh*
hh<CR><LF>
Table C.19 Ephemeris Query Format
Field Description
Q Query
xx Satellite
Table C.20 Ephemeris Message Format
Field Description
a Mode (S = set; R = Response)
1 Message number for EP, message 1 must be sent or received before
message 2, and message 2 must be sent or received before message 3,
and all three messages must be sent together with correct sequence
xx Satellite id
x.x T_ephem, This is a double precision floating point number.
x.x Week number for health, variable length integer, 4 digits maximum.
hh CodeL2, HEX data conforming to GPS ICD 200.
hh L2Pdata, HEX data conforming to GPS ICD 200.
hh Svacc_raw, HEX data conforming to GPS ICD 200.
hh SV_health, HEX data conforming to GPS ICD 200.
hhh IODC, HEX data conforming to GPS ICD 200.
hh T_GD, HEX data conforming to GPS ICD 200.
hhhh T_oc, HEX data conforming to GPS ICD 200.
hh A_f2, HEX data conforming to GPS ICD 200.
hhhh A_f1, HEX data conforming to GPS ICD 200.
hhhhhh A_f0, HEX data conforming to GPS ICD 200.
C NMEA 0183
230 Copernicus GPS Receiver
Table C.21 Ephemeris Message Format
Following is the third sentence of ephemeris format
$PTNLaEP,3,xx,hhhh,hhhhhhhh,hhhh,hhhhhhhh,hhhh,hhhhhhhh,hhhhhh,hhhh*hh<
CR><LF>
Table C.22 Ephemeris Message Format
Field Description
a Mode (S = set; R = Response)
2 Sentence number for EP, sentence 1 must be sent or received before
sentence 2, and sentence 2 must be sent or received before sentence 3,
and all three sentences must be sent together
xx Satellite id
hh IODE, Hex data conforming to GPS ICD 200
hh Fit_interval, Hex data conforming to GPS ICD 200
hhhh C_rs, Hex data conforming to GPS ICD 200
hhhh Delta_n, Hex data conforming to GPS ICD 200
hhhhhhhh M_0, Hex data conforming to GPS ICD 200
hhhh C_uc, Hex data conforming to GPS ICD 200
hhhhhhhh E, Hex data conforming to GPS ICD 200
hhhh C_us, Hex data conforming to GPS ICD 200
Field Description
a Mode (S = set; R = Response)
3 Sentence number for EP, sentence 1 must be sent or received before
sentence 2, and sentence 2 must be sent or received before sentence 3,
and all three sentences must be sent together
xx Satellite id
hh C_ic, Hex data conforming to GPS ICD 200
hh OMEGA_0, Hex data conforming to GPS ICD 200
hhhh C_ri, Hex data conforming to GPS ICD 200
hhhh I_O, Hex data conforming to GPS ICD 200
hhhhhhhh C_rc, Hex data conforming to GPS ICD 200
hhhh OMEGA, Hex data conforming to GPS ICD 200
hhhhhhhh OMEGA_DOT, Hex data conforming to GPS ICD 200
hhhh IDOT, Hex data conforming to GPS ICD 200
Copernicus GPS Receiver 231
NMEA 0183 C
IO Ionosphere
This sentence can be used to query or set ionosphere data.
$PTNLaIO,hh,hh,hh,hh,hh,hh,hh,hh*hh,<CR><LF>
KG - Set Initial Position
This sentence can be used to set initial position or time info data or both for
accelerating navigation startup. To set time only, send valid time fields and NULL
position fields. To set position only, send valid position fields and NULL time fields.
Query is not supported.
$PTNLaKG,x.x,x.x,llll.lllll,a,yyyyy.yyyyy,a,x.x*hh
<CR><LF>
Note – When uploading a position, it should be within 100 Km of the actual position
and time within 5 minutes of UTC.
Table C.23 Ionosphere
Field Description
a Mode (Q = query; S = set; R = Response)
hh Alpha_0, HEX data conforming to GPS ICD 200.
hh Alpha_1, HEX data conforming to GPS ICD 200.
hh Alpha_2, HEX data conforming to GPS ICD 200.
hh Alpha_3, HEX data conforming to GPS ICD 200.
hh Beta_0, HEX data conforming to GPS ICD 200.
hh Beta_1, HEX data conforming to GPS ICD 200.
hh Beta_2, HEX data conforming to GPS ICD 200.
hh Beta_3, HEX data conforming to GPS ICD 200.
Table C.24 Set Initial Position
Field Description
a Mode (S = set; R = Response)
x.x GPS week number, maximum 4 digits
x.x GPS time of week in milliseconds
llll.lllll Latitude
aN | S
yyyyy.yyyyy Longitude
aE | W
x.x Altitude from the sea level in meters (maximum 5 digits)
C NMEA 0183
232 Copernicus GPS Receiver
NM - Automatic Message Output
This sentence may be issued by the user to configure automatic message output.
The Query sentence format is:
$PTNLQNM*hh<CR><LF>
The Response to query sentence or Set sentence format is:
$PTNLaNM,hhhh,xx*hh<CR><LF>
Examples
GGA Only 0001
GLL Only0002
VTG Only0004
GSV Only0008
GSA Only0010
ZDA Only0020
RMC Only0100
TF Only0200
BA Only2000
GGA and GLL0003
GGA and TF0201
RMC and TF0300
GGA, GLL and TF0203
Table C.25 Automatic Message Output
Field Description
a Mode (Q = query; S = set; R = Response)
hhhh Bit 0 - GGA
Bit 1 - GLL
Bit 2 - VTG
Bit 3 - GSV
Bit 4 - GSA
Bit 5 - ZDA
Bit 8 - RMC
Bit 9 - TF
Bit 13 - BA
xx Automatic Report Interval (1 - 99)
Copernicus GPS Receiver 233
NMEA 0183 C
PS - PPS Configuration
This sentence can query or set PPS configuration data.
$PTNLaPS,b,x...x,6,x...x*hh<CR><LF>
Table C.26 PPS Configuration
Field Description
a Mode (Q = query; S = set; R = Response)
b PPS mode, default is 1:
0 - PPS_OFF (Always Off)
1 - PPS_ON (Always On or Early PPS)
2 - PPS_FIX_BASED
x...x Output pulse length in 100 nanoseconds, default is 42
corresponding to 4200 nanoseconds. Pulse length range is
100ns to 500ms. Field value range is 1 to 5000000.
c Output pulse polarity, default is 1:
0 - output pulse is active low
1 - output pulse is active high
x...x Antenna Cable Length Compensation. Default = 0, Units in
nanoseconds. Can be positive or negative. Negative value will
mean PPS comes out earlier, e.g. to compensate for cable delay.
C NMEA 0183
234 Copernicus GPS Receiver
PT - Serial Port Configuration
This sentence may be issued by the user for configuring the current serial port.
The Query sentence format is:
$PTNLQPT*hh<CR><LF>
The Response to query or Set sentence format is:
$PTNLRPT,xxxxxx,b,b,b,h,h*hh<CR><LF>
When the Set is issued, the first Response sentence will be sent using the old
parameters and the second response sentence will be sent using the new parameters. If
there is an error, there will be an error response sent. If there is no error, no additional
response is sent.
Table C.27 Serial Port Configuration
Field Description
a Mode (Q = query; R = Response; S = Set)
xxxxxx Baud rate (4800, 9600, 19200, 38400). Default baud
rate is 4800.
h input protocol, hex value (bit 0: TAIP, bit1: TSIP, bit2:
NMEA). Bits can be combined to enable multiple input
protocols. This field may not be 0.
h output protocol, hex value (bit 0: TAIP, bit1: TSIP, bit2:
NMEA). It is not recommended to combine multiple
output protocols.
bReserved
bReserved
bReserved
Copernicus GPS Receiver 235
NMEA 0183 C
RT - Reset
This sentence can be used to Set the reset type. No query is supported.
$PTNLaRT,b,c,d..x*hh<CR><LF>
Table C.28 Reset Type
Field Description
aMode (S = set; R = Response)
bCommand
C Cold software reset, Erase SRAM including the
customer configuration in SRAM and restarts.
W Warm software reset. Erases the ephemeris information
in SRAM and restarts.
H Hot software reset. Uses the entire SRAM data.
F Factory software reset. Erases the customer
configuration, the almanac, ephemeris and last
position in Flash Memory and in SRAM
S Set the receiver into Standby Mode.
cFlash operation
0reserved
1reserved
2 store user configuration to Flash Memory
3 store user configuration to Flash Memory
4 Erase Almanac, ephemeris and last position from Flash
Memory
5 Erase user configuration from Flash Memory
6 Erase Almanac, ephemeris, last position and user
configuration from Flash Memory
d Wakeup from Standby Mode flags:
001 Wakeup with serial Port A activity
010 Wakeup with serial Port B activity
011 Wakeup with serial Port A or B activity
100 Wakeup after elapsed time specified in the next
field
101 Wakeup after elapsed time specified in the next
field or serial Port A activity
110 Wakeup after elapsed time specified in the next
field or serial Port B activity
111 Wakeup after elapsed time specified in the next
field or serial Port A or B activity
x..x If command is 'S', this field specifies time to stay in Backup
(Standby) Mode in seconds. Maximum value 231.
C NMEA 0183
236 Copernicus GPS Receiver
SG - Set Bit Mask for GPIOs in Standby Mode.
Users may designate individual pins for pull-down and pull-up while the unit is in
Standby Mode. This allows the user to select external pull-down or pull-up resistors
to suit their application.
Examples:
•In serial port configuration, one option would be to power down the serial port
during standby in which case the corresponding GPIOs would be pull-downs.
•To keep the serial port running during standby, the corresponding GPIOs would
be set to pull-ups.
Note – The pins that are not connected should remain in their default state, pull-
down.
Use bit 5 of byte 1 to select the pull-down or pull-up resistor for the XTANDBY pin
as appropriate for the application. Unlike the other GPIOs, the selection of the pull-
down or pull-up resistor is applied during Run Mode.
Examples:
•When the XSTANDBY pin is tied to main power, as shown in the reference
design, select the pull-down resistor for the XTANDBY pin so when main
power is removed, XTANDBY is immediately pulled low to go into Standby
Mode.
•When the XTANDBY pin is controlled with GPIO on the user’s processor, the
pull-down or pull-up resistor may be selected depending on the GPIO state.
$PTNLxSG,hhhh*hh, <CR><LF>
Copernicus GPS Receiver 237
NMEA 0183 C
Table C.29 SG - Set Bit Mask for GPIOs in Standby Mode
Note – The settings will be saved to Flash memory when the user issues the command
to “Save User Configuration to Flash”.
Byte Bit Item Type Value Definition
Position
0 0 (LSB) Pin 6,
Reserved
Bit 0 Reserved
1 Pin 7, OPEN Bit 0
1
0 is pull-down, 1
is pull-up, default
is pull-down
2 Pin 8, SHORT Bit 0
1
0 is pull-down, 1
is pull-up, default
is pull-down
3 Pin 17,
Reserved
Bit 0
1
0 is pull-down, 1
is pull-up, default
is pull-down
4 Pin 18,
Reserved
Bit 0
1
0 is pull-down, 1
is pull-up, default
is pull-down
5 Bit 5, Pin 19,
PPS
Bit 0
1
0 is pull-down, 1
is pull-up, default
is pull-down
6 Pin 20, RxDB Bit 0
1
0 is pull-down, 1
is pull-up, default
is pull-down
7 Pin 21, RxDA Bit 0
1
0 is pull-down, 1
is pull-up, default
is pull-down
1 0 Pin 22,
Reserved
Bit 0
1
0 is pull-down, 1
is pull-up, default
is pull-down
1 Pin 23, TxDA Bit 0
1
0 is pull-down, 1
is pull-up, default
is pull-down
2 Pin 24, TxDB Bit 0
1
0 is pull-down, 1
is pull-up, default
is pull-down
3 Pin 25,
Reserved
Bit 0 0 is pull-down, 1
is pull-up, default
is pull-down
4 Pin 26,
Reserved
Bit 0
1
0 is pull-down, 1
is pull-up, default
is pull-down
5 Pin 16,
XSTANDBY
Bit 0
1
0 is pull-down, 1
is pull-up, default
is pull-up
6-7 Reserved Bit Reserved
C NMEA 0183
238 Copernicus GPS Receiver
SV - Set Bit Mask for SBAS SV
This packet provides the SBAS SV bit mask. The user data packet contains four bytes
to specify 19 possible SBAS prn numbers. Bit 0 represents PRN 120.
$PTNLSSV, xxxxxxxx, xxxxxxxx, <CR><LF>
This packet provides the SBAS SV bit mask in four bytes. The user data packet
contains four bytes to specify 19 possible SBAS prn numbers. Bit 0 represents PRN
120.
Available WAAS PRN numbers are 135 and 138.
To disable WAAS PRN 135 send $PTNLSSV,00000000,00008000*58
To disable WAAS PRN 138 send $PTNLSSV,00000000,00048000*5C
To enable all WAAS send $PTNLSSV,00000000,00000000*50
Copernicus GPS Receiver 239
NMEA 0183 C
TF - Receiver Status and Position Fix
This sentence may be issued by the user to get receiver status and position fix.
The Query sentence format is:
$PTNLQTF*hh<CR><LF>
The Response to query sentence format is:
$PTNLaTF,b,c,xxxxxx,xx,x,llll.lllll,d,yyyyy.yyyyy,
e,xxxxx,x.x,x.x,x.x*hh<CR><LF>
Table C.30 Receiver Status and Position Fix
Field Description
a Mode (Q = query; R = Response)
b BBRAM status on startup (A = valid; V = invalid)
c Almanac completion status (A = complete; V = incomplete)
xxxxxx GPS time of week (in seconds)
xx Number of satellites in use, 00 - 12, may be different from
the number in view.
x Position fix source (0 = no fix; 2 = 2D fix; 3 = 3D fix)
llll.lllll Latitude of the current position fix
dN | S
yyyyy.yyyyy Longitude of the current position fix
eE | W
xxxxx Antenna altitude re: mean-sea-level (MSL geoid, meters)
x.x 'East' component of ENU velocity (m/s)
x.x 'North' component of ENU velocity (m/s)
x.x 'Up' component of ENU velocity (m/s)
C NMEA 0183
240 Copernicus GPS Receiver
UT - UTC
This sentence can be used to query or set UTC data.
$PTNLaUT,hhhhhhhh,hhhhhh,hh,hh,hhhh,hhhh,hh,hh*hh<
CR><LF>
Table C.31 UTC
Field Description
a Mode (Q = query; S = set; R = Response)
hhhhhhhh A_0, HEX data conforming to GPS ICD 200.
hhhhhh A_1, HEX data conforming to GPS ICD 200.
hh Delta_t_ls, HEX data conforming to GPS ICD 200.
hh T_oa, HEX data conforming to GPS ICD 200.
hhhh Wn_t, HEX data conforming to GPS ICD 200.
hhhh Wn_LSF, HEX data conforming to GPS ICD 200.
hh DN, HEX data conforming to GPS ICD 200.
hh Delta_t_LSF, HEX data conforming to GPS ICD 200.
Copernicus GPS Receiver 241
NMEA 0183 C
VR - Version
This sentence may be issued by the user to get version information.
The Query sentence format is:
$PTNLQVR,a*hh<CR><LF>
where a is S = Application firmware, H=Hardware and N=Nav
The Response to query sentence format is:
$PTNLRaVR,b,c..c,xx.xx.xx,xx,xx,xxxx*hh<CR><LF>
Table C.32 Version
Field Description
a Mode (Q = query; R = Response)
bReserved
c..c Receiver Name
xx Major version
xx Minor version
xx Build version
xx Month
xx Day
xxxx Year
C NMEA 0183
242 Copernicus GPS Receiver
