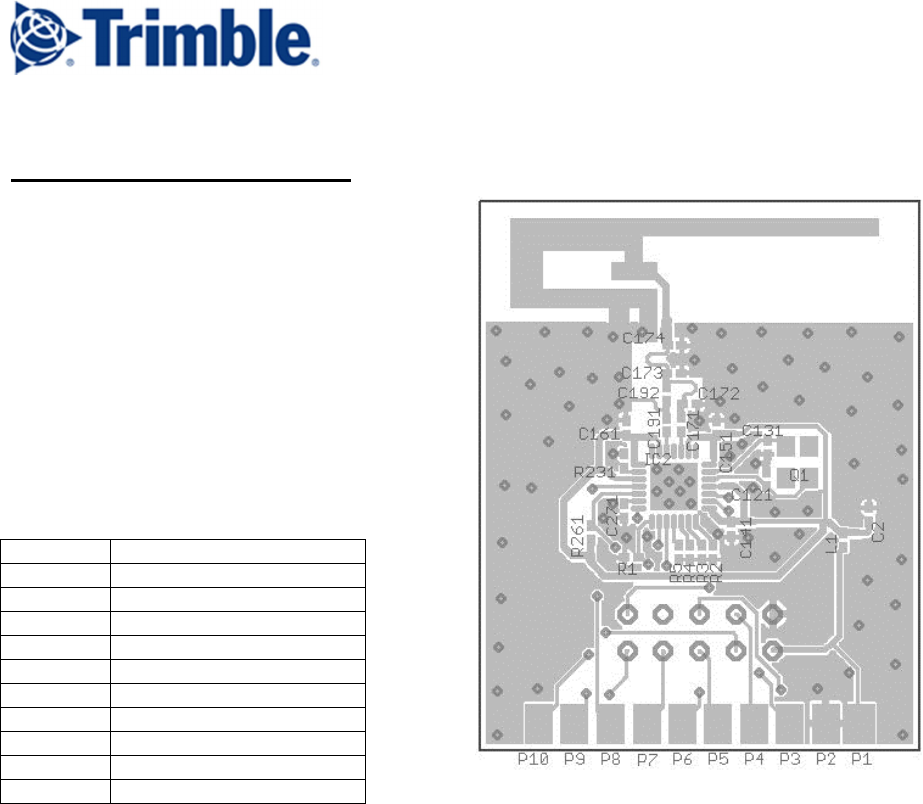

TI RF Module Integration Manual
This module will be built in only in Trimble
products by Trimble itself. Trimble makes sure
that the maximum voltage is 3.8V.
The design is based on the CC2520 from Texas Instruments.
• P1: Vdd supply voltage 1.8 - 3.8V
• P2: GND
• P3: SO SPI Interface Serial Out
• P4: SI SPI Interface Serial In
• P5: SPI_CLK SPI Interface Serial clock 8MHz max
• P6: CS_N SPI Interface Chip select active low
• P7: External Reset pin active low
• P8: Vreg_EN when High, digital voltage regulator is active
• P9: GPIO0 general purpose digital I/O
• P10: GPIO1 general purpose digital I/O
Mounting instruction:
The module could be mounted and connected with a plug connector or could be mounted on a
plastic holder and connected with cable (P1-P10).
Maximum Voltage: 3,8V
Connect the SPI Port to a microcontroller and use the instruction of Texas Instruments to start
running the module.
Pad
Function
P1 Vdd
P2 GND
P3 SPI_IN
P4 SPI_OUT
P5 SPI_CLK
P6 CS_N
P7 Reset
P8 Vreg_EN
P9 GPIO0
P10 GPIO1
ID´s:
FCC: PWR-TK14RF
IC: 4131A-TK14RF
Units with this module have to mark on the label with:
Contains FCC ID: PWR-TK14RF
Contains IC: 4131A-TK14RF
Statements:
Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to
the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device
Le présent appareil est conforme aux CNR d´Industrie Canada applicables aux appareils radio
exempts de licence. L´exploitation est autorisée aux deux conditions suivantes:
(1) l´appareil ne doit pas produire de brouillage, et
(2) l´utilisateur de l´appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d´en compromettre le fonctionnement.
