USERGUIDE

TRIMBLE®KENAITABLET

COMPUTER

Version1.00

RevisionA

August2015

Aboutthisuserguide

ThisuserguidedescribeshowtosetupandusetheTrimble®Kenaitabletcomputer.The

informationinthisguidesupplementstheinformationintheQuickStartGuide,whichyou

receivedintheboxwiththetabletcomputer.

EvenifyouhaveusedotherGlobalNavigationSatelliteSystem(GNSS)orGlobalPositioning

System(GPS)productsbefore,Trimblerecommendsthatyouspendsometimereadingthisguide

tolearnaboutthespecialfeaturesoftheproduct.

IfyouarenotfamiliarwithGNSS,gototheTrimblewebsite(www.trimble.com)for

moreinformation.

WARNING‐Beforeyouusethisproduct,makesurethatyouhavereadandunderstoodallsafetyrequirements.

Failuretofollowthesesafetyinstructionscouldresultinfire,electricshock,orotherinjury,ordamagetothe

tabletcomputerorotherproperty.

Forsafetyinformation,seeSafetyInformation,page42.

Registration

Toreceiveinformationregardingupdatesandnewproducts,contactyourlocaldealerorvisit

theTrimblecustomerregistrationwebsiteatwww.trimble.com/register.Whenyouhave

registered,youcanselectthenewsletter,upgrade,ornewproductinformation.

TrimbleKenaiTabletComputerUserGuide2

Contents

1AbouttheKenaitabletcomputer 5

Configurationoptions 6

Partsandaccessories 6

Partsofthehandheld 8

Applyingthescreenprotector 9

Attachingthestylus 9

InsertingaSIMcard 10

Usingthehandstrap 11

2Gettingstarted

Chargingthebattery

LEDstatus

Turningyourtabletcomputeronandoff

Usingthetouchscreen

Calibratingthetouchscreen

UsingtheKenaiutility

3Managingpower

Removing/swappingthebattery

Checkingthechargelevelofthebattery

Powermanagementandpower‐savingtips

4Connectingtoandcommunicatingwithotherdevices

Connectingtoexternalaudiodevices

ConnectingtoUSBdevices

ConnectingtoRS‐232devices

WorkingwithWi‐Fi(802.11)

WorkingwithBluetooth

Usingacellularnetwork

Workingwiththecamera

Takingaphotoorrecordingvideo

Workingwithphotosandvideos

WorkingwithGNSS

UsingGNSS

Workingwiththeaccelerometerandcompass

Activatingtheaccelerometer

Usingthecompass

TrimbleKenaiTabletComputerUserGuide3

Contents

8UsingBIOSsetupandsystemrecovery

WhentousetheBIOSsetuputility

AccessingtheBIOSSetuputility

Settingasupervisorpassword

UpdatingBIOS

UpdatingEC

9Troubleshooting

SafetyInformation

Caringforyourdevice

Safeuseofyourdevice

Environmentalconsiderationsandspecifications

Environmentalhazards

Hardwarespecifications

Regulatoryinformation

ExposuretoRadioFrequency(RF)Signals

Declarationofconformity

Telecommunications&InternetAssociation(TIA)information

Legalnotices

Recyclinginformation

Regionalcomplianceinformation

Warranty

EndUserLicenseAgreementforProductSoftware

TrimbleKenaiTabletComputerUserGuide4

CHAPTE

AbouttheKenaitabletcomputer

Configurationoptions



Partsofthehandheld



Applyingthescreenprotector



Attachingthestylus



Usingthehandstrap

TrimbleKenaiTabletComputerUserGuide5

1AbouttheKenaitabletcomputer

Configurationoptions

TheTrimbleKenaitabletcomputerispoweredbytheWindows®8operatingsystem,andis

availableinthefollowingconfigurations:

 64GBSSD,4GBRAM,withWi‐FiandBluetooth®wirelesstechnology



 128GBSSD,4GBRAM,withWi‐FiandBluetoothwirelesstechnology



 128GBSSD,8GBRAM,withWi‐FiandBluetoothwirelesstechnology



 256GBSSD,8GBRAM,withWi‐FiandBluetoothwirelesstechnology

SomeconfigurationsareavailablewithWWANand/oraCirronetradiomodule.

Partsandaccessories

Expectationforastandardpackout:

 TrimbleKenaitablet(forspecifiedcustomerconfigurationrequest)



 Standardbatterypack(hotswappable)



 Finetippedcapacitivestylusandtether



 Standardscreenprotectorfilm



 ACPoweradapter

Otheraccessories:

 Standardbatterypack



 Extendedbatterypack



 Screenprotectors



 Polarizedsunglassescompatiblescreenfilm



 Handstrap



 Mountingsystems‐vehicledash,vehiclewindscreen,andsurveyrod



 DCpoweradapter



 Capacitivedisplaycompatibleworkgloves



 Ruggedkeypad



 Officedock



 Officeexternalbatterycharger

TrimbleKenaiTabletComputerUserGuide6

1AbouttheKenaitabletcomputer

 ExternalGPSpatchantenna



 Carrycase

TheOfficeDockprovidesachargingandsyncingstationinanofficeenvironmentwithaccessto

thefollowingadditionalfeatures:

 USB:2xrear,1xfront



 HDMIoutput



 3.5mmstereoheadsetjack



 Ethernet



 ACpoweradapter



 Kensingtonlock



 PowerstatusLED(front)

ThePoweredVehicleDockenablesyoutodockthetabletincars,trucks,marinevehiclesand

otherheavytransport.Itsupportsabroadrangeofinputvoltagesinasingledesign,andprovides

accesstothefollowingfeatures:

 Audiooutput(2xfrontspeakers,externalheadsetsupportatrear)



 USB(2xFront,2xRear)



 Keylocking(Topmounted)



 Ethernet



 HDMIoutput



 RS232(2x)



 GNSS



 ExternalGNSSantennasocket



 Replaceable20AMPFuse

TrimbleKenaiTabletComputerUserGuide7

1AbouttheKenaitabletcomputer

Partsofthehandheld

Frontview

IMAGE‐FRONT

Microphone F1button

LEDindicators:Power,BatteryF2button

Touchscreen F3button

Powerbutton F4button

Windowsbutton FnFunctionbutton

OKbutton 

TheprogrammablebuttonslabelledF1,F2,F3,F4areimprintedwithdirectionalarrows,and

defaulttocursoractionstoallowsupdownleftandrightmovementofthecursorortabselection.

UsetheKenaiutilityonthetabletcomputertoassignotherfunctionstothesebuttons.Toaccess

theotherfunctions,presstheFnbutton.FormoredetailsonusingtheKenaiutility,seeUsingthe

Kenaiutility,page16.

TheOKbuttondefaultstotheEntercommand.

Backview

IMAGE‐BACK

Batterylock Stylustether

Battery* Stylus/sylusholder

Externalspeaker Camera

*Imageshowsthestandardbattery.Anextended(largerbattery)isalsoavailable.

Backview‐batteryremoved

IMAGE‐BACK(Batteryremoved)

SIMcardslot

TrimbleKenaiTabletComputerUserGuide8

1AbouttheKenaitabletcomputer

Bottomview

IMAGE‐BOTTOM

Kensingtonlock Dockingconnector

Sideview‐right

IMAGE‐RIGHTSIDE

PowerconnectorRS‐232connectorUSBconnector

Sideview‐left

IMAGE‐LEFTSIDE

USBconnector Headsetconnector

Applyingthescreenprotector

Unprotectedscreensbecomescratchedandscuffedovertime.Screenprotectorsextendthelife

ofthedisplaybyprovidingaprotectiveandreplaceablebarrierbetweenabrasivegritandthe

surfaceofthedisplay.

Thetabletcomputer'stouchscreenisprotectedduringtransportbyatransparentfilm.Remove

theprotectivefilmfromthetouchscreentobeginusingthetabletcomputer.Tokeepthe

touchscreencleanandprotected,applythescreenprotectorfollowingtheinstructionsprovidedin

thescreenprotectorpackage.

Trimblerecommendsthatyoureplacethescreenprotectoreverytwomonths,ormoreoften

ifheavilyused.

Screendamageassociatedwithnotusingascreenprotector,notusingtheapprovedscreen

protectororfailuretofollowtheinstructionsforinstallationmayvoidtheproductwarranty.

Donotusepapertowelstocleanthedisplay;usethecleaningclothprovided.Avoidtouching

thescreenwithapenorpencil.

Attachingthestylus

Yourtabletcomputercomeswithacapacitivestylusforusewiththetouchscreen.Thestylus

holdersatthebackofthetabletcomputerprovidesaconvenientplacetostorethestylus,on

therightoftheleftofthedevice.Toattachthestylustoyourtabletcomputer:

TrimbleKenaiTabletComputerUserGuide9

1 AbouttheKenaitabletcomputer



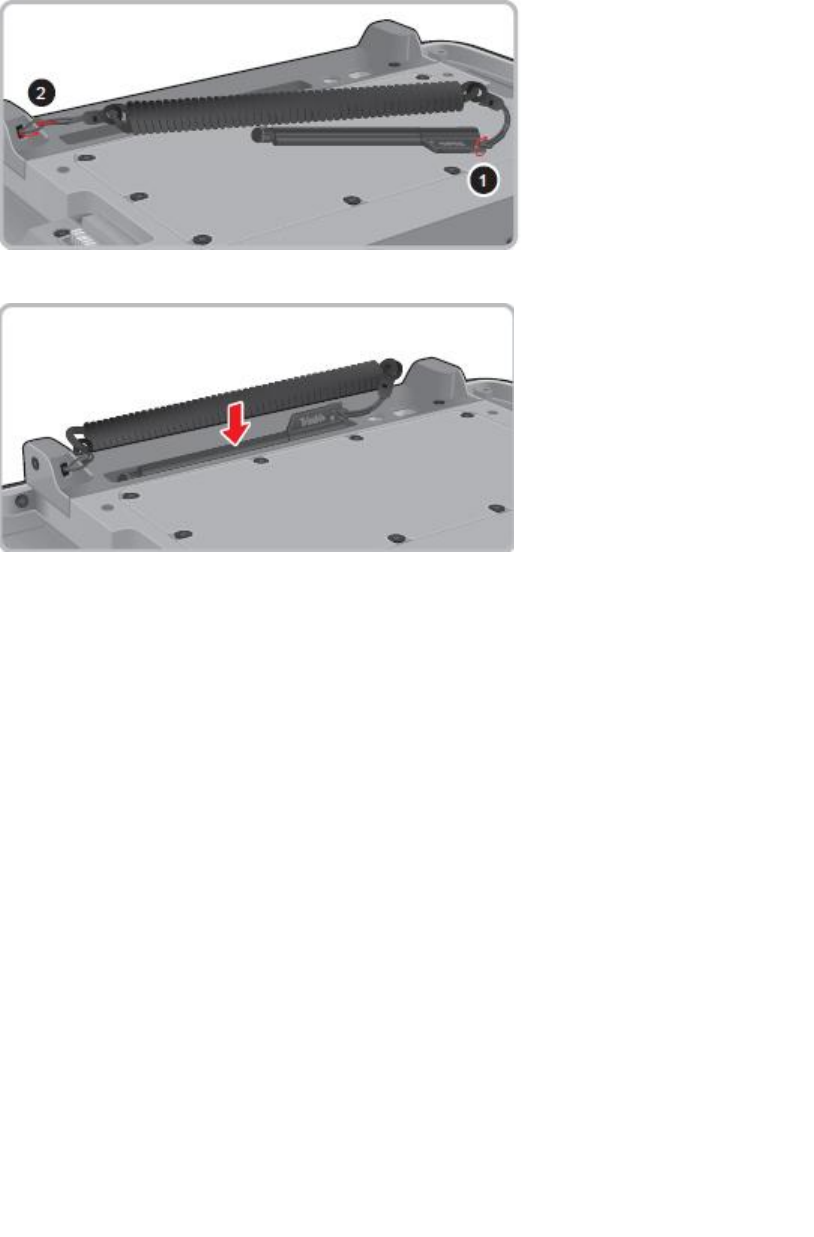

1. Looponeendofthetethertothestyluseyelet.



2. Looptheotherendofthetethertothetabletcomputereyelet.

3.Pushthestylusonthestylusholderuntilitlocksintoplace.

Toremovethestylus,liftthestylusbyitstabtoremoveitfromthestylusholder.For

convenienceofuse,pullthetabtoextendthestyluslength.

InsertingaSIMcard

Ifyourtabletcomputersupportsdataconnectionusing3GSIMcards,itincludesamicroSIM

cardslotforcellularandwirelessconnection.OnlyamicroSIMcardissupportedintheslot.

ToinsertaSIMcard:

1. Makesurethetabletcomputeristurnedoff.RemovethebatteryandlocatetheSIMcard

slotinsidethebatterycompartment.



2. OpentheSIMcardslotcover.



3. AligntheSIMcardwiththeslotmakingsurethatthecornersmatch.



4. InsertthemicroSIMcardandpressitinuntilitclicks.



5. ClosetheSIMcardslotcover,andreplacethebattery.Lockthebatterycompartment.

TrimbleKenaiTabletComputerUserGuide10

1AbouttheKenaitabletcomputer

Usingthehandstrap

TheKenaitabletcomputercomeswithahandstrapforeaseofuseandcarrying.

Toattachthehandstrap,useaPhillipsscrewdrivertofastenthe4screwsonthehandstrapto

thebackofthetabletcomputer.

Ensurethehandstrapisfittedthecorrectwayaroundsothatitisclearoftherear‐facingcamera.

TrimbleKenaiTabletComputerUserGuide11

CHAPTE

Gettingstarted

Chargingthebattery



LEDstatus



InsertingaSIMcard



Turningyourtabletcomputeronandoff



Usingthetouchscreen



Calibratingthetouchscreen

Thissectiontellsyouhowtogetstartedusing

yourtabletcomputerforthefirsttime,and

explainssomebasicoperatingsystem

features.Formoredetailsonusingthe

Windows8operatingsystem,refertothe

MicrosoftWindows8Help.

TrimbleKenaiTabletComputerUserGuide12

2Gettingstarted

Chargingthebattery

ThetabletcomputeroperatesonexternalACpowerorbatterypower.

WARNING–ChargeandusetherechargeableLithium‐ionbatteryonlyinstrictaccordancewiththeinstructions.

Chargingorusingthebatteryinunauthorizedequipmentcancauseanexplosionorfire,andcanresultinpersonal

injuryand/orequipmentdamage.

Topreventinjuryordamage:

–Donotchargeorusethebatteryifitappearstobedamagedorleaking.

–ChargetheLithium‐ionbatteryonlyinaTrimbleproductthatisspecifiedtochargeit.Besuretofollowall

instructionsthatareprovidedwiththebatterycharger.

–Discontinuechargingabatterythatgivesoffextremeheatoraburningodor.

–UsethebatteryonlyinTrimbleequipmentthatisspecifiedtouseit.

–Usethebatteryonlyforitsintendeduseandaccordingtotheinstructionsintheproductdocumentation.

ToconnectthetabletcomputertoACpowerandchargethebatteryinsidethedevice:

1. Connecttheappropriateplugtothepowercordandattachthepowersupply.



2. Plugintoanelectricaloutletandplugthebarrelendofthepowersupplyintotheunit.

WhentheACadapterisconnected,thebatteryischarging.Thebatterywillchargefullyinabout

4.5hours.ThebatteryLEDindicatorglowsambertoindicatethatchargingisinprogress.When

thebatteryisfullycharged,thebatteryLEDindicatorglowsgreen.

Youcanalsousetheofficebatterychargertochargeabatteryoutsideofthedevice.

Forfurtherinformationonremoving/swappingbatteriesandmanagingpower,see

Managingpower,page17.

LEDstatus

TherearetwoLEDsonthefrontleftsideofthedevicethatprovidestatusinformation:

 ThePowerLEDshowsthefollowingdifferentstates:

Solidblue‐tabletcomputeristurnedon.

Flashingblue‐tabletcomputerisinsleep

mode.Off‐tabletcomputeristurnedoff.

 ThebatteryLEDshowsthefollowingdifferentstates:

 Solidgreen‐tabletcomputerison,deviceisconnectedtomainspower,andthebattery

isfullycharging.



 Solidamber‐tabletcomputerison,deviceisconnectedtomainspower,andbattery

ischarging.

TrimbleKenaiTabletComputerUserGuide13

2Gettingstarted

 Flashingamber‐tabletcomputerison,andthebatterypowerislow.



 Off‐tabletcomputerisoff,batteryisfullycharged/ismissing.

Turningyourtabletcomputeronandoff

Ifyouneedtoconnectanyperipheraldevicestoyourtabletcomputer,dothisbeforeyouturn

onthetabletcomputer.

Toturnonthetabletcomputer:

1. MakesurethatthetabletcomputeriseitherconnectedtoACpowerorthebatteryischarged.



2. PressthePowerbutton.Thedevicerunsthroughthestartupsequenceandpowersup.

ThePowerLEDindicatorshowsthreedifferentstates:

 Solidblue‐tabletcomputeristurnedon



 Flashingblue‐tabletcomputerisinsleepmode



 Off‐tabletcomputeristurnedoff.

Toturnoffthetabletcomputer,doanyofthefollowing:

 OntheStartscreen,tap[powericon]/Shutdown.



 OntheDesktopscreen,tapandhold[theWindowsicon]atthebottomleftcornerof

thescreen,thentapShutdownorsignout/Shutdown.



 Fromeitherscreen,flicktheright‐handsideofthescreentothelefttodisplaytheCharm

bar.TapSettings,thentapPower[icon]/Shutdown.

Usingthetouchscreen

Thetabletcomputer'stouchscreenisprotectedduringtransportbyatransparentfilm.Remove

theprotectivefilmfromthetouchscreentobeginusingthetabletcomputer.Trimblerecommends

thatyoualwaysuseascreenprotectorwhenusingthetabletcomputer.SeeApplyingthescreen

protector,page9.

Useonlyyourfinger,thecapacitivestylus,orsuitableconductiveglovestointeractwiththe

touchscreen.Donotusesharp,pointedobjectsorroughglovesonthetouchscreen.Theseobjects

mayscratchthescreen.

Donotplaceanyobjectsonitssurfaceanddonotpressdownstronglywithsharp‐pointedorhard

objectsthatmayleavemarks

Usethestylusonlyfortouchingthescreen.Usingitforanyotherpurposemaydamagethe

stylusandresultinscratchesonthescreen.

Thecapacitivestyluselectromagneticinductionandmaynotworkproperlynearstrongelectrical

fieldsormagneticfieldssuchasnearAMradiobasestationsorrelaystationantennas,ornearCRT

TrimbleKenaiTabletComputerUserGuide14

2Gettingstarted

displaysthatgeneratestrongelectromagneticfieldnoise.Moveawayfromsuchlocationsso

thatthestylusworksproperly.

Thepointercannotfollowthestylusmovementifyoumoveittooquickly.

Tomakeaselection,tapthescreenonceontheitemyouwanttoselect.

Todisplaya'right‐click'menu,tapandholdanitemonthescreen.Thentaptherequired

menuitem.

SelectingFingermodeorStylusmode

UsetheTouchControlutilitytosetthetabletcomputertouseastylus,oryourfinger.

1. OntheAppsscreen,tapTouchControl.



2. UnderTouchModeSetting,selectFingerModeorStylusMode.

Adjustingthescreenbrightnessmanually

Thetouchscreenisdesignedtoberesponsivetoexternallightingconditionstoadjustits

brightnessautomatically,basedonthePoweroptionyouhaveset.Tomanuallyadjustthescreen

brightnessforashortperiod:

1. OntheDesktoportheStartscreen,flicktheright‐handsideofthescreentothelefttodisplay

theCharmbar.(Note:inPortraitmode,flickfromthebottomrightcorner,belowthetime

anddate,todisplaytheCharmbar.)



2. TapSettings.



3. TapScreen,thendragtheBrightnessslideruptoincreasethebrightness,ordowntoreduceit.

Settinglandscapeorportraitmode

Thetabletcomputer'sscreenorientationchangesbetweenlandscapeandportraitasyouphysically

rotatethetabletcomputer.Topreventthescreenorientationfromchangingautomatically,you

canlockthescreeninlandscapeorportraitmode:

1. Turnthetabletcomputertodisplaythescreeninthemodeyouwanttolock.



2. OntheDesktoportheStartscreen,flicktheright‐handsideofthescreentothelefttodisplay

theCharmbar.(Note:inPortraitmode,flickfromthebottomrightcorner,belowthetime

anddate,todisplaytheCharmbar.)



3. TapSettings.



4. TapScreen,thentapthesmallrectangleiconabovetheBrightnessslider.

Thescreenisnowlockedinwhicheverorientationthetabletcomputerwasshowing,andthe

smallrectangleiconalsoshowsapadlock.

Tounlocktheorientationsetting,tapthesmallrectangleiconagain.

TrimbleKenaiTabletComputerUserGuide15

2Gettingstarted

Calibratingthetouchscreen

Ifyouneedtorecalibratethetouchscreen,usetheWindows8screencalibrationtool.

1. OntheDesktop,flicktheright‐handsideofthescreentothelefttodisplaytheCharmbar.Tap



ControlPanel.



2. TapTabletPCSettings.



3. IntheTabletPCSettingsdialog,tapCalibrate.Thefirsttimeyoucalibratethetouchscreen,

amessageappearsconfirmingthatyouwanttoallowthetooltomakechangestothe

device.TapYes.



4. Followtheon‐screeninstructions,tappingthemakerasitappearsonthescreen,then

saveyourchanges.

UsingtheKenaiutility

TheF1,F2,F3,andF4buttonsonthefrontrightofthetabletcomputercanbeprogrammedto

performdifferentactionsthanthedefaultcursoractionstoallowsupdownleftandright

movementofthecursorortabselection.

ToassignotheractionsfortheF1‐F4buttons,usetheKenaiutility(nametobeconfirmed).You

canspecify4actionsforeachbutton.

1. LaunchtheKenaiutility,thentapButtonSetting.



SettingAshowsthedefaultsettingsfortheF1‐F4buttons.Youcanchangetheseifrequired.



2. TosettherequiredactionsfortheF1‐F4buttons,taptherequiredSettingbutton(SettingA,



SettingB,SettingC,SettingD).



3. Tapthedrop‐downarrowforeachoftheF1‐F4buttonsinturn,andselecttherequired

actionfromthelist.



4. Whenyouhaveselectedalltherequiredactions,tapSave.



5. TapEXITtoclosetheKenaiutility.

Detailsbutton?

ToinvoketheadditionalfunctionsfortheF1‐F4buttons,presstheFnbutton.Bydefault,the

actionsunderSettingAapply.WhenyoupressFn,thenextSetisinvoked.KeeppressingFntocycle

throughthesets.ThedetailsofeachsetaredisplayedasyoupressFn.

TrimbleKenaiTabletComputerUserGuide16

CHAPTE

Managingpower

Removing/swappingthebattery



Checkingthechargelevelofthebattery



Powermanagementandpower‐saving

tips

Yourtabletcomputeroperateseitheron

externalACpoweroronbatterypower.This

chaptertellsyouhowyoucaneffectively

managepower.Tomaintainoptimalbattery

performance,itisimportantthatyouusethe

batteryintheproperway.

Theoperatingtimeofafullychargedbattery

packdependsonhowyouusethetablet

computer.Whenyouuseapplicationsthatoften

accessperipherals,orwhenyoustayconnected

toawirelessnetwork,theoperatingtimeofthe

batterymaybeshortened.

WARNING:

•Donotdisassemblethebatterypack.There

arenouser‐serviceablepartsinside.Doing

somaypresentriskofexposuretoharmful

chemicals,explosionorfire.



•Contactyourlocalwastedisposalservice

providerregardingthedisposalorrecycling

ofusedbatterypacks

TrimbleKenaiTabletComputerUserGuide17

3Managingpower

Removing/swappingthebattery

Ifyourelyonbatterypowerforalongperiodoftime,considerpurchasinganextendedlife

batteryoranadditionalstandardbatterytouseforbackup.

Thetabletcomputerisfittedwithaninternalbatterythatmaintainsnormaloperationfora

reasonableperiodoftimewhiletheexternalbatteryischanged.However,Trimblestill

recommendsthatyousaveallworkbeforeyoureplacetheexternalbattery.

Toreplacethebatterywithabatterythathasbeenchargedoutsideofthedevice,dothefollowing:

1. DisconnectthetabletcomputerfromtheACpower.



2. Unlockthebatterycompartment,andremovethebattery.



3. Insertthereplacementbattery,andlockthebatteryinplace.

YouMUSTlockthebattery;thebatterychargestatusontheDesktopdisplaysanerrorifthe

batteryisnotlockedin,and,ifthetabletcomputeristurnedoff,itwillnotturnon.

Checkingthechargelevelofthebattery

Tocheckthelevelofbatterycharge,ontheDesktop,taptheBatteryiconintheNotificationsarea

atthebottomrightofthescreen.

Powermanagementandpower‐savingtips

Thepowermanagementfeaturehelpsreducepowerconsumptionextendingbatterylife.

TheTrimbleKenaitabletcomputersupportsACPI(AdvancedConfigurationandPowerInterface)

forpowermanagement.Powersupplytodifferentcomponentsiscontrolledonanas‐needed

basis.Thisallowsmaximumpowerconservationandperformanceatthesametime.

TheWindowsoperatingsystemcomeswithpre‐definedPowerOptions(Balanced,PowerSaver,

ECOmode,andHighPerformance)foryoutoselect.ToaccessPowerOptions:

1. OntheDesktop,flicktheright‐handsideofthescreentothelefttodisplaytheCharmbar.Tap



ControlPanel.



2. TapPowerOptions.(Or,inCategoryview,tapSystemandSecurity/PowerOptions).

Bydefault,theKenaitabletcomputerisinBalancedMode.

Fordetailedinformationonpowermanagement,seeWindowsHelp.

Herearesomepracticalsuggestionsthatyoucandotomaximizetheoperatingtimeofthebattery:

TrimbleKenaiTabletComputerUserGuide18

3Managingpower

 EnablePowerManagement.Chooseapowerplanthatsavespower.Apowerplanisa

collectionofhardwareandsystemsettingsthatcontrolhowthetabletcomputer

managespower.



 DecreasetheLCDbrightnesstothelowestcomfortablelevel.



 ShortenthelengthoftimebeforetheWindowsoperatingsystemturnsoffthedisplay.



 ManyUSBdevicesusepowerjustbybeingconnected.IfyouuseaUSBflashdrive,unplug

itwhenyouarenotusingit.



 Deactivatethewirlessradioswhenyouarenotusingthem.



 Turnoffthetabletcomputerwhenyouarenotusingit.

TrimbleKenaiTabletComputerUserGuide19

CHAPTER 4

Connectingtoandcommunicatingwithotherdevices

Connectingtoexternalaudiodevices



ConnectingtoUSBdevices



ConnectingtoRS‐232devices



WorkingwithWi‐Fi(802.11)



WorkingwithBluetooth



Usingacellularnetwork

TheKenaitabletcomputeroffersmultiple

methodsofconnectingtoandcommunication

withotherdevices.

Notallthefeaturesapplytoevery

tabletcomputerconfiguration,assome

ofthefeaturesareofferedasoptions.

TrimbleKenaiTabletComputerUserGuide20

4Connectingtoandcommunicatingwithotherdevices

Connectingtoexternalaudiodevices

Thetabletcomputerhasonecomboaudioconnectorthatsupportsbothaudioinandaudioout

devices.Youcanconnectspeakers,headphones,orearphones.

Toconnectanaudiodevice,simplyplugthedevicecableintotheaudioconnectorontheleftside

ofthetabletcomputer.

ConnectingtoUSBdevices

ThetabletcomputerhastwoUSBportsforconnectingUSBdevices,suchasaflashdiskdrive,

scanner,printer,keyboard,andmouse.Thetabletcomputerhasbuilt‐insupportformassstorage

devicesandhumaninterfacedevices.

OthertypesofUSBdevicesmayrequiredrivers.

ToconnectaUSBdevice,plugthedevicecableintooneoftheUSBportsoneithersideofthe

tabletcomputer.

ConnectingtoRS‐232devices

WorkingwithWi‐Fi(802.11)

Ifyourtabletcomputercomeswithbuilt‐inWi‐Fi(alsocalledWirelessLAN(WLAN)or802.11)

capability,youcanconnecttoavailableaccesspointsorhotspotstowirelesslytransmitdatato

andfromthetabletcomputer.

TofindoutifyourtabletcomputerhasWi‐Fiinstalled,ontheAppsscreen,tapPCSettings,thentap

Network.

Note–Wi‐Fiisoffbydefault;howevertheon/offstatewillpersistafterareset.

ToturnWi‐Fionoroff,andtoconnecttoWi‐Finetworks:

1. OntheDesktop,inthenotificationarea,taptheNetworksicon[ICON].TheNetworks

paneldisplays.AllWi‐Finetworksthatareinrangearelisted.



2. UsetheNetworkspanelto:

 TurnAirplanemodeonoroff(turnsallwirelessradiosonoroff).



 TurnWi‐Fionoroff.



 ConnecttoaWi‐Finetwork.Tapthenetworkyouwanttoconnectto,thentapConnect.

Ifrequired,enterapassword.

TrimbleKenaiTabletComputerUserGuide21

4Connectingtoandcommunicatingwithotherdevices

 Setthetabletcomputertoconnecttoanetworkautomatically.Tapthenetwork

(whennotconnectedtoit)thentapConnectautomatically.



 DisconnectfromaWi‐Finetwork.Tapthenetworkthatyouareconnectedto,thentap



Disconnect.

ToviewthepropertiesanddatausagedetailsofaWi‐Finetwork:

1. OntheAppsscreen,tapPCSettings,thentapNetwork.



2. TapConnections,thentapthenetworkwhosedetailsyouwanttoview.

ToremoveaWi‐Finetworkfromthetabletcomputer:

1. OntheAppsscreen,tapPCSettings,thentapNetwork.



2. TapConnections,thentapManageknownnetworks.



3. TaptheWi‐Finetworkyouwanttoremovefromthetabletcomputer,thentapForget.

Tosavebatterypower,turntheWi‐Firadiooffwhenyouarenotusingit.

WorkingwithBluetooth

TheKenaitabletcomputerhasembeddedBluetoothwirelesstechnology—ashort‐rangewireless

communicationtechnologythatexchangesinformationoveradistanceofupto30feet(10

meters),withoutrequiringaphysicalconnection.

ToturnBluetoothonandoff:

1. OntheAppsscreen,tapPCSettings,thentapPCandDevices/Bluetooth.



2. OntheManageBluetoothdevicesscreen,slidetheBluetoothon/offsliderasrequired.

Beforeyoucanconnectthetabletcomputertootherdevicesforthefirsttime,youmustpair

thetabletcomputerandthedevice:

1. OntheAppsscreen,tapPCSettings,thentapPCandDevices/Bluetooth.



2. OntheManageBluetoothdevicesscreen,makesureBluetoothison,andthatthedeviceyou

wanttopairwithhasBluetoothDiscoverymodeenabled.



3. ThetabletcomputersearchesforandlistsalltheBluetooth‐enableddevicesdiscovered

withinrange.Inthelist,tapthedeviceyouwanttopaitwith,thentapPair.



4. Ontheotherdevice,amessageappearsinformingyouthatthetabletcomputeristryingto

connecttoit.Comparethepasscodesonbothdevices,andclick/tapYesonbothdevices.

Note–YoucanalsoaccesstheManageBluetoothdevicesscreenfromtheDesktopnotification

area;tapthe[uparrow],thentaptheBluetoothicon.Apop‐ipmenudisplays.TapAdda

BluetoothDevice,orShowBluetoothdevices.

TrimbleKenaiTabletComputerUserGuide22

4Connectingtoandcommunicatingwithotherdevices

WhenyouhavepairedthetabletcomputerwithanotherBluetooth‐enableddevice,you

canconnecttoittosendand/orreceivefiles:

1. OntheDesktop,inthenotificationarea,tapthe[uparrow],thentaptheBluetoothicon.



2. Onthepop‐upmenu,dooneofthefollowing:

 TapSendafilethenselectthedeviceyouwanttosendafileto(thisdevicemustbesetto

allowthefiletobereceived).TapNext,thenbrowsetothefileyouwanttosend.Select

thefile,thenclickNext.



 TapReceiveafile.Followtheon‐screeninstructions.

ToconfigureBluetoothsettings:

1. OntheDesktop,inthenotificationarea,taptheMorenotificationsarrow,thentapthe

Bluetoothicon.



2. Onthepop‐upmenu,tapOpenSettings.



3. IntheBluetoothSettingsdialog,youcansetthefollowing:

 AllowotherBluetooth‐enableddevicestofindthetabletcomputer



 AllowotherBluetooth‐enableddevicestoconnecttothetabletcomputer



 AlertyouwhenotherBluetooth‐enableddeviceswanttoconnecttothetabletcomputer

Usingacellularnetwork

Touseacellularnetwork,youmusthaveaSIMcardwithdatasubscription.Forinstructions

oninsertingaSIMcard,seeInsertingaSIMcard.

TrimbleKenaiTabletComputerUserGuide23

CHAPTE

Workingwiththecamera

Takingaphotoorrecordingvideo



Workingwithphotosandvideos

TheKenaitabletcomputerhasan

integrated8MPdigitalcamera.

Canuseas2Dbarcodescanner?

Thecamerahastwocapturemodes:Photo

modeandVideomode.Bydefault,the

cameraopenstoPhotomode.

PhotoscanbecapturedwithGPSlocationdata.

TrimbleKenaiTabletComputerUserGuide24

5Workingwiththecamera

Takingaphotoorrecordingvideo

1. OpentheCameraapp.



2. Dooneofthefollowing:

 Tocaptureaphoto,makesurePhotomodeisselected(thisisthedefault).Focusonyour

subject,thentapthescreentocapturethephoto.



 Tocaptureavideo,focusonyoursubject,thentap[VIDEOICON]toswitchtoVideo

modeandstartrecording.Atimershowsonthescreen.Whenyouarefinishedrecording,

tap[STOPICON]

PhotosandvideosarestoredinthePicturelibrary,inCameraRoll.

Youcanview,editanddeletephotosfromwithintheCameraapp,orfromthePicturelibrary/

CameraRoll.

YoucanviewvideosfromwithintheCameraapp,orfromthePicturelibrary/CameraRoll.

Todeleteavideo,useFileExplorer.

Workingwithphotosandvideos

Tovieworeditphotos:

1. OpentheCameraapp,ortapPhotos/CameraRolltoopenPicturelibrary/CameraRoll.



2. Tapthephotoyouwanttovieworedit.



3. Tapanywhereonthescreentobringupthephotoeditingtools.Thefollowingtools

areavailable:

 Delete.



 Openwith.



 Setas.Taptosettheimageasthescreenlockimage.



 Slideshow.Taptostartaslideshowofthephotos(andvideos)intheCameraRoll.

Tostoptheslideshow,tapthescreen.



 Rotate.



 Crop.Taptodisplayacropframeonthephoto.Dragthecornersoftheframetothearea

youwanttocrop.Ifthephotoislargerthanthecropframe,youcanalsodragthephototo

movetheframeoverdifferentpartsofthephoto.Tochangetheratiooftheframe,tap

Aspectratiothenselecttherequiredvaluefromthelist.TapApplytocropthephoto.



 Edit.WhenyoutapEdit,furtheroptionsdisplayontheleftandrightofthescreen.The

optionsontherightofthescreenchangedependingontheoptionyouselectontheleft

ofthescreen.

TrimbleKenaiTabletComputerUserGuide25

5Workingwiththecamera

 Autofix.Taptodisplayaselectionof"fixed"versionsofthephotoontheright.

Taptheversionyouwanttouse,thensave(seebelow).



 Basicfixes.Taptoaccessthefollowingtools:

 Rotate.Onetaprotatesthephoto90degreesclockwise



 Crop.Taptodisplayacropframeonthephoto.Dragthecornersoftheframe

totheareayouwanttocrop.Ifthephotoislargerthanthecropframe,youcan

alsodragthephototomovetheframeoverdifferentpartsofthephoto.To

changetheratiooftheframe,tapAspectratiothenselecttherequiredvalue

fromthelist.TapApplytocropthephoto.



 Straighten.Tapandhold,thendragthemarkerroundthedialtoadjust

thephoto'sstraightness.



 Redeye.



 Retouch.

 Light.TaptodisplaycontrolsforBrightness,Contrast,Highlights,andShadows.Tap

andholdtherequiredcontrol,thendragthemarkerroundthedialtosetthe

requiredlevel.



 Color.Taptodisplaycontrolsfor:

 Temperature,Tint,andSaturation.Tapandholdtherequiredcontrol,then

dragthemarkerroundthedialtosettherequiredlevel.



 Colorenhance.Tapthetool,thentaptherequiredareaonthescreen,then

dragthemarkerroundthedialtosettherequiredlevel.

Effects.Taptocontrolsfor:

 Vignette.Tapandholdtherequiredcontrol,thendragthemarkerround

thedialtosettherequiredlevel.



 Selectivefocus.Taptodisplayaframeonthephototofocusthephotointhat

area.Dragthemarkersontheframetoresizeitorchangeitsshape.Tap

Previewtohide/showtheframe.TapStrengthtochangethefocussettings.

TapApplytosaveyouchanges.

Atanytime,youcanredisplaytheoriginalphoto;flickthebottomedgeofthescreen

upwards,thentapandholdVieworiginal.ReleaseVieworiginaltoreturntothe

editedversionyouareworkingon.

Toundoorredoanychanges,flickthebottomedgeofthescreenupwards,thentap

UndoorRedo.

Tosaveanychangesyouhavemade,flickthebottomedgeofthescreenupwards,

thentapSaveacopyorUpdateoriginal.

TocancelanyeditsortoexitEditmode,flickthebottomedgeofthescreenupwards,

thentapCancel.

TrimbleKenaiTabletComputerUserGuide26

5Workingwiththecamera

Toviewvideos,dooneofthefollowing:

 OpentheCameraapp,thenflickthecamerascreentotherighttoscrollbackthroughany

photosorvideofilesyouhavesaved.Whenavideoisdisplayed,thevideostartstoplay.

 Topauseplay,tapthescreen;toresumeplay,tapthescreenagain.



 Dragtheslidertorewindorfast‐forwardthroughthevideo.



 Toexitthevideo,flickthecamerascreentotherightorthelefttoscrollbackor

forwardsthroughanyphotosandvideossavedtotheCameraRoll.

 OntheAppsscreen,tapPhotos/CameraRolltoopenPicturelibrary/CameraRoll.Tapthe

videoyouwanttoview.Thevideostartstoplay.

 Topauseplay,tapthescreen;toresumeplay,tapthescreenagain.



 Dragtheslidertorewindorfast‐forwardthroughthevideo.



 Toexitthevideo,pauseplay,thentapthearrowatthetopleftofthescreen.

Todeleteavideo,useFileExplorer.

TrimbleKenaiTabletComputerUserGuide27

CHAPTER 6

WorkingwithGNSS

UsingGNSS TheKenaitabletcomputerhasaGNSS(Global

NavigationSatelliteSystem)receivermodule

builtinandincludestheTrimbleGPS

Informationsoftware.

TrimbleKenaiTabletComputerUserGuide28

6WorkingwithGNSS

UsingGNSS

GNSSontheKenaitabletcomputerusesaU‐bloxNEO‐MT8.Thereisanexternalantenna

option,andthebuiltinantennaisa25mmx25mmpatch.TheMT8isGPS,GLONASSandBeiDou

capable(althoughcanonlybeconfiguredtotrack2of3constellationsatatime).

TrimbleGPSInformationisanapplicationthatallowsyoutomanagethefollowing:

 Position.ThePositiontabprovidesanoverviewofyourlocationandsystemstatus.Clickthe

OpenMapinWebBrowserbuttontoviewyourlocationonthemap.



 Satellites.



 TheSatellitestabdisplaysthecoordinatesofyourlocationasviewedfromthe

satellites,includingthedateandtimeandsatellitealtitude.

ToopenTrimbleGPSInformation,tap.

TrimbleKenaiTabletComputerUserGuide29

CHAPTER 7

Workingwiththeaccelerometerandcompass

Activatingtheaccelerometer



Usingthecompass.

TheKenaitabletcomputerhasabuilt‐in

accelerometersensorandcomeswitha

compassapplication.Theaccelerometer

detectsyourlocation,surroundings,andmore.

Youcanusethecompassapplicationtopointin

thedirectioninwhichyouareheading.

TrimbleKenaiTabletComputerUserGuide30

7Workingwiththeaccelerometerandcompass

Activatingtheaccelerometer

Bydefault,theaccelerometerisenabledontheKenaitabletcomputer.However,ifyouneed

todisableandre‐enablethisfeature,dothefollowing:

1.OpentheControlPanel,andselect

Usingthecompass

TheSensorControlApplicationisacompassapplicationthatpointsthedirectiontowhereyou

areheadingjustlikeamechanicalcompassdoes.

1. Toopenthecompassapplication,tap



2. Tousethecompass,holdthetabletcomputerwithbothhandsinfrontofyou.Face

thedirectioninwhichyouareheading.Thescreendisplaysyourdirection.

Torecalibratethecompass,rotateandthenturnthetabletcomputer.

TrimbleKenaiTabletComputerUserGuide31

CHAPTE

UsingBIOSsetupandsystemrecovery

WhentousetheBIOSsetuputility



AccessingtheBIOSSetuputility



Settingasupervisorpassword



UpdatingBIOS



UpdatingEC

BIOSSetuputilityisaprogramusedto

configuretheBIOS(BasicInput/Output

System)settingsofthetabletcomputer.The

BIOSisalayerofsoftware,calledfirmware,

thattranslatesinstructionsfromotherlayers

ofsoftwareintoinstructionsthatthetablet

computerhardwarecanunderstand.Itenables

youtoconfiguresystemsettings,suchasBoot

andAPmenus,aswellasbasicsettings.The

tabletcomputerusestheBIOSsettingsto

identifythetypesofinstalleddevicesand

establishspecialfeatures.

TrimbleKenaiTabletComputerUserGuide32

8UsingBIOSsetupandsystemrecovery

WhentousetheBIOSsetuputility

YouneedtorunBIOSSetuputilitywhen:

 YouwanttorestorethefactorydefaultBIOSsettings.



 Youwanttomodifyspecifichardwaresettings.



 Youwanttomodifyspecificsettingstooptimizethesystemperformance.

AccessingtheBIOSSetuputility

1.ToruntheBIOSSetuputility,dooneofthefollowing:

 Ifthetabletcomputerisoff,pressthePowerbuttontoturnonthetabletcomputer.

ThepowerLEDlightsup.QuicklypressandholdtheWindowsbuttonuntiltheBIOSPost

screendisplays.



 Ifthetabletcomputerison,pressthePowerbuttontoturnoffthetabletcomputer.

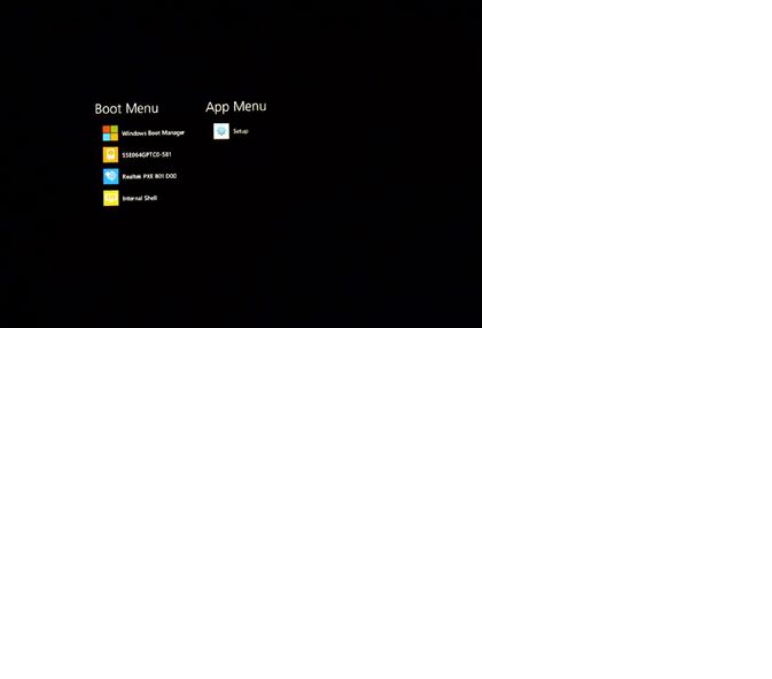

ThenpressandholdtheWindowsbuttonuntiltheBIOSPostscreendisplays.



(Notethatduetothefastbootupandbootdowntime,thereisonlyasmalltimeframe

ofafewsecondsbetweenthereleaseofthePowerbuttonandtheopportunitytopress

theWindowsbutton.)



TrimbleKenaiTabletComputerUserGuide33

8 UsingBIOSsetupandsystemrecovery



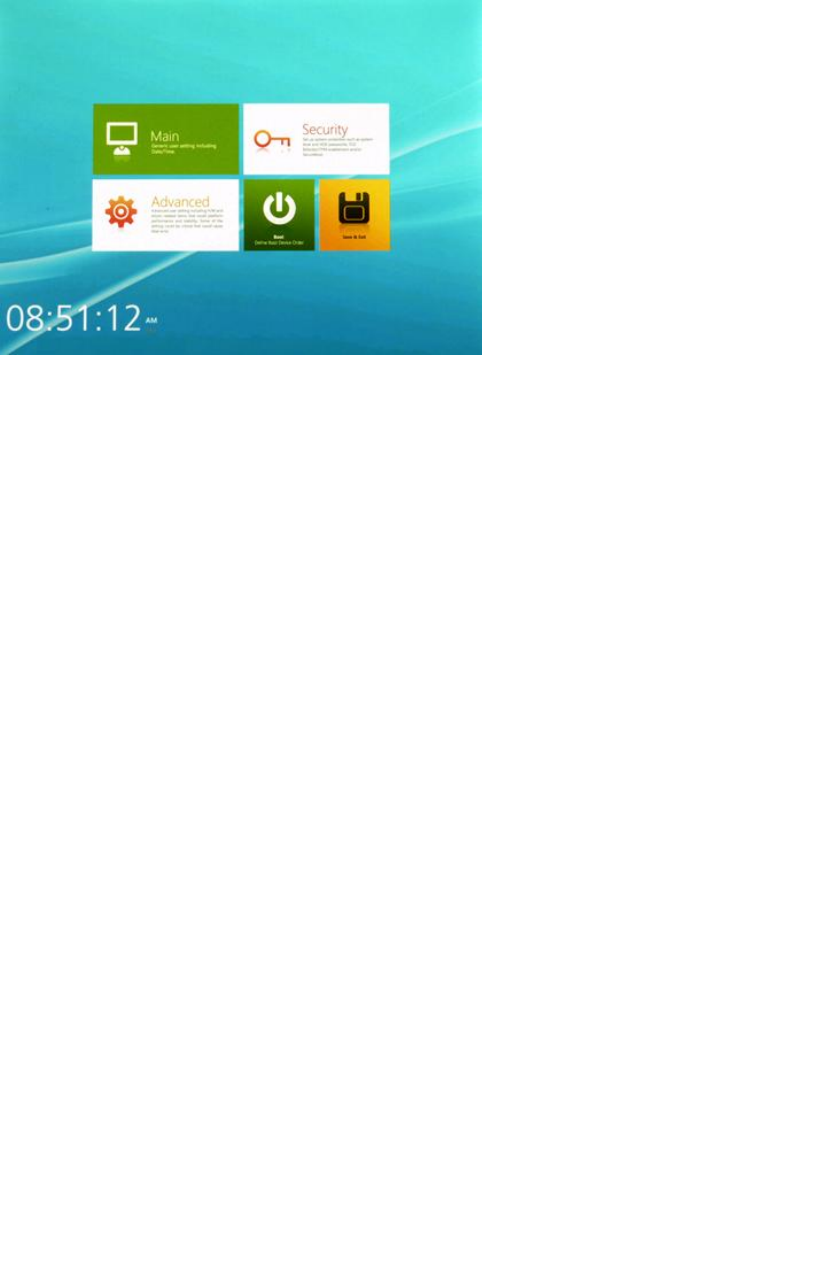

2. TapSetupunderAppMenutoopentheBIOSSetuputility.TheAppMenuscreendisplays.

TheBIOSSetuputilityhasthefollowingmenus:

 TheMainmenucontainsthesystemdateandsystemtimesettingsandbootfeatures,and

showsthebasicsysteminformation.



 TheAdvancedmenucontainsthesettingsfor:

 SystemComponent



 MiscellaneousConfiguration



 SecurityConfiguration

 TheSecuritymenucontainssettingsfor:

Passwords

TPM(TrustedPlatformModule):Enablesordisablessupportforsecuritydevices



 TheBootmenusetsthebootorderofdevices.



 TheSave&ExitmenudisplayswaysofexitingtheBIOSSetuputility.Whenyouhavemodified

anysettings,youmustsaveandexitforthechangestotakeeffect:

 ExitSavingChanges:SavesthechangesyouhavemadeandexitstheBIOSSetuputility.



 ExitDiscardingChanges:ExitstheBIOSSetuputilitywithoutsavingthechangesyouhave

made.



 LoadSetupDefaults:Restoresthedefaultvaluesofallitems.



 DiscardChanges:Restoresthepreviousvaluesofallitems.



 SaveChanges:Savesthechangesyouhavemade.

TrimbleKenaiTabletComputerUserGuide34

8UsingBIOSsetupandsystemrecovery

Formoreinformation,seethefollowingsections:

 Settingasupervisorpassword,page35



 UpdatingBIOS,page35



 UpdatingEC,page37

Settingasupervisorpassword

Youcansetasupervisorpassword,whichwillberequiredtoaccesstheBIOSSetuputility.

1. IntheBIOSSetuputility,tapSecurity/Account’sPasswordStatus.



2. TapEnternexttoSetSupervisorPasswordtoaccessthevirtualkeyboard.



3. TypeinthepasswordtousefortheSupervisorprofile,thentapEnter.



4. Typeinthesamepasswordagaintoverifyit,thetapEntertoconfirmthepassword.



5. TapHomeatthebottomofthescreen,thentapSave&Exit.



6. TapExitSavingChangestodisplaytheconfirmationscreen,thentapYes.

Tochangethesupervisorpassword:

1. IntheBIOSSetuputility,tapSecurity/Account’sPasswordStatus.



2. TapEnternexttoSetSupervisorPasswordtoaccessthevirtualkeyboard.



3. Typeinthecurrentsupervisorpassword,thentapEnter.



4. Typeinthenewpassword,thentapEnter



5. Typeinthesamepasswordagaintoverifyit,thetapEntertoconfirmthenewpassword.



6. TapHomeatthebottomofthescreen,thentapSave&Exit.



7. TapExitSavingChangestodisplaytheconfirmationscreen,thentapYes.

Asupervisorpasswordcannotbereset.Intheeventthatyouforgetthesupervisorpassword,youmustreflash

theBIOStoentertheBIOSmenus.SeeUpdatingBIOS,page35.

UpdatingBIOS

ToupdateandreflashthesystemBIOS,startwiththetabletcomputerturnedoff.Youwillalso

needaUSBkeyboardconnectedtothetabletcomputertoentercommands.

Toprotectthedevicefrompowerlossduringtheupdateprocedureandtopreventirreparabledamagetoyour

system’smainboard,TrimblerecommendsthatyouconnectthedevicetomainspowerusingthetheACadapter.

TrimbleKenaiTabletComputerUserGuide35

8 UsingBIOSsetupandsystemrecovery



1. ContactyourtechnicalsalesortechnicalrepresentativetoobtainthecorrectBIOSfile.



2. CopytheBIOSfileontoaUSBdevice.



3. ConnecttheUSBdevicetooneofthedevice’sUSBports.



4. Turnonthetabletcomputer.



5. OncethedeviceisonandtheWindows8Homescreendisplays,flicktheright‐handsideof

thescreentothelefttodisplaytheCharmbar.(Note:inPortraitmode,flickfromthebottom

rightcorner,belowthetimeanddate,todisplaytheCharmbar.)



6. TapSettings.



7. TapChangePCsettings.



8. OnthePCsettingsmenu,tapUpdateandrecovery.



9. OntheUpdateandrecoveryscreen,tapRecovery.



10. UnderAdvancedstartup,tapRestartnow.



11. TapUseadevicetoselectabootpreference.



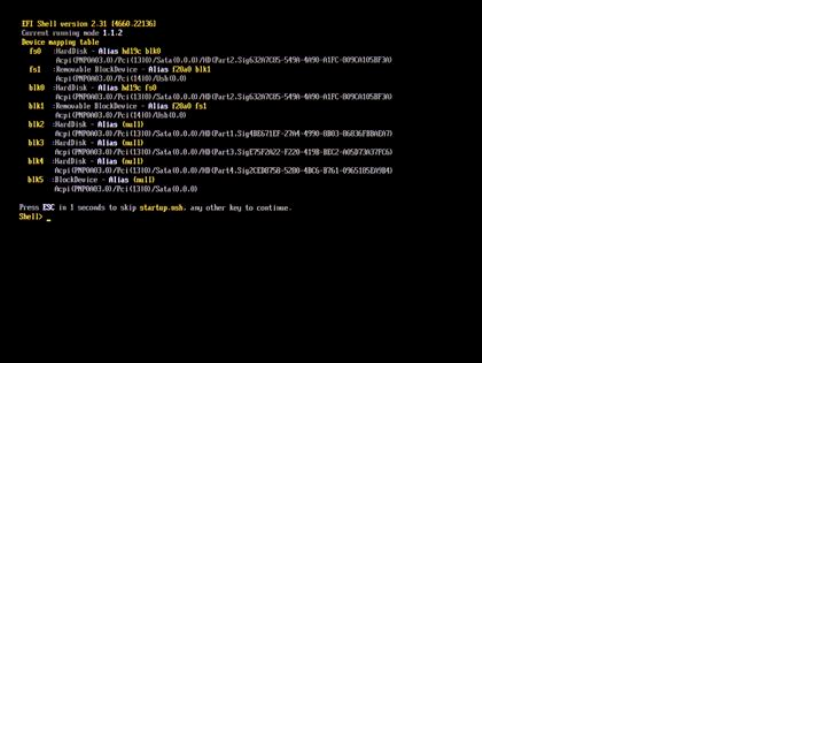

12. FromtheUseadevicemenu,tapInternalShelltoopenthecommandscreen.



13. Inthecommandscreen,enterfs1:toselecttheUSBdevicealreadyconnectedtothe

device.ThecommanddirectsyoutotheUSBdevice’srootmenu.

14. IftheBIOSfileisinafolderandnotintherootdirectory,navigatetothetargetfolder.



15. Typewf(.nsh)andtapEnter.wfisthedesignatedBIOSfile.



16. Donotturnoffthetabletcomputerorinterferewiththereflashprocessuntiltheprocess

iscomplete.



17. Rebootthetabletcomputer.TheBIOSisnowupdated.

TrimbleKenaiTabletComputerUserGuide36

8UsingBIOSsetupandsystemrecovery

UpdatingEC

ToupdateEC,startwiththetabletcomputerturnedoff.YouwillalsoneedaUSB

keyboardconnectedtothetabletcomputertoentercommands.

Toprotectthedevicefrompowerlossduringtheupdateprocedureandtopreventirreparabledamagetoyour

system’smainboard,TrimblerecommendsthatyouconnectthedevicetomainspowerusingthetheACadapter.

1. Contactyourtechnicalsalesortechnicalrepresentativetoobtainthecorrectfile.



2. CopythefileontoaUSBdevice.



3. ConnecttheUSBdevicetooneofthedevice’sUSBports.



4. Turnonthetabletcomputer.



5. OncethedeviceisonandtheWindows8Homescreendisplays,flicktheright‐handsideof

thescreentothelefttodisplaytheCharmbar.(Note:inPortraitmode,flickfromthebottom

rightcorner,belowthetimeanddate,todisplaytheCharmbar.)



6. TapSettings.



7. TapChangePCsettings.



8. OnthePCsettingsmenu,tapUpdateandrecovery.



9. OntheUpdateandrecoveryscreen,tapRecovery.



10. UnderAdvancedstartup,tapRestartnow.



11. TapUseadevicetoselectabootpreference.



12. FromtheUseadevicemenu,tapInternalShelltoopenthecommandscreen.



13. Inthecommandscreen,entertheECsourcefilefolder.



14. Inthesourcefolder,enterf.



15. Donotturnoffthetabletcomputerorinterferewiththereflashprocessuntiltheprocess

iscomplete.



16. Rebootthetabletcomputer.TheECisnowupdated.

TrimbleKenaiTabletComputerUserGuide37

CHAPTE

Troubleshooting

Followingareanswerstosomefrequently

askedquestions.Ifyouencounterproblems

whenusingthetabletcomputer,trythe

followingtroubleshootingtipsfirstto

detectandsolvetheproblem.

Manyfaultscanalsobeclearedbyremoving

thebatteriesandACpowerconnectionsfor

severalseconds.Thenre‐installthe

batteries,connecttheACpowerandthen

turnonthetabletcomputeragain.

Ifproblemspersist,contactcustomersupport.

TrimbleKenaiTabletComputerUserGuide38

9Troubleshooting

Whyisthebatterynotcharging?

 Makesurebothbatterylockinglatchesarecorrectlypositioned.



 MakesuretheACadapterisproperlyconnected.



 Makesurethebatteryisnottoohotortoocold.



 Makesurethebatteryisinstalledcorrectly.



 Makesurethebatteryterminalsareclean.



 Thetabletcomputermayhavecomefromanoutdoorenvironmentwhichexceedsthe

chargingambienttemperature.Waitawhileforthebatterypacktoreachthe

appropriateroomtemperature,anditwillstartcharging.

Whywon'tthetabletcomputerstartup?

Checkthatthebatterylockisengaged(seeRemoving/swappingthebattery,page18).

Ifthisdoesnotresolvetheissue,performthesesteps:

1. Removethebattery.



2. Disconnecttheexternalpowersource.



3. Re‐installthebattery.



4. Connecttheexternalpowersource.



5. Trytostartthetabletcomputeragain.

Whyisthescreenblank?

 ThetabletcomputermaybeinSleepmode.PressthePowerbuttontowakeupthedisplay.



 Thebrightnesslevelmaybetoolow.Increasebrightness(seePowermanagementand

power‐savingtips,page18).

Whydidthescreensuddenlygoblankduringuse,andthePowerLED

turnedoff?

 MakesuretheACadapterisproperlyconnected.



 Thebatterymaybedepleted.Replaceorchargethebattery.

HowdoItokeepmybatteryfromfailingduringajob?

Considercarryingafullychargedsparebatteryinthefield.Thedeviceisdesignedsothat

batteryreplacementcanbeeasilydone(seeRemoving/swappingthebattery,page18).

TrimbleKenaiTabletComputerUserGuide39

9Troubleshooting

WhycanInotuseWi‐Fi?

MakesurethatWi‐Fiisturnedon.

WhyistheWi‐Fisignalqualitypoor?

 Thetabletcomputermaybeoutofrange;moveitclosertotheaccesspointoranotherWi‐

Fideviceassociatedwithit.



 Checkifyoursurroundingshaveinterferences,suchasmicrowaveovens,cordlessphones.

Movethetabletcomputerawayfromobjectscausinginterference.

WhycanInotconnecttoanotherWi‐Fidevice?

 MakesurethatWi‐Fiisturnedon.



 MakesurethattheSSIDsettingisthesameforeveryWi‐Fideviceinthenetwork.



 Restartthetabletcomputer.



 MakesuretheIPaddressorsubnetmasksettingiscorrect.

WhycanInotconnecttoanotherdevicewithBluetooth?

Makesurethat:

 bothdeviceshaveBluetoothturnedon.



 thedistancebetweenthetwodevicesiswithin10metersandtherearenowallsor

largeobstructionsbetweenthedevices.



 bothdevicesareturnedonandareconfiguredtobediscoverable.



 bothdevicesarecompatible.

HowdoIdeletefiles?

OpenFileExplorerandbrowsetothefiletobedeleted.Touchandholdonthefileandtap

Deletefromthemenuthatappears.

HowcanImakethedisplaymoreviewable?

 OpentheControlPanelandselectDisplay.Youcanadjustthedisplaybrightnessand

resolution.



 SelectanappropriatePoweroption.SeePowermanagementandpower‐savingtips,page18.



 Confirmthatyouhaveonlyonescreenprotectorinplace.

TrimbleKenaiTabletComputerUserGuide40

9Troubleshooting

WhydoIhavenosound?

 TaptheVolumecontrolintheNotificationsareaoftheDesktoptoadjustthevolumeof

thetabletcomputer.



 Ifusinganexternalaudiodevice,makesurethatthecableisproperlyconnected.

TrimbleKenaiTabletComputerUserGuide41

SafetyInformation

Caringforyourdevice



Safeuseofyourdevice



Environmentalconsiderationsandspecifications



Environmentalhazards



Hardwarespecifications



Regulatoryinformation



ExposuretoRadioFrequency(RF)Signals



Declarationofconformity



Telecommunications&InternetAssociation(TIA)information

BeforeyouuseyourTrimbleproduct,makesurethatyouhavereadandunderstoodall

safetyrequirements.

WARNING–Thisalertwarnsofapotentialhazardwhich,ifnotavoided,couldresultinsevereinjuryoreven

death.

CAUTION–Thisalertwarnsofapotentialhazardorunsafepracticethatcouldresultinminorinjuryorproperty

damageorirretrievabledataloss.

Note–Anabsenceofspecificalertsdoesnotmeanthattherearenosafetyrisksinvolved.

TrimbleKenaiTabletComputerUserGuide42

SafetyInformation

Caringforyourdevice

Cleaningthedevice

Turnoffthedevice.Useasoft,dampenedclothwitheitherwateroradilutedmilddetergent.Ifa

milddetergentisused,ensureallsoapresidueisremoved.Donotuseanychemicalcleanersand

donotputthedeviceinthedishwasher.

Careofthetouchscreen

Useonlyyourfingerortheincludedcapacitivestylusorotherdevicesspecificallydesignedfor

usewithtouchscreens.

Theuseofballpointpens,nailsorothersharpobjectstooperatethetouchscreenwillscratch

and/ordamagethedevice.Keepthetouchscreencleanbygentlywipingthedisplay,usinga

soft,dampenedclothwitheithercleanwaterorglasscleaner.

Donotuseabrasivecleanersdirectlyonthedisplay.Doingsomayvoidyourwarranty.Usethe

screenprotectorsincludedwiththedevicetokeepthetouchscreencleanandprotected,

followingtheinstructionsprovidedonthescreenprotectorpackage

Mechanicalshock

Thedeviceisdesignedtoresistdamagefordropsupto153cm(5feet).However,youshould

protectthedisplayfromimpact,pressure,orabrasivesubstancesthatcanscratchitorcrackit.

Thedeviceshouldnotbedroppedunnecessarily.

Safeuseofyourdevice

Repair

Donotattempttodismantlethedeviceforrepair.Therearenouser‐serviceablepartsinside.

Forservice,contactyourlocalTrimbledealer.

Batterysafety

Lithium‐IonbatteriesareclassifiedbytheU.S.FederalGovernmentasnon‐hazardouswaste

andaresafefordisposalinthenormalmunicipalwastestream.Thesebatteriescontain

recyclablematerialsandareacceptedforrecycling.Disposeofusedbatteriesinaccordance

withlocalregulations.

 Donotdisassembleoropen,crush,bendordeform,puncture,orshredthebattery.Thereare

nouser‐serviceablepartsinthebatterypack.

TrimbleKenaiTabletComputerUserGuide43

SafetyInformation

 Donotmodifyorremanufacture,attempttoinsertforeignobjectsintothebattery,immerse

orexposetowaterorotherliquids,orexposetofire,explosion,orotherhazard.Donot

exposetotemperaturesabove+158°F(+70°C)



 Useonlythebatteryforthesystemforwhichitwasspecified.



 Onlyusethebatterywithachargingsystemthathasbeenqualifiedwiththesystemperthis

standard.Useofanunqualifiedbatteryorchargermaypresentariskoffire,explosion,

leakage,orotherhazard.



 Donotshortcircuitabatteryorallowmetallicorconductiveobjectstocontactthe

batteryterminals.



 Replacethebatteryonlywithanotherbatterythathasbeenqualifiedwiththesystemper

thisstandard.Useofanunqualifiedbatterymaypresentariskoffire,explosion,leakage,or

otherhazard.



 Promptlydisposeofusedbatteriesinaccordancewithlocalregulations.



 Batteryusagebychildrenshouldbesupervised.



 Nonapprovedbatterieswillnotfunctioninthedevice.



 Avoiddroppingthedeviceorbattery.Ifdropped,especiallyonahardsurface,andthe

usersuspectsdamagetothebattery,takeittoaservicecenterforinspection.



 Improperbatteryusemayresultinafire,explosion,orotherhazard.



 Intheeventofabatteryleak,donotallowtheliquidtocomeincontactwiththeskinoreyes.

Ifcontacthasbeenmade,washtheaffectedareawithlargeamountsofwaterandseek

medicaladvice.



 Seekmedicaladviceimmediatelyifabatteryhasbeenswallowed.

Powersupplysafety

UseonlyACandvehicleadaptersintendedforthedevice.Otherexternalpowersources

maydamageyourproductandvoidthewarranty..

 Ensuretheinputvoltageontheadaptermatchesthevoltageinyourlocation.Ensure

theadapterhasprongscompatiblewithyouroutlets.



 Thepowersupplyisdesignedforindooruseonly.Avoidusingthepowersupplyinwetareas.



 Unplugthepowersupplyfrompowerwhennotinuse.



 Donotshorttheoutputconnector.

TrimbleKenaiTabletComputerUserGuide44

SafetyInformation

Environmentalconsiderationsandspecifications

Thedevice’sruggeddesignallowsyoutorunyourapplicationsinharshoutdoorenvironments.

Herearesomeconsiderationsthatwillhelpyougetthemostoutofyourdevicewhenworking

inverywet,hotorcoldconditions.

RatedIP65,thedeviceis:

 isresistanttoaccidentaldrops(upto4ft)



 isresistanttorandomvibration/knocks



 isresistanttohighandlowfrequencyvibration



 isresistanttosolarexposure



 isresistanttotemperatureshock



 isresistanttochemicalexposure



 isresistantto/operableinwateranddustexposure



 hasanoperatingtemperaturerangeof‐22°Fto+130°F(‐30°Cto+55°C)



 hasanoperatingaltituderangeof0–15,000ft



 hasarelativehumidityoperatingrangeof0–95%

TheoperationaltemperaturerangefortheWWANunitsisfrom‐4°Fto+130°F(‐20°Cto+55

°C).Althoughthedeviceisdesignedtoberugged,donotleaveitindirectsunlightorinavehicle

inthesunlightforextendedperiods.

Batteriesperformbestatroomtemperature.Thebatteryhasastablecapacityastemperatures

rise;however,thecolderthetemperature,thegreaterthereductioninavailablebatterylife.Under

verycoldconditions(‐4°F/‐20°Candbelow),thebatterylifewillbeshortened.Toimprovethe

batteryperformanceinverycoldconditions,considercarryingafullycharged,sparebatteryina

warmplace(forinstance,keepingtheminsideyourcoat).Thedeviceisdesignedforbattery

replacementtobeeasilydone.

TrimbleKenaiTabletComputerUserGuide45

SafetyInformation

Environmentalhazards

TheproductcomplieswithinternationalRoHSregulations.

有毒有害物质和元素

Toxicandhazardoussubstancesandelements

ProductPerioddoesnotincludetheseitems

TrimbleKenaiTabletComputerUserGuide46

SafetyInformation

Hardwarespecifications

Operatingsystem Windows®8.1(64‐bit)

Processor BayTrail‐IAtomE38261.46GHz

RAM(Volatile) 4GBor8GB

Flashstorage 64,128,or256GBSSD

Display 10.1"(1920X1200)w/CorningGorillaglass

Battery 49Wh(standard)98Wh(extended)

I/OBOOTS 3.5mmaudiojack,RS232,USBhost(2x),dockingstation

I/O,DCpowerinput

Sound Integratedspeaker.Audiojackisforaheadsetwith

microphone

Wirelesscommunications WLAN802.11a/b/g/n

Bluetoothv4.0

WWANLTE4G(optional)

2.4GHzRadio(optional)

TrimbleKenaiTabletComputerUserGuide47

SafetyInformation

Regulatoryinformation

U.S.A.

ThisdevicecomplieswithPart15oftheFCCRules.ItistestedtocomplywithFCCstandards

forhomeorofficeuse.Operationissubjecttothefollowingtwoconditions:(1)thisdevice

maynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterference

received,includinginterferencethatmaycauseundesiredoperation.

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,

pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotection

againstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcan

radiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,

maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethat

interferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmful

interferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipment

offandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe

followingmeasures:

‐Reorientorrelocatethereceivingantenna.



‐Increasetheseparationbetweentheequipmentandreceiver.



‐Connecttheequipmenttoanoutletonacircuitdifferentfromthattowhichthereceiver

isconnected.



‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliance

couldvoidtheuser‘sauthoritytooperatetheequipment.

Operationonthe5.15‐5.25GHzfrequencybandisrestrictedtoindooruseonly.TheFCCrequires

indooruseforthe5.15‐5.25GHzbandtoreducethepotentialforharmfulinterferencetoco‐

channelMobileSatelliteSystems.Therefore,itwillonlytransmitonthe5.25‐5.35GHz,5.47‐5.725

GHzand5.725–5.850GHzbandwhenassociatedwithanaccesspoint(AP).

Canada

ThisdigitalapparatusdoesnotexceedtheClassBlimitsforradionoiseemissionsfromdigital

apparatusassetoutintheradiointerferenceregulationsoftheCanadianDepartmentof

Communications.Leprésentappareilnumériquen’émetpasdebruitsradioélectriquesdépassantles

limitesapplicablesauxappareilsnumériquesdeClasseBprescritesdanslerèglementsurlebrouillage

radioélectriqueédictéparleMinistèredesCommunicationsduCanada.

ICRegulations

ThisdevicecomplieswithIndustryCanadalicense‐exemptRSSstandard(s).

Operationissubjecttothefollowingtwoconditions:

(1)thisdevicemaynotcauseinterference,and

TrimbleKenaiTabletComputerUserGuide48

SafetyInformation

(2)thisdevicemustacceptanyinterference,includinginterferencethatmaycause

undesiredoperationofthedevice.

LeprésentappareilestconformeauxCNRd’IndustrieCanadaapplicablesauxappareils

radioexemptsdelicence.L’exploitationestautoriséeauxdeuxconditionssuivantes:

(1) l’appareilnedoitpasproduiredebrouillage,et



(2) l’utilisateurdel’appareildoitacceptertoutbrouillageradioélectriquesubi,mêmesile

brouillageestsusceptibled’encompromettrelefonctionnement.”

ThisClassBdigitalapparatuscomplieswithCanadianICES‐003.

CetappareilnumériquedelaclasseBestconformeàlanormeNMB‐003du1Canada.

Thedevicecouldautomaticallydiscontinuetransmissionincaseofabsenceofinformationto

transmit,oroperationalfailure.Notethatthisisnotintendedtoprohibittransmissionofcontrol

orsignalinginformationortheuseofrepetitivecodeswhererequiredbythetechnology.

Thedevicefortheband5150‐5250MHzisonlyforindoorusagetoreducepotentialforharmful

interferencetoco‐channelmobilesatellitesystems;themaximumantennagainpermitted(for

devicesinthebands5250‐5350MHzand5470‐5725MHz)tocomplywiththee.i.r.p.limit;andThe

maximumantennagainpermitted(fordevicesintheband5725‐5850MHz)tocomplywiththe

e.i.r.p.limitsspecifiedforpoint‐to‐pointandnonpoint‐to‐pointoperationasappropriate,as

statedinsectionA9.2(3).Inaddition,High‐powerradarsareallocatedasprimaryusers(meaning

theyhavepriority)oftheband5250‐5350MHzandthisradarcouldcauseinterferenceand/or

damagetoLE‐LANdevices.

TheCountyCodeSelectionfeatureisdisabledforproductsmarketedintheUS/Canada.For

productavailableintheUSA/Canadamarkets,onlychannel1~11canbeoperated.Selectionof

otherchannelsisnotpossible.

ImportantNote

ICRadiationExposureStatement

ThisEUTiscompliancewithSARforgeneralpopulation/uncontrolledexposurelimitsinICRSS‐

102andhadbeentestedinaccordancewiththemeasurementmethodsandprocedures

specifiedinIEEE1528.

ExposuretoRadioFrequency(RF)Signals

ThisdeviceiscompliancewithSARforgeneralpopulation/uncontrolledexposurelimitsin

ANSI/IEEEC95.1‐1999andhadbeentestedinaccordancewiththemeasurementmethodsand

proceduresspecifiedinOETBulletin65SupplementC.

ThisequipmentcomplieswithFCCRFradiationexposurelimitssetforthforanuncontrolled

environment.Thisdevicewastestedforoperationswiththedevicecontacteddirectlytothe

humanbodytothebacksideoftheEUT.TomaintaincompliancewithFCCRFexposurecompliance

requirements,avoiddirectcontacttothetransmittedantennaduringtransmitting.

Thedevicecontainsaradiotransmitterandreceiver.Theradiatedoutputpowerisfarbelowthe

internationalradiofrequencyexposurelimits.Theselimitsarepartofcomprehensiveguidelinesand

TrimbleKenaiTabletComputerUserGuide49

SafetyInformation

establishpermittedlevelsofRFenergyforthegeneralpopulation.Theguidelinesarebasedon

thesafetystandardspreviouslysetbyinternationalstandardsbodies:

 AmericanNationalStandardsInstitute(ANSI)IEEE.C95.1‐1992.



 NationalCouncilonRadiationProtectionandMeasurement(NCRP).Report86.1986.



 Int’lCommissiononNon‐IonizingRadiationProtection(ICNIRP)1996.



 MinistryofHealth(Canada),SafetyCode6.Thestandardsincludeasubstantialsafety

margindesignedtoassurethesafetyofallpersons,regardlessofageandhealth.

Useofunauthorizedormodifiedantennasmayimpaircallqualityanddamagethephone,causing

lossofperformance.ToassureoptimalphoneperformanceandensurehumanexposuretoRF

energyiswithintheguidelinessetforthintherelevantstandards;alwaysuseyourdeviceonlyin

itsnormal‐useposition.AvoidingcontactwiththeantennaareawhenthephoneisINUSE

optimizestheantennaperformance.

Declarationofconformity

Europe

AccordingtoISO/IECGuide22andEN45014

Manufacturer’sName:TrimbleNavigationLimited.

Manufacturer’sAddress:POBox947,Corvallis,OR97339USA

Declares,underoursoleresponsibility,thattheproduct:

ProductName:

TabletComputer

ModelNumber:

RegulatoryName:

ProductOptions: ALL

ConformstothefollowingProductSpecifications:

R&TTEDirective1999/5/ECETSIEN300328V1.6.1(2004)ETSIEN301489‐1V1.5.1(2004)

ETSIEN301489‐17V1.2.1(2002)

EN55022(1998)CISPR22(2005)

EN55024(1998),AmendmentsA1:2001,A2:2003

EN60950‐1(2001)

CFR47,Part15,SubpartB

EN61000‐3‐2(2000)

EN61000‐3‐3(2001)

TrimbleKenaiTabletComputerUserGuide50

SafetyInformation

EN61000‐4‐3(2002)

EN61000‐4‐2(2001)

EN61000‐4‐4(2004)

EN61000‐4‐5(2001)

EN61000‐4‐6(2004)

EN61000‐4‐11(2004)

Supplementaryinformation

Inaddition,theproductisbatterypoweredandthepowersupplyprovidedwiththisproducthas

beencertifiedtoIEC60950+A1,A2,A3,A4,A11.

Asmanufacturer,wedeclareunderoursoleresponsibilitythattheequipmentfollowsthe

provisionsoftheStandardsstatedabove.

Corvallis,ORUSA

ImporterofRecord:TrimbleEuropeanRegionalFulfillmentCenter,LogisticsManager,

Meerheide45,5521DZEersel,Netherlands.

CAUTION:Onlyapprovedaccessoriesmaybeusedwiththisequipment.Ingeneral,allcablesmust

behighquality,shielded,correctlyterminatedandnormallyrestrictedtotwometersinlength.

Powersuppliesapprovedforthisproductemployspecialprovisionstoavoidradiointerference

andshouldnotbealteredorsubstituted.

Unapprovedmodificationsoroperationsbeyondorinconflictwiththeseinstructionsforuse

mayvoidauthorizationbytheauthoritiestooperatetheequipment.

Telecommunications&InternetAssociation

(TIA)information

HearingAids:Somedigitalwirelessphonesmayinterferewithsomehearingaids.Intheeventof

suchinterference,youmaywanttoconsultyourserviceprovider,orcallthecustomerservice

linetodiscussalternatives.

PacemakersandOtherMedicalDevices:TheHealthIndustryManufacturersAssociation

recommendsaminimumseparationofsixinchesbemaintainedbetweenahandheld

wirelessphoneandapacemakertoavoidpotentialinterferencewiththepacemaker.These

recommendationsareconsistentwiththeindependentresearchbyandrecommendations

ofWirelessTechnologyResearch.Personswithpacemakersshouldusetheearoppositethe

pacemakertominimizethepotentialforinterference.Ifyouhaveanyreasontosuspectthat

interferenceistakingplace,turnthephoneOFFimmediately.

Ifyouuseanyotherpersonalmedicaldevice,consultthemanufacturerofyourdeviceto

determineiftheyareadequatelyshieldedfromexternalRFenergy.Yourphysicianmaybeableto

assistyouinobtainingthisinformation.

TrimbleKenaiTabletComputerUserGuide51

SafetyInformation

TurnthephoneOFFinhealthcarefacilitieswhenanyregulationspostedintheseareasinstruct

youtodoso.Hospitalsorhealthcarefacilitiesmaybeusingequipmentthatcouldbesensitiveto

externalRFenergy.

TrimbleKenaiTabletComputerUserGuide52

Legalnotices

Recyclinginformation



Regionalcomplianceinformation



Warranty



EndUserLicenseAgreementforProductSoftware



CopyrightandTrademarks

TrimbleKenaiTabletComputerUserGuide53

Recyclinginformation

Youshoulddisposeofthetabletcomputerandaccessoriesproperlyaccordingtolocallawsandregulations.Becausethetablectcomputer

containselectroniccomponents,itmustbedisposedofseparatelyfromhouseholdwaste.Whenthetabletcomputerreachesitsendoflife,

contactyourlocalTrimbleresellertolearnaboutdisposalandrecyclingoptionsforyourarea.

RecyclinginEurope

Thesymbolabovemeansthataccordingtolocallawsandregulationsyourproductand/oritsbatteryshallbedisposedofseparatelyfrom

householdwaste.Whenthisproductreachesitsendoflife,takeittoacollectionpointdesignatedbylocalauthorities.Theseparatecollection

andrecyclingofyourproductand/oritsbatteryatthetimeofdisposalwillhelpconservenaturalresourcesandensurethatitisrecycledina

mannerthatprotectshumanhealthandtheenvironment.

ForinformationaboutrecyclingTrimbleWEEE(WasteElectricalandElectronicEquipment)productsthatrunonelectrical

powergotohttp://www.trimble.com/corporate/about_WEEE_ROHS_initiatives.aspx.

TorecycleTrimbleWEEEproductscall+31497532430,andaskforthe"WEEEAssociate".ormailarequestforrecycling

instructionsto:TrimbleEuropeB.V.WEEERecycling

C/OMenlo

logisticsGate19

to26Meerheide

435521DZ

Eersel

TheNetherlands

TaiwanBatteryRecyclingRequirements

TheproductincludesaLithium‐ionbattery.Taiwaneseregulationsrequirethatwastebatteriesarerecycled.廢電池請回收

Regionalcomplianceinformation

ToviewcomplianceontheKenaitabletcomputergoto /Settings/System/SystemInformation/Compliance.

AustraliaandNewZealand

ThisproductconformswiththeregulatoryrequirementsoftheAustralianCommunicationsandMediaAuthority(ACMA)Telecommunications,

RadiocommunicationsandEMCLabellingNotices,thussatisfyingtherequirementsforRCMmarkingandsalewithinAustraliaandNewZealand.

Europe

AcopyoftheEUdeclarationofconformityisavailableat:www.trimble.com/....

ThisTrimbleKenaitabletcomputerhasbeentestedandfoundtocomplywithallrequirementsforCEMarkingandsalewithintheEuropean

EconomicArea(EEA).

ThetabletcomputerhasBluetoothandwirelessLANapprovalandsatisfiestherequirementsforRadioandTelecommunicationTerminal

EquipmentspecifiedbyEuropeanCouncilDirective1999/5/EC.Theserequirementsprovidereasonableprotectionagainstharmful

interferencewhentheequipmentisoperatedappropriatelyinaresidentialorcommercialenvironment.

ThetabletcomputersisintendedforconnectiontoEuropeanNetworksoperatingonGSM900,orGSM1800MHz.

Canada

ICID:1756A‐88161

ThisdigitalapparatusdoesnotexceedtheClassBlimitsforradionoiseemissionsfromdigitalapparatusassetoutintheradiointerference

regulationsoftheCanadianDepartmentofCommunications.

Leprésentappareilnumériquen'émetpasdebruitsradioélectriquesdépassantleslimitesapplicablesauxappareilsnumériquesdeClasseB

prescritesdanslerèglementsurlebrouillageradioélectriqueédictéparleMinistèredesCommunicationsduCanada.

Changesandmodificationsnotexpresslyapprovedbythemanufacturerorregistrantofthisequipmentcanvoidyourauthorityto

operatethisequipmentunderIndustryCanadarules.

Leschangementsetmodificationsnonexpressémentapprouvésparlefabricantouledétenteurdecetéquipementpeuventannulervotre

droitàutilisercetappareilenvertudesrèglesd'IndustrieCanada.

TrimbleKenaiTabletComputerUserGuide54

LegalInformation

AntennaStatement

UnderIndustryCanadaregulations,thisradiotransmittermayonlyoperateusinganantennaofatypeandmaximum(orlesser)gainapproved

forthetransmitterbyIndustryCanada.Toreducepotentialradiointerferencetootherusers,theantennatypeanditsgainshouldbesochosen

thattheequivalentisotropicallyradiatedpower(e.i.r.p.)isnotmorethanthatnecessaryforsuccessfulcommunication.

Conformémentàlaréglementationd'IndustrieCanada,leprésentémetteurradiopeutfonctionneravecuneantenned'untypeetd'ungain

maximal(ouinférieur)approuvépourl'émetteurparIndustrieCanada.Danslebutderéduirelesrisquesdebrouillageradioélectriqueà

l'intentiondesautresutilisateurs,ilfautchoisirletyped'antenneetsongaindesortequelapuissanceisotroperayonnéeéquivalente(p.i.r.e.)

nedépassepasl'intensiténécessaireàl'établissementd'unecommunicationsatisfaisante.

Licenceexempt

ThisdevicecomplieswithIndustryCanadalicence‐exemptRSSstandard(s).Operationissubjecttothefollowingtwoconditions:

(1) thisdevicemaynotcauseinterference,and

(2) thisdevicemustacceptanyinterference,includinginterferencethatmaycauseundesiredoperationofthedevice.

LeprésentappareilestconformeauxCNRd'IndustrieCanadaapplicablesauxappareilsradioexemptsdelicence.L'exploitationestautorisée

auxdeuxconditionssuivantes:

(1) l'appareilnedoitpasproduiredebrouillage,et

(2) l'utilisateurdel'appareildoitacceptertoutbrouillageradioélectriquesubi,mêmesilebrouillageestsusceptibled'en

compromettreleonctionnement.

U.S.

FCCID:S9E‐7265NGW

Korea

"해당무선설비는 운용 중 전파 혼신가능성이 있음"

인증번호:MSIP‐CMM‐TNZ‐88161

기자재의 명칭 (모델명): 이동통신용 무선설비(88161)

적합성평가를 받은 자의 상호:TrimbleNavigationLtd.

제조자/제조국가:TrimbleNavigationLtd./ 멕시코

FCCComplianceStatement

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevicepursuanttoPart15oftheFCCRules.Operationis

subjecttothefollowingtwoconditions:(1)thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterference

received,includinginterferencethatmaycauseundesiredoperation.

Thisequipmentgenerates,uses,andcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructionsmay

causeharmfulinterferencetoradiocommunication.However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.

Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipmentoffand

on,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures:

–Reorientorrelocatethereceivingantenna.

–Increasetheseparationbetweentheequipmentandthereceiver.

–Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.

–Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

Changesandmodificationsnotexpresslyapprovedbythemanufacturerorregistrantofthisequipmentcanvoidyourauthorityto

operatethisequipmentunderFederalCommunicationsCommissionrules.

Theradiosinthisdevicehavebeendesignedandmanufacturedtonotexceedstipulatedemissionlimitsforexposuretoradiofrequency(RF)

energyasrequiredbytheFederalCommunicationsCommissionoftheU.S.Government47C.F.R.§2.1091and2.1093.

TheexternalantennaconnectorprovidedinthisdeviceisforGNSSantennasonly.

Operationissubjecttothefollowingtwoconditions:(1)thisdevicemaynotcauseinterference,and(2)thisdevicemustacceptany

interference,includinginterferencethatmaycauseundesiredoperationofthedevice.

ThisClassBdigitalapparatuscomplieswithCanadianICES‐003.

CetappareilnumériquedelaclasseBestconformeàlanormeNMB‐003duCanada.

ThisCategoryIIradiocommunicationdevicecomplieswithIndustryCanadaStandardRSS‐310.

CedispositifderadiocommunicationdecatégorieIIrespectelanormeCNR‐310d’Industrie

Canada.IMPORTANTNOTE:

ICRadiationExposureStatement

ThisEUTiscompliantwithSARforgeneralpopulation/uncontrolledexposurelimitsinICRSS‐102andhadbeentestedinaccordancewith

themeasurementmethodsandproceduresspecifiedinIEEE1528.Thisequipmentshouldbeinstalledandoperatedwithminimum

distance0.5cmbetweentheradiator&yourbody.Thisdeviceanditsantenna(s)mustnotbeco‐locatedoroperatinginconjunctionwith

anyotherantennaortransmitter.TheCountyCodeSelectionfeatureisdisabledforproductsmarketedintheUS/Canada.

RadioFrequency(RF)ExposureInformation

TheradiatedoutputpoweroftheWirelessDeviceisbelowtheIndustryCanada(IC)radiofrequencyexposurelimits.TheWirelessDeviceshould

beusedinsuchamannersuchthatthepotentialforhumancontactduringnormaloperationisminimized.



ThisdevicehasbeenevaluatedforandshowncompliantwiththeICSpecificAbsorptionRate(“SAR＂)limitswheninstalledinspecifichost

productsoperatedinportableexposureconditions.

Informationsconcernantl'expositionauxfréquencesradio(RF)

Lapuissancedesortieémiseparl’appareildesansfilestinférieureàlalimited'expositionauxfréquencesradiod'IndustryCanada(IC).Utilisez

l’appareildesansfildefaçonàminimiserlescontactshumainslorsdufonctionnementnormal.



CepériphériqueaétéévaluéetdémontréconformeauxlimitesSAR(SpecificAbsorptionRate–Tauxd'absorptionspécifique)d'IClorsqu'ilest

installédansdesproduitshôtesparticuliersquifonctionnentdansdesconditionsd'expositionàdesappareilsportables.

a.Caution:

•Riskofexplosionifbatteryreplacedbyanincorrecttype.

•Disposeofusedbatteriesaccordingtotheinstructions.

b.Makesurethetemperatureforadapterwillnotbehigherthan40˚C.

TrimbleKenaiTabletComputerUserGuide55

Legalnotices

Warranty

ProductLimitedWarranty

Subjecttothetermsandconditionssetforthherein,TrimbleNavigationLimited(“Trimble”)warrantsthatforaperiodof(1)yearfromdateof

purchasethisTrimbleproduct(the“Product”)willsubstantiallyconformtoTrimble'spubliclyavailablespecificationsfortheProductandthat

thehardwareandanystoragemediacomponentsoftheProductwillbesubstantiallyfreefromdefectsinmaterialsandworkmanship.

ProductSoftware

Productsoftware,whetherbuiltintohardwarecircuitryasfirmware,providedasastandalonecomputersoftwareproduct,embeddedinflash

memory,orstoredonmagneticorothermedia,islicensedsolelyforusewithorasanintegralpartoftheProductandisnotsold.Thetermsof

theenduserlicenseagreement,asincludedbelow,governtheuseoftheProductSoftware,includinganydifferinglimitedwarrantyterms,

exclusionsandlimitations,whichshallcontroloverthetermsandconditionssetforthinthelimitedProductwarranty.

WarrantyRemedies

IftheTrimbleProductfailsduringthewarrantyperiodforreasonscoveredbythislimitedwarrantyandyounotifyTrimbleofsuchfailureduring

thewarrantyperiod,TrimblewillrepairORreplacethenonconformingProductwithnew,equivalenttonew,orreconditionedpartsorProduct,

ORrefundtheProductpurchasepricepaidbyyou,atTrimble’soption,uponyourreturnoftheProductinaccordancewithTrimble'sproduct

returnproceduresthenineffect.

HowtoObtainWarrantyService

ToobtainwarrantyservicefortheProduct,itisrecommendedyoucontactyourTrimbledealer.Alternatively,youmaycontactTrimbleto

requestwarrantyservicebyemailingRepair_Services@Trimble.com.Pleasebepreparedtoprovide:

–yourname,address,andtelephonenumbers;

–productname,PartNumberandSerialNumber

–proofofpurchase;and

–anexplanationoftheproblem.

Thecustomerservicerepresentativemayneedadditionalinformationfromyoudependingonthenatureoftheproblem.

WarrantyExclusionsandDisclaimer

ThisProductlimitedwarrantyshallonlyapplyintheeventandtotheextentthat(i)theProductisproperlyandcorrectlyinstalled,configured,interfaced,

maintained,stored,andoperatedinaccordancewithTrimble'sapplicableoperator'smanualandspecifications,and;(ii)theProductisnotmodifiedor

misused.ThisProductlimitedwarrantyshallnotapplyto,andTrimbleshallnotberesponsiblefor,defectsorperformanceproblemsresultingfrom(i)the

combinationorutilizationoftheProductwithhardwareorsoftwareproducts,information,data,systems,interfaces,ordevicesnotmade,supplied,or

specifiedbyTrimble;(ii)theoperationoftheProductunderanyspecificationotherthan,orinadditionto,Trimble'sstandardspecificationsforitsproducts;

(iii)theunauthorizedinstallation,modification,oruseoftheProduct;(iv)damagecausedby:accident,lightningorotherelectricaldischarge,freshorsalt

waterimmersionorspray(outsideofProductspecifications);orexposuretoenvironmentalconditionsforwhichtheProductisnotintended;

(v)normalwearandtearonconsumableparts(e.g.,batteries);or(vi)cosmeticdamage.Trimbledoesnotwarrantorguaranteetheresults

obtainedthroughtheuseoftheProductorSoftware,orthatsoftwarecomponentswilloperateerrorfree.

NOTICEREGARDINGPRODUCTSEQUIPPEDWITHTECHNOLOGYCAPABLEOFTRACKINGSATELLITESIGNALSFROMSATELLITEBASED

AUGMENTATIONSYSTEMS(SBAS)(WAAS,EGNOS,GAGAN,MSASANDLUCH),OMNISTAR,BEIDOU,GPS,GALILEOORGLONASSSATELLITES,

ORFROMIALABEACONSOURCES:TRIMBLEISNOTRESPONSIBLEFORTHEOPERATIONORFAILUREOFOPERATIONOFANYSATELLITEBASED

POSITIONINGSYSTEMORTHEAVAILABILITYOFANYSATELLITEBASEDPOSITIONINGSIGNALS.

THEFOREGOINGLIMITEDWARRANTYTERMSSTATETRIMBLE’SENTIRELIABILITY,ANDYOUREXCLUSIVEREMEDIES,RELATINGTOTHETRIMBLE

PRODUCT.EXCEPTASOTHERWISEEXPRESSLYPROVIDEDHEREIN,THEPRODUCT,ANDACCOMPANYINGDOCUMENTATIONANDMATERIALSARE

PROVIDED“AS‐IS”ANDWITHOUTEXPRESSORIMPLIEDWARRANTYOFANYKIND,BYEITHERTRIMBLEORANYONEWHOHASBEENINVOLVED

INITSCREATION,PRODUCTION,INSTALLATION,ORDISTRIBUTION,INCLUDING,BUTNOTLIMITEDTO,THEIMPLIEDWARRANTIESOF

MERCHANTABILITYANDFITNESSFORAPARTICULARPURPOSE,TITLE,ANDNONINFRINGEMENT.THESTATEDEXPRESSWARRANTIESAREIN

LIEUOFALLOBLIGATIONSORLIABILITIESONTHEPARTOFTRIMBLEARISINGOUTOF,ORINCONNECTIONWITH,ANYPRODUCT.BECAUSE

SOMESTATESANDJURISDICTIONSDONOTALLOWLIMITATIONSONDURATIONORTHEEXCLUSIONOFANIMPLIEDWARRANTY,THEABOVE

LIMITATIONMAYNOTAPPLYTOYOU.

LimitationofLiability

TRIMBLE'SENTIRELIABILITYUNDERANYPROVISIONHEREINSHALLBELIMITEDTOTHEAMOUNTPAIDBYYOUFORTHEPRODUCT.TOTHE

MAXIMUMEXTENTPERMITTEDBYAPPLICABLELAW,INNOEVENTSHALLTRIMBLEORITSSUPPLIERSBELIABLEFORANYINDIRECT,SPECIAL,

INCIDENTAL,ORCONSEQUENTIALDAMAGEWHATSOEVERUNDERANYCIRCUMSTANCEORLEGALTHEORYRELATINGINANYWAYTOTHE

PRODUCTS,SOFTWAREANDACCOMPANYINGDOCUMENTATIONANDMATERIALS,(INCLUDING,WITHOUTLIMITATION,DAMAGESFORLOSSOF

BUSINESSPROFITS,BUSINESSINTERRUPTION,LOSSOFDATA,ORANYOTHERPECUNIARYLOSS),REGARDLESSOFWHETHERTRIMBLEHASBEEN

ADVISEDOFTHEPOSSIBILITYOFANYSUCHLOSSANDREGARDLESSOFTHECOURSEOFDEALINGWHICHDEVELOPSORHASDEVELOPED

BETWEENYOUANDTRIMBLE.BECAUSESOMESTATESANDJURISDICTIONSDONOTALLOWTHEEXCLUSIONORLIMITATIONOFLIABILITYFOR

CONSEQUENTIALORINCIDENTALDAMAGES,THEABOVELIMITATIONMAYNOTAPPLYTOYOU.

NOTE:THEABOVETRIMBLELIMITEDWARRANTYPROVISIONSWILLNOTAPPLYTOPRODUCTSPURCHASEDINTHOSEJURISDICTIONS(E.G.,MEMBER

STATESOFTHEEUROPEANECONOMICAREA)INWHICHPRODUCTWARRANTIESARETHERESPONSIBILITYOFTHELOCALDEALERFROMWHOMTHE

PRODUCTSAREACQUIRED.INSUCHACASE,PLEASECONTACTYOURTRIMBLEDEALERFORAPPLICABLEWARRANTYINFORMATION.

NoticetoAustralianPurchasersOnTheAustralianConsumerLaw

OurgoodscomewithguaranteesthatcannotbeexcludedundertheAustralianConsumerLaw.Youareentitledtoareplacementorrefundfora

majorfailureandforcompensationforanyotherreasonablyforeseeablelossordamage.Youarealsoentitledtohavethegoodsrepairedor

replacedifthegoodsfailtobeofacceptablequalityandthefailuredoesnotamounttoamajorfailure.

TrimbleKenaiTabletComputerUserGuide56

Legalnotices

Trimble'swarranty,assetoutintheusermanualaccompanyingthisstatement,orasdescribedinthewarrantycardaccompanyingthe

Productyoupurchased,isinadditiontoanymandatoryrightsandremediesthatyoumayhaveundertheAustralianConsumerLaw.

OfficialLanguage

THEOFFICIALLANGUAGEOFTHESETERMSANDCONDITIONSISENGLISH.INTHEEVENTOFACONFLICTBETWEENENGLISHAND

OTHERLANGUAGEVERSIONS,THEENGLISHLANGUAGESHALLCONTROL.

EndUserLicenseAgreementforProductSoftware

IMPORTANT,READCAREFULLY.THISENDUSERLICENSEAGREEMENT(“EULA”)ISALEGALAGREEMENTBETWEENYOUANDTrimbleNavigationLimited

(“Trimble”)andappliestothecomputersoftwareprovidedwiththeTrimbleproductpurchasedbyyou(whetherbuiltintohardwarecircuitryasfirmware,

embeddedinflashmemoryoraPCMCIAcard,orstoredonmagneticorothermedia),orprovidedasastand‐alonecomputersoftwareproduct,andincludes

anyaccompanyingwrittenmaterialssuchasauser'sguideorproductmanual,aswellasany"online"orelectronicdocumentation("Software"or“Product

Software”).ThisEULAwillalsoapplytoanySoftwareerrorcorrections,updatesandupgradessubsequentlyfurnishedbyTrimble,unlesssuchare

accompaniedbydifferentlicensetermsandconditions,whichwillgoverntheiruse.YouhaveacquiredaTrimbleProduct("Device")thatincludesSoftware,

someofwhichwaslicensedbyTrimblefromMicrosoftCorporationoritsaffiliates(collectively"Microsoft").TheSoftwarelicensedfromMicrosoft,aswell

asassociatedupdates,supplements,internet‐basedservicesandsupportservices,media,printedmaterials,and"online"orelectronicdocumentation

("MicrosoftSoftware"),areprotectedunderthisEULA.TheSoftwareisalsoprotectedbycopyrightlawsandinternationalcopyrighttreaties,aswellasother

intellectualpropertylawsandtreaties.TheSoftwareislicensed,notsold.

BYUSINGTHESOFTWARE,INCLUDINGUSEONTHISDEVICE,YOUACCEPTTHESETERMS.IFYOUDONOTACCEPTTHEM,DONOTUSETHE

DEVICEORSOFTWARE.INSTEADCONTACTTRIMBLEFORAREFUNDORCREDIT.Asdescribedbelow,usingsomefeaturesalsooperatesasyour

consenttothetransmissionofcertainstandardcomputerinformationforInternet‐basedservices.

WARNING:IftheSoftwarecontainsvoiceoperatedtechnologies,thenoperatingthisSoftwarerequiresuserattention.Divertingattentionaway

fromtheroadwhiledrivingcanpossiblycauseanaccidentorotherseriousconsequence.Evenoccasional,shortdiversionsofattentioncanbe

dangerousifyourattentionisdivertedawayfromyourdrivingtaskatacriticaltime.TrimbleandMicrosoftmakenorepresentations,

warrantiesorotherdeterminationsthatANYuseofthisSoftwareislegal,safe,orinanymannerrecommendedorintendedwhiledrivingor

otherwiseoperatingamotorvehicle.

ThisEULAdoesnotgrantyouanyrightswithrespecttotheWindowsMobileDeviceCenter,MicrosoftActiveSyncorMicrosoftOutlook2007Trial

whicharesubjecttothelicensesaccompanyingthoseitems.

1SOFTWAREPRODUCTLICENSE

1.1 LicenseGrant.SubjecttothetermsandconditionsofthisEULA,Trimblegrantsyouanon‐exclusiverighttouseonecopyoftheSoftwarein

amachine‐readableformonlyasinstalledontheDevice.SuchuseislimitedtousewiththeDeviceforwhichitwasintended,assetforthinthe

productdocumentation.TheDeviceSoftwareislicensedwiththeDeviceasasingleintegratedproduct.TheDeviceSoftwareinstalledinread

onlymemory(“ROM”)oftheDevicemayonlybeusedaspartoftheDeviceintowhichitwasembedded.YoumayusetheinstallationSoftware

fromacomputersolelytodownloadtheSoftwaretooneDevice.InnoeventshalltheinstallationSoftwarebeusedtodownloadtheSoftware

ontomorethanoneDevice.AlicensefortheSoftwaremaynotbesharedorusedconcurrentlyondifferentcomputersorDevices.



1.2 ScopeofLicense.ThisEULAonlygivesyousomerightstousetheSoftware.TrimbleandMicrosoftreserveallotherrights.Unlessapplicablelawgives

youmorerightsdespitethislimitation,youmayusetheSoftwareonlyasexpresslypermittedinthisEULA.Indoingso,youmustcomplywithanytechnical

limitationsintheSoftwarethatallowyoutouseitonlyincertainways.ExceptasexpresslyprovidedinthisEULA,rightstoaccesstheSoftwareonthis

DevicedonotgiveyouanyrighttoimplementMicrosoftpatentsorotherMicrosoftintellectualpropertyinsoftwareordevicesthataccessthisdevice.You

mayuseremoteaccesstechnologiesinthesoftwaresuchasRemoteDesktopMobiletoaccesstheSoftwareremotelyfromacomputerorserver.Youare

responsibleforobtaininganylicensesrequiredforuseoftheprotocolstoaccessothersoftware.



1.3 ProofofLicense.IfyouacquiredtheSoftwareontheDevice,oronadiscorothermedia,agenuineCertificateofAuthenticitylabelwitha

genuinecopyoftheSoftwareidentifieslicensedsoftware.Tobevalid,thislabelmustbeaffixedtotheDevice,orincludedonorinthesoftware

packaging.Ifyoureceivethelabelseparately,itisnotvalid.Youshouldkeepthelabelonthedeviceorpackagingtoprovethatyouarelicensed

tousetheSoftware.ToidentifygenuineMicrosoftSoftware,seehttp://www.howtotell.com.

1.4 ConnectivitySoftware.YourDevicepackagemayincludeWindowsMobileDeviceCenterorMicrosoftActiveSyncsoftware.Ifitisincluded,

thenyoumayinstallanduseitinaccordancewiththelicensetermsthatareprovidedwithit.Ifnolicensetermsareprovided,thenyoumay

installanduseonlyone(1)copyoftheSoftwareonasinglecomputer.

1.5 DigitalCertificates.TheSoftwareusesdigitalcertificatesinX.509format.Thesedigitalcertificatesareusedforauthentication.

1.6 PhoneFunctionality.IftheDeviceSoftwareincludesphonefunctionality,allorcertainportionsoftheDeviceSoftwaremaybeinoperableif

youdonothaveandmaintainaserviceaccountwithawirelesstelecommunicationcarrier(“MobileOperator”),oriftheMobileOperator’s

networkisnotoperatingorconfiguredtooperatewiththeDevice.

1.7 UpgradeSoftware.IntheeventthatanyupgradestotheSoftware,includingMicrosoftSoftware,areprovidedunderthisEULA,thenthe

followingshallapply:youmayfollowtheapplicableinstructionsaccompanyingthisSoftwareandinstallone(1)copyoftheSoftwareonone(1)

DevicepresentlycontainingalicensedcopyofapredecessorversionoftheSoftware(unlessthisEULAindicatesthatthisSoftwarecopyhasbeen

licensedforinstallationonmultipleDevices).NOREPRESENTATIONORWARRANTYISMADEBYTRIMBLEORMICROSOFTWITHRESPECTTOTHE

COMPATIBILITYOFTHISSOFTWAREWITHANYDEVICEORANYOTHEREXISTINGSOFTWAREORDATAOFANYKINDCONTAINEDONSUCH

DEVICES,ANDNEITHERTRIMBLEORMICROSOFTSHALLBERESPONSIBLE



INANYREGARDWITHRESPECTTOANYLOSS,CORRUPTION,MODIFICATIONORINACCESSIBILITYOFANYDATA,APPLICATIONSOR

OTHERSOFTWARERESULTINGFROMTHEINSTALLATIONOFTHESOFTWAREONANYDEVICE.

1.8 Internet‐BasedServicesComponents.MicrosoftprovidesInternet‐basedserviceswiththesoftware.Microsoftmaychangeorcancelthematany

time.TheMicrosoftSoftwarefeaturesdescribedbelowconnecttoMicrosoftorserviceprovidercomputersystemsovertheInternet.Insomecases,you

willnotreceiveaseparatenoticewhentheyconnect.Youmayswitchoffsomeofthesefeaturesornotusethem.Formoreinformationaboutthese

features,visithttp://go.microsoft.com/fwlink/?LinkId=81931.Byusingthesefeatures,youconsenttothetransmissionofthisinformation.Microsoftdoes

notusetheinformationtoidentifyorcontactyou.Youmaynotusetheseservicesinanywaythatcouldharmthemorimpairanyoneelse’suseofthem.

Youmaynotusetheservicestotrytogainunauthorizedaccesstoanyservice,data,accountornetworkbyanymeans.



1.9 DeviceInformation.ThefollowingfeaturesuseInternetprotocols,whichsendtotheappropriatesystemsdeviceinformation,suchasyourInternet

protocoladdress,thetypeofoperatingsystem,browserandnameandversionoftheSoftwareyouareusing,andthelanguagecodeoftheDevicewhere

youinstalledtheSoftware.MicrosoftusesthisinformationtomaketheInternet‐basedservicesavailabletoyou.a)UpdateFeatures:Windows

TrimbleKenaiTabletComputerUserGuide57

Legalnotices

MobileUpdatefeatureprovidesyoutheabilitytoobtainandinstallSoftwareupdatesonyourDeviceifupdatesareavailable.Youmaychoosenottouse

thisfeature.Trimbleand/oryourMobileOperatormaynotsupportthisfeatureoranupdateforyourdevice.b)SecurityUpdates/DigitalRights

Management.ContentownersuseWindowsMediadigitalrightsmanagementtechnology(WMDRM)toprotecttheirintellectualproperty,including

copyrights.ThissoftwareandthirdpartysoftwareuseWMDRMtoplayandcopyWMDRM‐protectedcontent.Ifthesoftwarefailstoprotectthecontent,

contentownersmayaskMicrosofttorevokethesoftware'sabilitytouseWMDRMtoplayorcopyprotectedcontent.Revocationdoesnotaffectother

content.Whenyoudownloadlicensesforprotectedcontent,youagreethatMicrosoftmayincludearevocationlistwiththelicenses.Contentownersmay

requireyoutoupgradeWMDRMtoaccesstheircontent.MicrosoftsoftwarethatincludesWMDRMwillaskforyourconsentpriortotheupgrade.Ifyou

declineanupgrade,youwillnotbeabletoaccesscontentthatrequirestheupgrade.

1.10 AdditionalSoftware/Services.TheDeviceSoftwaremaypermitTrimble,Microsoft,theiraffiliatesand/ortheirdesignatedagenttoprovide

ormakeavailabletoyouSoftwareupdates,supplements,add‐oncomponents,orInternet‐basedservicescomponentsoftheSoftwareafterthe

dateyouobtainyourinitialcopyoftheSoftware(“SupplementalComponents”).

1.10.1IfTrimbleprovidesormakesavailabletoyouSupplementalComponentsandnootherenduserlicenseagreementtermsareprovided

alongwiththeSupplementalComponents,thenthetermsofthisEULAshallapply.

1.10.2IfMicrosoft,itsaffiliatesand/oritsdesignatedagentmakesavailableSupplementalComponents,andnootherenduserlicenseagreement

termsareprovided,thenthetermsofthisEULAshallapply,exceptthattheMicrosoftentityoraffiliateentityprovidingtheSupplemental

Component(s)shallbethelicensoroftheSupplementalComponent(s).

1.10.3Trimble,Microsoftandeachoftheiraffiliatesand/ortheirdesignatedagentsreservetherighttodiscontinueanyInternet‐based

servicesprovidedtoyouormadeavailabletoyouthroughtheuseoftheDeviceSoftware.

1.11 LinkstoThirdPartySites.IftheSoftwareprovideslinkstothirdpartywebsites,thoselinksareprovidedtoyouonlyasaconvenience,

andtheinclusionofanylinkdoesnotimplyanendorsementofthethirdpartywebsitebyMicrosoftorTrimble.

1.12 OtherRightsandLimitations.(1)TheSoftwarecontainsvaluabletradesecretsproprietarytoTrimbleanditssuppliers.Totheextentpermittedby

relevantlaw,youshallnot,norallowanythirdpartytocopy,decompile,disassembleorotherwisereverseengineertheSoftware,orattempttodoso,

provided,however,thattotheextentanyapplicablemandatorylaws(suchas,forexample,nationallawsimplementingECDirective91/250ontheLegal

ProtectionofComputerPrograms)giveyoutherighttoperformanyoftheaforementionedactivitieswithoutTrimble'sconsentinordertogaincertain

informationabouttheSoftwareforpurposesspecifiedintherespectivestatutes(i.e.,interoperability),youherebyagreethat,beforeexercisinganysuch

rights,youshallfirstrequestsuchinformationfromTrimbleinwritingdetailingthepurposeforwhichyouneedtheinformation.OnlyifandafterTrimble,at

itssolediscretion,partlyorcompletelydeniesyourrequest,mayyouexercisesuchstatutoryrights.(2)ThisSoftwareislicensedasasingleproduct.Youmay

notseparateitscomponentpartsforuseonmorethanonecomputernormakemorecopiesofthesoftwarethanspecifiedinthisEULA.(3)Youmaynot

rent,lease,orlendtheSoftware.(4)Noservicebureauwork,multiple‐userlicenseortime‐sharingarrangementispermitted.ForpurposesofthisEULA

“servicebureauwork”shallbedeemedtoinclude,withoutlimitation,useoftheSoftwaretoprocessortogenerateoutputdataforthebenefitof,orfor

purposesofrenderingservicestoanythirdpartyovertheInternetorothercommunicationsnetwork.(5)YoumaymakeonebackupcopyoftheSoftware.

YoumayuseitonlytoreinstalltheSoftwareontheDevice.(6)YoumaytransfertheSoftwareonlywiththeDevice,theCertificateofAuthenticitylabel,and

theselicensetermsdirectlytoathirdparty.Beforethetransfer,thatpartymustagreethattheselicensetermsapplytothetransferanduseofthe

Software.YoumaynotretainanycopiesoftheSoftwareincludingthebackupcopy.(7)TheSoftwareissubjecttoUnitedStatesexportlawsandregulations.

YoumustcomplywithalldomesticandinternationalexportlawsandregulationsthatapplytotheSoftware.Theselawsincluderestrictionsondestinations,

endusers,andenduse.Foradditionalinformationseehttp://www.microsoft.com/exporting.



(8)Withoutprejudiceastoanyotherrights,TrimblemayterminatethisEULAwithoutnoticeifyoufailtocomplywiththetermsandconditionsofthis

EULA.Insuchevent,youmustdestroyallcopiesoftheSoftwareandallofitscomponentparts.(9)IftheMicrosoftSoftwareincludesspeechrecognition

component(s),youshouldunderstandthatspeechrecognitionisaninherentlystatisticalprocessandthatrecognitionerrorsareinherentintheprocess.

NeitherTrimble,Microsoft,noranyoftheirsuppliersshallbeliableforanydamagesarisingoutoferrorsinthespeechrecognitionprocess.(10)Youmay

notpublishtheSoftwareforotherstocopy.(11)YoumaynotusetheSoftwareforcommercialsoftwarehostingservices.



1.13 NoticeRegardingtheMPEG‐4VisualStandard.TheSoftwaremayincludeMPEG‐4visualdecodingtechnology.Thistechnologyisaformatfor

datacompressionofvideoinformation.MPEGLA,L.L.C.requiresthisnotice:USEOFTHISPRODUCTINANYMANNERTHATCOMPLIESWITHTHE

MPEG‐4VISUALSTANDARDISPROHIBITED,EXCEPTFORUSEDIRECTLYRELATEDTO(A)DATAORINFORMATION(i)GENERATEDBYAND

OBTAINEDWITHOUTCHARGEFROMACONSUMERNOTTHEREBYENGAGEDINABUSINESSENTERPRISE,AND(ii)FORPERSONALUSEONLY;AND

(B)OTHERUSESSPECIFICALLYANDSEPARATELYLICENSEDBYMPEGLA,L.L.C.IfyouhavequestionsabouttheMPEG‐4visualstandard,please

contactMPEGLA,L.L.C.,250SteeleStreet,Suite300,Denver,CO80206;www.mpegla.com.



1.14 IftheDeviceSoftwareisprovidedbyTrimbleseparatefromtheDeviceonmediasuchasaROMchip,CDROMdisk(s)orviawebdownload

orothermeans,andislabeled“ForUpgradePurposesOnly”youmayinstallone(1)copyofsuchDeviceSoftwareontotheDeviceasa

replacementcopyfortheexistingDeviceSoftwareanduseitaccordancewiththisEULA,includinganyadditionalenduserlicenseagreement

termsaccompanyingtheupgradeDeviceSoftware.

1.15 Ifanysoftwarecomponent(s)isprovidedbyTrimbleseparatefromtheDeviceonCDROMdisc(s)orviawebdownloadorothermeans,and

labeled“ForUpgradePurposesOnly,”youmay(i)installanduseone(1)copyofsuchcomponent(s)onthecomputer(s)youusetoexchange

datawiththeDeviceasareplacementcopyfortheexistingCompanionCDcomponent(s).

1.16 Copyright.AlltitleandcopyrightsinandtotheSoftware(includingbutnotlimitedtoanyimages,photographs,animations,video,audio,music,text

and“applets,”incorporatedintotheSoftware),theaccompanyingprintedmaterials,andanycopiesoftheSoftwareareownedbyTrimble,orMicrosoft

(includingMicrosoftCorporation),andtheirrespectivesuppliers.YoumaynotcopytheprintedmaterialsaccompanyingtheSoftware.Alltitleand

intellectualpropertyrightsinandtothecontentwhichmaybeaccessedthroughuseoftheSoftwareisthepropertyoftherespectivecontentownerand

maybeprotectedbyapplicablecopyrightorotherintellectualpropertylawsandtreaties.ThisEULAgrantsyounorightstousesuchcontent.Youshallnot

remove,coveroralteranyofTrimble’spatent,copyrightortrademarknoticesplacedupon,embeddedinordisplayedbytheSoftwareoronitspackaging

andrelatedmaterials.AllrightsnotspecificallygrantedinthisEULAarereservedbyTrimble,Microsoft,andtheirrespectivesuppliers.



1.17 U.S.GovernmentRestrictedRights.TheSoftwareisprovidedwith“RESTRICTEDRIGHTS”.Use,duplication,ordisclosurebytheUnitedStates

GovernmentissubjecttorestrictionsassetforthinthisEULA,andasprovidedinDFARS227.7202‐1(a)and227.7202‐3(a)(1995),DFARS252.227‐

7013(c)(1)(ii)(OCT1988),FAR12.212(a)(1995),FAR52.227‐19,orFAR52.227‐14(ALTIII),asapplicable.

1.18 MicrosofthascontractuallyobligatedTrimbletoincludethefollowingtermsinthisEULA:

ProductSupport.TheProductsupportfortheSoftwareisnotprovidedbyMicrosoftoritsaffiliatesorsubsidiaries.Forproductsupport,please

refertotheTrimblesupportnumberprovidedinthedocumentationfortheDevice.

Notfaulttolerant.TheSoftwareisnotfaulttolerant.TrimbleinstalledtheSoftwareontheDeviceandisresponsibleforhowitoperatesonthe

Device.Restricteduser.TheMicrosoftSoftwarewasdesignedforsystemsthatdonotrequirefail‐safeperformance.Youmaynotusethe

MicrosoftSoftwareinanydeviceorsysteminwhichamalfunctionoftheMicrosoftSoftwarewouldresultinforeseeableriskofinjuryordeathto

anyperson.Thisincludesoperationofnuclearfacilities,aircraftnavigationorcommunicationsystemsandairtrafficcontrol.

Nowarrantiesforthesoftware.Microsoftgivesnoexpresswarranties,guaranteesorconditionsregardingtheMicrosoftSoftware.Anywarrantiesyou

receiveregardingtheDeviceortheSoftwaredonotoriginatefrom,andarenotbindingon,Microsoftoritsaffiliates.Whenallowedbyyourlocallaws,

TrimbleandMicrosoftexcludeimpliedwarrantiesofmerchantability,fitnessforaparticularpurposeandnon‐infringement.

TrimbleKenaiTabletComputerUserGuide58

Legalnotices

LIABILITYLIMITATIONS.YoucanrecoverfromMicrosoftanditsaffiliatesonlydirectdamagesuptofiftyU.S.Dollars(U.S.$50.00),or

equivalentinlocalcurrency.Youcannotrecoveranyotherdamages,includingconsequential,lostprofits,special,indirectorincidental

damages.Thislimitationappliesto:

‐AnythingrelatedtotheSoftware,services,content(includingcode)onthirdpartyinternetsites,orthirdpartyprograms,and

‐claimsforbreachofcontract,breachofwarranty,guaranteeorcondition,strictliability,negligence,orothertorttotheextentpermittedby

applicablelaw.

ItalsoappliesevenifMicrosoftshouldhavebeenawareofthepossibilityofthedamages.Theabovelimitationmaynotapplytoyoubecause

yourcountrymaynotallowtheexclusionorlimitationofincidental,consequentialorotherdamages.

2LIMITEDWARRANTYFORTRIMBLEPRODUCTSOFTWARE

2.1 LimitedWarranty.TrimblewarrantsthattheSoftware,exclusiveoftheMicrosoftSoftware,willperformsubstantiallyinaccordancewiththe

accompanyingwrittenmaterialsforaperiodoftwelve(12)monthsfromthedateofpurchase.Thislimitedwarrantygivesyouspecificlegal

rights;youmayhaveothers,whichvaryfromstate/jurisdictiontostate/jurisdiction.TheabovelimitedwarrantydoesnotapplytoFixes,Minor

Updates,orMajorUpgradesoftheSoftwareafterexpirationofthetwelve(12)monthlimitedwarrantyperiod,allofwhichareprovided“ASIS”

andwithoutwarrantyunlessotherwisespecifiedinwritingbyTrimble.BecausetheSoftwareisinherentlycomplexandmaynotbecompletely

freeofnonconformities,defectsorerrors,youareadvisedtoverifyyourwork.TrimbledoesnotwarrantthattheSoftwarewilloperateerror

freeoruninterrupted,willmeetyourneedsorexpectations,orthatallnonconformitiescanorwillbecorrected.



2.2 SoftwareFixes.Duringthelimitedwarrantyperioddescribedinsection2.1above,youwillbeentitledtoreceivesuchFixestotheProduct

SoftwarethatTrimblereleasesandmakescommerciallyavailableandforwhichitdoesnotchargeseparately,subjecttotheproceduresfor

deliverytopurchasersofTrimbleproductsgenerally.IfyouhavepurchasedtheProductfromanauthorizedTrimbledealerratherthanfrom

Trimbledirectly,Trimblemay,atitsoption,forwardthesoftwareFixtotheTrimbledealerforfinaldistributiontoyou.MinorUpdates,Major

Upgrades,newproducts,orsubstantiallynewsoftwarereleases,asidentifiedbyTrimble,areexpresslyexcludedfromthisupdateprocessand

limitedwarranty.ReceiptofSoftwareFixesorotherenhancementsshallnotservetoextendthelimitedwarrantyperiod.



Forpurposesofthiswarrantythefollowingdefinitionsshallapply:(1)"Fix(es)"meansanerrorcorrectionorotherupdatecreatedtofixa

previoussoftwareversionthatdoesnotsubstantiallyconformtoitsTrimblespecifications;(2)"MinorUpdate"occurswhenenhancementsare

madetocurrentfeaturesinasoftwareprogram;and(3)"MajorUpgrade"occurswhensignificantnewfeaturesareaddedtosoftware,orwhena

newproductcontainingnewfeaturesreplacesthefurtherdevelopmentofacurrentproductline.Trimblereservestherighttodetermine,inits

solediscretion,whatconstitutesaFix,MinorUpdate,orMajorUpgrade.



2.3 CustomerRemedies.Trimble’sanditssuppliers’entireliability,andyoursoleremedy,withrespecttotheSoftwareshallbeeither,at

Trimble’soption,(a)repairorreplacementoftheSoftware,or(b)returnofthelicensefeepaidforanySoftwarethatdoesnotmeetTrimble’s

limitedwarranty.ThislimitedwarrantyisvoidiffailureoftheSoftwarehasresultedfrom(1)accident,misuse,abuse,ormisapplication;(2)

alterationormodificationoftheSoftwarewithoutTrimble’sauthorization;(3)interactionwithsoftwareorhardwarenotsuppliedorsupported

byTrimble;(4)yourimproper,inadequateorunauthorizedinstallation,maintenanceorstorage;or(5)ifyouviolatethetermsofthisEULA.Any

replacementSoftwarewillbewarrantedfortheremainderoftheoriginalwarrantyperiodorthirty(30)days,whicheverislonger.



2.4 NOOTHERWARRANTIES.TOTHEMAXIMUMEXTENTPERMITTEDBYAPPLICABLELAW,TRIMBLEANDITSSUPPLIERSDISCLAIMALLOTHER

WARRANTIES,TERMSANDCONDITIONS,EITHEREXPRESSORIMPLIED,BYSTATUTE,COMMONLAWOROTHERWISE,INCLUDINGBUTNOT

LIMITEDTO,IMPLIEDWARRANTIES,TERMSANDCONDITIONSOFMERCHANTABILITYANDFITNESSFORAPARTICULARPURPOSE,TITLE,AND

NONINFRINGEMENTWITHREGARDTOTHESOFTWARE,ITSSATISFACTORYQUALITYANDTHEPROVISIONOFORFAILURETOPROVIDESUPPORT

SERVICES.TOTHEEXTENTALLOWEDBYAPPLICABLELAW,IMPLIEDWARRANTIES,TERMSANDCONDITIONSONTHESOFTWAREARELIMITEDTO

NINETY(90)DAYS.Y0UMAYHAVEOTHERLEGALRIGHTSWHICHVARYFROMSTATE/JURISDICTIONTOSTATE/JURISDICTION.



NOWARRANTIESFORTHEMICROSOFTSOFTWARE.THEMICROSOFTSOFTWAREisprovided“ASIS”andwithallfaults,ANDTRIMBLE

PROVIDESNOWARRANTYWITHRESPECTTHERETO.THEENTIRERISKASTOSATISFACTORYQUALITY,PERFORMANCE,

ACCURACYANDEFFORT(INCLUDINGLACKOFNEGLIGENCE)FORTHEMICROSOFTSOFTWAREISWITHYOU.ALSO,THEREISNO

WARRANTYAGAINSTINTERFERENCEWITHYOURENJOYMENTOFTHEMICROSOFTSOFTWAREORAGAINSTINFRINGEMENT.

2.5 PLEASENOTE:THEFOREGOINGTRIMBLELIMITEDWARRANTYPROVISIONSMAYNOTAPPLYTOSOFTWAREPRODUCTLICENSESPURCHASED

INTHOSEJURISDICTIONS(SUCHASCOUNTRIESOFTHEEUROPEANUNION)INWHICHPRODUCTWARRANTIESAREOBTAINEDFROMTHELOCAL

DISTRIBUTOR.INSUCHCASES,PLEASECONTACTYOURTRIMBLEDEALERFORAPPLICABLEWARRANTYINFORMATION.

3TRIMBLELIMITATIONOFLIABILITY

3.1LIMITATIONOFLIABILITY.TOTHEMAXIMUMEXTENTPERMITTEDBYAPPLICABLELAW,INNOEVENTSHALLTRIMBLEORITSSUPPLIERSBE

LIABLEFORANYSPECIAL,INCIDENTAL,INDIRECT,CONSEQUENTIALORPUNITIVEDAMAGESHOWEVERCAUSEDANDREGARDLESSOFTHE

THEORYOFLIABILITY(INCLUDING,WITHOUTLIMITATION,DAMAGESFORLOSSOFBUSINESSPROFITS,BUSINESSINTERRUPTION,LOSSOF

BUSINESSINFORMATION,ORANYOTHERPECUNIARYLOSS)ARISINGOUTOFTHEUSEORINABILITYTOUSETHESOFTWARE,ORTHEPROVISION

OFORFAILURETOPROVIDESUPPORTSERVICES,EVENIFTRIMBLEHASBEENADVISEDOFTHEPOSSIBILITYOFSUCHDAMAGESAND

NOTWITHSTANDINGANYFAILUREOFESSENTIALPURPOSEOFANYEXCLUSIVEREMEDYPROVIDEDINTHISEULA.

INNOEVENTSHALLTHETOTALCUMULATIVELIABILITYOFTRIMBLEANDITSSUPPLIERSINCONNECTIONWITHTHISEULAORTHESOFTWARE,WHETHER

BASEDONCONTRACT,WARRANTY,TORT(INCLUDINGNEGLIGENCE),STRICTLIABILITYOROTHERWISE,EXCEEDTHEACTUALAMOUNTPAIDTOTRIMBLE

FORTHESOFTWARELICENSEGIVINGRISETOTHECLAIM.BECAUSESOMESTATESANDJURISDICTIONSDONOTALLOWTHEEXCLUSIONORLIMITATION

OFLIABILITYFORCONSEQUENTIALORINCIDENTALDAMAGES,THEABOVELIMITATIONMAYNOTAPPLYTOYOU.

4GENERAL

4.1 ThisEULAshallbegovernedbythelawsoftheStateofCaliforniaandapplicableUnitedStatesFederallawwithoutreferenceto“conflictof

laws”principlesorprovisions.TheUnitedNationsConventiononContractsfortheInternationalSaleofGoodswillnotapplytothisEULA.

JurisdictionandvenueofanydisputeorcourtactionarisingfromorrelatedtothisEULAortheSoftwareshalllieexclusivelyinorbetransferred

tothecourtstheCountyofSantaClara,California,and/ortheUnitedStatesDistrictCourtfortheNorthernDistrictofCalifornia.Youhereby

consentandagreenottocontest,suchjurisdiction,venueandgoverninglaw.



4.2 Section4.1notwithstanding,ifyouacquiredthisproductinCanada,thisEULAisgovernedbythelawsoftheProvinceofOntario,Canada.Insuchcase

eachofthepartiestothisEULAirrevocablyattornstothejurisdictionofthecourtsoftheProvinceofOntarioandfurtheragreestocommenceany

litigationthatmayariseunderthisEULAinthecourtslocatedintheJudicialDistrictofYork,ProvinceofOntario.Ifyouacquiredthisproductinthe

EuropeanUnion,thisEULAisgovernedbythelawsofTheNetherlands,excludingitsrulesgoverningconflictsoflawsandexcludingtheUnitedNations

ConventionontheInternationalSaleofGoods.InsuchcaseeachofthepartiestothisEULAirrevocablyattornstothejurisdictionofthecourtsofThe

NetherlandsandfurtheragreestocommenceanylitigationthatmayariseunderthisEULAinthecourtsofTheHague,TheNetherlands.



4.3 TrimblereservesallrightsnotexpresslygrantedbythisEULA.

4.4 OfficialLanguage.TheofficiallanguageofthisEULAandofanydocumentsrelatingtheretoisEnglish.Forpurposesofinterpretation,orintheeventofa

conflictbetweenEnglishandversionsofthisEULAorrelateddocumentsinanyotherlanguage,theEnglishlanguageversionshallbecontrolling.

TrimbleKenaiTabletComputerUserGuide59

Legalnotices

Trimble,andtheGlobe&Trianglelogo,aretrademarksofTrimbleNavigationLimited,registeredintheUnitedStatesandinother

countries.aretrademarksofTrimbleNavigationLimited.

MicrosoftandWindowsareeitherregisteredtrademarksortrademarksofMicrosoftCorporationintheUnitedStatesand/orothercountries.

TheBluetoothwordmarkandlogosareownedbytheBluetoothSIG,Inc.andanyuseofsuchmarksbyTrimbleNavigationLimitedisunder

license.Allothertrademarksarethepropertyoftheirrespectiveowners.

ThisistheAugust2015release(RevisionA)oftheTrimbleKenaiTabletComputerUserGuide.

TrimbleKenaiTabletComputerUserGuide60

Trimble WIT2410G Modular 2.4 GHz Transceiver User Manual Fireball UserGuide Draft3x

Trimble Navigation Limited Modular 2.4 GHz Transceiver Fireball UserGuide Draft3x

Contents

User manual

Navigation menu

Namespaces

Views

Navigation
