Trisquare Communications Inc. FRS Transceiver Owners Manual
Owners Manual
FRS420 – User Instruction Guide – Content Draft
TriSquare Communications Draft for content only – customer to define layout and additional graphics Page 1
Controls
1) On/Off/Volume control
2) PTT button
3) Call/Menu button
4) Up button
5) Down button
6) Accessory jack
LCD Display
1) Channel Number – displays the FRS channel
(1-14).
2) CTCSS Code Number – indicates the
current sub-audible code selected (0-38)
3) SCAN – displays when the scan feature is
active.
4) Vibrate Icon – displays when the vibrate
feature is selected.
FCC Information
• This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and (2)
this device must accept any interference
received, including interference that may
cause undesired operation.
• Important: Changes or modifications to this
unit not expressly approved by Uniden could
void your authority to operate this unit.
Your radio is set up to transmit a regulated
signal on an assigned frequency. It is
against the law to alter the settings inside the
radio to exceed those limitations. Any
adjustments to your radio must be made by
qualified technicians.
• To be safe and sure:
o Never open your radio’s case
o Never change or replace anything in your
radio except the batteries.
• Your radio might cause TV or radio
interference even when it is operating
properly. To determine whether your radio
is causing the interference, turn it off. If the
interference goes away, your radio is
causing it. Try to eliminate the interference
by moving your radio away from the
receiver. If you cannot eliminate the
interference, the FCC requires that you stop
using the radio.
Safety Guidelines
• Audio Accessories: Do not operate the
radio with audio accessories at high volume
levels. Hearing experts advise against
continuous high volume operation. If you
experience a ringing in your ears, reduce the
volume level or discontinue use. Always
make sure the radio is turned off before
plugging audio accessories into the
accessory jack.
• Hazardous Environments: Do not operate
the radio in hazardous environments.
Explosion or fire may result. Do not operate
the radio near unshielded electrical blasting
caps. Under certain conditions, radios can
interfere with blasting operations and may
cause an explosion. Turn your radio OFF to
prevent accidental transmission when in a
blasting area or in areas posted: “Turn off
two-way radios.” Construction crews often
use remote control RF devices to set off
explosives.
• Care and Safety: To clean the radio, use a
soft cloth dampened with water. Do not use
cleaners or solvents because they can harm
the body of the unit and leak inside, causing
permanent damage. Use a dry, lint-free
cloth to clean the battery contacts. Do not
submerge the unit in water. If the unit gets
wet, turn it off and remove the batteries
immediately. Dry the battery compartment
with a soft cloth to minimize potential water
damage. Leave the battery compartment
cover off overnight to ensure complete
drying. Do not use the radio until the unit is
completely dry.
FRS420 – User Instruction Guide – Content Draft
TriSquare Communications Draft for content only – customer to define layout and additional graphics Page 2
Welcome
Congratulations on your purchase of the
Uniden FRS420 Family Radio. This product is
a lightweight, palm-sized radio with a unique
Carabiner design allowing you to “clip” the
radio to almost anything and carry it almost
anywhere. Use it at shopping malls,
amusement parks, or sporting events to stay in
contact with family and friends, or in a
neighborhood watch for vital communication.
This compact, state-of-the-art device is
equipped with the following features:
o 14 Channels
o 38 CTCSS Codes
o Up to 2 mile range*
o LCD Display
o 5 Selectable Call Tone Alerts
o Vibrate Alert for incoming calls
o Channel Scan
o Channel Monitor
o Audible Low Battery Indicator
o Supports Optional Headset
Accessories
o Supports Optional NiMH Battery Pack
* Range may very depending on environmental
and/or topographical conditions.
Optional Accessories
Your package contains the FRS420 radio, this
reference guide, and a product registration card.
You will need to purchase 3 AA Alkaline
batteries in order to operate the unit. The
following optional accessories may be
purchased from your Uniden dealer or [need to
add other means].
o Earset Mic w/ PTT – #EM2468
o Vox Headset Mic – #EMV2469
o NiMH Battery Pack – #TBD
o AC Wall Charger – #TBD
o Car Charger – #TBD
o Battery Covers – #TBD
Battery Installation
Your FRS420 radio uses 3 AA Alkaline
batteries for power. To install the batteries:
1) Make sure your radio is OFF.
2) Remove the battery compartment door by
sliding it down from the unit.
3) Install 3 AA Alkaline batteries (not
included) into the battery compartment.
Be certain to follow the + and – symbols in
the compartment. Installing the batteries
incorrectly will prevent the unit from
operating.
4) Optional: Your FRS420 radio can be
powered using an optional NiMH battery
pack specifically designed for this model.
Remove the alkaline batteries and install
the battery pack by inserting into the
battery compartment. Follow the
instructions found with the NiMH
accessory.
5) Replace the battery compartment door by
pushing it up until it is secure.
Low Battery Alert
When the batteries in the unit are low, the unit
will emit a “low battery” tone indication.
Replace the batteries immediately to continue
using the radio.
Using Your Radio
In order to get the most out of your new radio,
read this reference guide completely before
attempting to operate the unit.
Turning the Radio On and Adjusting Volume
1) Rotate the on/off/volume control
clockwise to turn the unit ON and increase
the speaker volume
2) Rotate the on/off/volume control
counterclockwise to decrease the speaker
volume and turn the unit OFF.
Adjusting the Sound (Key Beeps)
Your radio emits a beep each time one of the
buttons is pressed. To turn this sound OFF,
press PTT while turning on the radio. To turn
this sound ON, press PTT while turning on the
radio again.
Choosing a Channel
Your radio has 14 channels and 38 CTCSS
codes you can use to talk to others. In order to
FRS420 – User Instruction Guide – Content Draft
TriSquare Communications Draft for content only – customer to define layout and additional graphics Page 3
speak to someone, each of you must be set to
the same channel and CTCSS code.
To choose a channel:
Press the Up or Down button to increment or
decrement the channel number displayed.
Navigating through the Menu
To access the advanced features of the FRS420,
your radio has a Menu function.
1) To enter the Menu, press and hold the
call/menu button for 1 second until the
CTCSS code flashes.
2) Additional presses of the call/menu button
will advance through the menu until
exiting to “normal” operating mode.
3) Other methods of exiting the menu
function are:
a. Press and hold the call/menu button
for 1 second again.
b. Press PTT.
c. Wait 10 seconds until unit
automatically returns to “normal”
mode.
Choosing a CTCSS Code
Each of the FRS channels 1-14 may have any
one of the codes 0-38 selected. Code “0”
indicates no CTCSS code selected and your
radio can receive a signal regardless of the code
settings of the transmitting radio.
1) Enter the Menu. The CTCSS code on the
LCD display will flash.
2) Press the Up or Down button to increment
or decrement the code number displayed.
3) Exit the Menu to return to “normal” mode.
Talking on Your Radio
To talk to others using the radio:
1) Press and hold the PTT button and speak
in a clear, normal voice about 2-3 inches
away from the microphone. To avoid
cutting off the first part of your
transmission, pause slightly after pressing
the PTT button before you start talking.
2) When you are finished speaking, release
the PTT button
Transmitting a Call Alert Tone:
Your FRS420 radio is equipped with 5
selectable call tones that will be transmitted
when the call/menu button is momentarily
pressed.
To select a call tone:
1) Enter the Menu and then press the
call/menu button once. The letters CA
will show on the display along with the
current call tone number (1-5).
2) Press the Up or Down button to increment
or decrement the number to the desired call
tone. Each tone will be heard through the
speaker.
3) Exit the Menu.
To transmit the selected call alert tone,
momentarily press the call/menu button. The
selected tone will automatically be transmitted
for a fixed length of time. Note: Do not hold
the call/menu button down as this will enter
the Menu mode.
Vibrate Alert for Incoming Calls
Your FRS420 radio is equipped with a vibrator
that can be used for notification of an incoming
call alert from other Uniden radios equipped
with the same feature.
To select the vibrate alert:
1) Enter the Menu and then press the
call/menu button twice. The VIBRATE
icon on the LCD display will be shown
along with ON or OF indicating the vibrate
alert feature status.
2) Press either the Up or Down button to
toggle the feature On or OFF.
3) Exit the Menu.
Channel Scan Feature
Your FRS420 radio has a channel scan feature
that allows you to easily scan all 14 channels.
When an active channel is detected, the unit

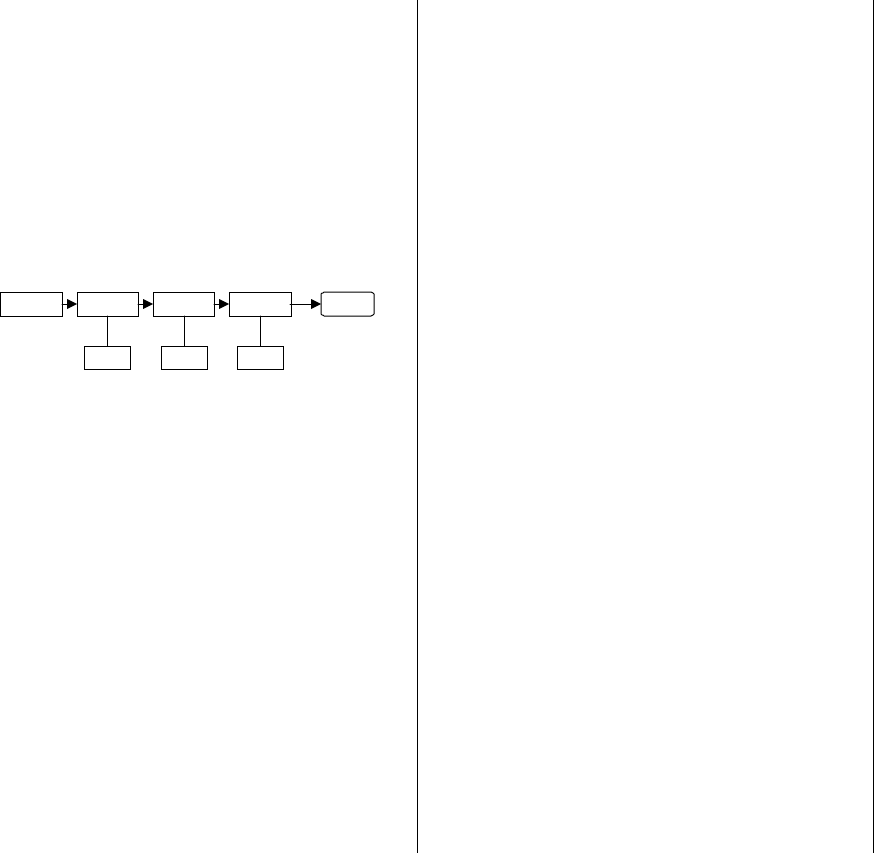

call/menu CTCSS CALL VIBRATE EXIT
0-38 1-5 On/Off
FRS420 – User Instruction Guide – Content Draft
TriSquare Communications Draft for content only – customer to define layout and additional graphics Page 4
will pause on that channel until the channel is
clear. Then after a 4 second delay, the unit will
continue scanning. Pressing PTT while the
scan is paused on a channel will allow you to
transmit on that channel.
To turn on channel scanning:
Press and hold either the Up or Down button
until the SCAN icon on the display is shown.
The channel number on the display will be
rapidly cycling through the channels.
To turn off channel scanning:
Press and hold the Up or Down button until the
SCAN icon on the display is off.
LCD Backlight
The LCD back light will automatically be
turned on with any key press except PTT and
call. The LCD display will be illuminated for 5
seconds before turning off.
Auto Squelch Feature
The FRS420 radio is equipped with an
automatic squelch system which shuts off weak
transmissions and unwanted noise due to
terrain conditions or if you have reached your
range limit.
To temporarily disable the Auto Squelch and
listen to the selected channel, rapidly press the
PTT button twice. The channel will remain
open for 4 seconds before the Auto Squelch re-
engages or you repeat the double PTT key
press.
Automatic Power Save Feature
Your radio has a unique circuit designed to
dramatically extend the life of the batteries. If
there is no transmission within 5 seconds, your
radio switches to the Power Save mode. The
radio is still able to receive transmissions in
this mode.
Specifications
Description
Channels 14
CTCSS Codes 38 Sub-Audible Tones
Operating Frequency UHF 462.550-467.725 MHz
Power Source 3AA Alkaline Batteries or
custom NiMH Battery Pack
Output Power 500mW ERP maximum
Battery Life 45 Hours (5/5/90 duty cycle)
Channel Frequency Chart (Mhz)
CTCSS Chart (Hz)
Code Frequency (Hz) Code Frequency (Hz) Code Frequency (Hz)
0 Disabled 13 103.5 26 162.2
1 67.0 14 107.2 27 167.9
2 71.9 15 110.9 28 173.8
3 74.4 16 114.8 29 179.9
4 77.0 17 118.8 30 186.2
5 79.7 18 123.0 31 192.8
6 82.5 19 127.3 32 203.5
7 85.4 20 131.8 33 210.7
8 88.5 21 136.5 34 218.1
9 91.5 22 141.3 35 225.7
10 94.8 23 146.2 36 233.6
11 97.4 24 151.4 37 241.8
12 100.0 25 156.7 38 250.3
Channel
Frequency Channel
Frequency
1 462.5625 8 467.5625
2 462.5875 9 467.5875
3 462.6125 10 467.6125
4 462.6375 11 467.6375
5 462.6625 12 467.6625
6 462.6875 13 467.6875
7 462.7125 14 467.7125
