Operator’s Manual

Tiller/Edger Model

128T

Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush-cov-

ered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any). If a

spark arrester is used, it should be maintained in effective working order by the operator. In the State of California the above is required by law (Sec-

tion 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester for the

muffler is available by contacting the service department at Troy-Bilt LLC, P.O. Box 361131 Cleveland, Ohio 44136-0019.

IMPORTANT:READ SAFETY RULES AND INSTRUCTIONS CAREFULLY

TROY-BILT LLC, P.O. BOX 361131, CLEVELAND, OH 44136-0019

PRINTED IN USA FROM NO. 769-00155

(03/2002)

2

For more details about your unit, visit our website at www.troybilt.com

TABLE OF CONTENTS

Content Page

Calling Customer Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Features and Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Warrany Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

FINDING MODEL NUMBER

This Operator’s Manual is an important part of your new Tiller/Edger. It will help you assemble, prepare and maintain

the unit for best performance. Please read and understand what it says.

Before you start assembling your new equipment, please locate the model plate on the equipment and copy the infor-

mation from it in the space provided below. This information is very important if you need help from our Customer

Support Department or an authorized dealer.

• You can locate the model number by looking at the rear surface of the tine shield. A sample model plate is ex-

plained below. For future reference, please copy the model number and the serial number of the equipment in

the space below

ENGINE INFORMATION

The engine manufacturer is responsible for all engine-related issues with regards to performance, power-rating, speci-

fications, warranty and service. Please refer to the engine manufacturer’s Owner’s/Operator’s Manual packed sepa-

rately with your unit for more information.

CALLING CUSTOMER SUPPORT

If you have difficulty assembling this product or have any questions regarding the controls, operation or maintenance

of this unit, please call the Customer Support Department.

Call 1- (330) 558-7220 or 1- (866) 840-6483 to reach a Customer Support representative. Please have

your unit’s model number and serial number ready when you call. See previous section to locate this in-

formation. You will be asked to enter the serial number in order to process your call ..

Copy Model Number Here

Copy Serial Number Here

www.troybilt.com

TROY-BILT LLC

P. O. BOX

361131

CLEVELAND, OH 44136

866-840-6483

330-558-7220

TRAINING

•Read this Owner’s Manual and the sep-

arate Engine Owner’s Manual very care-

fully before operating this equipment. Be

completely familiar with the controls and

the proper use of the equipment. Know

how to stop the unit and disengage the

controls quickly. A replacement Manual

is available by contacting your authorized

dealer or the Factory.

•Never allow children or untrained

adults to use this equipment. Let adults

operate the unit only if instructed

properly.

•Keep the area of operation clear of all

persons, particularly small children and

pets. Keep bystanders at least 25 feet

from the area of operation.

•Keep in mind that the operator or user

is responsible for accidents or hazards

occurring to other people, their property

and themselves.

•Familiarize yourself with all of the

safety and operating decals on this equip-

ment and on any of its attachments or

accessories.

•Do not run engine in an enclosed area.

Engine exhaust contains carbon

monoxide gas, a deadly poison that is

odorless, colorless, and tasteless. Do not

operate this equipment near buildings,

windows, or air conditioning equipment.

•Do not allow hands or any other part of

the body or clothing near the rotating

tines or near any other moving part. The

tines begin to rotate forward once the

engine is started and the Throttle/Tines

Lever is squeezed. The tines continue to

rotate until the operator releases the

Throttle/Tines Lever.

•Before inspecting or servicing any part

of the equipment, shut off engine, make

sure all moving parts have come to a

complete stop, then disconnect spark

plug wire from spark plug and move wire

away from the plug.

•Do not operate this equipment if you are

under the influence of alcohol, medication,

or when you are tired or ill.

PREPARATION

•Thoroughly inspect the area where the

equipment is to be used and remove all

foreign objects.

•Make sure that the Throttle/Tines Lever

is released and is in the neutral position

before you begin to start the engine.

•Do not operate the machine without

wearing adequate outer garments. Avoid

loose garments or jewelry that could get

caught in moving parts of the machine or

its engine.

•Do not operate the equipment when

barefoot or when wearing sandals,

sneakers, or similar lightweight footwear.

Wear protective footwear that will protect

your feet and improve footing on all

surfaces.

•Wear approved safety glasses when op-

erating this equipment. The operation of

any powered machine can result in for-

eign objects being thrown by high-speed

rotating parts.

•Do not till near underground electric

cables, telephone lines, pipes, or hoses.

If in doubt, contact your utility or tele-

phone company to locate underground

services.

•Handle fuel with care. It is highly

flammable and has explosive vapors.

Take these precautions:

a. Use an approved fuel container.

b. Add fuel before starting the engine.

Never remove the cap of the fuel tank

or add fuel while the engine is running

or when the engine is hot. Operators

shall not smoke.

c. Keep matches, cigarettes, cigars,

pipes, open flames, and sparks away

from the fuel tank and fuel container.

d. Fill fuel tank outdoors and with ex-

treme caution. Never fill fuel tank

when indoors. Use a funnel or spout

to prevent spillage.

e. Replace all fuel tank and fuel container

caps securely.

f. If fuel is spilled, do not attempt to start

the engine, but move the machine away

from the area of spillage and avoid cre-

ating any source of ignition until fuel

vapors have dissipated.

•Never make adjustments to your equip-

ment when the engine is running or spark

plug wire is connected (unless specifically

recommended in Owner’s Manual).

OPERATION

•The correct operator’s position is when

you are standing behind and gripping

handlebar, facing forward toward the

engine. Do not leave this position while

using the Throttle/Tines Lever.

•Do not put hands or feet near or under

rotating parts.

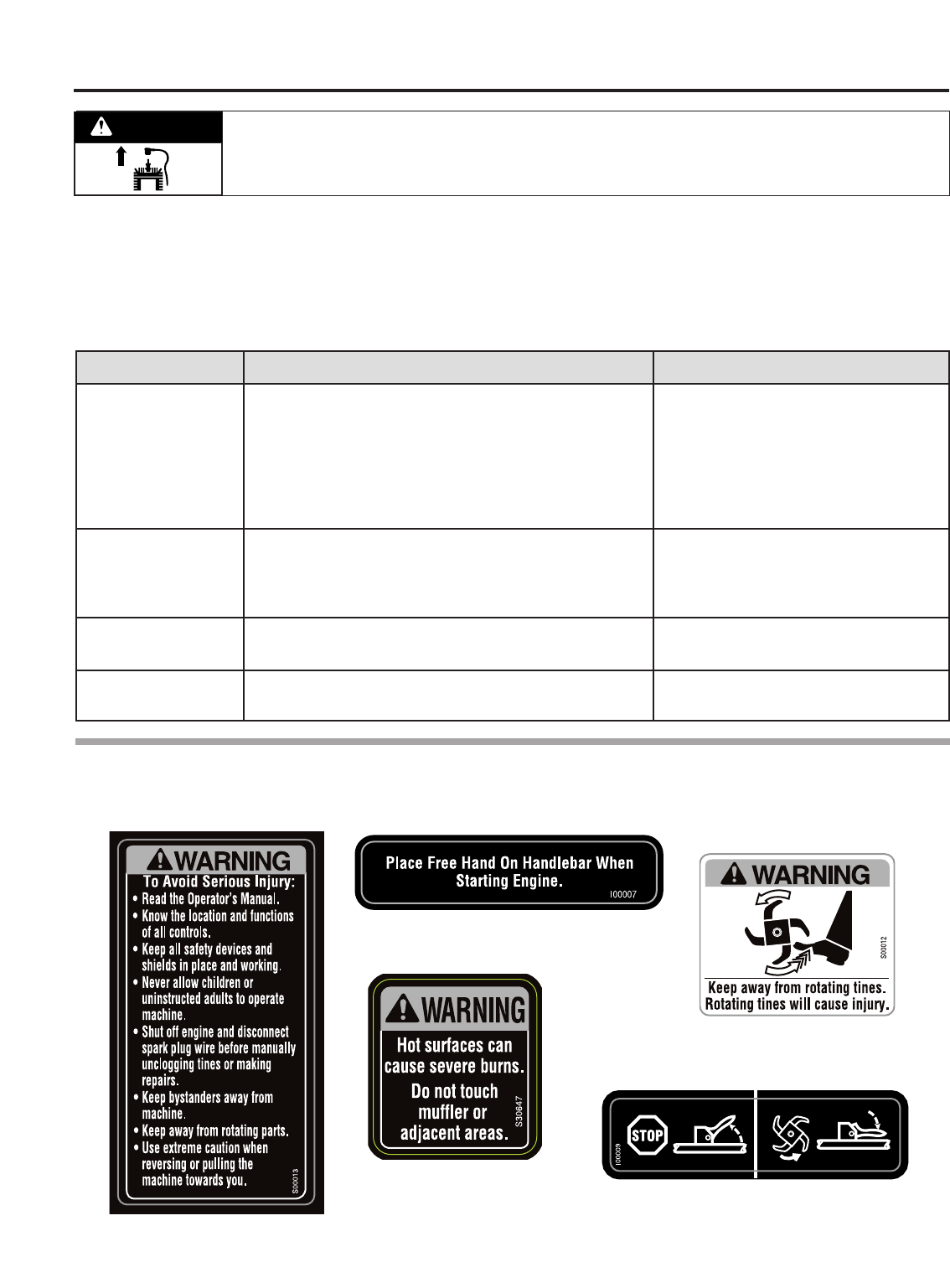

SPARK ARRESTER WARNING TO RESIDENTS OF CALIFORNIA AND SEVERAL OTHER STATES

Under California law, and under the laws of several other states, you are not permitted to operate an internal combustion engine

using hydrocarbon fuels on any forest, brush, hay, grain, or grass covered land; or land covered by any flammable agricultural crop

without an engine spark arrester in continuous effective working order.

The engine on the unit is an internal combustion engine which burns gasoline, a hydrocarbon fuel, and must be equipped with a

spark arrester muffler in continuous effective working order. The spark arrester must be attached to the engine exhaust system in

such a manner that flames or heat from the system will not ignite flammable material. Failure of the owner/operator of the unit to

comply with this regulation is a misdemeanor under California law (and other states) and may also be a violation of other state

and/or federal regulations, laws, ordinances or codes. Contact your local fire marshal or forest service for specific information

about which regulations apply in your area.

Safety

1

Section

3

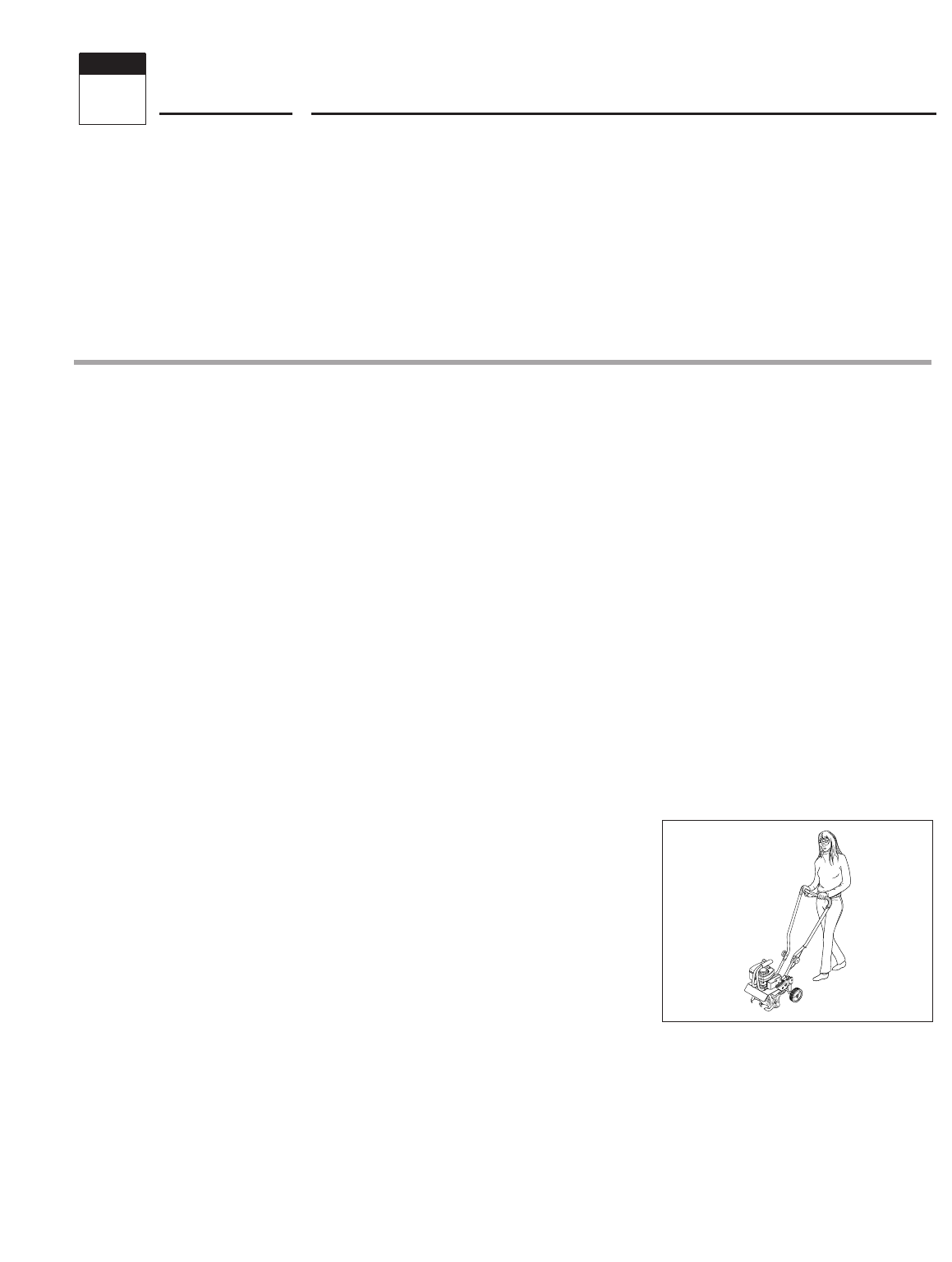

Operator’s Position

LEFT and RIGHT sides of the tiller are

from the operator’s position behind the

handlebars (unless noted otherwise).

RIGHT SIDE

LEFT SIDE

•Exercise extreme caution when on or

crossing gravel drives, walks or roads.

Stay alert for hidden hazards or traffic.

Do not carry passengers.

•After striking a foreign object, stop the

engine, let all moving parts come to a

complete stop, disconnect the spark plug

wire and prevent it from touching the

spark plug, then carefully inspect the ma-

chine for damage. Repair the damage

before restarting and operating the

machine.

•Exercise caution to avoid slipping or

falling.

•If the machine should start to vibrate

abnormally, stop the engine. Disconnect

the spark plug wire and prevent it from

touching the plug. Check immediately for

the cause. Vibration is generally a

warning of trouble. Fix the problem

before using the equipment again.

•Stop the engine, disconnect the spark

plug wire and prevent it from touching the

spark plug whenever you leave the equip-

ment, before unclogging the tines, or

when making any repairs, adjustments or

inspections.

•Take all possible precautions when

leaving the machine unattended. Always

stop the engine. Disconnect the spark

plug wire and prevent it from touching the

plug.

•Before cleaning, repairing, or in-

specting, stop the engine and make cer-

tain all moving parts have stopped. Dis-

connect the spark plug wire and prevent it

from touching the spark plug to avoid ac-

cidental starting.

•Never operate equipment without

proper guards, plates, or other protective

safety devices in place.

•Do not run the engine in an enclosed

area. The exhaust fumes from the engine

contain extremely dangerous carbon

monoxide gas. This gas is colorless,

odorless, tasteless and deadly poisonous.

•Keep children and pets away.

•Be aware that the equipment may unex-

pectedly bounce upward or jump forward

if the tines should strike extremely hard

packed soil, frozen ground, or buried ob-

stacles such as large stones, roots or

stumps. If you are in doubt about the

tilling conditions, always use the fol-

lowing operating precautions to assist

you in maintaining control of the

equipment:

a. Stand behind the equipment, using

both hands on the handlebars. Relax

your arms, but use a secure hand

grip.

b. Start tilling at shallow depths, working

gradually deeper with each pass.

c. Clear the tilling area of all large stones,

roots, and other debris.

d. In an emergency, stop the tines by re-

leasing the Throttle/Tines Lever on the

handlebar. To stop the engine, move

the engine On/Off switch to OFF.

• Do not overload the machine’s capacity

by attempting to till too deeply at too fast

a rate.

• Never operate the equipment on slip-

pery surfaces. Look behind and use care

when backing up.

• Do not operate the equipment on a

slope that is too steep for safety. When

on slopes, slow down and make sure you

have good footing.

• Never allow bystanders near the unit.

• Only use attachments and accessories

that are factory-approved.

• Never operate the equipment without

good visibility or good light.

• Never operate the unit if you are tired,

or under the influence of alcohol, drugs,

or medication.

• Do not tamper with the engine gov-

ernor settings on the machine; the gov-

ernor controls the maximum safe oper-

ating speed and protects the engine and

all other moving parts from damage

caused by engine overspeed. Authorized

service shall be sought if a problem

exists.

• Do not touch engine parts which may

be hot from operation. Allow parts to

cool before inspecting, cleaning or

repairing.

• Remember: you can stop the tines by

releasing the Throttle/Tines Lever. Move

the engine On/Off switch to OFF to shut

the engine off.

• Never transport this machine when the

engine is running.

• Terminals and non-insulated electrical

parts shall be protected against shorting

during normal servicing, refueling or

lubrication.

•Use extreme caution when reversing or

pulling the machine toward you.

•Start the engine carefully according to

instructions and with feet well away from

the tines.

MAINTENANCE/STORAGE

• Keep the tiller, attachments and acces-

sories in safe working condition.

• Check all nuts, bolts, and screws at fre-

quent intervals for proper tightness to be

sure equipment is in safe working

condition.

• Never store equipment with fuel in fuel

tank inside a building where fumes may

reach an open flame or spark (hot water

and space heaters, furnaces, clothes

dryers, stoves, electric motors, etc.).

• Allow the engine to cool before storing

the equipment.

• Keep the engine free of grass, leaves,

or grease to reduce the chance of a fire

hazard.

• Store gasoline in a cool, well-ventilated

area, safely away from any spark- or

flame-producing equipment. Store gaso-

line in an approved container, safely away

from the reach of children.

• Never perform maintenance when

engine is running or spark plug wire is

connected unless instructed to do so.

•If fuel tank must be drained, do so

outdoors.

• Follow manufacturer’s recommenda-

tions for safe loading, unloading, trans-

port and storage of machine.

Section 1: Safety

4

INTRODUCTION

Read these instructions in their entirety

before you attempt to assemble or op-

erate your new equipment.

The Border/Edger Attachment (H, Figure

5) does not need to be installed until you

are ready to do edging projects (refer to

instructions in this Section).

IMPORTANT: The correct mixture of un-

leaded automotive gasoline and two-cycle

motor oil (a 24:1 ratio of gasoline to two-

cycle oil) must be added to the fuel tank

before starting the engine. See instruc-

tions in this Section.

UNPACKING INSTRUCTIONS

1. Inspect your machine immediately. If

you find or suspect damage to the carton

or contents, contact your local authorized

dealer or the Factory for assistance.

2. Remove any packing material. Check

for small parts before discarding the

packing material. Loose parts include the

following:

(1) Bottle of 2-Cycle Oil

(1) Wheel (for edging)

(1) Edger Tine

(2) *Long Bushings

(1) *Short Bushing

* Packed in a separate plastic bag.

3. Perform the assembly on a clean, level

surface. Be careful not to severely bend

any of the control cables on the unit.

4. Before starting any assembly steps,

disconnect the engine spark plug wire

from the spark plug.

ASSEMBLY STEPS

STEP 1: Unfold and

Adjust Handlebars

IMPORTANT: Be careful not to pinch any

wires or cables while unfolding and ad-

justing the handlebars.

1. Loosen the two handlebar knobs (A,

Figure 1) and unfold the handlebars into

the operating position. Do not use force

— if there is binding, continue to loosen

the knobs.

2. There are two height settings holes in

the upper handlebar. The unit is shipped

with the handlebar knobs in the lowest

height setting holes. If this height is cor-

rect for you, simply tighten the two han-

dlebar knobs. If a higher setting is de-

sired, reposition the handlebar knobs,

mounting screws and washers in the

other set of holes.

3. Check the locations of the three plastic

ties (C, Figure 1). The ties must be posi-

tioned as shown.

NOTE: There is just one handlebar storage

position – folded over the engine as origi-

nally shipped.

STEP 2: Inspect

and Tighten Hardware

Check all nuts, bolts and screws on your

unit and tighten as needed. NOTE: Use a

7/16" socket with an extension to check

hardware at ends of handlebar.

Tools Needed to Check for Loose

Hardware:

•Adjustable wrench

•Slotted-head screwdriver

•Phillips-head screwdriver

•7/16" socket and extension

IMPORTANT: Do not tighten engine gov-

ernor screw (D, Figure 2). It is factory-

adjusted for proper engine operation.

STEP 3: Add a Mixture of Gasoline

and Two-Cycle Oil to the Fuel Tank

IMPORTANT: Read the separate Engine

Owner’s Manual before starting the

engine.

1. Use clean, high quality 2-cycle oil,

NMMA TC-WII or TC-W3. DO NOT USE

MULTI-VISCOSITY OIL!

2. Use fresh, clean, unleaded regular,

unleaded premium or reformulated au-

tomotive gasoline only. DO NOT USE

LEADED GASOLINE.

NOTE: Do not use gasoline containing

methanol (wood alcohol). Fuel containing

up to 10% ethanol (gasohol) or up to

15% MTBE (Methyl Tertiary Butyl Ether)

may be used, but requires special care

when the engine is not used for extended

periods. See “STORAGE” instructions in

Engine Owner’s Manual for additional in-

formation.

3. The fuel/oil mix ratio is 24:1 with the

use of a NMMA classified oil. For new

engines, use twice the normal oil quantity

for the first gallon of fuel. NOTE: Due to

differences in fuel and oil availability

worldwide, Tecumseh recommends a

16:1 mix ratio if NMMA oil is not

available.

Assembly

2

Section

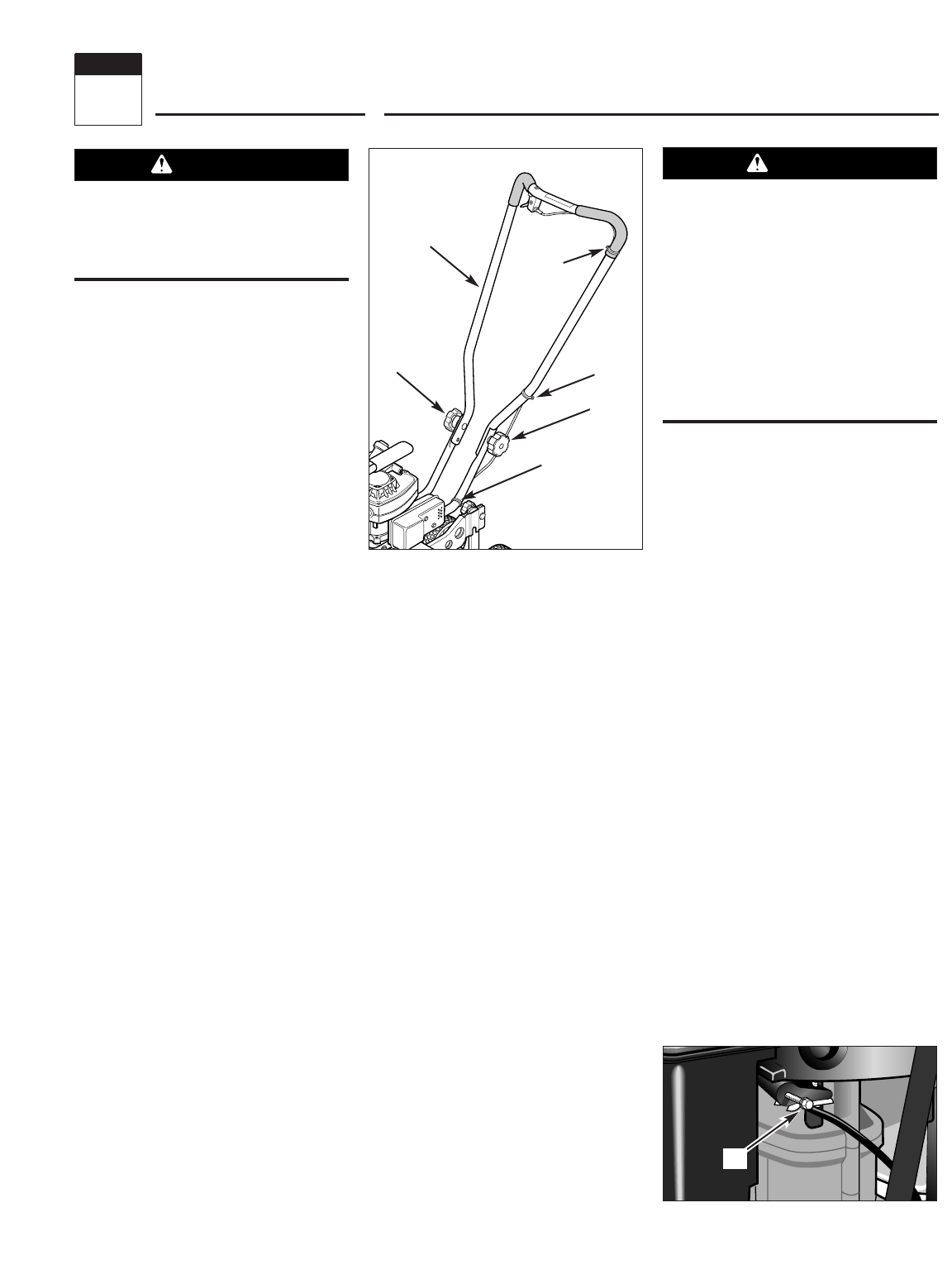

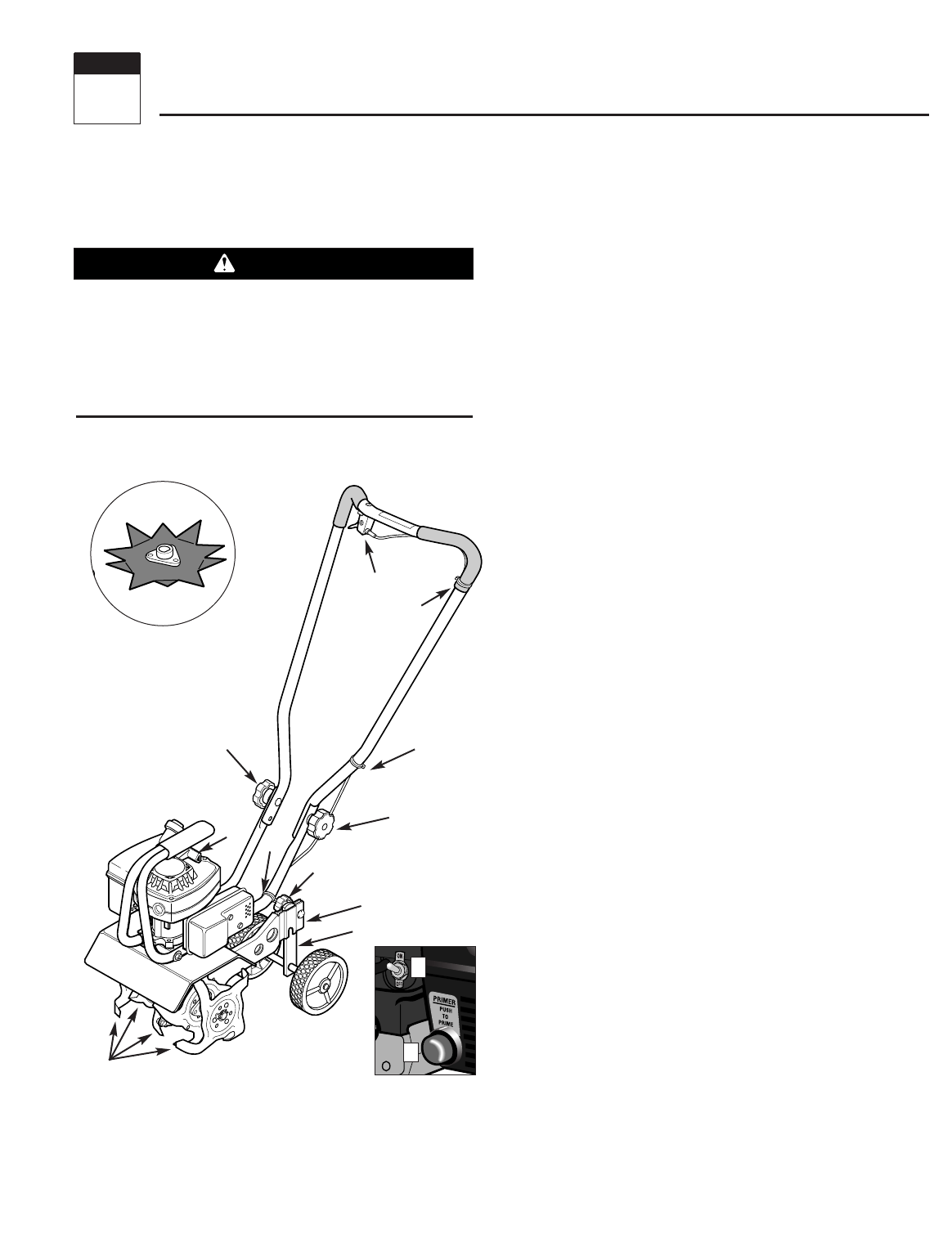

Figure 1: Loosen handlebar knobs and

unfold handlebars. Slide plastic ties to the

locations shown.

A

A

C

B

C

C

Figure 2: Do not adjust or tighten the engine

governor screw.

D

• Gasoline and its vapors are highly

flammable and explosive. Keep gaso-

line away from possible ignition

sources.

• Do not smoke while mixing the gaso-

line and two-cycle oil together or

when filling the fuel tank.

• Never fill fuel tank when engine is run-

ning or hot.

Failure to follow these precautions could

result in the fuel igniting, causing per-

sonal injury or property damage.

DANGER

5

To prevent personal injury or property

damage, do not start the engine until all

assembly steps are complete and you

have read and understand the safety and

operating instructions in this manual.

WARNING

6

4. Do not mix fuel directly in engine fuel

tank. Always use a clean, safety-ap-

proved fuel container.

• To Mix:

A. Fill a clean, approved container one

quarter full with recommended

gasoline.

B. Add recommended amount of oil per

Chart 1: FUEL MIXTURE.

C. Screw cap on container and shake

vigorously. Then unscrew cap and

fill container with gasoline per

Chart 1: FUEL MIXTURE. Screw on

cap and shake again. Once mixed,

oil and gasoline will not separate.

Fill Fuel Tank:

1. Engine must be cool. Clean area

around fuel tank cap and remove cap.

Insert a clean funnel into the fuel tank.

2. Slowly pour gasoline/oil mixture into

fuel tank. Fill tank no higher than 1/2"

from top of tank to allow for gasoline ex-

pansion. Install fuel cap and clean up any

fuel spills.

STEP 4: To Make Borders and Edges,

Install the Edger Attachment

To create borders or edges near walks,

driveways, flower beds, etc., you must

remove the four tine sections and install

the Edger Attachment (this attachment

was supplied with the unit – see Page 5).

To Install the Edger Attachment:

1. Gather together the following parts

(see Figure 4): (A) Border/Edger Tine; (B)

Long Bushing; (C) Border/Edger Wheel

and (D) Short Bushing.

2. Prop the machine carefully on the front

of the tubular carrying handle. The work

surface should be firm and flat. NOTE:

Usually the Border/Edger Tine is mounted

on the right-side of the unit for right-

handed persons, and on the left-side of

the unit for left-handed persons.

3. Remove the hitch pin on each tine

shaft (E, Figures 3 and 4).

4. It is important for proper tilling perfor-

mance that the tine sections be later rein-

stalled in their original patterns. Mark the

position of each tine section (Left-Outer,

Left-Inner, etc.) before removing them.

Refer to Figures 3 and 9 for tine pattern

information. See also Tine Removal and

Installation in Section 5.

5. Install the short bushing (D, Figure 4)

on the right-hand or left-hand tine shaft.

Then place the Border/Edger wheel (C) on

the same shaft – the wheel hub should

face toward the tiller. Insert the hitch pin

through the rounded side of the tine

shaft.

6. Slide the long bushing (B) on the op-

posite side shaft. Then install the

Border/Edger tine (A) and secure it with

the hitch pin.

See Section 4 for instructions on using

the Border/Edger Attachment.

See Tine Removal and Installation in Sec-

tion 5 for information on how to reinstall

the tines.

Section 2: Assembly

Contact with rotating tines or other

moving parts can cause serious per-

sonal injury.

Before installing or removing attach-

ments, or adjusting or servicing the ma-

chine, stop the engine, let all moving

parts come to a complete stop, discon-

nect the spark plug wire and move the

wire away from the spark plug.

WARNING

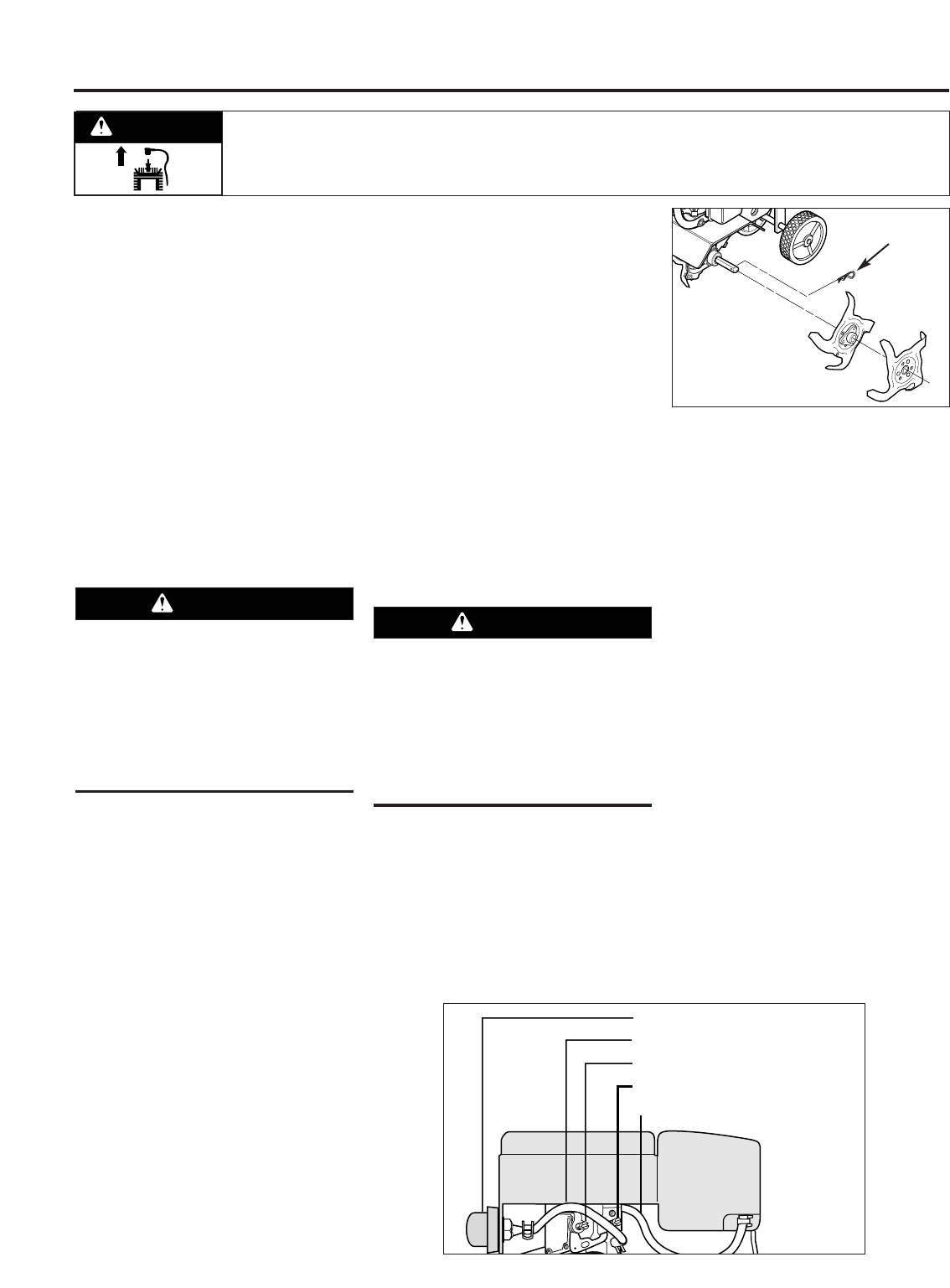

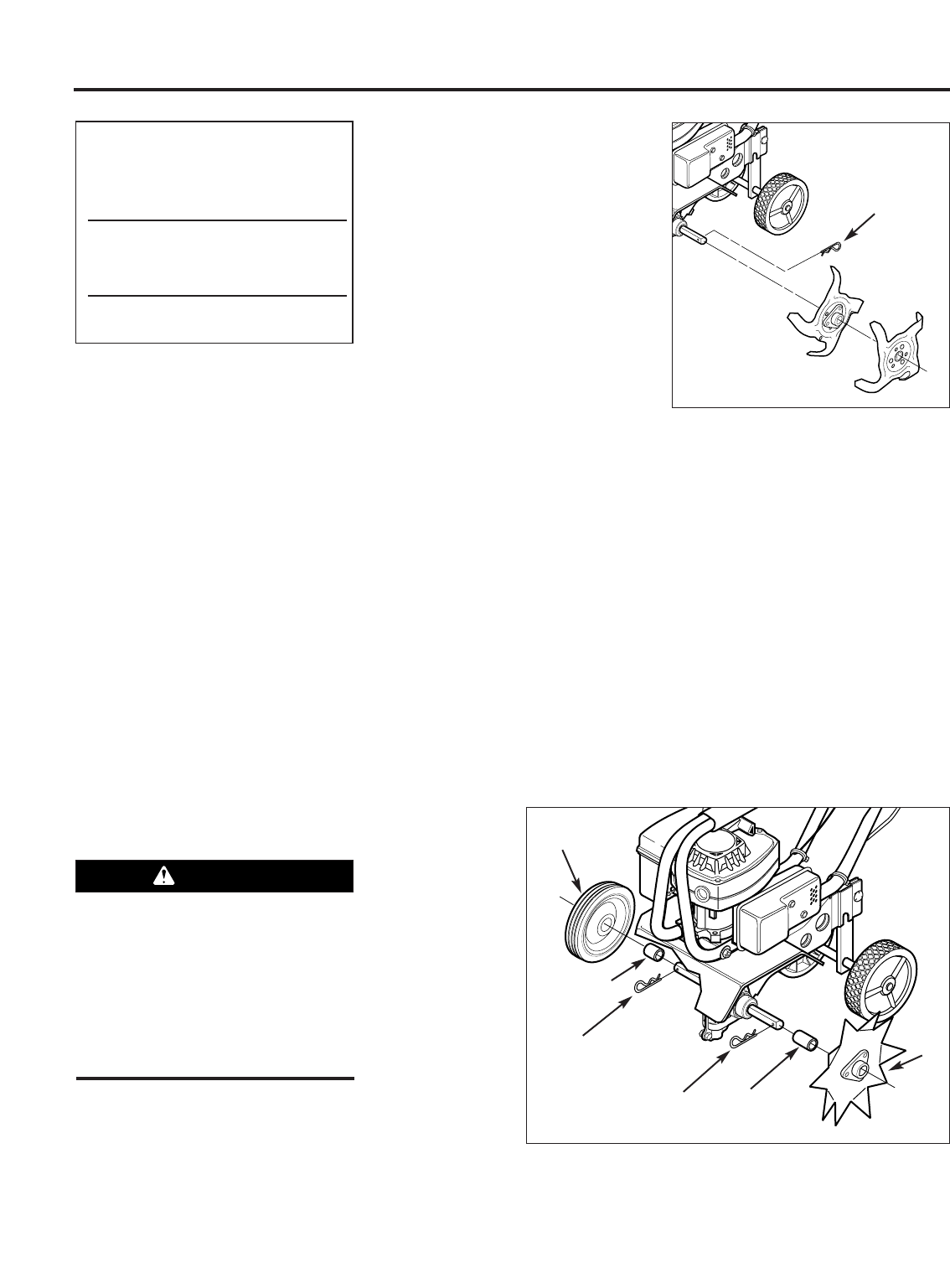

Figure 4: The Border/Edger tine (A) can be mounted on left or right

sides of machine (with long bushing B). The Border/Edger wheel

(C) mounts on the other side (with short bushing D).

A

B

E

E

C

D

Figure 3: Remove hitch pins and tines from

both sides of the tine shaft. Keep left and

right-side tines separated and marked for

easier reinstallation.

E

Chart 1: FUEL MIXTURE

(Mixture Ratio is 24 parts gasoline to

1 part two-cycle oil)

U.S. Gas U.S. Oil

1 Gal. 5 oz.

2 Gal. 11 oz.

Metric Petrol Metric Oil

4 liters 167 ml

8 liters 333 ml

Features and Controls

3

Section

KNOW YOUR EQUIPMENT

READ THIS OWNER’S MANUAL AND ALL SAFETY RULES BEFORE OPERATING YOUR EQUIPMENT. Know the

location and function of all features and controls on the equipment. Save this manual for future reference.

7

Handlebar Height Adjustment Knob (B, Figure 5)

Two height settings, plus a storage position are available.

Refer to Assembly Steps, STEP 1 in Section 2 for adjustment

instructions.

Tilling Depth Adjustment Knob (C, Figure 5)

Loosening the knob enables you to move the wheel bracket

(K) up or down on the height adjustment bar (L). This con-

trols the tilling depth.

IMPORTANT: Do not move the wheel bracket any higher than

the top of the adjustment bar.

Adjustable Tine Patterns (D, Figure 5)

The four tine sections are assembled at the factory for max-

imum performance under a wide variety of conditions. If

needed, the tines can be arranged for narrower tilling or close

cultivating. The tines can also be arranged to till very stony

soil. See Adjusting Tine Patterns in Section 4 for details.

Carrying Handle (E, Figure 5)

When the handlebar is folded in the storage position the unit

can be carried by the carrying handle. The carrying handle

also serves as a tie-down anchor point.

Edger Attachment (H, Figure 5)

Use this separate attachment to create borders or edges

along walks, driveways, flower beds, etc. See Section 4 for

details on installing and using this attachment.

Engine Controls

Engine On/Off Switch (A, Figure 5)

Use the engine On/Off Switch to start or stop the engine. See

Starting and Stopping the Engine in Section 4 and the Engine

Owner’s Manual for details.

Throttle/Tines Lever (G, Figure 5)

Squeeze this lever to start tine rotation and to vary the tine

speed. Release the lever to stop all tine motion. See Starting

and Stopping the Engine in Section 4 for details.

IMPORTANT: Do not squeeze this lever when starting the

engine.

Engine Recoil Start Rope (F, Figure 5)

Use the recoil start rope to start the engine. See Starting and

Stopping the Engine in Section 4 and the Engine Owner’s

Manual for details.

Fuel Primer Bulb (M, Figure 5)

Use the fuel primer bulb to help start the engine under certain

conditions. See Starting and Stopping the Engine in Section

4 and the Engine Owner’s Manual for details.

Figure 5: Features and controls.

B

B

C

K

L

E

J

J

F

G

J

D

Before operating your machine, carefully read and under-

stand all safety, controls, and operating instructions in this

Manual, the separate Engine Owner’s Manual and on the

decals on the machine.

Failure to follow these instructions can result in serious

personal injury.

WARNING

H

A

M

ENGINE DETAIL

PRE-START PREPARATION

Before starting the engine, perform the

following checks and services:

1. Disconnect the spark plug wire from

the spark plug.

2. Move the engine On/Off switch to the

OFF position.

3. Check the three plastic cable ties (J,

Figure 5). Be sure that cables and ties are

positioned as shown. Do not kink or

pinch the control cables in the handlebar.

4. Adjust handlebar height to desired po-

sition (see Assembly Steps, STEP 1: in

Section 2).

5. Check hardware for tightness.

6. Add the correct fuel mixture (see As-

sembly Steps, STEP 3: in Section 2).

7. Adjust the tilling depth as follows:

a. Loosen tilling depth adjustment

knob (A, Figure 6).

b. Move wheel bracket (B, Figure 6)

up in relation to the height ad-

justment bar (C). Moving the

bracket upward results in shal-

lower tilling, which is recom-

mended for initial use.

IMPORTANT: Do not move the

wheel bracket any higher than the

top of the adjustment bar.

c. Retighten the depth adjustment

knob.

8. Reconnect the spark plug wire.

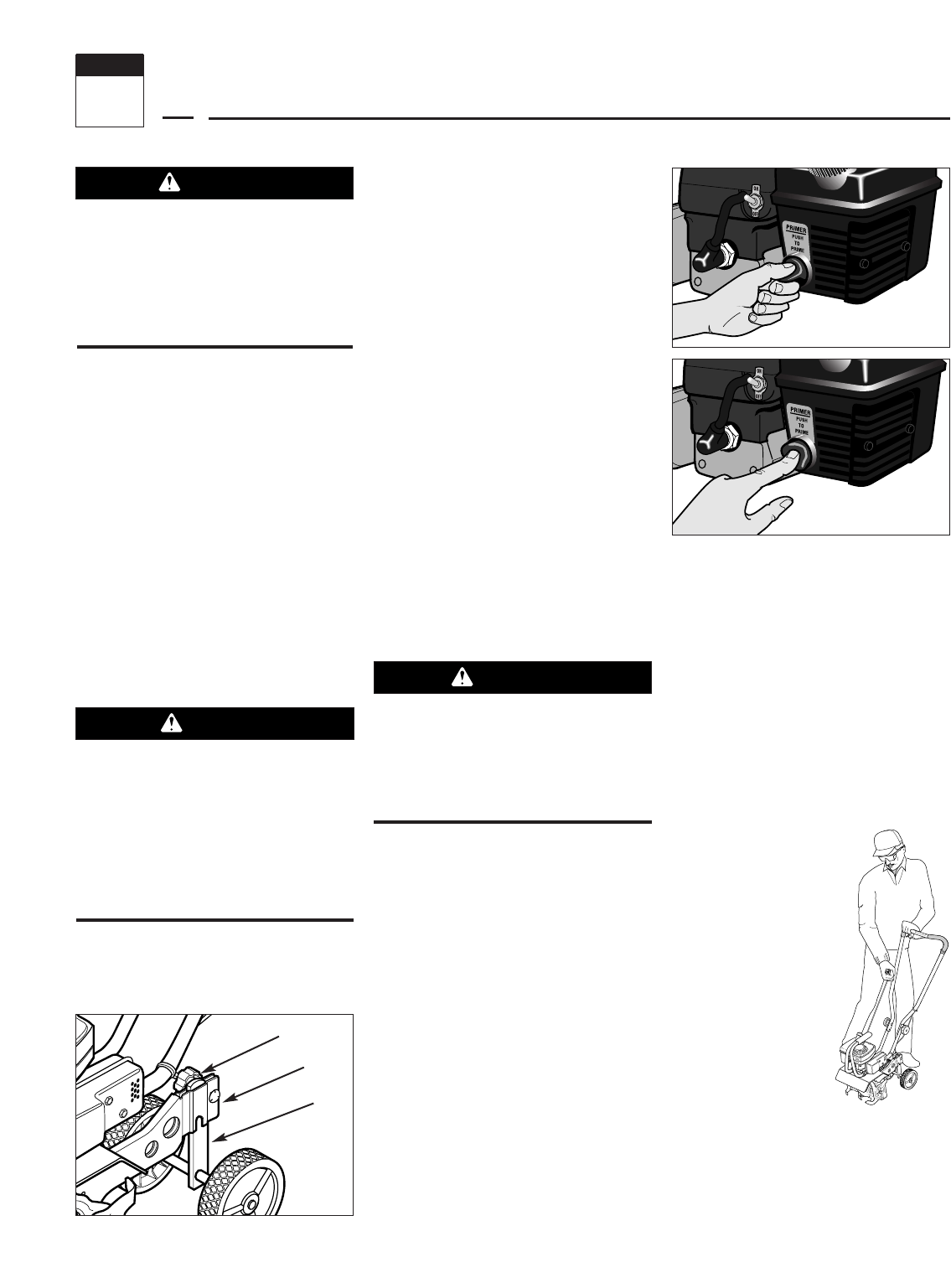

STOPPING AND

STARTING THE ENGINE

Stopping the Engine

To stop the engine, move the engine

On/Off Switch (A, Figure 5) to the OFF

position.

Starting the Engine

1. Move engine On/Off Switch to ON.

2. Determine which of the next three

starting conditions to use:

First Time Starting:

Use this starting method to start a new

engine for the first time, or after run-

ning out of gas, or after extended

storage. Use thumb and forefinger to

squeeze the side of the primer bulb that

is in line with the light colored rib on

the primer body, as shown in Figure 7

(High-Volume Priming Position).

Squeeze the primer bulb six (6) times.

This process removes air from the

priming system. As fuel enters the

priming system, the priming action will

feel more firm.

Cold Starting:

Use this starting method after the unit

has been sitting or has been in brief

storage, and has fuel in the tank. Use

the Standard-Volume Priming Position

(Figure 7) and push in top of primer

bulb two (2) times for above 550F, or

three (3) times if below 550F.

Warm Starting:

Do not use the primer to restart the

engine after it has been stopped after

running and has not cooled completely.

3. Stand with your feet posi-

tioned safely away from the

tines (Figure 8). Hold the

upper handlebar with one

hand. Use the other hand

to pull the recoil start rope

out slowly until you feel

resistance. Let rope

rewind slowly. Then,

quickly pull the rope all

the way out. Do this

up to ten (10) times.

Let the start rope

rewind slowly and

completely each time.

Figure 6

A

B

C

Figure 7

High-Volume

Priming Position

Standard-Volume

Priming Position

Do not squeeze the Throttle/Tines Lever

while starting engine.

Tines may propel the machine forward if

the engine speed is advanced from idle.

Failure to comply can result in personal

injury or property damage.

WARNING

Operation

4

Section

GASOLINE IS HIGHLY FLAMMABLE AND

ITS VAPORS ARE EXPLOSIVE.

Follow the gasoline safety rules in this

Manual (Section 1) and in the separate

Engine Owner’s Manual.

Failure to follow gasoline safety instruc-

tions can result in serious personal

injury and property damage.

DANGER

8

Figure 8

Before operating the unit carefully read

and understand all safety, control and

operating instructions in this Manual,

the separate Engine Owner’s Manual

and the decals on the machine.

Failure to follow these instructions can

result in serious personal injury.

WARNING

Allow the engine to warm up for several

seconds. If engine either fails to start or

to continue running, push in primer bulb

two (2) times. Grasp starter rope and

pull with a rapid, full stroke, up to ten

(10) times.

TROUBLESHOOTING: Push the primer

bulb in two (2) more times. Using a rapid

full stroke, pull out the starting rope up to

ten (10) times. If engine still does not

start, wait 15 minutes. Do not prime

engine further. Grasp start rope and pull

with a rapid, full stroke up to ten (10)

times.

TILLING AND CULTIVATING

Use your machine to break up sod, pre-

pare seedbeds and for cultivating in gar-

dens and flower beds. It is easy to op-

erate, but it is important that you start out

slowly and read this Section thoroughly

before putting it to use. Let the machine

do most of the work. The tines will pull

the machine forward, letting you adjust

forward speed by pressing down or lifting

the handlebars.

1. Roll the machine to the work area.

2. Adjust the tilling depth to the desired

position (see Pre-Start Preparation, pre-

vious page).

3. Start the engine (see Stopping and

Starting the Engine, previous page).

Stand behind the handlebar and push

down on the bar to raise the tines off the

ground. Squeeze the Throttle/Tines

Lever– the engine should speed up and

the tines start rotating. Release the

Throttle/Tines Lever to return to idle, the

tines should stop rotating or they may

rotate very slowly. Lowering them back

to the ground should stop any rotation.

NOTE: If tines continue to rotate when

engine is idling, either the idle speed is

too high or the centrifugal clutch is mal-

functioning. If this occurs, contact the

Factory or your local authorized dealer.

4. Squeeze the Throttle/Tines Lever to

start the tines rotating. Lower the tines to

begin tilling. Firmly hold the handlebar to

prevent the machine from moving for-

ward too quickly and to allow enough

time for the tines to dig deeply enough.

Adjust engine speed to suit the tilling

conditions. Remember that the rotating

tines help to pull the machine forward.

Use slower speeds and a shallow depth

setting when learning to use the unit and

whenever you are tilling on hard, rough or

uneven ground.

5. Do not try to till too deeply in the first

pass through sod or very hard ground. If

the machine jumps or bucks, use a shal-

lower depth setting and reduce the engine

speed. With each successive pass, till

more deeply.

6. Apply downward pressure on the han-

dlebars for shallower tilling. Lift the han-

dlebars to dig more deeply. If the ma-

chine stays and tills in one spot, try

swinging the handlebars from side to side

to start moving forward again.

7. For easier tilling, water very hard soil a

few days before tilling. Avoid working

soggy or wet soil. Wait a day or two after

heavy rain for the ground to dry.

Cultivating

1. Cultivating is shallow tilling that dis-

rupts weeds and aerates the upper crust

of soil.

2. Do not till deeper than 1"-2" to avoid

injuring nearby plant roots. Cultivate

often, so that weeds do not grow large

and cause needless tangling in the tines.

3. With careful planning, you can space

the seed rows far enough apart to allow

sufficient room for the machine to culti-

vate after the plants have grown.

Adjusting Tine Patterns

Depending upon the tilling project, you

have a choice of three tine patterns:

Wide (Standard) Tine Pattern –As

shipped from the factory, the unit is set

up for general tilling and cultivating. This

10" wide tine pattern (the maximum tilling

width) uses all four tine sections

(A, Figure 9). See Tine Removal and In-

stallation in Section 5 for detailed informa-

tion on how to set up this tine pattern.

Narrow Tine Pattern –For a narrow,

4-1/2" tilling width, remove the outside

tine section on the left- and right-sides

(B, Figure 9). See Tine Removal and In-

stallation in Section 5 for detailed informa-

tion on how to set up this tine pattern.

Stony Soil Tine Pattern –When tilling

deeply in stony soil, stones may become

jammed between the inner tines and the

machine hood. This pattern swaps the

two inner tines to minimize jamming (C,

Figure 9). See Tine Removal and Installa-

tion in Section 5 for detailed information

on how to set up this tine pattern.

Section 4: Operation

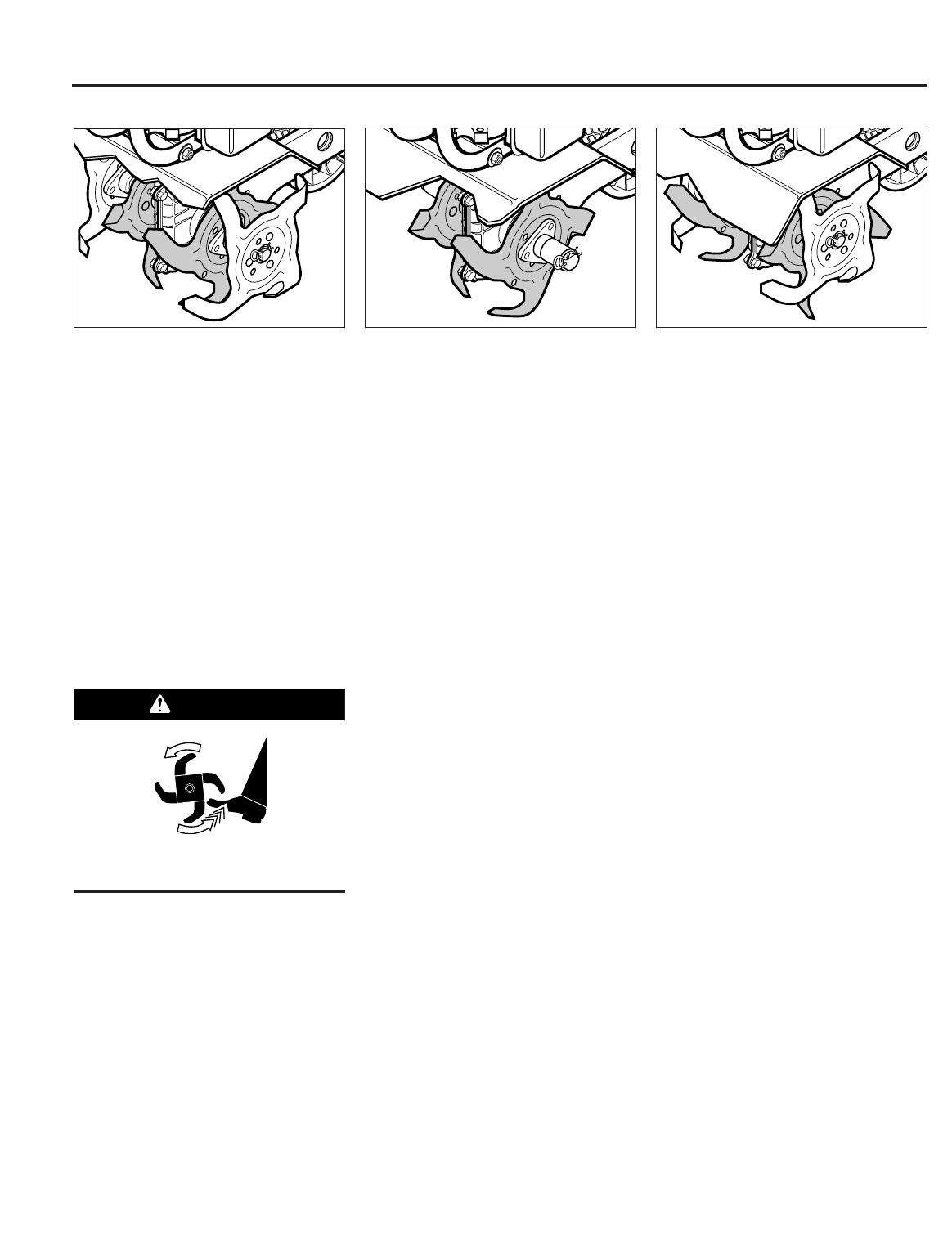

Figure 9: “A” - all four tine gangs in standard pattern; “B” - two outer gangs removed for narrow tilling; “C” - the two inner gangs have

been swapped for stony tilling conditions.

ABC

9

Keep away from rotating tines. Rotating

tines will cause serious personal injury.

WARNING

10

USING THE EDGER ATTACHMENT

The Edger Attachment makes clean, sharp edges next to walkways, driveways, paths, planted areas,

patios, etc. See Assembly Steps, STEP 4: in Section 2 for instructions on attaching this attachment.

Take your time when edging. Decide how far away the edge is to be from the walk or drive, then

slowly proceed using the walk or drive as your sight line.

Other attachments are can be purchased separately. See Attachments below for more details.

Section 4: Operation

Tilling Patterns

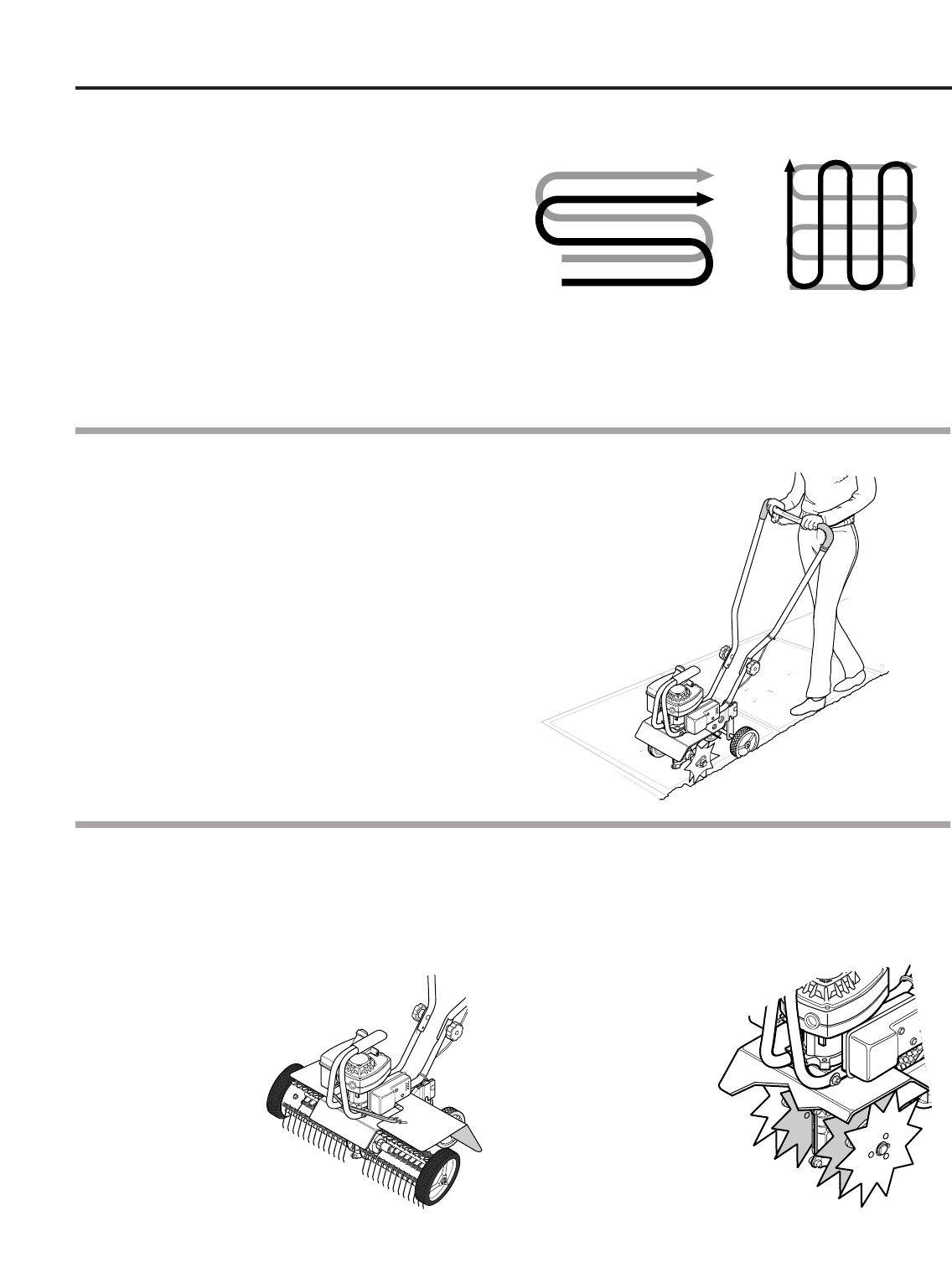

1. When preparing a seedbed, go over the same path twice in

the first row, then overlap one-half the machine width on each

successive pass (Figure 10).

2. After going up and down the rows in one direction, make

second passes at a right angle across the original passes

(Figure 11). Again, overlap each pass to thoroughly pulverize

the entire seedbed area. In very hard ground, it may take three

or four passes before the desired depth is achieved.

3. If your garden is not wide enough to till lengthwise and then

crosswise, then first overlap by one-half the machine width,

followed by successive passes at one-quarter machine width.

This overlapping method assures thorough tilling.

Figure 10: Use an overlap

technique on every pass.

Figure 11: Make a second set

of passes at a right angle over

the first set of passes.

Power Lawn Rake Attachment –

OEM-290-263 / 290-263-081

The Power Lawn Rake will help

keep your lawn healthy and

vigorous. Matted grass and

debris not only looks

unattractive, but stifles

lawn growth and overall

health. This attachment

mounts without tools and

features dozens of tem-

pered steel “fingers” that

spring off the surface to pene-

trate and loosen matted grass

without disturbing root growth. An 18"-

wide swath covers a large lawn area quickly.

Lawn Aerator Attachment –

OEM-290-264 / 290-264-081

Helps promote healthy, dense

lawns by aerating and loos-

ening the soil to contribute

to better root growth. Four

tempered steel tines punc-

ture the surface of the

lawn, letting nutrients

more easily reach the

roots. Assembles

without tools. When

mounted, it takes the place of

the standard tine sections.

ATTACHMENTS

The following Tiller/Edger attachments are available where the Tiller/Edger was purchased. See your authorized dealer or contact the

Factory for details.

EQUIPMENT MAINTENANCE

Transmission Maintenance

The transmission was lubricated at the

factory and should not require any further

lubrication.

However, you should check the lubricant

level after the first five (5) hours of opera-

tion and every twenty-five (25) operating

hours thereafter. If needed, use a high-

quality, automotive-grade petroleum-base

grease.

To check the transmission:

1. Stop the engine, let it cool and discon-

nect the spark plug wire.

2. Place the machine down on its left side

so the right end of the tine shaft faces up.

3. Remove the right-side tines (see Tine

Removal and Installation in this Section).

4. Clean the transmission housing.

5. Remove the three threaded plugs (A, B

and C, Figure 14) from the transmission.

Lubricant should be visible in the top two

holes (B and C). If so, replace all three

plugs. If lubricant is needed, proceed as

follows.

To lubricate the transmission:

1. Place the nozzle of a standard grease

gun (D, Figure 14) firmly against the rim

of the middle hole (B) and add grease

until it begins to seep from the bottom

hole (A). Reinstall the plug in the bottom

hole (A). Next apply grease to the top fill

hole (C) until it begins to seep from the

middle hole (B). Reinstall the plugs in the

middle (B) and top (C) holes.

2. Before reinstalling the tines, use a fine

grade sandpaper to clean any rust off the

tine shaft. Apply a few drops of oil to the

tine shaft to make future tine removal

easier.

Other Lubrication Points

• Handlebar Adjustment Knobs: Spray

occasionally with a silicone type

lubricant.

• Throttle/Tines Lever Cable: Squeeze the

lever closed and spray a lubricant into

the cable area.

• Tine Shaft: After each use, remove the

tines, clean the tine shaft with sandpaper

and apply a light coat of oil to the tine

shaft.

Hardware

Before each use, check that all hardware

is in place and tightened securely.

ENGINE MAINTENANCE

Engine Lubrication

The engine is a two-cycle engine. Lubri-

cation is provided by mixing two-cycle oil

with unleaded regular gasoline as de-

scribed in the Assembly Section. At-

tempting to operate the engine on gaso-

line alone will cause the engine to over-

heat and seize up.

Engine Air Filter

It is extremely important that air filter ser-

vice be performed according to the main-

tenance schedule. Refer to the separate

Engine Owner’s Manual for inspection and

cleaning instructions.

IMPORTANT: Never run engine without air

filter assembly properly installed.

Carburetor Adjustment

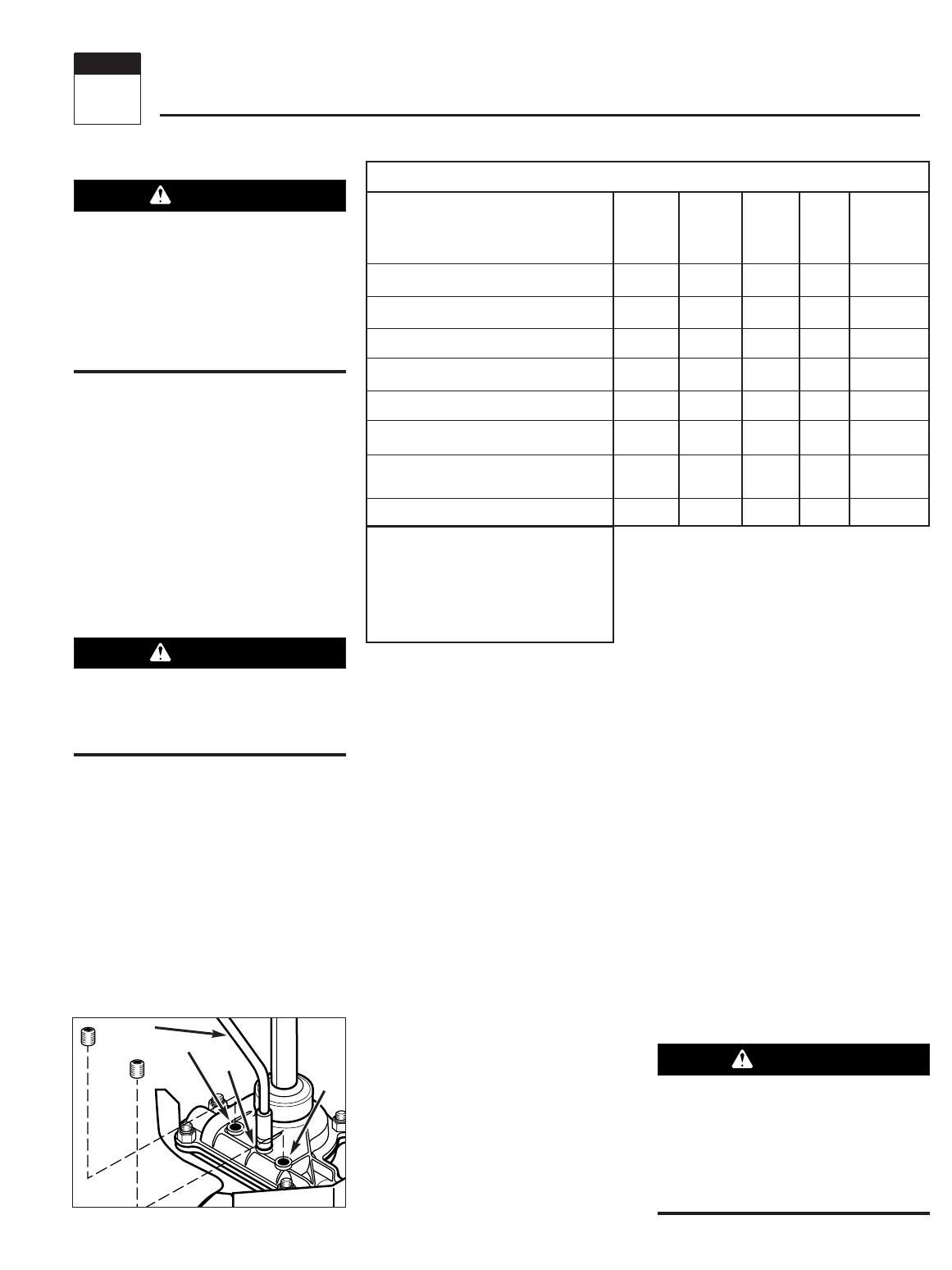

Figure 14: Transmission lubricant check and

fill locations.

A

B

D

C

Before tipping engine or equipment to

service transmission, drain fuel from

tank by running engine until fuel tank is

empty.

WARNING

Before inspecting, cleaning or servicing

the machine, shut off engine, let all

moving parts come to a complete stop,

disconnect the spark plug wire and move

the wire away from the spark plug.

Failure to follow these instructions can

result in personal injury or property

damage.

WARNING

Maintenance

5

Section

Do not tamper with the engine governor

screw which is factory-set for the proper

engine speed. Overspeeding the engine

beyond the factory high speed setting

can be dangerous and will void the

engine warranty. Authorized service

shall be sought if a problem exists.

WARNING

11

REQUIRED MAINTENANCE SCHEDULE

REQUIRED MAINTENANCE Before After Every Every End

Each Each 25 75 of

Use Use Hours Hours Season

Check Tightness of Bolts and Nuts

•

Clean Engine Cooling System

•

Check Transmission Lubricant

•(1) •

Service Air Filter

•(2)

Inspect Spark Plug

• (3)

Clean Machine

•

Clean Engine Exhaust Ports

•

(see Factory or authorized Dealer)

Clean Tine Shaft

•

(1) – After first five (5) hours of use.

(2) – Clean daily when conditions are

extremely dusty or dirty.

(3) – Check spark plug annually or every 100

operating hours.

If the engine is running poorly or has low

power while tilling, an adjustment to the

carburetor may solve the problem. How-

ever, first inspect and service the spark

plug and the air filter before making a

carburetor adjustment. If the engine con-

tinues to run poorly (and the fuel mixture

is fresh), proceed to the following carbu-

retor adjustment instructions.This fac-

tory-engineered instruction is designed to

provide continued optimum engine oper-

ating performance after the engine break-

in period, which is approximately 5 to 10

hours. The adjustment, when properly

performed as described below, will not

void the engine warranty. A common

screwdriver is needed. If you prefer, see

an authorized engine dealer for

adjustment.

Prior to Carburetor Adjustment:

1. Let engine cool for 30 minutes before

continuing.

2. From the operator’s position behind the

handlebars, lay the machine down on its

left side (muffler side).

Carburetor Adjustment:

1. Locate the carburetor idle mixture

screw (Figure 15). It is directly under the

air filter and is black.

Do Not Adjust Silver-Colored Screw.

2. Turn the black idle mixture screw 1/16

of a turn clockwise.

3. Return the unit to its normal upright

operating position and reconnect the

spark plug wire.

If the engine continues to run poorly, con-

tact an authorized engine dealer.

Spark Plug

Inspect the spark plug annually or every

100 operating hours according to the in-

structions in the separate Engine Owner’s

Manual. Check that the gap is set at .030".

For replacement use Champion RCJ-6Y or

equivalent (a resistor spark plug must be

used for replacement).

Cooling System

It is important to frequently check and

remove grass clippings, dirt and other

debris that accumulates on the engine,

cooling fins, air intake screen and on

levers and linkages. This helps to ensure

adequate air cooling and correct engine

speed.

TINE REMOVAL

AND INSTALLATION

The tines will wear with use and they

should be replaced if tilling seems to take

longer than usual or if the soil is not

being mixed as thoroughly. Also, in addi-

tion to the standard 10" tilling width tine

configuration, the tines can be arranged

in two other configurations: (1) A narrow,

41/2" tilling width for smaller areas and (2)

A special pattern for stony soil conditions.

IMPORTANT: The hitch pin (A, Figure 16)

is under spring tension – wear gloves to

protect your fingers when removing or re-

placing the hitch pin.

Arranging Tines for Narrow Tilling

1. Prop the machine forward so it rests

on the front of the tubular carrying

handle. The work surface should be flat

and firm.

2. Remove the hitch pin (A, Figure 16).

3. Remove the outer tine section (do not

remove inner tine section) and mark it as

to which side it is from (left or right) and

whether it’s an outer or inner tine section.

4. Slide one of the long bushings (B,

Figure 17), provided with the unit, onto

the shaft. Insert the hitch pin through the

tine shaft.

5. Repeat this procedure on the opposite

side.

Figure 15: Idle Mixture Screw can be adjusted.

Fuel Tank

Primer Bulb

Primer Line

Idle Speed Screw (Silver)

Idle Mixture Screw (Black)

Fuel Line

The temperature of the muffler and adja-

cent engine areas may exceed 150oF

(65oC). Contact may cause burns. Avoid

these areas. Remove the spark plug

lead and ground the lead to the engine to

prevent accidental starts and fires.

Failure to do this could cause personal

injury.

WARNING

Avoid contact with the cutting edges on

the tines.

To avoid personal injury when removing

or installing tines, wear heavy work

gloves. The engine must be off, all

moving parts stopped, and the spark

plug wire disconnected from the spark

plug and moved away from the plug.

WARNING

Section 5: Maintenance

12

Figure 16: Remove hitch pin (A) to take off

tines.

A

Before inspecting, cleaning or servicing the machine, shut off engine, wait for moving parts to stop, dis-

connect spark plug wire and move wire away from spark plug.

Failure to follow these instructions can result in serious personal injury or property damage.

WARNING

Arranging Tines

for Stony Soil Conditions

1. Prop the machine forward so it rests

on the front of the tubular carrying

handle. The work surface should be flat

and firm.

2. Remove the hitch pin (A, Figure 16)

from both sides of the unit. Remove both

outer tine sections. Mark each section as

a left or right side tine and whether it is

an inner or outer section.

3. Remove the inner tine sections and

swap their positions (the inner right-side

section goes onto the left side of the ma-

chine, and the inner left-side goes onto

the right side of the machine).

4. Reinstall the two outer tine sections on

the sides from which they were removed

(Figure 18).

5. Insert the hitch pins through the tine

shafts.

To Replace Worn Tine Sections:

The tines are excessively worn if tilling

takes much longer than before and the

soil is not being mixed thoroughly

enough.

1. Prop the machine forward so it rests

on the front of the tubular carrying

handle. The work surface should be flat

and firm.

2. Remove the hitch pin (A, Figure 16)

from both sides of the unit. Remove the

old tine sections and replace them with

new tine sections. Refer to Figure 16 and

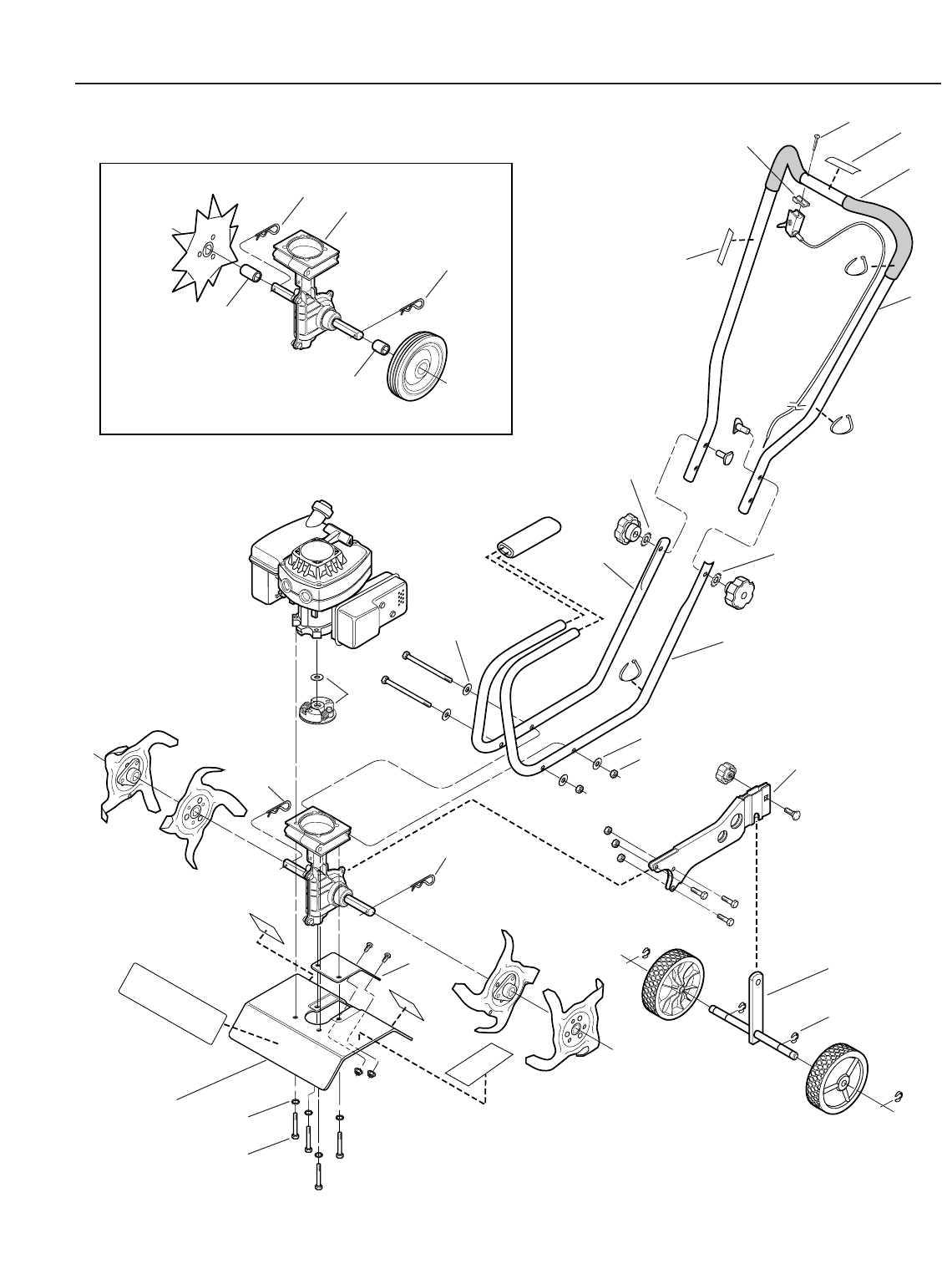

the tine pattern shown in the Parts List

for tine pattern details. Insert the hitch

pins through the tine shafts.

STORAGE

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

filter, fuel hose, or tank during storage.

Also, experience indicates that alcohol-

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation

of acids during storage. Acidic gas can

damage the fuel system of an engine while

in storage.

Off-Season Storage Procedure

1. Drain the fuel tank of all of the gaso-

line/two-cycle oil mixture. NOTE: Do not

use a fuel mixture that is older than one

season in order to avoid varnish deposits

throughout the fuel system. Dispose of

the fuel mixture properly.

2. Start engine and run until fuel mixture

is used up. This will prevent poor perfor-

mance from stale fuel when your equip-

ment is taken out of storage.

NOTE: If “Gasohol” has been used, com-

plete above instructions and then put 1/2

pint of gasoline properly mixed with two-

cycle oil (see Fuel Mixing Chart) into fuel

tank and repeat above instructions.

NOTE: Fuel stabilizer (such as STA-BIL)

is an acceptable alternative in minimizing

the formation of fuel gum deposits during

storage. Add stabilizer to the fuel mixture

in the fuel tank or the fuel storage con-

tainer. Always follow the mix ratio in-

structions on the stabilizer container.

Run engine at least 10 minutes after

adding stabilizer to allow the stabilizer to

reach the carburetor. Do not drain the

gas tank and carburetor if using fuel

stabilizer.

3. Let engine cool down after fuel mixture

has been used up. Clean dirt and debris

from engine cooling fins, linkage and

other engine surfaces.

4. Pull starter handle slowly until resis-

tance is felt due to compression pressure,

then stop. Release starter tension slowly

to prevent engine from reversing due to

compression pressure. This position will

close both the intake and exhaust ports to

prevent corrosion of the piston and

cylinder bore.

5. Remove tines. Clean all soil and debris

from dust covers and tine shaft. Lubri-

cate tine shaft with light oil. Replace

tines.

6. Cover engine and store equipment in a

dry, sheltered location.

Figure 17: Narrow tilling tine positions.

Figure 18: Stony soil tine pattern.

• Never store your equipment when

there is fuel mixture in the fuel tank.

• Never place your equipment near any

source of sparks or open flame (such

as from a hot water heater, a space

heater or clothes dryer).

Failure to comply can result in serious

personal injury or property damage.

WARNING

Section 5: Maintenance

13

Before inspecting, cleaning or servicing the machine, shut off engine, wait for moving parts to stop, dis-

connect spark plug wire and move wire away from spark plug.

Failure to follow these instructions can result in serious personal injury or property damage.

WARNING

B

14

TROUBLESHOOTING

Before performing any of the corrections in this Troubleshooting Chart, refer to the appropriate information contained in this Manual

and the Engine Owner’s Manual for the correct safety precautions and servicing procedures. Contact your local authorized Engine

Service Dealer for engine service. Contact your local authorized dealer for service problems with the machine.

Engine does not start. 1. Spark plug wire disconnected. 1. Reconnect wire to spark plug.

2. Out of gas/two-cycle oil fuel mixture. 2. Check fuel tank. Add fuel mixture.

3. Stale fuel mixture. 3. Drain old mixture. Add fresh mixture.

4. Priming procedure not correct. 4. Refer to starting procedure in manual.

5. Dirty air filter(s). 5. Clean or replace air filters.

6. Worn, corroded or broken spark plug. 6. Replace spark plug.

7. On/Off Switch in OFF position. 7. Move On/Off Switch to ON.

Engine runs poorly or 1. Fouled spark plug. 1. Remove, inspect, clean spark plug.

has low power under 2. Dirty air filter(s). 2. Clean or replace dirty air filters.

tilling conditions. 3. Stale fuel mixture. 3. Drain old mixture. Add fresh mixture.

4. Carburetor out of adjustment. 4. Adjust carburetor. See Manual.

Engine overheats. 1. Engine cooling fins clogged. 1. Remove dirt and debris from fins.

2. Improper amount of oil in fuel mixture. 2. Drain tank; fill with correct mixture.

Tines stop rotating. 1. Object wedged between tines and hood. 1. Remove wedged object.

2. Internal transmission problem. 2. Authorized service dealer.

Section 5: Maintenance

Before inspecting, cleaning or servicing the machine, shut off engine, wait for moving parts to stop, dis-

connect spark plug wire and move wire away from spark plug.

Failure to follow these instructions can result in serious personal injury or property damage.

WARNING

PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION

On top, left-side tine shield

On top of handlebar

On rear, right-side tine

shield

On right-side handlebar

On rear, left-side

tine shield

SAFETY AND OPERATING DECALS

Decals are not shown at full size. See Parts List pages for reordering information.

15

1 1915039 Transmission Case - left-side.

(Incl. pressed-in bushing) . . . . . . . . . . . . 1

2 1915040 Transmission Case - right-side.

(Incl. pressed-in bushing) . . . . . . . . . . . . 1

3 1983632 Oil Seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

4 1918307 Worm Input Shaft Assembly . . . . . . . . . . . . . 1

5 1983731 Input Bearing . . . . . . . . . . . . . . . . . . . . . . . . 2

6 1983636 Thrust Bearing . . . . . . . . . . . . . . . . . . . . . . . 1

7 1983637 Ball Bearing . . . . . . . . . . . . . . . . . . . . . . . . . . 1

8 1904416 Worm Gear Shaft Assembly . . . . . . . . . . . . . 1

9 1909923 Oil Seal, Input . . . . . . . . . . . . . . . . . . . . . . . . 1

10 1185741 Plug, 1/8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

11 710-0206 Hex Screw, 1/4-20 x 7/8 . . . . . . . . . . . . . . . . 5

13 712-0324 Locknut, Nyloc, 1/4"-20 . . . . . . . . . . . . . . . . . 8

14 1983635 Thrust Washer, output (.050") . . . . . . . . . . . .A/R

15 1983640 Thrust Washer, output (.040") . . . . . . . . . . . .A/R

16 1983641 Thrust Washer, input (.020") . . . . . . . . . . . . .A/R

17 1983642 Thrust Washer, input (.035") . . . . . . . . . . . . .A/R

18 1983638 Thrust Washer . . . . . . . . . . . . . . . . . . . . . . . . 2

19 736-0463 Flat Washer, .25 x .630 x .0515 . . . . . . . . . . . 2

20 1983663 Hex Hd. Screw, 1/4-20 x 5 . . . . . . . . . . . . . . 2

21 1909486 Clutch Drum and Hub . . . . . . . . . . . . . . . . . . 1

22 1747166 Set Screw, 1/4-28 x 3/8 . . . . . . . . . . . . . . . . . 4

23 1915055 Dust Cover . . . . . . . . . . . . . . . . . . . . . . . . . . 2

24 1983713 Felt Washer . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Ref # Part # Description Qty. Ref # Part # Description Qty.

1

20

22

24

22

11, 12

14, 15

14, 15

16, 17

23

21

7

5

18

18

6

9

4

8

5

2

3

10

23 24

22

19

13

13

3

A

A

A

A

ABB

B

A/R – As Required

TRANSMISSION ASSEMBLY

Model 128T Parts List

Complete Transmission

Part # 986-04000

16

1

5

13

13

13

17

18

46

42

42

SEE PREVIOUS PAGE

49

48

47

21

31

32

34

33

26

28

29

30

25

24

23

22

27

43

42

42

18

19

19

38

39

41

40

40

36

37 35

45

16

15

14

45

4

6

9

3

8

44

44

7

Parts List Model 128T

17

1 1918303 Handlebar Assembly . . . . . . . . . . . . . . . . . . 1

3 777I00007 Decal - Starting Stabilization . . . . . . . . . . . . 1

4 777I00009 Decal - Throttle/Tines Lever Operation . . . . . 1

5 1917451 Handlebar Grip, PVC . . . . . . . . . . . . . . . . . . 2

6 1918123 Throttle/Tines Lever and Cable . . . . . . . . . . . 1

7 1750608 Pan Hd. Screw, #10-16 x 1-1/2 . . . . . . . . . . 1

8 1731025 Saddle Hd. Screw, 5/16-18 x 2 . . . . . . . . . . . 2

9 1909775 Spacer, Throttle/Tines Lever . . . . . . . . . . . . . 1

13 1763682 Plastic Wire Tie . . . . . . . . . . . . . . . . . . . . . . 3

14 1918120 Lower Handlebar - Left-Side . . . . . . . . . . . . 1

15 1918121 Lower Handlebar - Right-Side . . . . . . . . . . . 1

16 1909720 Foam Sleeve . . . . . . . . . . . . . . . . . . . . . . . . . 1

17 1983663 Hex Hd. Screw, 1/4-20 x 5 . . . . . . . . . . . . . . 2

18 1107381 Flat Washer, 1/4-20 . . . . . . . . . . . . . . . . . . . 2

19 712-0324 Hex Locknut, 1/4-20 . . . . . . . . . . . . . . . . . . . 5

21 1909487 Clutch Rotor and Washer . . . . . . . . . . . . . . . 1

22 1918124 Tine Shield . . . . . . . . . . . . . . . . . . . . . . . . . . 1

23 777D06104 Decal - Logo . . . . . . . . . . . . . . . . . . . . . . . . . 1

24 777S00012 Decal - Warning, Rotating TInes . . . . . . . . . 1

25 777S30647 Decal - Warning, Hot Surfaces . . . . . . . . . . . 1

26 777S00013 Decal - Caution, Operation Hazards . . . . . . . 1

27 1186292 Hex Hd. Screw, #10-24 x 1/2 . . . . . . . . . . . . 2

28 1186387 Flange Locknut, #10-24 . . . . . . . . . . . . . . . . 2

29 736-0329 Lock Washer, 1/4-20 . . . . . . . . . . . . . . . . . . 4

30 710-0501 Hex Cap Screw, 1/4-20 x 2 . . . . . . . . . . . . . . 4

31 1909540 Outer Tine - Right-Hand Side . . . . . . . . . . . . 1

32 1909539 Inner Tine - Right-Hand Side . . . . . . . . . . . . 1

33 1909712 Outer Tine - Left-Hand Side . . . . . . . . . . . . . 1

34 1909711 Inner Tine - Left-Hand Side . . . . . . . . . . . . . 1

35 1909680 Wheel Bracket . . . . . . . . . . . . . . . . . . . . . . . 1

36 GW-90077 Carriage Bolt . . . . . . . . . . . . . . . . . . . . . . . . 1

37 1909835 Knob . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

38 710-0206 Hex Hd. Screw, 1/4-20 x 1 . . . . . . . . . . . . . . 3

39 1909517 Axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

40 1917754 Wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

41 GW-9532 E-Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

42 1185590 Hitch Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

43 1981022 Tine Hood Cover . . . . . . . . . . . . . . . . . . . . . 1

44 1763767 Knob . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

45 1177038 Lock Washer, 5/16 . . . . . . . . . . . . . . . . . . . . 2

EDGER ATTACHMENT

46 1903777 Edger Wheel . . . . . . . . . . . . . . . . . . . . . . . . . 1

47 1903778 Bushing - Short . . . . . . . . . . . . . . . . . . . . . . 1

48 1983648 Bushing - Long . . . . . . . . . . . . . . . . . . . . . . 2

49 1915054 Edger Tine . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Ref # Part # Description Qty. Ref # Part # Description Qty.

* Order parts from your local authorized engine dealer. Refer to engine nameplate

for model/type number.

Model 128T Parts List

18

Notes

19

Accessories and Attachments . . . . . . . . . . . . . . . . . . . . . . .14

Aerator Attachment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Borders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Border/Edger Attachment . . . . . . . . . . . . . . . . . . . . . .5, 6, 10

Carburetor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7, 12

Control Lever, Throttle/Tines . . . . . . . . . . . . . . . .3, 4, 6, 9, 11

Cultivating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9, 10

Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Edging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5, 14

Engine

Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Carburetor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7, 12

Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11, 13

Fuel Mixture . . . . . . . . . . . . . . . . . . . . . . . . . . .5, 6, 12, 13

Fuel Primer Bulb . . . . . . . . . . . . . . . . . . . . . .4, 8, 9, 12, 14

On/Off Switch . . . . . . . . . . . . . . . . . . . . . . . . . .4, 8, 14, 16

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Recoil Start Rope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Spark Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11, 12, 14

Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7, 9, 12

Starting Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Stopping Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4, 5, 8, 13

Throttle/Tines Lever . . . . . . . . . . . . . . . . . . . .3, 4, 5, 9, 11

Features/Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Fuel Mixture . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5, 6, 12, 13

Fuel Primer Bulb . . . . . . . . . . . . . . . . . . . . . . . .4, 8, 9, 12, 14

Gasoline/ Two-Cycle Oil . . . . . . . . . . . . . . . . . . . . .5, 6, 12, 13

Handlebar Height Adjustment . . . . . . . . . . . . . . . . . . . . . .7, 8

Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Model/Serial Number . . . . . . . . . . . . . . . . . . . . . . .Back Cover

Oil/Gasoline Mixture . . . . . . . . . . . . . . . . . . . . . . .5, 6, 12, 13

Off-Season Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-17

Power Lawn Rake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3, 8

Recoil Starter Rope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98

Repair Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-17

Safety Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4

Safety Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Service Recommendation Checklist . . . . . . . . . . . . . . . . . .11

Spark Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11, 12, 14

Starter Rope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4, 5, 8, 13

Tilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9, 10

Tilling Depth Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Tilling Widths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Tine Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Tips/Techniques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9, 10

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9, 14

Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

W, X, Y, Z

Index

MANUFACTURER’S LIMITED WARRANTY FOR:

The limited warranty set forth below is given by Troy-Bilt LLC with

respect to new merchandise purchased and used in the United

States, its possessions and territories.

Troy-Bilt LLC warrants this product against defects for a period of

two (2) years commencing on the date of original purchase and

will, at its option, repair or replace, free of charge, any part found

to be defective in materials or workmanship. This limited war-

ranty shall only apply if this product has been operated and main-

tained in accordance with the Operator’s Manual furnished with

the product, and has not been subject to misuse, abuse, com-

mercial use, neglect, accident, improper maintenance, alteration,

vandalism, theft, fire, water, or damage because of other peril or

natural disaster. Damage resulting from the installation or use of

any accessory or attachment not approved by Troy-Bilt LLC for

use with the product(s) covered by this manual will void your war-

ranty as to any resulting damage.

Normal wear parts or components thereof are subject to sepa-

rate terms as follows: All normal wear parts or component fail-

ures will be covered on the product for a period of 90 days re-

gardless of cause. After 90 days, but within the two year period,

normal wear part failures will be covered ONLY IF caused by de-

fects in materials or workmanship of OTHER component parts.

Normal wear parts and components include, but are not limited

to: batteries, belts, blades, blade adapters, grass bags, rider

deck wheels, seats, snow thrower skid shoes, shave plates,

auger spiral rubber, tires.

HOW TO OBTAIN SERVICE: Warranty service is available,

WITH PROOF OF PURCHASE, through your local authorized

service dealer. To locate the dealer in your area, check your

Yellow Pages, or contact Troy-Bilt LLC at P.O. Box 361131,

Cleveland, Ohio 44136-0019, 1-866-840-6483, or log on to our

Web site at www.troybilt.com.

This limited warranty does not provide coverage in the following

cases:

a. The engine or component parts thereof. These items

carry a separate manufacturer’s warranty. Refer to the

applicable manufacturer’s warranty for terms and cond

tions.

b. Log splitter pumps, valves, and cylinders have a separate

one year warranty.

c. Routine maintenance items such as lubricants, filters,

blade sharpening, tune-ups, brake adjustments, clutch

adjustments, deck adjustments, and normal deterioration of

the exterior finish due to use or exposure.

d. Troy-Bilt LLC does not extend any warranty for products

sold or exported outside of the United States, its pos-

sessions and territories, except those sold through Troy-

Bilt LLC’s authorized channels of export distribution.

e. Parts that are not genuine Troy-Bilt parts are not covered by

this warranty.

f. Service completed by someone other than an authorized

service dealer is not covered by this warranty.

g. Transportation charges and service calls are not covered.

No implied warranty, including any implied warranty of mer-

chantability of fitness for a particular purpose, applies after

the applicable period of express written warranty above as

to the parts as identified. No other express warranty,

whether written or oral, except as mentioned above, given

by any person or entity, including a dealer or retailer, with re-

spect to any product, shall bind Troy-Bilt LLC. During the

period of the warranty, the exclusive remedy is repair or re-

placement of the product as set forth above.

The provisions as set forth in this warranty provide the sole

and exclusive remedy arising from the sale. Troy-Bilt LLC

shall not be liable for incidental or consequential loss or

damage including, without limitation, expenses incurred for

substitute or replacement lawn care services or for rental

expenses to temporarily replace a warranted product.

Some states do not allow the exclusion or limitation of incidental

or consequential damages, or limitations on how long an implied

warranty lasts, so the above exclusions or limitations may not

apply to you.

In no event shall recovery of any kind be greater than the amount

of the purchase price of the product sold. Alteration of the

safety features of the product shall void this warranty. You

assume the risk and liability for loss, damage, or injury to you and

your property and/or to others and their property arising out of

the misuse or inability to use the product.

This limited warranty shall not extend to anyone other than the

original purchaser or to the person for whom it was purchased as

a gift.

HOW STATE LAW RELATES TO THIS WARRANTY: This lim-

ited warranty gives you specific legal rights, and you may

also have other rights which vary from state to state.

TROY-BILT LLC, P.O. BOX 361131, CLEVELAND, OHIO 44136-0019, 1-866-840-6483
