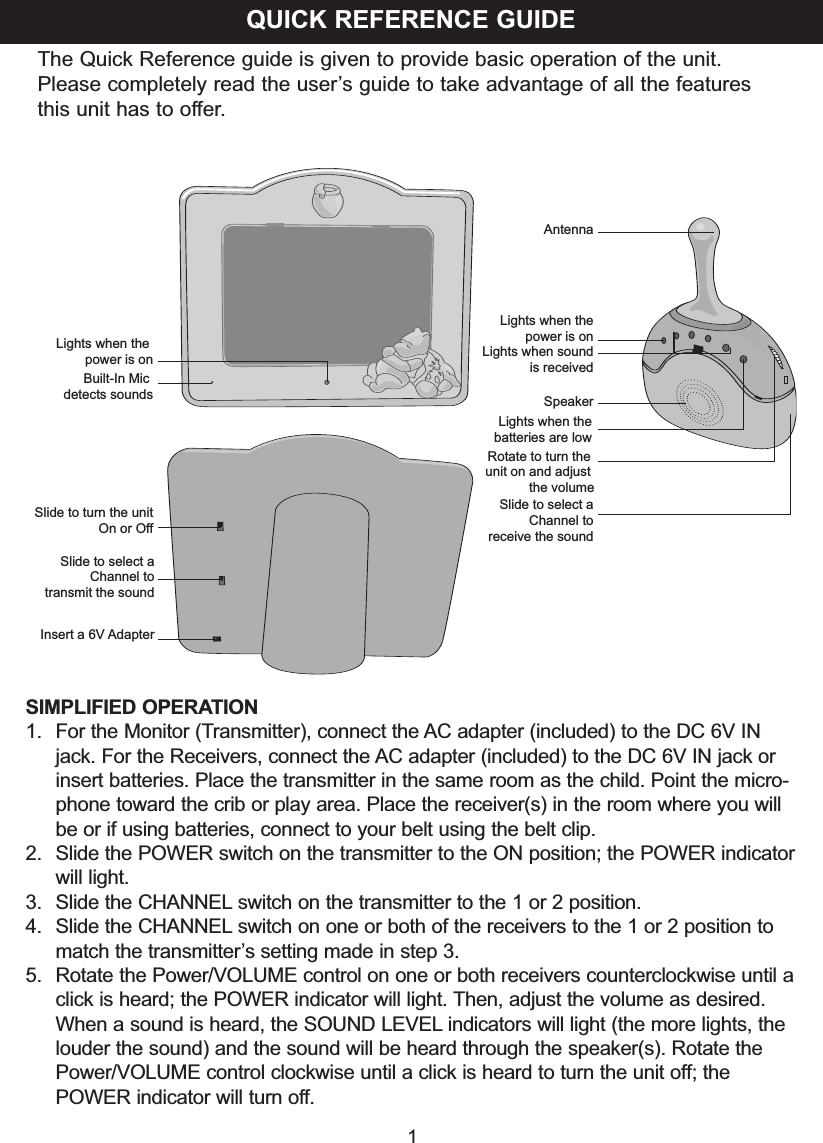

The Quick Reference guide is given to provide basic operation of the unit.Please completely read the user’s guide to take advantage of all the featuresthis unit has to offer.QUICK REFERENCE GUIDE1Lights when the power is onBuilt-In Mic detects soundsSlide to turn the unitOn or OffSlide to select aChannel totransmit the soundInsert a 6V AdapterAntennaLights when thepower is onLights when soundis receivedSpeakerRotate to turn the unit on and adjust the volumeLights when thebatteries are lowSlide to select aChannel toreceive the soundSIMPLIFIED OPERATION1. For the Monitor (Transmitter), connect the AC adapter (included) to the DC 6V INjack. For the Receivers, connect the AC adapter (included) to the DC 6V IN jack orinsert batteries. Place the transmitter in the same room as the child. Point the micro-phone toward the crib or play area. Place the receiver(s) in the room where you willbe or if using batteries, connect to your belt using the belt clip.2. Slide the POWER switch on the transmitter to the ON position; the POWER indicatorwill light.3. Slide the CHANNEL switch on the transmitter to the 1 or 2 position.4. Slide the CHANNEL switch on one or both of the receivers to the 1 or 2 position tomatch the transmitter’s setting made in step 3.5. Rotate the Power/VOLUME control on one or both receivers counterclockwise until aclick is heard; the POWER indicator will light. Then, adjust the volume as desired.When a sound is heard, the SOUND LEVEL indicators will light (the more lights, thelouder the sound) and the sound will be heard through the speaker(s). Rotate thePower/VOLUME control clockwise until a click is heard to turn the unit off; thePOWER indicator will turn off.

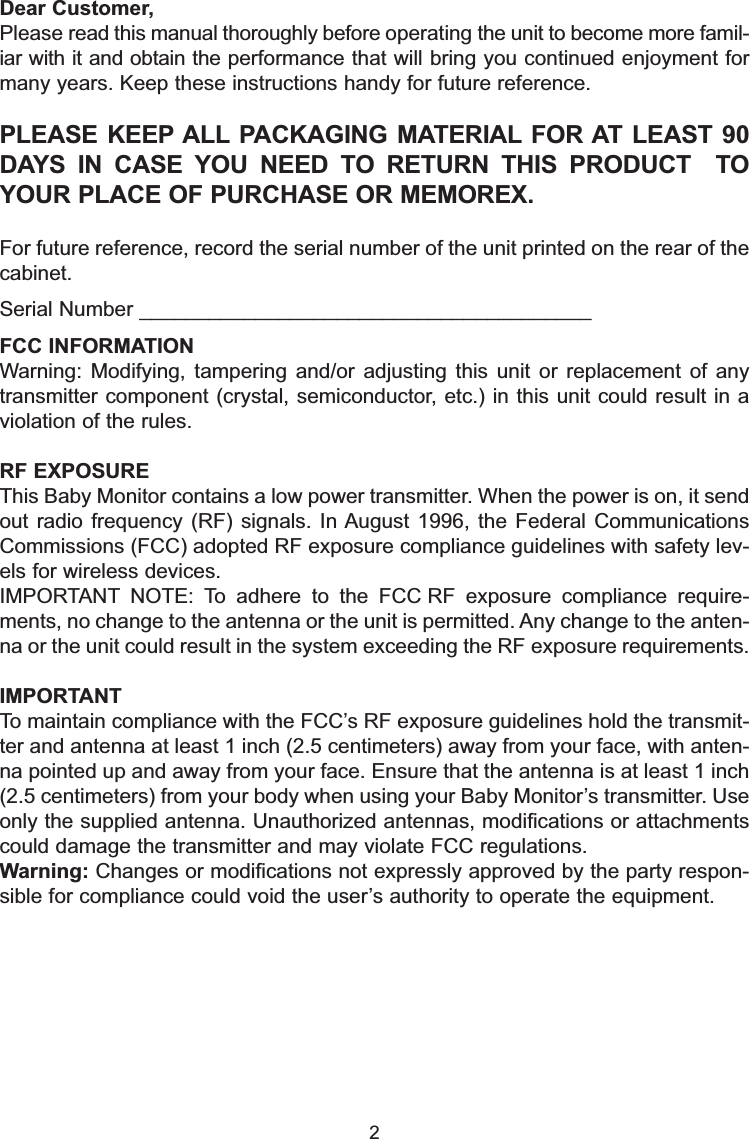

Dear Customer,Please read this manual thoroughly before operating the unit to become more famil-iar with it and obtain the performance that will bring you continued enjoyment formany years. Keep these instructions handy for future reference.PLEASE KEEP ALL PACKAGING MATERIAL FOR AT LEAST 90DAYS IN CASE YOU NEED TO RETURN THIS PRODUCT TOYOUR PLACE OF PURCHASE OR MEMOREX.For future reference, record the serial number of the unit printed on the rear of thecabinet.Serial Number _______________________________________2FCC INFORMATIONWarning: Modifying, tampering and/or adjusting this unit or replacement of anytransmitter component (crystal, semiconductor, etc.) in this unit could result in aviolation of the rules.RF EXPOSUREThis Baby Monitor contains a low power transmitter. When the power is on, it sendout radio frequency (RF) signals. In August 1996, the Federal CommunicationsCommissions (FCC) adopted RF exposure compliance guidelines with safety lev-els for wireless devices.IMPORTANT NOTE: To adhere to the FCC RF exposure compliance require-ments, no change to the antenna or the unit is permitted. Any change to the anten-na or the unit could result in the system exceeding the RF exposure requirements.IMPORTANTTo maintain compliance with the FCC’s RF exposure guidelines hold the transmit-ter and antenna at least 1 inch (2.5 centimeters) away from your face, with anten-na pointed up and away from your face. Ensure that the antenna is at least 1 inch(2.5 centimeters) from your body when using your Baby Monitor’s transmitter. Useonly the supplied antenna. Unauthorized antennas, modifications or attachmentscould damage the transmitter and may violate FCC regulations.Warning: Changes or modifications not expressly approved by the party respon-sible for compliance could void the user’s authority to operate the equipment.

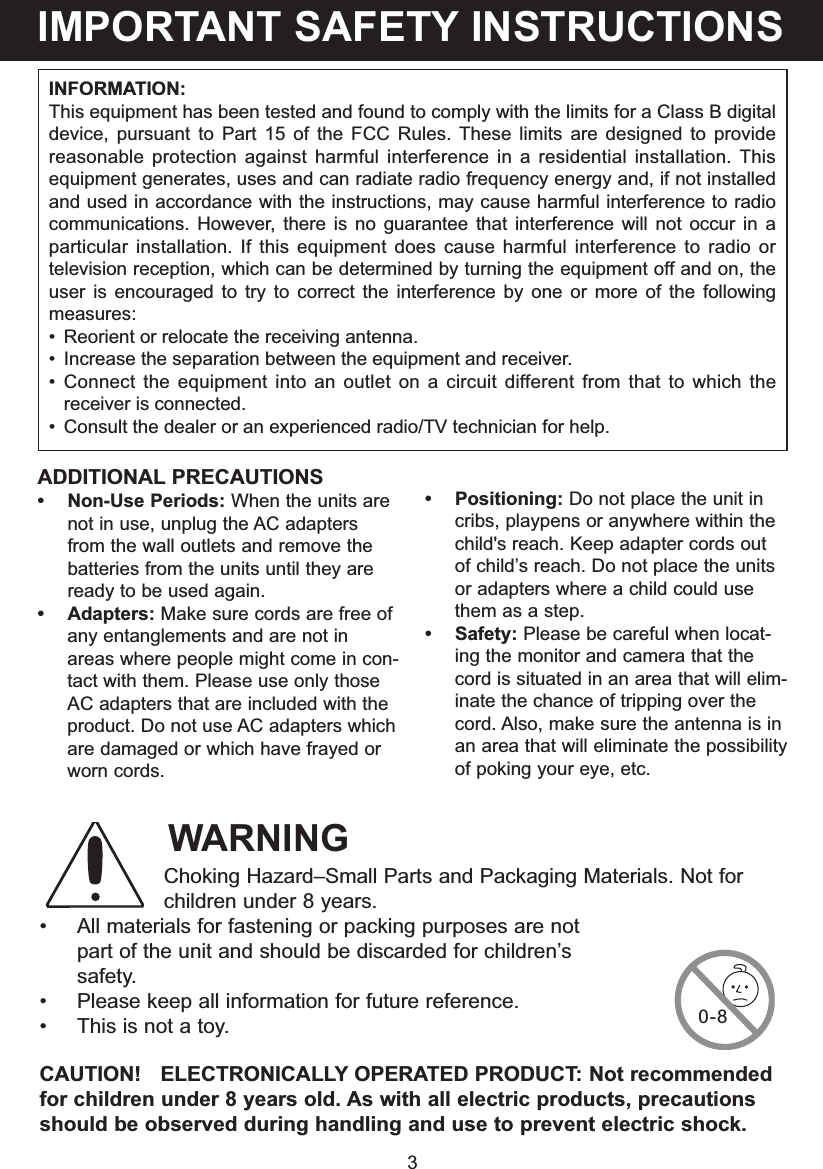

3INFORMATION:This equipment has been tested and found to comply with the limits for a Class B digitaldevice, pursuant to Part 15 of the FCC Rules. These limits are designed to providereasonable protection against harmful interference in a residential installation. Thisequipment generates, uses and can radiate radio frequency energy and, if not installedand used in accordance with the instructions, may cause harmful interference to radiocommunications. However, there is no guarantee that interference will not occur in aparticular installation. If this equipment does cause harmful interference to radio ortelevision reception, which can be determined by turning the equipment off and on, theuser is encouraged to try to correct the interference by one or more of the followingmeasures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which thereceiver is connected.• Consult the dealer or an experienced radio/TV technician for help.ADDITIONAL PRECAUTIONS• Non-Use Periods: When the units arenot in use, unplug the AC adaptersfrom the wall outlets and remove thebatteries from the units until they areready to be used again.• Adapters: Make sure cords are free ofany entanglements and are not inareas where people might come in con-tact with them. Please use only thoseAC adapters that are included with theproduct. Do not use AC adapters whichare damaged or which have frayed orworn cords.• Positioning: Do not place the unit incribs, playpens or anywhere within thechild's reach. Keep adapter cords outof child’s reach. Do not place the unitsor adapters where a child could usethem as a step. • Safety: Please be careful when locat-ing the monitor and camera that thecord is situated in an area that will elim-inate the chance of tripping over thecord. Also, make sure the antenna is inan area that will eliminate the possibilityof poking your eye, etc.IMPORTANT SAFETY INSTRUCTIONSWARNINGChoking Hazard–Small Parts and Packaging Materials. Not forchildren under 8 years.• All materials for fastening or packing purposes are notpart of the unit and should be discarded for children’ssafety.• Please keep all information for future reference.• This is not a toy.CAUTION! ELECTRONICALLY OPERATED PRODUCT: Not recommendedfor children under 8 years old. As with all electric products, precautionsshould be observed during handling and use to prevent electric shock.0-8

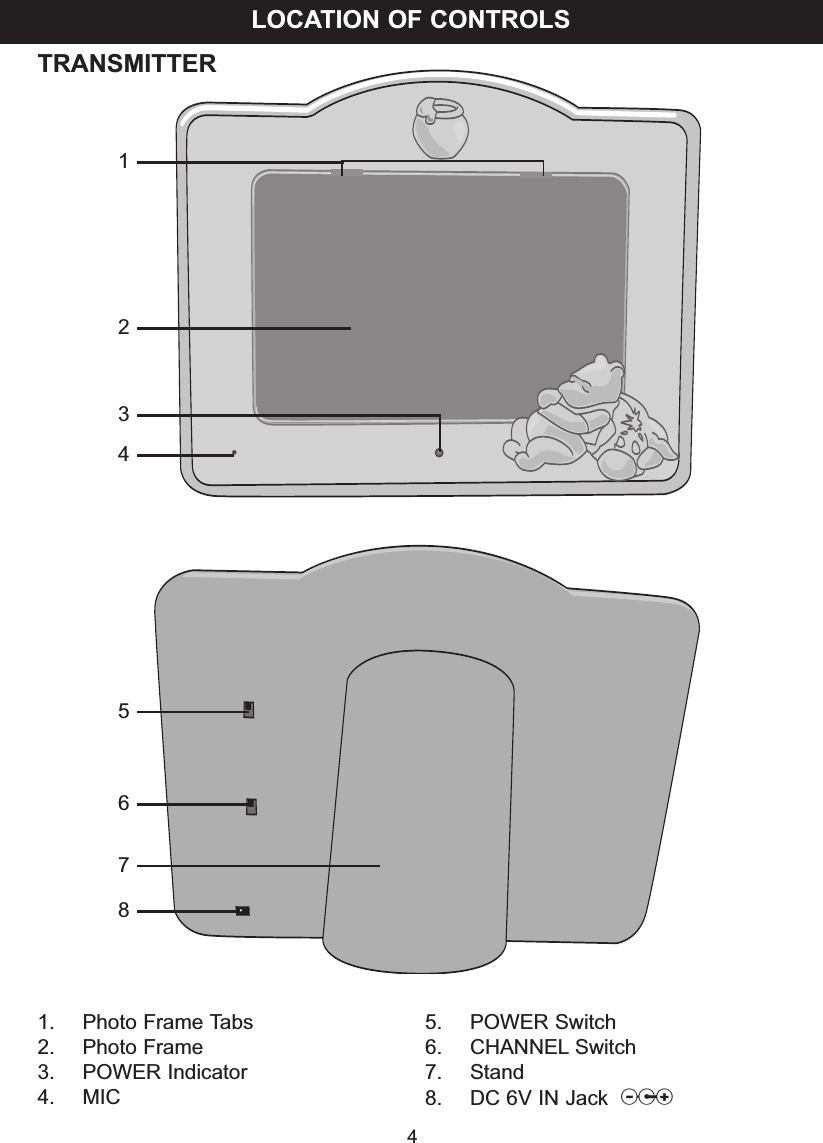

1. Photo Frame Tabs2. Photo Frame3. POWER Indicator4. MIC5. POWER Switch6. CHANNEL Switch7. Stand8. DC 6V IN Jack zLOCATION OF CONTROLS442135687TRANSMITTER

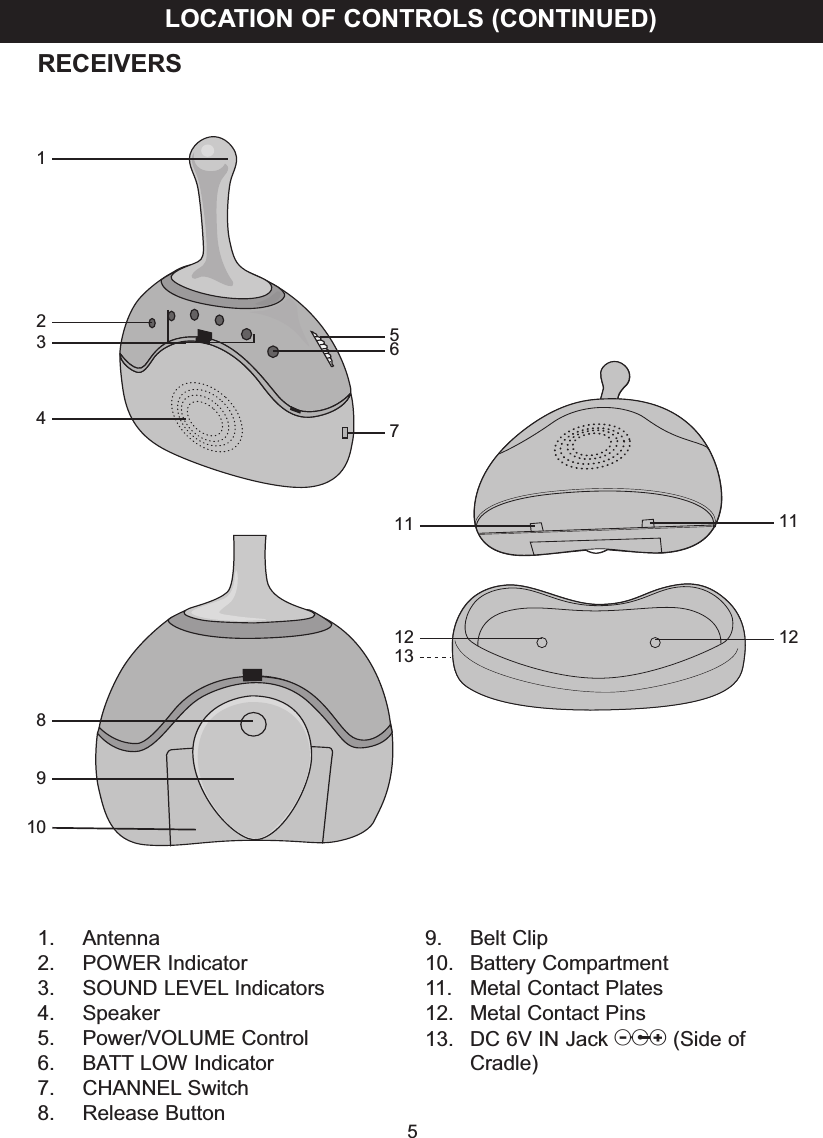

51. Antenna2. POWER Indicator3. SOUND LEVEL Indicators4. Speaker5. Power/VOLUME Control6. BATT LOW Indicator7. CHANNEL Switch8. Release Button9. Belt Clip10. Battery Compartment11. Metal Contact Plates12. Metal Contact Pins13. DC 6V IN Jack Z(Side ofCradle)LOCATION OF CONTROLS (CONTINUED)9108213465711 111213 12RECEIVERS

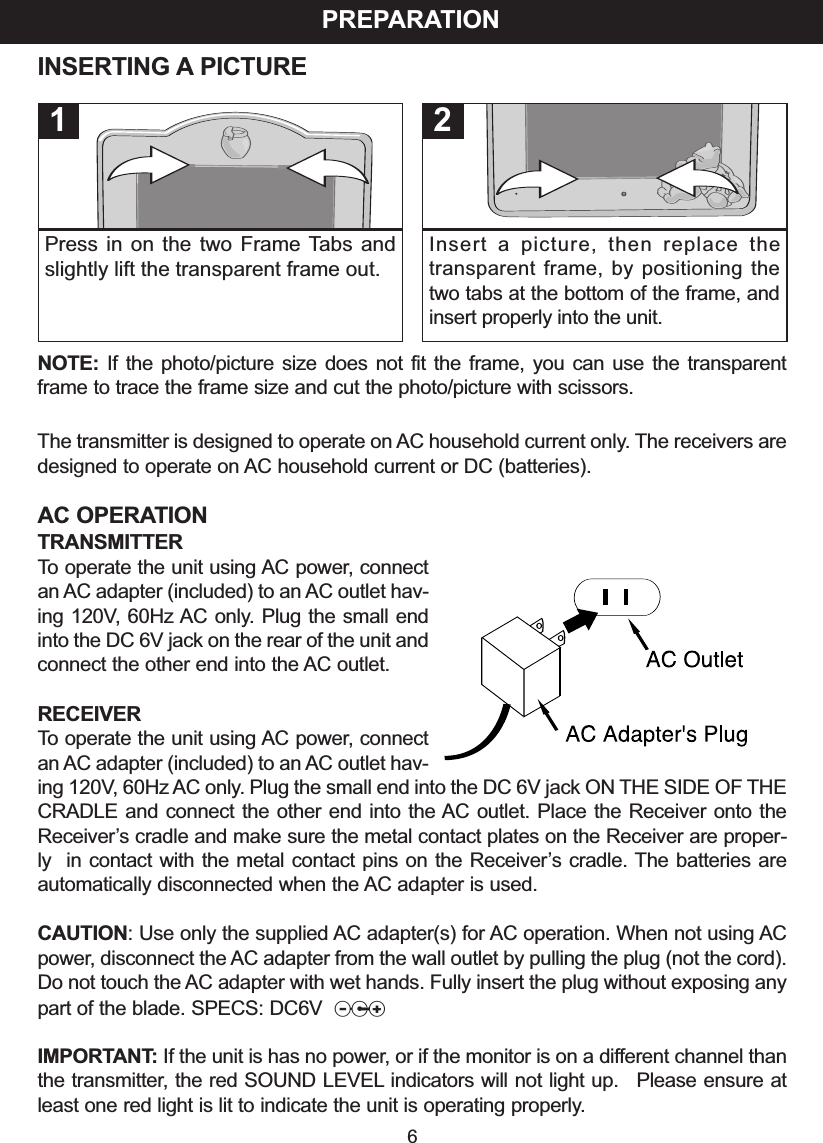

INSERTING A PICTURENOTE: If the photo/picture size does not fit the frame, you can use the transparentframe to trace the frame size and cut the photo/picture with scissors.The transmitter is designed to operate on AC household current only. The receivers aredesigned to operate on AC household current or DC (batteries).AC OPERATIONTRANSMITTERTooperate the unit using AC power, connectan AC adapter (included) to an AC outlet hav-ing 120V,60Hz AC only.Plug the small endinto the DC 6V jack on the rear of the unit andconnect the other end into the AC outlet.RECEIVERTo operate the unit using AC power, connectan AC adapter (included) to an AC outlet hav-ing 120V, 60Hz AC only. Plug the small end into the DC 6V jack ON THE SIDE OF THECRADLE and connect the other end into the AC outlet. Place the Receiver onto theReceiver’scradle and make sure the metal contact plates on the Receiver are proper-ly in contact with the metal contact pins on the Receiver’s cradle. The batteries areautomatically disconnected when the AC adapter is used.CAUTION:Use only the supplied AC adapter(s) for AC operation. When not using ACpower, disconnect the AC adapter from the wall outlet by pulling the plug (not the cord).Do not touch the AC adapter with wet hands. Fully insert the plug without exposing anypart of the blade. SPECS: DC6V zIMPORTANT: If the unit is has no power, or if the monitor is on a different channel thanthe transmitter,the red SOUND LEVEL indicators will not light up. Please ensure atleast one red light is lit to indicate the unit is operating properly.PREPARATION6Press in on the two Frame Tabs andslightly lift the transparent frame out.1Insert a picture, then replace thetransparent frame, by positioning thetwo tabs at the bottom of the frame, andinsert properly into the unit.2

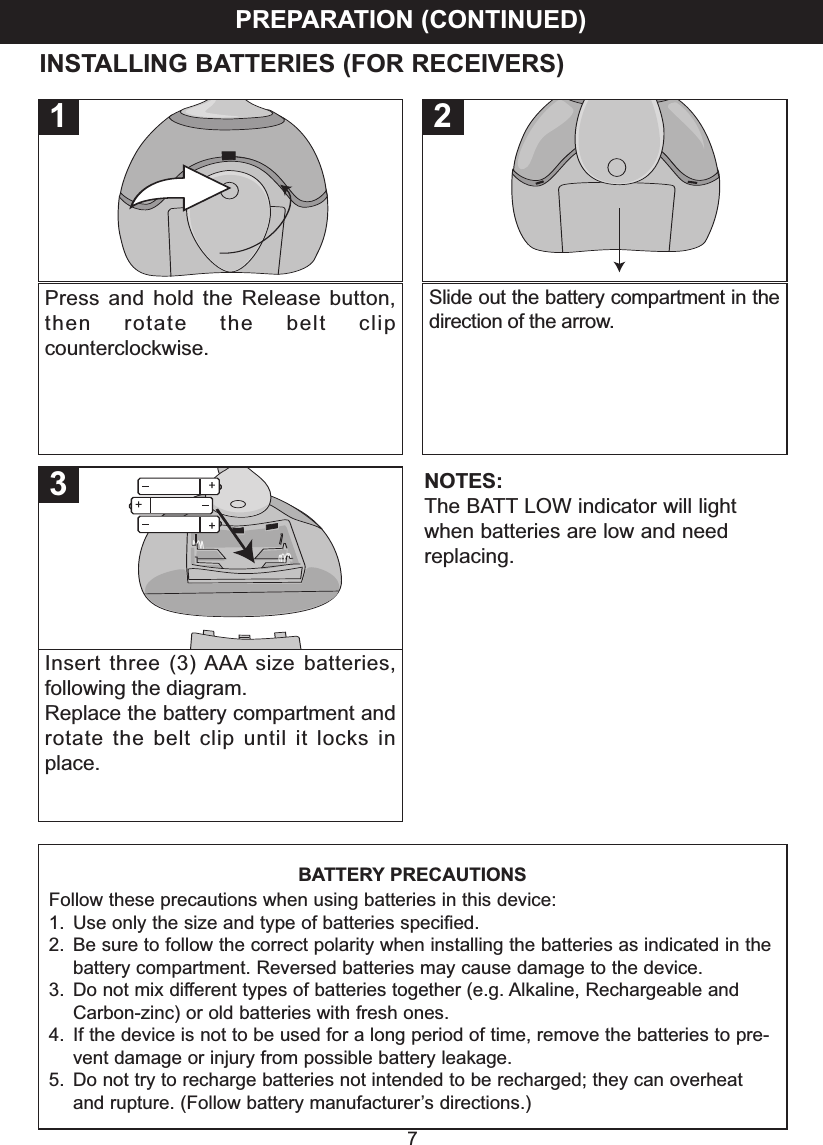

PREPARATION (CONTINUED)7BATTERY PRECAUTIONSFollow these precautions when using batteries in this device:1. Use only the size and type of batteries specified.2. Be sure to follow the correct polarity when installing the batteries as indicated in thebattery compartment. Reversed batteries may cause damage to the device.3. Do not mix different types of batteries together (e.g. Alkaline, Rechargeable andCarbon-zinc) or old batteries with fresh ones.4. If the device is not to be used for a long period of time, remove the batteries to pre-vent damage or injury from possible battery leakage.5. Do not try to recharge batteries not intended to be recharged; they can overheatand rupture. (Follow battery manufacturer’s directions.)Press and hold the Release button,then rotate the belt clipcounterclockwise.1Slide out the battery compartment in thedirection of the arrow.2Insert three (3) AAA size batteries,following the diagram.Replace the battery compartment androtate the belt clip until it locks inplace.3INSTALLING BATTERIES (FOR RECEIVERS)NOTES:The BATT LOW indicator will lightwhen batteries are low and needreplacing.

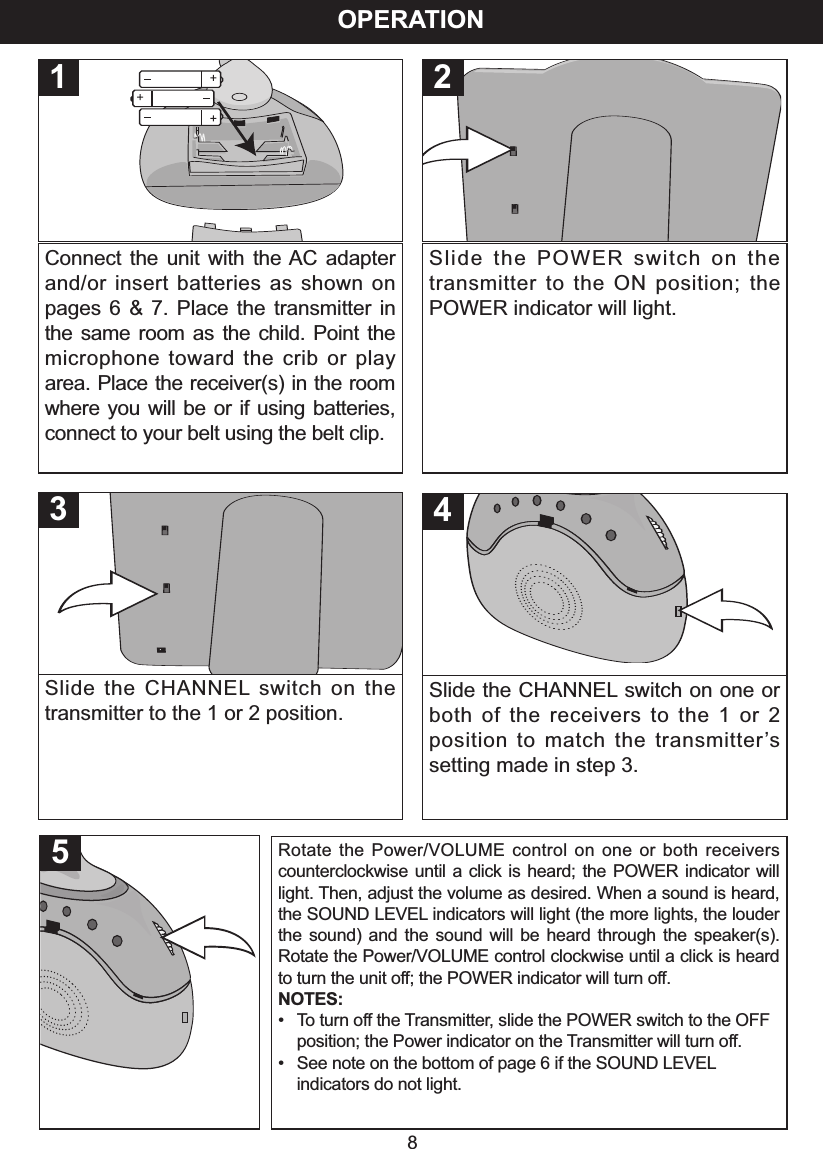

OPERATION8Connect the unit with the AC adapterand/or insert batteries as shown onpages 6 & 7. Place the transmitter inthe same room as the child. Point themicrophone toward the crib or playarea. Place the receiver(s) in the roomwhere you will be or if using batteries,connect to your belt using the belt clip.1Slide the POWER switch on thetransmitter to the ON position; thePOWER indicator will light.2Slide the CHANNEL switch on thetransmitter to the 1 or 2 position.3Slide the CHANNEL switch on one orboth of the receivers to the 1 or 2position to match the transmitter’ssetting made in step 3.45Rotate the Power/VOLUME control on one or both receiverscounterclockwise until a click is heard; the POWER indicator willlight. Then, adjust the volume as desired. When a sound is heard,the SOUND LEVEL indicators will light (the more lights, the louderthe sound) and the sound will be heard through the speaker(s).Rotate the Power/VOLUME control clockwise until a click is heardto turn the unit off; the POWER indicator will turn off.NOTES:•Toturn offthe Transmitter, slide the POWER switch to the OFF position; the Power indicator on the Transmitter will turn off.•See note on the bottom of page 6 if the SOUND LEVELindicators do not light.

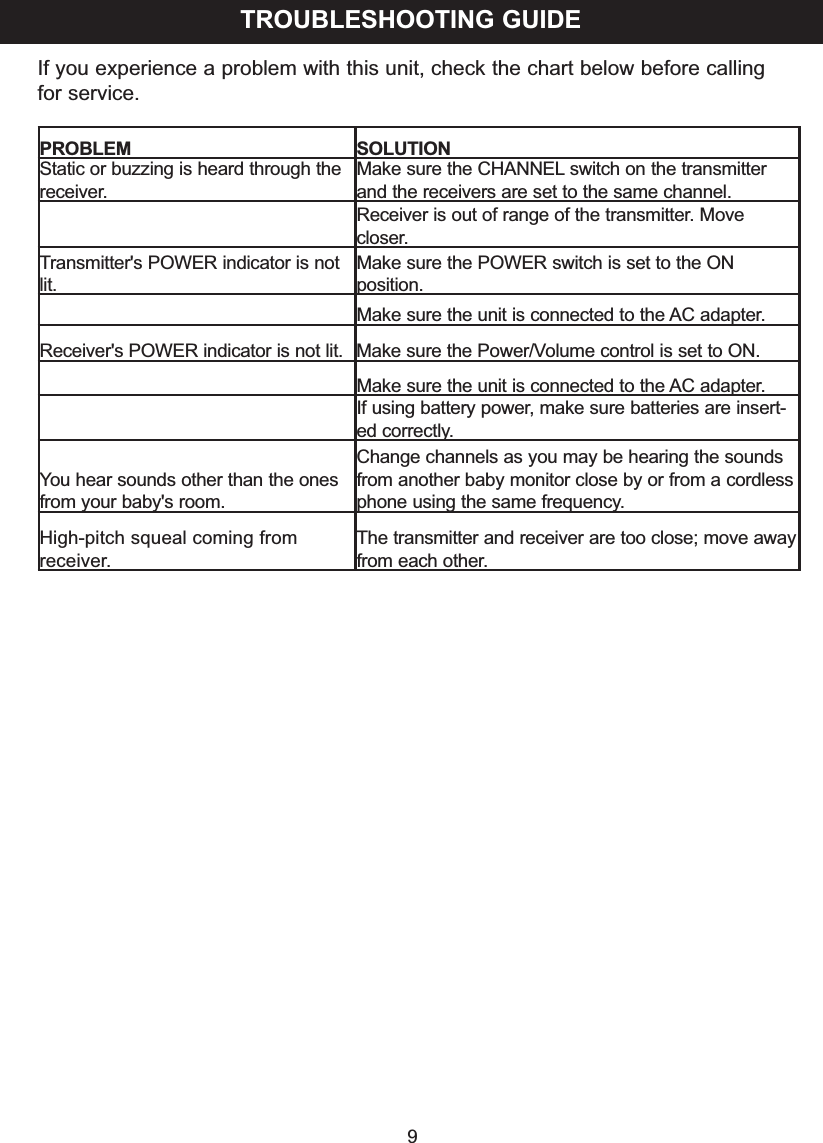

TROUBLESHOOTING GUIDE9PROBLEM SOLUTIONStatic or buzzing is heard through thereceiver.Make sure the CHANNEL switch on the transmitterand the receivers are set to the same channel.Receiver is out of range of the transmitter. Movecloser.Transmitter's POWER indicator is notlit.Make sure the POWER switch is set to the ONposition.Make sure the unit is connected to the AC adapter.Receiver's POWER indicator is not lit. Make sure the Power/Volume control is set to ON.Make sure the unit is connected to the AC adapter.If using battery power, make sure batteries are insert-ed correctly.You hear sounds other than the onesfrom your baby's room.Change channels as you may be hearing the soundsfrom another baby monitor close by or from a cordlessphone using the same frequency.High-pitch squeal coming fromreceiver.The transmitter and receiver are too close; move awayfrom each other.If you experience a problem with this unit, check the chart below before callingfor service.

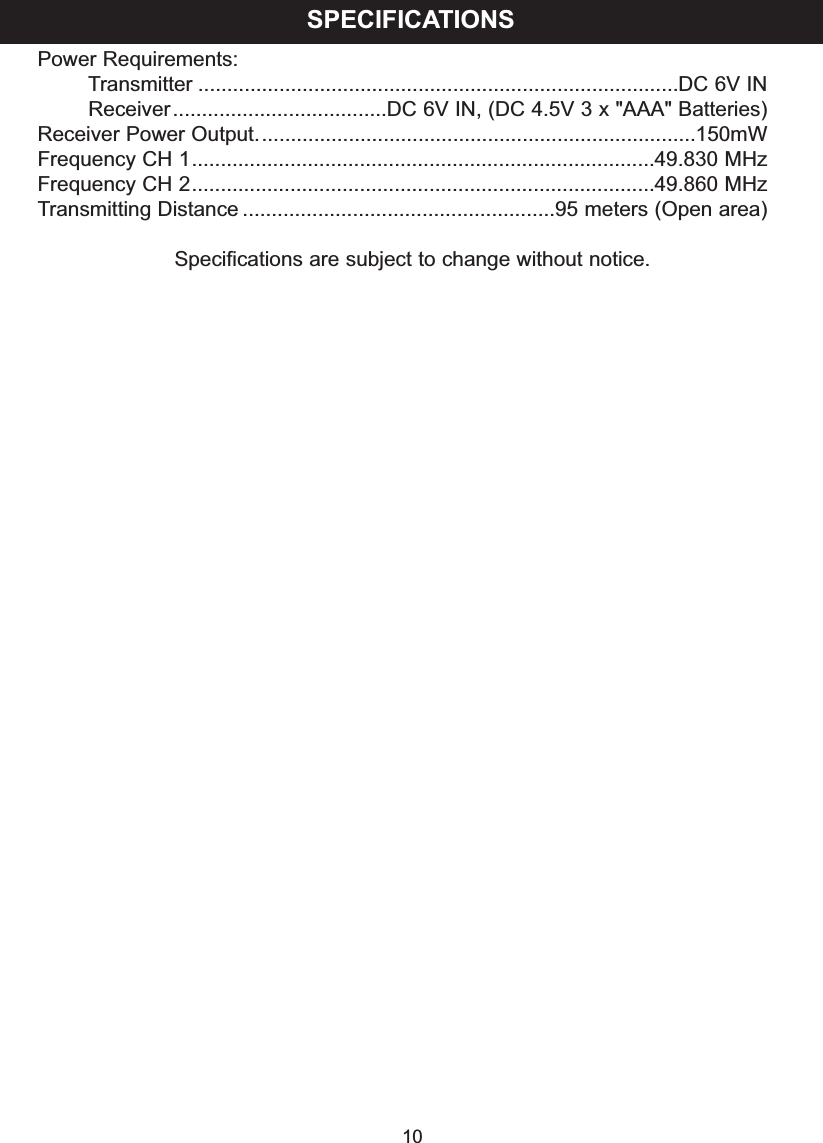

Power Requirements:Transmitter ...................................................................................DC 6V INReceiver.....................................DC 6V IN, (DC 4.5V 3 x "AAA" Batteries)Receiver Power Output............................................................................150mWFrequency CH 1................................................................................49.830 MHzFrequency CH 2................................................................................49.860 MHzTransmitting Distance ......................................................95 meters (Open area)Specifications are subject to change without notice.SPECIFICATIONS10
