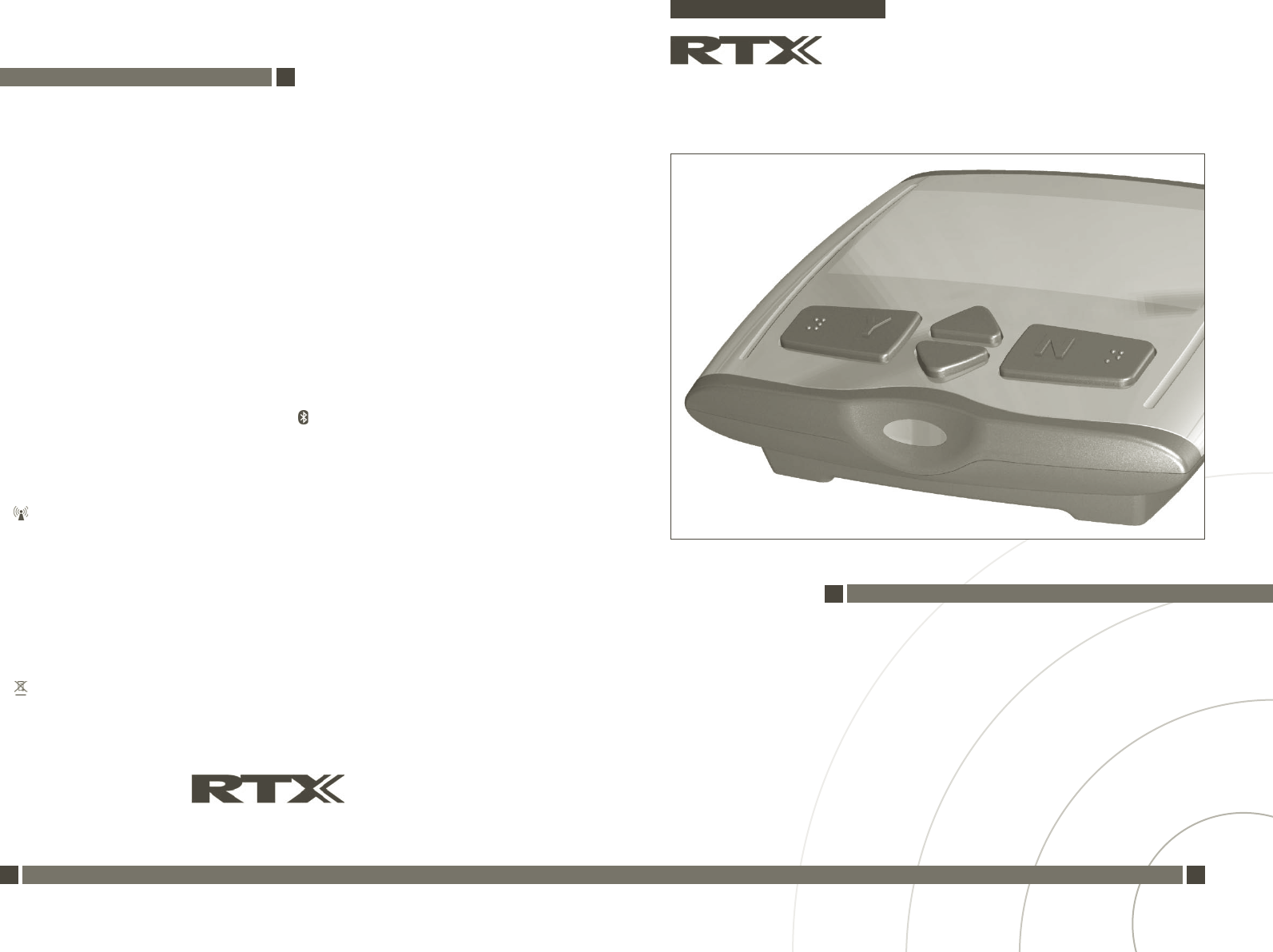

Tunstall Healthcare A/S DayLink Monitor DLM112
User Manual
RTX Healthcare · Stroemmen 6 · DK-9400 Noerresundby · Denmark · Phone: +45 9632 2300 · www.rtx.dk
RTX America, Inc. · 2099 Gateway Place · Suite 310 · San Jose · California 95110 · Phone: +1 (408) 441-8600
n This device is for use at home.
n Power requirements
Mains: 120 VAC, 60Hz, 200 mA, Class II, No applied part.
Only use the original power supply adapter with the
type designation FW7333M/06.
n Range of temperatures
Operating: +10°C to +40°C / +50 F to +104 F
Storage: -10°C to +45°C / +14 F to +113 F
Transportation: -20°C to +60°C / -4 F to +140 F
n Relative humidity
Operating/Storage/Transport: 10% to 95% non-condensing.
n Barometric pressure
Operating/Storage/Transport: 700-1060 hPa.
Dimensions (WxLxH): 156 x 145 x 70mm / 6.2 x 5.7 x 2.8 inches.
Weight: 425 g / 15 oz including power supply adapter.
n Radio Transmitter: Bluetooth compliance: Version 1.1.
Operating frequency: 2.402 to 2.480 GHz.
Output power: 1 to 100 mW / Bandwith: <1MHz.
Antenna type: Internal
Operational range: Up to 100 meters (indoor) depending of surroundings.
n The internal antenna used for this mobile transmitter must provide a separation distance of at
least 20 cm from all persons and must not be co-located or operating in conjunction with any other
antenna or transmitter.
n This device has been tested and found to comply with FCC Part 68. Please read the »US telephone
network customer information« in this manual.
n This device, including the power supply adapter, is certied to comply with UL60601-1.
n This device, including the power supply adapter, is tested according to EN60601-1-2.
n Data integrity and security: The privacy of data transmission with this device is secured by data
encryption and authentication (SSL), and meets authorized standards under the HIPAA.
n Only dispose the DLM112 at an appropriate recycle facility for electronics. Ask RTX for more
information.
TECHNICAL SPECIFICATIONS
PART# 50100002 US/UK
HOW TO INSTALL AND INSTRUCTIONS FOR USE
DAYLINK MONITOR • DLM112 • USER MANUAL
The Daylink 112 Monitor (“DLM112”) is for use by patients at home. It is intended to be used
in combination with a variety of external devices upon prescription of a licensed physician or
other authorized healthcare provider. DLM112 serves as the remote communication link between
compatible external devices, and the compatible healthcare facility at another location. The
healthcare facility could be at a disease management center, or with the healthcare/wellness
provider or other out-of-hospital caregivers.
The purpose is to collect and transmit selected medical information (such as weight, blood pressure,
blood glucose) over a normal residential telephone line.
The installation must be performed by or under supervision of an authorized company.
This device does not measure, interpret or make any decisions on the vital data that it conveys.
Precautions and Warnings
This device is not intended for emergency calls, and may not be used for transmission or indication
of any real-time alarms or time-critical data.
Clinical judgement and experience are sometimes required to check and interpret the measurements
collected and transmitted.
This device is not for use in systems, which substitute for medical care.
This device is not intended for patients requiring direct medical supervision or emergency
intervention.
Important information
n It is important that the cables be carefully arranged and secured to avoid unintended disconnection, or the
possibility of tripping or blocking the path of a wheelchair or other moving objects.
n Be careful not to use a power socket which may be switched off unnoticed.
n Do not install or service the device, power adapter or cables during an electrical storm.
n Do not place the DLM112 in extreme climatic conditions (excessive heat or humidity, in direct sunlight
or where it may be exposed to large amounts of dust).
n Do not place beverages near the DLM112 as spills may easily result in serious damage.
n Protect the device and cables from damage.
n Keep pets and small children away from the area where the DLM112 and cables are located.
The DLM112 Remote Patient Monitor is used for reception and communication of measurements taken
by on-site external devices such as Blood Pressure Monitors, Personal Weight Scales, Blood Glucose
Monitors and other compatible devices: The communication will be performed using:
n Wireless data connection.
n Infrared data connection.
n Cable connection.
The display on the DLM112 can be used to show questions that can be answered by pushing the keys below
the display. A speaker will support the information shown on the display verbally. When the DLM112 has
received the measured values and the answers, it generates a call and conveys the data to a remote facility
via a public telephone line. In some cases, the DLM112 is programmed to deliver data at a specic time
of day. The delivery of data will automatically be repeated if the attempt to deliver data fails.
Cleaning and Maintenance
The DLM112 may be cleaned with a soft, dry cloth or a cloth dampened with tap water and a mild
detergent. A household glass cleaner on a soft, dry cloth may be used to clean off smudges. Never use any
solvent, thinner, lighter uid, alcohol, wet wipes or similar products on the DLM112.
Note
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
n Reorient or relocate the receiving antenna of the other equipment.
n Increase the separation between the equipment and receiver.
n Connect the equipment into an outlet on a circuit different from the one used for the receiver.
n Consult the manufacturer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Modications not expressly approved by this company could void the user’s authority to operate the
equipment.
INTENDED USE FUNCTIONALITY
2 3

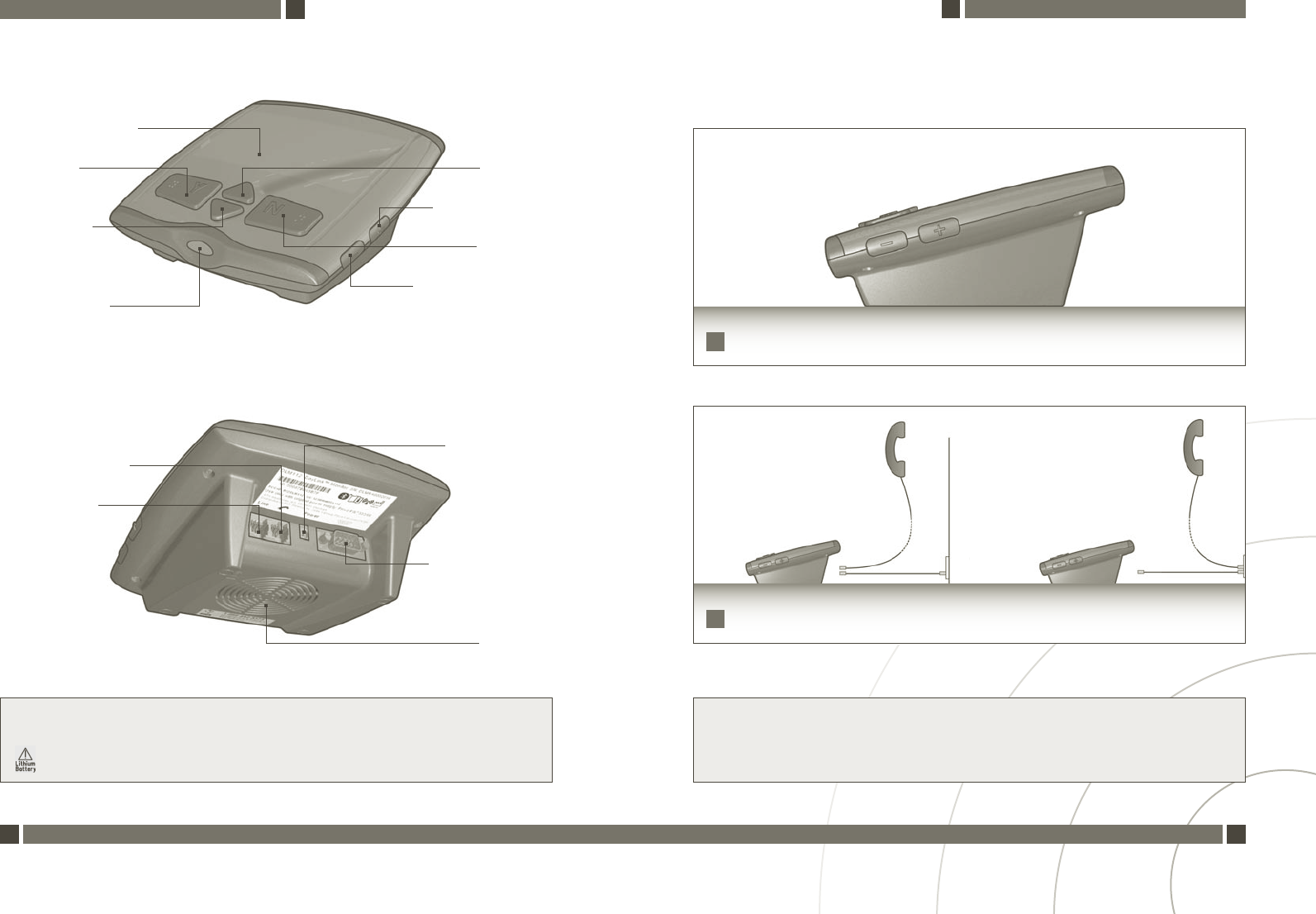

PARTS IDENTIFICATION INSTALLATION STEP BY STEP
4 5
Before installation, please read all the information provided in this manual!
Inspect the package for any damage. In the event of damage, please call for service.
Always keep the original package for return shipment.
Important
When the DLM112 uses the telephone line for data transmission, it will release the telephone line
if a normal voice call has to be done.
Important
Use only the original power supply adapter Friwo FW7333M/06 which comes with the DLM112.
The DLM112 contains a small lithium battery. Do not replace.
n Down button
n No button
n Display with backlight
n Up buttonn Yes button
n Speaker volume up
n Speaker volume downn Window for infrared
communication
n Power connector
n Speaker
n Telephone connector
n Line connector
n RS232 connector
for external devices
with cable
Place the DLM112 in a level position
1
Connect the DLM112 to the telephone system
2
This equipment complies with Part 68 of the rules and requirements adopted by ACTA. On the bottom side of this
equipment is a label that contains, among other information, a product identier in the format US: RTXMM00B3320
(SKAL OPDATERES). If requested, this number must be provided to the telephone company.
The registration jack USOC for the equipment is RJ11C. A plug and jack used to connect this equipment to the premises
wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the
ACTA.
A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible
modular jack that is also compliant. See installation instructions for details. The REN is used to determine the number of
devices that devices that may be connected to a telephone line. Excessive RENs on a telephone line may result in the devices
not ringing in response to an incoming call. In most but not all areas, the sum of RENs should not exceed ve (5.0).
To be certain of the number of devices that may be connected to a line, as determined by total RENs, contact the local
telephone company. For products approved after July 23, 2001, the REN for this product is part of the product identier
that has the format US:AAAEQ##TXXXX. The digits represented by ## are the REN without a decimal point (e.g., 03
is a REN of 0.3). For earlier products the REN is separately shown on the label.
If this equipment US:RTX3320 (SKAL OPDATERES) causes harm to the network, the telephone company will notify you
in advance that temporary discontinuance of service may be required. But if advance notice is not practical, the telephone
company will notify the customer as soon as possible. Also, you will be advised of your right to le a compliant with the
FCC if you believe it is necessary. The telephone company may make changes in its facilities, equipment, operations or
procedures that could affect the operation of the equipment. If this happens the telephone company will provide advance
notice in order for you to make necessary modications to maintain uninterrupted service. If trouble is experienced with
this equipment US:RTX3320 (SKAL OPDATERES), for repair or warranty information, please contact RTX America,
Inc., 2099 Gateway Place, Suite 310, San Jose, California 95110. If the equipment is causing harm to the telephone
network, the telephone company may request that you disconnect the equipment until the problem is resolved.
Connection to party line service is subject to state tariffs. Contact the state public utility commission, public service
commission or corporation commission for information.
If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this
equipment US:RTX3320 (SKAL OPDATERES) does not disable your alarm equipment. If you have questions about
what will disable alarm equipment, consult your telephone company or a qualied installer.
INSTALLATION STEP BY STEP US TELEPHONE NETWORK CUSTOMER INFORMATION
6 7
Important
After installation, always check that the telephone can be used for making calls as usual.
Avoid disconnecting the power supply adapter from the DLM112.
Make sure that the power source cannot be switched off unnoticed.
Switching the DLM112 off
If necessary the DLM112 can be switched off by unplugging the power supply adapter from the
electrical outlet. In connection with problems with the telephone line or the DLM112, please
disconnect the DLM112 to make the call.

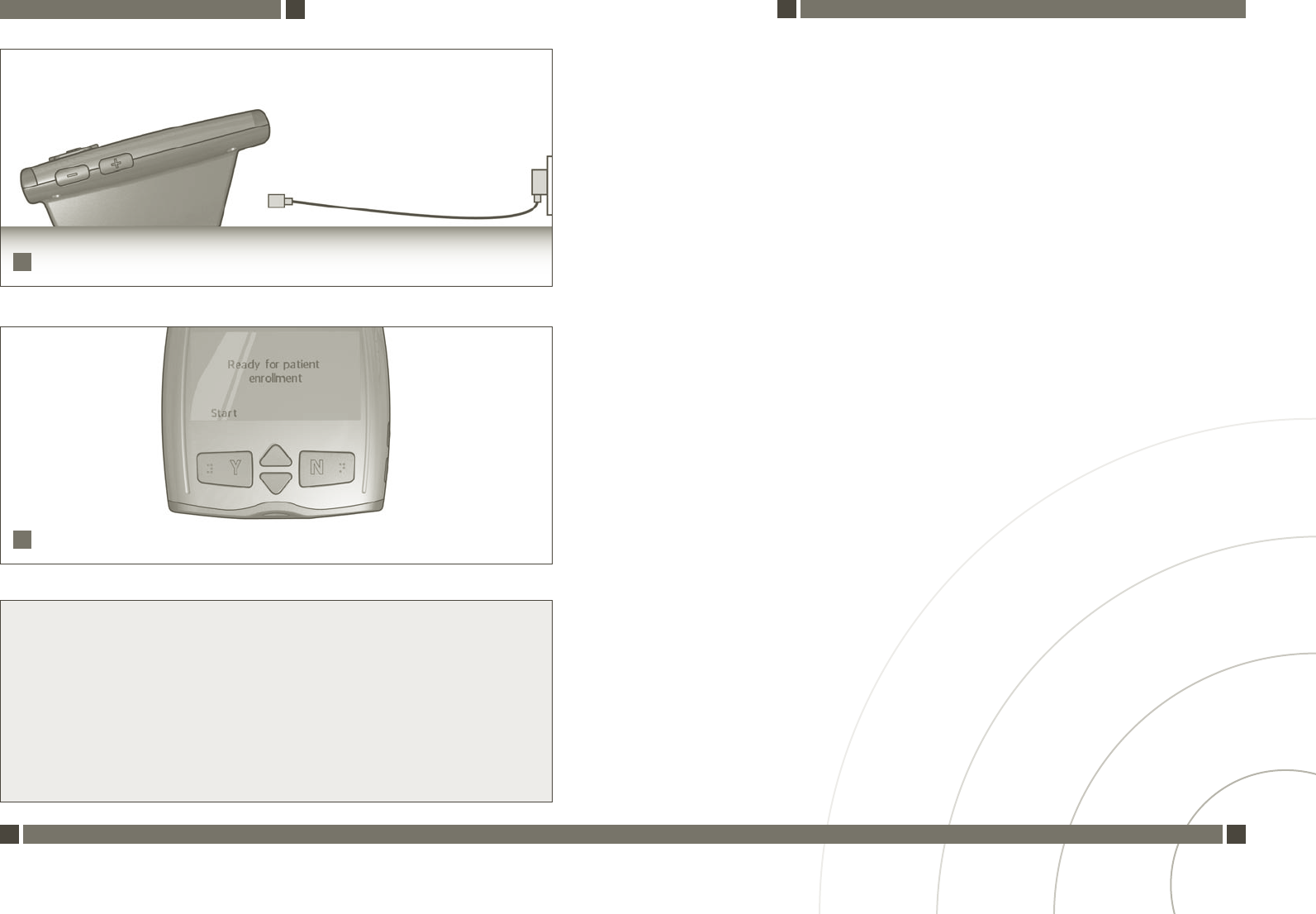

Connect the power supply adapter to an electrical outlet
3
At start-up, follow the information in the display of the DLM112
4
