Tunstall Healthcare 41004A Telecare Interface Module type 41004A User Manual D4107089A

Tunstall Healthcare (UK) Limited Telecare Interface Module type 41004A D4107089A

Contents

Occupancy detector manual

Document Number: D4107089A
Bed/Chair Occupancy Sensor (model number 41004/12)
User Guide.
The Bed/Chair Occupancy Sensor has been designed to trigger
an alarm call if it detects that use of the bed or chair is outside
pre defined patterns, which may indicate the user has had a fall
or is ill. The installer can configure this sensor in several
different ways giving options to turn lights on or extend the time
of monitoring after leaving the bed/chair.
The installer will position the sensors in their correct locations in
accordance with the installation manual. They will also
configure the system. The current configuration is indicated
below (installer, complete as appropriate):
• Between __:__ and __:__ the sensor will monitor for occupancy. During this time if absence is
detected for more than _____ then an alarm call will automatically be made by the T4000 (or
Emergency Call System) to a monitoring centre or personal number. In addition, an “extend”
button may be fitted. This will allow the user to increase the period before the alarm is raised to
_____ by pressing the button at any time prior to the alarm call being sent.
• Between __:__ and __:__ the device can use X10 to switch on a lamp automatically once out
of bed and switch off once back into bed.
• If occupancy is not detected before __:__ (the not in bed by time) then an alarm call will
automatically be made by the T4000 (or Emergency Call System) to a monitoring centre or
personal number.
• If occupancy continues after __:__ (the still in bed by time) then an alarm call will automatically
be made by the T4000 (or Emergency Call System) to a monitoring centre or personal
number.
If a lamp is connected to an X10 controller, the switch on the lamp should be permanently ON. The
X10 controller will automatically switch the light on and off.
Reliance should not be placed on the Bed/Chair Occupancy Sensor, model number
41004/12, for life safety.
!

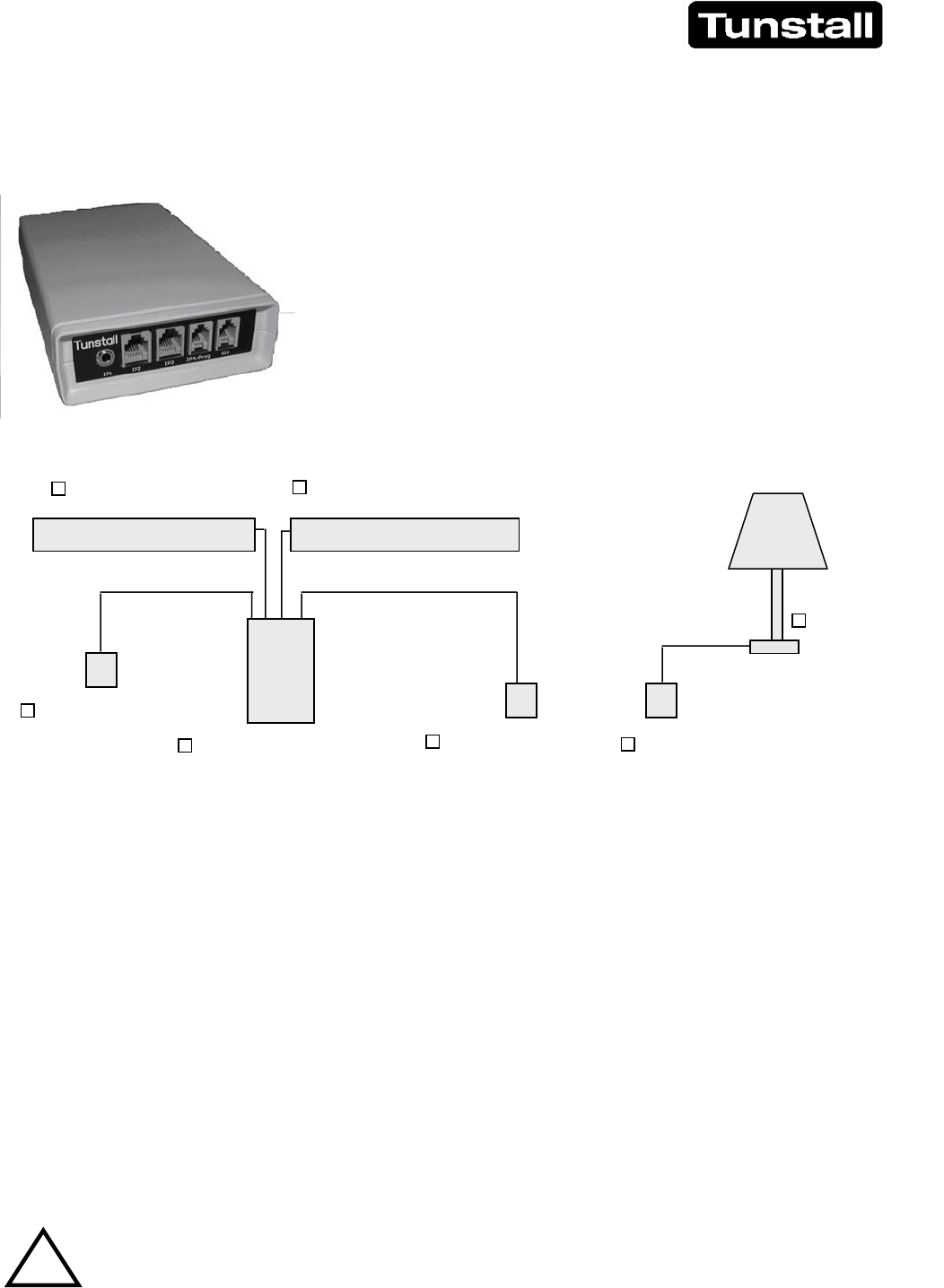

Bedside Lamp
X10 controller
X10 Interface
Extend Button
First Bed Pad Second Bed pad
Bed Occupancy Sensor
Document Number: D4107089A
General Maintenance.
To ensure proper operation of the sensor please ensure that the blue pad sensing bed or chair occupancy
remains positioned correctly in accordance with the installation instructions. It is recommended that a test
call is made at regular intervals.
Battery Replacement:
The batteries in the Occupancy sensor can be replaced with other non-rechargeable AA 1.5V mignon LR6
batteries. The replacements batteries must be fitted within 1 hour of removing the old batteries.
Environmental
The Occupancy Sensor will operate between 14°F and 131°F (-10°C and +55°C).
NOTICES
The 312 Occupancy sensor has been approved to the following applicable standards.
New Zealand and Australia Approvals
AS/NZ 4268:2003
N72
Canada
RSS210 issue 6 sept 2005
IC 1231A-41004A
This equipment meets the applicable Industry Canada Equipment Technical Specifications. This is confirmed by the registration
number. The abbreviation, IC, before the registration number signifies that registration was performed based on a Declaration of
Conformity indicating that Industry Canada Technical Specifications were met. It does not imply that Industry Canada approved the
equipment.
USA - FCC Approvals
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
Occupancy sensor
(Part Number 41004/12)
FCC ID: G2X-41004A
This Device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.
Warning
Changes or modifications to this unit not expressly
approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
