Wandering detector manual

Document Number: D4107088A
Wandering Client Sensor (Model Number 41004/14)
User Guide
The Wandering Client Sensor monitors door activity and sends an
alarm if activity is outside pre set limits. An alarm will also be
raised if the door being monitored has been left open.
The installer will position all parts of the sensor system in the
correct locations according to the installation manual, D4107046A,
contained in Palm Kit 41005/16. They will also configure the
system. The current configuration is as follows (installer, complete
as appropriate):
• To arm the monitoring functions set the keyswitch to the “On” position. The sensor will emit a
series of double beeps for __ minutes (the arming period) to allow the keyholder to exit (this is
similar to a burglar alarm). The wander functions will be armed after the sensor stops beeping.
• To disarm the wandering functions set the keyswitch to “Off”. The sensor will emit a long beep
and cease monitoring for wandering.
• If armed, the system will monitor for activity between __:__ and __:__. During this time if
anyone opens the door and the PIR does not detect movement within __:__ (the absence
time) the resident will be thought to be “wandering” and an alarm call will automatically be
made by the T4000 (or Emergency Call System) to a monitoring centre or personal number .
• If the door is left open for longer than __:__ (regardless of the postion of the keyswitch or time
of day) then an alarm call will automatically be made by the T4000 (or Emergency Call System)
to a monitoring centre.
• A light or other mains powered device can be switched on, using X10, when the door is
opened. The light will remain switched for __ minutes after the door is closed.
Reliance should not be placed on the Wandering Client Sensor, model number 41004/14,
for life safety.

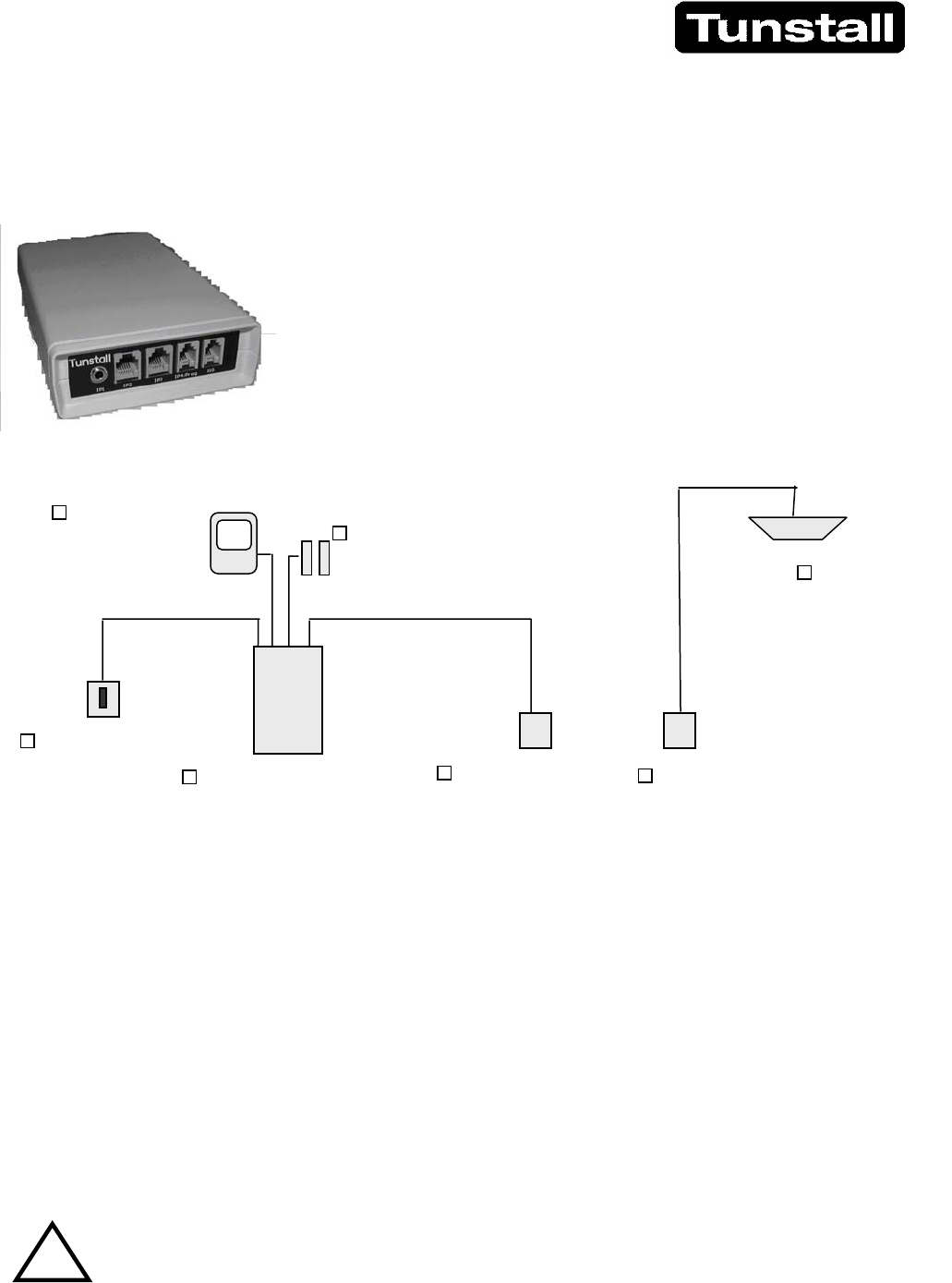

Outside Light
X10 controller
X10 Interface
Arming Switch
Passive Infra Red
Motion sensor
Ma
g
netic door contacts
Bed Occupancy Sensor
!
Document Number: D4107088A
General Maintenance.
The Wandering Client Sensor can be dusted with a dry cloth or vacuumed. It is recommended that a test call
is made at regular intervals. DO NOT USE WATER OR A DAMP CLOTH
Battery Replacement.
The batteries in the Wandering sensor can be replaced with other non-rechargeable AA 1.5V mignon LR6
batteries. The replacements batteries must be fitted within 1 hour of removing the old batteries.
Environmental
The Wander Sensor will operate between -10°C and +55°C.
The wandering client sensor has been approved to the following applicable standards.
NOTICES
The 312 Wandering sensor has been approved to the following applicable standards.
New Zealand and Australia
AS/NZ 4268:2003
N72
Canada
RSS210 issue 6 sept 2005
IC 1231A-41004A
This equipment meets the applicable Industry Canada Equipment Technical Specifications. This is confirmed by the registration
number. The abbreviation, IC, before the registration number signifies that registration was performed based on a Declaration of
Conformity indicating that Industry Canada Technical Specifications were met. It does not imply that Industry Canada approved the
equipment.
USA - FCC Approvals
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
Wandering sensor
(Part Number 41004/14)
FCC ID: G2X-41004A
This Device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.
Warning
Changes or modifications to this unit not expressly approved
by the party responsible for compliance could void the user’s
authority to operate the equipment.
