Tunstall Healthcare 6460409A 312 Flood Detector type 64604/09 User Manual D4107091A
Tunstall Healthcare (UK) Limited 312 Flood Detector type 64604/09 D4107091A
User manual
D6707035A

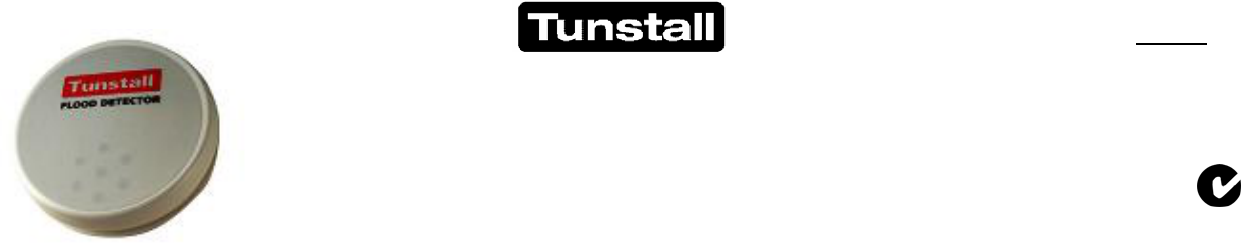

312 FLOOD DETECTOR
Part Number (64604/09)
USER INSTRUCTIONS
The 312 Flood Detector has been designed
to detect a leak or flood from a bath, sink,
washing machine etc.
How it works
On the underside of the detector, there are 3 metal probes. When water is
detected, the buzzer will sound. To prevent any false calls, for example from
condensation, the probes are NOT in contact with the floor.
Alarm Call
Three seconds after the flood/leak has been detected an alarm will be raised via
the personal emergency response unit (e.g. T4000).
Buzzer
The buzzer will sound for as long as water is detected. The buzzer will also sound
once a minute for a short time (beep) if the detector battery is becoming low (in
the same manner as a battery powered Smoke Detector).
Battery
The unit must be powered from a PP3 9V alkaline battery. The battery should be
changed every 12 months.
Test Call
It is recommended that you test your Flood Detector at regular intervals (for
example once a month). To do this, place the Flood Detector on a damp towel or
flannel (NOTE: do not immerse in water). A call will be raised. Tell the staff at the
monitoring centre that you are making a test.
INSTALLATION INSTRUCTIONS
Programming
Assign the 312 Flood Detector to the T4000 unit using the appropriate user or
programming guide. The test call described previously will initiate radio
transmission.
Positioning
The 312 Flood Detector must be placed on a flat surface with the Tunstall label
uppermost and close to the item being monitored (e.g. bath, washing machine
etc) where a flood/leak is likely to occur.
NOTICES
The 312 Flood Detector has been approved to the following applicable standards.
New Zealand and Australia Approvals
AS/NZ 4268:2003
N72
Canada
RSS210 issue 6 sept 2005
IC 1231A-6460409A
This equipment meets the applicable Industry Canada Equipment Technical Specifications. This is
confirmed by the registration number. The abbreviation, IC, before the registration number signifies
that registration was performed based on a Declaration of Conformity indicating that Industry Canada
Technical Specifications were met. It does not imply that Industry Canada approved the equipment.
USA - FCC Approvals
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
Flood detector
(Part Number 64604/09)
FCC ID: G2X-6460409A
This Device complies with Part 15 of the FCC
Rules.
Operation is subject to the following two
conditions:
(1) This device may not cause harmful
interference, and
(2) This device must accept any interference
received, including interference that may cause
undesired operation.
Warning
Changes or modifications to this unit not
expressly approved by the party responsible for
compliance could void the user’s authority to
operate the equipment.
