TurningQuickStartGuide



Overview

TurningisahighperformanceWi‐FiAccessPointcombinedwithaTurningTechnologiesRFreceiver.As

anaccesspoint,Turningsupportsthe802.11a/b/g/nIEEEstandardandwillsupport60simultaneous

clientconnectionsinthe2.4GHzISMband.InadditiontoWi‐Fiaccesspointfunctionality,theTurning

TechnologiesRRDR‐01RFdual‐radioreceiversupportsdatacollectionfromTurningTechnologies

responsedevicesandpollingapplications.Theincludedstoragealsoprovidesdeliveryofclassroom

contentregardlessofconnectivityexternaltotheclassroom,thusprovidingareliableclassroom

networkforadministeringlearningcontentandengagingstudentsviaTurningTechnologiesofferings.



Hardware

TheTurningmodelRRAP‐01enclosureexposestwoconnectorsandthreeLEDs.

Connectors

TheRJ‐45connectorisforconnectingtoaWideAreaNetwork(WAN)andoptionallypoweringtheunit.

TheeRJ‐45connectorsupports10/100/1000Base‐TEthernet.TheRJ‐45connectoralsosupportsPower

overEthernet(POE).IfthenetworkwiringsupportsPOEthisistheonlyconnectionneeded.

ApowerconnectorjackisalsoprovidedtosupportinstallationswithoutPOEwiring.Awalltransformer

stylepowersupplyisincludedwiththeunit.

LEDS

FourLEDindicatetheunit’sstatus.Theyare:

• GreenUnitStatus

o Blinkstwiceeverysecond

• RedUnitStatus

o Onuntilunitbootsorafteranunrecoverableerrorhasoccurred

• BlueWi‐FiStatus

o OnwhentheAccessPointWi‐Fiisrunning

• YellowEthernetStatus

o OnwhentheEthernetportisconnectedandrunning

InternallyAccessedHardware

InsidetheRRAP‐01enclosurearethefollowinghardware:

• AmicroSDconnectorwith8GbmicroSDcard

• 2RedLEDindicatingread/writeaccesstothemicroSDslot

• ASystemResetbutton

o resetstheunitsprocessorandhardware

• AUserbutton–resetstheUserConfigurationtofactorydefaults

o Mustbeheldfor5seconds

• AnRJ‐45ethernetconnector

o bridgedtotheWi‐Finetwork(10.4.0.x)

• AminiUSBconnector–USBtoSerialbridge

o U‐Boot/Linuxconsole

• Areplaceablecoinbattery–clockbattery

Powerup

Afterpoweringtheunit,eitherwiththepoweradapterorPOE,itwillperformthefollowingbootup

sequencereflectedbyitsLEDs:

• Powerapplied,1stbootstage

o Red,Blue,YellowLEDson

• 2ndbootstage,U‐Bootstarted

o Red,Green,Blue,YellowLEDson

• 3rdbootstage,OSkernelstarted

o GreenLEDon

• Running

o GreenLEDblinkstwicequicklyoncepersecond

o BlueLEDon

o YellowLEDmaybeonoroffdependentoftheethernetstatus

ConnectingwithWiFi

Afterpoweringontheunittheaccesspointisreadyforconnections.Theunit’sSSIDisbasedonits

uniqueEthernetMACaddress.It’sSSIDisintheformatof“RRAP‐xx‐yy‐zz”wherez”xx‐yy‐zz_arethe

leastsignificantthreebytes(6digits)oftheunit’sEthernetMACaddress.

ThedefaultWi‐Ficonfigurationis802.11n.

ThedefaultsecurityconfigurationisWPA2‐PSK.Thedefaultpasskeyis“Turn1ngT3ch”.

TomakeaconnectionfromWindows7:

• Clickonthewirelessicon(bar)inthelowerrightcornerofthedesktop

• Findthe“RRAP…”connection,selectitandclickConnect

• WhenPrompted,enterthepassword“Turn1ngT3ch”



WebBasedConfiguration

Onceconnectedtotheaccesspoint,itswebbasedconfigurationmaybeusedtoconfiguretheWi‐Fiand

systemsettings.

ToaccesstheWebBasedConfigurationopenaninternetbrowserandentertheaddress

“10.4.0.1:10000”

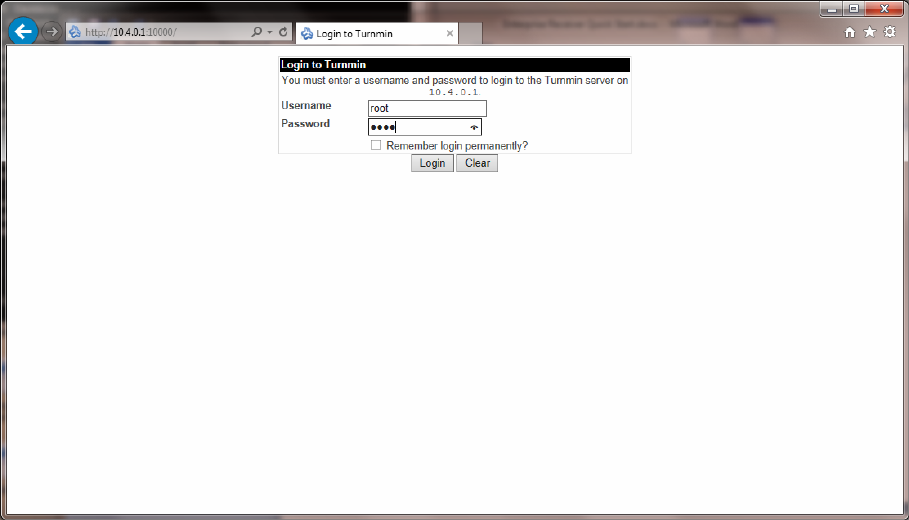

Alogindialogisdisplayed.Enterthedefaultusername“root”andthedefaultpassword“root”forthe

password.



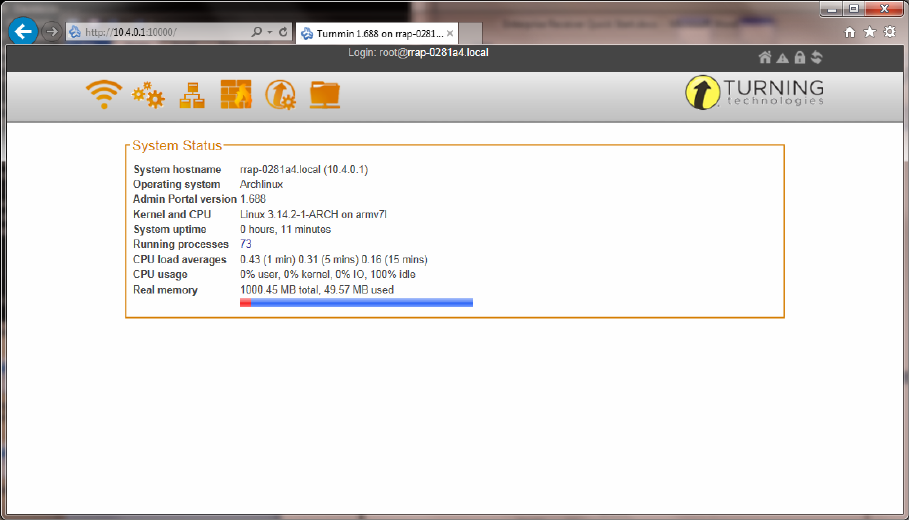

Afterasuccessfulloginyouwillbebroughttothesystemstatuspage



ConnectingwithSSH

Foradvancedconfigurationandusageasecureshell(SSH)connectionisavailableatthedefaultIP

addressof“10.4.0.1”.Thesuperuseraccount“root”canbeaccessedwiththedefaultpassword

“Sassafras”.

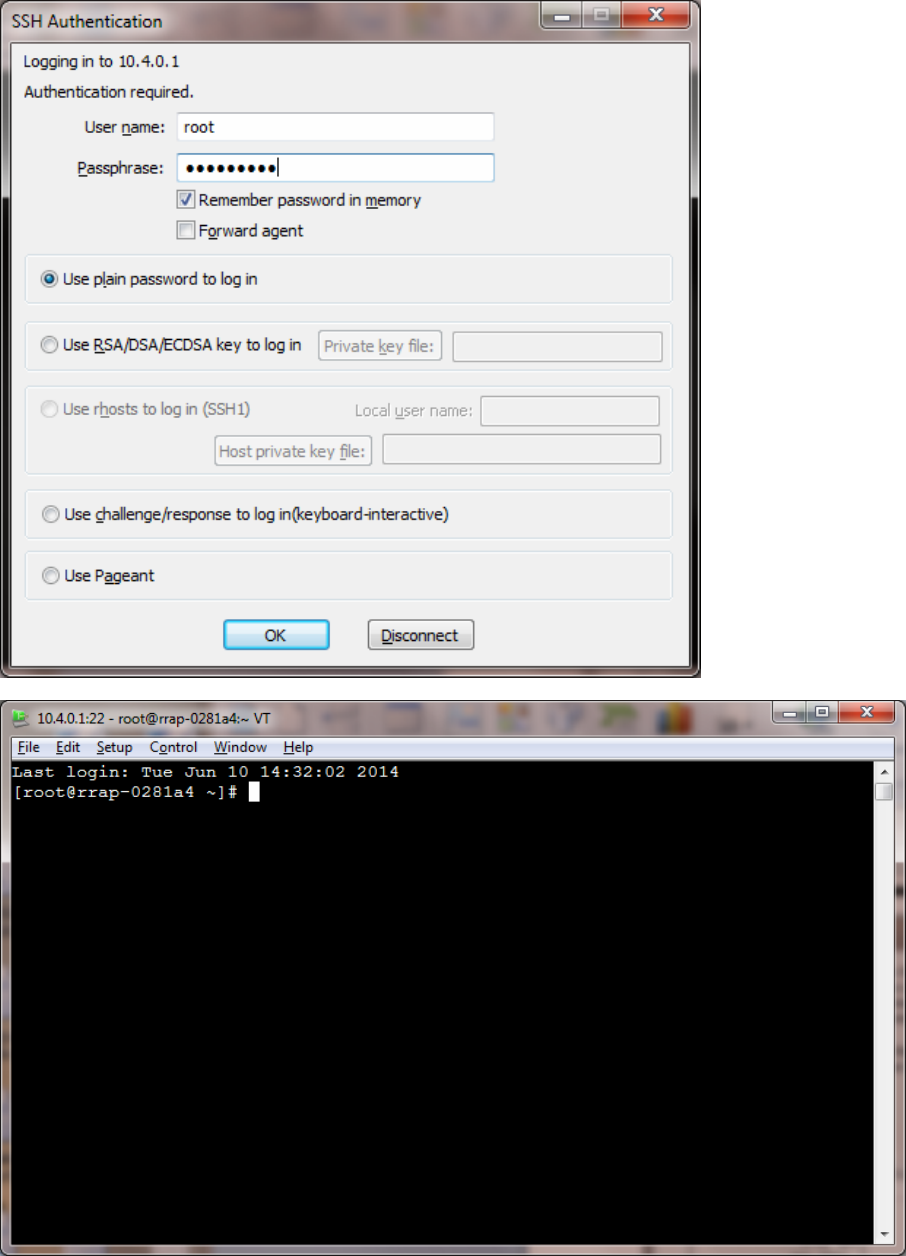

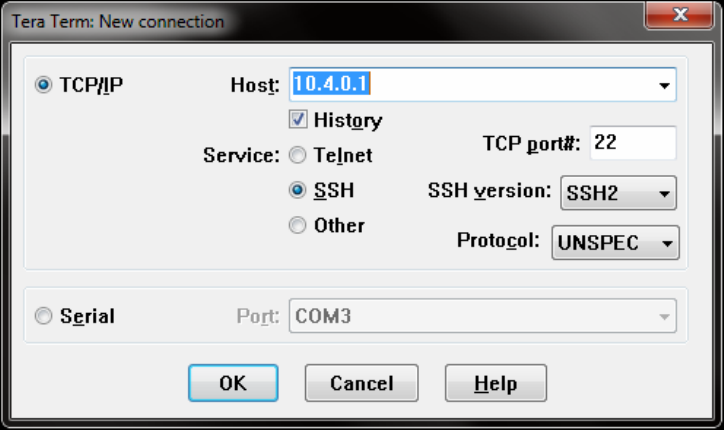

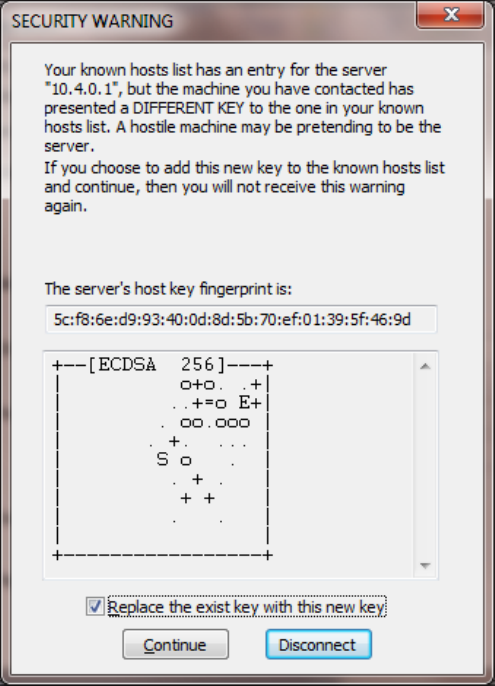

ThefollowingscreenshotsillustratemakinganSSHconnectionwith“TeraTerm”,afreelydownloadable

terminalemulationprogram.


