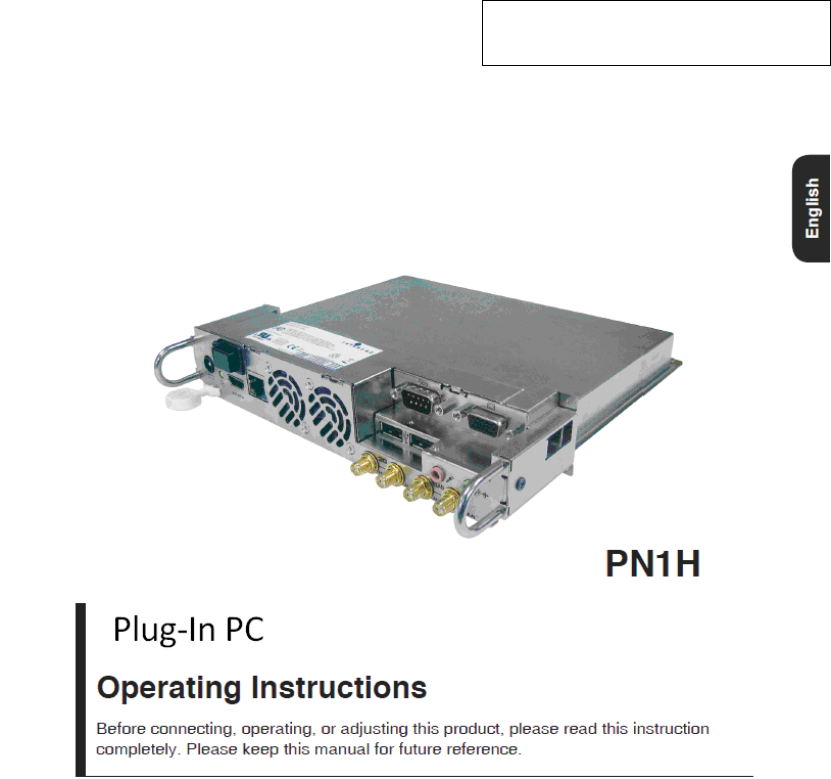

Twinhead PN1H Plug-In PC User Manual PN1H Plug In PC 0902
Twinhead International Corporation Plug-In PC PN1H Plug In PC 0902
Twinhead >
User Manual
TWINHEAD
2
3
Note:
1. HDMI and VGA cannot be used at the same time.
2. Turn On/Off the Plug-In PC from TV remote
3. The Plug-In PC will follow TV power status

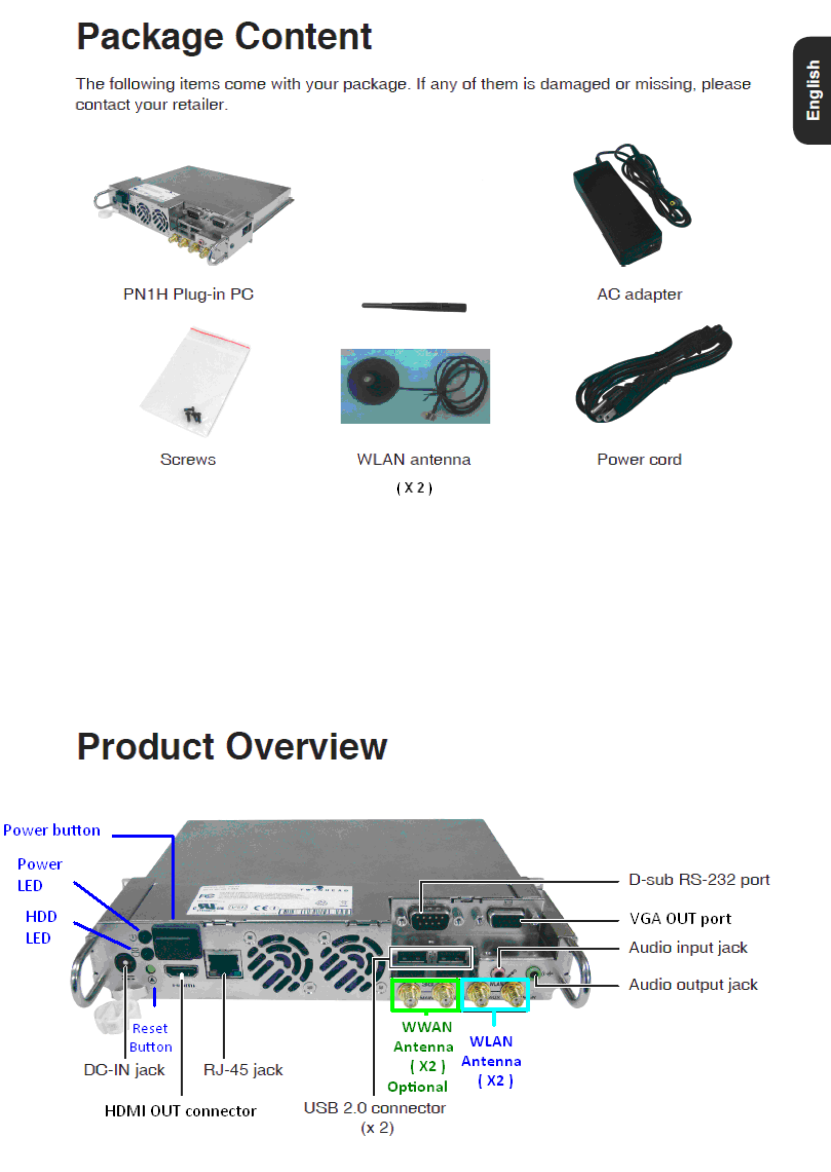

LED Indicator
LED Indicator
Item Description
Power LED Green when system is active
HDD LED Green when the read/write data
Green when the LAN is connected
LAN LED Yellow when the LAN access data
4
5
6
7
Copyright
Copyright© 2010. All rights reserved.
No part of this user manual may be transmitted, stored in a retrieval
system, or translated into any language or computer language, in any
form or by any means, without the prior written permission of the
manufacturer. Information is subject to change without prior notice.
Regulatory Statement
Federal Communications Commission Statement
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the
receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
8
Consult the dealer or an experienced radio/TV technician for
help.
Shielded interconnect cables and shielded AC power cable must be
employed with this equipment to insure compliance with the pertinent
RF emission limits governing this device. Changes or modifications
not expressly approved by the system's manufacturer could void the
user's authority to operate the equipment.
Declaration of Conformity
This device complies with part 15 of the FCC rules. Operation is
subject to the following conditions:
This device may not cause harmful interference
This device must accept any interference received, including
interference that may cause undesired operation.
RF exposure warning
This equipment must be installed and operated in accordance with provided
instructions and the antenna(s) used for this transmitter must be installed to
provide a separation distance of at least 20 cm from all persons and must not
be co-located or operating in conjunction with any other antenna or transmitter.
End-users and installers must be provide with antenna installation instructions
and transmitter operating conditions for satisfying RF exposure compliance.
This device is operation in 5.15 – 5.25GHz frequency range, then restricted in indoor
use only.
This device is slave equipment, the device is not radar detection and not ad-hoc
operation in the DFS band.
European Notice
Products with the CE Marking comply with both the EMC Directive
(89/336/EEC) and the Low Voltage Directive (73/23/EEC) issued by the
Commission of the European Community.
Compliance with these directives implies conformity to the following European
Norms:
EN 55022 ( CISPR 22 ) Radio Frequency Interference
EN 55024 ( EN61000-4-2, EN61000-4-3, EN61000-4-4,
EN61000-4-5, EN61000-4-6, EN61000-4-8,EN61000-4-11,
EN61000-3-2, EN61000-3-3 ) Generic Immunity Standard
EN 60950-1 ( IEC 60950-1 ) Product Safety
9
R&TTE (CE) MANUAL REGULATORY REQUIREMENT (WLAN - IEEE
802.11a/b/g/n)
802.11a Restrictions:
The low band 5.15 -5.35 GHz is for indoor use only.
802.11b.g.n Restrictions:
European standards dictate maximum radiated transmit power of 100mW EIRP
and frequency range 2.400-2.4835GHz.
In France, the equipment must be restricted to the 2.4465-2.4835GHz frequency
range and must be restricted to indoor use."
CE Declaration of Conformity
CE !
Is herewith confirmed to comply with the requirements set out in the
Council Directive on the Approximation of the Laws of the Member States
relating to Electromagnetic Compatibility (89/336/EEC), Low- voltage
Directive (73/23/EEC) and the Amendment Directive (93/68/EEC), the
procedures given in European Council Directive 99/5/EC and 9/3360EEC.
The equipment was passed. The test was performed according to the
following European standards.
EN 301 893 V1.2.3
EN 300 328 V1.7.1 (2006-05)
EN 301 489-1 V.1.4.1 (2005-09) / EN 301 489-17 V.1.2.1 (2002-04)
EN 60950-1:2001
10
11
▓認定番号
本製品は以下に認証を受けたものです。
認証機器名：PN1H
認定番号：
