Twinhead TA10I Tablet PC User Manual TA10i UserMan 2012 12 05
Twinhead International Corporation Tablet PC TA10i UserMan 2012 12 05
Twinhead >
( TA10i) UserMan_2012.12.05
2
Table of Contents
COPYRIGHT................................................................................................3
REGULATORY STATEMENT................................................................................4
Federal Communications Commission Statement ..........................................................................................................4
Declaration of Conformity ...............................................................................................................................................4
RF exposure warning........................................................................................................................................................5
Canada, Industry Canada (IC) Notices...........................................................................................................................5
Battery Disposal................................................................................................................................................................ 6
CLASS 1 LASER PRODUCT...........................................................................................................................................6
BEFORE YOU START ................................................................8
PACKAGE CONTENTS.....................................................................................8
FEATURES .................................................................................................9
COMPONENTS.............................................................................................9
Front View .......................................................................................................................................................................10

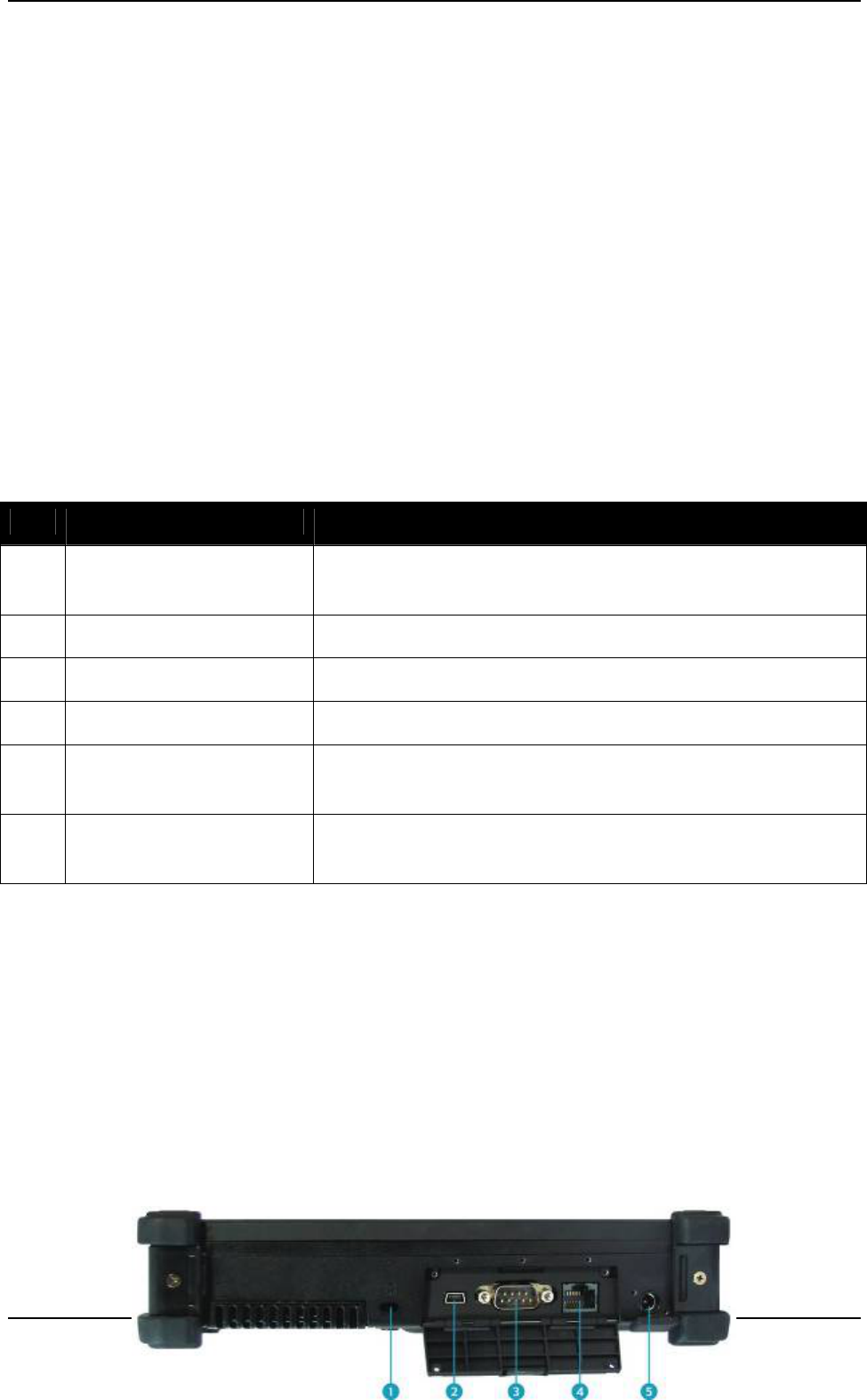

Back View........................................................................................................................................................................ 11

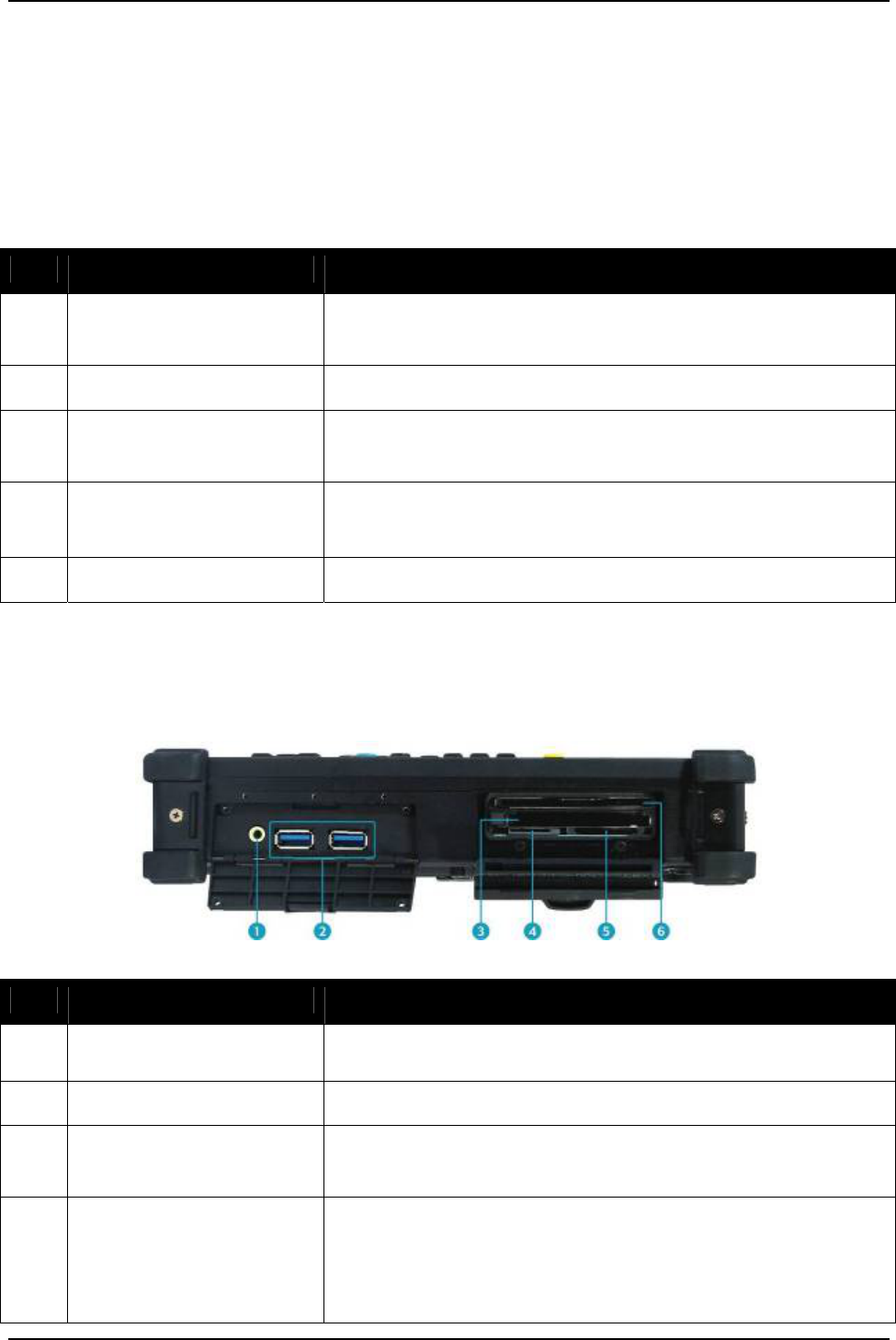

Left View..........................................................................................................................................................................12
Right View........................................................................................................................................................................13

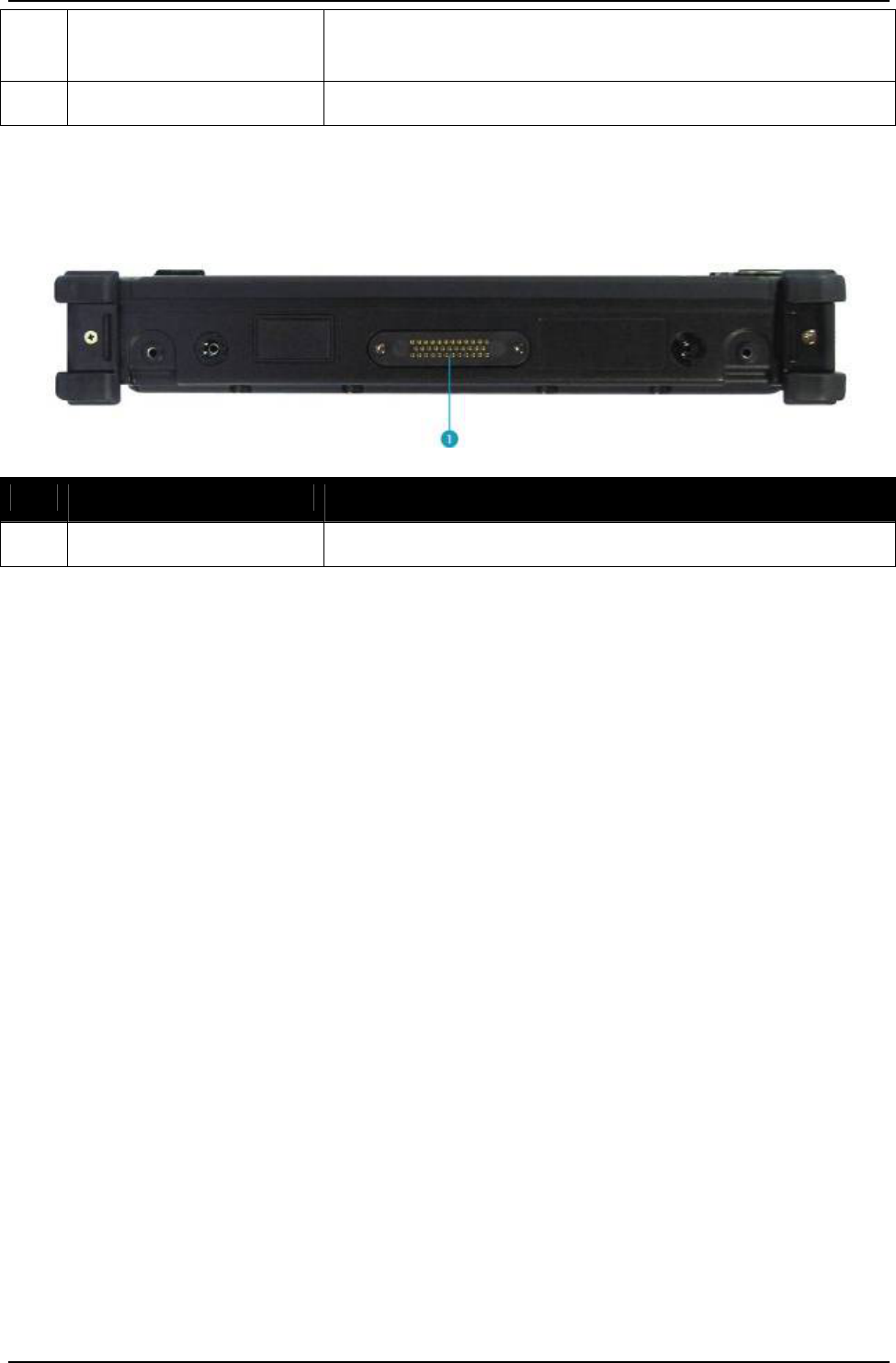

Bottom View.....................................................................................................................................................................14

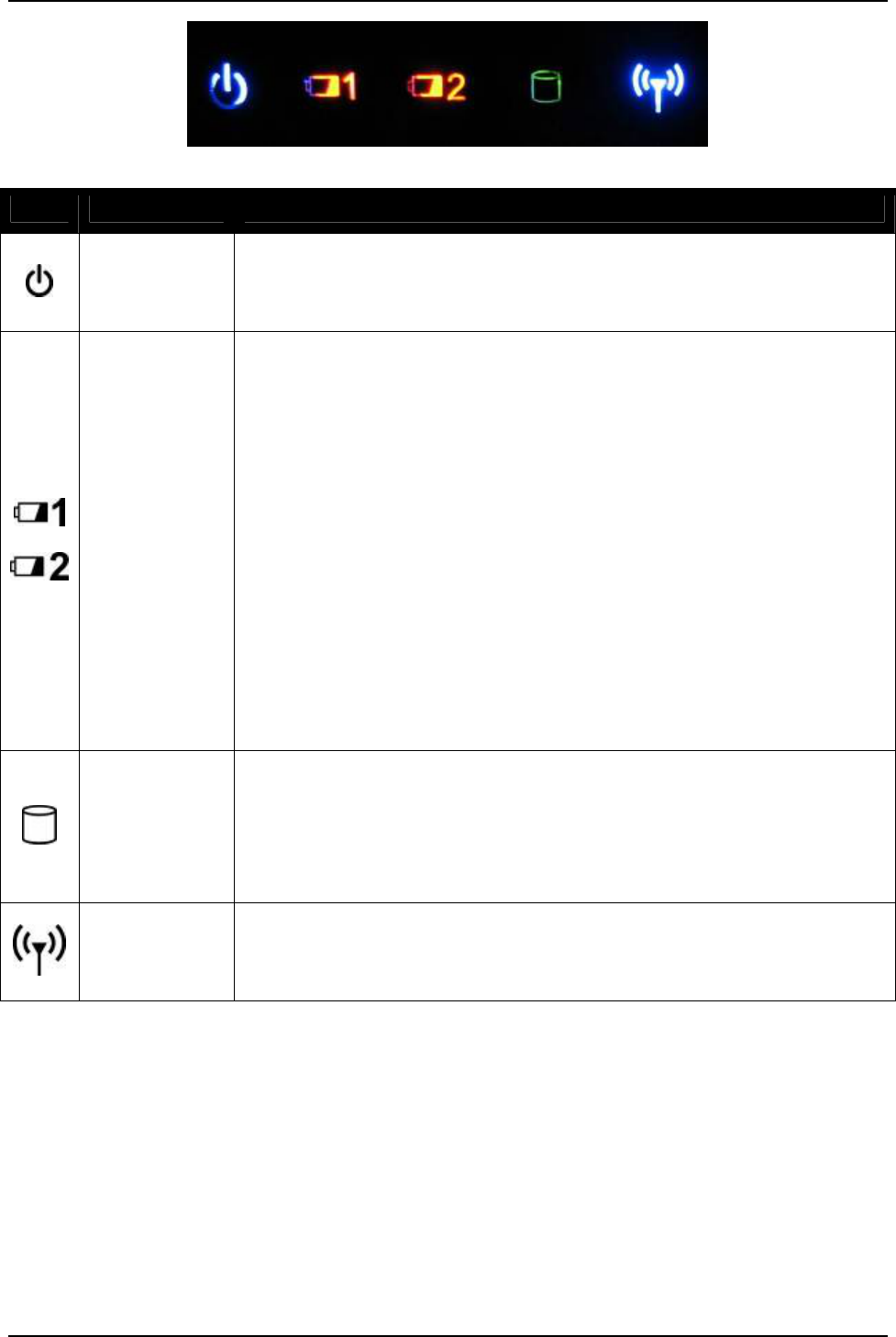

Status Indicators..............................................................................................................................................................14
GETTING STARTED................................................................15
POWERING UP YOUR TABLET PC..................................................................... 16
Connecting the AC Adapter............................................................................................................................................16
Using Battery Power.......................................................................................................................................................16

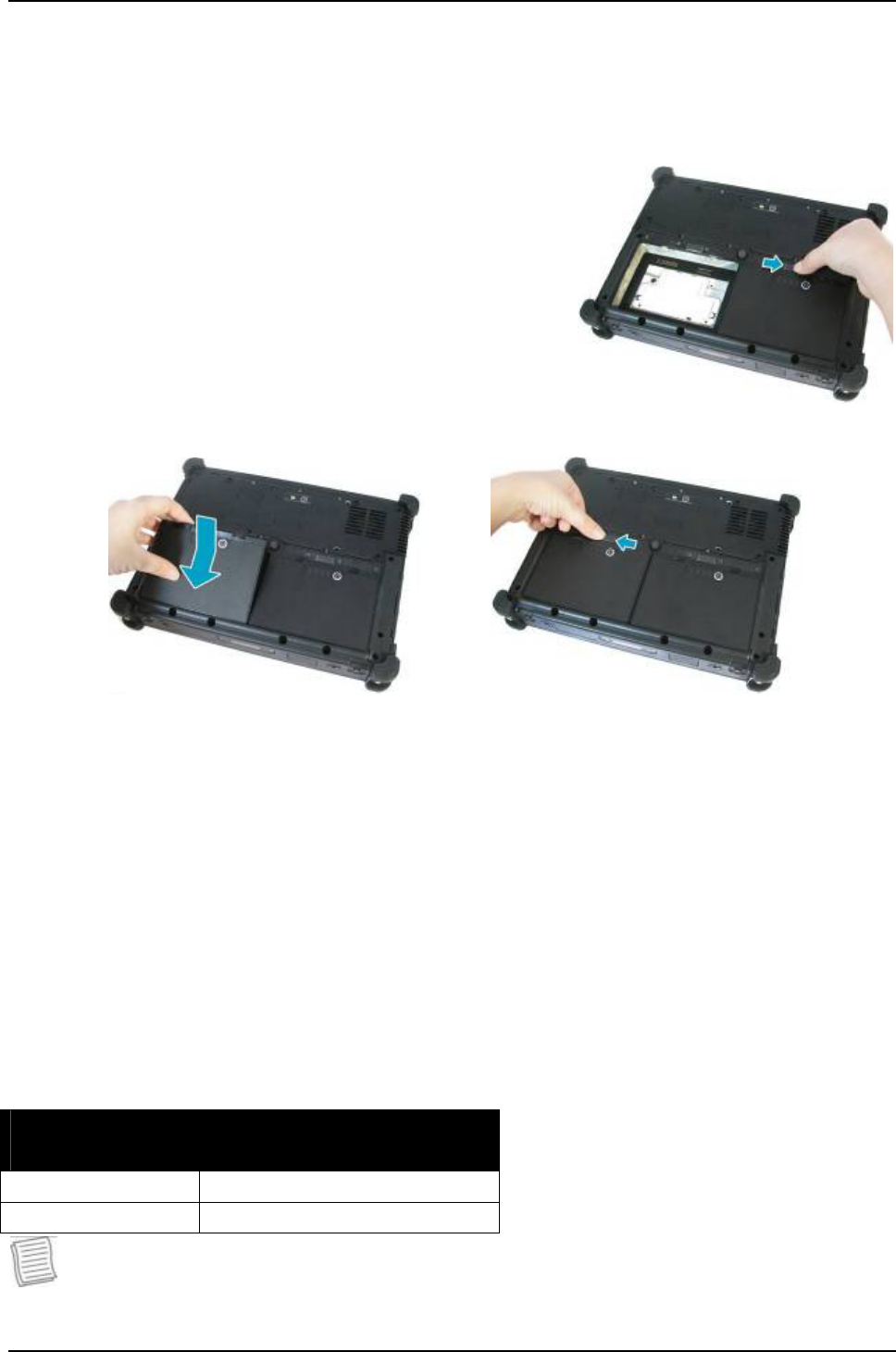

INSTALLING THE BATTERIES........................................................................... 16
Charging the Battery ......................................................................................................................................................17
Charging Time................................................................................................................................................................17
Checking the Battery Level.............................................................................................................................................18
When to replace the Battery Pack..................................................................................................................................18

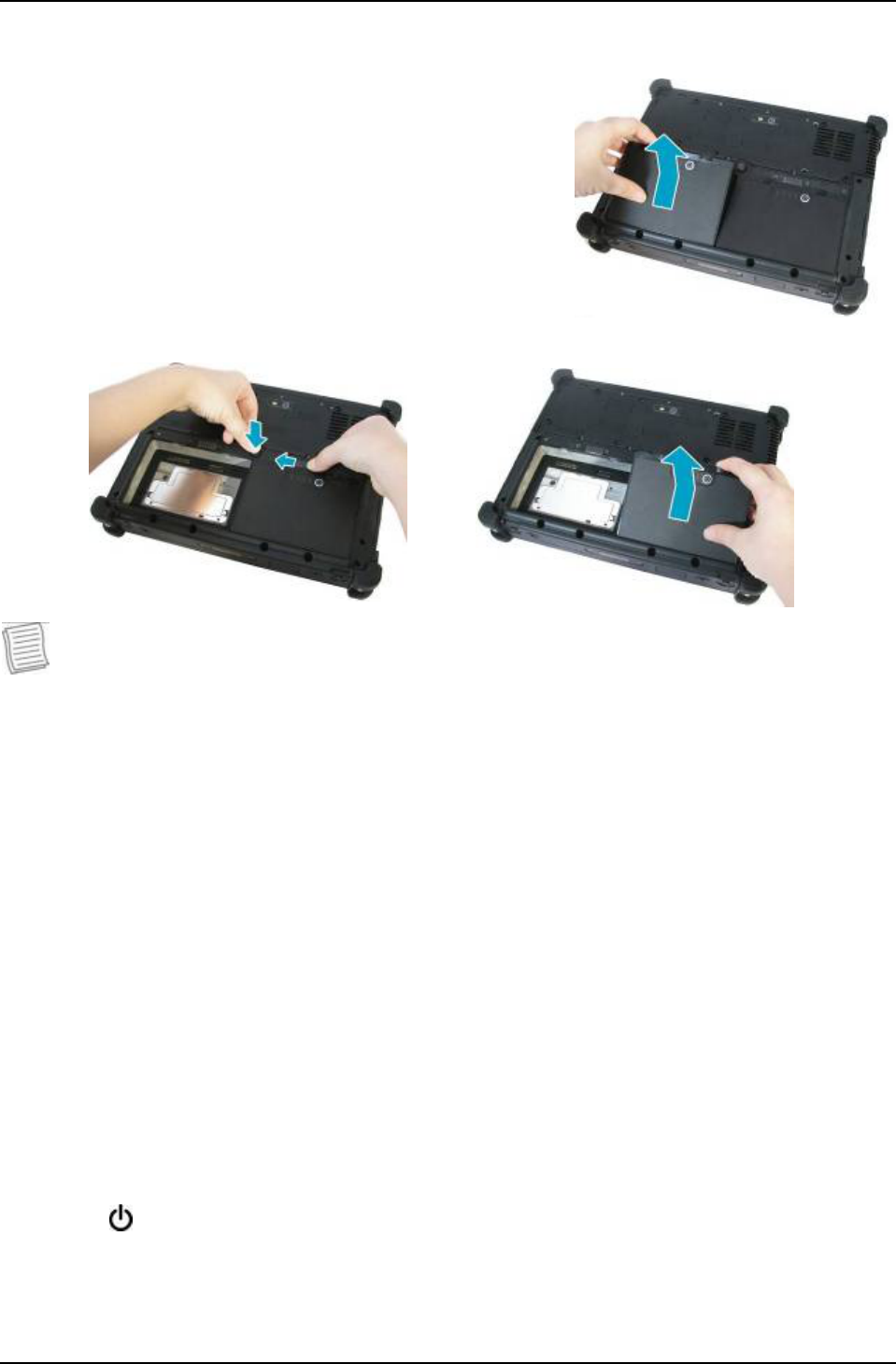

Removing the Batteries...................................................................................................................................................18
STARTING YOUR TABLET PC .......................................................................... 19
Turning On Your Tablet PC...........................................................................................................................................19

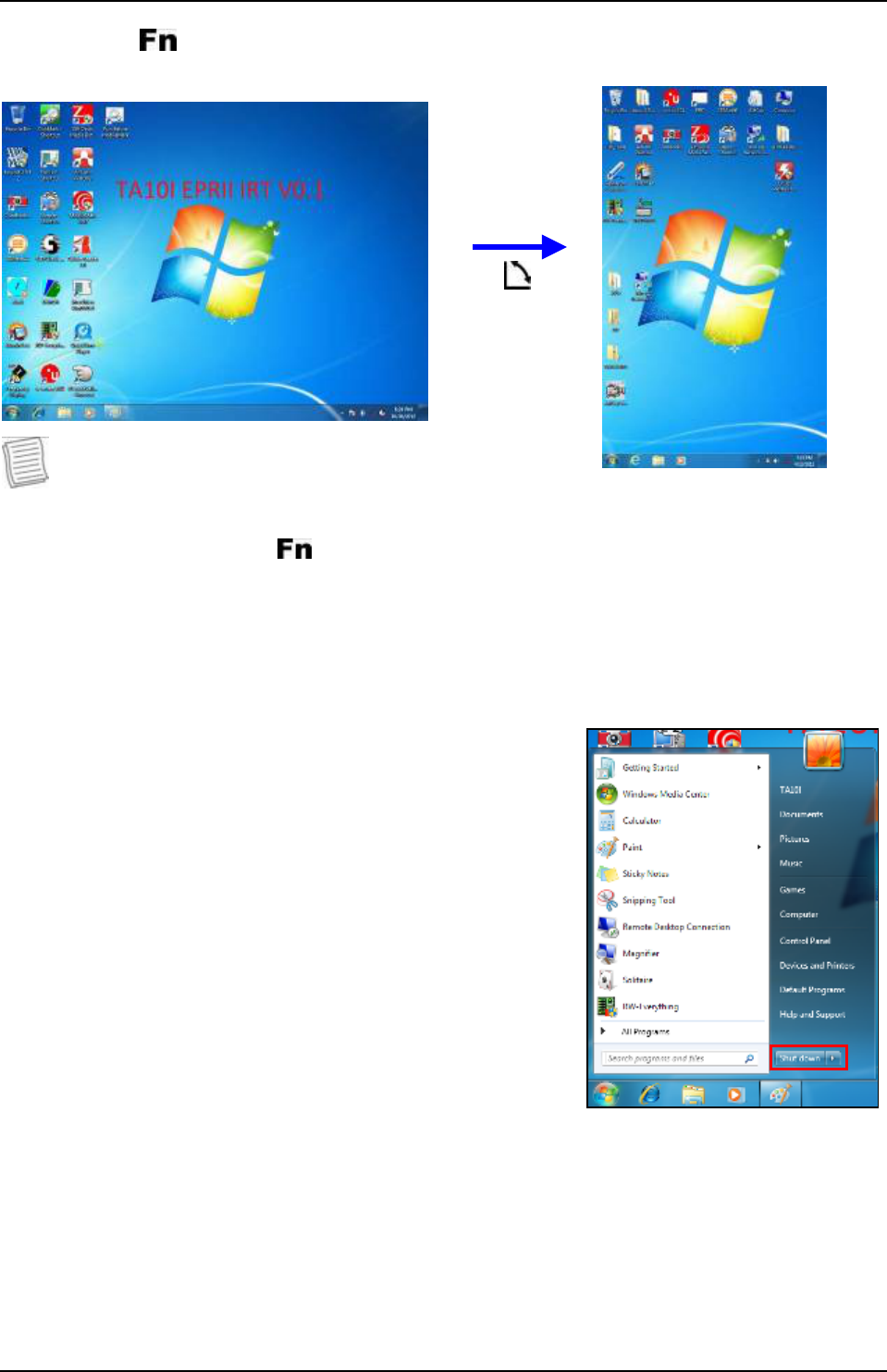

Changing the Display Orientation.................................................................................................................................19
Shutting Down Your Tablet PC......................................................................................................................................20
USING THE STYLUS .................................................................................... 20

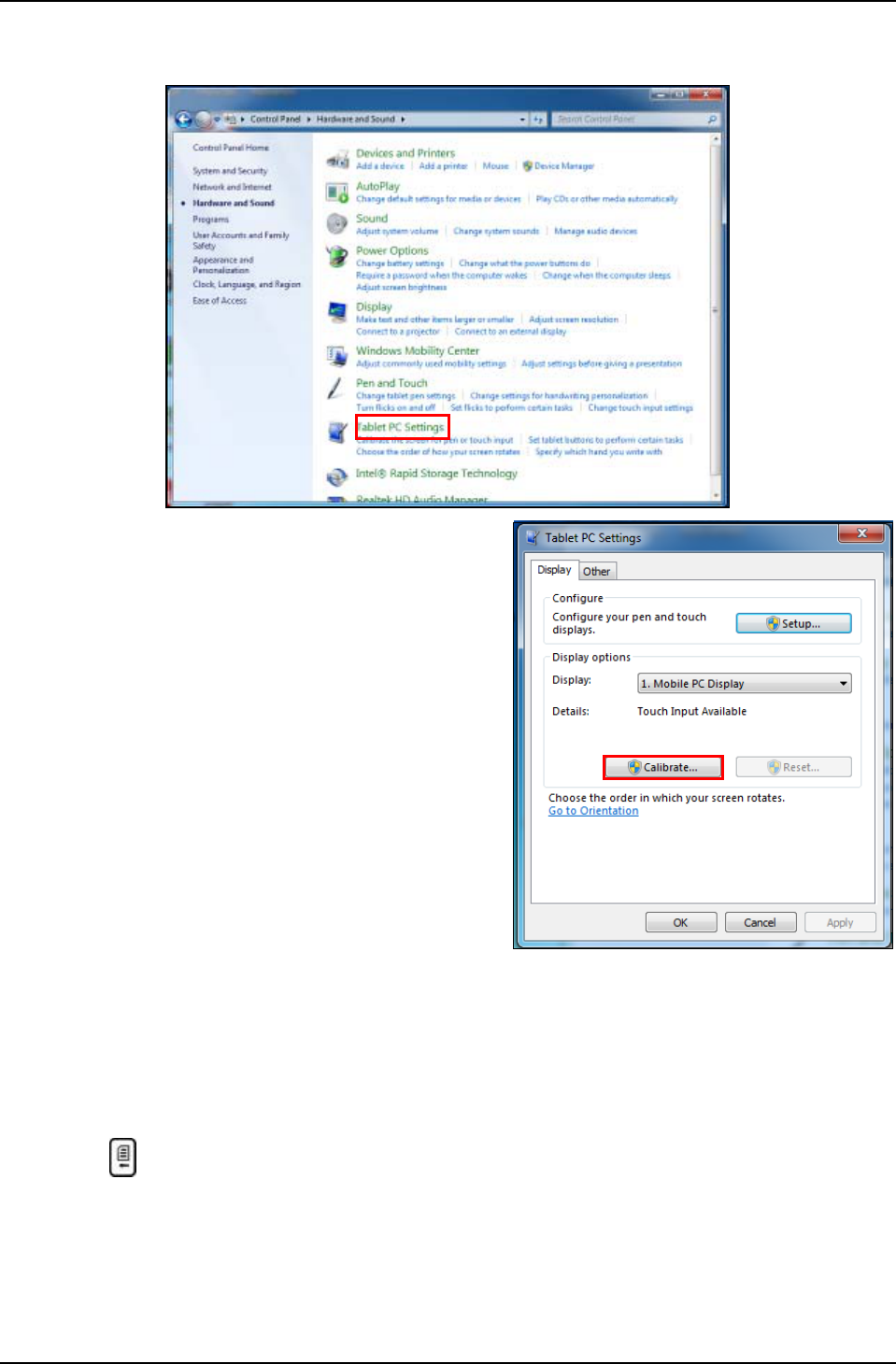

Calibrate the Screen .......................................................................................................................................................20

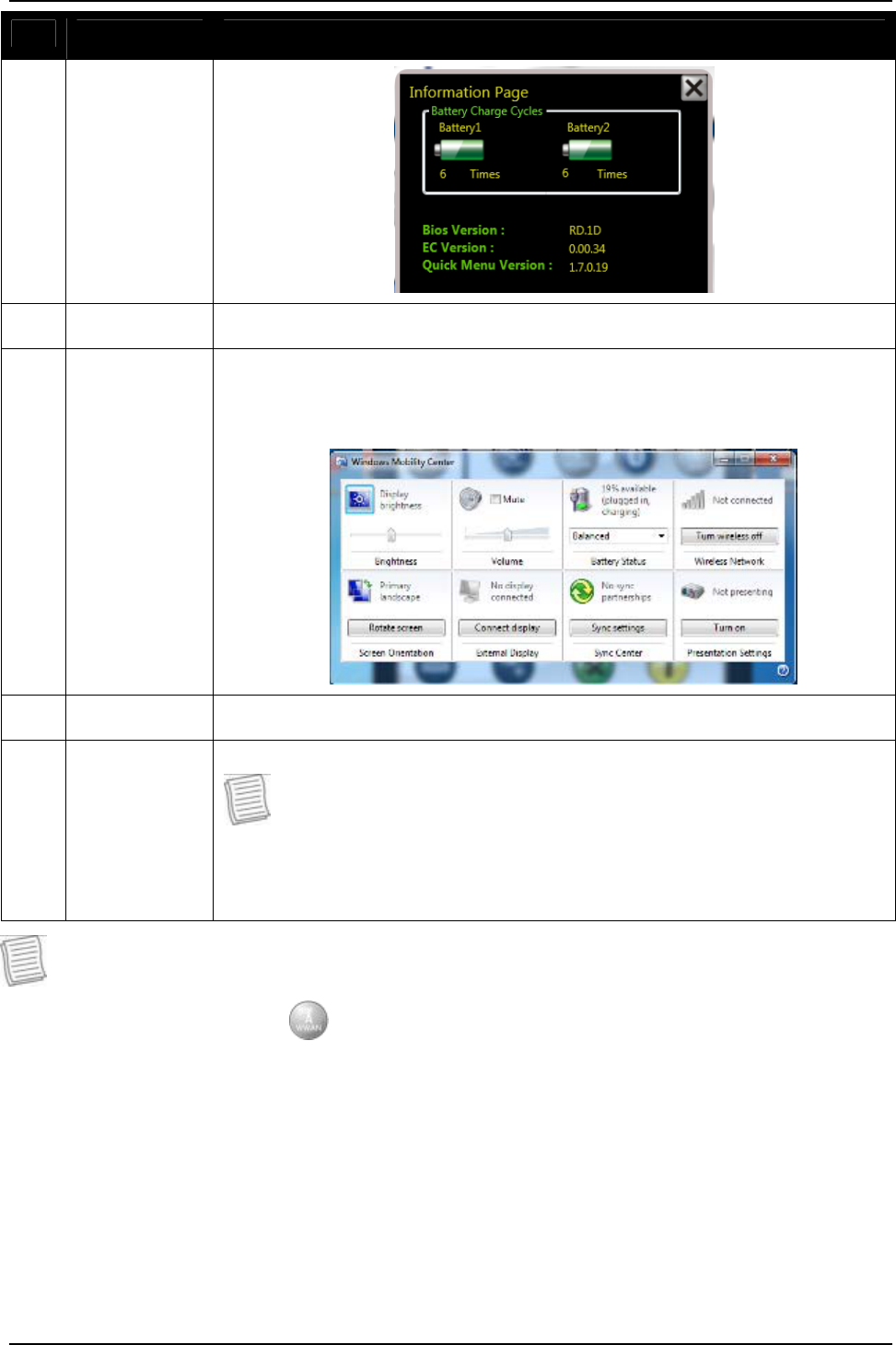

USING THE QUICK MENU.............................................................................. 21
USING THE MEMORY CARDS .......................................................................... 23

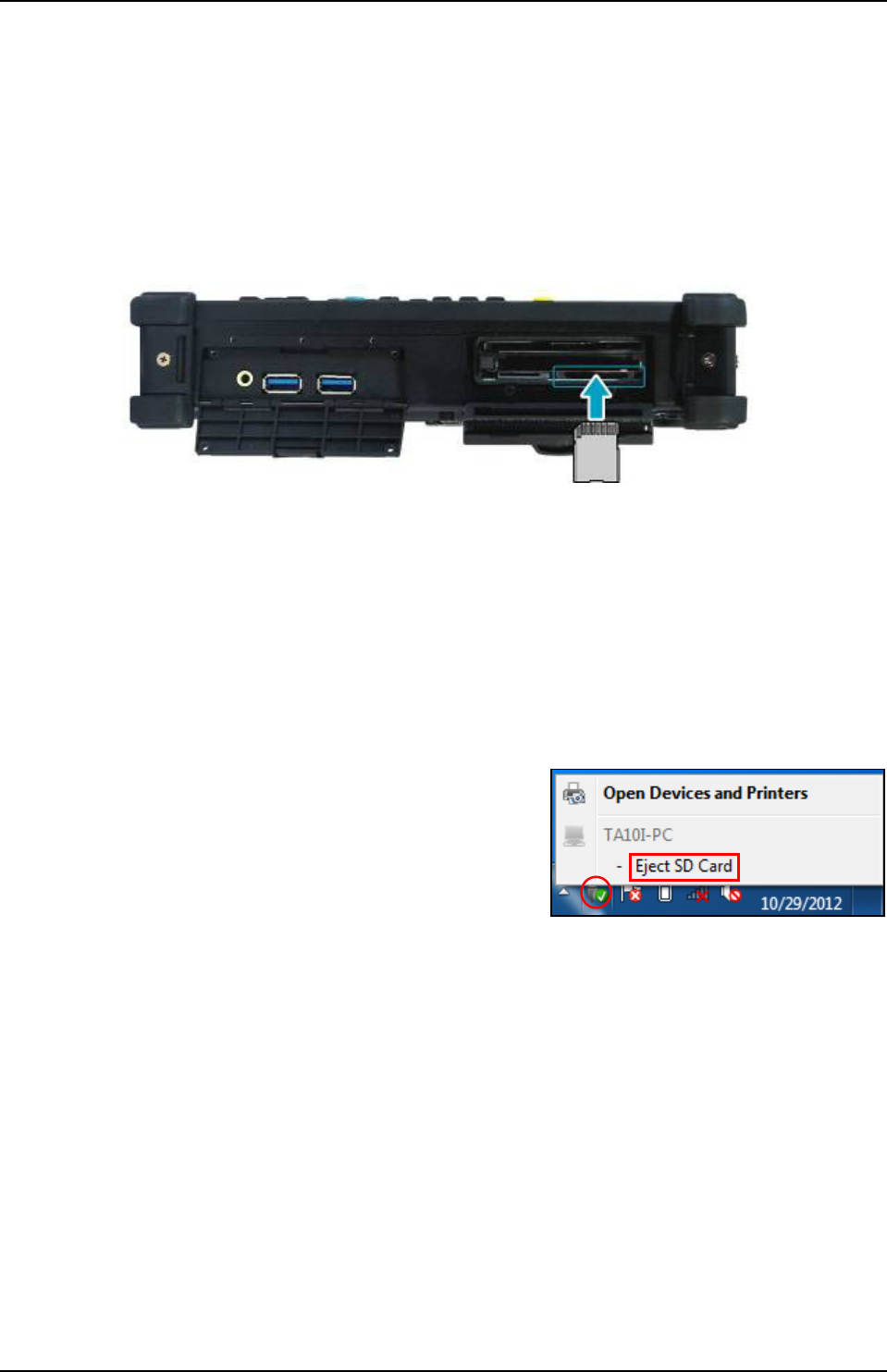

Inserting a Memory Card...............................................................................................................................................24
Removing a Memory Card.............................................................................................................................................24
USING THE SMART CARD.............................................................................. 24
Inserting a Smart Card...................................................................................................................................................25
USING THE PC CARDS ................................................................................ 25

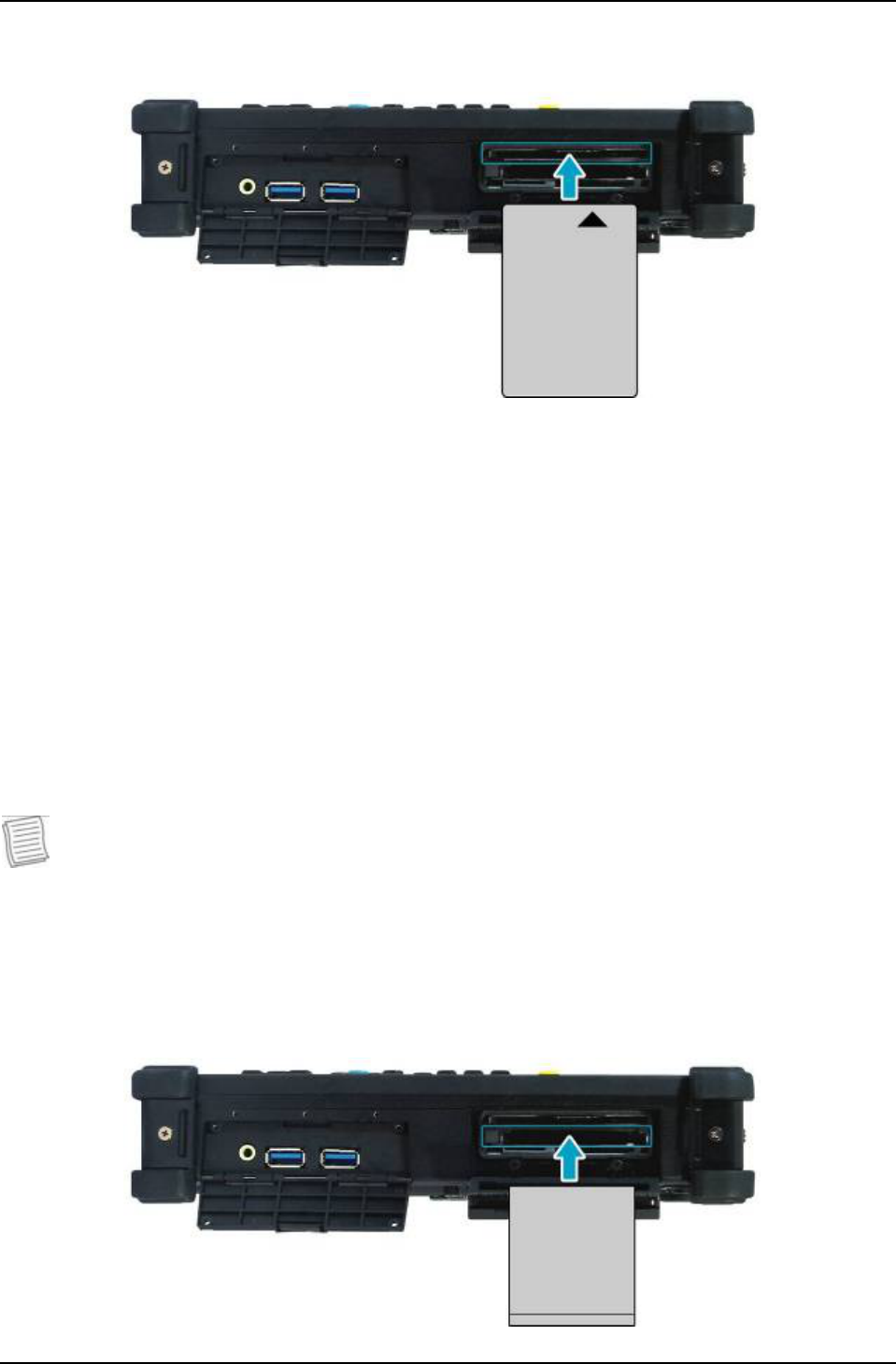

Inserting a PC Card........................................................................................................................................................25
MAKING CONNECTIONS........................................................26

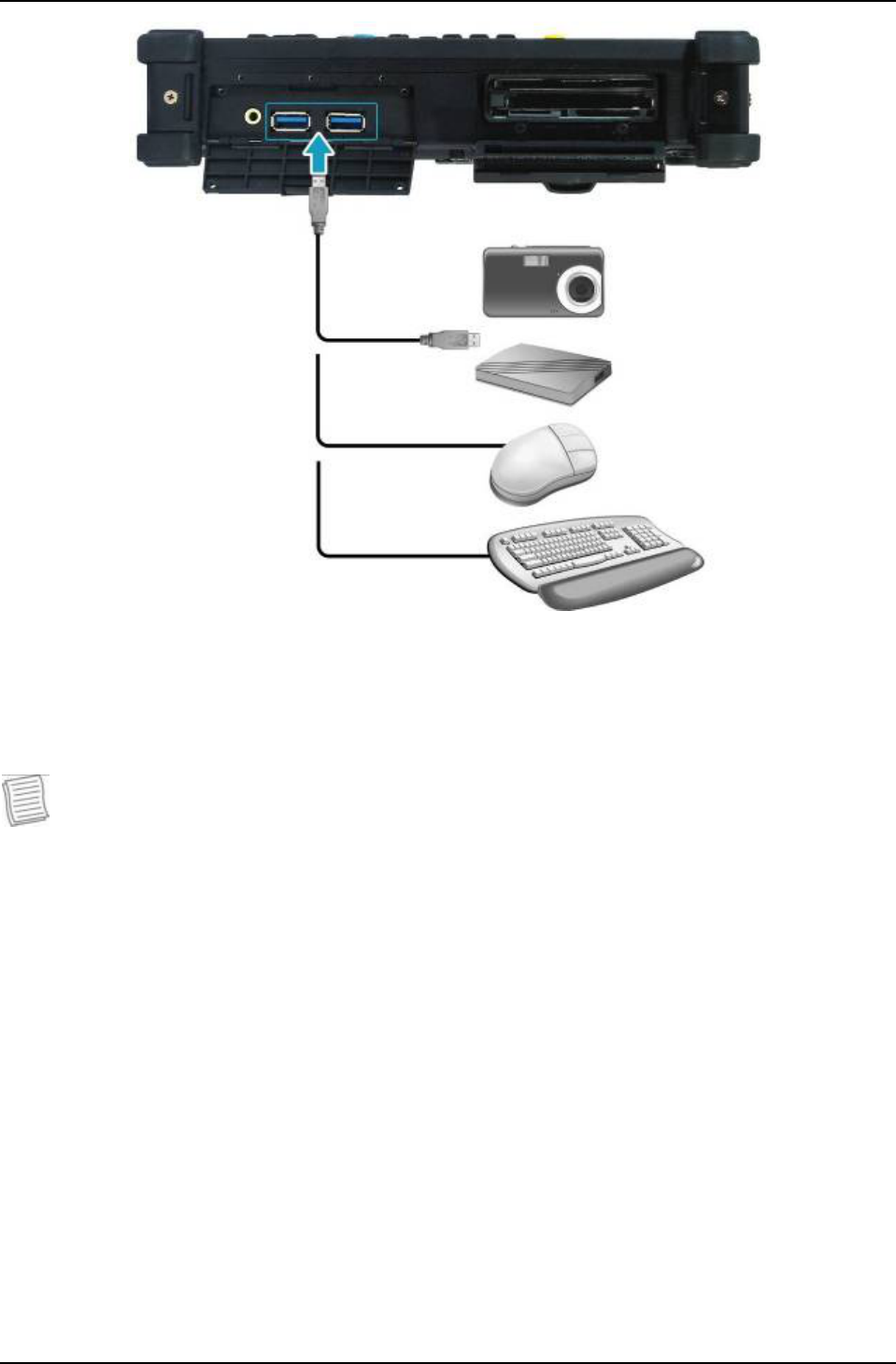

CONNECTING USB DEVICES ......................................................................... 26
CONNECTING PERIPHERAL DEVICES ................................................................. 27

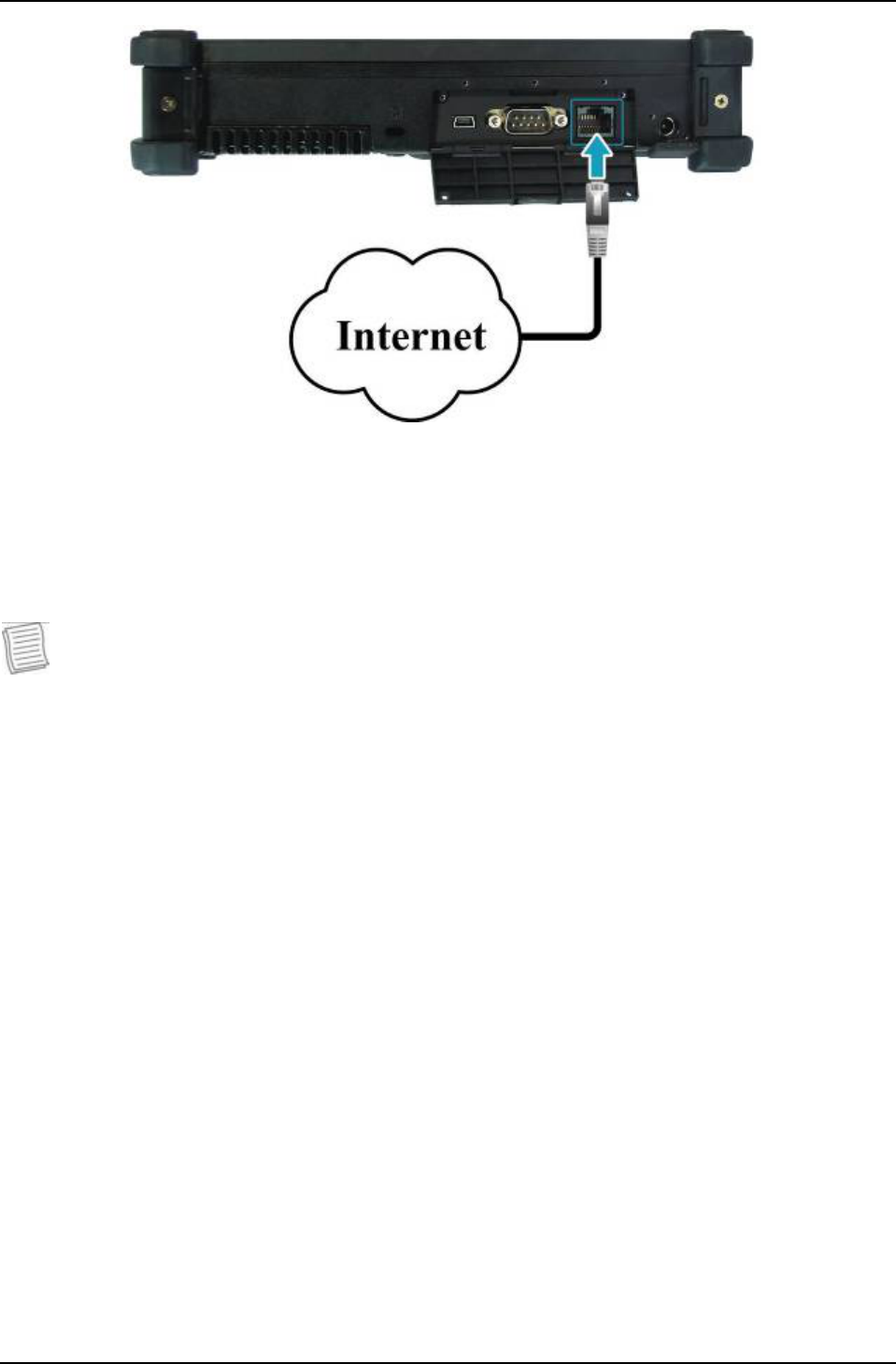

CONNECTING TO A LOCAL AREA NETWORK (LAN)................................................. 28

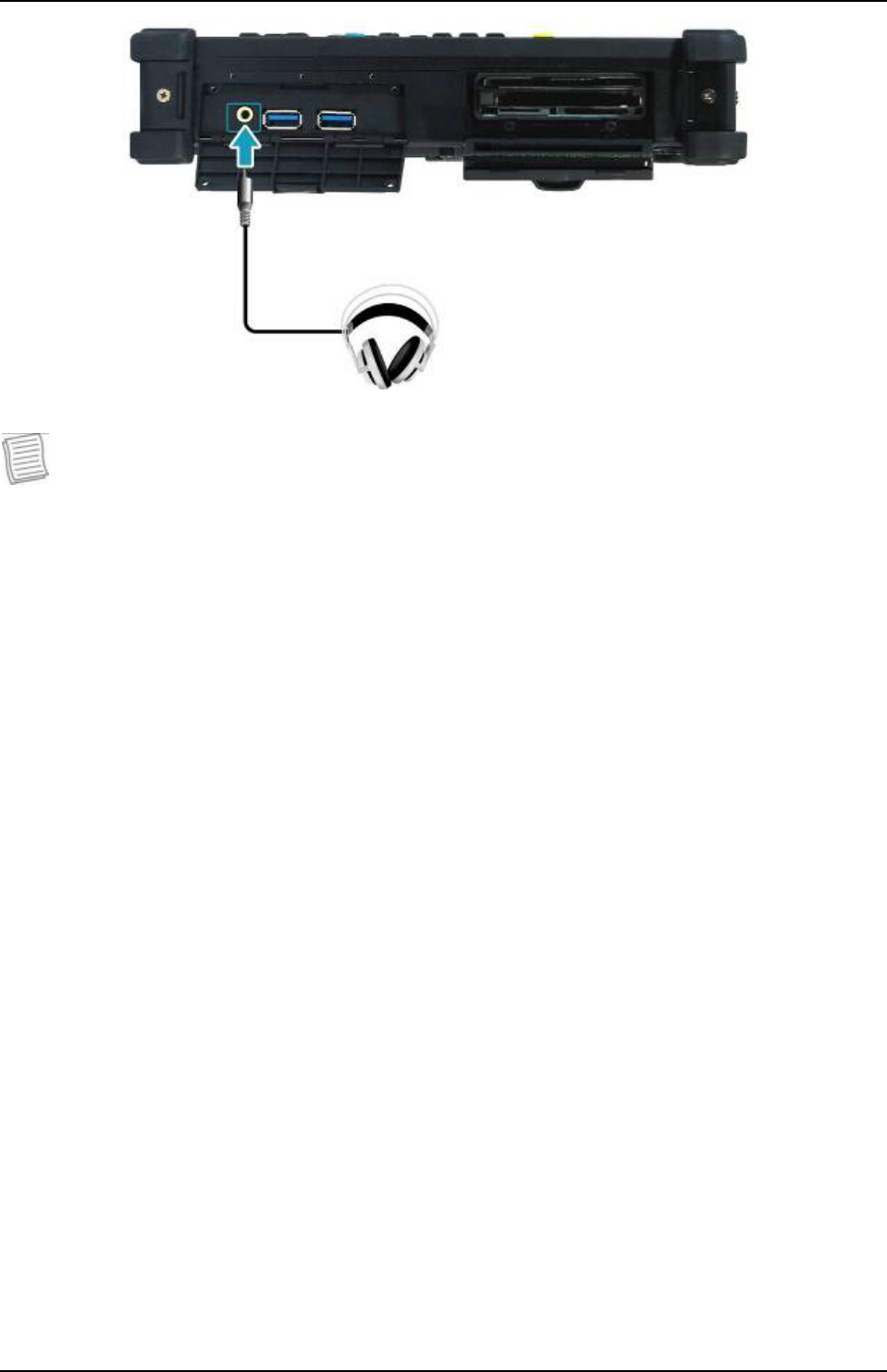

CONNECTING HEADPHONES........................................................................... 29
POWER MANAGEMENT ..........................................................30

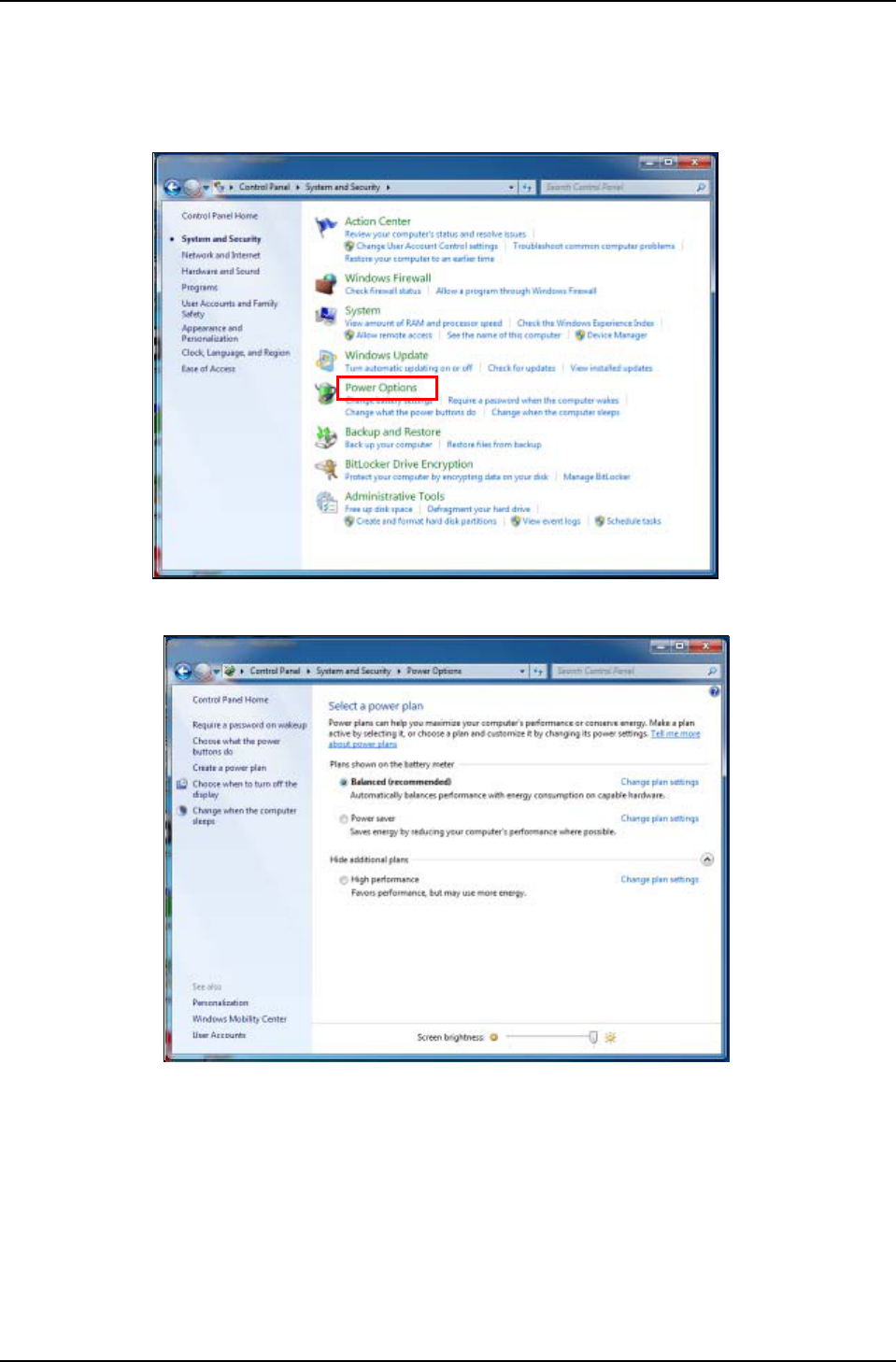

USING THE POWER PLAN.............................................................................. 30
USING THE POWER SAVING MODE................................................................... 31
USING THE BIOS SETUP UTILITY..........................................32
BIOS SETUP MENU ................................................................................... 33
STARTING THE BIOS SETUP UTILITY................................................................ 33
NAVIGATING AND ENTERING INFORMATION IN BIOS.............................................. 33

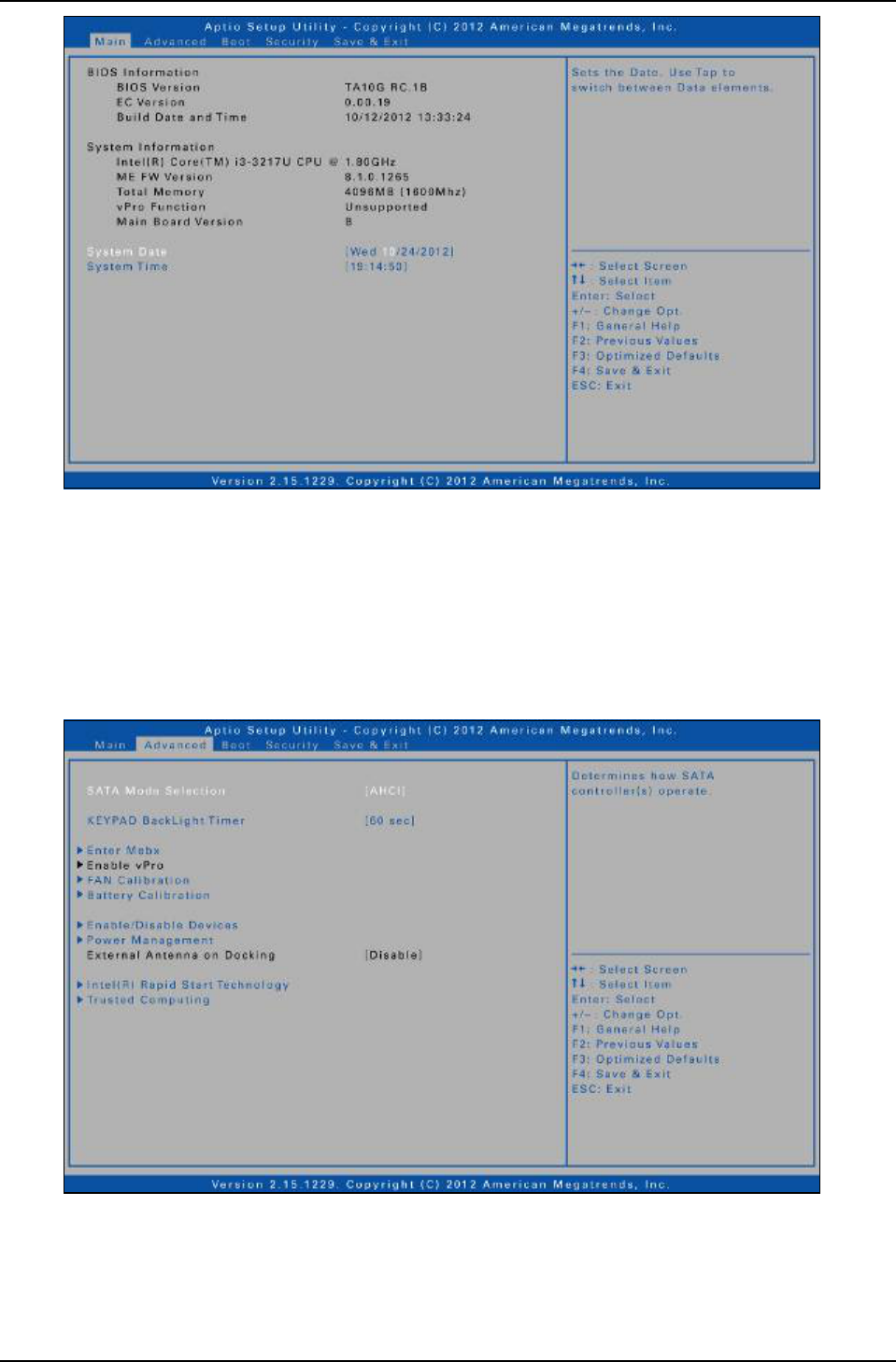

MAIN MENU............................................................................................. 34
ADVANCED MENU ...................................................................................... 35

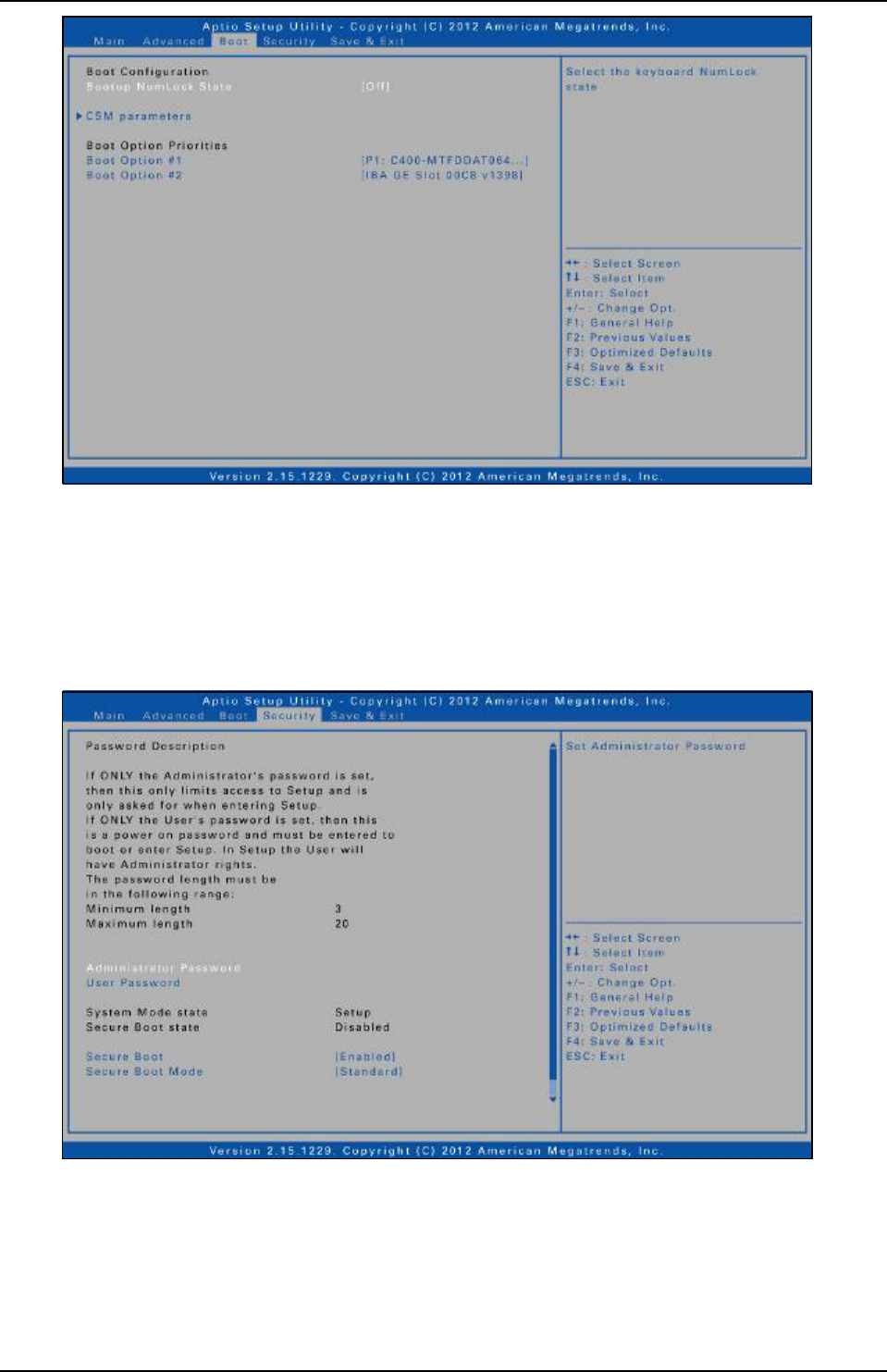

BOOT MENU............................................................................................. 35
SECURITY MENU........................................................................................ 36

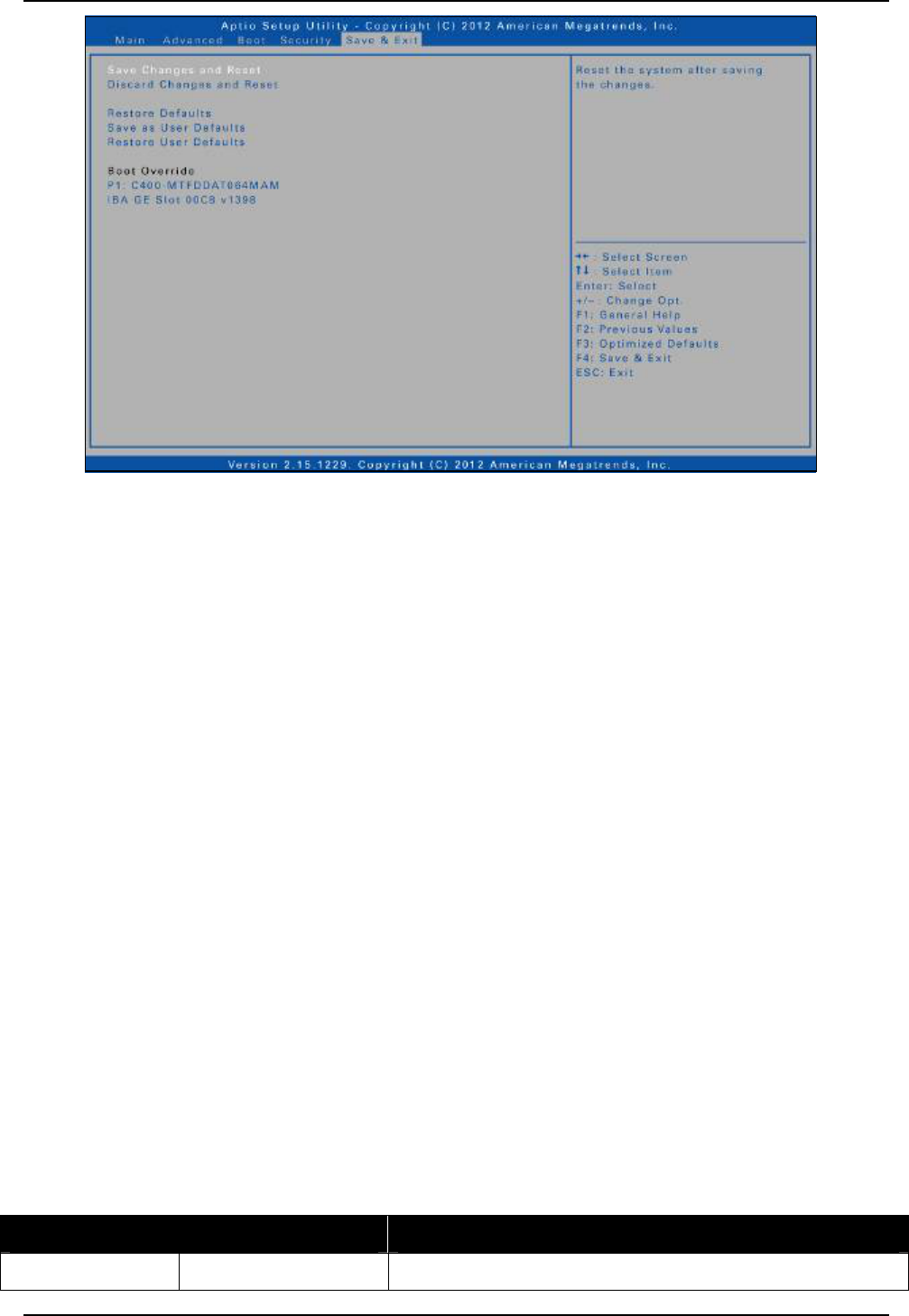

SAVE & EXIT MENU.................................................................................... 36
SPECIFICATIONS ..................................................................37
Copyright
Copyright© 2012. All rights reserved.
Preface
4
No part of this user manual may be transmitted, stored in a retrieval system, or
translated into any language or computer language, in any form or by any
means, without the prior written permission of the manufacturer. Information is
subject to change without prior notice.
Regulatory Statement
Federal Communications Commission Statement
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Shielded interconnect cables and shielded AC power cable must be employed
with this equipment to insure compliance with the pertinent RF emission limits
governing this device. Changes or modifications not expressly approved by the
system's manufacturer could void the user's authority to operate the equipment.
Declaration of Conformity
This device complies with part 15 of the FCC rules. Operation is subject to the
following conditions:
This device may not cause harmful interference
This device must accept any interference received, including interference
that may cause undesired operation.
Preface
5
RF exposure warning
This equipment must be installed and operated in accordance with provided
instructions and must not be co-located or operating in conjunction with any
other antenna or transmitter. End-users and installers must be provided with
antenna installation instructions and transmitter operating conditions for
satisfying RF exposure compliance.
SAR Value: 0.317W/kg
This device is operation in 5.15 – 5.25GHz frequency range, then restricted in
indoor use only, Outdoor operations in the 5150~5250MHz is prohibit.
This device is slave equipment, the device is not radar detection and not ad-hoc
operation in the DFS band.
Canada, Industry Canada (IC) Notices
This Class B digital apparatus complies with Canadian ICES-003 and RSS-210.
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Radio Frequency (RF) Exposure Information
The radiated output power of the Wireless Device is below the Industry Canada
(IC) radio frequency exposure limits. The Wireless Device should be used in such
a manner such that the potential for human contact during normal operation is
minimized.
This device has been evaluated for and shown compliant with the IC Specific
Absorption Rate (“SAR”) limits when installed in specific host products operated
in portable exposure conditions.
Canada, avis d'Industry Canada (IC)
Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-
003 et RSS-210.
Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil
ne doit pas causer d'interférence et (2) cet appareil doit accepter toute
interférence, notamment les interférences qui peuvent affecter son
fonctionnement.
Informations concernant l'exposition aux fréquences radio (RF)
La puissance de sortie émise par l’appareil de sans fil est inférieure à la limite
d'exposition aux fréquences radio d'Industry Canada (IC). Utilisez l’appareil de
sans fil de façon à minimiser les contacts humains lors du fonctionnement normal.
Preface
6
Ce périphérique a été évalué et démontré conforme aux limites SAR (Specific
Absorption Rate – Taux d'absorption spécifique) d'IC lorsqu'il est installé dans
des produits hôtes particuliers qui fonctionnent dans des conditions d'exposition
à des appareils portables.
Battery Disposal
THIS PRODUCT CONTAINS A LITHIUM-ION OR NICKEL-METAL HYDRIDE
BATTERY. IT MUST BE DISPOSED OF PROPERLY. CONTACT LOCAL
ENVIRONMENTAL AGENCIES FOR INFORMATION ON RECYCLING AND
DISPOSAL PLANS IN YOUR AREA.
CLASS 1 LASER PRODUCT
LASERSCHUTZKLASSE 1 PRODUKT TO EN60825
CAUTION: THIS APPLIANCE CONTAINS A LASER SYSTEM AND IS
CLASSIFIED AS A "CLASS 1 LASER PRODUCT.” TO USE THIS
MODEL PROPERLY, READ THE INSTRUCTION MANUAL
CAREFULLY AND KEEP THIS MANUAL FOR FUTURE REFERENCE.
IN CASE OF ANY TROUBLE WITH THIS MODEL, PLEASE CONTACT
YOUR NEAREST "AUTHORIZED SERVICE STATION.” TO PREVENT
DIRECT EXPOSURE TO THE LASER BEAM, DO NOT TRY TO OPEN
THIS ENCLOSURE.
ANNEX IV

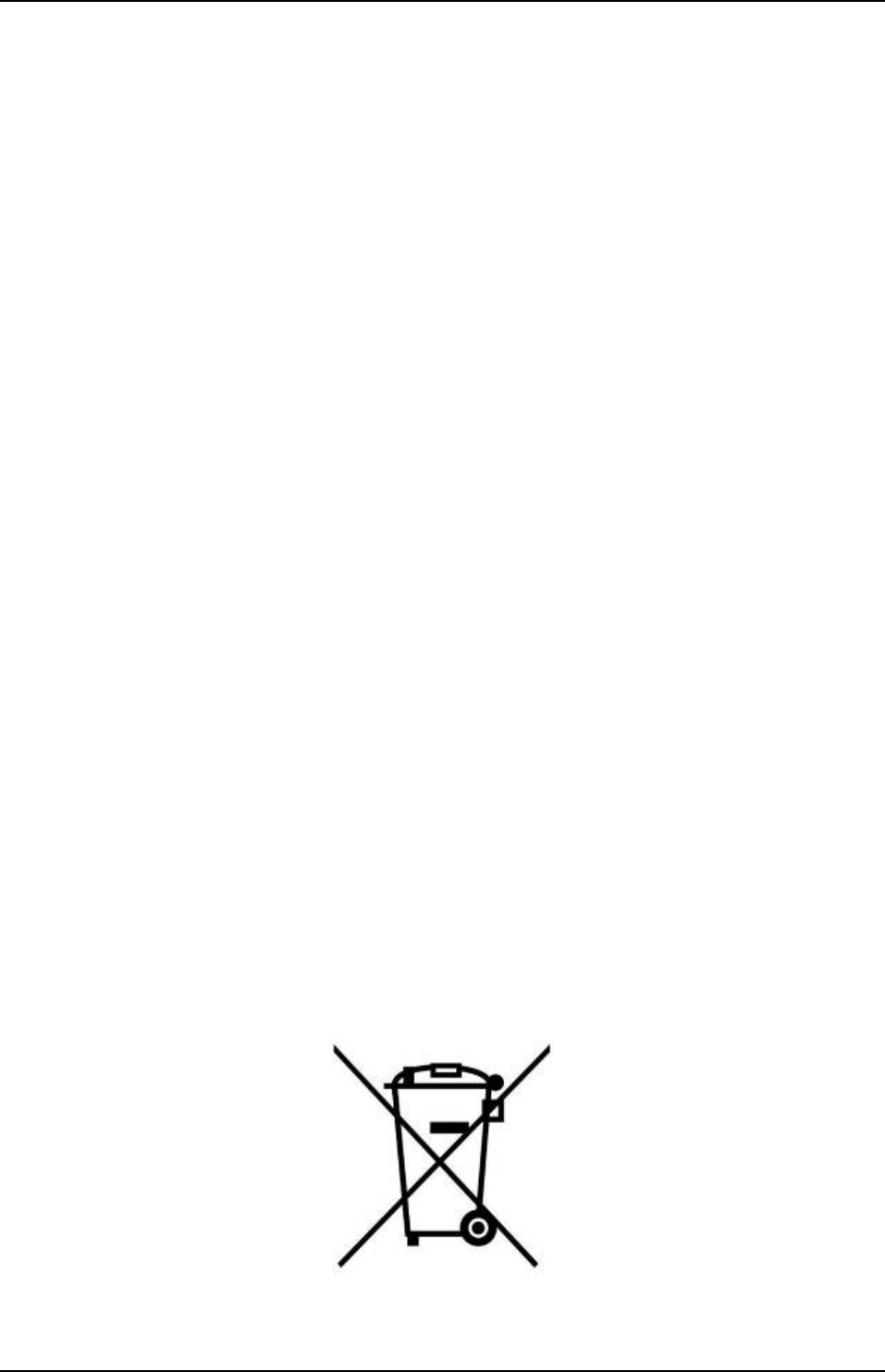

Symbol for the marking of electrical and electronic equipment
The symbol indicating separate collection for electrical and electronic equipment
consists of the crossed-out wheeled bin, as shown below. The symbol must be
printed visibly, legibly and indelibly.
Preface
7
CAUTION FOR ADAPTER
THIS TABLET PC IS FOR USE WITH DEDICATED AC ADAPTER.
BATTERY SAFETY
DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED.
REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE
MANUFACTURER. DISPOSE OF USED BATTERIES ACCORDING TO THE
MANUFACTURER'S INSTRUCTIONS.
CAUTION FOR RJ-45
The RJ-45 jack is not used for telephone line connection.
Before You Start
8
Before You Start
Congratulations on your purchase of this tablet PC.
This rugged tablet PC is portable and provides users with maximum mobile
computing experience in a wide range of working environments. Before you
begin using your tablet PC, read this chapter to familiarize yourself with the main
components installed in the system.

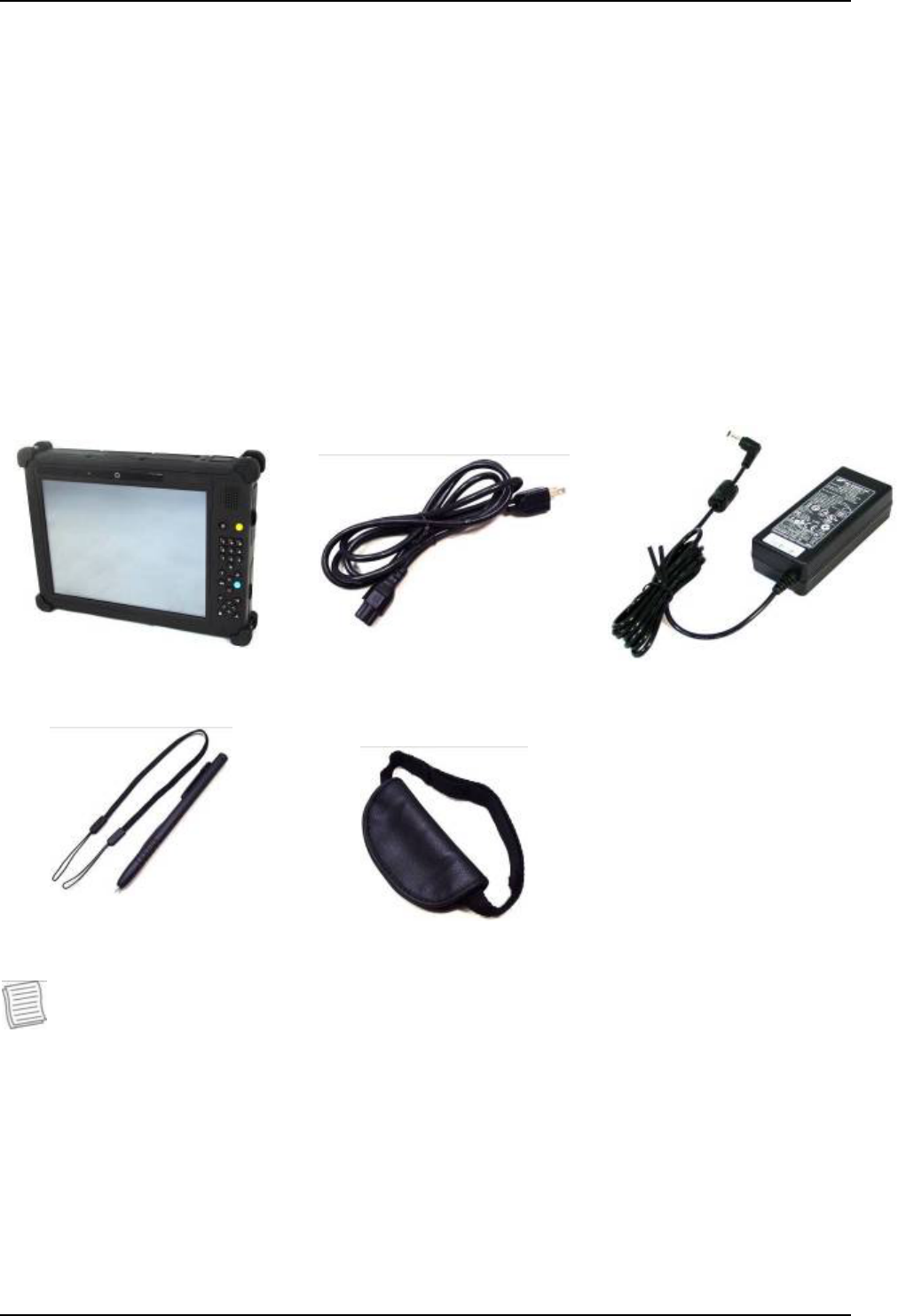

Package Contents
The following items come with your package. If any of them is damaged or
missing, please contact your retailer.
Tablet PC Power adapter Power cord
Stylus Pen Hand-strap
NOTE
The pictures are for reference only, actual items may slightly differ.
Before You Start
9
Features
Intel Ivy Bridge CPU
Rugged feature: 5 feet drop and dust/waterproof IP 65
Multi-touch
Two battery packs support 9~10 hrs battery life and hot swapping
Optional barcode scanner (support 1D/2D barcode reading)
Components
Before You Start
10

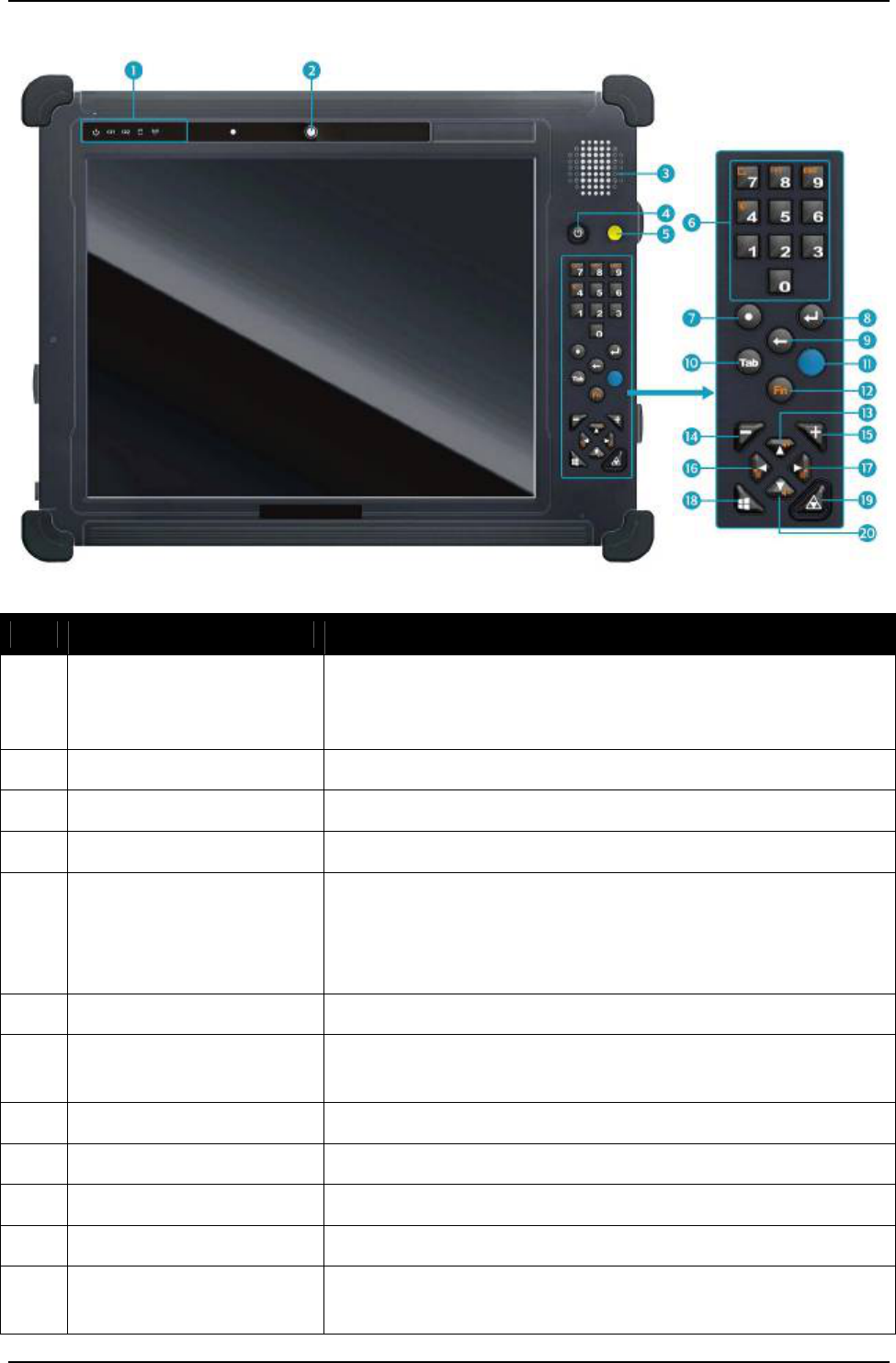

Front View
No. Item Description
1 Status Indicators
(Power, Battery,
HDD, Wireless)
Indicate the corresponding function status.
See “Status Indicators” on page 14.
2 Camera Use to take pictures.
3 Speaker Emit sound.
4 Power button Press to power on and off the tablet PC.
5 Scanner button Press to trigger the Barcode scan function if the
barcode scanner is on. It can also be assigned to
launch a specific Windows-based program via
Quick Menu.
6 Number (0~9) button Press to enter 0~9.
7 Decimal or Dot
button Press to emulate the Decimal/Dot key.
8 Enter button Press to emulate the Enter key.
9 Backspace button Press to emulate the Backspace key.
10 Tab button Press to emulate the Tab key.
11 Camera button Press to activate the Camera function.
12 Function button Use with other key combinations to perform special
functions.
Before You Start
11
No. Item Description
<> + < >: Increase audio volume.
<> + < >: Decrease audio volume.
<> + < >: Increase screen brightness.
<> + < >: Decrease screen brightness.
<> + <4>: Turn the display screen
backlight off to save power. Press again to
return to the last state.
<> + <7>: Rotate the display.
Note: The screen can’t be turned 180 and 270
degree clockwise to operate.
<> + <8>: Activate/Deactivate RF (WLAN,
Bluetooth, GPS) communication.
<> + <9>: Emulate the Escape key.
13 Arrow (up) button Press to emulate the Up key.
14 Minus (-) button Press to emulate the Minus(-) key.
15 Plus (+) button Press to emulate the Plus (+) key.
16 Arrow (left) button Press to emulate the Left key.
17 Arrow (right) button Press to emulate the Right key.
18 Security button Press to exit Windows and enter SAS (Secure
Attention Sequence) mode.
19 Stealth mode button Press to disable all emitting lights and sound.
20 Arrow (down) button Press to emulate the Down key.
Back View
Before You Start
12
No. Item Description
1 Camera LED flash Provide additional lighting when taking pictures
under low light environment.
2 Camera Use to take pictures.
3 Battery latch Lock the battery in place.
4 Battery compartment Contain the battery.
5 Battery LED indicator Press the button to display the remaining battery
power level.
6 Battery latch release
button Press and hold the button to slide the battery latch
to the unlock position.
Left View
Before You Start
13
No. Item Description
1 Kensington lock slot Connect to a Kensington-compatible tablet PC
security lock.
2 Mini USB port Connect USB peripheral devices.
3 Serial port (RS-232) Connect a peripheral device, such as a printer or
other device with serial port.
4 LAN (RJ-45) port Connect to a local area network (LAN) using an
Ethernet cable.
5 DC-in jack Connect the power adapter.
Right View
No. Item Description
1 Earphone jack Connect headphones or external speakers.
2 USB ports Connect USB peripheral devices.
3 PC Card slot Use to insert one 34/54 ExpressCard or Type II PC
Card.
5 Card reader Use to insert memory cards to transfer pictures,
music, and data between your tablet PC and flash
compatible devices. The card reader supports SD
(Secure Digital), SDHC, Mini
-
SD (with adapter),
Before You Start
14
MMC (Multi-media card), MMC+, Mini-MMC (with
adapter) cards.
6 Smart card reader Use to insert smart cards.
Bottom View
No. Item Description
1 Docking station port Connect the tablet PC to a docking station.
Status Indicators
The status indicators in the upper left corner of the tablet PC light up when a
particular function of the tablet PC is active. Each indicator is marked with a
symbol.
Before You Start
15
Icon Item Description
Power The LED always lights on (blue) when the system is
running. When the system is in sleep mode, the LED
blinks.
Battery
Indicate the battery status:
Green light means the battery is fully charged or the
charging current is 0 for more than 3 minutes with the
battery capacity higher than 95%.
Blinking green light means the system is calibrating the
battery.
Orange light means the battery is being charged.
Blinking orange light means the battery is being
charged but the battery temperature is out of charging
range (0~60ºC), the battery is being charged for more
than 10 hours, or the charging current is 0 for more
than 3 minutes with the battery capacity lower than
85%.
Blinking red light means the battery power is low (less
than 7%).
HDD
Indicate the HDD or HDD heater status:
Green light indicates the HDD activity (data is being
read or written).
Blinking orange light means the heater of 2.5” HDD is
heating.
WLAN Indicate the status of RF (WLAN, Bluetooth, or GPS)
communication. The LED always lights on (blue) when the
function is enabled.
Getting Started
This chapter will guide you on how to use your tablet PC.
Getting Started
16
Powering Up Your Tablet PC
Your tablet PC can be powered up using the AC adapter or the Lithium-ion
battery.
Connecting the AC Adapter
The AC adapter powers up your tablet PC and charges the battery.
1. Connect the AC adapter to the DC-in jack of your tablet PC.
2. Connect the AC adapter to the power cord.
3. Plug the power cord to an electrical outlet.
Using Battery Power
1. Install a charged battery in the battery compartment.
2. Remove the AC adapter (if plugged). Your tablet PC will automatically use
the battery power.
NOTE
If your tablet PC is connected to an electrical outlet and the battery is
installed, your tablet PC uses power from the electrical outlet.
Installing the Batteries
To install the batteries, follow the steps below:
1. Align and insert the first battery to the battery
compartment.
Getting Started
17
2. Push completely until the battery locks into place.
3. Slide the battery latch to the lock position to
secure the battery.
4. Repeat Step 1 to 3 to insert the second battery.
Charging the Battery
The Lithium-ion battery is not fully-charged upon purchase.
To charge the battery, follow the steps below:
1. Install the battery to your tablet PC. See procedures above.
2. Connect the AC adapter to the DC-in jack of your tablet PC.
3. Connect the AC adapter to the power cord.
4. Plug the power cord to an electrical outlet.
Charging Time
Number of
battery pack Charging duration
(at 25ºC)
1 3.5 hours
2 6.5 hours
NOTE
The charging time may be longer if you are using your tablet PC while
Getting Started
18
charging the battery.
CAUTION
DO NOT charge the battery if the temperature is below 0ºC or higher than
50ºC.
Use only the supplied AC adapter. Using other AC adapters may damage the
battery or your tablet PC.
Checking the Battery Level
It is important that you monitor the battery status regularly to ensure you do not
run out of power at a critical moment.
To check the remaining battery power, double tap the battery icon in the system
tray.
The battery screen appears:
When to replace the Battery Pack
The battery performance gradually decreases over time and usage. We
recommend you to replace your battery pack after 18 to 24 months of usage.
Removing the Batteries
To remove the batteries, follow the steps below:
1. Press and hold the battery latch release button
to slide the second battery latch to the unlock
position.
Getting Started
19
2. Remove the second battery out of the battery
compartment.
3. Repeat Step 1 and 2 to remove another battery.
NOTE
Make sure the system has shut down before you change the battery.
Starting Your Tablet PC
Turning On Your Tablet PC
Press the button until the Power LED lights up.
Changing the Display Orientation
You can rotate the display orientation to suit your preference.
Getting Started
20
Press both < > and <7> buttons to rotate the display 90° clockwise.
NOTE
You need to disable the Auto Rotate option in the Quick menu before pressing
the shortcut buttons (< > + <7>) to rotate the display.
The screen can’t be turned 180 and 270 degree clockwise to operate.
Shutting Down Your Tablet PC
It is important to properly shut down your tablet PC to avoid the loss of unsaved
data. To shut down your tablet PC, do the following:
Tap Start > Shut down.
Wait for your tablet PC to turn off power completely
before removing the power source (if necessary).
Using the Stylus
This tablet PC comes with an integrated stylus for accurate control input to the
LCD touch panel and digitizer. You can use the stylus to point, select, or drag
items or objects on the screen.
Calibrate the Screen
To ensure touch accuracy, calibrate the screen.
Getting Started
21
1. Tap Start > Control Panel.
2. Select Hardware and Sound > Tablet PC Settings.
3. Tap Calibrate.
4. Follow the on-screen instructions to
complete screen calibration.
Using the Quick Menu
Press the button to enter the Quick menu.
Getting Started
22
9
13
11
5
6
1
2
3
4
8
7
10
12
No. Item Description
1 WLAN Tap the icon to enable/disable the Wi-Fi (WLAN) function.
3 Bluetooth Tap the icon to enable/disable the Bluetooth function.
4 GPS Tap the icon to enable/disable the GPS function.
5 Auto-rotate Tap the icon to enable/disable the Auto-Rotate screen
function.
6 Keypad
Backlight Tap the icon to turn the keypad backlight on/off.
7 Setup Tap the icon to set hotkey,
serial port, light sensor, and
keypad backlight settings.
NOTE
The Keypad Backlight option is only available when
the keypad backlight is enabled.
8 Information Tap the icon to view the battery charge cycle, Bios version,
EC version, and Quick Menu version.
Getting Started
23
No. Item Description
9 Keyboard Tap the icon to display/hide the on-screen keyboard.
10 Mobility
center Tap the icon to adjust brightness, screen orientation, volume,
external display, battery status, sync, wireless network, and
presentation settings.
11 Barcode Tap the icon to trigger the Barcode Scanner function.
13 Airplane
mode Tap the icon to enable/disable airplane mode.
NOTE
When the Airplane mode is enabled, the wireless
network (WLAN ), Bluetooth, and GPS will be
automatically disabled.
NOTE
If the icon is gray (i.e. ), this indicates the current function is disabled.
Using the Memory Cards
Your tablet PC supports different types of memory cards to provide faster data
transfer. Supported types are as follows:
SD card
Getting Started
24
SDHC card
Mini-SD card (with adapter)
MS card (Memory Stick/PRO)
MMC card
Mini-MMC card (with adapter)
Inserting a Memory Card
With the label side down, push the memory card into the memory card slot until
it clicks into place.
Removing a Memory Card
It is important to remove the memory card properly. Improper removal may
cause the data in the memory card to be corrupted and your tablet PC to
malfunction.
To properly remove the memory card, follow the steps below:
1. Tap the removable disk icon on the system
tray.
2. Tap Eject SD Card.
The system confirms that the device can be
safely removed.
3. Push the memory card to eject it.
4. Pull the card out from the slot.
Using the Smart Card
Your tablet PC is equipped with a built-in smart card reader that allows you to
make secure purchases, store security information, and provide identification and
information using a smart card.
Getting Started
25
Inserting a Smart Card
Insert a smart card into the smart card slot.
Using the PC Cards
Your tablet PC supports Type II PC Card or 34/54 ExpressCard, which can
perform a variety of functions.
NOTE
Refer to the PC Card manual for specific instructions on the card installation.
Inserting a PC Card
Insert a PC card firmly into the PC card slot until it clicks into the connector.
Getting Started
26
Making Connections
This chapter will guide you on installing peripheral devices to maximize the use
of your tablet PC.
Connecting USB Devices
You can connect your tablet PC to other USB devices, such as a mouse,
keyboard, digital camera, printer, or an external hard disk drive.
Making Connections
27
1. Connect one end of a USB cable to the USB port of your tablet PC.
2. Connect the other end to the USB device (if necessary).
NOTE
The USB cable is not included in the package. It is sold separately or it may
come with your USB device.
Connecting Peripheral Devices
You can connect your tablet PC to other peripheral devices, such as a printer or
other device with serial port.
Making Connections
28
1. Connect one end of an RS-232 cable to the RS-232 port of your tablet PC.
2. Tighten the two screws on the side of the cable plug.
3. Connect the other end to the RS-232 port of a printer or other peripheral
device.
NOTE
The RS-232 cable is not included in the package. It is sold separately.
Connecting to a Local Area Network
(LAN)
You can connect your notebook to a local area network (LAN) using the RJ-45
LAN port.
Making Connections
29
1. Connect one end of an RJ-45 cable to the LAN port of your tablet PC.
2. Connect the other end to a network hub or a wall socket.
NOTE
The RJ-45 cable is not included in the package. It is sold separately.
Connecting Headphones
You can connect your tablet PC to a headphone or external speakers.
Plug the audio jack of the headphone or speakers to the Headphone jack of your
tablet PC.
Making Connections
30
NOTE
The RS-232 cable is not included in the package. It is sold separately.
Power Management
This chapter will guide you on how to manage the system power.
Using the Power Plan
Power Management
31
To improve energy efficiency, you can use the power plan to reduce the amount
of power your tablet PC uses, maximize the performance, or balance the two.
1. Tap Start > Control Panel.
2. Select System and Security > Power Options.
3. Select a power plan.
4. To adjust the selected power plan settings, tap Change plan settings.
Using the Power Saving Mode
When you are not using the tablet PC, turn off the tablet PC or set the tablet PC
to enter sleep mode.
To set the tablet PC to enter sleep mode, follow the steps below:
1. Tap Start.
Power Management
32
2. Select Shut down > Sleep.
To wake up the tablet PC from sleep mode, do one of the following:
Press the button.
Press any key on the external keyboard.
Using the BIOS Setup
Utility
Your tablet PC has a BIOS setup utility which allows you to configure important
system settings, including settings for various optional functions of the tablet PC.
This chapter explains how to use the BIOS setup utility.
Using the BIOS Setup Utility
33
BIOS Setup Menu
The BIOS Setup Utility allows you to configure your tablet PC basic settings.
When you turn your tablet PC on, the system reads this information to initialize
the hardware so that it can operate correctly. Use the BIOS setup utility to
change your tablet PC start-up configuration. For example, you can change the
security and power management routines of your system.
Starting the BIOS Setup Utility
You can only enter the BIOS setup utility as the tablet PC is booting, that is
between the time you turn on the tablet PC and before the Windows interface
appears.
If your tablet PC is already on, shut down your tablet PC completely (power off)
and restart it and then press the button to enter the setup utility.
Navigating and Entering
Information in BIOS
Use the following keys to move between fields and to enter information:
Tablet
Keypad External
Keyboard Description
/ Selects screen.
/ Moves up/down to select items.
Using the BIOS Setup Utility
34
Enter Confirms the selection and enters the selected menu
screen.
/ + / - Changes an option for the selected items.
- F1 Displays the Help screen.
- F2 Invokes the previous values.
- F3 Loads optimized default values.
- F4 Saves the changes and exits Setup.
<> + <9>
Esc Exits any section. If you wish to exit the BIOS utility
without saving changes or go to the main menu,
then press this key.
Users are allowed to enter new values to replace the default settings in certain
fields, and the rest of the fields are specified by system default parameters and
cannot be modified by users. Reverse the attribute of the main options and
press the button to enter into the submenu. Press both < > + <9>
buttons to return to the previous configuration page.
Main Menu
The Main menu displays the system overview information about BIOS version,
CPU features, and total memory size. You can also set the system date and time.
Using the BIOS Setup Utility
35
Advanced Menu
The Advanced menu allows you to select SATA mode, set the keypad backlight
timer, BIOS hotkey press, calibrate fan and battery, and configure devices,
power management, Intel Rapid Start Technology, and Trusted Computing
settings.
Boot Menu
The Boot menu allows you to configure the boot type and boot sequence.
Using the BIOS Setup Utility
36
Security Menu
The Security menu allows you to set or change the Administrator and User
passwords, and configure Secure Boot settings.
Save & Exit Menu
The Save & Exit menu allows you to save or discard the changes, or restore the
default values for all setup options before leaving the BIOS Setup Menu.
Using the BIOS Setup Utility
37
Specifications
Features Specifications
Processor Type & Speed i3-3217UE 1.6 GHz with 3MB L3 Cache
Specifications
38
Features Specifications
i7-3517UE 1.7 GHz with 4MB L3 Cache
i5-3427U 1.8 GHz with 3MB L3 Cache
Chipset QM77
Type Two 204-pin SODIMM sockets each for
DDRIII1600 2GB, 4GB, 8GB
System
Memory Maximum
Memory 16GB
Display
Standard：
10.4” XGA (1024x768) LCD with resistive multi-
touch panel
Sunlight readable:
10.4” XGA (1024x768) High brightness LCD
with sunlight readable resistive multi-touch panel
Screen Auto-
rotation
Support screen auto-rotation
Limitation: The screen can’t be turned 180 and 270
degree clockwise to operate.
Light Sensor Built-in ambient light sensor
Display
Digitizer Optional 10.4” Digitizer with active stylus
Auto switch between digitizer and touch input
Storage SSD
mSATA SSD 64/128 GB
Optional 2.5” 9.5mm SATA HDD
320/500/750GB
Expansion Slot PCMCIA
Optional Smart card reader
SD card slot (SDHC)
Camera
Front facing 1.3M pixel camera
Optional rear facing 5M pixel auto-focus
camera
I/O Devices
Barcode scanner Optional Barcode scanner, support 1D, 1D/2D
barcode
Internal 10/100/1000M bit Ethernet LAN
Intel WiFi 6235 module that supports
802.11a/b/g/n and Bluetooth
Communications
Optional GPS
I/O Ports Left Side I/O: RS-232x1(Support 5
Voltage), RJ 45x1,mini USBx1, DC-inx1
Right Side I/O: USB 3.0x2, Audio out (For
headphone)x1
Optional RF connectors for external GPS
antenna
Specifications
39
Features Specifications
Audio HD Audio
One speaker
Analog Mic. Array （With 2 Microphones）
AC/DC Adapter AC power input:100V-240V,50Hz-60Hz,
65W ;output:19V
Compliant with Energy Star 5.2
Battery Life One 6 cells battery pack (5200mAh, 57.72 W)
is 4~5 hr.
Power
Second Battery Support optional second Battery
2nd battery is available if main-storage is
mSATA
Operating
Temperature -20℃~ 60℃
Storage
Temperature -51~71℃
Operating
Humidity 5% ~ 95%
Drop 26 drops with 5 feet high to 2” plywood over
concrete, unit on with SSD
Dust Proof/Water
Sealing IP65
Vibration Mil Std 810G 514.6 Procedure I category 24
Figure 514.6E-1 (Transportation) General
Minimal Integrity, unit on with SSD
Environment
Salt fog Mil Std 810G 509.5
Operating System Windows 7 32 bit , 64 bit version
Window 8
Security TPM 1.2
Kensington Lock slot
Intel AT or Computrace
Dimensions 285(W)x215(H)x41.5(D)mm/11.2(W)x8.5(H)x
1.63(D) inch
Weight Weight: 2.2 Kg/4.9 Pound
Specifications are subject to change without prior notice.
