Manual

Installation

Manual

PC5132XS-433 NA

Version 5.O

• W A R N I N G •

This manual contains information on limitations regarding

product use and function and information on the limitations as to

liability of the manufacturer.

LIMITED WARRANTY

Digital Security Controls Ltd. warrants the original purchaser

that for a period of twelve months from the date of purchase,

the product shall be free of defects in materials and workman-

ship under normal use. During the warranty period, Digital

Security Controls Ltd. shall, at its option, repair or replace any

defective product upon return of the product to its factory, at

no charge for labour and materials. Any replacement and/or

repaired parts are warranted for the remainder of the original

warranty or ninety (90) days, whichever is longer. The origi-

nal purchaser must promptly notify Digital Security Controls

Ltd. in writing that there is defect in material or workmanship,

such written notice to be received in all events prior to

expiration of the warranty period. There is absolutely no

warranty on software and all software products are sold as a

user license under the terms of the software license agreement

included with the product. The Customer assumes all

responsibility for the proper selection, installation, operation

and maintenance of any products purchased from DSC. Custom

products are only warranted to the extent that they do not

function upon delivery. In such cases, DSC can replace or

credit at its option.

International Warranty

The warranty for international customers is the same as for

any customer within Canada and the United States, with the

exception that Digital Security Controls Ltd. shall not be re-

sponsible for any customs fees, taxes, or VAT that may be due.

Warranty Procedure

To obtain service under this warranty, please return the item(s)

in question to the point of purchase. All authorized distributors

and dealers have a warranty program. Anyone returning goods

to Digital Security Controls Ltd. must first obtain an

authorization number. Digital Security Controls Ltd. will not

accept any shipment whatsoever for which prior authoriza-

tion has not been obtained.

Conditions to Void Warranty

This warranty applies only to defects in parts and workmanship

relating to normal use. It does not cover:

• damage incurred in shipping or handling;

• damage caused by disaster such as fire, flood, wind, earth-

quake or lightning;

• damage due to causes beyond the control of Digital Security

Controls Ltd. such as excessive voltage, mechanical shock or

water damage;

• damage caused by unauthorized attachment, alterations, modi-

fications or foreign objects;

• damage caused by peripherals (unless such peripherals were

supplied by Digital Security Controls Ltd.);

• defects caused by failure to provide a suitable installation en-

vironment for the products;

• damage caused by use of the products for purposes other than

those for which it was designed;

• damage from improper maintenance;

• damage arising out of any other abuse, mishandling or im-

proper application of the products.

Items Not Covered by Warranty

In addition to the items which void the Warranty, the following

items shall not be covered by Warranty: (i) freight cost to the

repair centre; (ii) products which are not identified with DSC's

product label and lot number or serial number; (iii) products

disassembled or repaired in such a manner as to adversely

affect performance or prevent adequate inspection or testing

to verify any warranty claim. Access cards or tags returned

for replacement under warranty will be credited or replaced

at DSC's option. Products not covered by this warranty, or

otherwise out of warranty due to age, misuse, or damage

shall be evaluated, and a repair estimate shall be provided.

No repair work will be performed until a valid purchase

order is received from the Customer and a Return Merchandise

Authorisation number (RMA) is issued by DSC's Customer

Service.

Digital Security Controls Ltd.’s liability for failure to repair the

product under this warranty after a reasonable number of at-

tempts will be limited to a replacement of the product, as the

exclusive remedy for breach of warranty. Under no circum-

stances shall Digital Security Controls Ltd. be liable for any special,

incidental, or consequential damages based upon breach of

warranty, breach of contract, negligence, strict liability, or any

other legal theory. Such damages include, but are not limited to,

loss of profits, loss of the product or any associated equipment,

cost of capital, cost of substitute or replacement equipment,

facilities or services, down time, purchaser’s time, the claims of

third parties, including customers, and injury to property. The

laws of some jurisdictions limit or do not allow the disclaimer of

consequential damages. If the laws of such a jurisdiction apply

to any claim by or against DSC, the limitations and disclaimers

contained here shall be to the greatest extent permitted by law.

Some states do not allow the exclusion or limitation of incidental

or consequential damages, so that the above may not apply to you.

Disclaimer of Warranties

This warranty contains the entire warranty and shall be in lieu

of any and all other warranties, whether expressed or implied

(including all implied warranties of merchantability or fitness

for a particular purpose) and of all other obligations or liabili-

ties on the part of Digital Security Controls Ltd. Digital Secu-

rity Controls Ltd. neither assumes responsibility for nor

authorizes any other person purporting to act on its behalf to

modify or to change this warranty, nor to assume for it any

other warranty or liability concerning this product.

This disclaimer of warranties and limited warranty are gov-

erned by the laws of the province of Ontario, Canada.

WARNING: Digital Security Controls Ltd. recommends

that the entire system be completely tested on a regular

basis. However, despite frequent testing, and due to, but

not limited to, criminal tampering or electrical disrup-

tion, it is possible for this product to fail to perform as

expected.

Out of Warranty Repairs

Digital Security Controls Ltd. will at its option repair or re-

place out-of-warranty products which are returned to its

factory according to the following conditions. Anyone

returning goods to Digital Security Controls Ltd. must first

obtain an authorization number. Digital Security Controls

Ltd. will not accept any shipment whatsoever for which prior

authorization has not been obtained.

Products which Digital Security Controls Ltd. determines to

be repairable will be repaired and returned. A set fee which

Digital Security Controls Ltd. has predetermined and which

may be revised from time to time, will be charged for each

unit repaired.

Products which Digital Security Controls Ltd. determines

not to be repairable will be replaced by the nearest equiva-

lent product available at that time. The current market price

of the replacement product will be charged for each re-

placement unit.

Introduction 1

1.1 How to use this Manual ....................................................................... 1

1.2 Specifications and Features ............................................................... 1

1.3 Compatible Wireless Devices ............................................................. 2

1.4 Batteries ............................................................................................... 2

PC5132 Set up & Wiring 3

2.1 Unpack the PC5132 ............................................................................ 3

2.2 Choose a Mounting Location for the PC5132 .................................... 3

2.3 Antennas ............................................................................................. 3

2.4 Connect the PC5132 Receiver ........................................................... 3

Enrolling Wireless Devices 4

3.1 A Note about Electronic Serial Numbers ............................................ 4

3.2 Enrolling Wireless Devices ................................................................. 4

3.3 Enroll & Program Wireless Keys (WLS9X9-433) ................................. 4

3.4 Identified Wireless Keys ...................................................................... 6

Other Programming 7

4.1 Program Zones and Partitions ............................................................. 7

4.2 Enable PC5132 Supervision ............................................................... 7

4.3 Enable Supervision of Wireless Zones ................................................ 8

4.4 Jamming Signal Detection .................................................................. 8

4.5 PC5132 Software Default .................................................................... 9

4.6 Deleting Wireless Devices .................................................................. 9

Testing & Mounting 10

5.1 Test the Reception of Wireless Devices ........................................... 10

5.2 Mount the PC5132 and Wireless Devices ........................................ 11

Additional Notes 13

6.1 Trouble Conditions ............................................................................ 13

6.2 Jamming Signal Detection ................................................................ 13

6.3 Wireless Zone Low Battery Transmission ......................................... 13

Troubleshooting 15

Programming Worksheets 16

Guidelines for Locating Smoke Detectors 21

Index 22

Table of Contents

C O N T E N T S

Thank you for purchasing the PC5132 Wireless Receiver. This product

is the result of several years of development and will allow you to connect

up to 32 wireless detection devices to the PC585, PC1565, and the Power series

control panels.

The PC5132 operates at 433 MHz. It provides several advantages:

•supervisory transmissions are sent every 12 minutes.

•programmable supervisory window can be as long as 24 hours

•diversity antenna arrangement for better RF reception

In addition, the PC5132 features:

•6 digit serial numbers for all wireless devices: These new serial numbers

include hexadecimal digits.

Please read Section 3.1 “A note on Electronic

Serial Numbers (ESN)” for more information on enrolling 6-digit devices.

We are confident you will find the PC5132 Wireless Receiver a unique and useful

control panel enhancement.

This manual describes how to install, program and maintain the PC5132.

Before you install the PC5132 module, you should have completed the following

steps in your system installation:

1. Plan the installation and wiring of the security system (see your system

Installation Manual

)

2. Install the control panel, and install and enroll at least one keypad to use

for programming.

3. Install and enroll any hardwired zone expander modules (PC5108) you

plan to use.

NOTE: PC5108 zone expander modules occupy zones in 2 groups of 4 (e.g.

zones 9-12 and zones 13-16). None of the zones assigned to a PC5108 mod-

ule may be used for wireless devices.

Program the PC5132 from a system keypad or using downloading software on

a remote computer (e.g., DLS-3). Read your system

Installation Manual

for more

information.

1.1 How to use this Manual

Read this manual before you begin installing the PC5132. To install and set up the

PC5132 and wireless devices, follow these steps. Refer to the sections listed below.

1. Temporarily mount and wire the PC5132 module (see

Section 2

)

2. Enroll and program wireless devices (see

Section 3

)

3. Complete zone and other programming on the system (see

Section 4

)

4. Test the placement of all the wireless devices

(see Section 5)

5. Permanently mount the PC5132 receiver and wireless devices

(see Section 5)

For additional information on trouble conditions, RF jamming signal detection and

battery replacement, see

Section 6.

For help with troubleshooting, see

Section 7.

1.2 Specifications and Features

• Current Draw: 40mA

• Frequency: 433 MHz

• Zones - receiver can receive signals from up to 32 wireless zones and 16

wireless keys

• Internal antenna

• Supervisory - programmable supervisory window, 2 to 24 hours, in 15

minute increments

• Location

- can be wired up to 750 ft. / 230 m from the main panel with 22 gauge wire;

the wiring used in this circuit connection must be insulated with PVC, TFE,

PTFE, FEP, Neoprene or Polymide

- connects to Keybus

- for longer wire runs, thicker gauge wire must be used.

• Compatibility: The PC5132 v5.X can be connected to the following panels:

PC5020, PC501X, PC1565, PC585

S E C T I O N 1

Introduction

1.3 Compatible Wireless Devices

Please refer to the Instruction sheets of the following devices for more information.

The PC5132 v4.0 can receive signals from the following devices:

•WLS904-433 Motion Detector • WLS909-433 Wireless Key

• WLS904P-433 Pet Immune PIR • WLS912L-433 Glass Break Detector

• WLS906-433 Smoke Detector • WLS919-433 Wireless Key

• WLS907-433 Universal Transmitter • WLS925L-433 Mini Door/Window Contact

1.4 Batteries

The wireless devices, with the exception of the WLS925L-433 transmitter and

the WLS919-433 Wireless Key, are designed to use only Energizer Alkaline

batteries (by Eveready).

NOTE: Do not use other brands of batteries. Using any other brand may affect

system operation.

I N T R O D U C T I O N

S E C T I O N 2

This section describes how to set up and wire the PC5132 module.

2.1 Unpack the PC5132

Check that the following parts are in your PC5132 package:

• PC5132 PCB •Hardware for mounting the cabinet

• PC5132 plastic cabinet

2.2 Choose a Mounting Location for the PC5132

NOTE: Mount the PC5132 receiver and wireless devices after you have done place-

ment tests with the wireless devices (see sections 5.1 and 5.2).

Find a place that is:

• Dry

• Central to the proposed placement of all wireless devices

• As high as possible

• Far from sources of interference, including: electrical noise such as

computers, televisions and electric motors in appliances and heating and

air conditioning units; large metal objects like heating ducts and plumbing

which may shield the antenna.

Make sure that electrical wires will not run over the antenna(s) of the module when

it is mounted.

When mounting the PC5132 in a basement, place the module as high and as close

to the underside of the first floor as possible. The range of the module will be

reduced if the unit is mounted below ground level.

2.3 Antennas

The antennas have been installed at the factory. They should NOT be adjusted.

2.4 Connect the PC5132 Receiver

CAUTION: Remove all power from the sys-

tem while connecting modules to the

Keybus.

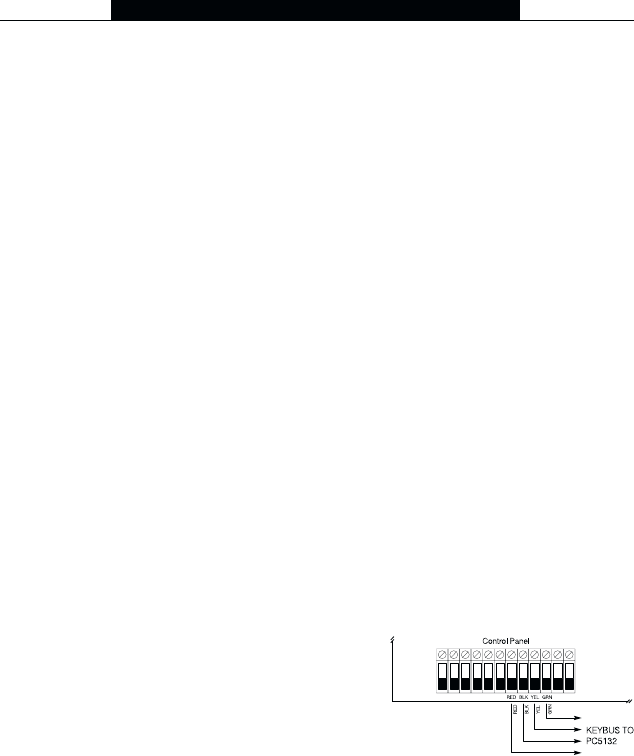

Connect the PC5132 to the four-wire Keybus of

the control panel according to the diagram.

After you have completed the wiring, reconnect the power to the security system.

Now that you have wired the PC5132, you should enroll and program the wireless

devices. See section 3 for instructions.

PC5132 Set up & Wiring

This section describes how to enroll wireless devices (WLS904-433, WLS904P-

433, WLS906-433, WLS907-433, WLS912L-433 and WLS925L-433), and wireless

keys (WLS909-433/WLS919-433). For more information on these devices, read the

instruction sheet included with each device.

3.1 A Note about Electronic Serial Numbers

An electronic serial number (ESN) is printed on the back of each wireless device.

ESNs are used to enroll the wireless devices with the PC5132 receiver.

In order to reduce the occurrence of wireless devices with the same serial number,

6-digit serial numbers are now printed on the back of each wireless device. The 6-

digit serial numbers include hexadecimal digits. For instructions on programming

hexadecimal numbers, see your system

Installation Manual

, section 4: ‘How to

Program’.

NOTE: 6-digit serial numbers are only supported on the following control panels:

PC5020, PC501X, PC1565 and PC585 v2.0 and higher.

The WLS904(P)-433, WLS906-433, WLS907-433, WLS912L-433, and WLS925L-433

devices have both a 5-digit and a 6-digit serial number printed on them. When

connecting the PC5132 to a PC5010 v1.x panel, enter 5-digit serial numbers only. When

connecting the PC5132 to a PC5015 v2.x and higher, PC5020, PC5010, PC1565, or

PC585 panel enter the 6-digit serial number.

3.2 Enrolling Wireless Devices

1. At a system keypad, enter [✱][8][Installer’s code] to go to the Installer

Programming section.

2. Enter programming section [804].

3. Enter the 2-digit number corresponding to the zone the device is to occupy

([01] to [32]).

NOTE: Hardwired and wireless devices cannot be assigned to the same zone.

PC5108 zone expander modules occupy zones in 2 groups of 4 (e.g. zones 9-12

and zones 13-16). None of the zones assigned to a PC5108 module may be used

for wireless devices. For more information on zone assignment, consult your sys-

tem Installation Manual.

4. Enter the device’s ESN. Follow the instructions in section 3.1 above.

5. Record the serial number and the assigned zone number in the

programming worksheets in the back of this manual.

6. Continue with steps 3 - 5 until you have enrolled all wireless devices.

7. To exit press [#]. The device is now enrolled on the system.

NOTE: The devices will not work properly until you complete zone and partition

programming (see section 4).

S E C T I O N 3

Enrolling Wireless Devices

3.3 Enroll & Program Wireless Keys

For wireless keys to work on the system, you need to enroll them and then program

the function buttons. Wireless keys are not assigned to zones and require no zone

programming. You can enroll up to 16 wireless keys on the system.

Enroll Wireless keys

1. At a system keypad, enter [✱][8][Installer’s code] to go to the Installer

Programming section.

2. Enter programming section [804].

3. Enter a 2-digit number [41]-[56] to assign the wireless key a slot. These

numbers correspond to wireless key numbers 01-16.

4. Enter the key’s ESN. The entry

must

be six digits. If an older key with a 5-

digit ESN is being enrolled, add the digit [0] to the beginning of the ESN.

(E.g., if ESN=61234, enter 061234)

5. The key is now enrolled on the system. Record the serial number and the

assigned slot number in the programming worksheets in the back of this

manual.

6. Repeat steps 3 - 5 until all wireless keys have been enrolled.

7. ((

((

(PC5020/PC5020/

PC5020/PC5020/

PC5020/PC501PC501

PC501PC501

PC501XX

X only) only)

only) only)

only) By default, all wireless keys are assigned to

Partition 1. To assign keys to Partition 2, enable the appropriate options in

programming sections [91] and [92].

NOTE: A wireless key can only be assigned to one partition.

8. To exit press [#].

Program the Wireless Key Function Buttons

WLS909-433/WLS919-433 wireless keys have four programmable function buttons.

You must program a set of four functions for the buttons before any keys will work.

After the functions are programmed, when you press and hold one of the four buttons

for two seconds, the system will execute the programmed function.

For systems not using partitions: program the function buttons in section [59].

All wireless keys will have the same four functions.

For systems using 2 partitions (PC5020/PC501X only): all wireless keys as-

signed to Partition 1 will have the four functions programmed in section [59]. All

wireless keys assigned to Partition 2 will have the four functions programmed in

section [60]. For example, if function button 1 in Section [59] is programmed for

Stay arming, then pressing the first button on wireless keys assigned to Partition 1

will Stay arm Partition 1.

NOTE: Wireless keys will not work when the partition they are assigned to is being

accessed for zone bypassing or programming.

1. At a system keypad, enter [✱][8][Installer’s code].

2. Enter programming section [804].

3. Enter programming section [59] for keys assigned to partition 1, or [60] for

keys assigned to partition 2.

4. For each of the 4 function buttons, enter the 2-digit number of the function

you want to select. See the programming worksheets in the back of this

manual for a list of function key options.

W I R E L E S S D E V I C E S

5. Record your programming choices in the worksheets in the back of the

manual.

6. To exit press [#].

3.4 Identified Wireless Keys

Reporting by the system of openings/closings by individual wireless keys and

command output [✱][7] activation by wireless key buttons may be supported on

certain control panels. To do this, the system will reserve access codes 17 – 32 for

wireless keys 01-16 respectively. You must program one access code for each

wireless key (using [✱][5] access code programming) for this feature to work

correctly.

NOTE: Program these access codes on the system

after

you have connected the

PC5132 to the Keybus (see section 2.4).

Refer to your system

Installation Manual

for information on access code programming.

Opening/Closing By Wireless Key Reporting

NOTE: The Identified Wireless Key Closing option is only available with the PC5020,

PC501X, PC1565, PC585 v2.0 and higher by turning section [015] option 4 off.

To enable the reporting of openings and closings

by identified wireless keys:

• Make sure the control panel is v2.0 or higher

• Program a valid access code for each key

• Program a closing and opening reporting code for each key’s access code

• Turn off the Quick Arm option in section [015] option [4] of the control

panel programming

To ensure that an

unidentified wireless key

cannot disarm the system, turn off

section [017], option [1] (in the control panel programming). This option is available

in control panels with software version 2.1 or higher.

Command Output Activation

NOTE: The Identified Wireless Key Command Output Activation feature is only avail-

able with the PC5020, PC501X, PC1565 and PC585 v2.0 and higher.

To enable command output activation by wireless keys, ensure that:

• The control panel is v2.0 or higher

• Program a valid access code for each key

• Enable the PGM output attribute Requires Access Code for each PGM

output programmed as [✱][7][1-4] in sections [141] to [154].

Now that you have enrolled all the wireless devices, you will need to program the

system to work properly with the devices. See section 4 for more information.

W I R E L E S S D E V I C E S

4.1 Program Zones and Partitions

Now that you have enrolled the wireless devices, you should complete all zone

programming on the system. Although the exact programming required varies

depending on which control panel the PC5132 is connected to, you should check

that the following programming areas are completed correctly for each wireless

zone:

• Enable zones and/or assign zones to one or more partitions (programming

sections [201]-[209]).

• Program the definition for each zone (programming sections [001]-[004]).

• Enable the wireless zone attribute for each wireless zone (PC585, PC1565,

PC5020, PC501X v2.0 and up only) (sections [101]-[132]).

See your system

Installation Manual

, for more information on each of the above

programming sections.

4.2 Enable PC5132 Supervision

The control panel will supervise the PC5132 receiver via the Keybus after at least

one device has been enrolled on the module (see section 3.2 “Enrolling Wireless

Devices”).

To activate module supervision, after you enroll the first device(s):

1. Exit and then re-enter Installer Programming

2. Enter programming section [902]. Wait approximately 1 minute.

3. To exit press [#].

The system will generate a General System Supervisory trouble if the module is

removed from the Keybus. If you need to remove the PC5132 module from an

existing system, you will have to disable supervision of the PC5132.

NOTE: Deleting all devices from the PC5132 or defaulting the PC5132 will cause

a PC5132 supervisory fault

To disable PC5132 supervision:

1. Disconnect the PC5132 from the Keybus

2. Enter [✱][8][Installer’s Code]

3. Enter [902]. The control panel will clear all supervision and re-scan the system for

connected modules. The scan will take approximately one minute.

4. To exit press [#].

To review which modules the control panel is currently supervising:

1. Enter [✱][8][Installer’s Code]

2. Enter [903] to display all modules. On LED keypads, light [17] will indicate

that the PC5132 is present on the system. On LCD keypads, scroll until the

module name appears on the display.

3. To exit press [#].

S E C T I O N 4

Other Programming

If the PC5132 module does not show on the keypad, one of the following

conditions may be present:

• the module is not connected properly to the Keybus

• there is a problem with the Keybus wiring run

• the module does not have enough power

• no devices have been enrolled on the PC5132

4.3 Enable Supervision of Wireless Zones

NOTE: (for PC5010 v1.x control panels only) In order for wireless zones to be

supervised, you must enable Double End of Line (DEOL) supervision in the PC5010

control panel. For more information, refer to your Installation Manual.

NOTE: (PC5020, PC501X, PC1565, PC585 v2.0 and higher only) For wireless

supervision to work, you must enable the wireless zone attribute on all wireless

zones (sections [101] to [132], option [8] ON).

Wireless Supervisory Window

Each wireless zone (WLS906-433,WLS904-433, WLS904P-433, WLS907-433,

WLS912L-433, or WLS925L-433) will send a supervisory signal every 12 minutes. If

the receiver does not receive a signal within the time programmed for the Wireless

Supervisory Window, it will generate a supervisory fault.

To program the wireless supervisory window:

1. Enter [✱][8][Installer’s Code] to enter Installer Programming.

2. Enter [804] to enter the PC5132 Module Programming.

3. Enter section [81].

4. Enter the time period for the supervisory window. The window is

programmed in 15 minute increments. The default programming is 10

(x15minutes), which is equal to 2.5 hours. Valid entries are (08) - (96), equal

to 2 - 24 hours.

5. To exit press [#].

Disable/Enable Zone Supervision

All wireless zones have supervision enabled by default. To disable supervision for

any zone, enter the following at any system keypad:

1. Enter [✱][8][Installer’s Code] to enter Installer Programming.

2. Enter [804] to enter the PC5132 Module Programming.

3. Enter sections [82], [83], [84] and [85]. Enable or disable supervision for

each wireless zone by turning each relevant option on or off.

4. To exit press [#].

4.4 Jamming Signal Detection

The PC5132 receiver detects jamming signals that can prevent the receiver from

properly receiving transmissions from enrolled devices. When jamming signals are

detected, the control panel will generate a General System Tamper trouble, which

will be reported immediately. Jamming signal detection is turned ON by default.

To turn OFF jamming signal detection:

O T H E R P R O G R A M M I N G

1. Enter [✱][8][Installer’s Code] to enter Installer Programming.

2. Enter [804] to enter the PC5132 Module Programming.

Turn ON

section [90], option [7].

4. To exit press [#].

4.5 PC5132 Software Default

Returning the PC5132 programming to factory default settings is a quick way to

remove all the enrolled devices from the system and reset all the programming in

section [804].

NOTE: Performing this procedure will not change any programming sections ex-

cept [804]. Resetting the control panel to factory default settings will

not

return the

PC5132 module to factory default settings.

To restore the PC5132 programming to the factory default settings:

1. Enter [✱][8] [Installer’s Code].

2. Enter programming section [996].

3. Enter the Installer’s Code, followed by [996] again. The software for the

PC5132 will be restored to its factory default settings.

4. To continue programming the unit, exit Installer Programming by pressing

[#] and then re-enter Installer Programming by entering [✱][8] [Installer’s

Code].

For instructions on restoring the default programming of the control panel or any

other connected module, see your system

Installation Manual

4.6 Deleting Wireless Devices

To remove a wireless device from the system, follow the guideline for enrolling a

wireless device (see section 3.2). Program the ESN as [000000]. The wireless

device for the zone will be removed.

NOTE: You may need to remove power from the panel in order to clear troubles

caused by deleted zones.

Now that you have completed all PC5132 related programming, you can test and

mount the receiver and devices. See section 5 for more information.

5.1 Test the Reception of Wireless Devices

It is very important to test the proposed placement of each wireless device before

it is mounted. Following these steps will test the signal strength between the PC5132-

433 and the wireless devices.

You can test all of the devices together (global placement testing) or test each device

individually. To test all the devices together, see

Testing All Wireless Devices

Together

. To test wireless devices individually, see

Testing Individual Devices

NOTE: After you have enrolled the wireless devices, you must exit and then re-

enter installer’s mode at least once before you can perform a placement test.

Testing All Wireless Devices Together:

1. Temporarily put the wireless devices in the places you want to mount them.

2. At a system keypad, enter [✱][8][Installer’s Code].

3. Enable the Global Module Placement test by entering section [804].

Then enter sub-section [90] and turn on option [8].

4. Press [#] twice.

5. Enter programming section [904], then enter [01].

6. Activate one of the devices being tested until a result is displayed on the

keypad or sounded by the keypad or bell:

WLS904-433/WLS904P:

To perform a Placement Test on the WLS904-433,

remove the detector from the back plate and then replace it. Once the detector

is replaced on the backplate the LED on the detector will flash rapidly 5 times to

indicate that it has sent a transmission. The panel will show and/or sound the

result of the placement test on the keypad. To perform a 2nd and 3rd test, repeat

this procedure.

Carefully replace the backplate onto the detector, ensuringCarefully replace the backplate onto the detector, ensuring

Carefully replace the backplate onto the detector, ensuring

that “TOP”that “TOP”

that “TOP”

is facing upward, or you may damage the tamper switch. is facing upward, or you may damage the tamper switch.

is facing upward, or you may damage the tamper switch.

NOTE: When you remove the detector from the backplate (tamper the unit), the

detector will also be put into “Detector Walk Test” mode. While in Walk Test Mode

the detector will activate the LED when motion is detected. The detector will also

send a signal to the receiver 5 seconds after motion is detected, indicated by 5

rapid flashes by the LED. The LED will only work in this fashion for 10 motion

detections after a tamper/restore. Note, that the panel will ignore these transmis-

sion signals with respect to a placement test. The only way in which the panel will

acknowledge a placement test, is if the backplate has, each time, been removed

and restored.

WLS906-433: Remove the detector from its backplate, wait 5 seconds and

reattach it, or hold a magnet near the raised line on the outer rim, then remove it.

WLS907-433/WLS925L-433: Open the contact by moving the magnet away

from the unit. The keypad will show/sound the test result. After the first test

result has been generated (about 10 seconds) close the contact to

generate another test result. If the unit is attached to a door or a window,

open and close the door or window to activate the device.

WLS909-433/WLS919-433: Press any function key at several different locations.

WLS912L-433:

Press and hold the test mode tab for 5 seconds. Release

the test mode tab.

S E C T I O N 5

Testing & Mounting

T E S T I N G & M O U N T I N G

Read the test results at the keypad:

Result LED Keypad LCD Keypad Buzzer/Bell

Good Light 1 On Steady “Good” 1 Beep/Squawk

Bad Light 3 On Steady “Bad” 3 Beeps/Squawks

Activate the device until you get 3 good results in a row.

You may mount the WLS devices where results were good.

Devices indicating a bad result must be moved to another location. You may

only have to move the device a few inches to correct a bad result.

NOTE: Do not mount any device where a “bad” test result was indicated.

7. Go to the next device to be tested and activate it until the test result is

displayed/sounded.

NOTE: Wait until the placement test of one device is shown/sounded before begin-

ning to test the next device.

Continue to test the devices until both the PC5132 and the devices are in good

locations. If several wireless devices produce BAD test results, you may need to

move the PC5132 to a better location. (See section 2.2 for tips on finding a

location for the PC5132.)

8. To exit the placement test and return to installer programming, press [#] twice.

Testing Individual Wireless Devices:

1. Temporarily place the wireless device in the place you want to mount it.

2. At a system keypad, enter [✱][8][Installer’s Code].

3. Enter programming section [904].

4 Enter the 2-digit zone number for the device to be tested.

5. Activate the device being tested until a result is displayed on the keypad or

sounded by the keypad or bell. (Same as step 5 in the Global Placement

Test section, previous page.)

6. To test another device, press [#] once, then repeat steps 4 - 5. Continue to test

the devices until both the PC5132 and the devices are in good locations.

If several wireless devices produce BAD test results, you may need to move

the PC5132 to a better location. (See section 2.2 for tips on finding a

location for the PC5132.)

7. To exit the placement test and installer programming, press [#] twice.

Testing Individual Wireless Keys:

You cannot use the individual device test described above to test WLS909-433/

WLS919-433 wireless keys. To ensure that the PC5132 receiver is receiving

transmissions from the devices, use the function keys on the Wireless Keys at

several different points in the installation.

5.2 Mount the PC5132 and Wireless Devices

When you have tested reception of the PC5132 with all the wireless devices (see

section 5.1) and you have a good mounting location, mount the PC5132:

1. Pull the Keybus wires through the hole at the bottom of the cabinet.

2. Mount the cabinet securely to the wall.

Mount the Devices

If you have conducted the placement test described in section 5.1 and got 3

“Good” results in a row for each device, you can mount the wireless devices. See

the

Installation Sheet

for each device for mounting instructions.

Now that your PC5132 and wireless devices are mounted and working properly,

read section 6 for information on potential wireless trouble conditions, RF jamming

signals, and battery replacement.

T E S T I N G & M O U N T I N G

S E C T I O N 6

Additional Notes

6.1 Trouble Conditions

The control panel always watches for possible trouble conditions. If a trouble

condition occurs, the keypad “Trouble” light will turn on and the keypad will beep.

Press [✱][2] to display the trouble conditions.

The following trouble conditions apply to the PC5132 and/or any enrolled devices.

General System Tamper - This trouble is generated when the PC5132 plastic

cover is removed and/or if there is a jamming condition present.

General System Supervisory - This trouble will be indicated if the panel loses

communication with any module connected to the Keybus. The event buffer will

log a detailed description of the event.

Device Low Battery - This trouble is generated when a wireless device exhibits a

low battery condition. Press [7] one, two, or three times to view which devices

are experiencing battery failure. An LED keypad will indicate battery failure

using zone lights 1 to 8.

Zone Tamper - This trouble is generated when an enrolled wireless device is

removed from its mounting location.

Zone Fault - Each wireless zone will send a supervisory signal every 64

minutes. If the receiver does not receive a signal within the time

programmed for the Wireless Supervisory Window, it will generate a zone

fault.

Tamper Switches

There are two tamper switches on the PC5132 board. Removing both the plastic

cover and/or the PC5132 from its mounting location will cause a general system

tamper.

6.2 Jamming Signal Detection

The PC5132 receiver detects jamming signals that can prevent the receiver from

properly receiving transmissions from enrolled devices. See section 4.4 “Jamming

Signal Detection” for information on jamming signal detection programming.

6.3 Wireless Zone Low Battery Transmission

Within any transmission, the device will indicate the status of the battery. If a battery

is low, the system will indicate a Device Low Battery trouble.

The system will delay reporting the event to the central station for the number of

days programmed for Zone Low Battery Transmission Delay in section [370].

This will prevent unnecessary reporting of the event if the user has been instructed

on how to replace batteries.

A D D I T I O N A L N O T E S

Replacing Batteries in Wireless Devices

1. Remove the cover of the device from its back plate. This creates a tamper

condition on the zone.

2. Refer to the battery installation instructions on the

Installation Sheet

of each

component. Be sure to note the proper orientation of the batteries as you

install them.

3. When the fresh batteries are in place, re-attach the cover to the back plate.

The tamper is restored and the zone sends a battery trouble restoral signal

to the PC5132. The battery trouble is now clear and the device should

function normally.

NOTE: When batteries in one device need to be replaced, the batteries in all de-

vices may need to be replaced at the same time.

S E C T I O N 7

Troubleshooting

1. When I enter the 2-digit zone number when adding a wireless

device, the keypad gives me a long beep.

You cannot enter ESNs unless a PC5132 wireless receiver is connected to the

Keybus. See section 2 for instructions on setting up and wiring the PC5132 module.

2. I have entered the ESN for the device but when I violate the

device, the zone does not show open on the keypad.

Check the following:

• Ensure the ESN has been entered correctly

• Ensure that the zone is enabled for the partition (if partition programming is

used).

• Ensure that the wireless zone is not assigned to a zone used by PC5108

modules, an on-board zone, or a keypad zone.

• Ensure that the zone is programmed for something other than “Null

Operation”, and that the wireless zone attribute is turned on.

3. When I try a module placement test I get no result or “Bad”

results.

Check the following (see sections 5.1 and 5.2 for more information on testing

devices):

• Verify that you are testing the correct zone

• Verify that the correct ESN was entered when the device was enrolled

• Verify that the device is in range of the PC5132. Try testing the device in

the same room as the receiver.

• Confirm that the PC5132 is properly connected to the Keybus (see section

2 for PC5132 set up and wiring instructions).

• Check that you are testing the zone correctly (see sections 5.1 and 5.2 for

testing instructions)

• Check that the batteries are working and installed correctly.

• Look for large metal objects that may be preventing the signal from

reaching the PC5132.

The device must be located where consistent “Good” results are obtained. If

several devices show “Bad” results, move the receiver. See section 2.2 for tips on

choosing a mounting location for the PC5132.

4. The LED on the motion detector does not turn on when I walk in

front of the unit.

The LED is for walk test purposes only. See your WLS904-433/WLS904P-433

Instruction Sheet

for walk test instructions.

[804] 5132--433 Wireless Expansion Programming

• 6-digit entry is required. See Section 3.1 “A note on Electronic Serial

Numbers” for details on programming 6-digit serial numbers.

Zone Serial Numbers

Default = 000000

[01] Zone 1 l

_____l

[02] Zone 2 l

_____l

[03] Zone 3 l

_____l

[04] Zone 4 l

_____l

[05] Zone 5 l

_____l

[06] Zone 6 l

_____l

[07] Zone 7 l

_____l

[08] Zone 8 l

_____l

[09] Zone 9 l

_____l

[10] Zone 10 l

_____l

[11] Zone 11 l

_____l

[12] Zone 12 l

_____l

[13] Zone 13 l

_____l

[14] Zone 14 l

_____l

[15] Zone 15 l

_____l

[16] Zone 16 l

_____l

[17] Zone 17 l

_____l

[18] Zone 18 l

_____l

[19] Zone 19 l

_____l

[20] Zone 20 l

_____l

[21] Zone 21 l

_____l

[22] Zone 22 l

_____l

[23] Zone 23 l

_____l

[24] Zone 24 l

_____l

[25] Zone 25 l

_____l

[26] Zone 26 l

_____l

[27] Zone 27 l

_____l

[28] Zone 28 l

_____l

[29] Zone 29 l

_____l

[30] Zone 30 l

_____l

[31] Zone 31 l

_____l

[32] Zone 32 l

_____l

Programming Worksheets

S E C T I O N 8

Wireless Key Serial Numbers

Default = 000000

[41] Key 01 l_____l_____l_____l_____l_____l_____l

[42] Key 02 l_____l_____l_____l_____l_____l_____l

[43] Key 03 l_____l_____l_____l_____l_____l_____l

[44] Key 04 l_____l_____l_____l_____l_____l_____l

[45] Key 05 l_____l_____l_____l_____l_____l_____l

[46] Key 05 l_____l_____l_____l_____l_____l_____l

[47] Key 07 l_____l_____l_____l_____l_____l_____l

[48] Key 08 l_____l_____l_____l_____l_____l_____l

P R O G R A M M I N G W O R K S H E E T S

[49] Key 09 l_____l_____l_____l_____l_____l_____l

[50] Key 10 l_____l_____l_____l_____l_____l_____l

[51] Key 11 l_____l_____l_____l_____l_____l_____l

[52] Key 12 l_____l_____l_____l_____l_____l_____l

[53] Key 13 l_____l_____l_____l_____l_____l_____l

[54] Key 14 l_____l_____l_____l_____l_____l_____l

[55] Key 15 l_____l_____l_____l_____l_____l_____l

[56] Key 16 l_____l_____l_____l_____l_____l_____l

Wireless Key Function Key Options

Entry Key Description Entry Key Description

00 Null Key 16 [✱][0] Quick Exit

01-02 For Future Use 17 [✱][1] Reactivate Stay/Aways

03 Stay Arm 18 For Future Use

04 Away Arm 19 [✱][7][3] Command Output #3

05 [✱][9] No-Entry Arm 20 For Future Use

06 [✱][4] Chime ON/OFF 21 [✱][7][4] Command Output #4

07 [✱][6][——][4] System Test 22-26 For Future Use

08-12 For Future Use 2727 Disarm (OFF)

13 [✱][7][1] Command Output #1 2828 Fire Alarm

14 [✱][7][2] Command Output #2 /

Sensor Reset

2929 Auxiliary Alarm

15 For Future Use 30 Panic Alarm

P R O G R A M M I N G W O R K S H E E T S

Partition 1 Wireless Key Options

Default = 00

[59] Function Key 1 l

____l

____lFunction Key 3 l

____l

Function Key 2 l

____l

____lFunction Key 4 l

____l

Partition 2 Wireless Key Options

[60] Function Key 1 l

____l

____lFunction Key 3 l

____l

Function Key 2 l

____l

____lFunction Key 4 l

____l

Supervision

[81] Wireless Supervisory Window Default = 10

____l

____lThe window is programmed in 15 minute increments. The

default programming is 96 (x 15minutes), which is equal to 24

hours. Valid entries are (08) - (96), equal to 2 - 24 hours.

[82] Zone Device Supervision Options (1-8)

Default = ON Option ON Option OFF

________lOption 1 Zone 01 Supervision enabled Disabled

________lOption 2 Zone 02 Supervision enabled Disabled

________lOption 3 Zone 03 Supervision enabled Disabled

________lOption 4 Zone 04 Supervision enabled Disabled

________lOption 5 Zone 05 Supervision enabled Disabled

________lOption 6 Zone 06 Supervision enabled Disabled

________lOption 7 Zone 07 Supervision enabled Disabled

________lOption 8 Zone 08 Supervision enabled Disabled

[83] Zone Device Supervision Options (9-16)

Default = ON Option ON Option OFF

________lOption 1 Zone 09 Supervision enabled Disabled

________lOption 2 Zone 10 Supervision enabled Disabled

________lOption 3 Zone 11 Supervision enabled Disabled

________lOption 4 Zone 12 Supervision enabled Disabled

________lOption 5 Zone 13 Supervision enabled Disabled

________lOption 6 Zone 14 Supervision enabled Disabled

________lOption 7 Zone 15 Supervision enabled Disabled

________lOption 8 Zone 16 Supervision enabled Disabled

P R O G R A M M I N G W O R K S H E E T S

[84] Zone Device Supervision Options (17-24)

Default = ON Option ON Option OFF

________lOption 1 Zone 17 Supervision enabled Disabled

________lOption 2 Zone 18 Supervision enabled Disabled

________lOption 3 Zone 19 Supervision enabled Disabled

________lOption 4 Zone 20 Supervision enabled Disabled

________lOption 5 Zone 21 Supervision enabled Disabled

________lOption 6 Zone 22 Supervision enabled Disabled

________lOption 7 Zone 23 Supervision enabled Disabled

________lOption 8 Zone 24 Supervision enabled Disabled

[85] Zone Device Supervision Options (25-32)

Default = ON Option ON Option OFF

________lOption 1 Zone 25 Supervision enabled Disabled

________lOption 2 Zone 26 Supervision enabled Disabled

________lOption 3 Zone 27 Supervision enabled Disabled

________lOption 4 Zone 28 Supervision enabled Disabled

________lOption 5 Zone 29 Supervision enabled Disabled

________lOption 6 Zone 30 Supervision enabled Disabled

________lOption 7 Zone 31 Supervision enabled Disabled

________lOption 8 Zone 32 Supervision enabled Disabled

[90] Other Options

Default = OFF Option ON Option OFF

________lOptions 1-6 For future use

________lOption 7 RF Jam Detect Disabled RF Jam Detect Enabled

________lOption 8 Global Placement Test Individual Placement Test

[91] Wireless Keys (1-8) Partition Assignments

Default = OFF Option ON Option OFF

________lOption 1 Wireless Key 01 on partition 2 On partition 1

________lOption 2 Wireless Key 02 on partition 2 On partition 1

________lOption 3 Wireless Key 03 on partition 2 On partition 1

________lOption 4 Wireless Key 04 on partition 2 On partition 1

P R O G R A M M I N G W O R K S H E E T S

________lOption 5 Wireless Key 05 on partition 2 On partition 1

________lOption 6 Wireless Key 06 on partition 2 On partition 1

________lOption 7 Wireless Key 07 on partition 2 On partition 1

________lOption 8 Wireless Key 08 on partition 2 On partition 1

[92] Wireless Keys (9-16) Partition Assignments

Default = OFF Option ON Option OFF

________lOption 1 Wireless Key 09 on partition 2 On partition 1

________lOption 2 Wireless Key 10 on partition 2 On partition 1

________lOption 3 Wireless Key 11 on partition 2 On partition 1

________lOption 4 Wireless Key 12 on partition 2 On partition 1

________lOption 5 Wireless Key 13 on partition 2 On partition 1

________lOption 6 Wireless Key 14 on partition 2 On partition 1

________lOption 7 Wireless Key 15 on partition 2 On partition 1

________lOption 8 Wireless Key 16 on partition 2 On partition 1

P R O G R A M M I N G W O R K S H E E

A P P E N D I X A

Guidelines for Locating Smoke Detectors

Experience has shown that all hostile fires in family living units generate smoke to a greater or lesser

extent. Experiments using typical fires in family living units indicate that detectable quantities of smoke

precede detectable levels of heat in most cases. In existing homes, NFPA Standard 72 requires that a

smoke detector be installed outside each sleeping area and on each additional story of the family unit.

On smooth ceilings, detectors may be spaced 9.1m (30 feet) apart as a guide. Other spacing may be

required depending on ceiling height, air movement, the presence of joists, uninsulated ceilings, etc.

Consult National Fire Alarm Code NFPA 72, CAN/ULS-S553-M86 or other appropriate national

standards for installation recommendations.

Do not locate smoke detectors at the top of peaked or gabled ceilings; the dead air space in these

locations may prevent the unit from detecting smoke.

Avoid areas with turbulent air flow, such as near doors, fans or windows. Rapid air movement around

the detector may prevent smoke from entering the unit.

Do not locate detectors in areas of high humidity.

Do not locate detectors in areas where the temperature rises above 38oC (100oF) or falls below 5oC

(41oF).

Smoke detectors should always be installed in accordance with NFPA 72, the National Fire Alarm Code.

Smoke detectors should always be located in accordance with:

•Paragraph 2-2.1.1.1 of NFPA 72:

“Smoke detectors shall be installed outside of each separate

sleeping area in the immediate vicinity of the bedrooms and on each additional story of the family

living unit, including basements and excluding crawl spaces and unfinished attics. In new

construction, a smoke detector also shall be installed in each sleeping room.”

•Paragraph 2-2.1.1.2 of NFPA 72:

“Split level arrangement. Smoke detectors are required where

shown. Smoke detectors are optional where a door is not provided between living room and

recreation room.”

S E C T I O N 9

The Smoke Detector is designed to use Eveready Energizer EN91 Alkaline Batteries.

Do not use other brands of batteries with the Smoke Detector. Using brands other

than the Eveready Energizer will void UL approval, and may affect the system’s operation.

Index

add

device 4

wireless key 5, 11

antenna 3

batteries

replacing 13

buttons

programming 5

connect

Keybus 3

receiver 3

default

module 9

panel 9

delete device 9

devices 2

adding 4

removing 9

distance from control

panel 1

electronic serial

number 4

enroll

device 4

PC5132 7

wireless key 4

ESN 4

factory default 9

frequency 1

function keys 5

global placement

test 10

individual placement

test 11

interference 3

jamming signal

detection 8, 12

Keybus 3

location

choosing 3

low battery

devices 12

mount

devices 11

PC5132 11

number

electronic, serial 4

partition program-

ming 7

wireless keys 5

placement

PC5132 3

test 10

power 3

problems 12

removing

device 9

module 7

serial number 4

slot number

wireless key 5

supervision

DEOL 8

device 8

disable 7

module 7

window 8

testing

door/window

contact 10

global 10

individual 11

motion detector 10,

PC5132 10

placement 10

trouble 12

troubleshooting 15

wireless key

access codes 6

activating outputs 6

arming/disarming 6

enrolling 4

identifying 6

programming 4

zone

adding 4

attribute 7

numbers 4

programming 7

wireless 7

I N D E X

FCC COMPLIANCE STATEMENT

CAUTION: Changes or modifications not expressly approved by Digital Security Controls Ltd. could void your authority to use

this equipment.

This equipment generates and uses radio frequency energy and if not installed and used properly, in strict accordance with the

manufacturer’s instructions, may cause interference to radio and television reception. It has been type tested and found to

comply with the limits for Class B device in accordance with the specifications in Subpart “B” of Part 15 of FCC Rules, which

are designed to provide reasonable protection against such interference in any residential installation. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause interference to television or

radio reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

•Re-orient the receiving antenna

•Relocate the alarm control with respect to the receiver

•Move the alarm control away from the receiver

•Connect the alarm control into a different outlet so that alarm control and receiver are on different circuits.

If necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions.

The user may find the following booklet prepared by the FCC helpful: “How to Identify and Resolve Radio/Television

Interference Problems”. This booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402,

Stock # 004-000-00345-4.

This Class B digital apparatus meets all requirements of the Canadian interference-causing equipment regulations.

Cet appareil numérique de la Classe B respecte toutes les exigences de règlement sur le matériel brouilleur du Canada.

IC: 160 - 5132XS43

The term "IC": before the radio certification number only signifies that Industry Canada technical specifications were met.

Toronto, Canada • www.dsc.com

Technical Support 1-800-387-3630

Printed in Canada 29005106 R003

Direct all comments con-

cerning this publication to

pubs@dscltd.com

WARNING Please Read Carefully

Note to Installers

This warning contains vital information. As the only individual in contact

with system users, it is your responsibility to bring each item in this warning

to the attention of the users of this system.

System Failures

This system has been carefully designed to be as effective as possible.

There are circumstances, however, involving fire, burglary, or other

types of emergencies where it may not provide protection. Any alarm

system of any type may be compromised deliberately or may fail to

operate as expected for a variety of reasons. Some but not all of these

reasons may be:

■■

■ Inadequate Installation

A security system must be installed properly in order to provide ad-

equate protection. Every installation should be evaluated by a security

professional to ensure that all access points and areas are covered.

Locks and latches on windows and doors must be secure and operate

as intended. Windows, doors, walls, ceilings and other building mate-

rials must be of sufficient strength and construction to provide the level

of protection expected. A reevaluation must be done during and after

any construction activity. An evaluation by the fire and/or police depart-

ment is highly recommended if this service is available.

■■

■ Criminal Knowledge

This system contains security features which were known to be effective

at the time of manufacture. It is possible for persons with criminal intent

to develop techniques which reduce the effectiveness of these features.

It is important that a security system be reviewed periodically to ensure

that its features remain effective and that it be updated or replaced if it

is found that it does not provide the protection expected.

■■

■ Access by Intruders

Intruders may enter through an unprotected access point, circumvent

a sensing device, evade detection by moving through an area of insuf-

ficient coverage, disconnect a warning device, or interfere with or

prevent the proper operation of the system.

■■

■ Power Failure

Control units, intrusion detectors, smoke detectors and many other security

devices require an adequate power supply for proper operation. If a

device operates from batteries, it is possible for the batteries to fail.

Even if the batteries have not failed, they must be charged, in good

condition and installed correctly. If a device operates only by AC power,

any interruption, however brief, will render that device inoperative

while it does not have power. Power interruptions of any length are

often accompanied by voltage fluctuations which may damage elec-

tronic equipment such as a security system. After a power interruption

has occurred, immediately conduct a complete system test to ensure

that the system operates as intended.

■■

■ Failure of Replaceable Batteries

This system’s wireless transmitters have been designed to provide sev-

eral years of battery life under normal conditions. The expected battery

life is a function of the device environment, usage and type. Ambient

conditions such as high humidity, high or low temperatures, or large

temperature fluctuations may reduce the expected battery life. While

each transmitting device has a low battery monitor which identifies

when the batteries need to be replaced, this monitor may fail to operate

as expected. Regular testing and maintenance will keep the system in

good operating condition.

■■

■ Compromise of Radio Frequency

(Wireless) Devices

Signals may not reach the receiver under all circumstances which could

include metal objects placed on or near the radio path or deliberate jam-

ming or other inadvertent radio signal interference.

■■

■ System Users

A user may not be able to operate a panic or emergency switch possibly

due to permanent or temporary physical disability, inability to reach the

device in time, or unfamiliarity with the correct operation. It is important

that all system users be trained in the correct operation of the alarm

system and that they know how to respond when the system indicates an

alarm.

■■

■ Smoke Detectors

Smoke detectors that are a part of this system may not properly alert

occupants of a fire for a number of reasons, some of which follow. The

smoke detectors may have been improperly installed or positioned. Smoke

may not be able to reach the smoke detectors, such as when the fire is in

a chimney, walls or roofs, or on the other side of closed doors. Smoke

detectors may not detect smoke from fires on another level of the

residence or building.

Every fire is different in the amount of smoke produced and the

rate of burning. Smoke detectors cannot sense all types of fires

equally well. Smoke detectors may not provide timely warning of

fires caused by carelessness or safety hazards such as smoking in

bed, violent explosions, escaping gas, improper storage of flam-

mable materials, overloaded electrical circuits, children playing

with matches or arson.

Even if the smoke detector operates as intended, there may be cir-

cumstances when there is insufficient warning to allow all occupants

to escape in time to avoid injury or death.

■■

■ Motion Detectors

Motion detectors can only detect motion within the designated areas

as shown in their respective installation instructions. They cannot

discriminate between intruders and intended occupants. Motion de-

tectors do not provide volumetric area protection. They have mul-

tiple beams of detection and motion can only be detected in unob-

structed areas covered by these beams. They cannot detect motion

which occurs behind walls, ceilings, floor, closed doors, glass par-

titions, glass doors or windows. Any type of tampering whether in-

tentional or unintentional such as masking, painting, or spraying of

any material on the lenses, mirrors, windows or any other part of the

detection system will impair its proper operation.

Passive infrared motion detectors operate by sensing changes in

temperature. However their effectiveness can be reduced when the

ambient temperature rises near or above body temperature or if

there are intentional or unintentional sources of heat in or near the

detection area. Some of these heat sources could be heaters, radia-

tors, stoves, barbeques, fireplaces, sunlight, steam vents, lighting and

so on.

■■

■ Warning Devices

Warning devices such as sirens, bells, horns, or strobes may not

warn people or waken someone sleeping if there is an intervening

wall or door. If warning devices are located on a different level of

the residence or premise, then it is less likely that the occupants will

be alerted or awakened. Audible warning devices may be inter-

fered with by other noise sources such as stereos, radios, televi-

sions, air conditioners or other appliances, or passing traffic. Au-

dible warning devices, however loud, may not be heard by a hear-

ing-impaired person.

■■

■ Telephone Lines

If telephone lines are used to transmit alarms, they may be out of

service or busy for certain periods of time. Also an intruder may cut

the telephone line or defeat its operation by more sophisticated means

which may be difficult to detect.

■■

■ Insufficient Time

There may be circumstances when the system will operate as in-

tended, yet the occupants will not be protected from the emer-

gency due to their inability to respond to the warnings in a timely

manner. If the system is monitored, the response may not occur in

time to protect the occupants or their belongings.

■■

■ Component Failure

Although every effort has been made to make this system as reli-

able as possible, the system may fail to function as intended due to

the failure of a component.

■■

■ Inadequate Testing

Most problems that would prevent an alarm system from operating

as intended can be found by regular testing and maintenance. The

complete system should be tested weekly and immediately after a

break-in, an attempted break-in, a fire, a storm, an earthquake, an

accident, or any kind of construction activity inside or outside the

premises. The testing should include all sensing devices, keypads,

consoles, alarm indicating devices and any other operational de-

vices that are part of the system.

■■

■ Security and Insurance

Regardless of its capabilities, an alarm system is not a substitute for

property or life insurance. An alarm system also is not a substitute

for property owners, renters, or other occupants to act prudently

to prevent or minimize the harmful effects of an emergency situ-

ation.

Tyco Safety Canada 005132XS433 Receiver User Manual Manual

Digital Security Controls Ltd. Receiver Manual

Manual

Navigation menu

Namespaces

Views

Navigation
