1
Introduction

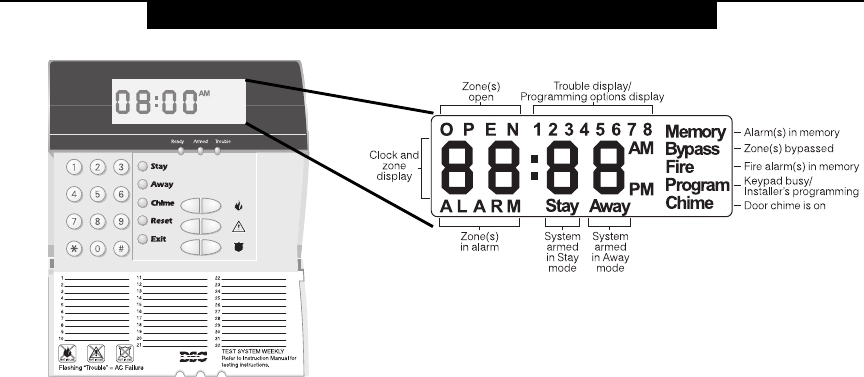

The LCD5501Z32-900 keypad combines a stan-
dard PC5132 receiver with an LCD5501Z keypad
that presents system status using an LCD-style
display with fixed messages. The keypad can be
used on security systems with up to 32 zones. The
LCD5501Z32-900 is compatible with the following
DSC security systems:
• PC580/585 v2.3 and higher
• PC1555 v2.3 and higher
• Power608 v2.3 and higher
• PC5008 v2.3 and higher
• PC5010 v2.0 and higher
• PC5015 v2.2 and higher
Specifications and Features
• Current Draw: 260mA
• Frequency: 922 to 926 MHz, Spread Spectrum
• Zones - receiver can receive signals from up to 32
wireless zones
• Supervisory - programmable supervisory window,
one to 24 hours
• Location
- can be wired up to 1000 ft. / 305 m from the main panel
with 22 gauge wire
- for longer wire runs, thicker gauge wire must be used.
• Compatibility: The LCD5501Z32-900 can be
connected to the following panels: PC5010, PC5015,
PC5008, PC1555, PC580
• Connects to control panel via 4-wire Keybus
• One keypad zone input
• Optional tamper version
• Five programmable function keys
• Ready (green), Armed (red) and Trouble (yellow)
status lights
Introduction
I N T R O D U C T I O N
2
1.1 Unpacking
The LCD5501Z32-900 package includes the following
parts:
• One LCD5501Z32-900 keypad
• Four mounting screws
• One keypad inner door label
• One set of Fire, Auxiliary and Panic key labels
1.2 Mounting
You should mount the keypad where it is accessible
to designated points of entry and exit. Once you
have selected a dry and secure location, perform
the following steps to mount the keypad:
1. Remove the keypad backplate by loosening the
screw located at the base of the unit.
2. Secure the keypad backplate to the wall in the
desired location. Use the screws provided.
3. Before attaching the keypad to its backplate,
complete the keypad wiring as described in the
next section.
1.3 Wiring
1. Before beginning to wire the unit, ensure that all
power (AC transformer and battery) is
disconnected from the control panel.
2. Connect the four Keybus wires from the control
panel (red, black, yellow and green) to the keypad
terminals (R B Y G). Consult the diagram below:
Installation
S E C T I O N 1
3. You can connect a device - such as a door contact
- to the “Z” terminal of the LCD5501Z32-900. This
eliminates the need to run wires back to the control
panel for the device. To connect the zone, run
one wire from the device to the Z terminal and the
other wire from the device to the B (black) terminal.
For powered devices, run the red wire to the R
(positive) terminal and the black wire to the B
(negative) terminal. When using end of line
supervision, connect the zone according to one
of the configurations outlined in your system’s
Installation Manual
.
1.4 Applying Power
Once all wiring is complete, apply power to the
control panel:
1. Connect the battery leads to the battery.
2. Connect the AC transformer.
For more information on control panel power
specifications, see the control panel
Installation
Manual
.
NOTE: Do not connect the power until all wiring is
complete.
1.5 Enrolling the Keypad
Once all wiring is complete, you will need to enter a
2-digit number that tells the system the partition
and slot assignment of the keypad.
If your system has partitions, you will need to also
assign the keypad to a partition (1st digit).
The slot assignment (2nd digit) tells the panel
which keypad slots are occupied. The panel can
then generate a fault when a keypad supervisory
signal is not present. There are eight available slots
for keypads. LCD5501Z32-900 keypads are always
assigned to slot 1 by default. You will need to
assign each keypad to its own slot (1 to 8).
NOTE: The LCD5501Z32-900 enrolls as two modules:
1 = keypad section of the LCD5501Z32-900
17 = receiver section of the LCD5501Z32-900
3
Enter the following at each keypad installed on the
system:
1. Enter Installer Programming by pressing
[*][8][Installer’s Code]
2. Press [000] for Keypad Programming
3. Press [0] for Partition and Slot Assignment
4. Enter a two digit number to specify the partition
and slot assignment.
NOTE: If your system does not have partitions,
enter [1] for the first digit.
1st digit Enter 0 for Global Keypad
Enter 1 for Partition 1 Keypad
Enter 2 for Partition 2 Keypad
2nd digit Enter 1 to 8 for Slot Assignment
5. Press the [#] key twice to exit programming.
6. After assigning all keypads, perform a supervisory
reset by entering [*][8][Installer’s Code][902]. The
panel will now supervise all assigned keypads
and enrolled modules on the system.
To review which modules the control
panel is currently supervising:
1. Enter [✱][8][Installer’s Code]
2. Enter [903] to display all modules. On the
I N S T A L L A T I O N
LCD5501Z32-900 keypad, 11
11
1 and 11
11
177
77
7 will scroll on
the keypad to indicate that the LCD5501Z32-900 is
present on the system. 11
11
1 designates the keypad
section, and 1717
1717
17 is used to show the receiver
section is also supervised. On the LCD5500Z
keypad, scroll until the module name appears on
the display.
3. To exit press [#].
If both modules do not show on the keypad, one of
the following conditions may be present:
• the keypad is not connected properly to the Keybus
• there is a problem with the Keybus wiring run
• the keypad does not have enough power
4
2.1 Programming the Keypad
There are several programming options available
for the LCD5501Z32-900 keypad. These are
described below. Record all your programming
choices in the programming worksheets included in
this manual.
Programming the LCD5501Z32-900 is similar to
programming the rest of the system. When you are in
the LCD5501Z32-900 programming sections, the
keypad will display which options are turned on along
the top of the display. To turn an option on or off, press
the number corresponding to the option on the
number pad. The numbers of the options that are
currently turned ON will be displayed.
For example, if options 1 and 2 are on, the display
will look like:

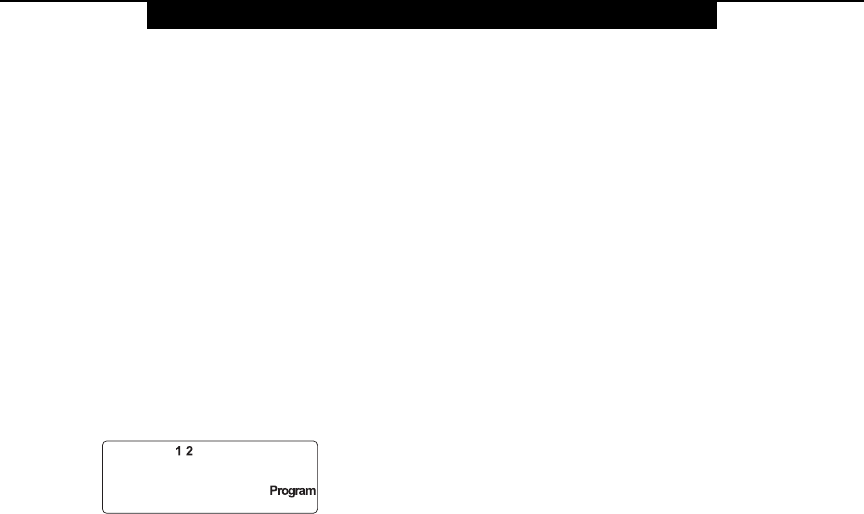

For information on programming the rest of your
security system, please refer to your system’s
Installation Manual
.
2.2 Function Key Options
The function keys are programed in sections [1] to
[5]. By default, the 5 function keys on the keypad are
programmed as Stay Arm (03), Away Arm (04),
Chime (06), Sensor Reset (14) and Quick Exit (16).
You can change the function of each key on every
keypad. Please see your system’s
Installation
Manual
for instructions on programming the keys,
and a complete list of all the function key options
available for your system.
2.3 Clock Options
The LCD5501Z32-900 will display the current time
after 30 seconds of no key presses. To set the
correct time and date for the system, please refer to
your system’s
Instruction Manual
. You can change
how the keypad displays the time with the following
options. To change the clock options:
1. Enter [*][8][Installer’s code]
2. Enter [000] to go to keypad programming
3. Enter section [6] to go to clock options.
4. To turn any of the options on or off, press [1], [2], or [3]:
NOTE: If the Time does not display on keypad option
is selected, make sure that the Keypad displays time
when zones are open option is also selected.
[1] ON = Time displays on keypad
OFF = Time does not display on keypad
[2] ON = Clock display is in AM/PM format
(e.g. 08:00 AM)
OFF = Clock display is in 24-hour format
(e.g. 20:00)
[3] ON = Keypad does not display time
when zones are open
OFF = Keypad displays time when zones
are open
5. When you are finished programming the clock
options, press [#] to exit.
Keypad Programming
S E C T I O N 2
5
2.4 Alarms Displayed While Armed
Option
You can disable the display of alarms on the
keypad when the system is armed. The display of
alarms is enabled by default. To disable the display
of alarms when the system is armed, turn off
section [6], option [5]:
1. Enter [*][8][Installer’s code]
2. Enter [000] to go to keypad programming
3. To turn the display of alarms on or off, enter section
[6].
4. Turn option [5] on or off:
[5] ON = Alarms not displayed while system is
armed
OFF = Alarms are always displayed while
system is armed
5. When you are finished, press [#] to exit.
2.5 Emergency (Fire, Auxiliary,
Panic) Key Options
You can enable or disable the Fire, Auxiliary and
Panic keys at each keypad. These keys are
enabled by default. Please see your system’s
Installation Manual
for more information on these
keys and their options. To turn any of the emer-
gency keys on or off on the keypad:
1. Enter [*][8][Installer’s code]
2. Enter [000] to go to keypad programming
3. Enter section [7].
4. To turn the emergency key options on or off, press
[1], [2], or [3]:
[1] ON = Fire key enabled
OFF = Fire key disabled
[2] ON = Auxiliary key enabled
OFF = Auxiliary key disabled
[3] ON = Panic key enabled
OFF = Panic key disabled
5. When you are finished, press [#] to exit.
2.6 Door Chime Options
You can program the LCD5501Z32-900 keypad to
sound a tone when any zone is opened or closed.
There are two parts to the LCD5501Z32-900 door
chime programming:
• Program if the LCD5501Z32-900 will chime when
zones are opened and/or closed.
• Program the type of sound the LCD5501Z32-900 will
make when an individual zone is opened or closed.
For the door chime feature to work, you will also need
to turn on the Door Chime attribute for each zone that
will trigger the chime. This programming is done in the
control panel software. Refer to your control panel’s
Installation Manual
for more information.
Door Chime on Zone Openings/Closings
You can program each LCD5501Z32-900 keypad to
sound a door chime when zones are opened and/or
when they are closed. By default, LCD5501Z32-900
keypads are programmed to sound door chimes on
both zone openings and closings.
To change the door chime opening/closing settings,
at each LCD5501Z32-900 keypad:
1. Enter [*][8][Installer’s code]
2. Enter [000] to go to keypad programming
3. Enter section [6].
4. To turn the options on or off, press [6] or [7]:
[6] ON = Door Chime Enabled for Zone
Openings
OFF = Door Chime Disabled for Zone
Openings
[7] ON = Door Chime Enabled for Zone
Closings
OFF = Door Chime Disabled for Zone
Closings
5. When you are finished, press [#] to exit.
K E Y P A D P R O G R A M M I N G
6
Door Chime Sounds
You can program the LCD5501Z32-900 keypad to
make different door chime sounds for individual
zones, or groups of zones. Each LCD5501Z32-900
keypad can make any of four door chime sounds
for each zone that triggers the door chime:
· 4 quick beeps (default sound)
· ‘Bing – Bing’ tone
· ‘Ding – Dong’ tone
· ‘Alarm’ tone
NOTE: For a zone to be able to trigger the door chime
sound, the Door Chime zone attribute must also be
enabled in the control panel programming. Please see
your control panel Installation Manual.
To change the door chime sounds:
1. Enter [*][8][Installer’s code].
2. Enter [*] to go to door chime sound programming.
3. Enter a 2-digit number for the zone you want to
program [01] - [32].
4. Turn one of the following options on by pressing
[1], [2], [3], or [4]:
[1] 4 quick beeps (default sound)
[2] ‘Bing – Bing’ tone
[3] ‘Ding – Dong’ tone
[4] ‘Alarm’ tone
K E Y P A D P R O G R A M M I N G
NOTE: Make sure that only one of the above options
is turned on. If more than one is on, the keypad will
sound the first option that is enabled. If none of the
options are selected, the keypad will not make any
sound when the zone is opened or closed.
5. To program the door chime sound for another
zone, repeat steps 3 and 4.
6. When you are finished programming the door
chime sounds, press [#] to exit.
7
Receiver Programming
S E C T I O N 3
3.2 Enroll Wireless Devices Using
Zones (WLS904, WLS905, WLS906,
WLS907, WLS908 and WLS915)
Enroll wireless devices which use zones (universal
transmitters, motion detectors, smoke detectors, and
panic pendants):
1. At a system keypad, enter [✱][8][Installer’s code]
to go the installer’s programming section.
2. Enter programming section [804].
3. Enter the 2-digit number corresponding to the
zone the device is to occupy ([01] to [32]).
NOTE: Hardwired and wireless devices cannot be
assigned to the same zone. PC5108 zone expander
modules occupy zones in 2 groups of 4 (e.g. zones
9-12 and zones 13-16). None of the zones assigned
to a PC5108 module may be used for wireless
devices. For more information on zone assignment,
consult your system Installation Manual.
4. Enter the device’s ESN. The entry
must
be six
digits. If an older device with a 5-digit ESN is being
enrolled, add the digit [0] to the beginning of the
ESN. (E.g. ESN=21234, enter 021234)
5. The device is now enrolled on the system. Record
the serial number and the assigned zone number
in the programming worksheets in the back of this
manual.
6. Continue with steps 3 - 5 until you have enrolled
all wireless devices.
7. To exit press [#].
NOTE: The devices will not work properly until you
complete zone and partition programming (see
section 4).
Enroll & Program Devices
This section describes how to enroll and program:
• wireless devices using zones (WLS904, WLS905,
WLS906, WLS907, WLS908, and WLS915)
• wireless keys (WLS909)
• handheld keypads (WLS910).
For more information on these devices, read the
instruction sheet included with each device.
3.1 A Note about Electronic Serial
Numbers
An electronic serial number (ESN) is printed on the
back of each wireless device. ESNs are used to enroll
the wireless devices with the LCD5501Z32-900
keypad.
In order to reduce the occurrence of wireless
devices with the same serial number, 6-digit serial
numbers are now printed on the back of each
wireless device.
NOTE: 6-digit serial numbers are only supported on
the following control panels: PC5010 v2.x and higher,
PC5015 v2.2, PC5008, PC1555 and PC580.
The 6-digit serial numbers include hexadecimal digits.
For instructions on programming hexadecimal numbers,
see your system Installation Manual, section 4: How to
Program.
When connecting the LCD5501Z32-900 to a PC5010 or
PC5015 v1.x panel, enter 5-digit serial numbers only.
When connecting the LCD5501Z32-900 to a PC5010
v2.x, PC5015 v2.x, PC5008, PC1555 or PC580 panel
follow the instructions below.
Old Wireless Device ESNs
You can use older devices on all versions of the
LCD5501Z32-900 keypad, even though they only have
a 5-digit ESN. When using older wireless devices:
EE
EE
Enter [0] + 5-digit ESNnter [0] + 5-digit ESN
nter [0] + 5-digit ESNnter [0] + 5-digit ESN
nter [0] + 5-digit ESN
8
E N R O L L & P R O G R A M D E V I C E S
3.3 Enroll & Program Wireless Keys
(WLS909)
For wireless keys to work on the system, you need to
enroll them and then program the function buttons.
Wireless keys are not assigned to zones and require
no zone programming. You can enroll up to 16
wireless keys on the system.
Enroll Wireless keys
1. At a system keypad, enter [✱][8][Installer’s code]
to go to the Installer’s Programming section.
2. Enter programming section [804].
3. Enter a 2-digit number [41]-[56] to assign the
wireless key a slot. These numbers correspond
to wireless key numbers 01-16.
4. Enter the key’s ESN. The entry
must
be six digits.
If an older key with a 5-digit ESN is being enrolled,
add the digit [0] to the beginning of the ESN. (E.g.
ESN=61234, enter 061234)
5. The key is now enrolled on the system. Record
the serial number and the assigned slot number
in the programming worksheets in the back of this
manual.
6. Repeat steps 3 - 5 until all wireless keys have
been enrolled.
7. (PC5010 and PC5015 only)(PC5010 and PC5015 only)
(PC5010 and PC5015 only)(PC5010 and PC5015 only)
(PC5010 and PC5015 only) By default, all
wireless keys are assigned to Partition 1. To assign
keys to Partition 2, enable the appropriate options
in programming sections [91] and [92].
NOTE: A wireless key can only be assigned to one
partition.
8. To exit press [#].
Program the WLS909 Function Buttons
WLS909 wireless keys have four programmable
function buttons. You must program a set of four
functions for the buttons before any keys will work.
After the functions are programmed, when you press
and hold one of the four buttons for two seconds, the
system will execute the programmed function.
For systems not using partitions: program the
function buttons in section [59]. All wireless keys will
have the same four functions.
For systems using 2 partitions (PC5010 and
PC5015 only): all wireless keys assigned to Partition
1 will have the four functions programmed in section
[59]. All wireless keys assigned to Partition 2 will
have the four functions programmed in section [60].
For example, if function button 1 in Section [59] is
programmed for Stay arming, then pressing the first
button on wireless keys assigned to Partition 1 will
Stay arm Partition 1.
NOTE: Wireless keys will not work when the partition
they are assigned to is being accessed for zone
bypassing or programming.
1. At a system keypad, enter [✱][8][Installer’s code].
2. Enter programming section [804].
3. Enter programming section [59] for keys assigned
to partition 1, or [60] for keys assigned to partition 2.
4. For each of the 4 function buttons, enter the 2-
digit number of the function you want to select.
See the programming worksheets for a list of
function key options.
5. Record your programming choices in the
worksheets in the back of the manual.
6. To exit press [#].
3.4 Identified Wireless Keys
Reporting by the system of openings/closings by
individual wireless keys and command output
[Q][7] activation by wireless key buttons may be
supported on certain control panels. To do this, the
system will reserve access codes 17 – 32 for
wireless keys 01-16 respectively. You must program
one access code for each wireless key (using
[Q][5] access code programming) for this feature to
work correctly.
Refer to your system Installation Manual for
information on access code programming.
9
Opening/Closing By Wireless Key
Reporting
NOTES: The Identified Wireless Key Closing option is
only available with the PC5010 v2.0, PC5008 v2.0 and
higher by turning section [015] option 4 off.
The Identified Wireless Key Opening option is only
available with the PC1555 v2.1, PC580 v2.1, PC5008
v2.1 and higher, PC5015 v2.2 and higher by turning
section [017] option 1 off.
To enable the reporting of
closings
by identified
wireless keys:
• Make sure the control panel is v2.0 or higher
• Program a valid access code for each key
• Program a closing reporting code for each key’s
access code
• Disable the Quick Arm option in section [015]
option [4]
To enable the reporting of
openings
by identified
wireless keys:
• Make sure the control panel is v2.1 or higher
• Program a valid access code for each key
• Program an opening reporting code for each key’s
access code
• Enable the WLS Key Uses Access Codes by
turning section [017] option [1] off.
Command Output Activation
NOTE: The Identified Wireless Key Command Output
Activation feature is only available with the PC5010,
PC5015, PC5008, PC1555 and PC580 v2.0 and
higher.
To enable command output activation by wireless
keys, ensure that:
• Make sure the control panel is v2.0 or higher
• Program a valid access code for each key
• Enable the PGM output attribute Requires Access
Code for each PGM output programmed as
[✱][7][1-4] in sections [141] to [154].
3.5 Enrolling & Programming
Handheld Keypads (WLS910)
For handheld keypads to work on the system, you
need to enroll them and then program the function
buttons. You can enroll up to 4 handheld keypads on
the system.
Enroll Handheld Keypads
1. At a system keypad, enter [✱][8][Installer’s code]
to go to the Installer’s Programming section.
2. Enter programming section [804].
3. Enter a 2-digit number (33-36) to assign the
handheld keypad a slot. These numbers
correspond to handheld keypad numbers 1-4.
4. Enter the keypad’s ESN. The entry
must
be six
digits. If an older keypad with a 5-digit ESN is
being enrolled, add the digit [0] to the beginning
of the ESN. (E.g. ESN=21234, enter 021234)
5. The keypad is now enrolled on the system. Record
the serial number and the assigned slot number
in the programming worksheets in the back of this
manual.
6. Repeat steps 3 - 5 until all handheld keypads have
been enrolled.
7. (PC5010 and PC5015 only) By default, all
handheld keypads are assigned to Partition 1. To
assign a keypad to Partition 2, enable the
appropriate options in programming section [90].
NOTE: A handheld keypad can only be assigned to
one partition.
8. To exit press [#].
Program the WLS910 Function Buttons
WLS910 handheld keypads have four programmable
function buttons. You must program a set of four
functions for the function buttons to work.
For systems not using partitions: program the
function buttons in section [57]. All handheld keypad
buttons will have the same four functions.
E N R O L L & P R O G R A M D E V I C E S
10
For systems using multiple partitions: i.e. all
handheld keypads assigned to Partition 1 will have
the four functions programmed in section [57]. All
handheld keypads assigned to Partition 2 will have
the four functions programmed in section [58]. For
example, if function button 1 in Section [57] is
programmed for Stay arming, then pressing the first
button on handheld keypads assigned to Partition 1
will Stay arm Partition 1.
1. At a system keypad, enter [✱][8][Installer’s code]
to go to the Installer’s Programming section.
2. Enter programming section [804].
3. Enter programming section for partition 1 function
buttons, or for partition 2 function buttons.
4. For each of the 4 function buttons, enter the 2-
digit number of the function you want to select.
See the programming worksheets for a list of
function button options.
5. Record your programming choices in the
worksheets in the back of the manual.
6. To exit press [#].
E N R O L L & P R O G R A M D E V I C E S
3.6 Deleting Wireless Devices
To remove a wireless device from the system, follow
the guideline for adding a wireless device. Program
the ESN as [000000]. The wireless device for the
zone will be removed.
NOTE: You may need to remove power from the panel
in order to clear troubles caused by deleted zones.
Now that you have enrolled all the wireless devices,
you will need to program the system to work properly
with the devices. See section 4 for more information.
11
4.1 Program Zones and Partitions
Now that you have enrolled the wireless devices, you
should complete all zone programming on the system.
Although the exact programming required varies
depending on which control panel the LCD5501Z32-
900 is connected to, you should check that the
following programming areas are completed correctly
for each wireless zone:
• Enable zones and/or assign zones to one or more
partitions (programming sections [201]-[209]).
• Program the definition for each zone (programming
sections [001]-[004]).
NOTE: WLS906 wireless smoke detectors must be
assigned to zones defined as Delay 24-hr fire
(wireless) [87] or Standard 24-hr fire (wireless) [88]
for proper supervision.
• Enable the wireless zone attribute for each wireless
zone (PC585, PC1565, PC5008, PC5010 v2.0 and
up, PC5015 v2.2 and up only) (programming
sections [101]-[132]).
See your system Installation Manual, for more
information on each of the above programming
sections.
4.2 Enable Receiver Supervision
The control panel will automatically supervise the
receiver via the Keybus one-minute after at least one
device has been enrolled on the module. The system
will generate a General System Supervisory trouble
if the module is removed from the Keybus. If you need
to remove the LCD5501Z32-900 from an existing
system, you will have to disable supervision of the
PC5132.
4.3 Enable Supervision of Wireless
Zones
NOTE (for PC5010 v1.x control panels only): For UL
Listed installation, Double EOL resistors must be ena-
bled in the PC5010 for the wireless zones to be su-
pervised. If normally Closed or Single EOL resistors
are selected the PC5010 will not be able to supervise
the wireless devices. If a wireless device stops
S E C T I O N 4
Other Programming
sending a supervisory signal (the unit stops function-
ing) the panel will not indicate a supervisory trouble
condition unless Double EOL resistors are used. In
addition, all hardwire zones must be wired for Dou-
ble EOL resistors. For more information, refer to your
PC5010 v1.x Installation Manual.
NOTE (PC5010 v2.0 and higher, PC5015 v2.2 and
higher, PC5008, PC1555, PC580 only): For wireless
supervision to work, you must enable the wireless
zone attribute on all wireless zones (sections [101]
to [132], option [8] ON).
NOTE: The RF Jam Detect zone must have the
supervision option disabled.
NOTE: The supervisory option for any panic pendants
enrolled on the system must be OFF. For UL Listed
systems, the wireless zones must be programmed
as supervised.
Wireless Supervisory Window
Each wireless zone (WLS904, WLS905, WLS906,
WLS907 or WLS915) will send a supervisory signal every
12 minutes. If the receiver does not receive a signal
within the time programmed for the Wireless Supervisory
Window, it will generate a supervisory fault.
To program the wireless supervisory window:
1. Enter [✱][8][Installer Code] to enter Installer
Programming.
2. Enter [804] to enter into Receiver Programming.
3. Enter sections [81].
4. Enter the time period for the supervisory window
(valid entries are 01-24 hours).
5. To exit press [#].
WLS908 Panic Pendant
The panic pendant does not transmit a supervisory
signal. This is so that the user will be able to take it away
from the premise. You must disable wireless supervi-
sion for each zone in which a panic pendant is assigned.
12
O T H E R P R O G R A M M I N G
Disable/Enable Zone Supervision
All wireless zones have supervision enabled by
default. To disable supervision for any zone, enter
the following at any system keypad:
1. Enter [✱][8][Installer Code] to enter Installer
Programming.
2. Enter [804] to enter the PC5132 Module
Programming.
3. Enter sections [82], [83], [84] and [85]. Disable
or enable supervision for each wireless zone by
turning each relevant option on or off.
4. To exit press [#].
4.4 RF Jam Detect Zone
For RF jamming detection to work, you must select an
unused zone to be used as the RF Jam Detect zone.
When the receiver detects an attempt to jam the RF
signal, the RF Jam Detect zone will be violated and
the system will generate a tamper signal. When the
jamming signal is gone, the RF Jam Detect zone
closes and the system sends a tamper restore signal.
To enable RF jamming detection:
1. Enter [✱][8] [Installer’s Code].
2. Enter programming section [804].
3. Select an unused zone to be the RF Jam Detect
zone. Enter the 2-digit number ([01] to [32]) of
the RF Jam Detect zone on the keypad, then
program the serial number as [200000].
3. Enter section [93]. Enter the 2-digit number of the
RF Jam Detect zone ([01] to [32]) in the
programming section.
4. Disable supervision for the RF Jam detect zone
by turning the relevant option off in section [82],
[83], [84] or [85]. (See section 4.3 for more
information.)
5. RF jamming detection is now enabled. To exit
Installer programming, press [#].
4.5 Receiver Software Default
Returning the receiver programming to factory default
settings is a quick way to remove all the enrolled
devices from the system and reset all the
programming in section [804].
NOTE: Performing this procedure will not change any
programming sections except [804]. Resetting the
control panel to factory default settings will
not
re-
turn the PC5132 to factory default settings.
To restore the PC5132 programming to the factory
default settings, perform the following:
1. Enter [✱][8] [Installer’s Code].
2. Enter programming section [996].
3. Enter the Installer’s Code, followed by [996] again.
Press [#]. The software for the receiver section
will be restored to its factory default settings.
4. Press [#] to exit Installer Programming. After a
software default, you must exit and then re-enter
Installer Programming before attempting to
program the receiver section.
For instructions on restoring the default programming
of the control panel or any other connected module,
see your system Installation Manual.
13
S E C T I O N 5
Testing & Mounting
5.1 Test the placement of WLS904,
WLS905, WLS906, WLS907, and
WLS915 devices
It is very important to test the proposed placement of
each wireless device before it is mounted. Following
these steps will test the placement of the wireless
motion detectors (WLS904), wireless smoke detectors
(WLS906) and wireless door/window contacts (WLS905,
WLS907, WLS915), based on the signal strength be-
tween the LCD5501Z32-900 and the device.
NOTE: You cannot test the Panic Pendant (WLS908),
Wireless Key (WLS909), and Handheld Keypad
(WLS910) in this mode. See section 5.2 for instructions
on testing these devices. You cannot run a placement
test on the RF Jam Detect zone.
1. Temporarily place the device you want to test in
the place you want to mount it.
2. At a system keypad, enter [✱][8][Installer Code].
3. Enter programming section [904].
4 Enter the 2-digit zone number for the device to
be tested.
5. Activate the device being tested until a result is
displayed on the keypad or sounded by the
keypad or bell.
WLS904: Remove the detector from its backplate,
wait for 1-2 seconds, then reattach the detector
to its backplate.
WLS906: Remove the detector from its backplate,
wait for 5 seconds, then reattach the detector to
its backplate. Or hold a magnet near the raised
line on the outer rim. Then remove the magnet.
WLS905, WLS907 & WLS915: Open and close
the contact by moving the magnet away from the
unit. If the unit is attached to a door or a window,
open and close the door or window to activate
the device.
6. Read the test results at the keypad:
Result LED Keypad LCD Keypad Buzzer/Bell
Good Light 1 On Steady “Good” 1 Beep/Squawk
Fair Light 2 On Steady “Fair” 2 Beeps/Squawks
Bad Light 3 On Steady “Bad” 3 Beeps/Squawks
Activate the device until you get 3 good or fair results
in a row. Wait 10 seconds between each test on the
same device.
You may mount wireless devices where results were
good or fair.
Devices indicating a bad result must be moved to
another location. You may only have to move the
device a few inches to correct a bad result.
NOTE: Do not mount any device where a “bad” test
result was indicated.
If several wireless devices produce BAD test
results, you may need to move the LCD5501Z32-
900 to a better location.
7. To test another device, press [#] once, then
repeat steps 4 - 6. Continue to test the devices
until both the LCD5501Z32-900 and the devices
are in good locations.
8. To exit installer programming, press [#] twice.
5.2 Test WLS908, WLS909 and
WLS910 Reception
The panic pendant (WLS908), wireless key (WLS909)
and handheld keypad (WLS910) cannot be tested using
the module placement test described above. To ensure
that the LCD5501Z32-900 is receiving transmissions
from these devices, conduct the following tests:
WLS908: Activate the Panic alarm at several different
points in the installation.
WLS909: Use the function keys to arm and disarm
the system at several different points in the installation.
WLS910: Use the keypad to arm and disarm the
system from several different points in the installation.
If these devices do not operate from all points in the
installation, you will need to move the LCD5501Z32-
900 receiver. Moving the LCD5501Z32-900 higher
will usually improve the reception.
14
T E S T I N G & M O U N T I N G
If you move the LCD5501Z32-900, repeat the tests
described in sections 5.1 and 5.2 on all the wireless
devices. Continue to test the devices until you
have found satisfactory locations for the
LCD5501Z32-900 and the WLS904, WLS905,
WLS906 and WLS907 devices, and there is good
reception between the LCD5501Z32-900 and the
WLS908, WLS909 and WLS910 devices.
Mount the WLS904, WLS905, WLS906,
WLS907, and WLS915 Devices
If you have conducted the placement test described
in section 5.1 and got 3 “Good” or “Fair” results in a
row for each device, you can mount the wireless
devices. See the Installation sheet for each device
for mounting instructions.
5.3 Battery Test for WLS908 Panic
Pendants
You cannot test Panic Pendant batteries using the
methods described in sections 5.1 and 5.2. You must
program panic pendant zones before you can test
the panic pendants.
NOTE: If a low battery condition is detected, you must
immediately replace the unit.
Follow these steps to test panic pendants:
1. Begin testing when your system is in the ready
state and the keypad Ready light is on.
2. Go to an LCD keypad.
NOTE: If your system is partitioned, you can only view
the Panic Pendant test result on a partition LCD
keypad. To view the test result on a global LCD key-
pad, you must “loan” the keypad to the partition before
you begin the test. See your Installation Manual for
information on global and partition keypads.
3. Press and hold the “Test” button on the pendant
for two seconds.
4. If the pendant’s battery condition is
normal
, the
Ready light on the LCD keypad will turn OFF for
30 seconds or until the [#] key is pressed. On the
PC5010, PC5015, PC5008, PC1555 and PC580
v2.x or higher: If the pendant’s battery condition
is normal, the keypad will beep and the LCD
keypad will display “System Test in Progress.”
If the pendant’s battery is
low
, the LCD keypad’s
Trouble light will turn ON and the keypad will give
a series of continuous beeps.
Instruct the user(s) to perform this test when they
perform the weekly system test.
NOTE: If a low battery condition is detected, you must
immediately replace the unit.
Replacing a Pendant with a Low
Battery
You should immediately replace a pendant when a
low battery is indicated. To replace a pendant on the
system, follow these steps:
From the keypad:
1. Enter [✱][8][Installer Code].
2. Enter programming Section [804].
3. Enter the 2-digit zone number of the pendant to
be replaced (01-32).
4. Enter serial number [000000].
5. Re-enter the 2-digit zone number for the pendant
being replaced.
6. Enter the ESN of the new pendant.
7. To exit press [#] twice.
Through downloading:
1. Connect to the control panel through
downloading.
2. Upload window contents of the zone serial
numbers in the wireless expansion section of
downloading.
3. Change the serial number of the pendant to be
replaced to [000000].
4. Download window contents.
5. Enter the ESN of the new pendant.
6. Download window contents.
15
S E C T I O N 6
Additional Notes
6.1 Trouble Conditions
The control panel always watches for possible trouble
conditions. If a trouble condition occurs, the keypad
“Trouble” light will turn on and the keypad will beep.
Press [✱][2] to display the trouble conditions.
The following trouble conditions apply to the
receiver portion (identified as the PC5132 by the
panel) and/or any enrolled devices. For a
description of all troubles, please see your system
Installation Manual.
• General System Tamper
• General System Supervisory
• Zone Fault
• Device Low Battery
• Zone Tamper
Wireless Zone Low Battery
Transmission
Within the supervisory transmission, the device will
indicate the status of the battery. If a battery is low,
the system will indicate a Device Low Battery trouble.
NOTE: Since the WLS908 does not send supervisory
transmissions, a low battery on this device will not
cause a Device Low Battery trouble. The user should
be instructed to test this device every week. See
section 5.4 for testing instructions.
The system will delay reporting the event to the
central station for the number of days programmed
for Zone Low Battery Transmission Delay in section
[370]. This will prevent unnecessary reporting of the
event if the user has been instructed on how to
replace batteries.
6.2 Replacing Batteries in Wireless
Devices
1 Remove the cover of the device from its back
plate. This creates a tamper condition on the zone.
2 Refer to the battery installation instructions on the
installation sheet of each component. Be sure to
note the proper orientation of the batteries as you
install them.
3 When the fresh batteries are in place, re-attach
the cover to the back plate. The tamper is restored
and the zone sends a battery trouble restoral signal
to the receiver. The battery trouble is now clear
and the device should function normally.
NOTE: When batteries in one device need to be
replaced, the batteries in all devices should be
replaced at the same time.
16
S E C T I O N 7
Troubleshooting
1. When I enter the 2-digit zone number when
adding a wireless device, the keypad gives me a
long beep.
You cannot enter ESNs unless the LCD5501Z32-900
is properly connected to the Keybus. See section 2
for instructions on setting up and wiring the PC5132
module.
2. I have entered the ESN for the device but
when I violate the device, the zone does not
show open on the keypad.
Check the following:
• Ensure the ESN has been entered correctly
• Ensure that the zone is enabled for the partition (if
partition programming is used).
• Ensure that the wireless zone is not assigned to a
zone used by PC5108 modules.
• Ensure that the zone is programmed for something
other than “Null Operation.” Wireless smoke
detectors must be assigned to zones defined as
type [87] or [88].
3. When I try a module placement test I get no
result or “Bad” results.
Check the following (see sections 5.1 and 5.2 for
more information on testing devices):
• Verify that you are testing the correct zone
• Verify that the correct ESN was entered when the
device was enrolled
• Verify that the device is in range of the
LCD5501Z32-900. Try testing the device in the
same room as the receiver.
• Confirm that the LCD5501Z32-900 is properly
connected to the Keybus.
• Check that you are testing the zone correctly.
• Check that the batteries are working and installed
correctly.
• Look for large metal objects that may be preventing
the signal from reaching the LCD5501Z32-900.
The device must be located where consistent “Good”
results are obtained. If several devices show “Bad”
results, or if panic pendants and wireless keys operate
inconsistently, move the receiver.
4. The LED on the motion detector does not
turn on when I walk in front of the unit.
The LED is for walk test purposes only. See your
WLS904 instruction sheet for walk test instructions.
5. The WLS908 shows a supervisory fault three
hours after I enrolled it.
The WLS908 does not transmit a supervisory signal.
You must disable supervision for the zone the WLS908
is assigned to (see section 4.3).
17
S E C T I O N 8
Programming Worksheets
[000] Keypad Programming
1. Enter [*][8][Installer’s code]
2. Enter [000] to go to keypad programming
[0] Keypad Enrollment
Valid entries are 01-18; e.g. enter [11] for partition 1, slot 1. Default = 11
1st digit Enter 0 for Global Keypad
Enter 1 for Partition 1 Keypad
Enter 2 for Partition 2 Keypad
2nd digit Enter 1 to 8 for Slot Assignment
SlotSlot
SlotSlot
Slot: I________I________I
[1]-[5] Function Key Assignments
[1] Key 1 [2] Key 2 [3] Key 3 [4] Key 4 [5] Key 5
Defaults: 03 04 06 14 16
Stay Away Chime Reset Exit
I________I________I I________I________I I________I________I I________I________I I________I________I
[6] LCD5501Z32-900 Keypad Options
Default Option On Off
ON I________I 1 Local Clock Display Enabled Local Clock Display Disabled
ON I________I 2 Local Clock Displays AM/PM Local Clock Displays 24-hour Time
OFF I________I 3 Open Zones Override Clock Display Open Zones Do Not Override Clock
OFF I________I 4 For Future Use
OFF I________I 5 Alarms Not Displayed While Armed Alarms Always Displayed While Armed
OFF I________I 6 Door Chime Enabled for Zone Openings Door Chime Disabled for Zone Openings
OFF I________I 7 Door Chime Enabled for Zone Closings Door Chime Disabled for Zone Closings
OFF I________I 8 For Future Use
[7] Emergency Key Options
Default Option On Off
ON I________I 1 [F] Key Enabled [F] Key Disabled
ON I________I 2 [A] Key Enabled [A] Key Disabled
ON I________I 3 [P] Key Enabled [P] Key Disabled
OFF I________I 4-8 For Future Use
18
[*] Door Chime Sound Programming
1. Enter [*][8][Installer’s code][*]
2. Enter 2-digit zone number [01] - [32], then select door chime sound option [1] - [4]. Repeat for each zone
that is to sound a chime.
Zone Location Options: [1] [2] [3] [4]
4 Beeps “Bing-bing” “Ding-dong” Alarm tone
(default)
[01] I__________________________________________________________________I I________I I________I I________I I________I
[02] II__________________________________________________________________I I________I I________I I________I I________I
[03] I__________________________________________________________________I I________I I________I I________I I________I
[04] I__________________________________________________________________I I________I I________I I________I
[05] I__________________________________________________________________I I________I I________I I________I I________I
[06] I__________________________________________________________________I I________I I________I I________I I________I
[07] I__________________________________________________________________I I________I I________I I________I I________I
[08] I__________________________________________________________________I I________I I________I I________I I________I
[09] I__________________________________________________________________I I________I I________I I________I I________I
[10] I__________________________________________________________________I I________I I________I I________I I________I
[11] I__________________________________________________________________I I________I I________I I________I I________I
[12] I__________________________________________________________________I I________I I________I I________I I________I
[13] I__________________________________________________________________I I________I I________I I________I I________I
[14] I__________________________________________________________________I I________I I________I I________I I________I
[15] I__________________________________________________________________I I________I I________I I________I I________I
[16] I__________________________________________________________________I I________I I________I I________I I________I
[17] I__________________________________________________________________I I________I I________I I________I I________I
[18] I__________________________________________________________________I I________I I________I I________I I________I
[19] I__________________________________________________________________I I________I I________I I________I I________I
[20] I__________________________________________________________________I I________I I________I I________I I________I
[21] I__________________________________________________________________I I________I I________I I________I I________I
[22] I__________________________________________________________________I I________I I________I I________I I________I
[23] I__________________________________________________________________I I________I I________I I________I I________I
[24] I__________________________________________________________________I I________I I________I I________I I________I
[25] I__________________________________________________________________I I________I I________I I________I I________I
[26] I__________________________________________________________________I I________I I________I I________I I________I
[27] I__________________________________________________________________I I________I I________I I________I I________I
[28] I__________________________________________________________________I I________I I________I I________I I________I
[29] I__________________________________________________________________I I________I I________I I________I I________I
[30] I__________________________________________________________________I I________I I________I I________I I________I
[31] I__________________________________________________________________I I________I I________I I________I I________I
[32] I__________________________________________________________________I I________I I________I I________I I________I
P R O G R A M M I N G W O R K S H E E T S
19
P R O G R A M M I N G W O R K S H E E T S
[804] Wireless Expansion Programming
• 6-digit entry is required. See Section 3.1 “A note on Electronic Serial Numbers” for details on
programming 6-digit serial numbers.
• When enrolling devices with 5-digit serial numbers on the LCD5501Z32-900, the first digit must be zero (0),
followed by the 5-digit serial number (6-digits total). For example, to enter the serial number 42345 on a
LCD5501Z32-900, enter “042345.”
Zone Serial Numbers
Default = 000000
[01] Zone 1 l_____l_____l_____l_____l_____l_____l
[02] Zone 2 l_____l_____l_____l_____l_____l_____l
[03] Zone 3 l_____l_____l_____l_____l_____l_____l
[04] Zone 4 l_____l_____l_____l_____l_____l_____l
[05] Zone 5 l_____l_____l_____l_____l_____l_____l
[06] Zone 6 l_____l_____l_____l_____l_____l_____l
[07] Zone 7 l_____l_____l_____l_____l_____l_____l
[08] Zone 8 l_____l_____l_____l_____l_____l_____l
[09] Zone 9 l_____l_____l_____l_____l_____l_____l
[10] Zone 10 l_____l_____l_____l_____l_____l_____l
[11] Zone 11 l_____l_____l_____l_____l_____l_____l
[12] Zone 12 l_____l_____l_____l_____l_____l_____l
[13] Zone 13 l_____l_____l_____l_____l_____l_____l
[14] Zone 14 l_____l_____l_____l_____l_____l_____l
[15] Zone 15 l_____l_____l_____l_____l_____l_____l
[16] Zone 16 l_____l_____l_____l_____l_____l_____l
[17] Zone 17 l_____l_____l_____l_____l_____l_____l
[18] Zone 18 l_____l_____l_____l_____l_____l_____l
[19] Zone 19 l_____l_____l_____l_____l_____l_____l
[20] Zone 20 l_____l_____l_____l_____l_____l_____l
[21] Zone 21 l_____l_____l_____l_____l_____l_____l
[22] Zone 22 l_____l_____l_____l_____l_____l_____l
[23] Zone 23 l_____l_____l_____l_____l_____l_____l
[24] Zone 24 l_____l_____l_____l_____l_____l_____l
[25] Zone 25 l_____l_____l_____l_____l_____l_____l
[26] Zone 26 l_____l_____l_____l_____l_____l_____l
[27] Zone 27 l_____l_____l_____l_____l_____l_____l
[28] Zone 28 l_____l_____l_____l_____l_____l_____l
[29] Zone 29 l_____l_____l_____l_____l_____l_____l
[30] Zone 30 l_____l_____l_____l_____l_____l_____l
[31] Zone 31 l_____l_____l_____l_____l_____l_____l
[32] Zone 32 l_____l_____l_____l_____l_____l_____l
20
P R O G R A M M I N G W O R K S H E E T S
Handheld Keypad Serial Numbers
Default = 000000
[33] Keypad 01 l_____l_____l_____l_____l_____l_____l
[34] Keypad 02 l_____l_____l_____l_____l_____l_____l
[35] Keypad 03 l_____l_____l_____l_____l_____l_____l
[36] Keypad 04 l_____l_____l_____l_____l_____l_____l
Wireless Key Serial Numbers
Default = 000000
[41] Key 01 l_____l_____l_____l_____l_____l_____l
[42] Key 02 l_____l_____l_____l_____l_____l_____l
[43] Key 03 l_____l_____l_____l_____l_____l_____l
[44] Key 04 l_____l_____l_____l_____l_____l_____l
[45] Key 05 l_____l_____l_____l_____l_____l_____l
[46] Key 05 l_____l_____l_____l_____l_____l_____l
[47] Key 07 l_____l_____l_____l_____l_____l_____l
[48] Key 08 l_____l_____l_____l_____l_____l_____l
[49] Key 09 l_____l_____l_____l_____l_____l_____l
[50] Key 10 l_____l_____l_____l_____l_____l_____l
[51] Key 11 l_____l_____l_____l_____l_____l_____l
[52] Key 12 l_____l_____l_____l_____l_____l_____l
[53] Key 13 l_____l_____l_____l_____l_____l_____l
[54] Key 14 l_____l_____l_____l_____l_____l_____l
[55] Key 15 l_____l_____l_____l_____l_____l_____l
[56] Key 16 l_____l_____l_____l_____l_____l_____l
Handheld Keypad and Wireless Key Function Key Options
Entry Key Description Entry Key Description
00 Null Key 16 [✱][0] Quick Exit
01-02
For Future Use
17 [✱][1] Reactivate Stay/Aways
03 Stay Arm 18
For Future Use
04 Away Arm *19 [✱][7][3] Command Output #3
05 [✱][9] No-Entry Arm 20 For Future Use
06 [✱][4] Chime ON/OFF *21 [✱][7][4] Command Output #4
07 [✱][6][——][4] System Test 22-26
For Future Use
08-12
For Future Use
**27 Disarm (OFF)
*13 [✱][7][1] Command Output #1 **28 Fire Alarm
*14 [✱][7][2] Command Output #2 /
Sensor Reset **29 Auxiliary Alarm
15
For Future Use
**30 Panic Alarm
*Sensor Reset can be used
when the LCD5501Z32-900
is connected to the PC5010.
Command outputs are not
available for PC5010
software v1.x.
** These can only be used for
wireless key function keys
and should not be used for
the handheld keypad
function keys.
21
P R O G R A M M I N G W O R K S H E E T S
Default = 00
Partition 1 Handheld Keypad Options
[57] Function Key 1 l____l____lFunction Key 3 l____l____l
Function Key 2 l____l____lFunction Key 4 l____l____l
Partition 2 Handheld Keypad Options
[58] Function Key 1 l____l____lFunction Key 3 l____l____l
Function Key 2 l____l____lFunction Key 4 l____l____l
Partition 1 Wireless Key Options
[59] Function Key 1 l____l____lFunction Key 3 l____l____l
Function Key 2 l____l____lFunction Key 4 l____l____l
Partition 2 Wireless Key Options
[60] Function Key 1 l____l____lFunction Key 3 l____l____l
Function Key 2 l____l____lFunction Key 4 l____l____l
Supervision
[81] Wireless supervisory Window
Default = 03
l____l____l wireless device window (hours), valid entries are 01-24.
NOTE: Panic pendants are NOT supervised and must be disabled in the following sections.
[82] Zone Device Supervision Options (1-8)
Default = ON Option ON Option OFF
l________lOption 1 Zone 01 Supervision enabled Disabled
l________lOption 2 Zone 02 Supervision enabled Disabled
l________lOption 3 Zone 03 Supervision enabled Disabled
l________lOption 4 Zone 04 Supervision enabled Disabled
l________lOption 5 Zone 05 Supervision enabled Disabled
l________lOption 6 Zone 06 Supervision enabled Disabled
l________lOption 7 Zone 07 Supervision enabled Disabled
l________lOption 8 Zone 08 Supervision enabled Disabled
22
P R O G R A M M I N G W O R K S H E E T S
[83] Zone Device Supervision Options (9-16)
Default = ONDefault = ON
Default = ONDefault = ON
Default = ON Option ON Option OFF
l________lOption 1 Zone 09 Supervision enabled Disabled
l________lOption 2 Zone 10 Supervision enabled Disabled
l________lOption 3 Zone 11 Supervision enabled Disabled
l________lOption 4 Zone 12 Supervision enabled Disabled
l________lOption 5 Zone 13 Supervision enabled Disabled
l________lOption 6 Zone 14 Supervision enabled Disabled
l________lOption 7 Zone 15 Supervision enabled Disabled
l________lOption 8 Zone 16 Supervision enabled Disabled
[84] Zone Device Supervision Options (17-24)
Default = ONDefault = ON
Default = ONDefault = ON
Default = ON Option ON Option OFF
l________lOption 1 Zone 17 Supervision enabled Disabled
l________lOption 2 Zone 18 Supervision enabled Disabled
l________lOption 3 Zone 19 Supervision enabled Disabled
l________lOption 4 Zone 20 Supervision enabled Disabled
l________lOption 5 Zone 21 Supervision enabled Disabled
l________lOption 6 Zone 22 Supervision enabled Disabled
l________lOption 7 Zone 23 Supervision enabled Disabled
l________lOption 8 Zone 24 Supervision enabled Disabled
[85] Zone Device Supervision Options (25-32)
Default = ONDefault = ON
Default = ONDefault = ON
Default = ON Option ON Option OFF
l________lOption 1 Zone 25 Supervision enabled Disabled
l________lOption 2 Zone 26 Supervision enabled Disabled
l________lOption 3 Zone 27 Supervision enabled Disabled
l________lOption 4 Zone 28 Supervision enabled Disabled
l________lOption 5 Zone 29 Supervision enabled Disabled
l________lOption 6 Zone 30 Supervision enabled Disabled
l________lOption 7 Zone 31 Supervision enabled Disabled
l________lOption 8 Zone 32 Supervision enabled Disabled
23
P R O G R A M M I N G W O R K S H E E T S
Partition Assignments
[90] Handheld Keypads (1-4) Partition Assignments
Default = ONDefault = ON
Default = ONDefault = ON
Default = ON Option ON Option OFF
l________lOption 1 Keypad 1 on partition 2 On partition 1
l________lOption 2 Keypad 2 on partition 2 On partition 1
l________lOption 3 Keypad 3 on partition 2 On partition 1
l________lOption 4 Keypad 4 on partition 2 On partition 1
l________lOptions 5-8 For future use
[91] Wireless Keys (1-8) Partition Assignments
Default = ONDefault = ON
Default = ONDefault = ON
Default = ON Option ON Option OFF
l________lOption 1 Wireless Key 01 on partition 2 On partition 1
l________lOption 2 Wireless Key 02 on partition 2 On partition 1
l________lOption 3 Wireless Key 03 on partition 2 On partition 1
l________lOption 4 Wireless Key 04 on partition 2 On partition 1
l________lOption 5 Wireless Key 05 on partition 2 On partition 1
l________lOption 6 Wireless Key 06 on partition 2 On partition 1
l________lOption 7 Wireless Key 07 on partition 2 On partition 1
l________lOption 8 Wireless Key 08 on partition 2 On partition 1
[92] Wireless Keys (9-16) Partition Assignments
Default = ONDefault = ON
Default = ONDefault = ON
Default = ON Option ON Option OFF
l________lOption 1 Wireless Key 09 on partition 2 On partition 1
l________lOption 2 Wireless Key 10 on partition 2 On partition 1
l________lOption 3 Wireless Key 11 on partition 2 On partition 1
l________lOption 4 Wireless Key 12 on partition 2 On partition 1
l________lOption 5 Wireless Key 13 on partition 2 On partition 1
l________lOption 6 Wireless Key 14 on partition 2 On partition 1
l________lOption 7 Wireless Key 15 on partition 2 On partition 1
l________lOption 8 Wireless Key 16 on partition 2 On partition 1
RF Jamming Detection
[93] RF Jam Detect Zone
Default = 00
l____l____lSelect an unused zone that will be violated when a jamming signal is detected. (Valid
entries = 01 - 32, 00 = RF Jam detect disabled.)
24

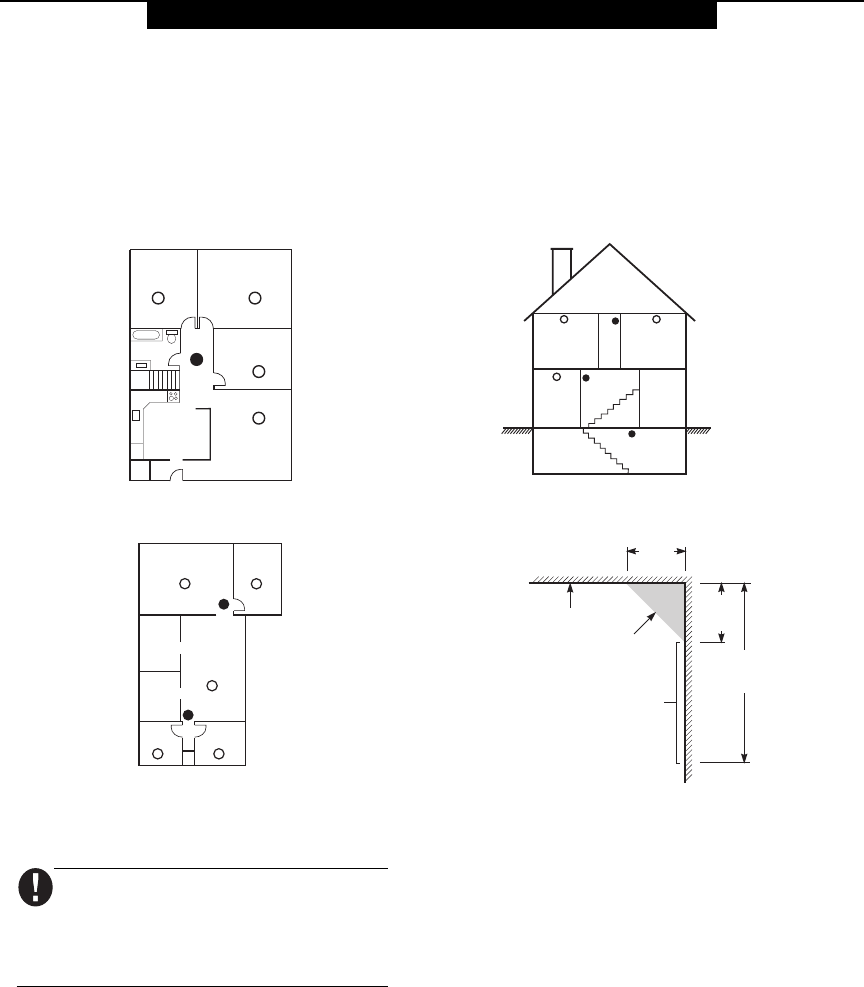

A P P E N D I X A
Experience has shown that all hostile fires in family living units generate smoke to a greater or lesser extent. Experiments
using typical fires in family living units indicate that detectable quantities of smoke precede detectable levels of heat
in most cases. In existing homes, NFPA Standard 72 requires that a smoke detector be installed outside each sleeping
area and on each additional story of the family unit.
The following information is for general guidance only and it is recommended that NFPA Standard 72 (National Fire
Protection Association, One Batterymarch Park, Quincy MA 02269) be consulted and that the smoke detector
manufacturer’s literature be used for detailed installation instructions.
It is recommended that additional smoke detectors beyond those required be installed for increased protection. The
added areas include: basement, bedrooms, dining rooms, furnace room, utility room and hallways not protected by the
required detectors.
Figure 1: A smoke detector should be located between the
sleeping area and the rest of the family unit. Figure 3: A smoke detector should be located on each story of the
living unit.
Figure 2: In the family living units with more than one sleeping
area, a smoke detector should be located to protect each
sleeping area.
Figure 4: Smoke Detector mounting - “Dead” Air Space. The
smoke from a fire generally rises to the ceiling, spreads out
across the ceiling surface and begins to bank down from the
ceiling. The corner where the ceiling and wall meet is an air space
into which the smoke may have difficulty penetrating. In most
fires, this “dead” air space measures about 4 in. (0.1m) along the
ceiling from the corner and about 4 in. (0.1m) down the wall as
shown in Figure 4. Detectors should not be placed in the dead”
air space.
Programming Worksheets
T
he Smoke Detector is designed to use
Eveready Energizer E91 Alkaline Batteries.
Do not use other brands of batteries with the
Smoke Detector. Using brands other than the
Eveready Energizer will void UL approval, and
may affect the system’s operation.
NEVER
HERE
Acceptable
here
Top of detector
acceptable here
12"
(0.3m)
Max.
4"
(0.1m)
Max.
4"
(0.1m)
Ceiling
Wall
NOTE: Measurements shown are to
the closest edge of the detector.
Bedroom Bedroom
Basement
Living
Room Dining
Room
Bedroom Bedroom
Bedroom
Living Room
Kitchen
Bedroom
Bedroom
Bedroom
Living
Room
Kitchen
Dining
Room
Family Room
©2000 Digital Security Controls Ltd.
Toronto, Canada
1-800-387-3630 • www.dscgrp.com
Printed in Canada 29005015 R001
WARNING Please Read Carefully
Note to Installers
This warning contains vital information. As the only individual in contact with system users, it is
your responsibility to bring each item in this warning to the attention of the users of this system.
System Failures
This system has been carefully designed to be as effective as possible. There are circum-
stances, however, involving fire, burglary, or other types of emergencies where it may not
provide protection. Any alarm system of any type may be compromised deliberately or may
fail to operate as expected for a variety of reasons. Some but not all of these reasons may be:
■■
■■
■ Inadequate Installation
A security system must be installed properly in order to provide adequate protection. Every
installation should be evaluated by a security professional to ensure that all access points
and areas are covered. Locks and latches on windows and doors must be secure and oper-
ate as intended. Windows, doors, walls, ceilings and other building materials must be of
sufficient strength and construction to provide the level of protection expected. A reevalu-
ation must be done during and after any construction activity. An evaluation by the fire and/
or police department is highly recommended if this service is available.
■■
■■
■ Criminal Knowledge
This system contains security features which were known to be effective at the time of
manufacture. It is possible for persons with criminal intent to develop techniques which
reduce the effectiveness of these features. It is important that a security system be reviewed
periodically to ensure that its features remain effective and that it be updated or replaced if
it is found that it does not provide the protection expected.
■■
■■
■ Access by Intruders
Intruders may enter through an unprotected access point, circumvent a sensing device,
evade detection by moving through an area of insufficient coverage, disconnect a warning
device, or interfere with or prevent the proper operation of the system.
■■
■■
■ Power Failure
Control units, intrusion detectors, smoke detectors and many other security devices re-
quire an adequate power supply for proper operation. If a device operates from batteries,
it is possible for the batteries to fail. Even if the batteries have not failed, they must be
charged, in good condition and installed correctly. If a device operates only by AC power,
any interruption, however brief, will render that device inoperative while it does not have
power. Power interruptions of any length are often accompanied by voltage fluctuations
which may damage electronic equipment such as a security system. After a power interrup-
tion has occurred, immediately conduct a complete system test to ensure that the system
operates as intended.
■■
■■
■ Failure of Replaceable Batteries
This system’s wireless transmitters have been designed to provide several years of battery
life under normal conditions. The expected battery life is a function of the device environ-
ment, usage and type. Ambient conditions such as high humidity, high or low temperatures,
or large temperature fluctuations may reduce the expected battery life. While each trans-
mitting device has a low battery monitor which identifies when the batteries need to be
replaced, this monitor may fail to operate as expected. Regular testing and maintenance
will keep the system in good operating condition.
■■
■■
■ Compromise of Radio Frequency (Wireless) Devices
Signals may not reach the receiver under all circumstances which could include metal objects placed
on or near the radio path or deliberate jamming or other inadvertent radio signal interference.
■■
■■
■ System Users
A user may not be able to operate a panic or emergency switch possibly due to permanent or
temporary physical disability, inability to reach the device in time, or unfamiliarity with the
correct operation. It is important that all system users be trained in the correct operation of
the alarm system and that they know how to respond when the system indicates an alarm.
■■
■■
■ Smoke Detectors
Smoke detectors that are a part of this system may not properly alert occupants of a fire for
a number of reasons, some of which follow. The smoke detectors may have been improp-
erly installed or positioned. Smoke may not be able to reach the smoke detectors, such as
when the fire is in a chimney, walls or roofs, or on the other side of closed doors. Smoke
detectors may not detect smoke from fires on another level of the residence or building.
Every fire is different in the amount of smoke produced and the rate of burning. Smoke
detectors cannot sense all types of fires equally well. Smoke detectors may not provide
timely warning of fires caused by carelessness or safety hazards such as smoking in bed,
violent explosions, escaping gas, improper storage of flammable materials, overloaded elec-
trical circuits, children playing with matches or arson.
Even if the smoke detector operates as intended, there may be circumstances when there is
insufficient warning to allow all occupants to escape in time to avoid injury or death.
■■
■■
■ Motion Detectors
Motion detectors can only detect motion within the designated areas as shown in their re-
spective installation instructions. They cannot discriminate between intruders and intended
occupants. Motion detectors do not provide volumetric area protection. They have multiple
beams of detection and motion can only be detected in unobstructed areas covered by these
beams. They cannot detect motion which occurs behind walls, ceilings, floor, closed doors,
glass partitions, glass doors or windows. Any type of tampering whether intentional or unin-
tentional such as masking, painting, or spraying of any material on the lenses, mirrors, win-
dows or any other part of the detection system will impair its proper operation.
Passive infrared motion detectors operate by sensing changes in temperature. However their
effectiveness can be reduced when the ambient temperature rises near or above body tem-
perature or if there are intentional or unintentional sources of heat in or near the detection
area. Some of these heat sources could be heaters, radiators, stoves, barbeques, fireplaces,
sunlight, steam vents, lighting and so on.
■■
■■
■ Warning Devices
Warning devices such as sirens, bells, horns, or strobes may not warn people or waken
someone sleeping if there is an intervening wall or door. If warning devices are located on
a different level of the residence or premise, then it is less likely that the occupants will be
alerted or awakened. Audible warning devices may be interfered with by other noise sources
such as stereos, radios, televisions, air conditioners or other appliances, or passing traffic.
Audible warning devices, however loud, may not be heard by a hearing-impaired person.
■■
■■
■ Telephone Lines
If telephone lines are used to transmit alarms, they may be out of service or busy for certain
periods of time. Also an intruder may cut the telephone line or defeat its operation by more
sophisticated means which may be difficult to detect.
■■
■■
■ Insufficient Time
There may be circumstances when the system will operate as intended, yet the occupants
will not be protected from the emergency due to their inability to respond to the warnings
in a timely manner. If the system is monitored, the response may not occur in time to
protect the occupants or their belongings.
■■
■■
■ Component Failure
Although every effort has been made to make this system as reliable as possible, the system
may fail to function as intended due to the failure of a component.
■■
■■
■ Inadequate Testing
Most problems that would prevent an alarm system from operating as intended can be
found by regular testing and maintenance. The complete system should be tested weekly
and immediately after a break-in, an attempted break-in, a fire, a storm, an earthquake, an
accident, or any kind of construction activity inside or outside the premises. The testing
should include all sensing devices, keypads, consoles, alarm indicating devices and any
other operational devices that are part of the system.
■■
■■
■ Security and Insurance
Regardless of its capabilities, an alarm system is not a substitute for property or life insurance.
An alarm system also is not a substitute for property owners, renters, or other occupants to
act prudently to prevent or minimize the harmful effects of an emergency situation.
