Tyco Safety Canada 09LC171 Outdoor dual PIR & MW detector User Manual
Digital Security Controls Ltd. Outdoor dual PIR & MW detector
user manual
1
INSTALLATION INSTRUCTIONS
&
USER MANUAL
P/N: 7131691 ver.A
LC-171
Dual-Tech Motion Sensor
(Dual Element PIR & Microwave)
with Pet Immunity
2
1 General...................................................................................................................................... 3
2 Features .................................................................................................................................... 3
3 Assembly description................................................................................................................. 4
4 Detection Pattern....................................................................................................................... 5
5 Selecting mounting location....................................................................................................... 6
6 Detector Installation................................................................................................................... 7
7 Terminal Block Connections...................................................................................................... 9
7.1 Wire Size Requirements..................................................................................................... 9
8 Settings & Adjustments ........................................................................................................... 10
8.1 Detection beam direction.................................................................................................. 10
8.2 Detection range setting .................................................................................................... 10
8.3 Sensitivity, Range and Pet immunity Adjustment ............................................................. 11
8.4 Indications setting............................................................................................................. 13
9 Operation................................................................................................................................. 14
10 Test procedure..................................................................................................................... 15
11 Specifications....................................................................................................................... 16
3
1 General
The LC-171 is unique motion detector utilizing dual passive infra-red elements and Microwave
technology for use outdoors and in harsh environments.
The LC-171 is designed for outdoor use in the most severe climatic conditions and may also
accommodate pets.
High reliability is achieved by combining both dual tech hardware with highly sophisticated
software and an adaptive coverage area, greatly reducing the possibility of false alarms.
The active elements are comprised of a dual element PIR and advanced Microwave detector
inside a stylish, rigid plastic body.
This special optics combined with state of the art microwave Doppler sensor assures elimination
of “false alarms” while maintaining high security standards for the detection of human intruders
into the protected area.
The detection sensitivity and range is controlled by a digital rotary switch allowing 16 calibration
levels, so that the correct detection pattern will be set for every installation.
The LC-171 is designed to protect large areas and can easily be installed on walls or poles in
order to provide a solid area of protection while rejecting interference from birds and small
animals due to the provided pet immunity optics.
2 Features
• Microwave detection based on Doppler concept.
• N.O. & N. C. Relays switched at the same time.
• Pet immunity up 35kg.
• 16 levels of PIR sensitivity adjustment and 3 microwave sensitivity groups.
• Temperature compensation.
• Microcontroller signal processing.
• Front and back tamper protection.
• Audible indication of walk test and intruder detection.
• Unique waterproof sealed plastic design.
• Detection Range: Up to 18m
• Detect human intruders walking or running.
• No maintenance required.
• High RFI/EMI Immunity.
• Protection from: direct sunlight, wind up to 30 m/sec, snow and rain, small animals, removal of
the top cover and removal from mounting bracket
4
3 Assembly description
The LC-171 is a robust detector which includes a large LED indicator that can be easily observed
from long distances and an optional buzzer to provide indication of intrusion.
Using the supplied mounting bracket, the LC-171 can be easily mounted to walls using mounting
screws and poles using the supplied metal bands.
The LC-171 is combined of three detection elements:
• Upper PIR element
• Lower PIR element
• Microwave element
• The upper PIR element has an adjustable detection height while the other two are fixed.

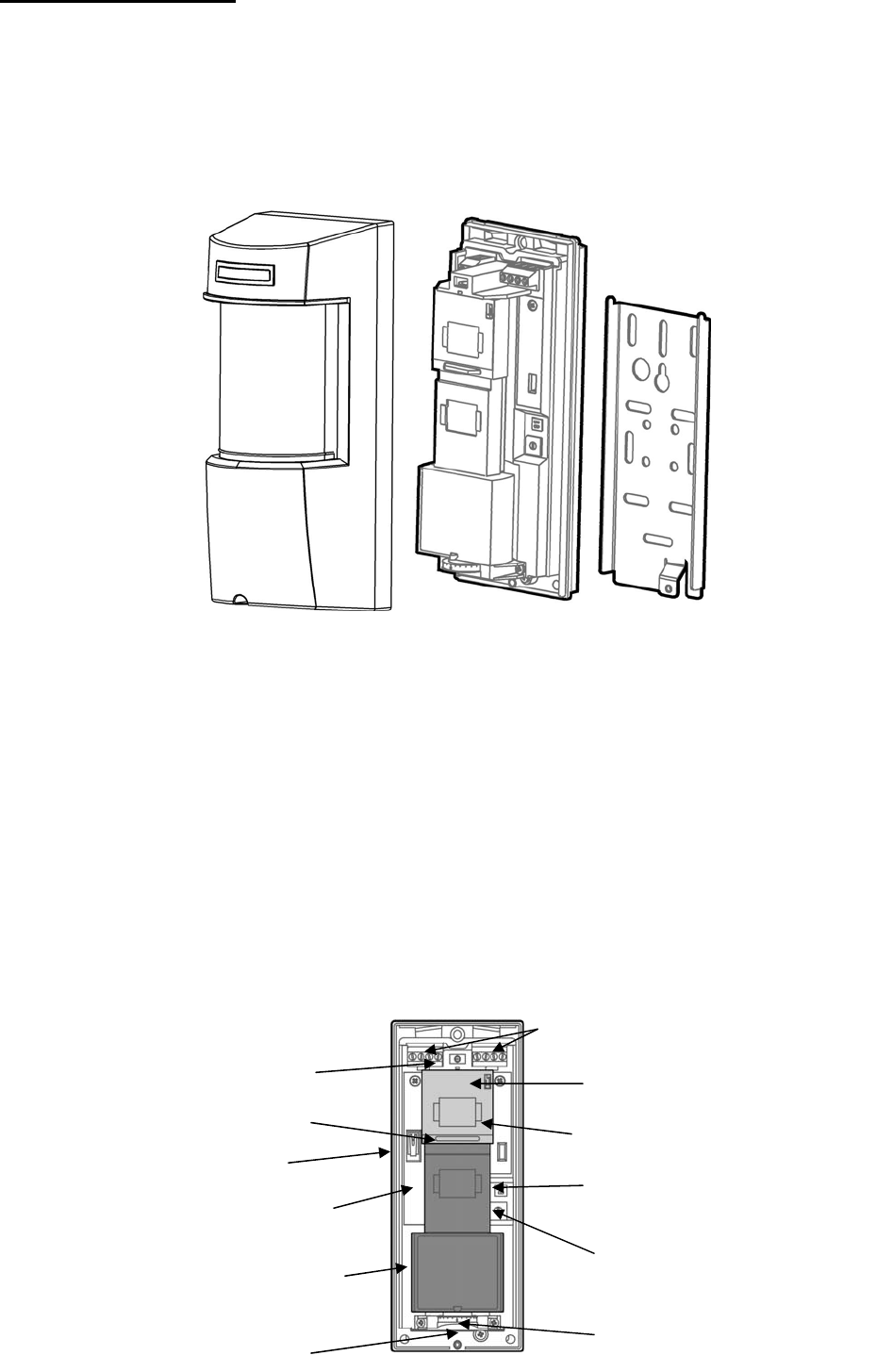

The following drawing shows all internal elements:
U
pp
er PIR element
Lower PIR element
Micro
wave element
LED
Terminal Connection Blocks
LED and Buzzer di
p
switches
Sensitivit
y
settin
g
Direction An
g
le Indicato
r
Ran
g
e settin
g
handle Ran
g
e Indication
Tam
p
er switch
Bracket lockin
g
screw
5

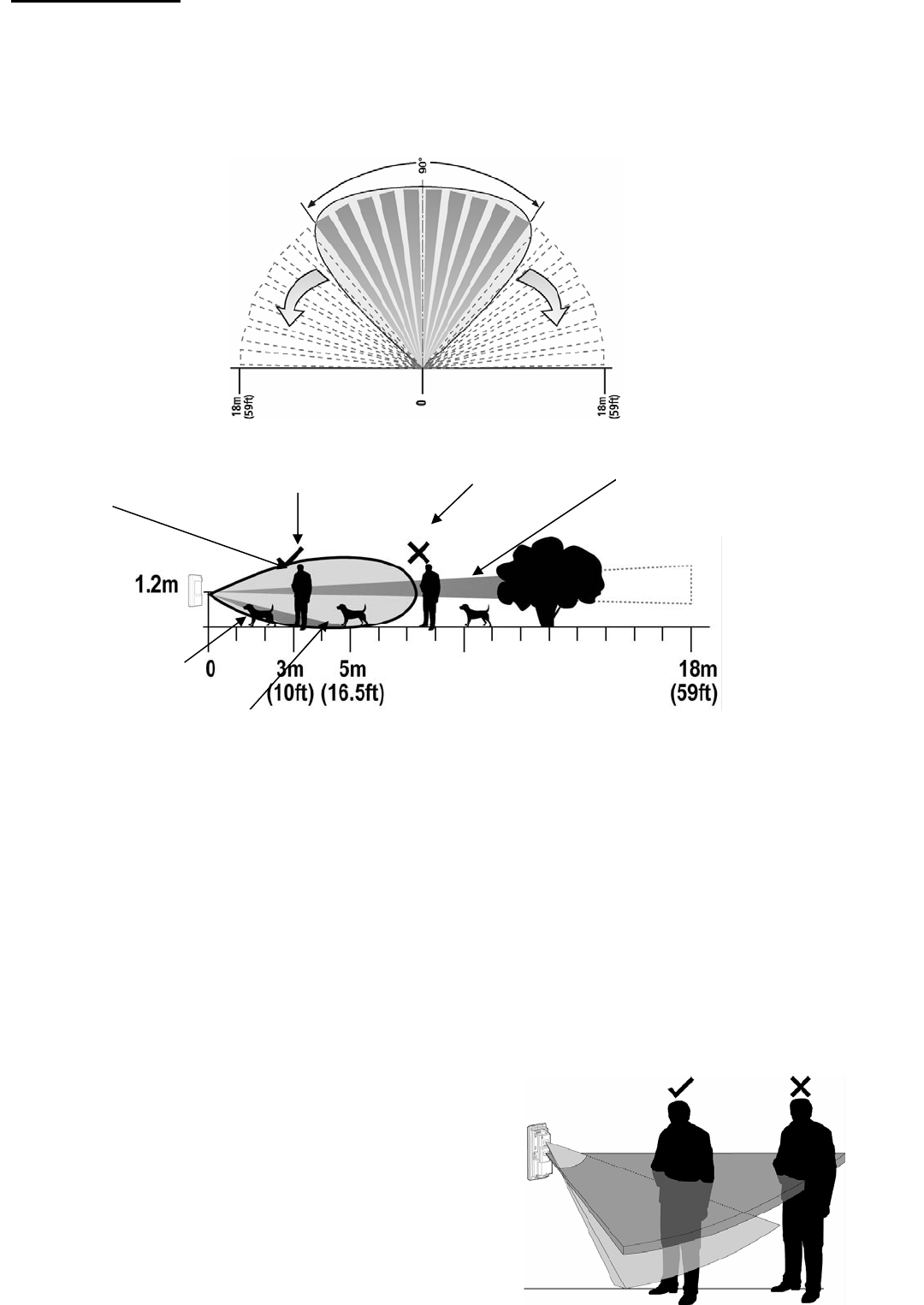

4 Detection Pattern
The LC-171 has a 90° top view PIR and MW detection pattern with over 18m detection distance
(when installed at 1.2m above the ground surface).
The LC-171 has an internal rotating housing (which includes the 2 PIR elements and the MW)
that can be adjusted horizontally, so its 90° coverage may vary between 0° and 180°.
The LC-171 can differentiate between pets and human bodies and alert accordingly by
having microwave movement detection combined with two PIR detection beams:.
A. Lower PIR element which is fixed to 18m range and 60cm above ground level which helps
avoiding pet detection over the entire area.
B. Upper PIR element which has adaptive range between 3 and 18m.
An intrusion is defined by both PIR detection beams being crossed and a Microwave detection
occurring, causing an alarm.
No alarm will be generated if only one of the PIR detection beams is crossed and microwave
detection occurs.
Detection area
Lower PIR element detection pattern
Fixed to 18m range
Microwave detection pattern Detection No Detection
No pet detection in
all protected area
Upper PIR element detection pattern
Adjustable between 3m and 18m (10 ft to 59 ft)
6
5 Selecting mounting location
The installation of the LC-171 requires a solid, level base for the mounting bracket and must be
located in a manner that when the detector is mounted, it is facing the center of the desired
detection zone.
The protected area must be free from obstacles like walls, fences, trees, ditches and other
microwave detectors.
Choose a location most likely to intercept an intruder according to detection pattern on page 5.

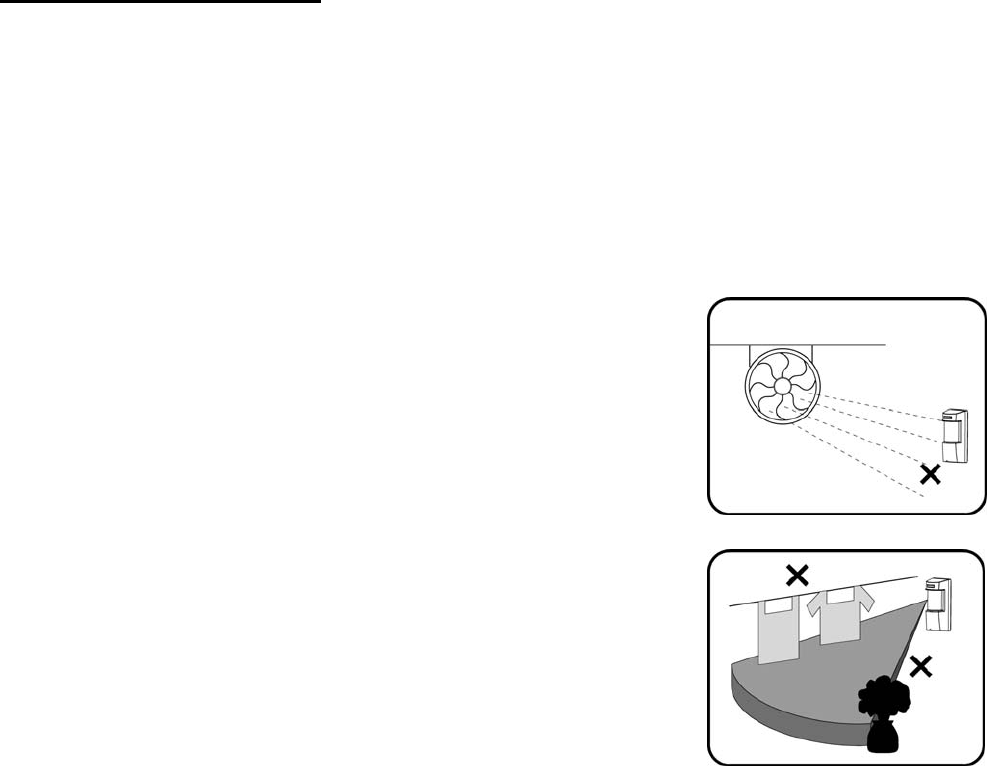

Avoid the Following Installation Locations:
• Facing direct sunlight.
• Facing areas subject to rapid temperature changes.
• Mounted at more than 10º from the vertical or horizontal plane.
• Facing metal doors.
• Near direct sources of heat or airflow.
• Clear all physical obstacles from the detection area
(e.g. Plants, laundry, etc.)
• Clear all light reflecting surfaces from the detection area,
including puddles or other standing water.
• Avoid installation on the following types of ground:
Thick vegetation, Grass (un-mown), Water, Sand and Metal.
NOTE:
Recommended installation height is 1.2m.
The DOUBLE DUAL high quality sensor detects motion crossing the beam; it is less sensitive
detecting motion towards the detector.
The LC-171 performs best when provided with a constant and stable environment.
In order to ensure suitable operation of the LC-171 type of ground should be one of the following:
Asphalt concrete, Cement, Soil, Clay, Gravel or Grass (mown).
7
6 Detector Installation
Important! Prior to installation, read both “Operation” and “Selecting the mounting location”
sections carefully.

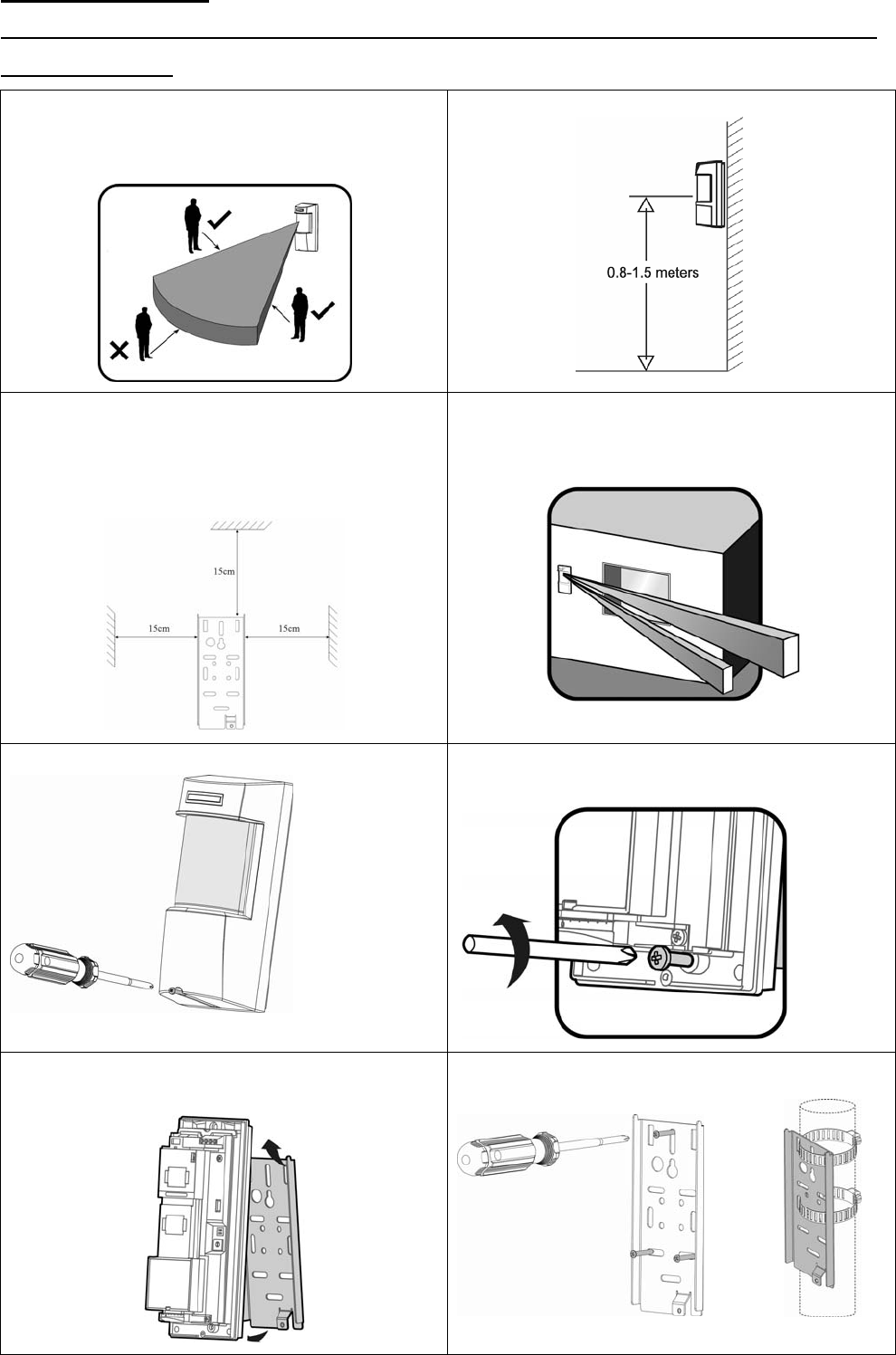

1. Install the detector in such manner that the intruder
is most likely to cross the detection area from side to
side.
2. The detector is to be installed at height of 0.8 to 1.5
meter (ideally 1.2m)
3. Make sure to attach the metal bracket to a leveled
straight and firm wall, leaving 15cm from the top and
15cm from both sides, for easy installation and
maintenance.
4. Rotating the detection beam may be required for
guarding a side window opening while the detector is
installed facing another direction.
5. Open the detector unwinding the bottom screw.
6. Release the rear metal bracket by unwinding
internal bottom screw.
7. Release the detector body from the metal bracket
by pulling the detector out and up.
8. Attach the rear bracket to the wall or a pole using
mounting screws or metal bands.
8

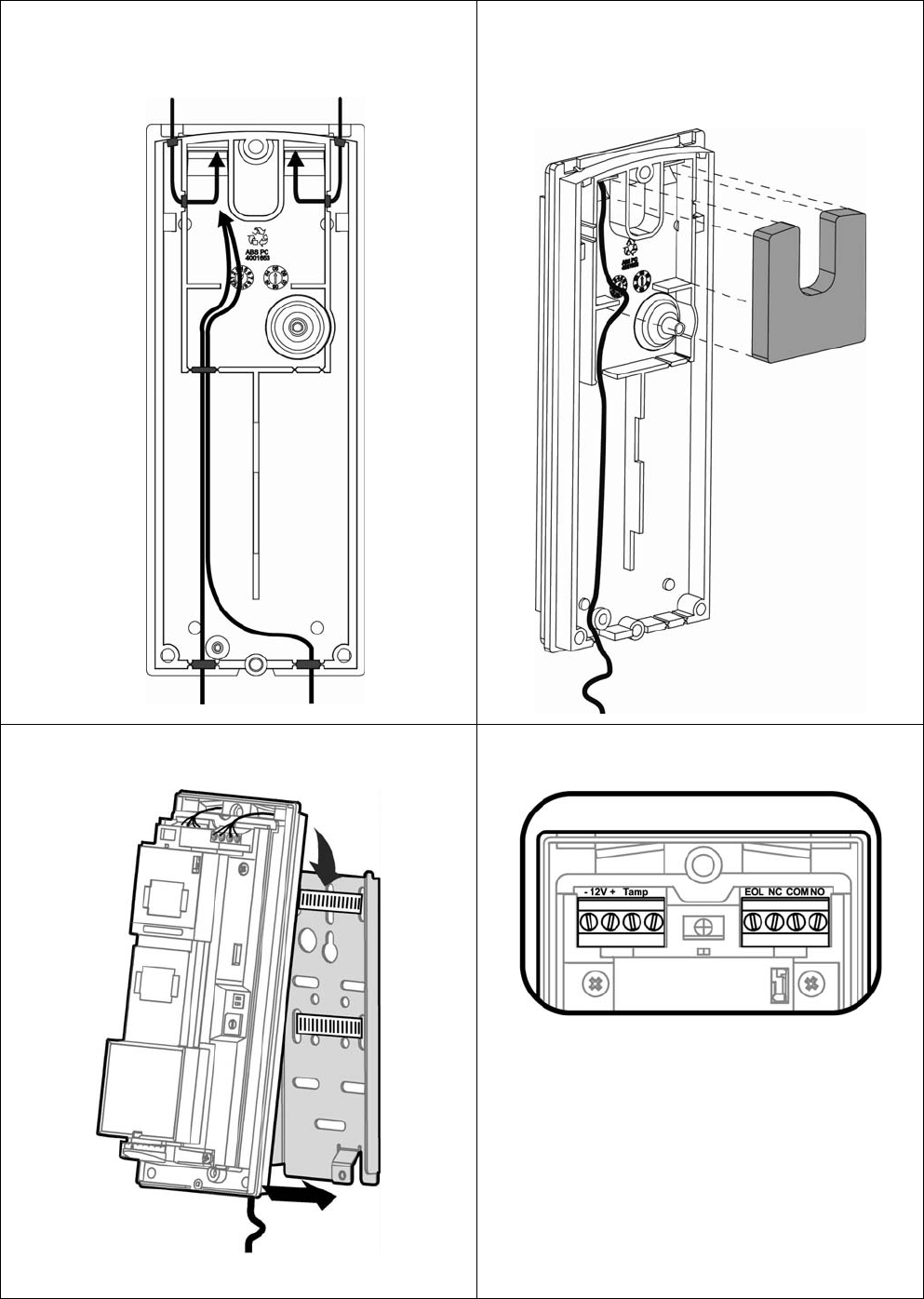

9. Break the relevant knockouts on the rear side of the
plastic base and slide the wires from the outside via the
paths and knockout to the internal side of the detector.
10. Attach the sealing “U” shaped Sponge Pad to the
wire opening from the rear side after the wires have
been connected and prior to final product affixing to
the mounted bracket.
11. Place the detector on the mounting bracket from top
side down and then lock the screw at the bottom.
12. Connect the wires to the terminal blocks
according to the following chapter.
9

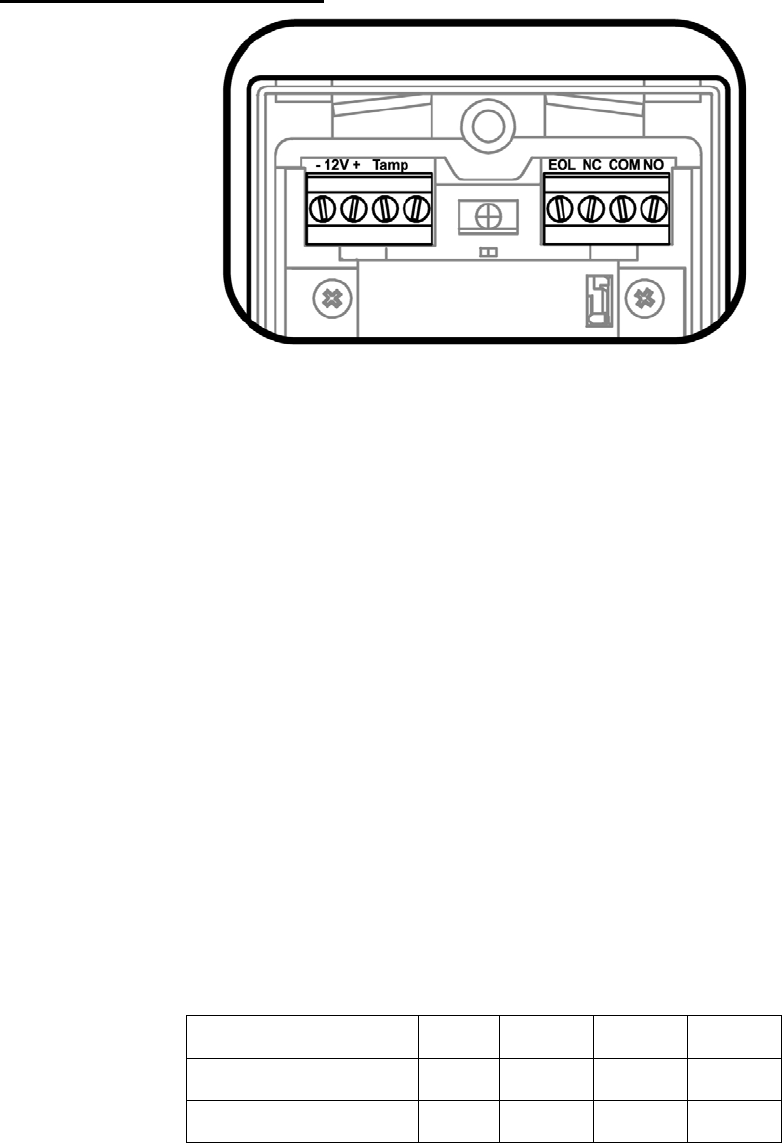

7 Terminal Block Connections
Terminal 1 - Marked “-” (GND) - Connect to the ground of the Control Panel.
Terminal 2 - Marked “+” (+12V) - Connect to a positive Voltage of 9.6 -16Vdc source
(usually from the Control Panel)
Terminals 3 & 4 - Marked “TAMP” - If a Tamper function is required connect these
Terminals to a normally closed 24-Hour Tamper Zone on the Control Panel.
If the top cover of the detector is opened or the detector is detached from installation wall, an
immediate alarm signal will be sent to the Control Panel.
Terminal 5 - Marked “EOL” - End of line – optional terminal for end of line resistors
connections.
Terminals 6, 7 & 8 - Marked “NC / C / NO” - These are the output relay contacts of the
detector. Connect to a zone input on the control unit. When an intruder is detected, alarm
relays (N.C. and N.O.) will switch for 1.8 sec.
7.1 Wire Size Requirements
Use #22 AWG or larger wires. Use the following table to determine required wire gauge and
length.
Wire Length [m] 205 310 510 870
Wire Length [ft.] 800 1200 2000 3400
Wire Gauge [#] 22 20 18 16
10
8 Settings & Adjustments

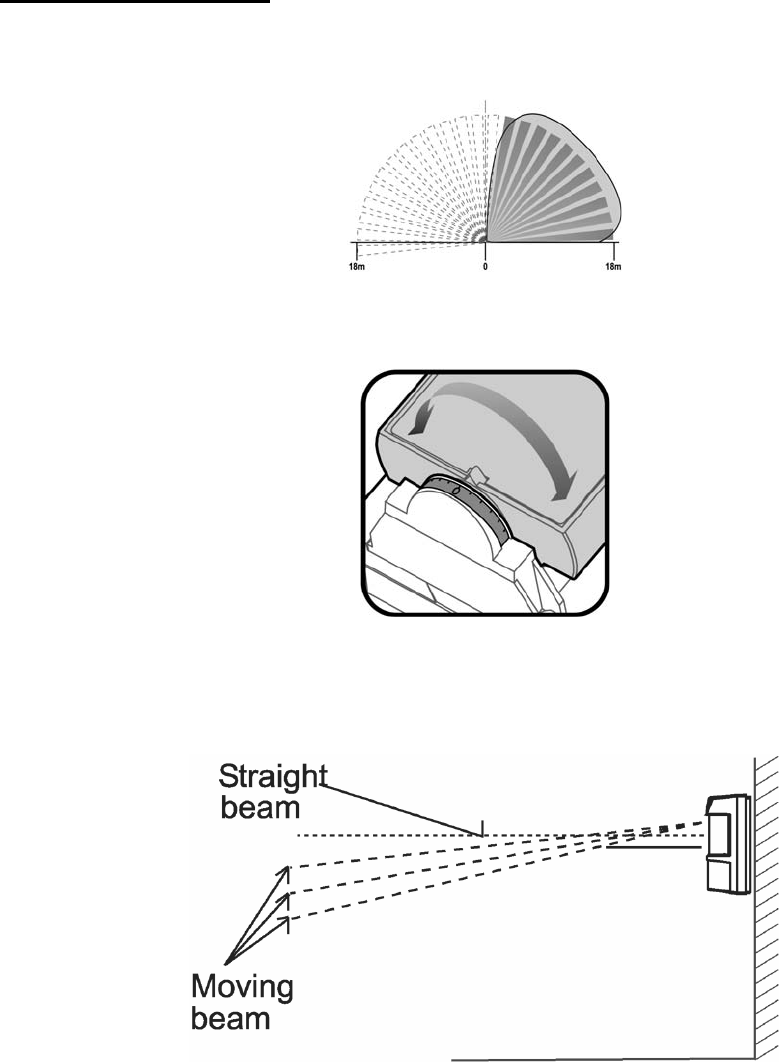

8.1 Detection beam direction
The LC-171 detection beam direction may vary between 0º and 180º.
In order to change the detection beam direction rotate the internal detection element
housing to the desired direction.
8.2 Detection range setting
The LC-171 detection range may vary between 3m and 18m, while installed on 1.2m height
above the ground surface.

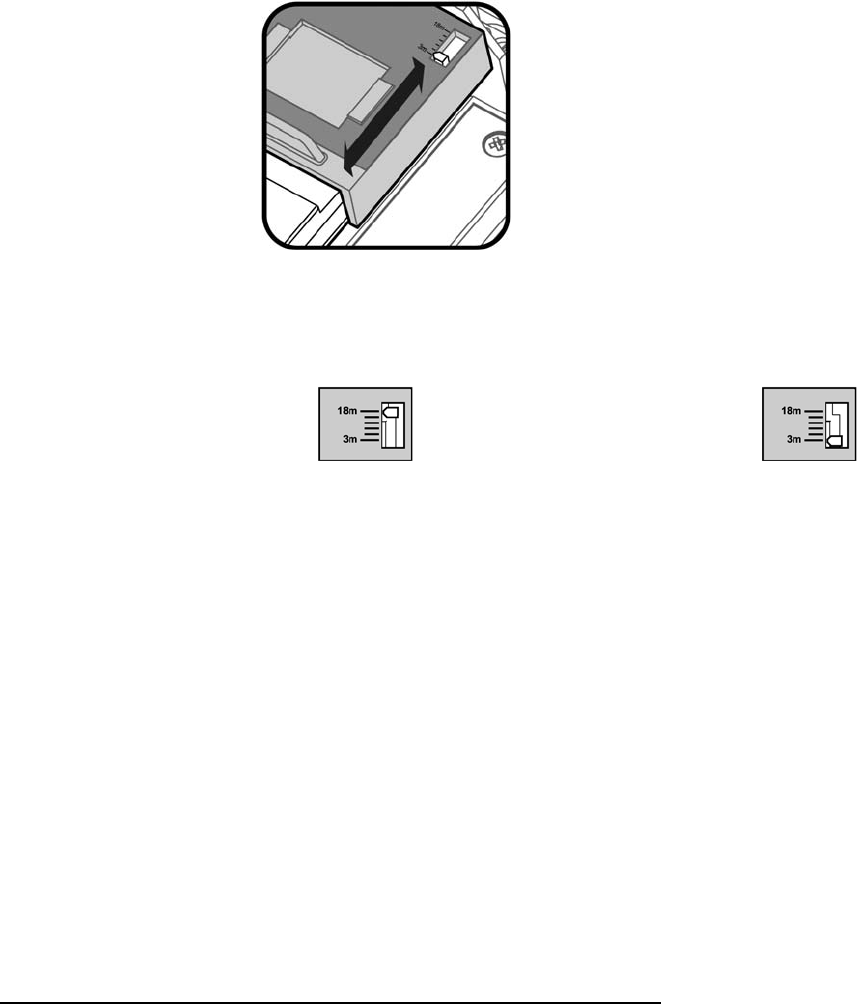

Changing the detection range is achieved by sliding the upper detection element up or
down.
11
To adjust for ranges between 3m and 18m slide the detection element up or down to
correspond with the desired distance. Each step between 3m and 18m represents 3m of
range.
Maximum Range (18m, 60ft) Minimum Range (3m, 10ft)

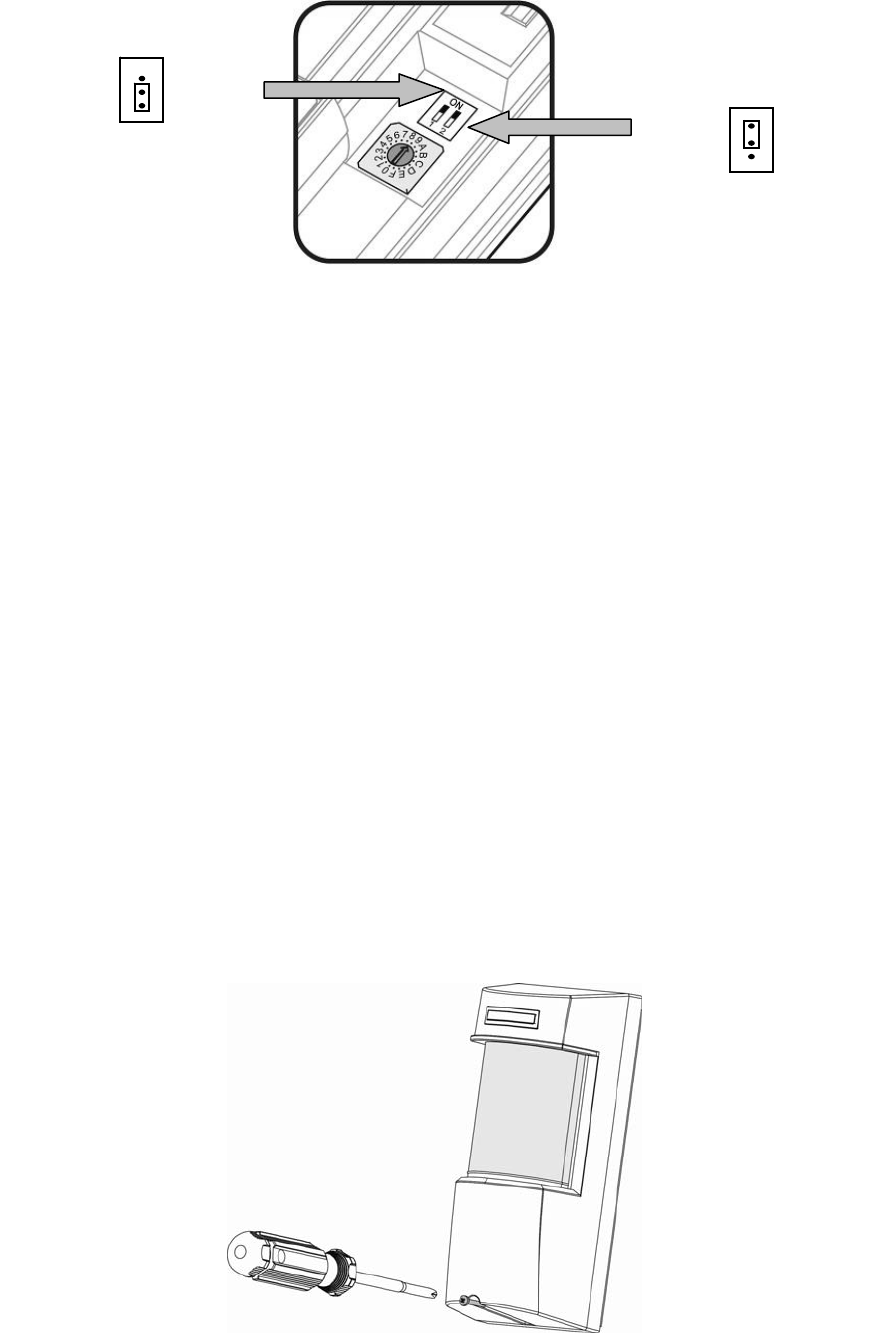

8.3 Sensitivity, Range and Pet immunity Adjustment

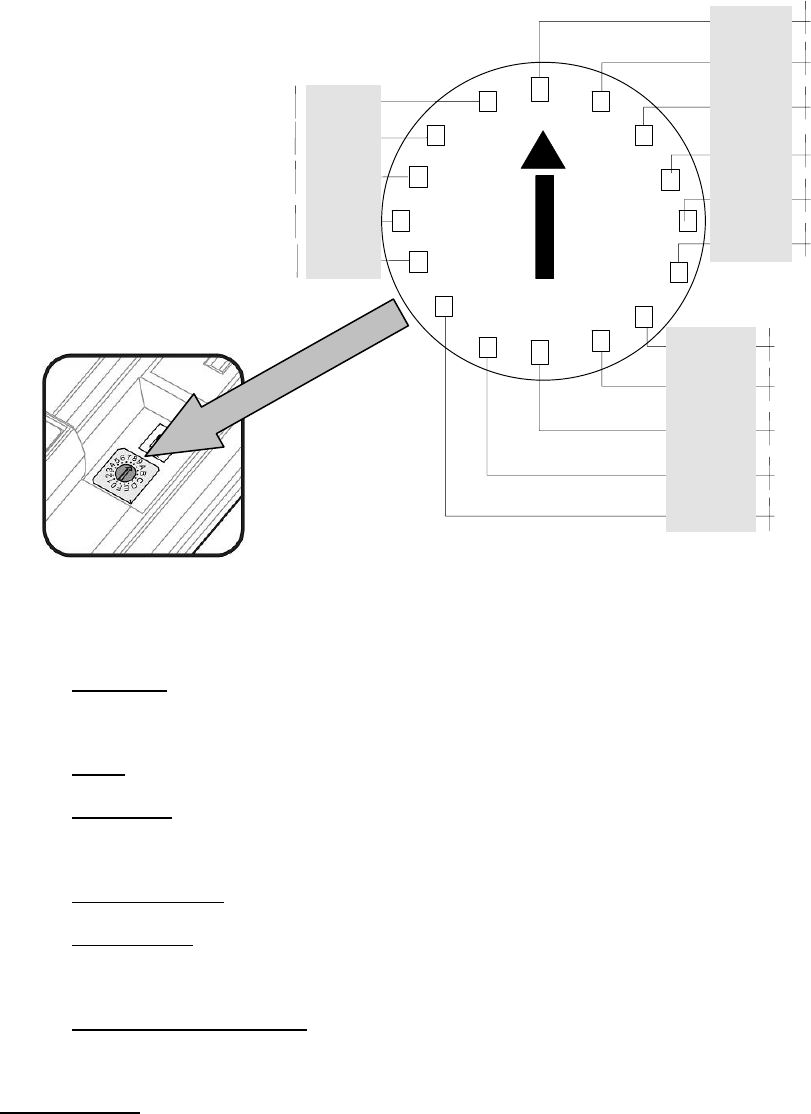

The calibration of range and sensitivity is performed by a single 16 position rotating switch.
There are 3 groups of switch settings grouped according to desired detection range.
Each group is divided into several levels of sensitivity according to the installation
environment.
The sensitivity is determined by a single 16 position rotating switch. Changing the
sensitivity affects immunity to environmental noises, and also affects the detection distance
and pet immunity level.
The rotating switch is marked with digits from “0” to “9” and following letters from “A” to “F”.
Position “0” is maximum sensitivity and “F” is minimum sensitivity.
Note: Adjust sensitivity according to environmental conditions!
Group A - positions 0 – 5 – set sensitivity for 18m detection range with immunity to pets weight
up to 20kg
Group B - positions 6 – A – set sensitivity for 13m detection range with immunity to pets weight
up to 35kg
Group C - positions B – F – set sensitivity for 7m detection range with immunity to pets weight
up to 35kg
NOTE: Ensure that you select the group with a range corresponding to or slightly higher then
the range set in 8.2. Do not select a group setting that has a lower range then the range set in
8.2.
12
0
8
4C
3
2
1F
E
D
B
A
97
6
5
Low Risk
Risk
Hi
g
h Risk
Ver
y
Hi
g
h Risk
Noisy Area
Extremely Noisy Area
Low Risk
Risk
Hi
g
h Risk
Very High Risk
Noisy Area
Low Risk
Risk
High Risk
Very High Risk
Noisy Area
18m
with Pet
Immune
up to
20kg
13m
with Pet
Immune
up to
35kg
7m
with Pet
Immune
up to
35kg
Each group is divided to 5 or 6 sub-positions that help to define the environmental
condition inside the detection range:
• Low risk: very stable environment without interference from parking garages, parking
spaces, playgrounds, football fields, service roads, etc.
• Risk: Stable environment with some trees, bushes, flowerpots, planters.
• High risk: Unstable environment with different types of vegetation and grass and
puddles.
• Very high risk: Unstable environment with winds and small pets, rats, mice, birds.
• Noisy area: Unstable environment with vegetation and water sources like swimming
pool, lake, canal, weeds as well as small pets like cats and rabbits.
• Extremely Noisy area: Very unstable environment subject to wind, snow, rain, with
vegetation, water and large pets, such as dogs.
For example:
If detector is used for 13m (42 ft) range in open space with sunlight and pets, set switch to
position 9.
13
8.4 Indications setting
The LC-171 has two types of indicators:
1. LED
2. Buzzer
The installer can adjust both indicators operation during detection (ON or OFF) by using
switch number “1” for the buzzer and switch number “2” for the LED. When the LED indicator
is ON the LED indicator will activate for 1 second each time an intrusion is detected. When the
LED indicator is OFF the LED will not be used to indicate an intrusion has occurred.
When the Buzzer indicator is ON the Buzzer will activate for 1.8sec each time an intrusion is
detected. When the Buzzer indicator is OFF the buzzer will not be used to indicate an intrusion
has occurred. (Setting the buzzer ON gives the installer the ability to have audible
confirmation of intrusion detection during the adjustments and a walk test. After completing
adjustments and walk testing it is recommended to switch the buzzer OFF)
• Place the top cover to the base and close it using the bottom screw.
LED OFF ON
OFF
Buzzer ON ON
OFF
Factory default setting
Factory default setting
14
9 Operation
Note! Connect the LC-171 to a positive Voltage output of 9.6 -16VDC source.
Use only a listed power limited source.
The detector shall be provided with minimum of 4 hours of standby power from either a
listed compatible control unit or power supply.
The detector begins a 2 minute warm up period once connected to power.
The LED will flash for the first 30 seconds of the warm up period after power up. The device
is operational once the LED stops flashing
The warm up period will continue for 90 seconds after the LED stops flashing
Once the warm up period is complete the device is ready for use
15
10 Test procedure
Walk Test
IMPORTANT NOTE: Once installed, the unit should be thoroughly tested to verify proper
operation and coverage. After installation, the unit should be tested annually by the installer. The
end user should be instructed on how to perform a weekly walk test.
Ensure that the detector has completed the 2 minute warm up period before walk testing
Make sure that the protected area is cleared of all people.
Create motion in the entire area where coverage is desired by walking perpendicular to the
detection pattern.
Listen to ALARM sound whenever motion is detected (the red LED also turns ON whenever
motion is detected).
Allow 5 sec. between each test for the detector to stabilize.
Walk across the entire area where coverage is desired. Should the coverage be incomplete,
readjust coverage range or relocate the detector.
Once coverage is as desired, the buzzer and LED should be disabled.
16
11 Specifications
• Specifications are subject to change without prior notice.
FCC COMPLIANCE STATEMENT
FCC ID: F5309LC171
CAUTION: Changes or modifications not expressly approved by Digital
Security Controls could void your authority to use this equipment.
This equipment generates and uses radio frequency energy and if not
installed and used properly, in strict accordance with the manufacturer’s
instructions, may cause interference to radio and television reception. It
has been type tested and found to comply with the limits for Class B
device in accordance with the specifications in Subpart "B" of Part 15 of
FCC Rules, which are designed to provide reasonable protection
against such interference in any residential installation. However, there
is no guarantee that interference will not occur in a particular installation.
If this equipment does cause interference to television or radio
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more
of the following measures:
· Re-orient the receiving antenna
· Relocate the alarm control with respect to the receiver
· Move the alarm control away from the receiver
· Connect the alarm control into a different outlet so that alarm control
and receiver are on different circuits.
If necessary, the user should consult the dealer or an experienced
radio/television technician for additional suggestions. The user may find
the following booklet prepared by the FCC helpful: "How to Identify and
Resolve Radio/Television Interference Problems". This booklet is
available from the U.S. Government Printing Office, Washington, D.C.
20402, Stock # 004-000-00345-4.
INDUSTRY CANADA COMPLIANCE STATEMENT
IC:160A-LC171
The term ‘IC:’ before the radio certification number only signifies that
Industry Canada technical specifications were met.
This Class B digital apparatus complies with Canadian ICES-003
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
RTTE Compliance Statement:
Detection Method Dual PIR AND MW
Microwave Frequency 24.125 GHz
Power Input 9.6 to 16Vdc
Current Draw Active: 24mA (±5%)
Standby: 21mA (±5%)
Temp Compensation Yes, Dual slope temperature compensation
Alarm Period 2 sec (±0.5sec)
Alarm Outputs Form C (NC, NO, Common)
28Vdc 0.1 A with 10 Ohm series protection resistor
Tamper Switch(s)
Two Switches
N.C 28Vdc 0.1 A with 10 Ohm Series protection resistors
Opens when cover is removed from unit’s base or if base is removed from
wall
Warm up Period 120sec (± 5sec)
LED Indicator LED is ON during ALARM (configurable)
RF Immunity 10 V/m plus 80% AM from 80 MHz to 2GHz
ElectroStatic Immunity 6kV contact, 8kV air
Transient Immunity 1kV
Operation Temp -35ºC ~ +55ºC
Dimensions 200mm x 86mm x 80mm
Weight 500gr.
European directives
RTTE directive:1999/5/EC
EMC directive: 2004/108/EC
Low Voltage directive: 2006/95/EC
RoHS directive: 2002/95/EC
European standards
requirements:
EN300 440-2; EN301 489-1; EN50130-4 +A1 +A2; EN61000-6-3+A11
EN60950-1
EN50131-1 / EN50131-2-4 / EN50130-5
USA & Canada
47CFR part 15, subpart C, section 15.245; 47CFR part 15, subpart B
RSS210; ICES-003
Protection Degree IEC 60529: IP 65
17
Limited Warranty
Digital Security Controls warrants that for a period of 12 months from the date of purchase, the product shall be free of
defects in materials and workmanship under normal use and that in fulfillment of any breach of such warranty, Digital
Security Controls shall, at its option, repair or replace the defective equipment upon return of the equipment to its repair
depot. This warranty applies only to defects in parts and workmanship and not to damage incurred in shipping or
handling, or damage due to causes beyond the control of Digital Security Controls such as lightning, excessive voltage,
mechanical shock, water damage, or damage arising out of abuse, alteration or improper application of the equipment.
The foregoing warranty shall apply only to the original buyer, and is and shall be in lieu of any and all other warranties,
whether expressed or implied and of all other obligations or liabilities on the part of Digital Security Controls. Digital
Security Controls neither assumes responsibility for, nor authorizes any other person purporting to act on its behalf to
modify or to change this warranty, nor to assume for it any other warranty or liability concerning this product.
In no event shall Digital Security Controls be liable for any direct, indirect or consequential damages, loss of anticipated
profits, loss of time or any other losses incurred by the buyer in connection with the purchase, installation or operation or
failure of this product.
Motion detectors can only detect motion within the designated areas as shown in their respective installation instructions.
They cannot discriminate between intruders and intended occupants. Motion detectors do not provide volumetric area
protection. They have multiple beams of detection and motion can only be detected in unobstructed areas covered by
these beams. They cannot detect motion which occurs behind walls, ceilings, floor, closed doors, glass partitions, glass
doors or windows. Any type of tampering whether intentional or unintentional such as masking, painting, or spraying of
any material on the lenses, mirrors, windows or any other part of the detection system will impair its proper operation.
Passive infrared motion detectors operate by sensing changes in temperature. However their effectiveness can be
reduced when the ambient temperature rises near or above body temperature or if there are intentional or unintentional
sources of heat in or near the detection area. Some of these heat sources could be heaters, radiators, stoves, barbeques,
fireplaces, sunlight, steam vents, lighting and so on.
Warning: Digital Security Controls recommends that the entire system be completely tested on a regular basis.
However, despite frequent testing, and due to, but not limited to, criminal tampering or electrical disruption, it is
possible for this product to fail to perform as expected.
Important Information: Changes or modifications not expressly approved by Digital Security Controls could void the
user’s authority to operate this equipment.
