Tyco Safety Canada 09WT4901 Wireless Indoor Siren User Manual
Digital Security Controls Ltd. Wireless Indoor Siren
User Manual
Use this installation sheet along with the associated alarm system installation
manual. All instructions specified within that manual must be observed.
The WT4901 is a two-way wireless indoor siren. It sounds an alarm condition
received via DSC wireless protocol from a compatible, two-way enabled security
panel (e.g., PC9155). After the WT4901 is enrolled on the security panel, it is
capable of receiving commands from the panel for sounding alarms and com-
municating any required response, such as system status. The siren is capable of
sounding different alarm cadences (e.g., continuous burglary, pulsating fire
(used in Canada), or temporal three fire (used in USA)), bell squawks, and
buzzer tones to suit the type of command it receives.
The WT4901 provides a supervisory signal to the security panel, to ensure
that its wireless communication capability is currently functioning. In addi-
tion, it monitors the case and wall tamper switch states, and the battery
state. In the event of a low battery or a tamper activation, the WT4901 trans-
mits the appropriate signal to the security panel and, if applicable, provides
an audible indication that a system event has occurred. Multiple WT4901
can be enrolled on, and supervised by the same security panel as separate
units.
Specifications
• Operating Temperature: -10°C to +55°C (14°F to 131°F)
Temperature range for UL/ULC: 0°C to +49°C
• Relative Humidity: 0 to 93% R.H., non-condensing
• Operating Frequency: 433.92MHz
• Wireless Range: 250m (outdoor, line of sight)
•Batteries: (4) AA 1.5V Alkaline (Duracell, Panasonic or Energizer)
• Battery Life: 2 years (under typical use)
• Low Battery Level: {xx V pre-determined}
•Output Level: 85dB
@
3m(high volume)/65db
@
3m(medium volume)
Out of the Box
WT4901
Installation Sheet
Hardware pack: 3 screws and 3 plastic anchors
4 AA Batteries
Two-Way Wireless Siren Enrollment
The WT4901 serial number is only used when the indoor siren is enrolled and pow-
ered up. Enrolling the WT4901 permits it to communicate with the control panel.
The installer can activate the indoor siren by Quick Enrollment or Serial Number
Programming, see below.
NOTE: Make sure the Keypad is setup before activating the indoor siren.
Quick Enrollment
1. Enter the enrollment mode through installer programming, see section [898] in
the alarm system installation manual.
2. Power up the indoor siren, if it is not already powered up.
3. Tamper the indoor siren using the tamper switch.
4. The indoor siren sends a request to the security panel to enroll on the system.
5. The Keypad displays the electronic serial number which must be confirmed by
keying in [*]. If the electronic serial number is incorrect, press [#] and repeat
this step.
6. Select the module number that the device should be enrolled as.
NOTE: The electronic serial number is a 8-digit alphanumeric number
located on a sticker on the wireless device.
7. Repeat starting from step 2. to enroll each additional indoor siren.
Serial Number Programming
1. Enter the enrollment mode through installer programming, see section [804] in
the alarm system installation manual.
2. Select the module number that the device will be enrolled as. See sections [301]-
[304] for sirens.
3. Enter the serial number using either the Keypad, or DLS.
Placement Test
Perform a placement test to ensure there is sufficient signal strength for proper com-
munication between the security panel and the siren location.
1. Place the security panel into placement test, see section [906].
2. Start the test by tampering and restoring the siren being tested, or pressing and
holding the Test button for 2 seconds (the siren will give a beep).
3. The siren will respond with one beep if the location is “Good” or three beeps if the
siren is at a “Bad” location.
Physical Installation
The indoor siren is mounted to a flat surface such as drywall, or any variety of other
surfaces with the supplied hardware.
NOTE: When mounting the WT4901 on drywall the use of the plastic anchors
is mandatory
NOTE: Do not mount over a single gang electrical box.
1. Open the WT4901 by inserting a screwdriver into the slots and gently pry on the
front cover until it separates from the backplate.
2. If the batteries are not installed, install the batteries as shown in the sequence
indicated by the engraving.
3. Position the backplate on a flat mounting surface and mark this location.
4. Secure the backplate to the mounting surface with all the screws provided.
5. Hinge the front cover to the backplate carefully, to correctly align it with the
tamper switch, then snap it onto the backplate. The wall tamper switch must
remain closed when the indoor siren is mounted.
Test Button
The test button activates the local siren for 4 seconds. Press and hold the siren test
button, located at the front of the WT4901, to verify the indoor siren is functioning.
If it is, the siren will sound at medium volume for 2 seconds, followed by 2 seconds
at full volume. The WT4901 does not necessarily have to be enrolled on a system to
perform this test.
Battery Replacement
The security panel will indicate when the batteries are low and require replacement. Pana-
sonic, Duracell or Energizer 1.5V AA alkaline batteries can be used.
REPLACE ONLY WITH
THE TYPE RECOMMENDED BY THE MANUFACTURER.
Open the front cover and
install the batteries as shown in the sequence indicated by the engraving. If the batteries are
installed incorrectly, in the reverse polarity, the indoor siren will not work. Under typical use
the WT4901 is capable of operating on battery power alone without having to change the
batteries for a minimum period of two years.
Do not try to recharge these batter-
ies. Disposal of used batteries must be made in accordance with the
waste recovery and recycling regulations in your area.
Configuration and Testing
If necessary, WT4901 options can be setup to suit desired system responses. By
means of the keypad interface, the installer has access to the siren programming
menus supported by the main panel e.g., wireless sounder options (see table
below), siren enrollment and placement test activation menu.
English
Installation Instructions
Siren # Serial Number
[301]#1
[302]#2
[303]#3
[304]#4
Program Section Options
Sounder:
Siren#1[311]
Siren#2[312]
Siren#3[313]
Siren#4[314]
1. Siren Enabled
2. Buzzer Notification
Enabled
3. Door Chime Enabled
4. Trouble Beeps Enabled
5. Bell Squawks Enabled
6. Enable Strobe
(WT4911 only)
7. Buzzer Alarms follow
BTO
8. For Future Use
1. Siren Disabled
2. Buzzer Notification Dis-
abled
3. Door Chime Disabled
4. Trouble Beeps Disabled
5. Bell Squawks Disabled
6. Disable Strobe
(WT4911 only)
7. Buzzer Alarms follows
Alarm Condition
8. For Future Use
Global Sounder:
Sirens#1-4
[320]
1. Tamper Activates Siren/
Strobe
2. Pre-Alarm Signal
Enabled
3. to 8. For Future Use
1. Tamper does not Acti-
vate Siren/Strobe
2. Pre-Alarm Signal Dis-
abled
3. to 8. For Future Use

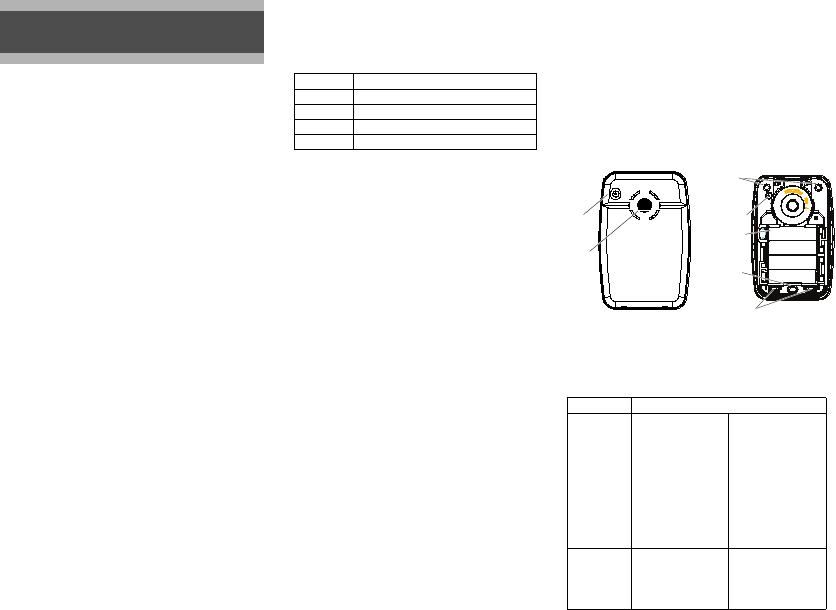

Test
Button
Buzzer
9035
Mounting
Holes (2)
Mounting Hole
Battery (4) AA
1.5V Alkaline
Test Button
Slots for removing
front cover
9036
Indoor Siren Front Cover Indoor Siren Backplate
Limited Warranty
Digital Security Controls warrants that for a period of 12 months from the
date of purchase, the product shall be free of defects in materials and
workmanship under normal use and that in fulfilment of any breach of
such warranty, Digital Security Controls shall, at its option, repair or
replace the defective equipment upon return of the equipment to its repair
depot. This warranty applies only to defects in parts and workmanship
and not to damage incurred in shipping or handling, or damage due to
causes beyond the control of Digital Security Controls such as lightning,
excessive voltage, mechanical shock, water damage, or damage arising
out of abuse, alteration or improper application of the equipment. The
foregoing warranty shall apply only to the original buyer, and is and shall
be in lieu of any and all other warranties, whether expressed or implied
and of all other obligations or liabilities on the part of Digital Security Con-
trols. Digital Security Controls neither assumes responsibility for, nor
authorizes any other person purporting to act on its behalf to modify or to
change this warranty, nor to assume for it any other warranty or liability
concerning this product. In no event shall Digital Security Controls be lia-
ble for any direct, indirect or consequential damages, loss of anticipated
profits, loss of time or any other losses incurred by the buyer in connection
with the purchase, installation or operation or failure of this product.
Warning: Digital Security Controls recommends that the entire sys-
tem be completely tested on a regular basis. However, despite fre-
quent testing, and due to, but not limited to, criminal tampering or
electrical disruption, it is possible for this product to fail to perform
as expected. Important: Changes or modifications not expressly
approved by Digital Security Controls could void the user’s authority
to operate this equipment.
FCC Compliance Statement
CAUTION:
Changes or modifications not expressly approved by Digital
Security Controls could void your authority to use this equipment. This
device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
IC: 160A-WT4901
The term ‘IC:’ before the radio certification number
only signifies that Industry Canada technical specifications were met.
This Class B digital apparatus complies with Canadian ICES-003. Cet
appareil numérique de la classe B est conforme à la norme NMB-003 du
Canada.
This product meets the requirements of Class II, Grade 2 equip-
ment as per EN50131-1 and EN50131-4 Standards. The power
supply is Type C as per EN50131-6 Standard.
IMPORTANT - READ CAREFULLY: DSC Software purchased with or without Prod-
ucts and Components is copyrighted and is purchased under the following license terms:
• This End-User License Agreement (“EULA”) is a legal agreement between
You (the company, individual or entity who acquired the Software and any
related Hardware) and Digital Security Controls, a division of Tyco Safety
Products Canada Ltd. (“DSC”), the manufacturer of the integrated security
systems and the developer of the software and any related products or com-
ponents (“HARDWARE”) which You acquired.
• If the DSC software product (“SOFTWARE PRODUCT” or “SOFT-
WARE”) is intended to be accompanied by HARDWARE, and is NOT
accompanied by new HARDWARE, You may not use, copy or install the
SOFTWARE PRODUCT. The SOFTWARE PRODUCT includes com-
puter software, and may include associated media, printed materials, and
“online” or electronic documentation.
• Any software provided along with the SOFTWARE PRODUCT that is
associated with a separate end-user license agreement is licensed to You
under the terms of that license agreement.
By installing, copying, downloading, storing, accessing or otherwise using the
SOFTWARE PRODUCT, You agree unconditionally to be bound by the terms
of this EULA, even if this EULA is deemed to be a modification of any previ-
ous arrangement or contract. If You do not agree to the terms of this EULA,
DSC is unwilling to license the SOFTWARE PRODUCT to You, and You
have no right to use it.
SOFTWARE PRODUCT LICENSE
The SOFTWARE PRODUCT is protected by copyright laws and international copy-
right treaties, as well as other intellectual property laws and treaties. The SOFTWARE
PRODUCT is licensed, not sold.
1. GRANT OF LICENSE
This EULA grants You the following rights:
(a) Software Installation and Use - For each license You acquire, You may have only
one copy of the SOFTWARE PRODUCT installed.
(b) Storage/Network Use - The SOFTWARE PRODUCT may not be installed,
accessed, displayed, run, shared or used concurrently on or from different computers,
including a workstation, terminal or other digital electronic device (“Device”). In other
words, if You have several workstations, You will have to acquire a license for each
workstation where the SOFTWARE will be used.
(c) Backup Copy
-
You may make back-up copies of the SOFTWARE PRODUCT,
but You may only have one copy per license installed at any given time. You may use
the back-up copy solely for archival purposes. Except as expressly provided in this
EULA, You may not otherwise make copies of the SOFTWARE PRODUCT, including
the printed materials accompanying the SOFTWARE.
2. DESCRIPTION OF OTHER RIGHTS AND LIMITATIONS
(a) Limitations on Reverse Engineering, Decompilation and Disassembly - You may
not reverse engineer, decompile, or disassemble the SOFTWARE PRODUCT, except
and only to the extent that such activity is expressly permitted by applicable law not-
withstanding this limitation. You may not make any changes or modifications to the
Software, without the written permission of an officer of DSC. You may not remove
any proprietary notices, marks or labels from the Software Product. You shall institute
reasonable measures to ensure compliance with the terms and conditions of this EULA.
(b) Separation of Components
-
The SOFTWARE PRODUCT is licensed as a single
product. Its component parts may not be separated for use on more than one HARD-
WARE unit.
(c) Single INTEGRATED PRODUCT
-
If You acquired this SOFTWARE with
HARDWARE, then the SOFTWARE PRODUCT is licensed with the HARDWARE as
a single integrated product. In this case, the SOFTWARE PRODUCT may only be used
with the HARDWARE as set forth in this EULA.
(d) Rental
-
You may not rent, lease or lend the SOFTWARE PRODUCT. You may
not make it available to others or post it on a server or web site.
(e) Software Product Transfer - You may transfer all of Your rights under this EULA
only as part of a permanent sale or transfer of the HARDWARE, provided You retain no
copies, You transfer all of the SOFTWARE PRODUCT (including all component parts,
the media and printed materials, any upgrades and this EULA), and provided the recipi-
ent agrees to the terms of this EULA. If the SOFTWARE PRODUCT is an upgrade, any
transfer must also include all prior versions of the SOFTWARE PRODUCT.
(f) Termination - Without prejudice to any other rights, DSC may terminate this
EULA if You fail to comply with the terms and conditions of this EULA. In such event,
You must destroy all copies of the SOFTWARE PRODUCT and all of its component
parts.
(g) Trademarks - This EULA does not grant You any rights in connection with any
trademarks or service marks of DSC or its suppliers.
3. COPYRIGHT - All title and intellectual property rights in and to the
SOFTWARE PRODUCT (including but not limited to any images, photo-
graphs, and text incorporated into the SOFTWARE PRODUCT), the accom-
panying printed materials, and any copies of the SOFTWARE PRODUCT,
are owned by DSC or its suppliers. You may not copy the printed materials
accompanying the SOFTWARE PRODUCT. All title and intellectual prop-
erty rights in and to the content which may be accessed through use of the
SOFTWARE PRODUCT are the property of the respective content owner and
may be protected by applicable copyright or other intellectual property laws
and treaties. This EULA grants You no rights to use such content. All rights
not expressly granted under this EULA are reserved by DSC and its suppliers.
4. EXPORT RESTRICTIONS
- You agree that You will not export or re-export the
SOFTWARE PRODUCT to any country, person, or entity subject to Canadian export
restrictions.
5. CHOICE OF LAW
- This Software License Agreement is governed by the laws of
the Province of Ontario, Canada.
6. ARBITRATION
- All disputes arising in connection with this Agreement shall be
determined by final and binding arbitration in accordance with the Arbitration Act, and
the parties agree to be bound by the arbitrator’s decision. The place of arbitration shall
be Toronto, Canada, and the language of the arbitration shall be English.
7. LIMITED WARRANTY
(a) NO WARRANTY - DSC PROVIDES THE SOFTWARE “AS IS” WITHOUT
WARRANTY. DSC DOES NOT WARRANT THAT THE SOFTWARE WILL
MEET YOUR REQUIREMENTS OR THAT OPERATION OF THE SOFTWARE
WILL BE UNINTERRUPTED OR ERROR-FREE.
(b) CHANGES IN OPERATING ENVIRONMENT
-
DSC shall not be responsible
for problems caused by changes in the operating characteristics of the HARDWARE, or
for problems in the interaction of the SOFTWARE PRODUCT with non-DSC-SOFT-
WARE or HARDWARE PRODUCTS.
(c) LIMITATION OF LIABILITY; WARRANTY REFLECTS ALLOCATION OF
RISK - IN ANY EVENT, IF ANY STATUTE IMPLIES WARRANTIES OR CON-
DITIONS NOT STATED IN THIS LICENSE AGREEMENT, DSC’S ENTIRE LIA-
BILITY UNDER ANY PROVISION OF THIS LICENSE AGREEMENT SHALL
BE LIMITED TO THE GREATER OF THE AMOUNT ACTUALLY PAID BY
YOU TO LICENSE THE SOFTWARE PRODUCT AND FIVE CANADIAN DOL-
LARS (CAD$5.00). BECAUSE SOME JURISDICTIONS DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR
INCIDENTAL DAMAGES, THE ABOVE LIMITATION MAY NOT APPLY TO
YOU.
(d) DISCLAIMER OF WARRANTIES - THIS WARRANTY CONTAINS THE
ENTIRE WARRANTY AND SHALL BE IN LIEU OF ANY AND ALL OTHER
WARRANTIES, WHETHER EXPRESSED OR IMPLIED (INCLUDING ALL
IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PAR-
TICULAR PURPOSE) AND OF ALL OTHER OBLIGATIONS OR LIABILITIES
ON THE PART OF DSC. DSC MAKES NO OTHER WARRANTIES. DSC NEI-
THER ASSUMES NOR AUTHORIZES ANY OTHER PERSON PURPORTING TO
ACT ON ITS BEHALF TO MODIFY OR TO CHANGE THIS WARRANTY, NOR
TO ASSUME FOR IT ANY OTHER WARRANTY OR LIABILITY CONCERNING
THIS SOFTWARE PRODUCT.
(e) EXCLUSIVE REMEDY AND LIMITATION OF WARRANTY - UNDER NO
CIRCUMSTANCES SHALL DSC BE LIABLE FOR ANY SPECIAL, INCIDEN-
TAL, CONSEQUENTIAL OR INDIRECT DAMAGES BASED UPON BREACH
OF WARRANTY, BREACH OF CONTRACT, NEGLIGENCE, STRICT LIABIL-
ITY, OR ANY OTHER LEGAL THEORY. SUCH DAMAGES INCLUDE, BUT
ARE NOT LIMITED TO, LOSS OF PROFITS, LOSS OF THE SOFTWARE PROD-
UCT OR ANY ASSOCIATED EQUIPMENT, COST OF CAPITAL, COST OF SUB-
STITUTE OR REPLACEMENT EQUIPMENT, FACILITIES OR SERVICES,
DOWN TIME, PURCHASERS TIME, THE CLAIMS OF THIRD PARTIES,
INCLUDING CUSTOMERS, AND INJURY TO PROPERTY. WARNING
:
DSC recommends that the entire system be completely tested on a regular
basis. However, despite frequent testing, and due to, but not limited to, crim-
inal tampering or electrical disruption, it is possible for this SOFTWARE
PRODUCT to fail to perform as expected.
©2008 Digital Security Controls, Toronto, Canada • www.dsc.com Printed in Canada
