User Guide
ZBAMB2070 MOBILE HANDHELD DEACTIVATOR 8200-0958-05, REV. A
INSTALLATION AND USER GUIDE 1 of 5
ZBAMB2070
Mobile Handheld
Deactivator
For use with a Motorola MT2070
handheld barcode scanner
User Guide
The ZBAMB2070 Mobile Handheld
Deactivator combines a Motorola MT2070
barcode scanner with a rechargeable
battery-operated deactivator coil.
This guide covers:
• Using the device
• Charging the battery
• Replacing the battery.
If you need assistance...
Contact your Sales Representative.
Safety
WARNING:
• No serviceable parts! Opening
the deactivator may expose
you to electric shock! If the
deactivator appears defective,
have your loss prevention
manager or IT specialist return
it to the distributor.
• Never use a damaged
deactivator.
WARNING:
• The deactivator is not to be
used for scanning a person.
Always keep a distance of at
least 35cm (14in) between the
deactivation coil and another
person. Refer to the Safety
Notice on page 5.
• Ensure safety instructions
within this manual are observed
during the installation and/or
operation of the deactivator.
• For proper charging, rest the
deactivator in the Motorola
Base Charging Station exactly
as shown in the image. Resting
the deactivator any other way
will affect its operation.
© 2013 Sensormatic Electronics, LLC

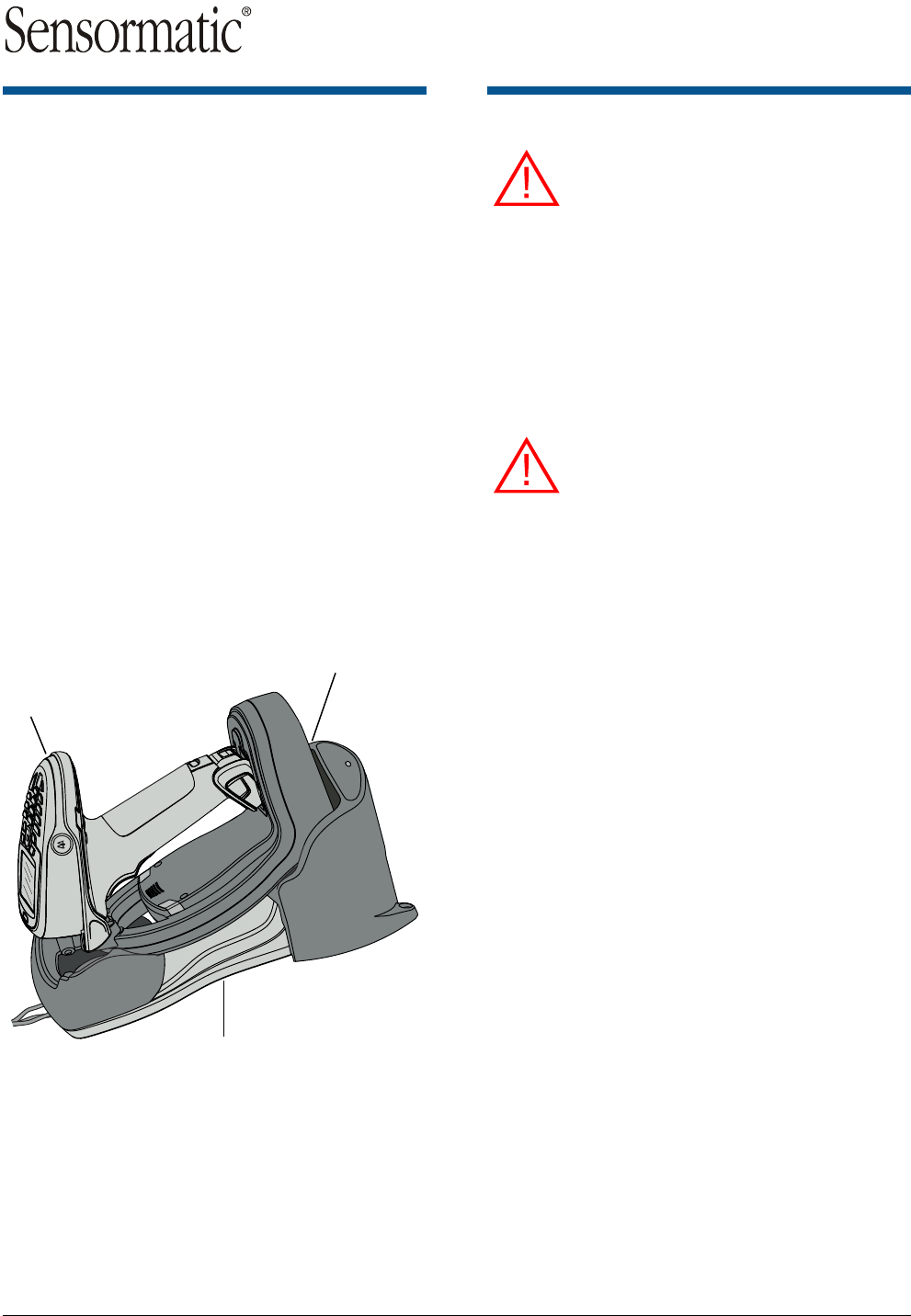

Motorola MT2070
Handhe
ld Scanner
Motorola MT2070
Base
Charging Station
ZBAMB2070 EAS Deactivator
Module
Assembly (dark
shaded parts)
ZBAMB2070 MOBILE HANDHELD DEACTIVATOR 8200-0958-05, REV. A
INSTALLATION AND USER GUIDE 2 of 5
Using the Device
1. Remove the scanner/deactivator
from the Motorola Base Charging
Station.
2. Aim the scanner at the barcode and:
a) Pull the trigger. The scanner will
beep indicating a successful
scan.
b) Release the trigger; the LEDs on
the deactivator will flash yellow
for 3 seconds. Within this
window, perform step 3.
(If you were unable to perform
step 3 within this window, repeat
step 2.)
3. Swirl the deactivator coil in 2.54cm
(1in) circles no more than 11.4cm
(4.5in) from the barcode. Observe
deactivation indications.
Deactivation Indications
LEDs / Audio Indicates
Green flash +
1 beep Deactivation successful
Red flash +
3 beeps Deactivation failed
4. When finished, seat the
scanner/deactivator firmly into the
Motorola Base Charging Station to
maintain the battery charge.
Fault Indications
LEDs / Audio Indicates
Flashing red
and yellow Replace the battery.
Red flash +
beep every
500ms until 30
seconds has
elapsed
Deactivator is out of
range of the Sync AP
device.
Solid red Replace the
deactivator.
IIIIIIIIIIIIIIIIIIIII
IIIIIIIIIIIIIIIIIIIII
ZBAMB2070 MOBILE HANDHELD DEACTIVATOR 8200-0958-05, REV. A
INSTALLATION AND USER GUIDE 3 of 5

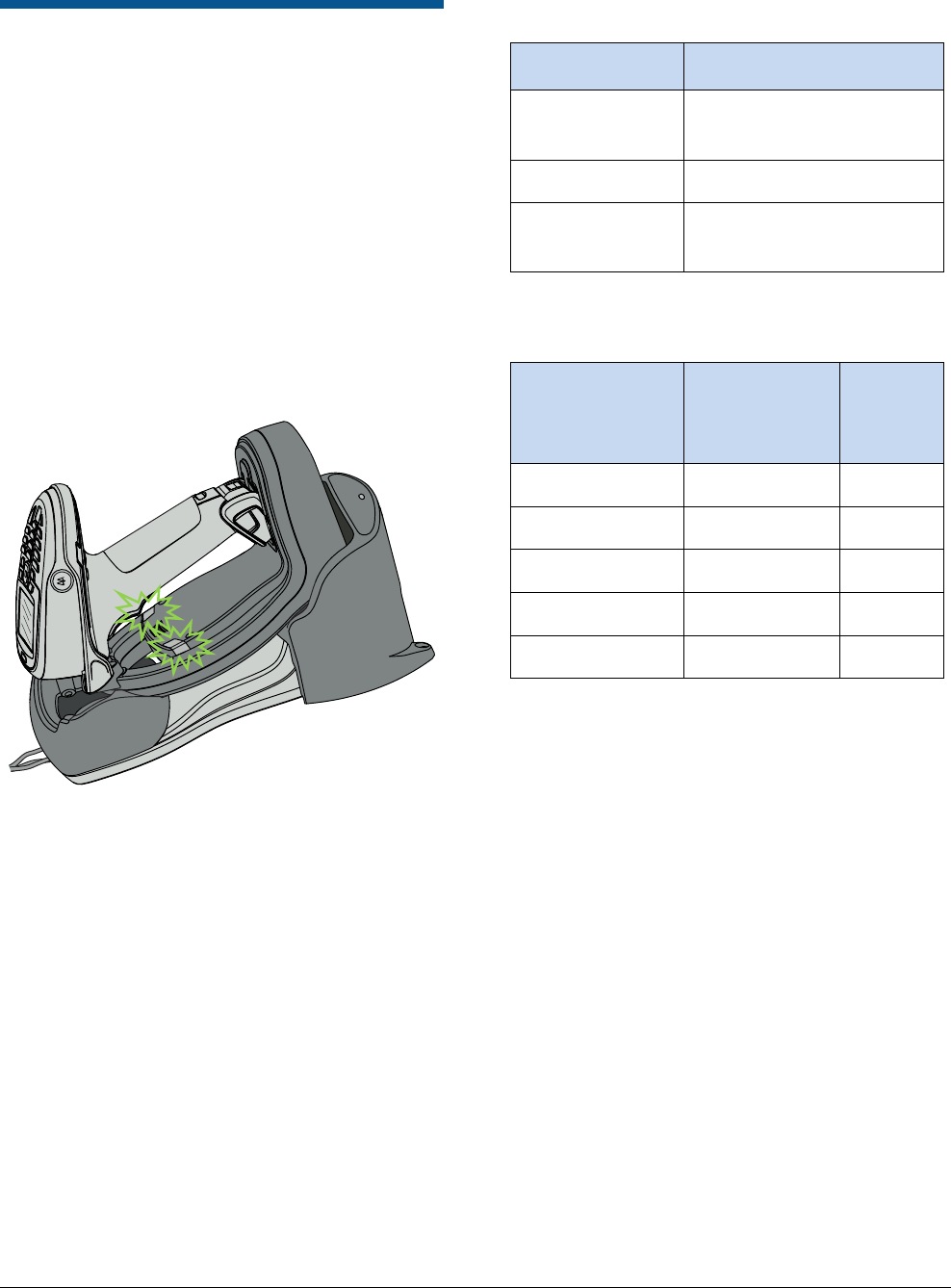

Charging the Battery
The handheld deactivator has a
rechargeable battery. LEDs on the
deactivator will flash green when the
battery is charging or red if the battery
charge is low.
IMPORTANT! To maintain the battery
charge, rest the deactivator in the
Motorola Base Charging Station exactly as
shown below when not in use.
To replace the battery, see “Replacing the
Battery” on page 4.
Battery Charging Indicators
Both LEDs Indicate
Flashing
green Charging
Solid green Fully charged
Off Deactivator is removed
from base
If Battery Charge is Low
Remaining
Battery Life
LEDs
Flash Red
Every…
Beeps
Above 30% — —
30% 120 seconds 3
20% 60 seconds 3
15% 30 seconds 3
10% 15 seconds 3
ZBAMB2070 MOBILE HANDHELD DEACTIVATOR 8200-0958-05, REV. A
INSTALLATION AND USER GUIDE 4 of 5
Replacing the Battery
To replace the battery, see your loss
prevention manager or IT specialist.
WARNING: Risk of explosion if
the battery is replaced with an
incorrect size and type.
WARNING: Recycle or dispose
used batteries according to local
or state requirements.
DO NOT mutilate the battery or
expose it to flame.
Before recycling or disposing,
insulate exposed battery wires
with electrical tape.

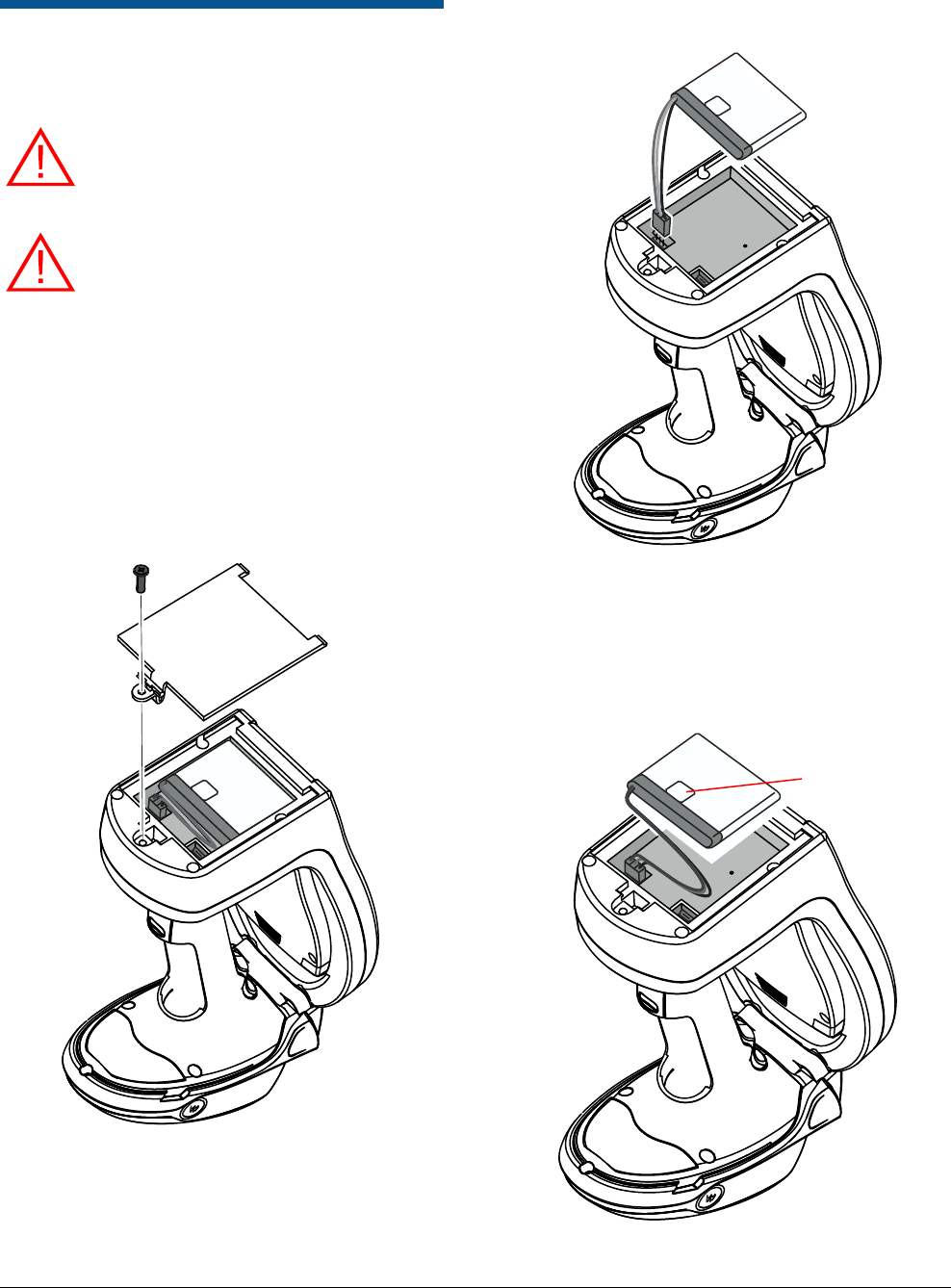

1. Remove the screw and battery cover
from the bottom of the deactivator.
2. Remove the battery and disconnect it.
3. Plug in the new battery, bend wires as
shown, and seat it in the battery
compartment. Install the battery cover
and secure it with the screw. DO NOT
over tighten.
Bend wires
as shown.
Bar code
label
must
be face up.
ZBAMB2070 MOBILE HANDHELD DEACTIVATOR 8200-0958-05, REV. A
INSTALLATION AND USER GUIDE 5 of 5
Declarations
Regulatory Information
FCC ID: BVCAMB44
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures: reorient or relocate the receiving antenna, increase
the separation between the equipment and receiver, connect
the equipment into an outlet on a circuit different from that to
which the receiver is connected, and/or consult the dealer or an
experienced radio/TV technician for help.
IC ID: 3506A-AMB44
MODELS: ZBAMB2070
This device complies with Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada
applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes : (1)
l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de
l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le
fonctionnement.
This Class B digital apparatus complies with Canadian ICES-
003.
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
EMC ........................................................ 47 CFR, Part 15
ICES-003
RSS-Gen
RSS-210
Safety ................................. UL 60950-1 (second edition)
CSA C22.2.60950-1
EN 60950-1
Environmental rating ................................................. IP54
Other Declarations
WARRANTY DISCLAIMER: Sensormatic Electronics, LLC
makes no representation or warranty with respect to the
contents hereof and specifically disclaims any implied
warranties of merchantability or fitness for any particular
purpose. Further, Sensormatic Electronics, LLC reserves the
right to revise this publication and make changes from time to
time in the content hereof without obligation of Sensormatic
Electronics, LLC to notify any person of such revision or
changes.
LIMITED RIGHTS NOTICE: For units of the Department of
Defense, all documentation and manuals were developed at
private expense and no part of it was developed using
Government Funds. The restrictions governing the use and
disclosure of technical data marked with this legend are set
forth in the definition of “limited rights” in paragraph (a) (15) of
the clause of DFARS 252.227.7013. Unpublished - rights
reserved under the Copyright Laws of the United States.
TRADEMARK NOTICE: Sensormatic is a trademark or
registered trademark of Sensormatic Electronics, LLC. Motorola
and the Stylized M Logo are registered trademarks of Motorola
Trademark Holdings, LLC. Other product names mentioned
herein may be trademarks or registered trademarks of
Sensormatic or other companies.
No part of this guide may be reproduced in any form without
written permission from Sensormatic Electronics, LLC.
Safety Notice
This product emits electromagnetic fields and is for
use by trained workers in an occupational
environment ONLY. It is not to be operated against
the worker body. The minimum safety distance to
the human torso of the general public or untrained
workers is 35cm (14 inches) when the product is
operating. At distances beyond 35 cm (14 inches)
the electromagnetic fields are below (better than)
the safe levels for the general public and untrained
workers given in European Council
Recommendation 1999/519/EC.
The product is in compliance with European
Directive 1999/5/EC on radio equipment and
telecommunications terminal equipment on the
basis of the above statement, using
EN50364:2009.
