Tzone Digital Technology TZ-BT05 Bluetooth Temperature Data Logger User Manual TZ Tag04

Tzone Digital Technology Co.,LTD Bluetooth Temperature Data Logger TZ Tag04

Users Manual

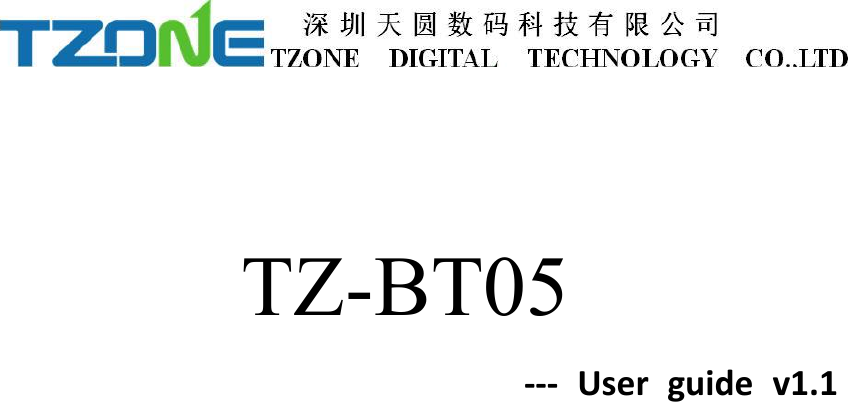

TZ-BT05--- User guide v1.1

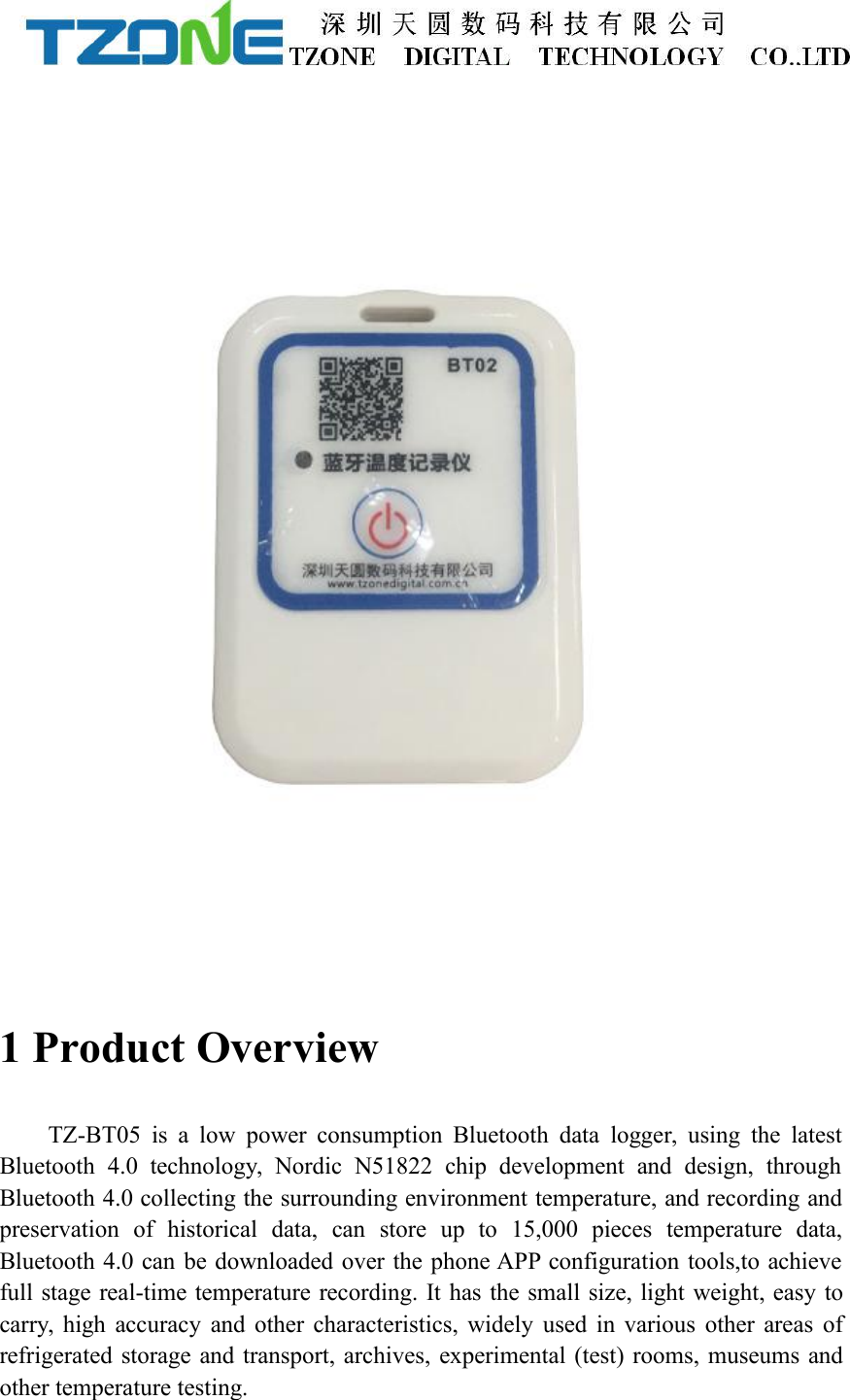

1 Product OverviewTZ-BT05 is a low power consumption Bluetooth data logger, using the latestBluetooth 4.0 technology, Nordic N51822 chip development and design, throughBluetooth 4.0 collecting the surrounding environment temperature, and recording andpreservation of historical data, can store up to 15,000 pieces temperature data,Bluetooth 4.0 can be downloaded over the phone APP configuration tools,to achievefull stage real-time temperature recording. It has the small size, light weight, easy tocarry, high accuracy and other characteristics, widely used in various other areas ofrefrigerated storage and transport, archives, experimental (test) rooms, museums andother temperature testing.

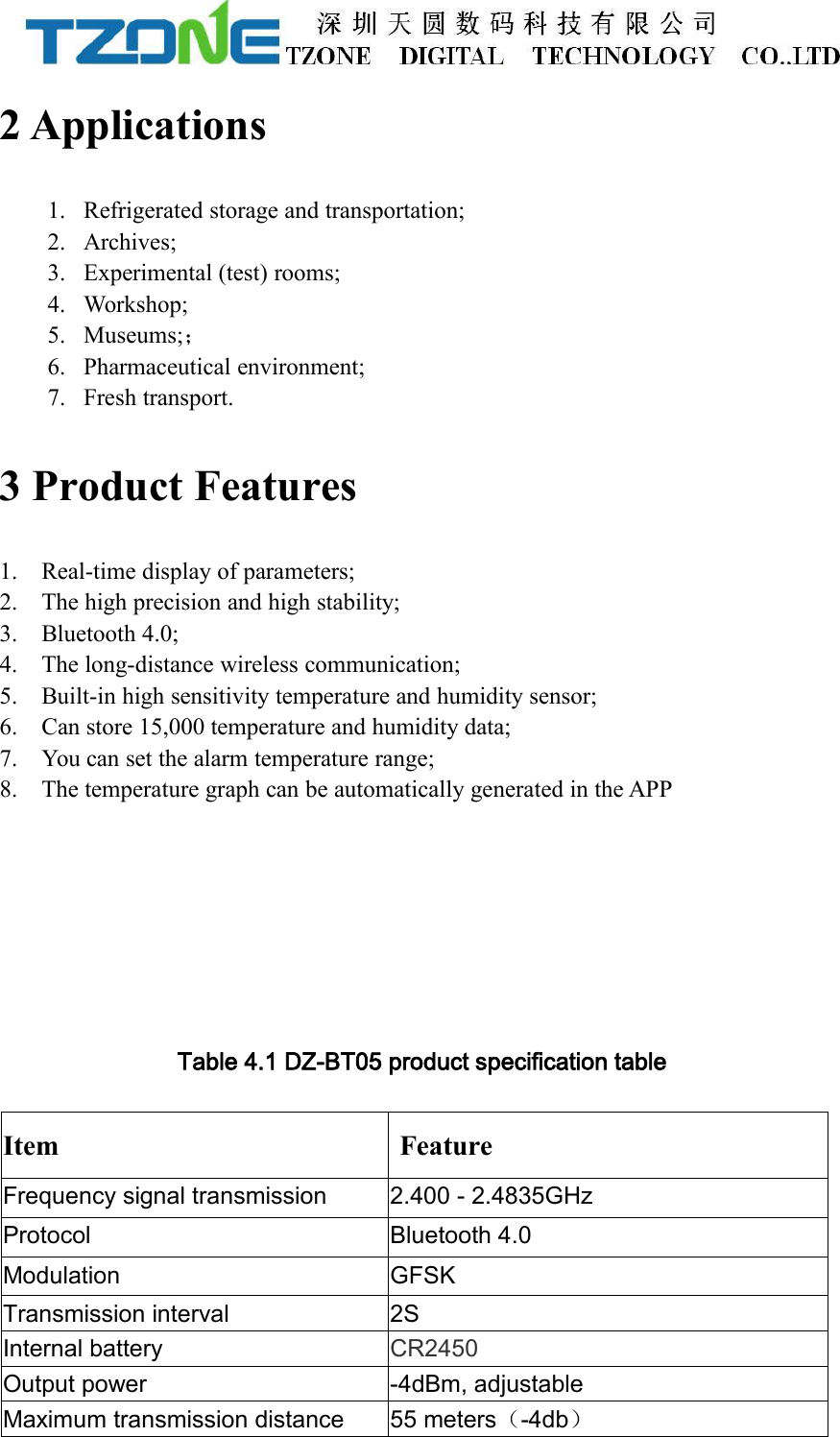

2 Applications1. Refrigerated storage and transportation;2. Archives;3. Experimental (test) rooms;4. Workshop;5. Museums;;6. Pharmaceutical environment;7. Fresh transport.3 Product Features1. Real-time display of parameters;2. The high precision and high stability;3. Bluetooth 4.0;4. The long-distance wireless communication;5. Built-in high sensitivity temperature and humidity sensor;6. Can store 15,000 temperature and humidity data;7. You can set the alarm temperature range;8. The temperature graph can be automatically generated in the APPTable 4.1 DZ-BT05 product specification tableItemFeatureFrequency signal transmission2.400 - 2.4835GHzProtocolBluetooth 4.0ModulationGFSKTransmission interval2SInternal batteryCR2450Output power-4dBm, adjustableMaximum transmission distance55 meters(-4db)

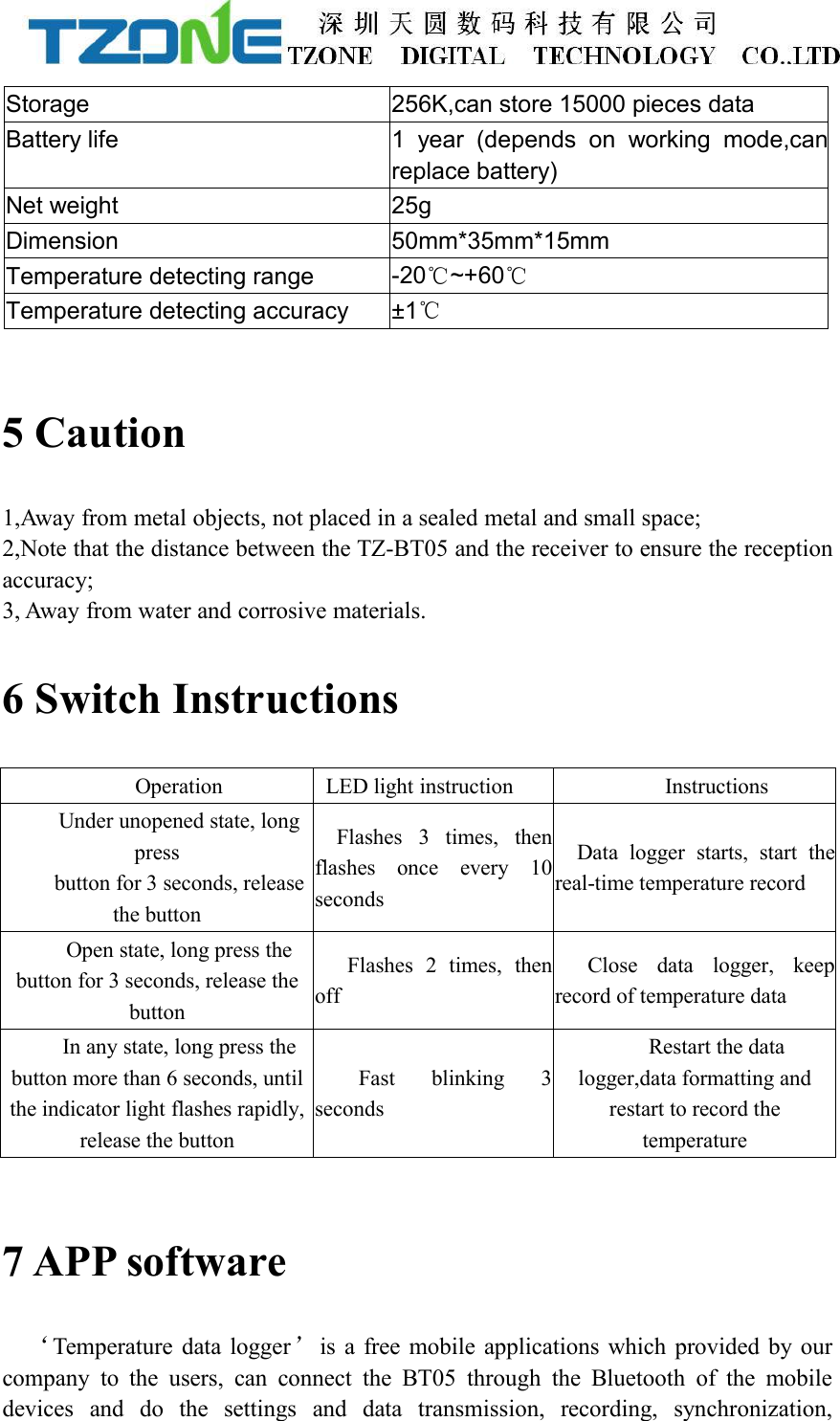

Storage256K,can store 15000 pieces dataBattery life1 year (depends on working mode,canreplace battery)Net weight25gDimension50mm*35mm*15mmTemperature detecting range-20℃~+60℃Temperature detecting accuracy±1℃5 Caution1,Away from metal objects, not placed in a sealed metal and small space;2,Note that the distance between the TZ-BT05 and the receiver to ensure the receptionaccuracy;3, Away from water and corrosive materials.6 Switch InstructionsOperationLED light instructionInstructionsUnder unopened state, longpressbutton for 3 seconds, releasethe buttonFlashes 3 times, thenflashes once every 10secondsData logger starts, start thereal-time temperature recordOpen state, long press thebutton for 3 seconds, release thebuttonFlashes 2 times, thenoffClose data logger, keeprecord of temperature dataIn any state, long press thebutton more than 6 seconds, untilthe indicator light flashes rapidly,release the buttonFast blinking 3secondsRestart the datalogger,data formatting andrestart to record thetemperature7 APP software‘Temperature data logger’is a free mobile applications which provided by ourcompany to the users, can connect the BT05 through the Bluetooth of the mobiledevices and do the settings and data transmission, recording, synchronization,

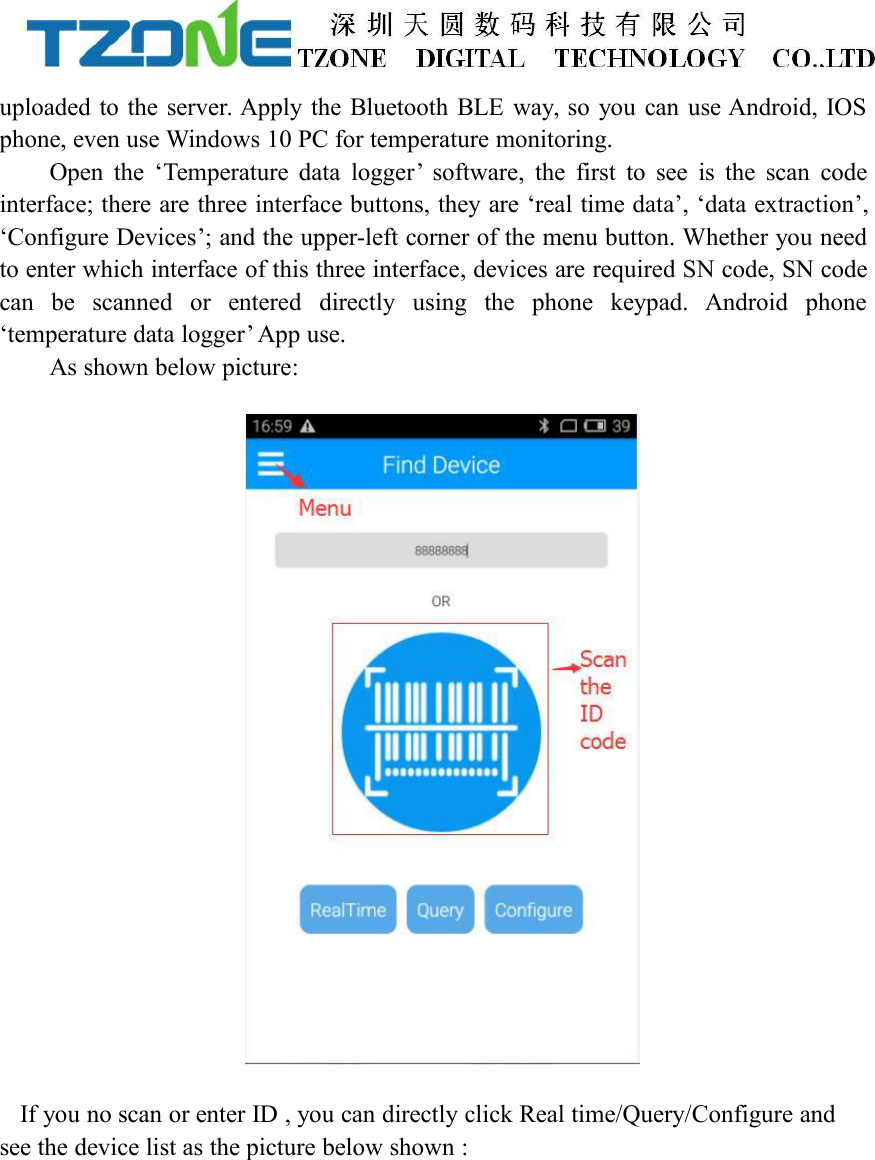

uploaded to the server. Apply the Bluetooth BLE way, so you can use Android, IOSphone, even use Windows 10 PC for temperature monitoring.Open the ‘Temperature data logger’ software, the first to see is the scan codeinterface; there are three interface buttons, they are ‘real time data’, ‘data extraction’,‘Configure Devices’; and the upper-left corner of the menu button. Whether you needto enter which interface of this three interface, devices are required SN code, SN codecan be scanned or entered directly using the phone keypad. Android phone‘temperature data logger’ App use.As shown below picture:If you no scan or enter ID , you can directly click Real time/Query/Configure andsee the device list as the picture below shown :

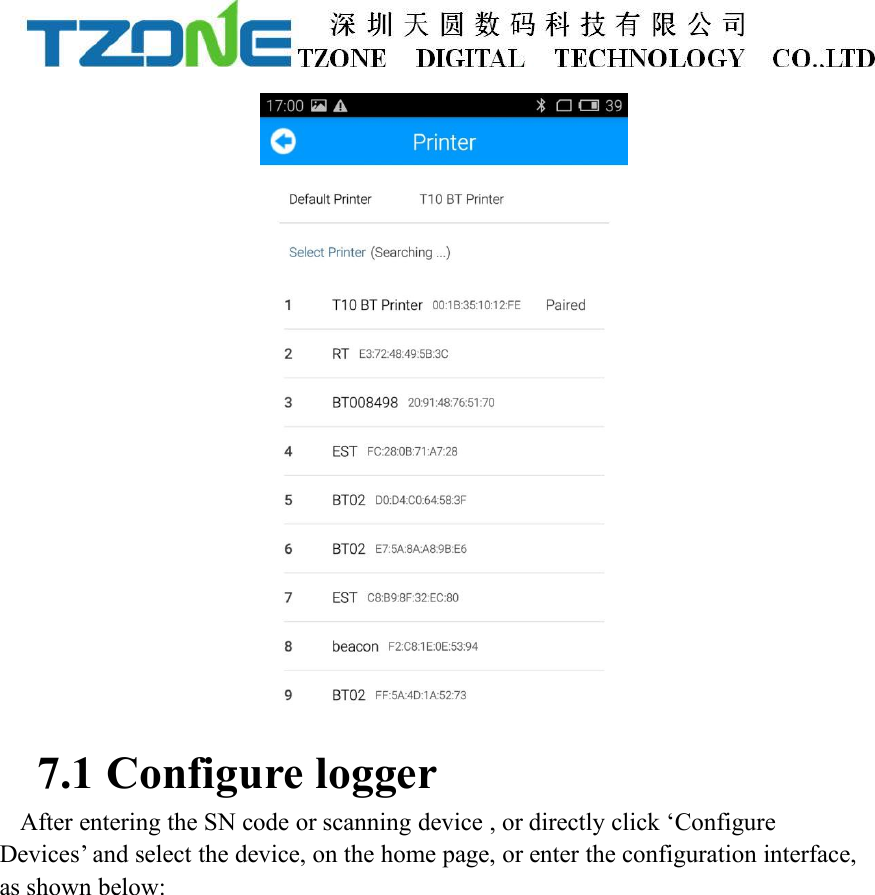

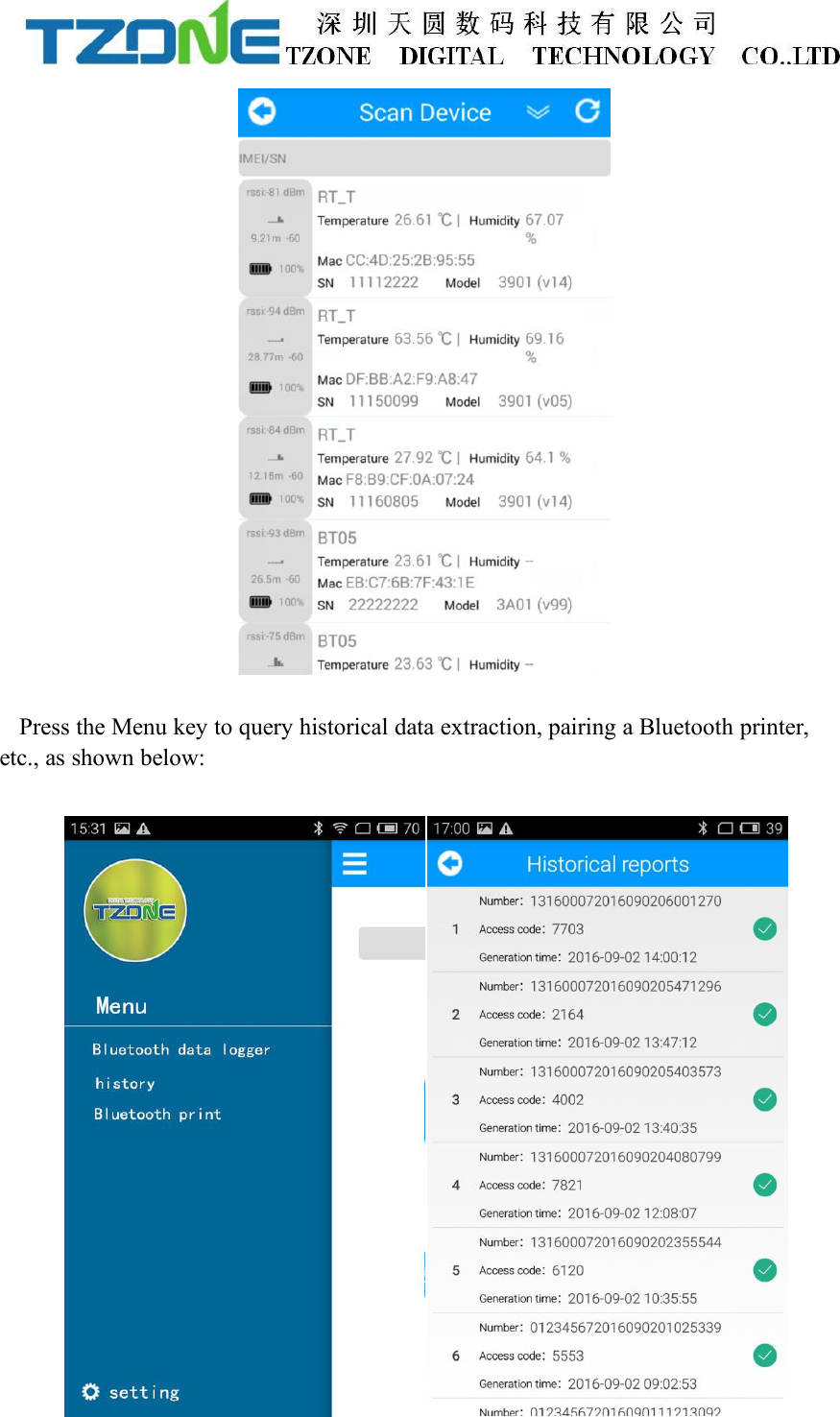

Press the Menu key to query historical data extraction, pairing a Bluetooth printer,etc., as shown below:

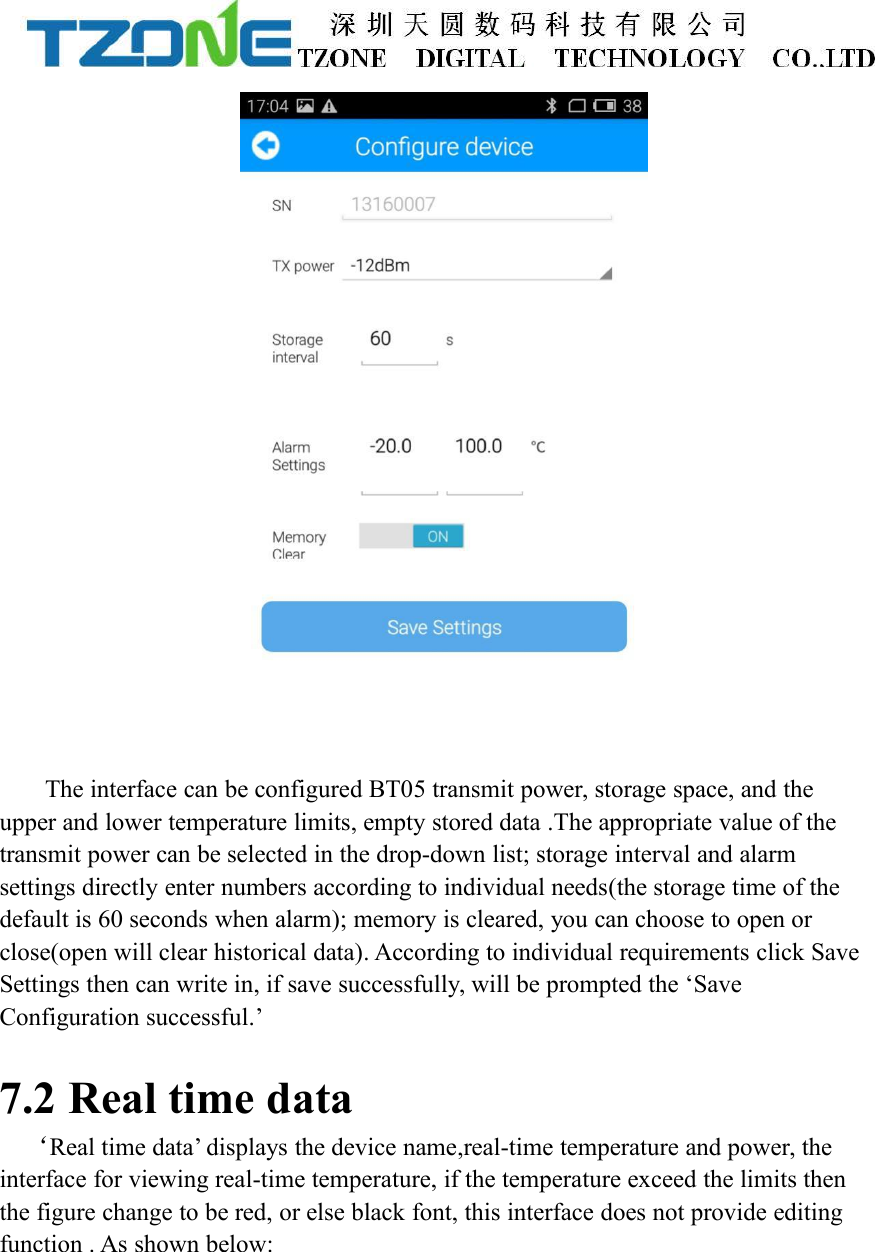

7.1 Configure loggerAfter entering the SN code or scanning device , or directly click ‘ConfigureDevices’ and select the device, on the home page, or enter the configuration interface,as shown below:

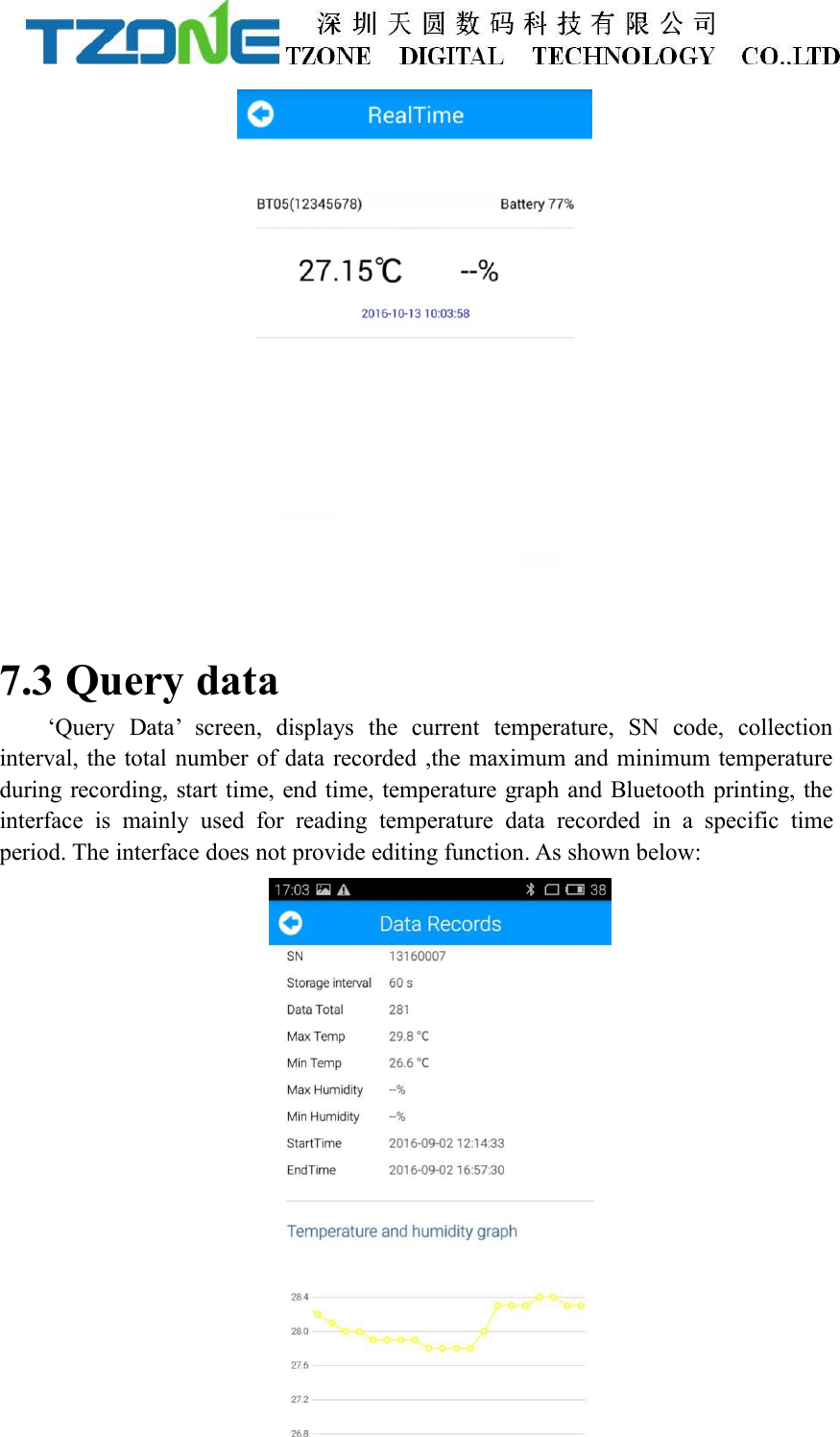

The interface can be configured BT05 transmit power, storage space, and theupper and lower temperature limits, empty stored data .The appropriate value of thetransmit power can be selected in the drop-down list; storage interval and alarmsettings directly enter numbers according to individual needs(the storage time of thedefault is 60 seconds when alarm); memory is cleared, you can choose to open orclose(open will clear historical data). According to individual requirements click SaveSettings then can write in, if save successfully, will be prompted the ‘SaveConfiguration successful.’7.2 Real time data‘Real time data’ displays the device name,real-time temperature and power, theinterface for viewing real-time temperature, if the temperature exceed the limits thenthe figure change to be red, or else black font, this interface does not provide editingfunction . As shown below:
7.3 Query data‘Query Data’ screen, displays the current temperature, SN code, collectioninterval, the total number of data recorded ,the maximum and minimum temperatureduring recording, start time, end time, temperature graph and Bluetooth printing, theinterface is mainly used for reading temperature data recorded in a specific timeperiod. The interface does not provide editing function. As shown below:
  FCC WARNING  This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.  NOTE 1: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
