U MEDIA Communications BHP210 Bluetooth Internet Telephony Handset User Manual BHP Installation Guide v02 draft
U-MEDIA Communications, Inc. Bluetooth Internet Telephony Handset BHP Installation Guide v02 draft
Contents
- 1. Manual 1
- 2. Manual 2
Manual 2

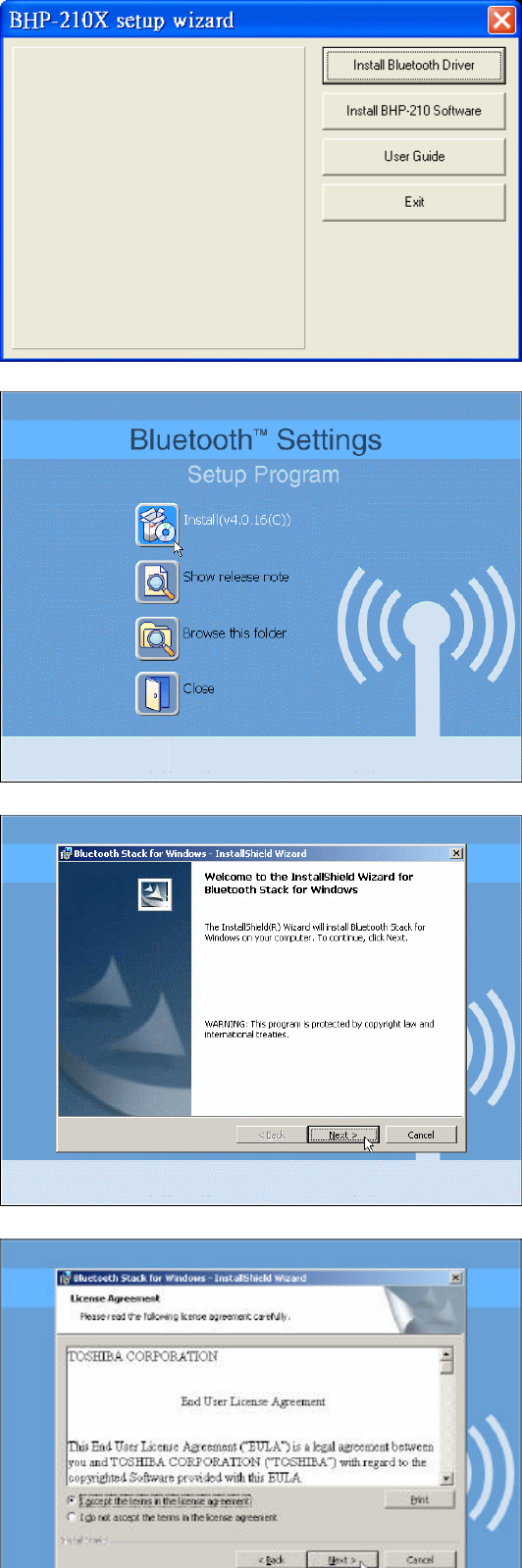

1-1. Please Click “Install Bluetooth
Driver” Item.
1-2. Please Click “Install” icon.
1-3. Please Click “Next”
1-4. Please Choose “I accept the
terms in the license agreement”,
then click “Next”
Using the telephone kit
Chapter 3: Exploring the Telephone kit Menu
Icons shown on the Handset
Icon Meaning Icon Meaning
Homepage Contacts
Ring Bell Call List
Skype out account Skypeme
Do Not Disturb Online
Offline Away
Not Available
Making calls In ChangeStatus Mode
Configuration Status-SkypeMe
Status-Offline Status-Invisible
Status-Not Disturb Status-N/A
Status-Away Status-Online
Battery Full (The black area goes
Charging
1-1. Double Click the “Blutooth V
oIP
Phone” icon on your desktop.
1-2. Check “Allow this program to
use Skype”.
Click “OK”
lower as the battery charge runs
low)
Battery Empty Battery Full (when you are
charging)
Function Keys:
Sync Contacts Configuration
Cancel Off-hook
Make a call
Answer a call
List (Up/Down)p Power ON/OFF
On-hook (hand-up)
End a call
Exit
Configurations
Press to enter configuration mode
Function Introductions
Functions Descriptions
Call ListÒMissed Display missed call lists
Call ListÒIncoming Display Incoming call lists
Call ListÒOutgoing Display Outgoing call lists
ChangeStatus Status options: “SkypeMe”, “Online”, “Away”, “N/A”, “Not Disturb”,
“Invisible”, “Offline”
Credit Showing how many skype out credits you have
Ringer Test ringer
BT Pairing Pair Bluetooth devices
F/W Version Showing F/W version installed in your BHP-210
F/W Upgrade Upgrade firmware
Chapter 4: Guide to Basic Functions

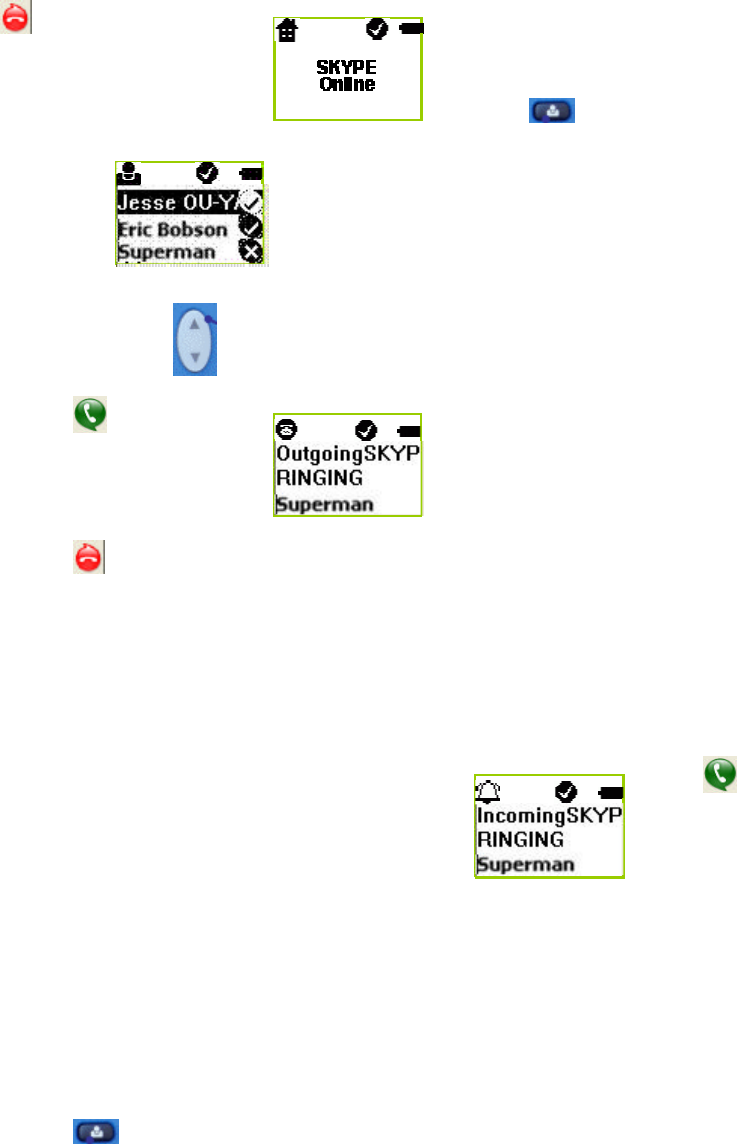

How to make a call?
1. Power on ÒWait until Òpress button to sync contact lists with
PC skype
2. Use List button to scroll up/down the contact lists
3. Press to start a call.
4. Press to disconnect this call
How to answer a call?
1. When you hear the ring bell from BHP-210, press to answer this
call

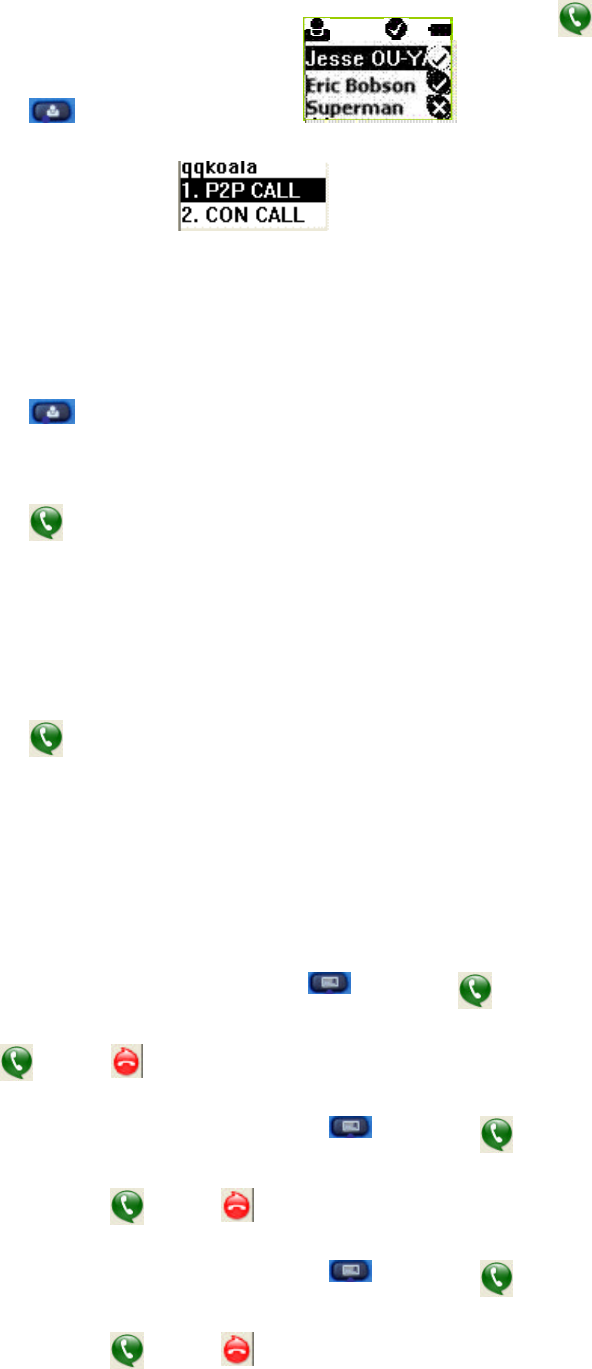

How to make a conference call?
A. invite another contact when you are chatting
1. Press to go to the contact list menu.
2. Make 1st call
3. Press to invite 2nd contact Ò Press to select
4. Select CON CALL to invite 2nd contact to join this conference call with
1st contact
5. Select “P2P CALL” to hold 1st call and talk to 2nd contact.
B. invite contacts and conference them together
1. Press to go to the contact list menu.
2. Press “*” to mark the contact you want to include in this conference call. (Conference
participants (max 4+host)
3. Press to start this conference call
How to redial the last call? (to be implemented)
1. Press to redial the last call.
2. Select the contact (from the outgoing call list) you want to dial to make a call.
How to redial any call from Call List?
1. Redial from Missed Calls: Press ÒCall List ÒMissedÒChoose one contact to
dial. (press to cancel this action)
2. Redial from Incoming Calls: Press ÒCall List ÒIncoming CallsÒChoose one
contact to dial. (press to cancel this action)
3. Redial from Outgoing Calls: Press ÒCall List ÒOutgoing CallsÒChoose one
contact to dial. (press to cancel this action)
Appendix
Troubleshooting
Problem: Popup “Please keyin the BT MAC address like xx:xx:xx:xx
1. Please input the MAC address of your Bluetooth Phone.
Note: You can find the device address of your BHP-210 from it’s back label*
Note: please remove the battery to find the back label
