UAB Teltonika Networks RUT955V LTE Router User Manual

UAB Teltonika LTE Router

User Manual

RUT955 User‘s Manual
Teltonika Solutions
USER MANUAL
RUT955 LTE Router
1
USER MANUAL
RUT955 LTE Router
RUT955 User‘s Manual
Teltonika Solutions
2
Legal notice
Copyright © 2015 TELTONIKA Ltd. All rights reserved. Reproduction, transfer, distribution or storage of part or
all of the contents in this document in any form without the prior written permission of TELTONIKA Ltd is
prohibited. The manufacturer reserves the right to modify the product and manual for the purpose of technical
improvement without prior notice.
Other product and company names mentioned herein may be trademarks or trade names of their respective
owners.
Attention
Before using the device we strongly recommend reading this user manual first.
Do not rip open the device. Do not touch the device if the device block is broken.
All wireless devices for data transferring may be susceptible to interference, which could
affect performance.
The device is not water-resistant. Keep it dry.
The device is powered by low voltage +9V DC power adaptor.
RUT955 User‘s Manual
Teltonika Solutions
3
Table of Contents
Legal notice .............................................................................................................................................................. 2
Attention.................................................................................................................................................................. 2
SAFETY INFORMATION ............................................................................................................................................ 9
Device connection ............................................................................................................................................. 10
1 Introduction ................................................................................................................................................. 11
2 Specifications ............................................................................................................................................... 11
2.1 Ethernet ................................................................................................................................................... 11
2.2 Wi-Fi ......................................................................................................................................................... 11
2.3 Hardware ................................................................................................................................................. 11
2.4 Electrical, Mechanical & Environmental .................................................................................................. 12
2.5 Applications ............................................................................................................................................. 12
3 Setting up your router ................................................................................................................................. 13
3.1 Installation ............................................................................................................................................... 13
3.1.1 Front Panel and Back Panel ............................................................................................................. 13
3.1.2 Connection status LED indication .................................................................................................... 14
3.1.3 Hardware installation ...................................................................................................................... 14
3.2 Logging in ................................................................................................................................................. 15
4 Operation Modes ......................................................................................................................................... 18
5 Powering Options ........................................................................................................................................ 19
5.1 Powering the device from higher voltage................................................................................................ 19
6 Status ........................................................................................................................................................... 20
6.1 Overview .................................................................................................................................................. 20
6.2 System Information ................................................................................................................................. 21
6.3 Network Information ............................................................................................................................... 22
6.4 Device information .................................................................................................................................. 34
6.5 Services .................................................................................................................................................... 35
6.6 Routes ...................................................................................................................................................... 36
6.6.1 ARP ................................................................................................................................................... 36
6.6.2 Active IP Routes ............................................................................................................................... 36
6.6.3 Active IPv6-Routes ........................................................................................................................... 37
6.7 Graphs ...................................................................................................................................................... 38
RUT955 User‘s Manual
Teltonika Solutions
4
6.7.1 Mobile Signal Strength ..................................................................................................................... 38
6.7.2 Realtime Load .................................................................................................................................. 39
6.7.3 Realtime Traffic ................................................................................................................................ 40
6.7.4 Realtime Wireless ............................................................................................................................ 41
6.7.5 Realtime Connections ...................................................................................................................... 42
6.8 Mobile Traffic ........................................................................................................................................... 43
6.9 Events Log ................................................................................................................................................ 44
6.9.1 All Events .......................................................................................................................................... 44
6.9.2 System Events .................................................................................................................................. 45
6.9.3 Network Events ................................................................................................................................ 46
6.9.4 Events Reporting .............................................................................................................................. 47
6.9.5 Reporting Configuration .................................................................................................................. 52
7 Network ....................................................................................................................................................... 57
7.1 Mobile ...................................................................................................................................................... 57
7.1.1 General ............................................................................................................................................. 57
7.1.2 SIM Management ............................................................................................................................ 60
7.1.3 Network Operators .......................................................................................................................... 61
7.1.4 Mobile Data Limit............................................................................................................................. 63
7.1.5 SIM Idle Protection .......................................................................................................................... 64
7.2 WAN ......................................................................................................................................................... 66
7.2.1 Operation Mode .............................................................................................................................. 66
7.2.2 Common Configuration.................................................................................................................... 66
7.2.3 How do I set up a backup link? ........................................................................................................ 74
7.3 LAN ........................................................................................................................................................... 75
7.3.1 Configuration ................................................................................................................................... 75
7.3.2 DHCP Server ..................................................................................................................................... 76
7.3.3 Static Leases ..................................................................................................................................... 77
7.3.4 IP Aliases .......................................................................................................................................... 78
7.4 VLAN......................................................................................................................................................... 79
7.4.1 VLAN Networks ................................................................................................................................ 79
7.4.2 LAN Networks .................................................................................................................................. 80
7.5 Wireless ................................................................................................................................................... 81
7.5.1 Wireless Access Point ...................................................................................................................... 81
7.5.2 Wireless Station ............................................................................................................................... 85
RUT955 User‘s Manual
Teltonika Solutions
5
7.6 Firewall ..................................................................................................................................................... 86
7.6.1 General Settings ............................................................................................................................... 86
7.6.2 DMZ .................................................................................................................................................. 87
7.6.3 Zone Forwarding .............................................................................................................................. 87
7.6.4 Port Forwarding ............................................................................................................................... 88
7.6.5 Traffic Rules...................................................................................................................................... 91
7.6.6 Custom Rules ................................................................................................................................... 97
7.6.7 DDOS Prevention ............................................................................................................................. 98
7.6.8 Port Scan Prevention ..................................................................................................................... 101
7.7 Routing ................................................................................................................................................... 102
7.7.1 Static Routes .................................................................................................................................. 102
7.7.2 Dynamic Routes ............................................................................................................................. 103
7.7.1 ............................................................................................................................................................. 105
7.7.2 ............................................................................................................................................................. 105
7.8 Load Balancing ....................................................................................................................................... 112
8 Remote monitoring and administration .................................................................................................... 113
9 Services ...................................................................................................................................................... 115
9.1 VRRP ....................................................................................................................................................... 115
9.1.1 VRRP LAN Configuration Settings .................................................................................................. 115
9.1.2 Check Internet connection ............................................................................................................. 115
9.2 TR-069 .................................................................................................................................................... 116
9.2.1 TR-069 Parameters Configuration ................................................................................................. 116
9.3 Web filter ............................................................................................................................................... 117
9.3.1 Site Blocking ................................................................................................................................... 117
9.3.2 Proxy Based Content Blocker ......................................................................................................... 117
9.4 MQTT ..................................................................................................................................................... 118
9.4.1 MQTT Broker .................................................................................................................................. 118
9.4.2 MQTT Publisher ............................................................................................................................. 121
9.5 NTP ......................................................................................................................................................... 123
9.6 RS232/RS485 .......................................................................................................................................... 124
9.6.1 RS232 ............................................................................................................................................. 124
9.6.2 RS485 ............................................................................................................................................. 126
9.6.3 Modes of different serial types in RS232 and RS485 ..................................................................... 130
9.7 VPN ........................................................................................................................................................ 133
RUT955 User‘s Manual
Teltonika Solutions
6
9.7.1 OpenVPN ........................................................................................................................................ 133
9.7.1 ............................................................................................................................................................. 136
9.7.2 IPSec ............................................................................................................................................... 139
9.7.3 GRE Tunnel ..................................................................................................................................... 142
9.7.4 PPTP ............................................................................................................................................... 144
9.7.5 L2TP ................................................................................................................................................ 146
9.8 Dynamic DNS .......................................................................................................................................... 148
9.9 SMS Utilities ........................................................................................................................................... 149
9.9.1 SMS Utilities ................................................................................................................................... 149
9.9.1 ............................................................................................................................................................. 150
9.9.2 Call Utilities .................................................................................................................................... 159
9.9.3 User Groups ................................................................................................................................... 160
9.9.4 SMS Management .......................................................................................................................... 161
9.9.5 Remote Configuration .................................................................................................................... 163
9.9.6 Statistics ......................................................................................................................................... 166
9.10 SNMP ................................................................................................................................................. 167
9.10.1 SNMP Settings ............................................................................................................................... 167
9.10.2 TRAP Settings ................................................................................................................................ 168
9.11 SMS Gateway ..................................................................................................................................... 169
9.11.1 Post/Get Configuration ................................................................................................................. 169
9.11.2 Email to SMS ................................................................................................................................. 171
9.11.3 Scheduled Messages ..................................................................................................................... 172
9.11.4 Auto Reply ..................................................................................................................................... 173
9.11.5 SMS Forwarding ............................................................................................................................ 174
9.11.6 SMPP ............................................................................................................................................. 177
9.12 GPS ..................................................................................................................................................... 178
9.12.1 GPS ................................................................................................................................................ 178
9.12.2 GPS Settings .................................................................................................................................. 178
9.12.1........................................................................................................................................................... 179
9.12.2........................................................................................................................................................... 179
9.12.3 GPS Mode ...................................................................................................................................... 180
9.12.4 GPS I/O .......................................................................................................................................... 181
9.12.5 GPS Geofencing ............................................................................................................................. 181
9.13 Hotspot .............................................................................................................................................. 183
RUT955 User‘s Manual
Teltonika Solutions
7
9.13.1 General settings ............................................................................................................................ 183
9.13.2 Internet Access Restriction Settings ............................................................................................. 184
9.13.3 Logging .......................................................................................................................................... 184
9.13.4 Landing Page ................................................................................................................................. 185
9.13.5 Radius server configuration .......................................................................................................... 186
9.13.6 Statistics ........................................................................................................................................ 186
9.14 CLI....................................................................................................................................................... 186
9.15 Auto Reboot ....................................................................................................................................... 186
9.15.1 Ping Reboot ................................................................................................................................... 186
9.15.2 Periodic Reboot ............................................................................................................................. 187
9.16 Network Shares .................................................................................................................................. 187
9.16.1 Mounted File Systems ................................................................................................................... 187
9.16.2 Samba ............................................................................................................................................ 188
9.16.3 Samba User ................................................................................................................................... 188
9.17 Modbus TCP interface ........................................................................................................................ 190
9.18 UPNP .................................................................................................................................................. 191
9.18.1 General Settings ............................................................................................................................ 191
9.18.2 Advanced Settings ......................................................................................................................... 191
9.18.3 UPnP ACLs ..................................................................................................................................... 191
9.18.4 Active UPnP Redirects ................................................................................................................... 192
9.19 QoS ..................................................................................................................................................... 192
9.20 Input/Output ...................................................................................................................................... 192
9.20.1 Status............................................................................................................................................. 192
9.20.2 Input .............................................................................................................................................. 193
9.20.3 Output ........................................................................................................................................... 195
9.20.4 Input/Output hardware information ............................................................................................ 196
10 System ........................................................................................................................................................ 200
10.1 Configuration Wizard ......................................................................................................................... 200
10.2 Profiles ............................................................................................................................................... 201
10.3 Administration ................................................................................................................................... 201
10.3.1 General .......................................................................................................................................... 201
10.3.2 Troubleshoot ................................................................................................................................. 202
10.3.3 Backup ........................................................................................................................................... 202
10.3.4 Diagnostics .................................................................................................................................... 203
RUT955 User‘s Manual
Teltonika Solutions
8
10.3.5 MAC Clone ..................................................................................................................................... 203
10.3.6 Overview ....................................................................................................................................... 204
10.3.7 Monitoring .................................................................................................................................... 204
10.4 User scripts ........................................................................................................................................ 204
10.5 Restore point ..................................................................................................................................... 204
10.5.1 Restore point create ..................................................................................................................... 204
10.5.2 Restore point load ......................................................................................................................... 205
10.6 Firmware ............................................................................................................................................ 205
10.6.1 Firmware ....................................................................................................................................... 205
10.6.2 FOTA .............................................................................................................................................. 205
10.7 Reboot ................................................................................................................................................ 205
11 Device Recovery ......................................................................................................................................... 206
11.1 Reset button ...................................................................................................................................... 206
11.2 Bootloader’s WebUI ........................................................................................................................... 206
12 FCC Regulations ......................................................................................................................................... 207
13 Glossary:..................................................................................................................................................... 208
RUT955 User‘s Manual
Teltonika Solutions
9
SAFETY INFORMATION
In this document you will be introduced on how to use a router safely. We suggest you to adhere to the following
recommendations in order to avoid personal injuries and or property damage.
You have to be familiar with the safety requirements before using the device!
To avoid burning and voltage caused traumas, of the personnel working with the device, please follow these safety
requirements.
The device is intended to draw power from a Limited Power Source (LPS) whose power
consumption should not exceed 15VA and the current rating of the overcurrent protective
device should not exceed 2A.
The highest transient overvoltage in the output (secondary circuit) of the used PSU shall not
exceed 36V peak.
The device can be used with a Personal Computer (first safety class) or a Notebook (second
safety class). Associated equipment: a power supply unit (PSU) (LPS) and a personal computer
(PC) that will comply with the requirements of standard EN 60950-1 amendment.
Do not mount or service the device during a thunderstorm.
To avoid mechanical damage to the device it is recommended to transport it packed in a
damage-proof pack.
Protection of the primary circuits of the associated PC and PSU (LPS) against short circuits and
earth faults of the associated PC will be provided as part of the building installation.
To avoid mechanical damage to the device it is recommended to transport it packed in a damage-proof pack. While
using the device it should be placed in such a manner so that its indicating LEDs would be visible as they inform in which
working mode the device is and if it has any working problems.
Protection against overcurrent, short circuiting and earth faults should be provided as a part of the building
installation.
Signal level of the device depends on the environment in which it is working in. In case the device starts working
insufficiently, please refer to qualified personnel in order to repair this product. We recommend forwarding it to a
repair center or the manufacturer. There are no exchangeable parts inside the device.
RUT955 User‘s Manual
Teltonika Solutions
10

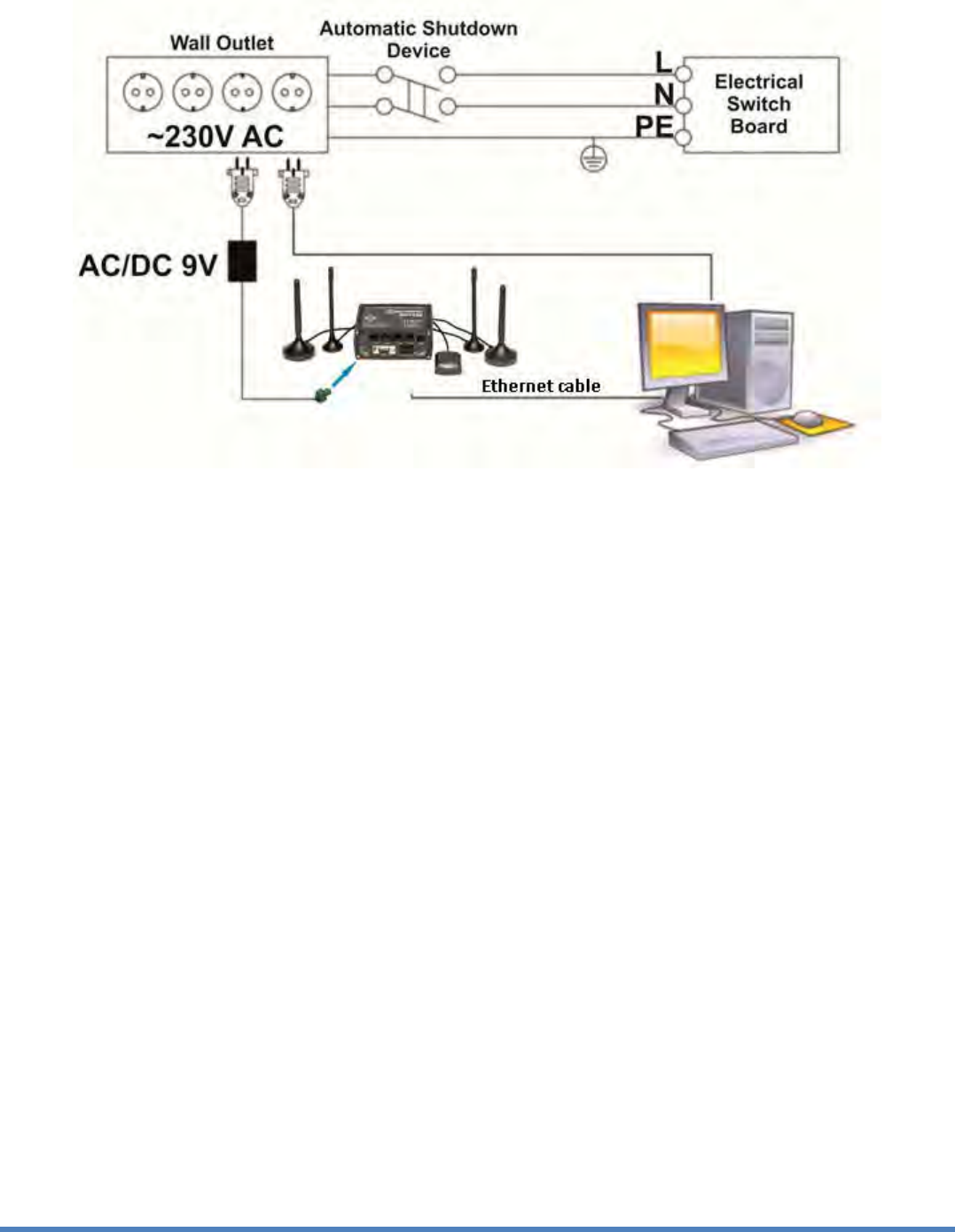

Device connection
RUT955 User‘s Manual
Teltonika Solutions
11
1 Introduction
Thank you for purchasing a RUT955 LTE router!
RUT955 is part of the RUT9xx series of compact mobile routers with high speed wireless and Ethernet connections.

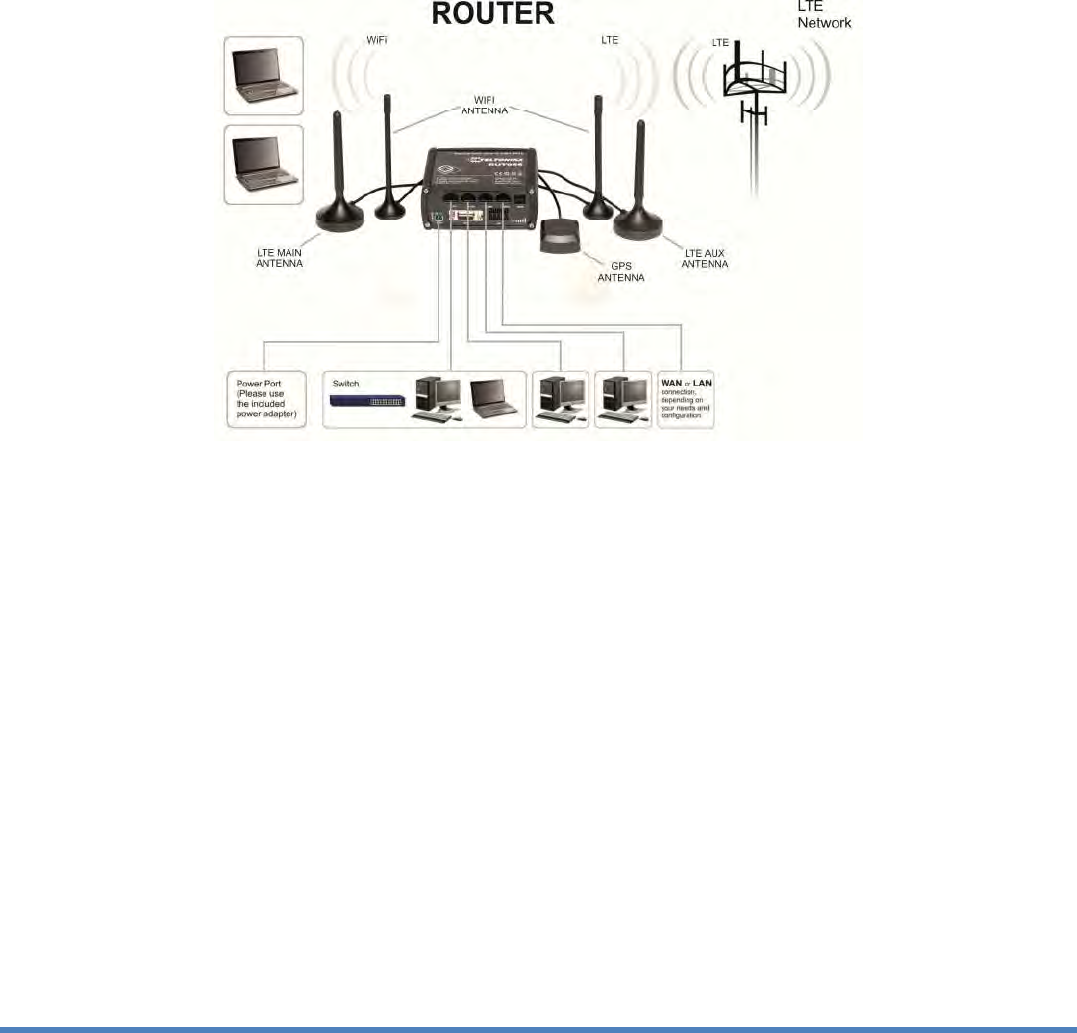

This router is ideal for people who‘d like to share their internet on the go, as it is not restricted by a cumbersome
cable connection. Unrestricted, but not forgotten: the router still supports internet distribution via a broadband cable,
simply plug it in to the wan port, set the router to a correct mode and you are ready to browse.
2 Specifications
2.1 Ethernet
IEEE 802.3, IEEE 802.3u standards
3 x LAN 10/100Mbps Ethernet ports
1 x WAN 10/100Mbps Ethernet port
Supports Auto MDI/MDIX
2.2 Wi-Fi
IEEE 802.11b/g/n WiFi standards
2x2 MIMO
AP and STA modes
64/128-bit WEP, WPA, WPA2, WPA&WPA2 encryption methods
2.401 – 2.495GHz Wi-Fi frequency range
20dBm max WiFi TX power
SSID stealth mode and access control based on MAC address
2.3 Hardware
High performance 560 MHz CPU with 128 Mbytes of DDR2 memory
2 pin industrial DC power socket
Attachable DIN rail adapter
4 pin industrial socket for 2/4 wire RS485
DB9 socket for full-featured RS232
USB A socket for external devices
4 pin industrial socket for 2/4 wire RS485
Reset/restore to default button
2 x SMA for LTE , 2 x RP-SMA for WiFi antenna connectors
4 x Ethernet LEDs, 1 x Power LED
1 x bi-color connection status LED, 5 x connection strength LEDs
10 pin industrial socket for inputs/outputs:
- 0 - 3 V digital input
- 0 - 30 V digital galvanically isolated input
- 0 - 24 V analog input 30 V, 250 mA digital open collector output
- 40 V, 4 A SPST relay output
RUT955 User‘s Manual
Teltonika Solutions
12
2.4 Electrical, Mechanical & Environmental
Dimensions (H x W x D) 80mm x 106mm x 46mm
Weight 250g
Power supply 100 – 240 VAC -> 9 VDC wall adapter
Input voltage range 7 – 30VDC
Power consumption < 7W
Operating temperature -40° to 75° C
Storage temperature -45° to 80° C
Operating humidity 10% to 90% Non-condensing
Storage humidity 5% to 95% Non-condensing
2.5 Applications
RUT955 User‘s Manual
Teltonika Solutions
13
3 Setting up your router
3.1 Installation
After you unpack the box, follow the steps documented below in order to properly connect the device. For better
Wi-Fi performance, put the device in a clearly visible spot, as obstacles such as walls and doors hinder the signal.
1. First assemble your router by attaching the necessary antennas and inserting the SIM card(s).
2. To power up your router, please use the power adapter included in the box (IMPORTANT: using a
different power adapter can damage and void the warranty for this product).
3. If you have a wired broadband connection you will also have to connect it to the WAN port of the router.
3.1.1
Front Panel and Back Panel
1
LAN Ethernet ports
1
LTE auxiliary antenna connector*
2
WAN Ethernet port
2
GPS antenna connector
3
LAN LEDs
3
LTE main antenna connector*
4
WAN LED
4
USB connector
5
RS485 connector
5
Wi-Fi antenna connectors
6
Power socket
6
Reset button
7
RS232 connector
*LTE main/aux antenna connector positions
depend on the router’s modem:
Quectel: 1 – MAIN; 3 - AUX
Huawei: 1 – AUX; 3 - MAIN
Telit: 1 – AUX; 3 – MAIN
8
Inputs and outputs connector
9
Power LED
10
Connection LED
11
Signal strength LED
To find out your router’s modem brand, check the bottom of your router. You should find a sticker containing
information about the router (Serial, IMEI, LAN MAC, etc.). The first line is the router’s product code. The seventh
symbol of the code indicates the router’s modem:
Quectel: A, H, J, K, L, M, P
Huawei: 1, 3, 5, 7, 9, B, F
Telit: 0, 2, G
Below is an example of a sticker with a Huawei modem (the modem symbol is highlighted in yellow)
RUT955 User‘s Manual
Teltonika Solutions
14
3.1.2
Connection status LED indication
Constant blinking (~ 2Hz) – router is turning on.
LED turned off – it has no 4G data connection
LED turned on – it has 4G data connection.
Explanation of connection status LED indication:
1. Green and red blinking alternatively every 500 ms: no SIM or bad PIN;
2. Green, red and yellow blinking alternatively every 500 ms: connecting to GSM;
3. Green blinking every 1 sec: connected 4G, no data session established;
4. Green lit and blinking rapidly while data is being transferred: connected 4G with data session;
3.1.3
Hardware installation
1. Remove the back panel and insert a SIM card(s) which was given by your ISP (Internet Service Provider). Correct
SIM card orientation is shown in the picture.
2. Attach LTE main and Wi-Fi antennas.
3. Connect the power adapter to the socket on the front panel of the device. Then plug the other end of the power
adapter into a wall outlet or power strip.
4. Connect to the device wirelessly (SSID: Teltonika_Router) or use an Ethernet cable and plug it into any LAN
Ethernet port.
SIM 1 (primary)
SIM 2 (secondary)
RUT955 User‘s Manual
Teltonika Solutions
15
3.2 Logging in
After you’re complete with the setting up as described in the section above, you are ready to start logging into your
router and start configuring it. This example shows how to connect on Windows 7. On windows Vista: click Start ->
Control Panel -> Network and Sharing Centre -> Manage network Connections -> (go to step 4). On Windows XP: Click
Start -> Settings -> Network Connections -> (see step 4). You wont’s see “Internet protocol version 4(TCP/IPv4)”, instead
you’ll have to select “TCP/IP Settings” and click options -> (go to step 6). On Windows 10 type “Network and Sharing
Center” into the search bar and go there. In the navigation bar on the left side of the window click “Change adapter
settings” -> (go to step 4).
We first must set up our network card so that it could properly communicate with the router.
1.

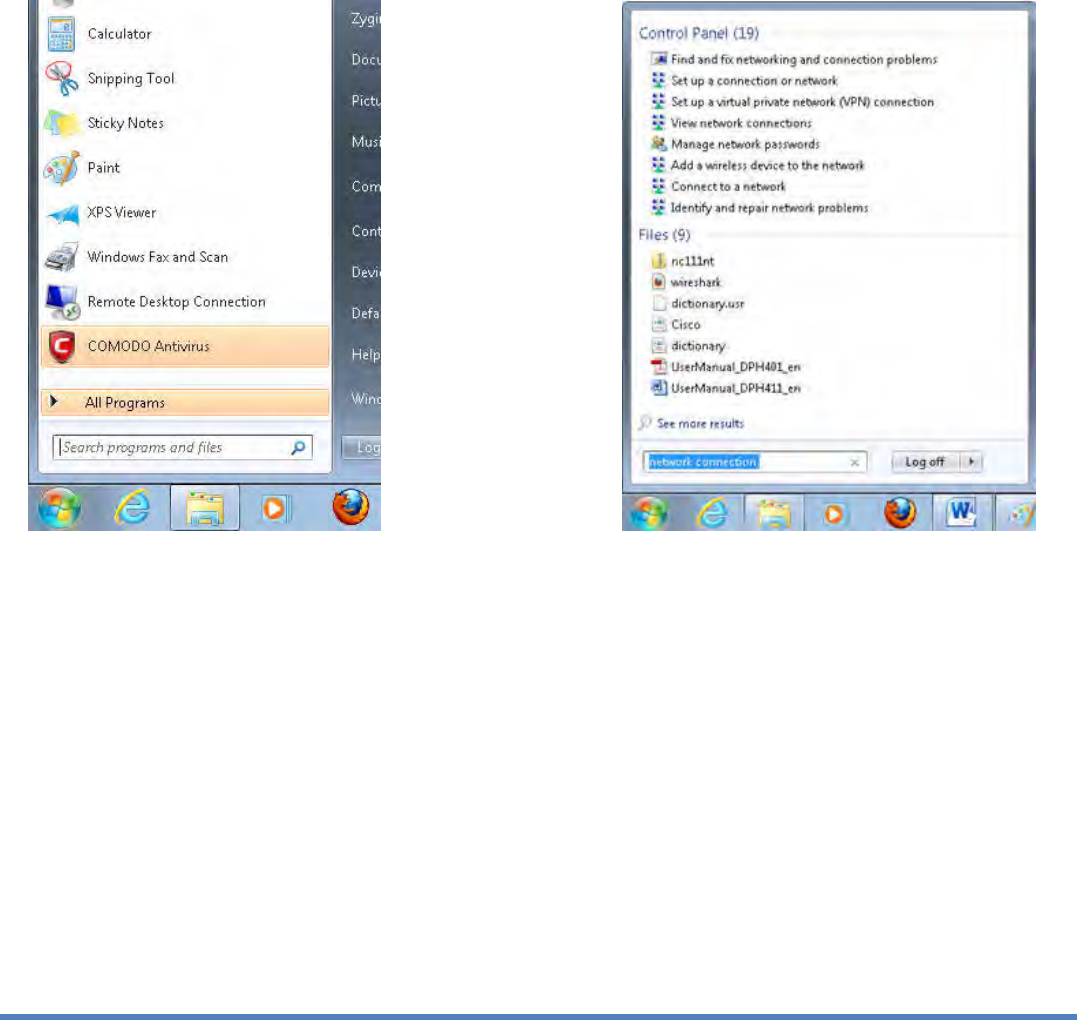

Press the start button
2.
Type in “network connections”, wait for the
results to pop up
RUT955 User‘s Manual
Teltonika Solutions
3.
Click “View network connections”
5.

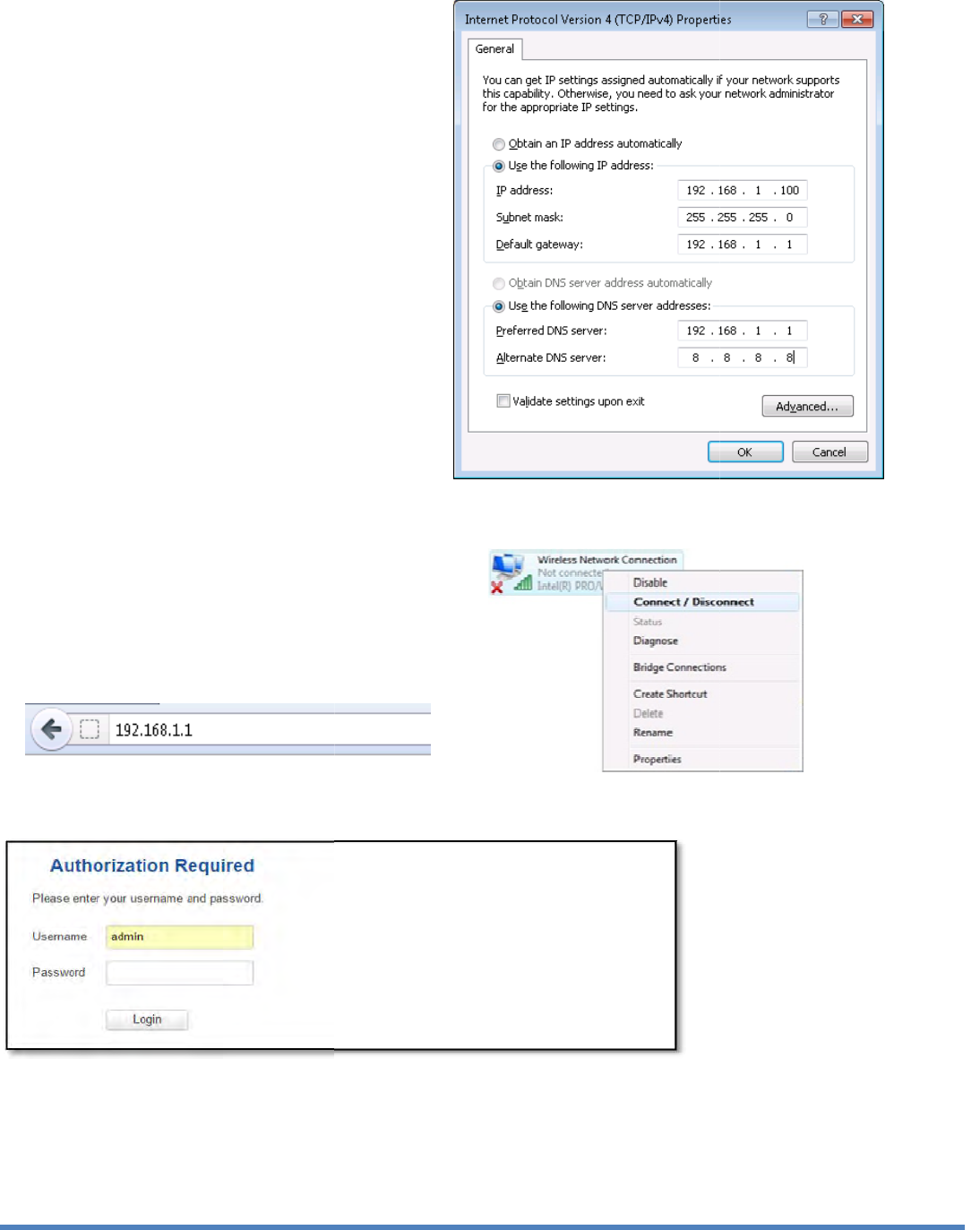

Select Internet Protocol Version 4 (TCP/IPv4) and then
click Properties
4.
Then right click on your wireless device that you
use to connect to other access points (
with the name “Wireless Network Connection” a
has signal bars on its icon)
Select Internet Protocol Version 4 (TCP/IPv4) and then
6.
By default the router is going to have DHCP
enabled, which means that if you select “Obtain an
IP address automatically” and “Obtain DNS server
address automatically”, the router should lease
you an IP address
and you should be ready to login.
16
Then right click on your wireless device that you
use to connect to other access points (
it is the one
with the name “Wireless Network Connection” a
nd
has signal bars on its icon)
By default the router is going to have DHCP
enabled, which means that if you select “Obtain an
IP address automatically” and “Obtain DNS server
address automatically”, the router should lease
and you should be ready to login.
RUT955 User‘s Manual
Teltonika Solutions
7.
If you choose to configure manually here’s what you do:
First select an IP address. Due to the stock settings
that your router has arrived with, you
can only enter
an IP in the form of 192.168.1.XXX , where XXX is a
number in the range of 2-
254 (192.168.1.2 ,
192.168.1.254 , 192.168.1.155 and so on are valid;
192.168.1.0 , 192.168.1.1 , 192.168.1.255 ,
192.168.1.699 and so on are not). Next we enter th
subnet mask: “255.255.255.0”. Then we enter the
default gateway: “192.168.1.1”. Finally we enter
primary and secondary DNS server IPs. One will
suffice, though it is good to have a secondary one as
well as it will act as a backup if the first should fail
The DNS can be your router’s IP (192.168.1.1), but it
can also be some external DNS server (like the one
Google provides: 8.8.8.8).
Right click on the Wireless network icon and select
Connect / Disconnect. A list should pop up with all
available
wireless networks. Select “Teltonika” and
click connect.Then we launch our favorite browser and
enter the router’
s IP into the address field:
Press enter. If there are no problems you should be greeted with a login screen such as this:
Enter the
default password, which is “admin01” into the “Password” field and then either click Login with your
mouse or press the Enter key. You have now successfully logged into the RUT955!
From here on out you can configure almost any aspect of your router.
If you choose to configure manually here’s what you do:
First select an IP address. Due to the stock settings
can only enter
an IP in the form of 192.168.1.XXX , where XXX is a
254 (192.168.1.2 ,
192.168.1.254 , 192.168.1.155 and so on are valid;
192.168.1.0 , 192.168.1.1 , 192.168.1.255 ,
192.168.1.699 and so on are not). Next we enter th
e
subnet mask: “255.255.255.0”. Then we enter the
default gateway: “192.168.1.1”. Finally we enter
primary and secondary DNS server IPs. One will
suffice, though it is good to have a secondary one as
well as it will act as a backup if the first should fail
.
The DNS can be your router’s IP (192.168.1.1), but it
can also be some external DNS server (like the one
Right click on the Wireless network icon and select
Connect / Disconnect. A list should pop up with all
wireless networks. Select “Teltonika” and
click connect.Then we launch our favorite browser and
s IP into the address field:
Press enter. If there are no problems you should be greeted with a login screen such as this:
default password, which is “admin01” into the “Password” field and then either click Login with your
mouse or press the Enter key. You have now successfully logged into the RUT955!
From here on out you can configure almost any aspect of your router.
17
Press enter. If there are no problems you should be greeted with a login screen such as this:
default password, which is “admin01” into the “Password” field and then either click Login with your
RUT955 User‘s Manual
Teltonika Solutions
18
4 Operation Modes
The RUT9xx series router supports various operation modes. It can be connected to the internet (WAN) via mobile,
standard Ethernet cable or via a wireless network. When connecting to the internet, you may also backup your main
WAN connection with one or two backup connections. Any interface can act like backup if configured so. At first the
router uses its main WAN connection, if it is lost then the router tries to connect via backup with higher priority and if
that fails too, the router tries the second backup option.
WAN
Main WAN
Backup WAN
LAN
Mobile
√
√
x
Ethernet
√
√
√
Wi-Fi
√
√
√
Operation modes will be explained more thoroughly in this section.
RUT955 User‘s Manual
Teltonika Solutions
19
5 Powering Options
The RUT9xx router can be powered from a power socket or over an Ethernet port. Depending on your network
architecture you can use the LAN1 port to power the device.
RUT9xx can be powered from a power socket and over Ethernet simultaneously. The power socket has higher
priority meaning that the device will draw power from the power socket as long as it is available.
When RUT9xx is switching from one power source to another it loses power for a fraction of a second and may
reboot. The device will function correctly after the reboot.
Though the device can be powered over an Ethernet port it is not compliant with the IEEE 802.3af-2003 standard.
Powering RUT9xx from a IEEE 802.3af-2003 power supply will damage the device as it is not rated for input voltages of
the PoE standard.
5.1 Powering the device from higher voltage
If you decide not to use our standard 9 VDC wall adapters and want to power the device from higher voltage (15 –
30 VDC) please make sure that you choose a power supply of high quality. Some power supplies can produce voltage
peaks significantly higher than the declared output voltage, especially during the process of connection and
disconnection.
While the device is designed to accept input voltage of up to 30 VDC, peaks from high voltage power supplies can
harm the device. If you want to use high voltage power supplies it is recommended to also use additional safety
equipment to suppress voltage peaks from the power supply.
RUT955 User‘s Manual
Teltonika Solutions
20
6 Status
The status section contains various information, like IP addresses of various network interfaces, the state of the
router’s memory, firmware version, DHCP leases, associated wireless stations, graphs indicating load, traffic and much
more.

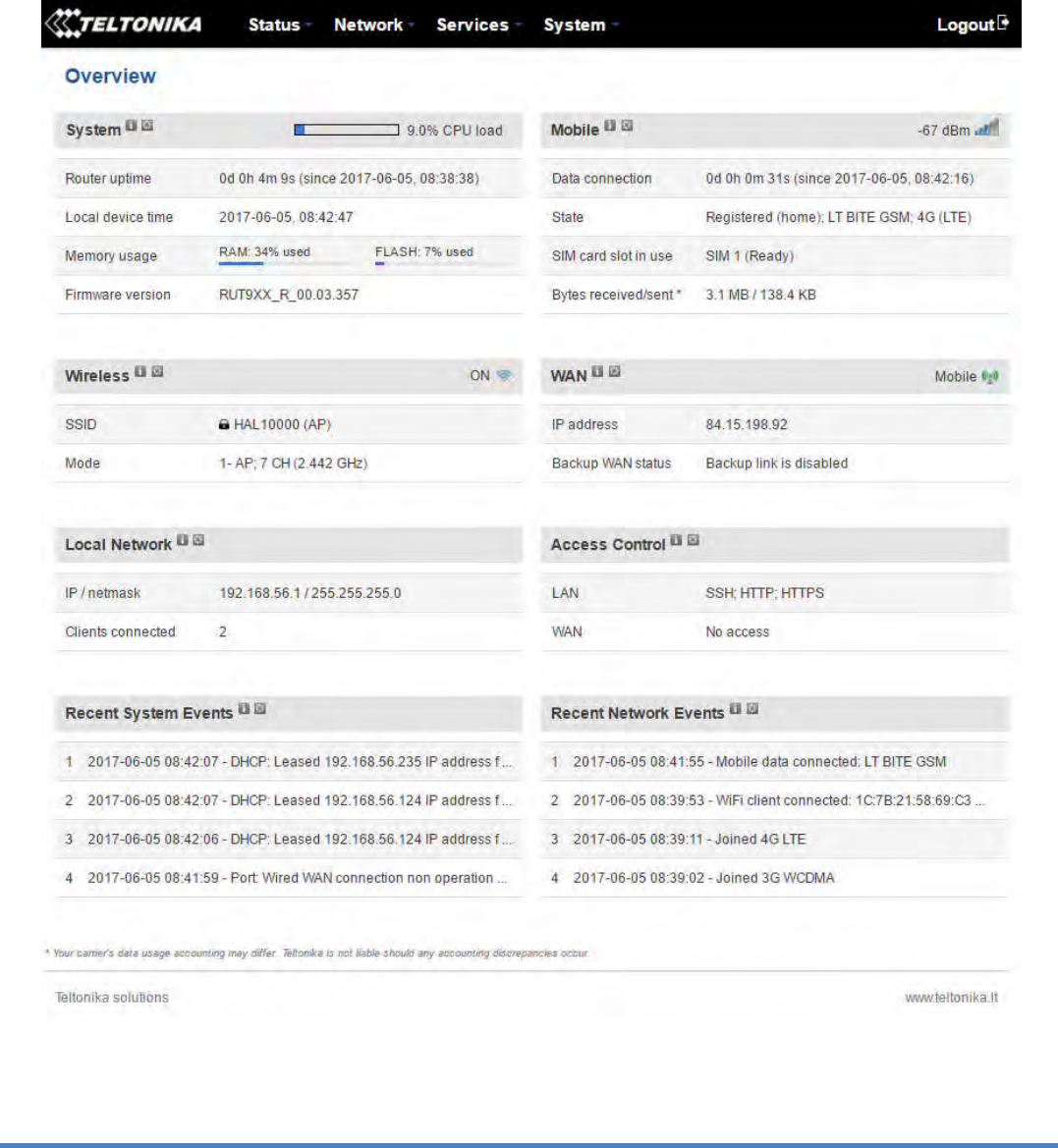

6.1 Overview
The Overview window displays various information summaries.
RUT955 User‘s Manual
Teltonika Solutions
21
6.2 System Information
The System Information window displays data about the router’s operating system.
System explanation:
Field Name
Sample value
Explanation
1.
Router Name
RUT955
Name of the router (hostname of the router’s system)
2.
Host name
Teltonika-RUT955.com
Indicates how router will be seen by other devices on the network
3.
Router Model
Teltonika RUT955 LTE
Router’s model
4.
Firmware Version
RUT9XX_R_00.02.376
The version of the firmware that the router is currently operating on
5.
Kernel Version
3.10.36
The Linux kernel version that is currently running on the router
6.
Local Time
2016-05-24, 11:01:14
Shows the current system time
7.
Uptime
0d 0h 42m 1s (since
2016-05-24, 10:19:03)
Indicates how long it has been since the router booted up. Reboots
will reset this timer to 0
8.
Load Average
1 min: 99%; 5 mins:
63%; 15 mins: 35%
Indicates how busy the router is
9.
Temperature
34.9° C
Device’s temperature
Memory explanation:
Field Name
Sample Value
Explanation
1.
Free
84868 kB /126556 kB (67%)
The amount of memory that is free.
2.
Cached
14740 kB /126556 kB (11%)
The memory that is dedicated to storing frequently accessed data
3.
Buffered
5476 kB / 126556 kB (4%)
The size of the area in which data is temporarily stored before
moving it to another location
RUT955 User‘s Manual
Teltonika Solutions
22
6.3 Network Information
6.3.1 Mobile
The Mobile Information window displays information about the mobile connection.
Mobile information:
Field Name
Sample Value
Explanation
1.
Data connection
state
Connected
Mobile data connection status
2.
IMEI
861107030078134
Modem's IMEI (International Mobile Equipment Identity) number
3.
IMSI
246020100944448
IMSI (International Mobile Subscriber Identity) is used to identify
the user in a cellular network
4.
SIM card state
Ready
Indicates the SIM card's state, e.g. PIN required, Not inserted, etc.
5.
Signal strength
-67 dBm
Received Signal Strength Indicator (RSSI). Signal strength
measured in dBm
6.
Cell ID
1037079
ID of the operator cell that the device is currently connected to
7.
RSRP
-95 dBm
Indicates the Reference Signal Received Power
8.
RSRQ
-8 dBm
Indicates the Reference Signal Received Quality
9.
SINR
16.3 dBm
Indicates the Signal to Interference plus Noise Ratio
RUT955 User‘s Manual
Teltonika Solutions
23
10.
Operator
LT BITE GSM
Mobile operator's name
11.
Operator state
Registered (home)
GSM network's status
12.
Connection type
4G (LTE)
Indicates the GSM network's access technology
13.
Bytes received
15.7 MB (16453520
bytes)
How many bytes were received via mobile data connection
14.
Bytes sent
624.0 KB (638962
bytes)
How many bytes were sent via mobile data connection
15.
Reboot modem
-
Reboots the modem
16.
Restart
connection
-
Restarts the mobile connection
17.
(Re)register
-
Reregisters the SIM card to a network operator
18.
Refresh
-
Refreshes the Mobile Information window
RUT955 User‘s Manual
Teltonika Solutions
24
6.3.2 WAN
The WAN Information window displays information about the current WAN connection.
WAN information:
Field Name
Sample Value
Explanation
1.
Interface
Mobile
Specifies the interface through which the router is connecting to the
internet. This can either be Wired, Mobile or Wi-Fi
2.
Type*
Qmi2
Specifies the connection type
3.
IP address
188.69.245.225
The IP address that the router uses to connect the internet
4.
Netmask
255.255.255.252
Specifies a mask used to define how large the WAN network is
5.
Gateway
188.69.245.226
The address where traffic destined for the internet is routed to
6.
DNS 1
DNS 2
194.176.32.129
195.22.175.1
Domain name server(s)
7.
Connected
0h 0m 56s
How long the connection has been successfully maintained
8.
Ports
-
A visual indication of which ports are being used
9.
Backup
WAN Status
READY
Indicates the status of backup WAN
10.
Refresh
-
Refreshes the WAN Information window
* When using a different WAN interface, this field shows the type of protocol being used. It can either be DHCP, Static or PPPoE.
RUT955 User‘s Manual
Teltonika Solutions
25
6.3.3 LAN
The LAN Information window displays information about LAN connections.
LAN information:
Field Name
Sample Value
Explanation
1.
Name
Lan
Lan instance name
2.
IP address
192.168.56.1
The address that the router uses on the LAN network
3.
Netmask
255.255.255.0
A mask used to define how large the LAN network is
4.
Ethernet MAC
address
00:51:33:77:56:16
MAC (Media Access Control) address used for communication in an Ethernet
LAN
5.
Connected for
4h 38m 24s
How long LAN has been successfully maintained
DHCP Leases
If your DHCP server is enabled, this field will show how many devices have received an IP address and what those IP
addresses are.
Field Name
Sample Value
Explanation
1.
Hostname
DESKTOP-69EIUGN
DHCP client's hostname
2.
IP address
192.168.56.124
The IP address of one of the device’s connected to the LAN
3.
LAN name
Lan
Lan instance name
4.
MAC address
18:66:DA:28:6A:34
The MAC address of the network interface on which the lease will be used.
5.
Lease time
remaining
11h 52m 57s
Remaining lease time for addresses handed out to clients
6.
Ports
-
A visual indication of which ports are being used
7.
Refresh
-
Refreshes the LAN Information window
RUT955 User‘s Manual
Teltonika Solutions
26
6.3.4 Wireless
Wireless can work in two modes: Access Point (AP) or Station (STA). AP is when the wireless radio is used to create
an Access Point that other devices can connect to. STA is when the router’s radio is used to connect to another Access
Point via WAN.
6.3.4.1 Station
The Wireless Information window displays information about wireless connections (Station mode.)
Client mode information
Field Name
Sample Value
Explanation
1.
Channel
6 (2.44 GHz)
The channel that the AP, to which the router is connected to, uses.
Your wireless radio is forced to work on this channel in order to
maintain the connection
2.
Country
00 (World)
Country code
3.
SSID
GG
The SSID that the AP, to which the router is connected to, uses
4.
Mode
Station (STA)
Indicates that the router is a client to some local AP
5.
Encryption
WPA2 PSK (CCMP)
The type of encryption that the AP uses
6.
Wireless MAC
C0:11:73:94:E8:E5
The MAC address of the access point’s radio
7.
Signal Quality
100%
The quality between the router’s radio and some other device that
is connecting to the router. Will show 0% if no devices are trying to
connect or are currently maintaining a connection
8.
Bit rate
72.2 MBit/s
The maximum possible physical throughput that the router’s radio
can handle. Keep in mind that this value is cumulative - the bitrate
will be shared between the router and other possible devices that
connect the local AP
RUT955 User‘s Manual
Teltonika Solutions
27
6.3.4.2 Access Point
The Wireless Information window displays information about wireless connections (Access Point mode.)
Wireless AP information
Field Name
Sample Value
Explanation
1.
Channel
11 (2.46 GHz)
The channel that is used to broadcast the SSID and to establish new
connections to devices
2.
Country code
00(World)
Country code
3.
SSID
HAL10000
The SSID is a name by which other devices will recognize the router
4.
Mode
Access Point (AP)
Indicates that you router is an access point
5.
Encryption
Mixed WPA/WPA2 PSK
(CCMP)
The type of encryption that the router uses to authenticate,
establish and maintain connections
6.
Wireless MAC
00:51:33:77:56:18
MAC address of the router’s wireless radio
7.
Signal Quality
73%
The signal quality between the router’s radio and another device
that is connected to the router. Will show 0% if no devices are trying
to connect or are currently maintaining a connection
8.
Bit rate
57.8 MBit/s
The bitrate shared between all devices that are connected to the
router’s wireless network
Associated stations*
Field Name
Sample Value
Explanation
1.
MAC Address
1C:7B:21:58:69:C3
Associated station's MAC (Media Access Control) address
2.
Device Name
android-3757690c5aecac34
DHCP client's hostname
3.
Signal
-59 dBm
Received Signal Strength Indicator (RSSI)
4.
RX Rate
6.0Mbit/s, MCS 5, 20MHz
The rate at which packets are received from the associated station
5.
TX Rate
57.8Mbit/s, MCS 5, 20MHz
The rate at which packets are sent to the associated station
* This can either be the information of the Access Point that the router is connected to in STA mode or a list of all devices that are connected to the router’s AP.
RUT955 User‘s Manual
Teltonika Solutions
28
6.3.5 OpenVPN Client
The OpenVPN Information window displays OpenVPN client or server information.
Field Name
Sample Value
Explanation
1.
Enabled
Yes
OpenVPN status
2.
Status
Connected
Connection status
3.
Type
Client
The type of OpenVPN instance that has been created
4.
IP
10.0.0.6
Remote virtual network's IP address
5.
Mask
255.255.255.255
Remote virtual network's subnet mask
6.
Time
0h 0m 16s
Connection uptime
RUT955 User‘s Manual
Teltonika Solutions
29
6.3.6 OpenVPN Server
Field Name
Sample Value
Explanation
1.
Enabled
Yes
OpenVPN status
2.
Status
Connected
Connection status
2.
Type
Server
The type of OpenVPN instance that has been created
3.
IP
10.0.0.1
Remote virtual network's IP address
4.
Mask
255.255.255.255
Remote virtual network's subnet mask
5.
Time
0h 0m 28s
Connection uptime
Clients Information*
* The OpenVPN Information window also shows connected client information when an OpenVPN TLS server instance is online.
Field Name
Possible Values
Explanation
1.
Common Name
Test001
Client’s common name
2.
Real Address
212.59.13.225:52638
Client’s IP address and port number
3.
Virtual Address
10.0.0.6
Virtual address which has been given to a client
4.
Connection Since
Thu May 05 2016
07:46:29 GMT + 0300
(FLE Standard Time)
Since when the connection has been established
RUT955 User‘s Manual
Teltonika Solutions
30
6.3.7 VRRP
The VRRP Information window displays VRRP(Virtual Router Redundancy Protocol) LAN Status.
Field Name
Sample Value
Explanation
1.
Status
Enabled
VRRP status
2.
Virtual IP
192.168.1.253
Virtual IP address (-es) for LAN’s VRRP (Virtual Router Redundancy
Protocol ) cluster
3.
Priority
100
Router with the highest priority value on the same VRRP
cluster will act as a master; range [1 - 255]
4.
Router*
Master
Connection mode
*Exclusive to other Modes with Slave.
RUT955 User‘s Manual
Teltonika Solutions
31
6.3.8 Topology
The Network Topology window provides the ability to scan and quickly retrieve information about devices in your
network. When the router uses Mobile as WAN and the selected Connection type is „PPP“, you can only scan the LAN
side.
RUT955 User‘s Manual
Teltonika Solutions
32
6.3.9 Access
6.3.9.1 Access Status
The Access Status window displays information about active local and remote SSH, HTTP and HTTPS connections.
Field Name
Possible Values
Explanation
1.
Type
SSH; HTTP; HTTPS
Type of connection protocol
2.
Status
Disabled/Enabled
Connection status
3.
Port
22; 80; 443
Port used for the connection
4.
Active
connections
0(0.00B);1(53.28 KB);
0(0.00 B)
Count of active connections and amount of data transmitted
RUT955 User‘s Manual
Teltonika Solutions
33
6.3.9.2 Last Connections
The Last Connections window displays information about the last 3 connections for each of the different
connection types.
Field Name
Possible Value
Explanation
1.
Type
SSH; HTTP; HTTPS
Type of connection protocol
2.
Date
2016-03-03, 13:40:59
Date and time of connection
3.
IP
192.168.56.205
IP address from which the connection was made
4.
Authentications
Status
Failed; Succeeded
Result of authentication attempt
RUT955 User‘s Manual
Teltonika Solutions
34
6.4 Device information
The Device Information page displays factory information that was written into the device during the
manufacturing process.
Field Name
Sample Value
Explanation
1.
Serial number
54656
Serial number of the device
2.
Product code
RUT955H7V020
Product code of the device
3.
Batch number
0001
Batch number used during device’s manufacturing process
4.
Hardware revision
0002
Hardware revision of the device
5.
IMEI
861107030078134
Identification number of the internal modem
6.
IMSI
246020100944448
Subscriber identification number of the internal modem
6.
Ethernet LAN MAC
00:51:33:77:56:16
MAC address of the Ethernet LAN ports
7.
Ethernet WAN MAC
00:51:33:77:56:17
MAC address of the Ethernet WAN port
8.
Wireless MAC
00:51:33:77:56:18
MAC address of the Wi-Fi interface
9.
Model
EC25
Router’s modem model
10.
FW version
EC25EFAR02A03M4G
Router’s modem firmware version
RUT955 User‘s Manual
Teltonika Solutions
35
6.5 Services
The Services page displays the status of available services and gives you the ability turn them on/off or restart them.
RUT955 User‘s Manual
Teltonika Solutions
36
6.6 Routes
The Routes page displays the router’s ARP table and active IP and IPv6 routes.
6.6.1 ARP
The ARP table shows the router’s recently cached MAC addresses of every immediate device that was
communicating with the router.
Field Name
Sample Value
Explanation
1.
IP address
192.168.56.235
Recently cashed IP addresses of every immediate device that was
communicating with the router
2.
MAC address
1C:7B:21:58:69:C3
Recently cached MAC addresses of every immediate device that was
communicating with the router
3.
Interface
br-lan
Interface that the device used for connection
6.6.2 Active IP Routes
The Active IP Routes section shows the router’s routing table. The routing table indicates where a TCP/IP packet
with a specific IP address will be directed to.
Field Name
Sample Value
Explanation
1.
Network
wan
Interface used to transmit TCP/IP packets through
2.
Target
0.0.0.0
Indicates where a TCP/IP packet with a specific IP address will be
directed
3.
IP gateway
192.168.90.254
Indicates through which gateway a TCP/IP packet will be directed
4.
Metric
0
Indicates interface’s priority of usage
RUT955 User‘s Manual
Teltonika Solutions
37
6.6.3 Active IPv6-Routes
The Active IPv6-Routes table shows active IPv6 routes for data packet transition.
Field Name
Sample Value
Explanation
1.
Network
loopback
Network interface used
2.
Target
0:0:0:0:0:0:0:0/0
Indicates where a TCP/IP packet with a specific IP address will be
directed
3.
IPv6 gateway
0:0:0:0:0:0:0:0/0
Indicates through which gateway a TCP/IP packet will be directed
4.
Metric
FFFFFFFF
Indicates interface’s priority of usage
RUT955 User‘s Manual
Teltonika Solutions
38
6.7 Graphs
The Real-time graph window displays various statistical data changes over time in the form of graphs.
6.7.1
Mobile Signal Strength
The Mobile Signal strength graph displays mobile signal strength variation in time (measured in dBm).
Field Name
Sample Value
Explanation
1.
Connection type
4G (LTE)
Type of mobile connection used
2.
Signal
-67 dBm
Current signal strength value
3.
Average
-68.2 dBm
Average signal strength value
4.
Peak
-61 dBm
Peak signal strength value
RUT955 User‘s Manual
Teltonika Solutions
39
6.7.2
Realtime Load
The Realtime Load window displays a tri-graph that illustrates average CPU load values in real time. The graph
consists out of three color coded graphs, each one corresponding to the average CPU load over 1 (red), 5 (orange) and
15 (yellow) most recent minutes.
Field Name
Sample Value
Explanation
1.
1/5/15 Minute
Load
2.39
Time interval for load averaging, colour of the diagram
2.
Average
2.41
Average CPU load value over a time interval (1/5/15 Minute)
3.
Peak
3.67
Peak CPU load value of the time interval
RUT955 User‘s Manual
Teltonika Solutions
40
6.7.3
Realtime Traffic
The Realtime Traffic window lets you monitor average inbound and outbound traffic over the course of ~3 minutes;
each new measurement is taken every 3 seconds. The graphs consist out of two color coded graphs: the green graph
shows the outbound traffic, the blue graph shows the inbound traffic. Although not graphed, the page also displays
peak loads and averages of inbound and outbound traffic.
Field Name
Explanation
1.
Bridge
Cumulative graph, which encompasses wired Ethernet LAN and the wireless network
2.
LAN
Graphs the total traffic that has passed through both LAN network interfaces
3.
WAN (Wired)
Graphs the amount of traffic that has passed through the current active WAN connection
4.
Wi-Fi
Shows the amount of traffic that has been sent and received through the wireless radio
RUT955 User‘s Manual
Teltonika Solutions
41
6.7.4
Realtime Wireless
The Realtime Wireless window displays the wireless radio signal strength, signal noise, average and peak signal
levels and the theoretical maximum channel permeability.
RUT955 User‘s Manual
Teltonika Solutions
42
6.7.5
Realtime Connections
The Realtime Connections window displays currently active network connections with the information about
network, protocol, source and destination addresses and transfer speed.
RUT955 User‘s Manual
Teltonika Solutions
43
6.8 Mobile Traffic
The Mobile Traffic graphs display the mobile connection data that was sent and received this day, week or month
for each or both of the SIM cards.
By default the mobile traffic usage logging is disabled. In order to use this function, you will have to enable it in the
Configuration tab.
Field Name
Possible Value
Explanation
1.
Enable
Enable/Disable
Makes the function active or inactive
2.
Interval between
records (sec)
(minimum) 60 (sec)
The interval between logging records
RUT955 User‘s Manual
Teltonika Solutions
44
6.9 Events Log
The Events Log windows display records of such event as logins, reboots, resets, connections and configuration
changes.
6.9.1
All Events
The All Events window displays all of the router’s recorded events, their types and times of occurrence.
RUT955 User‘s Manual
Teltonika Solutions
45
6.9.2
System Events
The System Events window displays all system events, their types and times of occurrence. These events include
authentication, reboot requests, incoming and outgoing SMS messages and calls, emails, configuration changes and
DHCP events.
RUT955 User‘s Manual
Teltonika Solutions
46
6.9.3
Network Events
The Network Events window displays information about recent network events like new connections, lease status
changes, network types or operator changes.
RUT955 User‘s Manual
Teltonika Solutions
47
6.9.4
Events Reporting
The Events Reporting page gives you the ability to configure rules that will inform you via SMS or email when
certain events occur on your router. These events can be almost anything – configuration changes, new connections,
various status updates, SIM switches, etc.
6.9.4.1 Events Reporting Configuration
The Events Reporting Configuration tab is used to customize Events Reporting Rules. Here you can specify any
event type and subtype, chose whether you want to be informed by an SMS message or email, modify what kind of
information you want receive should an event occur. To open this window, create a rule and press “edit”.
RUT955 User‘s Manual
Teltonika Solutions
48
6.9.4.1.1 Send SMS
Field Name
Sample Value
Explanation
1.
Enable
Enable
Make a rule active/inactive
2.
Event type
Reboot
Select the type of event that you wish to receive information about
3.
Event subtype
After unexpected shut
down
Specify the subtype of the event
4.
Action
Send SMS
Action to perform when the specified event occurs
5.
Enable delivery
retry
Enable
Enable SMS delivery retry on unsuccessful delivery attempts
RUT955 User‘s Manual
Teltonika Solutions
49
6.
Retry interval
5 min.
The amount of time after an unsuccessful attempt before the
delivery retry is initiated
7.
Retry count
2
How many attempts of delivery retry will be performed
8.
Message text on
Event
Router name - %rn;
Event type - %et; Event
text - %ex; Time stamp
- %ts;
The content of the message
9.
Get status after
reboot
Enable
Indicate whether to receive router’s status information after reboot
or not
10.
Status message
after reboot
Router name - %rn;
WAN IP - %wi;
Connection state - %cs;
Connection type - %ct;
Signal strength - %ss;
New FW available -
%fs;
The content of the status message
11.
Recipient‘s
phone number
+37061111111
The phone number that will receive the message after the specified
event occurs
RUT955 User‘s Manual
Teltonika Solutions
50
6.9.4.1.2 Send email
RUT955 User‘s Manual
Teltonika Solutions
51
Field Name
Sample Value
Explanation
1.
Enable
Enable
Make the rule active or inactive
2.
Event type
Reboot
Select the type of event that you wish to receive information about
3.
Event subtype
After unexpected shut
down
Specify the subtype of the event
4.
Action
Send email
Action to perform when the specified event occurs
5.
Enable delivery
retry
Enable
Enable email delivery retry on unsuccessful delivery attempts
6.
Retry interval
5 min.
The amount of time after an unsuccessful attempt before the
delivery retry is initiated
7.
Retry count
2
How many attempts of delivery retry will be performed
8.
Subject
Reboot
The subject of the email
9.
Message text on
Event
Router name - %rn;
Event type - %et; Event
text - %ex; Time stamp
- %ts;
The content of the message
10.
Get status after
reboot
Disable
Indicate whether to receive router’s status information after reboot
or not
11.
SMTP server
mail.hostname.com
Sender’s email provider SMTP (Simple Mail Transfer Protocol)
server address
12.
SMTP server port
12345
Sender’s email provider SMTP server port number
13.
Secure
connection
Enable
Enable or disable secure connection (use only if the server has SSL
or TLS)
14.
User name
user_name
Sender’s email account user name
15.
Password
••••••••••••
Sender’s email account password
16.
Sender’s email
address
sender@email.com
Sender’s email address
17.
Recipient’s email
address
recipient@email.com
Recipient’s email address
18.
Send test email
Send
Sends out a simulated test message according to your given data
RUT955 User‘s Manual
Teltonika Solutions
52
6.9.5
Reporting Configuration
The Reporting Configuration window lets you create rules that transfer logs to email or FTP.
RUT955 User‘s Manual
Teltonika Solutions
53
6.9.5.1 Events Log Report Configuration
The Events Log Report Configuration window gives you the ability to change the configuration of periodic events
reporting to email or FTP. You can access it by creating a rule and pressing the “edit” button next to it, just like Event
Reporting Configuration.
6.9.5.1.1 FTP
RUT955 User‘s Manual
Teltonika Solutions
54
Field Name
Sample Value
Explanation
1.
Enable
Enable
Make the rule active or inactive
2.
Events log
System
Events log to which the rule is applied
3.
Transfer type
FTP
Events log file transfer type: Email or FTP
4.
Compress file
Disable
Enable or disable compress events log file using gzip
5.
Host
hostname.com
FTP (File Transfer Protocol) host name, e.g. ftp.example.com,
192.168.123.123. Allowed characters (a-z-A-Z0-9!@#$%^&*+-/=?_`{|}~. )
6.
User name
user_name
User name for authentication on SMTP (Simple Mail Transfer Protocol) or FTP
(File Transfer Protocol) server. Allowed characters (a-z-A-Z0-9!@#$%^&*+-
/=?_`{|}~. )
7.
Password
••••••••••••
Password for authentication on SMTP (Simple Mail Transfer Protocol) or FTP
(File Transfer Protocol) server. Allowed characters (a-z-A-Z0-9!@#$%^&*+-
/=?_`{|}~. )
8.
Interval
between
reports
Week
The frequency at which Events log reports will be submitted
9.
Weekday
Sunday
Day of the week on which the events log report will be submitted
10.
Hour
1
Hour of the day on which the events log report will be submitted
RUT955 User‘s Manual
Teltonika Solutions
55
6.9.5.1.2 Email
RUT955 User‘s Manual
Teltonika Solutions
56
Field Name
Sample Value
Explanation
1.
Enable
Enable
Make the rule active or inactive
2.
Events log
Network
Events log to which the rule is applied
3.
Transfer type
Email
Events log file transfer type: Email or FTP
4.
Compress file
Disable
Enable or disable compress events log file using gzip
5.
Subject
Test
Subject of the email
6.
Message
text message
The message of the email
7.
SMTP server
mail.email.com
Sender’s email provider SMTP (Simple Mail Transfer Protocol)
server address
8.
SMTP server
port
12345
Sender’s email provider SMTP server port number
9.
Secure
connection
Enable/Disable
Enable or disable secure connection (use only if the server has
SSL or TLS)
10.
User name
User
Sender’s email account user name
11.
Password
••••••••••••
Sender’s email account password
12.
Sender‘s email
address
sendersemail@example.com
Sender’s email address
13.
Recipient‘s
email address
recipientemail@example.com
Recipient’s email address
14.
Interval
between
reboots
Week
The frequency at which Events log reports will be submitted
15.
Weekday
Sunday
Day of the week on which the events log report will be
submitted
16.
Hour
1
Hour of the day on which the events log report will be
submitted
RUT955 User‘s Manual
Teltonika Solutions
57
7 Network
7.1 Mobile
7.1.1
General

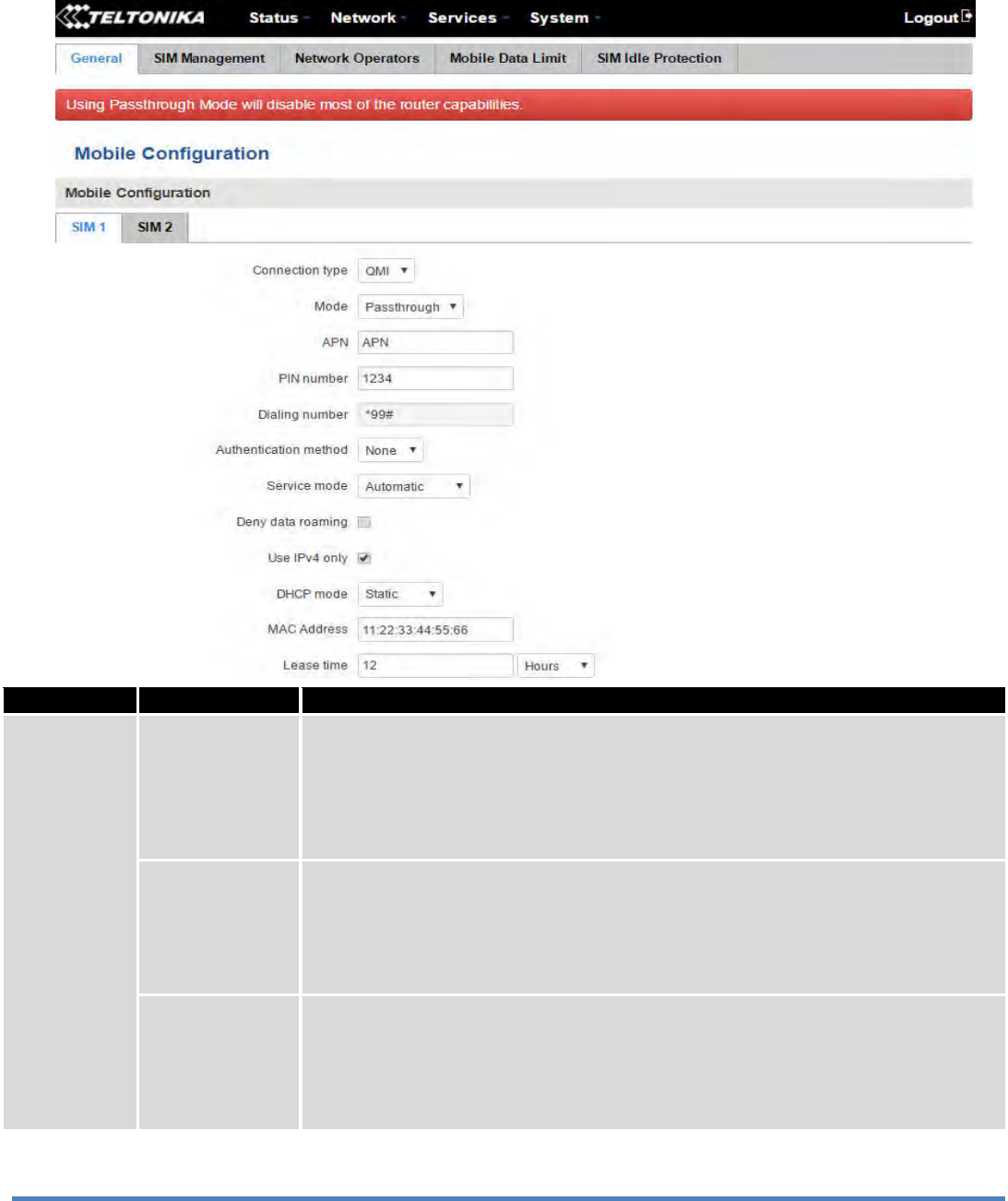

In the Mobile Configuration window you can configure various mobile settings that are used in order to connect to
your local LTE network.
RUT955 User‘s Manual
Teltonika Solutions
58
Possible values
Explanation
1.
type
PPP / QMI
Defines how the router's modem will connect to the internet.
PPP mode uses a dialling number to establish a data connection.
QMI mode (default) does not use dialling or the PPP protocol to
establish a data connection and it is usually faster than PPP mode
2.
NAT / Passthrough /
Bridge
NAT mode enables network address translation on the router.
Bridge mode bridges the LTE data connection with LAN. In this mode
the router does not have an internet connection as the ISP provides
an IP address directly to the end device. Using Bridge mode will
disable most of the router’s capabilities and you will only be able to
access your router's settings with a static IP address.
Passthrough mode works in a similar fashion to Bridge mode, except
in passthrough mode the router does have an internet connection
3.
“APN”
An Access Point Name (APN) is a gateway between a 4G mobile
network and another computer network
4.
Any number that falls
between 0000 and 9999
A personal identification number is a numeric password used to
authenticate a user to a system
5.
number
*99#
A Dialling number is used to establish a mobile PPP connection
6.
method
CHAP, PAP or none
The Authentication method that your GSM carrier uses to
authenticate new connections on its network
7.
user_name
The username used to connect to your carrier’s network. This field
becomes available when you select an authentication method (i.e.,
the selected authentication method is not “None”)
8.
••••••••••••
The password used to connect to your carrier’s network
9.
LTE only or Automatic.
Your service mode preference. If your local mobile network supports
LTE you can specify to which type of network you wish to connect. If
you select Automatic, then the router will connect to the network
that provides the best connectivity
10.
roaming
Enable / Disable
When enabled this function prevents the device from establishing
mobile data connection while not in your home network
11.
Enable / Disable
When enabled this function makes the device use only IPv4 settings
when connecting to an operator
12.
On Demand
Enable / Disable
When Enabled The Mobile Data On Demand function keeps the
mobile data connection on only when it is in use
No data timeout (sec) –
10 - 99999999
The mobile data connection will be terminated if no data is
transferred during the timeout period specified in this field
13.
network
Enable/Disable
When enabled this function makes the router connect to an LTE
network after every specified amount of seconds
Enable/Disable
When enabled the modem will reregister before trying to connect to
an LTE network
180 – 3600
Time in seconds between attempts to connect to an LTE network
*Warning: If you enter an invalid PIN number (i.e. if the entered PIN does not match the one that is used in the SIM card), your SIM card will get blocked.
To avoid such mishaps it is highly advised to use an unprotected SIM. If you happen to insert a protected SIM and the PIN number is incorrect, your card won’t get
blocked immediately, although after a couple of reboots OR configuration saves it will.
RUT955 User‘s Manual
Teltonika Solutions
59
7.1.1.1 Passthrough Mode
Passthrough mode is used to redirect all traffic to another device. In the process the router itself becomes
“transparent” as all traffic is redirected to another device which will also have the router’s public IP address assigned to
it.
Field name
Possible values
Explanation
DHCP mode*
Static
The Static mode requires that you enter your computer’s MAC address
(xx:xx:xx:xx:xx:xx) and select a lease time (expiration time for the leased address.)
The device will get an IP address from your GSM operator. Other devices that are
connected to the router will get IP addresses from the router’s DHCP server, but
they will not have internet access
Dynamic
In Dynamic mode the GSM operator will connect to the router first and give out an
IP address to your computer. When using Passthrough in Dynamic mode, the
router‘s LAN DHCP server will be disabled, but it will enabled again automatically
when you switch to a different mode
No DHCP
In No DHCP mode the IP address, subnet mask, default gateway and DNS from the
GSM operator will have to be entered on your computer manually. When using
Passthrough in No DHCP mode, the router‘s LAN DHCP server will be disabled, but
it will become enabled automatically when you switch to a different mode
*Using Passthrough Mode will disable most of the router‘s capabilities!
RUT955 User‘s Manual
Teltonika Solutions
7.1.2
SIM Management
The SIM Management window is used for setting your primary SIM card and setting up scenarios after which the
router will perform a SIM switch.
Field name
Possible values
1.
Primary SIM card
SIM 1 / SIM 2
2.
Enable automatic
switching
Enable/Disable
3.
Check interval
1-3600
4.
On weak signal
Enable/Disable
5.
On data limit*
Enable/Disable
6.
On SMS limit*
Enable/Disable
7.
On roaming
Enable/Disable
8.
No network
Enable/Disable
9.
On network denied
Enable/Disable
10.
On data connection fail
Enable/Disable
*
Your carrier's data usage accounting may differ. Teltonika is not liable should any accounting discrepancies occur.
The SIM Management window is used for setting your primary SIM card and setting up scenarios after which the
Possible values
Explanation
SIM 1 / SIM 2
Which SIM card will be used by the system as the
Enable/Disable
Automatically switch between primary and secondary SIM cards
based on the various rules and criterions defined below
Check interval in seconds
Enable/Disable
Performs a SIM card switch when sig
specified threshold
Enable/Disable
Performs a SIM card switch when mobile data limit
Enable/Disable
Performs a SIM card switch when the SMS limit is
Enable/Disable
Performs a SIM card switch when roaming is detected
Enable/Disable
Performs a SIM card switch when no operator is detected
Enable/Disable
Performs a SIM card switch when access to a
Enable/Disable
Performs a SIM card switch when data connection fails
Your carrier's data usage accounting may differ. Teltonika is not liable should any accounting discrepancies occur.
60
The SIM Management window is used for setting your primary SIM card and setting up scenarios after which the
the system as the primary SIM card
primary and secondary SIM cards
based on the various rules and criterions defined below
signal strength drops below the
a SIM card switch when mobile data limit is reached
SMS limit is reached
a SIM card switch when roaming is detected
a SIM card switch when no operator is detected
access to a network is denied
data connection fails
RUT955 User‘s Manual
Teltonika Solutions
61
7.1.3
Network Operators
The Network Operators window provides you with the ability to scan, select and enter manual Network Operator
codes. This function is a great utility when the router is in Roaming conditions. Operator selection is only available for
the primary SIM card. In order to specify an operator for the other SIM card it must first be selected as the primary SIM
in the “SIM Management” section.
*While scanning for operators, you will lose your current mobile connection!
Field Name
Sample Value
Explanation
1.
SIM card in use
SIM 1
Shows the SIM card in use
2.
Current operator
LT BITE GSM
GSM operator's name
3.
Scan for operators*
-
Initiates a scan for available operators in your area
4.
Connection mode
Auto
Lets you chose whether you want to select your operator manually
or automatically
RUT955 User‘s Manual
Teltonika Solutions
62
7.1.3.1 Operators List
The Operators List window provides you with the opportunity to create either a white list or a black list to help you
differentiate preferred operators from unwanted operators. This is especially useful when travelling to different
countries because it gives you protection from unwanted data charges by denying the SIM card access to unknown or
unwanted operators.
Field name
Possible values
Explanation
1.
Enable
Enable/Disable
Enable/disable operator blocking
2.
Mode
Whitelist/Blacklist
Whitelist - allows every operator on the list, blocks every other operator.
Blacklist - blocks every operator on the list, allows every other operator
3.
Name
TELE2
Operator’s name
4.
Operator code
24603
Operator’s code
RUT955 User‘s Manual
Teltonika Solutions
63
7.1.4
Mobile Data Limit
The Mobile Data Limit window provides you with the ability to set data limits for your SIM cards in order to protect
yourself from unwanted data charges.
Data Connection Limit Configuration
Field Name
Sample value
Explanation
1.
Enable data
connection limit
Enable/Disable
Disables the mobile data connection when the limit for the
current period is reached
2.
Data limit* (MB)
10
Data limit that triggers the mobile data disconnection
3.
Period
Month
Period for which the mobile data limiting will be applied
4.
Start day/ Start hour
1
A starting time for the mobile data limiting period
SMS Warning Configuration
1.
Enable SMS warning
Enable/Disable
Enables the sending of a warning SMS message before or when
the mobile data limit for the current period is reached
2.
Data limit* (MB)
5
Data limit which triggers the warning message
3.
Period
Month
Period for which the mobile data limiting should apply
4.
Start day/ Start hour
1
A starting time for mobile data limiting period
5.
Phone number
+37012345678
A phone number to send the warning SMS message to
Clear Data Limit
1.
Clear data limit
-
Clears all sent and received data for the selected period
* Your carrier's data usage accounting may differ. Teltonika is not liable should any accounting discrepancies occur.
RUT955 User‘s Manual
Teltonika Solutions
64
7.1.5
SIM Idle Protection
Some operators block user SIM cards after a period of inactivity. The SIM Idle Protection window provides you with
the possibility to configure the router to periodically switch to the secondary SIM card and establish a data connection
with a mobile network in order to prevent the SIM card blocking.
7.1.5.1 Settings
Field Name
Possible values
Explanation
1.
Enable
Enable/Disable
Enables SIM idle protection
2.
Period
Month / Week
The frequency at which the SIM switch will be initiated
3.
Day
1-31 / Monday -
Sunday
Specifies the day of SIM idle protection activation. 1-31 if the period is a
month; Monday – Sunday if the period is a week
4.
Hour
1 - 24
Specifies the hour of SIM idle protection activation
5.
Minute
0 - 60
Specifies the minute of SIM idle protection activation
6.
Host to ping
127.0.0.1
Specifies the IP address or domain name to send data packages to
7.
Ping package
size
56
Specifies the ping package size in bytes
8.
Ping requests
2
Number of ping requests that will be sent
RUT955 User‘s Manual
Teltonika Solutions
65
7.1.5.2 Test
The SIM Idle Protection Test window lets you test the functionality of SIM Idle Protection with the parameters
entered at the settings tab. Once you press the ‘Test’* button it will simulate a SIM Protection scenario for both of the
SIM cards. Once you initiate the test do not commit any actions until the test is finished, as doing otherwise will result in
errors that can only be resolved by reseting your device..
Field Name
Sample value
Explanation
1.
SIM
SIM1
SIM card number
2.
SIM state
OK (inserted)
Status of the SIM card
3.
IMSI
246020100944448
International Mobile Subscriber Identity used to identify the user in a cellular
network
4.
ICCID
8937002160600414481
Integrated circuit card identifier used to identify the SIM card internationally
5.
Host IP
8.8.8.8
IP address of the host
6.
WAN IP
84.15.198.92
SIM card’s public IP address
7.
Ping
Success
Status of the ping attempt
*During test phase do not commit any action, wait for the test to finish
RUT955 User‘s Manual
Teltonika Solutions
7.2 WAN
7.2.1
Operation Mode
The WAN window lets you
determine how the router will be connecting to the internet.
three types of WAN –
Mobile, Wired and Wi
Field Name
Possible values
1.
Main WAN
Wired/Mobile/Wi-
2.
Backup WAN /
Load Balancing
Enable/Disable
3.
Interface Name
WAN/WAN2/WAN3
4.
Protocol
Static/DHCP/PPPoE
5.
IP Address
192.168.90.66
6.
Sort
-
7.2.2

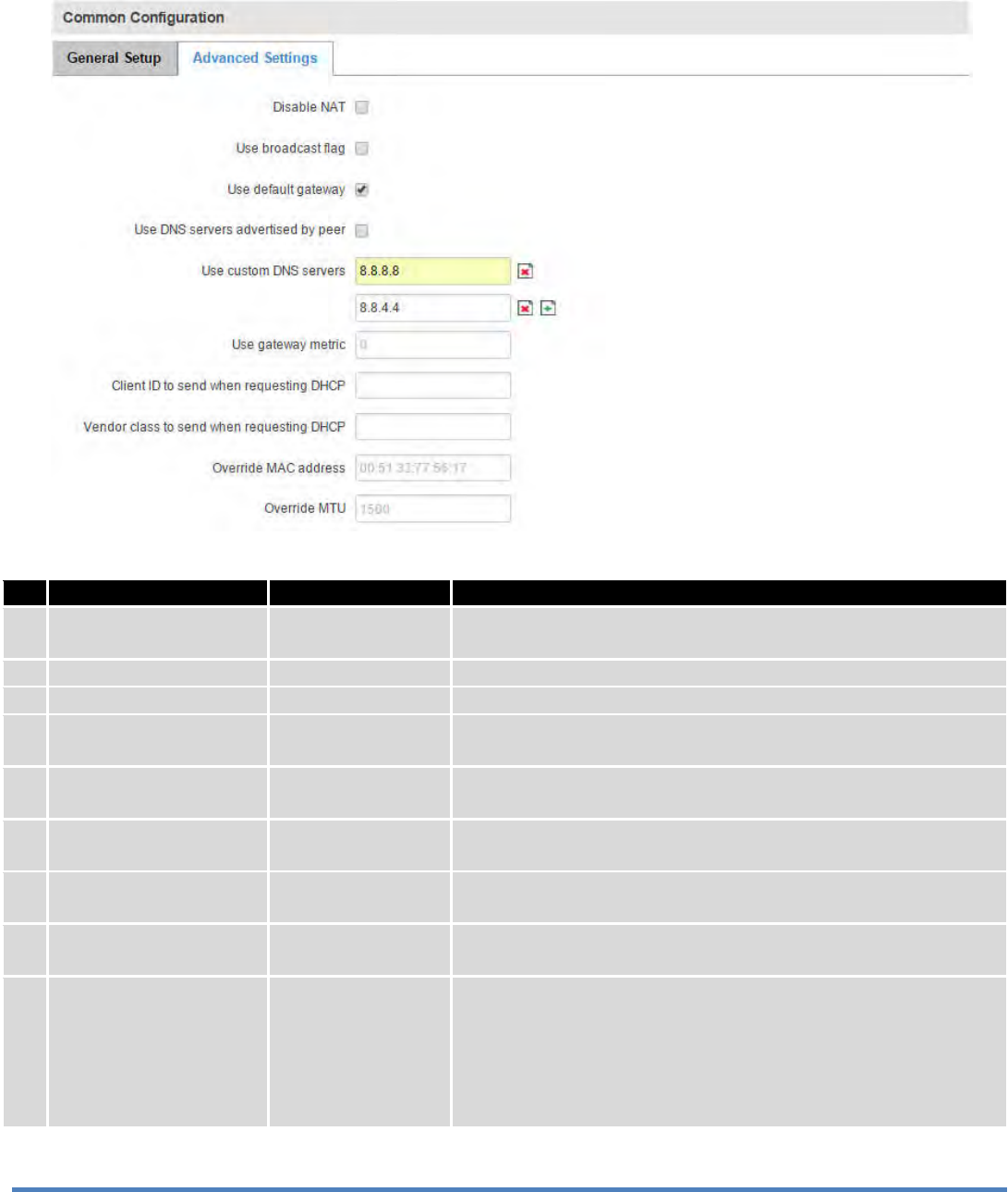

Common Configuration
You can further configure each of your WAN interfaces by
WAN table next to each interface:
It will open
the Common Configuration window
WAN interface, configure your backup WAN settings, set up IP aliases, custom DNS servers and more.
determine how the router will be connecting to the internet.
Mobile, Wired and Wi
-Fi.
Explanation
-Fi
Allows you to select the main WAN
Allows you to select one or two interface to act as your backup WAN
WAN/WAN2/WAN3
Names of the WAN interfaces
Static/DHCP/PPPoE
The protocol used by a WAN interface
WAN IP address
Allows you to sort table rows and change interface priority (i.e., the
highest interface has the highest priority)
You can further configure each of your WAN interfaces by
clicking
the ‘edit’ button found at the far right of the
the Common Configuration window
where you can select the
protocol to be
WAN interface, configure your backup WAN settings, set up IP aliases, custom DNS servers and more.
66
determine how the router will be connecting to the internet.
You can chose between
Allows you to select one or two interface to act as your backup WAN
Allows you to sort table rows and change interface priority (i.e., the
highest interface has the highest priority)
the ‘edit’ button found at the far right of the
protocol to be
used with your by your
WAN interface, configure your backup WAN settings, set up IP aliases, custom DNS servers and more.
RUT955 User‘s Manual
Teltonika Solutions
7.2.2.1 General Setup
You can switch between Static, DHCP or PPPoE protocol
pressing the ‘Switch Protocol’* button.
*The “Switch protocol” button does not apply
any
left corner of the window after you are done making changes.
7.2.2.1.1 Static:
The Static protocol is used when the source of your internet doesn’t have a DHCP server enabled. Therefore, in
order to connect to the internet, you have to make configurations in accordance
In section of this user’s manual.)
Filed name
Sample Value
1.
Protocol
Static
2.
IPv4 address
192.168.90.66
3.
IPv4 netmask
255.255.255.0
4.
IPv4 gateway
192.168.90.254
5.
IPv4 broadcast
192.168.90.255
6.
Use custom DNS
servers
8.8.8.8
8.8.4.4
You can switch between Static, DHCP or PPPoE protocol
s by selecting the one
that you want to use and then
any
changes. In order for the changes to take effect, you must click the “Save” button found at the bottom
left corner of the window after you are done making changes.
The Static protocol is used when the source of your internet doesn’t have a DHCP server enabled. Therefore, in
order to connect to the internet, you have to make configurations in accordance
to
the source (much like in the
Value
Explanation
The protocol used by the WAN interface
66
Your router’s address on the WAN network
255.255.255.0
A mask used to define how “large” the WAN network is
.254
The address where the router will send all the outgoing traffic
.255
Broadcast address (auto generated if not set). It is best to leave this
blank unless
you know what you are doing
Usually the gateway has some predefined DNS servers. As such the
router, when it needs to resolve a hostname (“www.google.com”,
“www.cnn.com”, etc…) to an IP address, it will
requests to the gateway. By entering custom DNS servers the router
will take care of the
host name resolution. You can enter multiple DNS
servers to provide redundancy in case
one of the server
67
that you want to use and then
changes. In order for the changes to take effect, you must click the “Save” button found at the bottom
The Static protocol is used when the source of your internet doesn’t have a DHCP server enabled. Therefore, in
the source (much like in the
Logging
s address on the WAN network
define how “large” the WAN network is
ddress where the router will send all the outgoing traffic
Broadcast address (auto generated if not set). It is best to leave this
you know what you are doing
Usually the gateway has some predefined DNS servers. As such the
router, when it needs to resolve a hostname (“www.google.com”,
“www.cnn.com”, etc…) to an IP address, it will
forward all the DNS
requests to the gateway. By entering custom DNS servers the router
host name resolution. You can enter multiple DNS
one of the server
s fails
RUT955 User‘s Manual
Teltonika Solutions
68
7.2.2.1.2 DHCP:
The DHCP protocol should be used when the source of your internet has a DHCP server enabled. If that is the case,
when you select the DHCP protocol you can use it as is, because most networks will not require any additional advanced
configuration.
7.2.2.1.3 PPPoE
The PPPoE protocol is mainly used if you have a DSL internet provider.
Filed name
Sample Value
Explanation
1.
Protocol
PPPoE
The protocol used by the WAN interface
2.
PAP/CHAP username
user_name
The username that you would use to connect to your carrier’s
network
3.
PAP/CHAP password
••••••••••••
The password that you would use to connect to your carrier’s network
4.
Access Concentrator
auto
The name of the access concentrator. Leave empty to auto detect
5.
Service Name
auto
The name of the service. Leave empty to auto detect
RUT955 User‘s Manual
Teltonika Solutions
69
7.2.2.2 Advanced
The Advanced Setting tab offers you the ability to configure more advanced settings for each of the protocols. If
you are unsure of how to alter these settings, it is highly recommended to leave them unchanged or consult a trained
professional.
7.2.2.2.1 Static
The Advanced Settings tab will change in accordance to which network protocol is selected. For the Static protocol
you can turn NAT on or off, override the router’s MAC address, MTU and define the gateway metric. You will find
additional information on how to define these settings bellow.
Field name
Sample value
Explanation
1.
Disable NAT
On/Off
Toggle Network Address Translation (NAT) on or off for the
selected network interface
2
Override MAC address
00:51:33:77:56:17
Override MAC address of the WAN interface. If your ISP gives you
a static IP address it might also bind it to your computers MAC
address (i.e. that IP will only work with your computer but not
with your router). In this field you can enter your computer’s
MAC address and fool the gateway in to thinking that it is
communicating with your computer
3.
Override MTU
1500
Maximum Transmission Unit (MTU) – specifies the largest
possible size of a data packet
4.
Use gateway metric
0
The WAN configuration by default generates a routing table
entry. In this field you can alter the metric of that entry
RUT955 User‘s Manual
Teltonika Solutions
70
7.2.2.2.2 DHCP
For the DHCP protocol you can turn NAT on or off, specify custom DNS servers, define the gateway metric, override
the router’s MAC address, set MTU and more. You will find additional information on how to define these settings
bellow.
Field name
Sample value
Explanation
1.
Disable NAT
On/Off
Toggle Network Address Translation (NAT) on or off for the
selected network interface
2
Use broadcast flag
Enable/Disable
Required for certain ISPs, e.g. Charter with DOCSIS 3
3.
Use default gateway
Enable/Disable
If left unchecked, no default route is configured
4.
Use DNS servers
advertised by peer
Enable/Disable
If left unchecked, the advertised DNS server addresses are
ignored
5.
Use custom DNS
Servers
8.8.8.8
8.8.4.4
Lets you chose your own preferred DNS servers
6.
User gateway metric
0
The WAN configuration by default generates a routing table
entry. In this field you can alter the metric of that entry
7.
Client ID to send when
requesting DHCP
Client ID which will be sent when requesting a DHCP lease
8.
Vendor Class to send
when requesting DHCP
Vendor class which will be sent when requesting a DHCP lease
9.
Override MAC address
00:51:33:77:56:17
Override MAC address of the WAN interface. If your ISP gives
you a static IP address it might also bind it to your computers
MAC address (i.e. that IP will only work with your computer but
not with your router). In this field you can enter your computer’s
MAC address and fool the gateway in to thinking that it is
communicating with your computer
RUT955 User‘s Manual
Teltonika Solutions
71
10.
Override MTU
1500
Maximum Transmission Unit (MTU) – specifies the largest
possible size of a data packet
7.2.2.2.3 PPPoE
For the PPPoE protocol you can turn NAT on or off, specify custom DNS servers, define the gateway metric,
configure LCP echo settings and more. You will find additional information on how to define these settings bellow.
Field name
Sample value
Explanation
1.
Disable NAT
Enable/Disable
Toggle Network Address Translation (NAT) on or off for the
selected network interface
2
Use default gateway
Enable/Disable
If left unchecked, no default route is configured
3.
Use gateway metric
0
The WAN configuration by default generates a routing table
entry. In this field you can alter the metric of that entry
4.
Use DNS servers
advertised by peer
Enable/Disable
If left unchecked, the advertised DNS server addresses are
ignored
5.
Use Custom DNS
Servers
8.8.8.8
8.8.4.4
Lets you chose you own preferred DNS servers
5.
LCP echo failure
threshold
0
Presume peer to be dead after given amount of LCP echo failures.
Leave it at 0 to ignore failures
6.
LCP echo interval
5
Send LCP echo requests at the given interval in seconds. This
function is only effective in conjunction with failure threshold
7.
Inactivity timeout
0
Close inactive connection after the given amount of seconds.
Leave it at 0 to persist connection
RUT955 User‘s Manual
Teltonika Solutions
72
7.2.2.3 IP Aliases
7.2.2.3.1 General setup
IP Aliases are a way of defining or reaching a subnet that works in the same space as the regular network. This is
useful if you need to reach the router in the same network but in a different subnet. If you have a static IP configuration
on your computer and don’t want to change it every time you need to reach a router in a different subnet, you can
configure an IP alias in order to do so.
As you can see, the configuration is very similar to the static protocol; only in the example an IP address with a 99th
subnet is defined. If some device has an IP in the 99th subnet (e.g., 192.168.99.xxx) and the subnet’s gateway metric is
“higher” and the device is trying to reach the internet it will reroute it’s traffic not to the gateway that is defined in
common configurations but through the one that is specified in IP aliases.
7.2.2.3.2 Advanced Settings
You may also define a broadcast address and a custom DNS server for your IP Aliases in the Advanced Settings tab.
RUT955 User‘s Manual
Teltonika Solutions
73
7.2.2.4 Backup WAN configuration
Backup WAN is a function that allows you to back up your primary connection in case it goes down. There can be
two backup connections selected at one time. In that case, when the primary connection fails, the router tries to use the
backup with the higher priority and if this one is unavailable or fails too, then the router tries the backup with the lower
priority.
The majority of the options consist of timing and other important parameters that help determine the health of
your primary connection. Regular health checks are constantly performed in the form of ICMP packets (Pings) on your
primary connection. When the connections state starts to change (READY->NOT READY and vice versa) a necessary
amount of failed or passed health checks has to be reached before the state changes completely. This delay is instituted
so as to mitigate “spikes” in connection availability, but it also extends the time before the backup link can be brought
up or down.
Field Name
Possible values
Explanation
1.
Health monitor interval
Disable/5/10/20/30/60/120
Seconds
The interval at which health checks are performed
2.
Health monitor ICMP host(s)
8.8.4.4 / Disable / DNS
Server(s) / WAN Gateway /
custom
Indicate where to send ping requests for a health
check. As there is no definitive way to determine
when the connection to internet is down for good,
it is best to define a host whose availability is that
of the internet as a whole (e.g., 8.8.8.8, 8.8.4.4)
3.
Health monitor ICMP timeout
1/2/3/4/5/10 Seconds
The frequency at which ICMP requests are to be
sent. It is advised to set a higher value if your
connection has high latency or high jitter (latency
spikes)
4.
Attempts before failover
1/3/5/10/15/20
The number of failed ping attempts after which
the connection is to be declared as “down”
5.
Attempts before recovery
1/3/5/10/15/20
The number of successful ping attempts after
which the connection is to be declared as “up”
RUT955 User‘s Manual
Teltonika Solutions
7.2.3
How do I set up a backup link?
First you
must select a main link and choose one or two backup links in
button and configure your WAN and Backup Wan settings to your liking.
Click Save
after you have made your changes
WAN status in the Status -
> Network Information
something like this:
The above picture shows the status for
simulate a downed link by simply unplugging your Ethernet WAN cable. When you’ve done so you should see this:
When the main connection is down, all the traffic will go t
When you plug the cable back in
, the connection will be restored and the traffic will again go through the main WAN
interface (in this case, wired.)
must select a main link and choose one or two backup links in
the
WAN section. Then push the “Edit”
button and configure your WAN and Backup Wan settings to your liking.
after you have made your changes and wait until the settings are applied.
> Network Information
-
> WAN page. If everything is working correctly you should see
The above picture shows the status for
the Mobile
Backup WAN configured on a wired main link. You can now
simulate a downed link by simply unplugging your Ethernet WAN cable. When you’ve done so you should see this:
When the main connection is down, all the traffic will go t
hrough the backup WAN i
nterface (in this case, mobile.)
, the connection will be restored and the traffic will again go through the main WAN
74
WAN section. Then push the “Edit”
and wait until the settings are applied.
You can monitor main/backup
> WAN page. If everything is working correctly you should see
Backup WAN configured on a wired main link. You can now
simulate a downed link by simply unplugging your Ethernet WAN cable. When you’ve done so you should see this:
nterface (in this case, mobile.)
, the connection will be restored and the traffic will again go through the main WAN
RUT955 User‘s Manual
Teltonika Solutions
75
7.3 LAN
This page is used to configure the LAN network, where all your devices and computers that you connect to the
router will reside.
7.3.1
Configuration
7.3.1.1 General Setup
Field name
Sample value
Explanation
1.
IP address
192.168.56.1
IP address that the router uses on the LAN network
2
IP netmask
255.255.255.0
A mask used to define how “large’ the LAN network is
3.
IP broadcast
192.168.56.255
IP broadcasts are used by BOOTP and DHCP clients to find and
send requests to their respective servers
7.3.1.2 Advanced settings
Field name
Possible values
Explanation
1.
Accept router
advertisements
Enable/Disable
When enabled, this function allows accepting router
advertisements (disabled by default)
2.
Override MTU
0 - 1500
MTU (Maximum Transmission Unit) specifies the largest
possible size of a data packet
3.
Use gateway metric
Any integer
number
The LAN configuration generates an entry in the routing table.
In this field you can alter the metric of that entry. Higher metric
means higher priority
4.
Use WAN port as LAN
Enable/Disable
Lets you use the WAN port as if it were a LAN port
RUT955 User‘s Manual
Teltonika Solutions
76
7.3.2
DHCP Server
DHCP server is the router side service that can automatically configure the TCP/IP settings of any device that
requests such a service. If you connect a device that has been configured to obtain an IP address automatically the
DHCP server will lease out an IP address and the device will be able to communicate with the router.
7.3.2.1 General Setup
Field Name
Sample value
Explanation
1.
DHCP
Enable / Disable/
DHCP Relay
Enables or disables DHCP Server. If DHCP Relay is selected, you will be prompted
to enter an IP address of another DHCP server in your LAN. In this case,
Whenever a new device connects to the router, the router will redirect any DHCP
requests to the specified DHCP Server
2.
Start
100
The starting IP address value. e.g., if your router’s LAN IP is 192.168.2.1 and your
subnet mask is 255.255.255.0 that means that in your network a valid IP address
has to be in the range of [192.168.2.1 – 192.168.2.254](192.168.2.0 and
192.168.2.255 are special unavailable addresses). If the Start value is set to 100
then the DHCP server will only lease out addresses starting from 192.168.2.100
3.
Limit
150
How many addresses the DHCP server can lease out. Continuing from the above
example: if the start address is 192.168.2.100 and the server can lease out 150
(sample value) addresses starting from 192.168.2.100 and ending in
192.168.2.249 (100 + 150 – 1 = 249; this is because the first address is inclusive)
4.
Lease time
12
The duration of an IP lease. Leased out addresses will expire after the amount of
time specified in this field and the device that was using the lease will have to
send a new DHCP request to the router's DHCP server. However, if the device
stays connected, its lease will be renewed after half of the specified amount of
time passes, e.g., if the lease time is 12 hours, then every 6 hours the device will
send a request to the router asking to renew its lease. Lease time can be set in
hours or minutes. The minimal amount of time that can be specified is 2min
RUT955 User‘s Manual
Teltonika Solutions
77
7.3.2.2 Advanced settings
You can also define some advanced options that specify how the DHCP server will operate in your LAN network.
7.3.3
Static Leases
Static IP leases are used to reserve specific IP addresses for specific devices by binding them to their MAC address.
This is useful when you have a stationary device connected to your network that you need to reach frequently, e.g.,
printer, fax, etc.
Field Name
Sample Value
Explanation
1.
Dynamic DHCP
Enabled / Disabled
Enables Dynamic allocation of client addresses. If this is disabled,
only clients that have static IP leases will be served
2.
Enable DNS
rebind protection
Enabled / Disabled
Enables DNS rebind attack protection by discarding upstream
RFC1918 responses (leave default unless necessary otherwise)
3.
Force
Enabled / Disabled
By default the router’s DHCP server will not start when it is
connected to a network segment that already has a working DHCP
server. If enabled, the DHCP force function ensures that the router
will always start it’s DHCP server, even if there is another DHCP
server already running in the router’s network
4.
IP netmask
255.255.255.0
Overrides your LAN netmask thus making the DHCP server think that
it’s serving a larger or smaller network than it actually is
5.
DHCP Options
6,8.8.8.8.,8.8.4.4
Additional options to be added to the DHCP server. For example with
'26,1470' or 'option:mtu, 1470' you can assign an MTU per DHCP
Field Name
Sample Value
Explanation
1.
Hostname
Printer
A custom name that will be linked with the device
2.
MAC address
10:a5:d0:70:9c:72 (192.168.1.104)
Device’s MAC address
3.
IP address
192.168.1.104
The desirable IP address that will be reserved for the
specified device
RUT955 User‘s Manual
Teltonika Solutions
78
7.3.4
IP Aliases
7.3.4.1 General Setup
IP Aliases are a way of defining or reaching a subnet that works in the same space as the regular network. This is
useful if you need to reach the router that is located in the same network but in a different subnet. If you have a static
IP configuration on your computer and don’t want to change it every time you need to reach a router in a different
subnet, you can configure an IP alias in order to do so.
7.3.4.1 Advanced Settings
You may also optionally define a broadcast address and a custom DNS server.
You can find the directions on how to configure IP aliases in the WAN section of this document
RUT955 User‘s Manual
Teltonika Solutions
79
7.4 VLAN
The VLAN window provides you with the possibility to create and configure your own Virtual LAN networks, which
can either be Port based or Tag based.
7.4.1
VLAN Networks
7.4.1.1 VLAN Functionality
Field Name
Possible Values
Explanation
1.
VLAN mode
Disabled / Port based /
Tag based
Lets you choose the VLAN mode or disable VLAN functionality
7.4.1.2 Port based VLAN
Field Name
Possible Values
Explanation
1.
VLAN ID
1-4094
VLAN Identification number
2.
LAN ports
1 / 2 / 3
On / Off / Tagged
Switches the LAN port state
3.
Wireless
access points
Enabled / Disabled
Assign selected access point(s) to the selected LAN
4.
LAN
None / lan (default LAN
name)
Assign selected LAN ports and wireless access point(s) to a LAN
network
RUT955 User‘s Manual
Teltonika Solutions
80
7.4.1.3 Tagged based VLAN
Field Name
Possible Values
Explanation
1.
VLAN ID
1-4094
VLAN Identification number
2.
Wireless
access points
Enabled / Disabled
Assign selected access point(s) to the selected LAN
3.
LAN
None / lan (default LAN
name)
Assign selected wireless access point(s) to a LAN network
7.4.2
LAN Networks
In the LAN Networks page you can create extra LAN networks, and assign them with LAN Ports and wireless access
points. You can get extra information on how to configure any of your LAN settings in section 7.3 LAN.
Field Name
Sample Value
Explanation
1.
LAN name
Lan
Specifies LAN name
2.
Interface name
eth0 tap0
Specifies LAN interface name
RUT955 User‘s Manual
Teltonika Solutions
81
7.5 Wireless
The Wireless configuration window provides you with the possibility to configure your wireless access points and
wireless stations. The Wireless Station Mode will become active only when Wi-Fi is configured as an active WAN
interface (either main or backup.)
Above is the overview of the Wireless Configuration window. It displays active access points and stations. Here you
can disable or enable your Wi-Fi interfaces, remove unwanted access points or stations or enter a configuration window
for each Wi-Fi, where you can configure it more thoroughly.
7.5.1
Wireless Access Point
The Wireless Access Point configuration window is used to make changes to different access points. It is divided
into two main sections – device and interface. One is dedicated to configuring hardware parameters, the other –
software. To access this window, simply click the ‘edit’ button next to the Wi-Fi interface that you wish to configure:
7.5.1.1 Device Configuration
The Device Configuration section is used for configuring Wi-Fi hardware parameters.
7.5.1.1.1 General Setup
Here you can toggle the availability of the wireless radio and the physical channel frequency.
RUT955 User‘s Manual
Teltonika Solutions
82
7.5.1.1.2 Advanced Settings
7.5.1.2 Interface Configuration
7.5.1.2.1 General Setup
Field Name
Possible Values
Explanation
1.
Mode
Auto, 802.11b,
802.11g, 802.11g+n
Different modes provide different wireless standard support which
directly impacts the radio's throughput performance
2.
HT mode
20MHz / 40MHz 2nd
channel above
HT (High Throughput) mode. 40 MHz bandwidth provides better
performance
3.
Country code
Any ISO/IEC 3166
alpha2 country code
SO/IEC 3166 alpha2 country codes as defined in ISO 3166-1 standard
4.
Transmit power
20% / 40% / 60% /
80% / 100 %
Wi-Fi signal power
5.
Fragmentation
threshold
256-2346
The smallest packet size that can be fragmented and transmitted by
multiple frames. In areas were interference is a problem, setting a
lower fragment threshold might help reduce the probability of
unsuccessful packet transfers, thus increasing speed
6.
RTS/CTS threshold
0-2347
RTS/CTS (Request to Send/Clear to Send) are mechanisms, used to
reduce frame collisions introduced by the hidden node problem. It
can help resolve problems arising when several access points are in
the same area, contending
Field Name
Possible Values
Explanation
1.
SSID
any_name
The name of your Wi-Fi interface. When other Wi-Fi capable
computers or devices scan the area for Wi-Fi networks they will see
your network with this name
2.
Hide SSID
Enabled/Disabled
Will render your SSID hidden from other devices that try to scan the
area
RUT955 User‘s Manual
Teltonika Solutions
83
7.5.1.2.2 Wireless Security
The Wireless Security tab is used to determine what kind of encryption your WLAN will use. You can choose
between different types of WEP (Wireless Encryption Protocol) or WPA (Wi-Fi Protected Access.) WPA provides better
security because it uses improved data encryption through the temporal key integrity protocol (TKIP) but not all devices
support WPA and will work only with WEP type of encryption.
7.5.1.2.2.1 WEP
7.5.1.2.2.2 WPA
*Some authentication methods won’t support TKIP (and TKIP&CCMP) encryption
Field Name
Sample Value
Explanation
1.
Encryption*
WEP open system
The type of Wi-Fi encryption used
2.
User key slot
Key #1
Which key is used for authentication
3.
Key #1 / Key #2 /
Key #3 / Key #4
••••••••••
A 10 symbol custom key used for authentication
Field Name
Sample Value
Explanation
1.
Encryption*
WPA-PSK/WPA2-PSK
mixed mode
The type of Wi-Fi encryption used
2.
Cipher
Auto
An algorithm for performing encryption or decryption
3.
Key
••••••••••••
A custom passphrase used for authentication (at least 8 characters
long)
RUT955 User‘s Manual
Teltonika Solutions
84
7.5.1.2.3 MAC Filter
The MAC Filter tab is used for setting up rules that allow or exclude devices with specified MAC addresses from
connecting to your Wi-Fi network.
7.5.1.2.4 Advanced settings
Field Name
Sample Value
Explanation
1.
MAC address filter
Allow listed only /
Allow all except listed
Allow listed only – only allows devices with MAC addresses specified
in the MAC list to connect to your Wi-Fi network
Allow all except listed - blocks devices with MAC addresses
specified in the MAC list to connect to your W-Fi network
2.
Mac list
C0:11:73:94:E8:E5
List of MAC addresses to be included or excluded from connecting to
your Wi-Fi network
Field Name
Sample Value
Explanation
1.
Separate clients
Enabled / Disabled
Prevents Wi-Fi clients from communicating with each other on the
same subnet
2.
Increase TTL
packet size
Enabled / Disabled
Increase TTL packet size for incoming packets
RUT955 User‘s Manual
Teltonika Solutions
85
7.5.2
Wireless Station
RUT955 can also work as a Wi-Fi client. Configuring client mode is nearly identical to AP, except for the fact that
most of the options are dictated by the wireless access point that the router is connecting to. Changing them can result
in an interrupted connection to that AP.
In addition to standard options you can also click the Scan button to rescan the surrounding area and attempt to
connect to a new wireless access point.
After which you will be redirected to the window shown below.
Pressing Start scan will initiate a scan for available Wi-Fi Access Points in the area. After the scan finishes, you will
see a list of these Access points. Choose one according to your liking and press the Join Network button next to it.
RUT955 User‘s Manual
Teltonika Solutions
86
7.6 Firewall
In this section we will look over the various firewall features that come with RUT955.
7.6.1
General Settings
The router’s firewall is a standard Linux iptables package, which uses routing chains and policies to facilitate control
over inbound and outbound traffic.
Field Name
Possible values
Explanation
1.
Drop Invalid
packets
Checked/Unchecked
A “Drop” action is performed on a packet that is determined to be invalid
2.
Input
Reject/Drop/Accept
DEFAULT* action that is to be performed for packets that pass through the
Input chain
3.
Output
Reject/Drop/Accept
DEFAULT* action that is to be performed for packets that pass through the
Output chain
4.
Forward
Reject/Drop/Accept
DEFAULT* action that is to be performed for packets that pass through the
Forward chain
*DEFAULT: When a packet goes through a firewall chain it is matched against all the rules of that specific chain. If no rule matches said packet, an according
Action (Drop, Reject or Accept) is performed
Accept – Packet gets to continue down to the next chain;
Drop – Packet is stopped and deleted;
Reject – Packet is stopped, deleted and, differently from Drop, an ICMP packet containing a message of rejection is
sent to the source of the dropped packet.
RUT955 User‘s Manual
Teltonika Solutions
87
7.6.2
DMZ
By enabling DMZ for a specific internal host (e.g., your computer), you will expose that host and its services to the
router’s WAN network (i.e. – the internet.)
Field Name
Possible values
Explanation
1.
Enable
Checked/Unchecked
Enables DMZ
2.
DMZ host IP
address
Any IP address from
your LAN
Internal host to which the DMZ rule will be applied
7.6.3
Zone Forwarding
A zone section groups one or more interfaces and serves as a source or destination for forwardings, rules and
redirects. The Zone Forwarding window allows you to configure these forwardings.
Field Name
Sample value
Explanation
1.
Source zone
vpn: openvpn
The source zone from which data packets will redirected from
2.
Destination zones
lan
The destination zone to which data packets will be redirected to
3.
Default
forwarding action
reject
Action to be performed with the redirected packets
RUT955 User‘s Manual
Teltonika Solutions
88
7.6.4
Port Forwarding
The Port Forwarding window is used to set up servers and services on local LAN machines. The picture below shows
how you can set up a rule that would allow a website that is being hosted on 192.168.1.109, to be reached from the
outside by entering http://routersExternalIp:12345/
Field Name
Possible values
Explanation
1.
Name
New rule’s name
Name of the rule, used purely to make rule
management easier
2.
Protocol
TCP/UDP/TCP+UDP/Other
Type of protocol of incoming packet
3.
External Port
1800 or 2000-2200
From this port on the WAN network the traffic will be
forwarded
4.
Internal IP address
IP address of some device on your
LAN
The IP address of the internal machine that hosts
some service that we want to access from the outside
5.
Internal port
1800 or 2000-2200
The rule will redirect the traffic to this port on the
internal machine
RUT955 User‘s Manual
Teltonika Solutions
When you click edit
you can fine tune a rule to near perfec
Field Name
Possible values
1.
Name
rule’s name
2.
Protocol
TCP/UDP/TCP+
UDP/ICMP/Custom
3.
Source zone
gre/hotspot/l2tp/lan
4.
Source MAC address
Any MAC address
5.
Source IP address
Any IP address or range of IPs
7.
Source port
Any port
8.
External IP address
Any external IP address
9.
External port
Any external port
you can fine tune a rule to near perfection, if you should desire that:
values
Explanation
Name of the rule
TCP/UDP/TCP+
UDP/ICMP/Custom
You may specify multiple by selecting
then entering protocols separated by space
gre/hotspot/l2tp/lan/pptp/vpn/wan
Match incoming traffic from this zone only
MAC address
Match incoming traffic from these MACs only
IP address or range of IPs
Match incoming traffic from this IP or range only
Match incoming traffic originating from the given
source port or port range on the client host only
external IP address
Match incoming traffic directed at the given IP
address only
Any external port
Match incoming traffic directed at the given
destination port or port range on this host only
89
tion, if you should desire that:
You may specify multiple by selecting (custom) and
then entering protocols separated by space
Match incoming traffic from this zone only
Match incoming traffic from these MACs only
Match incoming traffic from this IP or range only
Match incoming traffic originating from the given
source port or port range on the client host only
Match incoming traffic directed at the given IP
Match incoming traffic directed at the given
destination port or port range on this host only
RUT955 User‘s Manual
Teltonika Solutions
90
10.
Internal zone
gre/hotspot/l2tp/lan/pptp/vpn/wan
Redirect matched incoming traffic to the specified
internal zone
11.
Internal IP address
Any Internal IP address
Redirect matched incoming traffic to the specified
internal host
12.
Internal port
Any port
Redirect matched incoming traffic to the given port
on the internal host
13.
Enable NAT loopback
Enable/Disable
NAT loopback enables your local network (i.e.
behind your router/modem) to connect to a
forward-facing IP address (such as 208.112.93.73) of
a machine that it also on your local network
14.
Extra arguments
-
Passes additional arguments to iptables. Use with
care!
RUT955 User‘s Manual
Teltonika Solutions
91
7.6.5
Traffic Rules
The Traffic Rules page contains a more generalized rule definition. With it you can block or open ports, alter how
traffic is forwarded between LAN and WAN and many more things.
Field Name
Explanation
1.
Name
Name of the rule. Used for easier rule management purposes
2.
Protocol
Protocol type of incoming or outgoing packet
3.
Source
Match incoming traffic from this IP or range only
4.
Destination
Redirect matched traffic to the given IP address and destination port
5.
Action
Action to be performed with the packet if it matches the rule
6.
Enable
Uncheck to make the rule inactive. The rule will not be deleted, but it also will not be loaded
into the firewall
7.
Sort
When a packet arrives, it gets checked for a matching rule. If there are several rules that
match the rule, the first one is applied, i.e., the order of the rule list impacts how your firewall
operates, therefore you are given the ability to sort your list however you want
RUT955 User‘s Manual
Teltonika Solutions
When you click edit
you can fine tune a rule to near perfec
Field Name
Possible values
1.
Name
Rule’s name
2.
Restrict to address
family
IPv4 and IPV6 / IPv4 only
/ IPv6 only
3.
Protocol
TCP / UDP / Any / ICMP /
Custom
4.
Match ICMP type
Any
5.
Source zone
Any zone / gre / hotspot /
l2tp / lan / pptp / vpn /
wan
6.
Source MAC address
Any MAC address
7.
Source address
Any IP address or range
8.
Source port
Any port
you can fine tune a rule to near perfec
tion,
if you should desire that:
Possible values
Explanation
Rule’s name
Used to make rule management easier
IPv4 and IPV6 / IPv4 only
/ IPv6 only
Match traffic from selected address family only
TCP / UDP / Any / ICMP /
Protocol of the packet that is being matched against traffic
rules
Match traffic with selected ICMP type only
zone / gre / hotspot /
l2tp / lan / pptp / vpn /
Match incoming traffic from the selected zone only
Any MAC address
Match incoming traffic from these MACs only
Any IP address or range
Match incoming traffic from this IP or range only
Match incoming traffic originating from the given source
port or port range on the client host only
92
if you should desire that:
Used to make rule management easier
Match traffic from selected address family only
Protocol of the packet that is being matched against traffic
Match traffic with selected ICMP type only
incoming traffic from the selected zone only
Match incoming traffic from these MACs only
Match incoming traffic from this IP or range only
incoming traffic originating from the given source
port or port range on the client host only
RUT955 User‘s Manual
Teltonika Solutions
93
9.
Destination zone
Device/Any
zone/LAN/VPN/WAN
Match forwarded traffic to the given destination zone only
10.
Destination address
any
Match forwarded traffic to the given destination IP address
or IP range only
11.
Destination port
67
Match forwarded traffic to the given destination port or
port range only
12.
Action
Drop/Accept/Reject +
chain + additional rules
Action to be taken on the packet if it matches the rule. You
can also define additional options like limiting packet
volume, and defining to which chain the rule belongs
7.6.5.1 Open Ports On Router
Field Name
Sample value
Explanation
1.
Name
Open_Port_Rule
Name of the rule, used for easier management
2.
Protocol
TCP/UDP/Any/ICMP/Custom
Protocol of the packet that is being matched against
traffic rules
3.
External port
1-65535
Match incoming traffic directed at the given destination
port or port range on this host
RUT955 User‘s Manual
Teltonika Solutions
94
7.6.5.2 New Forward Rule
Field Name
Possible values
Explanation
1.
Name
Rule’s name
Name of the rule, used for easier management
2.
Source
GRE / HOTSPOT / L2TP / LAN
/ PPTP / VPN / WAN
Match incoming traffic from selected address family only
3.
Destination
GRE / HOTSPOT / L2TP / LAN
/ PPTP / VPN / WAN
Forward incoming traffic to selected address family only
7.6.5.3 Source NAT
Source NAT is a specific form of masquerading which allows fine grained control over the source IP used for
outgoing traffic, for example to map multiple WAN addresses to internal subnets.
Field Name
Possible values
Explanation
1.
Name
Rule’s name
Name of the rule, used for easier management
2.
Protocol
TCP/UDP/Any/ICMP/Custom
Protocol of the packet that is being matched against traffic rules
3.
Source
GRE / HOTSPOT / L2TP / LAN /
PPTP / VPN / WAN
Match incoming traffic from selected address family only
4.
Destination
GRE / HOTSPOT / L2TP / LAN /
PPTP / VPN / WAN
Forward incoming traffic to selected address family only
5.
SNAT
Rewrite to source IP
192.168.55.55, port 15465
SNAT (Source Network Address Translation) rewrites packet's
source IP address and port
6.
Enable
Enable/Disable
Makes the rule active/inactive
RUT955 User‘s Manual
Teltonika Solutions
You can configure firewall source NAT rule
Field Name
Sample value
1.
Name
Rule’s name
2.
Protocol
All protocols / TCP / UDP /
TCP+UDP / ICMP / Custom
3.
Source zone
Any zone / gre / hotspot /
l2tp / lan / pptp / vpn / wan
4.
Source MAC address
Any MAC address
5.
Source address
Any IP address
6.
Source port
Any port
You can configure firewall source NAT rule
s, by clicking the edit button next to them:
Sample value
Explanation
Rule’s name
Name of the rule, used for easier management
All protocols / TCP / UDP /
TCP+UDP / ICMP / Custom
Protocol of the packet that is being matched against
traffic rules
zone / gre / hotspot /
l2tp / lan / pptp / vpn / wan
Match incoming traffic from the selected zone only
Any MAC address
Match incoming traffic from these MACs only
Any IP address or range
Match incoming traffic from this IP or range only
Match incoming traffic originating from the given source
port or port range on the client host only
95
Name of the rule, used for easier management
Protocol of the packet that is being matched against
Match incoming traffic from the selected zone only
Match incoming traffic from these MACs only
Match incoming traffic from this IP or range only
Match incoming traffic originating from the given source
port or port range on the client host only
RUT955 User‘s Manual
Teltonika Solutions
96
7.
Destination zone
Device/Any
zone/LAN/VPN/WAN
Match forwarded traffic to the given destination zone
only
8.
Destination address
Any IP address
Match forwarded traffic to the given destination IP
address or IP range only
9.
Destination port
Any port
Match forwarded traffic to the given destination port or
port range only
10.
SNAT IP address
Any IP address
Rewrite matched traffic to the given IP address
11.
SNAT port
Any port
Rewrite matched traffic to the given source port. May be
left empty to only rewrite the IP address
12.
Extra arguments
Passes additional arguments to iptables. Use with care!
RUT955 User‘s Manual
Teltonika Solutions
97
7.6.6
Custom Rules
The custom rules page provides with the ultimate freedom in defining your rules – you can enter them straight into
the iptables program. Just type them out into the text field ant it will get executed as a Linux shell script. If you are
unsure of how to use iptables, check out the Internet for manuals, examples and explanations.
RUT955 User‘s Manual
Teltonika Solutions
98
7.6.7
DDOS Prevention
The DDOS prevention page allows you to set up protections from various types of DDOS attacks. You will find
information on all of these methods bellow.
7.6.7.1 SYN Flood Protection
SYN Flood Protection allows you to protect yourself from attacks that exploit part of the normal TCP three-way
handshake to consume resources on the targeted server and render it unresponsive. Essentially, with SYN flood DDOS,
the offender sends TCP connection requests faster than the targeted machine can process them, causing network
oversaturation.
Field Name
Possible values
Explanation
1.
Enable SYN flood protection
Enable/Disable
Makes router more resistant to SYN flood attacks
2.
SYN flood rate
Integer numbers
Set rate limit (packets per second) for SYN packets above
which the traffic is considered flooded
3.
SYN flood burst
Integer numbers
Set burst limit for SYN packets above which the traffic is
considered flooded if it exceeds the allowed rate
4.
TCP SYN cookies
Enable/Disable
Enable the use of SYN cookies (particular choices of
initial TCP sequence numbers by TCP servers)
RUT955 User‘s Manual
Teltonika Solutions
99
7.6.7.2 Remote ICMP requests
Some attackers use ICMP echo request packets directed to IP broadcast addresses from remote locations to
generate denial-of-service attacks.
Field Name
Possible values
Explanation
1.
Enable ICMP requests
Enable/Disable
Blocks remote ICMP echo-request type
2.
Enable ICMP limit
Enable/Disable
Enable ICMP echo-request limit in selected period
3.
Limit period
Second/Minute/Hour/Day
Select ICMP echo-request period limit.
4.
Limit
Integer numbers
Maximum ICMP echo-request number during the period
5.
Limit burst
Integer numbers
Indicate the maximum burst before the above limit kicks
in
7.6.7.3 SSH Attack Prevention
Prevent SSH (allows a user to run commands on a machine's command prompt without them being physically
present near the machine) attacks by limiting connections in a defined period.
Field Name
Possible values
Explanation
1.
Enable SSH limit
Enable/Disable
Enable SSH connection limit in a selected period
2.
Limit period
Second/Minute/Hour/Day
The period in which SSH connections are to be limited
3.
Limit
Integer numbers
Maximum SSH connections during the set period
4.
Limit burst
Integer numbers
Indicate the maximum burst before the above limit kicks
in
RUT955 User‘s Manual
Teltonika Solutions
100
7.6.7.4 HTTP Attack Prevention
An HTTP attack sends a complete, legitimate HTTP header, which includes a 'Content-Length' field to specify the
size of the message body to follow. However, the attacker then proceeds to send the actual message body at an
extremely slow rate (e.g. 1 byte/110 seconds.) Due to the entire message being correct and complete, the target server
will attempt to obey the 'Content-Length' field in the header, and wait for the entire body of the message to be
transmitted, hence slowing it down.
Field Name
Possible values
Explanation
1.
Enable HTTP limit
Enable/Disable
Limits HTTP connections per set period of time
2.
Limit period
Second/Minute/Hour/Day
The period in which HTTP connections are to be limited
3.
Limit
Integer number
Maximum HTTP connections during the set period
4.
Limit burst
Integer number
The maximum burst before the above limit kicks in
7.6.7.5 HTTPS Attack Prevention
Field Name
Possible values
Explanation
1.
Enable HTTPS limit
Enable/Disable
Limits HTTPS connections per set period of time
2.
Limit period
Second/Minute/Hour/Day
The period in which HTTPS connections are to be limited
3.
Limit
Integer number
Maximum HTTPS connections during the set period
4.
Limit burst
Integer number
The maximum burst before the above limit kicks in
RUT955 User‘s Manual
Teltonika Solutions
101
7.6.8
Port Scan Prevention
7.6.8.1 Port Scan
Field Name
Possible values
Explanation
1.
Enable
Enable/Disable
Enables port scan prevention
2.
Interval
10-60
Time interval in seconds in which port scans are counted
3.
Scan count
5-65534
How many port scans before blocked
7.6.8.1 Defending type
Field Name
Explanation
1.
SYN-FIN attack
Protects from SYN-FIN attack
2.
SYN-RST attack
Protects from SYN-RST attack
3.
X-Mas attack
Protects from X-Mas attack
4.
FIN scan
Protects from FIN scan
5.
NULLflags attack
Protects from NULLflags attack
RUT955 User‘s Manual
Teltonika Solutions
102
7.7 Routing
7.7.1
Static Routes
Static routes specify over which interface and gateway a certain host or network can be reached. In this page you
can configure your own custom routes.
Field name
Possible values
Explanation
1.
Routing table
MAIN/WAN/WAN2/WAN3
Defines which table will be used for the route in question
2.
Interface
MAIN/WAN/WAN2/WAN3
The zone where the target network resides
3.
Destination
address*
IP address
The address of the destination network
4.
Netmask*
IP mask
Mask that is applied to the Target to determine to what actual
IP addresses the routing rule applies
5.
Gateway
IP address
Where the router should send all the traffic that applies to the
rule
6.
Metric
integer
Used as a sorting measure. If a packet about to be routed fits
two rules, the one with the higher metric is applied
*Additional notes on Destination & Netmask:
You can define a rule that applies to a single IP like this: Destination - some IP; Netmask - 255.255.255.255.
Furthermore, you can define a rule that applies to a segment of IPs like this: Destination – some IP that STARTS the
segment; Netmask – Netmask that defines how large the segment is. e.g.:
192.168.55.161
255.255.255.255
Only applies to 192.168.55.161
192.168.55.0
255.255.255.0
Applies to IPs in the 192.168.55.0 - 192.168.55.255 range
192.168.55.240
255.255.255.240
192.168.55.240 - 192.168.55.255
192.168.55.161
255.255.255.0
192.168.55.0 - 192.168.55.255
192.168.0.0
255.255.0.0
192.168.0.0 - 192.168.255.255
RUT955 User‘s Manual
Teltonika Solutions
103
7.7.1.1 Static ARP entries
Static ARP entries are used to bind a MAC address to a specific IP address. For example, if you want some device to
get the same IP every time it connects to the router, you can create a Static ARP entry by binding that device’s MAC
address to a desired IP address. The router will then create an entry in the ARP table, which in turn make sure that that
device will get the specified IP address every time.
7.7.2
Dynamic Routes
7.7.2.1 General
Dynamic routing enables the router to select paths according to real-time logical network layout changes.
Field name
Value
Explanation
1.
Enable
Enable/Disable
Enable dynamic routes
2.
Router ID
192.168.1.1
Router’s ID
RUT955 User‘s Manual
Teltonika Solutions
104
7.7.2.2 BGP Protocol
Border Gateway Protocol (BGP) is a standardized exterior gateway protocol designed to exchange routing and
reachability information among autonomous systems (AS) on the Internet. The protocol is often classified as a path
vector protocol but is sometimes also classed as a distance-vector routing protocol. The Border Gateway Protocol makes
routing decisions based on paths, network policies, or rule-sets configured by a network administrator and is involved in
making core routing decisions.
7.7.2.2.1 BGP Templates
You can create a BGP template by typing in a name (BGP template names can only contain letters) in the text bar
and pressing the “Add” button next to it.
This action will create a new template with your given name. You can then start configuring your BGP template by
pressing the “Edit” button next to it.
After this you will be redirecting to the BGP protocol's configuration window where you can configure your new
BGP protocol in detail.
RUT955 User‘s Manual
Teltonika Solutions
105
7.7.2.2.2 Bird4 BGP protocol‘s configuration
Field Name
Value
Explanation
1.
Local BGP address
192.168.56.1
2.
Local AS
100
3.
Import
All
4.
Export
All
5.
Source address
192.168.1.1
6.
Next hop self
Enabled/Disabled
7.
Next hop keep
Enabled/Disabled
8.
Route Reflector server
Enabled/Disabled
9.
Route Reflector
Cluster ID
10.
Routes import limit
0
11.
Routes import limit
action
Warn
12.
Routes export limit
0
13.
Routes export limit
action
Warn
14.
Routes received limit
0
15.
Routes received limit
action
warn
RUT955 User‘s Manual
Teltonika Solutions
106
7.7.2.3 BGP Instances
You can create a BGP instance by typing in a name (BGP instance names can only contain letters) in the text bar and
pressing the “Add” button next to it.
Your instance is now created and should be visible in the BGP Instances tab.
Field name
Value
Explanation
1.
Enable
Enable/Disable
Enable or disable the BGP instance
2.
Template
Test
Select which BGP template the instance will use
3.
Neighbour IP
Address
192.168.90.66
IP address of a neighboring device
4.
Neihgbour AS
100
Neighboring device’s autonomous system
RUT955 User‘s Manual
Teltonika Solutions
107
7.7.2.4 OSPF Protocol
Open Shortest Path First (OSPF) is a routing protocol for Internet Protocol (IP) networks. It uses a link state routing
(LSR) algorithm and falls into the group of interior gateway protocols (IGPs), operating within a single autonomous
system (AS). It is defined as OSPF Version 2 in RFC 2328 (1998) for IPv4.
7.7.2.4.1 OSPF General Instance
Field name
Value
Explanation
1.
Enable
Enable/Disable
Enables OSPF protocol
2.
Stub
Enable/Disable
Changes the area to stub
3.
RFC1583
compatibility
Enable/Disable
Enables OSPF compatibility with RFC1583 specification
4.
Import
All/None/custom
Set if the protocol must import routes
5.
Export
All/None/custom
Set if the protocol must export routes
7.7.2.4.2 OSPF Area
The OSPF network can be divided into sub-domains called areas.
Field name
Value
Explanation
1.
Area name
1
OSPF area’s name. Area instance name must be a number
2.
Enable
Yes/No
Enable/disable OSPF area
RUT955 User‘s Manual
Teltonika Solutions
108
To configure the OSPF area, press the “edit” button located next to it.
This action will redirect you to the OSPF are configuration window.
Field name
Value
Explanation
1.
Enabled
Enable/Disable
Enable or disable the OSPF area
2.
Stub
Enable/Disable
Enable/disable stub
3.
Interface
br-lan
An interface that the area will use
4.
New IP
192.168.56.0
IP addresses of the OSPF networks that are a part of the OSPF area
RUT955 User‘s Manual
Teltonika Solutions
109
7.7.2.2.2.1 OSPF Interface
Field Name
Value
Explanation
1.
Cost
10
2.
Hello
10
3.
Poll
20
4.
Retransmit
5
5.
Priority
1
6.
Wait
40
7.
Dead count
3
8.
Dead
30
9.
RX buffer
Normal
10.
TX length
100
11.
Type
Broadcast
12.
Authentication
None
RUT955 User‘s Manual
Teltonika Solutions
110
7.7.2.5 General Protocols
The general protocols window lets you configure Kernel Options, Device Options and Static Routes
7.7.2.5.1 Kernel Options
Field name
Value
Explanation
1.
Enable
Enable/Disable
Enable/Disable settings
2.
Learn
Enable/Disable
Enables route learning
3.
Persist
Enable/Disable
Store routes. After a restart, routes will still be configured
4.
Scan time
20
Time between scans
5.
Import
All
Set if the protocol must import routes
6.
Export
All
Set if the protocol must export routes
7.7.2.5.2 Device Options
Field name
Value
Explanation
1.
Enable
Enable/Disable
If checked the protocol will not be configured
2.
Scan time
10
Time between scans
RUT955 User‘s Manual
Teltonika Solutions
111
7.7.2.5.3 Static Routes
Field name
Explanation
1.
Prefix
Protocol prefix of incoming or outgoing packet
2.
Type
Protocol type of incoming or outgoing packet
3.
Add
Add a new Static Route
7.7.2.2.2.2 Static Route configuration
You can configure your new static routes in detail by pressing the “Edit” button next to them.
This action will redirect you to the Static Route’s configuration window.
Field name
Value
Explanation
1.
Disabled
Checked/Unchecked
If this option is true, the protocol will not be configured
2.
Route
instance
Static
3.
Route prefix
Prefix
4.
Type of route
Router
5.
Via
6.
Reject
Checked/Unchecked
RUT955 User‘s Manual
Teltonika Solutions
112
7.8 Load Balancing
Load balancing lets users create rules that divide traffic between different interfaces.
To configure a rule, click the “edit” button located next to it.
This action will redirect you to the rule’s configuration window.
Here you can define the ratio of each WAN interface. In the example above we can see that the mobile interface’s
ratio is 3, and the wired interface’s ratio is 2. This means that
of all traffic will go through the mobile interface, and
will go through the wired interface. After you’ve finished configuring you Load Balancing rules, go the WAN section and
activate Load Balancing for the desired interface.
RUT955 User‘s Manual
Teltonika Solutions
113
8 Remote monitoring and administration
RUT955 supports multiple monitoring and administration possibilities. One can get router’s information through
SMS or using RMS (Remote Management System). Furthermore, some system related parameters can be obtained using
MQTT or MODBUSD publisher services. Instruction on how to use them can be found in 9.19 and 9.20 chapters of this
document respectively. The main focus is on parameters, which change from time to time, like signal strength,
operator’s name (it is quite common to change operator’s name in countries where inner roaming is used) or module
temperature. Although it is also possible to read static values, like MAC address, router’s serial number and many others.
The access to the mentioned parameters is implemented in both MODBUSD and MQTT publisher applications. Apart
from getting parameters, MODBUSD can also be used to set some system related parameters, for example, it can be
used to change the value of the digital output.
Some applications, like MQTT publisher or RMS, allow monitoring or administrating several routers at once. It is a
very useful functionality when you want to change the same parameters on more than one router at once. RMS shares
some similarities with SSH (Secure Shell) and one of RMS features is to allow SSH access to a remote router. There is no
separate chapter about RMS in this manual, because the interface of RMS is very intuitive and user friendly. You can
access RMS by using your browser with a supplied username and a password at http://rms.teltonika.lt
By sending SMS messages to the router the user can execute various commands like reboot, switch Wi-Fi on or off
and many others. With each SMS the user needs to specify the router’s administrator password. This is done for
authentication purposes. The list of commands that may be executed through SMS is limited. Full list of commands can
be found at Services->SMS Utilities of the router’s WEB page. More information on how to manage the router using SMS
can be found in chapter 9.8 of this document.
Another interesting router monitoring solution is SNMP (Simple Network Management Protocol). By not going
into deep detail about this protocol, it is another manner to monitor router parameters. It allows the user to check the
current operator, modem model and other router parameters. Compared to other applications and services, only SNMP
has ability to inform the user about the occurrence of specific events (called traps) in the system. The main drawback of
this protocol is that it does not allow the user to change anything. You can read more about SNMP in chapter 9.9.
Apart from the services mentioned earlier, there is one service, which is used only for communication between
the router and an Android type device (phones, etc.). It is called JSON-RPC and it allows the user to set or get various
parameters of the system. JSON-RPC provides users with the possibility to execute the same commands as they would
through SSH. To sum up, this approach opens up wide possibilities in communication between the router and an
Android device. However, there is no separate topic about JSON-RPC in this manual, because this type of
communication is generally not for end-user use.
Each approach has its advantages and disadvantages. In some situations MQTT publisher works better than
MODBUSD, while in others MODBUSD will be the better choice. The most versatile manner of system monitoring and
administration is through SSH. SSH provides complete control of the router. The user can execute commands, write shell
scripts and do many other things. In such case, the user only needs an application to connect to the router through SSH.
The most popular application used in Windows type operating systems is called Putty. If one is trying to connect to the
router from a UNIX type operating system, all that is needed is the hostname, username (in this case – root) and
password.
Sometimes the use of SSH is not necessary, so other more conservative services/applications are used. The
complete list of applications and services that can be used for router administration and monitoring is given below. It
can be seen that all applications, except MQTT publisher and SNMP, support setting/getting of some system related
parameters.
RUT955 User‘s Manual
Teltonika Solutions
114
Application
Can obtain parameters
Can set parameters
1.
MQTT publisher
o
2.
MODBUS daemon
3.
SSH
4.
RMS
5.
SMS
6.
SNMP
o
7.
JSON-RPC
8.
TR-069
To summarize, RUT955 provides several solutions for router management. Each user can choose what solution to
use. If the required functionality is not supported be a particular service, the user can combine several applications, for
example, use MQTT publisher along with SNMP. Finally, if a user has special needs, he can write shell scripts and
execute them via SSH or use JSON-RPC.
RUT955 User‘s Manual
Teltonika Solutions
115
9 Services
9.1 VRRP
The Virtual Router Redundancy Protocol (VRRP) is a computer networking protocol that provides for automatic
assignment of available Internet Protocol (IP) routers to participating hosts. This increases the availability and reliability
of routing paths via automatic default gateway selections on an IP subnetwork.
9.1.1
VRRP LAN Configuration Settings
Field name
Sample
Explanation
1.
Enable
Enable/Disable
Enable or disable VRRP for LAN
2.
IP address
192.168.1.253
Virtual IP address for LAN's VRRP cluster
3.
Virtual ID
1
Routers with same IDs will be grouped in the same VRRP cluster,
range [1-255]
4.
Priority
100
The router with the highest priority value on the same VRRP cluster
will act as a master, range [1-255]
9.1.2
Check Internet connection
Field name
Possible values
Explanation
1.
Enable
Enable/Disable
Enable WAN's connection monitoring
2.
Ping IP address
8.8.4.4
A host to send ICMP packets to
3.
Ping interval
Any integer number
Time interval in seconds between two Pings
4.
Ping timeout (sec)
1 – 9999
Response timeout value
5.
Ping packet size
0 – 1000
ICMP packet's size
6.
Ping retry count
1 – 9999
Failed Ping attempt count before determining that the connection is
lost
RUT955 User‘s Manual
Teltonika Solutions
116
9.2 TR-069
TR-069 is a standard developed for automatic configuration and management of remote devices by Auto
Configuration Servers (ACS).
9.2.1
TR-069 Parameters Configuration
Field name
Possible values
Explanation
1.
Enable
Enabled/Disabled
Enable TR-069 client
2.
Periodic enable
Enabled/Disabled
Enable periodic transmissions of data to server
3.
Accept server request
Enabled/Disabled
Check to accept connection requests from server
4.
Sending interval
60-9999999
Periodic data transmission interval
5.
User name
admin
User name used for authentication on a TR-069 server
6.
Password
********
Password used for authentication on a TR-069 server
7.
URL
http://192.168.1.110:8080/
TR-069 server’s URL address
RUT955 User‘s Manual
Teltonika Solutions
117
9.3 Web filter
9.3.1
Site Blocking
Site Blocking provides you with the possibility to block unwanted websites.
Field name
Possible values
Explanation
1.
Enable
Enable/Disable
Enable host name based website blocking
2.
Mode
Whitelist/Blacklist
Whitelist - allow every site on the list and block everything else. Blacklist -
block every site on the list and allow everything else
3.
Enable
Enable/Disable
Enable block/allow for that specific entry
4.
Host name
www.facebook.com
Block/allow site with this hostname
9.3.2
Proxy Based Content Blocker
Proxy Based Content Blocker works in a similar manner to Site Blocking, except with Content Blocker you have the
ability to filter out content with more versatility.
Field name
Sample
Explanation
1.
Enable
Enable/Disable
Enable proxy server based URL content blocking. Works with HTTP protocol
only
2.
Mode
Whitelist/Blacklist
Whitelist - allow every part of a URL on the list and block everything else.
Blacklist - block every part of a URL on the list and allow everything else
3.
URL
content
*.facebook.*
Block/allow any URL containing this string. The asterisk can stand for anything,
e.g., www.facebook.* would block www.facebook.net, www.facebook.com,
www.facebook.org, etc.
RUT955 User‘s Manual
Teltonika Solutions
118
9.4 MQTT
9.4.1
MQTT Broker
MQTT also known as MQ Telemetry Transport is a publisher-subscriber based messaging protocol for use on top of
the TCP/IP protocol. It is designed to send short messages from one client (publisher) to another (subscriber) through
brokers, which are responsible for message delivery to the end point. RUT955 routers support this functionality via an
open source Mosquitto broker. The messages are sent this way: a client (subscriber) subscribes to a topic(s); a publisher
posts a message to that specific topic(s). The broker then checks who is subscribed to that particular topic(s) and
transmits data from the publisher to the subscriber.
The MQTT Broker can be enabled by checking Enable. The Broker will then “listen” for connections on the specified
Local port. In order to accept connections from WAN, you also need to check Enable Remote Access.
Field name
Possible Values
Explanation
1.
Enable
Enabled/Disabled
Enable MQTT Broker
2.
Local port
0 – 65535
Specify the local port that MQTT broker will listen to
3.
Enable remote access
Enabled/Disabled
If enabled, your MQTT broker will be reachable from remote (WAN)
clients
9.4.1.1 MQTT Broker Security
In order to use TLS/SSL authentication for client-broker-client communications, you must check Use TLS/SSL. After
that, additional settings will be displayed to the user as shown in the figure below.
Field name
Sample
Explanation
1.
Use TLS/SSL
Checked/Unchecked
Enable TLS/SSL authentication for the broker
2.
CA File
-
Upload a CA file
3.
CERT File
-
Upload a CERT file
4.
Key File
-
Upload a Key file
5.
TLS version
tlsv1/tlsv1.1/tlsv1.2/Support all
Select which TLS version the broker will use
RUT955 User‘s Manual
Teltonika Solutions
119
9.4.1.2 MQTT Bridge
The MQTT Broker also supports a functionality called Bridge. An MQTT Bridge is used for the communication of two
MQTT Brokers. The window of Bridge parameters is presented below. Some of these are mandatory as they are needed
to create a connection: Connection Name, Remote Address and Remote Port. For more information on MQTT Bridge
parameters you can read the official mosquitto.conf manual page.
Field name
Possible Values
Explanation
1.
Enable
Checked/Unchecked
Enable MQTT Bridge
2.
Connection
Name
Any name
Name of the Bridge connection. Although this is used for easier
management purposes, this field is mandatory
3.
Remote Address
Any remote IP address
Remote Broker’s address
4.
Remote Port
0 – 65535
Select which port the broker should use to listen for connections
5.
Use Remote
TLS/SSL
Checked/Unchecked
Select this to use TSL/SSL certificates of the remote broker
6.
Use Remote
Bridge Login
Checked/Unchecked
Select this to use Remote login data. If checked, you will be
prompted to enter a remote client ID, username and password
7.
Topic
Any existing Topic name
Enter the names of the Topics that your Broker will subscribe to
8.
Try Private
Checked/Unchecked
Check if the remote Broker is another instance of a daemon
9.
Clean Session
Checked/Unchecked
Check to discard session state after connecting or disconnecting
RUT955 User‘s Manual
Teltonika Solutions
120
9.4.1.3 Miscellaneous
The last section of MQTT Broker parameters is called Miscellaneous. It contains parameters that are related to
neither Security nor Bridge.
Field name
Sample
Explanation
1.
ACL File
-
The contents of this file are used to control client access to topics of
the broker
2.
Password File*
-
The Password stores user names and corresponding passwords, used
for authentication
3.
Persistence*
Checked/Unchecked
If checked, connection, subscription and message data will be written
to the disk. Otherwise, the data is stored in the router’s memory only
4.
Allow Anonymous
Checked/Unchecked
If checked, the Broker allows anonymous access
* More on ACL and Password files can be read in the Mosquitto configuration manual.
RUT955 User‘s Manual
Teltonika Solutions
121
9.4.2
MQTT Publisher
An MQTT Publisher is a client that sends messages to the Broker, who then forwards these messages to the
Subscriber.
Field name
Sample
Explanation
1.
Enable
Checked/Unchecked
Enables the router to act as an MQTT Publisher. The other MQTT
Publisher parameters will appear only if this is checked
2.
Hostname
IP address or
hostname
Broker’s IP address or hostname
3.
Port
0 – 65535
Specify the port used for connecting to the Broker
4.
Username
Your username
Username used for authentication when connecting to the Broker
5.
Password
Your password
Password used for authentication when connecting to the Broker
The MQTT publisher can “publish” system parameters to the broker. The full list of system parameters that can be
published is given in the table below.
Parameter name
Parameter description
temperature
Get temperature of the module in 0.1 degrees Celsius
operator
Get current operator’s name
signal
Get signal strength in dBm
network
Get current network type.
connection
Check if data connection is available
wan
Get WAN IP address
uptime
Get system uptime in seconds
name
Get router’s name
digital1
Get value of digital input no. 1
digital2
Get value of digital input no. 2
analog
Get value of analog input
RUT955 User‘s Manual
Teltonika Solutions
122
In order for the system to work, the MQTT broker should be configured in advance. You can use the Broker that is
installed in the router or another, independent Broker. Shown below is a scheme where the client tries to subscribe for
information about the router’s uptime. To achieve this, multiple commands between the client and the publisher are
being sent.
In general the publisher works in this way: the publisher connects to the broker and subscribes to the topics
router/get and get/<SERIAL>/command. <SERIAL> denotes the serial number of the client’s router. The client then
sends a message id to the topic router/get. The following message is received by the publisher, since it is subscribed to
that topic. Then the publisher sends a response with its serial number to the topic router/id. Now the client knows that
a publisher with some serial number exist. It means that the client can send a message with the parameter name from
the list as a message to the topic get/<SERIAL>/command to the Broker. The message will be received only by the
subscriber, which has the same SERIAL number mentioned in the topic. Now the publisher can send a response back
with router/<SERIAL>/parameter_name topic and a message with the value of the requested parameter. It should be
noted that, according to the MQTT protocol, topic names are case-sensitive, for example topic router is not the same as
topic RoUtEr.
Publisher
Subscribe router/get
Subscribe
get/01234567/command
Publish router/get
id
Publish router/id
01234567
Publish get/01234567/command
uptime
Broker
Client
Publish router/01234567/uptime 15248
RUT955 User‘s Manual
Teltonika Solutions
123
9.5 NTP
NTP (Network Time Protocol) configuration lets you setup and synchronize your router’s time.
Field name
Description
1.
Current System time
Local time of the router
2.
Time zone
Time zone of the country where the router is located
3.
Enable NTP
Enable synchronization with the time server using NTP
4.
Update interval
How often the router updates systems time
5.
Save time to flash
Save last synchronized time to flash memory
6.
Count of time
synchronizations
Total amount of times that router will do the synchronization. Note: If left blank - the
count will be infinite
7.
Offset frequency
Adjusts the minor drift of the clock so that it will run more accurately
Note that under Time Servers at least one server has to be present, otherwise NTP will not serve its purposes.
RUT955 User‘s Manual
Teltonika Solutions
124
9.6 RS232/RS485
RS232 and RS485 functions are designed to utilize available serial interfaces of the router. Serial interfaces provide
a possibility for legacy devices to gain access to IP networks.
9.6.1
RS232
Field name
Possible values
Explanation
1.
Enabled
Checked/Unchecked
Check to enable the serial port function
2.
Baud rate
300/1200/2400/4800/9600/
19200/38400/57600/115200
Select the communication speed of the serial interface
3.
Data bits
5 – 8
Specifies how many bits will be used for each character
4.
Parity
None/Odd/Even
Select the parity bit setting used for error detection during data
transfer
5.
Stop bits
1 / 2
Specifies how many stop bits will be used to detect the end of
character
6.
Flow control
None/RTS- CTS/Xon-Xoff
Specifies what kind of characters to use for flow control
7.
Serial type
Console/Over IP/Modem/
Modbus Gateway/NTRIP Client
Specifies the function of the serial interface
8.
Interface
LAN/ WAN/
VPN/L2TP/PPTP/GRE/HOTSPOT
Interface used for connection
9.
Allow IP
Any IP address
Allow IP to connect to server
RUT955 User‘s Manual
Teltonika Solutions
125
9.6.1.1 RS232 connector pinout
RS232 connector type on this device is DCE female. DCE stands for Data Communication Equipment.
Pin
Name*
Description*
Direction on this device
1
DCD
Data Carrier Detect
Output
2
RXD
Receive Data
Output
3
TXD
Transmit Data
Input
4
DTR
Data Terminal Ready
Input
5
GND
Signal Ground
-
6
DSR
Data Set Ready
Output
7
RTS
Ready To Send
Input
8
CTS
Clear to send
Output
9
RI
Ring indicator
Output (connected to +5V permanently via a 4.7k resistor)
*The names and descriptions that indicate signal direction (such as TXD, RXD, RTS, CTS, DTR, and DSR) are named from
the point of view of the DTE device.
9.6.1.2 Cables
RUT955 has a DCE female connector. To connect a standard DTE device to it, use a straight-through Female/Male
RS232 cable:
To connect another DCE device to RUT955, a Null-modem (crossed) Female/Female cable should be used:
Maximum cable length is 15 meters or the cable length equal to a capacitance of 2500·pF (for a 19200 baud rate).
Using lower capacitance cables can increase the distance. Reducing communication speed can also increace maximum
cable length.
RUT955 User‘s Manual
Teltonika Solutions
126
9.6.2
RS485
RS-485 is a different serial data transmission standart for use in long ranges or noisy environments.
Field name
Possible values
Explanation
1.
Enabled
Enable/Disable
Check the box to enable the serial port function
2.
Baud rate
300/1200/2400/4800/9600/
19200/38400/57600/115200
Select the communication speed of the serial interface
3.
Parity
None / Odd / Even
Parity bit setting is used for error detection during data transfer
4.
Flow control
None/RTS-CTS/Xon-Xoff
Specifies what kind of characters are to be used for flow control
5.
Serial type
Console/Over IP/Modem/
Modbus Gateway/NTRIP Client
Specifies the function of the serial interface
6.
Interface
LAN/ WAN/
VPN/L2TP/PPTP/GRE/HOTSPOT
Interface used for connection
7.
Allow IP
192.168.1.102
Allow IP connecting to server
9.6.2.1 Maximum data rate vs. transmission line length
RS-485 standart can be used for network lengths up to 1200 meters, but the maximum usable data rate decreases
as the transmission length increases. A device operating at the maximum data transfer rate (10Mbps) is limited to a
transmission length of about 12 meters, while the 100kbps data rate can achieve a distance up to 1200 meters. A rough
relation between maximum transmission length and data rate can be calculated using this approximation:
()=10
( 
⁄ )
Where Lmax is the maximum transmission length in meters and DR is maximum data rate in bits per second.
Twisted pair is the prefered cable type for RS-485 networks. Twisted pair cables pick up noise and other
electromagnetically induced voltages as common mode signals, which are rejected by the differential receivers.
RUT955 User‘s Manual
Teltonika Solutions
127
9.6.2.2 Cable type
Recomended cable parameters:
Parameter
Value
Cable Type
22-24 AWG, 2 – pair (used for full-duplex networks ) or 1-pair (used for half
duplex networks). One addtitional wire for ground connection is needed
Characteristic cable Impedance
120 Ω @ 1MHz
Capacitance (conductor to conductor)
36 pF/m
Propagation Velocity
78% (1.3 ns/ft)
9.6.2.3 RS485 connector pin-out
Name
Description
Type
D_P
Driver positive signal
Differential Output
D_N
Driver negative signal
Differential Output
R_P
Receiver positive signal
Differential Input
R_N
Receiver negative signal
Differential Input
Ground
Device ground
Differential Output
D_P
R_P
N/C
D_N R_N Ground
RUT955 User‘s Manual
Teltonika Solutions
128
9.6.2.4 2-Wire and 4-Wire Networks
Below is an example of a 4-wire network electrical connection. There are 3 devices shown in the example. One of
the devices is the “master” and other two are “slaves”. Termination resistors are placed at each cable end. Four-wire
networks consists of one „master“ with its transmitter connected to each of the “slaves‘” receivers on one twisted pair.
The“slave” transmitters are all connected to the “master” receiver on a second twisted pair.
Example 2-wire network electrical connection: to enable a 2-wire RS-485 configuration on a Teltonika router, you
need to connect D_P to R_P and D_N to R_N on the device’s RS-485 socket. Termination resistors are placed at each
cable end.
VCC
13
RO2
DI5
GND 6
Y
9
Z
10
B
11
A
12R
D
GND 7
RE3
DE4
NC1
NC
8
VCC
14
VCC
13
RO2
DI 5
GND 6
Y
9
Z
10
B
11
A
12R
D
GND 7
RE3
DE4
NC1
NC
8
VCC
14
VCC
13
RO2
DI5
GND 6
Y
9
Z
10
B
11
A
12R
D
GND 7
RE3
DE4
NC1
NC
8
VCC
14
D+
D-
R-
R+
Rt
Rt
Rt
Rt
D+
D-
R-
R+
D+
D-
R-
R+
VCC
13
RO2
D I 5
GN D 6
Y
9
Z
10
B
11
A
12R
D
GN D7
RE3
DE4
NC1
NC
8
VCC
14
VCC
13
RO2
D I 5
GN D 6
Y
9
Z
10
B
11
A
12R
D
GN D 7
RE3
DE4
NC1
NC
8
VCC
14
VCC
13
RO2
DI5
GND 6
Y
9
Z
10
B
11
A
12R
D
GND 7
RE3
DE4
NC1
NC
8
VCC
14
D+
D-
R-
R+
RtRt
D+
D-
R-
R+
D+
D-
R-
R+
RUT955 User‘s Manual
Teltonika Solutions
129
9.6.2.5 Termination
When to use (place jumper)
Termination resistor, equal in resistance to cable characteristic impedance, must be connected at each end of the
cable to reduce reflection and ringing of the signals when the cable lengths get relatively long. Rise time of the RUT955
RS-485 driver is about 5 ns, so the maximum unterminated cable length is about 12 cm. As transmission line cables will
always be longer than 12 cm, termination is mandatory all the time if RUT955 is located at the end of the cable.
When not to use (remove jumper)
If your RS-485 consists of more than two devices and the RUT955 router is located not on the end of the line but,
for example, in the middle, RUT955 termination resistor needs to be disabled. In this case, place termination at other
devices which are situated at the ends of the line.
How to enable termination
120 Ω termination resistor is included on the RUT955 PCB and can be enabled by shorting contacts (shown in the
picture below), placing 2.54mm pitch jumper:
9.6.2.6 Number of devices in an RS-485 Network
One RUT955 RS-485 driver is capable of driving a maximum of 32 receivers, provided that the receiver input
impedance is 12 kΩ. If receiver impedances are higher, the maximum number of receivers in the network increases. Any
combination of receiver types can be connected together, provided their parallel impedance does not exceed RLoad > 375
Ω.
RUT955 User‘s Manual
Teltonika Solutions
130
9.6.3
Modes of different serial types in RS232 and RS485
9.6.3.1 Console
In this mode the serial interface set up as a Linux console of the device. It can be used for debugging purposes, to
get the status of the device or to control it.
9.6.3.2 Over IP
In the Over IP Serial type the router provides a connection to a TPC/IP network for the devices connected via serial
interfaces.
Mode: Server
Field name
Possible values
Explanation
1.
Protocol
TCP
The protocol uses for data transmission
2.
Mode
Server / Client / Bidirect
Server - wait for incoming connection
Client - initiate the connection
Bidirect – acts as a client by default, but at the same time waits for
incoming connections
3.
No leading zeros
Checked / Unchecked
Check to skip first hex zeros
3.
TCP port
0 - 65535
The port number used to listen for incoming connections
4.
Timeout (s)
Any integer number
Disconnects client after the specified timeout of inactivity
Mode: Client
Field name
Possible values
Explanation
1.
Server Address
Hostname or IP address
Server’s address to which the client will have to connect to
2.
TCP port
0 - 65535
The port number of the remote server
3.
Reconnect
intervals (s)
Any integer number
Indicates the time period between reconnection attempts
RUT955 User‘s Manual
Teltonika Solutions
131
Mode: Bidirect
Bidirect mode allows bi-directional communication through the serial interface. In its default state the application
acts like a client, but at the same time it listens to any incoming connections on the dedicated port. When there is an
incoming connection, the application drops the current connection to the remote server and acts like a server in the
new connection. This triggers a configured output change, which can be used to inform any auxiliary devices about
connection status changes. When the client connection is terminated, the application returns to its default mode and
continues to act as a client to the remote server.
Field name
Possible values
Explanation
1.
Server Address
Hostname or IP address
Server’s address to which the client will have to connect to
2.
TCP port
0 - 65535
The port number of the remote server
3.
Reconnect
intervals (s)
Any integer number
Indicates the time period between reconnection attempts
4.
TCP port
0 – 65535
The port number used to listen for incoming connections
5.
Timeout (s)
Any integer number
Disconnects client after the specified timeout of inactivity
6.
Output
OC Output / Relay
Output
Output to indicate that application switched from client (default)
to server state
7.
Output state
0 or 1
Output state value after the application reverts to server mode
9.6.3.3 Modem
With Modem Serial type, the router imitates a dial-up modem. Connections to TCP/IP networks can be established
using AT commands. The connection can be initiated by the device connected via serial interface with an ATD command:
ATD <host>:<port>. If Direct connect settings are specified, the connection to the server is always active. Data mode can
be entered by issuing the ATD command. Incoming connections are indicated by sending a RING to the serial interface.
RUT955 User‘s Manual
Teltonika Solutions
132
Field name
Possible values
Explanation
1.
Direct
connect
Hostname/IP address:port
Maintain a constant connection to specified host. Leave empty to use
an ATD command to initiate the connection.
2.
TCP port
0 – 65535
The port number used to listen for incoming connections. Leave it
empty to disable incoming connections
This is the AT command set used in Modem mode of the serial interfaces:
Command
Description
Usage
A
Answer incoming call
To answer incoming connection: ATA
D
Dial a number
To initiate data connection: ATD <host>:<port>
To enter data mode with Direct connect settings: ATD
E
Local echo
Turn local echo on: ATE1; Turn local echo off: ATE0
H
Hang up current call
To end data connection: ATH
O
Return to data mode
To return to data mode from command mode: ATO
Z
Reset to default configuration
To reset the modem to default configuration: ATZ
9.6.3.4 Modbus gateway
The Modbus gateway Serial type allows redirecting TCP data coming to a specified port to RTU specified by the
Slave ID. The Slave ID can be specified by the user or be obtained directly from the Modbus header.
Field name
Possible values
Explanation
1.
Listening IP
Any IP address
IP address on which the Modbus gateway will wait for incoming
connections
2.
Port
0 – 65535
The port number used to listen for incoming connections
3.
Slave ID
configuration type
User defined /
Obtained from TCP
There are two options available for this parameter:
User defined - redirects all data to the specified Slave ID
Obtain from TCP - redirects data to slave IDs from the Modbus TCP
4.
Slave ID /
Permitted slave IDs
Any integer number /
Any few integer
numbers or ranges of
numbers
This field’s name and possible values change according to the
selected Slave ID configuration type:
Slave ID - ID of the slave device connected to the router
Permitted slave IDs - allows specifying the list of permitted slave IDs
for redirecting of the Modbus TCP data. Individual values can be
separated using commas (‘,’), the range can be specified using
hyphens (‘-‘), e.g., 1, 2, 4-6. Slave IDs not listed here are ignored
RUT955 User‘s Manual
Teltonika Solutions
9.7 VPN
9.7.1
OpenVPN
VPN (Virtual Private Network)
is a method for secure data transfer through unsafe public network
explains how to configure OpenVPN, which is
The default OpenVPN C
onfiguration list
sort of OpenVPN connection.
OpenVPN configurations can have one of two
OpenVPN client. To create it, enter the desired instance name in the
instance’s role from the “Role”
drop down list and press the
Once
you’ve added a new OpenVPN
button both creates and saves the new instance
establish an OpenVPN connection you must Enable your instance, enter an OpenVPN server address, choose an
authentication method and a few other things, all of which can be configured i
reached by pressing the “Edit”
button next to your OpenVPN instance (as shown in the figure above).
is a method for secure data transfer through unsafe public network
explains how to configure OpenVPN, which is
an
implementation of VPN supported by the RUT router
onfiguration list
is empty, so you have to define your own
OpenVPN configurations can have one of two
roles
: client and server. Let’s start with an
OpenVPN client. To create it, enter the desired instance name in the “New configuration name”
drop down list and press the
“Add New” button.
you’ve added a new OpenVPN
instance there is no need to press the “Save” button, since the “Add New”
button both creates and saves the new instance. By default the instance will be disabled and unconfigured. I order to
establish an OpenVPN connection you must Enable your instance, enter an OpenVPN server address, choose an
authentication method and a few other things, all of which can be configured in the Settings window, which can
button next to your OpenVPN instance (as shown in the figure above).
133
is a method for secure data transfer through unsafe public network
s. This section
implementation of VPN supported by the RUT router
s.
configuration to establish any
: client and server. Let’s start with an
“New configuration name”
field, select the
instance there is no need to press the “Save” button, since the “Add New”
. By default the instance will be disabled and unconfigured. I order to
establish an OpenVPN connection you must Enable your instance, enter an OpenVPN server address, choose an
n the Settings window, which can
button next to your OpenVPN instance (as shown in the figure above).
RUT955 User‘s Manual
Teltonika Solutions
134
9.7.1.1 OpenVPN Client
The figure above is a picture of a configured OpenVPN Client instance that uses the UDP protocol and
TLS/Password authentication. Comprehensible explanations on how to configure each field are presented in the table
below.
RUT955 User‘s Manual
Teltonika Solutions
135
Field name
Possible values
Explanation
1.
Enable
Checked / Unchecked
Turns the OpenVPN instance on or off
2.
TUN/TAP
TUN (tunnel) / TAP
(bridged)
OpenVPN interface type. TUN is most often in typical VPN connections,
however, TAP is required in some Ethernet bridging configurations
3.
Protocol
UDP / TCP
The transfer protocol used by the connection
4.
Port
0 – 65535
Port number (make sure that this port is allowed by firewall)
5.
LZO
Checked / Unchecked
With LZO compression, your VPN connection will generate less network
traffic. However, enabling this causes a higher CPU load. Use it carefully
with a high traffic rate or low CPU resources
6.
Encryption
BF-CBC 128 (default) /
AES-128-CBC 128 / …
Packet encryption algorithm
7.
Authentication
TLS / Static Key /
Password /
TLS/Password
Authentication mode, used to secure data sessions.
Static key is a secret key used for server – client authentication.
TLS authentication mode uses X.509 type certificates:
Certificate Authority (CA), Client certificate, Client key.
All mentioned certificates can be generated using OpenVPN or Open
SSL utilities on any type of host machine.
Password is a simple username/password based authentication where
the owner of the OpenVPN server provides the login data.
TLS/Password uses both TLS and Password authentication
8.
TLS cipher
All / DHE + RSA /
Custom
Packet encryption algorithm (cipher)
9.
Remote host/IP
address
Any hostname or IP
address
IP address or hostname of an OpenVPN server
10.
Resolve Retry
Infinite / any integer
number
Time in seconds to resolve server hostname periodically in case of first
resolve failure before generating service exception
11.
Keep alive
Any integer number
*space* any integer
number
Defines two time intervals: one is used to periodically send ICMP
request to the OpenVPN server, the other defines a time window,
which is used to restart the OpenVPN service, if no ICPM response is
received during the window time slice. Example: “10 60”
12.
Remote
network IP
address
Any private IP address
LAN IP address of the remote network
13.
Remote
network IP
netmask
Any netmask
Subnet mask of the remote LAN network
14.
User name
Client’s username
Username used for authentication
15.
Password
Client’s password
Password used for authentication
16.
Extra options
Extra options to be used by the OpenVPN instance
17.
HMAC
authentication
algorithm
none / SHA1(default)
/ SHA256 / SHA384 /
SHA512
The type of HMAC authentication algorithm
18.
Additional
HMAC
authentication
Checked / Unchecked
An additional layer of HMAC authentication on top of the TLS control
channel to protect against DoS attacks
19.
Certificate
authority
.ca file
Certificate authority is an entity that issues digital certificates. A digital
certificate certifies the ownership of a public key by the named subject
of the certificate
RUT955 User‘s Manual
Teltonika Solutions
136
20.
Client
certificate
.crt file
Client certificate is a type of digital certificate that is used by client
systems to make authenticated requests to a remote server. Client
certificates play a key role in many mutual authentication designs,
providing strong assurances of a requester's identity
21.
Client key
.key file
Authenticates the client to the server and establishes precisely who
they are
After setting any of these parameters press the “Save” button or else the changes will not be applied. Some of the
selected parameters will be shown in the configuration list table. You should also be aware of the fact that the router
will launch a separate OpenVPN service for every configuration entry (if it is defined as active at the time, of course) so
the router has the ability to act as server and client at the same time.
9.7.1.2 OpenVPN Server
The figure above is a picture of a configured OpenVPN Server instance that uses the UDP protocol and TLS
authentication. As you can see, the configuration is similar to OpenVPN Client but with a few key differences.
Comprehensible explanations on how to configure each field are presented in the table below.
RUT955 User‘s Manual
Teltonika Solutions
137
Field name
Possible values
Explanation
1.
Enable
Checked / Unchecked
Turns the OpenVPN instance on or off
2.
TUN/TAP
TUN (tunnel) / TAP
(bridged)
OpenVPN interface type. TUN is most often in typical VPN connections,
however, TAP is required in some Ethernet bridging configurations
3.
Protocol
UDP / TCP
The transfer protocol used by the connection
4.
Port
0 – 65535
Port number (make sure that this port is allowed by firewall)
5.
LZO
Checked / Unchecked
With LZO compression, your VPN connection will generate less network
traffic. However, enabling this causes a higher CPU load. Use it carefully
with a high traffic rate or low CPU resources
6.
Encryption
BF-CBC 128 (default) /
AES-128-CBC 128 / …
Packet encryption algorithm
7.
Authentication
TLS / Static Key /
Password /
TLS/Password
Authentication mode, used to secure data sessions.
Static key is a secret key used for server – client authentication.
TLS authentication mode uses X.509 type certificates:
Certificate Authority (CA), Server certificate, Server key, Diffie
Hellman parameters (DH).
All mentioned certificates can be generated using OpenVPN or Open
SSL utilities on any type of host machine.
TLS/Password uses both TLS certificates and a User/Password type of
authentication
8.
TLS cipher
All / DHE + RSA /
Custom
Packet encryption algorithm (cipher)
9.
Client to client
Checked / Unchecked
Enables client to client communication in the Virtual network. In order
for Client to client to work, the TLS Clients section most be utilized
10.
Keep alive
Any integer number
*space* any integer
number
Defines two time intervals: one is used to periodically send ICMP
request to the OpenVPN server, the other defines a time window,
which is used to restart the OpenVPN service, if no ICPM response is
received during the window time slice. Example: “10 60”
11.
Virtual network
IP address
Any private IP address
IP address of the Virtual network
12.
Virtual network
IP netmask
Any netmask
Subnet mask of the Virtual network
13.
Push option
i.e., route 192.168.1.0
255.255.255.0
Push options are a way to “push” user defined routes to connecting
clients’ routing tables. In the given example, the server will push the
route of 192.168.1.0 network with the 255.255.255.0 netmask to
connecting clients. Therefore, the client will be able to reach devices in
the 192.168.1.0 network. This is useful when a client needs to reach
devices located in the OpenVPN server’s LAN.
14.
Allow duplicate
certificates
Checked / Unchecked
If checked, the server allows clients to connect with identical
certificates
15.
Certificate
authority
.ca file
Certificate authority is an entity that issues digital certificates. A digital
certificate certifies the ownership of a public key by the named subject
of the certificate
16.
Server
certificate
.crt file
Server certificate is a type of digital certificate that is used to identify
the OpenVPN server
17.
Server key
.key file
Authenticates clients to the server
18.
Diffie Hellman
parameters
.pem file
DH parameters define how OpenSSL performs the Diffie-Hellman (DH)
key-exchange.
RUT955 User‘s Manual
Teltonika Solutions
138
9.7.1.3 TLS Clients
TLS Clients is a way to more specifically differentiate clients by their Common Name (CN) found in the client
certificate file. It can be used to assign specific VPN addresses to specific clients and bind them to their LAN addresses so
that other device‘s in the client‘s LAN can be reached from the server or other clients.
The TLS Clients section can be found in the OpenVPN Server configuration window, provided that the OpenVPN
server uses TLS or TLS/Password authentication methods. To create a new TLS client, type in the new client‘s name in
the text field found bellow the TLS Clients tab and press the „Add“ button next to it as shown in the picture bellow.
This action will create a new, unconfigured TLS Client. The picture below depicts a configured TLS Client.
Field name
Samle value
Explanation
1.
VPN instance name
server_demo
With what VPN instance should the TLS Client be associated with
2.
Endpoint name
Your endpoint name
3.
Common name (CN)
client1
Client’s Common Name (CN) found in the client’s certificate file
4.
Virtual local
endpoint
10.0.0.6
Client’s virtual local address in the virtual network
5.
Virtual remote
endpoint
10.0.0.5
Client’s virtual remote address in the virtual network
6.
Private network
192.168.1.0
Client’s private network address
7.
Private netmask
255.255.255.0
Client’s private netmask
RUT955 User‘s Manual
Teltonika Solutions
9.7.2
IPSec
The IPsec protocol client enables the router to establish a secure connection to an IPsec peer via the Internet. IPsec
is supported in two modes -
transport and tunnel. Transport mode creates
hosts. Tunnel mode can be used to build a secure connection between two remote LANs serving as a VPN solution.
IPsec system maintains two data
bases: Security Policy Database (SPD) which defines whether to apply IPsec to a
packet or not and specify which/how IPsec
of each IPsec-SA.
The establishment of the Security Associ
can be done by using manual or automated configuration.
Note: the router starts establishing
a
Keep Alive feature is used for a
utomatic tunnel establishment.
To create a new IPsec instance, go to the IPsec tab, type in a name for your new instance in the text field below the
IPsec tab and press the “Add”
button next to it.
The newly created instance will be disabled and unconfigured. To
to it (as seen in the example above)
. This action will redirect
The IPsec protocol client enables the router to establish a secure connection to an IPsec peer via the Internet. IPsec
transport and tunnel. Transport mode creates
a
secure point to point channel between two
hosts. Tunnel mode can be used to build a secure connection between two remote LANs serving as a VPN solution.
bases: Security Policy Database (SPD) which defines whether to apply IPsec to a
packet or not and specify which/how IPsec
-
SA is applied and Security Association Database (SAD), which contain
The establishment of the Security Associ
ation (IPsec-
SA) between two peers is needed for IPsec communication. It
can be done by using manual or automated configuration.
a
tunnel when data is sent from the router to a
remote site over
utomatic tunnel establishment.
To create a new IPsec instance, go to the IPsec tab, type in a name for your new instance in the text field below the
button next to it.
The newly created instance will be disabled and unconfigured. To configure it press the
. This action will redirect
you
to the instance’s IPsec Configuration window.
139
The IPsec protocol client enables the router to establish a secure connection to an IPsec peer via the Internet. IPsec
secure point to point channel between two
hosts. Tunnel mode can be used to build a secure connection between two remote LANs serving as a VPN solution.
bases: Security Policy Database (SPD) which defines whether to apply IPsec to a
SA is applied and Security Association Database (SAD), which contain
s a Key
SA) between two peers is needed for IPsec communication. It
remote site over
the tunnel. The
To create a new IPsec instance, go to the IPsec tab, type in a name for your new instance in the text field below the
configure it press the
“Edit” button located next
to the instance’s IPsec Configuration window.
RUT955 User‘s Manual
Teltonika Solutions
140
Field name
Possible values
Explanation
1.
Enable
Checked/Unchecked
Turns IPsec on or off
2.
IKE version
IKEv1 or IKEv2
Method of key exchange
3.
Mode
Main / Aggressive
ISAKMP phase 1 exchange mode
4.
Type
Tunnel / Transport
Type of connection
5.
My identifier type
Address / FQDN /
User FQDN
The type of identifier used to establish a connection with another IPsec
instance
6.
My identifier
Depends on
identifier type
In case RUT has a Private IP, its identifier should be its own LAN
network address. In this way, the Road Warrior approach is possible
7.
Force
encapsulation
Checked /
Unchecked
Force UDP encapsulation for ESP packets even if no NAT situation is
detected
8.
Dead Peer
Detection
Checked /
Unchecked
The values clear, hold and restart all activate DPD
9.
Pre shared key
Any string
A shared password to authenticate between the peers
10.
Remote VPN
endpoint
Host's address
IP address or hostname of the remote IPsec instance
11.
IP address /
Subnet mask
IP address/[0 - 32]
Remote network secure group IP address and mask used to determine
to what subnet an IP address belongs to. Should differ from device’s
LAN IP
12.
Enable keep alive
Checked/Unchecked
Enable tunnel keep alive function
13.
Host
Host’s address
A host address to which an ICMP echo requests will be sent
14.
Ping period (sec)
0 - 9999999
Send ICMP echo request every x seconds
RUT955 User‘s Manual
Teltonika Solutions
141
Phase 1 and Phase 2 must be configured in accordance to the IPSec server configuration, thus algorithms,
authentication and lifetimes of each phase must be identical.
Field name
Possible values
Explanation
1.
Encryption
algorithm
DES, 3DES, AES 128, AES 192, AES256
The encryption algorithm must match with another
incoming connection
2.
Authentication
MD5, SHA1, SHA256, SHA384, SHA512
The authentication algorithm must match with another
incoming connection
3.
Hash algorthm
MD5, SHA1, SHA256, SHA384, SHA512
The hash algorithm must match with another incoming
connection
4.
DH group
MODP768, MODP1024, MODP1536,
MODP2048, MODP3072, MODP4096
The DH (Diffie-Helman) group must match with another
incoming connection
4.
PFS group
MODP768, MODP1024, MODP1536,
MODP2048, MODP3072, MODP4096,
No PFS
The PFS (Perfect Forward Secrecy) group must match with
another incoming connection
5.
Lifetime
Hours, Minutes, Seconds
Time duration for the phase
RUT955 User‘s Manual
Teltonika Solutions
9.7.3
GRE Tunnel
GRE (Generic Routing Encapsulation RFC2784) is a solution for tunneling RFC1812 private address
an intermediate TCP/IP network such as the Internet. GRE tunneling does not use encryption it simply
and sends it over the WAN.
In the example network diagram two distant networks LAN1 and LAN2 are connected.
To create GRE tunnel the user must know the following parameters:
1. Sour
ce and destination IP addresses
2. Tunnel’s local IP address
3. Distant network’s
IP address and Subnet mask
To create a new GRE instance, go to the GRE Tunnel tab, type in a name for your new instance in the text field
below the GRE Tunnel tab and press the
“Add
The newly created instance will be disabled and unconfigured. To configure it press the
to it (as seen in the example above). This action will redirect you to the instance’s GRE Tunnel Configuration window.
GRE (Generic Routing Encapsulation RFC2784) is a solution for tunneling RFC1812 private address
an intermediate TCP/IP network such as the Internet. GRE tunneling does not use encryption it simply
In the example network diagram two distant networks LAN1 and LAN2 are connected.
To create GRE tunnel the user must know the following parameters:
ce and destination IP addresses
IP address and Subnet mask
To create a new GRE instance, go to the GRE Tunnel tab, type in a name for your new instance in the text field
“Add
New” button next to it.
The newly created instance will be disabled and unconfigured. To configure it press the
to it (as seen in the example above). This action will redirect you to the instance’s GRE Tunnel Configuration window.
142
GRE (Generic Routing Encapsulation RFC2784) is a solution for tunneling RFC1812 private address
-space traffic over
an intermediate TCP/IP network such as the Internet. GRE tunneling does not use encryption it simply
encapsulates data
In the example network diagram two distant networks LAN1 and LAN2 are connected.
To create a new GRE instance, go to the GRE Tunnel tab, type in a name for your new instance in the text field
The newly created instance will be disabled and unconfigured. To configure it press the
“Edit” button located next
to it (as seen in the example above). This action will redirect you to the instance’s GRE Tunnel Configuration window.
RUT955 User‘s Manual
Teltonika Solutions
143
Field name
Possible values
Explanation
1.
Enabled
Checked /
Unchecked
Check to enable the GRE Tunnel function
2.
Remote endpoint IP
address
Remote IP address
or hostname
Specify remote WAN IP address or hostname
3.
Remote network
A private IP address
LAN IP address of the remote device.
4.
Remote network
netmask
0 – 32
LAN network on the remote device
5.
Local tunnel IP
A private IP address
Local virtual IP address. Can’t be in the same subnet as LAN network.
6.
Local tunnel
netmask
0 – 32
Network of local virtual IP address
7.
MTU
0 – 1500
The maximum transmission unit in bytes
8.
TTL
0 – 255
Specify the fixed time-to-live (TTL) value on tunneled packets. The 0 is
a special value meaning that packets inherit the TTL value
9.
PMTUD
Checked /
Unchecked
Check to enable the Path Maximum Transmission Unit Discovery
(PMTUD) status on this tunnel.
10.
Redirect LAN to
GRE
Checked /
Unchecked
Check to redirect LAN traffic to the GRE interface
10.
Enable Keep alive
Checked /
Unchecked
It gives the ability for one side to originate and receive keep alive
packets to and from a remote router
11.
Keep Alive host
IP address
Keep Alive host IP address. Preferably IP address which belongs to the
LAN network on the remote device
12.
Keep Alive interval
0 - 255
Time interval for Keep Alive in seconds
RUT955 User‘s Manual
Teltonika Solutions
9.7.4
PPTP
Point-to-
Point Tunneling Protocol (PPTP) is a protocol (set of communication rules) that allows corporations to
extend their own corporate network through private "tunnels" over the public Internet. Effectively, a
wide-
area network as a single large local area network. A company no longer needs to lease its own lines for wide
communication but can securely use the public networks.
9.7.4.1 PPTP client
To create a new PPTP
instance, go to the
name in the
“New configuration name” field
The newly created instance will be disabled and unconfigured. To configure it press the
to it (as seen in the example above). This action will redirect you to the instance’s
Point Tunneling Protocol (PPTP) is a protocol (set of communication rules) that allows corporations to
extend their own corporate network through private "tunnels" over the public Internet. Effectively, a
area network as a single large local area network. A company no longer needs to lease its own lines for wide
communication but can securely use the public networks.
instance, go to the
PPTP tab, select the Role
(server or client) of your instance,
“New configuration name” field
and press the “Add” button next to it.
The newly created instance will be disabled and unconfigured. To configure it press the
to it (as seen in the example above). This action will redirect you to the instance’s
PPTP
Configuration window.
144
Point Tunneling Protocol (PPTP) is a protocol (set of communication rules) that allows corporations to
extend their own corporate network through private "tunnels" over the public Internet. Effectively, a
corporation uses a
area network as a single large local area network. A company no longer needs to lease its own lines for wide
-area
(server or client) of your instance,
type in a
The newly created instance will be disabled and unconfigured. To configure it press the
“Edit” button located next
Configuration window.
RUT955 User‘s Manual
Teltonika Solutions
145
9.7.4.2 PPTP server
Field name
Possible values
Explanation
1.
Enable
Checked / Unchecked
Check to enable current configuration
2.
Use as default gateway
Checked / Unchecked
Use this PPTP instance as default gateway
3.
Client to client
Checked / Unchecked
Check to enable client to client communication
4.
Server
IP address or hostname
The PPTP server’s IP address or hostname
5.
Username
Any name
The user name for authorization with the server
6.
Password
Any password
The password for authorization with the server
Field name
Explanation
1.
Enable
Check the box to enable the PPTP function.
2.
Local IP
Virtual IP Address of this device (RUT)
3.
Remote IP range begin
IP address leases beginning
4.
Remote IP range end
IP address leases end
5.
Username
Username to connect to PPTP (this) server
6.
Password
Password to connect to PPTP (this) server
7.
PPTP Client’s IP
User’s IP address. Leave empty to assign a random IP from the given range above
RUT955 User‘s Manual
Teltonika Solutions
9.7.5
L2TP
In computer networking, Layer 2 Tunneling Protocol (L2TP) is a tunneling protocol used to support virtual private
networks (VPNs).
It is more secure than PPTP but, be
uses more CPU power.
9.7.5.1 L2TP client
To create a new L2TP
instance, go to the
in the “New configuration name”
field and
The newly created instance will be disabled and unconfigured. To configure it press the
to it (as seen in the example above). This action will redirect you to the instance’s L2TP
In computer networking, Layer 2 Tunneling Protocol (L2TP) is a tunneling protocol used to support virtual private
It is more secure than PPTP but, because it encapsulates the transferred date twice, it is slower and
instance, go to the
L2TP tab, select the Role
(server or client) of your instance,
field and
press the “Add” button next to it.
The newly created instance will be disabled and unconfigured. To configure it press the
to it (as seen in the example above). This action will redirect you to the instance’s L2TP
Configuration window.
146
In computer networking, Layer 2 Tunneling Protocol (L2TP) is a tunneling protocol used to support virtual private
cause it encapsulates the transferred date twice, it is slower and
(server or client) of your instance,
type in a name
The newly created instance will be disabled and unconfigured. To configure it press the
“Edit” button located next
Configuration window.
RUT955 User‘s Manual
Teltonika Solutions
147
Field name
Explanation
1.
Enable
Check to enable the L2TP Tunnel instance
2.
Server
IP Address or hostname of the L2TP server
3.
Username
Username used to authenticate you to the server
4.
Password
Password used to authenticate you to the server
9.7.5.2 L2TP Server
Field name
Explanation
1.
Enable
Check to enable the L2TP Tunnel instance
2.
Local IP
Local IP Address of your L2TP server
3.
Remote IP range begin
Beginning of the IP pool for connecting clients
4.
Remote IP range end
End of the IP pool for connecting clients
5.
Username
Client’s username used for authentication to the L2TP (this) server
6.
Password
Client’s password used for authentication to the L2TP (this) server
RUT955 User‘s Manual
Teltonika Solutions
148
9.8 Dynamic DNS
Dynamic DNS (DDNS) is a domain name service allowing to link dynamic IP addresses to a static hostname. To start
using this feature you must first register to a DDNS service provider (example list is given in description).
By default, an unconfigured DDNS will be present. Below is a picture of this instance. You can create more DDNS
instances if you wish to do so.
Field name
Possible values
Explanation
1.
Enable
Checked / Unchecked
Enables current DDNS configuration.
2.
Use HTTPS
Checked / Unchecked
Enables SSL data encryption
3.
Status
Timestamp of the last IP check or update
4.
Service
1. dydns.org
2. no-ip.com
3. …
Your dynamic DNS service provider selected from the list.
In case your DDNS provider is not present from the ones provided,
please feel free to use "custom"
5.
Hostname
Any hostname
Domain name that will be linked with dynamic IP address
6.
Username
your_username
Name of the user account (from registration)
7.
Password
your_password
Password of the user account (from registration)
8.
IP Source
Public
Private
Custom
This option allows you to select a specific RUT interface and then
send the IP address of that interface to the DDNS server. So if, for
example, your RUT has a Private IP (i.e. 10.140.56.57) on its WAN
(LTE interface), then you can send this exact IP to DDNS server by
selecting "Private", or by selecting "Custom" and "WAN" interface
9.
Network
WAN / WAN2 /
WAN3 / LAN / PPP
Source network
10.
IP renew interval
(min)
5 – 600000
Time interval to check if the IP address of the device has changed
11.
Force IP renew
(min)
5 - 600000
Time interval to force IP address renew
RUT955 User‘s Manual
Teltonika Solutions
149
9.9 SMS Utilities
RUT955 has an extensive amount of various SMS Utilities. The SMS Utilities section is subdivided into 6 subsections:
SMS Utilities, Call Utilities, User Groups, SMS Management, Remote Configuration and Statistics.
9.9.1
SMS Utilities
The SMS Utilities tab contains a list of rules that perform certain actions when they are activated by SMS messages.
The figure above is an illustration of the SMS Utilities rules list. The entire list contains 26 rules but you are also be
provided with the possibility to configure custom ones.
All default configuration options are listed below:
- Reboot
- Get status
- Get I/O status
- Get OpenVPN status
- Switch WiFi on / off
- Switch mobile data on / off
- Switch OpenVPN on / off
- Change mobile data settings
- Get list of profiles
- Change profile
- SSH access control
- Web access control
- Restore to default
- Force SIM switch
- GPS coordinates
- GPS on / off
- FW upgrade from server
- Config update from server
- Switch monitoring on / off
- Monitoring status
- UCI API
How to execute a rule:
To execute a rule, just send an SMS message to the router‘s SIM card number with the rules‘ SMS Text, e.g., if you
send a message with the text “reboot”, the router will reboot provided the selected Authorization method is “No
authorization”. However, if there is an Authorization method present you will need to include the “Authorization key”
in the text message. This “Authorization key” depends on the chosen Authorization method, i.e.., if the method is “By
serial”, the “Authorization key” is the router’s serial number, if the method is “By router admin password”, the
“Authorization key” is the router’s admin password. The authorization “key” must precede the activation text and they
must be separated by a space. For example, if the chosen Authorization method is “By router admin password” and the
password is “admin01”, the entire message should look like this: “admin01 reboot”. The same applies to “By serial”
authorization.
RUT955 User‘s Manual
Teltonika Solutions
150
9.9.1.1 Default SMS Rules
In this section you will be provided with a table containing all of the default rules and explanations for them.
Field name
Explanation
Notes
1.
Reboot
Enable
This check box will enable or
disable SMS reboot function
Allows router restart via SMS
Action
The action to be performed
when this rule is met
SMS text
SMS text that will trigger the
rule. In this case, reboot the
router
SMS text can contain letters, numbers, spaces and
special symbols. Capital letters also matter
Authorization method
What kind of authorization to
use for SIM management
No authorization, By serial or By router admin
password
Allowed users
Whitelist of allowed users
From all numbers, From group or From single number
Get status via SMS
after reboot
Check this to receive
connection status via SMS after
the reboot
If checked, the router will send a status message once
it has rebooted and is operational again.
This is both a separate SMS Rule and an option under
the SMS Reboot rule.
After checking this, the „Send status SMS to other
number“ field will become available
Send status SMS to
other number
Enable this if you want the
status message to be sent to
another (other than the sender)
number (s)
If this is checked, you will be prompted to enter a
phone number (s)
This field appears only if you have checked „Get
status via SMS after reboot“
Message text
Which status information
should be included in SMS:
Data state, Operator,
Connection type, Signal
Strength, Connection State, IP
You can select which status elements to display
2.
Get status
Enable
This check box will enable or
disable SMS status function
Allows you to get the router‘s status via SMS. This is
both a separate SMS Rule and an option under the
SMS Reboot rule
Action
The action to be performed
when this rule is met
SMS text
SMS text that will trigger the
rule. In this case, send you the
router‘s status
SMS text can contain letters, numbers, spaces and
special symbols. Capital letters also matter
Authorization method
What kind of authorization to
use for SIM management
No authorization, By serial or By router admin
password.
Allowed users
Whitelist of allowed users
From all numbers, From group or From single number
Send status SMS to
other number
Enable this if you want the
status message to be sent to
another (other than the sender)
number (s)
If this is checked, you will be prompted to enter a
phone number (s)
Message text
Which status information
should be included in the SMS:
Data state, Operator,
Connection type, Signal
Strength, Connection State, IP
You can select which status elements the message
will contain
RUT955 User‘s Manual
Teltonika Solutions
151
3.
Get I/O status
Enable
This check box will enable or
disable SMS I/O status function
Allows you to get the router‘s I/O status via SMS
Action
The action to be performed
when this rule is met
SMS text
SMS text that will trigger the
rule. In this case, send you the
router‘s I/O status
SMS text can contain letters, numbers, spaces and
special symbols. Capital letters also matter
Authorization method
What kind of authorization to
use for SIM management
No authorization, By serial or By router admin
password.
Allowed users
Whitelist of allowed users
From all numbers, From group or From single number
Send status SMS to
other number
Enable this if you want the
status message to be sent to
another (other than the
sender) number (s)
If this is checked, you will be prompted to enter a
phone number (s)
4.
Get OpenVPN status
Enable
This check box will enable or
disable the OpenVPN status
function
Allows to get the router‘s OpenVPN status via SMS
Action
The action to be performed
when this rule is met
SMS text
SMS text that will trigger the
rule. In this case, send you the
router‘s OpenVPN status
SMS text can contain letters, numbers, spaces and
special symbols. Capital letters also matter
Authorization method
What kind of authorization to
use for SIM management
No authorization, By serial or By router admin
password
Allowed users
Whitelist of allowed users
From all numbers, From group or From single number
Send status SMS to
other number
Enable this if you want the
status message to be sent to
another (other than the sender)
number (s)
If this is checked, you will be prompted to enter a
phone number (s)
5.
Switch WiFi On/Off
Enable
This check box will enable or
disable the Switch WiFi function
Allows Wi-Fi control via SMS
Action
The action to be performed
when this rule is met
Turns WiFi On or Off
SMS text
SMS text that will trigger the
rule. In this case, turn Wi-Fi
On/Off
SMS text can contain letters, numbers, spaces and
special symbols. Capital letters also matter
Authorization method
What kind of authorization to
use for SIM management
No authorization, By serial or By router admin
password
Allowed users
Whitelist of allowed users
From all numbers, From group or From single number
Write to config
Permanently saves Wi-Fi state
With this setting enabled, the router will keep the
new Wi-Fi state even after reboot.
If it is not selected, the router will revert the Wi-Fi
state after reboot
RUT955 User‘s Manual
Teltonika Solutions
152
6.
Switch mobile data on/off
Enable
This check box will enable or
disable the Switch mobile data
function
Allows mobile control via SMS
Action
The action to be performed
when this rule is met
Turn mobile On or Off
SMS text
SMS text that will trigger the
rule. In this case, turn mobile
data On/Off
SMS text can contain letters, numbers, spaces and
special symbols. Capital letters also matter
Authorization method
What kind of authorization to
use for SIM management
No authorization, By serial or By router admin
password
Allowed users
Whitelist of allowed users
From all numbers, From group or From single number
Write to config
Permanently saves mobile
network state
With this setting enabled, the router will keep the
new mobile data state even after reboot.
If it is not selected, the router will revert the mobile
data state after reboot
7.
Manage OpenVPN
Enable
This check box will enable or
disable the Manage OpenVPN
function
Allows OpenVPN control via SMS
Action
The action to be performed
when this rule is met
Turn OpenVPN On or Off
SMS text
SMS text that will trigger the
rule. In this case, turn OpenVPN
On/Off
SMS text can contain letters, numbers, spaces and
special symbols. Capital letters also matter
After the SMS text you have to write OpenVPN
instance‘s name
Authorization method
What kind of authorization to
use for SIM management
No authorization, By serial or By router admin
password
Allowed users
Whitelist of allowed users
From all numbers, From group or from Single number
8.
Change mobile data settings
Enable
This check box will enable or
disable the Change mobile data
settings function
Allows you to change mobile settings via SMS
Action
The action to be performed
when this rule is met
SMS text
SMS text that will trigger the
rule. In this case, change the
specified mobile data settings
SMS text can contain letters, numbers, spaces and
special symbols. Capital letters also matter.
Detailed explanations on how to use this function
will be presented in the table below
Authorization method
What kind of authorization to
use for SIM management
No authorization, By serial or By router admin
password
Allowed users
Whitelist of allowed users
From all numbers, From group or From single number
RUT955 User‘s Manual
Teltonika Solutions
153
Mobile Settings via SMS parameters:
Parameter
Value(s)
Explanation
1.
apn=
e.g., internet.gprs
Sets APN
2.
dialnumber=
e.g., *99***1#
Sets dial number
3.
auth_mode=
none
pap
chap
Sets authentication mode
4.
service=
Auto
4gonly
Sets the mobile service mode
5.
username=
e.g., user
Used only if PAP or CHAP authorization is selected
6.
password=
e.g., pass
Used only if PAP or CHAP authorization is selected
All Mobile settings can be changed in one SMS. Between each <parameter=value> pair a space symbol is necessary.
Example: cellular apn=internet.gprs dialnumber=*99***1# auth_mode=pap service=auto username=user
password=user
Field name
Explanation
Notes
9.
Get list of profiles
Enable
This check box will enable or
disable the Get list of profiles
function
Allows you to get the list of profiles via SMS
Action
The action to be performed
when this rule is met
SMS text
SMS text that will trigger the
rule. In this case, send you The
list of profiles
SMS text can contain letters, numbers, spaces and
special symbols. Capital letters also matter
Authorization method
What kind of authorization to
use for SIM management
No authorization, By serial or By router admin
password
Allowed users
Whitelist of allowed users
From all numbers, From group or From single number
10.
Change profile
Enable
This check box will enable or
disable the Change profile
function
Allows changing profiles via SMS
Action
The action to be performed
when this rule is met
SMS text
SMS text that will trigger the
rule. In this case, send change
profile
SMS text can contain letters, numbers, spaces and
special symbols. Capital letters also matter.
After the SMS text you have to write OpenVPN
instance‘s name
Authorization method
What kind of authorization to
use for SIM management
No authorization, By serial or By router admin
password
Allowed users
Whitelist of allowed users
From all numbers, From group or From single number
RUT955 User‘s Manual
Teltonika Solutions
154
11.
SSH access Control
Enable
This check box will enable or
disable the SSH access control
function
Allows SSH access control via SMS
Action
The action to be performed
when this rule is met
SMS text
SMS text that will trigger the
rule. In this case, turn SSH
access On/Off
SMS text can contain letters, numbers, spaces and
special symbols. Capital letters also matter
Authorization method
What kind of authorization to
use for SIM management
No authorization, By serial or By router admin
password
Allowed users
Whitelist of allowed users
From all numbers, From group or From single number
Enable SSH access
Enable this to reach the router
via SSH from LAN
If this is checked, SMS will enable SSH access from
LAN, if not, SMS will disable SSH access from LAN
Enable remote SSH
access
Enable this to reach the router
via SSH from WAN
If this is checked, SMS will enable SSH access from
WAN, if not, SMS will disable SSH access from WAN
12.
Web access Control
Enable
This check box will enable or
disable the Web access control
function
Allows web access control via SMS
Action
The action to be performed
when this rule is met
SMS text
SMS text that will trigger the
rule. In this case, turn web
access On/Off
SMS text can contain letters, numbers, spaces and
special symbols. Capital letters also matter
Authorization method
What kind of authorization to
use for SIM management
No authorization, By serial or By router admin
password
Allowed users
Whitelist of allowed users
From all numbers, From group or From single number
Enable HTTP access
Enable this to reach router via
HTTP from LAN
If this is checked, SMS will enable HTTP access from
LAN, if not, SMS will disable HTTP access from LAN
Enable remote HTTP
access
Enable this to reach router via
HTTP from WAN
If this is checked, SMS will enable HTTP access from
WAN, if not, SMS will disable HTTP access from WAN
Enable remote HTTPS
access
Enable this to reach router via
HTTPS from WAN
If this is checked, SMS will enable HTTPS access from
WAN, if not, SMS will disable HTTPS access from WAN
13.
Restore to default
Enable
This check box will enable or
disable the Restore to default
function
Allows you to restore the router to its default settings
via SMS
Action
The action to be performed
when this rule is met
Router will reboot after this rule is executed and all
configurations will be deleted
SMS text
SMS text that will trigger the
rule. In this case, restore the
router to its default settings
SMS text can contain letters, numbers, spaces and
special symbols. Capital letters also matter
Authorization method
What kind of authorization to
use for SIM management
No authorization, By serial or By router admin
password
Allowed users
Whitelist of allowed users
From all numbers, From group or From single number
RUT955 User‘s Manual
Teltonika Solutions
155
14.
Force SIM switch
Enable
This check box will enable or
disable the Force SIM switch
function
Allows SIM switch via SMS
Action
The action to be performed
when this rule is met
SMS text
SMS text that will trigger the
rule. In this case, force a SIM
switch
SMS text can contain letters, numbers, spaces and
special symbols. Capital letters also matter
Authorization method
What kind of authorization to
use for SIM management
No authorization, By serial or By router admin
password
Allowed users
Whitelist of allowed users
From all numbers, From group or From single number
15.
GPS coordinates
Enable
This check box will enable or
disable the GPD coordinates
function
Allows you to get GPS coordinates via SMS
Action
The action to be performed
when this rule is met
SMS text
SMS text that will trigger the
rule. In this case, send GPS
coordinates
SMS text can contain letters, numbers, spaces and
special symbols. Capital letters also matter
Authorization method
What kind of authorization to
use for SIM management
No authorization, By serial or By router admin
password
Allowed users
Whitelist of allowed users
From all numbers, From group or From single number
16.
GPS
Enable
This check box will enable or
disable the GPS On/Off function
Allows you to control GPS via SMS
Action
The action to be performed
when this rule is met
Turn GPS On or Off
SMS text
SMS text that will trigger the
rule. In this case, turn GPS
On/Off
SMS text can contain letters, numbers, spaces and
special symbols. Capital letters also matter
Authorization method
What kind of authorization to
use for SIM management
No authorization, By serial or By router admin
password
Allowed users
Whitelist of allowed users
From all uers, From group or From single number
17.
Force FW upgrade from server
Enable
This check box will enable or
disable the FW upgrade from
server function
Allows you to upgrade the router‘s FW via SMS
Action
The action to be performed
when this rule is met
Router will reboot after this rule is executed
SMS text
SMS text that will trigger the
rule. In this case, force a FW
upgrade from server
SMS text can contain letters, numbers, spaces and
special symbols. Capital letters also matter
Authorization method
What kind of authorization to
use for SIM management
No authorization, By serial or By router admin
password
Allowed users
Whitelist of allowed users
From all numbers, From group or From single number
RUT955 User‘s Manual
Teltonika Solutions
156
18.
Force Config update from server
Enable
This check box will enable or
disable the Config update from
server function
Allows you to upgrade the router‘s configurations via
SMS
Action
The action to be performed
when this rule is met
The router will reboot after this rule is executed
SMS text
SMS text that will trigger the
rule. In this case, force a
configuration update from
server
SMS text can contain letters, numbers, spaces and
special symbols. Capital letters also matter
Authorization method
What kind of authorization to
use for SIM management
No authorization, By serial or By router admin
password
Allowed users
Whitelist of allowed users
From all numbers, From group or From single number
19.
Switch monitoring on/off
Enable
This check box will enable or
disable the Switch monitoring
function
Allows you to control monitoring status via SMS
Action
The action to be performed
when this rule is met
Turn monitoring On or Off
SMS text
SMS text that will trigger the
rule. In this case, switch
monitoring On/Off
SMS text can contain letters, numbers, spaces and
special symbols. Capital letters also matter
Authorization method
What kind of authorization to
use for SIM management
No authorization, By serial or By router admin
password
Allowed users
Whitelist of allowed users
From all numbers, From group or From single number
20.
Monitoring status
Enable
This check box will enable or
disable the Monitoring status
function
Allows you to get monitoring status via SMS
Action
The action to be performed
when this rule is met
SMS text
SMS text that will trigger the
rule. In this case, send
monitoring status
SMS text can contain letters, numbers, spaces and
special symbols. Capital letters also matter
Authorization method
What kind of authorization to
use for SIM management
No authorization, By serial or By router admin
password
Allowed users
Whitelist of allowed users
From all numbers, From group or From single number
RUT955 User‘s Manual
Teltonika Solutions
157
21.
UCI API
Enable
This check box will enable or
disable the UCI API function
Allows you to set or get any configurations from the
router
Action
The action to be performed
when this rule is met
SMS text
SMS text that will trigger the
rule. In this case, set/send
router parameters
SMS text can contain letters, numbers, spaces and
special symbols. Capital letters also matter
Authorization method
What kind of authorization to
use for SIM management
No authorization, By serial or By router admin
password
Allowed users
Whitelist of allowed users
From all numbers, From group or From single number
22.
Switch output on / off
Enable
This check box will enable or
disable the Switch output
function
Allows output control via SMS
Action
The action to be performed
when this rule is met
Turn output On or Off
Active timeout
Rule active for a specific time, format - seconds
SMS text
SMS text that will trigger the
rule. In this case, switch output
on/off
SMS text can contain letters, numbers, spaces and
special symbols. Capital letters also matter
Authorization method
What kind of authorization to
use for SIM management
No authorization, By serial or By router admin
password
Allowed users
Whitelist of allowed users
From all numbers, From group or From single number
Output type
Which output (Digital OC output or Relay output) will be activated
UCI via SMS parameters:
UCI lets you set or get any parameter from the router's configuration files. The following are syntax examples:
1.
uci get config.section.option"
Get config option value
2.
uci set config.section.option=value"
Set config option
3.
uci show config
Shows the config file
4.
uci show config.section
Shows the exact part of config file (e.g.. uci show network.ppp.apn" )
Important Notes:
Mobile settings must be configured correctly. If SIM card has a PIN number you must enter it at “Network” >
Mobile settings. Otherwise SMS reboot function will not work.
Sender’s phone number must contain country code. You can check sender’s phone number format by
reading the details of old SMS text messages on your phone.
RUT955 User‘s Manual
Teltonika Solutions
158
9.9.1.2 Custom SMS Rules
Apart from the default rules, you can also configure custom ones. To do so, go to the bottom of the SMS Utilities
page. There you will find the “New SMS Rule” tab. Select an Action and press the “Add” button located next to it.
The configuration of these custom rules is the same as the configuration of default rules. Therefore, the
instructions found in the section above apply here as well.
RUT955 User‘s Manual
Teltonika Solutions
9.9.2
Call Utilities
Just like SMS Utilities, Call Utilities provide you with the possibility to issue certain commands to the router from
your mobile phone.
The list of possible rules is o
in mind when creating Call Utilities rules because one call will trigger all of the enabled rules at once.
There is only one default rule (Reboot) configured and it is disabled. To mak
located next to the one default rule (as shown in the example below) or make an entirely new entry for you Call Rules
list by adding a rule from the
New Call Rule
Field name
Possible values
1.
Enable
Checked / Unchecked
2.
Action
Reboot / Get Status / Turn WiFi on/off /
Turn mobile data on/off / Turn Output
on/off
3.
Allowed users
From all numbers / From group / From
single number
4.
Get status via
SMS after reboot
Checked / Unchecked
Just like SMS Utilities, Call Utilities provide you with the possibility to issue certain commands to the router from
The list of possible rules is of course shorter because you can only make one type of call. Keep that
in mind when creating Call Utilities rules because one call will trigger all of the enabled rules at once.
There is only one default rule (Reboot) configured and it is disabled. To make a new rule click the
located next to the one default rule (as shown in the example below) or make an entirely new entry for you Call Rules
New Call Rule
tab.
Explanation
Checked / Unchecked
Enables the rule
Reboot / Get Status / Turn WiFi on/off /
Turn mobile data on/off / Turn Output
Action to be taken after receiving a call
From all numbers / From group / From
Limits action triggering. If
you will prompted to select a
will information on how to configure User Groups
in the 9.9.3
section of this document).
If
From single number
prompted to enter the sender’s number
Checked / Unchecked
Enables automatic message sending with router
status information after reboot. If this is checked,
you will be prompted to enter recipient’s phone
number
159
Just like SMS Utilities, Call Utilities provide you with the possibility to issue certain commands to the router from
f course shorter because you can only make one type of call. Keep that
in mind when creating Call Utilities rules because one call will trigger all of the enabled rules at once.
e a new rule click the
“Edit” button
located next to the one default rule (as shown in the example below) or make an entirely new entry for you Call Rules
Action to be taken after receiving a call
Limits action triggering. If From group is checked,
you will prompted to select a
User Group (you
will information on how to configure User Groups
section of this document).
From single number
is selected, you will be
prompted to enter the sender’s number
Enables automatic message sending with router
status information after reboot. If this is checked,
you will be prompted to enter recipient’s phone
RUT955 User‘s Manual
Teltonika Solutions
9.9.3
User Groups
User Groups provides you with the
possibility to group phone numbers for SMS management purposes. You can
then later use these groups in all related SMS
should have same roles when managing
the
in the Group name text field
and clicking
After this you will re redirected get to the
Field name
Sample
1.
Group name
demo
2.
Phone number
+37061111111
+37062222222,
+37063333333
possibility to group phone numbers for SMS management purposes. You can
then later use these groups in all related SMS
and call
functionalities. This option helps if there are several Users who
the
router via SMS or calls
. You can create new user group by entering
and clicking
the “Add” button located next to it in the
“Create New User Group”
“Modify User Group” section.
Explanation
Name of the group of phone numbers. Used for easier management
purposes
+37061111111,
+37062222222,
+37063333333
Add numbers to the user group. Must match international format.
You can add more
phone numbers fields by clicking on the green
symbol
160
possibility to group phone numbers for SMS management purposes. You can
functionalities. This option helps if there are several Users who
. You can create new user group by entering
a name
“Create New User Group”
section.
the group of phone numbers. Used for easier management
ust match international format.
phone numbers fields by clicking on the green
“+”
RUT955 User‘s Manual
Teltonika Solutions
161
9.9.4
SMS Management
With the help of the SMS Management tab you can read and send SMS messages.
9.9.4.1 Read SMS
In the Read SMS page you can read and delete received/stored SMS messages. The layout is simple, there is a list of
received SMS messages and you can choose how many entries of that list should visible at one time with SMS per page
drop box in the top left corner of the page and there is a Search field to help you navigate more efficiently through the
list of messages in the top right corner of the page.
9.9.4.2 Send SMS
The Send SMS page lets you send SMS messages from the router‘s SIM card.
All you have to do is enter the recipient’s phone number, type in your message and hit the “Send” button. If
everything went well, a green bar saying “Message sent” should appear.
RUT955 User‘s Manual
Teltonika Solutions
162
9.9.4.3 Storage
The Storage tab shows you how much SIM card memory space is used and how much is available. You can also
chose the option for the router to not delete messages. If this option is not used, the router will automatically delete all
incoming messages after they have been read. Message status “read/unread” is examined every 60 seconds. All “read”
messages are deleted.
Field name
Sample
Explanation
1.
Save messages on SIM
Checked/Unchecked
Enables received message storing on SIM card
2.
SIM card memory
Used: 1
Available: 50
Information about used/available SIM card memory
3.
Leave free space
1
How much memory (number of messages) should be left free
RUT955 User‘s Manual
Teltonika Solutions
163
9.9.5
Remote Configuration
RUT955 can be configured via SMS from another RUTxxx router. You only have to select which configuration details
have to be sent and type in the phone number of the other router. The router will then generate the SMS Text needed
for the configurations to be applied.
Total count of SMS is managed automatically. You should be aware of the possible number of SMS and use this
feature at your own responsibility. It should not, generally, be used if you have a high cost per SMS. This is especially
relevant if you will try to send a whole OpenVPN configuration, which might accumulate to about 40 SMS messages.
9.9.5.1 Receive configuration
This section controls how the configuration initiation party should identify itself. In this scenario RUT955 itself is
being configured.
Field name
Values
Notes
1.
Enable
Checked / Unchecked
Enables the router to receive configuration
1.
Authorization
method*
No authorization /
By serial /
By router admin password
Describes what kind of authorization to use for SMS
management. Methods of the Receiving and Sending
ends must match
2.
Allowed users
From all numbers
From group
From single number
What numbers are allowed to send configurations
*Note, that for safety reasons Authorization method should be configured before deployment of the router.
RUT955 User‘s Manual
Teltonika Solutions
164
9.9.5.2 Send configuration
This section lets you configure remote RUTxxx devices. The authorization settings must match those that are set on
the receiving party. An example of how sending a new network configuration with both WAN and LAN settings looks is
presented below.
RUT955 User‘s Manual
Teltonika Solutions
165
Field name
Values
Notes
Setup configuration message
1.
Generate SMS
New / From current
configuration
Generate new SMS settings or use current device
configuration
2.
WAN
Checked / Unchecked
Include configurations for WAN (Wide Area Network)
3.
Interface
Mobile / Wired
Interface type used for WAN (Wide Area Network)
connection
4.
Primary SIM card
SIM1 / SIM2
SIM card that will be used as primary
5.
Mobile connection
PPP / NDIS / NCM / QMI
An underlying agent that will be used for mobile data
connection creation and management
6.
APN
Operator’s APN
(APN) is the name of a gateway between a GPRS or LTE
mobile networks and another computer network,
frequently the public Internet
7.
Dialing number
*99#
A phone number that will be used to establish a mobile
PPP (Point-to-Point Protocol) connection
8.
Authentication
method
CHAP / PAP / None
Select an authentication method that will be used to
authenticate new connections on your GSM carrier's
network
9.
User name
“admin”
User name used for authentication on your GSM carrier's
network
10.
Password
“•••••”
Password used for authentication on your GSM carrier's
network
11.
Service mode
Auto
4G (LTE) only
Your network's preference. If your local mobile network
supports or LTE (4G) you can specify to which network you
prefer to connect to
12.
LAN
Enable/Disable
Include configurations for LAN (Local Area Network)
13.
IP address
“192.168.1.1”
IP address that the remote router will use on LAN
14.
IP netmask
“255.255.255.0”
A subnet mask that the remote router will use to define
how large the LAN network is
15.
IP broadcast
“192.168.1.255”
A logical address at which all devices connected to a
multiple-access communications network are enabled to
receive datagrams
Send Message Settings
16.
Phone number
“+37061111111”
Phone number of the router that will receive the
configuration
17.
Authorization method
No authorization
By serial
By router admin password
What kind of authorization to use for remote configuration
This is an example of only one scenario but you can also send different Network and VPN settings. The settings
being sent are the same as they would be configured on your router locally, therefore, you can find information on what
different Network and VPN parameters do in 7 and 9.7 sections of this document.
RUT955 User‘s Manual
Teltonika Solutions
166
9.9.6
Statistics
The Statistics page represents sent and received SMS numbers.
RUT955 User‘s Manual
Teltonika Solutions
167
9.10 SNMP
Simple Network Management Protocol (SNMP) is a popular protocol for network management. It is used for
collecting information from, and configuring, network devices.
9.10.1
SNMP Settings
Field name
Possible values
Explanation
1.
Enable SNMP service
Checked / Unchecked
Run SNMP service on system start up
2.
Enable remote access
Checked / Unchecked
Open a port in firewall so that the SNMP service may be reached
from WAN
3.
Port
0 - 65535
SNMP service port
4.
Community
Public / Private /
Custom
The SNMP Community is an ID that allows access to a router's
SNMP data
6.
Location
Location
Trap named sysLocation
7.
Contact
Email address
Trap named sysContact
8.
Name
Any name
Trap named sysName
SNMP Variables/OID
OID
Description
1.
1.3.6.1.4.1.99999.1.1.1
Modem IMEI
2.
1.3.6.1.4.1.99999.1.1.2
Modem model
3.
1.3.6.1.4.1.99999.1.1.3
Modem manufacturer
4.
1.3.6.1.4.1.99999.1.1.4
Modem revision
5.
1.3.6.1.4.1.99999.1.1.5
Modem serial number
6.
1.3.6.1.4.1.99999.1.1.6
SIM status
7.
1.3.6.1.4.1.99999.1.1.7
Pin status
8.
1.3.6.1.4.1.99999.1.1.8
IMSI
9.
1.3.6.1.4.1.99999.1.1.9
Mobile network registration status
10.
1.3.6.1.4.1.99999.1.1.10
Signal level
11.
1.3.6.1.4.1.99999.1.1.11
Operator currently in use
12.
1.3.6.1.4.1.99999.1.1.12
Operator number (MCC+MNC)
13.
1.3.6.1.4.1.99999.1.1.13
Data session connection state
14.
1.3.6.1.4.1.99999.1.1.14
Data session connection type
15.
1.3.6.1.4.1.99999.1.1.15
Signal strength trap
16.
1.3.6.1.4.1.99999.1.1.16
Connection type trap
RUT955 User‘s Manual
Teltonika Solutions
168
9.10.2
TRAP Settings
Possible values
Explanation
1.
Checked /
Unchecked
Enables SNMP trap functionality
2.
IP address or
hostname
Host to transfer SNMP traffic to
3.
0 – 65535
Port for trap's host
4.
Public/Private
The SNMP Community is an ID that allows access to a router's SNMP data
RUT955 User‘s Manual
Teltonika Solutions
169
9.11 SMS Gateway
9.11.1
Post/Get Configuration
Post/Get Configuration allows you to perform action requests by writing them in the URL after your device’s IP
address.
Field name
Possible Values
Notes
1.
Enable
Checked / Unchecked
Enable SMS management functionality through
POST/GET
2.
User name
Any username
User name used for authorization
3.
Password
Any password
Password used for authorization (default - user1)
Do not forget to change parameters in the URL according to your POST/GET Configuration!
9.11.1.1 SMS by HTTP POST/GET
It is possible to read and send SMS by using a valid HTTP POST/GET syntax. Use a web browser or any other
compatible software to submit HTTP POST/GET strings to the router. The router must be connected to a GSM network
when using the “SMS send” feature.
Action
POST/GET url e.g.
1.
View mobile
messages list
/cgi-bin/sms_list?username=admin&password=admin01
2.
Read mobile
message
/cgi-bin/sms_read?username=admin&password=admin01&number=1
3.
Send mobile
messages
/cgi-bin/sms_send?username=admin&password=admin01&number=0037060000001&text=testmessage
4.
View mobile
messages
total
/cgi-bin/sms_total?username=admin&password=admin01
5.
Delete mobile
message
/cgi-bin/sms_delete?username=admin&password=admin01&number=1
RUT955 User‘s Manual
Teltonika Solutions
170
9.11.1.2 Syntax of HTTP POST/GET string
HTTP POST/GET string
Explanation
http://{IP_ADD
RESS}
/cgi-bin/sms_read?
username={your_user_name}&password={your_password}&number={MESSAGE
_INDEX}
Read message
/cgi-bin/sms_send?
username={your_user_name}&password={your_password}&number={PHONE_N
UMBER}&text={MESSAGE_TEXT}
Send message
/cgi-bin/sms_delete?
username={your_user_name}&password={your_password}&number={MESSAGE
_INDEX}
Delete message
/cgi-bin/ sms_list? username={your_user_name}&password={your_password}
List all messages
/cgi-bin/sms_ total? username={your_user_name}&password={your_password}
Number of
messages in
memory
Note: parameters of HTTP POST/GET strings are in capital letters inside curly brackets. Curly brackets (“{ }”) are not
needed when submitting HTTP POST/GET string.
9.11.1.3 Parameters of HTTP POST/GET string
Parameter
Explanation
1.
IP_ADDRESS
IP address of your router
2.
MESSAGE_INDEX
SMS index in memory
3.
PHONE_NUMBER
Phone number of the message receiver.
Note: Phone number must contain country code. Phone number format is:
00{COUNTRY_CODE} {RECEIVER_NUMBER}.
E.g.: 0037062312345 (370 is country code and 62312345 is receiver phone number)
4.
MESSAGE_TEXT
Text of the SMS message. Note: Maximum number of characters per SMS is 160. You
cannot send longer messages. It is suggested to use alphanumeric characters only
After every executed command the router will respond with return status.
9.11.1.4 Possible responses after command execution
Response
Explanation
1.
OK
Command executed successfully
2.
ERROR
An error occurred while executing command
3.
TIMEOUT
No response from the module received
4.
WRONG_NUMBER
SMS receiver number format is incorrect or SMS index number is incorrect
5.
NO MESSAGE
There is no message in memory by given index
6.
NO MESSAGES
There are no stored messages in memory
9.11.1.5 HTTP POST/GET string examples
http://192.168.1.1/cgi-bin/sms_read?username=admin&password=admin01&number=2
http://192.168.1.1/cgi-bin/sms_send?username=admin&password=admin01&number=0037060000001&text=message
http://192.168.1.1/cgi-bin/sms_delete?username=admin&password=admin01&number=4
http://192.168.1.1 /cgi-bin/sms_list?username=admin&password=admin01
http://192.168.1.1/cgi-bin/sms_total?username=admin&password=admin01
RUT955 User‘s Manual
Teltonika Solutions
171
9.11.2
Email to SMS
Email to SMS is a function that checks your email’s inbox after a specified amount of time and, if it finds any new
received emails, it converts them to SMS messages.
Field name
Values
Notes
1.
Enable
Checked /
Unchecked
Allows to convert received Email to SMS
2.
POP3 server
“pop.gmail.com”
POP3 server address
3.
Server port
0 – 65535
Server authentication port
4.
User name
Any username
Your email account’s user name
5.
Password
Any password
Your email account’s password
6.
Secure connection
(SLL)
Checked /
Unchecked
(SSL) is a protocol for transmitting private documents via the Internet.
SSL uses a cryptographic system that uses two keys to encrypt data − a
public key known to everyone and a private or secret key known only to
the recipient of the message
7.
Check mail every
Minutes
Hours
Days
Mail checking period
RUT955 User‘s Manual
Teltonika Solutions
9.11.3
Scheduled Messages
Scheduled messages allow you
to periodically send
managed in rule form, i.e., similar to Events Reporting, SMS Utilities, etc. Therefore, to configure a new Scheduled
Message, we must first create a rule. To create a new rule, type in a phone number in the
the “Scheduled Messages Configuration”
After this your new rule will appear in the
rule will be disabled and unc
onfigured. To configure
in the example above.
9.11.3.1
Scheduled Messages Configuration
to periodically send
SMS messages to a specified
number.
managed in rule form, i.e., similar to Events Reporting, SMS Utilities, etc. Therefore, to configure a new Scheduled
Message, we must first create a rule. To create a new rule, type in a phone number in the
section and press the “Add”
button located next to it.
After this your new rule will appear in the
“Messages To Send”
section. Apart from the phone number, the new
onfigured. To configure
your rule, simply click the “Edit”
button located next to it, as shown
Scheduled Messages Configuration
172
number.
Scheduled messages are
managed in rule form, i.e., similar to Events Reporting, SMS Utilities, etc. Therefore, to configure a new Scheduled
Message, we must first create a rule. To create a new rule, type in a phone number in the
Phone number field located in
button located next to it.
section. Apart from the phone number, the new
button located next to it, as shown
RUT955 User‘s Manual
Teltonika Solutions
173
Field name
Possible values
Notes
1.
Enable
Checked/Unchecked
Activates periodical message sending
2.
Recipient’s phone
number
Any phone number
Phone number that will receive the scheduled
messages
3.
Message text
Any text
Message that will be sent
4.
Message sending
interval
Day / Week / Month / Year
Message sending period
9.11.4
Auto Reply
Auto reply allows you to configure automatic replying to SMS messages that the router receives from everyone or
from listed numbers only.
Field name
Values
Notes
1.
Enable
Checked / Unchecked
Enable auto reply to every received mobile message
2.
Reply SMS-Utilities
rules
Checked / Unchecked
If checked, the router will also auto reply to SMS
Utilities rules
3.
Don’t save received
message
Checked / Unchecked
If enabled, received messages will not be saved
4.
Mode
Everyone /
Listed numbers
Select which messages are to be auto replied to.
Either all messages or ones from specified numbers
5.
Message
Any text message
Message text that will be sent in reply
6.
Recipient’s phone
number
Any phone number
Phone numbers to which an automatic reply will be
sent to
RUT955 User‘s Manual
Teltonika Solutions
174
9.11.5
SMS Forwarding
9.11.5.1 SMS Forwarding To HTTP
The SMS Forwarding To HTTP functionality forwards SMS messages to HTTP, using either POST or GET methods.
Field name
Possible values
Notes
1.
Enable
Checked / Unchecked
Enable mobile message forwarding to HTTP
2.
Forward SMS-Utilities
rules
Checked / Unchecked
If checked, the router will also forward SMS Utilities
to HTTP
3.
Use HTTPS
Checked / Unchecked
Check to use HTTPS
4.
Method
Post / Get
Defines the HTTP transfer method
5.
URL
192.168.99.250/getpost/index.php
URL address to forward messages to
6.
Number value name
Any name
Name to assign for sender’s phone number value in
query string
7.
Message value name
Any text
Name to assign for message text value in query
string
8.
Extra data pair 1
Var1 - 17
If you want to transfer some extra information
through the HTTP query, enter variable name on the
left field and its value on the right
9.
Extra data pair 2
Var2 – “go”
10.
Mode
All messages / From listed
numbers
Specifies which sender messages to forward
11.
Sender’s phone
number(s)
Any phone number(s)
Specifies from which phone numbers the SMS
messages should be forwarded
RUT955 User‘s Manual
Teltonika Solutions
175
9.11.5.2 SMS Forwarding to SMS
The SMS Forwarding To SMS function forwards SMS messages to one or several recipients.
Field name
Values
Notes
1.
Enable
Checked / Unchecked
Enable mobile message forwarding
2.
Forward SMS-Utilities
rules
Checked / Unchecked
If checked, the router will also forward SMS Utilities to
SMS
3.
Add sender number
Checked / Unchecked
If enabled, original sender’s number will be added at
the end of the forwarded message
4.
Mode
All messages /
From listed numbers
Specifies from which senders received messages are
going to be forwarded.
5.
Sender’s phone
numbers(s)
Any phone number(s)
Specifies from which phone numbers SMS messages
should be forwarded
6.
Recipient’s phone
numbers
Any phone number(s)
Phone numbers to which messages are going to be
forwarded to
RUT955 User‘s Manual
Teltonika Solutions
176
9.11.5.3 SMS Forwarding to Email
The SMS Forwarding To Email function forwards SMS messages to email.
Field name
Possible values
Explanation
1.
Enable
Checked / Unchecked
Enable SMS message forwarding to email
2.
Forward SMS-Utilities
rules
Checked / Unchecked
If checked, the router will also forward SMS Utilities
to email
3.
Add sender number
Checked / Unchecked
If enabled, original sender’s number will be added at
the end of the forwarded message
4.
Subject
Any text
Text that will be inserted in the email’s Subject field
5.
SMTP server
“mail.teltonika.lt”
Your SMTP server’s address
6.
SMTP server port
0 – 65535
Your SMTP server’s port number
7.
Secure connection
Checked / Unchecked
Enables the use of cryptographic protocols. Enable
only if your SMTP server supports SSL or TLS
7.
User name
Any username
Your email account’s login name
8.
Password
Any password
Your email account’s password
9.
Sender’s email address
Any email address
Your address that will be used to send emails from
10.
Recipient’s email address
Any email address
Address that you want to forward your messages to
11.
Mode
All messages / From listed
numbers
Choose which sender’s messages are to be forwarded
to email
12.
Sender’s phone
number(s)
Any phone number(s)
Specifies from which phone numbers SMS messages
should be forwarded
RUT955 User‘s Manual
Teltonika Solutions
177
9.11.6
SMPP
The Short Message Peer-to-Peer (SMPP) is a protocol used for exchanging SMS messages between Short Message
Service Centers (SMSC) and/or External Short Messaging Entities (ESME)
Field name
Values
Explanation
1.
Enable
Checked / Unchecked
Enables SMPP server
2.
User name
Any username
User name for authentication on SMPP server
3.
Password
Any password
Password for authentication on SMPP server
4.
Server port
0 – 65535
A port that will be used for SMPP server communications
RUT955 User‘s Manual
Teltonika Solutions
178
9.12 GPS
9.12.1
GPS
The GPS window displays your current coordinates and position on the map.
9.12.2
GPS Settings
This is the GPS parameter configuration window.
Field name
Values
Notes
1.
Enable GPS service
Checked /
Unchecked
Enables the GPS function
2.
Enable GPS Data to server
Checked /
Unchecked
Enables automatic GPS data transferring to a remote server
3.
Remote host / IP address
Any IP address
or hostname
Server IP address or domain name to send the coordinates to
4.
Port
0 - 65535
Server port used for data transfer
5.
Protocol
TCP / UDP
Protocol to be used for data transfer to server
RUT955 User‘s Manual
Teltonika Solutions
179
9.12.2.1 TAVL Settings
Field name
Values
Notes
1.
Send GSM signal
Checked /
Unchecked
Check to include GSM signal strength information in GPS data
package to be sent to server
2.
Send analog input
Checked /
Unchecked
Check to include analog input state in GPS data package to be sent
to server
3.
Send digital input (1)
Checked /
Unchecked
Check to include digital input #1 state in GPS data package to be
sent to server
4.
Send digital input (1)
Checked /
Unchecked
Check to include digital input #2 state in GPS data package to be
sent to server
RUT955 User‘s Manual
Teltonika Solutions
180
9.12.3
GPS Mode
Data sending
Rules
This table shows created GPS rules for data sending.
GPS Configuration
GPS configuration section allows to save several different configurations for GPS data collection. Active
configuration is automaticaly selected when configured conditions are met.
Field name
Sample value
Notes
1.
Min period
5
Period (in seconds) for data collection
2.
Min distance
200
Distance difference (in meters) between last registered and current
coordinates to collect data (even if Min period has not passed yet)
3.
Min angle
30
Minimal angle difference between last registered and current coordinates
to collect data (even if Min period has not passed yet)
4.
Min saved records
20
Minimal amount of coordinates registered to send them to server
immediately (even if Send period has not passed yet)
5.
Send period
60
Period for sending collected data to server
Field name
Values
Notes
1.
WAN
Mobile / Wired / WiFi
Interface which needs to be used to activate this
configuration
2.
Type
Home / Roaming / Both
Mobile connection state needed to activate this
configuration
3.
Digital Isolated Input
Low logic level / High logic level / Both
Input state needed to activate this configuration
RUT955 User‘s Manual
Teltonika Solutions
9.12.4
GPS I/O
The GPS I/O window
provides you with the possibility to configure GPS Input rules. To create a new Input rule
select Input type and Trigger
, both of which can be found in the
button.
This will create a new unconfigured Input rule. To configure it press the
created rule.
9.12.5
GPS Geofencing
Geofencing is a feature which can detect whenever a device enters or leaves customized area.
Field name
Values
1.
Enable
Checked / Unchecked
2.
Input Type
Digital / Digital isolated
3.
Trigger
Input open / Input shorted
4.
Priority
Low / High / Panic
Field name
Notes
1.
Enable
Enable/Disable GPS Geofencing functionality
2.
Longitude (X)
Longitude of selected
3.
Latitude (Y)
Latitude of selected point
4.
Radius
Radius of selected area
5
Get current coordinates
Get current device coordinates from GPS
provides you with the possibility to configure GPS Input rules. To create a new Input rule
, both of which can be found in the GPS Input Configuration
This will create a new unconfigured Input rule. To configure it press the
Edit
button located next to the newly
Geofencing is a feature which can detect whenever a device enters or leaves customized area.
Notes
Checked / Unchecked
Enables the rule
/ Digital isolated / Analog
Which type of the input the rule will apply to
/ Input shorted / Both
Trigger event for your intended configuration
/ Panic
Different priority settings ad
event packets, and they
can be displayed differently
Notes
Enable/Disable GPS Geofencing functionality
Longitude of selected point
Latitude of selected point
Radius of selected area
Get current device coordinates from GPS
181
provides you with the possibility to configure GPS Input rules. To create a new Input rule
GPS Input Configuration
section, then click the Add
button located next to the newly
Geofencing is a feature which can detect whenever a device enters or leaves customized area.
Which type of the input the rule will apply to
rigger event for your intended configuration
priority settings add different priority flags to
can be displayed differently
RUT955 User‘s Manual
Teltonika Solutions
182
To receive SMS or email when entering or leaving geofence zone, go to Status -> Events Log -> Events
reporting page and configure GPS event type!
RUT955 User‘s Manual
Teltonika Solutions
183
9.13 Hotspot
Wireless hotspot provides essential functionality for managing an open access wireless network. In addition to
standard RADIUS server authentication there is also the ability to gather and upload detailed logs on what each device
(denoted as a MAC address) was doing on the network (what sites were traversed, etc.).
9.13.1
General settings
9.13.1.1 Main settings
Field name
Explanation
1.
Enabled
Check this flag to enable hotspot functionality on the router.
2.
AP IP
Access Point IP address. This will be the address of the router on the hotspot network. The
router will automatically create a network according to its own IP and the CIDR number
that you specify after the slash. E.g. “192.168.2.254/24” means that the router will create
a network with the IP address 192.168.182.0, netmask 255.255.255.0 for the express
purpose of containing all the wireless clients. Such a network will be able to have 253
clients (their IP addresses will be automatically granted to them and will range from
192.168.2.1 to 192.168.2.253).
Authentication mode: External radius
1.
Radius server #1
The IP address of the RADIUS server that is to be used for Authenticating your wireless
clients.
2.
Radius server #2
The IP address of the second RADIUS server.
3.
Authentication port
RADIUS server authentication port.
4.
Accounting port
RADIUS server accounting port.
5.
Radius secret key
The secret key is used for authentication with the RADIUS server
6.
UAM port
Port to bind for authenticating clients
7.
UAM UI port
UAM UI port
8.
UAM secret
Shared secret between UAM server an hotspot
9.
NAS Identifier
NAS Identifier
10.
Swap octets
Swap the meaning of input octets and output as it related to RADIUS attributes
11.
Location name
The name of location
Authentication mode: Internal radius/Without radius
1.
External landing
page
Enables the use of external landing page.
2.
Landing page
address
The address of external landing page
3.
HTTPS redirect
Redirects HTTP pages to landing page.
Authentication mode: SMS OTP
9.13.1.2 Session settings
Field name
Explanation
RUT955 User‘s Manual
Teltonika Solutions
184
1.
Logout address
IP address to instantly logout a client addressing it
2.
Enable
Enable address accessing without first authenticating
3.
Address
Domain name, IP address or network segment
4.
Port
Port number
5.
Allow subdomains
Enable/Disable subdomains
9.13.2
Internet Access Restriction Settings
Allows disable internet access on specified day and hour of every week.
9.13.3
Logging
9.13.3.1 Configuration
Field name
Explanation
1.
Enable
Check this box if you want to enable wireless traffic logging. This feature will produce logs
which contain data on what websites each client was visiting during the time he was
connected to your hotspot.
2.
Server address
The IP address of the FTP server to which you want the logs uploaded.
3.
Username
The username of the user on the aforementioned FTP server.
4.
Password
The password of the user.
5.
Port
The TCP/IP Port of the FTP server.
Field name
Explanation
1.
Mode
The mode of the schedule. Use “Fixed” if you want the uploading to be done on a specific
time of the day. Use “Interval” if you want the uploading to be done at fixed interval.
2.
Interval
Shows up only when “Mode” is set to Interval. Specifies the interval of regular uploads on
one specific day. E.g. If you choose 4 hours, the uploading will be done on midnight, 4:00,
8:00, 12:00, 16:00 and 20:00.
3.
Days
Uploading will be performed on these days only
4.
Hours, Minutes
Shows up only when “Mode” is set to Fixed. Uploading will be done on that specific time of
the day. E.g. If you want to upload your logs on 6:48 you will have to simply enter hours: 6
and minutes: 48.
9.13.3.2 Log
RUT955 User‘s Manual
Teltonika Solutions
185
9.13.4
Landing Page
9.13.4.1 General Landing Page Settings
With this functionality you can customize your Hotspot Landing page.
Field name
Explanation
1.
Page title
Will be seen as landing page title
2.
Theme
Landing page theme selection
3.
Upload login page
Allows to upload custom landing page theme
4.
Login page file
Allows to download and save your landing page file
In the sections – “Terms Of Services”, “Background Configuration”, “Logo Image Configuration”, “Link
Configuration”, “Text Configuration” you can customize various parameters of landing page components.
RUT955 User‘s Manual
Teltonika Solutions
186
9.13.4.2 Template
In this page you can review landing page template HTML code and modify it.
9.13.5
Radius server configuration
An authentication and accounting system used by many Internet Service Providers (ISPs). When you dial in to the
ISP you must enter your username and password. This information is passed to a RADIUS server, which checks that the
information is correct, and then authorizes access to the ISP system.
Field name
Explanation
1.
Enable
Activates an authentication and accounting system
2.
Remote access
Activates remote access to radius server
3.
Accounting port
Port on which to listen for accounting
4.
Authentication port
Port on which to listen for authentication
9.13.6
Statistics
On hotspot statistics page you can review statistical information about hotspot instances.
9.14 CLI
CLI or Comand Line Interface functionality allows you to enter and execute comands into routers terminal.
9.15 Auto Reboot
9.15.1
Ping Reboot
Ping Reboot function will periodically send Ping command to server and waits for echo receive. If no echo is
received router will try again sending Ping command defined number times, after defined time interval. If no echo is
received after the defined number of unsuccessful retries, router will reboot. It is possible to turn of the router
rebooting after defined unsuccessful retries. Therefore this feature can be used as “Keep Alive” function, when router
Pings the host unlimited number of times. Possible actions if no echo is received: Reboot, Modem restart, Restart
mobile connection, (Re) register, None.
Field name
Explanation
Notes
1.
Enable
This check box will enable or disable Ping reboot
feature.
Ping Reboot is disabled by
default.
2.
Action if no echo is
received
Action after the defined number of unsuccessful
retries
No echo reply for sent ICMP
(Internet Control Message
Protocol) packet received
3.
Interval between pings
Time interval in minutes between two Pings.
Minimum time interval is 5
minutes.
RUT955 User‘s Manual
Teltonika Solutions
4.
Ping timeout (sec)
Time after which consider that Ping has failed.
5.
Packet size
This box allows to modify sent packet size
6.
Retry count
Number of times to try sending Ping to server after
time interval if echo receive was unsuccessful.
8.
Interface
Interface used for connection
7.
Host to ping from SIM 1
IP address or domain name which will be used to
send ping packets to. E.g. 127.0.0.1 (or
www.host.com if DNS server
correctly)
8.
Host to ping from SIM 2
IP address or domain name which will be used to
send ping packets to. E.g. 127.0.0.1 (or
www.host.com if DNS server is configured
correctly)
9.15.2
Periodic Reboot
Field name
Explanation
1.
Enable
This check box will enable or disable Periodic reboot feature.
2.
Days
This check box will enable router rebooting at the defined days.
3.
Hours, Minutes
Uploading will be done on
9.16 Network Shares
9.16.1
Mounted File Systems
On this page you can review mounted file systems (for example USB flashdrive).
Field name
Explanation
1.
File System
Filesystem on which additional file system is mounted
2.
Mount Point
Directory available for mounting additional file system
3.
Available
Total memory available in mounted system
4.
Used
Free memory in mounted system
Time after which consider that Ping has failed.
Range(1
This box allows to modify sent packet size
Should be left default, unless
necessary otherwise
Number of times to try sending Ping to server after
time interval if echo receive was unsuccessful.
Minimum retry nu
Second retry will be done after
defined time interval.
Interface used for connection
IP address or domain name which will be used to
send ping packets to. E.g. 127.0.0.1 (or
www.host.com if DNS server
is configured
correctly)
Ping packets will be sending
from SIM1.
IP address or domain name which will be used to
send ping packets to. E.g. 127.0.0.1 (or
www.host.com if DNS server is configured
correctly)
Ping packets will be
from SIM2.
Explanation
This check box will enable or disable Periodic reboot feature.
This check box will enable router rebooting at the defined days.
Uploading will be done on that specific time of the day
On this page you can review mounted file systems (for example USB flashdrive).
Filesystem on which additional file system is mounted
Directory available for mounting additional file system
Total memory available in mounted system
Free memory in mounted system
187
Range(1-9999)
Should be left default, unless
necessary otherwise
Minimum retry number is 1.
Second retry will be done after
defined time interval.
Ping packets will be sending
from SIM1.
Ping packets will be sending
from SIM2.
This check box will enable or disable Periodic reboot feature.
This check box will enable router rebooting at the defined days.
RUT955 User‘s Manual
Teltonika Solutions
9.16.2
Samba
Samba functionality allows network sharing for specified directories.
Field name
Values
1.
Enable
Enable / Disable
2.
Hostname
Router_Share
3.
Description
Teltonika_Router_Share
4.
Workgroup
WORKGROUP
In Shared Directories section you can add
Field name
Values
1.
Name
My_dir
2.
Path
/mnt/sda1
3.
Allow guests
Enable / Disable
4.
Allowed users
root
5.
Read-only
Enable / Disable
9.16.3
Samba User
In this page you can add new samba users.
Samba functionality allows network sharing for specified directories.
Notes
Enable / Disable
Enables Samba service
Router_Share
Name of samba server
Teltonika_Router_Share
Short server description
WORKGROUP
Name of the workgroup
In Shared Directories section you can add
directories to be shared and configure some usage parameters:
Notes
Name of the shared directory
/mnt/sda1
Path to directory to be shared
Enable / Disable
Enable viewing the directory as a guest
Specify users to be allowed to share this directory
Enable / Disable
Sets user’s wrights in the specified directory to read
only
In this page you can add new samba users.
188
Short server description
Name of the workgroup
directories to be shared and configure some usage parameters:
Name of the shared directory
Path to directory to be shared
Enable viewing the directory as a guest
Specify users to be allowed to share this directory
Sets user’s wrights in the specified directory to read-
RUT955 User‘s Manual
Teltonika Solutions
Field name
Values
1.
Username
user
2.
Password
Pass1
Notes
Name of new user
New user’s password
189
RUT955 User‘s Manual
Teltonika Solutions
190
9.17 Modbus TCP interface
Modbus TCP interface allows the user to set or get some parameters like module temperature, signal strength,
etc. from the router. In other words, Modbus TCP allows to control routers behavior and get its status information. To
use Modbus TCP capabilities this feature must be enabled by navigating to Services-Modbus. After “Save” button is
pressed, the Modbus daemon will be launched on selected port of the system. Modbus daemon acts as slave device
that means, it accepts connection from the master (client) and sends out a response or sets some system related
parameter. By the default Modbus will only accept connections through LAN interface. In order to accept connections
through WAN interface also, Allow Remote Access must be checked.
To obtain some parameter from the system, the read holding registers command is used. The register number
and corresponding system values are described below. Each register contains 2 bytes. For simplification the number of
registers for storing numbers is 2, while for storing text information the number of registers is 16.
Required value
Representation
Register number
Number of registers
System uptime
32 bit unsigned integer
1
2
GSM signal strength (dBm)
32 bit integer
3
2
System temperature in 0.1 degrees
Celcium
32 bit integer
5
2
System hostname
Text
7
16
GSM operator name
Text
23
16
Router serial number
Text
39
16
Router MAC address
Text
55
16
Router name
Text
71
16
Current SIM card
Text
87
16
Network registration
Text
103
16
Network type
Text
119
16
Digital input 1
32 bit integer
135
2
Digital input 2
32 bit integer
137
2
Current WAN IP address
32 bit unsigned integer
139
2
Analog input
32 bit integer
141
2
The Modbus daemon also supports setting of some system parameters. For this task write holding register
command is used. System related parameters and how to use them are described below. The register number refers to
the register number where to start write required values. All commands, except “Change APN” accepts only one input
parameter. For the APN the number of input registers may vary. The very first byte of APN command denotes a number
RUT955 User‘s Manual
Teltonika Solutions
191
of SIM card for which set the APN. This byte should be set to 1 (in order to change APN for SIM card number 1) or to 2
(in order to change APN for SIM card number 2).
Value to set
Description
Register number
Register value
Digital output 1 (on/off)
Change the state of the digital output
number 1
201
1/0
Digital output 2 (on/off)
Change the state of the digital output
number 2
202
1/0
Switch WiFi (on/off)
Allows to switch WiFi on or off
210
1/0
Switch mobile data connection
(on/off)
Turns on or off mobile data
connection
211
1/0
Switch SIM card (SIM1, SIM2,
SIM1->SIM2 and SIM2->SIM1)
Allows to change SIM card in use, 3
possible options are supported
212
0/1/2
Change APN
Allows to change APN
213
APN code
Reboot
Reboots a router
220
1
9.18 UPNP
9.18.1
General Settings
UPnP allows clients in the local network to automatically configure the router.
9.18.2
Advanced Settings
Field name
Explanation
1.
Use UPnP port mapping
Enable UPnP port mapping functionality
2.
Use NAT-PMP port
mapping
Enable NAT-PMP mapping functionality
3.
Device UUID
Specify Universal unique ID of the device
9.18.3
UPnP ACLs
ACLs specify which external ports may be redirected to which internal addresses and ports.
Field name
Explanation
1.
Comment
Add comment to this rule
2.
External ports
External ports which may be redirected
3.
Internal addresses
Internal address to be redirect to
4.
Internal ports
Internal ports to be redirect to
5.
Action
Allow or forbid UPNP service to open the specified port
RUT955 User‘s Manual
Teltonika Solutions
192
9.18.4
Active UPnP Redirects
9.19 QoS
QoS (Quality of Service) is the idea that transmission rates, error rates, and other characteristics can be measured,
improved, and, to some extent, guaranteed in advance. QoS is of particular concern for the continuous transmission of
high-bandwidth video and multimedia information.
QoS can be improved with traffic shaping techniques such as packet, network traffic, and port prioritization.
Field name
Value
Explanation
1.
Interface
WAN/LAN/PPP
2.
Enable
Enable/Disable
Enable/disable settings
3.
Calculate overhead
Enable/Disable
Check to decrease upload and download ratio to prevent link
saturation
4.
Half-duplex
Enable/Disable
Check to enable data transmission in both direction on a single
carrier
5.
Download speed (kbit/s)
1024
Specify maximal download speed
6.
Upload speed (kbit/s)
128
Specify maximal upload speed
Field name
Explanation
1.
Target
Select target for which rule will be applied
2.
Source host
Select host from which data will be transmitted
3.
Destination host
Select host to which data will be transmitted
4.
Service
Select service for which rule will be applied
5.
Protocol
Select data transmission protocol
6.
Ports
Select which port will be used for transmission
7.
Number of bytes
Specify the maximal number of bytes for connection
9.20 Input/Output
9.20.1
Status
In this page you can review the current state of all router’s inputs and outputs.
RUT955 User‘s Manual
Teltonika Solutions
193
9.20.2
Input
Allows you to set up input parameters and specify what actions should be taken after triggering event of any
input. In check analog section you can change the analog input checking interval.
In the input rules section you can create and modify the rules for action after specific input triggering.
Field name
Sample
Explanation
1.
Type
Digital/Digital isolated/Analog
Specifies input type
2.
Triger
Input open
Specifies for which trigger rule is applied
3.
Action
Send SMS
Specifies what action is done
4.
Enable
Enable/Disable
Enable input configuration
Field name
Values
Explanation
RUT955 User‘s Manual
Teltonika Solutions
194
1.
Input type
Digital/Digital isolated/Analog
Specify input type
1.a
Analog type
Analog Voltage/Analog Current
Specify voltage or current measurement
2.
Triger
Input open / Input shorted/ both
Specify for which trigger rule will be applied
3.
Action
Send SMS/ Change SIM card/ Send email/
Change profile/ Turn WiFi ON or OFF/Reboot/
Output
Choose what action will be done after input
triggering
After clicking on ADD button (Or Edit, if the rule is already created) you get the second input configuration page
with extra parameters to set.
Field name
Sample
Explanation
1.
Enable
Enable/Disable
Enable this input rule
2.
Input type
Digital/Digital
isolated/Analog
Specify the input type
3.
Min V/mA
10
Specify minimum voltage/current. Only shown when Input type is Analog
4.
Max V/mA
20
Specify maximum voltage/current. Only shown when Input type is Analog
5.
Triger
Input open
Specify for which trigger rule will be applied
6.
Action
Send SMS
Specify what action to do
7.
SMS text
Input
Specify message to send in SMS
8.
Recipients
phone number
+37012345678
Phone number where you will get SMS. Only shown when Action is
Send SMS
9.
Subject
Input
Specify subject of email. Only shown when Action is Send email
10.
Message
Input
Specify message to send in email. Only shown when Action is Send
email
11.
SMTP server
mail.example.com
Specify SMTP (Simple Mail Transfer Protocol) server. Only shown
when Action is Send email
12.
SMTP server
port
123
Specify SNMP server port. Only shown when Action is Send email
13.
Secure
connection
Enable/Disable
Specify if server support SSL or TLS. Only shown when Action is Send
email
14.
User name
username
Specify user name to connect SNMP server. Only shown when Action
is Send email
15.
Password
password
Specify the password of the user. Only shown when Action is Send
email
16.
Sender's email
address
sender@example.com
Specify your email address. Only shown when Action is Send email
17.
Recipient's
email address
recipient@example.com
Specify for whom you want to send email. Only shown when Action
is Send email
18.
Sim
Primary/ Secondary
Specify which one SIM card will be changed. Only shown when
Action is Change SIM Card
19.
Profile
Admin
Specify which profile will be set and used. Only shown when Action is
Change Profile
20.
Reboot after (s)
4
Device will reload after a specified time (in seconds). Only shown
when Action is Reboot
21.
Output
activated
10
Output will be activated for specified time (in seconds) , or while
exists.
22.
Output type
Digital OC output/ Relay
output
Specify output type, which will be activated, depending on output
time. Only shown when Action is Activate output
RUT955 User‘s Manual
Teltonika Solutions
195
9.20.3
Output
9.20.3.1 Output Configuration
Field name
Sample
Explanation
1.
Open collector
output
Low level / High level
Choose what open collector output will be in active state
2.
Relay output
Contacts closed / Contacts open
Choose what relay output will be in active state
9.20.3.2 ON/OFF
Field name
Sample
Explanation
1.
Digital OC output
Turn on / Turn Off
Manually toggle Digital OC output
2.
Digital relay output
Turn on / Turn Off
Manually toggle Digital relay output
9.20.3.3 Post/Get Configuration
Field name
Example
Explanation
1.
Enable
Enable /Disable
Enable POST/GET output functionality
2.
Username
User1
Service user name
3.
Password
Pass1
User password for authentication
9.20.3.4 Syntax of Output HTTP POST/GET string
With Output post/get you can manage only Outputs (Open collector output and Digital relay output).
Field name
Example
Explanation
1.
IP_ADDRESS
192.168.1.1
IP address of your router
2.
action
on and off
Specify the action to be taken
3.
pin
oc and relay
Specify the output
4.
delay (sec)
15
Delay in seconds after which action will be started
5.
time (sec)
10
Time in seconds after which the action will be stopped.
(if action is on, then it will go back to off after *time*)
Please note:
Delay and time parameters can be used together. Example: delay is 10, time is 5, action is „on“. 10 seconds after
command execution output will switch to „on“ (or stay in „on“ state if it‘s already on), then after 5 more seconds it will
switch to off state. Overall command execution time is 15 seconds.
Actions „on“ and „off“ depend on setting „Output configuration in active state“ (on is active state), which can be
set via Services > Input/Output > Output
RUT955 User‘s Manual
Teltonika Solutions
196
9.20.3.5 Output HTTP POST/GET string examples
http://192.168.1.1/cgi-bin/output?username=User1&password=Pass1&action=on&pin=relay
http://192.168.1.1/cgi-bin/output?username=User1&password=Pass1&action=on&pin=relay&delay=10
http://192.168.1.1/cgi-bin/output?username=User1&password=Pass1&action=on&pin=relay&time=5
http://192.168.1.1/cgi-bin/output?username=User1&password=Pass1&action=on&pin=relay&delay=15&time=5
http://192.168.1.1/cgi-bin/output?username=User1&password=Pass1&action=off&pin=relay&delay=15&time=5
http://192.168.1.1/cgi-bin/output?username=User1&password=Pass1&action=on&pin=oc
http://192.168.1.1/cgi-bin/output?username=User1&password=Pass1&action=off&pin=oc
9.20.3.6 Periodic Control
Periodic control function allows user to set up schedule by which the outputs are either turned ON or OFF at specific
time.
After clicking on ADD button (Or Edit, if the rule is already created) you get the second periodic output configuration
page with extra parameters to set.
Field name
Sample
Explanation
1.
Enable
Enable/Disable
Enable this output rule
2.
Output
Digital/Digital isolated/Analog
Specify the output type
3.
Action
On / Off
Specify the action to be taken
4.
Action timeout
Enabled / Disabled
Enable timeout for this rule
5.
Timeout (sec)
10
Specifies after how much time this action should end.
6.
Mode
Fixed / Interval
Specify the mode of output activation
7.
Hours
15
Specify the hour for rule activation
8.
Minutes
25
Specify the minute for rule activation
9.
Days
Monday
Select the week days for rule activation
9.20.3.7 Scheduler
This function allows you to set up the periodical, hourly schedule for the outputs. You can select on which week
days the outputs are going to be on or off.
9.20.4
Input/Output hardware information
The Input/output (I/O) connector is located in the front panel next to LEDs. Pin-out of the I/O connector:
Type
Description
Ratings
QTY
Input (digital)
Digital non-isolated input for passive
sensors
3V Max
1
Input(digital)
Digital input with galvanic isolation
0..4V – low level
9..30V – high level
1
Input (analog
voltage/current)
Analog input (0-24V/0-20mA)
24V/20mA Max (with
1.2kΩ shunt)
1
Output (Open
collector)
Open collector (OC) output
30V, 0.3A
1
RUT955 User‘s Manual
Teltonika Solutions
197
Output (relay)
SPST relay output
24V, 4A
1
9.20.4.1 Digital input for passive sensors
Absolute maximum ratings:
Maximum voltage on input pin1 with respect to pin6: 3V
Minimum voltage on input pin1 with respect to pin6: 0V
The input is protected from short positive or negative ESD transients
This input is designed for connecting sensors with passive output (not outputting voltage) such as:
Passive infrared (PIR) sensors for motion detection (sensors with open
collector or relay output are suitable type to use )
Mechanical Switches, pushbuttons
Reed switches, which opens or closes its contacts when magnetic field is
near
Any sensor with open collector or open drain output (use without pull-up resistor)
RUT955 User‘s Manual
Teltonika Solutions
198
Example schematic of using PIR sensors, mechanical switches, reed switches:
Example schematic of connecting multiple sensors with open collector outputs:
Multiple sensors can be connected in parallel like in the schematic below. In this configuration any sensor will
activated the input. The example could be multiple motion sensors located in multiple places. If either of them will
sense motion, the configured event (for e.g. alarm) will be activated. This is suitable when you just need to know that
alarm is triggered but it is not necessary to know which sensor activated an alarm.
9.20.4.2 Digital galvanically isolated input
Sensors with push-pull output stage can be connected to this input. Example of such circuit is shown in the
picture below. The circuit uses optocoupler to isolate the input. In case of the failure at the input, the rest of the circuit
remains safe.
The signal source resistance should be less than 100Ω.
Input voltage levels:
Low level voltage: 0..+4V
High level voltage: +9..30V
Maximum ratings:
Maximum voltage that can be connected to pin2 with respect to pin7 is 30V. Do not exceed this voltage!
The input is protected from reverse voltage down to -200V.
9.20.4.3 Analog input
Analog input is designed to measure analog voltages in the range of 0-24V and convert it to digital domain. This
input can also be used to measure current up to 20mA.
Example of monitoring 12V battery voltage:
When Analog input type is „Analog Current“ a 1.2kΩ resistor shunt must be connected as shown below:
RUT955 User‘s Manual
Teltonika Solutions
199
Input electrical characteristics:
Parameter
Value
Maximum voltage
24V
Minimum voltage
0V
Resolution
5.859mV
Input low-pass filter cut-off frequency (-3dB)
10Hz
Input resistance (seen between I/O header pins 9 and 6 )
131kΩ
Input accuracy:
Input voltage range, V
Measurement error, %
0 <Vin≤ 1
<20
1 <Vin≤ 2
<10
2 <Vin≤ 5
<5
5 <Vin≤ 24
<3
9.20.4.4 Open collector output
This output can be used to drive external relay. In order for the output to work correctly, external voltage that is
connected to a relay also needs to be connected to I/O header pin 4. There is flyback diode located inside the device to
protect it from spikes occurring when inductive load (relay coil) is suddenly switched off, so connection of the external
diode is not necessary. The output is isolated from the rest of the circuitry using optocoupler. In case of the output
failure, the rest of the circuit will remain protected.
Maximum external DC voltage
30V
Maximum output sink current
0.3A
RUT955 User‘s Manual
Teltonika Solutions
200
Example of driving a relay:
Output can be also used to generate signals with desired amplitude. Resistor could be for example 4.7kΩ.
9.20.4.5 Relay output
Relay output has two pins: COM and NO. When the relay is not energized (output not active), these pins are
disconnected. One the relay is energized (output active) these pins are become connected together. Relay output is not
intended to drive AC voltages.
Maximum DC voltage across relay contacts
24V
Maximum relay DC current
4A
Example of connecting alarm siren to the relay output:
10 System
10.1 Configuration Wizard
The configuration wizard provides a simple way of quickly configuring the device in order to bring it up to basic
functionality. The wizard is comprised out of 4 steps and they are as follows:
Step 1 (General change)
First, the wizard prompts you to change the default password. Simply enter the same password into both
Password and Confirmation fields and press Next.
RUT955 User‘s Manual
Teltonika Solutions
201
Step 2 (Mobile Configuration)
Next we have to enter your mobile configuration. On a detailed instruction on how this should be done see the
Mobile section under Network
Step 3 (LAN)
Next, you are given the chance to configure your LAN and DHCP server options. For a detailed explanation see
LAN under Network.
Step 4 (Wi-Fi)
The final step allows you to configure your wireless settings in order to set up a rudimentary Access Point.
When you’re done with the configuration wizard, press Save.
10.2 Profiles
Router can have 5 configuration profiles, which you can later apply either via WebUI or via SMS. When you add
New Profile, you save current full configuration of the router. Note: profile names cannot exceed 10 symbols.
10.3 Administration
10.3.1
General
Field name
Explanation
1.
Router name
Enter your new router name.
2.
Host name
Enter your new host name
3.
New Password
Enter your new administration password.
Changing this password will change SSH password as well.
4.
Confirm new password
Re-enter your new administration password.
5.
Language
Website will be translated into selected language.
6.
IPv6 support
Enable IPv6 support on router
7.
Show mobile info at login page
Show operator and signal strength at login page.
8.
Show WAN IP at login page
Show WAN IP at login page.
9
On/Off LEDs
If uncheck, all routers LEDs are off.
10
Restore to default
Router will be set to factory default settings
Important notes:
RUT955 User‘s Manual
Teltonika Solutions
202
The only way to gain access to the web management if you forget the administrator password is to reset the
device factory default settings. Default administrator login settings are:
User Name: admin
Password: admin01
10.3.2
Troubleshoot
Field name
Explanation
1.
System log level
Debug level should always be used, unless instructed otherwise.
2.
Save log in
Default RAM memory should always be used unless instructed otherwise.
3.
Include GSMD information
Default setting – enabled should be used, unless instructed otherwise.
4.
Include PPPD information
Default setting – disabled should be used, unless instructed otherwise.
5.
Include Chat script information
Default setting – enabled should be used, unless instructed otherwise.
6.
Include network topology
information
Default setting – disabled should be used, unless instructed otherwise.
7.
System Log
Provides on-screen System logging information. It does not, however,
substitute troubleshooting file that can be downloaded from System ->
Backup and Firmware menu.
8.
Kernel Log
Provides on-screen Kernel logging information. It does not, however,
substitute troubleshooting file that can be downloaded from System ->
Backup and Firmware menu.
9.
Troubleshoot file
Downloadable archive, that contains full router configuration and all System
log files.
10.3.3
Backup
Field name
Explanation
1.
Backup archive
Download current router settings file to personal computer. This file can be loaded to
other RUT955 with same Firmware version in order to quickly configure it.
2.
Restore from backup
Select, upload and restore router settings file from personal computer.
10.3.3.1 Access control
10.3.3.1.1 General
Field name
Explanation
1.
Enable SSH access
Check box to enable SSH access.
2.
Remote SSH access
Check box to enable remote SSH access.
3.
Port
Port to be used for SSH connection
4.
Enable HTTP access
Enables HTTP access to router
RUT955 User‘s Manual
Teltonika Solutions
203
5.
Enable remote HTTP
access
Enables remote HTTP access to router
6.
Port
Port to be used for HTTP communication
7.
Enable remote
HTTPS access
Enables remote HTTPS access to router
8.
Port
Port to be used for HTTPS communication
9.
Enable CLI
Enables Command Line Interface
10.
Enable remote CLI
Enables remote Command Line Interface
11.
Port
Port to be used for CLI communication
Note: The router has 2 users: “admin” for WebUI and “root” for SSH. When logging in via SSH use “root”.
10.3.3.1.2 Safety
Field name
Explanation
1.
SSH access secure
enable
Check box to enable SSH access secure functionality.
2.
Clean after reboot
If check box is selected – blocked addresses are removed after every reboot.
3.
Fail count
Specifies maximum connection attempts count before access blocking.
4.
WebUI access
secure enable
Check box to enable secure WebUI access.
10.3.4
Diagnostics
Field name
Explanation
1.
Host
Enter server IP address or hostname.
2.
Ping
Utility used to test the reach ability of a host on an Internet IP network and to measure the
round-trip time for messages sent from the originating host to a destination server. Server echo
response will be shown after few seconds if server is accessible.
3.
Traceroute
Diagnostics tool for displaying the route (path) and measuring transit delays of packets across an
Internet IP network. Log containing route information will be shown after few seconds.
4.
Nslookup
Network administration command-line tool for querying the Domain Name System (DNS) to
obtain domain name or IP address mapping or for any other specific DNS record. Log containing
specified server DNS lookup information will be shown after few seconds.
10.3.5
MAC Clone
Field name
Explanation
1.
WAN MAC address
Enter new WAN MAC address.
RUT955 User‘s Manual
Teltonika Solutions
204
10.3.6
Overview
Select which information you want to get in Overview window (Status -> Overview).
Field name
Explanation
1.
Mobile
Check box to show Mobile table in Overview page
2.
SMS counter
Check box to show SMS counter table in Overview page
3.
System
Check box to show System table in Overview page
4.
Wireless
Check box to show Wireless table in Overview page
5.
WAN
Check box to show WAN table in Overview page
6.
Local network
Check box to show Local network table in Overview page
7.
Access control
Check box to show Access control table in Overview page
8.
Recent system events
Check box to show Recent system events table in Overview page
9.
Recent network events
Check box to show Recent network events table in Overview page
10.
<Hotspot name> Hotspot
Check box to show Hotspot instance table in Overview page
11.
VRRP
Check box to show VRRP table in Overview page
12.
Monitoring
Check box to show Monitoring table in Overview page
10.3.7
Monitoring
Monitoring functionality allows your router to be connected to Remote Monitoring System. Also MAC
address and router serial numbers are displayed for convenience in this page, because they are needed when
adding device to monitoring system.
Field name
Explanation
1.
Enable remote monitoring
Check box to enable/disable remote monitoring
2.
Monitoring
Shows monitoring status.
3.
Router LAN MAC address
MAC address of the Ethernet LAN ports
4.
Router serial number
Serial number of the device
10.4 User scripts
Advanced users can insert their own commands that will be executed at the end of booting process.
In Script Management window is shown content of a file /etc/rc.local. This file is executed at the end of startup,
executing the line: sh /etc/rc.local In this script is needed to use sh (ash) commands. It should be noted, that this is
embedded device and sh functionality is not full.
10.5 Restore point
10.5.1
Restore point create
Allow to create firmware restore points with all custom configurations. You can download created restore points
RUT955 User‘s Manual
Teltonika Solutions
205
to your computer.
10.5.2
Restore point load
Allow to restore configuration from previously saved restore point. You can upload restore point from your
computer.
10.6 Firmware
10.6.1
Firmware
Keep all settings – if the check box is selected router will keep saved user configuration settings after firmware
upgrade. When check box is not selected all router settings will be restored to factory defaults after firmware upgrade.
When upgrading firmware, you can choose settings that you wish to keep after the upgrade. This function is useful
when firmware is being upgraded via Internet (remotely) and you must not lose connection to the router afterwards.
FW image – router firmware upgrade file.
Warning: Never remove router power supply and do not press reset button during upgrade process! This would
seriously damage your router and make it inaccessible. If you have any problems related to firmware upgrade you
should always consult with local dealer.
10.6.2
FOTA
Field name
Explanation
1.
Server address
Specify server address to check for firmware updates. E.g.
“http://teltonika.sritis.lt/rut9xx_auto_update/clients/”
2.
User name
User name for server authorization.
3.
Password
Password name for server authorization.
4.
Enable auto check
Check box to enable automatic checking for new firmware updates.
5.
Auto check mode
Select when to perform auto check function.
6.
WAN wired
Allows to update firmware from server only if routers WAN is wired (if box is checked).
10.7 Reboot
Reboot router by pressing button “Reboot”.
RUT955 User‘s Manual
Teltonika Solutions
206
11 Device Recovery
The following section describes available options for recovery of malfunctioning device. Usually device can
become unreachable due to power failure during firmware upgrade or if its core files were wrongly modified in the file
system. Teltonika’s routers offer several options for recovering from these situations.
11.1 Reset button
Reset button is located on the back panel of the device. Reset button has several functions:
Reboot the device. After the device has started and if the reset button is pressed for up to 4 seconds the device
will reboot. Start of the reboot will be indicated by flashing of all 5 signal strength LEDs together with green connection
status LED.
Reset to defaults. After the device has started if the reset button is pressed for at least 5 seconds the device will
reset all user changes to factory defaults and reboot. To help user to determine how long the reset button should be
pressed, signal strength LEDs indicates the elapsed time. All 5 lit LEDs means that 5 seconds have passed and reset
button can be released. Start of the reset to defaults will be indicated by flashing of all 5 signal strength LEDs together
with red connection status LED. SIM PIN on the main SIM card is the only user parameter that is kept after reset to
defaults.
11.2 Bootloader’s WebUI
Bootloader also provides a way to recover the router functionality when the firmware is damaged. To make it
easier to use bootloader has its own webserver that can be accessed with any web browser.
Procedure for starting bootloader’s webserver:
Automatically. It happens when bootloader does not detect master firmware. Flashing all 4 Ethernet LEDs
indicate that bootloader’s webserver has started.
Manually. Bootloader’s webserver can be requested by holding reset button for 3 seconds while powering the
device on. Flashing all 4 Ethernet LEDs indicates that bootloader’s webserver has started.
Bootloader’s WebUI can be accessed by typing this address in the web browser:
http://192.168.1.1/index.html
Note: it may be necessary to clear web browser’s cache and to use incognito/anonymous window to access
bootloader’s WebUI.
RUT955 User‘s Manual
Teltonika Solutions
207
12 FCC Regulations
FCC ID：2AET4RUT955V
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Caution: Changes or modifications not expressly approved by the manufacturer could void the user’s authority to
operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/ TV technician for help.
FCC RF Exposure Information
This device complies with the relevant RF radiation exposure limit set forth for an uncontrolled environment. This
device must be installed and operated with the minimum distance 20cm between the radiator and your body. This
device must be not co-located or operating in conjunction with any other antenna or transmitter.
RUT955 User‘s Manual
Teltonika Solutions
208
13 Glossary:
WAN – Wide Area Network is a telecommunication network that covers a broad area (i.e., any network that links
across metropolitan, regional, or national boundaries). Here we use the term WAN to mean the external network that
the router uses to reach the internet.
LAN – A local area network (LAN) is a computer network that interconnects computers in a limited area such as a
home, school, computer laboratory, or office building.
DHCP – The Dynamic Host Configuration Protocol (DHCP) is a network configuration protocol for hosts on Internet
Protocol (IP) networks. Computers that are connected to IP networks must be configured before they can communicate
with other hosts. The most essential information needed is an IP address, and a default route and routing prefix. DHCP
eliminates the manual task by a network administrator. It also provides a central database of devices that are connected
to the network and eliminates duplicate resource assignments.
ETHERNET CABLE – Refers to the CAT5 UTP cable with an RJ-45 connector.
AP – Access point. An access point is any device that provides wireless connectivity for wireless clients. In this case,
when you enable Wi-Fi on your router, your router becomes an access point.
DNS – Domain Name Resolver.A server that translates names such as www.google.lt to their respective IPs. In
order for your computer or router to communicate with some external server it needs to know it’s IP, its name
“www.something.com” just won’t do. There are special servers set in place that perform this specific task of resolving
names into IPs, called Domain Name servers. If you have no DNS specified you can still browse the web, provided that
you know the IP of the website you are trying to reach.
ARP – Short for Adress Resolution Protocol,a network layerprotocol used to convert an IP address into a physical
address (called a DLC address), such as an Ethernet address.
PPPoE – Point-to-Point Protocol over Ethernet. PPPoE is a specification for connecting the users on an Ethernet to
the internet through a common broadband medium, such as DSL line, wireless device or cable modem.
DSL – digital subscriber line - it is a family of technologies that provide internet access by transmitting digital data
using a local telephone network which uses the public switched telephone network.
NAT – network address translation – an internet standard that enables a local-area network (LAN) to use one set
of IP addresses for internet traffic and a second set of addresses for external traffic.
LCP – Link Control Protocol – a protocol that is part of the PPP (Point-to-Point Protocol). The LCP checks the
identity of the linked device and either accepts or rejects the peer device, determines the acceptable packet size for
transmission, searches for errors in configuration and can terminate the link if the parameters are not satisfied.
BOOTP – Bootstrap Protocol – an internet protocol that enables a diskless workstation to discover its own IP
address, the IP address of a BOOTP server on the network, and a file to be loaded into memory to boot the machine.
RUT955 User‘s Manual
Teltonika Solutions
209
This enables the workstation to boot without requiring a hard or floppy disk drive.
TCP – Transmission Control Protocol – one of the main protocols in TCP/IP networks. Whereas the IP protocol
deals only with packets, TCP enables two hosts to establish a connection and exchange streams of data. TCP guarantees
delivery of data and also guarantees that packets will be delivered in the same order in which they were sent.
TKIP – Temporal Key Integrity Protocol – scrambles the keys using hashing algorithmand, by adding an integrity-
checking feature, ensure that the keys haven’t been tampered with.
CCMP – Counter Mode Cipher Block Chaining Message Authentication Code Protocol – encryption protocol
designed for Wireless LAN products that implement the standards of the IEEE 802.11i amendment to the original
IEEE802.11 standard. CCMP is an enchanged data cryptographic encapsulation designed for data confidentiality and
based upon the Counter Mode with CBC-MAC (CCM) of the AES (Advanced Encyprion Standard) standard.
MAC – Media Access Control – hardware address that uniquely identifies each node of a network. In IEEE 802
networks, the Data Link Control (DCL) layer of the PSO Reference Model is divided into two sub-layers: the Logical Link
Control (LLC) layer and the Media Access Control layer. The MAC layer interfaces directly with the network medium.
Consequently, each different type of network medium requires a different MAC layer.
DMZ – Demilitarized Zone – a computer or small subnetwork that sits between a trusted internal network, such as
a corporate private LAN, and an untrusted external network, such as the public internet.
UDP – User Datagram Protocol – a connectionless protocol that, like TCP, runs on top of IP networks. Provides
very few error recovery services, offering instead a direct way to send and receive datagrams over IP network.
VPN – Virtual Private Network – a network that is constructed by using public wires — usually the Internet — to
connect to a private network, such as a company's internal network.
VRRP – Virtual Router Redundancy Protocol - an election protocol that dynamically assigns responsibility for one
or more virtual router(s) to the VRRP router(s) on a LAN, allowing several routers on a multiaccess link to utilize the
same virtual IP address.
GRE Tunnel – Generic Routing Encapsulation - a tunneling protocol developed by Cisco Systems that can
encapsulate a wide variety of network layerprotocols inside virtual point-to-point links over an Internet Protocol
internetwork.
PPPD – Point to Point Protocol Daemon – it is used to manage network connections between two nodes on Unix-
likeoperating systems. It is configured using command-line arguments and configuration files.
SSH – Secure SHell - a program to log into another computer over a network, to execute commands in a remote
machine, and to move files from one machine to another. It provides strong authentication and secure communications
over insecure channels.
VRRPD – Virtual Router Redundancy Protocol – it is designed to eliminate the single point of failure associated
with statically routed networks by automatically providing failover using multiple LAN paths through alternate routers.
SNMP – Simple Network Management Protocol - a set of protocols for managing complex networks. SNMP works
by sending messages, called protocol data units (PDUs), to different parts of a network.
