HONGKONGUCLOUDLINKNETWORK

TECHNOLOGYLIMITED



4GFreeRoamingHotspot



4G High Speed Internet

E1 connects to the 4G or 3G local network automatically. It will switch to the best and the

most stable network. This device only used for data communication without voice.

We are all connected

E1 supports up to 5 devices simultaneously. This allows all your Wi-Fi enabled devices

like smartphones, tablets and laptop computers assessing Internet at the same time.

Safe personal Wi-Fi

There is zero hacking and as well no surveillance. Use the private network service to

ensure online protection when accessing the Internet.

Power Bank

With the maximum capacity of 6000 mAh, GlocalMe acts as a power bank which

provides you with the extra convenience of charging your mobile phone .



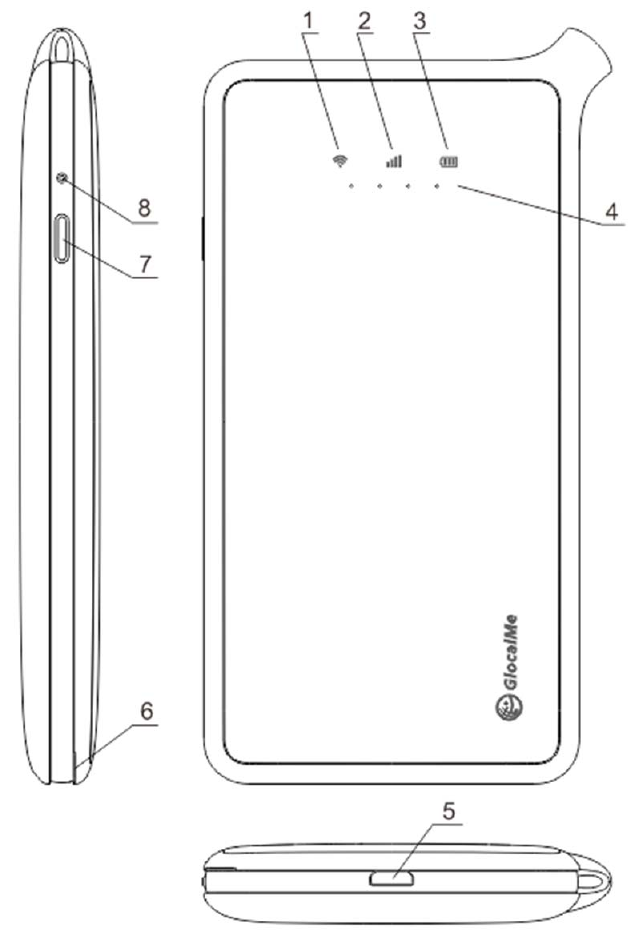

1. ProductOverview

;

1. Wi‐FiLEDIndicator

2. SignalLEDIndicator

3. BatteryLEDIndicator

4. StrengthLEDIndicator

5. MicroUSB(Input)

6. Handlepositionforopeningfrontpanel

7. Powerbutton

8. Resetbutton



LEDIndicatorTypeStatusRemarks

Wi‐FiLEDIndicator

OnReadyforinternetconnection

OffNointernetconnection

FlashingServiceconnecting

SignalLEDIndicatorOnThesignalstrengthisshownbystrengthLEDindicator(4)

FlashingServiceabnormal

BatteryLEDIndicator OnThebatterycapacityisshownbystrengthLEDindicator(4)

FlashingIncharging



2、FunctionIntroduction：

1. Poweron：Presspowerbuttonfor3seconds

2. Poweroff：Presspowerbuttonfor5seconds

3. Reset：Presspowerbuttonfor18seconds

4. RestoreFactorySettings：Pressresetbuttonfor5seconds

5. BatteryCapacityandSignalStrength：Pressthepowerbutton,thebatterycapacitywillbe

showninthefirst3seconds,andthenthesignalstrengthwillbeshownafterwards.

3、LocalSIM：

BothMacroSIMandMicroSIMaresupportedbyE1.

MacroSIM——SIMslot1MicroSIM——SIMslot2

ThefrontpanelcanbeopenedasshowninFigure3.

Pleasepowerofffirstifyouwanttoinsert/pullouttheSIMcard。



4、ProductIntroduction

Brand：GlocalMe

Model：E1

BoxContent:Device;UserManual:MicroUSBcable



TechnicalSpecification：

•LTEFDD:Band1/2/3/4/5/7/8/17/20

•LTETDD:Band38/39/40/41

•WCDMA:Band1/2/4/5/8

•GSM:1900/1800/900/850MHz

•CDMA/EVDO:BC0BC1

•MaxUploadspeed:50Mbps

•MaxDownloadspeed:150Mbps

•Wi‐Fi:IEEE802.11b/g/n

•MicroUSB

•Batterycapacity:3500mAh

•PowerInput:DC5V 1A



5、QuickStartGuide

1.RegisteranAccount：ScantheQRcodebelowtodownloadtheGlocalMeApp.Registeran

accountafterinstallation。



2.ActivateDevice：UsingtheGlocalMeApptoscantheQRcodeonthebackpanelofthedevice.

3.PurchasePackage：PurchasepackageortopupthroughGlocalMeApp.

4.PowerOn：Presspowerbuttonfor3seconds.

5.ConnecttoGlocalMe：WhentheWi‐FiLEDindicator""ispermanentlyon,turnonWi‐Fion

cellphone,selectGlocalMeWi‐Fi,inputthepasswordtoconnecttotheinternet（Wi‐Finame

andpasswordcanbeseenonthebackpanel,asshownbelow）.



6. DeviceManagement：Input‘192.168.43.1’intheaddressbarofwebbrowser,andinputthe

usernameandpasswordtologin(Theinitialusernameandpasswordareshownabove).



6、FAQ

1. HowlongdoesittaketofullychargetheE1?

Approximately7.5hours.



2. Howlongcanitworkcontinuously?

Approximately12hoursoncefullycharged.



3. HowcanIchangemyWi‐Finameandpassword?

Onceconnected,input‘192.168.43.1’intheaddressbarofwebbrowser,inputthenewSSID

(Wi‐Finame)andpassword.



4. WhatshouldIdoifmydeviceislostorstolen?

De‐activatethedevicethroughGlocalMeApptopreventtheuseofyourdevice.



5. Howmanyconnectionscanitsupportatthesametime?

Upto5connectionsissupportedbyE1atthesametime.



6. Howlongdoesittaketoconnecttotheinternetoncepoweredon?

Itdependsonthelocalnetworkcondition,normallyitwilltake1~2minutes.Forthefirstuse

inonecountry,itmaytakeupto10minutes.



7. WhatmaybethecauseifalltheLEDsareoffwhenpressingthepowerbutton?

Itmaybecausedbylowbattery,pleasechargefirst.



8. WhatshouldIdoifitstopsresponding?

Pressthepowerbuttonfor30seconds.



9. WhatshouldIdoifthelocalSIMdoesn’twork?

ManuallyinputtheAPNoftheSIMcard(loginto192.168.43.1,goto‘Settings’‐>‘APN

settings’,manuallyinputtheAPNinfoofyourSIMcardandSave.)



Formoreinfo,pleasevisitwww.glocalme.com



Warning

Specific Absorption Rate (SAR) information.SAR tests are conducted using standard

operating positions accepted by the FCC with the device transmitting at its highest certified

power level in all tested frequency bands, although the SAR is determined at the highest

certified power level, the actual SAR level of the device while operating can be well below

the maximum value, in general, the closer you are to a wireless base station antenna, the

lower the power output.

Before a new device can be made available for sale to the public, it must be tested and

certified by the FCC that it does not exceed the exposure limit established by the FCC,

Tests for each device are performed in positions and locations as required by the FCC.For

body worn operation, this device has been tested and meets the FCC RF exposure

guidelines when used with an accessory designated for this product or when used with an

accessory that contains no metal and that positions the device a minimum of 1.0 cm from

the body.

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause.

Undesired operation.Any Changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio

communications.However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

--Reorient or relocate the receiving antenna.--Increase the separation between the

equipment and receiver.--Connect the equipment to an outlet on a different circuit to the

receiver.--Consult the dealer or an experienced radio/TV technician for help.

Disposal and recycling information

This symbol (with or without a solid bar) on the device, batteries (if

included), and/or the packaging, indicates that the device and its electrical accessories (for

example, a headset, adapter, or cable) and batteries should not be disposed of as

household garbage. These items should not be disposed of as unsorted municipal waste

and should be taken to a certified collection point for recycling or proper disposal. For more

detailed information about device or battery recycling, contact your local city office,

household waste disposal service, or retail store.Disposal of the device and batteries (if

included) is subject to WEEE Directive Recast (Directive 2012/19/EU) and Battery

Directive (Directive 2006/66/EC). The purpose of separating WEEE and batteries from

other waste is to minimize the

potential environmental impacts and human health risk of any hazardous substances that

may be present.



FCCWarning:

Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwo

conditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustaccept

anyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.

AnyChangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliance

couldvoidtheuser'sauthoritytooperatetheequipment.

ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,

pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotection

againstharmfulinterferenceinaresidentialinstallation.Thisequipmentgeneratesusesandcan

radiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,

maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethat

interferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmful

interferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipment

offandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe

followingmeasures:

‐Reorientorrelocatethereceivingantenna.

‐Increasetheseparationbetweentheequipmentandreceiver.

‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris

connected.

‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

TheSARlimitofUSA(FCC)is1.6W/kgaveragedoveronegramoftissue.

DevicetypesA4REVOLUTION(FCCID:2AC88‐E1)hasalsobeentestedagainstthisSARlimit.The

highestreportedSARvaluesforproductspecific(Hotspot)are1.20W/kgforMainboard,1.18

W/kgforViceBoardrespectively.TheMaxsimultaneousSARare1.39W/kgforMainboard,1.37

W/kgforViceBoard.Thisdevicewastestedfortypicalbody‐wornoperationswiththebackof

thehandsetkept10mmfromthebody.TomaintaincompliancewithFCCRFexposure

requirements,useaccessoriesthatmaintaina10mmseparationdistancebetweentheuser's

bodyandthebackofthehandset.Theuseofbeltclips,holstersandsimilaraccessoriesshould

notcontainmetalliccomponentsinitsassembly.Theuseofaccessoriesthatdonotsatisfythese

requirementsmaynotcomplywithFCCRFexposurerequirements,andshouldbeavoided.

Environmental Conditions

Working Temperature -20 ~ 40℃

Working humidity 65+/-20%RH

Hereby, HONGKONG UCLOUDLINK NETWORK TECHNOLOGY LIMITED,

declares that this 4G Free Roaming Hotspot/ E1, is In compliance with the

essential Requirements and other relevant provisions of Directive 1999/5/EC.

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working

electrical equipments to an appropriate waste disposal centre.

0700

A warning that batteries(battery pack or batteries installed) shall not be

exposed to excessive heat such as sunshine, fire or the like.

CAUTION RISK OF EXPLOSION IF BATTERY IS RWPLACED BY AN

INCORRECT TYPE. DISPOSE OF USED BATTERYS ACCORDING TO THE

INSTRUCTINS

The following standards have been applied for the investigation of compliance:

ETSI EN 301 489-1 V1.9.2: 2011

ETSI EN 301 489-3 V1.6.1: 2013

ETSI EN 301 489-7 V1.3.1: 2005

ETSI EN 301 489-17 V2.2.1: 2012

ETSI EN 301 489-24 V1.5.1: 2010

ETSI EN 301 511 V9.0.2: 2003

ETSI EN 301 908-1 V6.2.1: 2013

ETSI EN 301 908-2 V6.2.1: 2013

ETSI EN 301 908-13 V6.2.1: 2013

ETSI EN 300 440-1 V1.6.1: 2010

ETSI EN 300 440-2 V1.4.1: 2010

ETSI EN 300 328 V1.8.1: 2012

IEC 62133: 2012

EN 50566:2013

EN 62479: 2010

EN 60950-1：2006 +A11: 2009 +A1: 2010+A12:2011+A2:2013

EN 55022:2010

EN 55024:2010

EN 61000-3-2:2014

EN 61000-3-3:2013

Use careful with the earphone maybe possible excessive sound pressure from

earphones and headphones can cause hearing loss The product shall only be

connected to a USB interface of version USB2.0 or higher and that the

connection to a power USB is prohibited. Adapter shall be installed near the

equipment and shall be easily accessible.

The RF distance between body and mobile phone is 5mm.


