UNION COMMUNITY AC-5000RF Access Controller User Manual AC5000 UserGuide 1 00
UNION COMMUNITY Access Controller AC5000 UserGuide 1 00
Users Manual
AC-5000 User Guide
2
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
<Revison History>
Version Date Description Firmware Version
1.00 2011-01-10 Initial Release 10.51.00-000.00
<Glossary>
Admin (Administrator)
- As a user who can enter the terminal menu mode, he/she is authorized to
register/modify/delete terminal users and change the operating environment by
changing the settings.
- If there is no administrator registered for a terminal, anyone can enter the terminal
menu and change the settings. Therefore, it is recommended to register at least one
administrator.
- Special care is required for registration and operation as an administrator has the right
to change important environment settings of the fingerprint recognizing unit.
1:1 Authentication (1 to 1, Verification)
- This is a method that authenticates fingerprint with user ID or card entered
- This method is called 1:1 authentication as only the fingerprint registered in the user ID
or card is used for comparison.
1:N Authentication (1 to N, Identification)
- This is a method that searches a corresponding user only with fingerprint.
- This method is called 1:N authentication as it searches the identical fingerprint from the
registered fingerprints without user ID or card entered.
Security Level
- This is the level used for fingerprint authentication displayed from 1 to 9 depending on
how both fingerprints match against each other. Authentication will be successful only
when the identity between both fingerprints is higher than the preset level.
- The higher the authentication level, the higher the security. Nevertheless, as it requires
a relatively high match rate, self-authentication is prone to failure.
- 1:1 Level: Authentication level used for 1:1 verification.
- 1:N Level: Authentication level used for 1:N identification.
Authentication Method
- This represents the various types of authentication methods including FP (fingerprint)
authentication, RF (card) authentication, a combination of these methods.
Ex) Card or FP: Authentication with card or fingerprint
Function Keys
- [F1], [F2], [F3], [F4], and [ENT] keys are available.
These keys allow a user to enter the
menus or change modes such as office start/leave
.
AC-5000 User Guide
3
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
LFD (Live Finger Detection)
-
This function allows the input of only real fingerprints and blocks the input of imitation
fingerprints produced using rubber, paper, film, and silicone.
AC-5000 User Guide
4
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
Table of Contents
<Revison History>.................................................................................................... 2
<Glossary>................................................................................................................ 2
Table of Contents .....................................오류! 책갈피가 정의되어 있지 않습니다.
1. Before use.............................................................................................................6
1.1. Safety precautions ......................................................................................6
1.2. Terminal description ................................................................................... 7
1.3. Screen description (during operation) ...................................................... 7
1.3.1. Icon shown during operation................................................................. 8

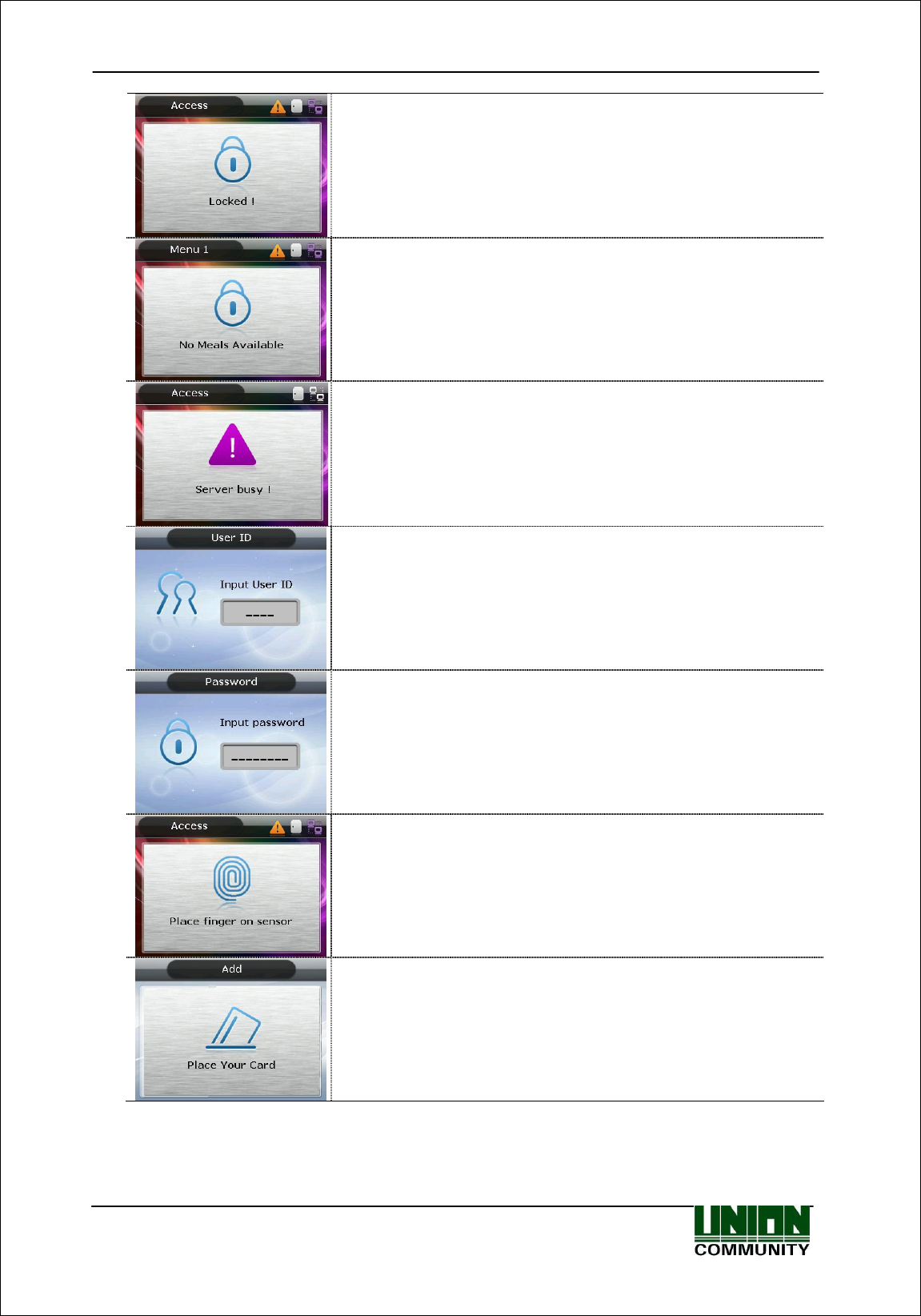

1.3.2. Message shown during operation......................................................... 8
1.4. LED signal shown during operation ........................................................ 11
1.5. Keys used during operation ..................................................................... 11
1.6. Voices used during operation ..................................................................12
1.7. Buzzer sounds used during operation .................................................... 12

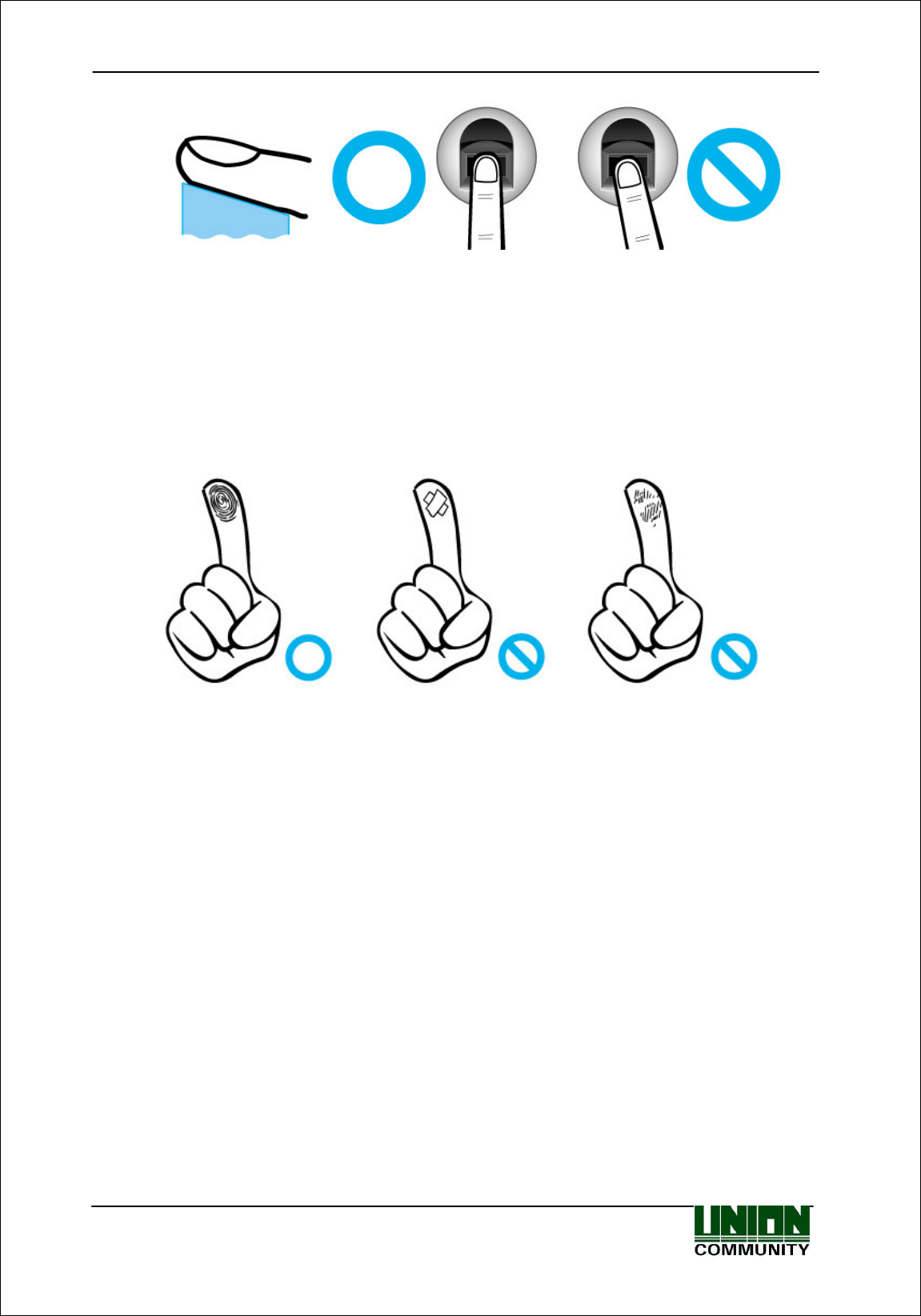

1.8. How to register and input fingerprint ...................................................... 12
2. Product introduction..........................................................................................14
2.1. Features .....................................................................................................14
2.2. Configuration.............................................................................................16

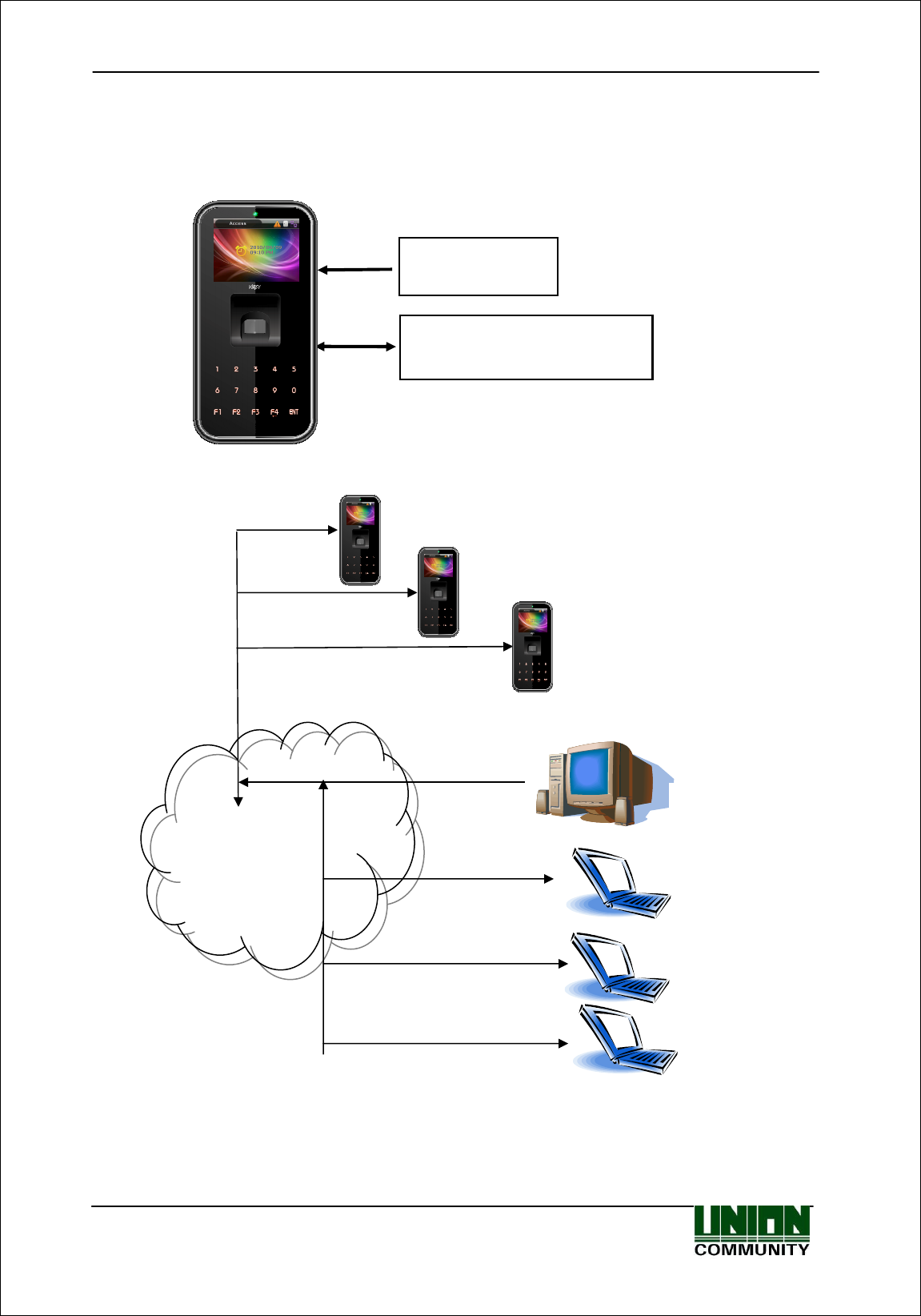

2.2.1. Standalone (Access)...........................................................................16
2.2.2.
Connect with PC SERVER (Access, Time & Attendance, Cafeteria)
........... 16
2.3. Specification .............................................................................................. 17
3. Environment settings......................................................................................... 19
3.1. Items to be checked before environment settings ................................. 19

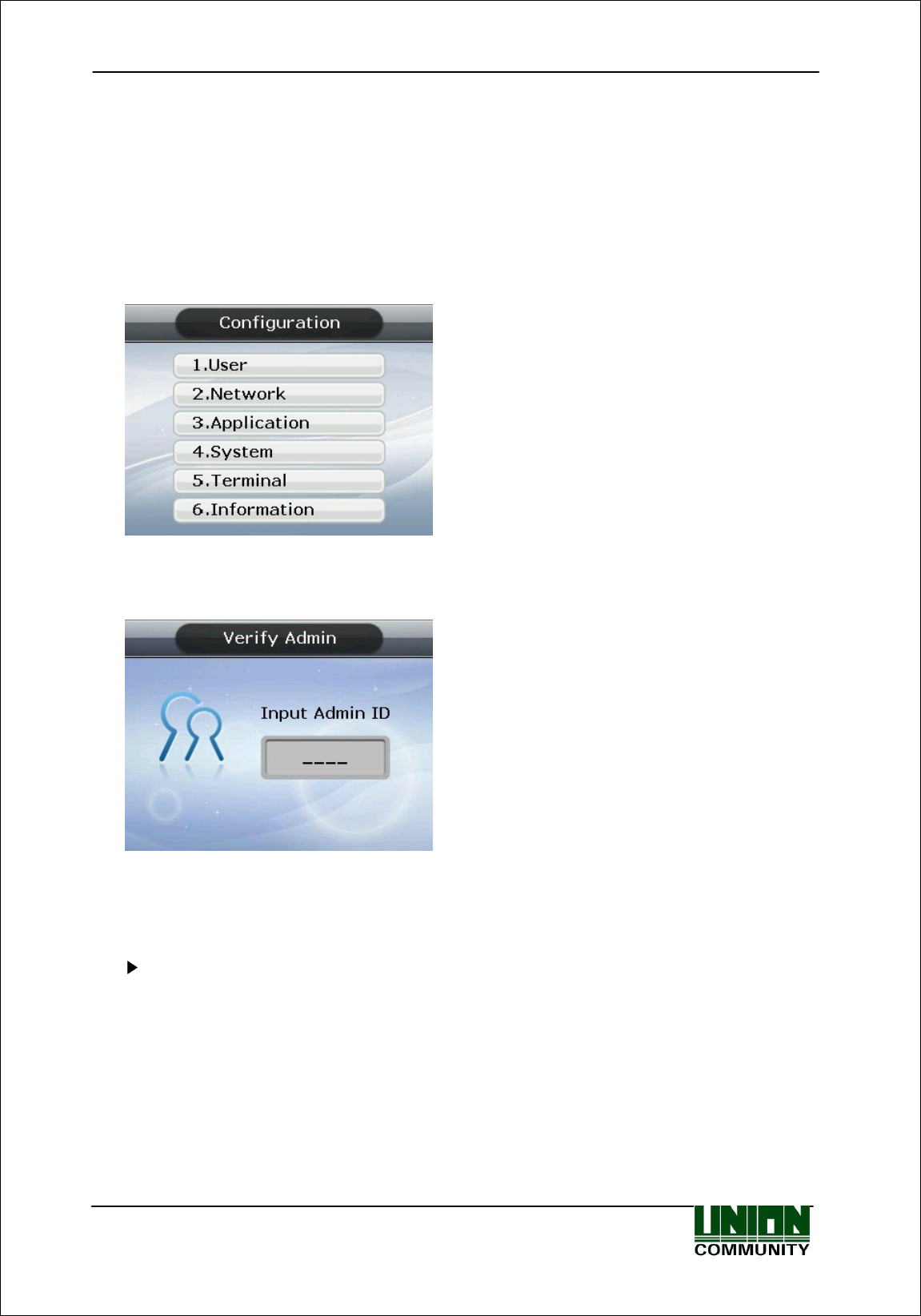

3.1.1. Entering menu .................................................................................... 19
3.1.2. How to access the menu without administrator verification ................ 19
3.1.3. Change settings.................................................................................. 20

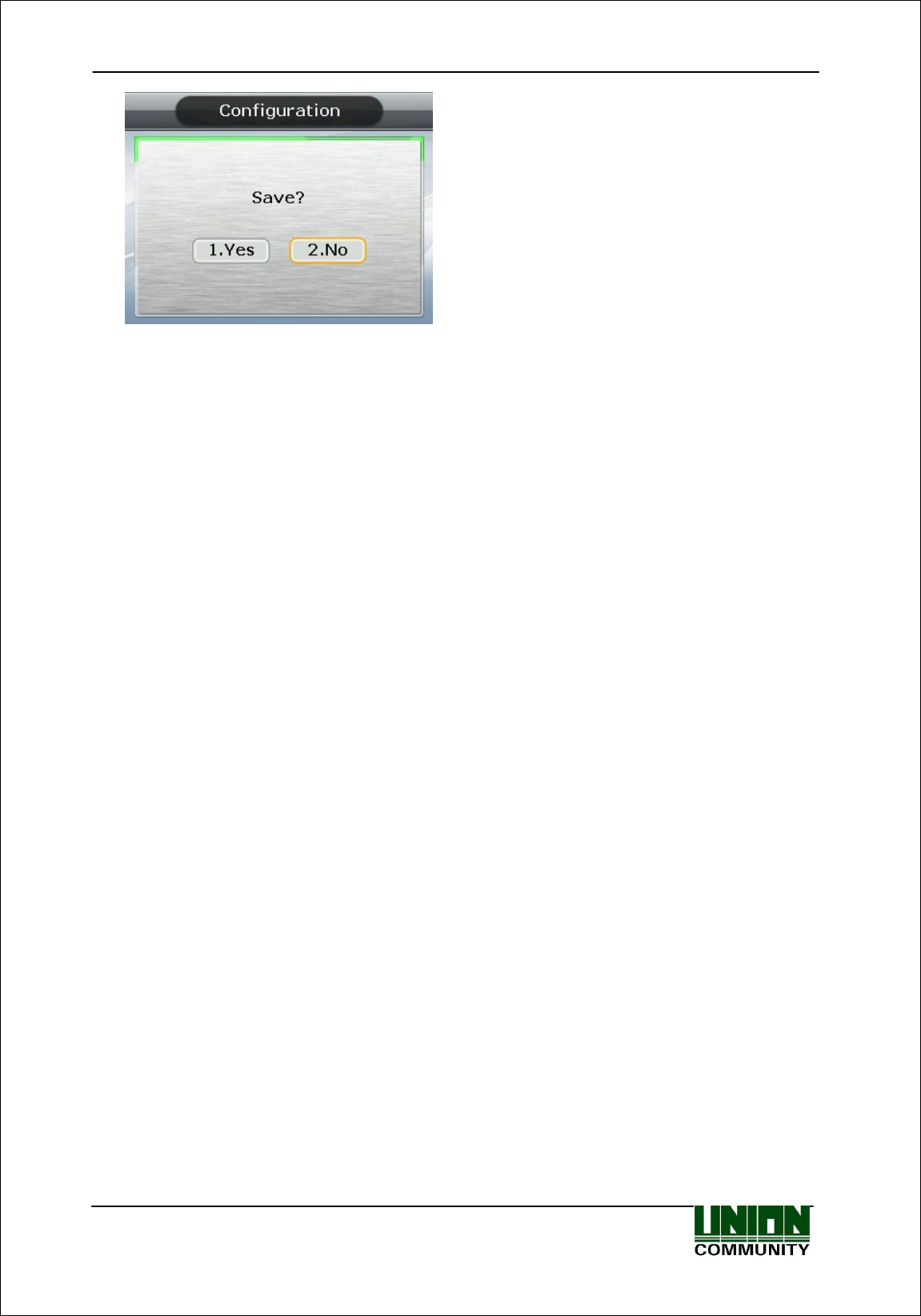

3.1.4. Save environment settings ................................................................. 21
3.2. Menu Configuration...................................................................................23
3.3. User ............................................................................................................ 25

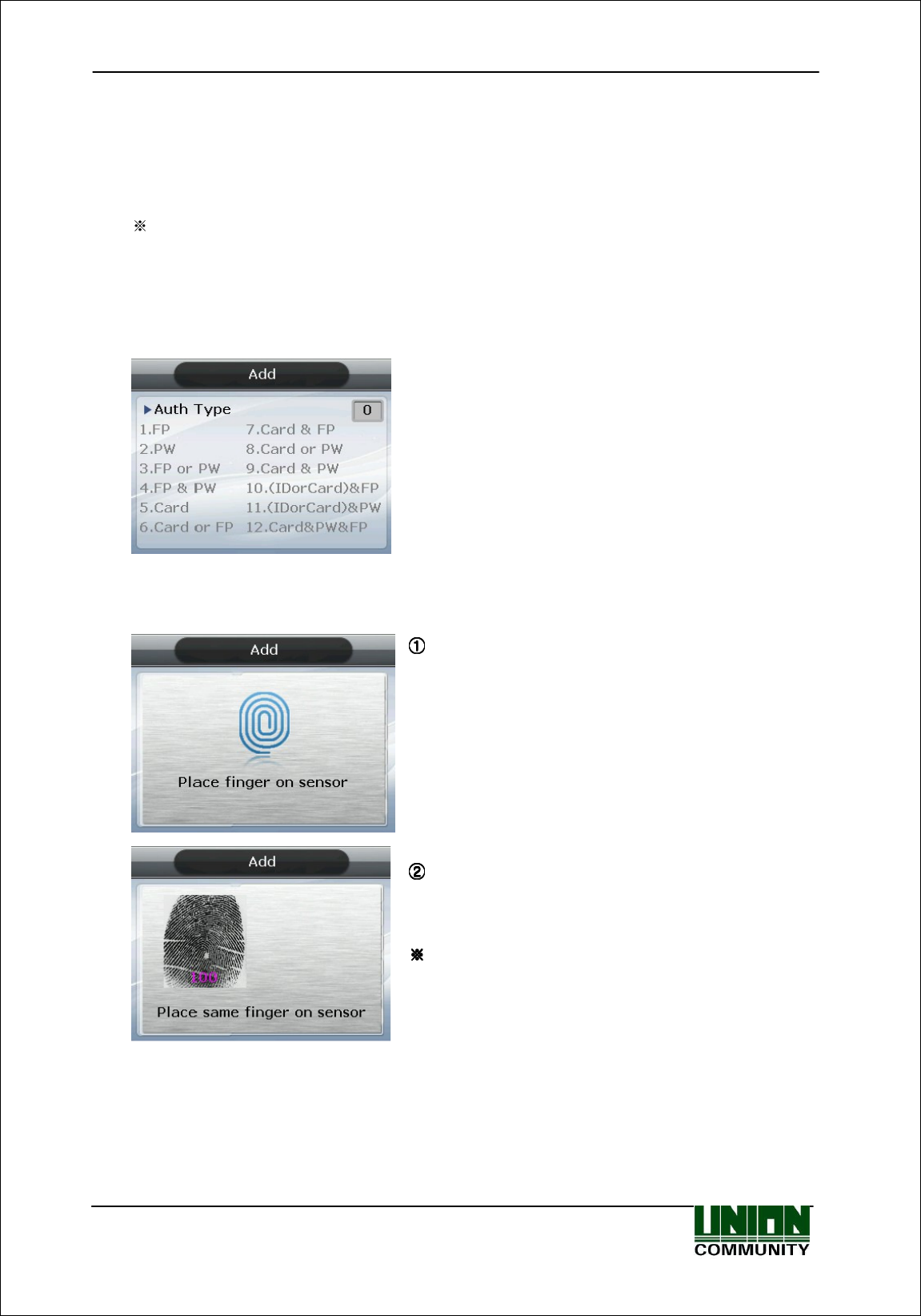

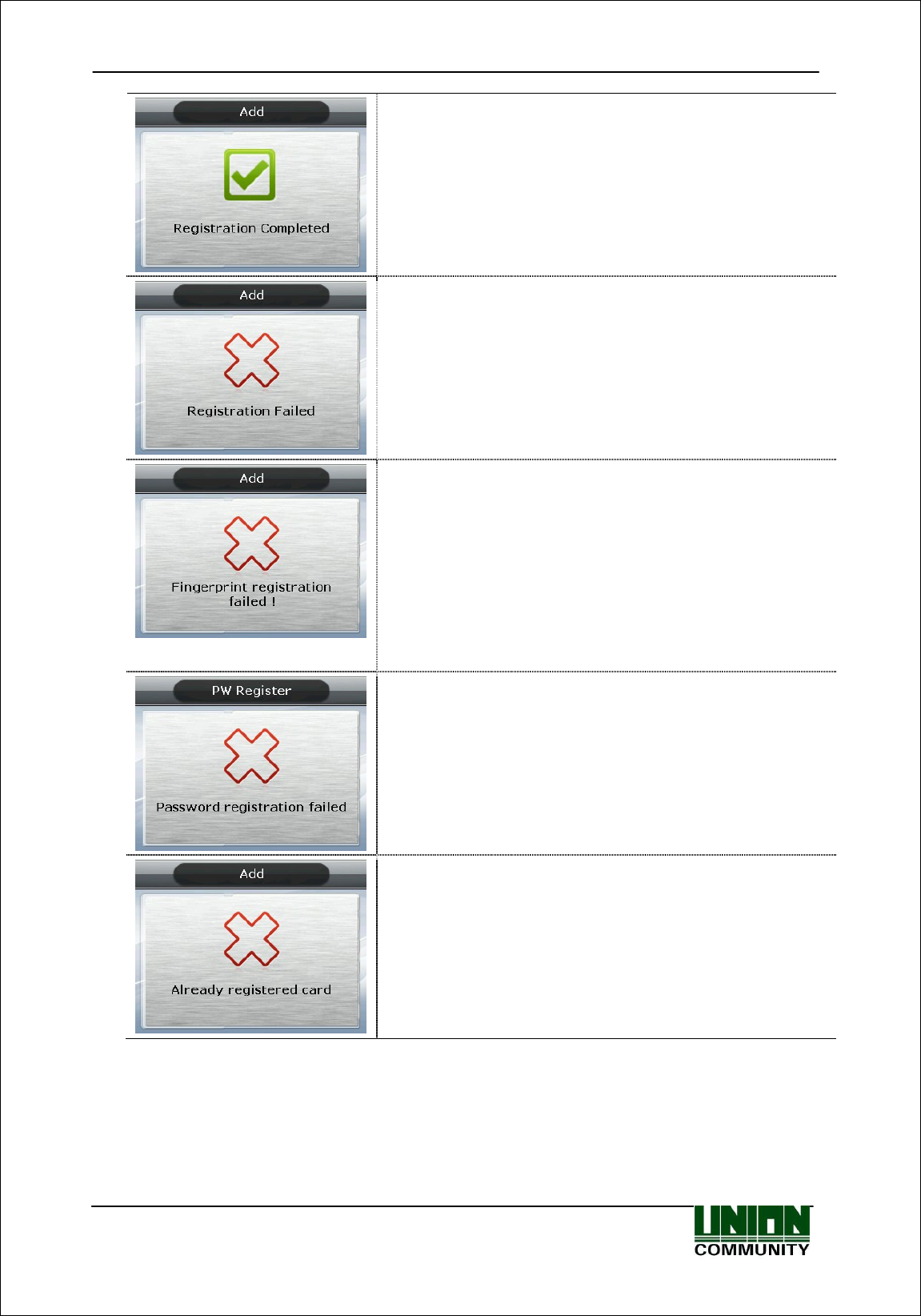

3.3.1. Add ..................................................................................................... 25

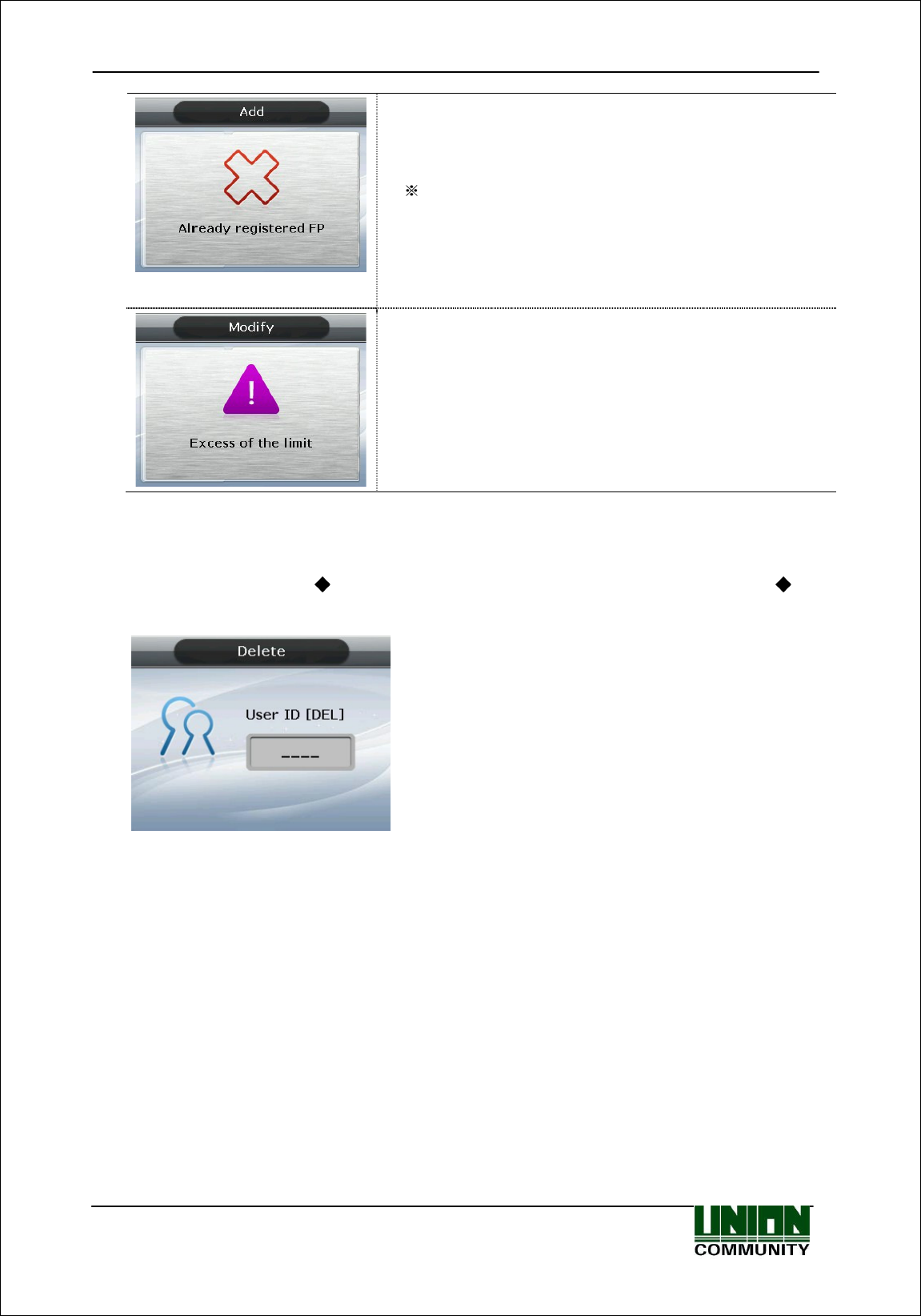

3.3.2. Delete .................................................................................................30
3.3.3. Modify.................................................................................................31

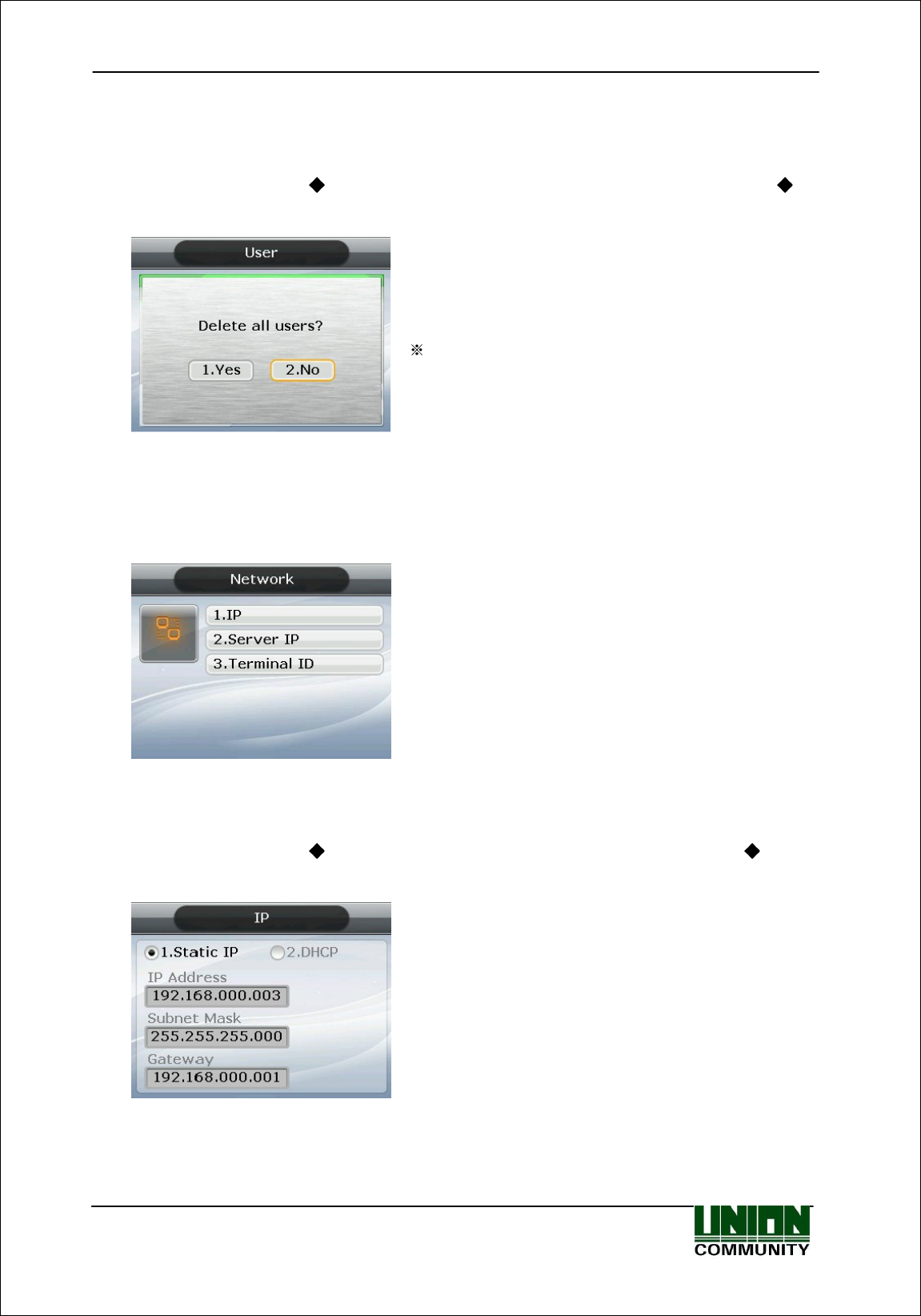

3.3.4. Delete All ............................................................................................ 32
3.4. Network ...................................................................................................... 32
3.4.1. IP ........................................................................................................32

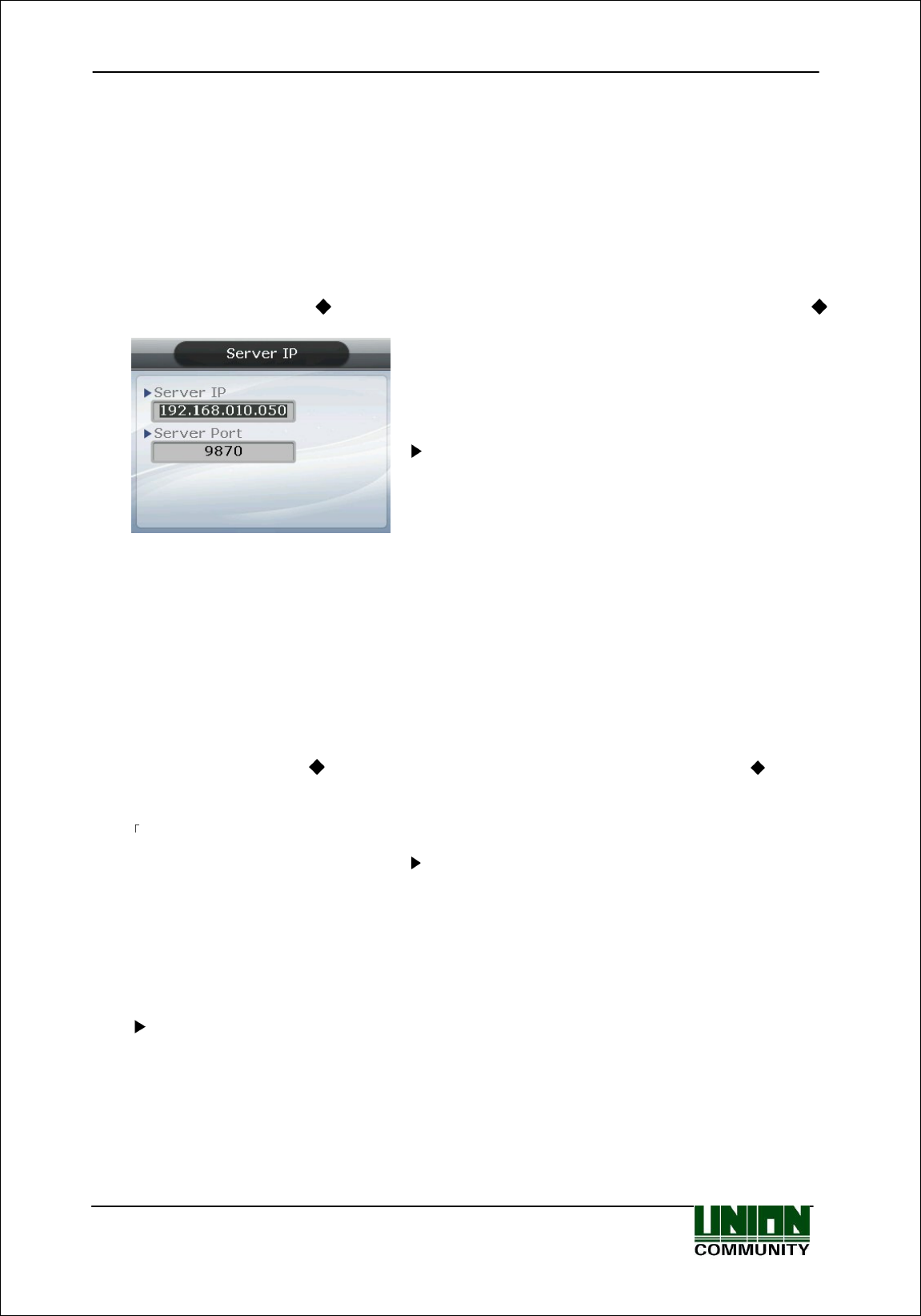

3.4.2. Server IP.............................................................................................33
3.4.3. Terminal ID ......................................................................................... 33
3.5. Application .................................................................................................34
3.5.1. Application .......................................................................................... 34
3.5.2. Time Schedule....................................................................................35
3.5.3. Function Key.......................................................................................36

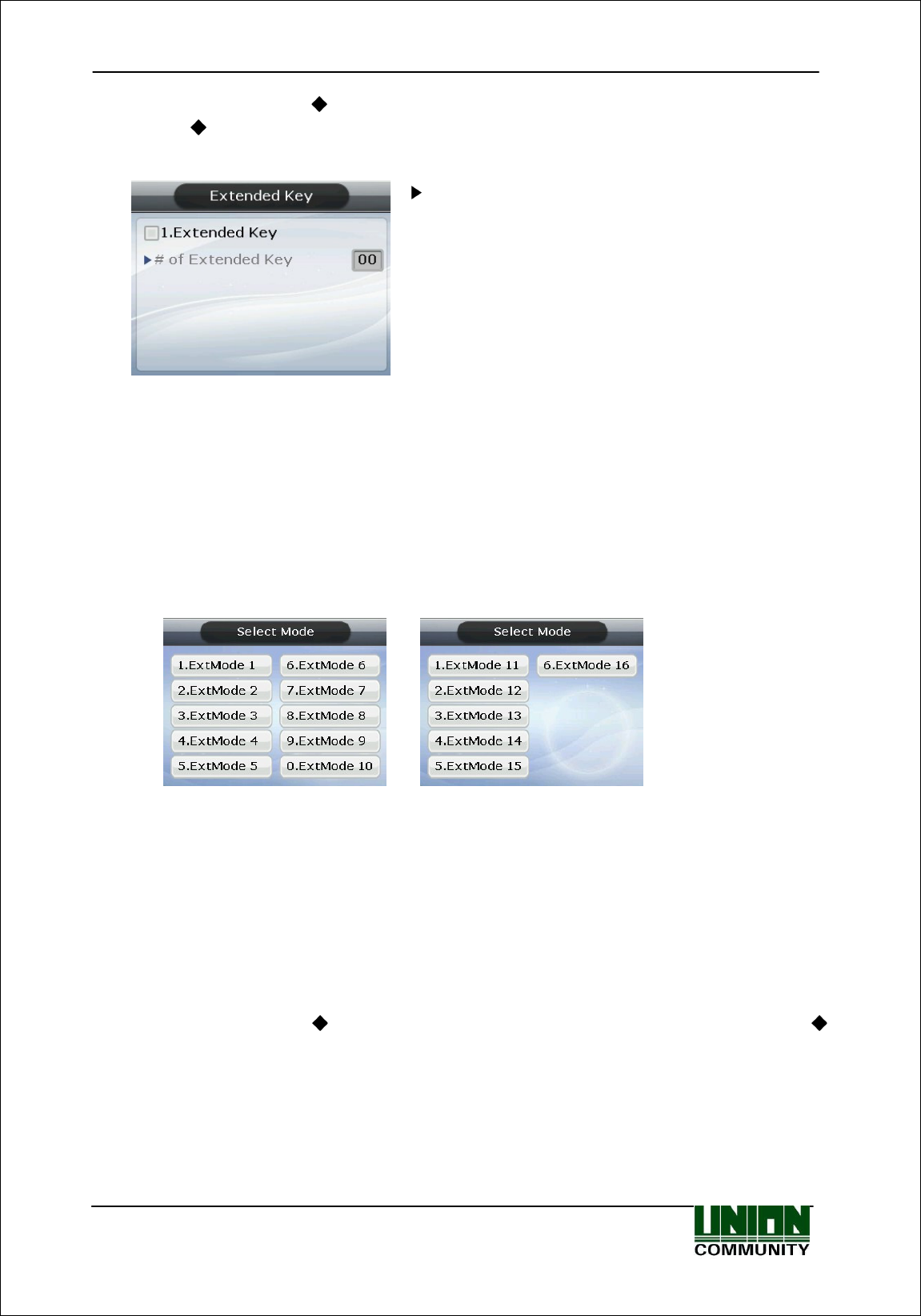

3.5.4. Extended Key ..................................................................................... 36
3.5.5. Display................................................................................................37
3.6. System........................................................................................................38

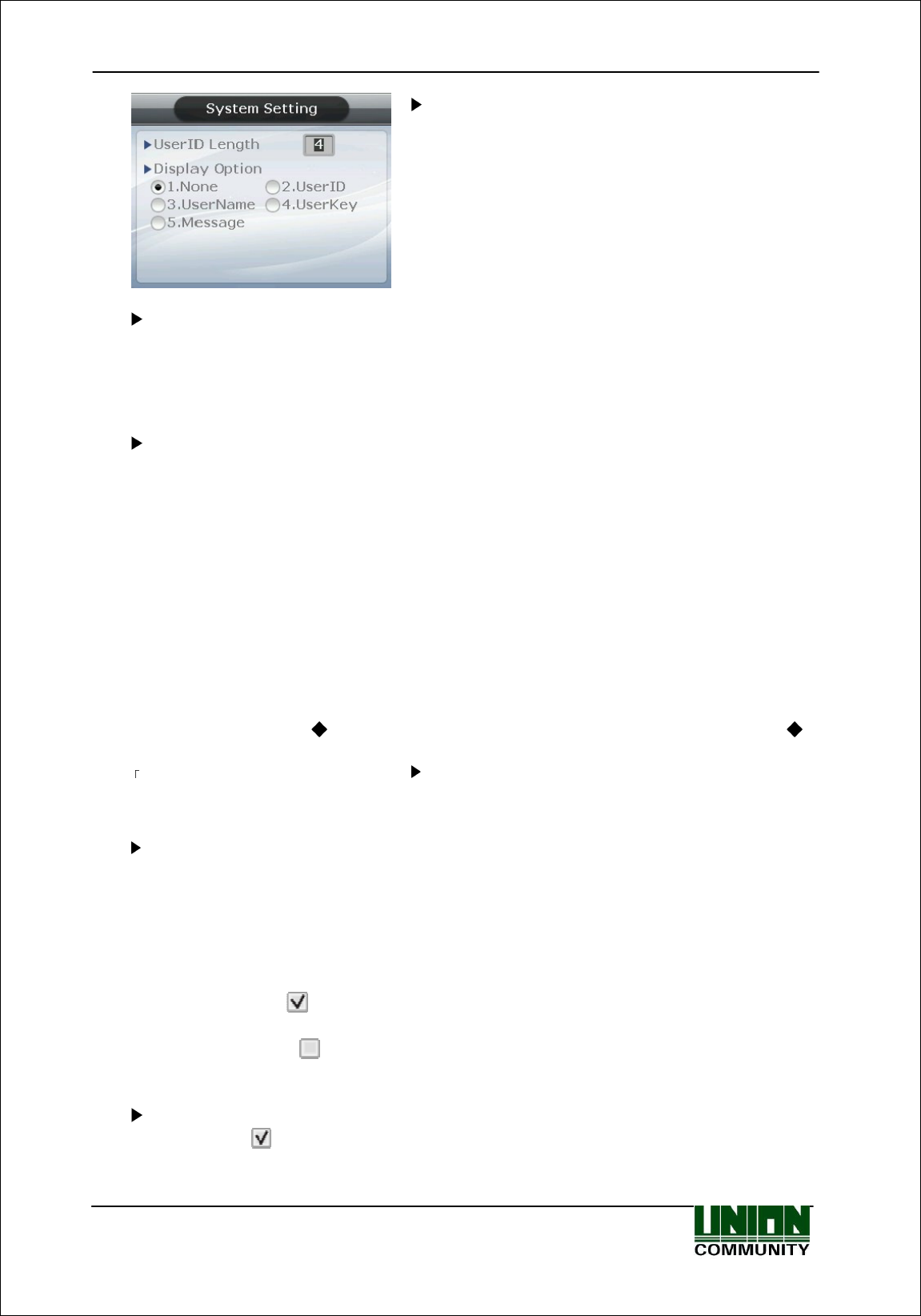

3.6.1. System Setting ...................................................................................38
3.6.2. Authentication ..................................................................................... 39

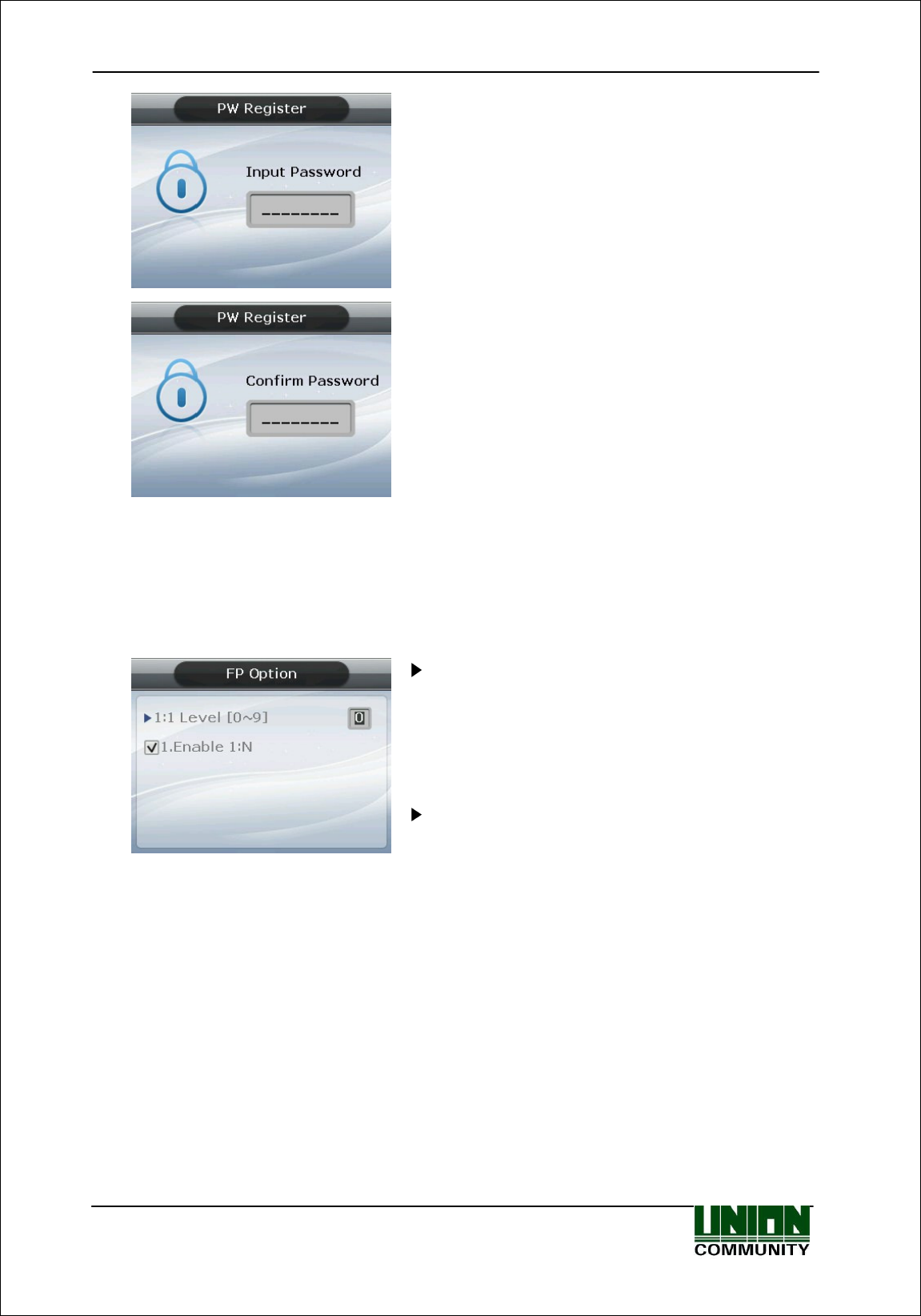

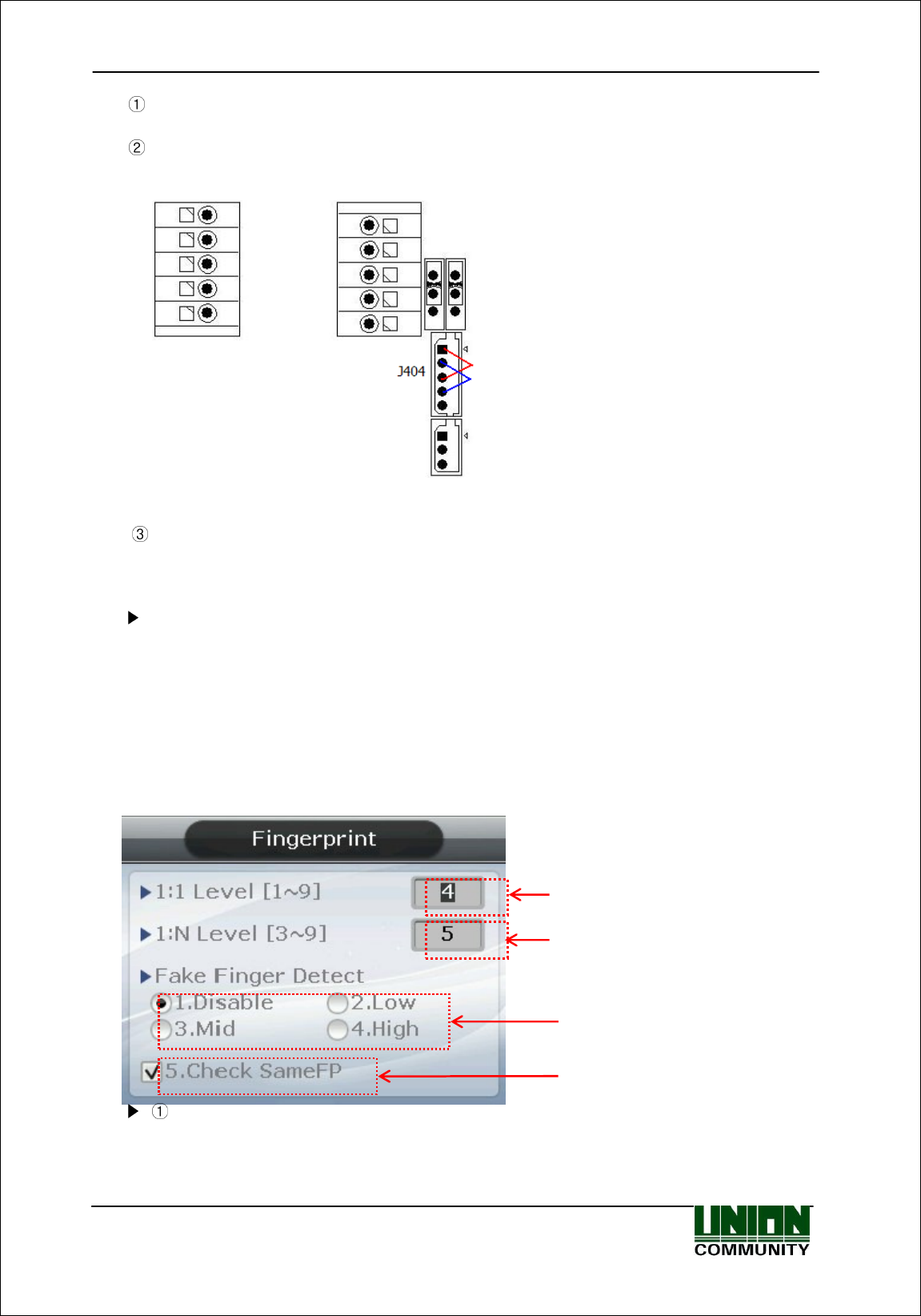

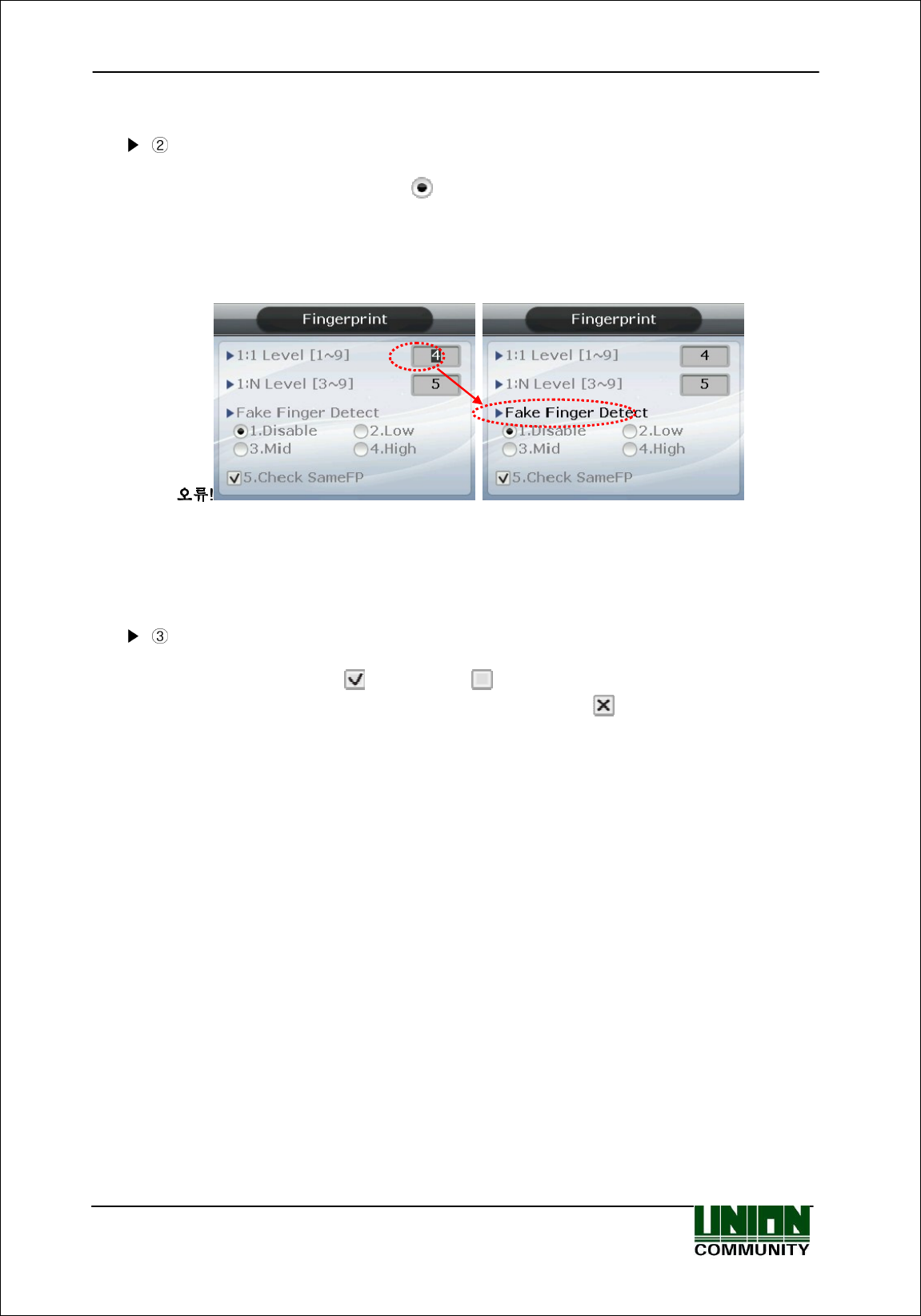

3.6.3. Fingerprint .......................................................................................... 40
AC-5000 User Guide
5
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr

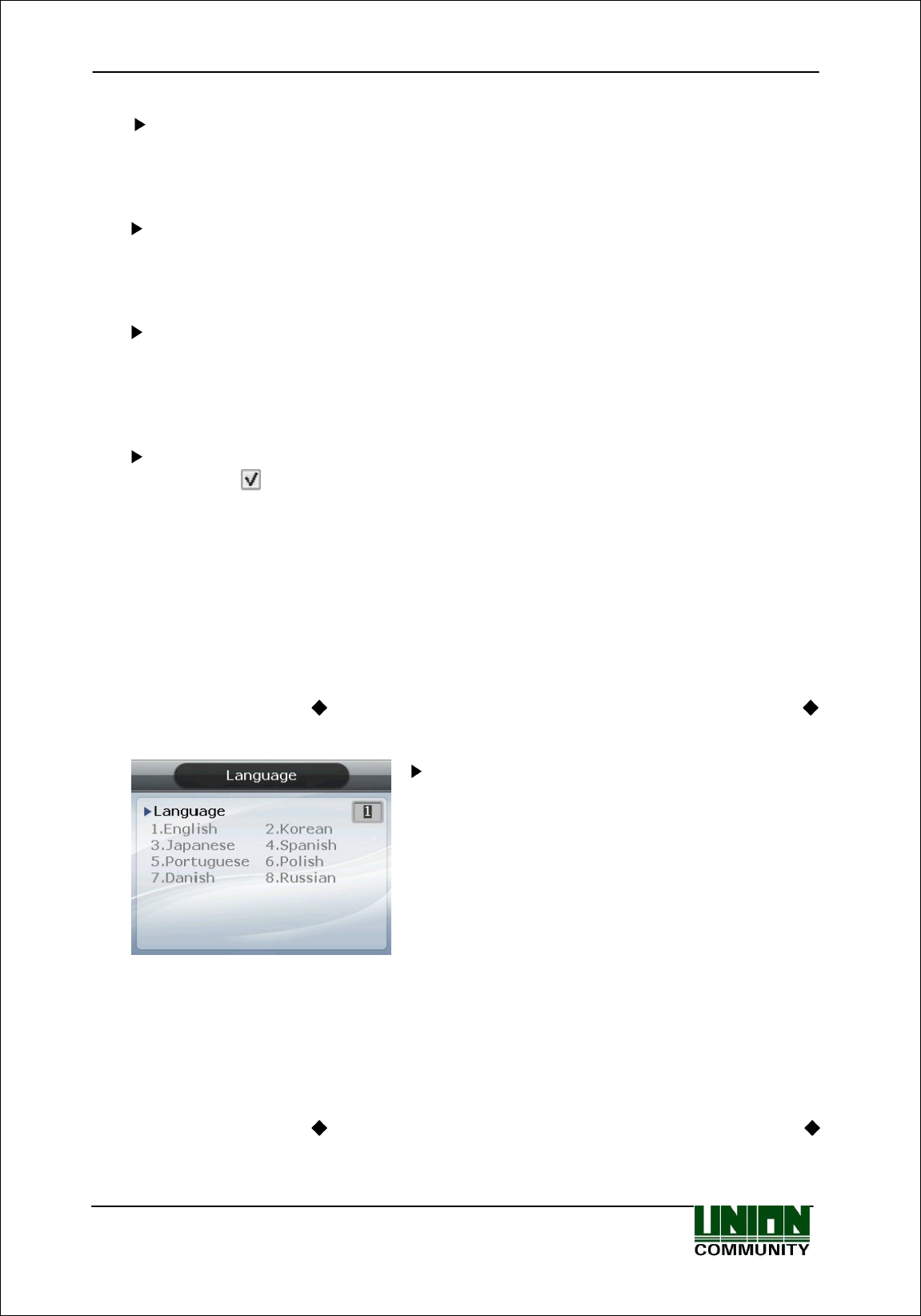

3.6.4. Language............................................................................................41

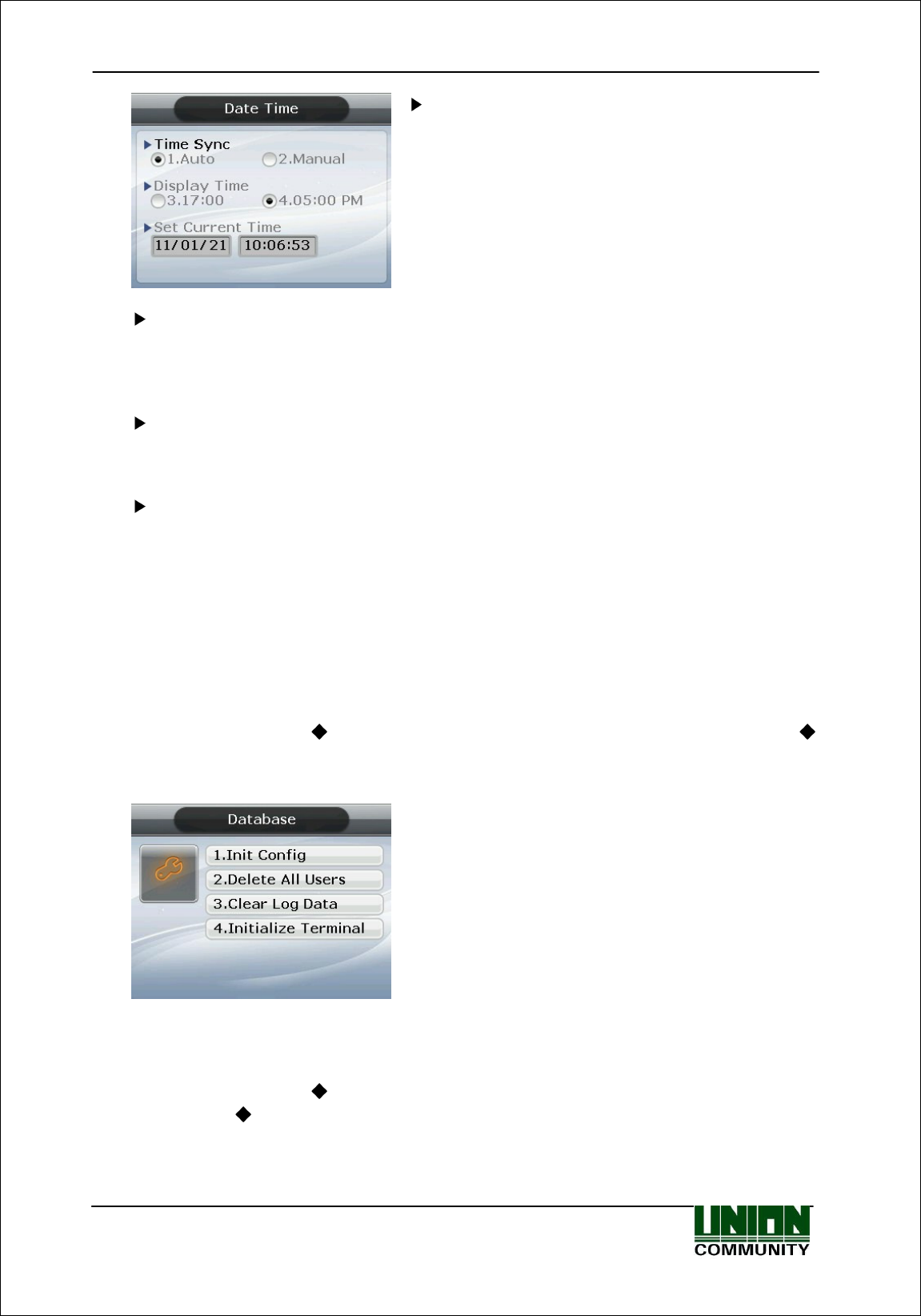

3.6.5. Data Time ...........................................................................................41

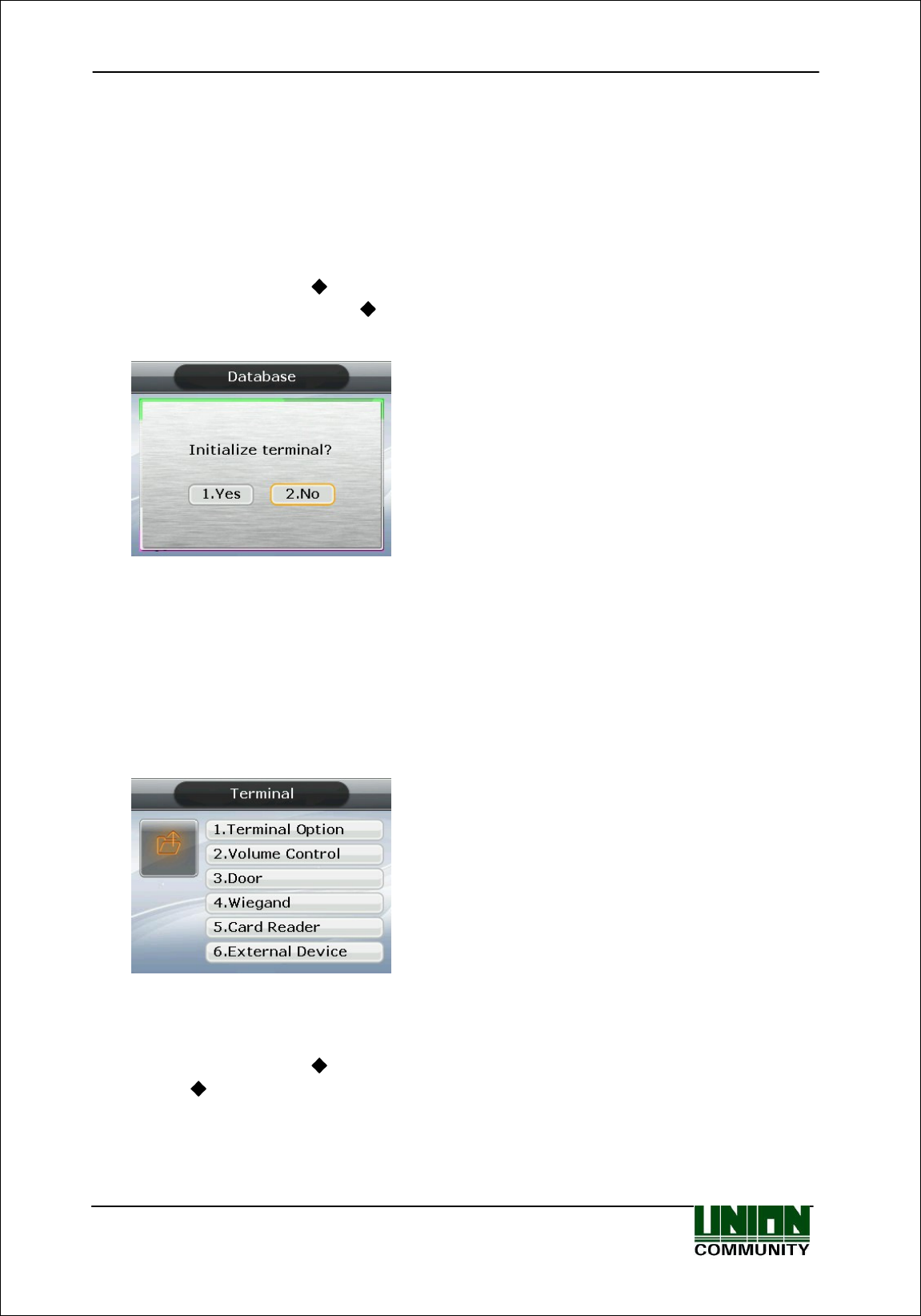

3.6.6. Database ............................................................................................42
3.7. Terminal...................................................................................................... 44

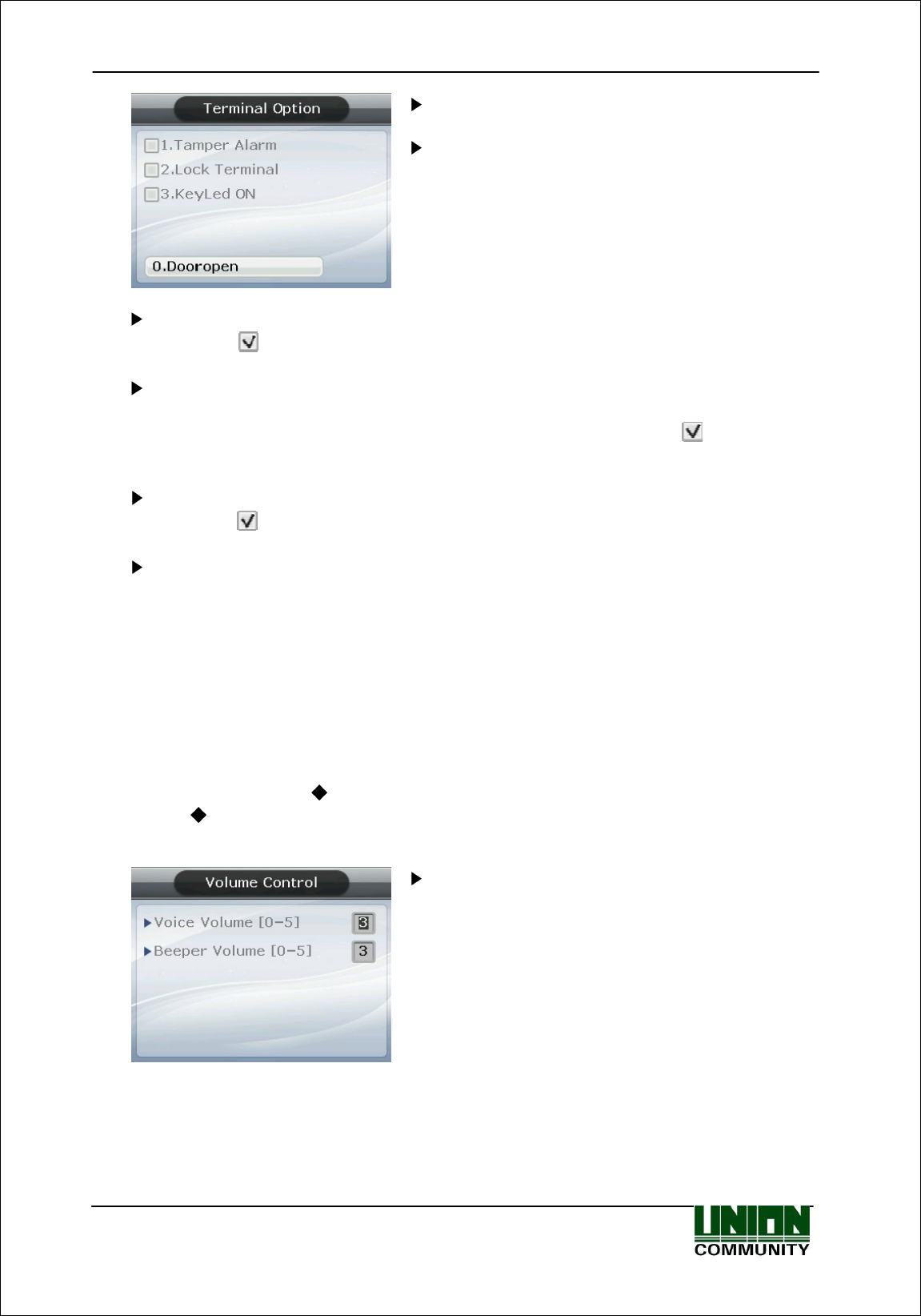

3.7.1. Terminal Option ..................................................................................44
3.7.2. Volume Control...................................................................................45
3.7.3. Door....................................................................................................46

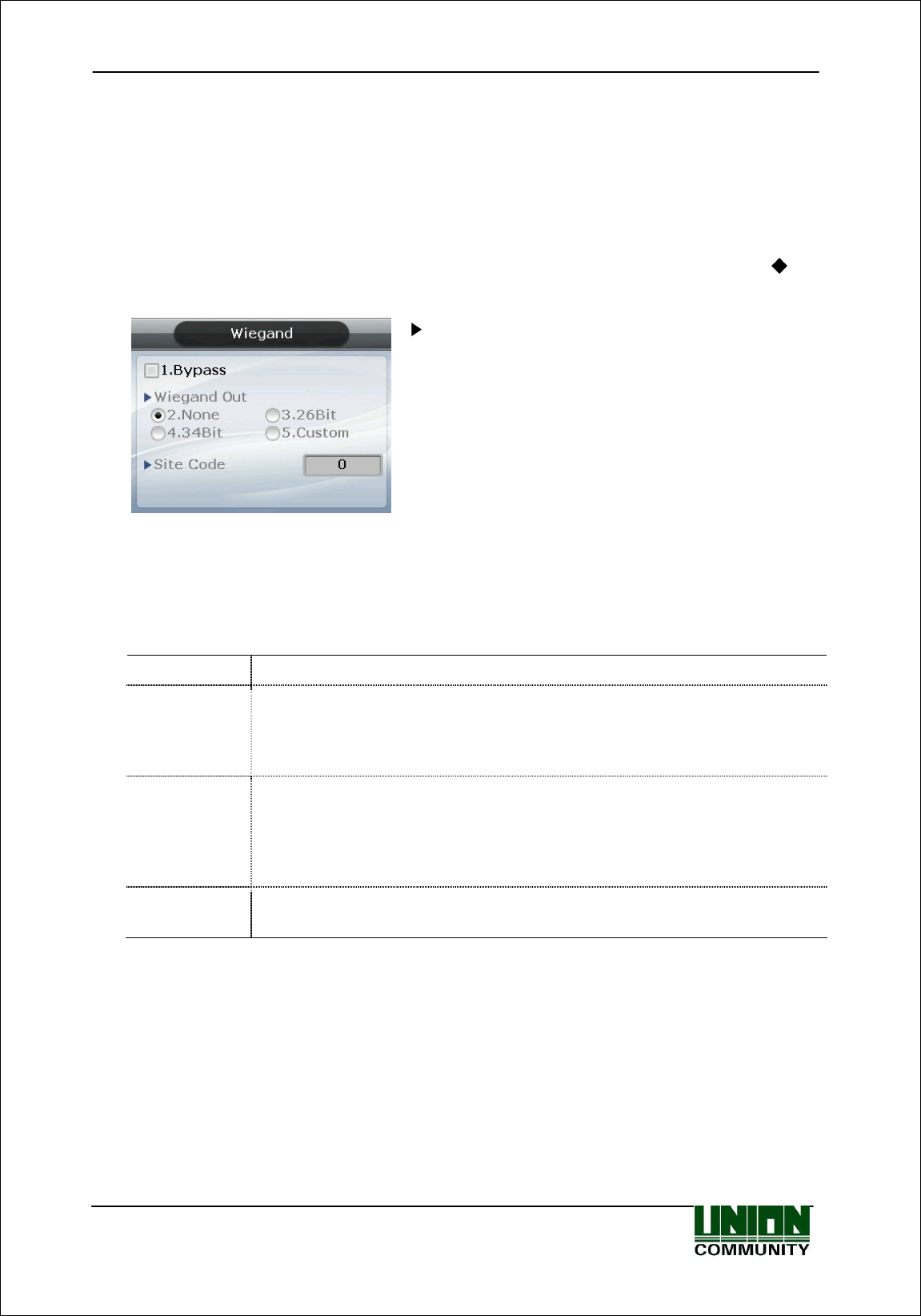

3.7.4. Wiegand .............................................................................................47

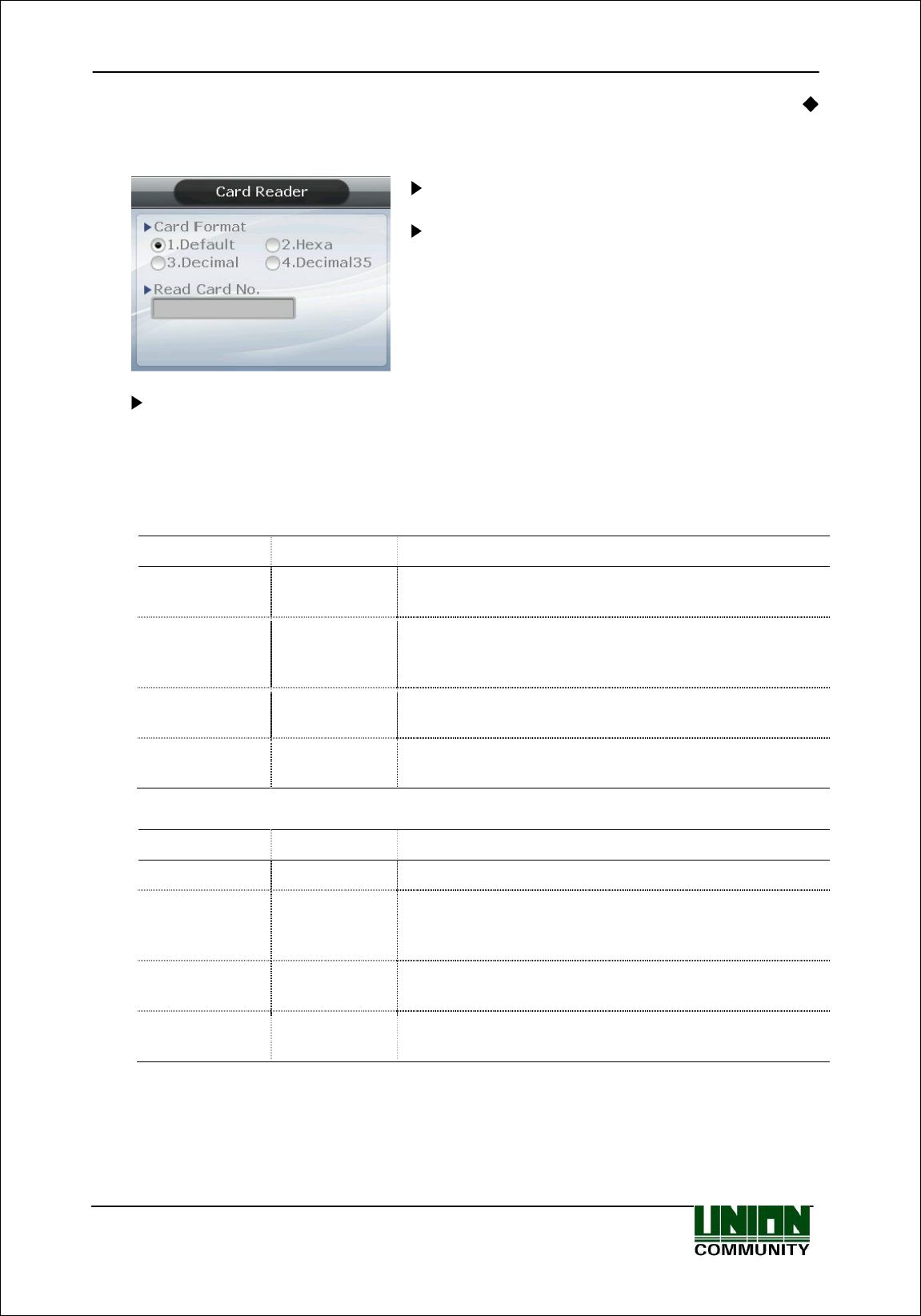

3.7.5. Card Reader ....................................................................................... 47
3.7.6. External Device ..................................................................................49
3.8. Information................................................................................................. 49
3.8.1. System Info.........................................................................................49
3.8.2. Network Info ....................................................................................... 50
3.8.3. Database Info .....................................................................................50
3.8.4. View Log.............................................................................................50
3.8.5. Version Info......................................................................................... 51

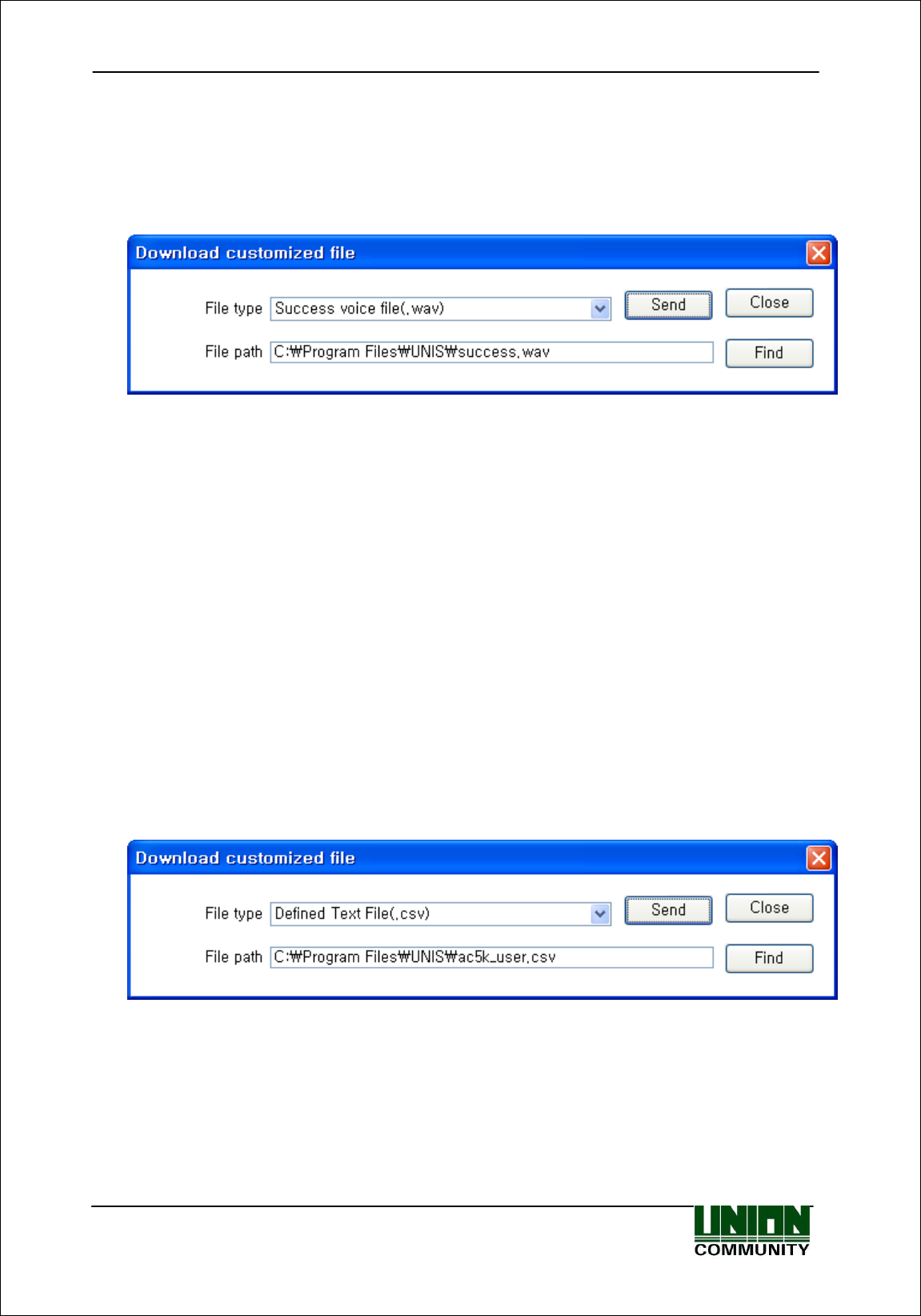

3.9. Downloading user’s file ............................................................................51
3.9.1. Change background image.................................................................51
3.9.2. Change voice message ......................................................................52
3.9.3. Change user text ................................................................................ 52
4. How to use the terminal .....................................................................................54
4.1. Change authentication mode ................................................................... 54

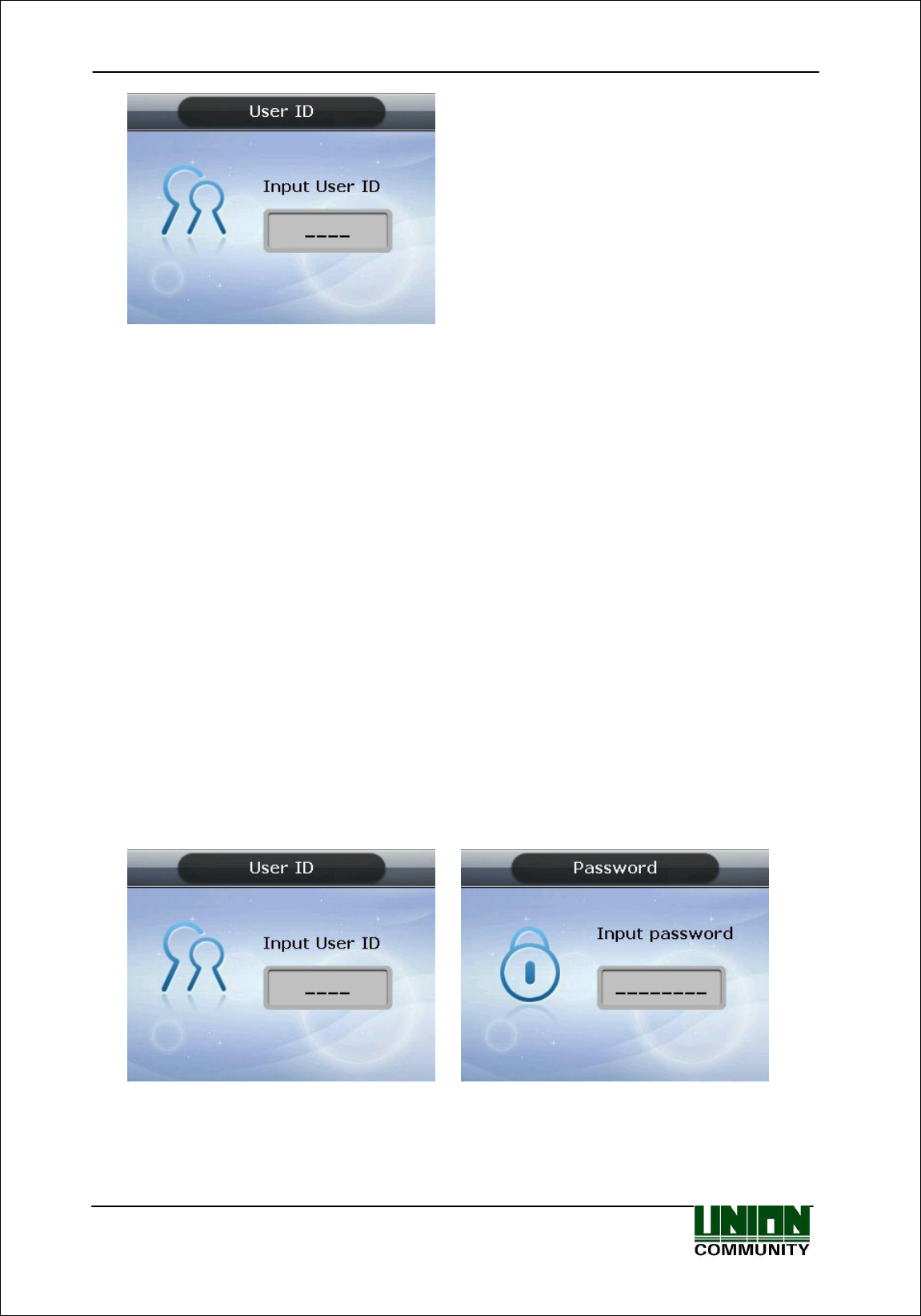

4.2. ID input ....................................................................................................... 54
4.3. Authentication ...........................................................................................55
4.3.1. Fingerprint authentication ................................................................... 55
4.3.2. Card authentication ............................................................................55
4.3.3. Password authentication.....................................................................55
AC-5000 User Guide
6
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
1. Before use

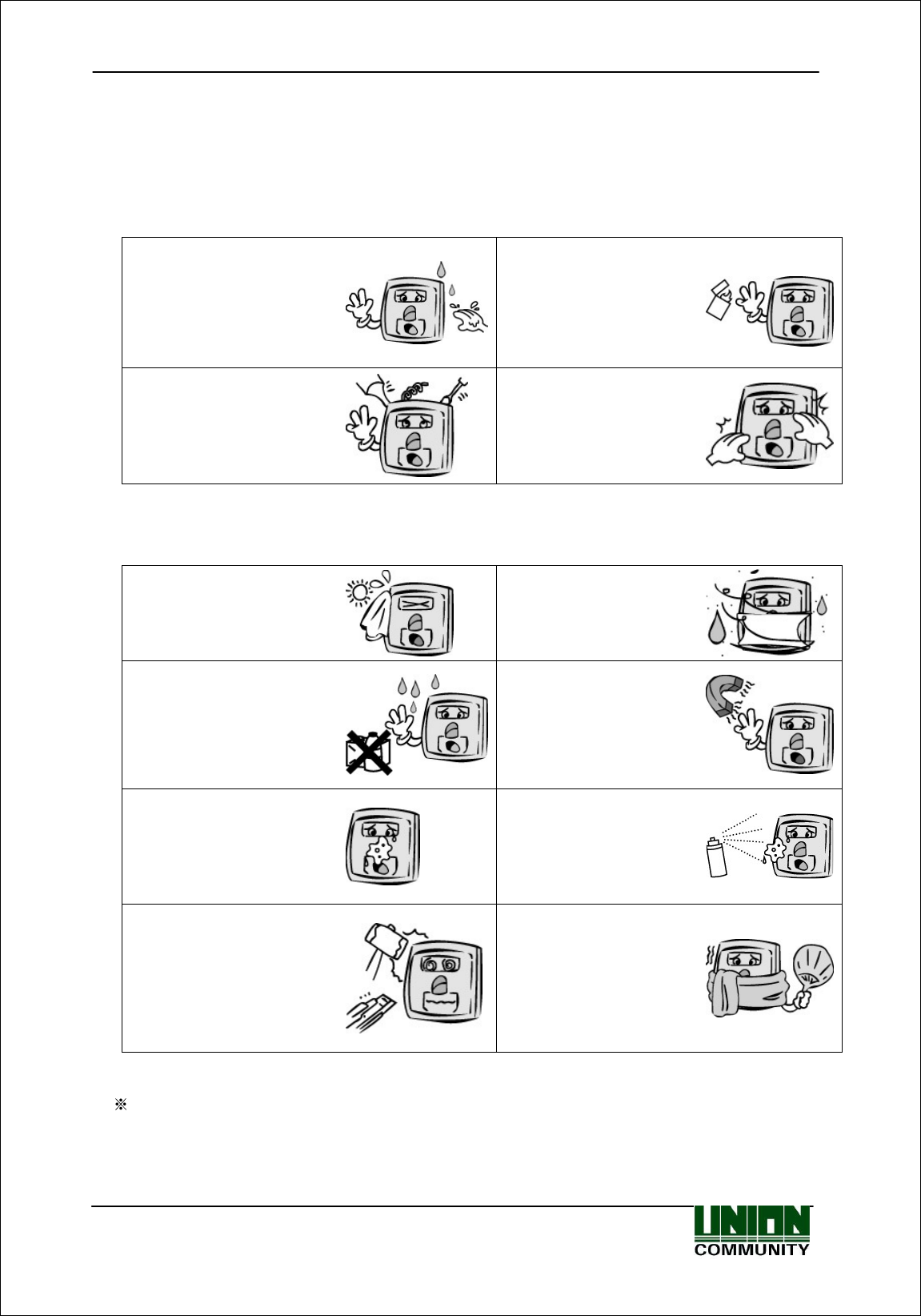

1.1. Safety precautions
Warning
Do not handle the unit with
wet hands and do not allow
liquid to flow into it.
-> It may cause an
electric shock or damage.
Do not place a fire source
near the unit.
-> It may cause a fire.
Do not disassemble, repair,
or modify the unit.
-> It may cause an electric
shock, fire or damage.
Keep out of children’s
reach.
-> It may cause an
accident or damage.
- If the above warnings are ignored, it may result in death or serious injury.
Cautions
Keep away from direct
sunlight
-> It may cause mal-
function, deformation or
color change of the unit.
Avoid high humidity or
dust
->It may cause the unit to
malfunction.
Avoid using water,
benzene, thinner, or alcohol
for cleaning the unit.
-> It may cause an electric
shock or fire.
Do not place a magnet
near the unit.
-> The unit may break
down or malfunction.
Avoid getting the fingerprint
input area dirty.
->It may prevent the unit
from recognizing the
fingerprint.
Avoid using insecticides
or flammable sprays near
the unit.
-> It may result in the
deformation or color
change of the unit.
Avoid impact or using sharp
objects on the unit.
-> The unit may be
damaged and broken.
Avoid installing the unit in
a place where
temperature severely
changes.
->
It may cause the unit to
malfunction.
- If the above cautions are ignored, it may result in property loss or human injury.
Under no circumstances will Union Community be responsible for the accidents or damages
caused by inappropriate use of the product and neglect of the precautions stated in the user guide
.
AC-5000 User Guide
7
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr

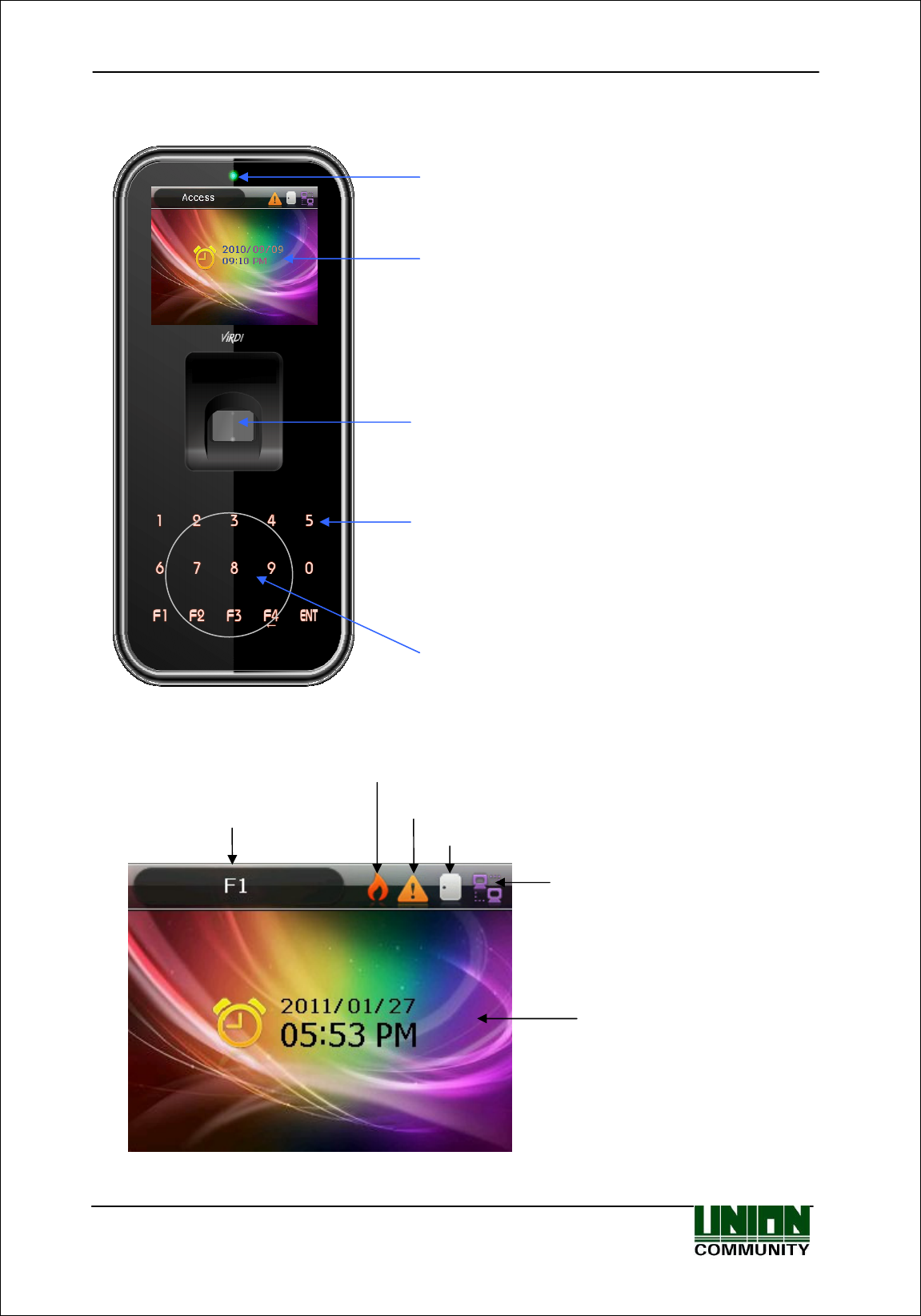

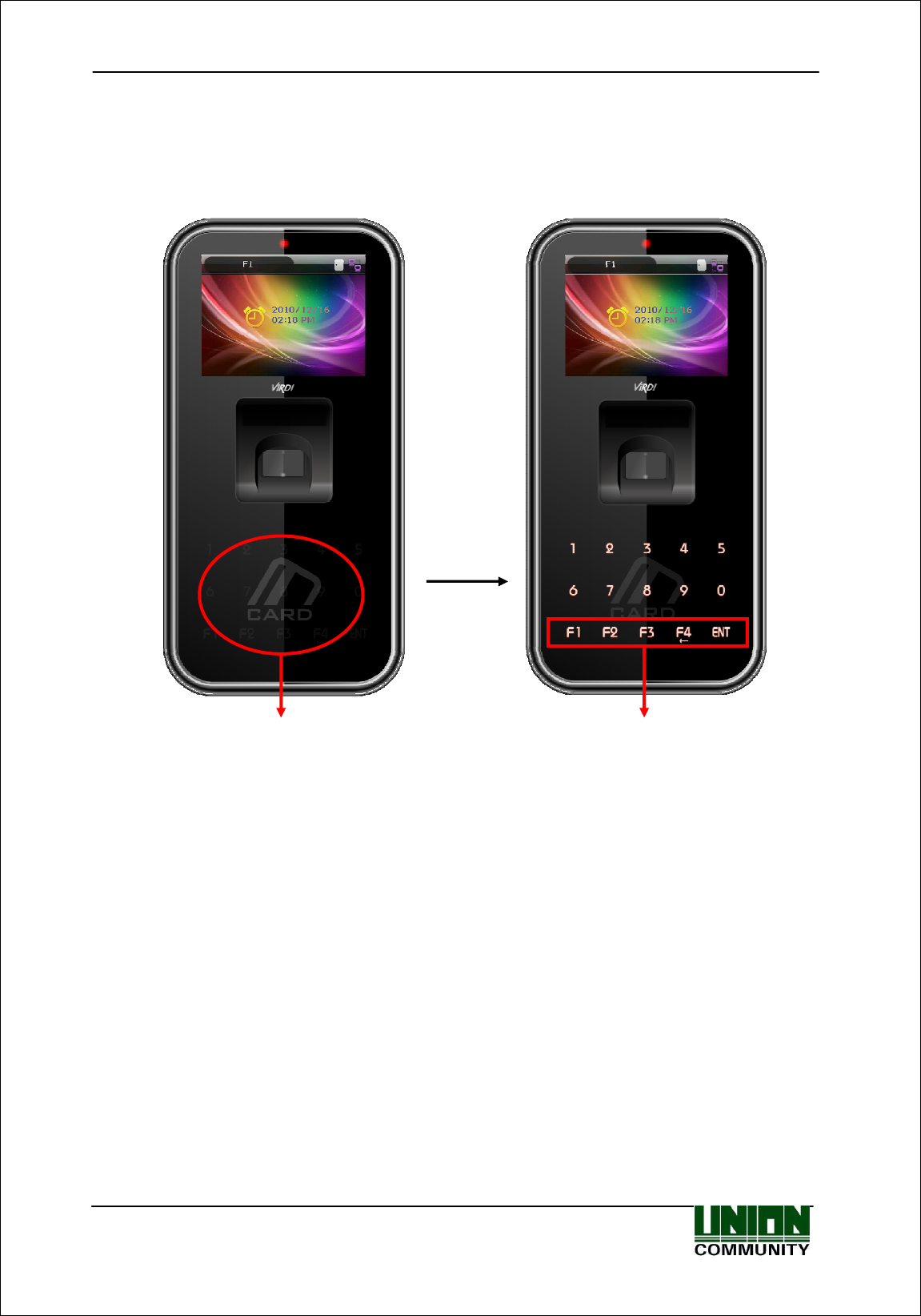

1.2. Terminal description
1.3. Screen description (during operation)
LCD
Fingerprint Sensor
Touch Key
Normally, the figure is invisible as LED is off,
but LED is on and the figure is shown when
the user touches this area lightly.
Card Input Area
State Display LED
Connection with Server ④
Access Mode
Current Time
Door State③
Warning of Terminal Disassembly, etc②.
Fire Detection ①
AC-5000 User Guide
8
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr

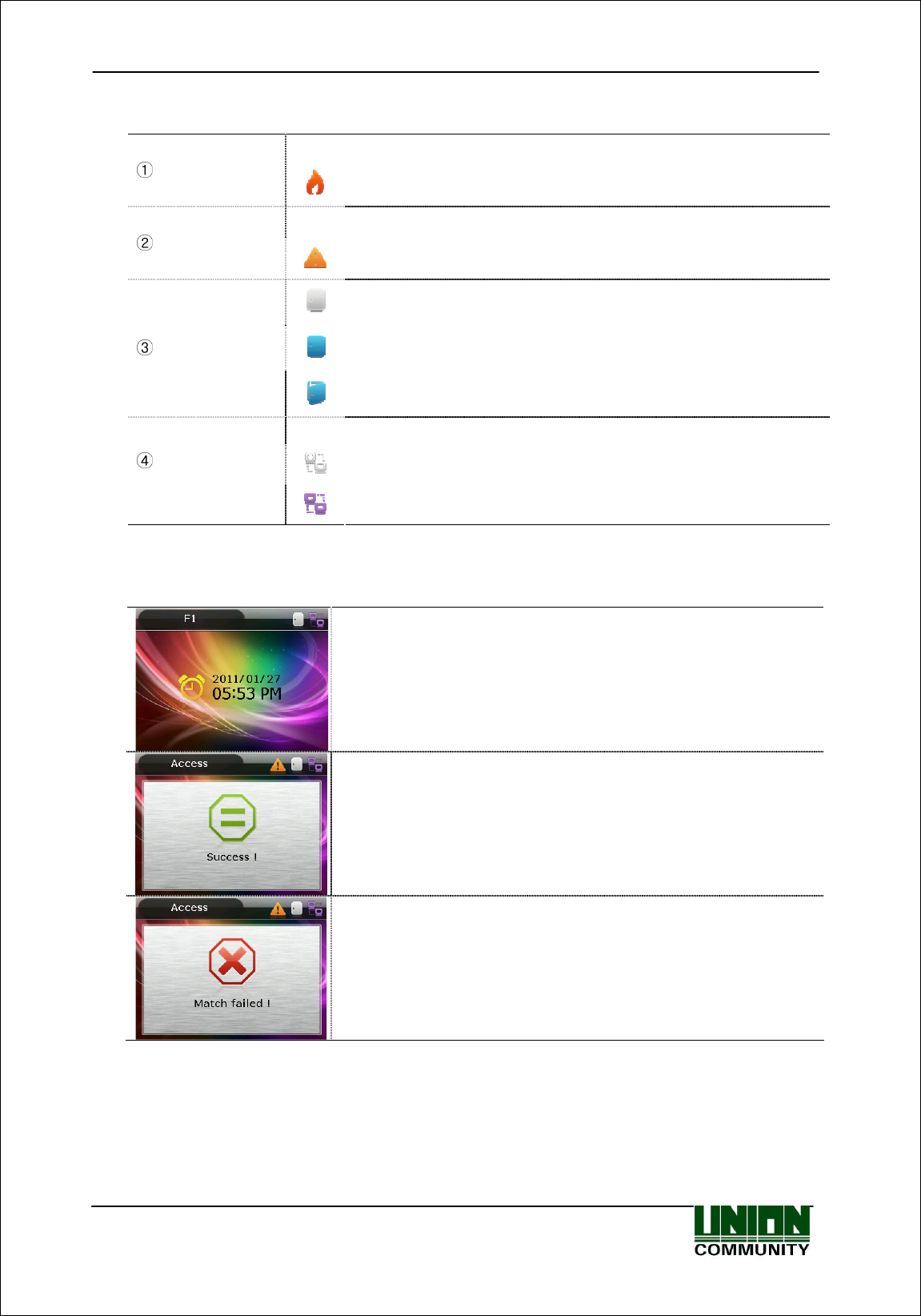

1.3.1. Icon shown during operation
None
: Normal
Fire Detection
: State that fire is detected by fire sensor (subject to the
connection with fire sensor)
None
: Normal
Warning
: Abnormal state that terminal is disassembled or door has
encountered a problem
: Door status is unknown
: Door is closed
Door status
: Door is opened
None
: LAN cable is not connected
: LAN cable is connected, but not yet to the server
Connection of
Server
: Connected with the server program
1.3.2. Message shown during operation
- Initial screen of AC5000
- When authentication is successful
- When authentication is failed
AC-5000 User Guide
9
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr

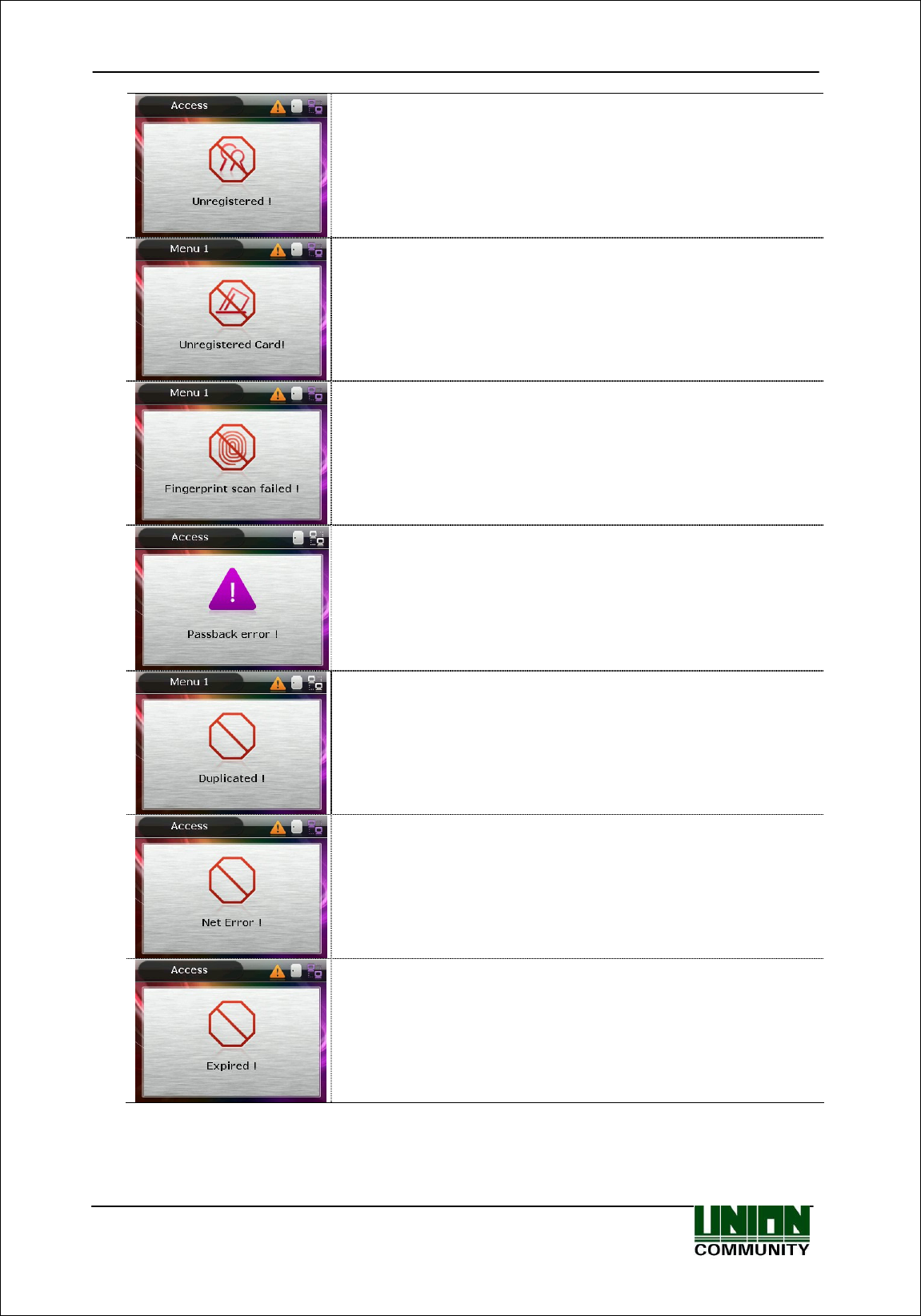

- When any unregistered user ID is input
- When fingerprint authentication is attempted in the event
where the server is not connected and there is no registered
fingerprint in the terminal
- When any unregistered card is input
- When fingerprint input is failed
- When the user took the finger off too fast before the
fingerprint is input
- When Anti-pass back is in error (in the event the user uses
the anti-pass back function)
- When the user attempted two or more times at the same
meal time zone (in the event it is used for cafeteria)
- When there is no response from the server during the
attempt of authentication to the server
- When network is disconnected during the attempt of
authentication to the server
- When the user is not authorized for authentication even if
he/she is being registered or the user attempted
authentication when access is not allowed
AC-5000 User Guide
10
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
- When the terminal is set to Locked
- When it is not the meal time (in the event it is set to
Cafeteria)
- When the authentication may not be treated as there are
too many authentication requests from the terminal during
the server authentication.
- During the status that is waiting for the user ID input
- During the status that is waiting for the password input of
the user
- During the status that is waiting for the fingerprint input of
the user
- During the status that is waiting for the card input of the
user
AC-5000 User Guide
11
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr

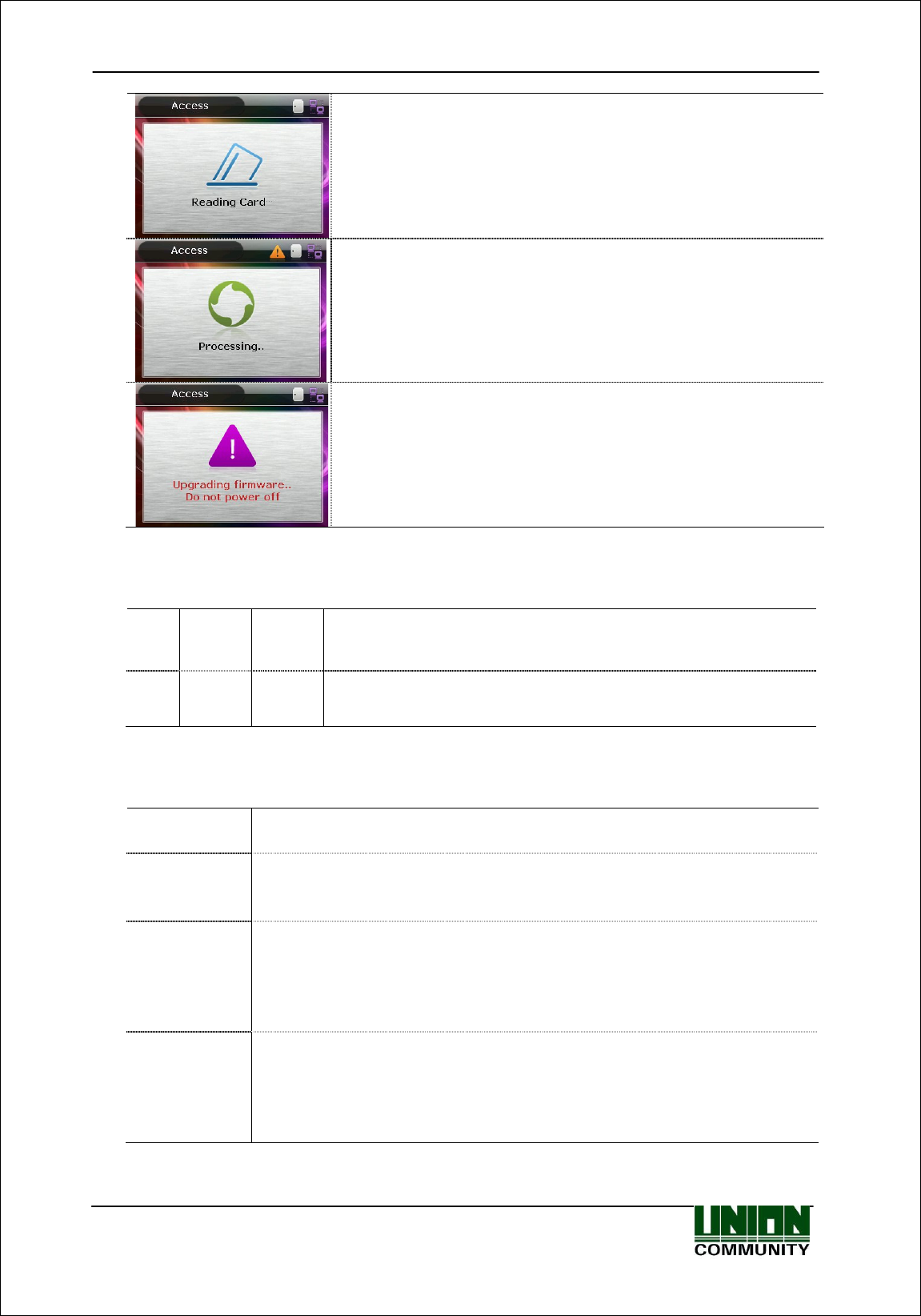

- At the time of fingerprint card authentication, it shows the
status that the card reads fingerprint data. The user must
put the card for 1~2 seconds until the message
disappears.
- When waiting for the response after the user attempted
authentication to the server
- When upgrading the terminal program
(Be sure not to power off the terminal during the time the
message is output)
1.4. LED signal shown during operation
●
Power
Red
On: Normal
Flickering: When the lid is opened or there is any
communication error in the connection with LC010
●
Door Green
On : Door Open
Off: Door Close
1.5. Keys used during operation
[0]~[9] - Keys used for numeric input
[F1]~[F3] - Keys used for changing the authentication mode
[F4]
or [←]
- Used for changing the authentication mode
- Used as Delete key for correction when inputting the figure
- Used for canceling input and moving to the parent menu
in the menu
mode
[F4(←)~]
- Means pressing [F4(←)] key for 2 seconds or longer
- When input focus is located in the input box, it can cancel the
input
and exit to the parent menu by pressing this button for 2
seconds or
longer
AC-5000 User Guide
12
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
ENT
[or MENU]
- Used for modifying the mode
- Used for saving the value set in the menu mode or moving
to the
configuration in the screen
[ENT~]
- Means pressing [ENT] key for 2 seconds or longer
- Used for accessing the menu when pressed on the basic screen
- When input focus is located in the input box, the user can exit
to the
parent menu with the current
input value saved by pressing it for 2
seconds or longer
- Used to apply the configuration
to the current screen in the menu
mode and then exit to the parent menu.
1.6. Voices used during operation
Type of operation Voice
For fingerprint input
Please enter your fingerprint.
When authentication
is successful You are authorized.
When authentication
is failed Please try again.
1.7. Buzzer sounds used during operation
Beep
Sound that is
generated
when a key is
pressed or a
card is being
manipulated
When the key is pressed or card is read;
When fingerprint input is completed and the user may
take finger off
Be peep Sound of
failure
When authentication is failed or when the user’s
fingerprint is wrongly input
Brrrrrrp When standing
by for input
When notifying the status of waiting for the user’s input
of fingerprint or password
Beeeep Success When succeeding in authentication or completing the
setting work
1.8. How to register and input fingerprint
How to input fingerprint
Please input your fingerprint as if you are sealing a document using your forefinger.
Avoid inputting fingerprint with the fingertip touched lightly in the event of
input/registration.
Be sure that the center of fingerprint correctly touches the fingerprint input area.
AC-5000 User Guide
13
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
Input the fingerprint of your forefinger if possible.
It will facilitate the accurate and stable input of fingerprint.
Please check if the fingerprint is not clear or has any scar.
Too dry or wet fingerprint, ambiguous fingerprint, fingerprint with scar, etc. may not be
recognized. In this case, use/register the fingerprint of another finger.
Precautions related with the user’s fingerprint status
Depending on the fingerprint status, the user may not use fingerprint or suffer
inconvenience from its use.
This product is the fingerprint recognizing system. Any fingerprint that is damaged
or thin may not be used. In such case, the user is required to operate with
password.
When the finger is in a dry condition, the user is advised to breathe lightly on the
finger for a smooth operation.
In case of a child, due to small size or tender property of fingerprint, it may be
difficult or impossible to use it. Therefore, it is necessary to register the fingerprint
every 6 months interval.
In case of old people, excessive tiny lines that exist on the fingerprint to be
registered may prevent proper registration.
It is recommended to register at least 2 fingerprints of the user if possible.
AC-5000 User Guide
14
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
2. Product introduction
2.1. Features
Application of POE and Terminal Block – Easy to install
- As it supports POE, it can be installed with LAN cable without a separate power cable.
Designed in IP65 rainproof specification – Outdoor installation is possible.
Slim and polished design
- Easy to install as it is designed in a standing type; Slim and elegant design
using Color LCD and Touch Key
Download function of Server – Enables to change background image and voice
- Provides a variety of info messages through color LCD and voice; User can
download background image and voice from the server according to his/her
preference. Especially, the built-in LCD Backlight and Touch key LED enable
identifying the screen and manipulating the keys in a dark place.
Convenient Auto Sensing Function
- Enables to easily perform the operation of authentication by inputting the fingerprint
without entering the key separately
Easy self-authentication through fingerprint
- Prevents the risk of forgetting the password, loss/theft of card or key by adopting
fingerprint recognition technology that is biometrics; reinforces the security of self-
authentication through the use of own fingerprint
Access Management System using the network (LAN)
- Communication is carried out between fingerprint recognition device and
authentication server using TCP/IP protocol; Allows for easy expansion as it can be
applied to the network as it is. 10/100 Mbps Auto Detect ensures high-speed
operation; Enables easy management and monitoring through the network
Provides a diverse and flexible access management
- Provides a perfect control function by granting the right to entrance/access by user
group
Applicable for various operation methods such as access, time & attendance,
cafeteria, etc.
- Enables a variety of operation methods depending on the settings of operating
method in the terminal menu
Abundant capacity for treatment of the server
- In the event of managing the persons who enter using the server, it allows to treat
almost an unlimited number of persons.
Provides a variety of registration and authentication methods
There are 12 registration and authentication methods for a general user. Therefore, it
is necessary to determine such registration and authentication method before
AC-5000 User Guide
15
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
registering a user or administrator.
FP Fingerprint registration
Fingerprint Authentication
PW Card registration
Card authentication
FP or PW Fingerprint and password registration
Password authentication when fingerprint authentication is failed
FP & PW Fingerprint and password registration
Fingerprint authentication and then password authentication
Card Card registration
Card authentication
Card or FP Card and fingerprint registration
Card or fingerprint authentication
Card & FP Card and fingerprint registration
Card authentication and then fingerprint authentication
Card or PW Card and password registration
Card or password authentication
Card and PW Card and password registration
Card authentication and then password authentication
(ID or Card) &
FP
Card and fingerprint registration
ID input and then fingerprint authentication, or card authentication
and then fingerprint authentication
(ID or Card) &
PW
Card and password registration
ID input and then password authentication, or card authentication
and then password authentication
Card & PW &
FP
Card, password, and fingerprint registration
Card authentication and then fingerprint & password authentication
AC-5000 User Guide
16
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
2.2. Configuration
2.2.1. Standalone (Access)
2.2.2. Connect with PC SERVER (Access, Time & Attendance, Cafeteria)
TCP/IP
Cafeteria management
program
Time & attendance
management program
Internet /
WAN / LAN
TCP/IP
Fingerprint authentication
server (Fixed IP)
UDB Server
Database (MDB or MSSQL)
TCP/IP
Remote Admin Program
(User and terminal setting
management)
TCP/IP
TCP/IP
TCP/IP
DC12V
Adapter
Electromagnetic Lock
(Lock+, Lock-, Monitor)
AC-5000 User Guide
17
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
2.3. Specification
Division SPEC REMARK
CPU 32Bit RISC CPU (400MHz)
Rainproof IP65
LCD 2.8” TFT Color (320*240)
Touch Key 15key (0~9, F1~F4, Enter)
32M SDRAM
MEMORY
32M FLASH
20,016 User
20,016 Finger
61,439 Log
Fingerprint sensor Optical
Authentication speed Within 1 second
Scan Area / Resolution 15 * 17mm / 500 DPI
FRR / FAR 0.1% / 0.001%
Temperature /
Humidity
-20 ~ 50 /
Lower than 90% RH
POE Supports 13W POE
INPUT : Universal AC 100 ~ 250V
OUTPUT : DC 12V
(Option : DC 24V)
AC / DC Adapter
UL, CSA, CE Approved
Lock Control EM, Strike, Motor Lock, Auto Door
I/O 3 In (1 Exit, 2 Monitor)
2 Out (Lock Control)
TCP/IP (10/100Mbps)
Authentication
server
communication
RS-232 Meal ticket
printer
RS-485 External device
communication
Communication Port
Wiegand In/Out
Card reader
or
External device
communication
Card Reader
125KHz RF
or
13.56MHz Smart (1 SAM Socket)
Option
SIZE 88.0mm * 175.0mm * 43.4mm
AC-5000 User Guide
18
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
AC-5000 User Guide
19
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
3. Environment settings
3.1. Items to be checked before environment settings
3.1.1. Enter the Menu
Press [ENT] key for two seconds or longer, then the user can access the screen for
menu selection as follow;
<Figure 3-1>
User can transfer to each sub menu and have access by pressing the relevant number
key. If the admin is already registered, the Verify Admin screen appears as below;
<Figure 3-2>
In compliance with the registered authentication method such as card, fingerprint or
password, user can access each menu subject to successful identification after the
verification of admin is finished.
Verify Admin appears only when there is a registered admin. When accessing the
menu mode, once being identified, the user is allowed to access all the menus until
the user completely exits from the main menu.
3.1.2. How to access the menu without the verification of admin
This is the way of accessing the menu used inevitably when fingerprint authentication is
impossible because the user forgot the admin password or lost the card registered on the
terminal, or there is no admin.
AC-5000 User Guide
20
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
Remove the bracket at the backside of the terminal to open the lid.
With the lid open, as shown in the figure below, connect pin No. 1 with pin No. 3, and
pin No. 2 with pin No. 4 of J404 connector respectively at backside.
<Figure 3-3>
Access the menu by pressing [F4(←)]key for 2 seconds or longer, fill Admin ID with
‘0’ on Verify Admin screen in <Figure 3-2>, and then press [ENT]key. The user can
then access the menu selected with the buzzer sounding “Brrrrrrp” .
After modifying the configuration, don’t fail to get rid of the connected pin of J404
connector.
3.1.3. Modify setvalue
The following are the name and input method by input items.
<Figure 3-4>
Input Box
In case of an item where the value is directly input like ‘1:1 Level’, user must delete
the existing value with [F4(←)] key when the focus is in the applicable item and
Input Box (with input focus)①
①
Input Box (without input focus)
Select Button②
Check Box③
AC-5000 User Guide
21
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
then input the new value using [0]~[9] key.
Select Button
In case of selecting an item out of the given sample like ‘Fake Finger Detect’, user
must modify the item selection ( ) by pressing the relevant number key, provided
that, user must select the item after moving the focus from the input box by pressing
[ENT] key if the focus is located at the input box as shown in <Figure 3-5>.
<Figure 3-5> Move Focus (using [ENT] key)
As shown in the figure at the left, the letter is displayed in a reverse type when the
focus is located at input box. As shown in the figure at the right, the applicable
letters are displayed in black instead of grey when the focus moved to ‘Fake Finger
Detect’
Check Box
In case the user must select whether or not checking like ‘Check SameFP’, the
user can either select ( ) or release ( ) by pressing the relevant key [5]. If it is
impossible to select the relevant item, it is displayed in ( )
Press [F4(←)] key to cancel in the course of setting and move to the parent menu.
When the focus is located at the input box, [F4(←)] key functions as [DEL] key that
deletes the figures one by one. In this case, press [F4(←)] key for two seconds or
longer to cancel input and exit to the parent menu. Press [ENT] key for two seconds
or longer to save the current configuration and move to the parent menu.
3.1.4. Save environment settings
Press [F4(←)] key in the main menu screen of <Figure 3-1> to save the settings
changed, then the following screen will appear.
AC-5000 User Guide
22
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
<Figure 3-6>
Select [1.Yes] to save the revised contents or [2.No] to cancel it, and then press
[ENT] key. If there is no input for a certain period of time in this case, it returns to
the initial screen.
If there is no revised contents, it exits from the environment settings menu without
the aforementioned process of “Save?”.
When the settings are changed in the menu, if there is no input for a certain period
of time, it exits from the environment setting menu. In this case, if there is any menu
revised, it should pass through the “Save?” process. Otherwise, it transfers to the
initial screen without saving the revised setting.
AC-5000 User Guide
23
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr

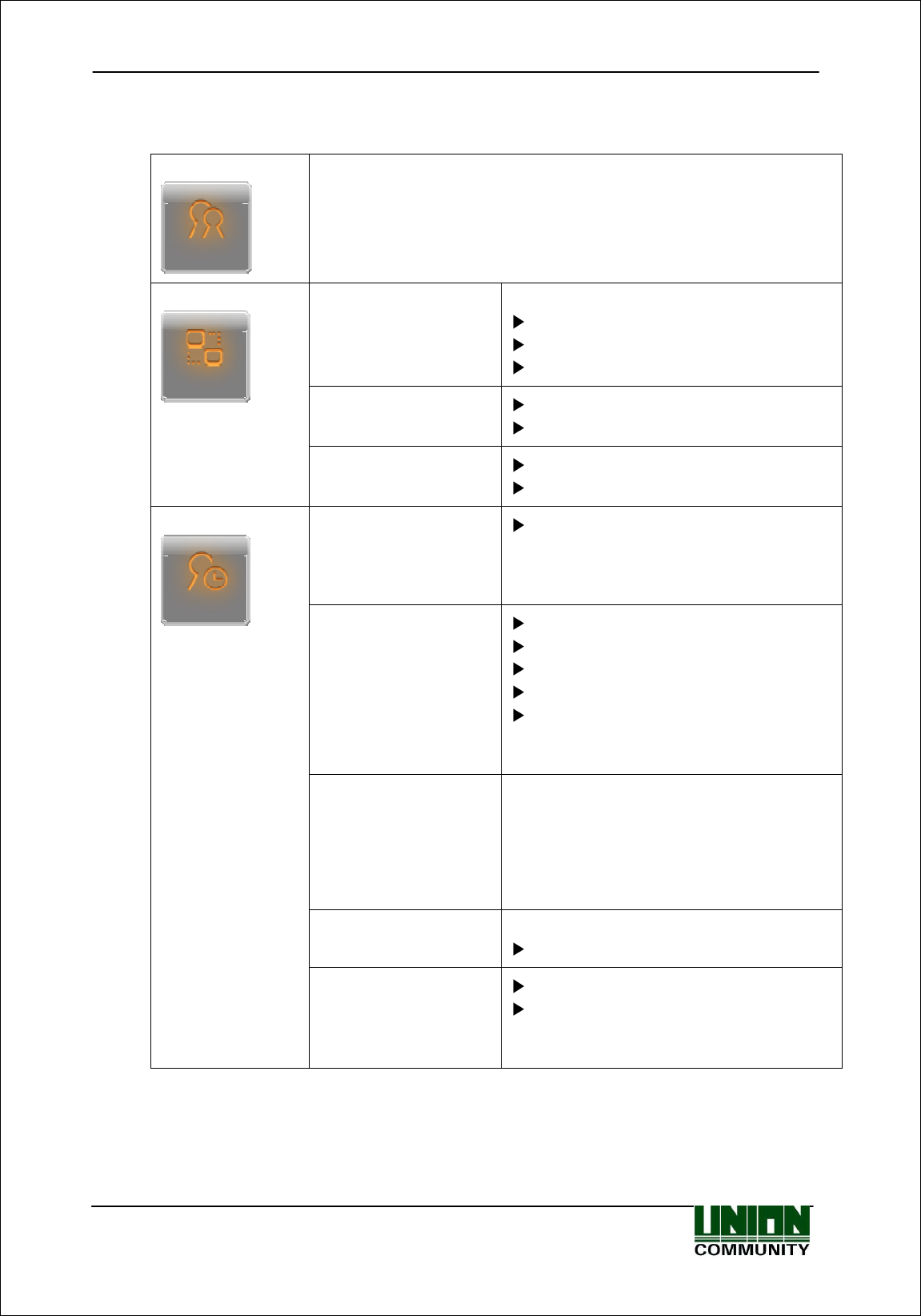

3.2. Menu Configuration
1. User
1. Add
2. Delete
3. Modify
4. Delete All
1. IP 1. Static IP / 2. DHCP
IP Address
Subnet Mask
Gateway
2. Server IP Server IP
Server Port
2. Network
3. Terminal ID Terminal ID
Authentication
1. Application Application
1.
Access
2. Time & Attendance
3. Cafeteria

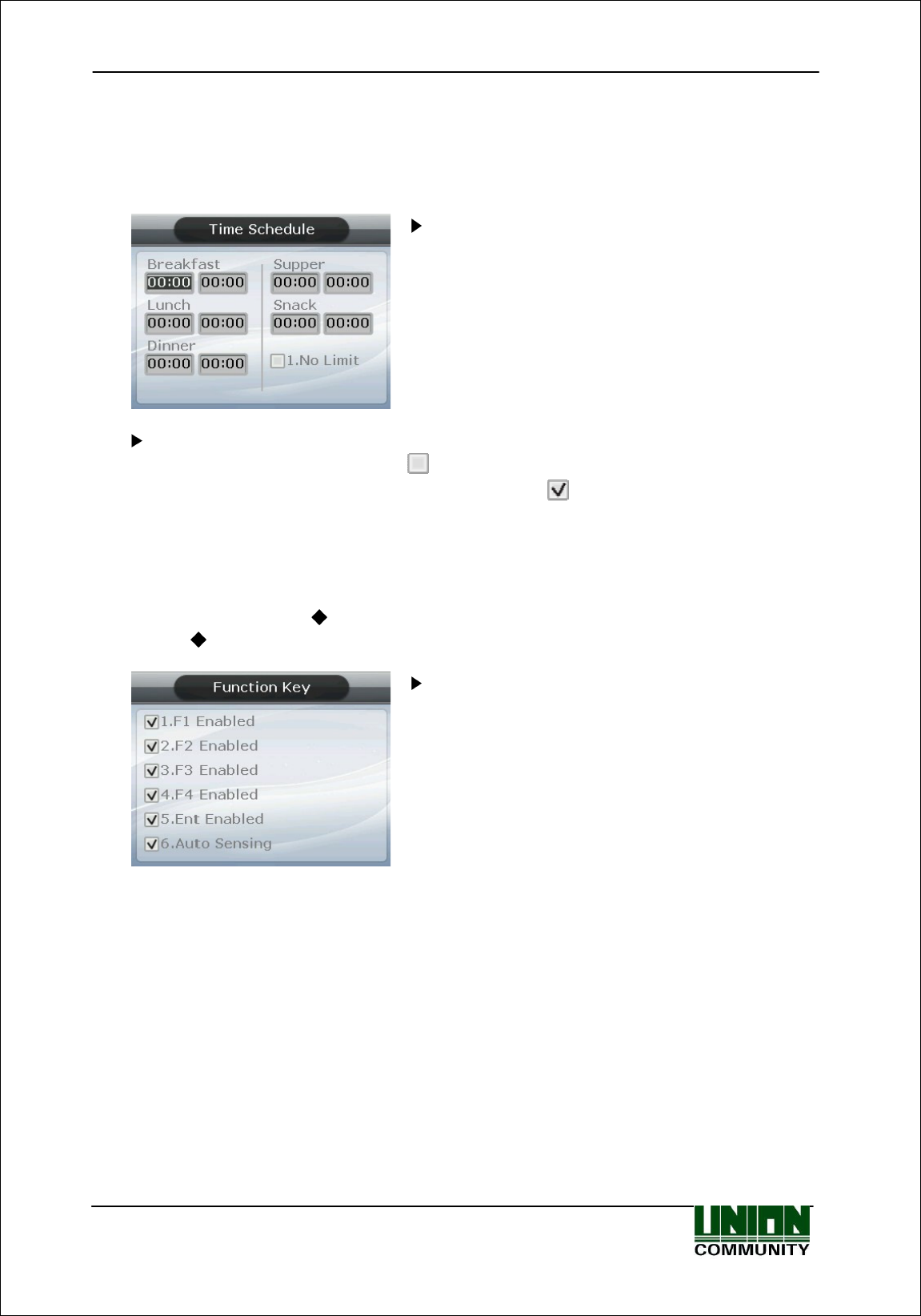

2. Time Schedule F1 Time
F2 Time
F3 Time
F4 Time
Access Time
□NO Limit (when setting to catering
management)
3. Function Key □F1 Enabled
□F2 Enabled
□F3 Enabled
□F4 Enabled
□Ent Enabled
□Auto Sensing
4. Extended Key □ Extended Key
of Extended Key

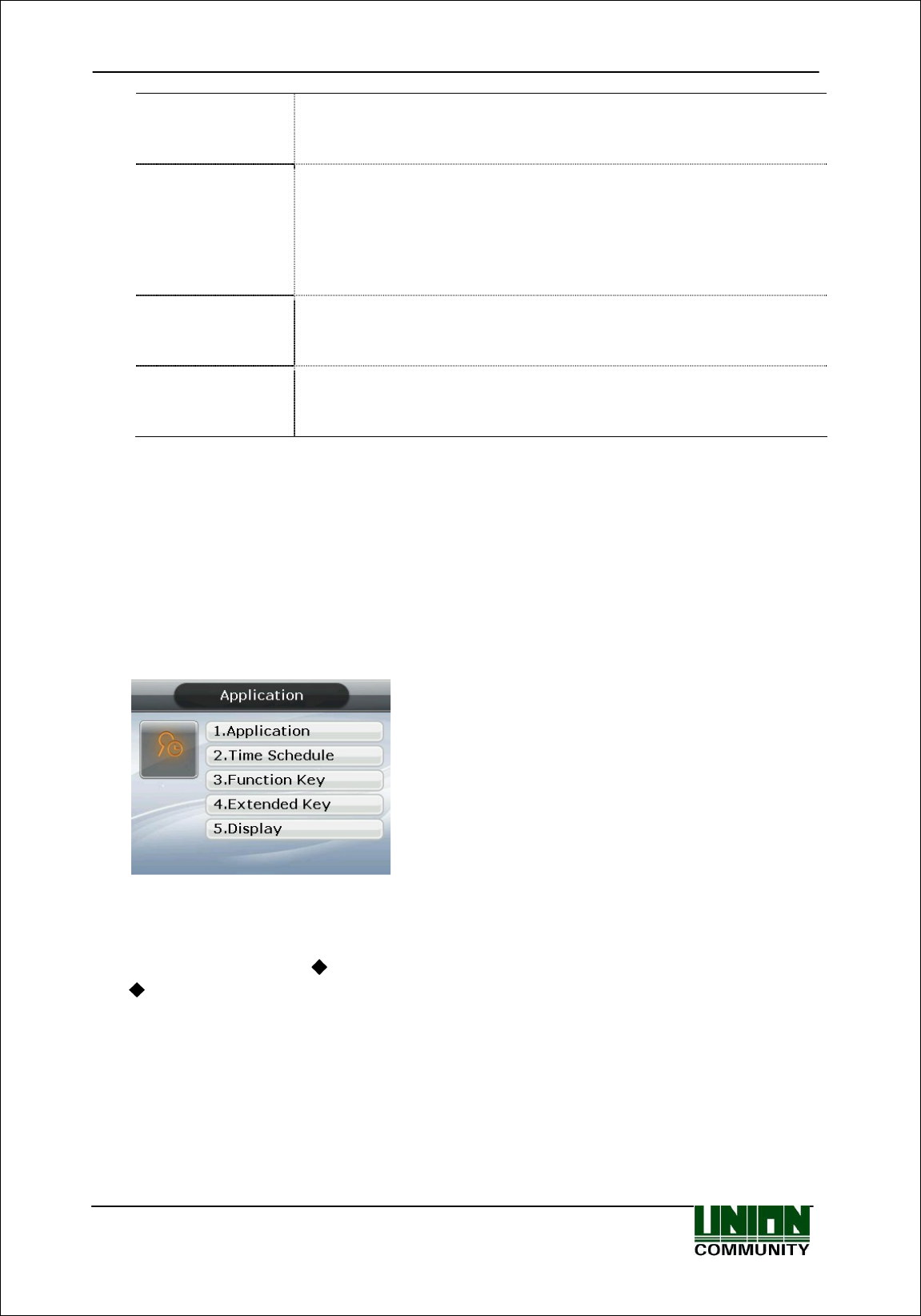

3. Application

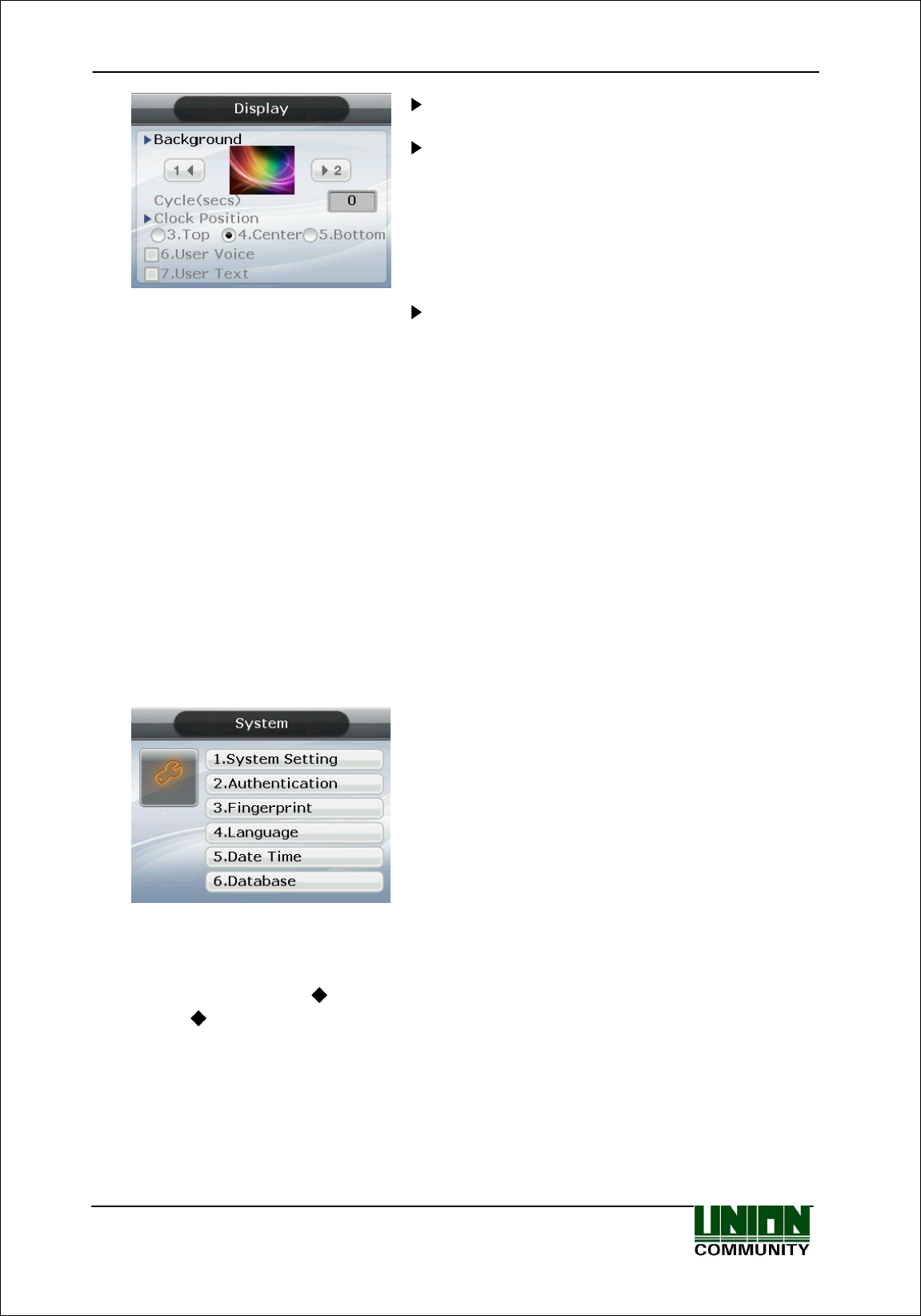

5. Display Background
Clock Position
□User Voice
□User Text
AC-5000 User Guide
24
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
1. System Setting UserID Length
Display Option
2. Authentication User GroupIP
Enable 1:N
Card Only
Template On Card
Verify Multi-FP
Blocking Time (sec.)

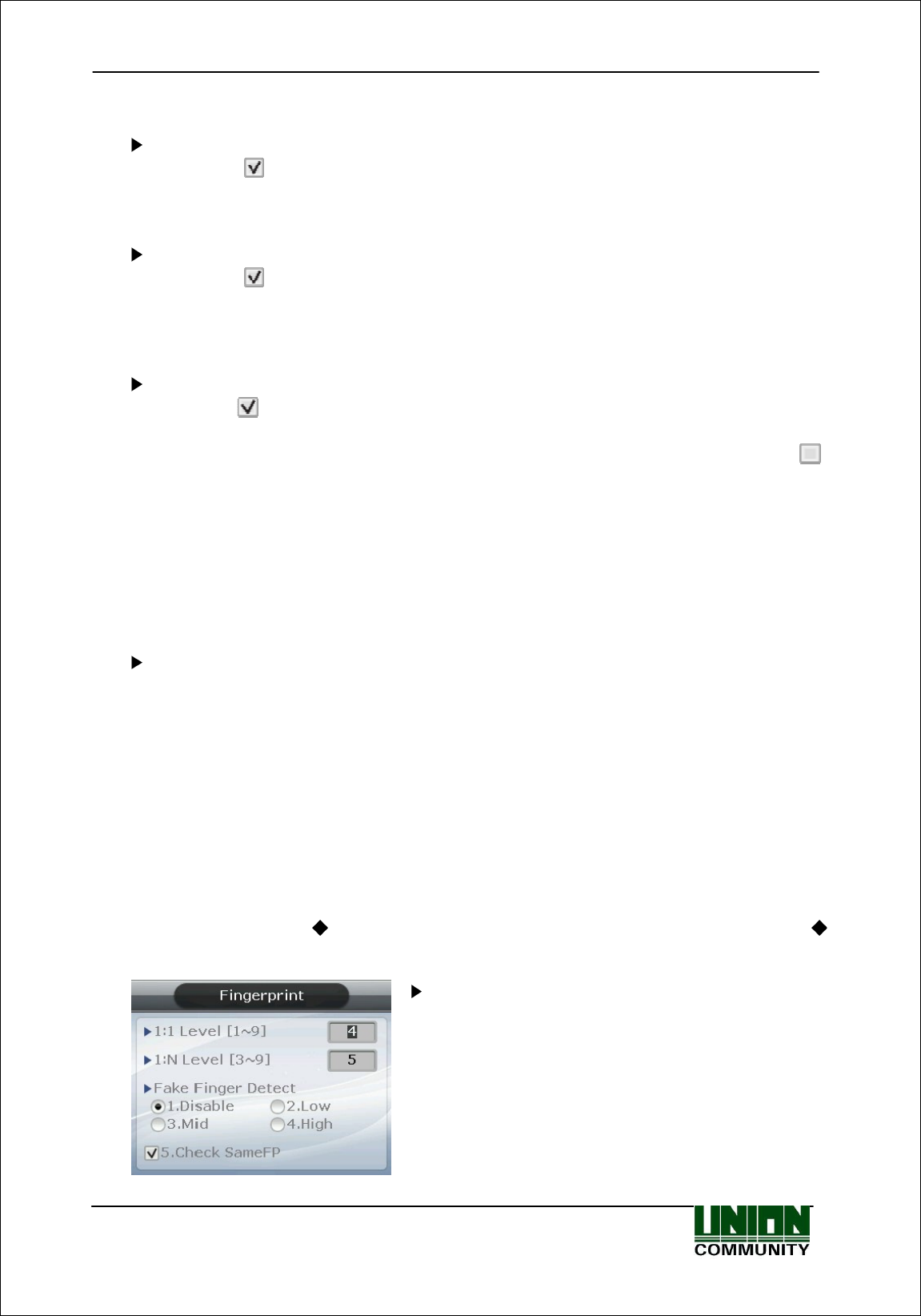

3. Fingerprint 1:1 Level [1~9]
1:N Level [3~9]
Fake Finger Detect
□Check SameFP
4. Language
5. Data Time Time Sync
Display Time
Set Current Time
4. System

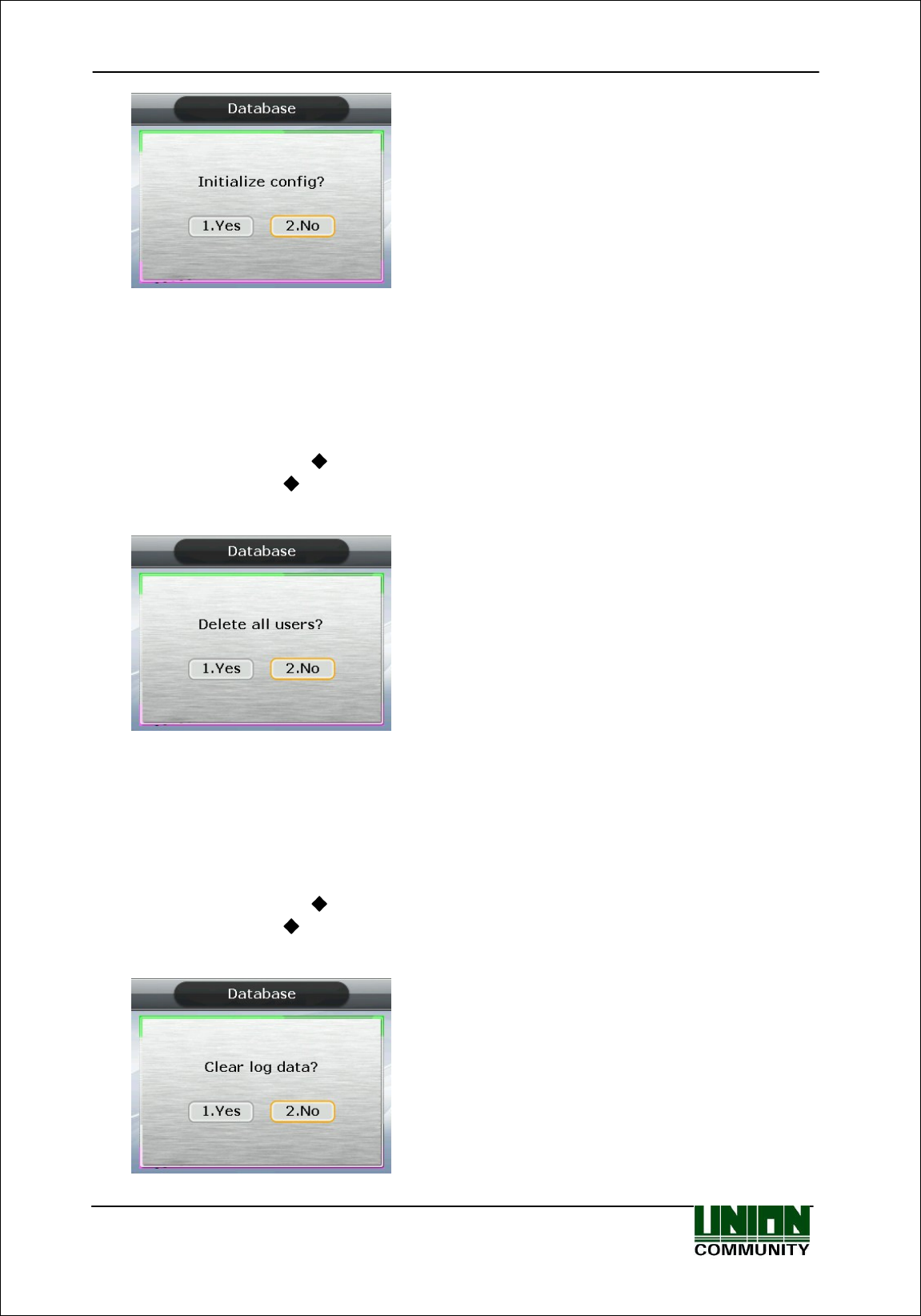

6. Database 1. Init Config
2. Delete All Users
3. Clear Log Data
4. Initialize Terminal
1. Terminal Option □Terminal Alarm
□Lock Terminal
□KeyLed ON
2. Volume Control Voice Volume
Beeper Volume

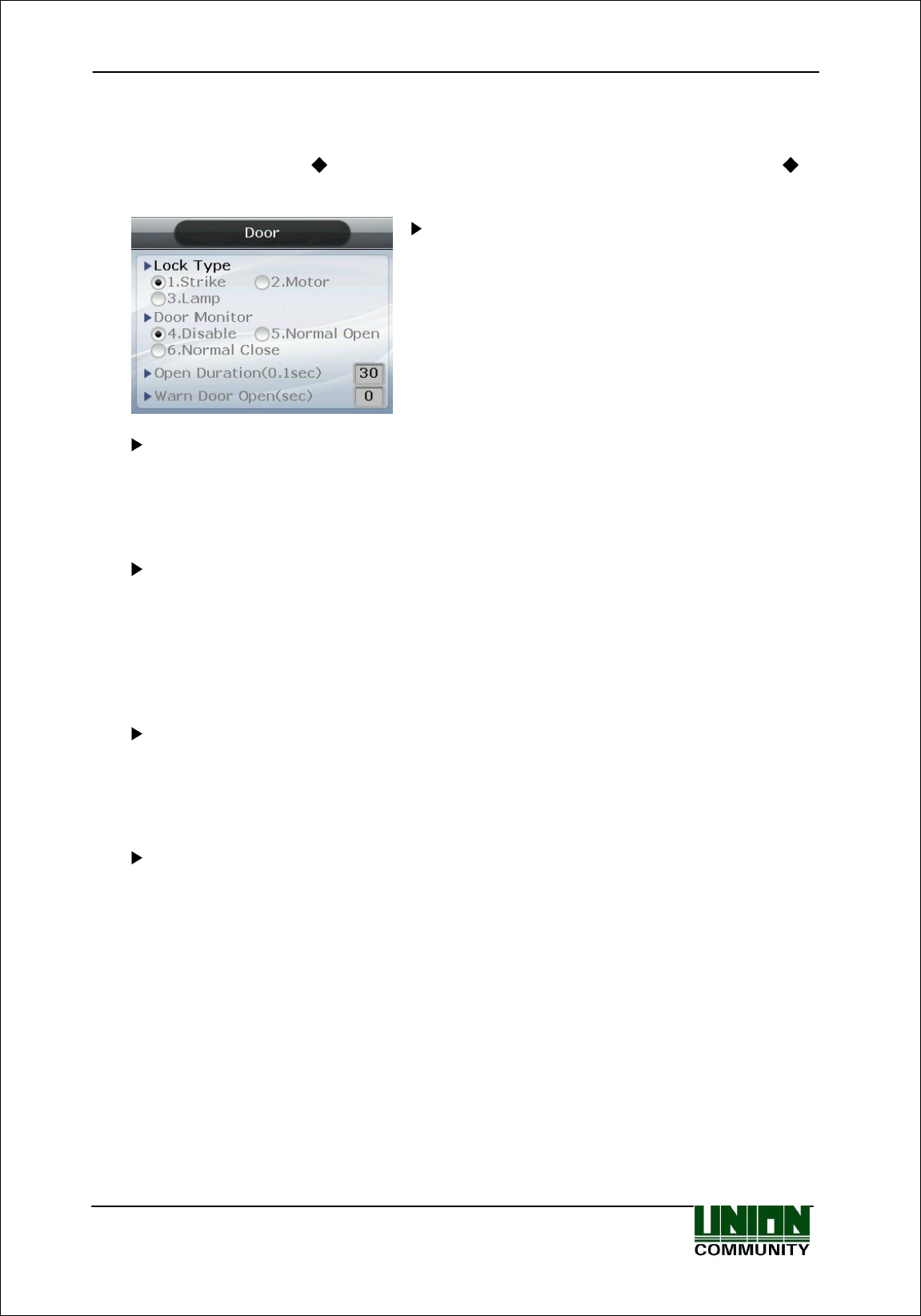

3. Door Lock Type
Door Monitor
Open Duration
Warn Door Open
4. Wiegand □Bypass
Wiegand Out
Site Code
5. Card Reader Card Format
Read Card NO.
5. Terminal
6. External Device Printer
Lock Controller
AC-5000 User Guide
25
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr

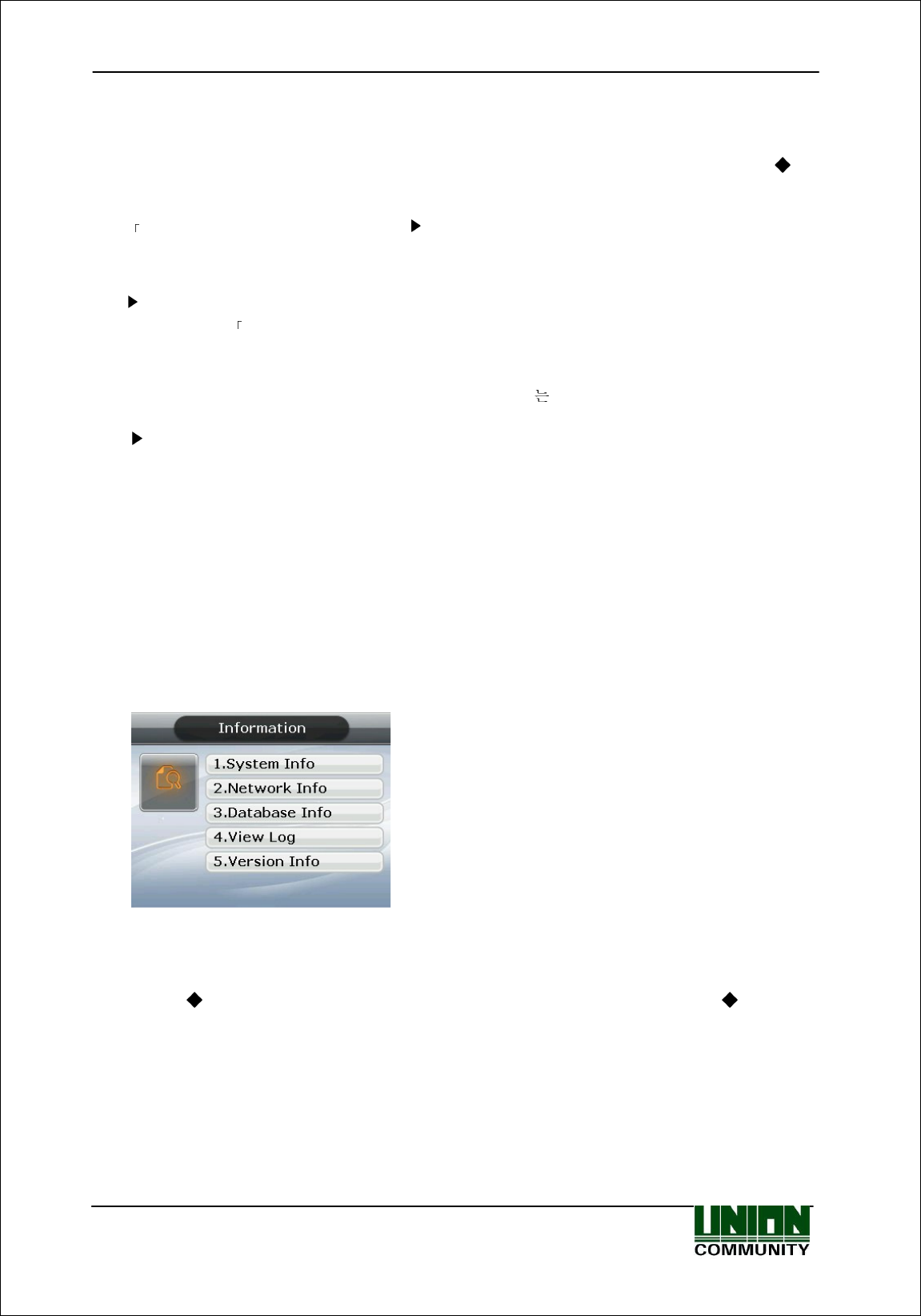

6. Information

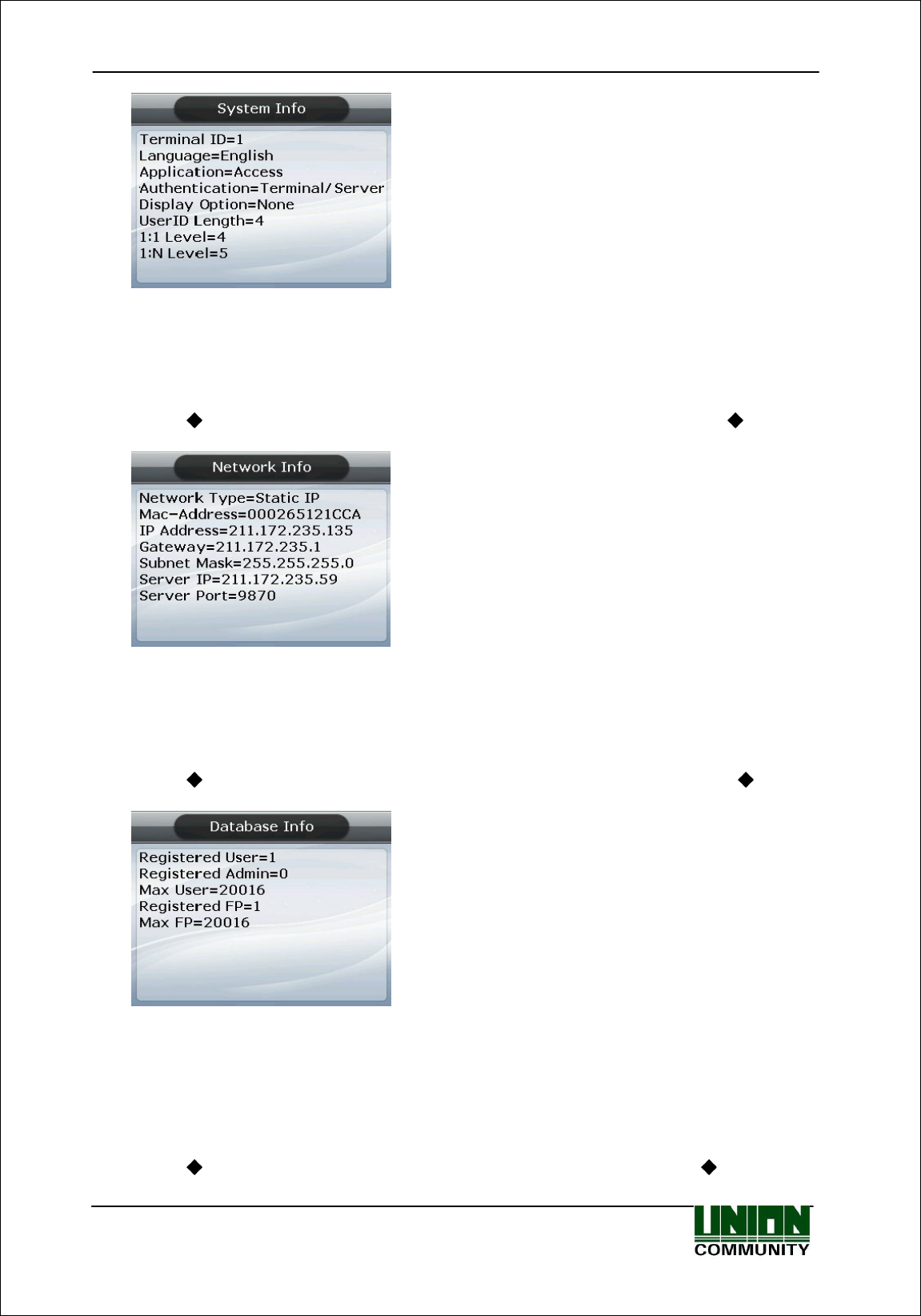

1. System Info
2. Network Info
3. Database Info

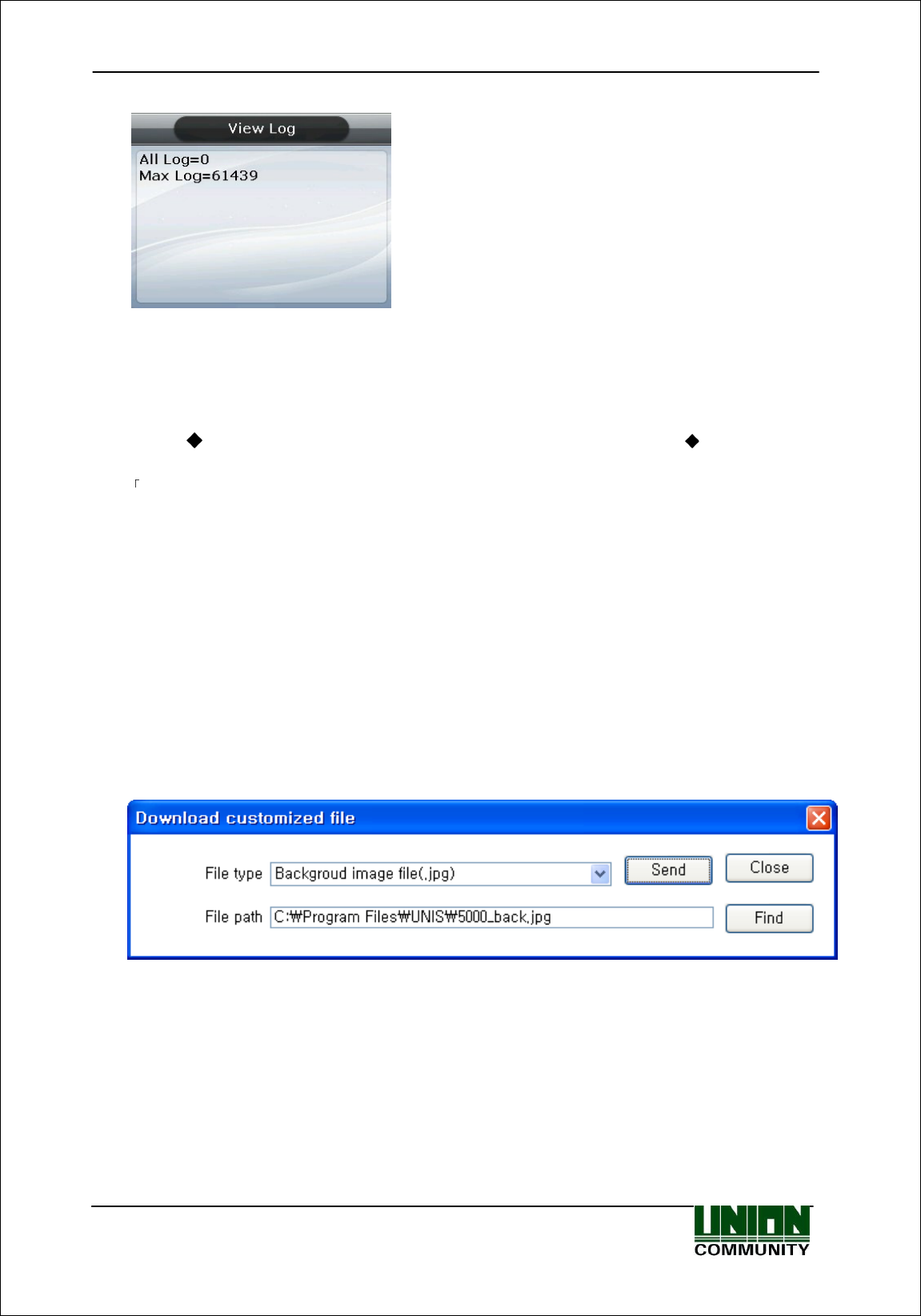

4. View Log
5. Version Info

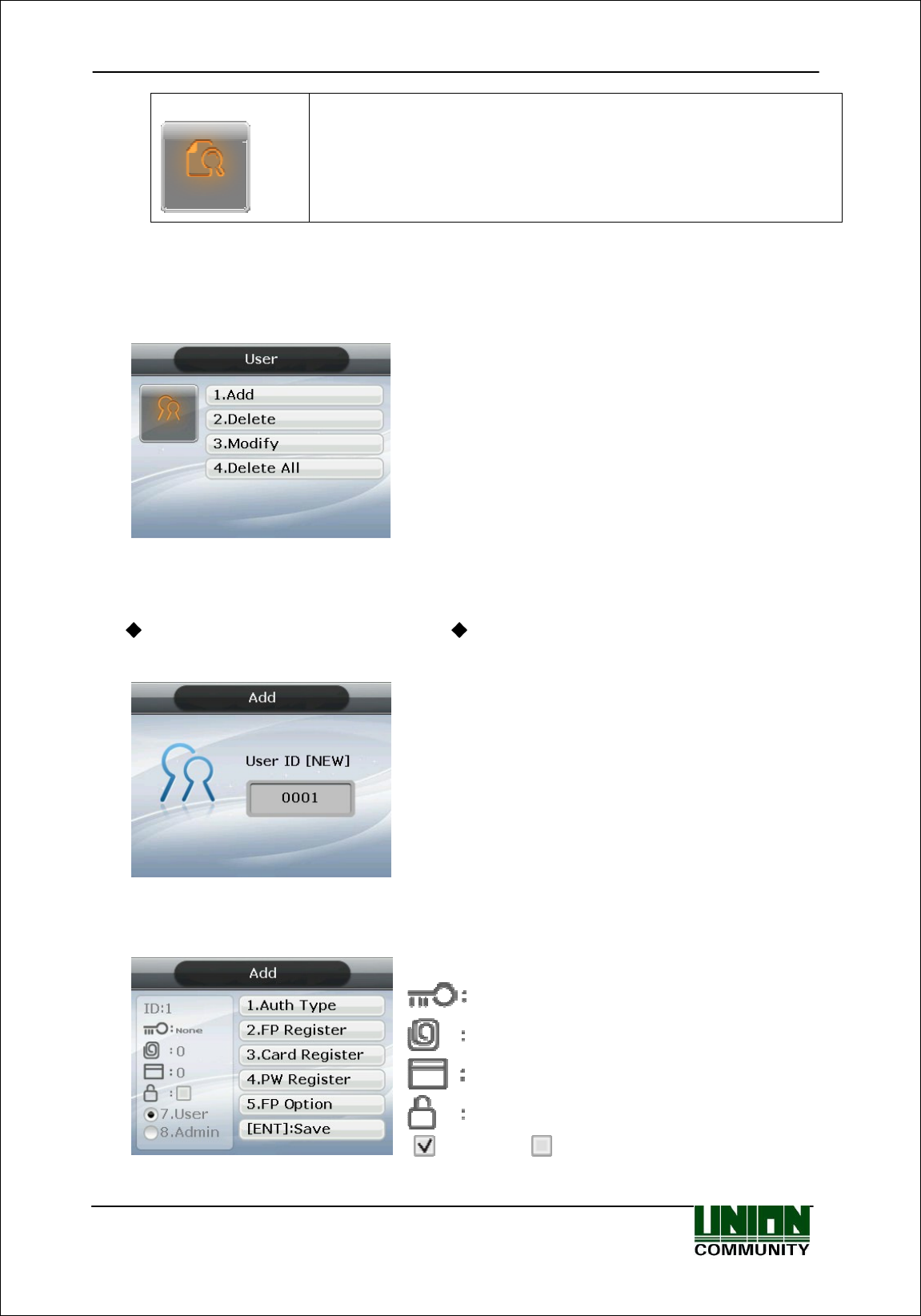

3.3. User
Select “1. User” in the main menu, then the following screen will appear.
Press [1] key to register new user,
[2] key to delete user,
[3] key to modify user, and
[4] key to delete all users.
3.3. 1. Add
Select [ENT~] [1. User] [1. Add] in the basic screen, then the following screen
will appear.
Input the user ID to be registered and then press
[ENT] key.
In this case, it automatically shows the ID that can
be registered on the screen, so the user can easily
perform registration. To modify the ID, press
[F4(←)] key and delete the existing value and
input the new value.
If the user inputs an already registered ID, a failure message will appear. The following
screen will appear if the ID is not yet registered.
The icon at left has the meaning as below;
Authentication type
Number of fingerprints registered (0~10)
Number of cards registered (0~10)
Whether or not password is registered
( :Registered/ :Not registered)
AC-5000 User Guide
26
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
As shown on the screen, the user can register by pressing [2] for fingerprint, [3] for card,
and [4] for password. Basically, it is registered in the name of the user. Using the keys [7]
and [8], the user can modify into the user and the admin. Once the registration is
completed, the user can press [ENT] to save it. The user must press [F4(←)] key to
cancel the registration and exit from the menu.
Only the user registered as admin can modify the operating environment of the
terminal, and Add/Modify/Delete the information of all the users saved in the terminal.
Therefore, special care is required for the registration of the admin.
3.3.1.1. Auth Type
Delete the existing value by pressing [F4(←)] key,
enter one of the 12 authentication types shown on the
screen, and then press [ENT] key.

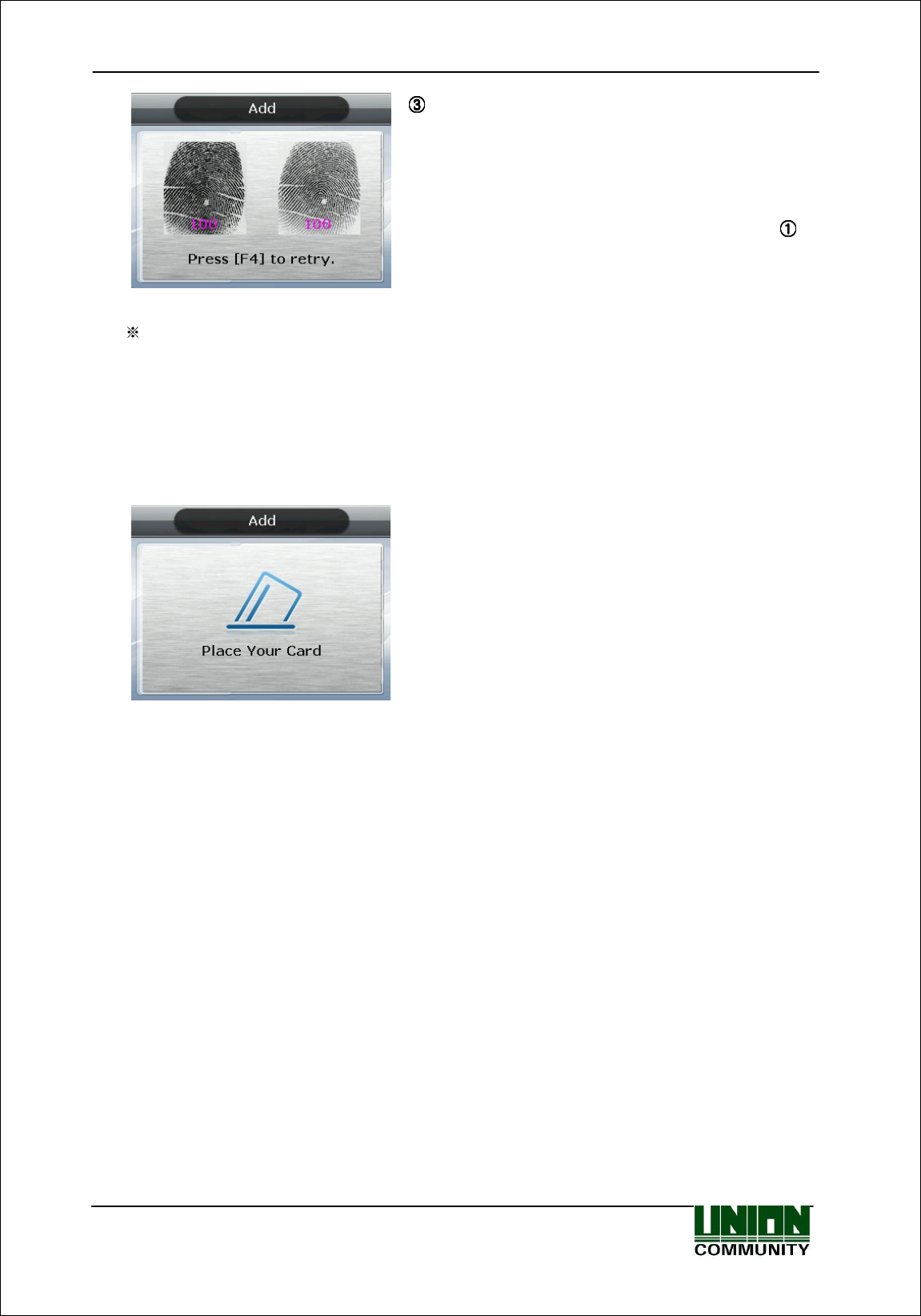

3.3.1.2. FP Register
Place finger on the sensor referring to ‘1.8.
How to register and enter fingerprint‘. Fingerprint
must be input two times as below in accordance with
the guidance on the screen.
When the fingerprint sensor is lit together with the
message ‘Place Finger on sensor‘, place the finger on
the window for fingerprint input for 2~3 seconds until
the light is off.
When the message ‘Place same Finger on
sensor‘ appears, enter once again the fingerprint
input just before.
At the time of entering the fingerprint for the second
time, input it again after the user takes the finger off
the fingerprint input window.
AC-5000 User Guide
27
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
When input is complete, the message at the left
will appear together with its image accompanied by
quality rating in 0~100.
If the image is not adequate from the
visual aspect or
any image shows 30 or less, the user is advised to
register again.
To register again, start the process from by
pressing [F4(←)] key until 3 seconds elapse without
input or pressing another key. After completion, it
moves to the parent menu.
Fingerprint registration is available up to 10 per ID. Failure message will appear
when registration is attempted in excess of 10.
In case that failure is repeated in spite of the attempts for 2~3 times using the correct
fingerprint registration method, the user is advised to use password or card.
3.3.1.3. Card Register
When registration screen appears, put the card on it.
If you want to exit without registration, press [F4(←)]
key.
3.3.1.4. PW Register
AC-5000 User Guide
28
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
Input the password in 1~8 digits on the password
input screen and press [ENT] key. The ‘Confirm
Password’ window will appear again. Input the same
password and press [ENT] key.
Press [F4(←)] key for 2 seconds or longer to cancel it
and exit.
3.3.1.5. FP Option
As it is the settings related with fingerprint, it is the option that can be changed after
registering the fingerprint in advance. If the user selects it with the fingerprint already
registered, it only results in the buzzer sound of failure.
’1:1 Level’ (Initial setting: ‘0’)
It is the item that determines the authentication
level for each user registered. By modifying this
value, it is possible to determine the authentication
level by registered users.
When set to ‘0’, it conducts authentication using 1:1
authentication level of the terminal.
Enable 1:N (Initial setting: ‘v’)
When this option is checked, it is possible to
successfully authenticate using fingerprint
without any user ID or card.
3.3.1.6. Save
When registration process is finally completed, press [6] key to save it. In this case, the
user is not saved if the user doesn’t press [6] key but exits by pressing [F4(←)] key..
The following is the LCD guidance message indicating that the user can exit from the
registration process.
AC-5000 User Guide
29
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
When it is registered normally with [6. Save] key pressed
When registration is failed with [6. Save] key pressed
When the registration means is not registered properly in
accordance with the authentication method, for
example, the user didn’t register any fingerprint after
setting it as authentication means, nor register any card
after setting it as authentication means.
In the case of [2. FP Register]
When fingerprint image is not in good condition or there
is no fingerprint input for 10 seconds after the fingerprint
sensor lamp is on
At the time of fingerprint registration, when the user
didn’t input the same fingerprint but inputs a different
fingerprint
In the case of [4. PW Register]
When the user inputs a different number during
verification after inputting the password
In the case of [3. Card Register]
When the user intends to register a card that has been
already registered
AC-5000 User Guide
30
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
In case of [2. FP Register], when the user intends to
register again the fingerprint that has already been
registered.
If the user wants to register the same fingerprint
with other ID again, he/she must release ‘4. System
3. Fingerprint Check SameFP’ function. This is,
however, not suitable for time & attendance, etc. as
the same fingerprints can be authenticated with
different IDs at the time of authentication.
In case of [2. FP Register] or [3. Card Register]
When the user attempted registration in excess of the
maximum number of registrations (10 each)
3.3.2. Delete
When the user selects [ENT~] [1. User] [2. Delete] in the initial screen , the
following screen will appear.
Input the user ID to be deleted, and then press
[ENT] key.
When inputting an unregistered ID, the failure
message will appear. When inputting a registered
ID, the success message will appear.
Deleting from the terminal doesn’t mean the deletion from the server. Therefore, it is
necessary to delete from the server in order to completely delete it.
Special care should be taken in case of deletion, since deletion is performed regardless of
User/Admin. Especially, the user registered in the terminal may not be restored after
deletion unless it is registered in the network server.
The following is the LCD information message that may appear during the process of
deletion;
AC-5000 User Guide
31
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr

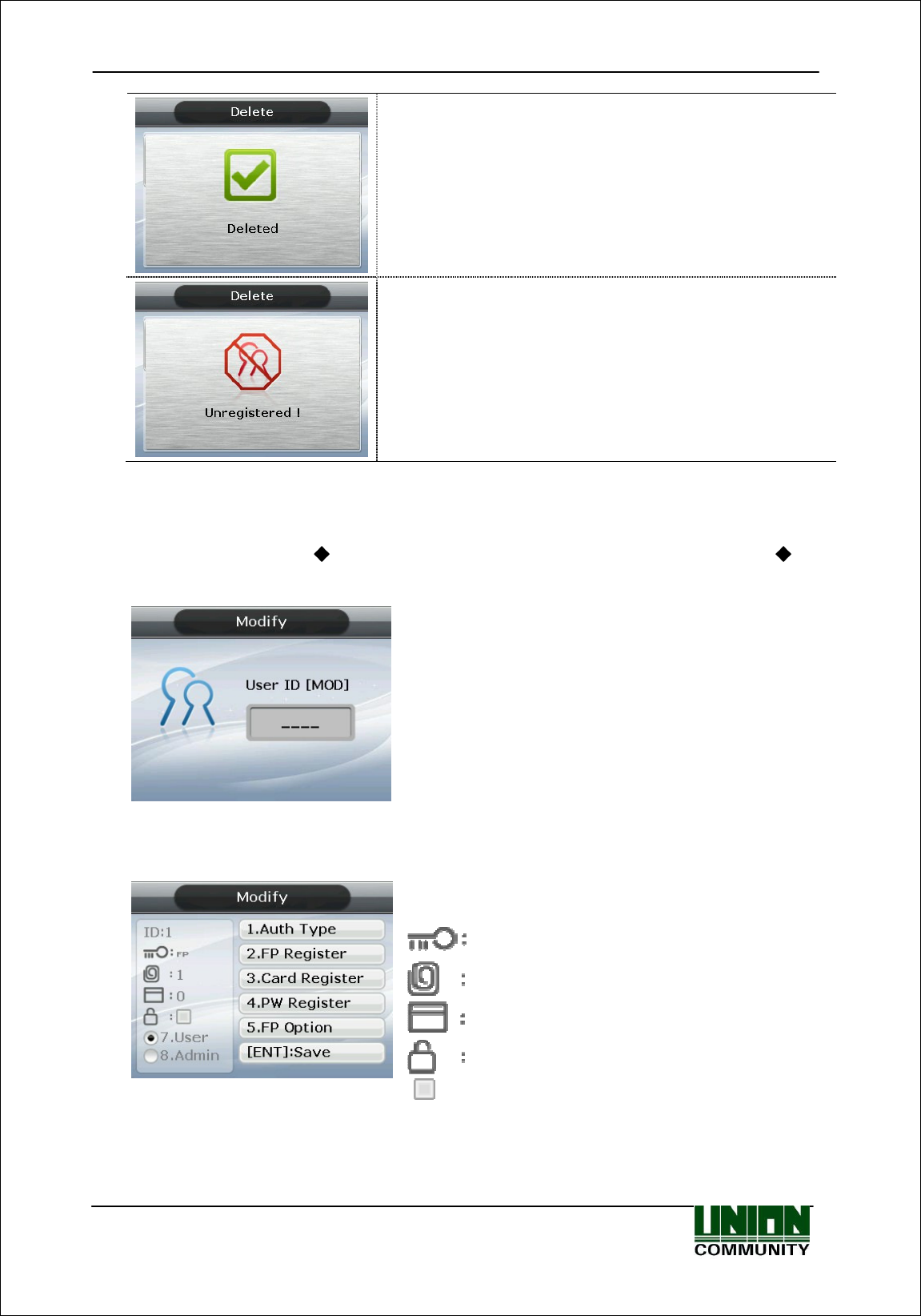

When it is deleted normally
When the user inputs an unregistered ID
3.3.3. Modify
When the user selects [ENT~] [1. User] [3. Modify] in the initial screen , the
following screen will appear.
Press [ENT] key after inputting the user ID to be
changed.
When inputting an unregistered ID, the failure message will appear. When inputting a
registered ID, the following screen will appear.
The icons at the left are described by their
respective meanings on the right.
Authentication type (FP)
Number of registered fingerprints (1)
Number of registered cards (0)
Whether or not the password is registered
( : not registered)
For the changing method, see ‘3.3.1. Add’ as it is the same as shown in the registration
method.
AC-5000 User Guide
32
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
3.3.4. Delete All
When the user selects [ENT~] [1. User] [4. Delete All] in the initial screen , the
following screen will appear.
If the user is sure to delete all users, press [1.Yes]
while press [ENT] key after selecting [2.No] to
cancel it.
When the user selects [1.Yes], both user and
admin are deleted. Special care should be taken
as the deleted user/admin may not be restored
after deletion.
3.4. Network
When the user selects “2. Network” in the main menu, the following screen will appear.
Press the applicable key that represents the item to
be changed.
3.4.1. IP
When the user selects [ENT~] [2. Network] [1. IP] in the initial screen , the
following screen will appear.
At the time of changing IP, delete the existing value
using [F4(←)] and then input the new value. The ‘.’ in
between the number sequence is created
automatically. Ex) input 192 168 010 50 sequentially
to input ‘192.168.10.50’.
Select [1] in case of the method that a fixed IP is assigned from the connected network
while select [2] in case of the method that there is a DHCP server in the connected
network from which IP is assigned. Set IP, Subnet Mask, and Gateway if it is the fixed IP;
AC-5000 User Guide
33
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
No need to set them if the user selected a flexible IP.
The user can exit to the parent menu using [ENT~] key to apply the changed value after
finishing the setting while using [F4(←)] key to cancel input during setting. In this case,
the user can exit only by pressing the key for 2 seconds or longer if he/she is inputting the
value in the input box.
3.4.2. Server IP
When the user selects [ENT~] [2. Network] [1. Server IP] in the initial screen ,
the following screen will appear.
Set the Server IP and Port.
To change the port, input it after moving the input
focus to the server port by pressing [ENT] key.
Initial setting
Server Port: ‘9870’
The basic port value of authentication server is ‘9870’ for UNIS server, while ’2201’ for
Access server. Special care should be taken since changing these values requires the
similar changes in the server program.
The user can exit to the parent menu by pressing [ENT~] key to apply the changed value
after finishing the setting while pressing [F4(←)~] key to cancel the input value.
3.4.3. Terminal ID
When the user selects
[ENT~] ( [2. Network] ( [3. Terminal ID] in the initial screen , the
following screen will appear.
Set Terminal ID and Authentication.
Initial setting
Terminal ID: ‘1’
Authentication: ‘2. terminal/server’
Terminal ID is a unique ID used by the authentication server for the purpose of identifying
the terminal having ‘1’ as its default value. It must correspond to the entry/exit door ID set
in the server program, which can be input in a maximum of 8 digits.
Authentication
This item determines the priority for authentication between terminal and network
server. Having ‘2. Terminal/Server’ as its default value, it operates as follow in each
mode.
AC-5000 User Guide
34
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
1.Server/Terminal
Authentication is made by the server when it is connected to the
server while by the terminal when it is disconnected to the server
due to network disturbance, etc.
2.Terminal/Server
Authentication is made by the terminal even if the server is
connected and the result of authentication is transferred to the
server on a real-time basis.
However, authentication is made by the server when the input
user ID or card is not registered in the terminal. (It doesn’t attempt
server authentication in case of 1:N fingerprint authentication)
3. Server Only Although the user is registered in the terminal, authentication is
made through the server. Therefore, authentication is not made
unless the server is connected.
4. Terminal Only Only the user registered in the terminal is authenticated. When
connected to the server, the authentication result will be
transmitted to the server on a real-time basis.
Flexible designation is allowed depending on the circumstance such as the number of
terminals connected to the server, the number of users authenticated, or the network
error, etc. It is recommended to use ‘2. Terminal/Server’ so that concurrent
authentications could be attempted when at least 10 terminals are connected to the
server or when network error frequently occurs in general.
3.5. Application
When the user selects ‘3. Application’ in the main menu, the following screen will appear.
Press the applicable key that represents the item to
be changed.

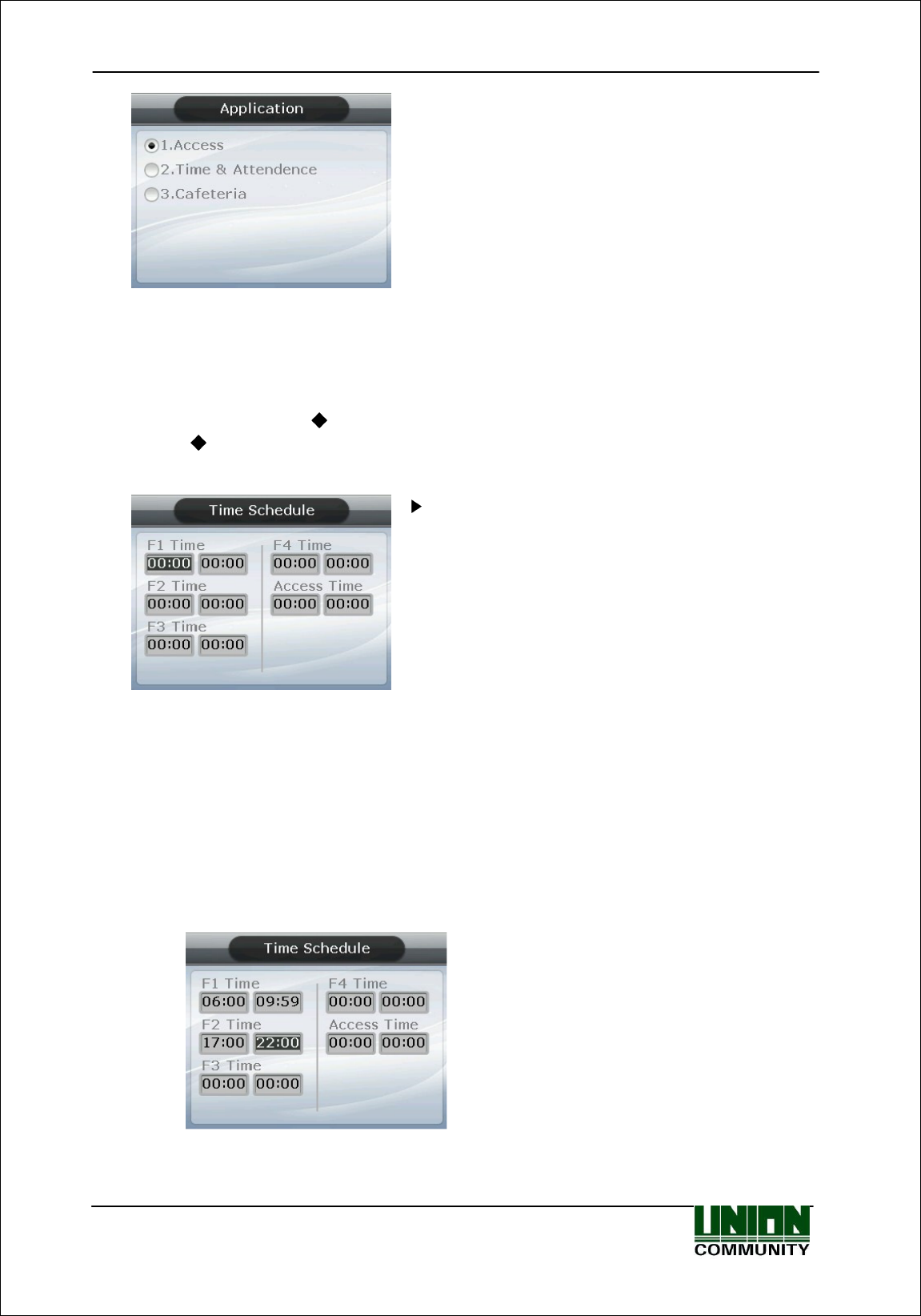

3.5.1. Application
When the user selects [ENT~] [3. Application] [1. Application] in the initial screen
, the following screen will appear.
AC-5000 User Guide
35
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
Select the operation type of the terminal by pressing
the applicable number key.
Press [ENT] key to apply the configuration while
[F4(←)] key to cancel it.
3.5.2. Time Schedule
3.5.2.1. Setting to Access / Time & Attendance
When the user selects [ENT~] [3. Application] [2. Time Schedule] in the initial
screen , the following screen will appear.
Initial setting: Identical with the screen at the left
The user can set the time zone by authentication
modes; otherwise, set to ‘00:00-00:00’..
Input after deleting the existing value using [F4(←)] to
change the value.
Input HHMM (Hour/Minute) in the order which can be
set from 00:00 to23:59
In the preset time zone, it is always indicated in the preset mode unless the user presses
the other function key. Although the user pressed the other function key to authenticate
with another mode, terminal display mode is automatically changed into authentication
mode, which is suitable for the management of time & attendance.
As shown in the example below, each time zone must be set without being overlapped,
but the mode is determined like F1F2F3F4Access sequentially if they are
overlapped.
-----------------------------------------------------------------------------------------------------------
(Ex) Office start=06:00~09:59, Office leave=17:00~22:00
-----------------------------------------------------------------------------------------------------------
AC-5000 User Guide
36
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
Exit to the parent menu by pressing [ENT~] key to apply the changed value after finishing
the setting while pressing [F4(←)~] key to cancel the input value.
3.5.2.2. . Setting to Cafeteria
Initial setting: Identical with the screen at the left
The user can set the time zone by meal types;
otherwise, set to ‘00:00-00:00’.
NO Limit
When releasing the check box ( ), each user is allowed for one authentication by
meal only, but when the user checks the box ( ) he/she is allowed for several
authentications regardless of the existing authentication.
3.5.3. Function Key
When the user selects [ENT~] [3. Application] [3. Function Key] in the initial
screen , the following screen will appear.
Initial setting: Identical with the screen at the left
Function key means the key including [F1]~[F4], [ENT] used to change the authentication
mode such as office start/office leave, etc. When the user presses the function key,
authentication mode is changed into the applicable mode. When it is not checked,
authentication mode is not changed even though the applicable key is pressed. Therefore,
it can be used with the checked other function key released in the event of using it as the
terminal exclusively for office start or office leave.
In case of releasing the check box of ‘6.Auto Sensing’, fingerprint sensor doesn’t respond
even if the user inputs his/her fingerprint on the sensor. In this case, be sure to input the
ID or card or fingerprint of the user.
3.5.4. Extended Key
AC-5000 User Guide
37
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
When the user selects [ENT~] [3. Application] [4. Extended Key] in the initial
screen , the following screen will appear.
,
Initial setting: Identical with the screen at the left
To use the Extended Key, press [1] key and then
check ‘1. Extended Key. The number of extended
keys can be set within the range of 1~40.
Extended Key is the function that extends the number as required up to 40 when any
additional authentication modes are necessary in addition to the basic function key
([F1]~[F4], [ENT]). In this case, the screen for selecting the extended key as below when
the user presses the F4 key. Select the applicable mode with [0]~[9] keys.
When the number of extended keys exceeds 10, select them by changing the page with
[F1]~[F4] key.
-----------------------------------------------------------------------------------------------------------
Ex) In case the number of extended keys is 16, press [F4] key in the initial screen, then
the following screen will appear.
If the user has to select ExtMode 12, move to the next page with [F2] key and then
press [2] key.
Press [ENT] key to exit without selecting the extMode.
-----------------------------------------------------------------------------------------------------------
The user can exit to the parent menu using [ENT~] key to apply the changed value after
finishing the setting while using [F4(←)] key to cancel input during setting.
3.5.5. Display
When the user selects [ENT~] [3. Application] [5. Display] in the initial screen ,
the following screen will appear.
AC-5000 User Guide
38
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
Initial setting: Identical with the screen at the left
Background image
The user can change the background image of the
initial screen by pressing [1] and [2] keys. Also, the
user can set the cycle to 5 seconds or longer to
have the background images saved in the terminal
displayed sequentially at every preset interval
(seconds).
Clock Position
Changes the location of the clock appearing on the
initial screen
Based on the user’s need/preference, he/she can download the voice from Wav file
(16bit/8KHz) to change the voice output when authentication is successful or failed. In
addition, the user can download the image text in a modified form such as office start or
office leave using the specially provided resource file (Excel file). In this case, the user
can apply the applicable modified contents when only the boxes of ‘6. User Voice’, and ‘7.
User Text’ are checked. For the downloading method, see ‘3.9.Download customized file’
The user can exit to the parent menu using [ENT~] key to apply the changed value after
finishing the setting while using [F4(←)] key to cancel input during setting.
.
3.6. System
When selecting ‘4. System’ in the main menu, the following screen will appear.
Press the applicable key that represents the item to
be changed.
3.6.1. System Setting
When the user selects [ENT~] [4. System] [1. System Setting] in the initial
screen , the following screen will appear.
AC-5000 User Guide
39
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
Initial setting: Identical with the screen at the left
UserID Length
This field sets the length of user ID, which can be changed within the range of 1~9
digits. It must be identical with the length of ID registered in the server program. For
example, the user must set it to 6 if the ID registered in the server program is ‘000075’
which is 6 digits.
Display Option
If set to ‘1. None’, it displays the authentication result message only when
authentication is successful. If set to ‘2’, it displays the User ID. If set to ‘3’, ‘4’, and ‘5’,
it displays the User Name, User Key, and Message respectively on the LCD screen.
However, it indicates the ID in case there is no applicable information of the user
saved in the terminal.
The user can exit to the parent menu using [ENT~] key to apply the changed value after
finishing the setting while using [F4(←)] key to cancel input during setting.
.
3.6.2. Authentication
When the user selects [ENT
~] ( [4. System] [2. Authentication] )
in the initial screen ,
the following screen will appear.
Initial setting: Identical with the screen at the left
User GroupIP
As the method of authentication regarding the initial digit of ID as the same group, it can finish
1:N authentication more quickly if at least 5,000 users are registered.
When this method is checked, it authenticates the fingerprint out of the users whose ID starts
with the input letter. If this method is not checked, it considers the input figure as the user ID and
attempts 1:1 authentication against the fingerprint of the user with the applicable ID
Ex
) Where the user inputs ‘12’ to attempt authentication when the user ID is a 4-digit
figure;
If checked ( ), it attempts 1:N authentication among the users having ID
‘1200’~’1299’,
If unchecked ( ), it attempts 1:1 authentication against the fingerprints of the
users whose ID is ‘12’.
Enable 1:N
If checked ( ), this option enables to authenticate with fingerprint only without
inputting user ID or card. Even if the user is registered with 1:N authentication, only 1:1
AC-5000 User Guide
40
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
authentication is permitted in the terminal where this option is not checked
Card Only
If checked ( ), this option enables to authenticate with card only without inputting
fingerprint. Even if the user is registered with (Card & FP) or (Card & PW), only
authentication with card is permitted in the terminal where this option is checked.
Template On Card
If checked ( ), this option enables to authenticate with the user’s information and
fingerprint recorded in the card without downloading the user in the terminal. In order
for this option to be operated, SCcard reader must be mounted without fail and the
server must set the terminal that uses fingerprint card.
Verify Multi-FP
If checked ( ), this function has all the registered fingerprints to be authenticated after
the user inputs ID (or Card). When this item is set to be checked, the user must input
user ID or card without fail. In this case, Enable 1:N is changed into unchecked ( )
automatically.
This function is used for strict access control of the special zone. For example, if the
user with ID ‘0001’ is registered with 3 fingerprints, he/she must input ID and
complete the authentication for three fingerprints.
In this case, the order of authentication for 3 fingerprints is irrelevant, but the
fingerprints should be repeatedly input until authentication is successful. Authentication
will fail even at a single occurrence of authentication failure.
Blocking Time (sec)
This is the function that prevents duplicate authentication for the same user within the
preset time zone. When set to 0, it has no restriction. However, when set to a value
larger than 0, the user can be successful in re-authentication if the preset time (sec)
has elapsed after the success of the previous authentication.
The user can exit to the parent menu using [ENT~] key to apply the changed value after
finishing the setting while using [F4(←)] key to cancel input during setting.
.
3.6.3. Fingerprint
When the user selects [ENT~] [4. System] [3. Fingerprint] in the initial screen ,
the following screen will appear.
Initial setting: Identical with the screen at the left
AC-5000 User Guide
41
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
1:1 Level
Authentication level that is used for 1:1 Fingerprint Authentication, provided that, 1:1
authentication level of the relevant user shall apply for the user whose 1:1
authentication level is not set to ‘0’ (using the authentication level of the terminal)
1:N Level
Authentication level that is used for 1:N Fingerprint Authentication. In case of 1:N
authentication, the authentication level by users is not set and therefore, it is always
based on the authentication level of the terminal.
Fake Finger Detect
It presets LFD level that can prevent imitation fingerprint input. When presetting the
LFD level to a higher value, it tends to reinforce the function that prevents the input of
imitation fingerprint produced with rubber, paper, film, silicone, etc. But even when
inputting a real fingerprint, it may not input well if it is in dry condition.
Check SameFP
If checked ( ), it is the function that checks whether or not the fingerprint is already
registered during registration so as to prevent overlapped registration of the same
fingerprint in another user ID.
The user can exit to the parent menu using [ENT~] key to apply the changed value after
finishing the setting while using [F4(←)] key to cancel input during setting.
.
3.6.4. Language
When the user selects [ENT~] [4. System] [4. Language] in the initial screen ,
the following screen will appear.
Initial setting: ‘1. English’
When changing the language settings, the voice
message and on-screen message are changed into
the language set.
The user can exit to the parent menu using [ENT~] key to apply the changed value after
finishing the setting while using [F4(←)] key to cancel input during setting.
.
3.6.5. Data Time
When the user selects [ENT~] [4. System] [5. Data Time] in the initial screen ,
the following screen will appear.
AC-5000 User Guide
42
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
Initial setting: Identical with the screen at the left
Time Sync
It sets the method that synchronizes the current time of the terminal with the server. To
synchronize the terminal time with the server time, set to ‘1. Auto’ to perform it
automatically while ‘2. Manual’ to perform it manually.
Display Time
The method of displaying the current time of the terminal set to ‘1’ for 24-hour system
and ‘2’ for AM/PM system
Set Current Time
It changes the current time of the terminal. No change is required as it is synchronized
with the server time when linked to the server with the aforementioned Time Sync set
to ‘1. Auto’.
The user can exit to the parent menu using [ENT~] key to apply the changed value after
finishing the setting while using [F4(←)] key to cancel input during setting.
3.6.6. Database
When the user selects [ENT~] [4. System] [6. Database] in the initial screen ,
the following screen will appear.
Press the following keys;
[1] key to initialize the configuration,
[2] key to delete all users,
[3] key to initialize the authentication record,
and [4] key to initialize the terminal.
3.6.6.1 Init Config
When the user selects [ENT~] [4. System] [6. Database] [1. Init Config] in the
initial screen , the following screen will appear.
AC-5000 User Guide
43
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
Press [1.Yes] key to initialize all configurations while
select [2.No] and press [ENT] key to cancel it.
When no value is input for a certain period of time in
this state, it returns to the initial screen instead of
initialization.
It initializes all the configurations of the terminal except MAC (physical) address but it
doesn’t delete the user and authentication record.
When the configuration is successfully initialized, it proceeds to the parent menu
accompanied by the success buzzer sounds.
3.6.6.2. Delete All Users
When the user selects [ENT~] [4. System] [6. Database] [2. Delete All Users]
in the initial screen , the following screen will appear.
Press [1.Yes] key to delete all users while select
[2.No] and press [ENT] key to cancel it.
When no value is input for a certain period of time in
this state, it returns to the initial screen instead of
deletion.
Both user and administrator are deleted, and the deleted users may not be restored after
deletion.
When deletion is successfully completed, it proceeds to the parent menu accompanied by
the success buzzer sounds.
3.6.6.3. Clear Log Data
When the user selects [ENT~] [4. System] [6. Database] [3. Clear Log Data]
in the initial screen , the following screen will appear.
Press [1.Yes] key to delete all the authentication
records saved in the terminal while select [2.No] and
press [ENT] key to cancel it.
When no value is input for a certain period of time in
this state, it returns to the initial screen instead of
deletion.
AC-5000 User Guide
44
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
It deletes all the logs related to authentication, and the deleted logs may not be restored
after deletion.
When deletion is successfully completed, it proceeds to the parent menu accompanied
by the success buzzer sounds.
3.6.6.4. Initialize Terminal
When the user selects [ENT~] [4. System] [6. Database] [4. Initialize
Terminal] in the initial screen , the following screen will appear.
Press [1.Yes] key to initialize the terminal to the
factory default state while select [2.No] and press
[ENT] key to cancel it.
When no value is input for a certain period of time in
this state, it returns to the initial screen instead of
initialization.
It deletes all the configurations, users, and log information except MAC (physical)
address saved in the terminal, restoring it to the factory default state. Special care should
be taken as restoration is impossible after it is initialized.
When initialization to the factory default state is successfully completed, it proceeds to
the parent menu accompanied by the success buzzer sounds
3.7. Terminal
When selecting ‘5. Terminal’ in the main menu, the following screen will appear.
Press the applicable key that represents the item to
be changed
3.7.1. Terminal Option
When the user selects [ENT~] [5. Terminal] [1. Terminal Option] in the initial
screen , the following screen will appear.
AC-5000 User Guide
45
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
Initial setting: Identical with the screen at the left
Dooropen
Door is opened when pressing ‘0’ key.
It appears only when the terminal is locked. This is
option not normally shown.
Terminal Alarm
If checked, ( ), it generates a warning sound when the lid of the terminal is opened.
Lock Terminal
This is the function that the administrator can directly set or release the locking of the
terminal through the terminal instead of server program. If checked ( ), it is locked so
that no one can access until the administrator releases the settings.
KeyLed ON
If checked ( ), Key LED is always turned ON so that Touch Key is visible.
Dooropen
This is the menu that shows the terminal administrator is allowed to temporarily open
the door where the terminal is set to lock in the server.
The user can exit to the parent menu using [ENT~] key to apply the changed value after
finishing the setting while using [F4(←)] key to cancel input during setting.
.
3.7.2. Volume Control
When the user selects [ENT~] [5. Terminal] [2. Volume Control ] in the initial
screen , the following screen will appear.
Initial setting: Identical with the screen at the left
Sets Voice Volume and Beeper Volume.
When set to ‘0’, no voice or buzzer sound is
generated.
The user can exit to the parent menu using [ENT~] key to apply the changed value after
finishing the setting while using [F4(←)] key to cancel input during setting.
.
AC-5000 User Guide
46
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
3.7.3. Door
When the user selects [ENT~] [5. Terminal] [3. Door] in the initial screen ,
the following screen will appear.
Initial setting: Identical with the screen at the left
Lock Type
Set to ‘1’ when strike type or automatic door is connected with the terminal while ‘2’
when motor lock is connected to the terminal. In case that no connection is made, it is
also set to ‘1’. Set to ‘3’ when connecting the warning lamp to the lock port to indicate
the success or failure of authentication.
Door Monitor
Set this function to know the door status
- ‘3.Disable’ – when not checking the door status
- ‘1.Normal Open’: In the case of dead bolt type or automatic door
(When lock monitoring is open where the door is locked)
- ‘2.Normal Close’: In the case of Strike type
(When lock monitoring is locked where the door is locked)
Open Duration (0.1 sec unit)
It designates the time that the door is opened and closed again when authentication is
successful. As it is set to 0.1 second unit, a value of 30 is required to set it to 3 seconds.
Strike type refers to the time the door is opened and closed again when authentication
is complete.
Warn Door Open (Second unit)
This is the function that enables the terminal to check the time of the door being
opened, and generates a warning sound once it exceeds the preset time (min. 5 sec~
max 30 sec).
When set to ‘00’, warning doesn’t sound at all. Even if set to 01~04, it starts sounding
when it exceeds at least 5 seconds.
The warning sound is also generated in case the door is not closed unexpectedly
within the preset time although the door should be closed. It allows for a proper action
to be taken for the door to be closed by informing about the fact that the door is not
closed.
To operate this function, the lock must be the one that enables to monitor
the door status and the monitoring pin of lock should be connected to the terminal
without fail. In addition, such settings are enabled only when the aforementioned Door
Monitor is set to ‘4. Normal Open’ or ‘5.Normal Close’.
AC-5000 User Guide
47
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
The user can exit to the parent menu using [ENT~] key to apply the changed value after
finishing the setting while using [F4(←)] key to cancel input during setting.
.
3.7.4. Wiegand
When the user selects [ENT~] [5. Terminal] [4. Wiegand] in the initial screen , the
following screen will appear.
Initial setting: Identical with the screen at the left
This is the menu that configures the Wiegand Output.
It is used only when a separate controller operating with Wiegand input is mounted. Upon
successful authentication, it transmits the data to the terminal’s Wiegand port in the
following form;
2.None This is the normal case; Wiegand Outport is not used in this case.
3.26bit
It transmits “Sitecode[1byte] + user ID[2byte]”, so the user ID is set to 4
digits or less.
Example) In the case of SiteCode:045(2Dh), UID:6543(198Fh), it is
transmitted as ‘1 00101101 0001 1001 10001111 0’
4.34bit
It transmits “Sitecode[1byte] + user ID[3byte]” so the user ID is set to 7
digits or less. In case of an 8-digit user ID, “user ID[4byte]” is
transmitted without Sitecode.
Example) In the case of SiteCode:001(1h), UID:123456(1E240h), it is
transmitted as ‘0 00000001 00000001 11100010 01000000 0’
5.Custom It can be set in the server as the settings under the user’s definition
only. The setting type can only be inquired at the terminal.
However, when Bypass is checked, regardless of Wiegand Out settings, it transmits the
data received by Wiegand Inport at the time when authentication was successful to the
Widgand Outport as it is.
The user can exit to the parent menu using [ENT~] key to apply the changed value after
finishing the setting while using [F4(←)] key to cancel input during setting.
3.7.5. Card Reader
AC-5000 User Guide
48
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
When the user selects [ENT~] [5. Terminal] [5. Card Reader] in the initial screen ,
the following screen will appear.
Initial setting: Identical with the screen at the left
Read Card NO.
When the user puts the card on this screen, the
card number will be displayed on the LCD.
Card Format
This is the menu that sets the manner of displaying the card number. As shown below,
the displayed card number varies depending on the configuration. Therefore, if
changing it during operation is unavoidable after it was set during initial installation, the
card should be registered again.
RFcard example) Card number (5byte): 08h 01h 16h 1Dh D6h
Card Format Card Number
Method of Expression
1. Default 02207638 (3+5) digit decimal number
[022(16h)+07638(1DD6h)]
2.
Hexadecimal
number
0801161DD6 10-digit hexadecimal number
3. Decimal
number 0018226646 Last 4byte to be expressed in a 10-digit decimal
number (01161DD6h)
4. Decimal
number 35 02207638 Same as ‘1. Default’
SCcard example) Card Number (4byte): 52h 9Dh 06h E3h
Card Format Card Number
Method of Expression
1. Default 529D06E3 Expressing in an 8-digit hexadecimal number
2.
Hexadecimal
number
E3069D52 Expressing in an 8-digit hexadecimal number
changing the order of byte
3. Decimal
number 1386022627 Hexadecimal number 529D06E3 to be expressed in
a 10-digit decimal number
4. Decimal
number 35 3808861522 Hexadecimal number E3069D52 to be expressed in
a 10-digit decimal number
The user can exit to the parent menu using [ENT~] key to apply the changed value after
finishing the setting while using [F4(←)] key to cancel input during setting.
.
AC-5000 User Guide
49
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
3.7.6. External Device
When the user selects [ENT
~] ( [5. Terminal] [6. External Device] )
in the initial screen , the
following screen will appear.
Initial setting: Identical with the screen at the left
Printer
If checked ( ), it prints out the authentication result. When set to ‘1’, if authentication is
successful, the terminal ID, user ID, authentication time, authentication mode, etc. are printed
out through the printer connected to the RS232 (Debug) port of the terminal. The print out type
may vary depending on the configuration. When set to ‘Format2’, it is printed out with the
terminal name as the main subject. The printer used is “SRP-350” Serial type.
Lock Controller
Set to this function when the user connects a separate device instead of the terminal
lock port to control the door. In the event the user directly connected a lock to the
terminal, it is set to ‘4. None’, but it is set to ‘5.LC010’ when connected with LC010.
The user can exit to the parent menu using [ENT~] key to apply the changed value after
finishing the setting while using [F4(←)] key to cancel input during setting.
.
3.8. Information
When selecting ‘6. Information’ in the main menu, the following screen will appear.
Menu to inquire the setting condition of the terminal.
Press;
[1] key to inquire a variety of optional configurations
of the terminal,
[2] key to inquire network configuration such as IP ,
[3] key to inquire the user registration status, etc.
[4] key to inquire log data,
[5] key to inquire firmware version.
3.8.1. System Info
Select [ENT~] [6. Information] [6. System Info] in the initial screen
AC-5000 User Guide
50
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
Press [F4(←)] key to exit to the parent menu.
3.8.2. Network Info
Select [ENT~] [6. Information] [2. Network Info] in the initial screen
Press [F4(←)] key to exit to the parent menu.
3.8.3. Database Info
Select [ENT~] [6. Information] [3. Database Info] in the initial screen
- Registered User: Number of registered users
(including administrator)
- Registered Admin: Number of registered
administrators
- Max User: Maximum number of users that can be
registered
- Registered FP: Number of whole fingerprints that
are registered
- Max FP: Maximum number of fingerprints that can
be registered
Press [F4(←)] key to exit to the parent menu.
3.8.4. View Log
Select [ENT~] [6. Information] [4. View Log] in the initial screen
AC-5000 User Guide
51
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
- All Log: Number of logs saved in the terminal
- Max Log: Maximum number of logs that can be
saved
Press [F4(←)] key to exit to the parent menu.
3.8.5. Version Info
Select [ENT~] [6. Information]
[5. Version Info] in the initial screen
Press [F4(←)] key to exit to the parent menu
.
3.9. Downloading user’s file
The function allows the user to change background image or voice message when necessary. The
user’s file can be downloaded from UNIS server program.
3.9.1
. Change background image
When selecting ‘Download customized file’ in UNIS program, the following screen will
appear.
Designate the file as ‘Background image file (.jpg)’, select the image file (.jpg), and click
the ‘Send’ button, then the terminal select window will appear. When selecting the
terminal on the terminal list window and clicking the ‘Send’ button once again, the file will
be transmitted with the downloaded result displayed.
In this case, the file name can be selected up to 15 characters including the extension
name with the jpg file in the size of 320*240 only. If any data in a different format is
downloaded, the transmission result will be displayed in a version error.
To change background image, the user can directly select it from ‘3.5.5 Display”.
AC-5000 User Guide
52
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
3.9.2. Change Voice Message
When selecting ‘Download customized file’ in UNIS program, the following screen will
appear.
Designate the file as ‘Success voice file (.wav)’, select Wav file (.wav) and click the ‘Send’
button, then the terminal select window will appear. When selecting the terminal from the
terminal list window and clicking the ‘Send’ button once again, the file is transmitted with
the downloaded result displayed.
In this case, the file name can be selected up to 15 characters including the extension
name with the Wav file in 8KHz, 16bit, in mono form only. If any data in a different format
is downloaded, the transmission result will be displayed in a version error.
In the case of the failure voice, designate the file as ‘Fail voice file (.wav)’ and then
change it in the same way.
In order to change the user’s defined voice into default voice, release the check mark in
the ‘User Voice’ item in ‘3.5.5 Display’.
3.9.3. Change User Text
When selecting ‘Download customized file’ in UNIS program, the following screen will
appear.
Designate the file as ‘Defined Text File (.csv)’, select CSV file (.csv) and click the ‘Send’
button, then the terminal select window will appear. When selecting the terminal from the
terminal list window and clicking the ‘Send’ button once again, the file is transmitted with
the downloaded result displayed.
CSV file can be saved and created in the form of csv type after changing the desired text
in the Excel (.xls) file provided together with the firmware of the terminal. In order to
change it from the user’s defined text to the default text, release the check mark in the
‘User Text’ item in ‘3.5.5 Display’.
AC-5000 User Guide
53
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
AC-5000 User Guide
54
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
4. How to use terminal
4.1. Change of authentication mode
<Figure 4-1>
Normally, it is not visible; but when the user touches the hand on the card input area as
shown in the Figure at the left, LED will be powered ON and a keypad will appear as
shown in the Figure at the right. When the key is visible, press the desired function key to
change into the authentication mode such as office start [F1], office leave [F2], going-out
[F3], return [F4], access [ENT], etc.
4.2. ID input
Normally, it is not visible; but as shown in Figure <4-1>, when the user touches the hand
on the card input area, LED will be powered ON and a keypad will appear. In this case, ID
input screen will appear when the user inputs the figure.
Press the desired mode key
Touch the hand
AC-5000 User Guide
55
UNIONCOMMUNITY Co., Ltd. / 3F Hyundai Topics Bldg. 44-3 Bangi-dong
Songpa-gu, Seoul, Korea (138-050)
Tel : 02-6488-3000 , Fax : 02-6488-3099, E-Mail :sales@unioncomm.co.kr
http://www.unioncomm.co.kr
Delete with [F4(←)] key if the figure is wrongly input during the input process.
When pressing [ENT] key after inputting ID, the fingerprint input or password input screen
appears depending on the method of user authentication.
However, authentication will fail if a card user inputs ID first. Therefore, be sure to use the
card.
4.3. Authentication
4.3.1. Fingerprint Authentication
When placing fingerprint on the fingerprint sensor, buzzer sounds with the sensor lamp
ON, and the fingerprint is duly input. Be sure not to take finger off the sensor until the
sensor lamp is OFF and the buzzer sounds.
In the case of 1:1 authentication, input ID and press [ENT] key causing the fingerprint
sensor to flicker, and then input fingerprint to the fingerprint sensor.
4.3.2. Card Authentication
Touch the card on the figure of the card as shown in <Figure 4-1>.
4.3.3. Password Authentication
Press [ENT] key after inputting ID, then the screen for password input will appear. When a
wrong number is input, delete it using [F4(←)] key. Input the password and press [ENT]
key.
