MiKey AC1100 User Guide
Version eng-1.06
MiKey AC1100 User guide 2
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
<Revison History>
Version
Date
Description
Firmware Version
1.00
2016-04-24
Initial Release
V1.00.000-010
1.01
2016-05-10
Update
1.02/3
2016-05-31
Update Images
V1.00.000-013
MiKey AC1100 User guide 3
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
< Glossary>
Admin, Administrator
- A user who can enter into the terminal menu mode, he/she can register/modify/delete
terminal users and change the operating environment by changing settings.
- If there is no administrator for a terminal, anyone can change the settings. In this regard, it
is recommended to register at least one administrator.
- Caution is required with registration and operation because an administrator has the right
to change critical environmental settings of the terminal.
Authentication Method
- This represents the various types of authentication, including Mobile authentication,
Password authentication, RF (card) authentication or a combination of these methods.
Example: Card or Password: Authentication with Card or Password
MiKey AC1100 User guide 4
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
Contents
<Revison History> .................................................................................................... 2
< Glossary> ............................................................................................................... 3
Contents ................................................................................................................... 4
1. Before use ............................................................................................................. 6
1.1. Safety precautions ................................................................................................. 6
1.2. Specific names of the terminal .............................................................................. 7
1.3. Normal Window Display ........................................................................................ 8
1.3.1. Icons ............................................................................................................... 8
1.3.2. Window Messaging....................................................................................... 10
1.4. Voices in the operation ........................................................................................ 17
1.5. Beep or sound effect in the operation ................................................................ 17
2. Product introduction .......................................................................................... 18
2.1. Product characteristics ....................................................................................... 18
2.2. Product components ........................................................................................... 19
2.2.1. Stand-alone (entrance) ................................................................................. 19
2.2.2. Connected with PC server ............................................................................ 20
2.3. Product specification ........................................................................................... 21
3. Environment setting ........................................................................................... 22
3.1. Checks before setting the environment ............................................................. 22
3.1.1. Entering the admin menu .............................................................................. 22
3.1.2. Administrator authorization ........................................................................... 23
3.1.3. How to enter the menu without administrator authorization ........................... 23
3.1.5. How to save the set values ........................................................................... 24
3.2. Menu composition ............................................................................................... 25

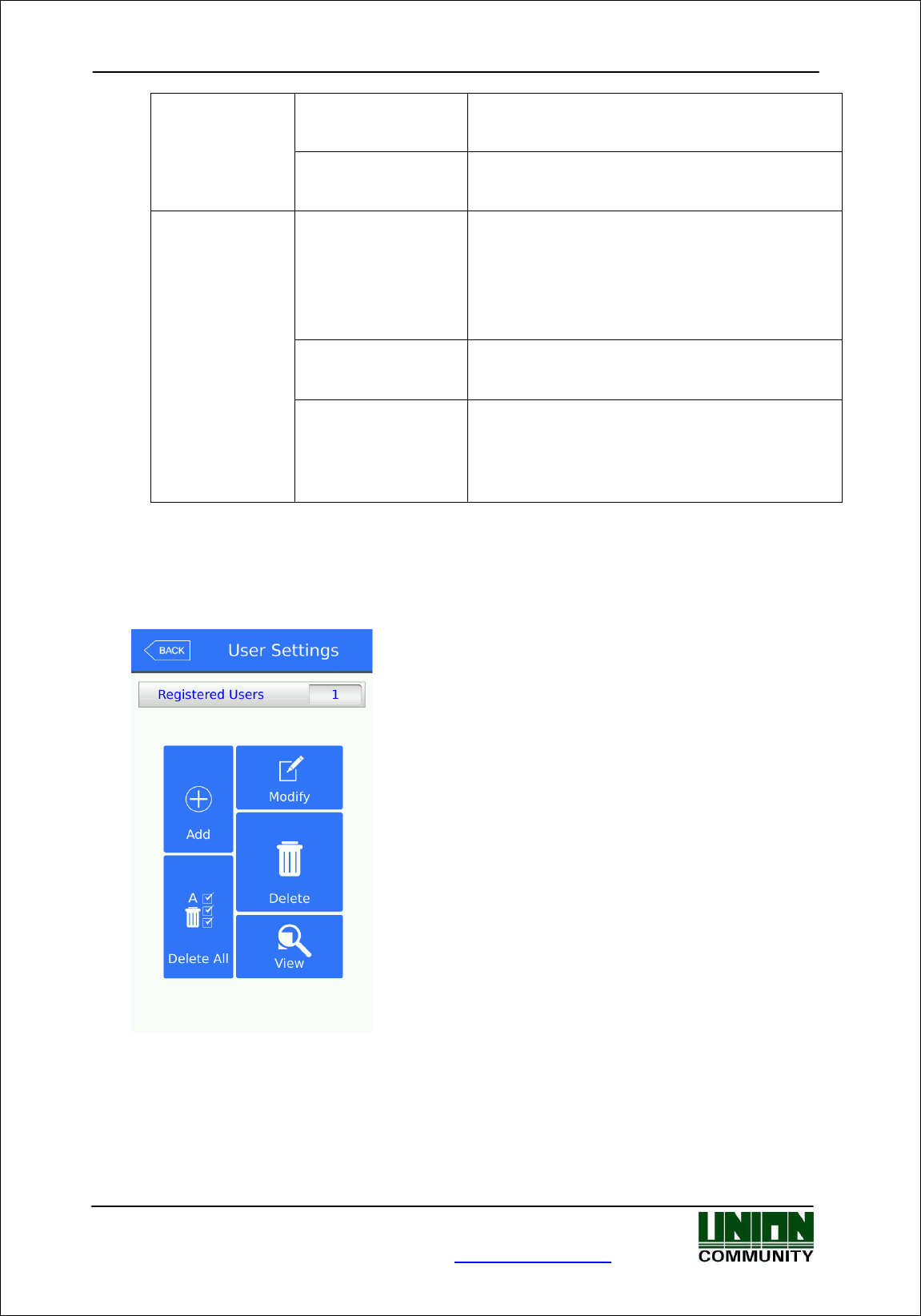

3.3. User management ................................................................................................ 28

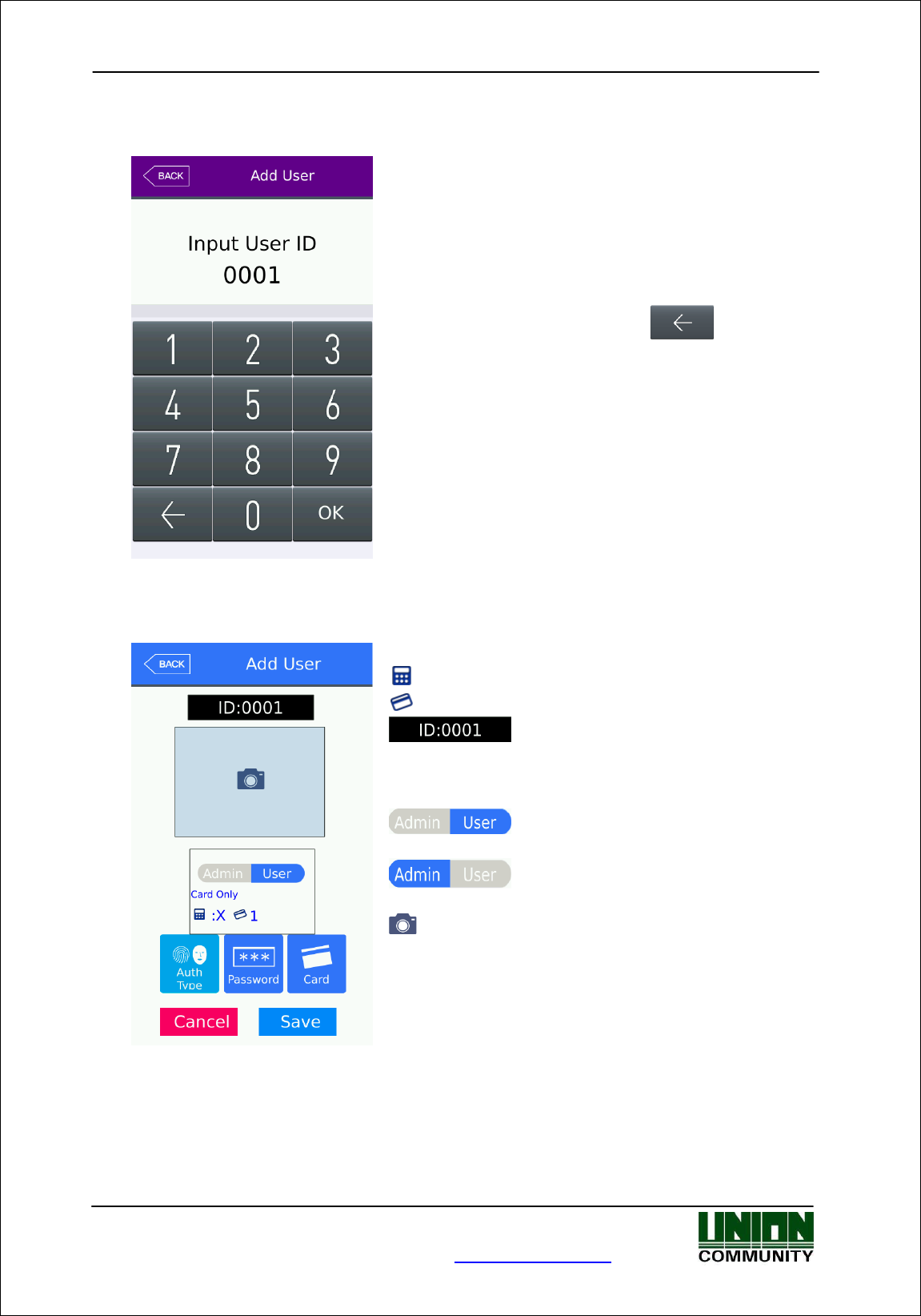

3.3.1. Adding User .................................................................................................. 29
3.3.1.1. Photo registration .................................................................................. 30
3.3.1.5. Password registration ............................................................................ 31
3.3.1.6. Card registration .................................................................................... 32
3.3.1.8. Authorization method ............................................................................. 33
3.3.1.9. Save ...................................................................................................... 34
3.3.2. Deleting User ................................................................................................ 35
3.3.3. Modify User .................................................................................................. 37
3.3.4. Delete all Users ............................................................................................ 38

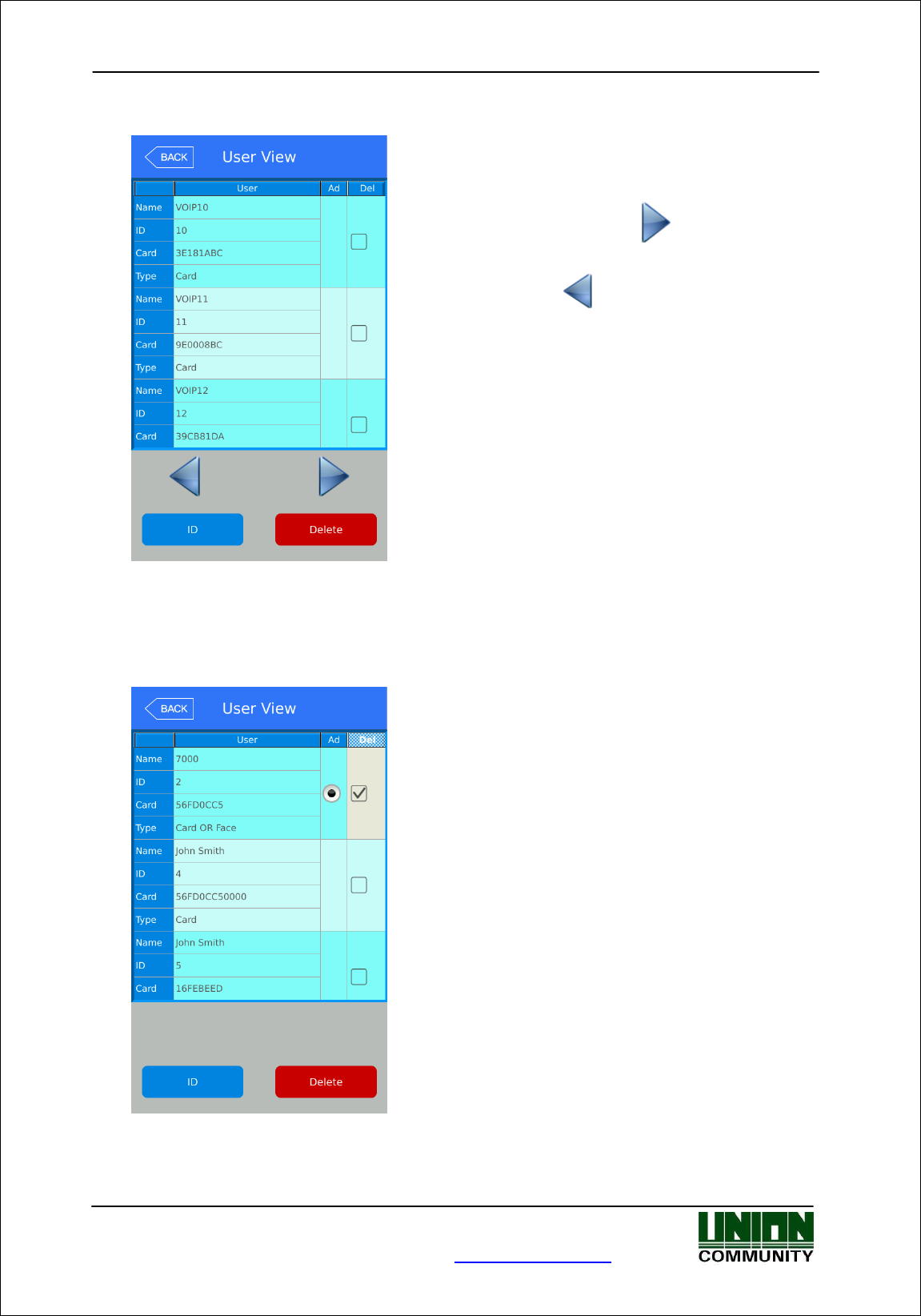

3.3.5. View.............................................................................................................. 39
3.4. Network Settings .................................................................................................. 41
3.5. Application ........................................................................................................... 43
3.5.1. Application mode .......................................................................................... 43
3.5.1.1. Modes ................................................................................................... 43
3.5.2. Function keys ............................................................................................... 45
3.6. System .................................................................................................................. 47

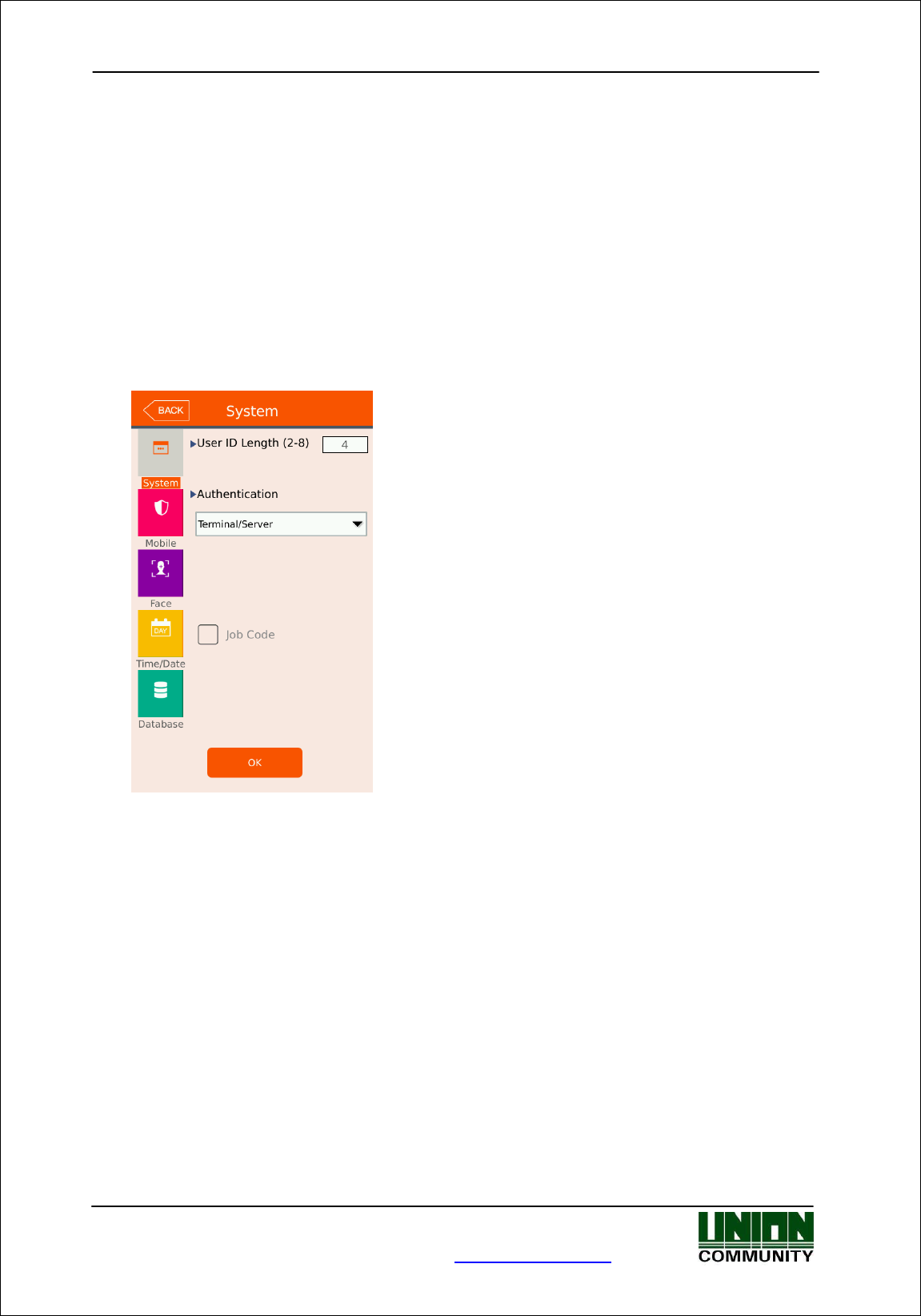

3.6.1. System ......................................................................................................... 47

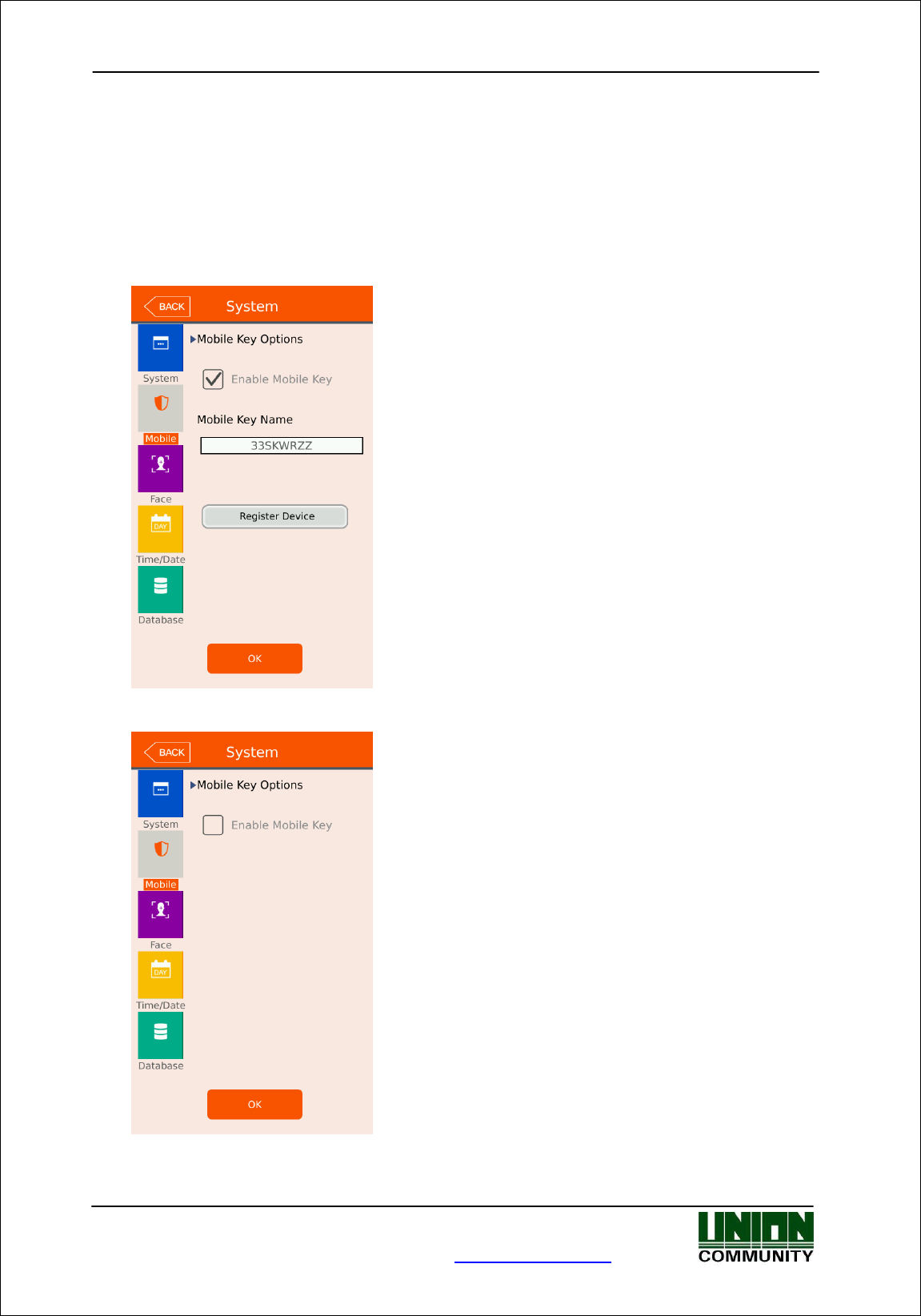

3.6.2. Mobile Key .................................................................................................... 49
3.6.3. Face Detection ............................................................................................. 51
3.6.5. Time/Date ..................................................................................................... 53
3.6.6. Database ...................................................................................................... 54
3.6.6.1. Database Confirmation .......................................................................... 55
3.7. Terminal settings ................................................................................................. 56

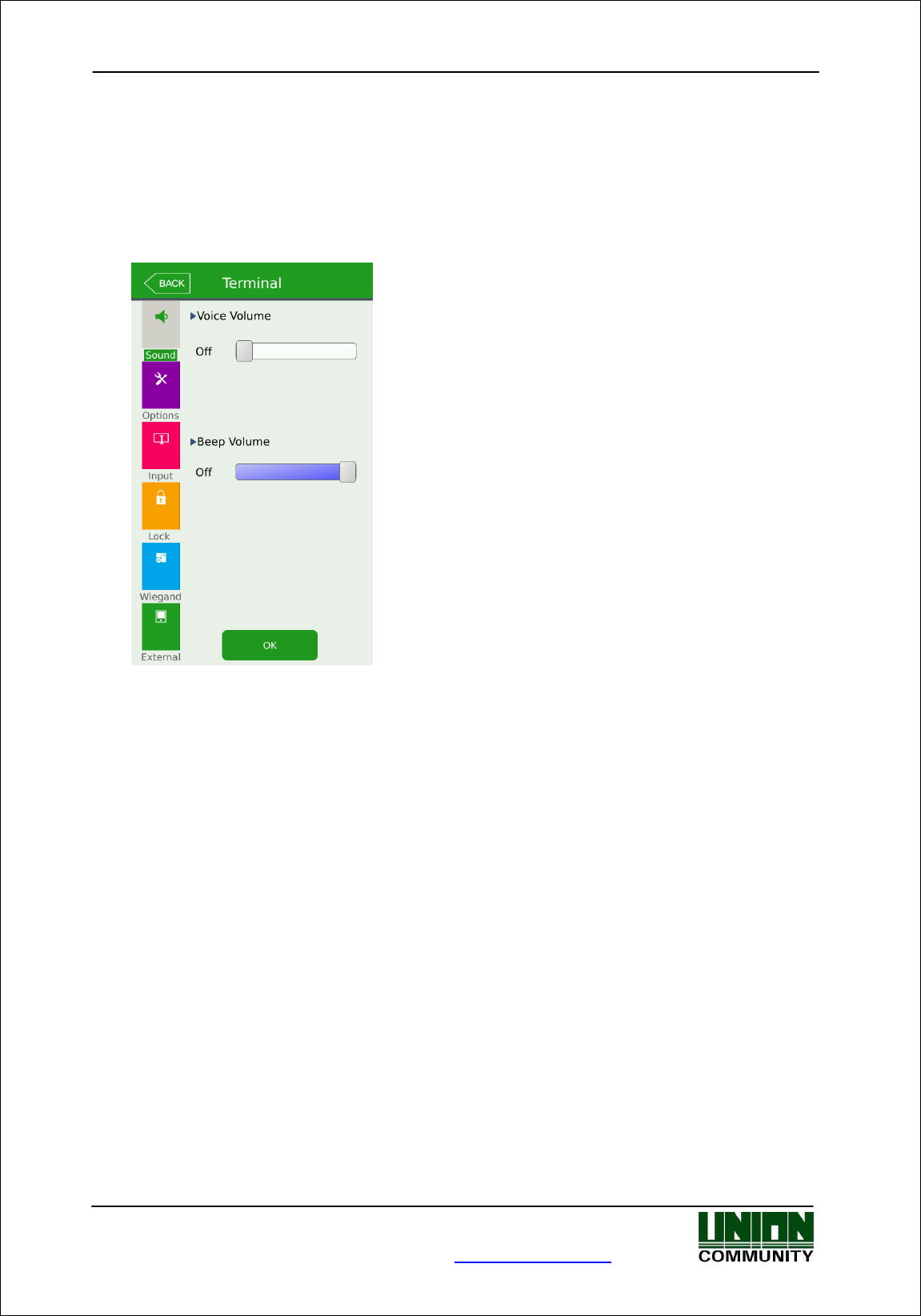

3.7.1. Sounds ......................................................................................................... 56
3.7.2. Terminal option ............................................................................................. 57
MiKey AC1100 User guide 5
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
3.7.3. Terminal Input ............................................................................................... 58
3.7.4. Terminal Lock ............................................................................................... 60
3.7.5. Terminal Wiegand ......................................................................................... 62
3.7.6. Terminal External .......................................................................................... 63
3.8. Display settings ................................................................................................... 65
3.8.1. Theme .......................................................................................................... 65
3.8.2. Camera ......................................................................................................... 66
3.8.2.1 Camera Flash Option .................................................................................. 66
3.8.3. Language ..................................................................................................... 67
3.8.4. LCD option ................................................................................................... 67
3.8.5. Message time settings .................................................................................. 68

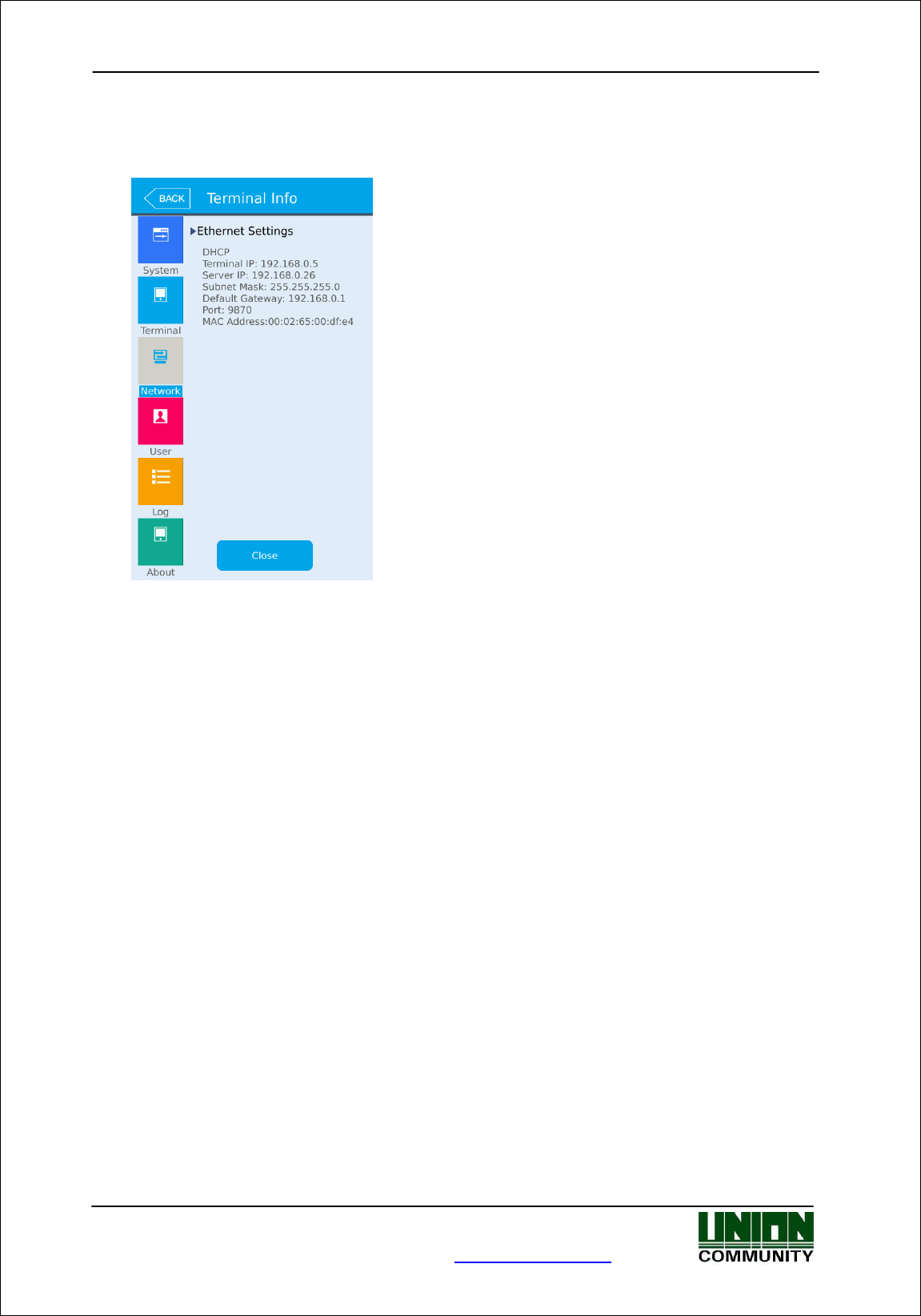

3.9. Terminal information ............................................................................................ 70
3.9.1. System information ....................................................................................... 70
3.9.2. Terminal information ..................................................................................... 71
3.9.3. Network information ...................................................................................... 72
3.9.4. User information ........................................................................................... 73
3.9.5. Log information ............................................................................................. 74
3.9.6. About ............................................................................................................ 75
3.10. SD USB (USB port is service port.) ................................................................... 76
3.20. Language Translations/Customizing Text Items .............................................. 82
4. How to use terminal ................................................................................................ 84

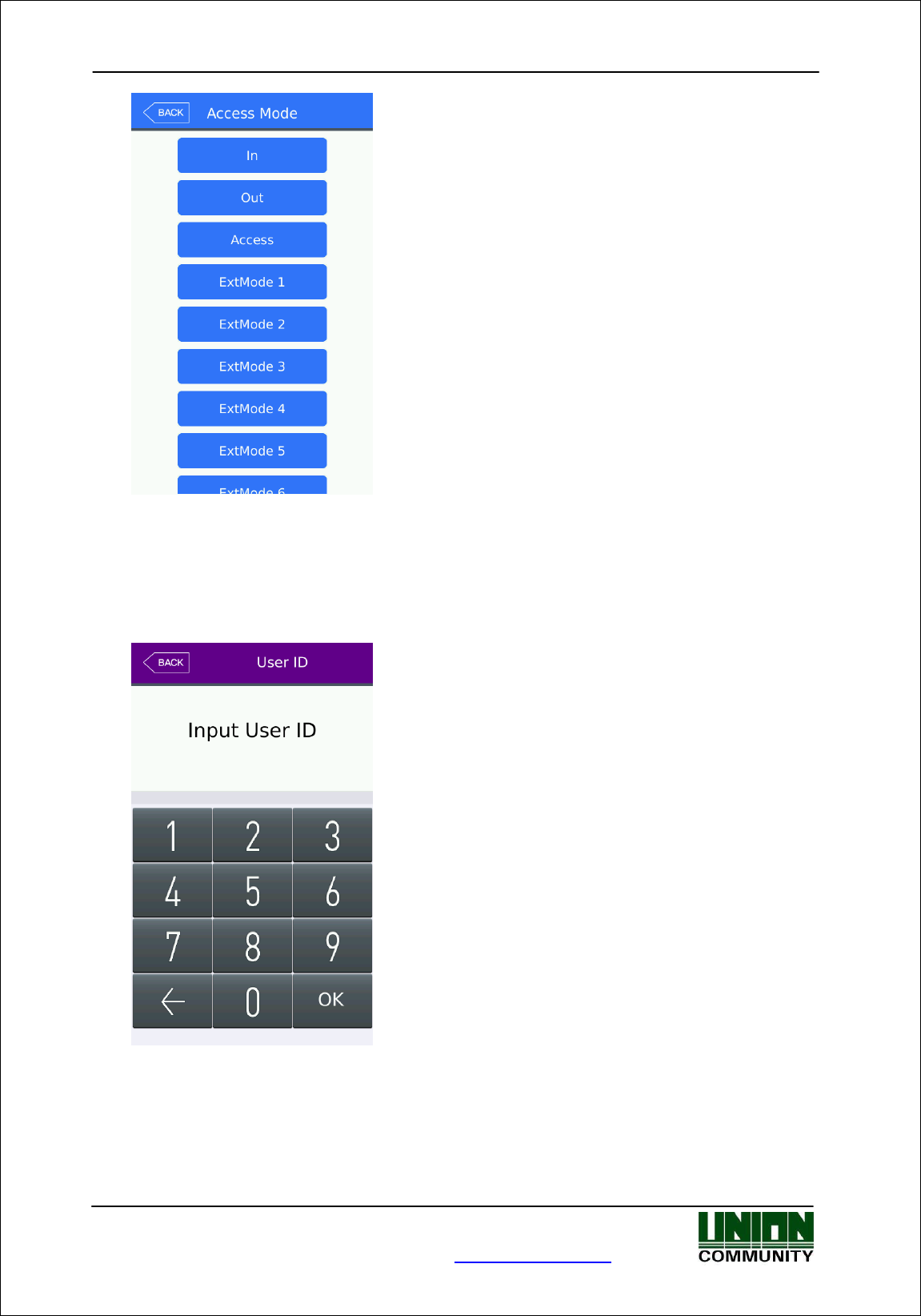

4.1. Authorization mode change ................................................................................ 84
4.2. ID input ................................................................................................................. 85
4.3. Authorization ........................................................................................................ 86
4.3.3. Card authorization ........................................................................................ 86
4.3.4. Password authorization ................................................................................ 86
MiKey AC1100 User guide 6
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
1. Before use
1.1. Safety precautions
Warning
Handling with wet hands or
allowing liquid to flow into it
is prohibited.
-> It may cause an
electric shock or damage.
Do not place a fire source
near the terminal.
-> It may cause a fire.
Do not disassemble, repair,
or modify the terminal at
discretion.
-> It may cause an electric
shock, fire or damage.
Keep out of reach of
children.
-> It may cause an
accident or damage.
- If the above warning is ignored, it may result in death or serious injury.
Cautions
Keep away from direct
sunlight
-> It may cause
deformation or color
change.
Avoid high humidity or
dust
-> The terminal may be
damaged.
Avoid using water,
benzene, thinner, or
alcohol for cleaning
-> It may cause an electric
shock or fire.
Do not place a magnet
close to the terminal.
-> The terminal may
break down or
malfunction.
Do not contaminate the
fingerprint input area.
-> Fingerprints may not be
well recognized.
Avoid using insecticide or
flammable spray near the
terminal.
-> It may result in
deformation or color
change.
Avoid impacts or using
sharp objects on the
terminal.
-> The terminal may be
damaged and broken.
Avoid severe temperature
changes
-> The terminal may be
broken.
- If the above cautions are ignored, it may result in property loss or human injury.
※ Under no circumstances will UNION COMMUNITY be responsible for accidents or
damages caused by inappropriate use of the product without referring to the user
manual.
MiKey AC1100 User guide 7
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com

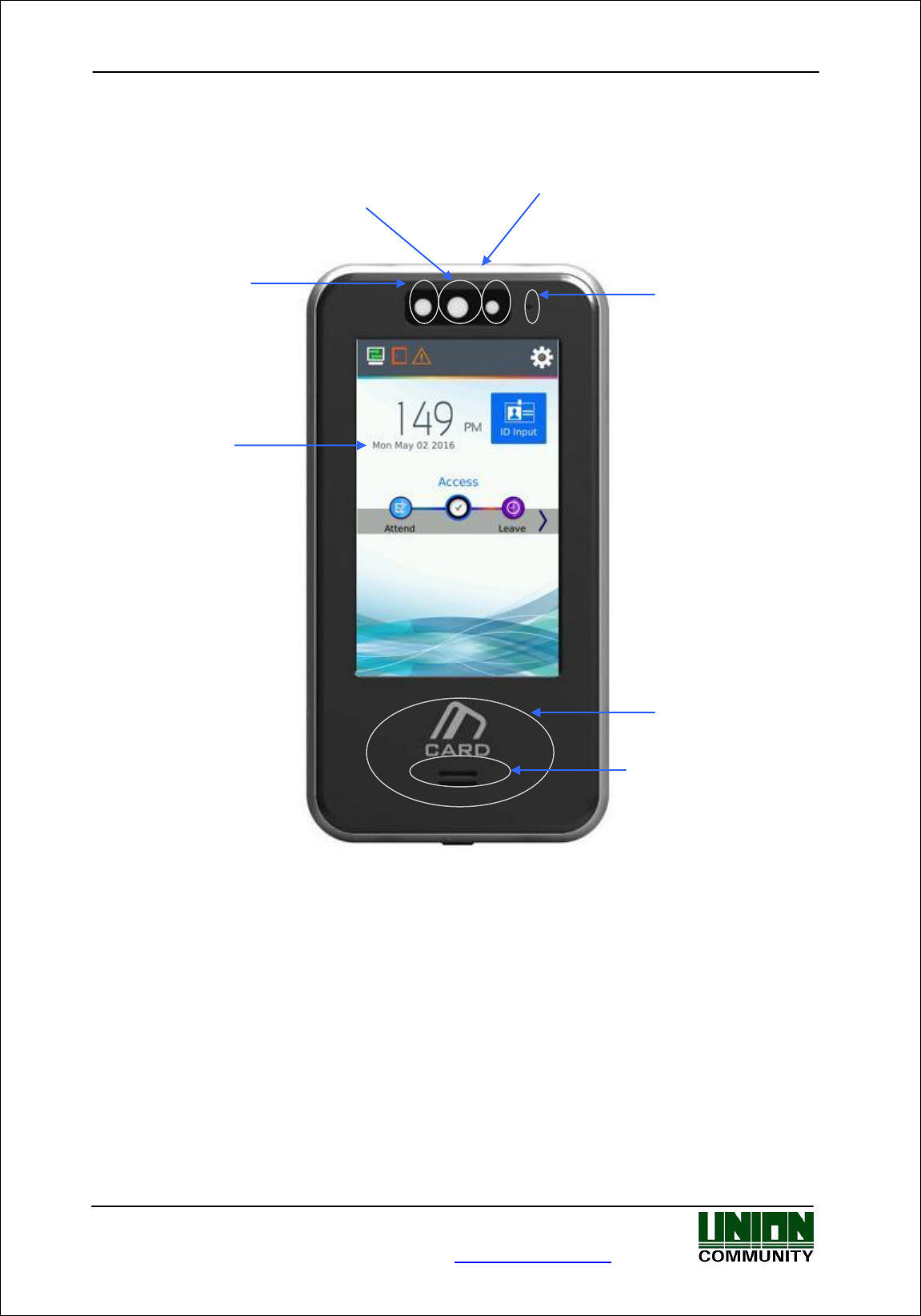

1.2. Specific names of the terminal
Microphone
Card input
Touch LCD
Camera Flash
Speaker
Camera
Day-Light Sensor
MiKey AC1100 User guide 8
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com

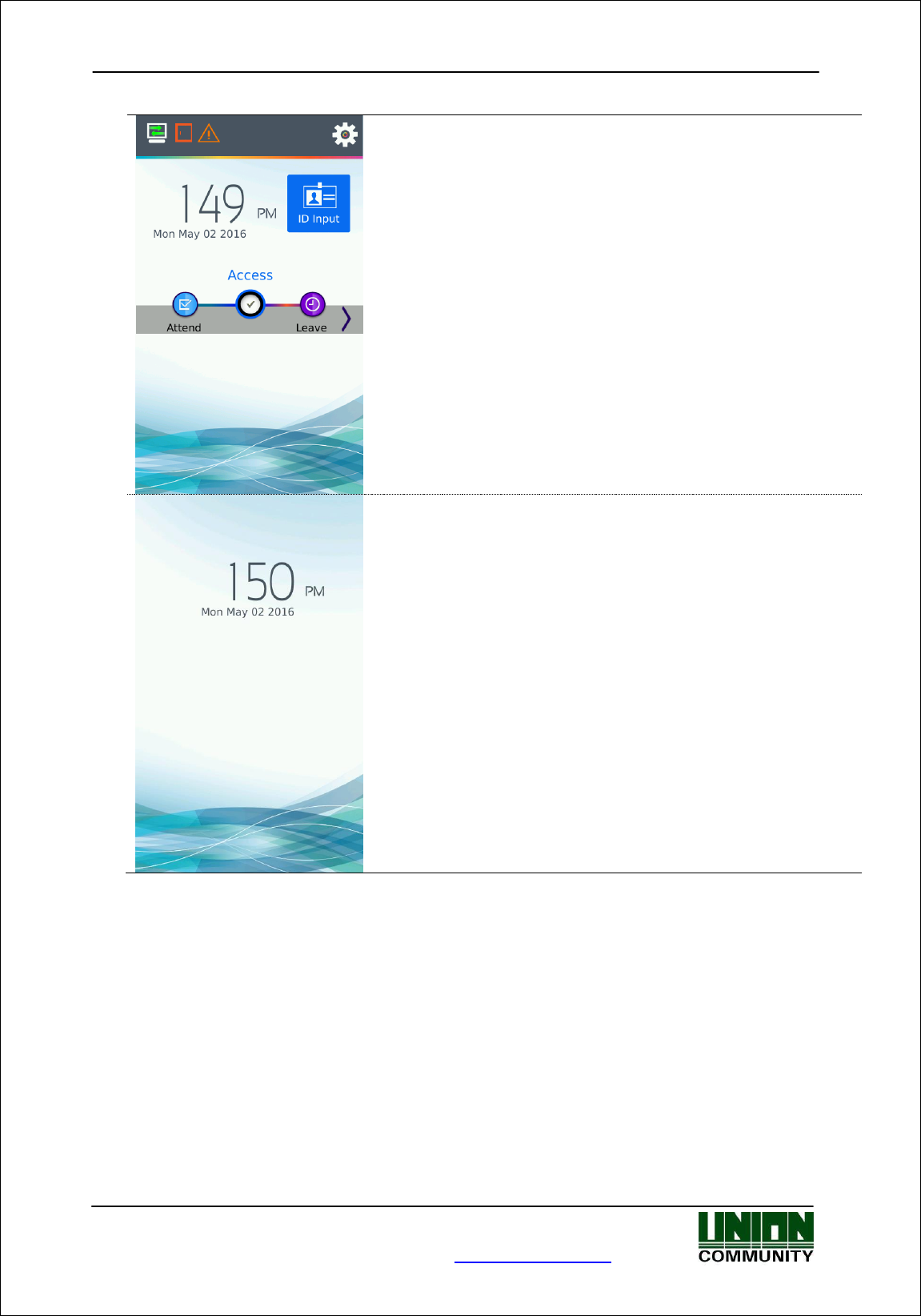

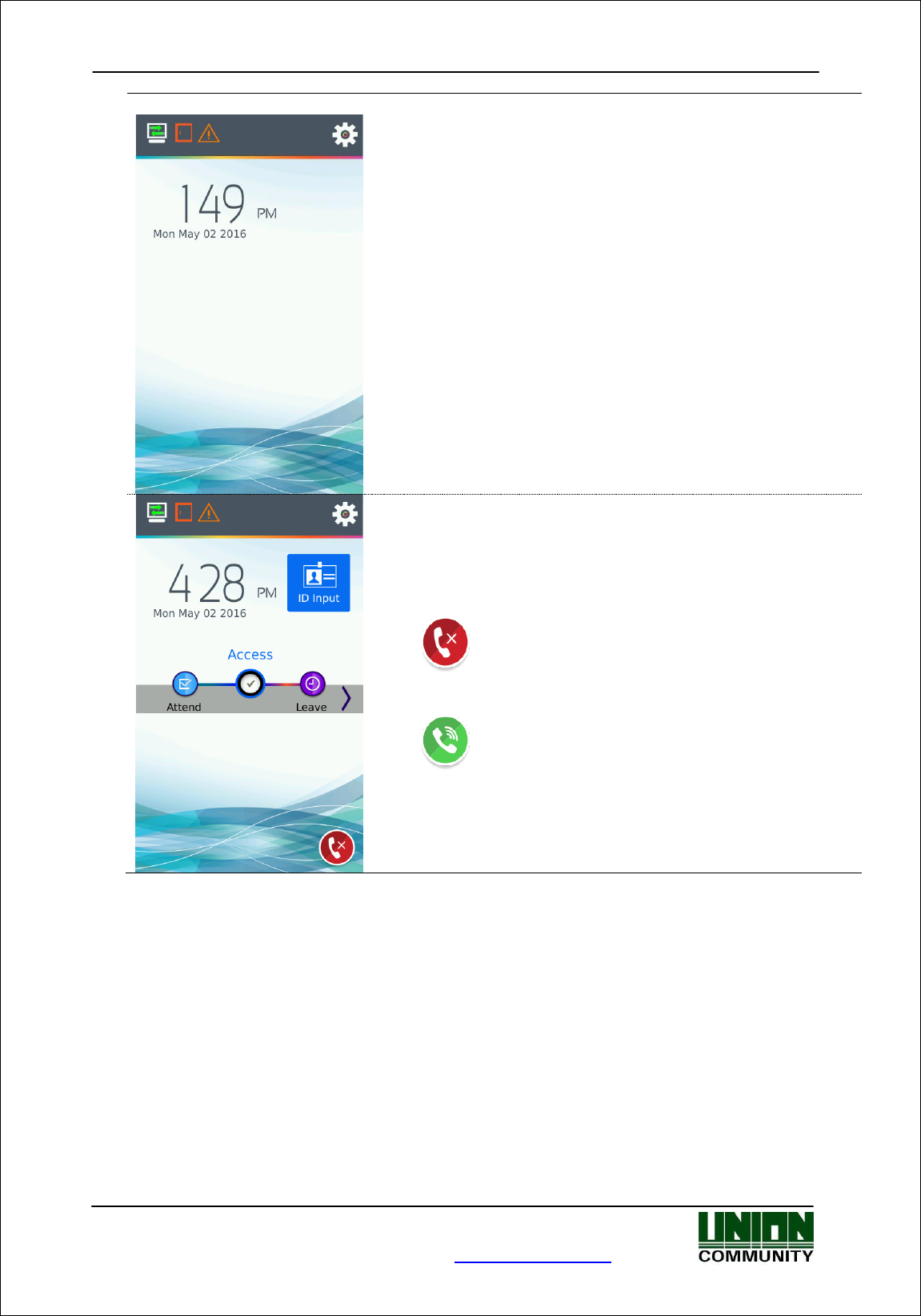

1.3. Normal Window Display

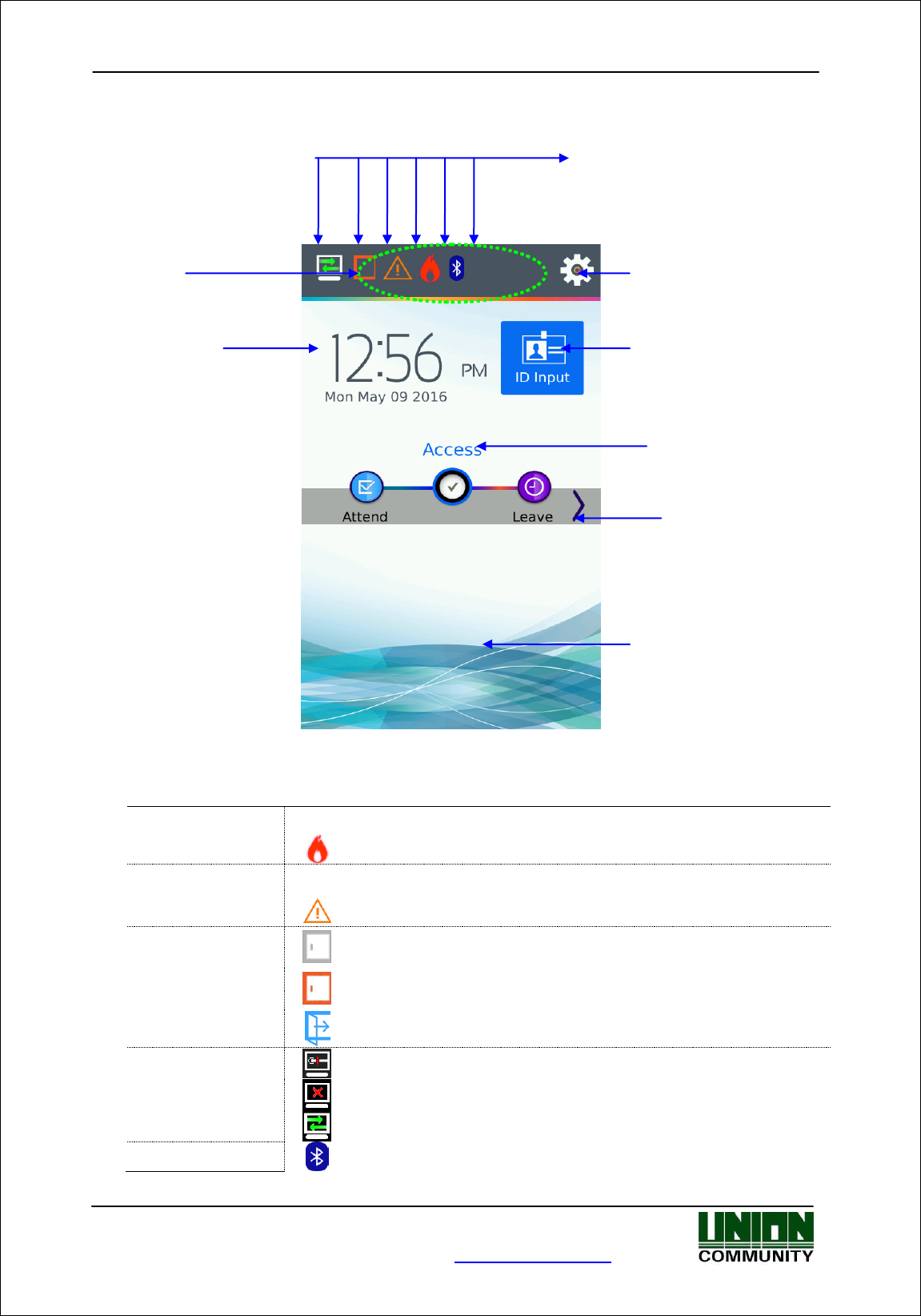

1.3.1. Icons
Fire detection
None
: Normal
: Fire Detected state (external device or server program)
Warning indicator
None
: Normal
: Abnormal terminal state (tampered)
Door state
: Door state unknown
: The Door is closed
: The Door is opened
Server connection
state
: LAN line is not connected
: Not connected to the server program
: Connected to the server program
Bluetooth
: Bluetooth Mobile App Connected State
Admin button
ID input button
BackGround Image
Status Icons
See below
Extended Mode
Key
Status Touch
Present time
Entrance mode selection
button (Indication of the
state of the entrance)
MiKey AC1100 User guide 9
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com

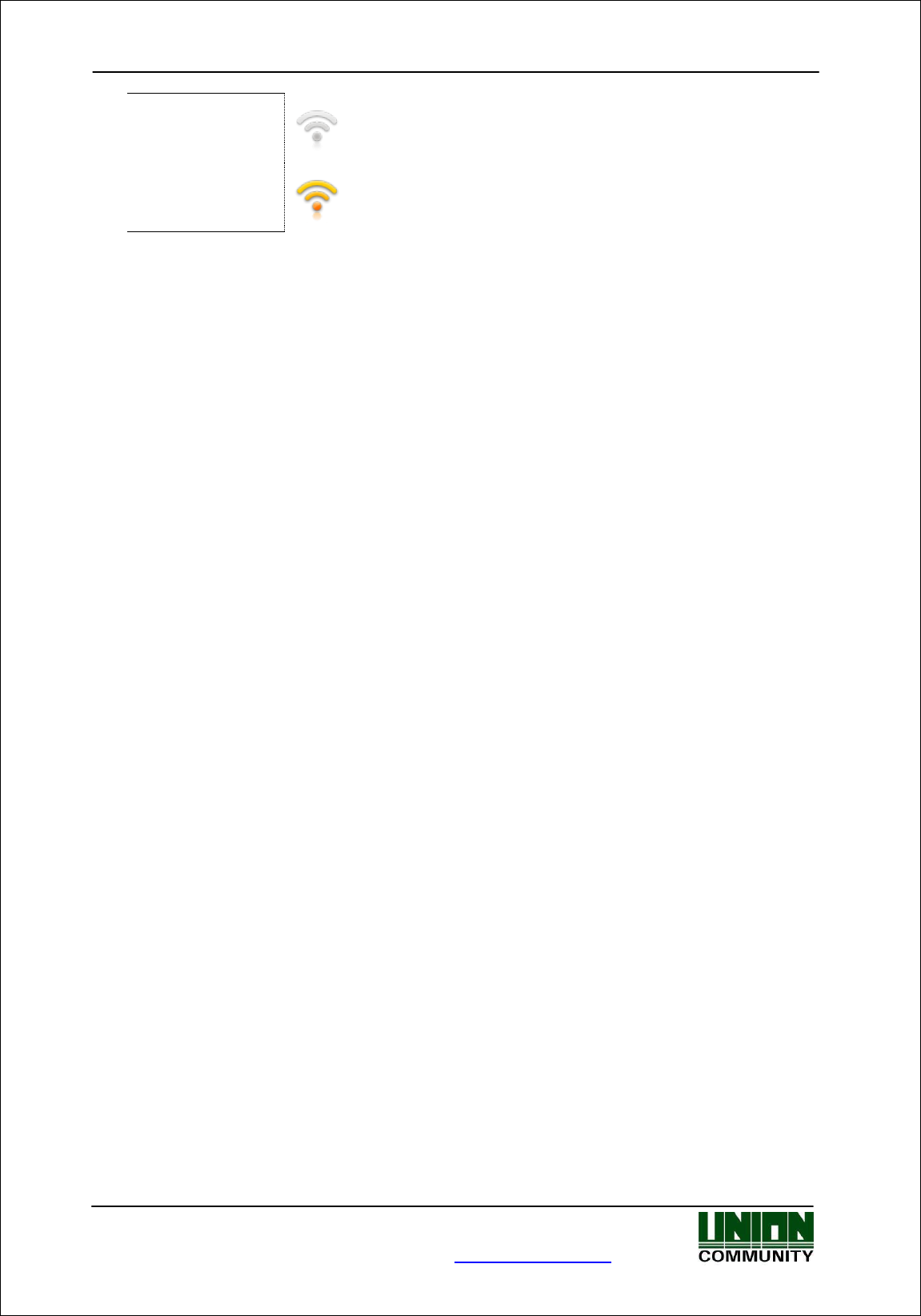

WiFi Connection
State
: WiFi Dongle Connected to device – not connected to
network
: WiFi Dongle Connected and successfully connected to AP
MiKey AC1100 User guide
11
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
All Function Keys disabled
- No Status Text/ Status Text Background
- No Extended Key
VoiP Function
VoIP enabled, not registered.
VoIP enabled, registered on iPBX network
Select Green Icon to access VoIP call menu.
MiKey AC1100 User guide
12
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com

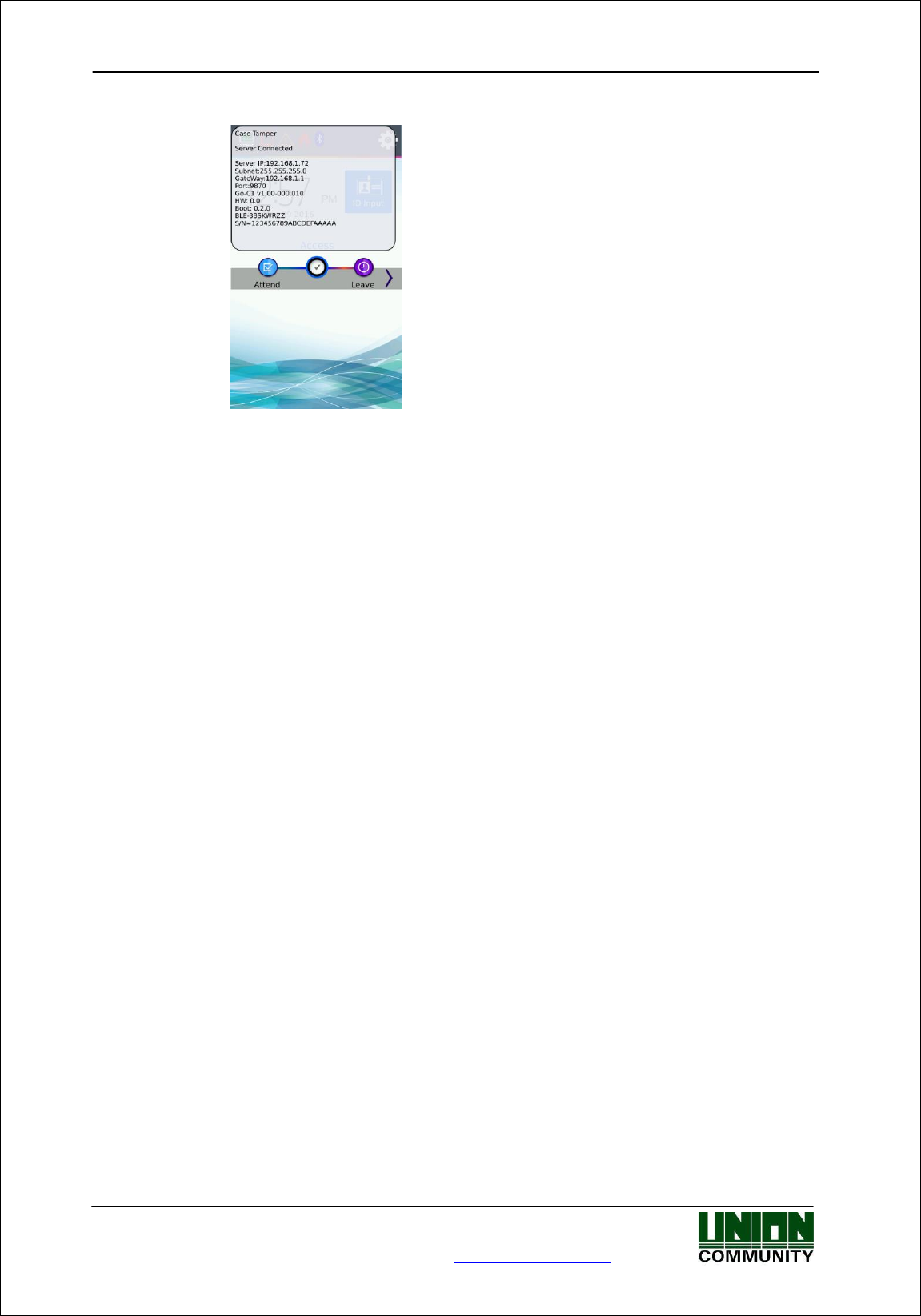

Touch the ‘status touch area’ along the top of the display
to see detail status information. See 1.3 Main window

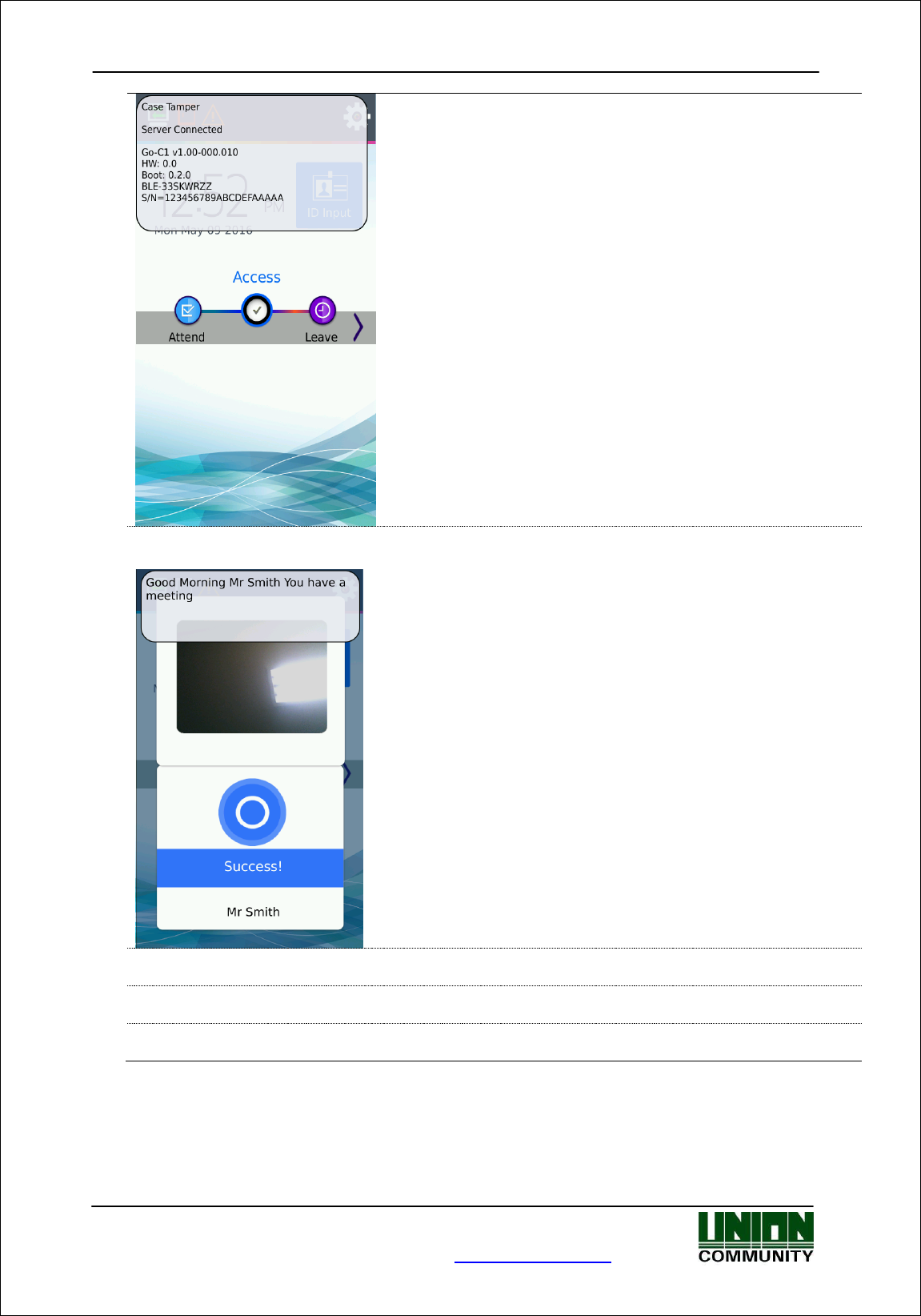

display. This will appear for 10 seconds.
Top pop up is a ‘custom user message’.In UNIS user
management you can make a custom message for every
user during the users authentication period.

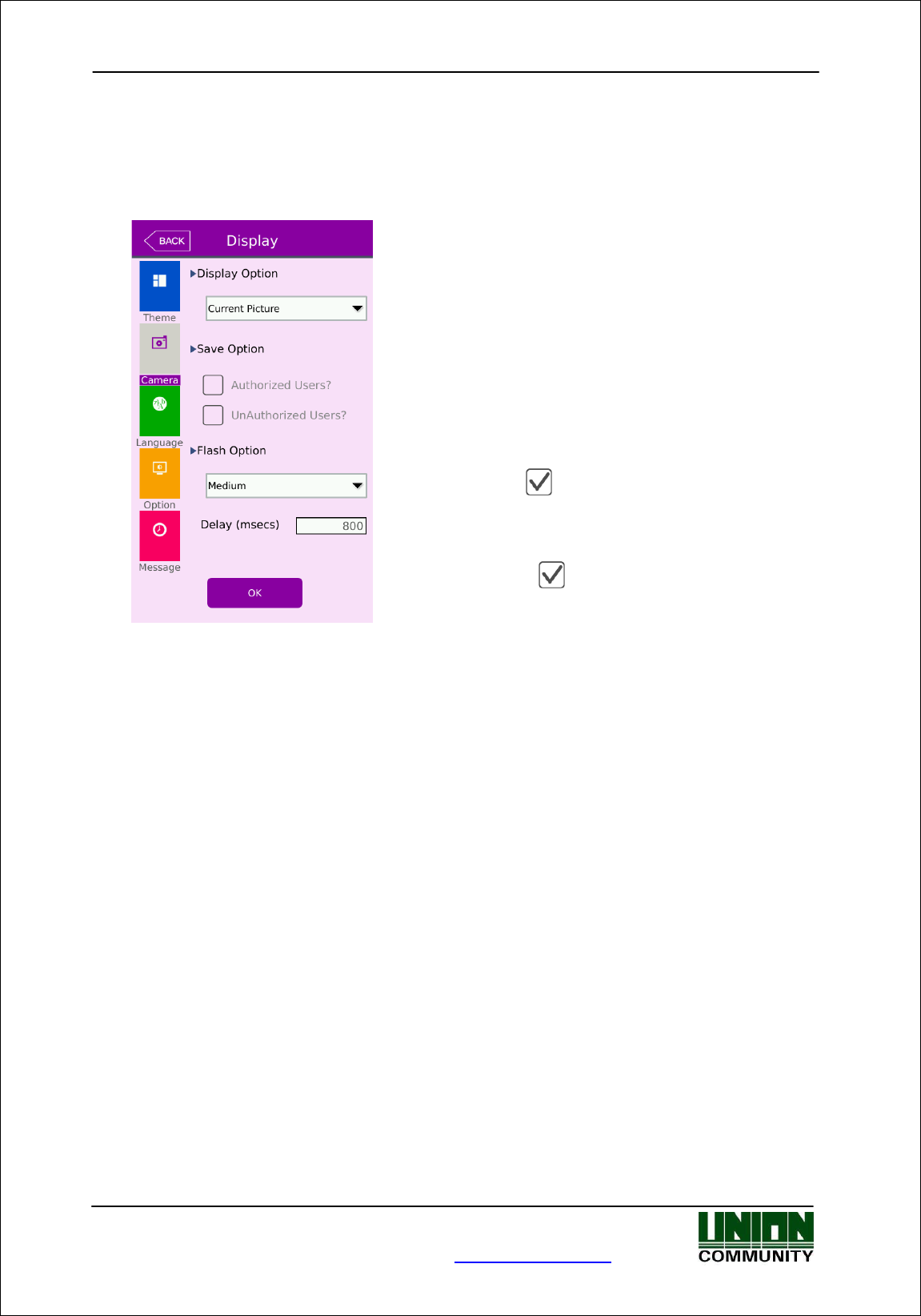

If camera setting for Display Current Picture or Display User
picture is set and registered card is used. Picture will be
displayed on the top. See Section 3.8.2

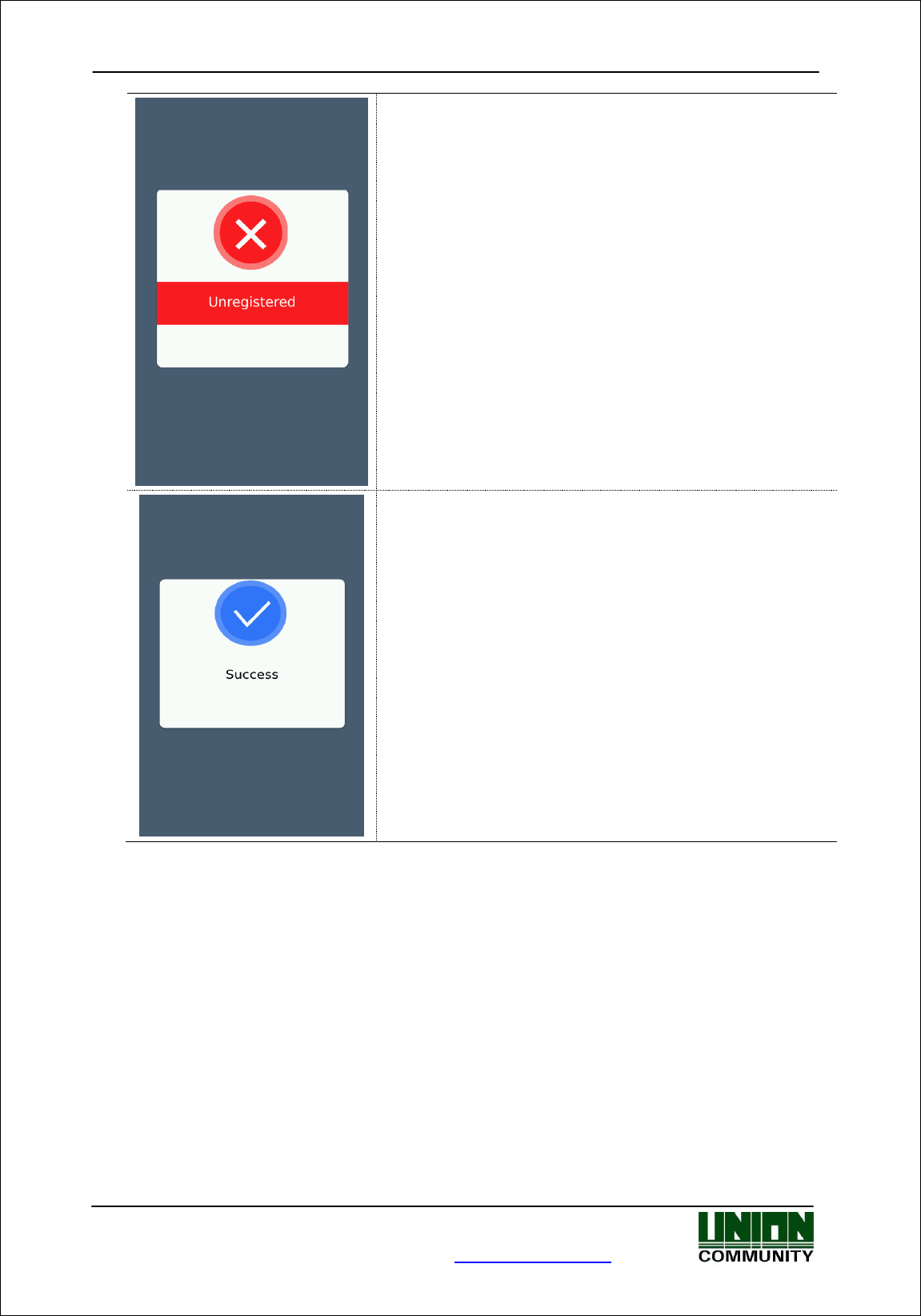

If card, mobile key, password is successful, the general
Success message will be displayed.

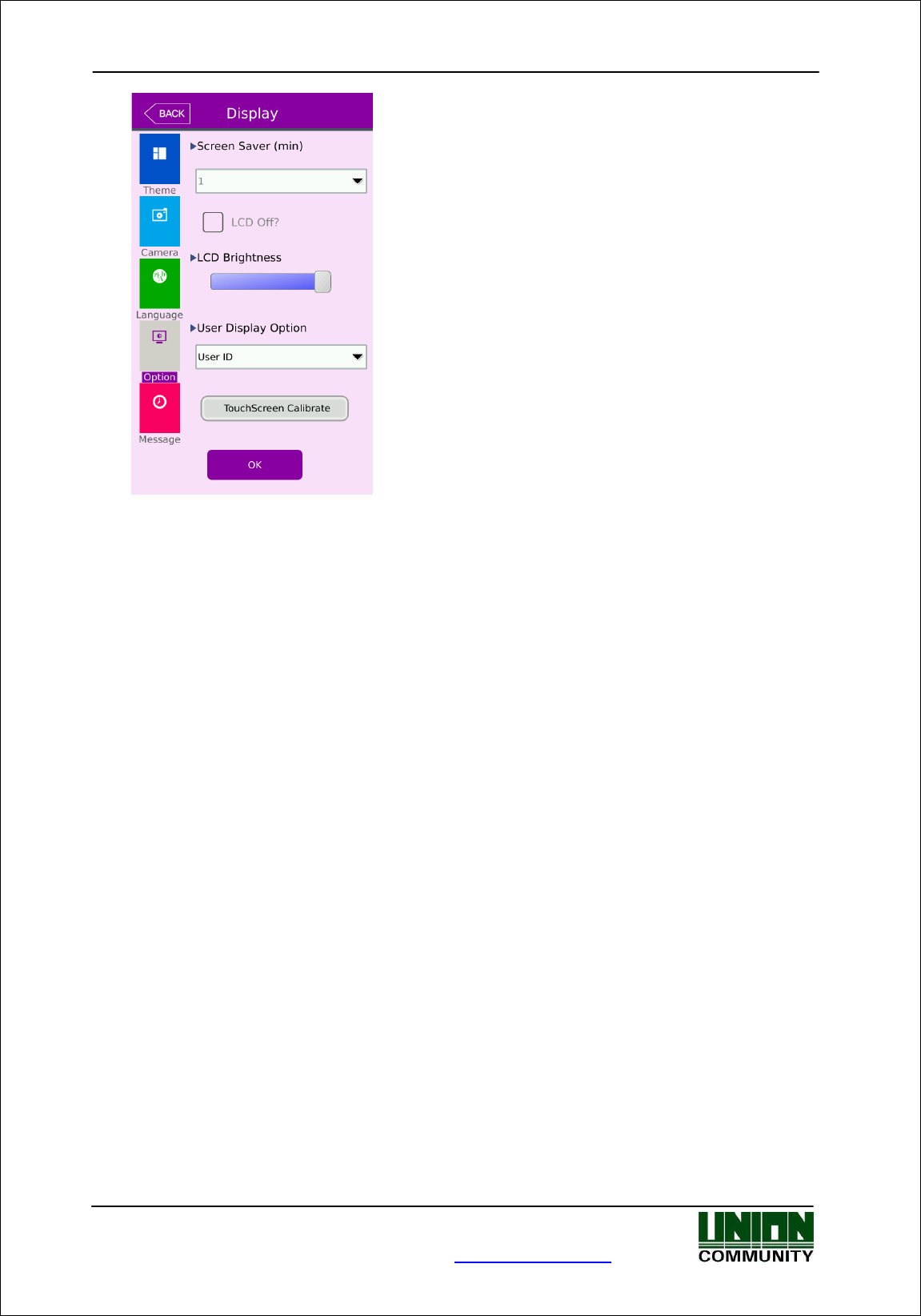

Bottom Message is black can be 1 of 3 different options.
This depends on the setting in Display ‘User Display
Options’
- User Name
- User ID
- User Key
MiKey AC1100 User guide
13
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com

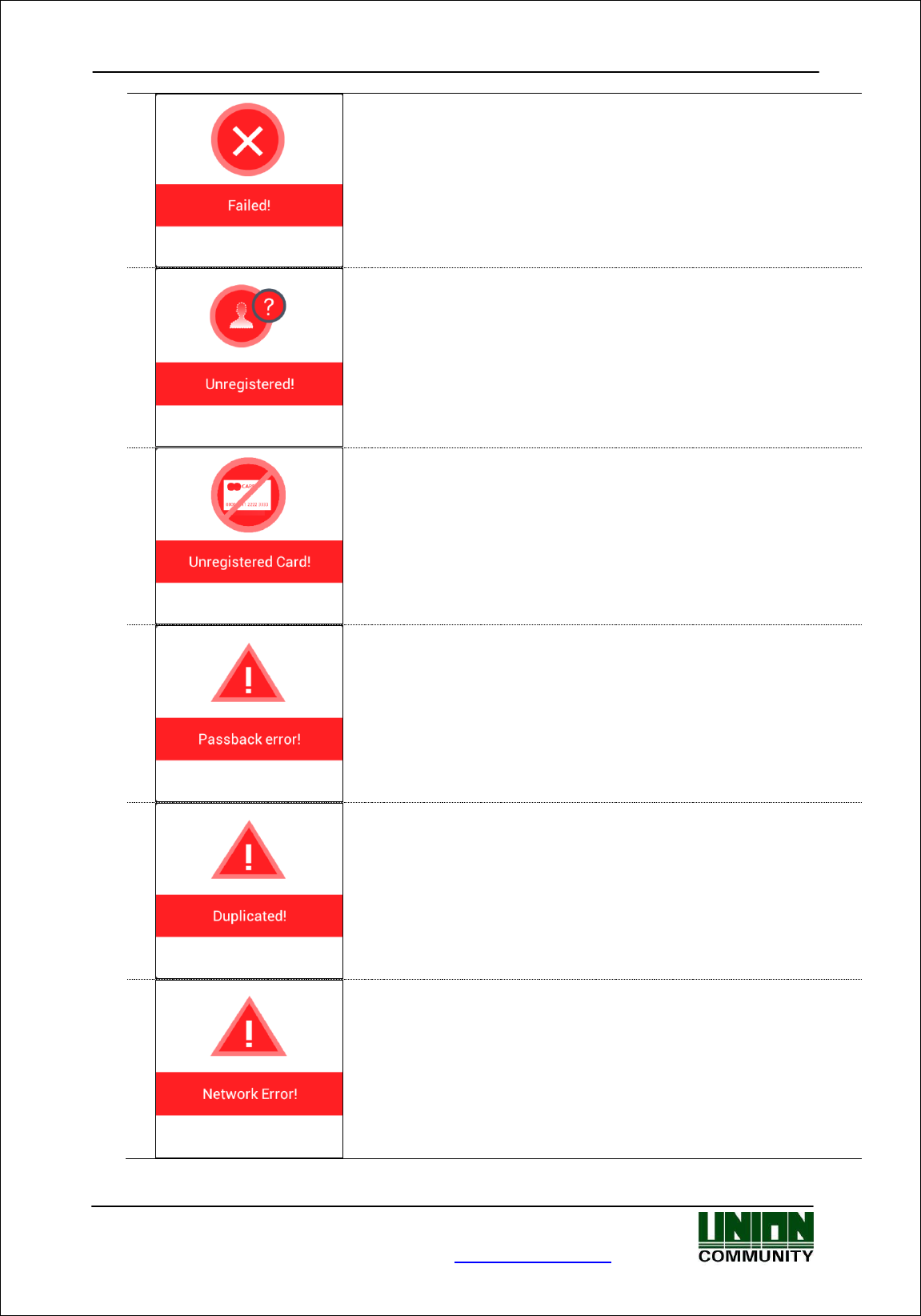

- When authorization is failed.
- When unregistered user ID is entered.
- When unregistered card is entered
- Passback error when using anti-passback function.
- When a user tried the authorization more than twice in
one meal time when using as meal personnel management
- When the server does not respond during the authorization
attempt to the server
- When the network is disconnected during the authorization
attempt to the server
MiKey AC1100 User guide
14
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com

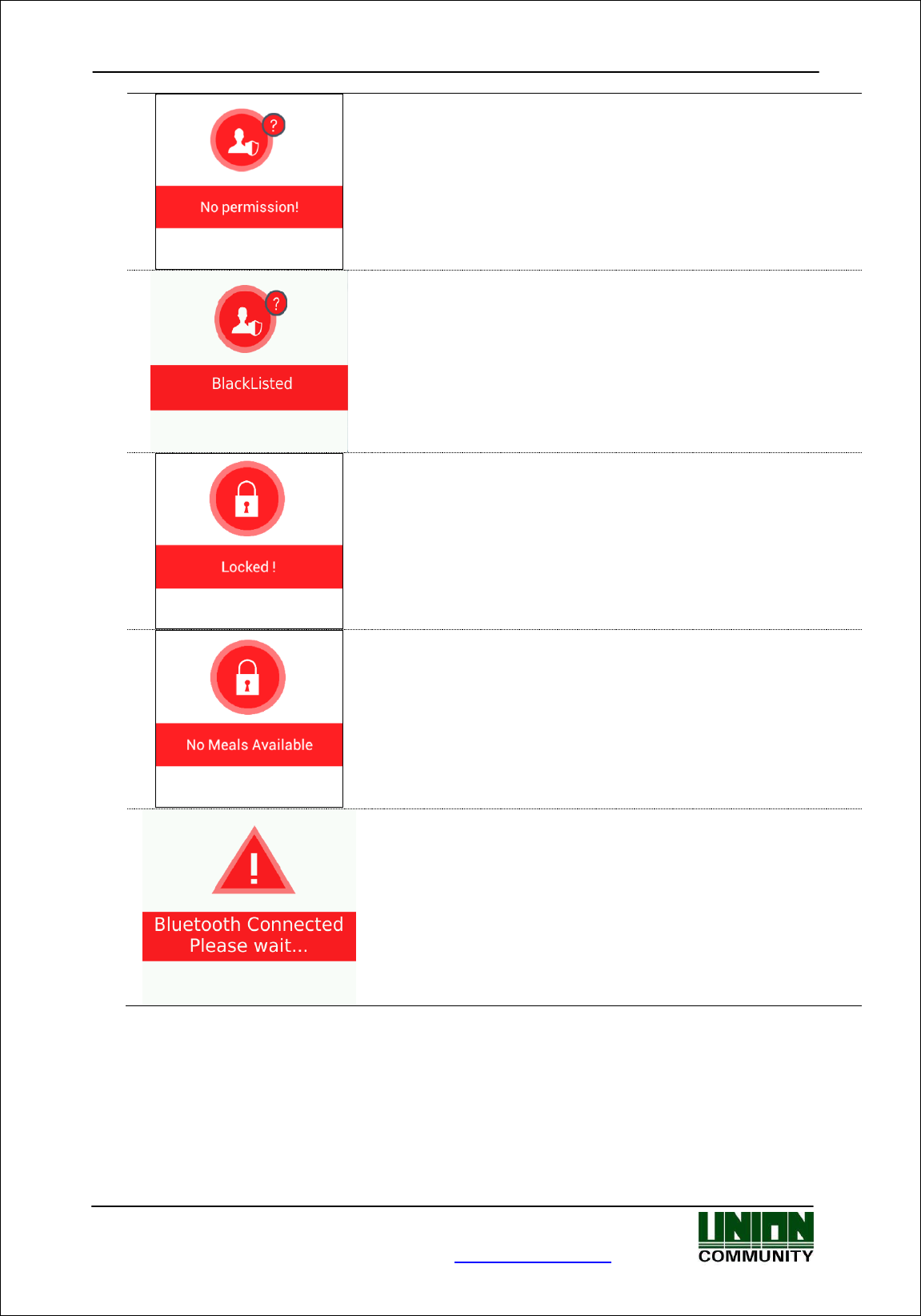

- Registration without authorization right or authorization
attempt when the entrance is not permitted.
- When the user is designated in the blacklist
- When the terminal is set locked
- When it is not the meal time when set in the meal
personnel management.
- When Bluetooth is connected with administrator Mobile
App. Admin mode blocking.
MiKey AC1100 User guide
15
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com

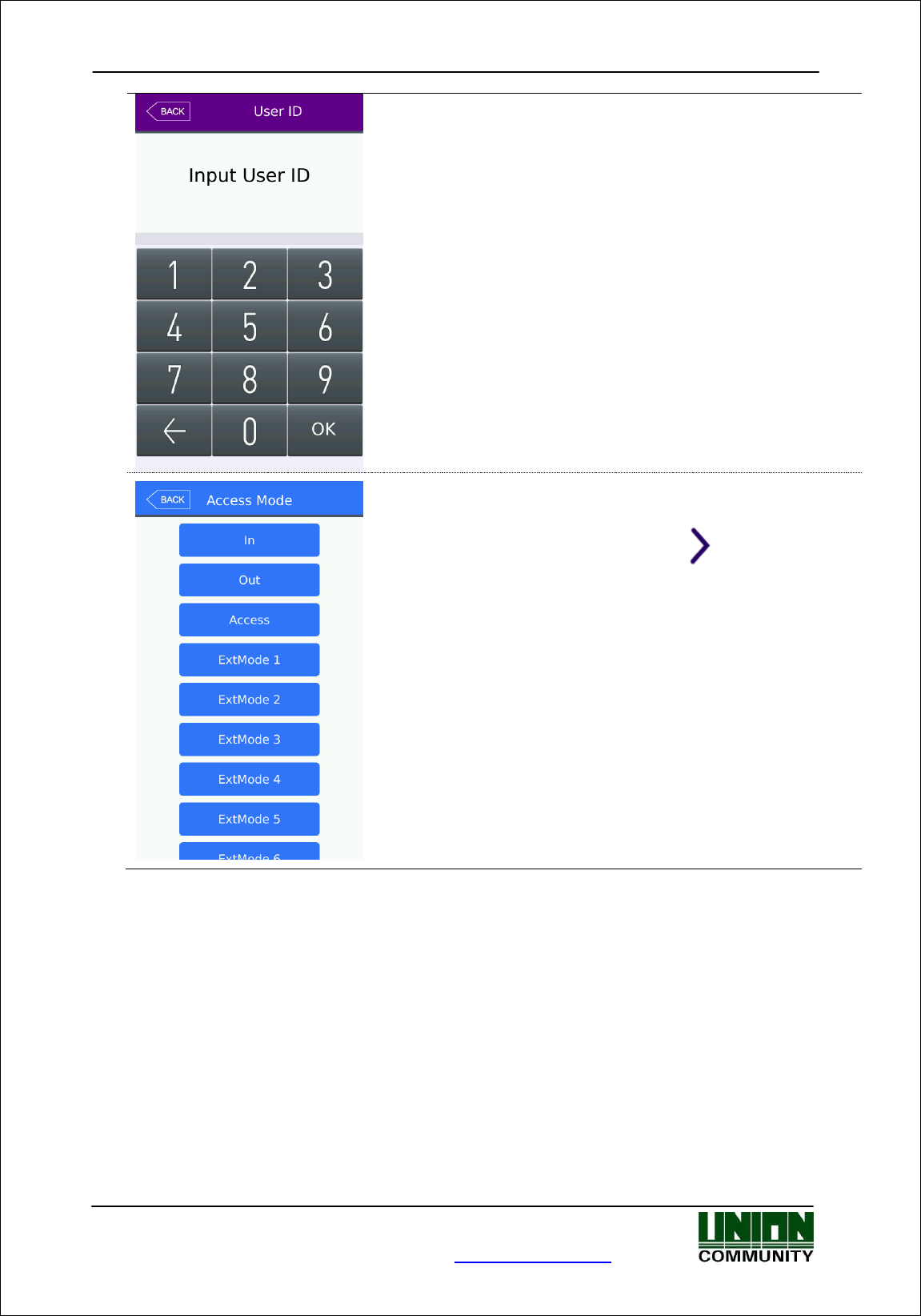

- Waiting for User ID Input
If more than 2 function keys are enabled from the function key
setting menu, in administrator mode, the button will appear
on the main window. If this button is selected the extended
function keys can be seen. Select the mode button - blue, or scroll
down/up until you can see the mode you would like to select.
Select back or the blue button mode. Timeout after 5 seconds of
no activity.
MiKey AC1100 User guide
16
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
- Waiting for Password Input
- Waiting for Card
-When the terminal program is being upgraded
(In this state, you should not turn off the terminal)
MiKey AC1100 User guide
17
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
1.4. Voices in the operation
Operation type
Voice
When the
authorization was
successful
You are authorized.
When the
authorization was
failed.
Please try again.
Waiting for Card
Please enter your card
ID Input
Enter your ID
1.5. Beep or sound effect in the operation
Beep
Card Reading
When the card was read
ErrorTone
wave sound
When failed
When the authorization has failed and Voice disabled
Trilling
sound
When success
When the authorization was successful and Voice
disabled
Key Press
Sound during number entry
Tick
Function Key
Sound during function key selection
MiKey AC1100 User guide
18
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
2. Product introduction
2.1. Product characteristics

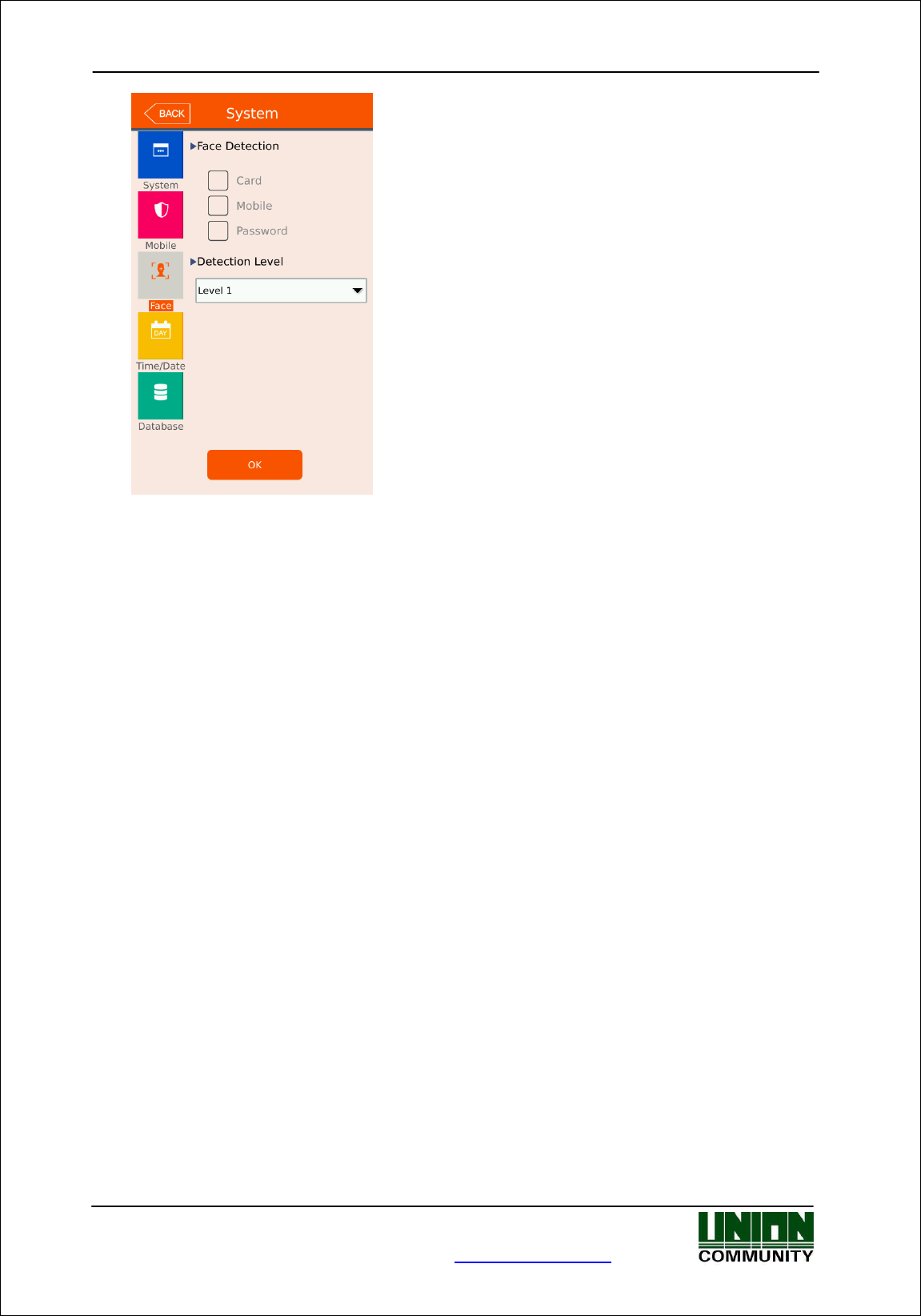

Multi-Modal product with card, password or mobile key authentication methods.
Face Detection requires the current authenticating user to present their face during
card, password or Mobile Key authentication. This requires a user to be in front of the
card reader so the device can take a picture of the person who authenticated.
Built in camera flash allows pictures and face detection during dark conditions.
Daylight Sensor automatically turns the flash on during dark conditions.
RF (126 kHz) Type (optional)
Smart card (13.56MHz) Type (optional)
Entrance management system using TCP/IP or WiFi (optional) connected to a server
database.
Various registration and authorization methods
Card
Card registration
Card authorization
Password
Password registration
Password authorization
Mobile Key
Mobile Key Temporary key registration
Mobile Key User key registration
Card or
password
Card, password registration
Card or password authorization
Card and
password
Card, password registration
Password authorization after card authorization
(ID or card) &
password
Card, password registration
Password authorization after ID input or password authorization
after card.
MiKey AC1100 User guide
19
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
2.2. Product components
2.2.1. Stand-alone (entrance)
DC12V Adapter
Electric lock
(Lock+, Lock-, Monitor)
MiKey AC1100 User guide
20
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com

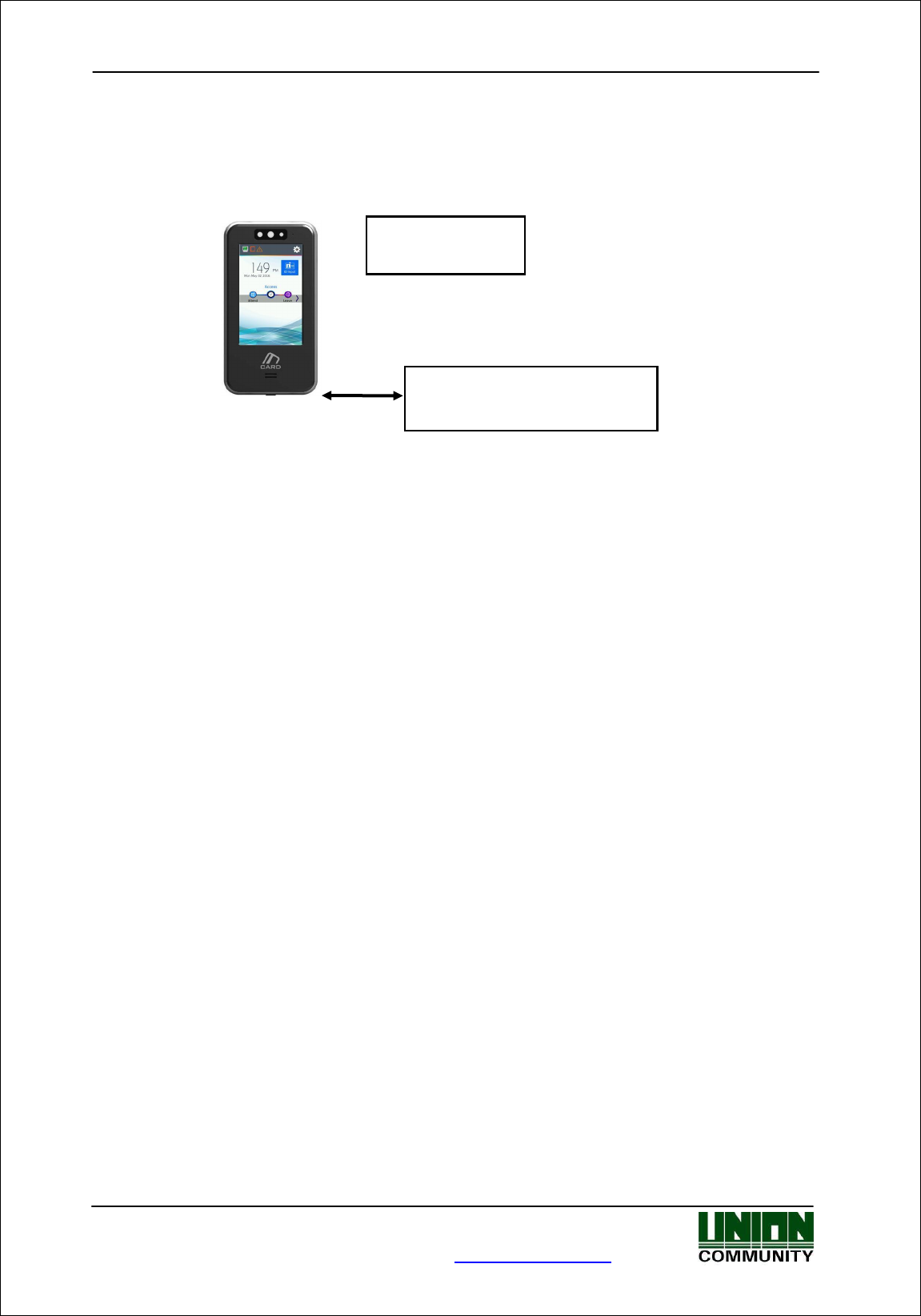

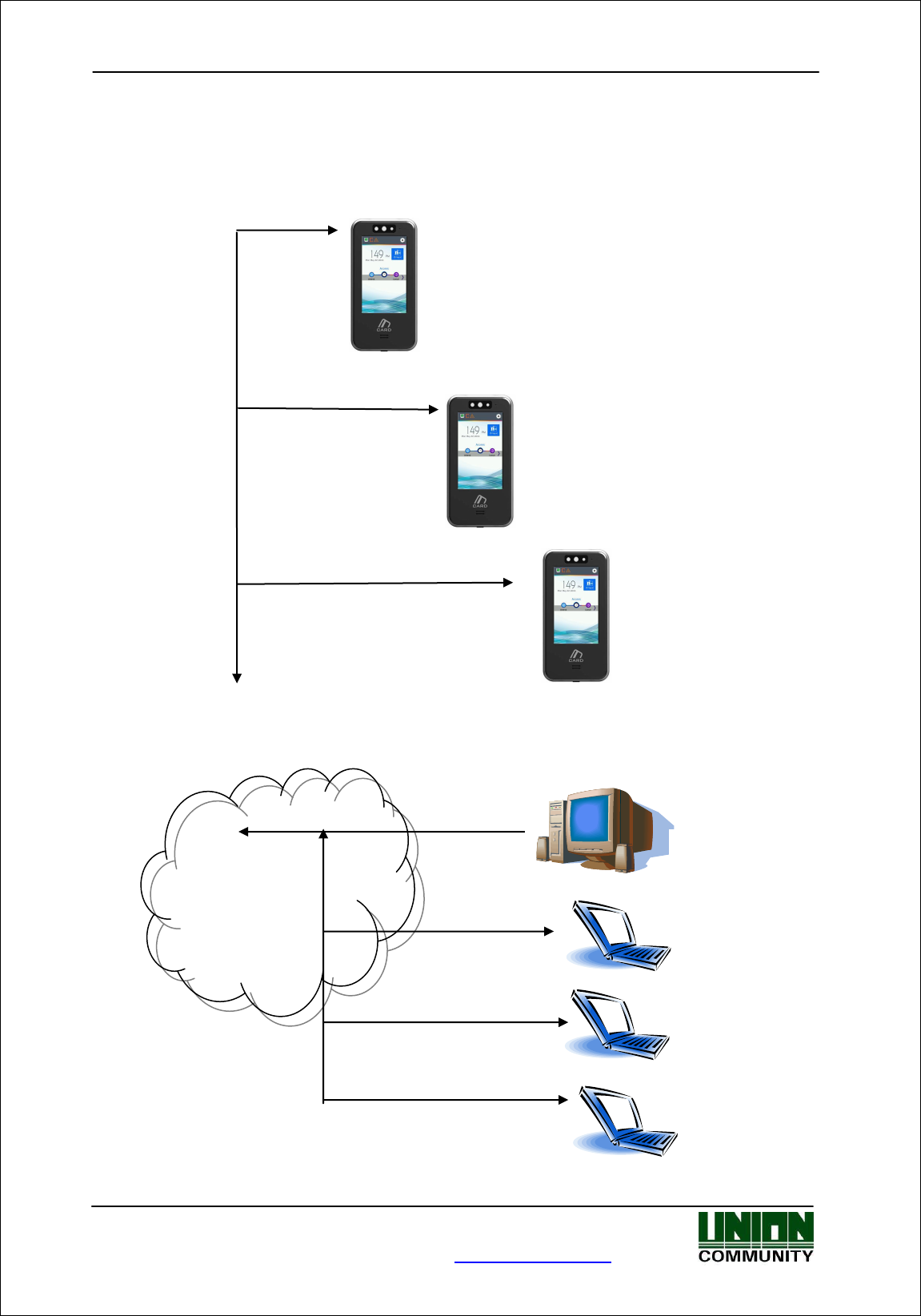

2.2.2. Connected with PC server
(Entrance, attendance, meal personnel management)
TCP/IP
Meal management
program
Attendance
management program
Internet /
WAN / LAN
TCP/IP
Card Authorization
server (static IP)
UDB server
database (MDB or MSSQL)
TCP/IP
Remote management
program
(user and terminal setting
management)
TCP/IP
TCP/IP
TCP/IP
MiKey AC1100 User guide
21
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
2.3. Product specification
Types
SPEC
REMARK
CPU
1GHz Single Core CPU
LCD
4.0 inch Touch LCD(480*800)
MEMORY
eMMc 8G Bytes Flash
512mb RAM
External USB support
Data backup / FW upgrade
(USB port is
service port.)
Camera
Still Image Color (320x480)
Camera Flash Sensor
Daylight sensor will turn on flash when
needed
User number
200,000 User / 200,000 Card / 35000
10,000,000 Log / 35000 Image Log
Temperature /
Humidity
-20 ~ 45 /
Lower than 90% RH
AC / DC Adapter
INPUT : Universal AC100 ~ 250V
OUTPUT : DC 12V
(Option : DC 24V)
UL, CSA, CE Approved
Lock Control
EM, Strike, Motor Lock, Auto Door
I/O
4 In (1 Exit, 3 Monitor)
2 Out (Also for Lock Control)
Communication Port
TCP/IP (10/100Mbps)
Authorization
server
communication
RS-232
Meal ticket
printer
RS-485
Controller
communication
Wiegand In/Out
Card reader
or
Controller
communication
Card Reader
126 KHz RF / 13.56MHz Smart
HID 126 K Prox card (option)
HID iClass Card (option)
option
SIZE
66.6 X 139.6 X 9.5
With Bracket
MiKey AC1100 User guide
22
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
3. Environment setting
3.1. Checks before setting the environment

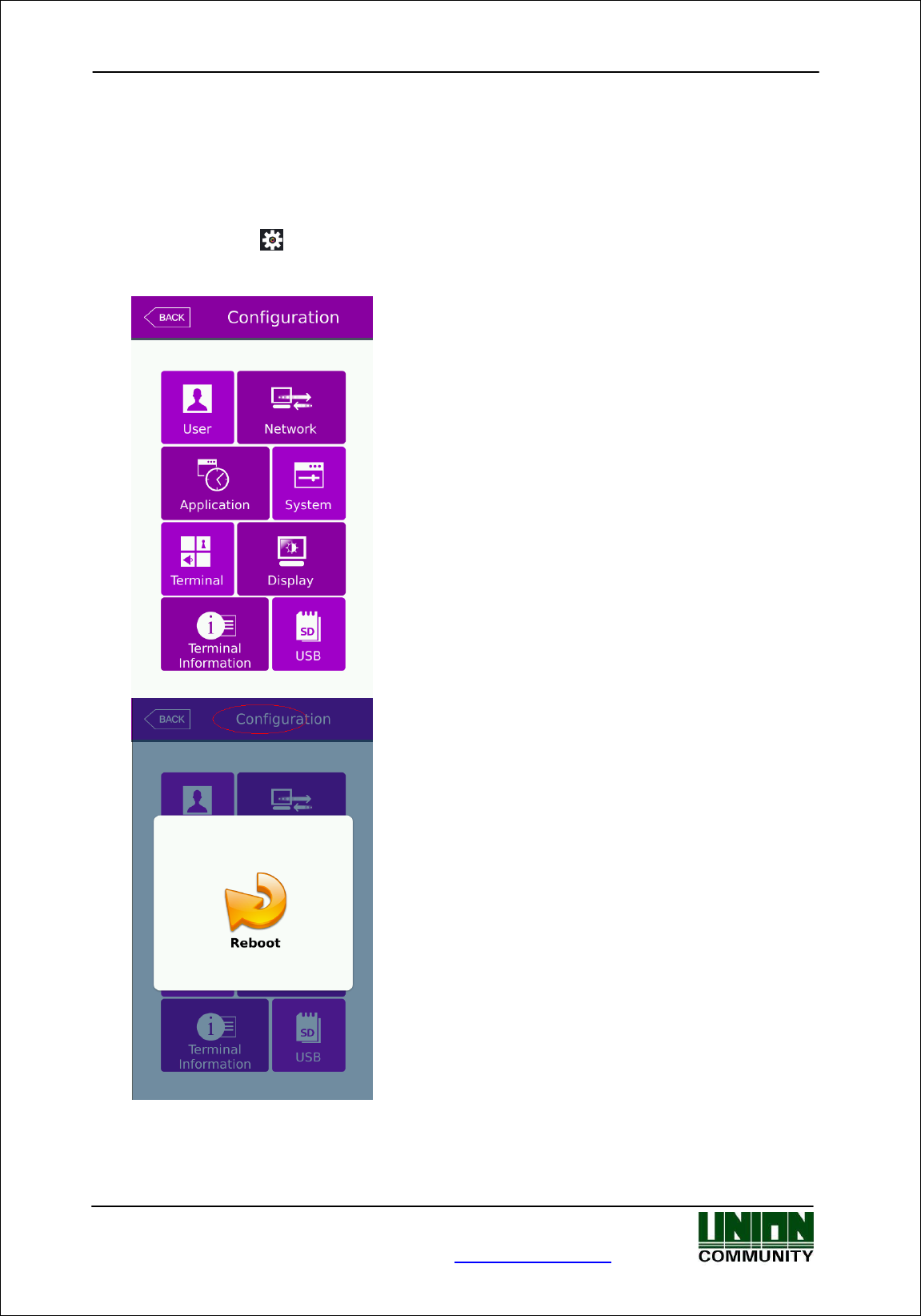

3.1.1. Entering the admin menu
If you press the [ ] icon at the main window, you can enter the administrator menu as
follows.
You can enter the subdivision menu by selecting
each button.
Once in the administrator menu, if you need to
soft reboot the device, touch the RED circled
area, and then select the reboot icon in the
middle, this will initiate a reboot.
MiKey AC1100 User guide
23
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
3.1.2. Administrator authorization
If the administrator is registered, the following administrator authorization window
appears first.

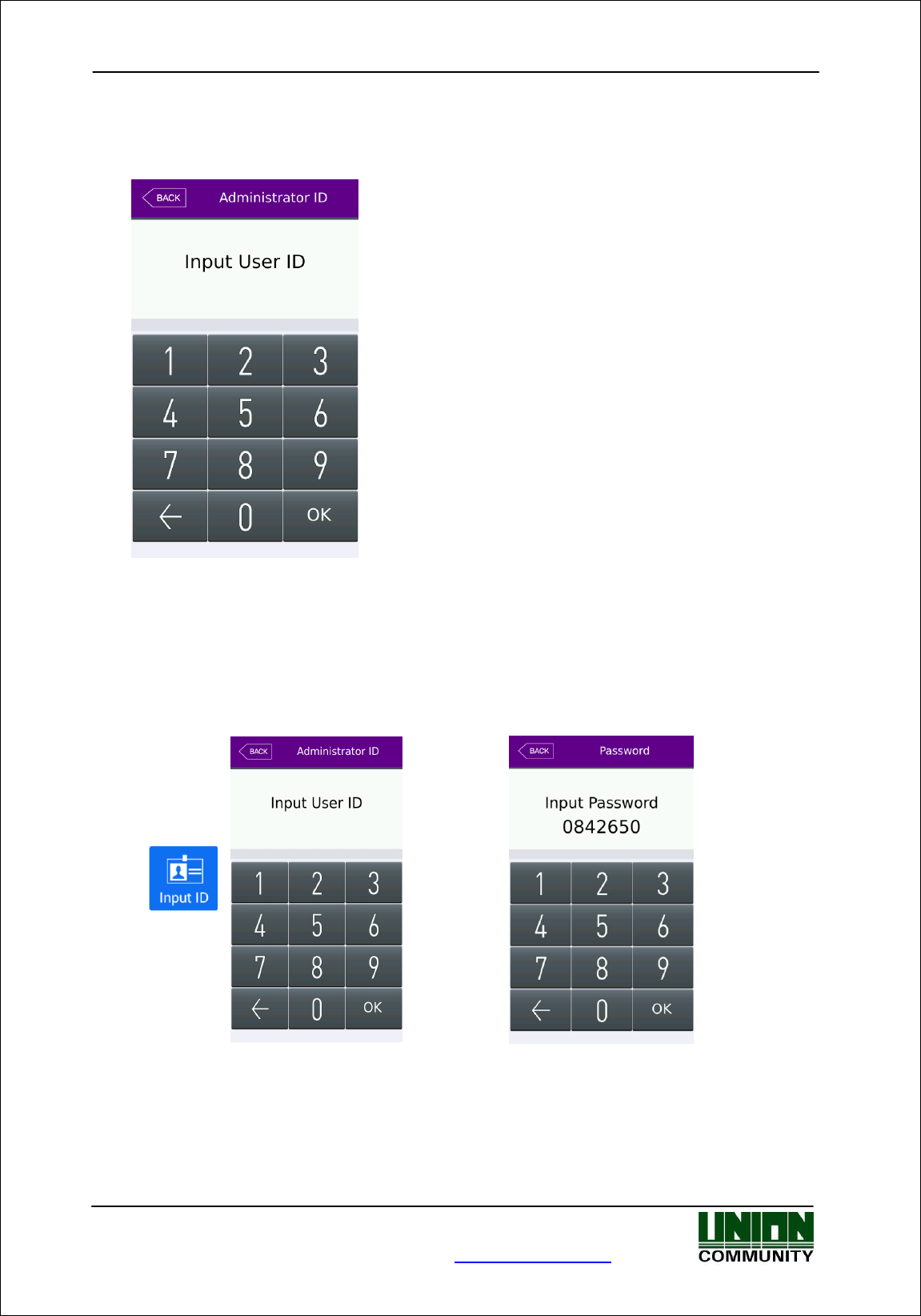

▶Administrator authorization
If you enter the administrator ID, the administrator
authorization is fulfilled along with the authorization
method of the administrator such as card, or
password.
The administrator authorization only appears when
the registered administrator exists. The
authorization is fulfilled only once when entering
the menu mode and you can access to the entire
menu until you quit the main menu.
3.1.3. How to enter the menu without administrator authorization
In cases where the administrator is lost you can enter a special ID and password to view the
network settings of the card reader. This will allow you to connect using UNIS to reset or add
a new administrator.
0000
0842650
MiKey AC1100 User guide
24
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
The server IP and
network information will
be displayed. You can
now connect your card
reader terminal directly to
your PC. Setup your PC
network card with the
same Server IP and
Gateway settings.
After you successfully
connect with UNIS you
can change/delete the
administer user as
needed.

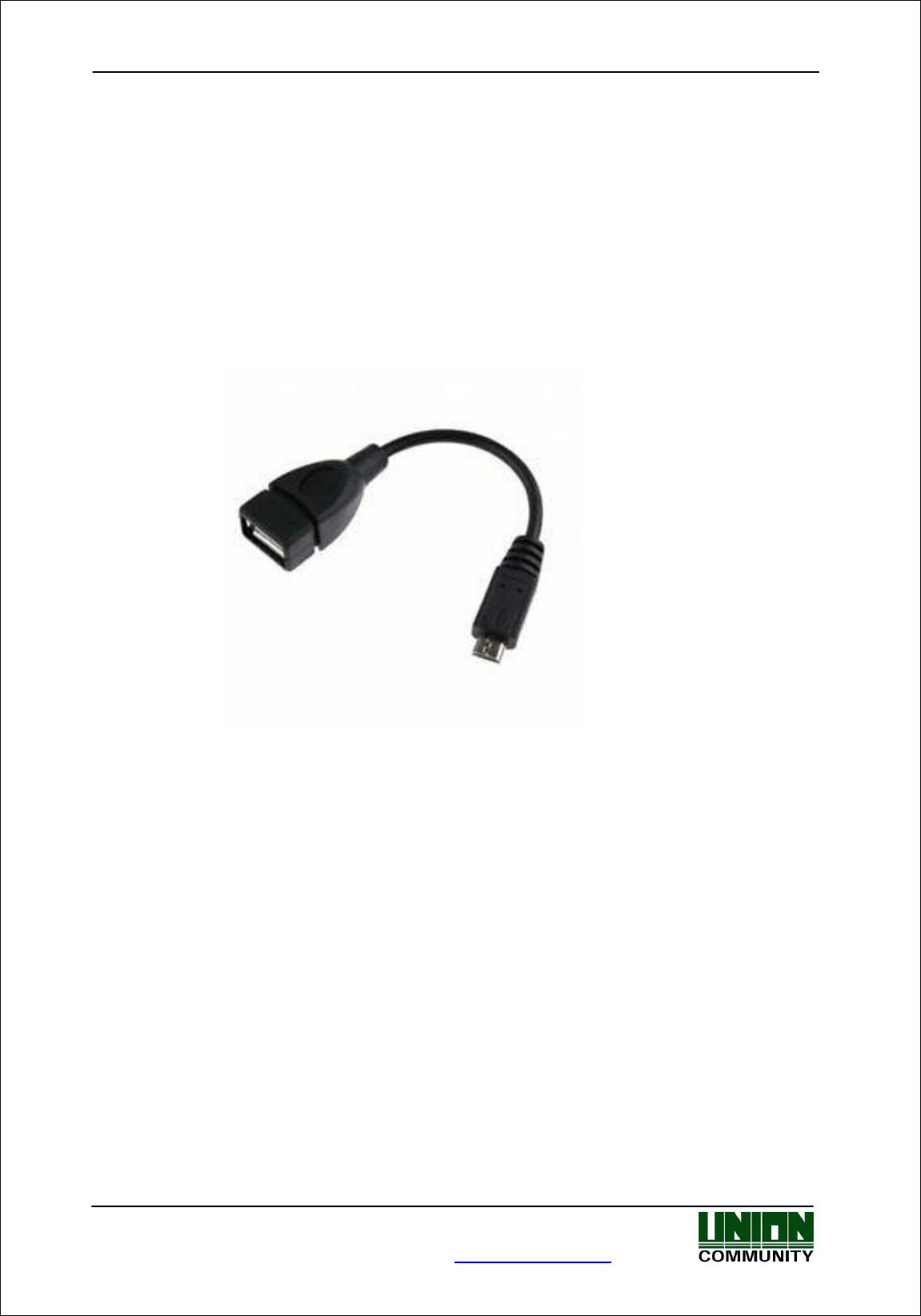

Method #2 (USB port is service port.)
Entering admin mode when you have lost the administrator ID

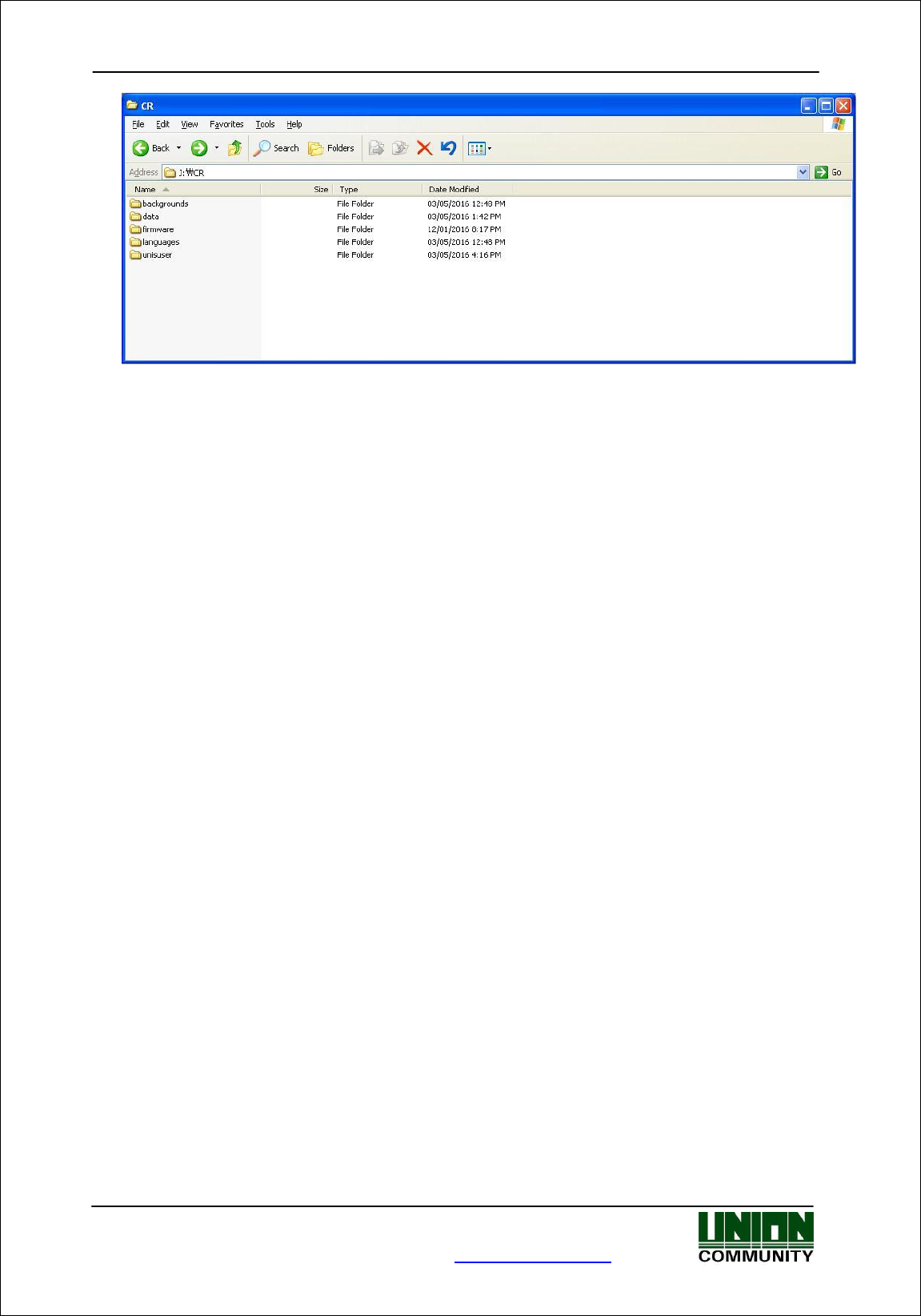

1) On USB device, create folder /CR/
2) On your PC create an empty file with no extension and name it ‘factory’
3) Copy ‘factory’ file from PC to USB /CR/ folder
4) Plug USB into the card reader
5) Card Reader tamper must be Open (Cover open and off)
6) Successful user must authenticate and open the door, during the door open period,
press the admin icon and it will bypass admin entry requirements.
3.1.5. How to save the set values
In each menu of the administrator mode, press the OK button to save changes. To
cancel and not save, press the [BACK] icon at the top left.
If there is no touch or key press the menu will timeout after 60 seconds of no activity.
MiKey AC1100 User guide
25
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
3.2. Menu composition
1.User
management
1. Add
2. Modify
3. Delete
4. Delete All
5. View
2. Network

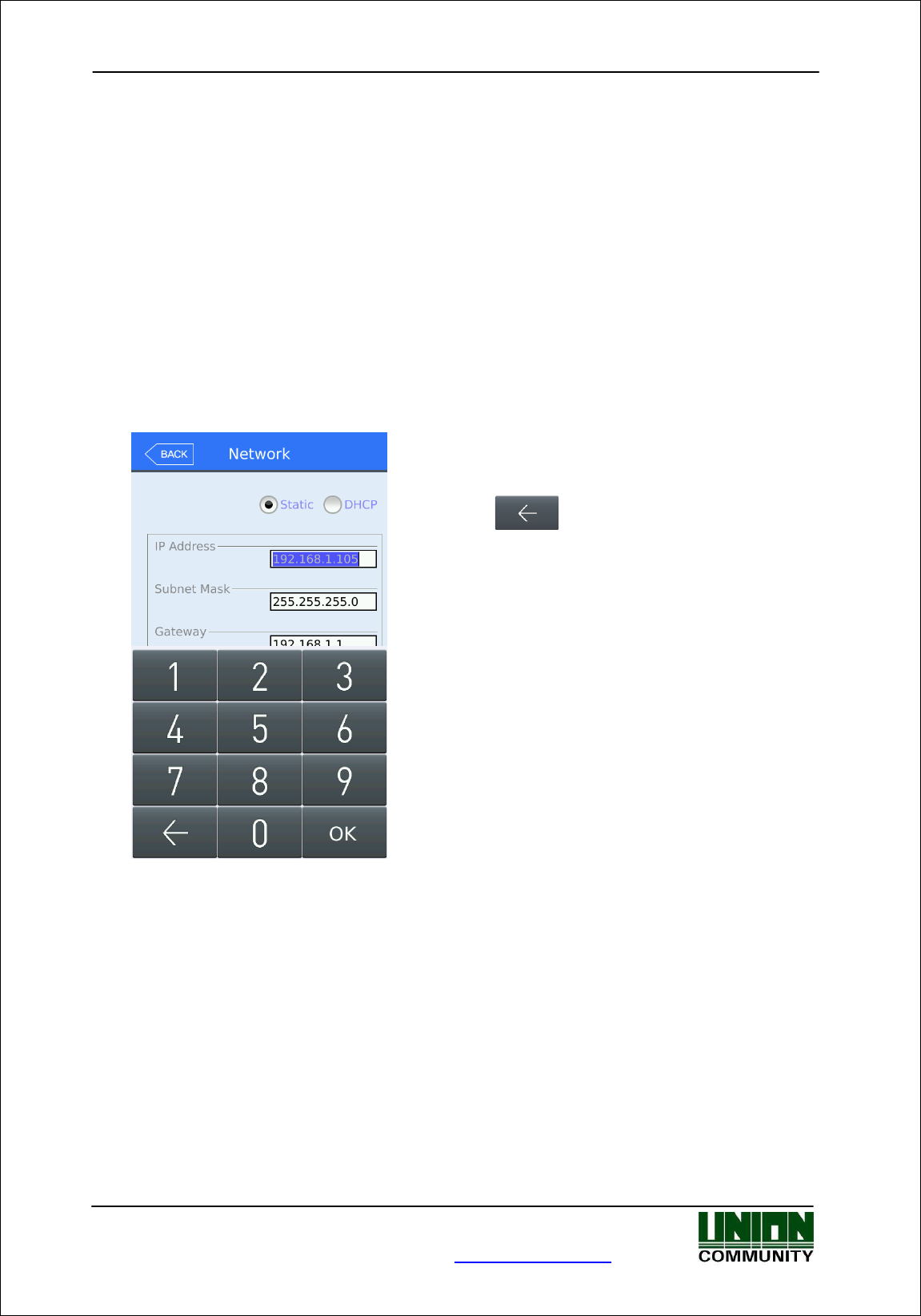

Terminal IP address
Static IP / DHCP
▶Terminal IP address
▶Subnet mask
▶Gateway
DNS server
Server IP address
▶Server IP address
▶Port
Terminal ID
▶Terminal ID
Timeout
▶Server timeout
3.Application
1. Application
▶Access
▶Attendance management
▶Meal management
1. ▶Schedule setting
Attend (F1) time
Leaving (F2) time
Going out(F3) time
Returning(F4) time
Normal Access time
Blocking Time
2. When setting as the meal management
▶Schedule setting
Breakfast time
Lunch time
Dinner time
Supper time
Snack time
▶Duplicate meals

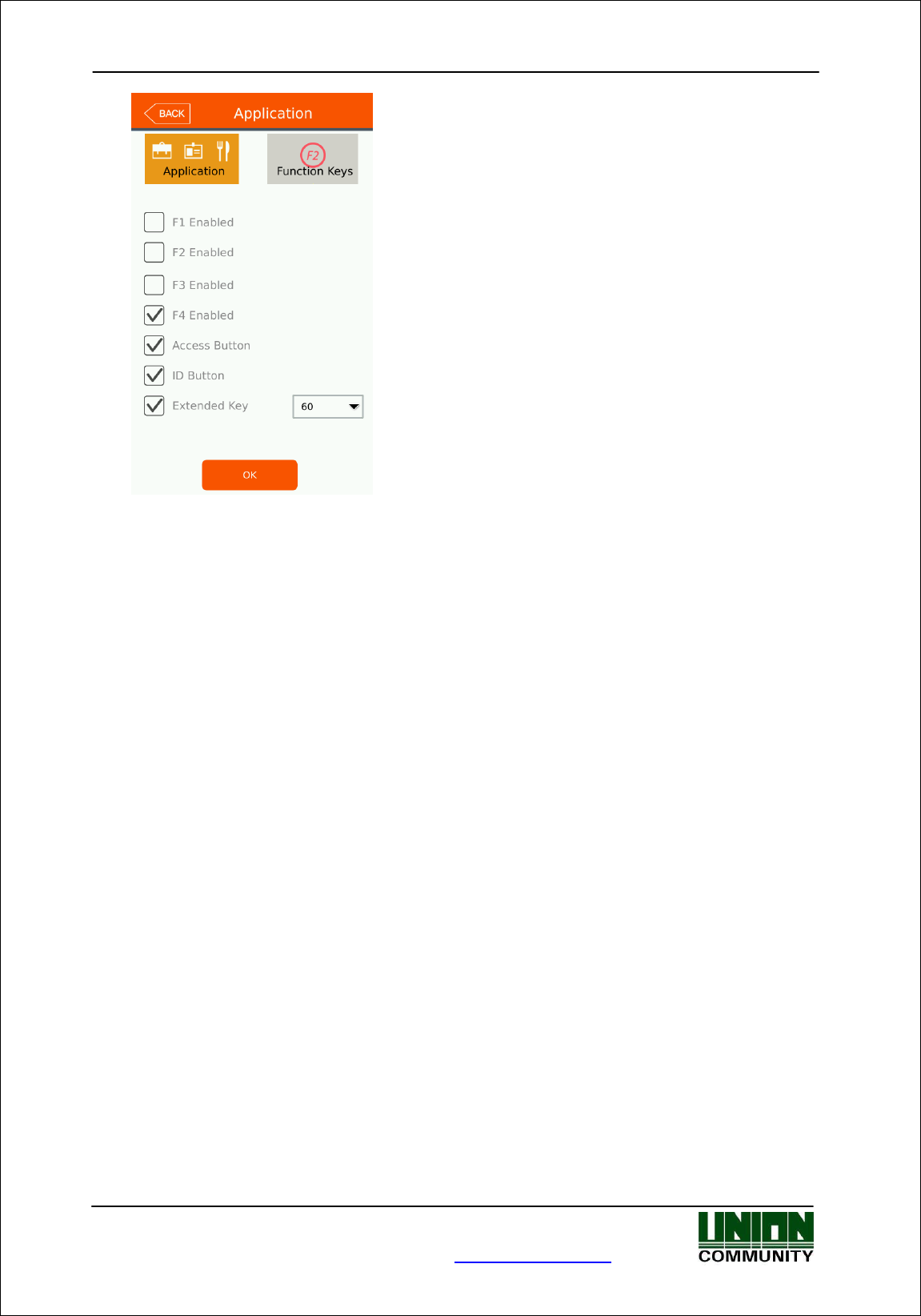

2.Function Key
▶F1 use
▶F2 use
▶F3 use
▶F4 use
▶ID button

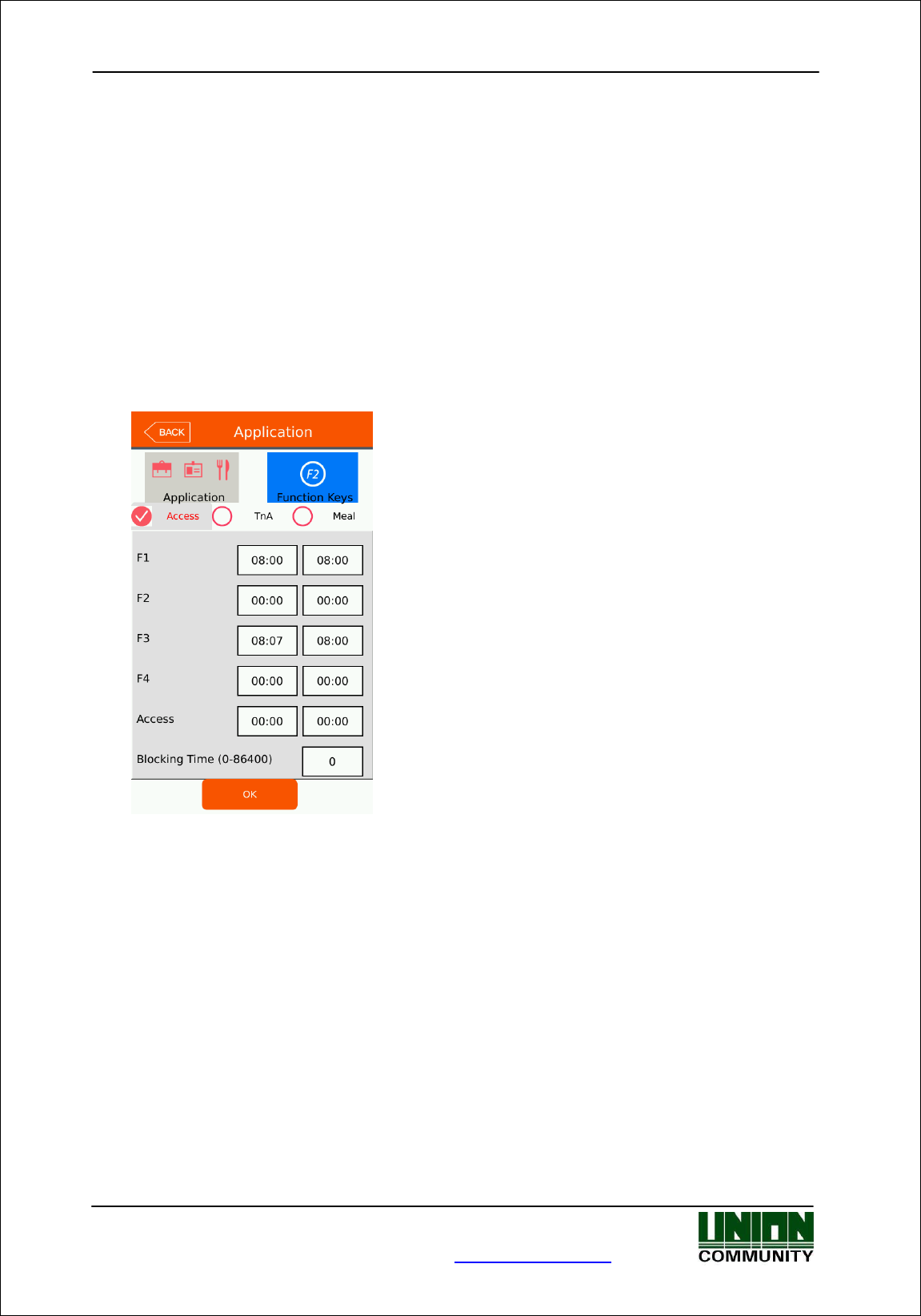

▶Access button
▶Extension Key use
▶ Number of extension keys
MiKey AC1100 User guide
26
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
4. System
1. System
▶User ID Length (2-9)
▶Authentication Type
(Server/Terminal)
(Terminal/Server)
(Server Only)
(Terminal Only)
▶Job Code enable/disable
2.Mobile
▶Enable Mobile Key
▶Mobile Key Name
▶Mobile Register Device
3. Face Detection
▶Card use
▶Mobile use
▶Password use
▶Detection Level
Level 1
Level 2

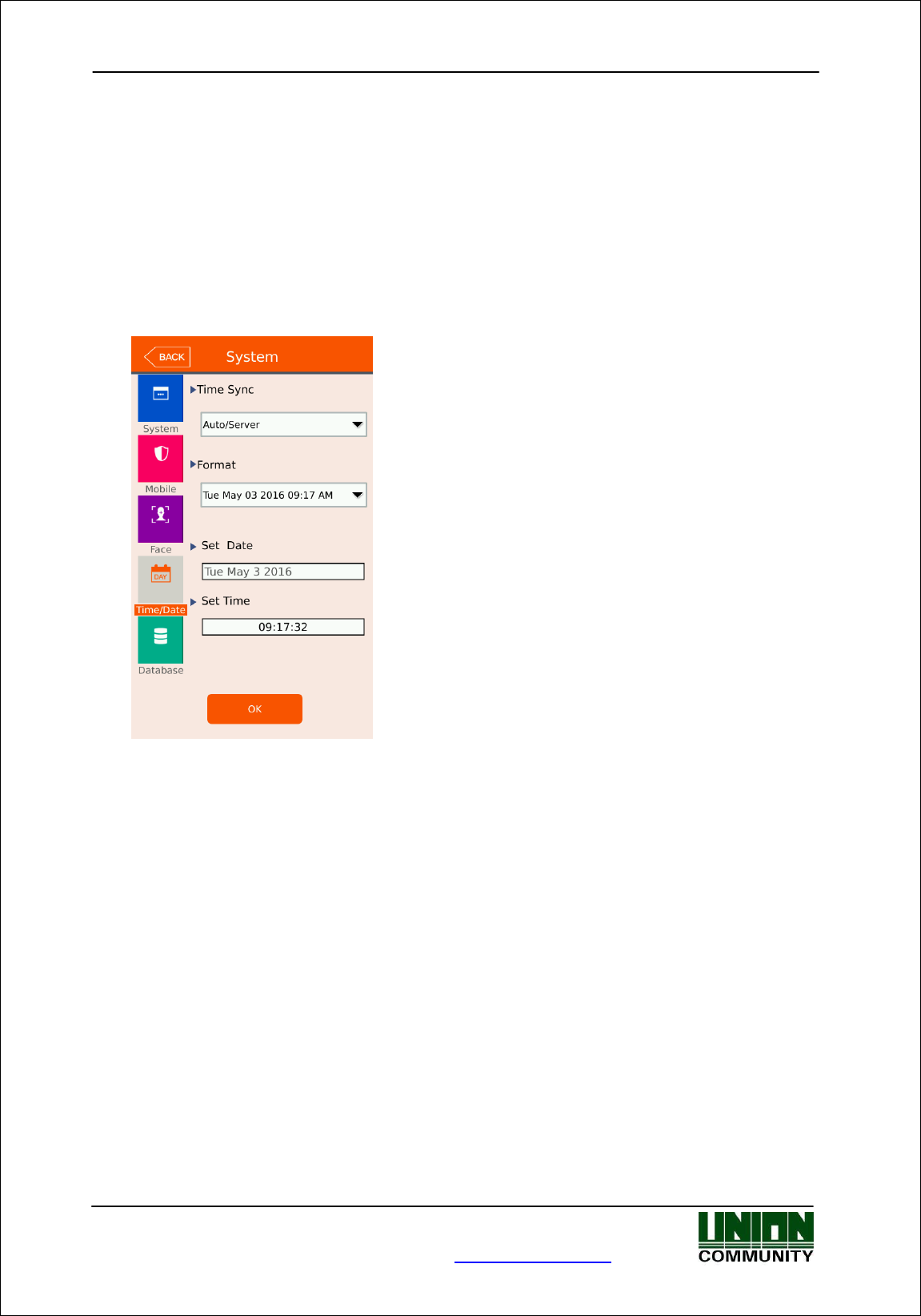

4. Date / time
▶Time Sync type
▶Display format
▶Date Setting
▶Time Setting

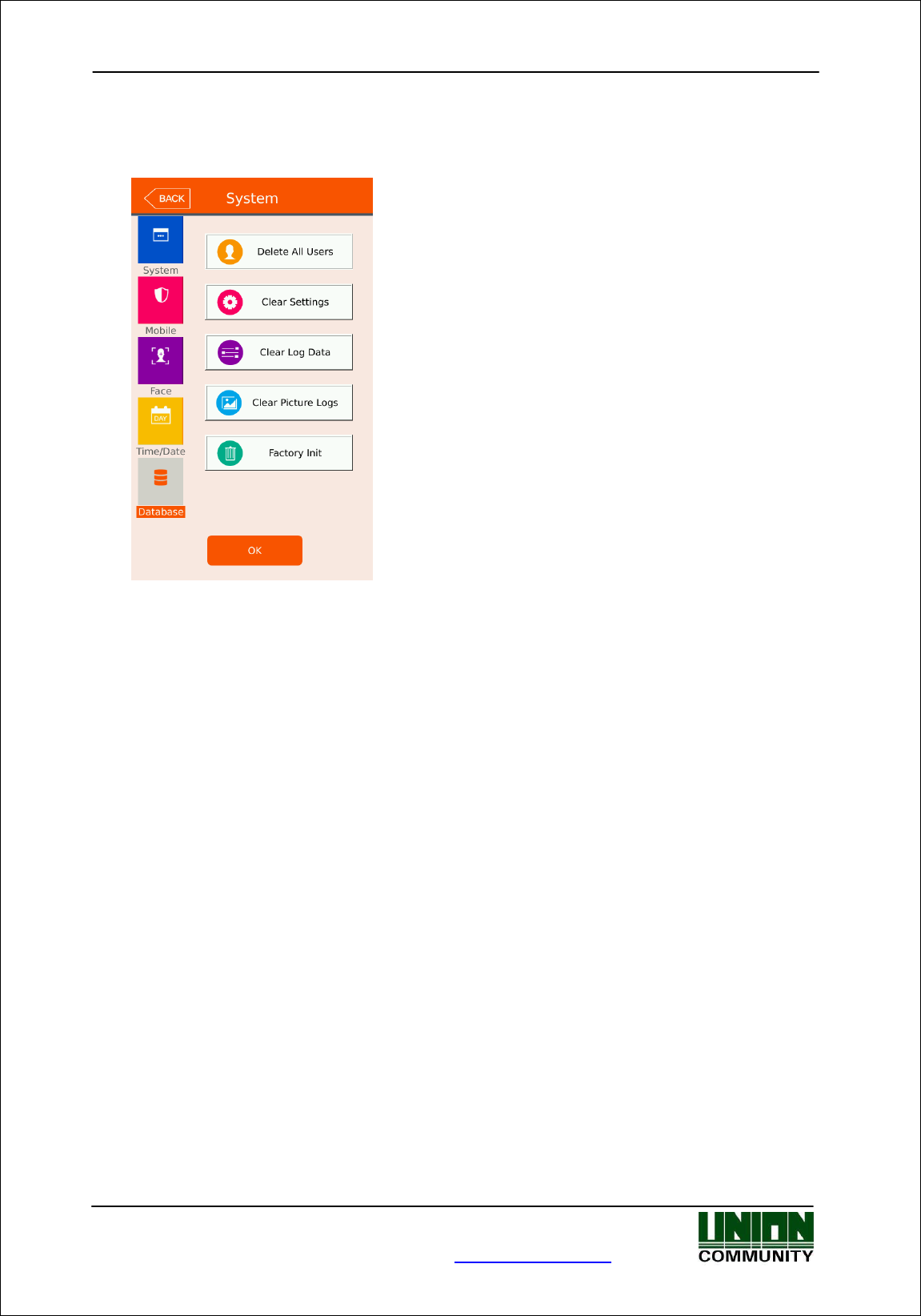

6. Database
▶ Delete all Users
▶ Clear Settings
▶ Clear Log Data
▶ Clear Picture Logs
▶ Factory Initialize
5.Terminal
setting
1. Sound
▶Voice volume
▶Beep volume

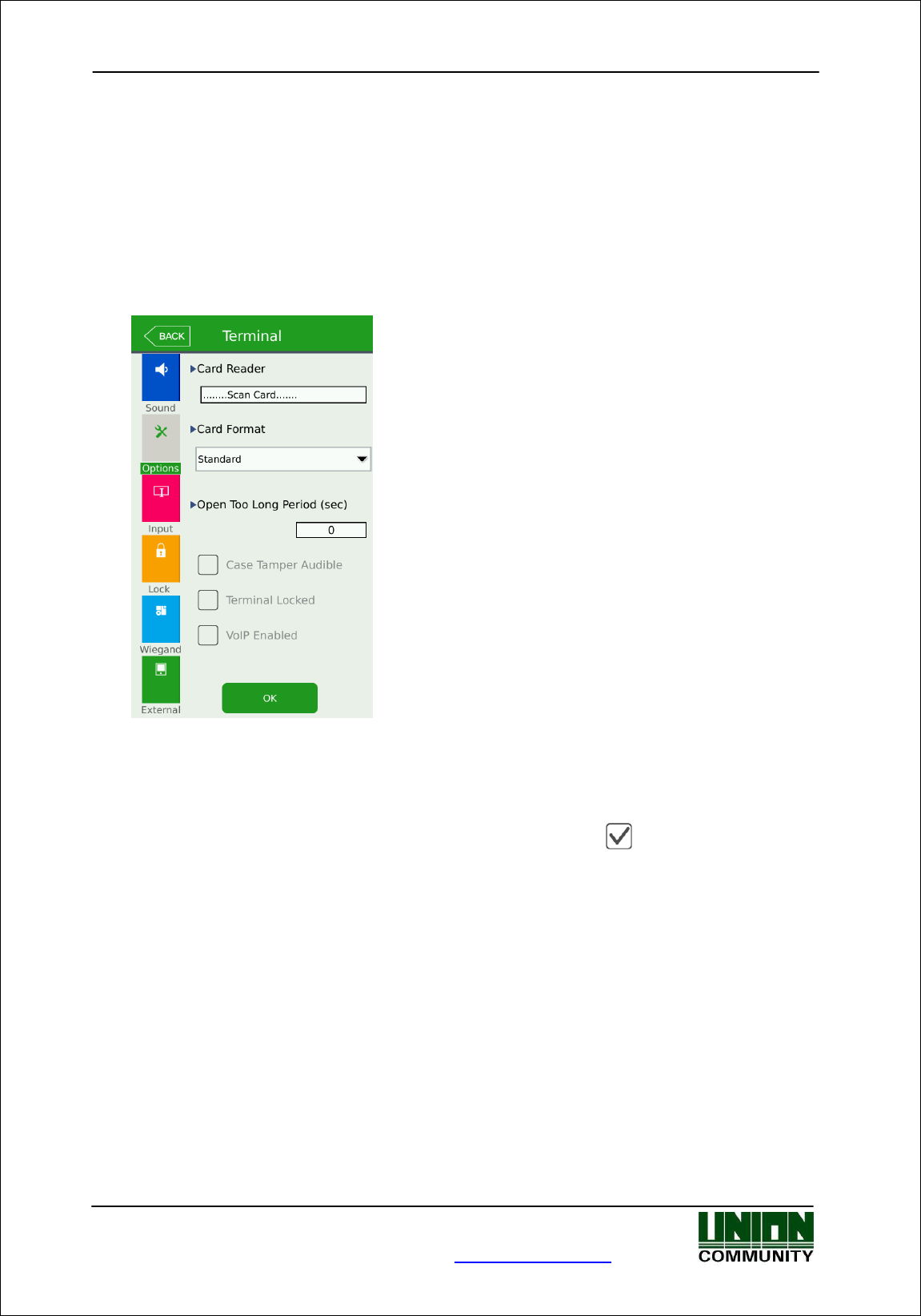

2. Terminal option
▶Card Reading display
▶Card format
▶Door Open Too Long Time
▶Case Tamper enable
▶Terminal Locked
▶VoIP enable

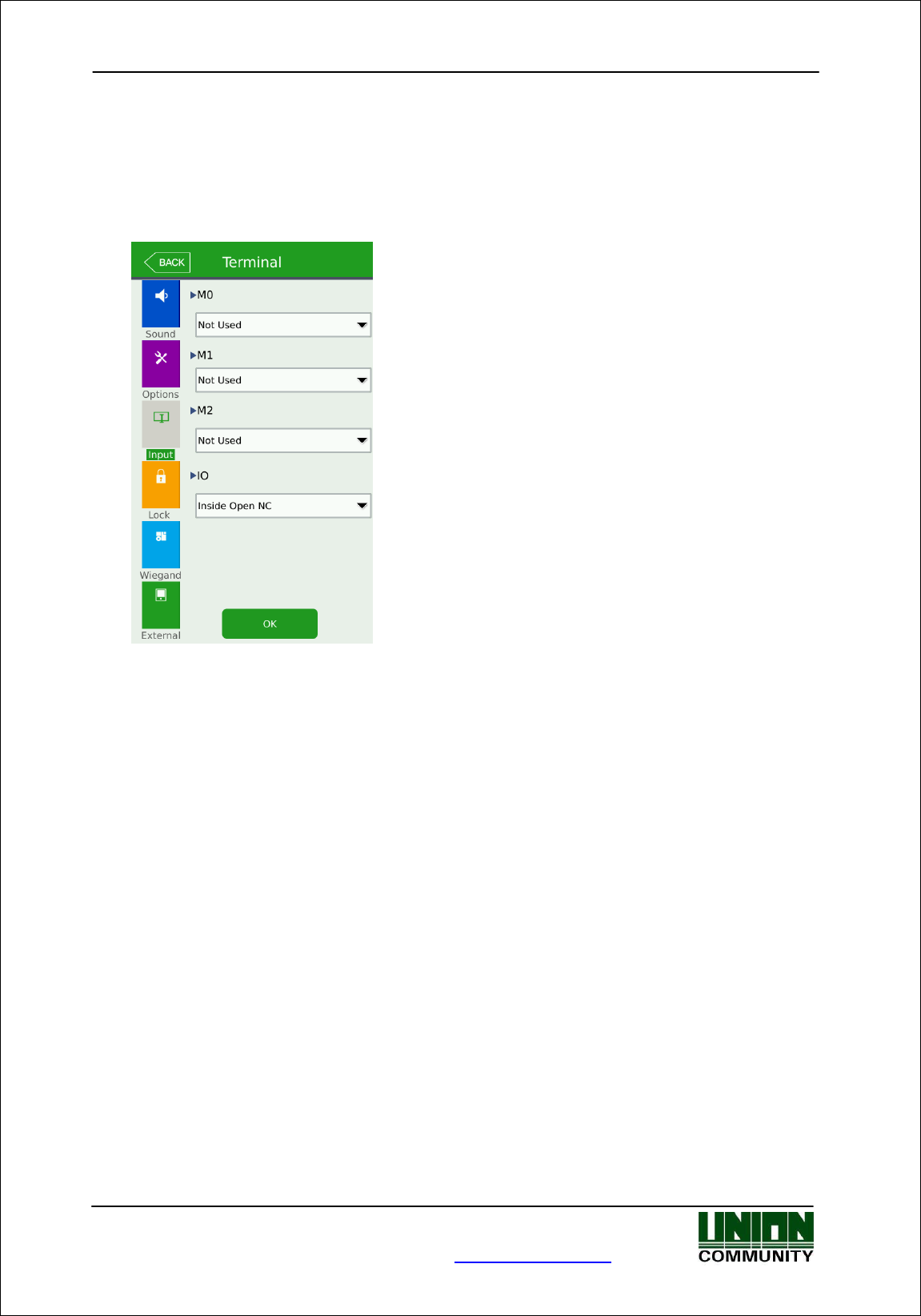

3. Input setting
▶M0
▶M1
▶M2
▶IO
MiKey AC1100 User guide
27
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com

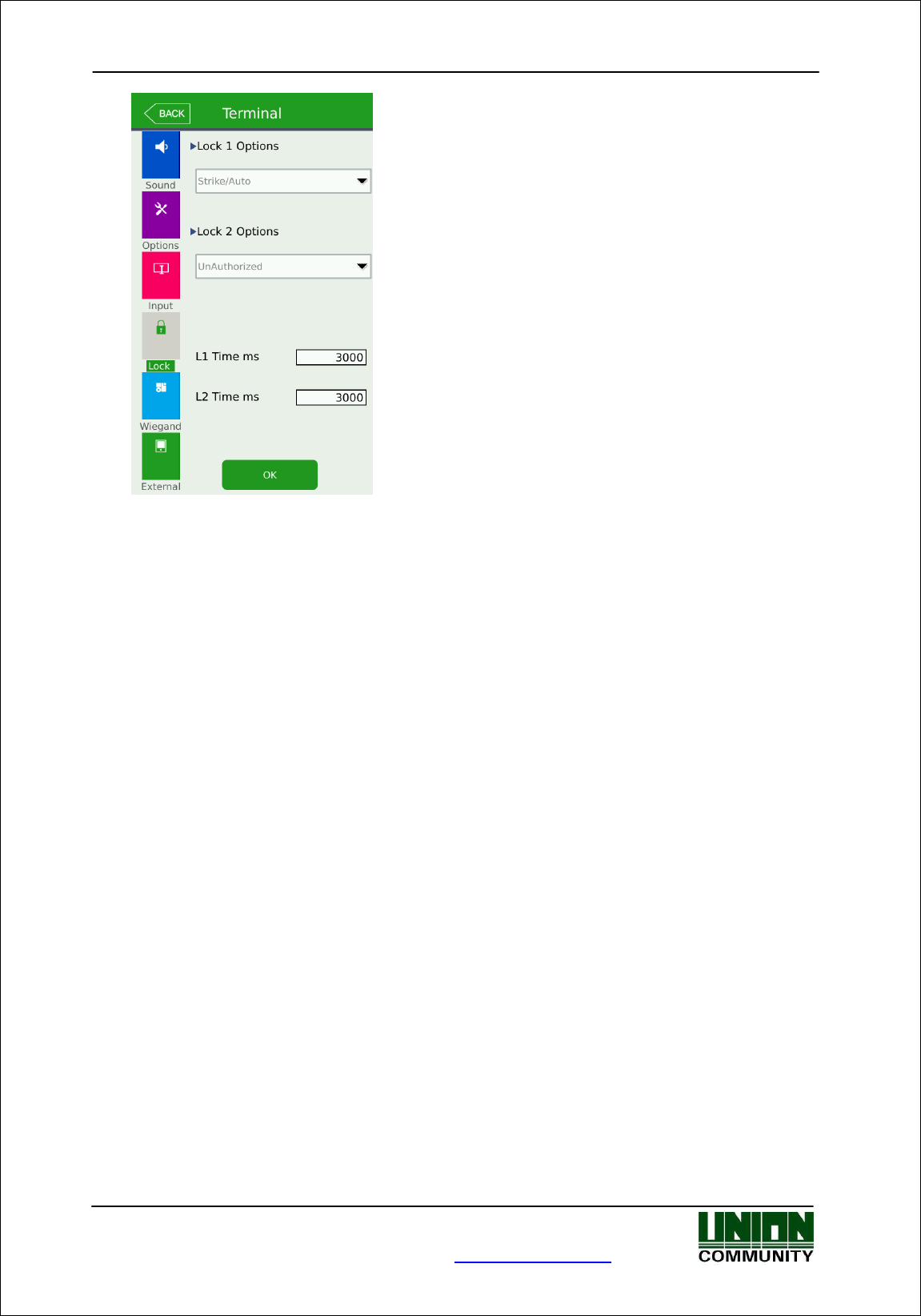

4. Lock setting
▶Lock1 options
▶Lock2 options
▶Lock1 time (ms)
▶Lock2 time (ms)
5. Wiegand
▶Wiegand
Site code
Wiegand Output
Wiegand Output Type
Wiegand Input

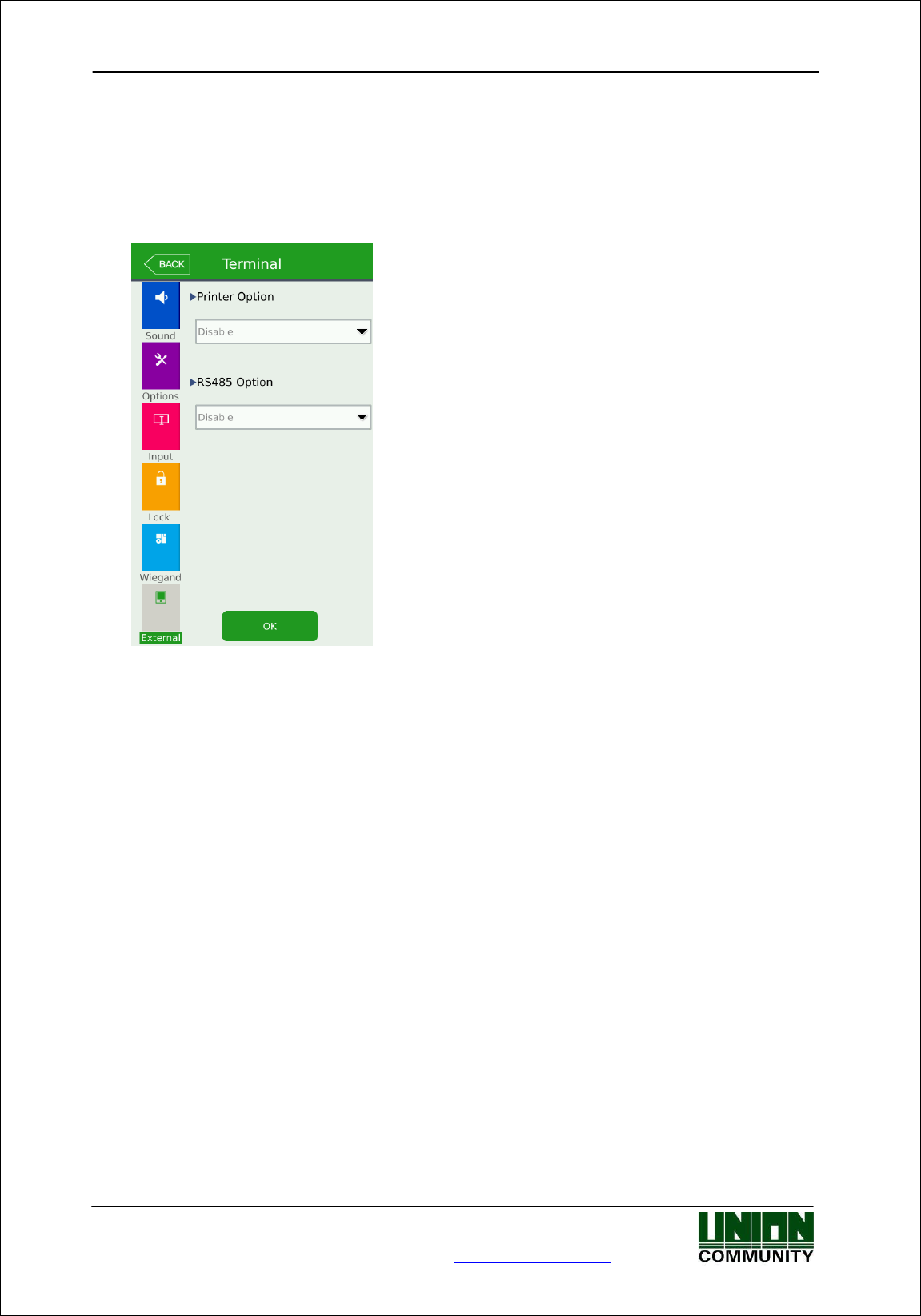

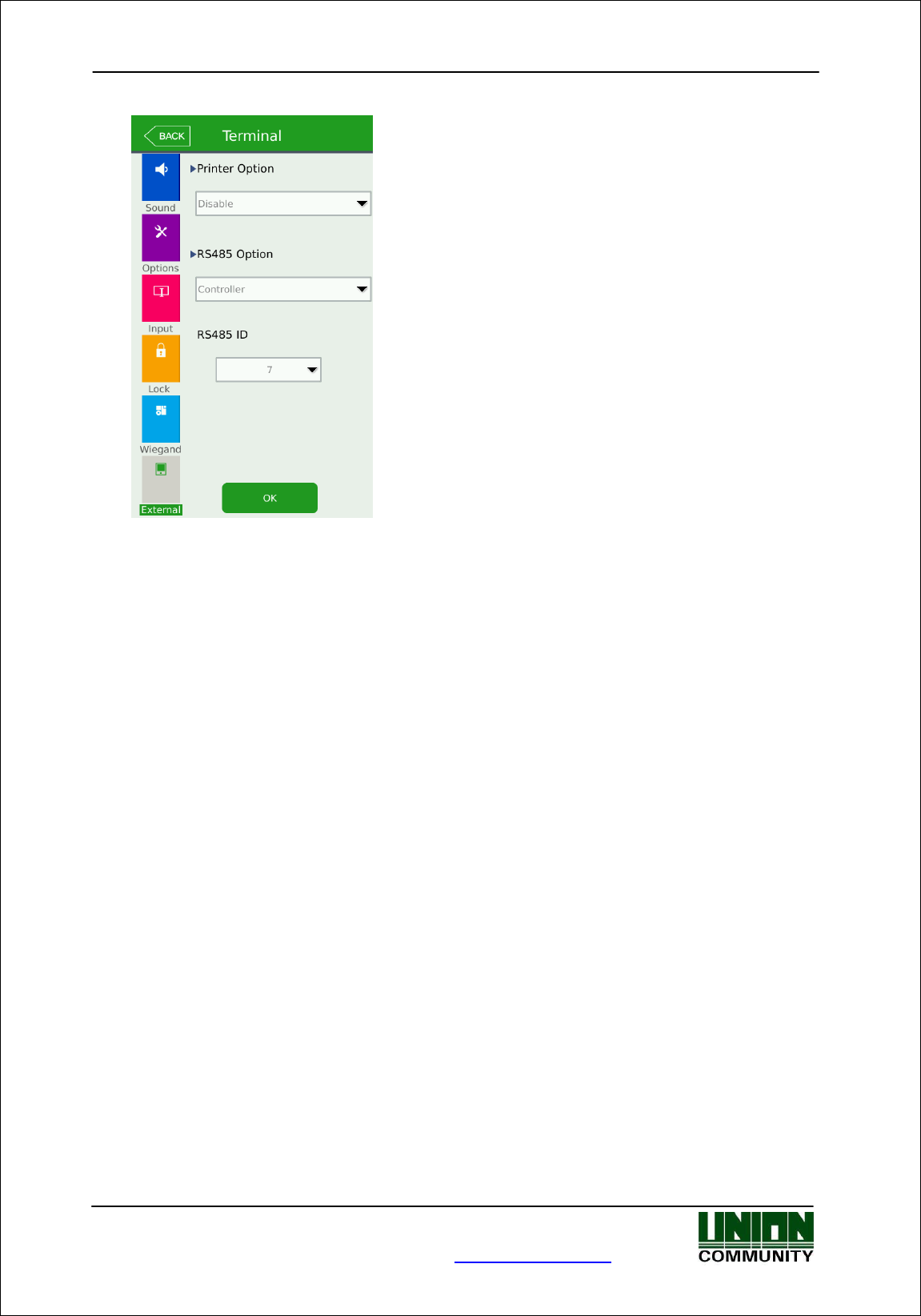

6. External
▶Printer option
▶RS485 option
6.Display
1. Theme
▶Main background screen
Background cycle period (seconds)
2. Camera
▶Display option
▶Save option
Save when authorization was successful
Save when authorization was failed
▶ Flash option
Disabled/Low/Medium/High
Delay (milliseconds)

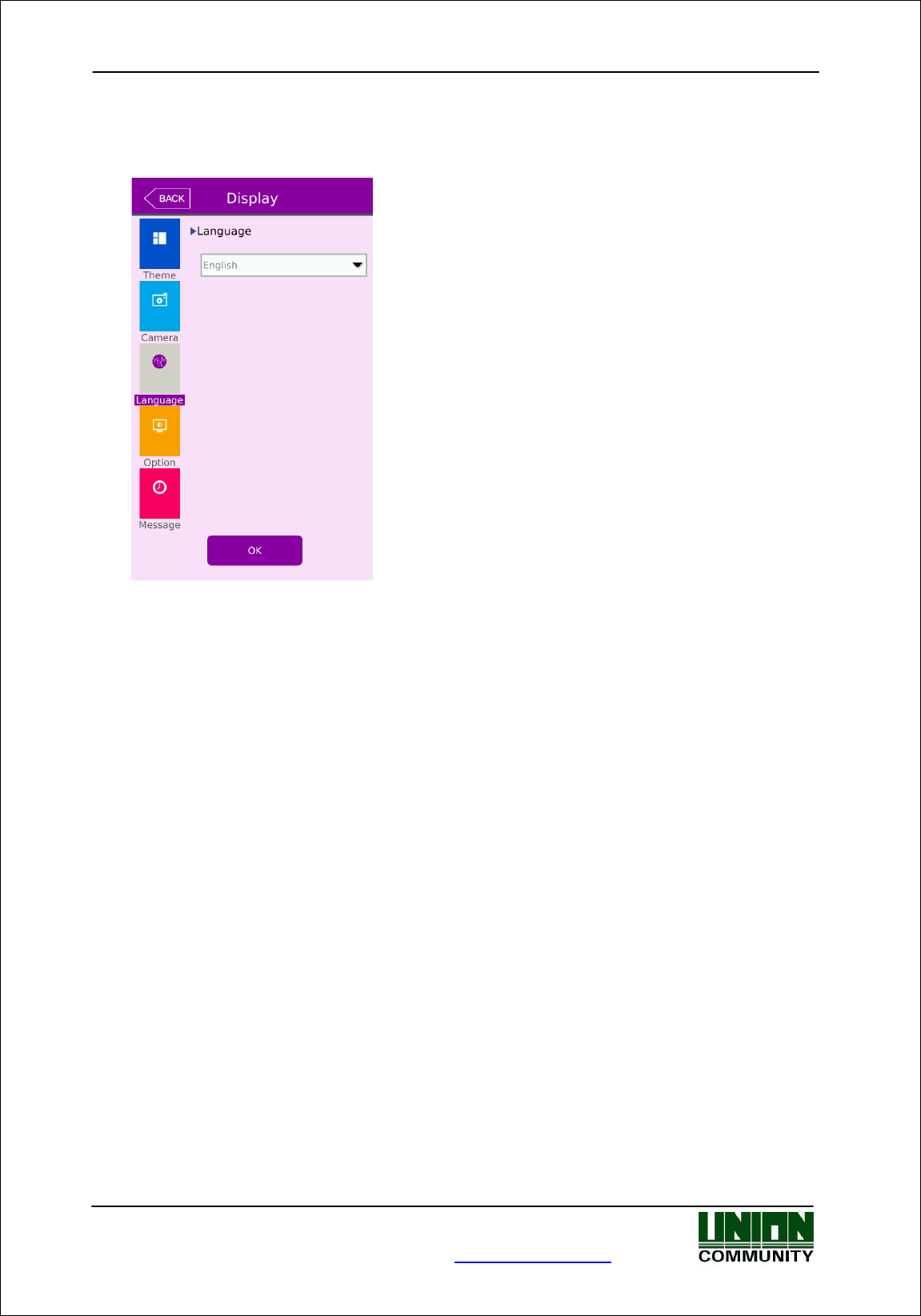

3. Language
▶Language
4. LCD option
▶Screen saver setting
▶User display option
▶Touchscreen recalibrate
5. Message Setting
▶Broadcast message display period
On Time (milliseconds)
Off Time (milliseconds)
▶Display Result Window Period
Display time (milliseconds)
7.Terminal
information
1. System
▶System information
▶System Storage
▶Ram
2. Terminal

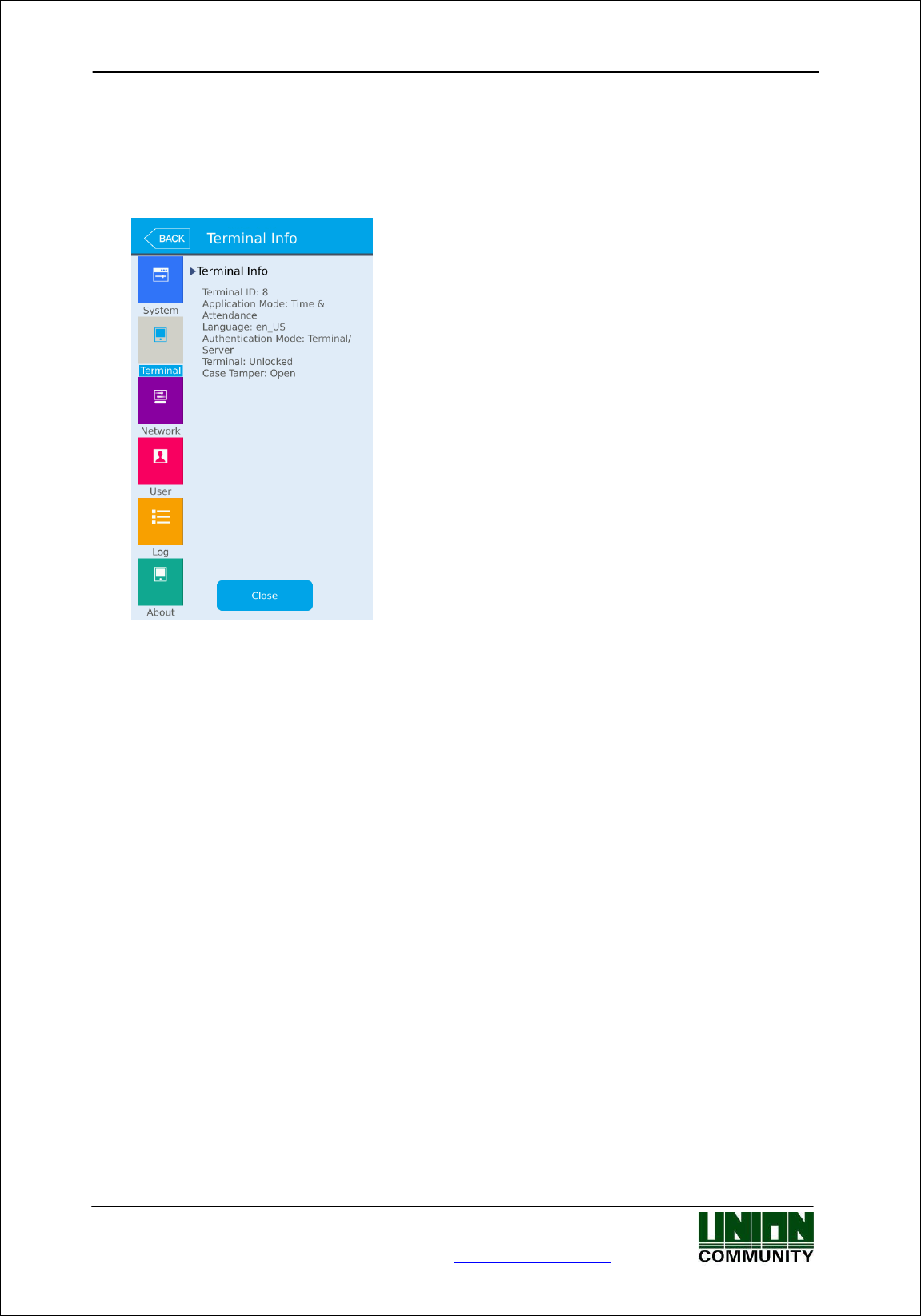

▶Terminal Information
3. Network
▶Network information
4. User
▶User information
MiKey AC1100 User guide
28
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com

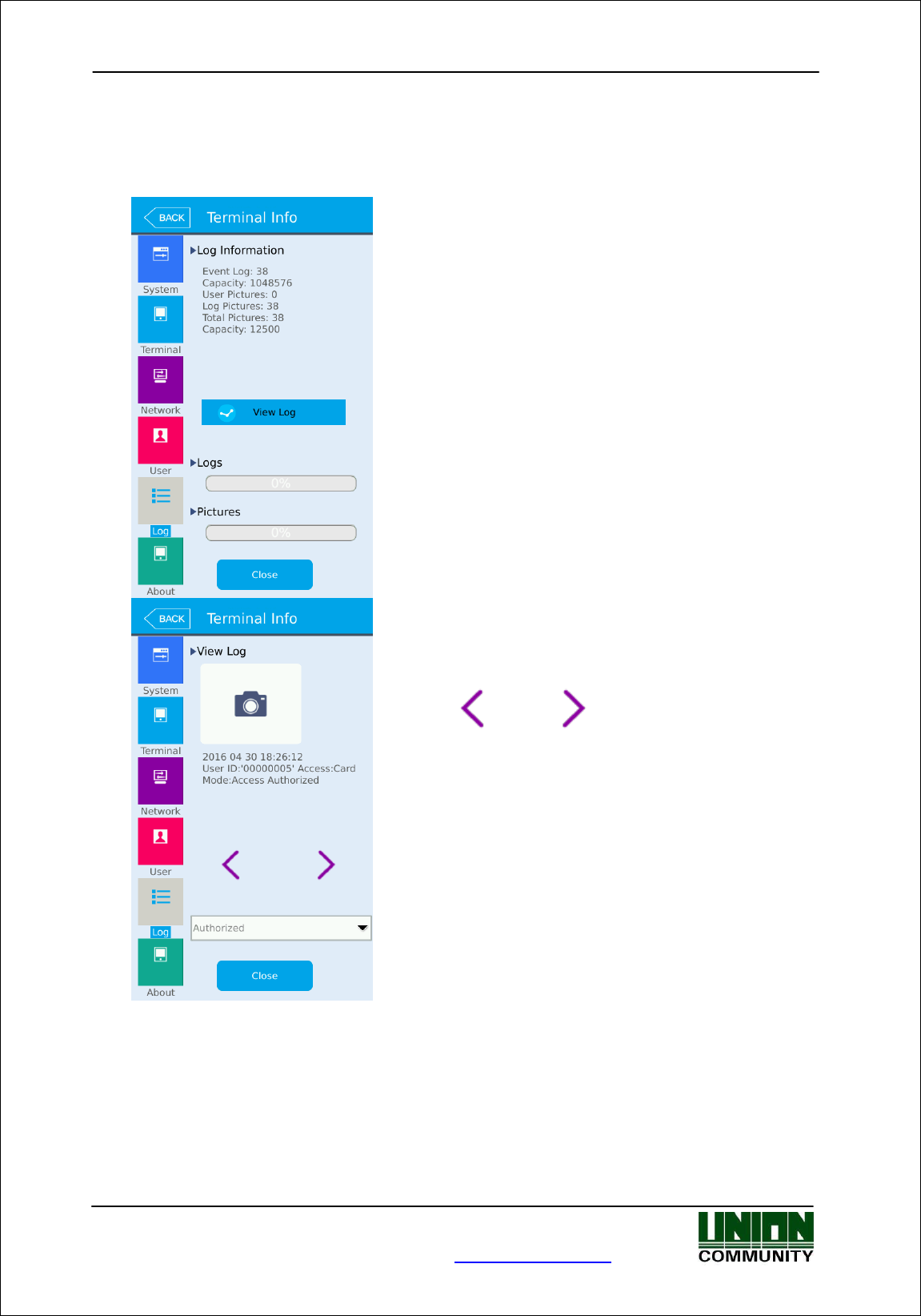

5. Log
▶Log information
View Log
6. About
▶About
Legal
8. SD card
1. Export
▶User data
▶Event log
▶System option
▶Export All
▶Picture data
2. Import
▶User data
▶System option
3. Other
▶Theme
Background import
Language file import
▶F/W upgrade
3.3. User management
When you select the [User Settings] at the main menu, the following window appears.
The number of all the users is shown at the top of screen
including administrators.
Select [Add] button to add the new user, [Modify] button
to modify the user, [Delete] button to delete the specific
user, [Delete All] button to delete all the users, and [View]
button to inquire the registered user list.
MiKey AC1100 User guide
29
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
3.3.1. Adding User
If you select [User Settings]->[Add] in the main menu, the following screen appears
Input the user ID to be registered and select [OK]
button.
In this case, the ID which can be registered is shown
on the screen automatically, so you can register
conveniently. If you want to change ID, delete the
previous value by selecting the button and
input the new value.
Click [Back] button to cancel and go back.
If you enter ID which is already registered, a failure message appears, and if the ID is
not already registered, the following screen appears.

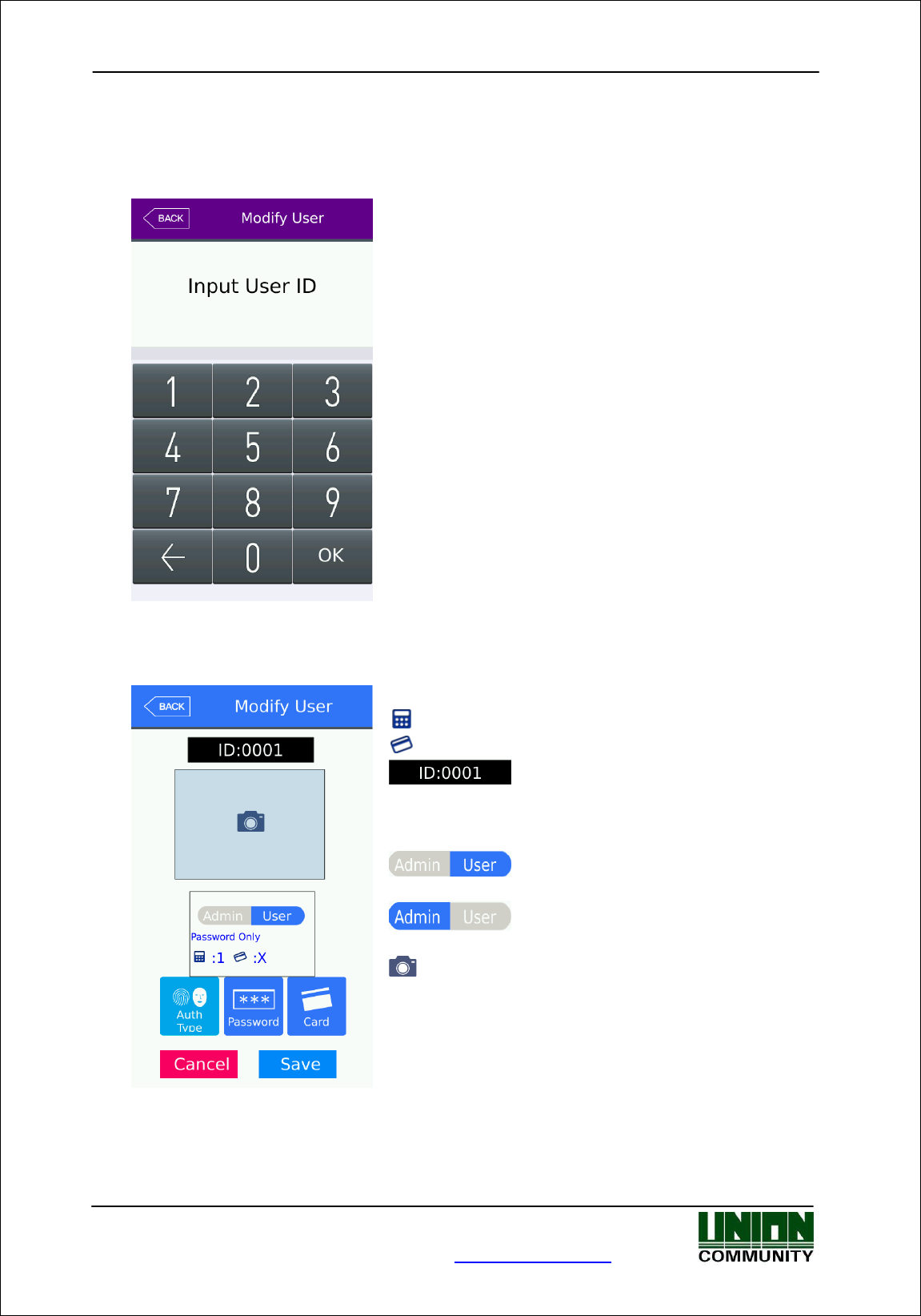

The icons in the left side mean as follows.
:Password Registration (X: none, O: Registered)
: Card Registration (X: none,1~5)
: User ID to be registered
User Type: This selection will NOT appear until a card
or password is registered for the user.
: User (normal)
: User (administrator)
button: Registration of picture
MiKey AC1100 User guide
30
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
You can register a card with [Card] button, a password with the [Password] button, and
change the authentication type. The default user will be a standard user and not an
administrator.
※ Users who are only registered as an administrator can change the settings of the
terminal and can register/modify/delete the information of all the saved users. Take
caution when registering an administrator.

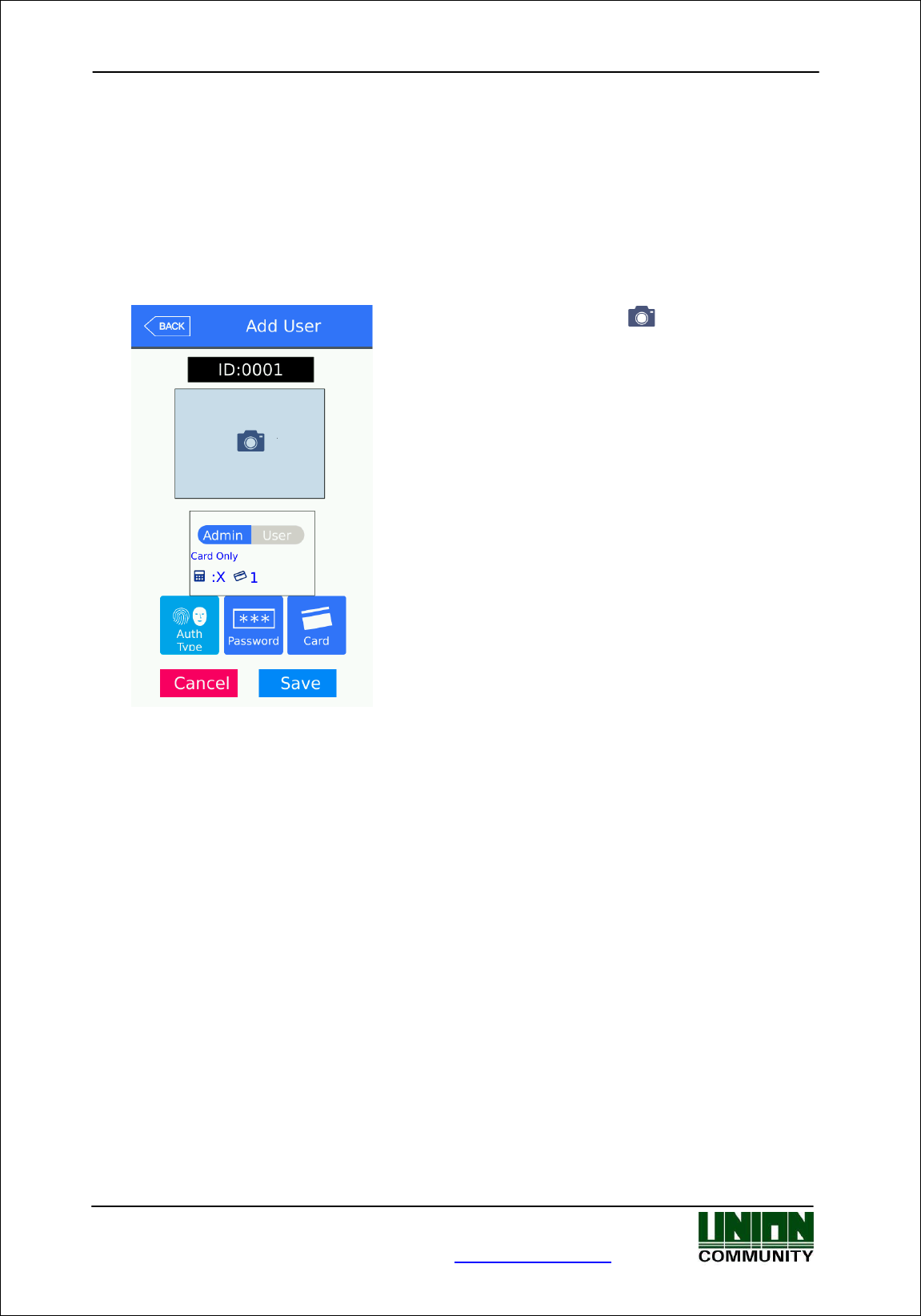

3.3.1.1. Photo registration
Take a picture by selecting [ ] button at the [Add
user] screen. Keep selecting the picture image until you
are satisfied with the current picture that has been
taken.
MiKey AC1100 User guide
31
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com

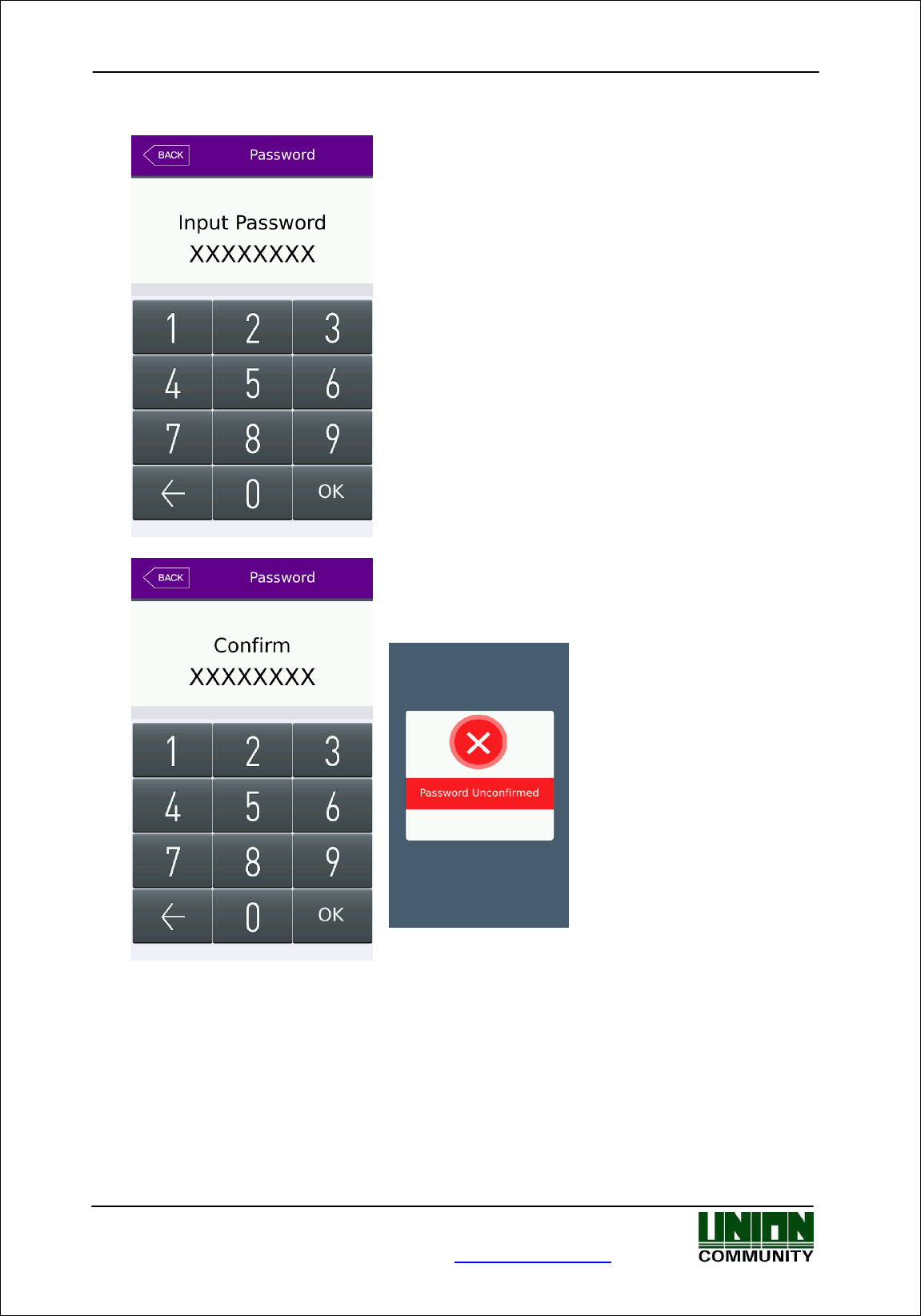

3.3.1.5. Password registration
Enter a password up to 8 digits in length. Once you are
finished select the OK button, after a confirmation
window will appear.
!!!
Enter the same digits to confirm your password is
correct. Select the OK button to continue.
If password is has not matched an error message will
appear.
MiKey AC1100 User guide
32
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com

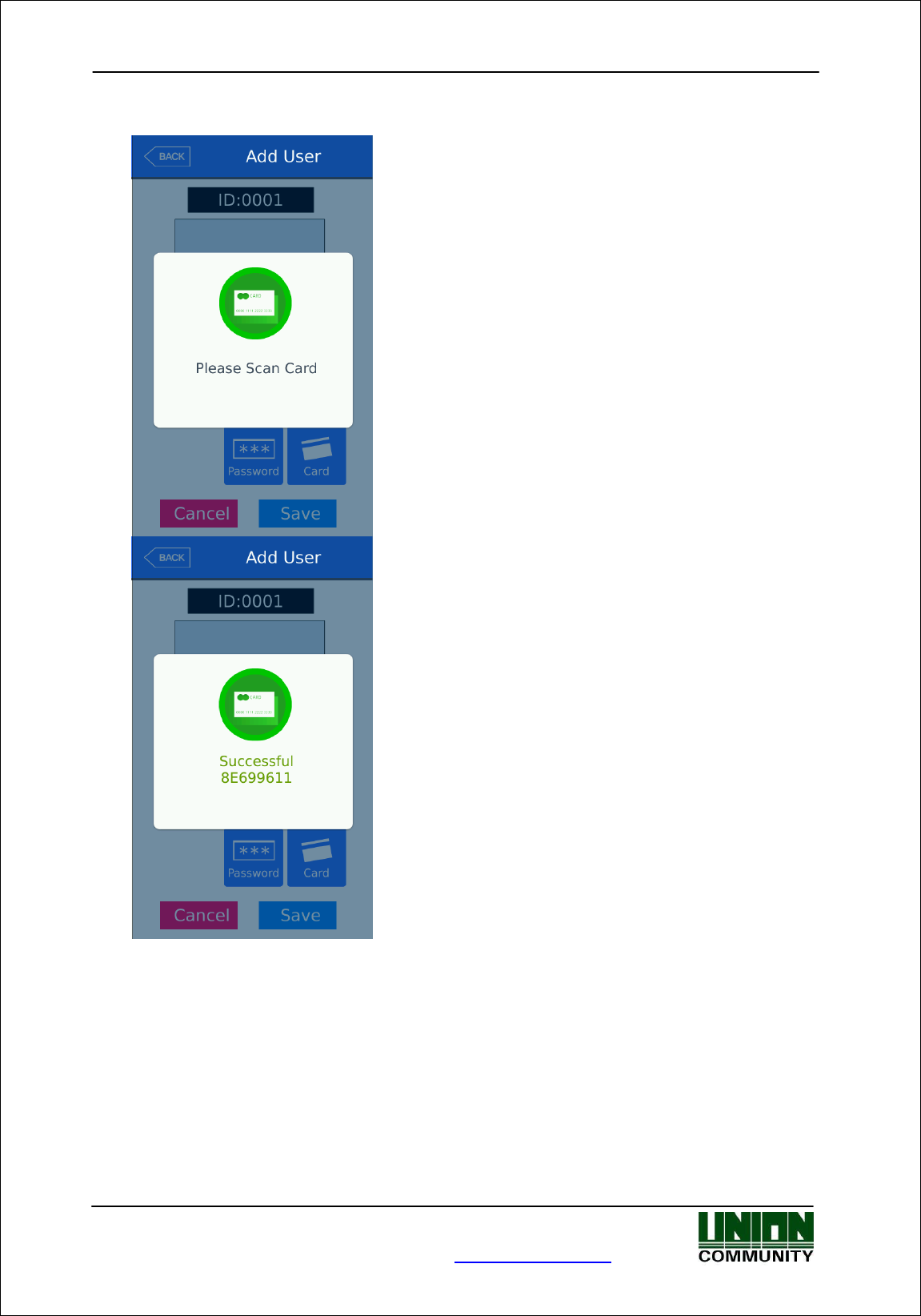

3.3.1.6. Card registration

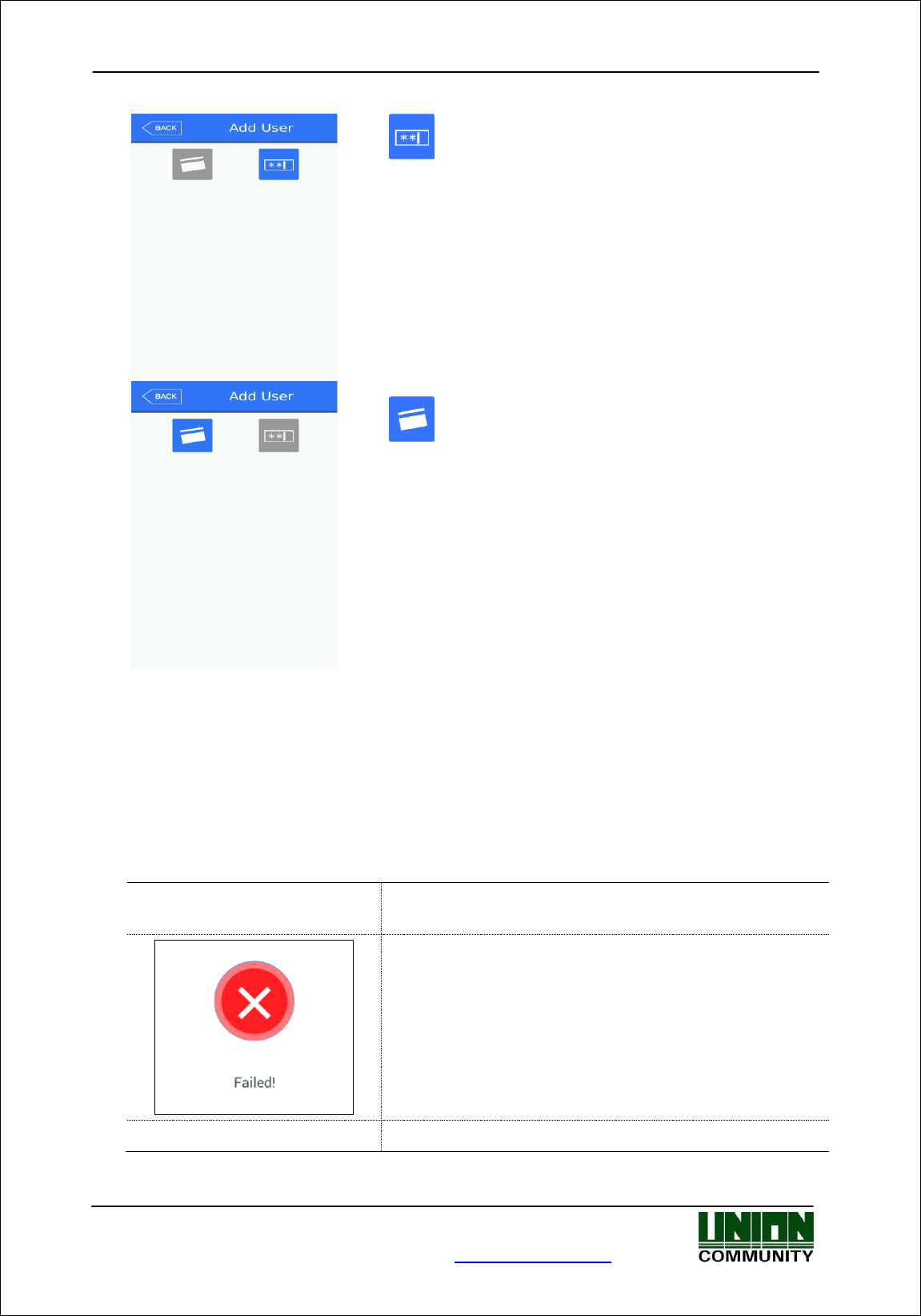

Select the Card Icon to register a card. A popup
message will appear waiting for you to scan your
card.
If successful the card number message will appear
indicating successful.
You can register up to 5 cards per user. If a same
card number is attempted to register again, an error
message will occur.
MiKey AC1100 User guide
33
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com

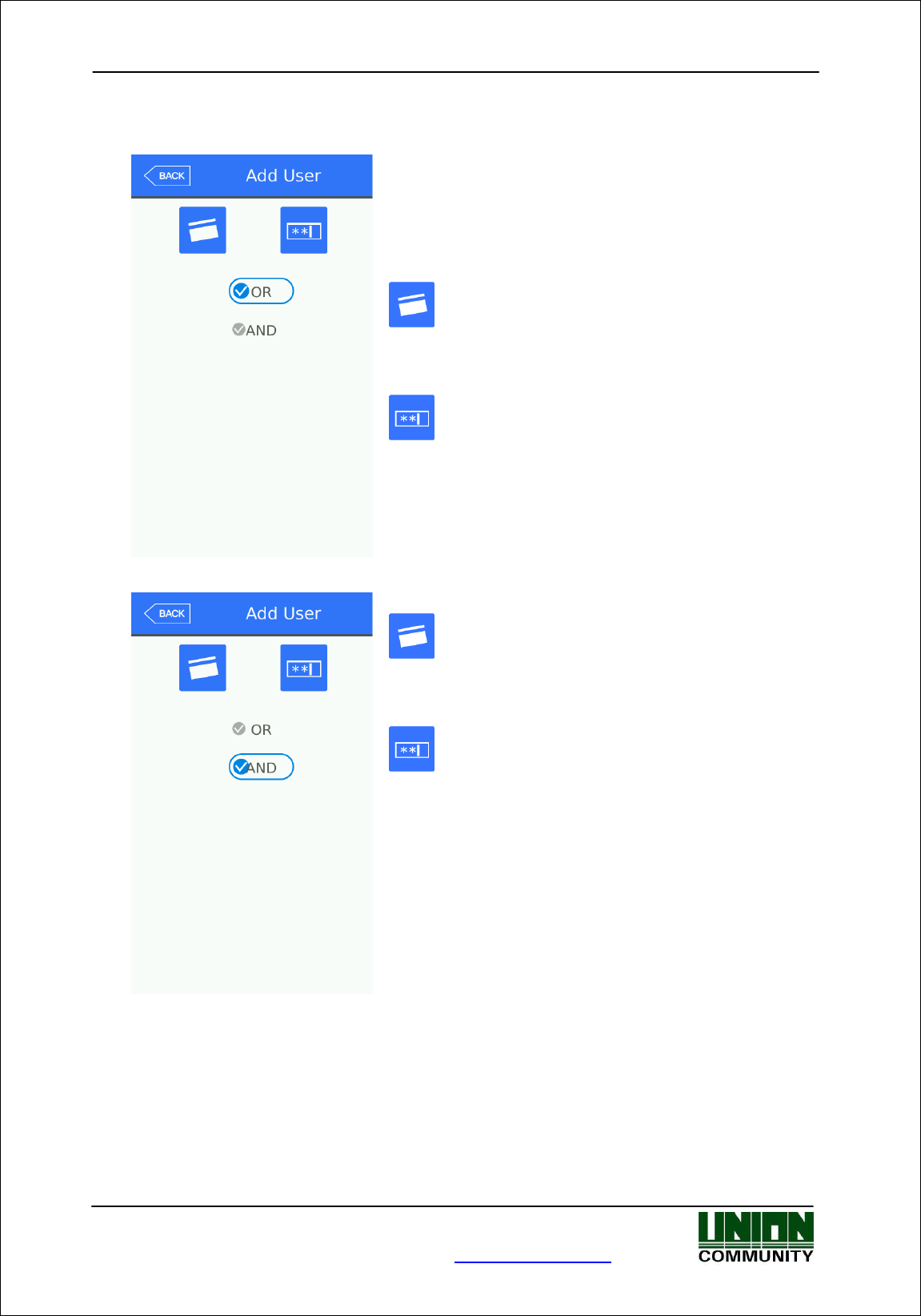

3.3.1.8. Authorization method
Select the Auth Type icon to change the authentication
type of the user. If only card is registered, only a card
icon will appear the same as password. If both are
registered you can select a combination of both types
using OR and AND.
: card
OR
: password
By selecting the BACK button the current selection is
saved.
: card
AND
: password
MiKey AC1100 User guide
34
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
: password only
: card only
3.3.1.9. Save
Select the [Save] button to save all user data when completed or select [Cancel] or
[BACK] button to return, the user is not saved.

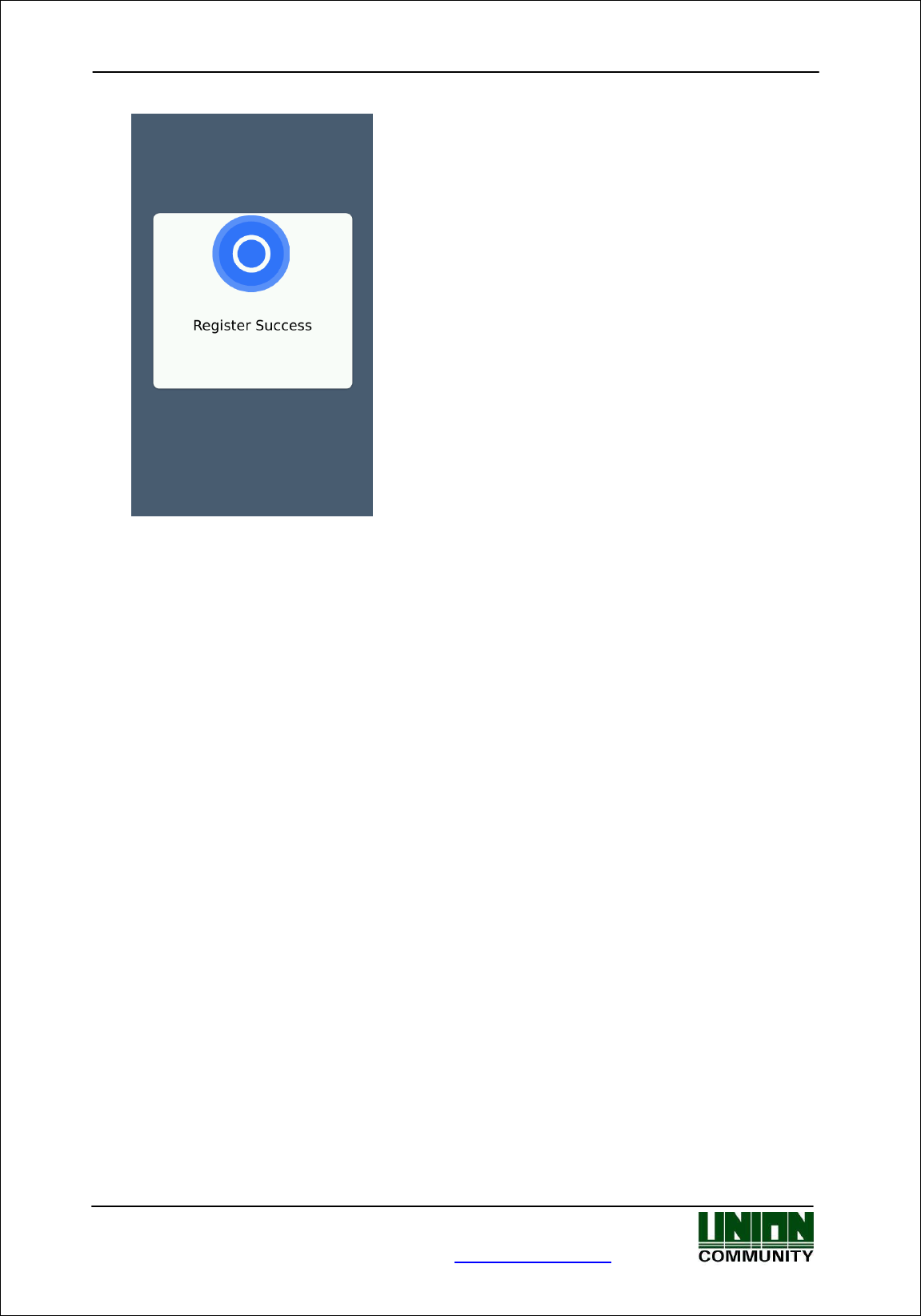

LCD messages which can appear during the registration procedure.
If user is not saved correctly this message will appear.
MiKey AC1100 User guide
35
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com

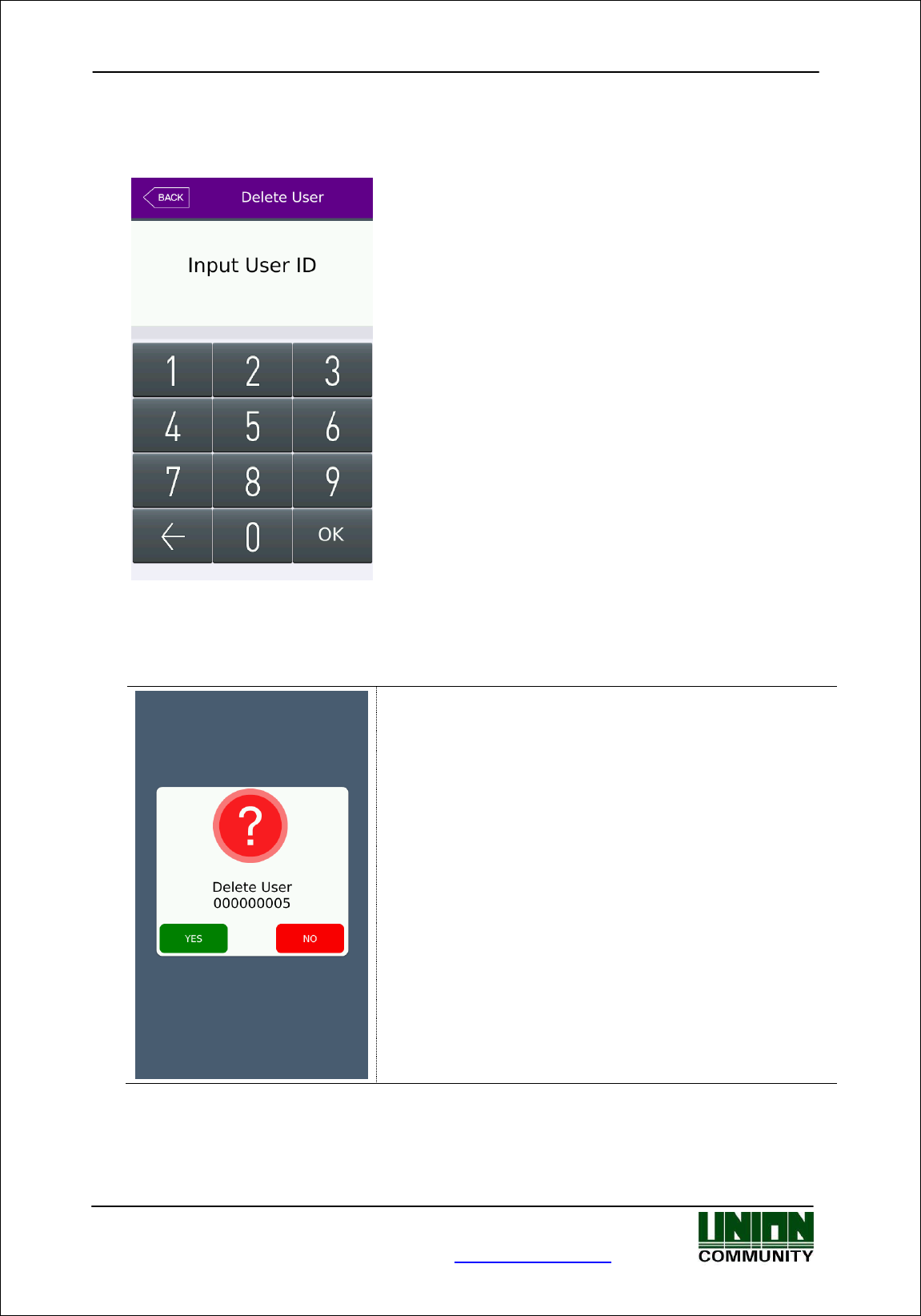

3.3.2. Deleting User
The following window appears if you select [User Settings]->[Delete] at the main menu.
Input the user ID to be deleted and select [OK]
button.
Select [BACK] button to cancel and return.
If you entered an invalid/unregistered ID, an error
message will appear.
If you entered a valid/registered ID a confirmation
window will appear.
Please note if connected to the server, the user is not deleted from the server. You should
synchronize and make sure the user is deleted in the server and the terminal.
Once the user is deleted it cannot be recovered.

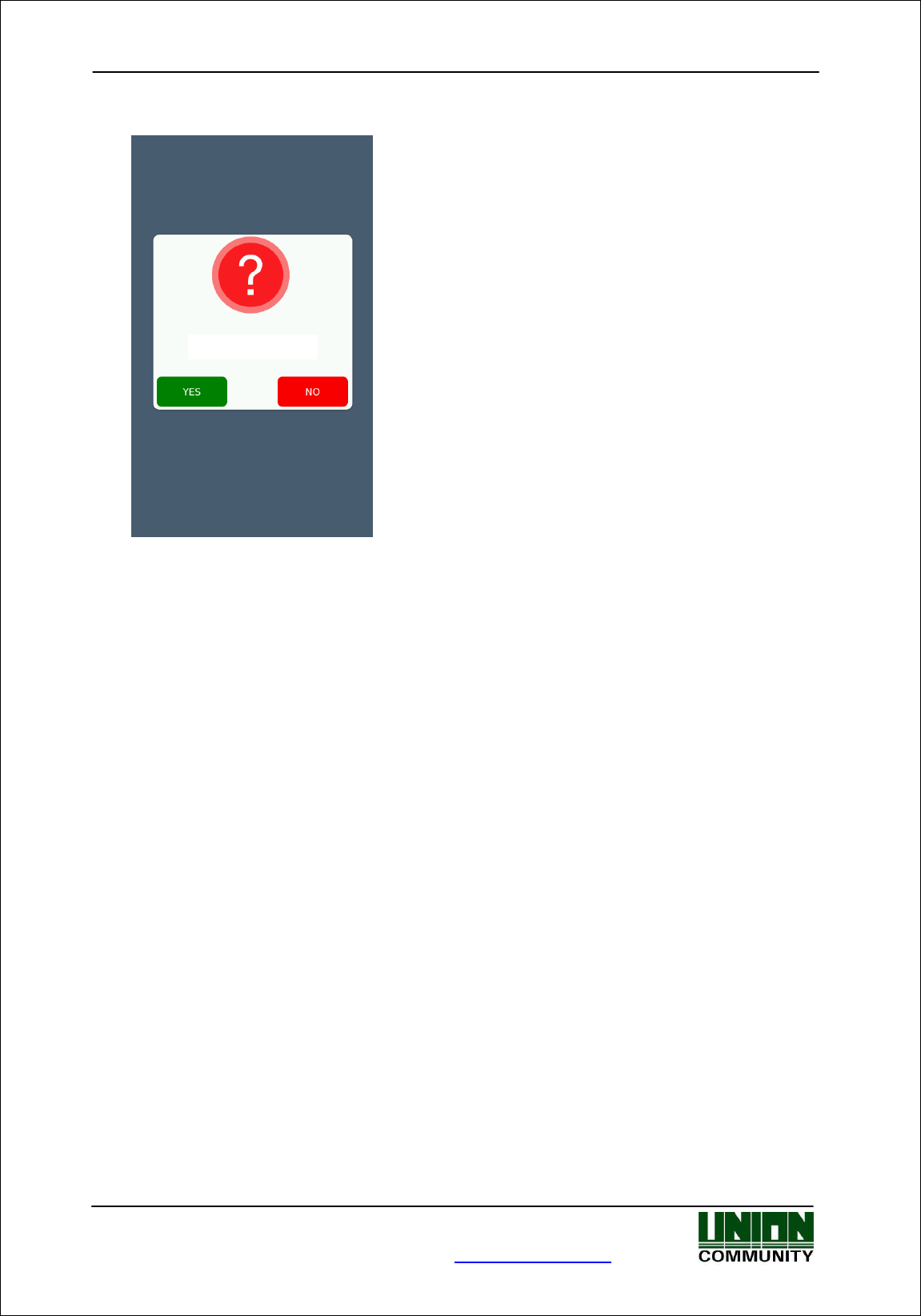

Confirmation Window.
Select YES to continue to delete.
Select NO to cancel the deletion.
MiKey AC1100 User guide
37
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
3.3.3. Modify User
The following window appears if you select the [User Setting] -> [Modify] in the main
menu.
Input the user ID to be modified and Select [OK]
button.
Select [BACK] button to cancel and return.
If you entered an invalid/unregistered ID, an error
message will appear.
.
If you entered a valid/registered ID, the same menu as ‘add user’ will appear. Follow the
same steps in the ‘add user’ section to change any current user settings
The icons in the left side mean as follows.
:Password Registration (X: none, O: Registered)
: Card Registration (X: none,1~5)
: User ID to be registered
User Type: This selection will NOT appear until a card
or password is registered for the user.
: User (normal)
: User (administrator)
button: Registration of picture
MiKey AC1100 User guide
38
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
3.3.4. Delete all Users
If you select the [User Settings] ->[Delete all] in the main menu, the following window
appears.

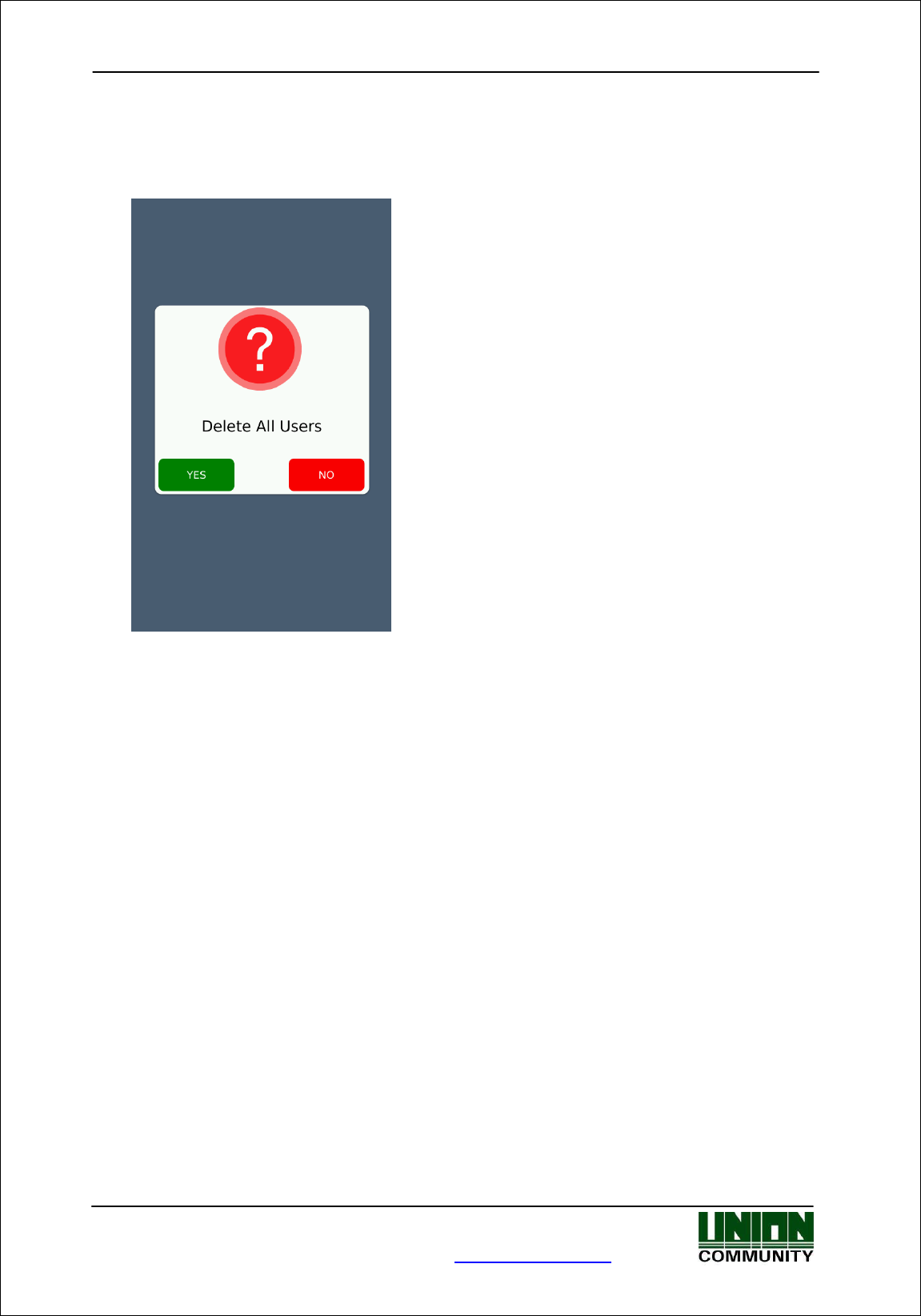

Confirmation Window.
Select YES to continue to delete all users
Select NO to cancel the deletion.
MiKey AC1100 User guide
39
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com

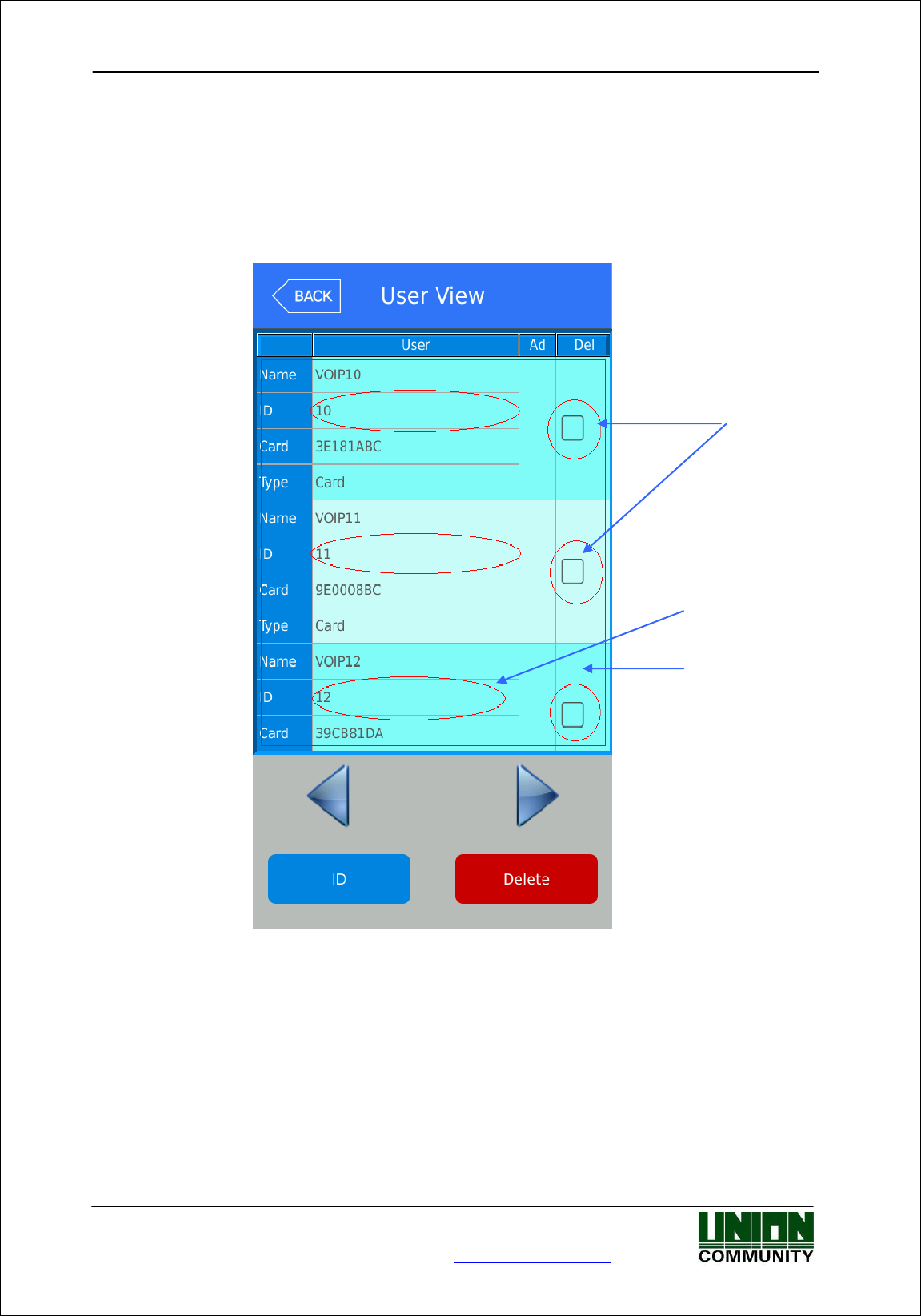

3.3.5. View
If you select the [User management] -> [View] from the main menu, all the registered
users can be viewed. User view area will show you a summary list of the users. User
name, ID, Card number and authentication type will appear for each user. You can select
a user for modification or deletion.
Select this area to
toggle the User’s
Delete status
Select this area to
select the user for
modification
Slide up or down in
the RED box area to
view more or less
users
MiKey AC1100 User guide
40
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
The maximum amount of users displayed is 50.
You can slide up or down in the box area (see
above) to move up and down the list. If more than
50 users (maximum display) a forward icon
will appear. If you select this, the next 50 users
will display. Select to move to the previous
50 users.
▶ [ID]: Select the user ID area to move directly
to the specific user’s modification window. See
above picture
▶ [Del]: If you select this area, a checkbox will
appear. Select the ‘Delete’ button to delete
the selected users. If you wish to delete all
users see section ‘Delete All Users’
▶ [Delete Button]: Once you select all the users
you wish to delete, select the ‘Delete’ button
to delete the selected users
If you select [BACK] button on the top, you can
move to the previous ‘3.3 User management]
menu.
▶If you input the User ID by clicking [ID search]
button, the user is searched like in the left
picture.
If you select the [BACK] button in this window,
you can move to the ‘3.3. User
management’ menu.
▶ [ID Button Search]: Select this and an ID input
number window will appear. Enter the ID of the
user you wish to view. After you select the ID,
only the user id you selected will appear in the
view area.
MiKey AC1100 User guide
41
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
3.4. Network Settings
The networks settings area allows you to setup IP addresses, gateways, subnet mask,
DHCP or static settings, Terminal ID Number or wireless settings. When selecting
DHCP ensure that your network has a properly enabled DHCP server available. Also
you should give time for the terminal to acquire the DHCP address; usually this can
take from 1-60 seconds. While in this menu if you press the DONE button the server
will be disconnected and the link will be reconnected to the server. You can re-initiate
the network connection by entering this menu and pressing done.
Ethernet Setup Procedure:
1) Setup Static OR DHCP
2) If Static then set the terminal IP/Subnet Mask and Default Gateway.
3) Set the Server IP Address, PORT and Terminal ID
4) If using Wireless go to Wireless Options and Press “Available Networks” until your
router appears in the available network window.
5) Press/Select the station you wish to connect to, it should be highlighted.
6) Go to wireless advance settings to set the Security Level/Rate or Channel.
7) Press OK.
Pressing OK will disconnect the current connection and then try to re-establish a new
link from the setup parameters that were just entered. At anytime select the Back
button to cancel and not save any changes.
▶Basic setting: Same with the window at the left
side.
Select the method [Static IP] if the static IP is
allocated from the connected network, and select
[DHCP] if the IP is allocated from the DHCP server
in the connected network.
If you selected [Static IP], set the IP address,
subnet mask, and gateway. And if you selected
[DHCP], you will not have to set the IP, Gateway or
Subnet.
▶ [Port]: The port value of the authorization server (server) is ‘9870’, and if you change
MiKey AC1100 User guide
42
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
the value, you should change the server program with the same value, so be cautious.
▶ [Terminal ID]: The terminal ID number uniquely identifies the terminal on the server
program network. For every terminal on the server network you should program a
different terminal number. This value should be 1-8 digits in length
▶ [Timeout]: The default timeout is 5 seconds. When using server authentication, this
period is the time in which the terminal will wait for a response from the server before
timing out. The value is from 5 to 30 seconds.
For static IP usage you must program the Terminal IP, Subnet Mask and Default Gateway. If
DHCP is selected, these values cannot be programmed and will be grayed out. The port
number must match the port number that is programmed in the Authentication Server.
If you touch the item you want to change, the
keypad appears at the bottom.
Select the button to backspace/return to
delete the current entry.
Select the OK button when finished the entry in the
field.
If you want to apply the changes, select [OK]
button, and return to the previous menu by
selecting [BACK] button.
MiKey AC1100 User guide
43
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
3.5. Application
3.5.1. Application mode
If you select the [Application] in the main menu, the following window appears.
In the application mode, you can select the [Access Control/ Attendance management/
Meal management] according to the purpose.
3.5.1.1. Modes
Normal Access Mode
It is the screen appearing when you select the Access.
Select [OK] button to apply the changes, or select
[BACK] button to cancel and return.
An Access Control application is normally used for
providing access to a secure area, function keys are not
needed unless extra tracking of the user is needed. If
the system is setup for Access Control and Function
keys are used for authentication the user is required to
touch the mode function key before entering their ID or
card.
MiKey AC1100 User guide
44
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
Time and Attendance
Select [OK] button to apply the changes, or select
[BACK] button to cancel and return.
Time schedules should be programmed when using this
mode. Time and Attendance Application is for systems
that require tracking of employee’s work time. If the
system is setup for Time and Attendance, for
authentication the user is required to touch the function
key before entering their ID or Card.

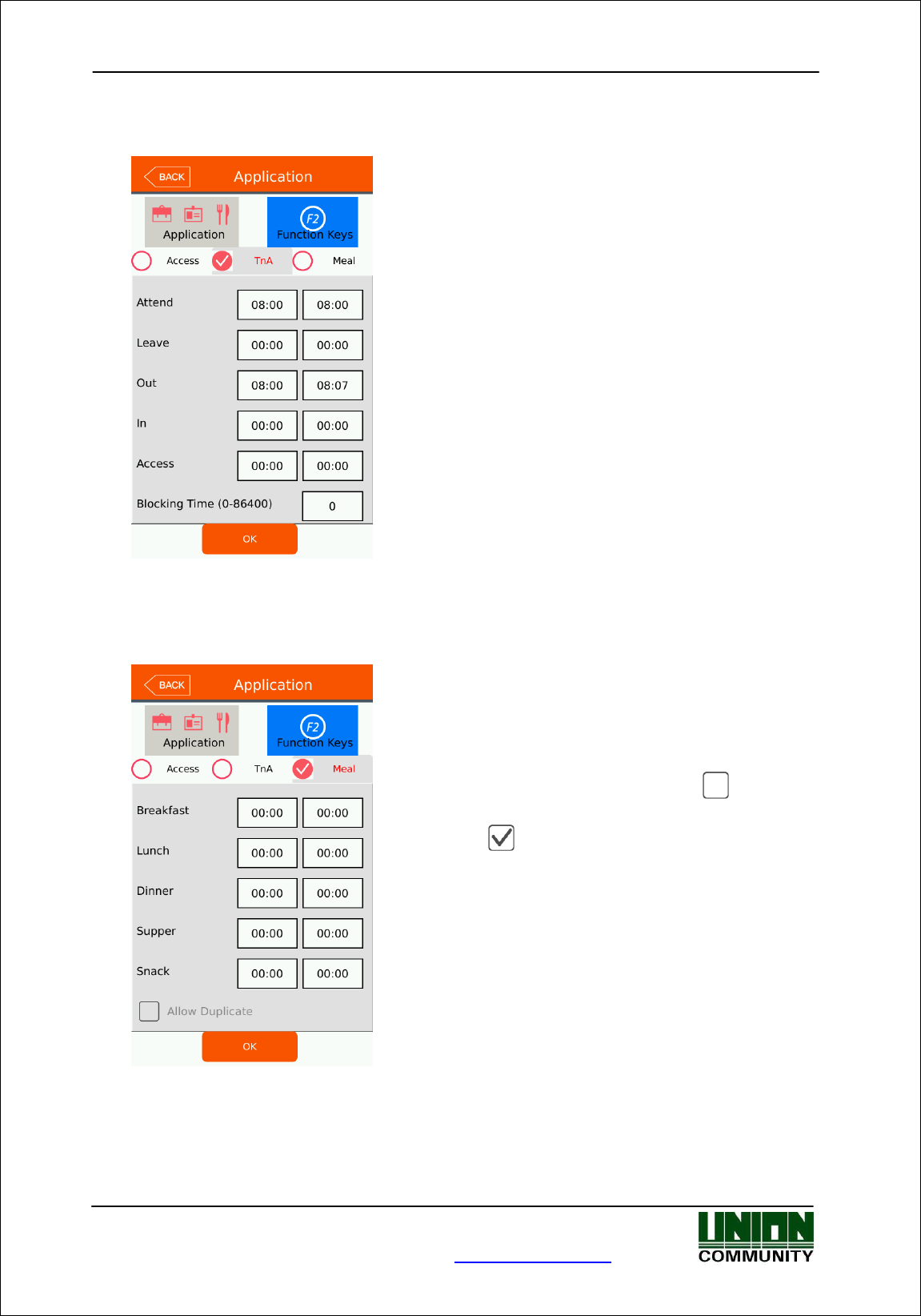

Meal Management
It is the screen appearing when selecting the meal
management.
You can set the time period of each meal type.
And if the setting is not needed, set ‘00:00-00:00’.
▶Allow duplicate: If it is unchecked ( ), each user
can authorize once in the one meal, but if it is
checked ( ), the multiple authorization is possible
regardless of the previous authorizations.
Select [OK] button to apply the changes, or select
[BACK] button to cancel and return.
▶Schedule setting (00:00~23:59): You can set the time for each authorization mode and
if you do not need the function, set ’00:00 00:00’.
MiKey AC1100 User guide
45
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
During the set time periods, the mode will change automatically to the time period
setting. If a function key is pressed during the time period, the function key will change
to the new mode, after 15 seconds the system will revert back to the current time setting
mode.
i.e , if Period mode = Leaving mode, Function key -> Enter mode is pressed, after 15
seconds the mode will change back to Leaving mode.
The time periods should not be overlapped, but if they are overlapped, the application
order is Attend->Leave->Out->In->Access. If the time is set between 23:00~01:00, it
means from 23:00 to the 01:00 the following day.
▶Blocking time: This function prevents the same user to authorize again in the set time.
There is no restriction if it is set 0, but if it is set larger than 0, the user can authorize
again when the set time (sec) is passed from the previous authorization. It can be set
up to 86,400 seconds (24 hours).
3.5.2. Function keys
The following window appears if you select the [Application] -> [Function key] in the
main menu.
MiKey AC1100 User guide
46
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
▶ Basic setting : Same with the window at the left side
▶F1-F4 Key
Access button used to change the authorization mode
such as attendance and leaving, and if you select the
F1-F4 Key, the authorization mode is changed to the
mode. Only the checked buttons will appear on the
main window. Note: Only maximum 2 function keys
will appear on the main window, any additional
function keys will appear in the extended key window.
▶ In some cases additional function keys are needed in
addition to the four main function keys. The
administrators will setup the terminal for this
operation. Up to 60 additional function keys are
available. The extra function keys will appear in the
extended view window from the main window.
4 – 60 extended keys can be selected.
Select the [OK] button to save the value or select [BACK] button to cancel and return.
MiKey AC1100 User guide
47
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
3.6. System
3.6.1. System
The following window appears if you select the [System] -> [System] in the main menu.
MiKey AC1100 User guide
48
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
▶ User ID Length
The user ID length can be 2 to 8 digits in length. The user
ID length will be the length of the user ID required to
authenticate. The user ID length should be the same value
that is programmed in the server software. Any place that
requires the entry of a user ID will be restricted to the
length that is programmed in this area. This value should
reflect the amount of users in your terminal. For example, if
you have fewer than 100 users than enter 3. If your have
more than 10000 users, then program a 6 digit length.
Note: When changing the ID length shorter than the
previous programmed value; be aware that an
administrator may not be authenticated properly to
enter administrator programming if their ID length
was longer than the current length. It is
recommended this value be changed at the time of
setting up the terminal, and not during regular
usage.
▶ Authentication
One of Four options is available for the authentication
mode. This setting determines where the user
authentication is done, in the server or locally at the
terminal, or both. Change this setting when there is high
network traffic, many users, or authentication is too slow.
The default setting is Terminal/Server
Terminal/Server – If the local terminal is properly
connected to the network server, the authentication is done
at the local terminal and the result is sent to the server in
real time. However, if the user ID entered does not exist in
the local terminal the authentication is requested at the
server.
Server/Terminal - If the local terminal is properly connected
to the network server, authentication is done in the server.
If there is a disconnection or communication trouble
between the server and terminal the authentication is done
at the terminal.
Server Only – The authentication is done only at the
network server.
Terminal Only – The authentication is done only at the
terminal.
▶ Job Code
When this option is checked and a registered user is
successfully authenticated, the user will be required to
enter a 2-8 digit code as the final step. This can be any
four digit code from 0-99999999. If the code is not entered
when this checkbox is enabled authentication will be
denied.
MiKey AC1100 User guide
49
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
3.6.2. Mobile Key
The following window appears if you select the [System] -> [Mobile] in the main menu.
Basic system setup can be used to setup the card reader using smart phone administrator
application or when using mobile key authentication with the smart phone user
application.
By default mobile key is enabled. If you do not
require any Bluetooth mobile function you can
select to disable.
Mobile Key Name – this is read-only field and is
created automatically after registering the card
terminal with the administrator smartphone
application.
Registering Bluetooth Device
1) Select Add terminal (admin mobile app)
2) Select the terminal (admin mobile app)
3) Select Register Device button – this menu
4) Select login id or password if enabled. (mobile
app)
5) Select terminal id (admin mobile app)
6) Complete.
If mobile key is disabled, all mobile options will not
be visible.
MiKey AC1100 User guide
50
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com

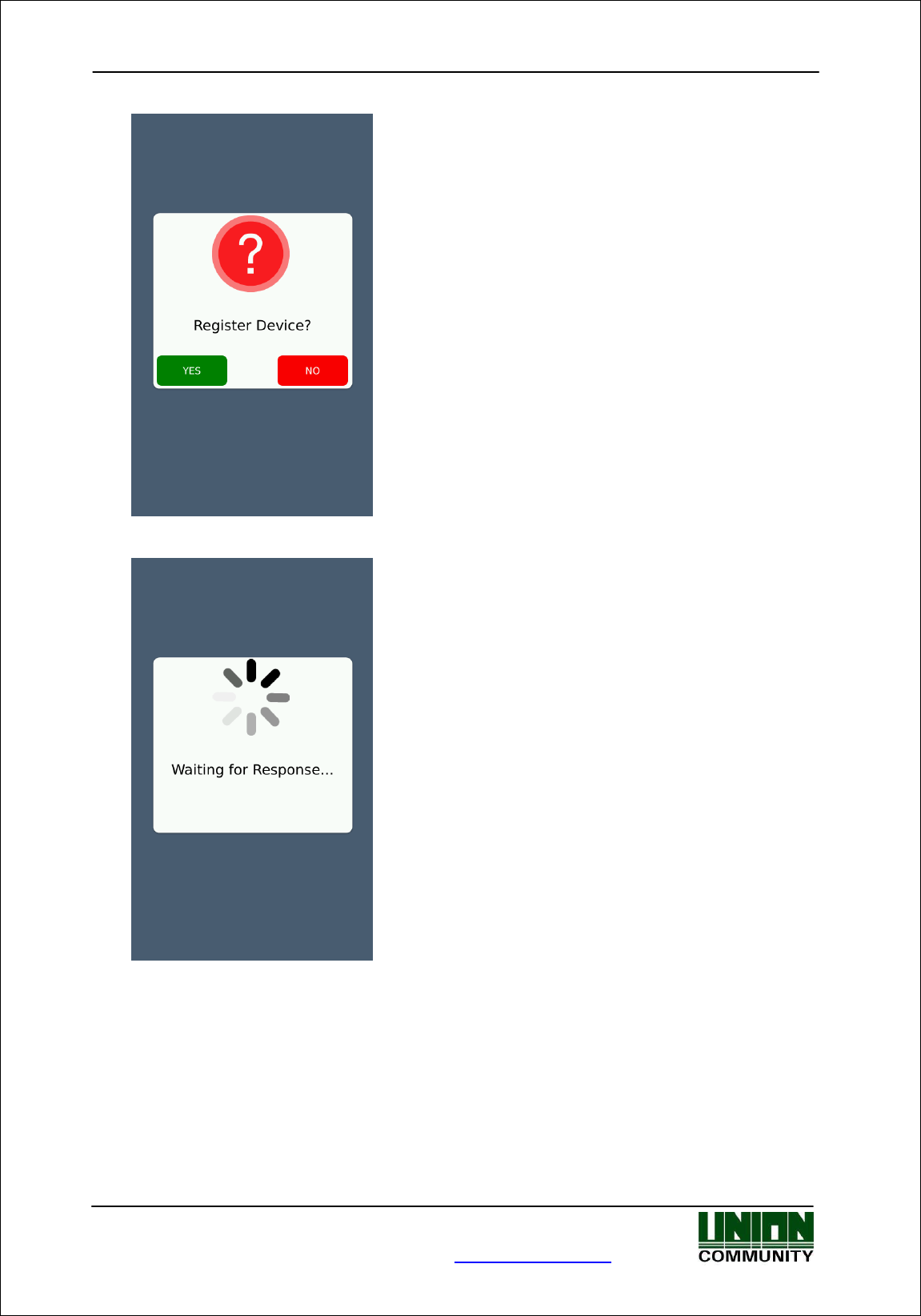

Confirm Bluetooth Registration
Select YES
Waiting Bluetooth Registration
Administrator Mobile App requires login before
continuing.
MiKey AC1100 User guide
51
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
After Administrator Mobile App enters a terminal ID,
the registration process is complete.
3.6.3. Face Detection
This feature is for detection of a face only; the terminal will not recognize a specific user’s
face with this function.
This feature can be used for all card users, all mobile users or all password users. After a card,
mobile key or password is presented, the terminal will wait up to 10 seconds for a face to
appear in front of the camera. If no face is present after 10 seconds the terminal will reject
the transaction.
This feature can be useful when you want to force the users to show their face during
authentication, in case of stolen cards, or lending cards to other employees during a time and
attendance application.
MiKey AC1100 User guide
52
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
Select the checkbox for authentication types required
for a picture during authentication.
Card, Mobile Key, Password.
By default this feature is disabled.
Detection Level
When one of the checkboxes above is selected, this
defines the detail of facial detection.
1) Level 1 – Basic face , faster
2) Level 2 – Detail face , may take slightly longer
Select the [OK] button to save the value or select [BACK] button to cancel and return.
MiKey AC1100 User guide
53
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
3.6.5. Time/Date
If you select the [System] -> [Date/Time] in the main menu, the following window
appears.
▶ Time Sync:
This is how terminal time/date is updated.
- Auto/Server – updated from the server. No need
to set Date/Time below.
- Manual – set the time/date from this menu and
the server will not update the time/date.
Note: When connecting with the Bluetooth/mobile key
application, the terminal time/date is always updated.
▶ Time Format:
The Date/Time Display Format will change the way the date
and time is displayed on the main screen. Only English
Language allows the selection of different formats. All other
languages will only have Enable/disable, and the date will
appear in their locale format. There are six choices:
1) Short form day (three letters), Short form month (three
letters), DD, YYYY, HH:MM AM/PM (Thu, Mar 24 2009
08:19AM – no 24hour time, use AM/PM)
2) Short form day(three letters), same as 1, except use 24
hour time display
3) MM-DD-YY HH:MM AM/PM (03-24-09 08:19AM)
4) MM-DD-YY HH:MM (24 hour time) (03-24-09 23:44)
5) YYYY-MM-DD HH:MM AM/PM (2009-04-24 08:19AM)
6) YYYY-MM-DD HH:MM (24 hour time) (2009-04-24 23:44)
Setting Date/Time only required if set to ‘Manual’ in the time
sync area.
▶ Set Date
▶ Set Time
Touch the area where the time is displayed. A number pad
will appear. Enter the time in the format HH:MM:SS. (24
hour) For example current time is 11:14:00pm, enter ‘2’
‘3’ ’1’ ’4’ ‘0’ ’0’ and then press OK when finished. If a number
is invalid or there is no entry, pressing OK will do nothing.
Select the [OK] button to save the value or select [BACK] button to cancel and return.
MiKey AC1100 User guide
54
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
3.6.6. Database
If you select the [System]->[Database] in the main menu, the following window appears.
▶ Delete All Users: This option will allow you to delete all
users in the system
.
▶ Clear Settings: This option will clear/delete all the terminal
settings. The factory settings will be used. User, log data and
pictures will not be deleted.
▶ Clear Log Data: This option will clear/delete all the log
data in the terminal. This will not delete picture log data or
terminal settings
.
▶ Clear Picture Logs: This option will clear/delete all the
picture log data. The terminal can hold up to 70,000 pictures
(user pictures + log pictures). If you need more user
database pictures you can delete the picture logs.
▶ Factory Init: This option will reset the terminal settings,
delete all the picture logs, delete all users and all log
information.
Select the [OK] button to save the value or select [BACK] button to cancel and return.
MiKey AC1100 User guide
55
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
3.6.6.1. Database Confirmation
▶ A confirmation window will appear after selecting one of
the selections from above.
Select YES to continue to delete or NO to cancel.
Note: A backup of the user, system settings, pictures
or logs should be done before erasing the data.
Backup from USB device or system Server device.
(USB port is service port.)
MiKey AC1100 User guide
56
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
3.7. Terminal settings
3.7.1. Sounds
If you select the [Terminal] -> [Sound] in the main menu, the following window appears.
▶Voice volume
Scroll from side to side in to select the appropriate voice
setting. A voice will be played after releasing the selector
to determine the volume. Slide all the way to the left to
disable voice prompts. Default is OFF.
4 Voices are used
1) You are authorized (Success)
2) Please Try Again (Failed)
3) Enter your Card
4) Enter your ID
This value determines sound level of:
- Error tone wave
- Success tone wave
- KeyPress tone wave
- Other sound effect tones
If Voice volume if OFF, then all sound effect tones will
follow beep volume setting value
▶Beep volume
Scroll from side to side to select the beep volume.
Selectable area from 4 types. Default is 2
0 (off)
1 (low)
2 (medium)
3 (high)
▶User voice
If the user wishes to change the voice played when the authorization is successful or
failed, you can import new voices using USB function. See USB section
(USB port is service port.)
Select the [OK] button to save the value or select [BACK] button to cancel and return.
If you want to set another item, select the menu you want to change at the left side.
MiKey AC1100 User guide
57
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
3.7.2. Terminal option
If you select the [Terminal]->[Terminal option] in the main menu, the following window
appears.
▶ Card Reader
If you scan/touch your card to the terminal, the terminal
will beep and display the card number. The card number
depends on the card format selected from the Card Format
option below. Default is Standard
▶Warn door open (sec) 0-99
Default 0 - disabled
This function will produce a warning tone after the set time
when the door remains open after an access to the
terminal.
To use the function, the lock must be able to be monitored
if it is opened or closed, and the monitoring pin of the lock
also should be connected with M0, and set for Door Monitor
NO or NC.
▶ Case Tamper
If this option is enabled and the case tamper on the back
of the terminal is ‘opened’ (terminal removed from the
wall), an error sound will be heard every 5 seconds when
the main window is displayed. During administrator
programming this sound does not occur. Also, if a case
tamper occurs the status icon for ‘trouble’ will always be
displayed on the main window. See Icon list for details.
Default enabled.
▶ Lock terminal
This function enables the administrator to lock or unlock
the terminal directly on the terminal, not on the server
program. If it is checked ( ), the main window will
display ‘Locked’ status. No authentication is possible during
this time. Default disabled
▶ VoIP
Voice Over IP enabled. Default is disabled.
▶Card format
MiKey AC1100 User guide
58
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
Card format determines how the card data is converted once it is read from the terminal.
Note: If you change the card format, you must re-register all card users in the device. When
registering a user in the terminal, this value should be set, considered first.
Also we registering a user from the server, the card format at the server must match the
terminal format.
The card number is converted according to the following settings.
RFcard EX) Card number (5byte): 08h 01h 16h 1Dh D6h
Card format
Card number
Expression
Standard
02207638
(3+5)digits decimal
[022(16h)+07638(1DD6h)]
Hexadecimal
0801161DD6
10digits hexadecimal
10 Digit Decimal
0018226646
Posterior 4byte: 10digits decimal
(01161DD6h)
3,5 Digit Decimal
02207638
Same with [Standard]
SCcard example) card number(4byte): 52h 9Dh 06h E3h
Card format
Card number
Expression
Standard
529D06E3
8 digits hexadecimal
Hexadecimal
E3069D52
8 digits hexadecimal with changing the
order of byte
10 Digit Decimal
1386022627
hexadecimal 529D06E3: 10 digits decimal
3,5 Digit Decimal
3808861522
hexadecimal E3069D52: 10 digits decimal
Select the [OK] button to save the value or select [BACK] button to cancel and return.
3.7.3. Terminal Input
MiKey AC1100 User guide
59
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
If you select the [Terminal] -> [Input] in the main menu, the following window appears.
The Terminal has the ability to monitor the physical lock and/or door state when the door
is open and closed, or terminal can be used to monitor status of another external device.
See the installation guide for details how to connect.
▶ Default Setting : M0-M2 not used, IO (Inside
Open)
The inputs accept a relay input either Normally Closed or
Normally Open. You should program the input according to
your relay activation type. (NC or NO). It is recommended
that not more than one of the same option is used. For
example do not program M0 for Door Monitoring and M1
for Door Monitoring.
Normal Connection
M0 – door monitor
M1 – lock monitor open
M2 – lock monitor closed
These are the available types of monitoring options:
Disabled – If you do not use the input for anything select this options
Door Monitor (NC/NO) – if you are connecting a door monitoring device select this option.
The terminal will monitor when the door is opened and closed.
Lock Monitor (NC/NO) – if you are connecting a lock that can be monitored when the lock
is opened select this option. If the lock has an error opening the terminal will sound an
error tone. (Normally used for Motor Lock Monitoring when lock is opening)
Lock Monitor 2 (NC/NO) – When using a motor lock use this option to monitor the motor
lock closing status. Only use this selection for motor lock monitoring.
Inside Open (NC/NO) – if you would like to connect a Request to Exit device, door open
button select this option. Usually if the terminal is on the outside of the door, this door
open button or Request to Exit is connected inside the door. The button is pressed the
terminal will unlock the door.
Host (NC/NO) – This option is used to disable the terminal from access. In applications
where you have an external controller or terminal that should be accessed first before the
card reader you can use this option. If input is not activated, the terminal will not accept
card, mobile or id input; when the signal from the external device is de-activated the
terminal will allow access. This can be used in situations where the guard terminal is the
master terminal, when the guard approves the access, then the output will trigger the card
reader to allow authentication.
Fire Monitor (NC/NO) – If you have an external device that has a fire output, the terminal
will monitor when the device detects a fire alarm. The terminal will show a fire icon and
MiKey AC1100 User guide
60
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
give an audible warning tone; if any doors are connected to the terminal the terminal will
open the doors. When this signal is activated, the server software will also be notified of
the fire signal to alert other terminals connected on the network.
Wiegand Mode (NC/NO) – If using wiegand output, this input can be used to verify the
external controller acknowledged the card data that was sent on the wiegand output.
i.e Card Scanned at terminal, card data sent to external controller using standard wiegand
output, the terminal will wait until the external controller sets this input high or low to
acknowledge the card was accepted by the controller.
Select the [OK] button to save the value or select [BACK] button to cancel and return.
3.7.4. Terminal Lock
If you select the [Terminal] -> [Lock settings] in the main menu, the following windows
appear. See the installation guide for details how to connect a lock to the terminal.
MiKey AC1100 User guide
61
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
▶ Default Setting: Same as the window on the left.
▶Lock 1 and Lock 2 Open Time (milliseconds)
Lock activation times can be programmed from 300ms to
999999ms. (maximum is 99.999=100 seconds)
Lock 1 and Lock 2 Options
Not Used – select this option if not using the lock outputs
Authorized – select this option if you want to provide an output signal when a user is
authorized. i.e. Lamp Signal
Unauthorized – select this option if you want to provide an output signal when a user is
unauthorized. i.e. Lamp Signal
Trouble – select this option if you want to provide an output signal when the terminal has a
trouble condition, the only monitored trouble condition is ‘case tamper’. An external controller
can be notified when this event occurs. If a door is forced open this output will also activate.
Motor Lock 1 – Select this if connecting a motor lock to the terminal to control when the lock is
opening.
Motor Lock 2 – Select this if connecting a motor lock to the terminal to control when the lock is
closing.
Strike/Auto – Select this if connecting a strike type or auto door lock to the terminal.
Scheduled – In the server program if you program the schedules and send the schedule to the
terminal, the terminal will activate the output when the schedule becomes active. This can be
used to turn on an external device during specific times of the day for a specific duration.
Note:
For motor lock settings normally two outputs are used. You should select Motor Lock 1 for Lock 1 and
Motor Lock 2 for lock 2. The terminal will automatically set Lock 1 and Lock 2 if you program for Motor
Lock.
MiKey AC1100 User guide
62
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
3.7.5. Terminal Wiegand
If you select the [Terminal]->[External device] in the main menu, the following window
appears.
▶ Default Setting: Same as the window on the left.
▶Site code
It sets the sitecode value sent in Wiegand output below.
When the authorization is successful, the data of the
following format is sent to the Wiegand port of the
terminal.
▶Wiegand Input
Standard wiegand is 26 or 34 bit. The terminal is always
waiting for wiegand input, up to 34 bits.
Use Terminal option, card reading to view the card number
received at the wiegand input. If the format of the data is
incorrect it must be setup using the server program.
▶Wiegand Output
This is only used when connecting the terminal to an external controller to notify the controller
with card data or user id that was used. Standard wiegand output is 26 or 34 bit. If any other
format is needed, the setup must be done using the server program.
Wiegand Output type can be set for User ID, Card Number or Unique ID.
None
General case. It does not use Wiegand out port.
26bit
Sending “Sitecode[1byte] + User ID[2 byte]”, set the user ID less or
equal than 4 digits.
Send example) In case of SiteCode:045(2Dh), UID:6543(198Fh)
1 00101101 0001 1001 10001111 0
34bit
Sending “Sitecode[1 byte] + User ID[3 byte]”, set the user ID less or
equal than 7 digits.
But, if the user ID is 8 digits, ignore sitecode and send only the “User
ID[4byte]”.
Send example) SiteCode:001(1h), UID:123456(1E240h)
0 00000001 00000001 11100010 01000000 0
Custom
When the server program sets the wiegand output to other value than
the standard 26/34 bit, this is displayed. This type can only be selected
and setup using the server program.
Select the [OK] button to save the value or select [BACK] button to cancel and return.
MiKey AC1100 User guide
63
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
3.7.6. Terminal External
If you select the [Terminal]->[External device] in the main menu, the following window
appears.
▶ Default Setting: Same as the window on the left.
See Installation Guide Section 11 for connecting a
serial printer.
▶Printer Option
Disabled – select this if not using
T/A Ticket – if using Time and Attendance mode and
require a printout every time authorization occurs.
Meal Ticket – if using Meal Mode and require a printout
every time authorization occurs.
The printing format differs as per each setting. The final
result (time/date, mode type, etc) will be printed.
The printer used must be only SRP-350 serial type model.
See Installation Guide Section 12 for connecting an
RS485 bus.
▶RS485 Option
Disable – select this if not using
LC010/BLC – Select this when using Virdi LC010 or BLC015
external lock controller.
Controller – Select this when using OSDP protocol to an
external controller.
MiKey AC1100 User guide
64
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
▶RS485 Option
If ‘controller’ is selected for the RS485 Option, a RS485 is
required to connect to a RS485 protocol bus. You should
select an appropriate id from 0-7,.
Controller selection will work with a standard protocol
called ‘OSDP’; this is a SIA Industry standard protocol.
Select the [OK] button to save the value or select [BACK] button to cancel and return.
MiKey AC1100 User guide
65
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
3.8. Display settings
3.8.1. Theme
If you select [Display] -> [Theme] in the main menu, the following window appears.
▶ Default Setting: Same as the window on the left.
▶The main background.
Main background is displayed on the main window or
when screen saver mode is enabled.
Cycle forward or back through the available
backgrounds. 15 factory set backgrounds are available to
choose from. If you import your own background it will
also be selectable from this area. See USB->Theme
import. (USB port is service port.)
▶Cycle (seconds)
Values from 0-255. This time in seconds is the interval in
which the background will change to a new background. If
0 is programmed, then the background will remain at the
current picture. If 255 is programmed the background
picture will change everyday at midnight. Anytime between
0 and 255 is the number of seconds the background will
change. If you have user background images, the terminal
will cycle through only these images. If no user background
images are in the terminal, the factory background images
will be used.
Select the [OK] button to save the value or select [BACK] button to cancel and return.
If you would like to select another items, select the menu you want to change on the left
side.
MiKey AC1100 User guide
66
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
3.8.2. Camera
If you select the [Display] -> [Camera] in the main menu, the following window appears.
▶ Default Setting: Same as the window on the left
▶Display option
- None ( no user picture is shown on result
window)
- Current Picture ( current user picture is taken
and displayed on result window)
- User Picture ( user database picture stored in
the user picture is displayed)
▶Save success log
If it is checked ( ), the camera image is captured as
image log when the authorization was successful.
▶Save failed log
When it is checked ( ), the camera image is captured as
image log when the authorization was failed.
Select the [OK] button to save the value or select [BACK] button to cancel and return.
3.8.2.1 Camera Flash Option
The camera used for still pictures or face detection also has an optional flash to use during
dark conditions. There is a built-in sensor to detect dark and light conditions. You can select
to turn off the flash if you do not need it.
Depending on the dark conditions you can set the flash to different levels of brightness.
1. Low
2. Medium
3. High.
4. Off/Not used
Delay (milliseconds) is programmable from 200ms to 2000ms. This can also be referred to as
exposure time. The amount of time required for the flash to turn on before taking the picture.
Depending on the environment the administrator may need to adjust this exposure period.
MiKey AC1100 User guide
67
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
3.8.3. Language
If you select the [Display]->[Language] in the main menu, the following window appears.
▶Default Setting: ‘English’
▶Language
If you change the language and select ‘OK’ button,
the voice message and language are changed to
the set language.
Select [OK] button to apply the changes, or select
[BACK] button to cancel and return.
※Supporting languages
English, Korean, Japanese, Thai, Spanish-Portugal,
Spanish-Spain, Farsi(Persian), Deutsch, Chinese,
Taiwanese, Polish, Slovenian.
3.8.4. LCD option
If you select [Display] -> [LCD option] in the main menu, the following window appears.
MiKey AC1100 User guide
68
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
▶ Default Setting: Same as the window on the left
▶Screen saver (min) (1 minute ~ 30minutes)
Select the appropriate timeout you wish to use. If you do
not want a screen saver after a timeout select ‘off’.
▶ If screen saver is not set to ‘off’, when this option is
unchecked the normal background image will show with the
time & date only when the screen saver timeout occurs.
When this option is checked the LCD will turn off after the
screen saver timeout.
▶LCD Brightness
Adjust the brightness of the LCD with this setting.
▶User display option
When a successful user is granted access this will be displayed
on the main window, popup.
- None
- User ID
- Key ID (Employee ID entered from the server program)
- User Name
▶TouchScreen Calibrate – if the Touchscreen seems
misaligned or not exactly to the users alignment you can
readjust the calibration, a reboot will occur and guide
you through the instructions.
Select the [OK] button to save the value or select [BACK] button to cancel and return.
3.8.5. Message time settings
If you select the [Display]->[Message time setting] in the main menu, the following
window appears.
MiKey AC1100 User guide
69
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
▶ Default Setting: Same as the window on the left
▶Message display (ms unit)
It sets the time for which the authorization result
window to be displayed.
0~5000 is available for the value, and the
authorization result window appeared and
disappear for the duration.
Because it is set in ms unit, if you want to set 2
seconds, you should set 2000
▶Broadcast Message (ms unit)
From the UNIS server program you can send a
message to the main display. The message will
flash on and off depending on the values for the ON
time/OFF time. Message will be displayed from the
time period set in the UNIS program.
Select the [OK] button to save the value or select [BACK] button to cancel and return.
MiKey AC1100 User guide
70
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
3.9. Terminal information
3.9.1. System information
If you select the [Terminal info] -> [System] in the main menu, the following window
appears.

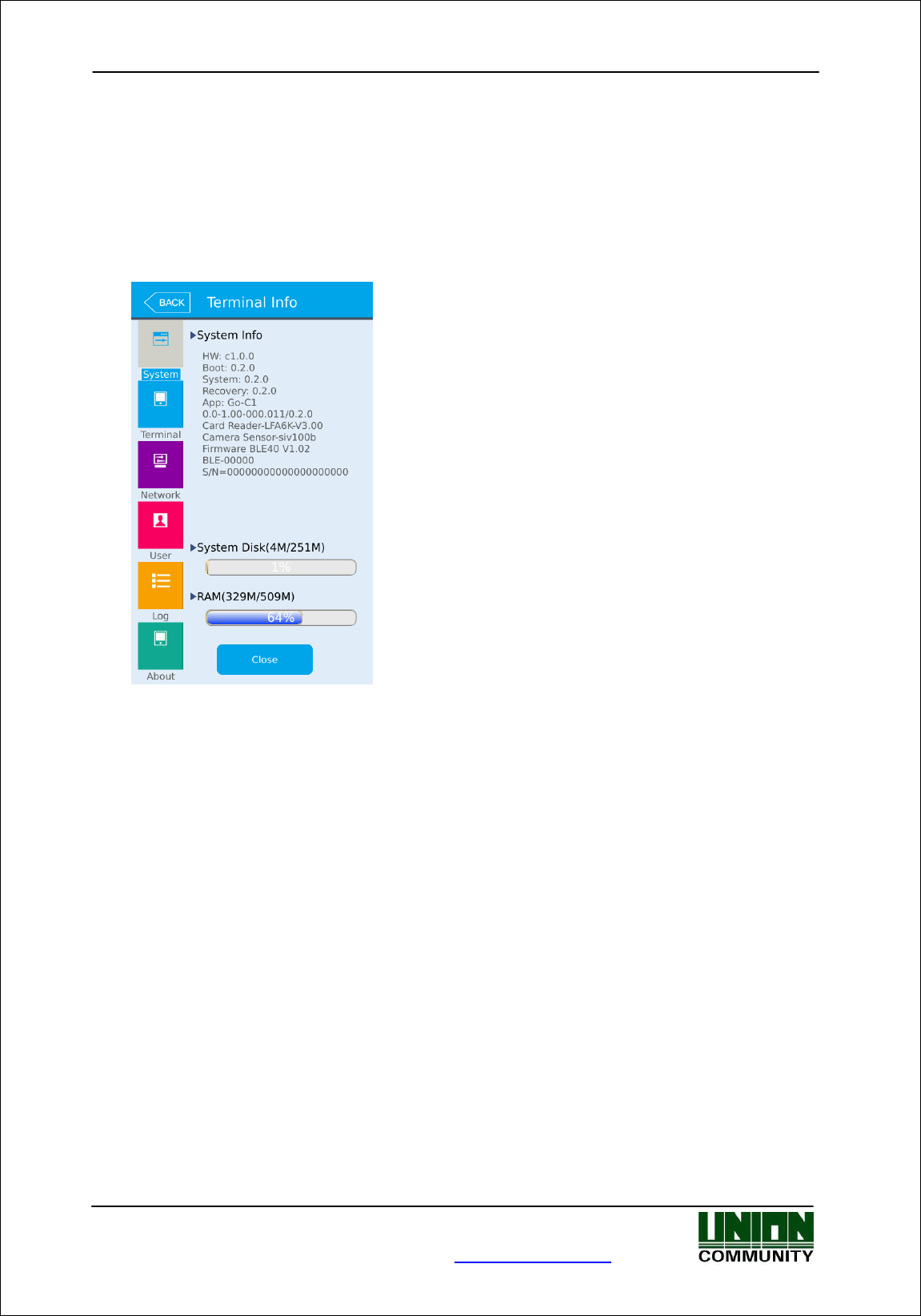

▶System info
The hardware and firmware version of the terminal is
shown.
Card Reader status
Camera status
Bluetooth status
BLE serial number
▶System Storage (using/all)
Usage of system data.
▶Ram (use/total)
Usage of DDRAM.
Select another selection on the left side or CLOSE, BACK button to return to previous
window.
MiKey AC1100 User guide
71
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
3.9.2. Terminal information
If you select the [Terminal information] -> [Terminal] in the main menu, the following
window appears.
▶Terminal information
Displaying basic information about terminal setup
Select another selection on the left side or CLOSE, BACK button to return to previous
window.
MiKey AC1100 User guide
72
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
3.9.3. Network information
If you select the [Terminal information]->[Network] in the main menu, the following
window appears.
▶Network information
Displaying basic information about network information.
Select another selection on the left side or CLOSE, BACK button to return to previous
window.
MiKey AC1100 User guide
73
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
3.9.4. User information
If you select the [Terminal information]->[User] in the main menu, the following window
appears.
▶User information
- Registered Users: The number of users registered
(including administrator)
-Administrator Users: The number of the administrators
registered.
- Card: The number of cards registered
Capacity: (Max means the maximum number )
Select another selection on the left side or CLOSE, BACK button to return to previous
window.
MiKey AC1100 User guide
74
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
3.9.5. Log information
If you select the [Terminal information] -> [Log] in the main menu, the following window
appears.
▶Log
Event Log: The number of logs saved in the terminal
User Pictures: Number of registered user pictures
Log Pictures: Number of log pictures
Total Pictures: User and Log picture total
Capacity: (Max means the maximum number )
▶View Log
Displays log time and authentication result
Select ‘View Log’ to find search results.
▶ Log Search result
Log search result shows the information such as the date,
time, ID and access result (success or failure).
If a picture is saved with the log, the picture is also shown.
Select OR button to see the search
information.
Select another selection on the left side or CLOSE, BACK button to return to previous
window.
MiKey AC1100 User guide
75
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
3.9.6. About
If you select the [Terminal information] -> [About] in the main menu, the following
window appears.
▶About
Display legal information about software and firmware
Select the text area and scroll up or down to view more
Select another selection on the left side or CLOSE, BACK button to return to previous
window.
MiKey AC1100 User guide
76
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
3.10. SD USB (USB port is service port.)
SD (Storage Device) USB on-The-Go function is supported in the card reader terminal. You will
need a cable as shown below. USB storage function will allow you to import and export files
to and from the terminal.
User data, log data, pictures, images and firmware upgrading can be performed. It is
recommended that your USB has at least 1GB available for storage. You cannot select any
options in the USB-SD menu until a USB device is connected. The USB device can be
connected at anytime before or after entering this area. Once you connect your device you
must wait up to 10 seconds before the terminal will recognize it and a ‘detected’ message will
appear. The USB should be formatted as FAT/FAT32 file system type. NTFS is not supported.
1) Prepare your USB device by formatting for FAT/FAT32 File system type
2) On the USB device from your PC, create a directory in the root called ‘CR’
3) On the USB device from your PC, create a directory in the root called ‘CR/languages’
4) On the USB device from your PC, create a directory in the root called ‘CR/backgrounds’
5) On the USB device from your PC, create a directory in the root called ‘CR/firmware’
6) Insert the USB into the cable, and then insert the cable into the card reader.
7) On the card reader menu Touchscreen select the USB icon.
8) After completing import or export you must select OK button to correctly save the information
to the USB device.
9) Remove USB device.
Note: After selecting OK you must remove, then insert the USB device in the card
reader before entering the USB menu again. This will ensure correct saving and
shutdown of the USB device.
MiKey AC1100 User guide
78
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
Filenames maybe in the format.
(XXXXXXXX_YYYYMMDDHHMM_ logdata.tar.gz)
(XXXXXXXX_YYYYMMDDHHMM.csv)
(XXXXXXXX_YYYYMMDDHHMM_ piclogdata.tar.gz)
XXXXXXXX = terminal ID
YYYYDDMMDDHHMM – Year, Month, Date and Time of export.
Note: .tar.gz are tarballed compressed zipped files. If you are using windows PC you may
need to download a utility program to extract the files. If you are only saving, and importing
to another terminal, you should not rename the file.
‘CR/languages’ directory – Card Reader language files are in this folder. Only .qm file
extensions supported. Card Reader language files are in the format lang_en_US.qm (For
example English)
A separate program is used to create the language translation file for each language.
‘CR/languages/mp3/’ directory – Card Reader mp3 voice files can be updated by USB.
There are 4 voice files that can be upgraded and they must be named as follows:
1) E02_PleaseTryAgain.mp3 (Failure voice)
2) E03_YouAreAuthorized.mp3 (Success voice)
3) E04_InputYourID.mp3 (Enter ID voice)
4) E05_PleaseEnterYourCard.mp3 (Enter Card voice)
* USB port is service port.
‘CR/firmware’ directory – Store all firmware files needed for upgrade in this folder. From
time to time the factory will release new firmware versions for bug fixing or feature
enhancements. These binary images can be upgraded from this folder. Correct file names
should have a ‘.umgz’ extension.
- resource.umgz
- app.umgz
‘CR/data’ directory - This directory is created by the card reader terminal when inserting
the usb device. This directory will contain data that will be exported to the usb device. (User
data, log data, system options, picture data)
1) sysoptdata.tar.gz (Import file for other card reader terminal)
2) 00000008_201605031340_logdata.tar.gz (Log Data for Server Program
Import)
3) 00000008_201605031340.csv (Log List short)
* USB port is service port.
‘CR/backgrounds’ directory – this should contain all .jpg, .bmp, .png images you would
like to copy to the terminal for your own background images. The name of the file must be
called user1 – user9 (.jpg) or (.bmp) or (.png)
For example if copying four image files to the terminal you should call the image files
user1.jpg, user2.jpg, user3.jpg and user4.jpg.
In order to ensure a quality background image you should use the same size as the lcd device,
480 x 800. After successfully copying you will be able to select a new background from the
Display setting area.
MiKey AC1100 User guide
79
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
‘CR/data/logpictures’ directory – This directory is created by the card reader terminal
when exporting log picture data to the USB device. i.e - 00000008_piclogdata.tar.gz
* USB port is service port.
‘CR/unisuser’ directory – This directory is created by the card reader terminal when
selecting Export User Data. Files in this directory will be named 0000.dat~9999.dat.
These files can be used to import from another device or import to the server program on a
PC.
MiKey AC1100 User guide
80
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
If you select the [SD USB] from the admin menu, the following screen appears.
(USB port is service port.)

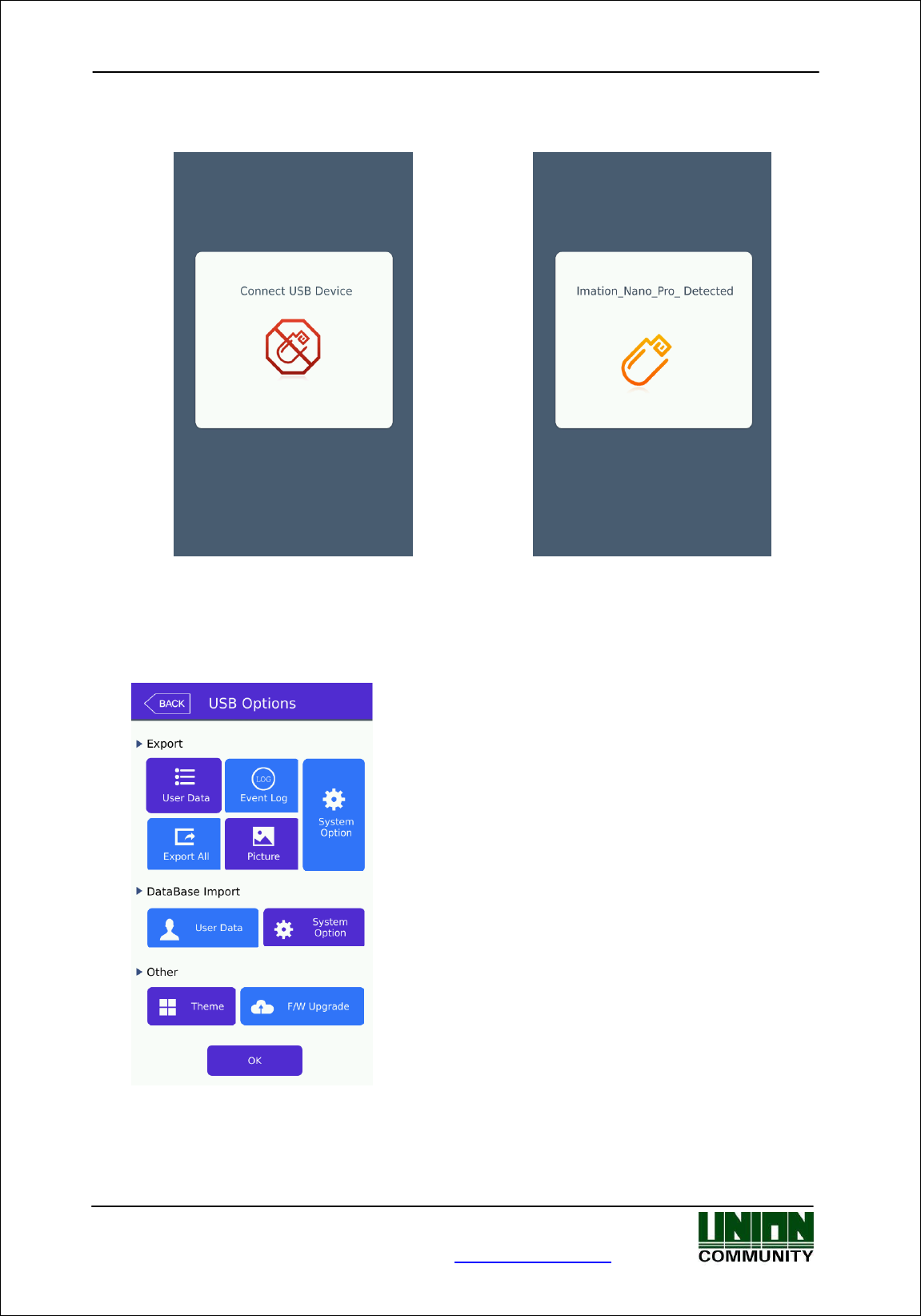

No USB device Connected
USB Device Connected with brand name
USB Function (USB port is service port.)
Import is used to importing user data or system options
from another device.
Export is used for saving user, event, system options or log
picture data. After exporting you may import User data or
System Options to another device.
Other
Special functions such as backgrounds, language files may
be copied to the card reader terminal.
F/W upgrade can also be performed from the USB device.
If server program is connected is it recommended for speed
and reliability to use the server program.
MiKey AC1100 User guide
81
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
3.11. Background screen change
If you select ‘download customized file’ from the UNIS server program you will be able to
select ‘All File’. UNIS 4.0 and above only.
Select
.jpg, .bmp, .png Images only
The file name should not exceed 15 letters (English).
The file name should be in the format user1-user9.xxx – (xxx=jpg, png, bmp)
The file format MUST be an appropriate size to fit the screen 480 x 800.
If you select the file type as ‘All File (.*)’, Select ‘Find’, the select the image file and select
the ‘OK’ button, the terminal selection window appears. If you select the terminal in the
terminal list window and click the ‘Send’ button again, the file is sent and the downloaded
to the terminal.
You can manually select the background images from the ‘Display Settings’ -> Theme
menu from the administrator menu.
MiKey AC1100 User guide
82
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
3.20. Language Translations/Customizing Text Items
Mostly all text on the user interface can be changed or customized to your customer’s
choice.
Language must be in the ISO639 format naming is required.
xx_YY – xx = Language
YY = Region/Country
lang_en_US // English/US
lang_ko_KR // Korean
lang_ja_JP // Japan
lang_zh_CN // Chinese
lang_zh_TW // Chinese (Taiwan)
lang_de_DE // German (dutch)
lang_it_IT // Italian
lang_zh_TW // Taiwan
lang_fr_FR // French
lang_fa_IR // Farsi - Iran ( persian )
lang_ar_EG // Arabic - Egypt
lang_es_ES // Spanish Spain
lang_es_EC // Spanish Equador
lang_pt_BR // Portuguese Brazil
lang_pl_PL // Polish
lang_th_TH // Thai, Thailand
TS File = from the factory, given to the customer for translations
QM File = created by the application program. Used by the card reader terminal.
Example:
lang_en_US.ts – supplied by the factory
lang_en_US.qm – output file created for use by card reader terminal
1) Download the translation tool from the following link
http://www.qt-apps.org/content/show.php/Qt+Linguist+Download?content=89360.
The user should download the appropriate one for their pc.
2) Install the application on your PC. User should read the instructions on how to
translate. Select the input file to start from (TS), select the individual text, then type
into your own language.
3) Once the application is opened, you should go to FILE->OPEN-> and open the
lang_xx_YY.ts file. These files are available when a firmware release is made. Once
the user completes the translation they need to click on the FILE->RELEASE AS, this
will save the file as lang_us_EN.qm. The QM file is used by the card reader terminal.
If we require a special language the user should send the factory the TS file.
User should then copy the QM file to a USB device in ‘/CR/languages/’. See the SD
USB section. (USB port is service port.)
MiKey AC1100 User guide
83
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com

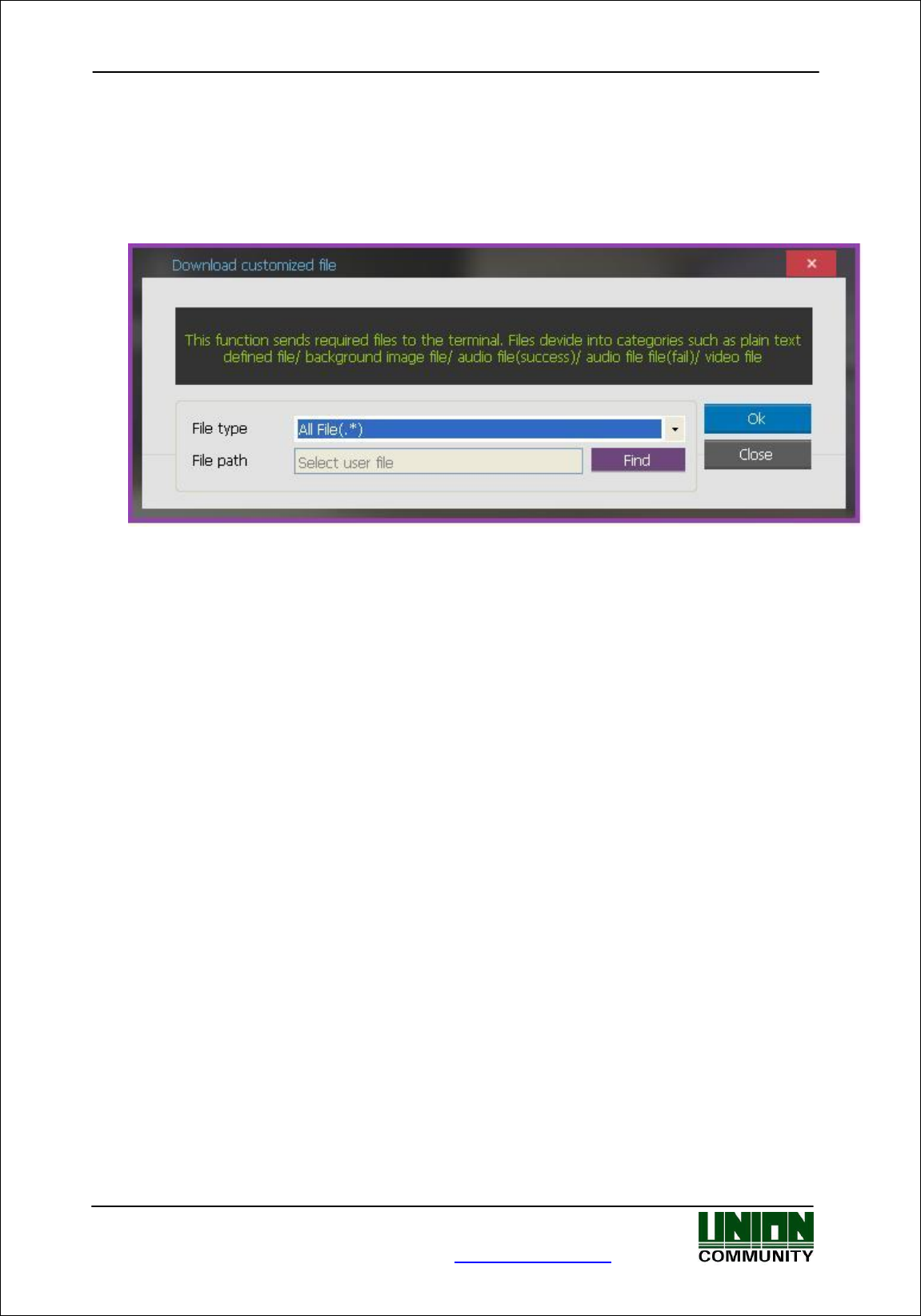

If you select ‘download customized file’ from the UNIS server program you will be able to
select ‘All File’. UNIS 4.0 and above only.
You can upgrade the new .qm file using the following two ways:
1) USB – see section 3.10. SD USB for updating using USB (USB port is service port.)
2) UNIS – from UNIS, select ‘download customized file’, the select ‘All File(.*)’, browse to
the language file and select it. Select OK, and then select the terminal to send to.
Language files must be in the naming format ‘lang_xx_YY.qm’.
Note: Some languages not on the list above require special fonts to be
imported. You must contact your sales representative if you wish use use a
language not supported on the list.
Note: When you upgrade firmware ‘resources_xxxxx.umgz’ all
language .qm files will be overwritten with the factory .qm files.
MiKey AC1100 User guide
84
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
4. How to use terminal
The background image and composition of the main window can be changed according to
the administrator’s setting. In addition, if the administrator set the screen saver time,
the LCD screen will show only the background image with the time and date. Entering a
card, touching the screen will change back to the main window.
4.1. Authorization mode change
<Fig. 4-1>
Press [F1], [F2] button on the screen changing the verification/logging mode.
In order to select the mode other than the ones on the screen, such as ([F3], [F4], [Access]),
press the button which is on the right side of the screen and the screen as per below will
appear.
Card Input part
ID Input
MiKey AC1100 User guide
85
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
In the access mode selection screen, as shown in the left,
select the preferable access mode button, which the screen
will move to the selected access mode.
4.2. ID input
If you select the [ID input] button on the main window, the following ID input window
appears.
Enter the user ID to be certified and select [OK] button,
and then scan your card or enter your password according
to the authorization method of the user.
MiKey AC1100 User guide
86
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
4.3. Authorization
4.3.3. Card authorization
Touch/Scan the card on the area of the card reader as shown in <Fig. 4-1>
4.3.4. Password authorization
Input your ID by selecting [ID input] button as follows and input password when the
password input window appears.
MiKey AC1100 User guide
87
Union Community / Hyundai Topics building 5th floor, 44-3, Bangi 2-dong,
Songpa-gu, Seoul, Korea (138-050)
Tel: 02-6488-3000, Fax: 02-6488-3099, E-Mail:sales@virditech.com
FCC Information
This device complies with part 15 of the FCC Results. Operation is subject to the following
two conditions :
(1) This Device may not cause harmful interface, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for CLASS B digital
device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try correct the interference by one or
more of the following measures:
1.1. Reorient or relocate the receiving antenna.
1.2. Increase the separation between the equipment and receiver.
1.3. Connect the equipment into an outlet on a circuit different from that to which receiver is
connected.
1.4. Consult the dealer or experienced radio/TV technician for help.
WARNING
Changes or modifications not expressly approved by the manufacturer could void the
user’s authority to operate the equipment.
“CAUTION : Exposure to Radio Frequency Radiation.
Antenna shall be mounted in such a manner to minimize the potential for human contact
during normal operation. The antenna should not be contacted during operation to avoid
the possibility of exceeding the FCC radio frequency exposure limit.
Contains FCC ID: 2AEEY-PBLN51822M
