UNION COMMUNITY T2 Fingerprint Access Controller User Manual AC7000 UserGuide 1 0
UNION COMMUNITY Fingerprint Access Controller AC7000 UserGuide 1 0
User Manual
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
eNBioAccess-T2 User Guide
Version eng-2.00
© Copyright 2013, NITGEN Co., Ltd.
All rights reserved. `
It is strictly prohibited to compile, duplicate or publish part. Or whole of this manual prior written consent of NITGEN.
The specification of this product may be changed without prior notice to improve its functionality.
The logo of NITGEN&COMPANY is a registered trademark of NITGEN Co., Ltd.
Other names or trademarks are registered trademarks of their respective owners.
eNBioAccess-T2 User Guide 2
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
<Revison History >
Version
Date
Description
Firmware Version
1.00
2016-07-15
Initial Release
1000-01
1.10
2016-08-17
Modified the description for icon information.
1000-02
1.20
2016-09-01
EMC Open function Deletion
LOCK1/LOCK2 Result Output Menu Deletion
1000-04
1.30
2016-09-19
User Logo Description Addition
Terminal <-> LC015B Interface modification
Added the some description for User Input in
Backup Menu
1000-05
1.40
2016-09-29
Added the picture for Backup Error
1000-06
1.50
2016-11-18
Modified the range for Door open time
Modified the type of card module
(0=NONE,1=SC,2=EM,3=HID)
1000-14
1.60
2016-12-01
Modified the range for open alarm time
1000-16
1.70
2017-01-20
Fix similar fingerprint check part when registering
fingerprint (Check when there are 200 fingerprint
templates or less)
Added the description for authentication time in FP
Sensor menu.
1000-23
1.80
2017-08-09
Added default setting for DM2.
1000-27
1.90
2017-08-28
Added the screen for Upgrading firmware
1000-28
2.00
2017-09-12
Added the description for 1.4 section
- LOCK OPEN STATE LED
Changed the description for 3.1.4 section
- the level value for matching FP 1:N
1000-29
eNBioAccess-T2 User Guide 3
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
<Glossary >
Administrator (Admin)
- The administrator can access the terminal menu mode. He/she has the authority to
add/modify/delete terminal users and to change the operating environment by changing
settings.
- If there is no registered administrator in the terminal, anybody can access to the terminal
menu and change settings. It is recommended that more than one administrator
will be necessarily registered in the terminal.
- The administrator has the authority to change critical environmental settings of the
fingerprint reader. So, special attention is required to its registration and operation.
1:1 Authentication
- The user fingerprint is verified after entering User ID or Card.
- Only User ID or the user fingerprint registered to the card is compared. This is called
One-to-One Authentication.
1: N Identification
- The user is searched only by the fingerprint.
- The same fingerprint as the input fingerprint is identified among the registered
fingerprints without User ID or Card entered. This is called One-to-N Identification.
Authentication Level
- As a level used for fingerprint authentication, it is displayed in Step 1 to 9.
Authentication cannot be allowed before the degree of match between two fingerprints
is higher than the set authorization level.
- The higher authentication level may ensure the higher security. But it requires the
relatively high concordance rate. When authenticating User ID, it high likely to deny
authentication.
- 1:1 Level: Authentication level applied when 1:1 authentication
- 1: N Level: Authentication level applied when 1: n authentication
Authentication Method
- It refers FP(Fingerprint)Authentication, RF(Card)Authentication and a various types of
authentication methods made by each of a combination.
LFD (Live Finger Detection): Fake fingerprint prevention function
- The LFD allows only actual fingerprints to be entered, except for any fake fingerprints
made of rubber, paper, film, and silicon and the like.
eNBioAccess-T2 User Guide 4
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
Table of Contents
1. Before Getting Started ................................................................................. 6

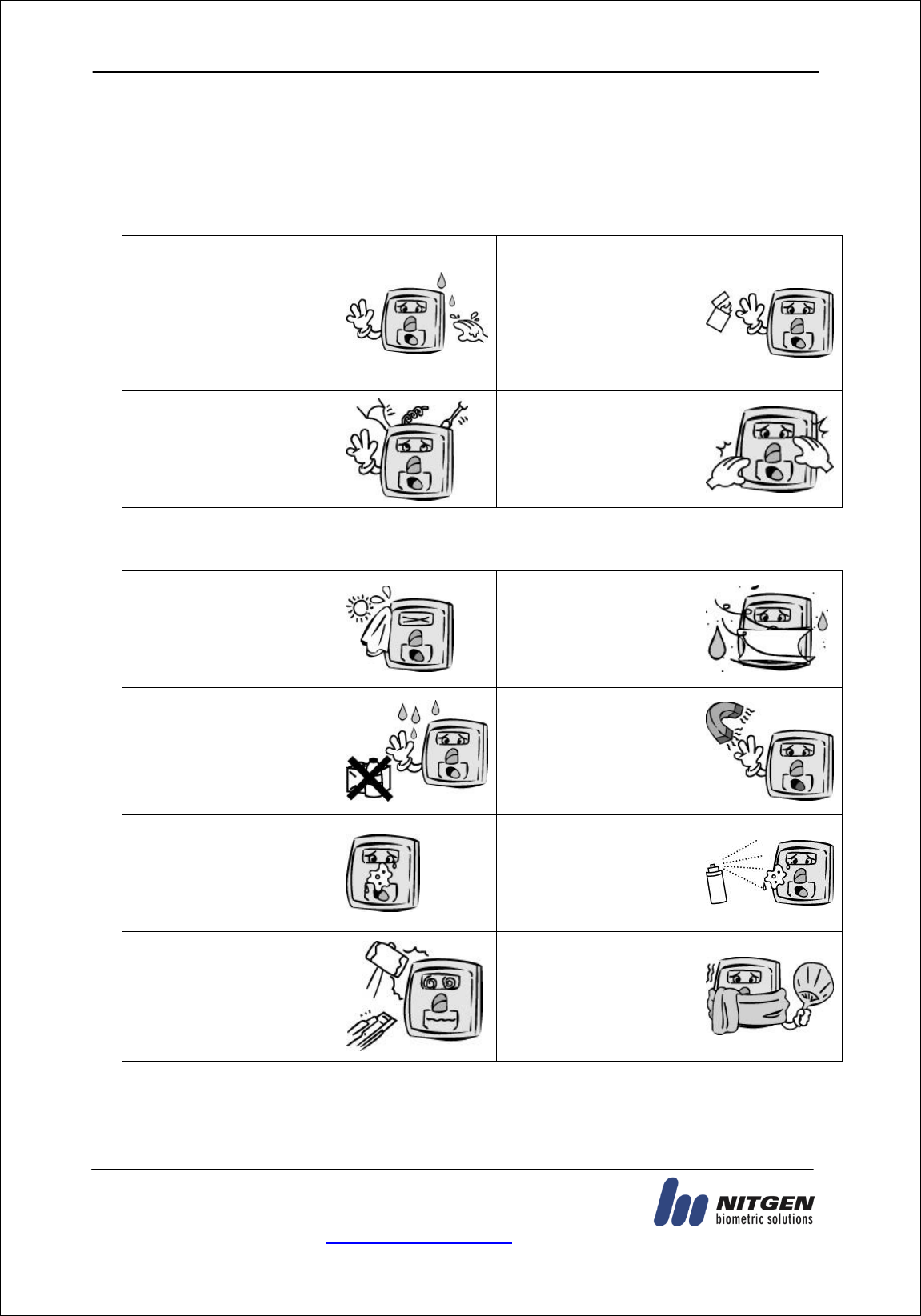

1.1. Safety Notes ........................................................................................................ 6
1.2. Product Details ................................................................................................... 7

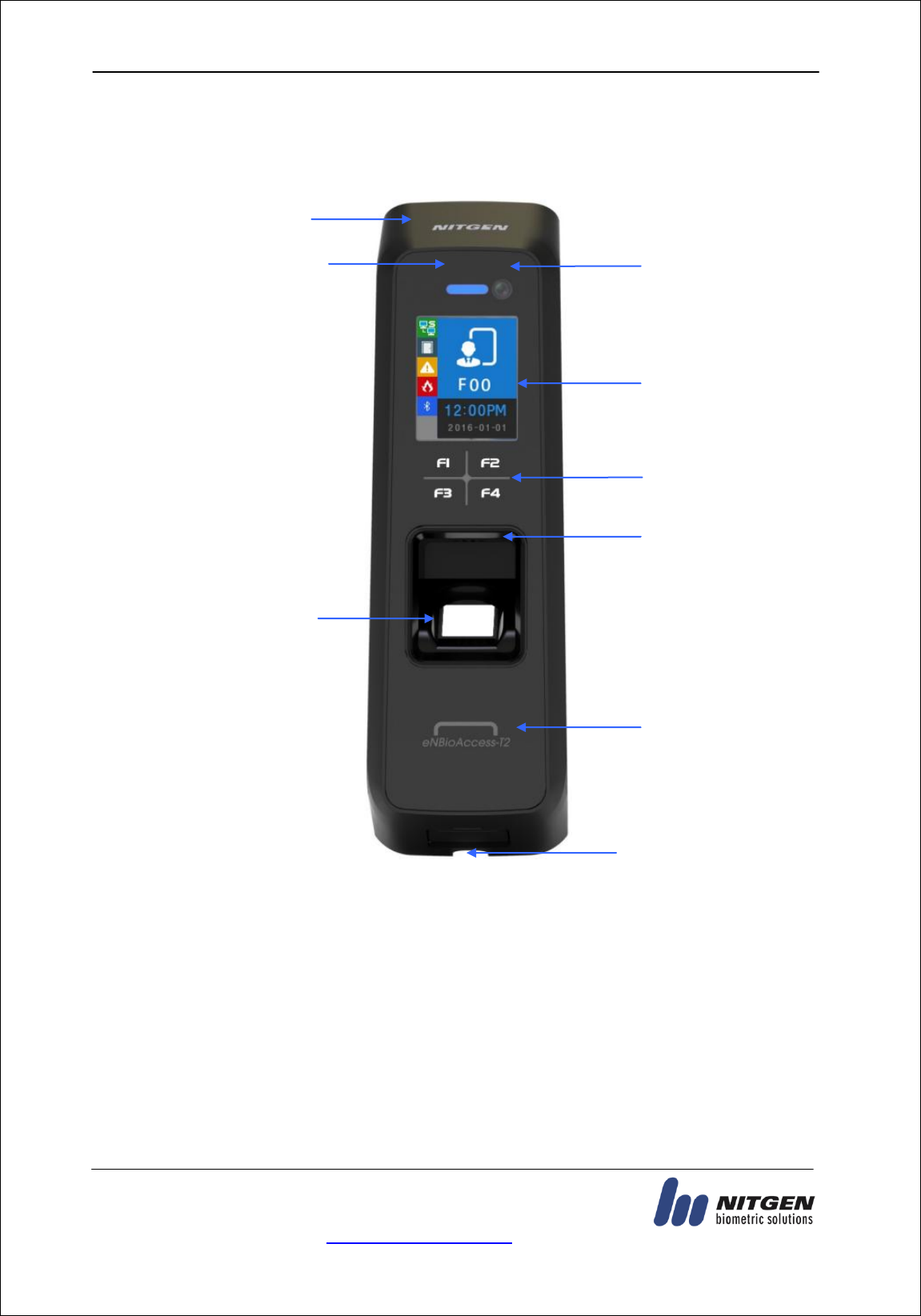

1.2.1. FRONT ...................................................................................................... 7

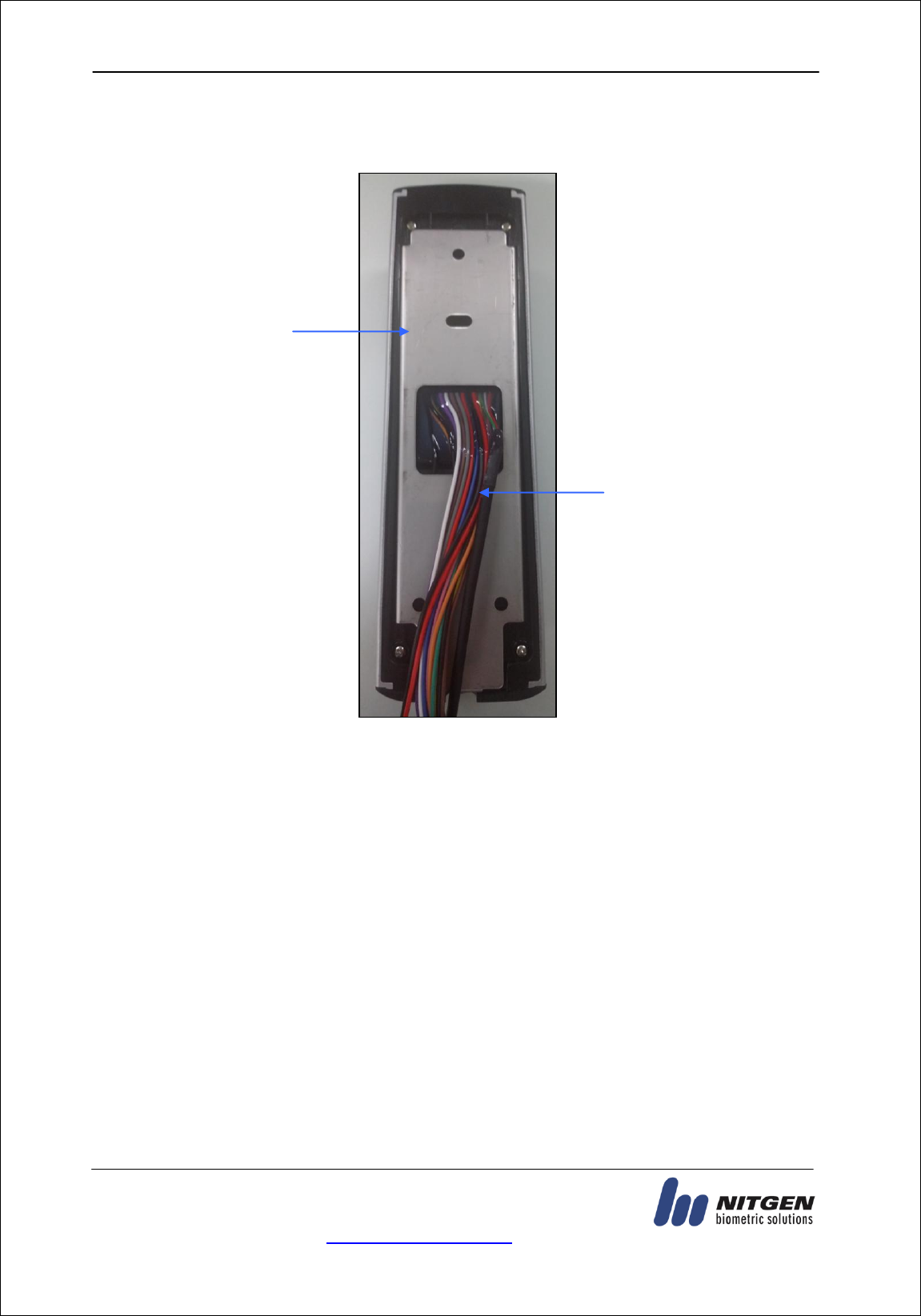

1.2.2. REAR ......................................................................................................... 8

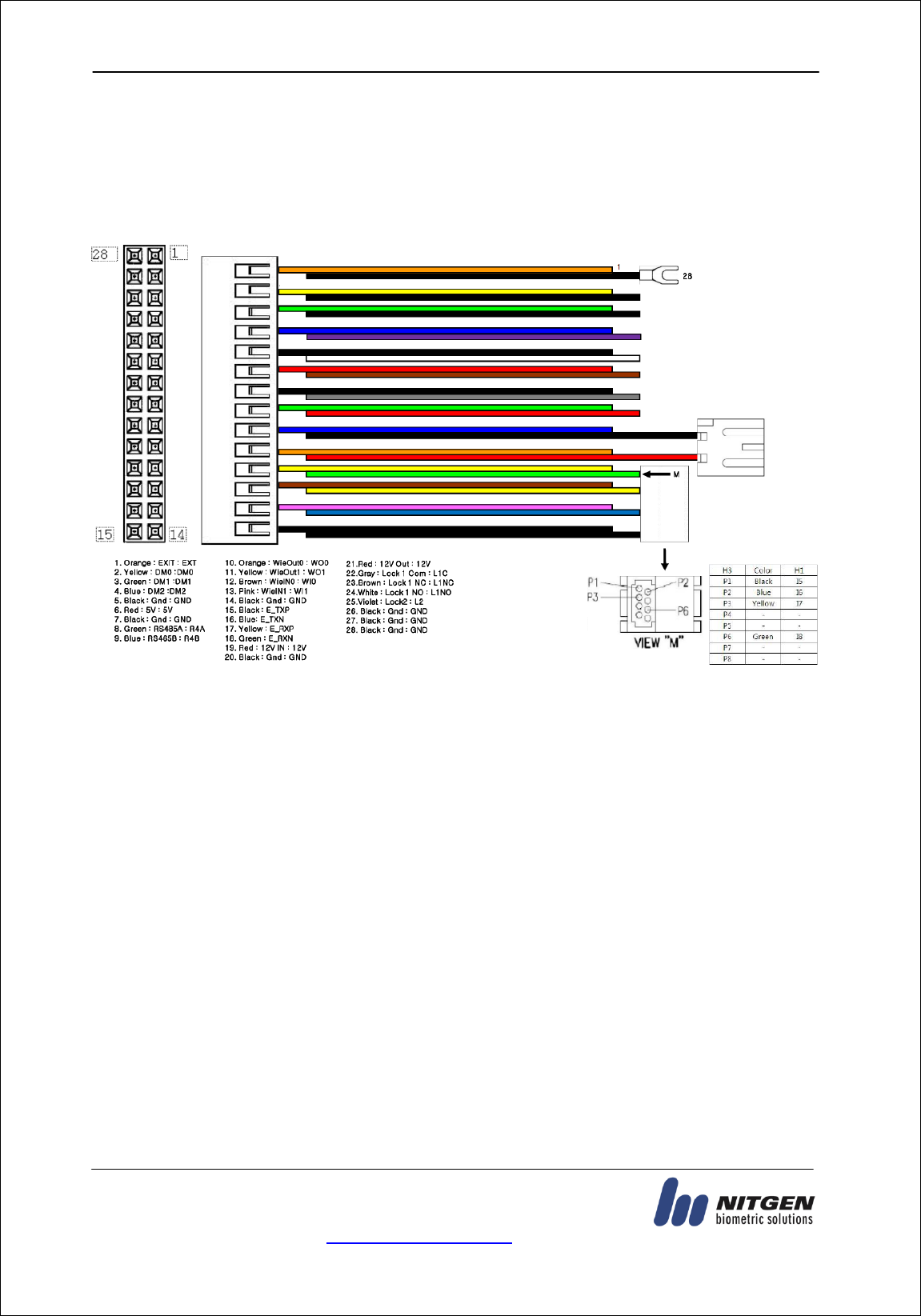

1.2.3. Input / Output ............................................................................................. 9
1.3. Screen information during operation .............................................................. 12
1.3.1. Initial Screen ............................................................................................ 12

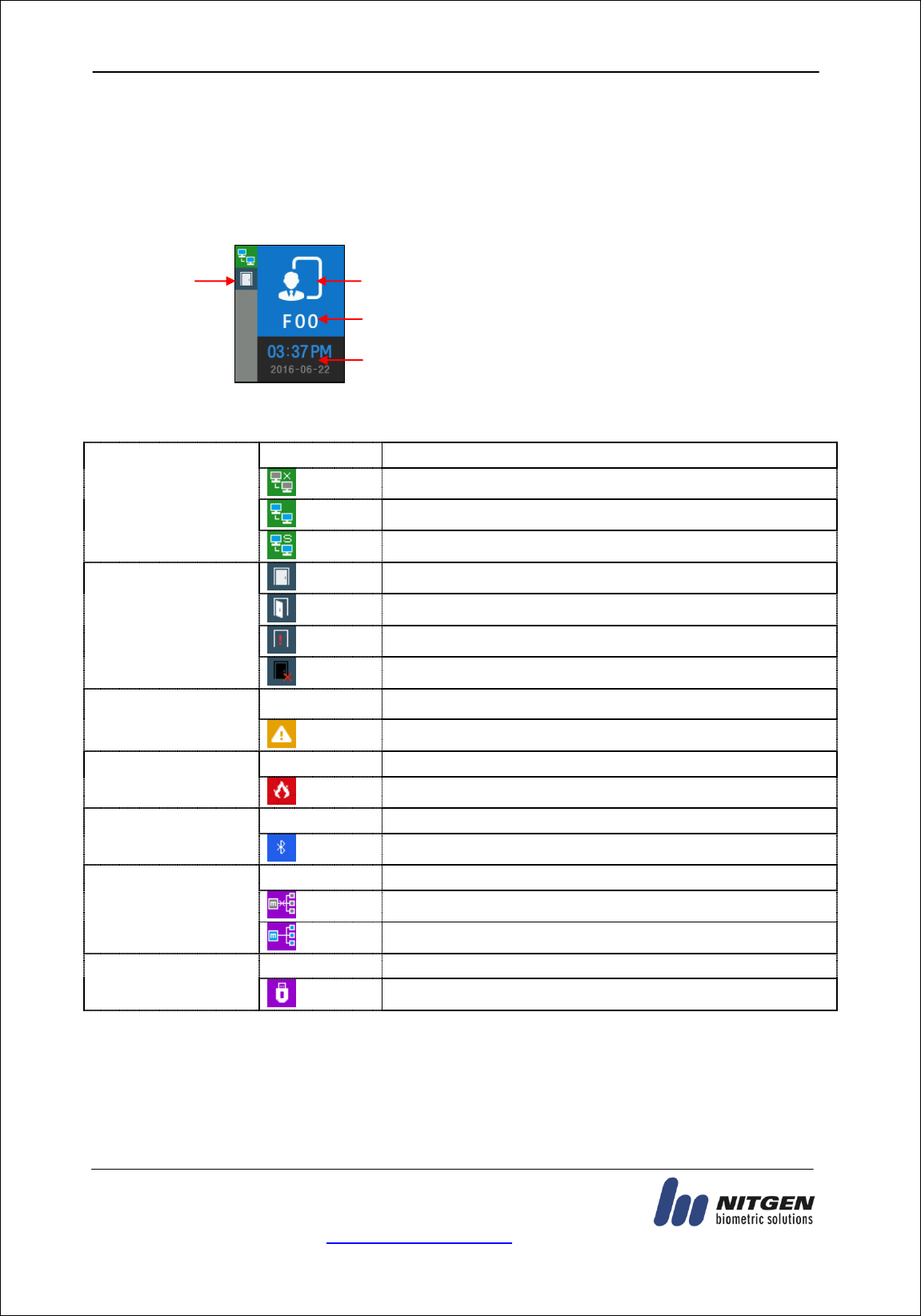

1.3.2. Icons ........................................................................................................ 12

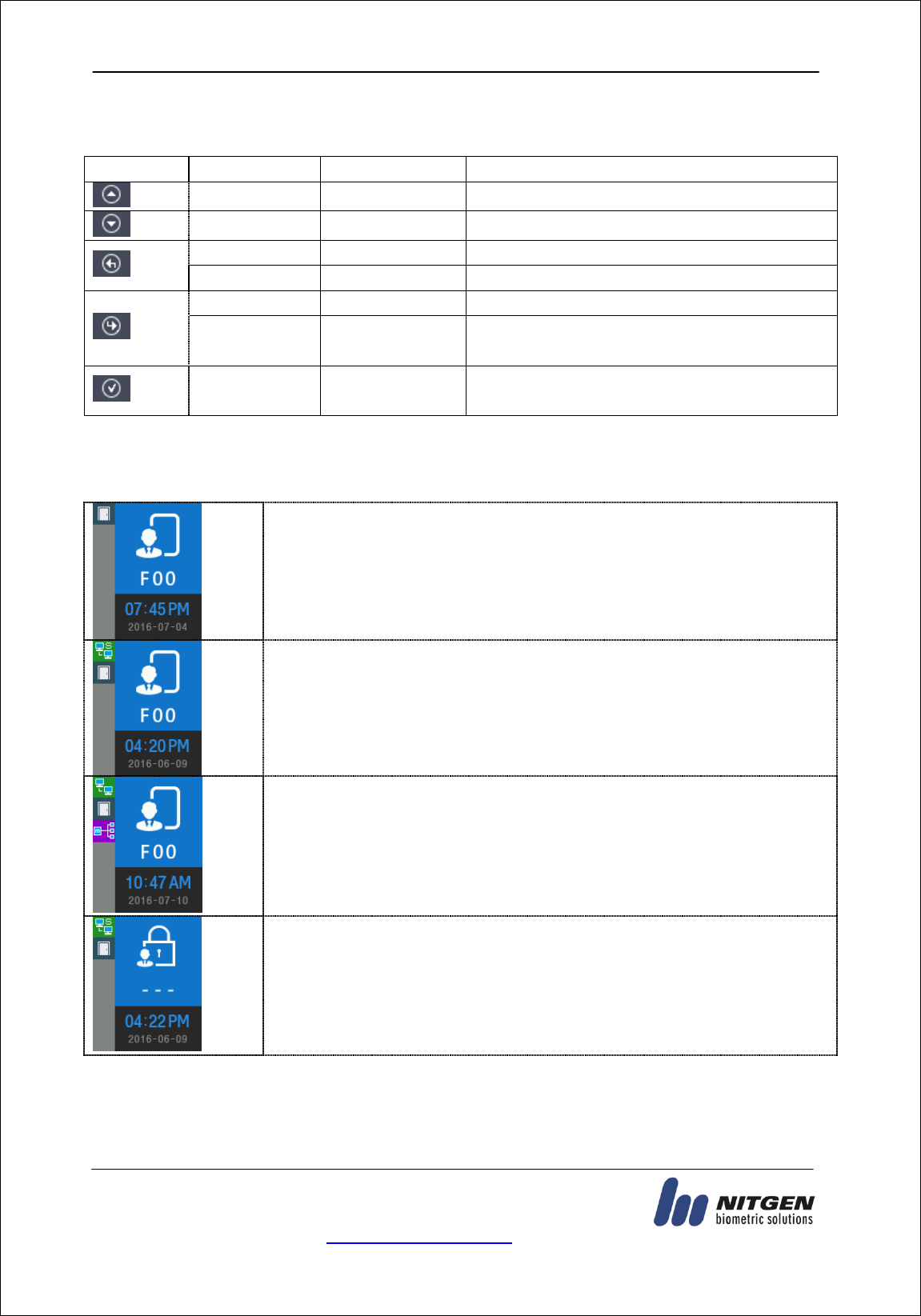

1.3.3. Function KEY ........................................................................................... 13
1.3.4. Main Screen ............................................................................................. 13
1.4. LED information during operation ................................................................... 15
1.5. Voice information during operation ................................................................. 15
1.6. Buzzer guide announced during operation .................................................... 15

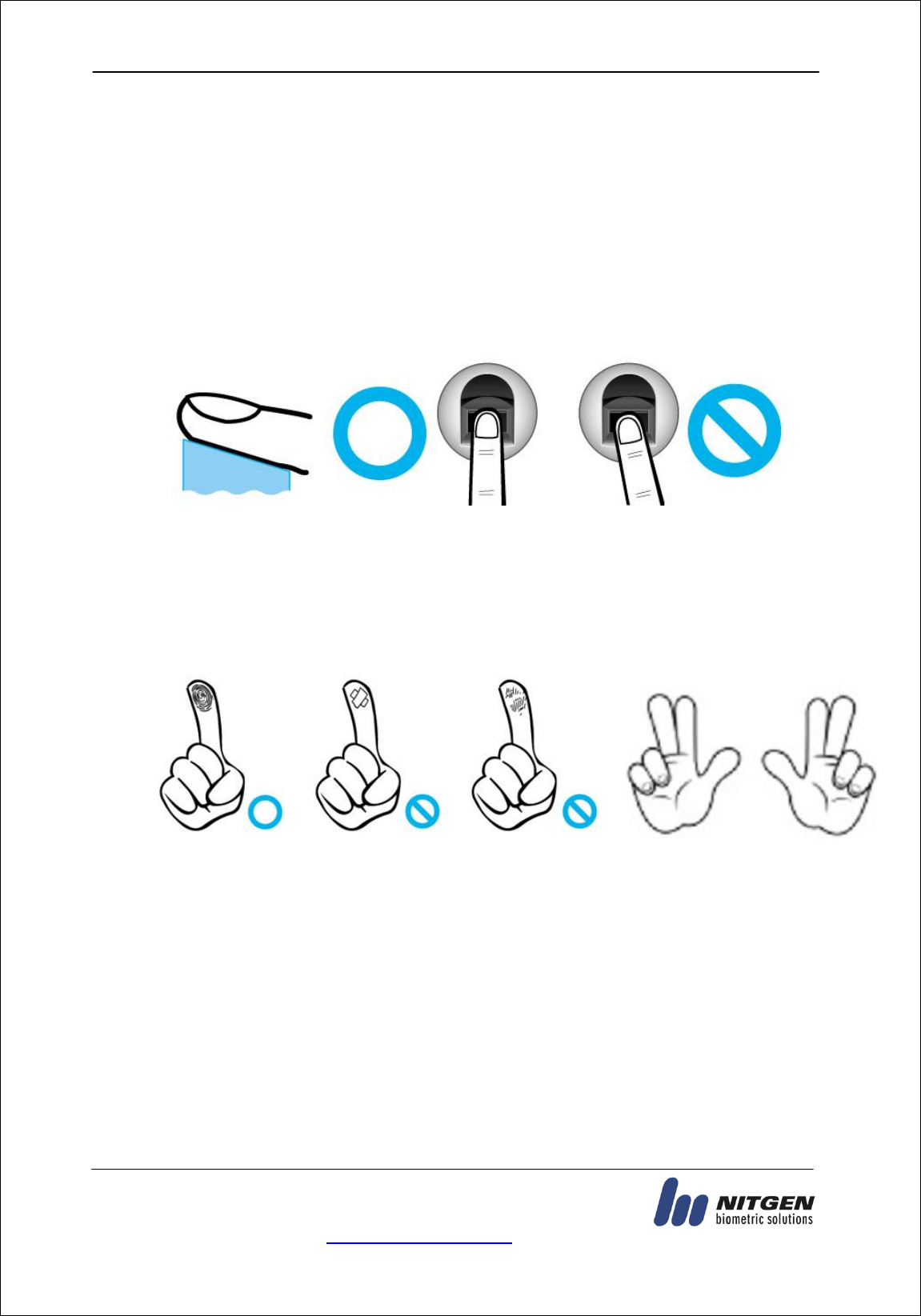

1.7. How to register and enter the correct fingerprint ........................................... 16
2. Product Descriptions ................................................................................. 17
2.1. Product Features .............................................................................................. 17

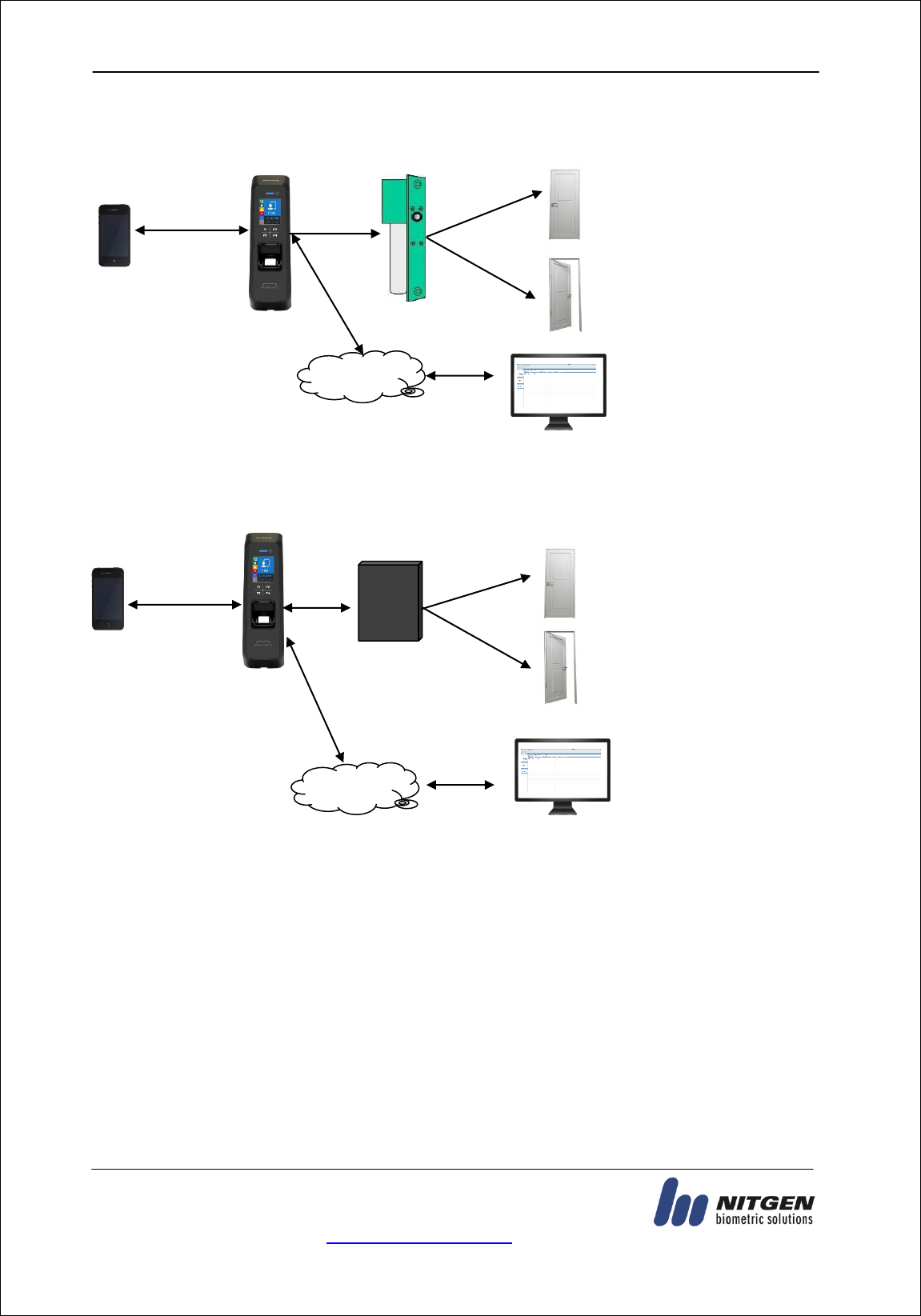

2.2. Diagram ............................................................................................................. 18
2.2.1. Single Type (Door Lock) ........................................................................... 18
2.2.2. Single Type (Lock Controller) ................................................................... 18
2.2.3. Dummy Type (MCP040) ........................................................................... 18
2.2.4. Network Type (Door Lock) ........................................................................ 19
2.2.5. Network Type (Lock Controller) ................................................................ 19
2.3. Product Specification ....................................................................................... 20
3. Environment Setting .................................................................................. 21
3.1. Checkpoints before Environment Setting ....................................................... 21
3.1.1. Menu ........................................................................................................ 21
3.1.2. Administration authentication ................................................................... 21

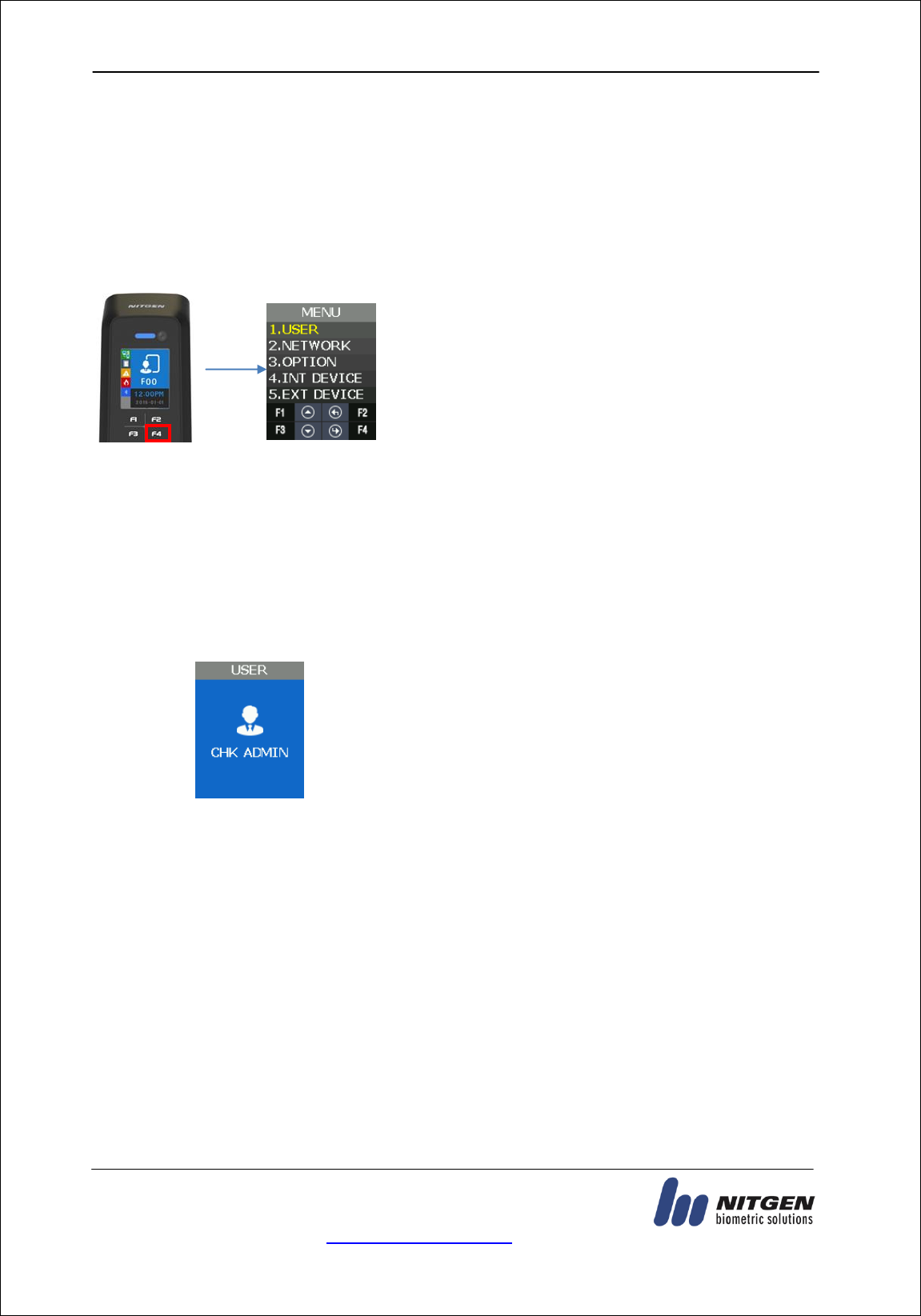

3.1.3. How to access the menu without administrator authentication ................. 22
3.1.4. Save Settings ........................................................................................... 22
3.1.5. Default Setting ......................................................................................... 23

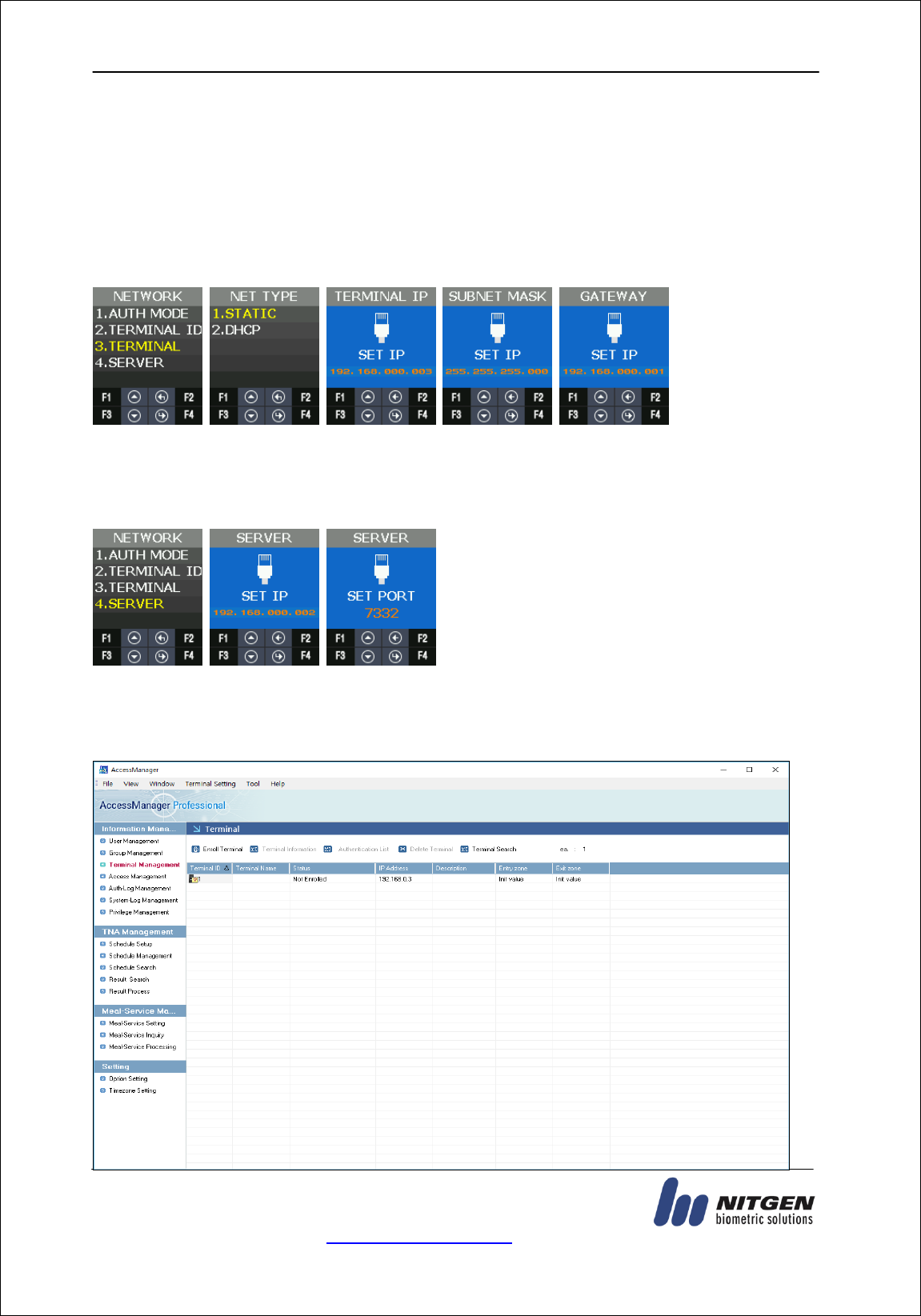

3.1.6. Setting guide for Network Configuration ................................................... 24

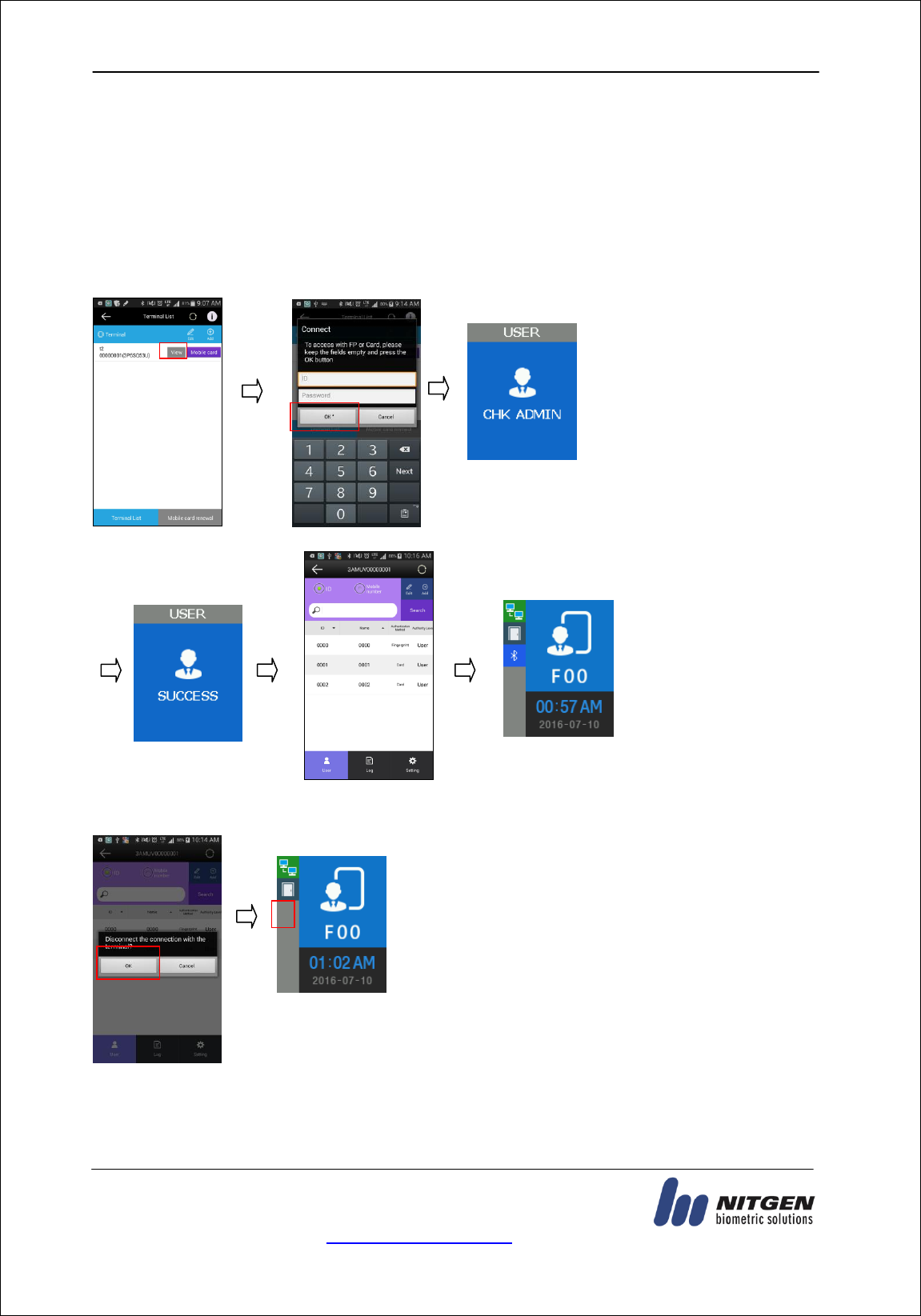

3.2. How to register the terminal in Admin App ..................................................... 27

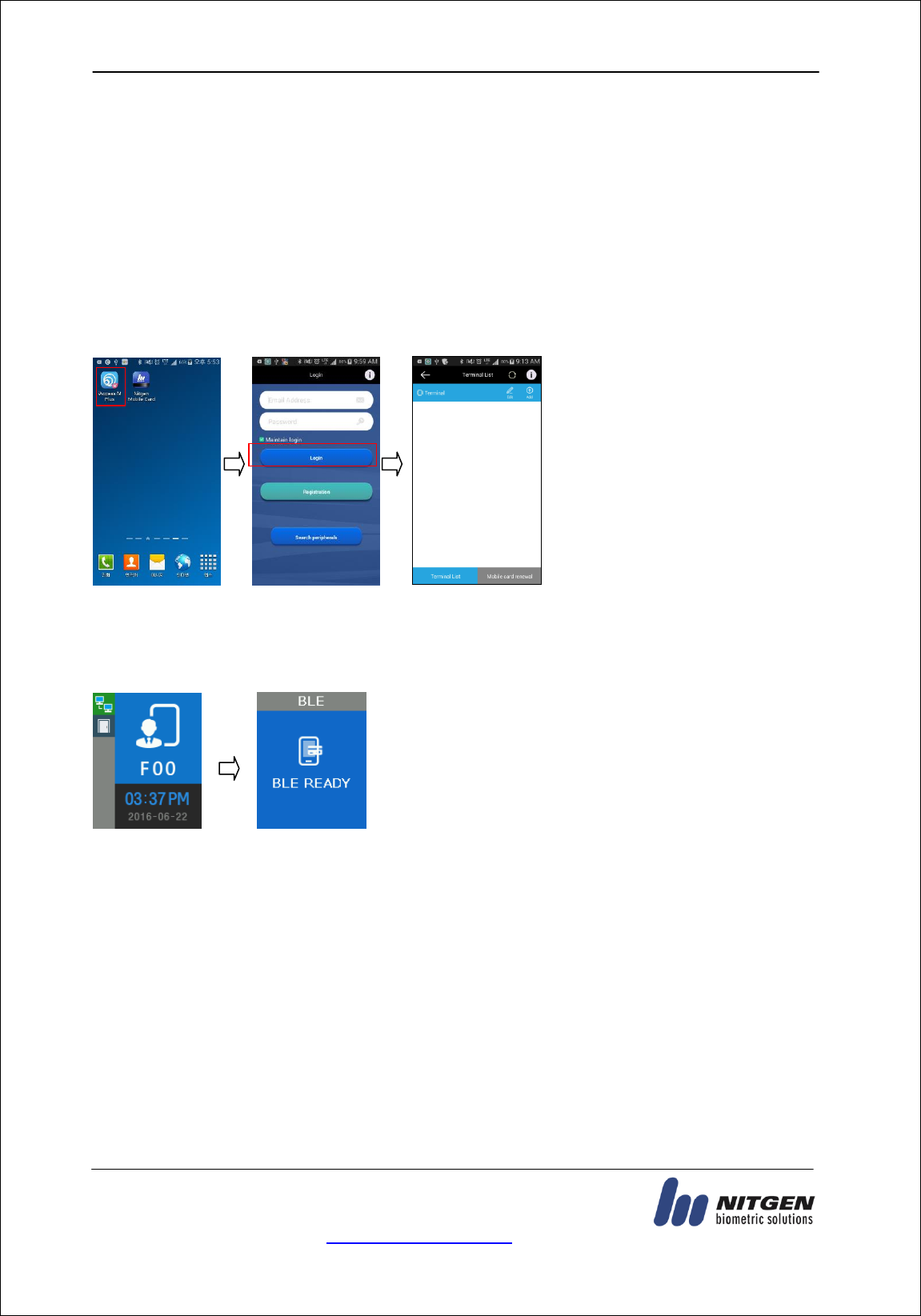

3.2.1. Install iAccess M Plus................................................................................ 27
3.2.2. Execute and Log in iAccess M Plus ........................................................... 27
3.2.3. Access to Terminal BLE REDAY ................................................................. 27
3.2.4. Terminal login Admin App ......................................................................... 28
3.2.5. Administrator authentication of the terminal ............................................ 28
3.2.6. Terminal registration ................................................................................. 28
3.3. Access Device with Admin App ....................................................................... 29
3.4. Access and Registration between ACM Pro and terminal ............................. 30
3.4.1. Install ACM Pro ......................................................................................... 30

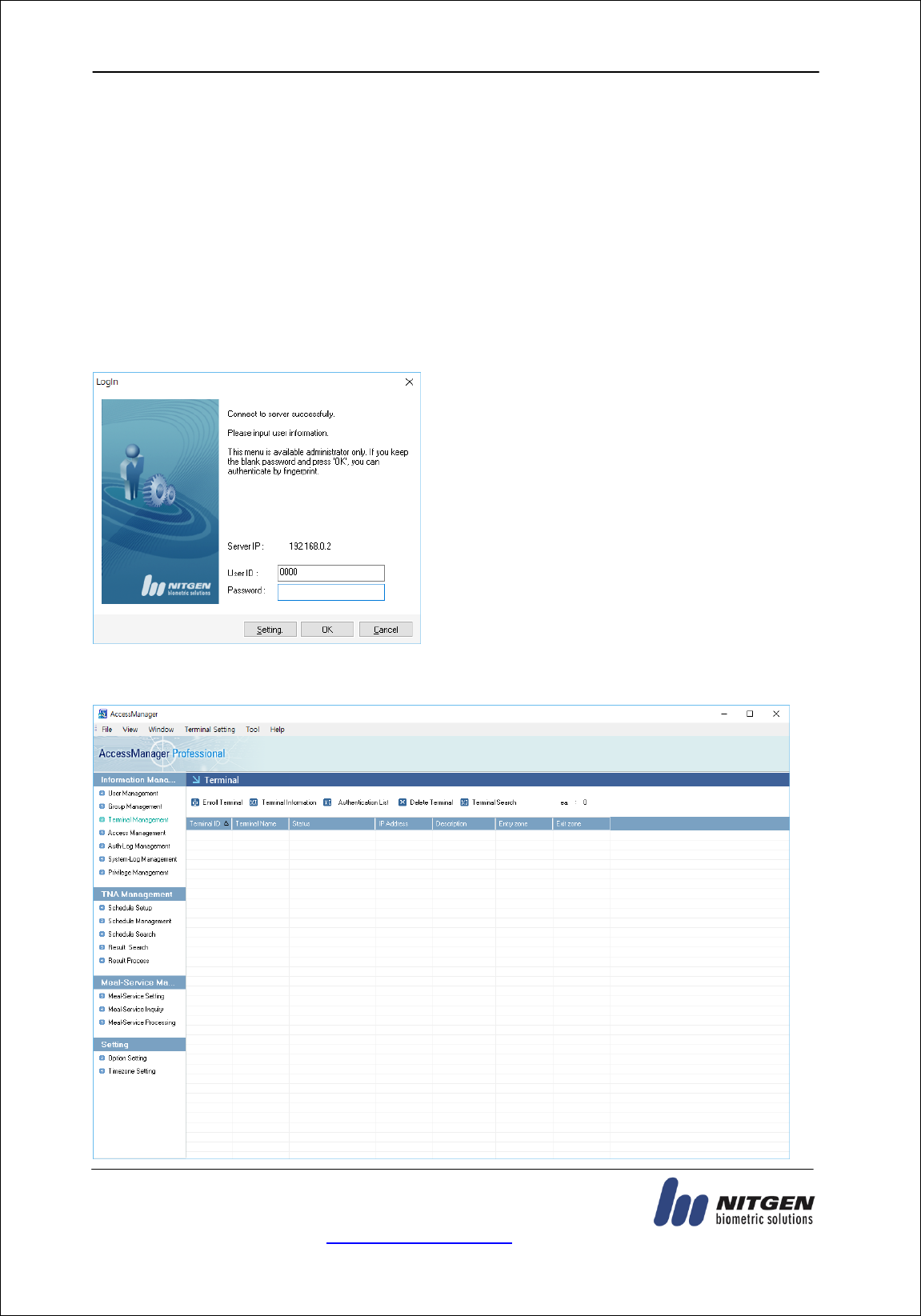

3.4.2. Execute ACM Pro ...................................................................................... 30
3.4.3. Set in terminal .......................................................................................... 31
3.4.4. LAN connection in terminal ....................................................................... 31

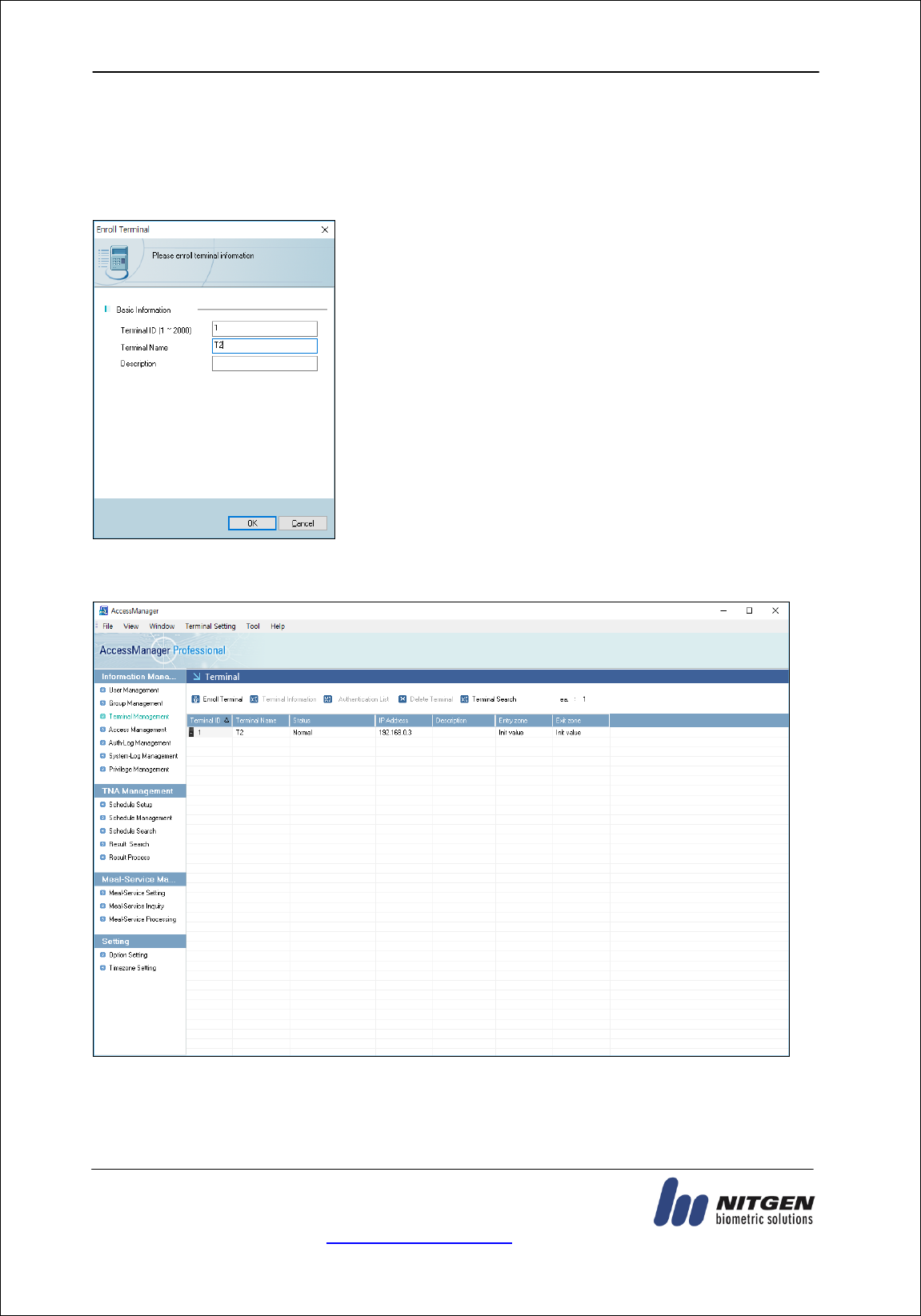

3.4.5. Register the terminal in ACM Pro .............................................................. 32

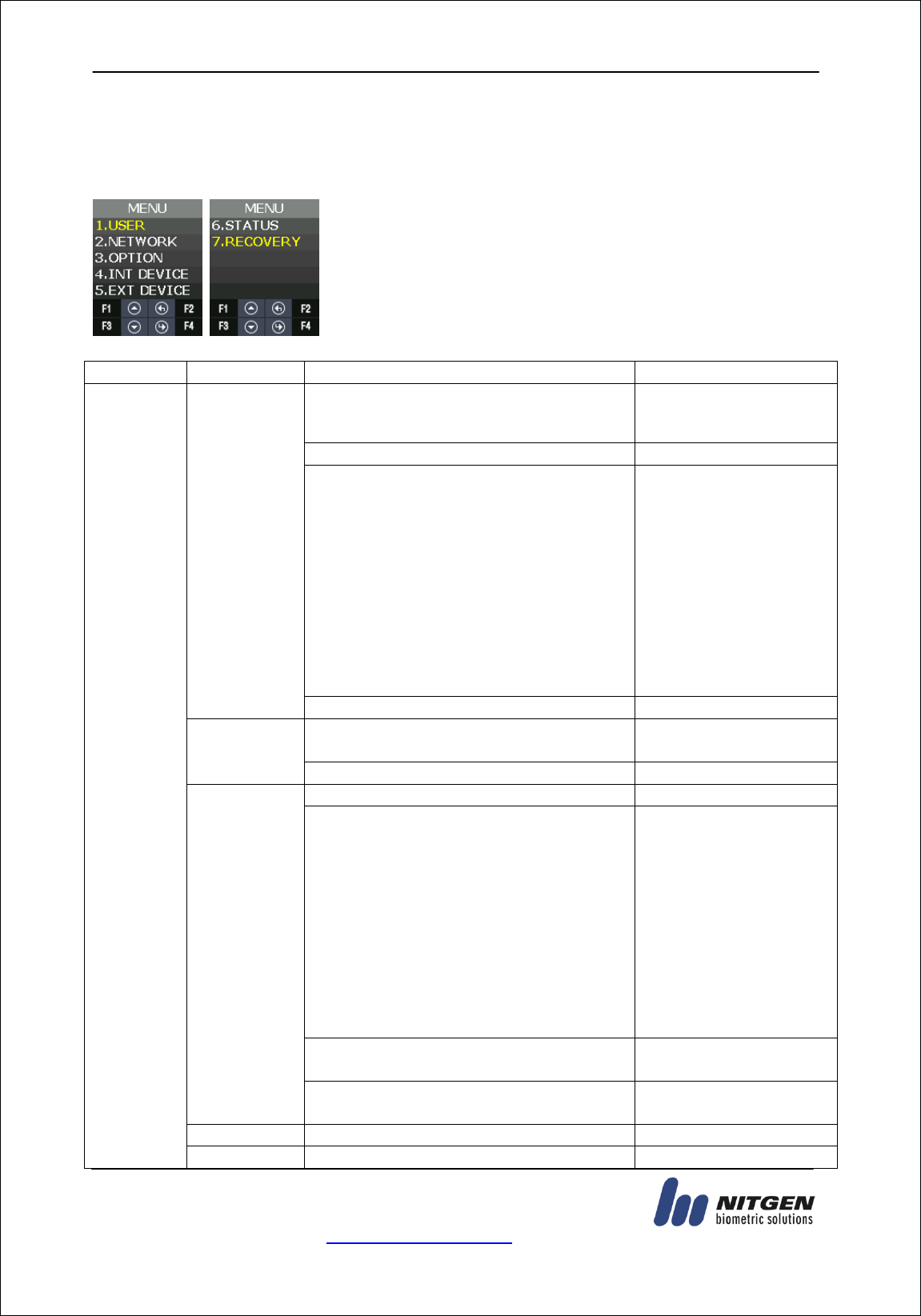

3.5. Menu Configuration .......................................................................................... 33
3.6. USER ................................................................................................................. 39
eNBioAccess-T2 User Guide 5
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.6.1. Menu Configuration .................................................................................. 39

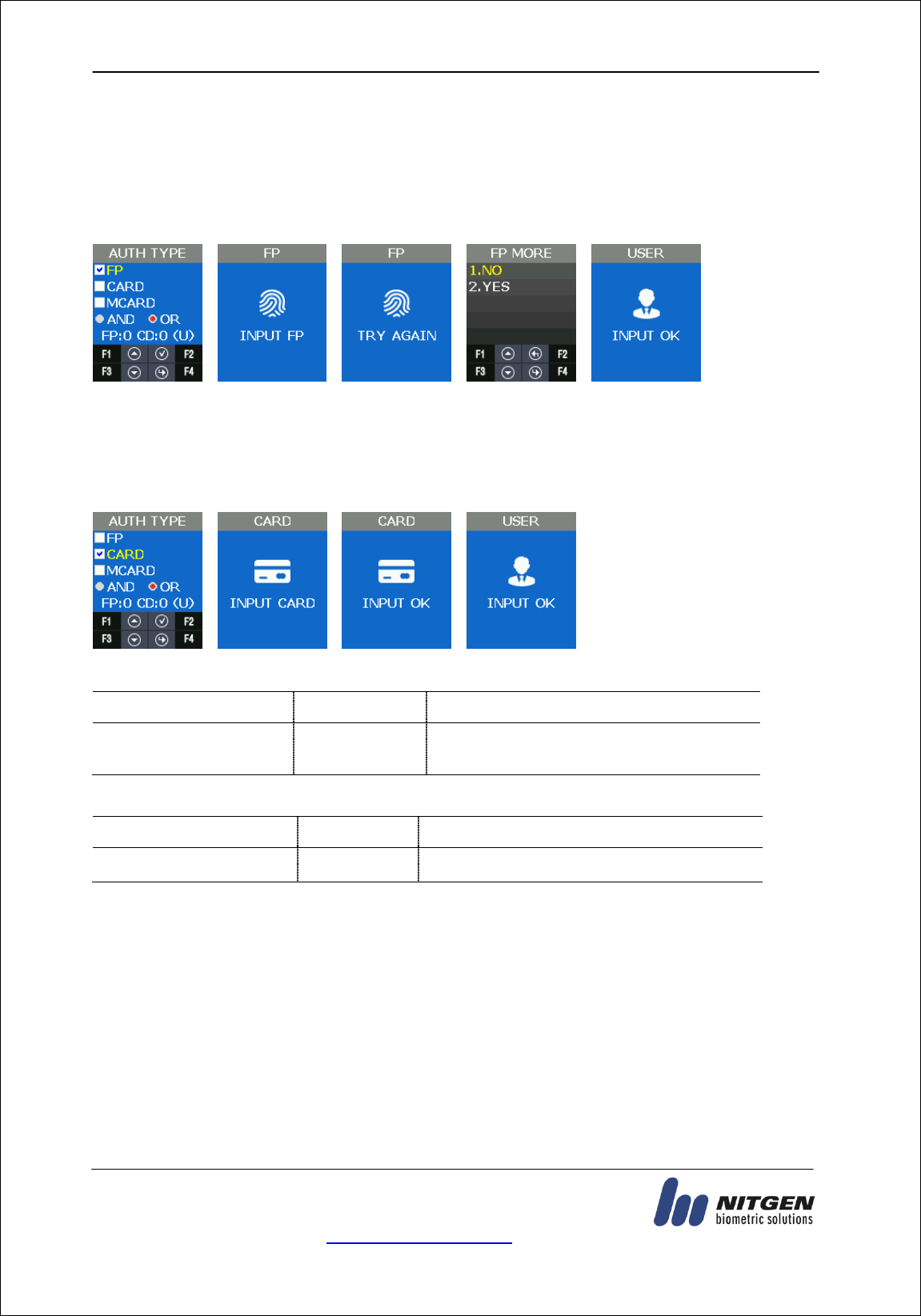

3.6.2. ADD.......................................................................................................... 39

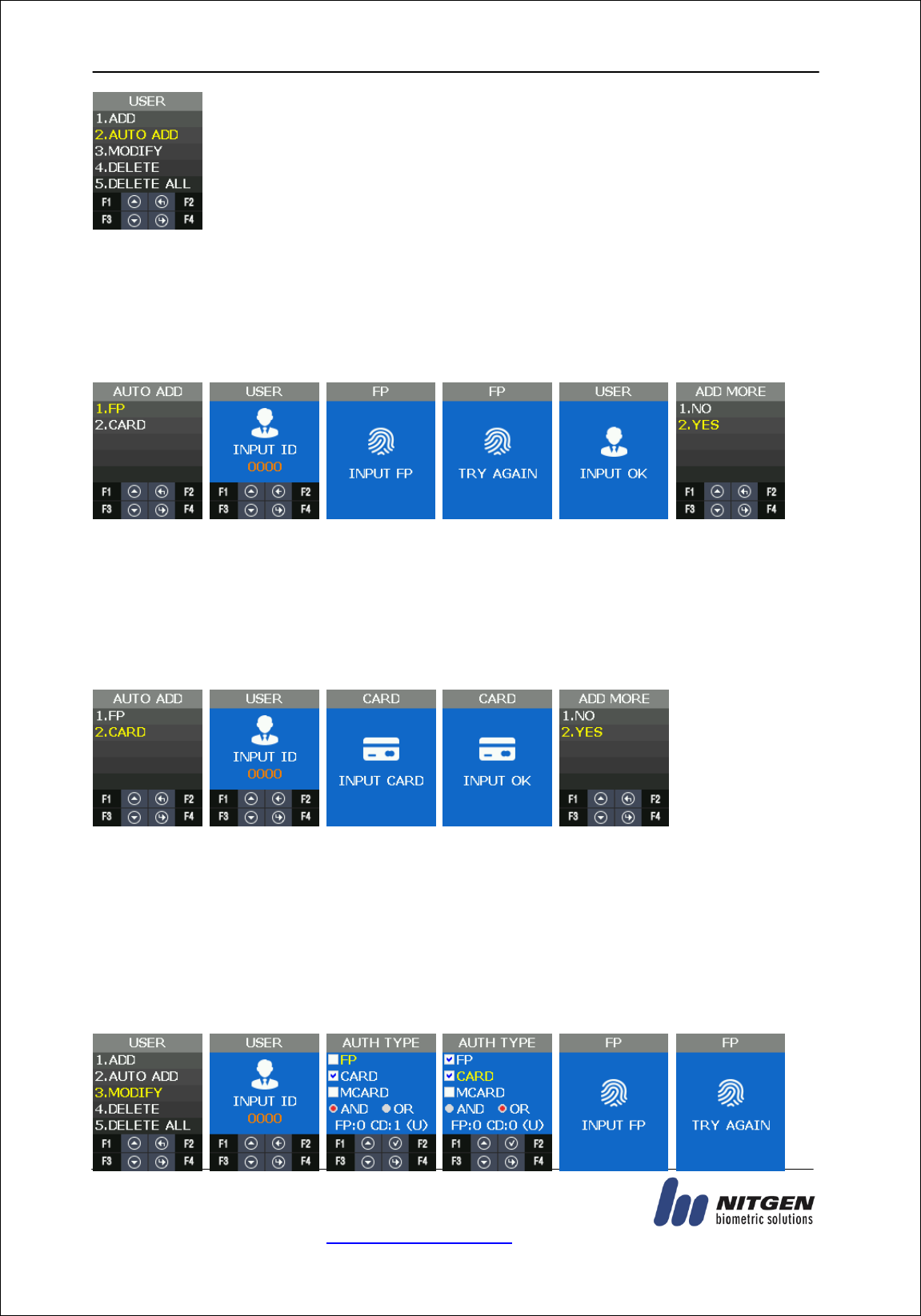

3.6.3. AUTO ADD ................................................................................................ 41
3.6.4. MODIFY .................................................................................................... 42

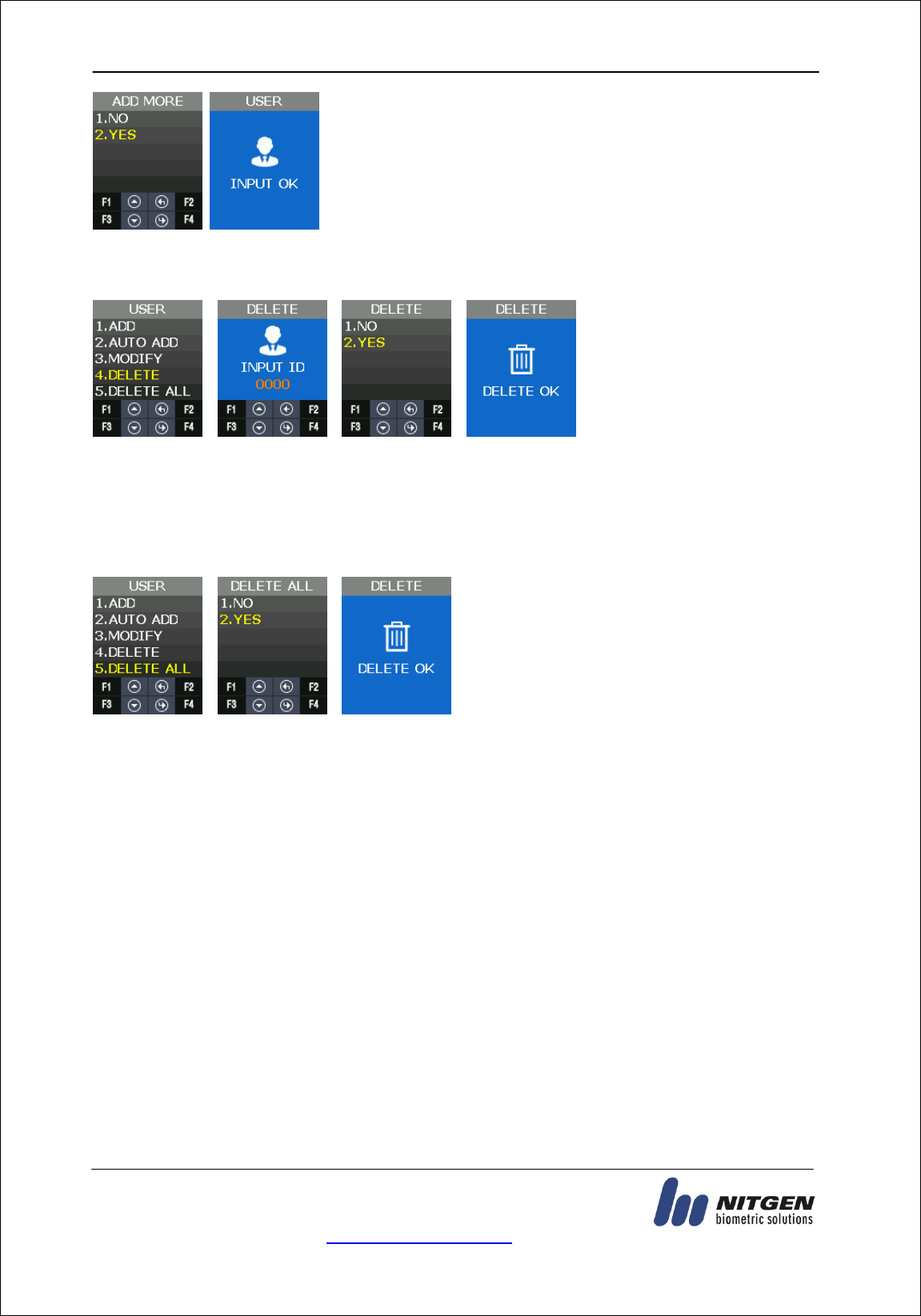

3.6.5. DELETE .................................................................................................... 43
3.6.6. DELETE ALL .............................................................................................. 43

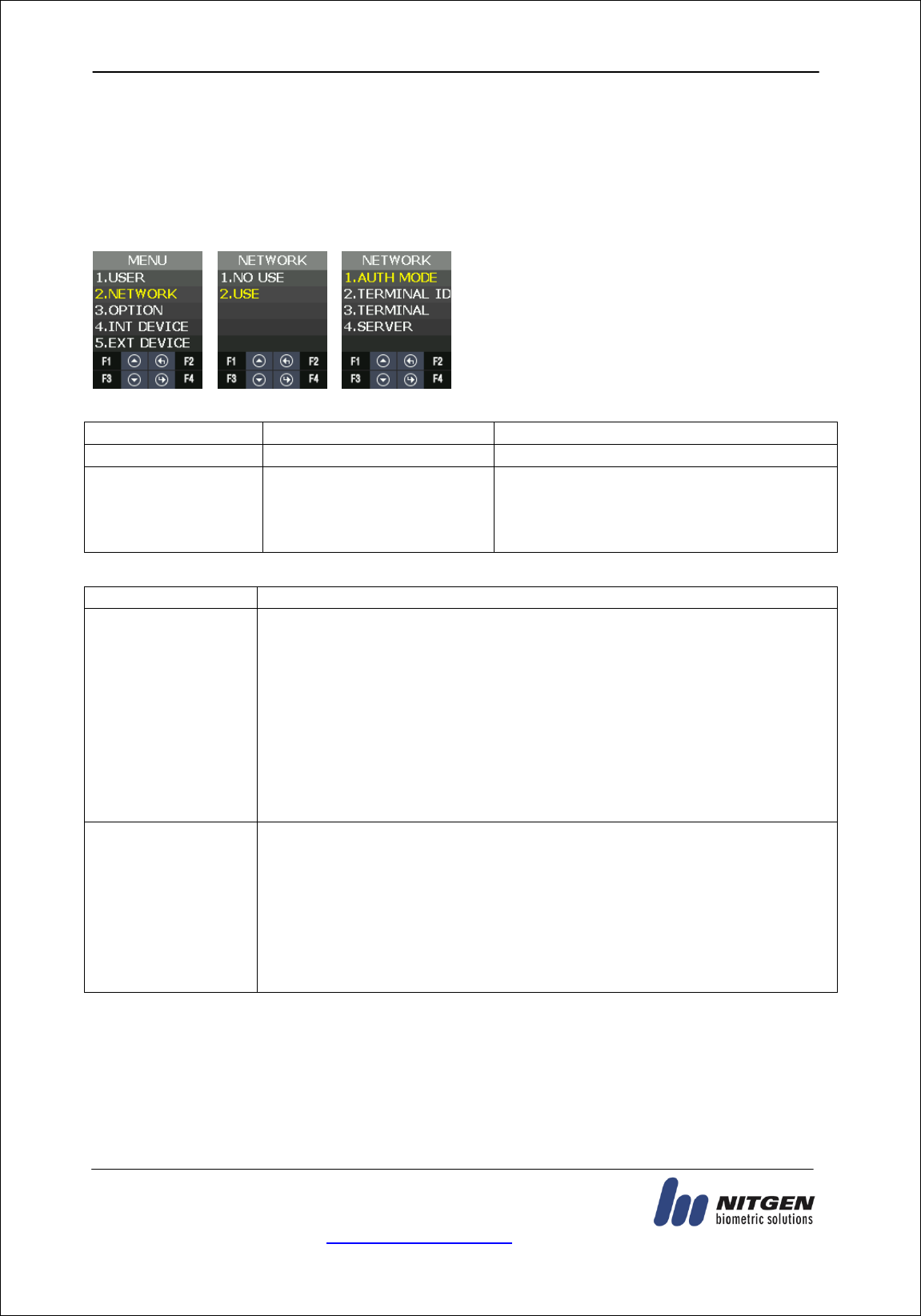

3.7. Network Menu ................................................................................................... 44
3.7.1. Menu Configuration .................................................................................. 44
3.7.2. AUTH Mode .............................................................................................. 45
3.7.3. Terminal ID .............................................................................................. 45
3.7.4. Terminal ................................................................................................... 46

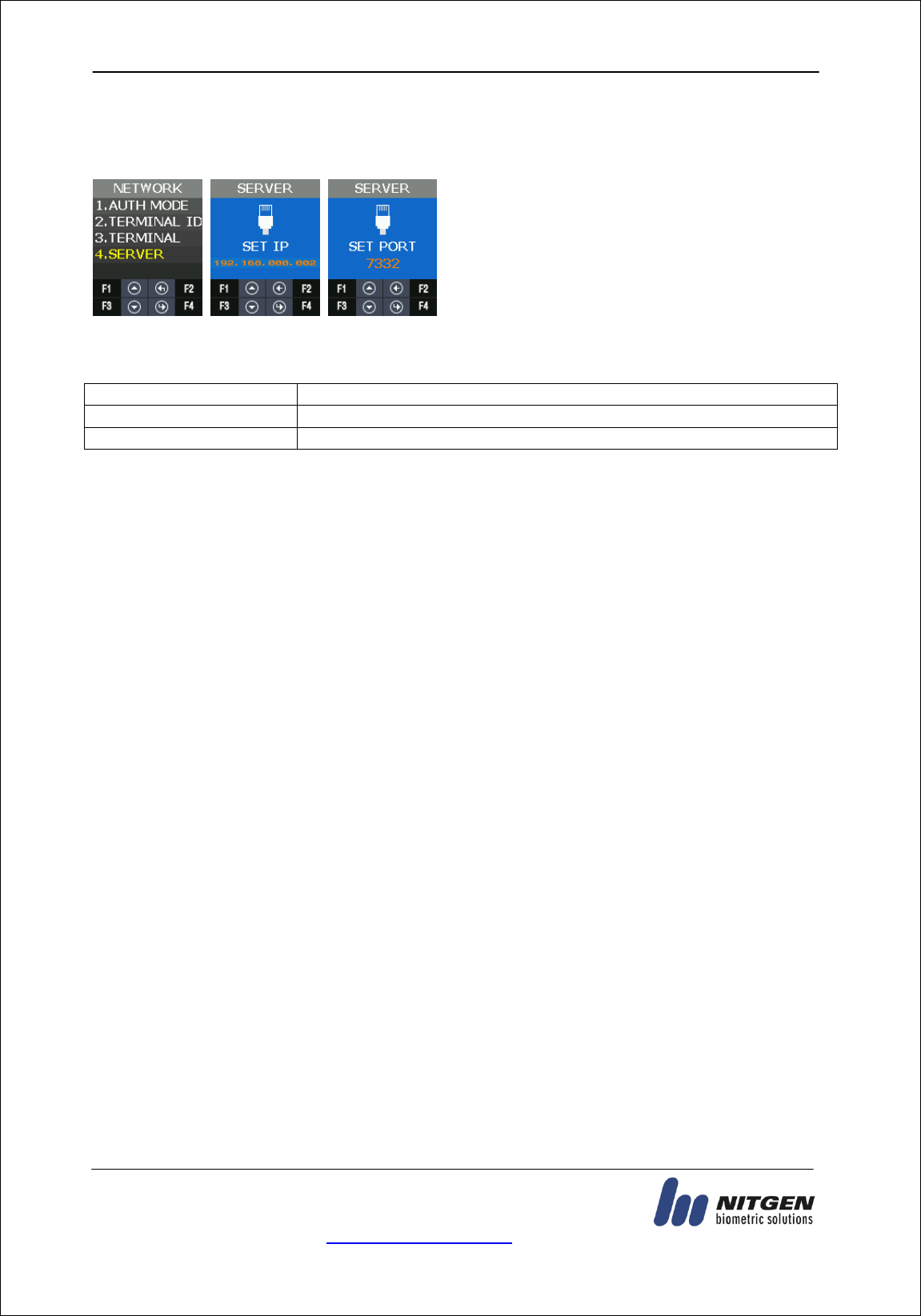

3.7.5. Server....................................................................................................... 47

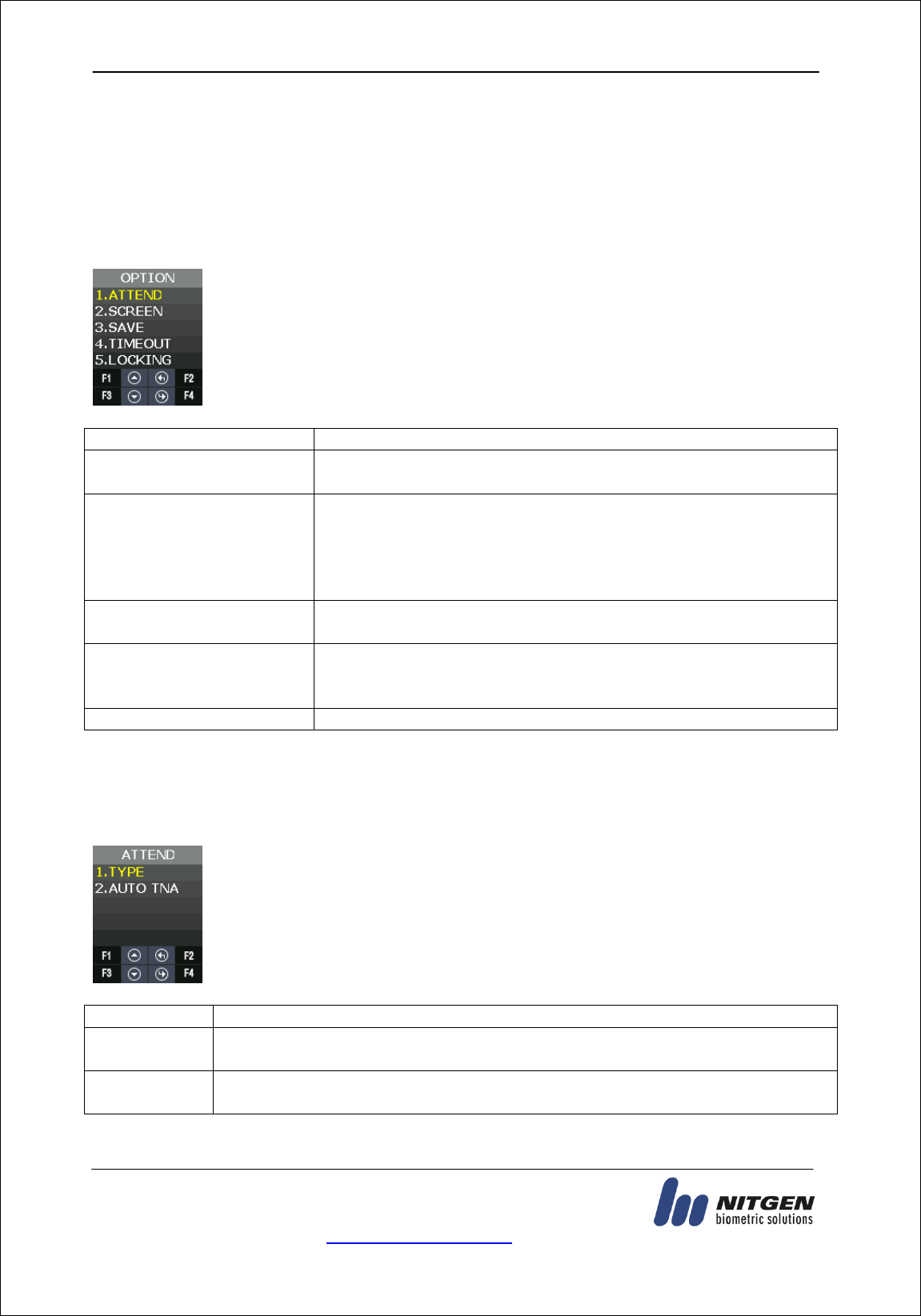

3.8. Option Menu...................................................................................................... 48
3.8.1. Menu configuration .................................................................................. 48

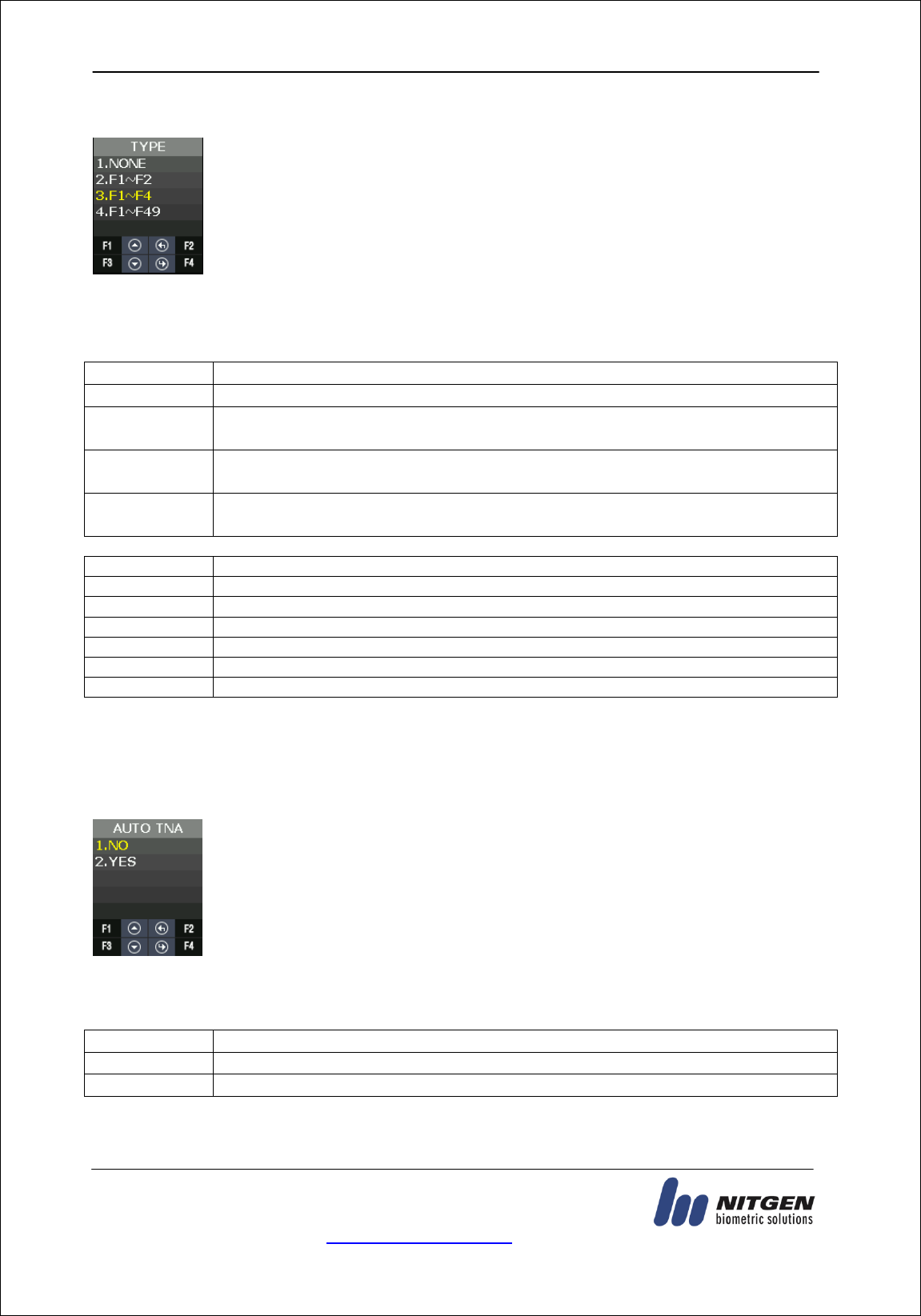

3.8.2. ATTEND .................................................................................................... 48

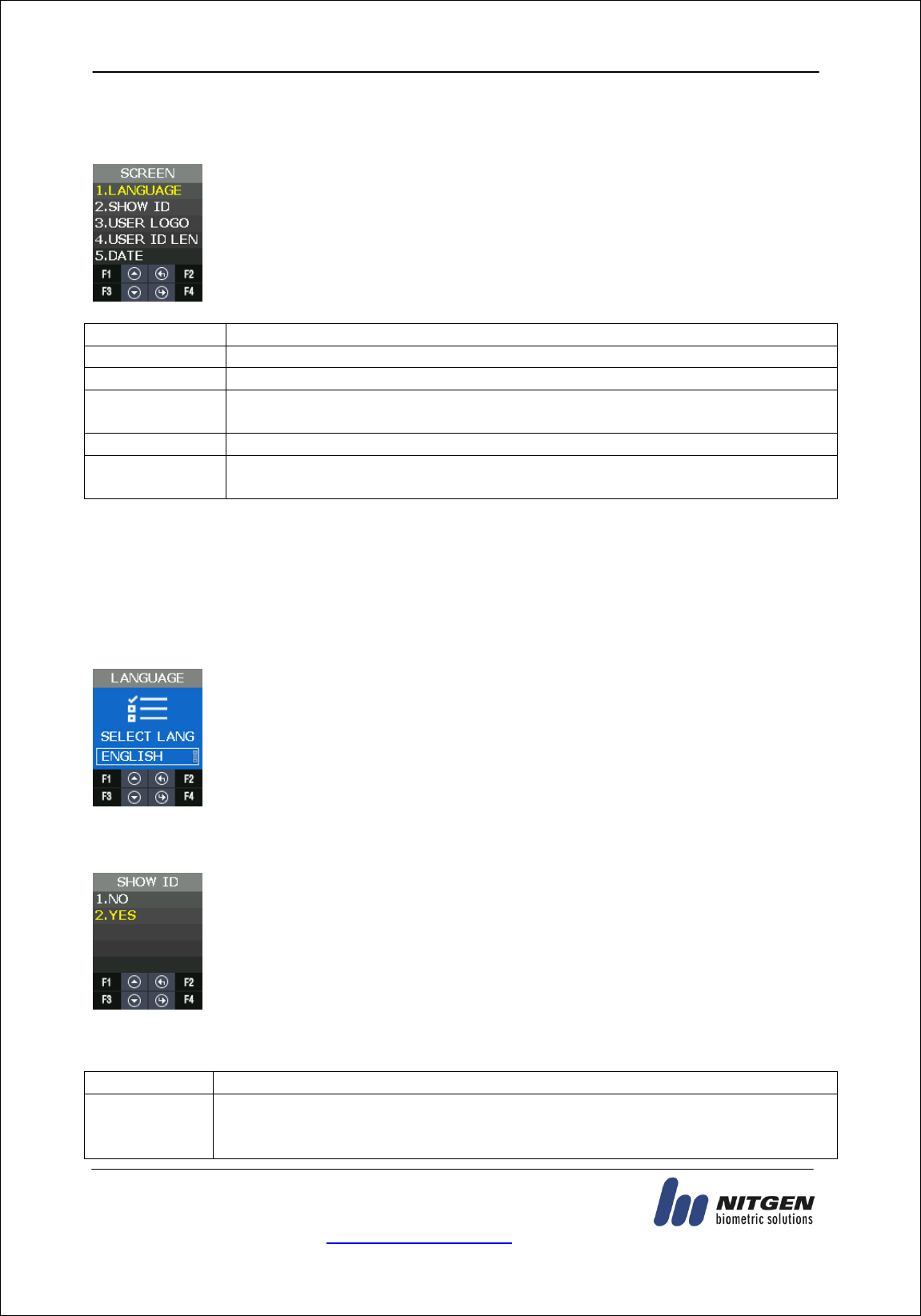

3.8.3. Screen ...................................................................................................... 50
3.8.4. SAVE ........................................................................................................ 52
3.8.5. TIMEOUT.................................................................................................. 53
3.8.6. LOCKING .................................................................................................. 54
3.9. INT DEVICE ....................................................................................................... 56
3.9.1. Menu Configuration .................................................................................. 56

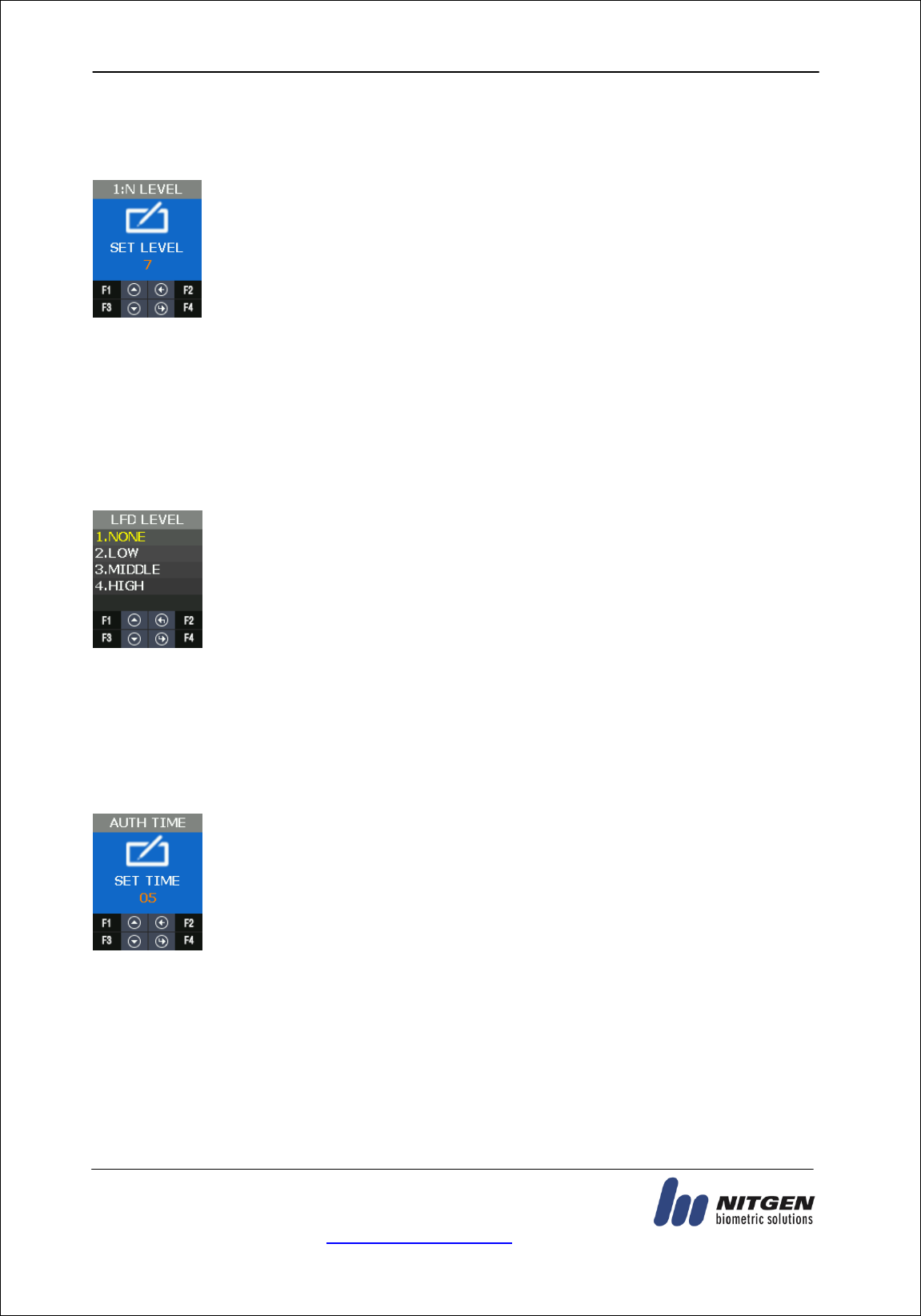

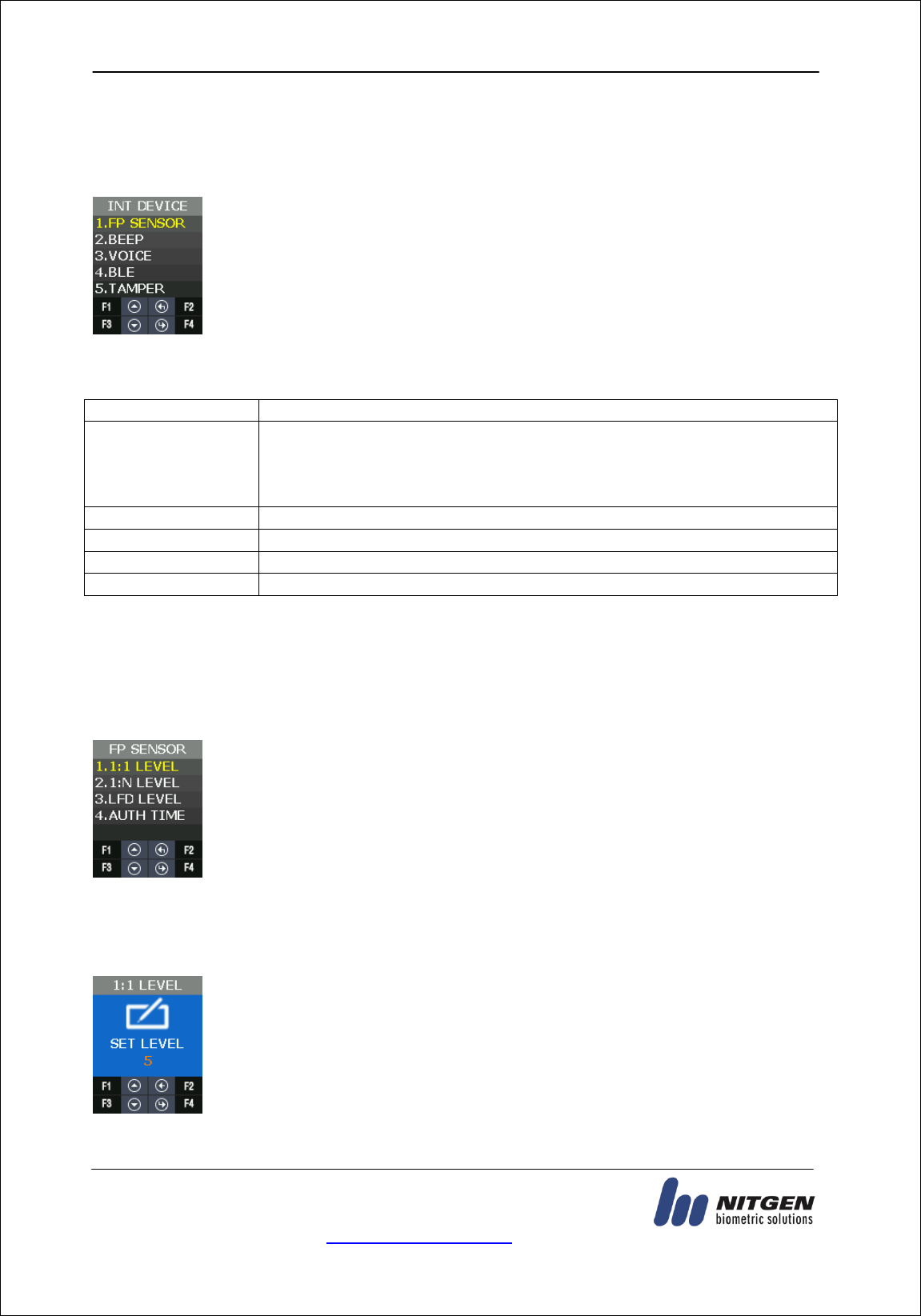

3.9.2. FP SENSOR ............................................................................................... 56
3.9.3. BEEP ........................................................................................................ 58
3.9.4. VOICE ...................................................................................................... 58
3.9.5. BLE ........................................................................................................... 58

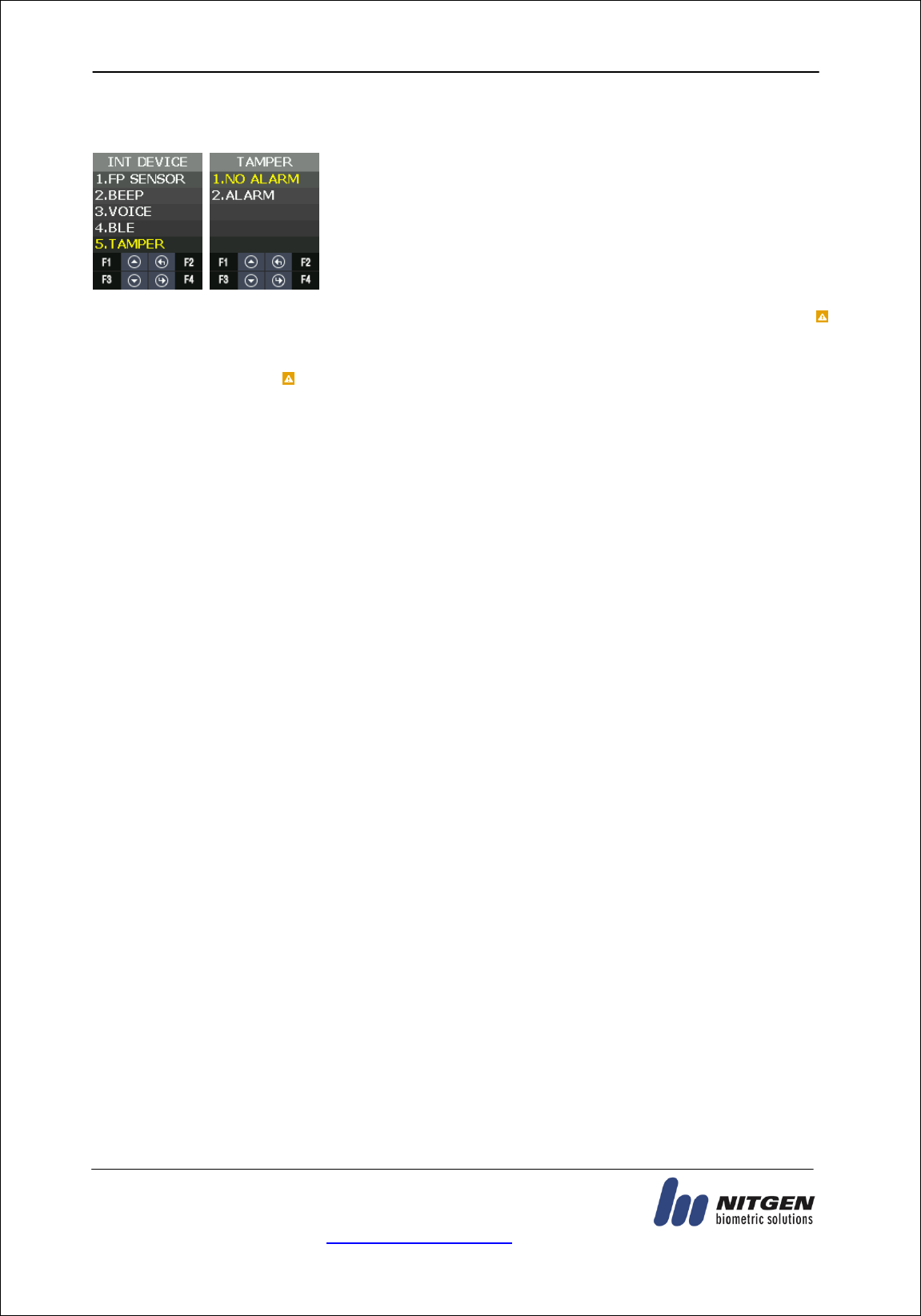

3.9.6. TAMPER .................................................................................................... 59

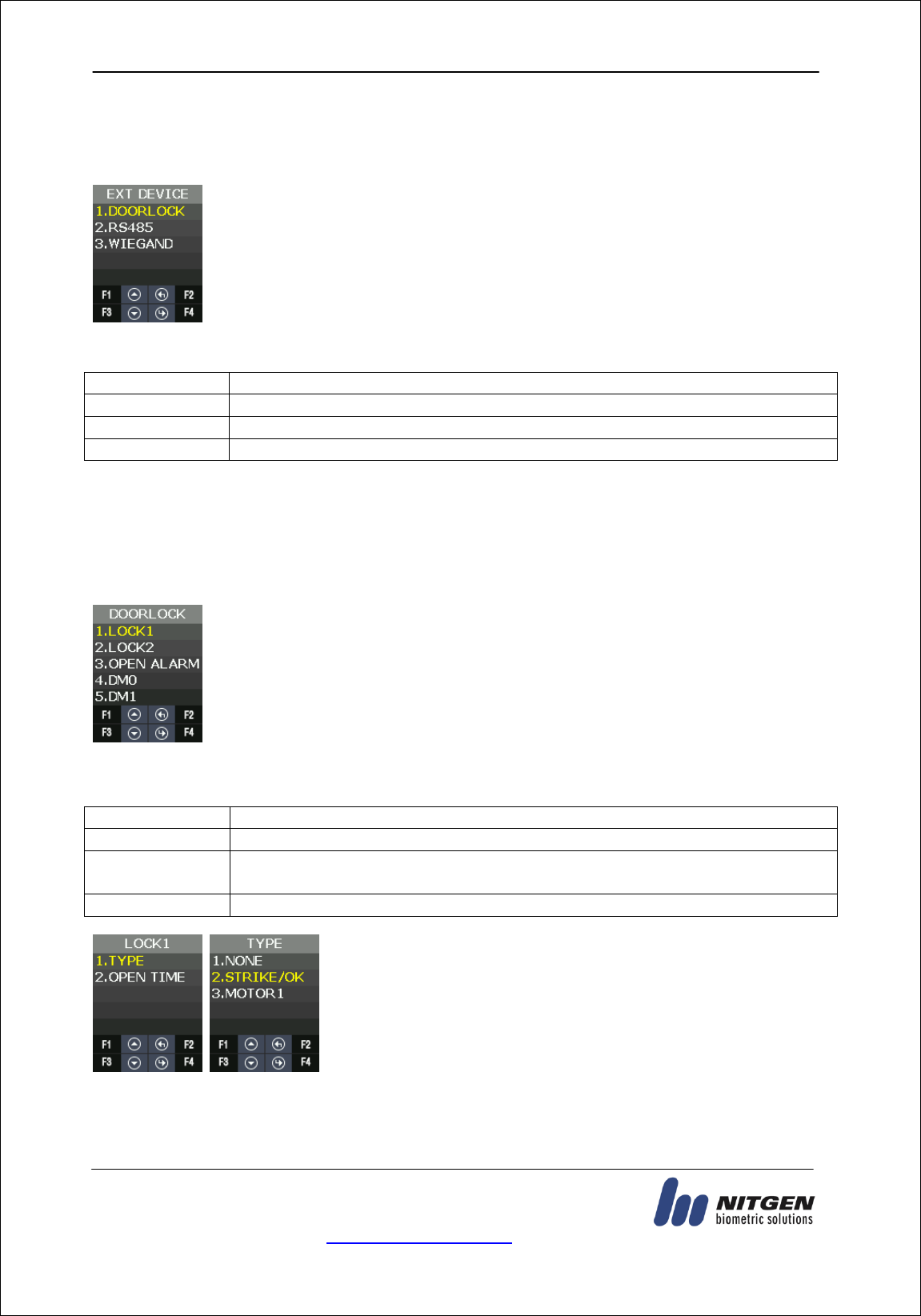

3.10. EXT DEVICE ...................................................................................................... 60
3.10.1. Menu Configuration .................................................................................. 60

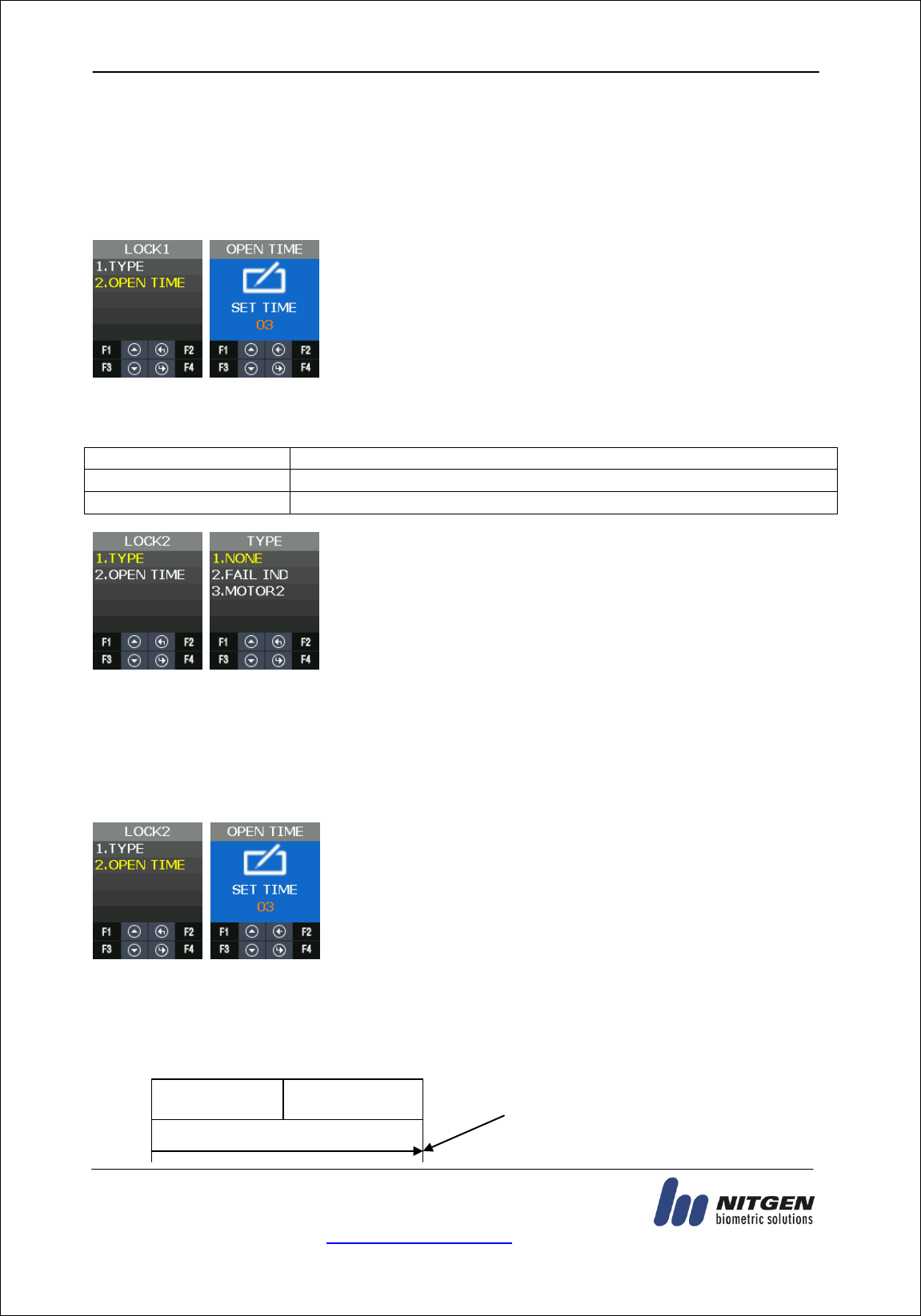

3.10.2. DOORLOCK .............................................................................................. 60

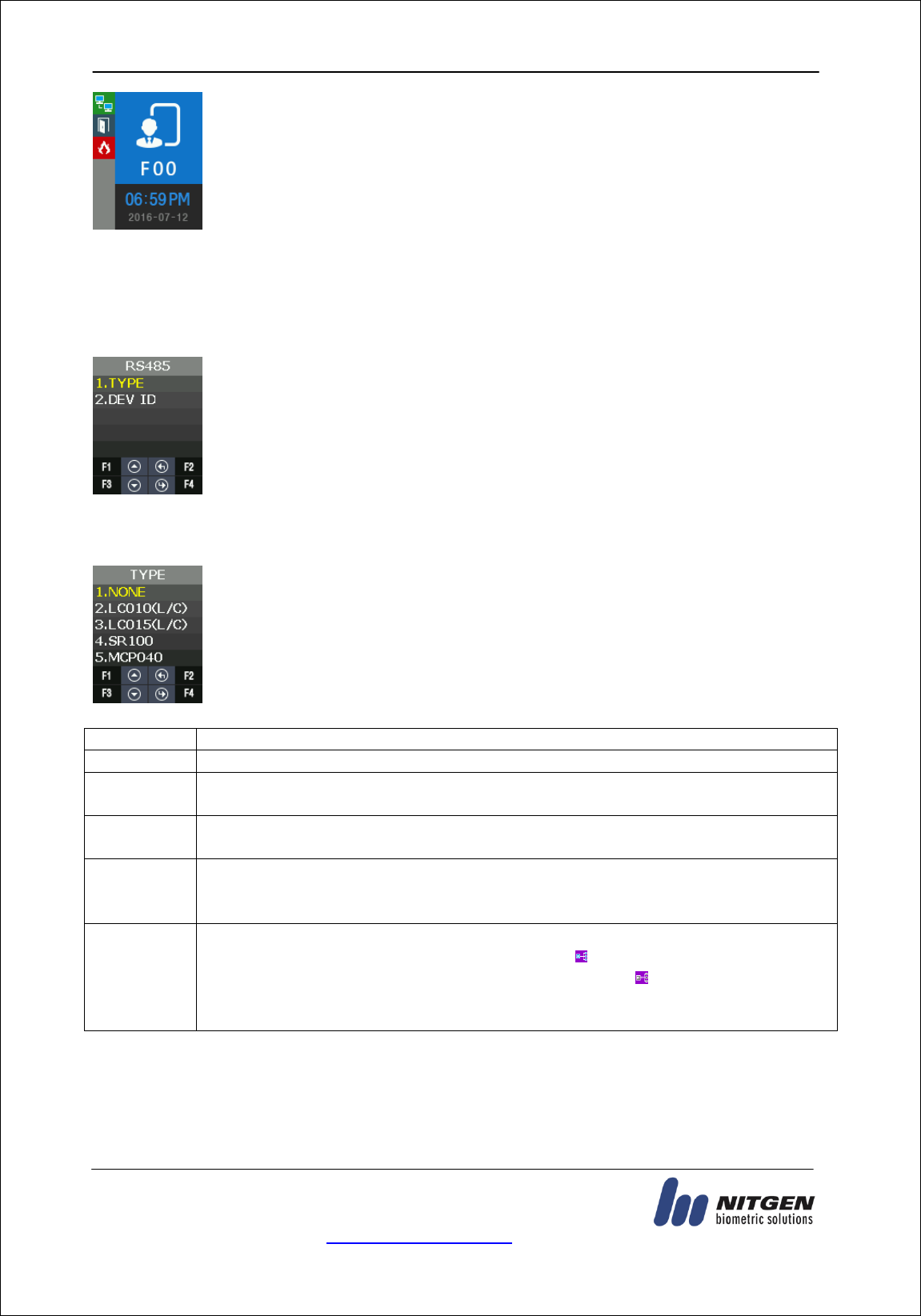

3.10.3. RS485....................................................................................................... 63

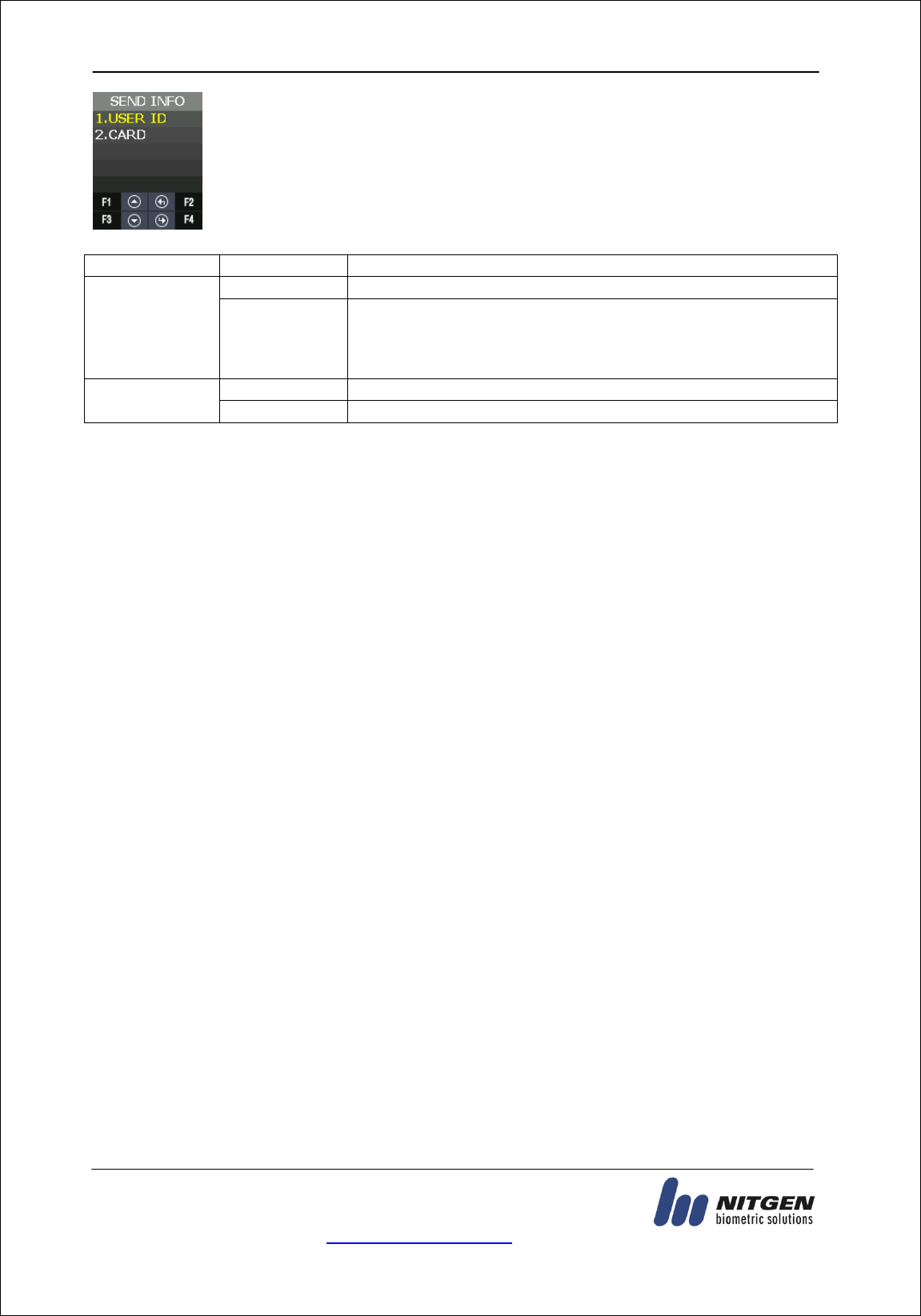

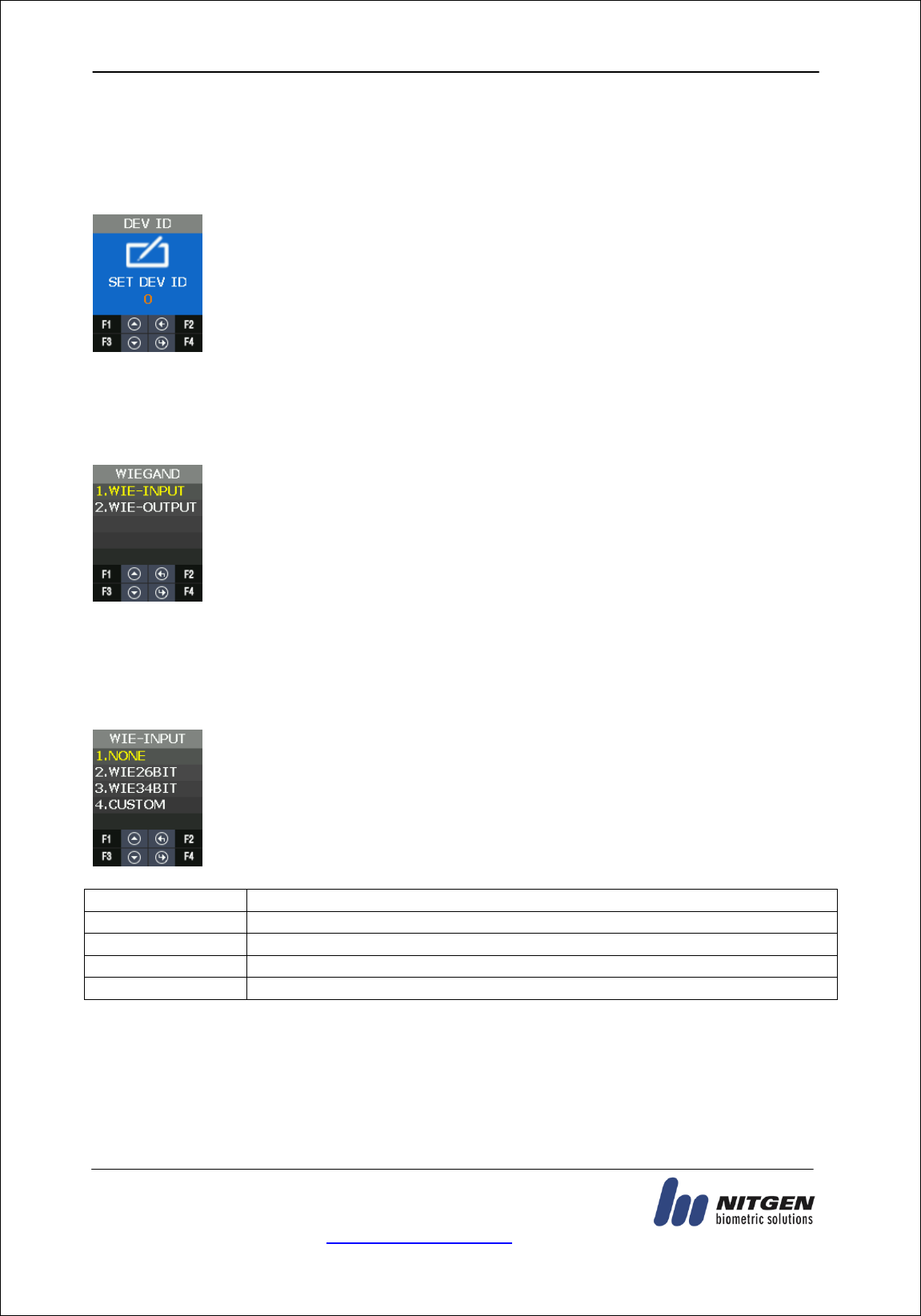

3.10.4. WIEGAND ................................................................................................. 64

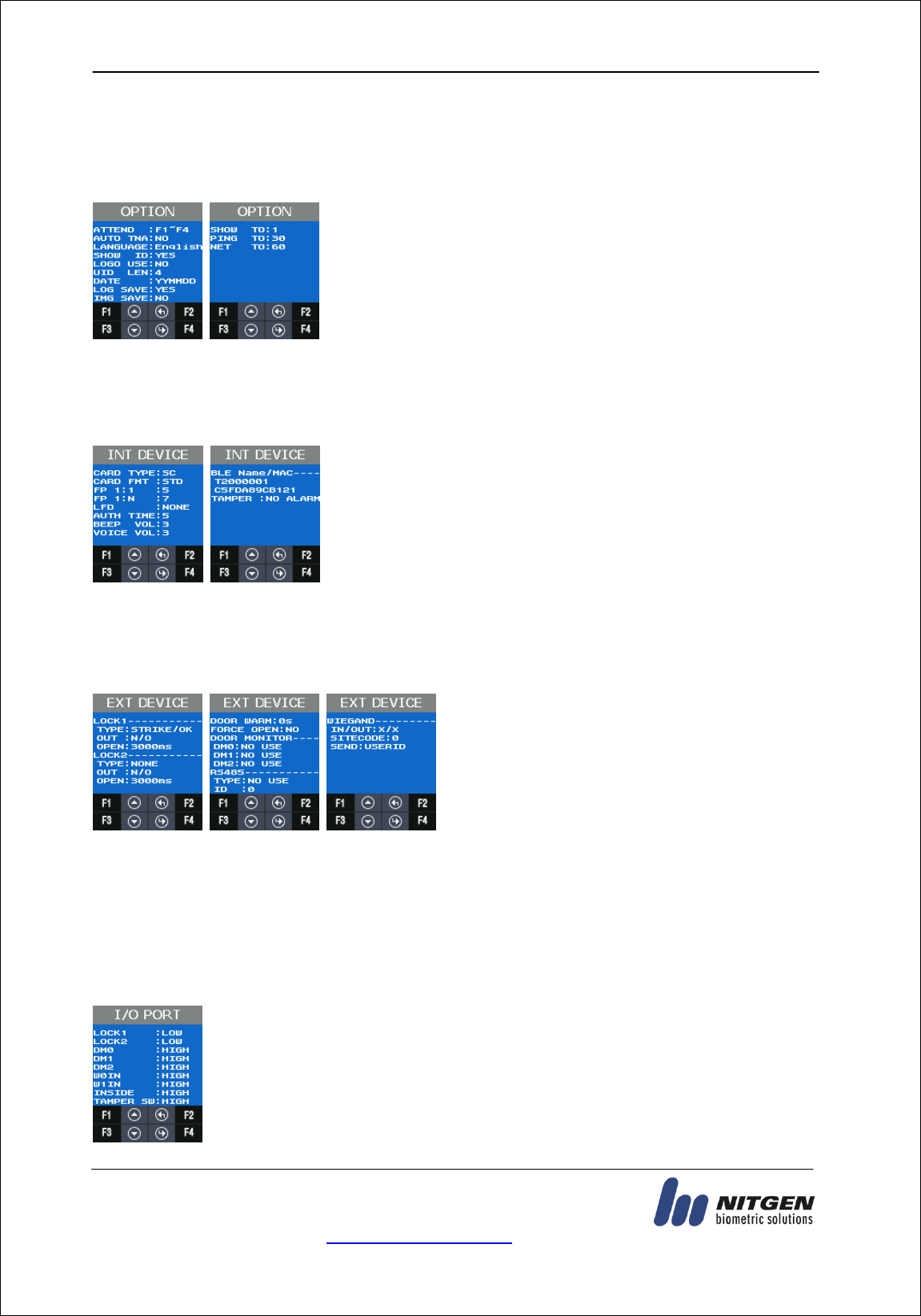

3.11. STATUS ............................................................................................................. 67
3.11.1. Menu Configuration .................................................................................. 67
3.11.2. DB INFO ................................................................................................... 67
3.11.3. NETWORK ................................................................................................ 67
3.11.4. OPTION .................................................................................................... 68
3.11.5. INT DEVICE .............................................................................................. 68
3.11.6. EXT DEVICE ............................................................................................. 68
3.11.7. I/O PORT .................................................................................................. 68
3.11.8. VERSION .................................................................................................. 69

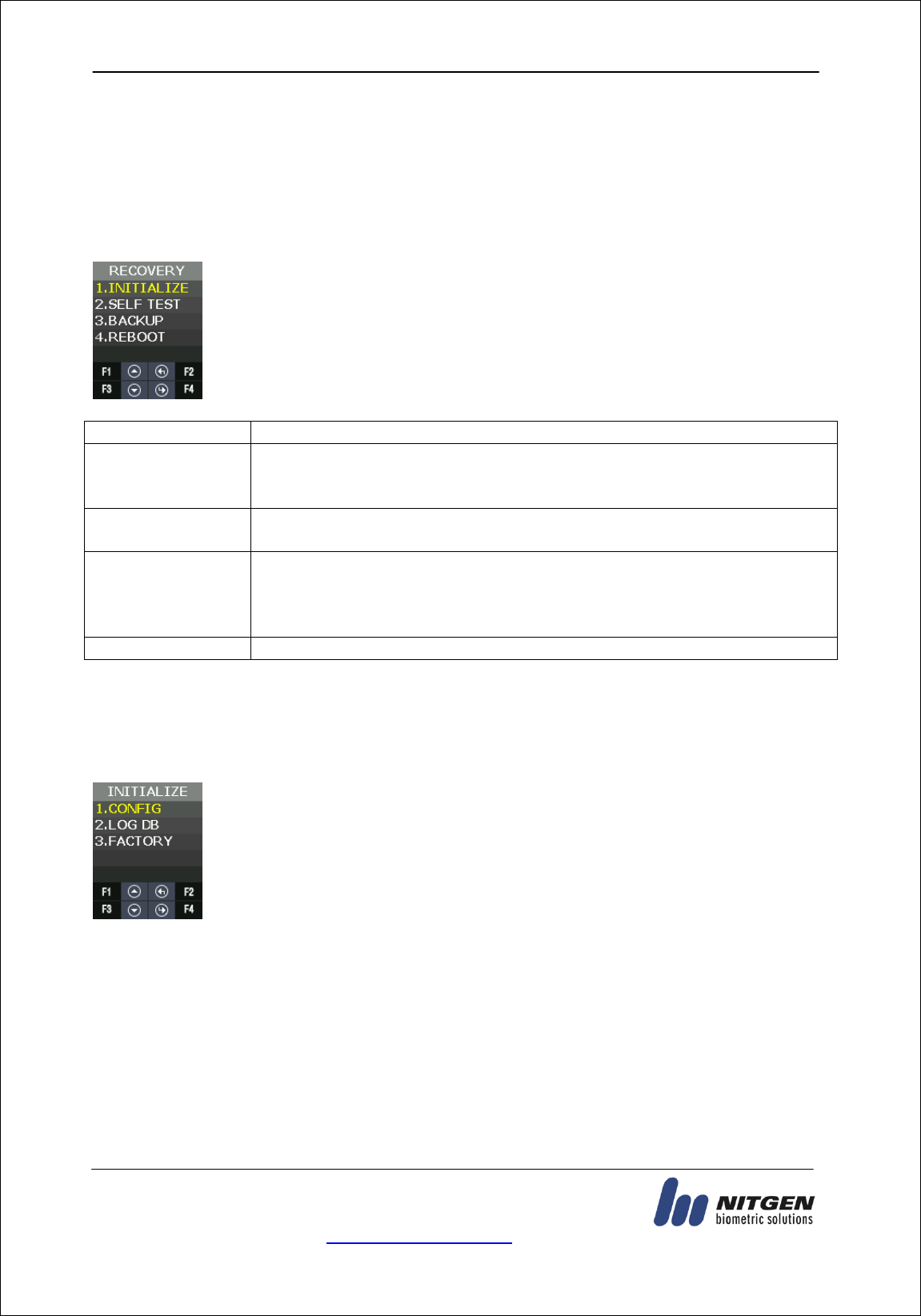

3.12. RECOVERY ....................................................................................................... 70
3.12.1. Menu Configuration .................................................................................. 70
3.12.2. INITIALIZE ............................................................................................... 70
3.12.3. SELF TEST ................................................................................................ 71

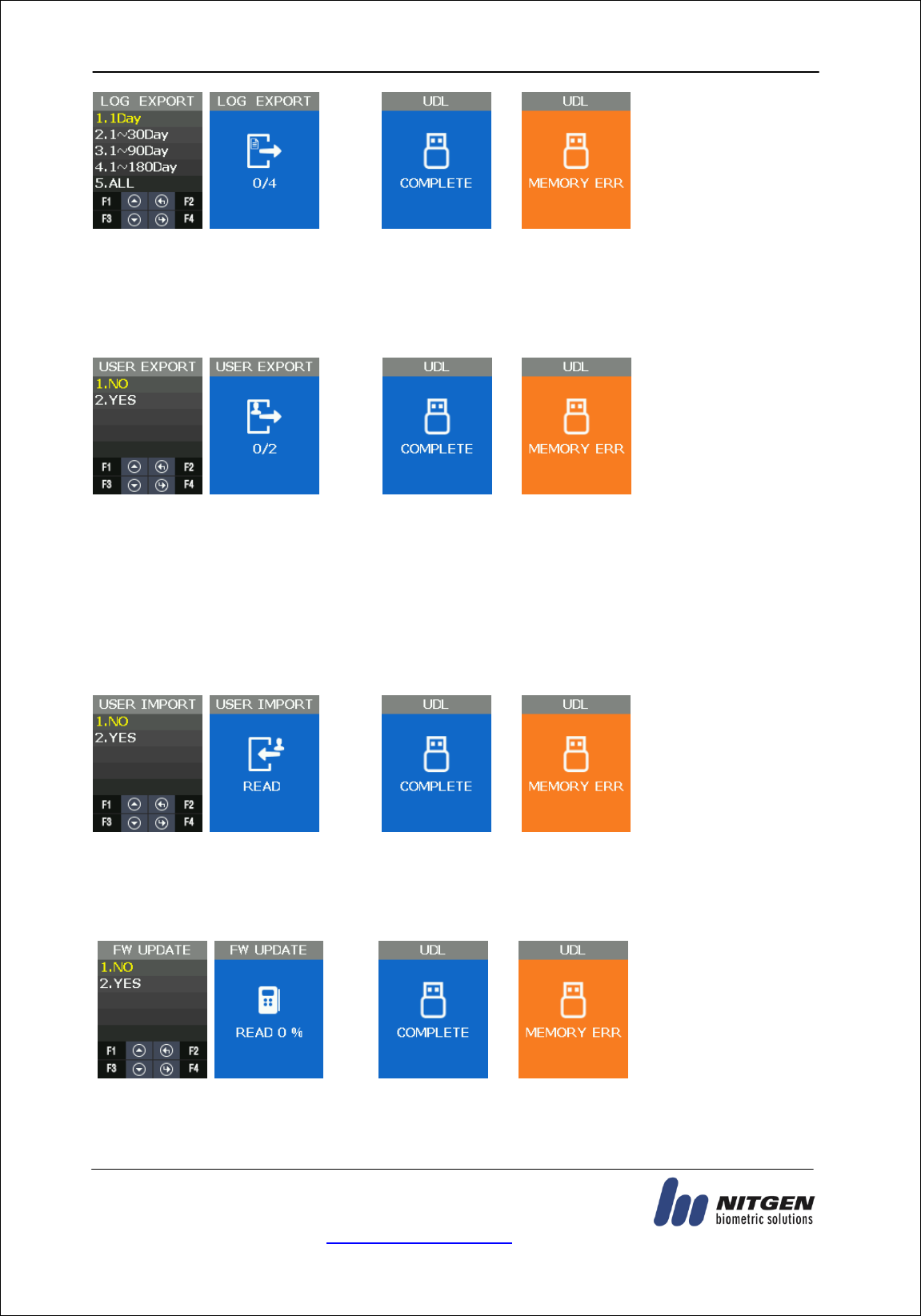

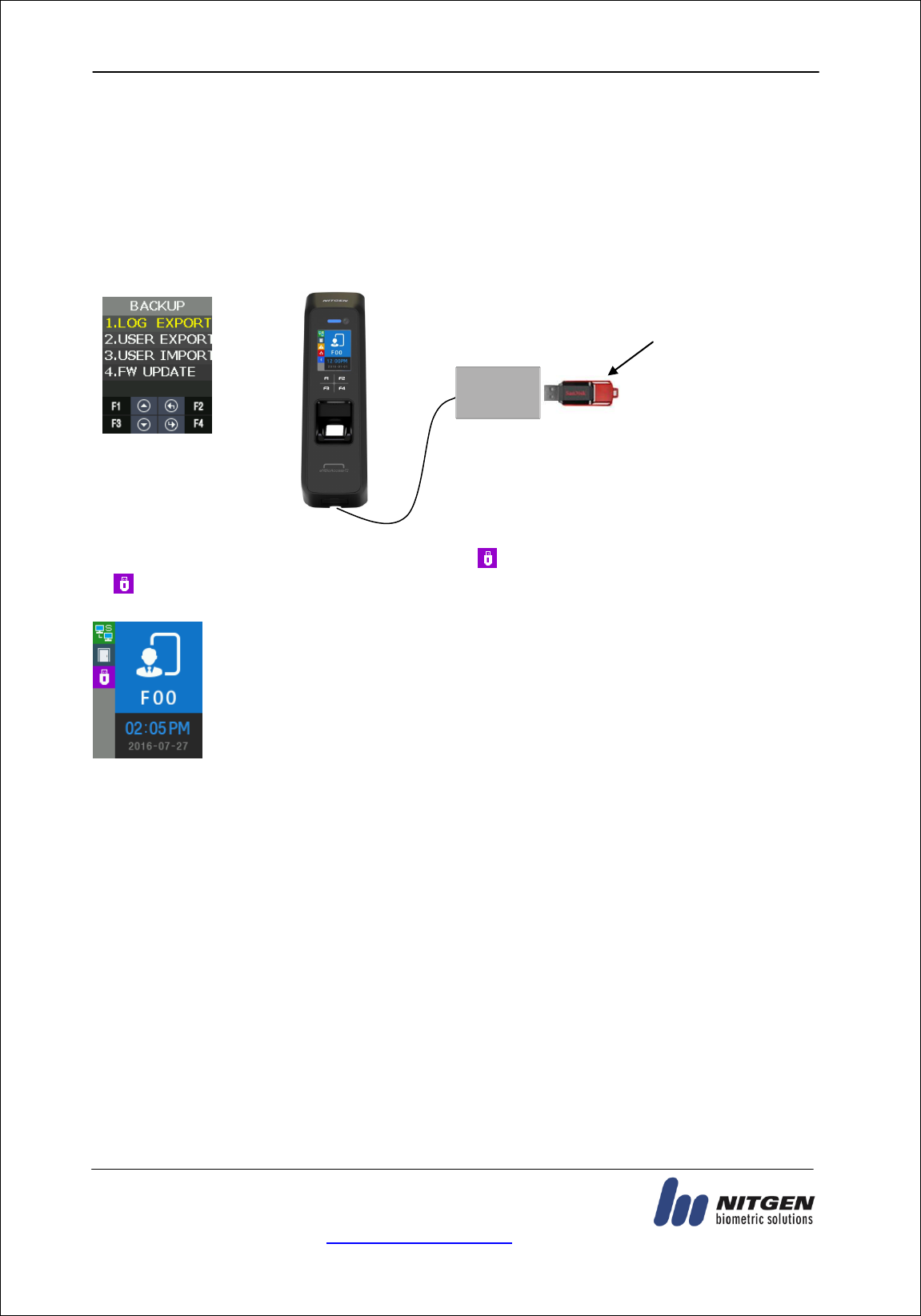

3.12.4. BACKUP .................................................................................................... 75

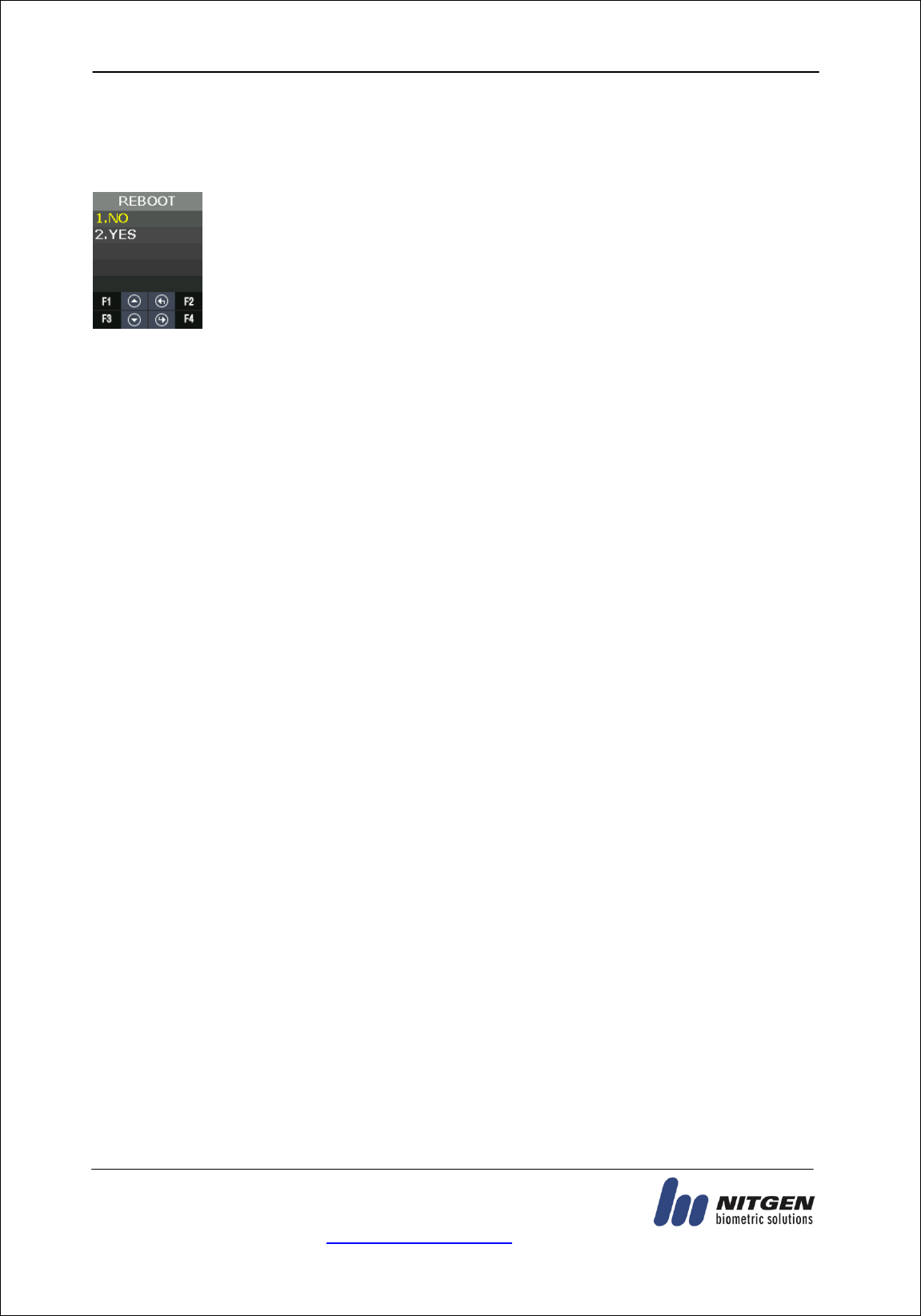

3.12.5. REBOOT ................................................................................................... 77
eNBioAccess-T2 User Guide 6
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
1. Before Getting Started
1.1. Safety Notes
Warning
Do not operate the terminal
with wet hands, and pay
attention not to let any
liquid such as water enter
inside the terminal.
- > Otherwise, malfunction
or electric shock may be
caused.
Keep the terminal away
from inflammables.
- > Otherwise, it may
cause a fire.
Do not disassemble, repair
or remodel the terminal at
your disposal.
- > Otherwise, it may cause
malfunction, electric shock,
or a fire.
Do not allow children to
touch the terminal
carelessly.
- > Otherwise, it may
cause safety accidents of
children or malfunction.
- Non-compliance of safety notes may cause death or serious injury for users.
Cautions
Do not install the terminal
in a place exposed to direct
sunlight.
→ Otherwise, it may cause
malfunction, deformation
and discoloration.
Do not install the terminal
in humid or dusty places.
→ Otherwise, it may
cause malfunction.
Do not clean this terminal
by sprinkling water, nor
wipe it with benzene,
thinner, and alcohol.
→ Otherwise, it may cause
electric shock or a fire.
Keep the terminal away
from magnets.
→ Otherwise, it may
cause failure and
malfunction.
Keep the fingerprint input
section clean.
→ Otherwise, the
fingerprint cannot be
recognized correctly.
Do not spray insecticides
or inflammables on the
terminal.
→ Otherwise, it may
cause deformation and
discoloration.
Keep the terminal away
from shock or sharp
objects.
→ Otherwise, it may
damage the terminal and
result in malfunction.
Do not install the terminal
in a place where there is
a severe change in
temperature.
→ Otherwise, it may
cause malfunction.
- Non-compliance of safety notes may cause personal injury or property damage for
users.
※ We are not responsible for any accidents and damage that may arise from non-
compliance of the information in this manual.
eNBioAccess-T2 User Guide 7
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
1.2. Product Details
1.2.1. FRONT
Camera
LCD
Function KEY (F1~F4)
Speaker
Card Sensor (EM/SC/HID)
Fingerprint
Sensor
State LED
BLE embedded
USB assist device
(UDL10) connection
eNBioAccess-T2 User Guide 8
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
1.2.2. REAR
Fixed bracket
Cable harness
eNBioAccess-T2 User Guide 9
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
1.2.3. Input / Output
1.2.3.1. Cable & Connector
eNBioAccess-T2 User Guide 10
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
1.2.3.2. Pin Details
Pin
number
Line color
Label
(Line name)
Explanation
IN/OUT
Note
1
ORANGE
EXT
Inside open
IN
Connect to Exit button
2
YELLOW
DM0
DoorMonitor0
IN
Sense door state(DM0)
3
GREEN
DM1
DoorMonitor1
IN
Sense door state(DM1)
4
BLUE
DM2
DoorMonitor2
IN
Sense door state(DM2)
5
BLACK
GND
GND
-
Ground connection(for
door monitor)
6
RED
5V
DC5V
OUT
DC 5V output
7
BLACK
PGND
Power GND
-
Power supply ground
connection
8
GREEN
R4A
RS485A
BI
RS-485 interface
9
BLUE
R4B
RS485B
BI
RS-485 interface
10
ORANGE
WO0
WIE_OUT0
OUT
Output WIGAND (WO0)
11
YELLOW
WO1
WIE_OUT1
OUT
Output WIGAND (WO1)
12
BROWN
WI0
WIE_IN0
IN
Input WIGAND (WI0)
13
PURPLE
WI1
WIE_IN1
IN
Input WIGAND (WI1)
14
BLACK
GND
GND
-
Ground connection
(WIGAND signal)
15
RED
-
N_TXN
OUT
LAN I/F (LAN cable)
16
BLACK
-
N_TXP
OUT
LAN I/F (LAN cable)
17
GREEN
-
N_RXN
IN
LAN I/F (LAN cable)
18
WHITE
-
N_RXP
IN
LAN I/F (LAN cable)
19
RED
12V
DC12V
IN
DC 12V power supply
input
20
BLACK
GND
Power GND
-
Power supply ground
connection (Adapter)
21
RED
12V
DC12V
OUT
DC 12V put out power
22
GRAY
L1C
LOCK1_COM
OUT
Lock1 COM terminal
23
BROWN
L1NC
LOCK1_NC
OUT
Lock1 NC terminal
24
WHITE
L1NO
LOCK1_NO
OUT
Lock1 NO terminal
25
PURPLE
L2
LOCK2
OUT
Lock2 terminal
26
BLACK
GND
GND
-
Ground connection
(Lock connecter)
27
BLACK
PGND
Power GND
-
Power supply ground
connection (Lock
power)
28
BLACK
PGND
Panel GND
-
Panel ground
connection (Earth)
1.2.3.3. Terminal <- > MCP040 wiring
Category
T2 terminal (Line name)
MCP040
RS485A
R4A (green)
RDRA+
RS485B
R4B (blue)
RDRA-
ground connection
GND (black)
G
eNBioAccess-T2 User Guide 11
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
1.2.3.4. Terminal <- > LC015B wiring
Category
T2 terminal (Line name)
LC015B
RS485A
R4A (green)
485A
RS485B
R4B (blue)
485B
ground connection
GND (black)
GND
DOOR MONITOR
IN1(If this pin is not used,
connect to GND Pin.)
INSIDE OPEN
IN0
DC12V (LC015B separate power
supply)
DC12V IN
ground connection (Power only
for LC015B)
GND

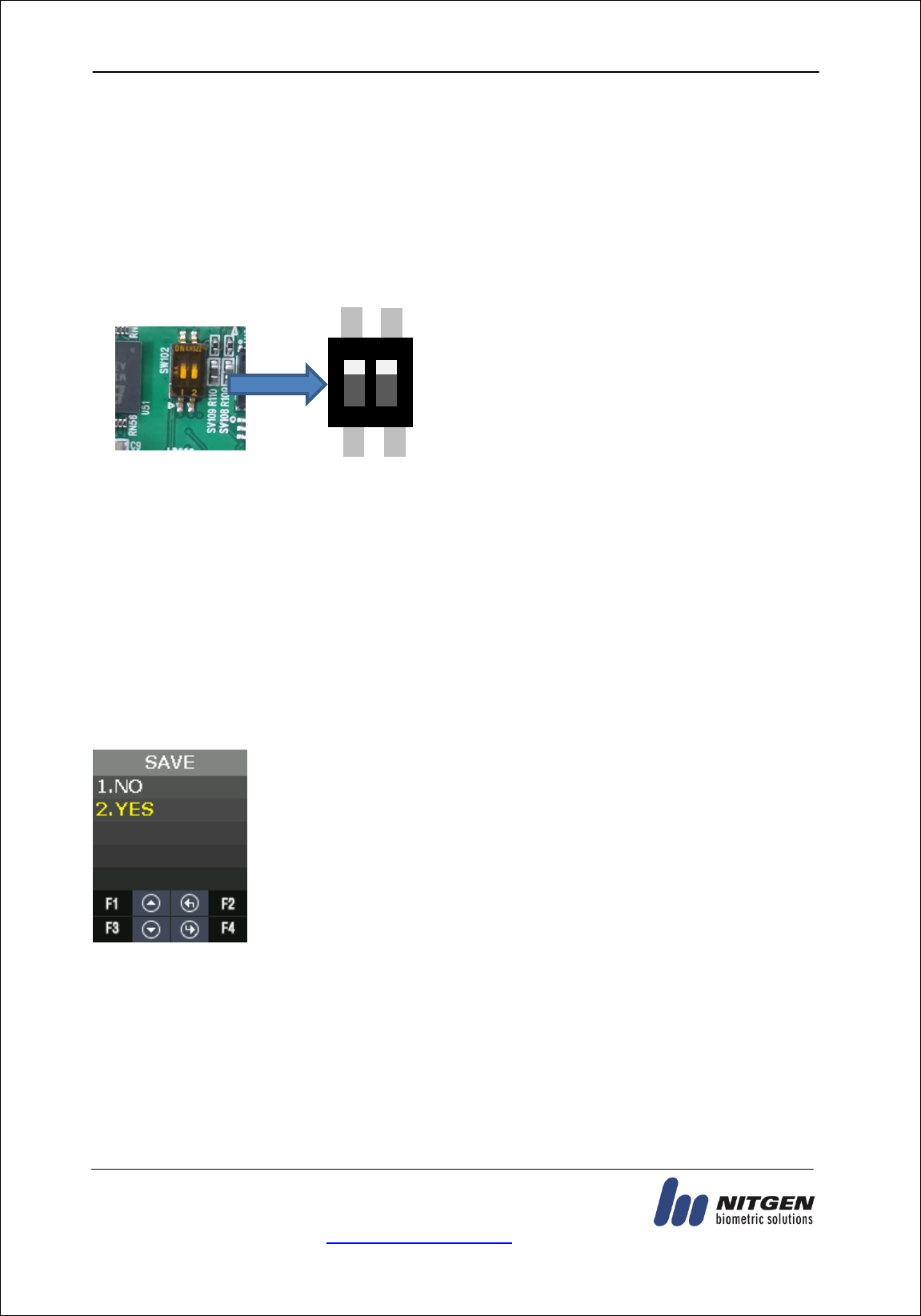

But, door open time can be set with DIP SWITCH of LC015B (Maximum open time is 5 sec.)
1.2.3.5. Terminal <- > EM Type Door Lock wiring
Category
T2 terminal (Line name)
EM Door Lock
Lock
L1NC (Green)
+
GND
GND (Black)
-
Door Monitor
DM0 (Black)
NC(Normal Close)
1.2.3.6. Terminal <- > WIEGAND Device wiring
Category
T2 terminal (Line name)
WIEGAND Device
WIEGAND INPUT0
WI0(갈색)
Wiegand output0
WIEGAND INPUT1
WI1(보라)
Wiegand output1
WIEGAND OUTPUT0
WO0(주황)
Wiegand input0
WIEGAND OUTPUT1
WO1(노랑)
Wiegand input1
GND
GND (검정)
GND
eNBioAccess-T2 User Guide 12
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
1.3. Screen information during operation

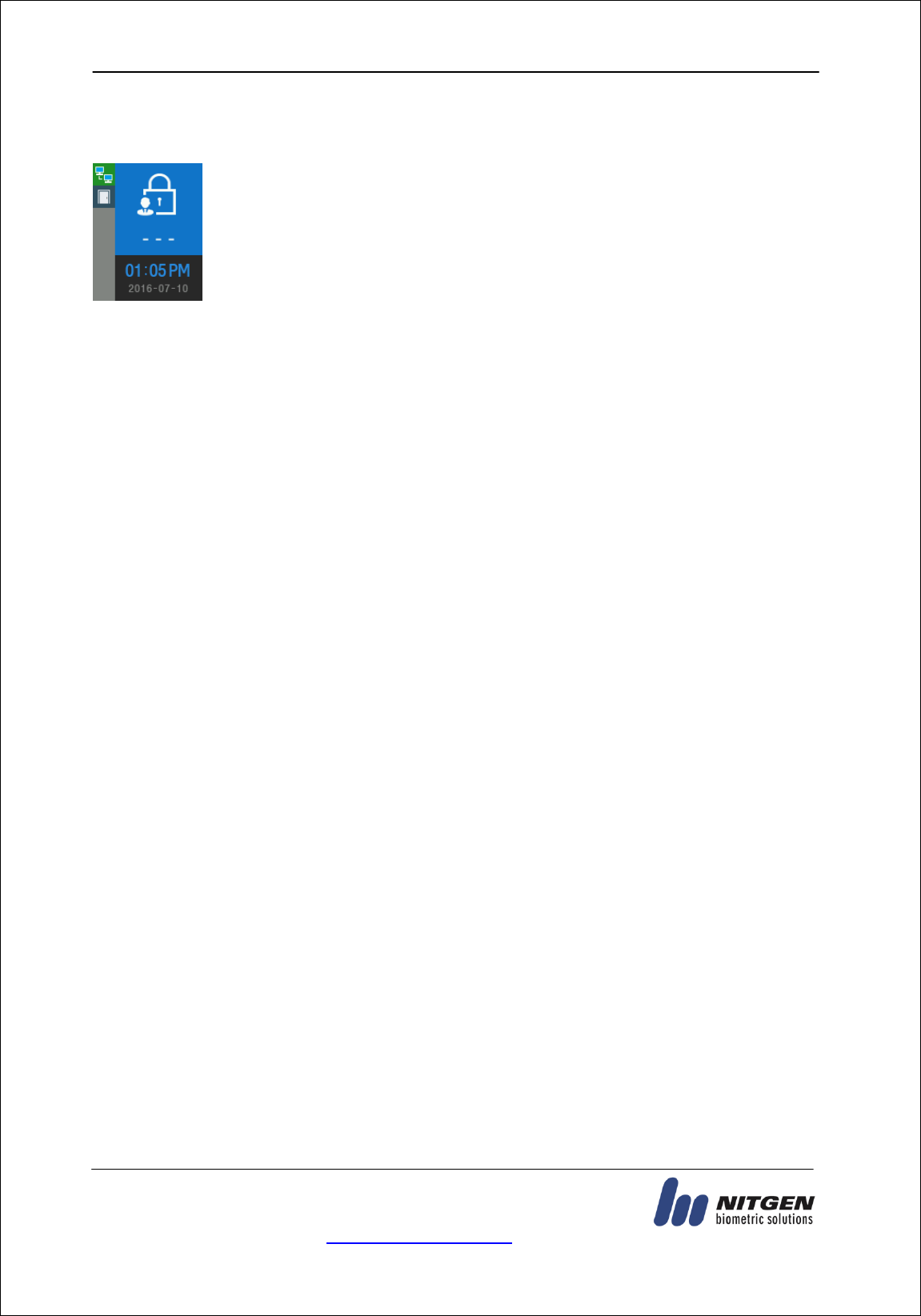

1.3.1. Initial Screen
When powering on at first, the screen is displayed as follow.
1.3.2. Icons
Server connection
State
NONE
: No use network
: LAN line is disconnected.
: LAN line is connected. (Only link is connected.)
: Connected with server
Gate
State
: Gate is closed.
: Gate is opened.
: Gate is opened forcedly(unusual door open state)
: Gate communication problem
Warning signal
State
NONE
: Normal
: Terminal Disassembly State
Fire detection
State
NONE
: Normal
: Sensed by fire detector(Valid on DM2 fire set)
BLE connection
State
NONE
: Disconnected with Admin App
: Connected with Admin App
MCP040 connection
State
NONE
: MCP040 is not used.(Normal state)
: MCP040 Mode and bad communication state.
: MCP040 Mode and normal communication state.
UDL connection
State
NONE
: UDL is not used (Normal state).
: UDL is connected.
State icon
Operation Mode
TNA Mode
Date and Time
eNBioAccess-T2 User Guide 13
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
1.3.3. Function KEY
Icon
Meaning
Function Key
Explanation
UP
F1
Move cursor up.
DOWN
F3
Move cursor down.
LEFT
F2
Move cursor to left.
ESC
F2 long
Move to upper menu.
RIGHT
F4
Move cursor to right.
ENTER
F4 long or
F4
Move to submenu.
ENABLE
DISABLE
F2
Category choice (ENABLE or DISABLE).
1.3.4. Main Screen
Operating in Exclusive mode
Initial Screen
Operating in Network mode
Initial Screen
Operating in Dummy mode
Initial Screen
Operating in lock mode
(Reject all users authentication)
eNBioAccess-T2 User Guide 14
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
Menu of Initial Screen
Authentication succeess
Authentication failure
Waiting for Card Input
Waiting for Fingerprint Input
Waiting for Admin App registration
Upgrading firmware for eNBioAccess-T2
eNBioAccess-T2 User Guide 15
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
1.4. LED information during operation
LED
Operating state
Remark
RED
Normal
OFF
Alarm
ON or Flash
Authentication Failure
ON (Maintain during authentication time)
OFF
GREEN
Normal
OFF
LOCK OPEN
ON
Authentication Success
ON (Maintain during authentication time)
OFF
BLUE
Terminal Normal(alive)
Flash at intervals of 5 seconds
Function Key
LED
Enter menu
Always ON
Touch in initial screen.
ON(Maintain for 10 seconds) OFF
1.5. Voice information during operation
Category
Voice information
Fingerprint Input
Please enter your fingerprint.
Authentication
success
You are authorized.
Authentication
failure
Please try again.
1.6. Buzzer guide announced during operation
Buzzer Sound
State
Explanation
Ppik
Key touch
Card tag
Fingerprint touch
-Pressing key or reading card
-When inputting fingerprint, input has
been completed and hands can take off.
Ppibik
Failure
If authentication fails or the user's input is
wrong
Ppiriririk
Waiting for input
It shows the state for waiting user’s input
such as fingerprint or password.
Ppiririk
Succeess
Authentication success or setting
completion
eNBioAccess-T2 User Guide 16
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
1.7. How to register and enter the correct fingerprint
Correct fingerprint input method
Enter your fingerprint as if you take a thumbprint by using your forefinger if possible.
The fingerprint cannot be correctly registered and entered only by your fingertips.
The center of the fingerprint should be touched with the fingerprint input section.
Enter the fingerprint of your forefinger if possible.
When using your forefinger, you can enter your fingerprint correctly and safely.
Make sure that the fingerprint is unclear or wounded.
Too dry, wet, blurry or wounded fingerprints are difficult to recognize. In this case,
the fingerprint of another finger should be registered.
Precautions subject to your fingerprint state.
The availability of the fingerprint may vary subject to your fingerprint state.
This product consists of a fingerprint recognition system and cannot recognize
the damaged or unclear fingerprints. The fingerprint should be registered using
the RF card.
If your hands are dry, you can blow your breath on the system to operate
it more smoothly.
For children, too small or unclear fingerprints may be difficult or impossible to use.
They need to register a new fingerprint every six months.
For seniors, the fingerprint with too many lines may not be registered.
eNBioAccess-T2 User Guide 17
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
It is recommended that you will register more than two fingerprints if possible.
In order to increase the fingerprint authentication rate, it is recommended to use
six of the ten fingers as illustrated below (both thumbs, forefingers, middle
fingers).
2. Product Descriptions
2.1. Product Features
BLE is equipped. Door Control with smartphone is possible at close range.
It is equipped with Color Camera, and it saves the visitor’s video when authentication
succeeds or fails.
Optional, Available to use as RF(125kHz), Smart Card(13.56MHz), HID Reader
Easy to verify your ID via fingerprint
- The use of the fingerprint recognition technology (Biometrics) can prevent
forgetting your password, losing your card or key, or avoid the risk of their theft.
The use of personal fingerprints enhances the security of authentication.
Access control system using the local area network (LAN)
- The fingerprint reader communicates with the authentication server using a TCP/IP
protocol. Therefore, this terminal can be applied to the existing LAN and has easy
expandability. It ensures a fast speed by 10/100 Mbps Auto Detect and
facilitates management and monitoring via the network.
Provide various registration and authentication method
Fingerprint
Fingerprint registration
Fingerprint authentication
Card
Card registration
Card authentication
Card
or Fingerprint
Card, Fingerprint registration
Card or Fingerprint authentication
Card
and Fingerprint
Card, Fingerprint registration
Fingerprint authentication after Card authentication
Mobile card
Mobile Card registration (registration only via server and admin
App)
Mobile Card authentication
eNBioAccess-T2 User Guide 18
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
2.2. Diagram
2.2.1. Single Type (Door Lock)
2.2.2. Single Type (Lock Controller)
2.2.3. Dummy Type (MCP040)
Door Lock
Lock
control
BLE 2.4G
Mobile App
T2
Close
Open
Lock Controller
(LC010, LC015)
Mobile App
RS485
BLE 2.4G
T2
Close
Open
RS485
MCP040
Ethernet
Server
T2
Lock/Open
Lock/Open
Lock/Open
RS485ID
#2
RS485ID
#1
RS485ID
#3
eNBioAccess-T2 User Guide 19
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
2.2.4. Network Type (Door Lock)
2.2.5. Network Type (Lock Controller)
Lock
Control
BLE 2.4G
Mobile App
Close
Ethernet
Open
T2
Door Lock
Ethernet
Internet
Server
Internet
RS485
Lock Controller
(LC010, LC015)
BLE 2.4G
Mobile App
Ethernet
Ethernet
T2
Close
Open
Server
eNBioAccess-T2 User Guide 20
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
2.3. Product Specification
Category
Spec
CPU
32Bit RISC CPU(400MHz)
MEMORY
64M DDR RAM, 32M NOR,128M NAND
Camera
VGA, F2.8, View angle 61 degree
LCD
1.77’’ Color LCD
Fingerprint Sensor
Optical / 500 DPI
Authentication Method
Fingerprint, RF Card, Mobile Card
Authentication Speed
1:N < within1sec. (based on 1,000 fingerprints)
Fingerprint capacity
20,000 Fingerprints, 10,000 users (Two identical fingerprints
registration per user)
Note) Similar fingerprint inspection is possible when the number of
fingerprints is less than 200.
Log capacity
100,000 logs
Communication interface
TCP/IP, Wiegand In/Out (26/34bit),RS485
Lock
Deadbolt, EM Lock, Door Strike, Automatic Door
Temperature /
Humidity
-20~60 ℃ / < RH 90%
Certification
KC, CE, FCC
Size
58mm(W) * 191mm(H) * 62mm(D)
eNBioAccess-T2 User Guide 21
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3. Environment Setting
3.1. Checkpoints before Environment Setting
3.1.1. Menu
Press F4 long until the menu screen is displayed.
It is available to enter the menu without authentication because the manager doesn’t register
when shipping the product.
3.1.2. Administration authentication
When the administrator is registered, the admin authentication screen is displayed at first as
follows.
▶ Administrator authentication
Administrator authentication is progressed with
fingerprint and card. You can access each menu if the
authentication succeeds.
Admin authentication is displayed only if there is a
registered user. Admin authentication displays only if
admin is enrolled already. The admin authentication is
needed only in accessing menu mode. It enables to
access every menu until you completely escape from
main menu.
eNBioAccess-T2 User Guide 22
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.1.3. How to access the menu without administrator authentication
This is the method to enter the Menu in exceptional cases such as losing your administrator
card that is registered in the terminal or inability to make a fingerprint authentication because
of absence of administrator.
① Power terminal OFF.
② Disassemble device and make case open state.
③ While case opens, make DIP of rear side switch ON state as follows.
④ Power terminal ON.
⑤ After the terminal completely booted, Press F1 longer to enter the menu with buzzer
sound “Ppiririk”.
★ Caution: You should return DIP SWITCH OFF after modification.
3.1.4. Save Settings
▶ If there are some changes, the following screen appears.
▶ If you select “YES”, then save them with buzzer sound “Ppibibig” and reboot.
▶ If there are no changes, it returns to the previous menu screen.
▶ While changing the settings in the menu, if there is no input for 30 seconds, it returns to
the previous menu.
OFF
ON
ON
1
2
eNBioAccess-T2 User Guide 23
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.1.5. Default Setting
Category
Default setting
MENU > NETWORK
USE

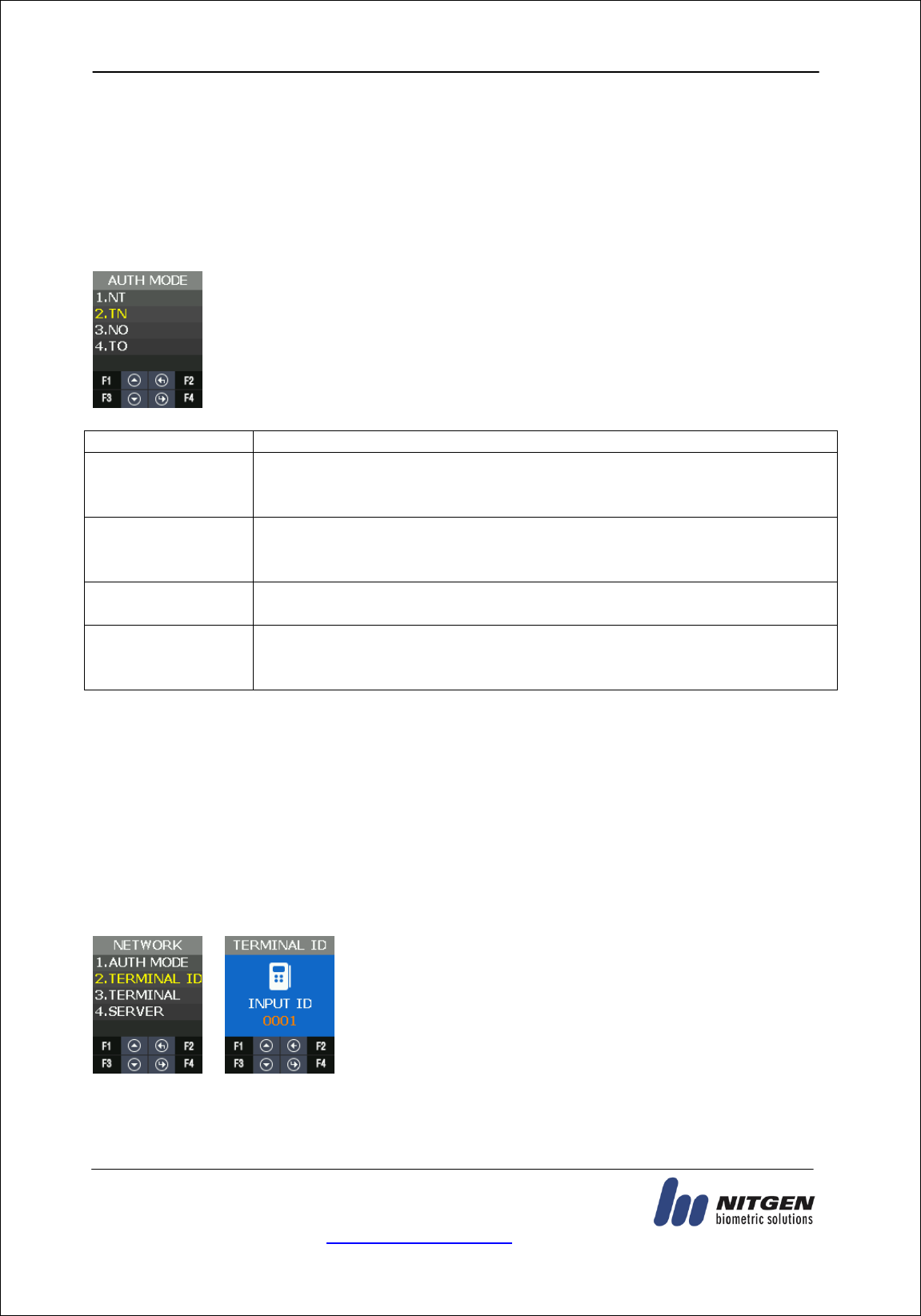

MENU > NETWORK > USE > AUTH MODE
TN
MENU > NETWORK > USE > TEMINAL ID
1
MENU > NETWORK > USE > TEMINAL >
STATIC

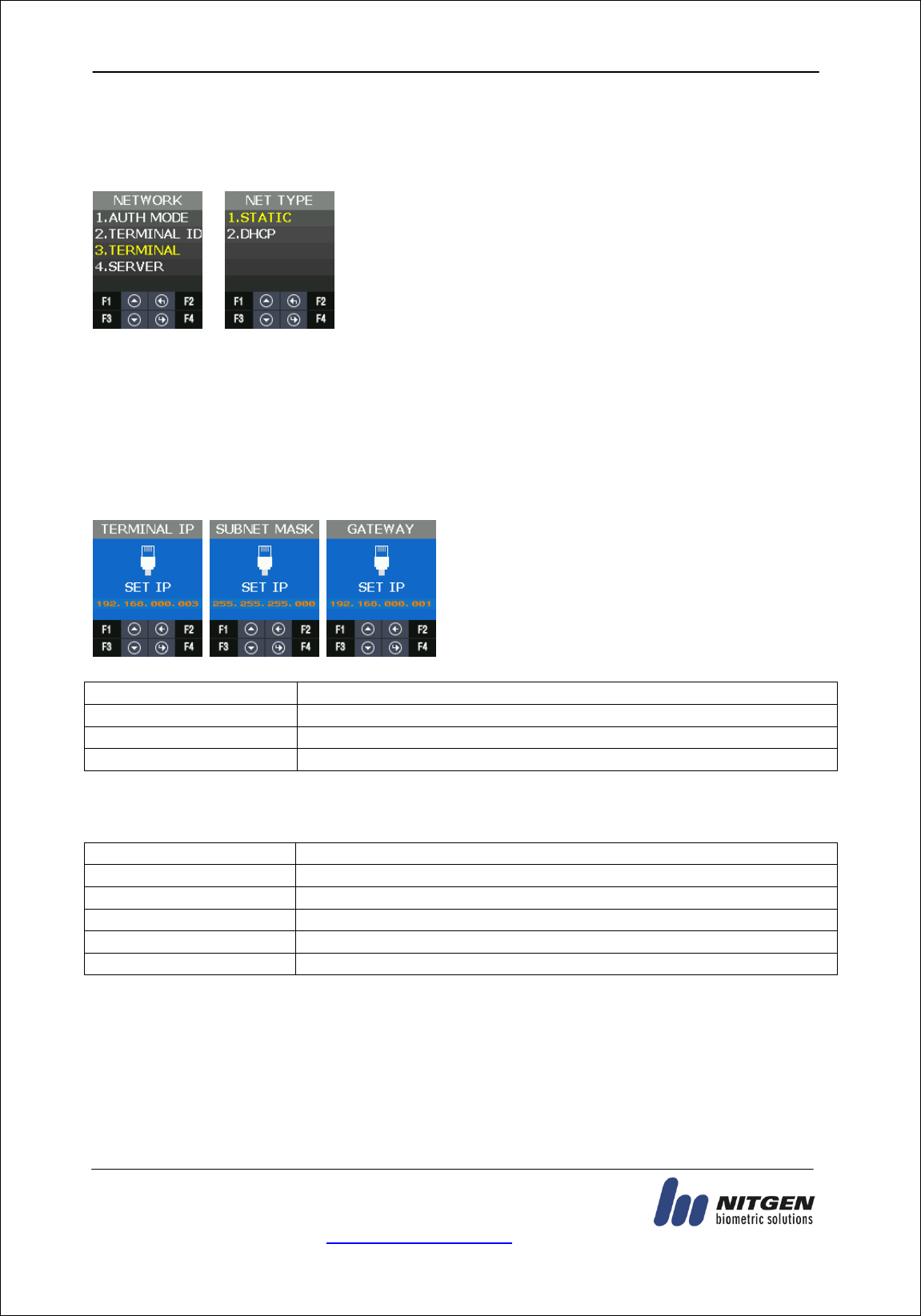

MENU > NETWORK > USE > TEMINAL > STATIC >
IP:192.168.0.3
SN:255.255.255.0
GW:192.168.0.1
MENU > NETWORK > USE > SERVER
IP:192.168.0.2
PORT: 7332
MENU > OPTION > ATTEND > TYPE
F1~F4
MENU > OPTION > ATTEND > AUTO TNA
NO
MENU > OPTION > SCREEN > LANGUAGE
English
MENU > OPTION > SCREEN > SHOW ID
YES
MENU > OPTION > SCREEN > USER LOGO
NO

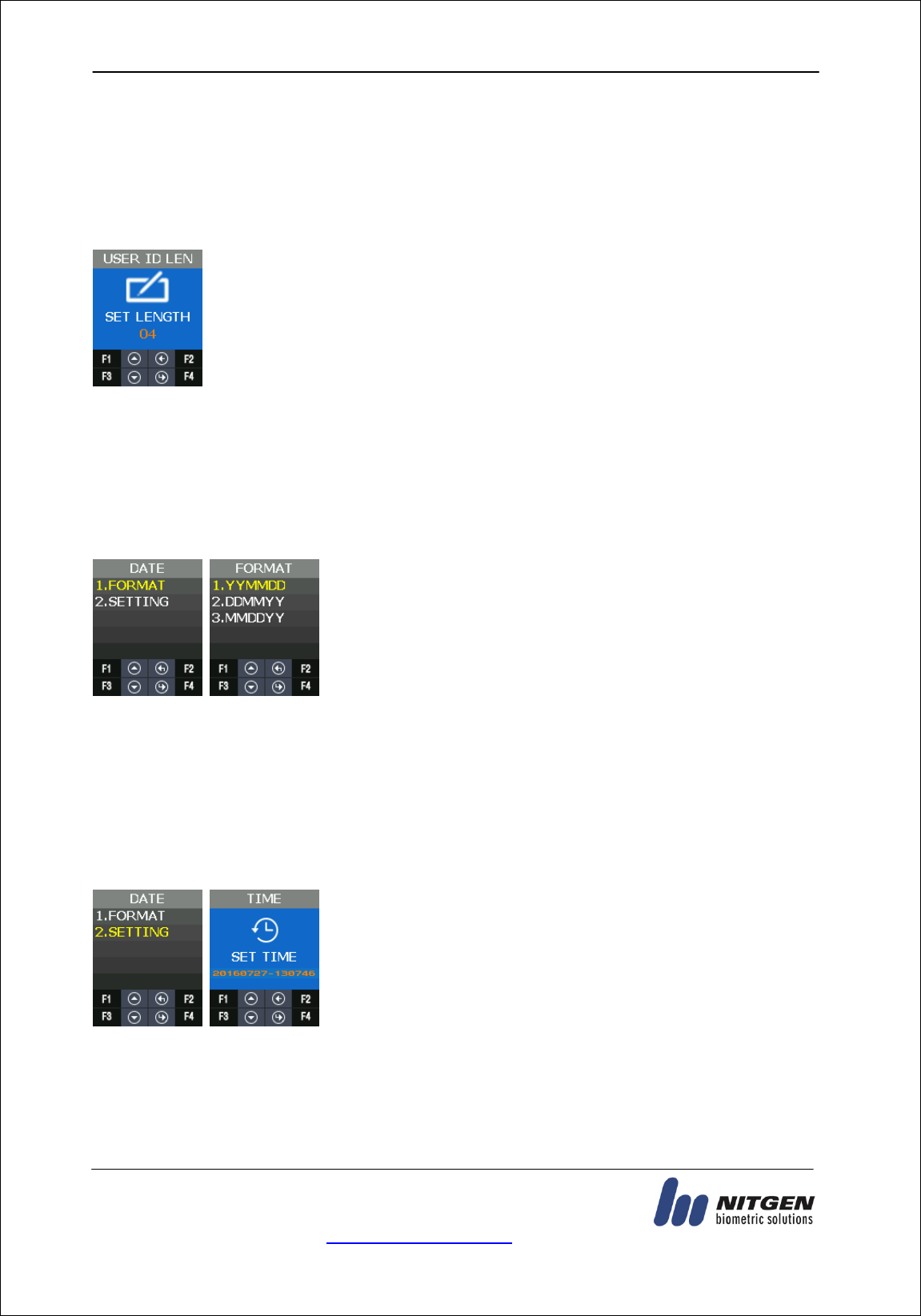

MENU > OPTION > SCREEN > USER ID LEN
4
MENU > OPTION > SCREEN > DATE > FORMAT
YYMMDD
MENU > OPTION > SAVE > LOG SAVE
Yes
MENU > OPTION > SAVE > IMAGE SAVE
No

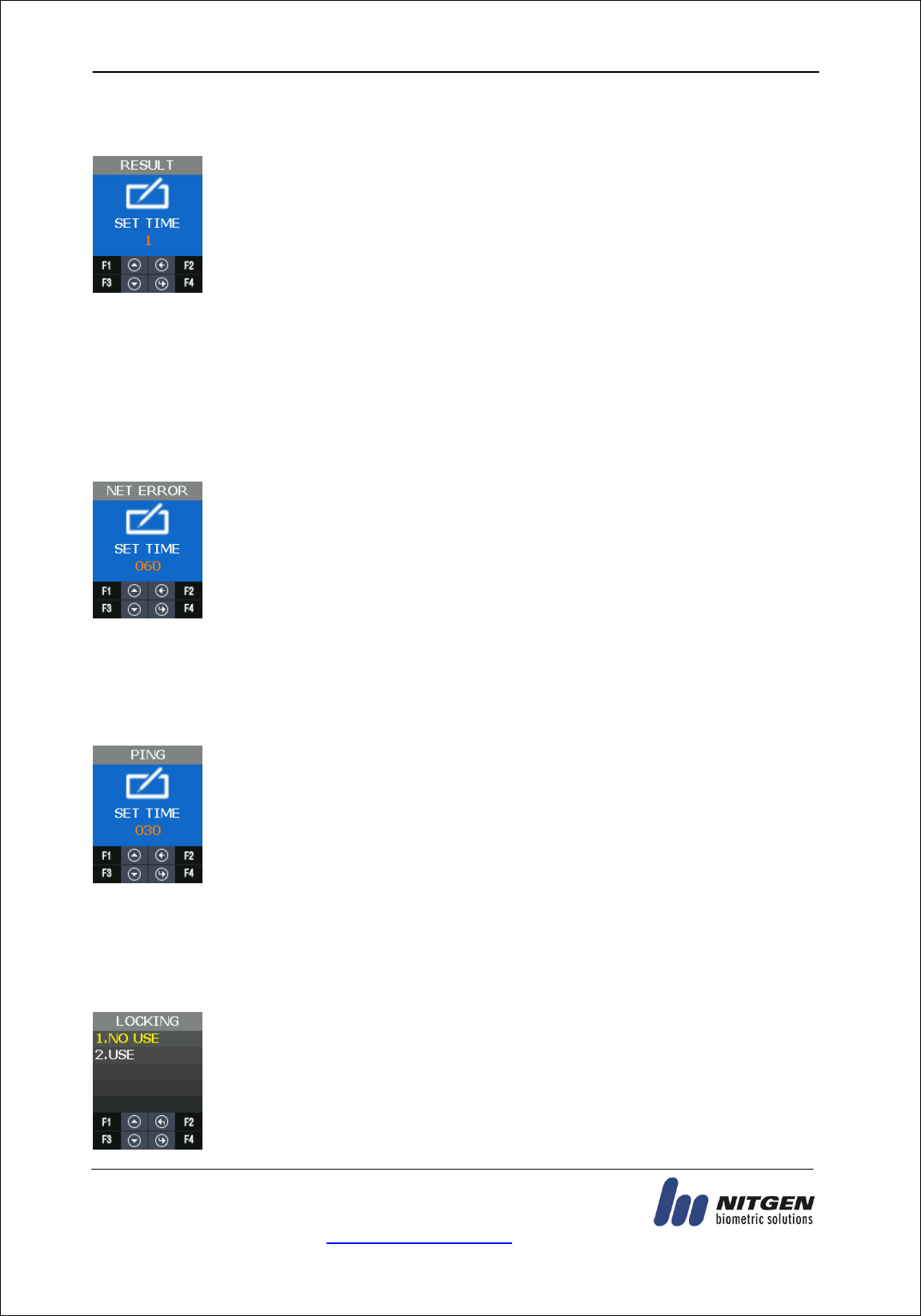

MENU > OPTION > TIME OUT > RESULT
1sec
MENU > OPTION > TIME OUT > NET ERROR
30sec
MENU > OPTION > TIME OUT > PING
60sec
MENU > OPTION > LOCKING
NO USE
MENU > INT DEVICE > FP SENSOR > 1:1 LEVEL
5
MENU > INT DEVICE > FP SENSOR > 1:N LEVEL
8
MENU > INT DEVICE > FP SENSOR > LFD LEVEL
NONE
MENU > INT DEVICE > FP SENSOR > AUTH TIME
5sec

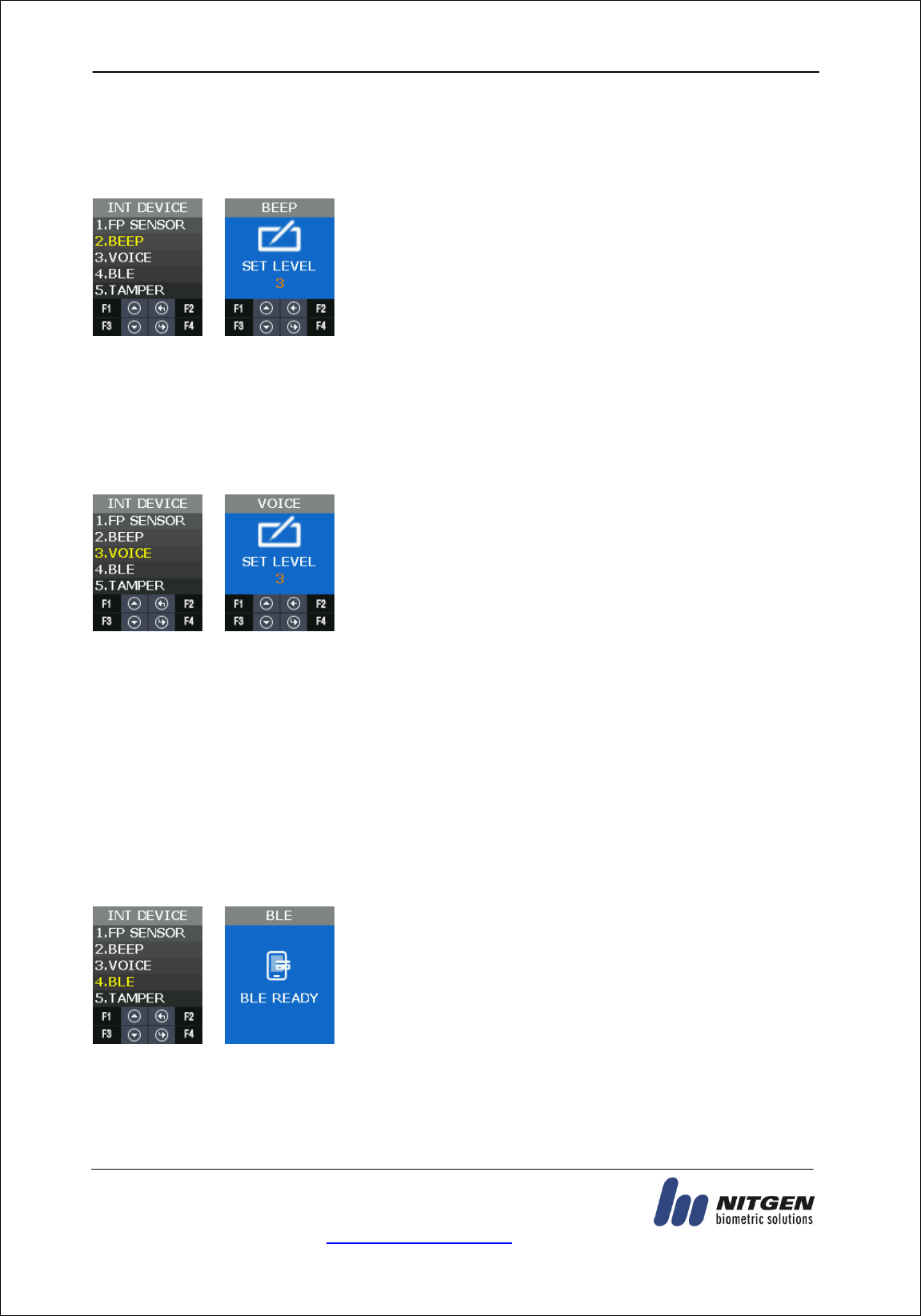

MENU > INT DEVICE > BEEP
3
MENU > INT DEVICE > VOICE
3
MENU > INT DEVICE > TAMPER
Alarm
MENU > EXT DEVICE > DOORLOCK > LOCK1 > TYPE
STRIKE/OK
MENU > EXT DEVICE > DOORLOCK > LOCK1 > OPEN
TIME
3sec
MENU > EXT DEVICE > DOORLOCK > LOCK2 > TYPE
None
MENU > EXT DEVICE > DOORLOCK > LOCK2 > OPEN
TIME
3sec

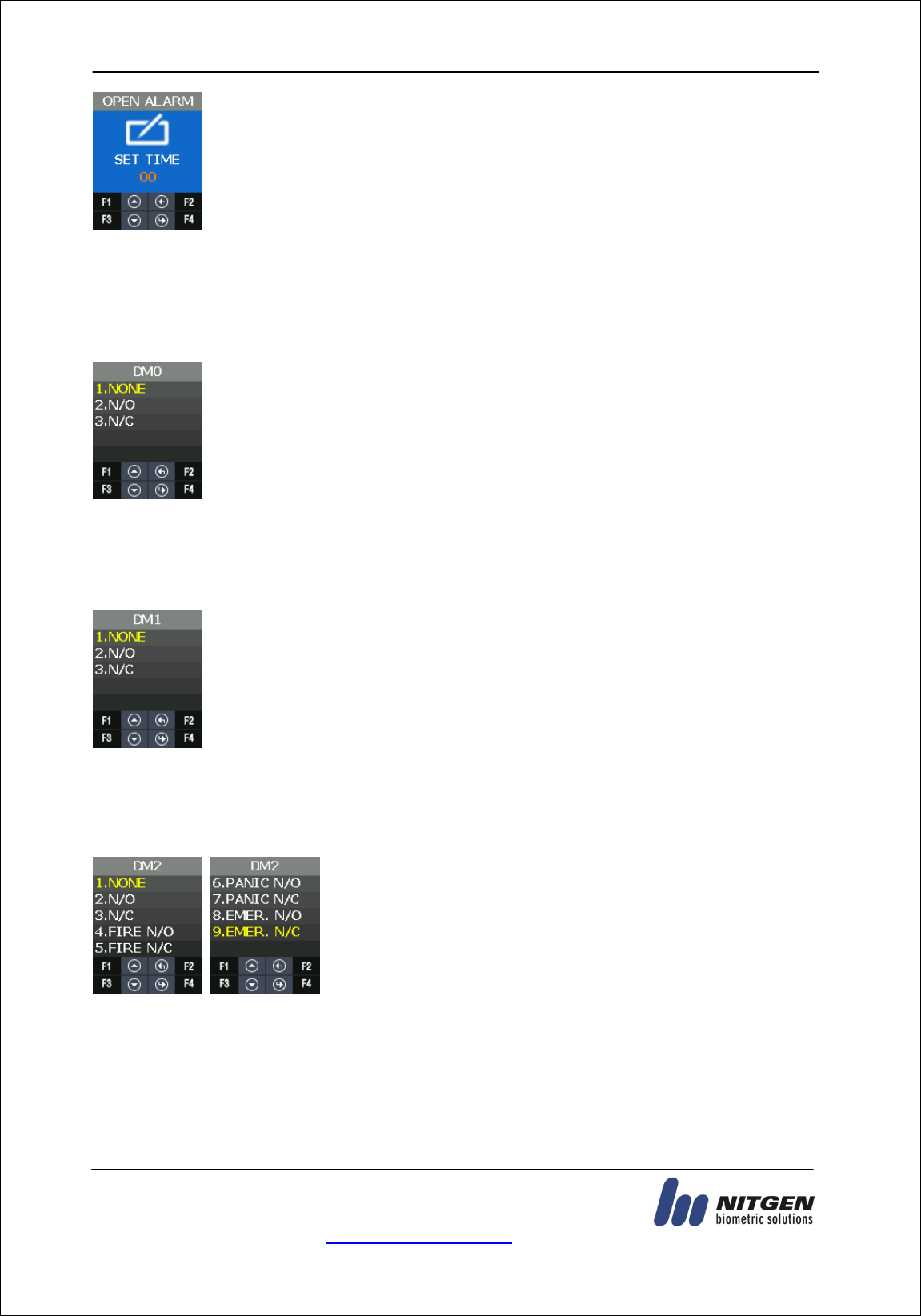

MENU > EXT DEVICE > DOORLOCK > OPEN ALARM
5sec
MENU > EXT DEVICE > DOORLOCK > DM0
NONE
MENU > EXT DEVICE > DOORLOCK > DM1
NONE
MENU > EXT DEVICE > DOORLOCK > DM2
NONE
MENU > EXT DEVICE > RS485 > TYPE
NONE
MENU > EXT DEVICE > RS485 > DEV ID
0

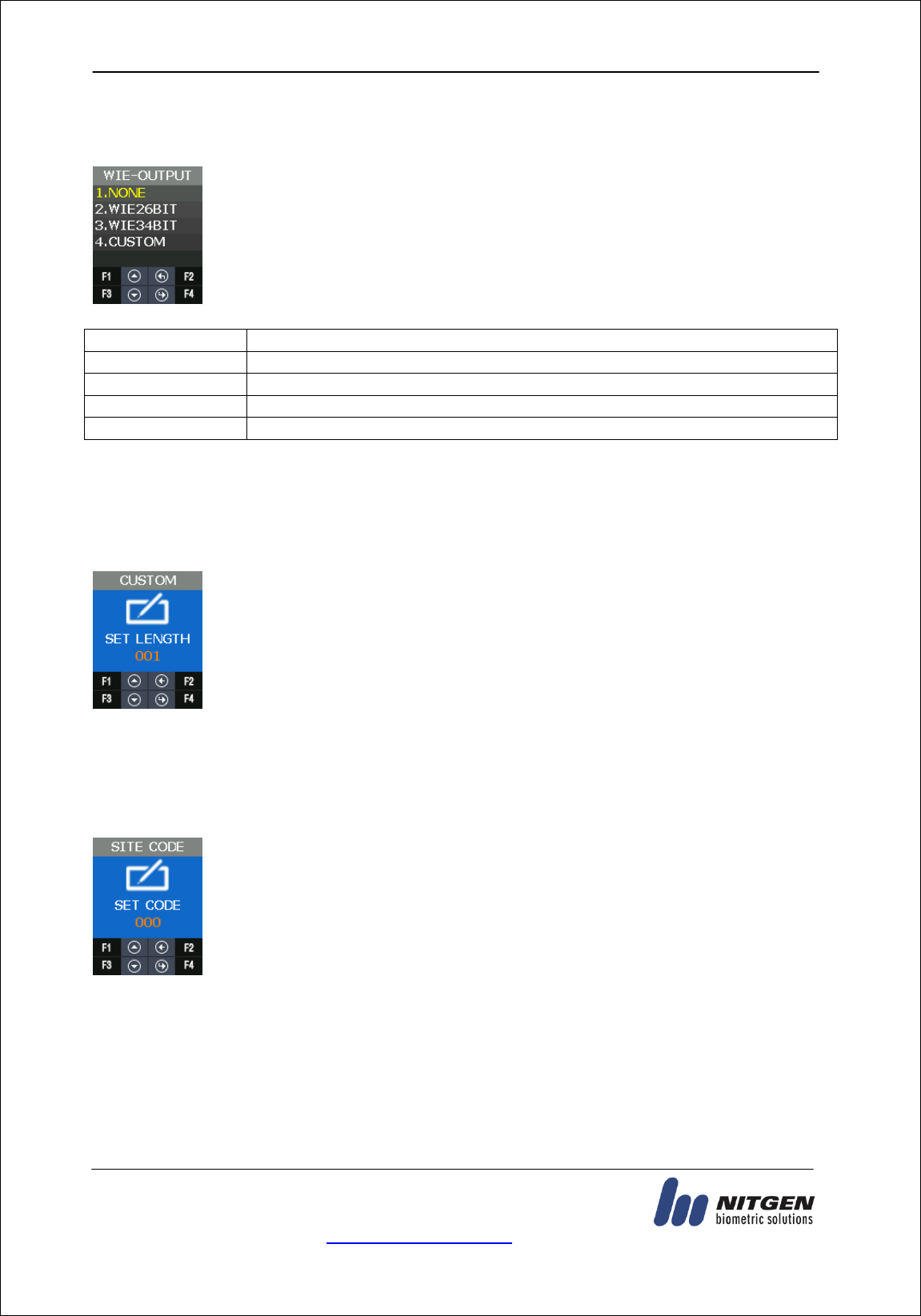

MENU > EXT DEVICE > WIEGAND > WIE-INPUT
NONE
MENU > EXT DEVICE > WIEGAND > WIE-OUTPUT
NONE
MENU > EXT DEVICE > WIEGAND > WIE-OUTPUT> 26
BIT or 34 BIT > SITE CODE
0
MENU > EXT DEVICE > WIEGAND > WIE-OUTPUT> 26
UID
eNBioAccess-T2 User Guide 24
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
BIT or 34 BIT > SITE CODE > SEND INFO
3.1.6. Setting guide for Network Configuration
3.1.6.1. Single Type (Door Lock=STRIKE)
Menu position
Possible setting
MENU>NETWORK>
NO USE
MENU>EXT DEVICE>DOORLOCK>LOCK1>TYPE
STRIKE/OK
MENU>EXT DEVICE>DOORLOCK>DM0
N/O or N/C
MENU>EXT DEVICE>DOORLOCK>LOCK2>TYPE
NONE
MENU>EXT DEVICE>DOORLOCK>DM1
NONE
MENU>EXT DEVICE>DOORLOCK>DM2
NONE
MENU>EXT DEVICE>RS485>TYPE
NONE
3.1.6.2. Single Type (Door Lock=MOTOR)
Menu position
Possible setting
MENU>NETWORK>
NO USE
MENU>EXT DEVICE>DOORLOCK>LOCK1>TYPE
MOTOR1
MENU>EXT DEVICE>DOORLOCK>DM0
N/O or N/C
MENU>EXT DEVICE>DOORLOCK>LOCK2>TYPE
MOTOR2
MENU>EXT DEVICE>DOORLOCK>DM1
N/O or N/C
MENU>EXT DEVICE>DOORLOCK>DM2
NONE
MENU>EXT DEVICE>RS485>TYPE
NONE
3.1.6.3. Single Type (Lock Controller=LC010)
Menu position
Possible setting
MENU>NETWORK>
NO USE
MENU>EXT DEVICE>DOORLOCK>LOCK1>TYPE
NONE
MENU>EXT DEVICE>DOORLOCK>DM0
NONE
MENU>EXT DEVICE>DOORLOCK>LOCK2>TYPE
NONE
MENU>EXT DEVICE>DOORLOCK>DM1
NONE
MENU>EXT DEVICE>DOORLOCK>DM2
NONE
MENU>EXT DEVICE>RS485>TYPE
LC010
MENU>EXT DEVICE>RS485>DEV ID
0
3.1.6.4. Single Type (Lock Controller=LC015)
Menu Position
Possible setting
MENU>NETWORK>
NO USE
MENU>EXT DEVICE>DOORLOCK>LOCK1>TYPE
NONE
MENU>EXT DEVICE>DOORLOCK>DM0
NONE
MENU>EXT DEVICE>DOORLOCK>LOCK2>TYPE
NONE
MENU>EXT DEVICE>DOORLOCK>DM1
NONE
MENU>EXT DEVICE>DOORLOCK>DM2
NONE
eNBioAccess-T2 User Guide 25
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
MENU>EXT DEVICE>RS485>TYPE
LC015
MENU>EXT DEVICE>RS485>DEV ID
0
3.1.6.5. Dummy Type (RS485=MCP040)
Menu Position
Possible setting
MENU>NETWORK>
N/A
(Use : When only downloading DB)
MENU>EXT DEVICE>DOORLOCK>LOCK1>TYPE
NONE
MENU>EXT DEVICE>DOORLOCK>DM0
NONE
MENU>EXT DEVICE>DOORLOCK>LOCK2>TYPE
NONE
MENU>EXT DEVICE>DOORLOCK>DM1
NONE
MENU>EXT DEVICE>DOORLOCK>DM2
NONE
MENU>EXT DEVICE>RS485>TYPE
MCP040
MENU>EXT DEVICE>RS485>DEV ID
Use in 1~7
3.1.6.6. Network Type (Door Lock=STRIKE)
Menu Position
Possible setting
MENU>NETWORK>
USE
MENU>NETWORK>USE>AUTH MODE
TN
MENU>NETWORK>USE>TERMINAL ID
0001
MENU>NETWORK>USE>TERMINAL>STATIC
IP:192.168.0.3
SN:255.255.255.0
GW:192.168.0.1
MENU>NETWORK>USE>SERVER
IP:192.168.0.2
PORT:7332
MENU>EXT DEVICE>DOORLOCK>LOCK1>TYPE
STRIKE/OK
MENU>EXT DEVICE>DOORLOCK>DM0
N/O or N/C
MENU>EXT DEVICE>DOORLOCK>LOCK2>TYPE
NONE
MENU>EXT DEVICE>DOORLOCK>DM1
NONE
MENU>EXT DEVICE>DOORLOCK>DM2
NONE
MENU>EXT DEVICE>RS485>TYPE
NONE
3.1.6.7. Network Type (Door Lock=MOTOR)
Menu Position
Possible setting
MENU>NETWORK>
USE
MENU>NETWORK>USE>AUTH MODE
TN
MENU>NETWORK>USE>TERMINAL ID
0001
MENU>NETWORK>USE>TERMINAL>STATIC
IP:192.168.0.3
SN:255.255.255.0
GW:192.168.0.1
MENU>NETWORK>USE>SERVER
IP:192.168.0.2
PORT:7332
MENU>EXT DEVICE>DOORLOCK>LOCK1>TYPE
MOTOR1
MENU>EXT DEVICE>DOORLOCK>DM0
N/O or N/C
MENU>EXT DEVICE>DOORLOCK>LOCK2>TYPE
MOTOR2
MENU>EXT DEVICE>DOORLOCK>DM1
N/O or N/C
eNBioAccess-T2 User Guide 26
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
MENU>EXT DEVICE>DOORLOCK>DM2
NONE
MENU>EXT DEVICE>RS485>TYPE
NONE
3.1.6.8. Network Type (Lock Controller=LC010)
Menu Position
Possible setting
MENU>NETWORK>
Use
MENU>NETWORK>USE>AUTH MODE
TN
MENU>NETWORK>USE>TERMINAL ID
0001
MENU>NETWORK>USE>TERMINAL>STATIC
IP:192.168.0.3
SN:255.255.255.0
GW:192.168.0.1
MENU>NETWORK>USE>SERVER
IP:192.168.0.2
PORT:7332
MENU>EXT DEVICE>DOORLOCK>LOCK1>TYPE
NONE
MENU>EXT DEVICE>DOORLOCK>DM0
NONE
MENU>EXT DEVICE>DOORLOCK>LOCK2>TYPE
NONE
MENU>EXT DEVICE>DOORLOCK>DM1
NONE
MENU>EXT DEVICE>DOORLOCK>DM2
NONE
MENU>EXT DEVICE>RS485>TYPE
LC010
MENU>EXT DEVICE>RS485>DEV ID
0
3.1.6.9. Network Type (Lock Controller=LC015)
Menu Position
Possible setting
MENU>NETWORK>
USE
MENU>NETWORK>USE>AUTH MODE
TN
MENU>NETWORK>USE>TERMINAL ID
0001
MENU>NETWORK>USE>TERMINAL>STATIC
IP:192.168.0.3
SN:255.255.255.0
GW:192.168.0.1
MENU>NETWORK>USE>SERVER
IP:192.168.0.2
PORT:7332
MENU>EXT DEVICE>DOORLOCK>LOCK1>TYPE
NONE
MENU>EXT DEVICE>DOORLOCK>DM0
NONE
MENU>EXT DEVICE>DOORLOCK>LOCK2>TYPE
NONE
MENU>EXT DEVICE>DOORLOCK>DM1
NONE
MENU>EXT DEVICE>DOORLOCK>DM2
NONE
MENU>EXT DEVICE>RS485>TYPE
LC015
MENU>EXT DEVICE>RS485>DEV ID
0
eNBioAccess-T2 User Guide 27
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.2. How to register the terminal in Admin App
3.2.1. Install iAccess M Plus
iAccess M Plus is the smartphone App for administrator controlling device via BLE.
You can download and install it from Play Store.
For more details, please refer iAccess M Plus installation guide.
3.2.2. Execute and Log in iAccess M Plus
3.2.3. Access to Terminal BLE REDAY
If you press F3 long on initial screen, the terminal turns to BLE READY.
eNBioAccess-T2 User Guide 28
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com

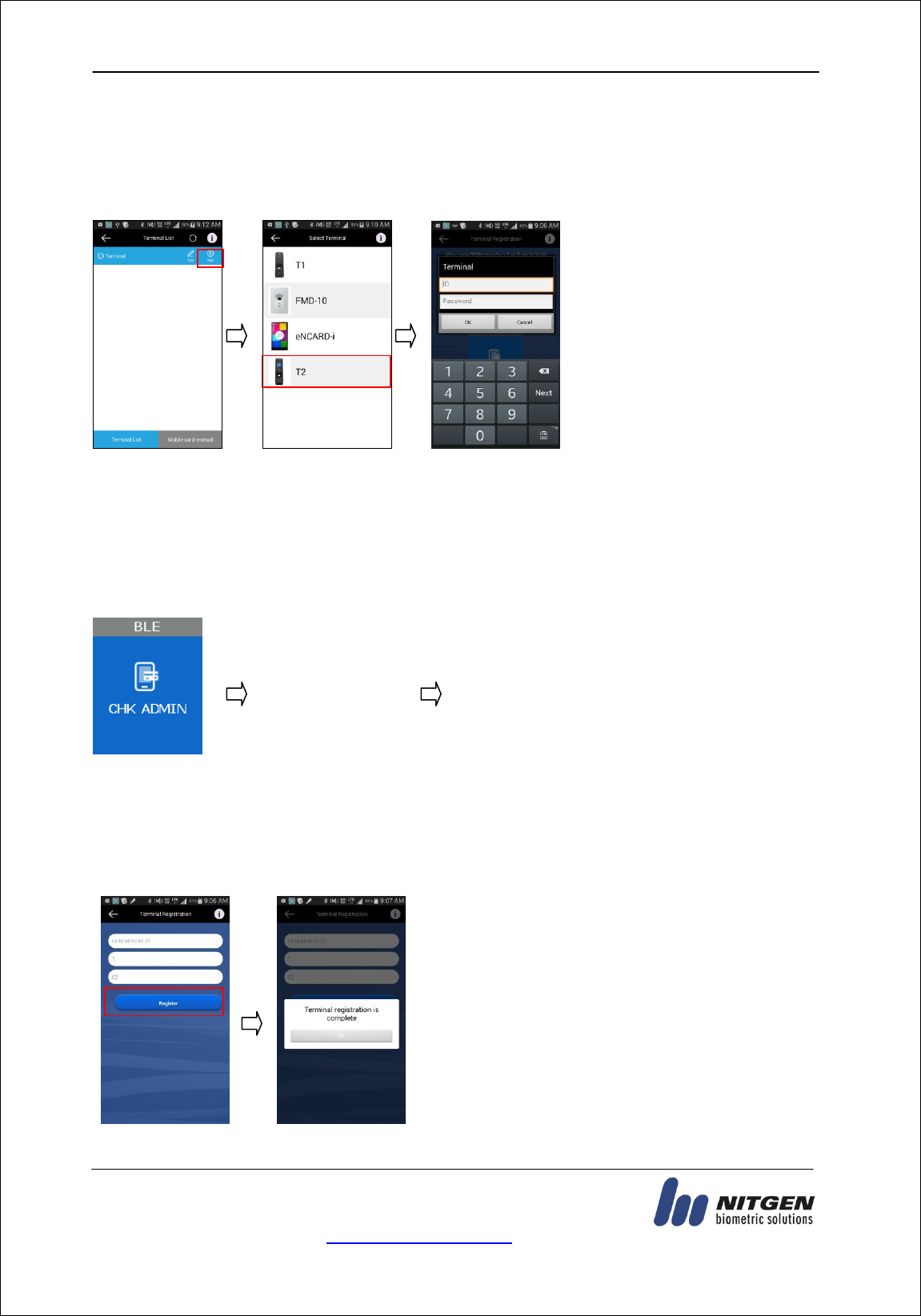

3.2.4. Terminal login Admin App
When the terminal is BLE REDAY, press ADD on iAccess M Plus App and select the terminal.
If you know the administrator's ID and password, then click OK to log in. If you do not know
the administrator’s ID & password and click OK in empty state.
3.2.5. Administrator authentication of the terminal
If an administrator is registered in the terminal, it requires to input card or fingerprint for
administrator authentication. If the administrator is not registered in the terminal, it requires
no further authentication and authentication succeeds immediately.
3.2.6. Terminal registration
When admin authentication is successful, Device registration screen is displayed.
Press Registration button and complete Device registration.
Input admin’s card
or fingerprint
“Ppiririk” Success
& output Buzzer sound
eNBioAccess-T2 User Guide 29
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.3. Access Device with Admin App
If the terminal registration on Admin App is successful, the list is displayed as follows.
When pressing View, the pop-up window is displayed to connect the terminal.
If the administrator is registered in the terminal, it requires the administrator authentication.
If there is no administrator, the login succeeds immediately. If the login is successful, you
receive the list of users registered with the Admin App screen. BLE icon is displayed on the
terminal.
When you log out after finishing the setting from Admin App, BLE icon disappears from the
initial screen of the terminal.
If it is successful to access, it is available to add / delete user, inquire log data, modify the
setting and etc.
For more details, please refer the document for Administrator App user guide.
eNBioAccess-T2 User Guide 30
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.4. Access and Registration between ACM Pro and terminal
3.4.1. Install ACM Pro
When shipping the product, it installs ACM Pro Program in PC from the provided CD.
For installation guide, please refer the relevant document.
3.4.2. Execute ACM Pro
If executing the program, login screen is displayed.
Enter User ID that is previously registered and password and then press OK.
If login is successful, the screen is displayed as follows.
eNBioAccess-T2 User Guide 31
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.4.3. Set in terminal
In order to connect the terminal to the server, set to the network mode and set the
information.
Move to MENU > NETWORK > USE > TERMINAL and check whether lower information is
correct or not. If you have not changed the device network information, it is displayed as
follows.
In order to access the server
Move to MENU > NETWORK > USE > SERVER and check the lower information correctly
sets or not. If you do not change the server network information, it is displayed as follows.
3.4.4. LAN connection in terminal
At first, you can see the unregistered state because the terminal is not registered.
eNBioAccess-T2 User Guide 32
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.4.5. Register the terminal in ACM Pro
Select the unregistered terminal and press Registration button to activate the screen below.
Enter device name and explanation to press OK.
If the registration is successful, the screen is displayed as follow.
For more details about ACM pro operation, please refer ACM Pro guide document.
eNBioAccess-T2 User Guide 33
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.5. Menu Configuration
The whole menu is composed of seven, and main characteristics are as follows.
Menu
Submenu1
Submenu2
Submenu3
USER
ADD
USER
USER
ADMIN
INPUT ID

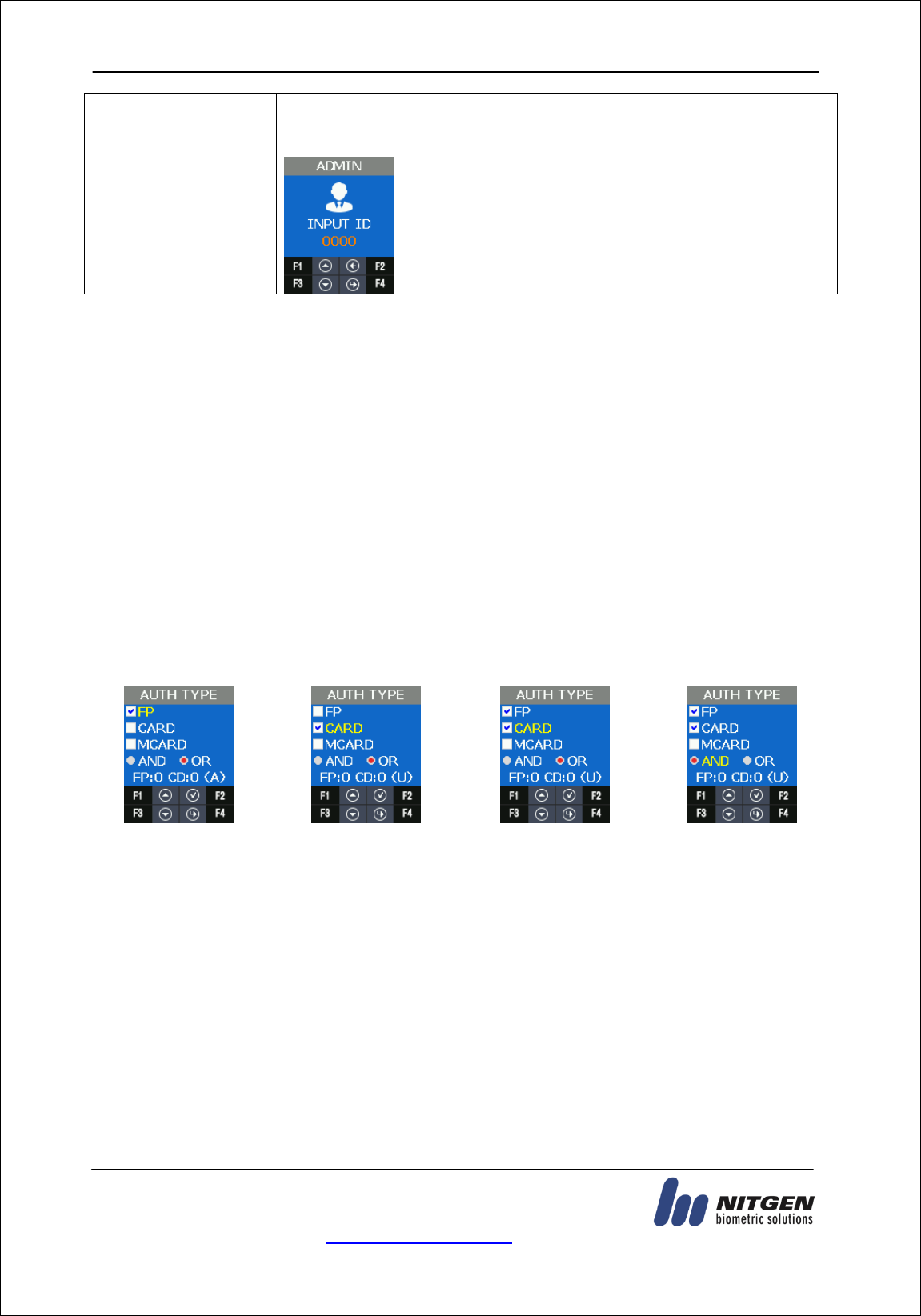

*Authentication Type
Card
FP
MCARD
*Authentication Condition
OR
AND
※ MCARD is OR condition only.
※ MCARD is not admitted to set up,
state check only.
Password
AUTO ADD
FP
UID > FP1 > FP2 >
OK
Card
UID > Card > OK
MODIFY
INPUT ID
*Authentication Type
Card
FP
MCARD
*Authentication Condition
OR
AND
※ MCARD is OR condition only.
※ MCARD is not admitted to set up,
state check only.
FP registration
(When checking authentication mode)
Card registration
(When checking authentication mode)
DELETE
Delete ID
DELETE ALL
eNBioAccess-T2 User Guide 34
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
NETWORK
NO USE
Operate in single mode
USE
AUTH MODE
Server/Terminal
Terminal/Server
Server
Terminal
TERMINAL ID
TERMINAL ID
STATIC
DHCP
STATIC
IP
Subnet mask
Gateway
DHCP
SERVER
SERVER
Port No
OPTION
ATTEND
TYPE
NONE
M1 F1~F2
M2 F1~F4
M3 F1~F49
AUTO TNA
NO
YES
SCREEN
LANGUAGE
ENGLISH(0)
KOREAN(1)
INDONESIAN(2)
MULTILINGUAL(3)
ARABIC(4)
SPANISH(5)
PORTUGUESE(6)
FRENCH(7)
RUSSIAN(8)
FARSI(9)
JAPANESE(10)
CHINESE(11)
SHOW ID
NO
YES

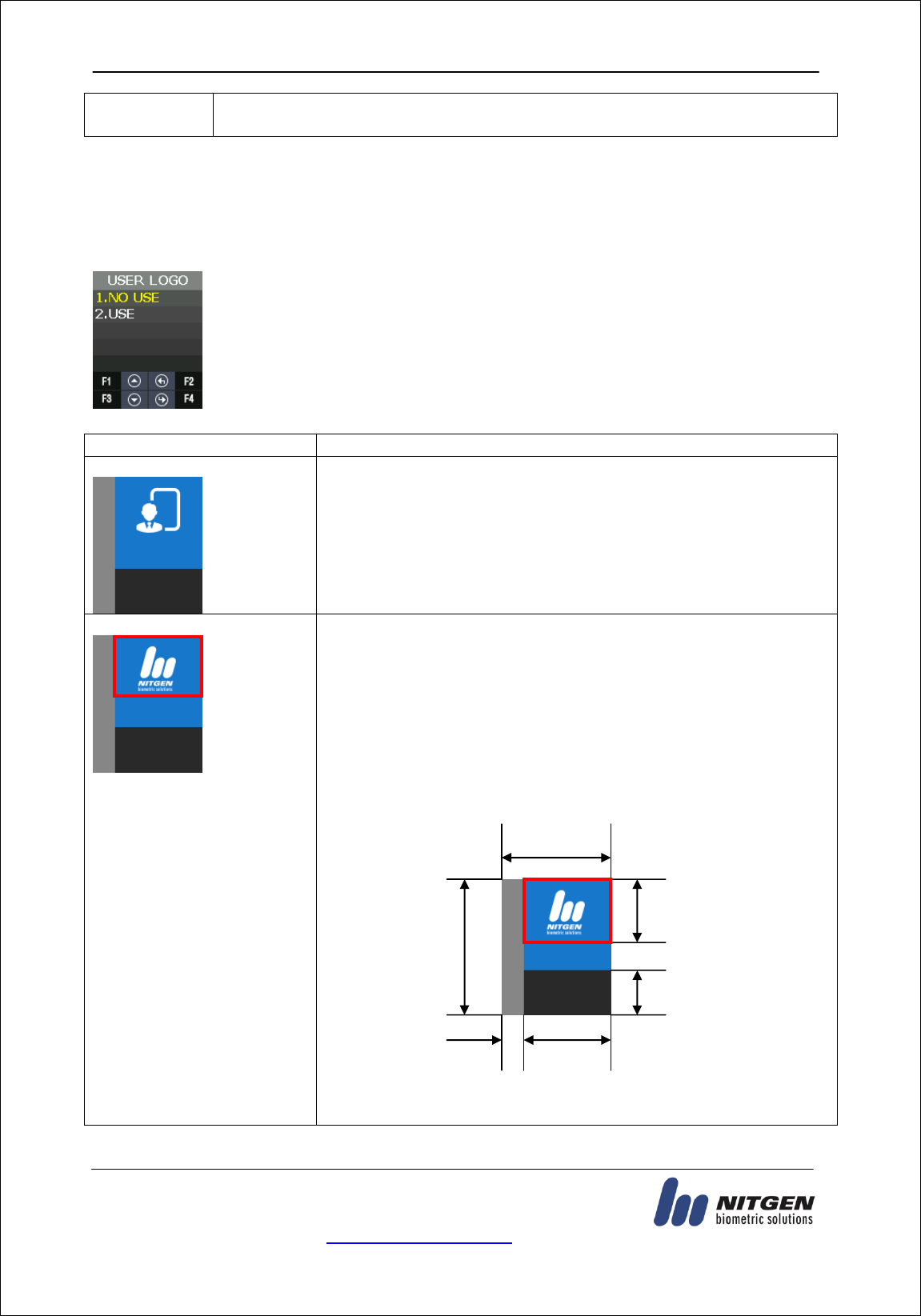

USER LOGO
NO USE
USE
USER ID LEN
4~16

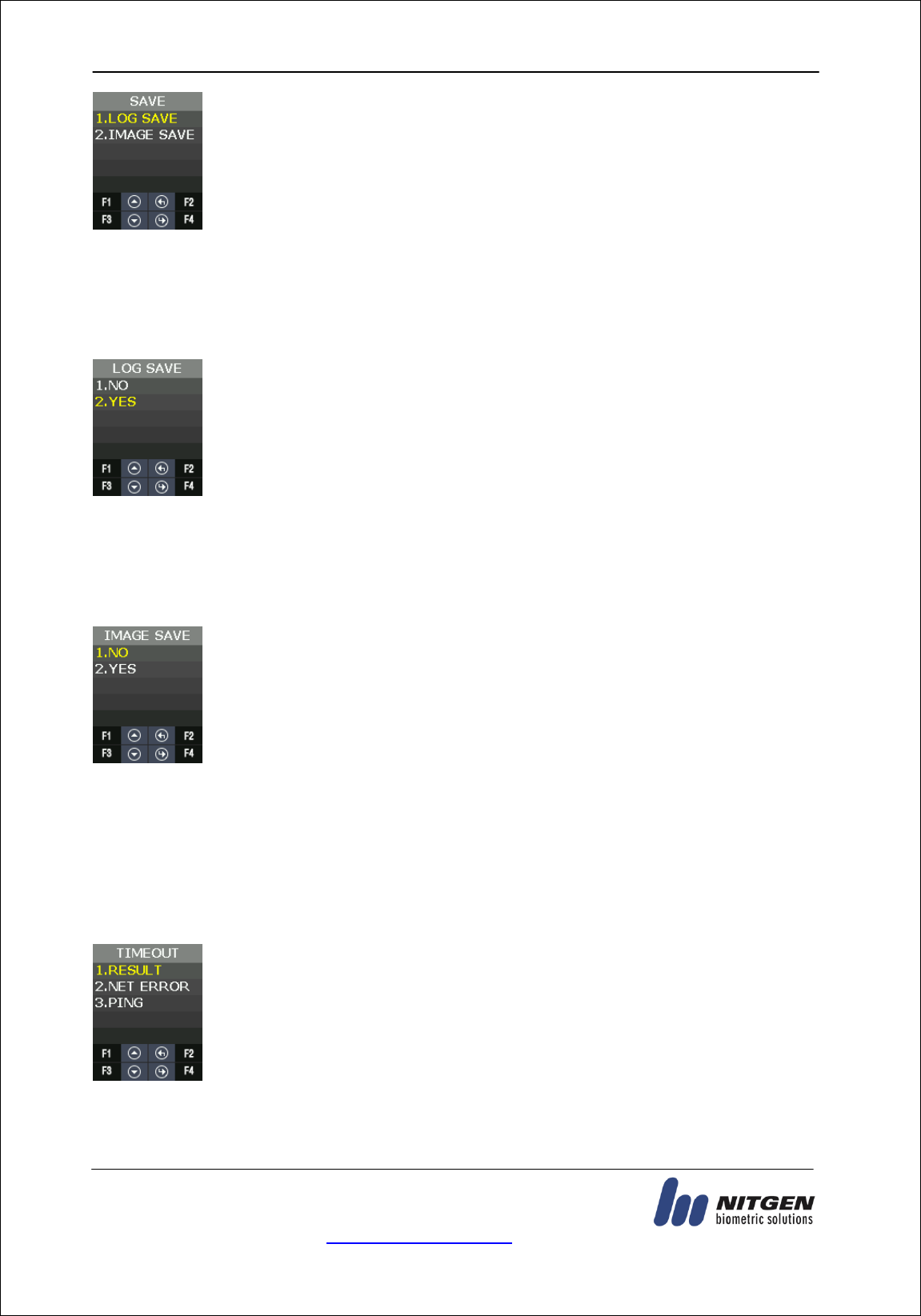

SAVE
LOG SAVE
NO
YES
IMAGE SAVE
NO
YES
TIMEOUT
RESULT
NET ERROR
PING
Date
FORM
YYMMDD
DDMMYY
MMDDYY
eNBioAccess-T2 User Guide 35
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
SETTING
YYYYMMDD-hhmmss
INT
DEVICE
FP SENSOR
1:1 LEVEL (1~9)
1:N LEVEL (5~9)
LFD LEVEL
NONE
LOW
MIDDLE
HIGH
AUTH TIME
BEEP
0~3
VOICE
0~5
BLE
BLE READY
TAMPER
NO ALARM
ALARM
EXT
DEVICE
DOOR LOCK
LOCK1
*TYPE
Not Use
Strike/OK Indication
Motor1
Schedule alarm
*OPEN TIME
3[1~20sec]
LOCK2
* TYPE
NONE
Fail Indication
Motor2
Schedule alarm
* OPEN TIME
3[1~20sec]
OPEN ALARM TIME
5[0~20sec]
0: No Alarm
1~20: Alarm
DM0
NONE
Lock Normal Open
Lock Normal Close
DM1
NONE
Lock Normal Open
Lock Normal Close
DM2
Not use
Normal Open
Normal Close
Fire Normal Open
Fire Normal Close
Panic Normal Open
Panic Normal Close
Urgent Norm Open
Urgent Normal Close
eNBioAccess-T2 User Guide 36
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
RS485
TYPE
NONE
LC010
LC015
SR100
MCP040
DEV ID: 0~255
WIEGAND
WIE-INPUT
*TYPE
NONE
WIE26BIT
WIE34BIT
CUSTOM
WIE-OUTPUT
*TYPE
NONE
WIE26BIT
WIE34BIT
CUSTOM
*SiteCode
*More Information
UID
CARD

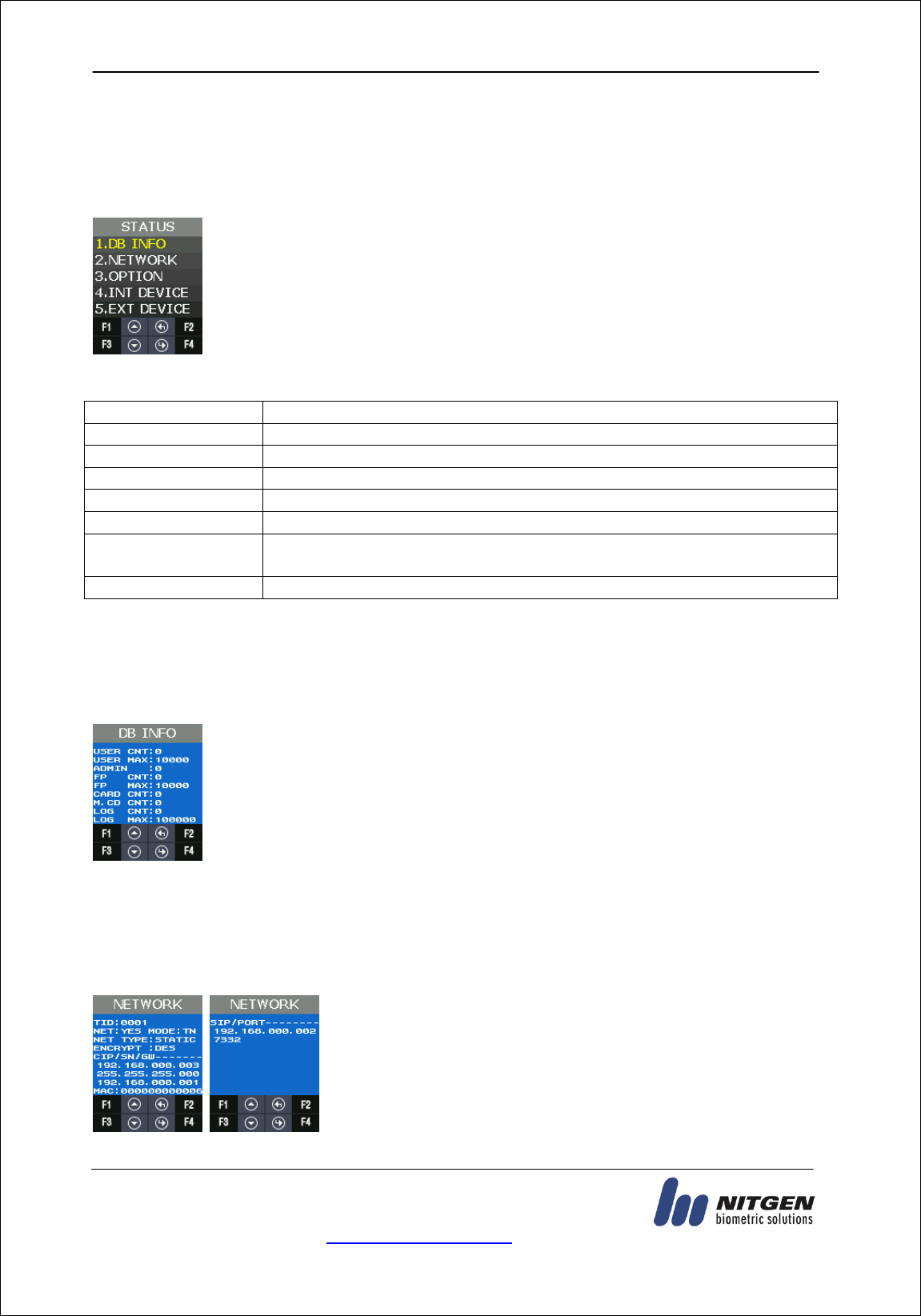

STATE
DB INFO
USER CNT:
USER MAX:
ADMIN:
FP CNT:
FP MAX:
CARD CNT:
CARD MAX:
M.CD CNT:
LOG CNT:
LOG MAX:
NETWORK
TID: xxxx
NET: YES, MODE:TN
NET TYPE: STATIC
ENCRYPT: DES
CIP/SN/GW---------
xxx.xxx.xxx.xxx
xxx.xxx.xxx.xxx
xxx.xxx.xxx.xxx
MAC: xx: xx: xx: xx: xx: xx
SIP/PORT---------
xxx.xxx.xxx.xxx
xxxx
OPTION
ATTEND: M2(F1~F4)
AUTO TNA: YES
LANGUAGE: English
SHOW ID: YES
LOGO USE: NO
UID LEN:4
eNBioAccess-T2 User Guide 37
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
DATE: YYMMDD
LOG SAVE: YES
IMG SAVE:NO
SHOW TO: x
PING TO: x
NET TO: x:
INT DEVICE
CARD TYPE: RF/SC
CARD FMT: STD
FP1:1:x
FP1: N:x
LFD: xx
AUTH TIME:
BEEP VOL:
VOICE VOL:
BLE Name/MAC----
XXXXXXX (BLE Name)
XXXXXXXXXXXXXXXXX
TAMPER:ALARM
EXT DEVICE
LOCK1----------------------
TYPE: STRIKE/OK
OUT: N/O
OPEN: 3000ms
LOCK2 -------------------
TYPE: NONE
OUT: N/O
OPEN: 3000ms
DOOR WARN: 0sec
FORCE OPEN:NO
RS485: LC010
RS485 ID: xxx
WIEGAND----------------
IN/OUT :34B/34B
SITECODE: xxx
SEND:USERID
I/O PORT
LOCK1: HIGH
LOCK2: HIGH
DM0: HIGH
DM1: HIGH
DM2: HIGH
W0IN: HIGH
W1IN: HIGH
INSIDE: HIGH
TAMPER SW:HIGH

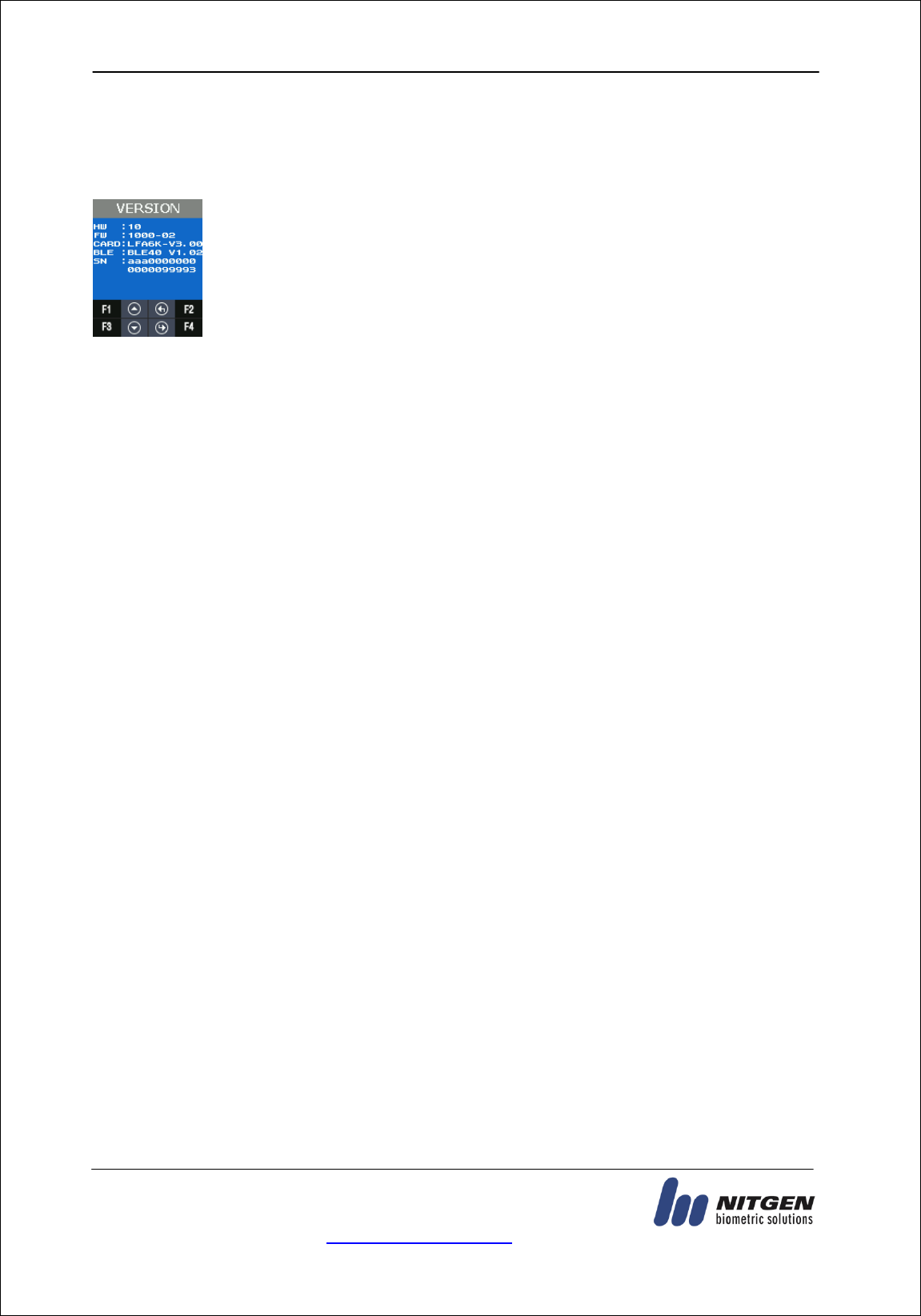

VERSION
HW
FW
Card
BLE
eNBioAccess-T2 User Guide 38
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
SN(Serial Number)
RECOVERY

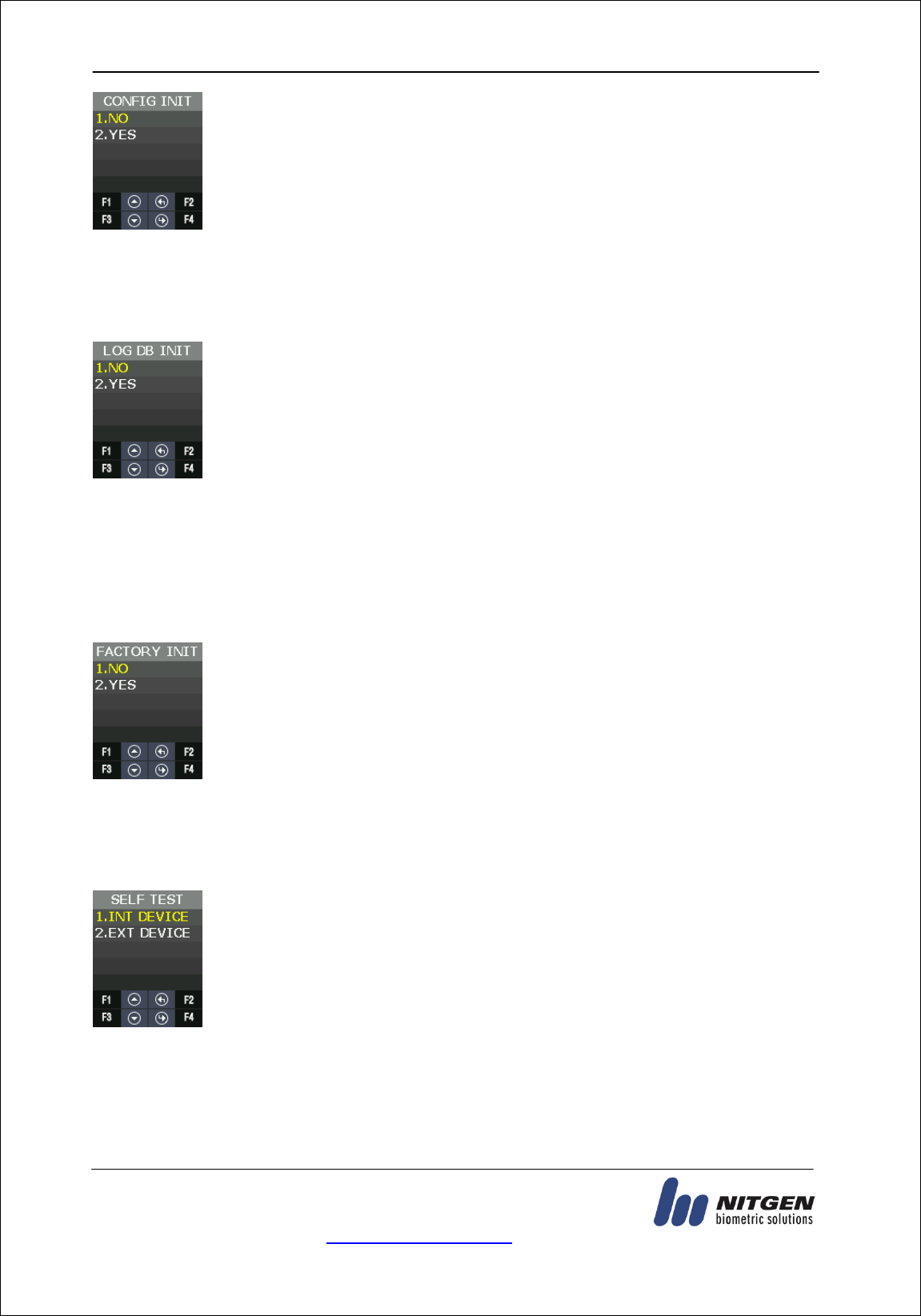

INITIALIZE
CONFIG
LOG DB
FACTORY
SELF TEST

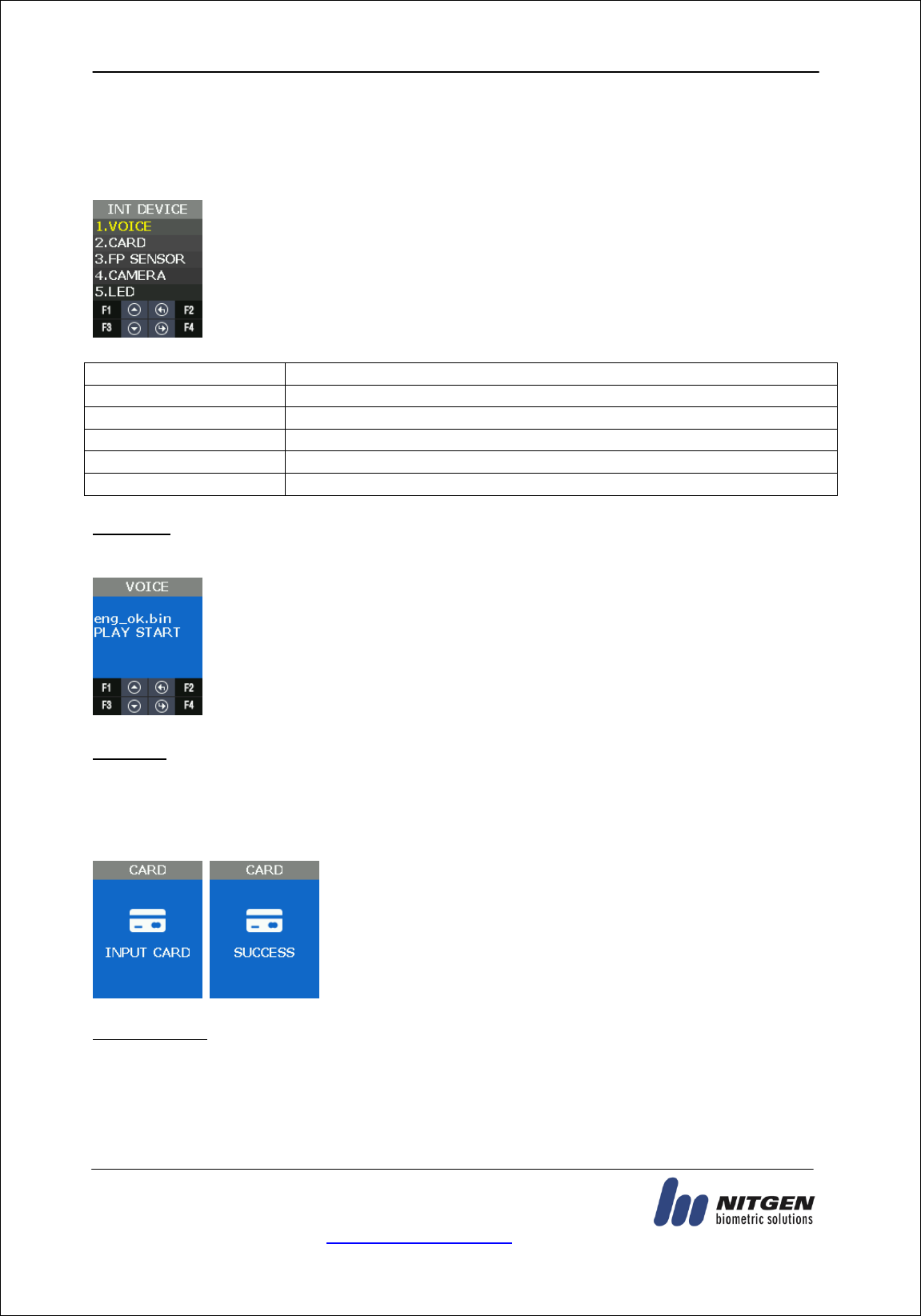

INT DEVICE
VOICE
CARD

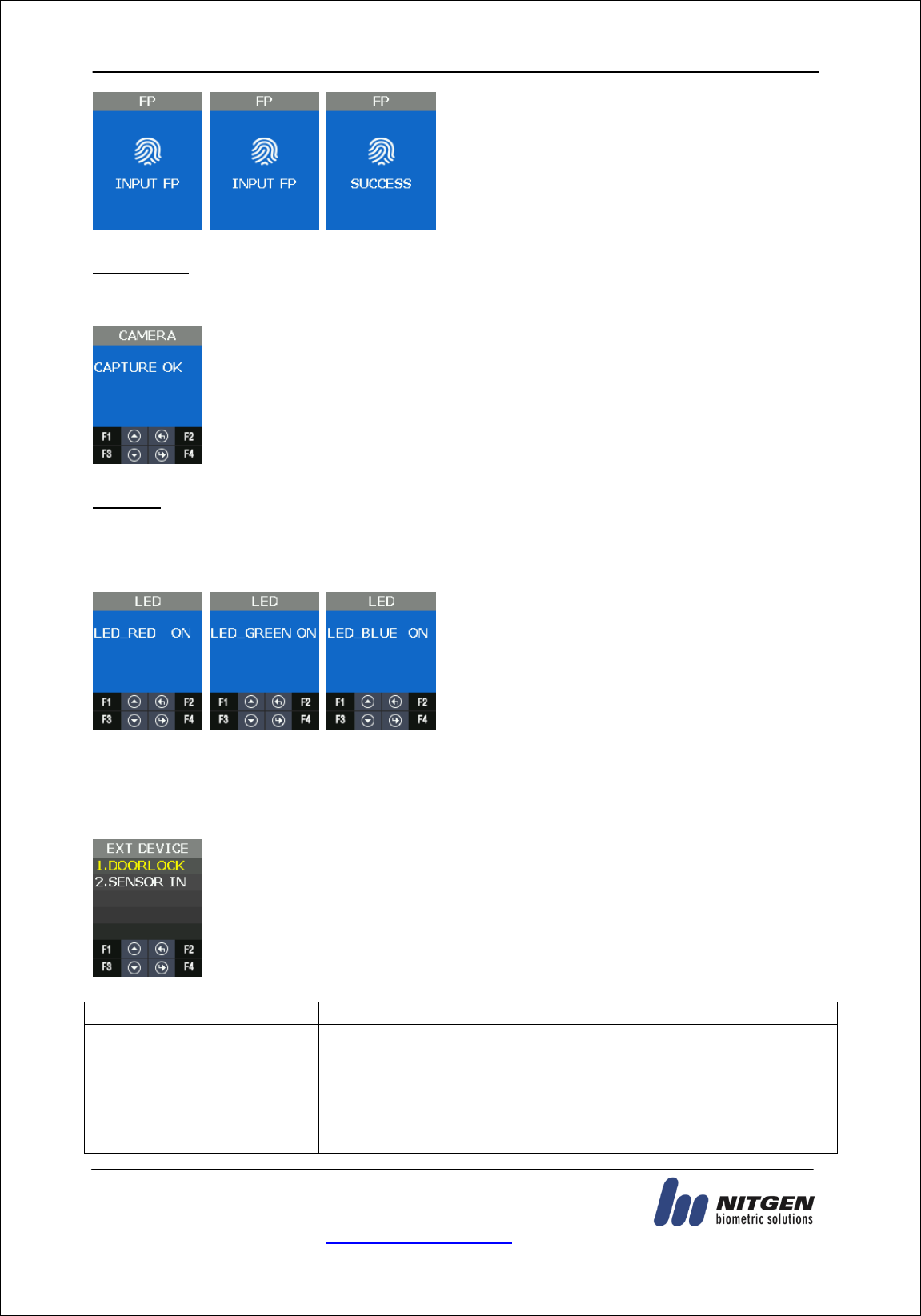

FP SENSOR
CAMERA
LED
EXT DEVICE

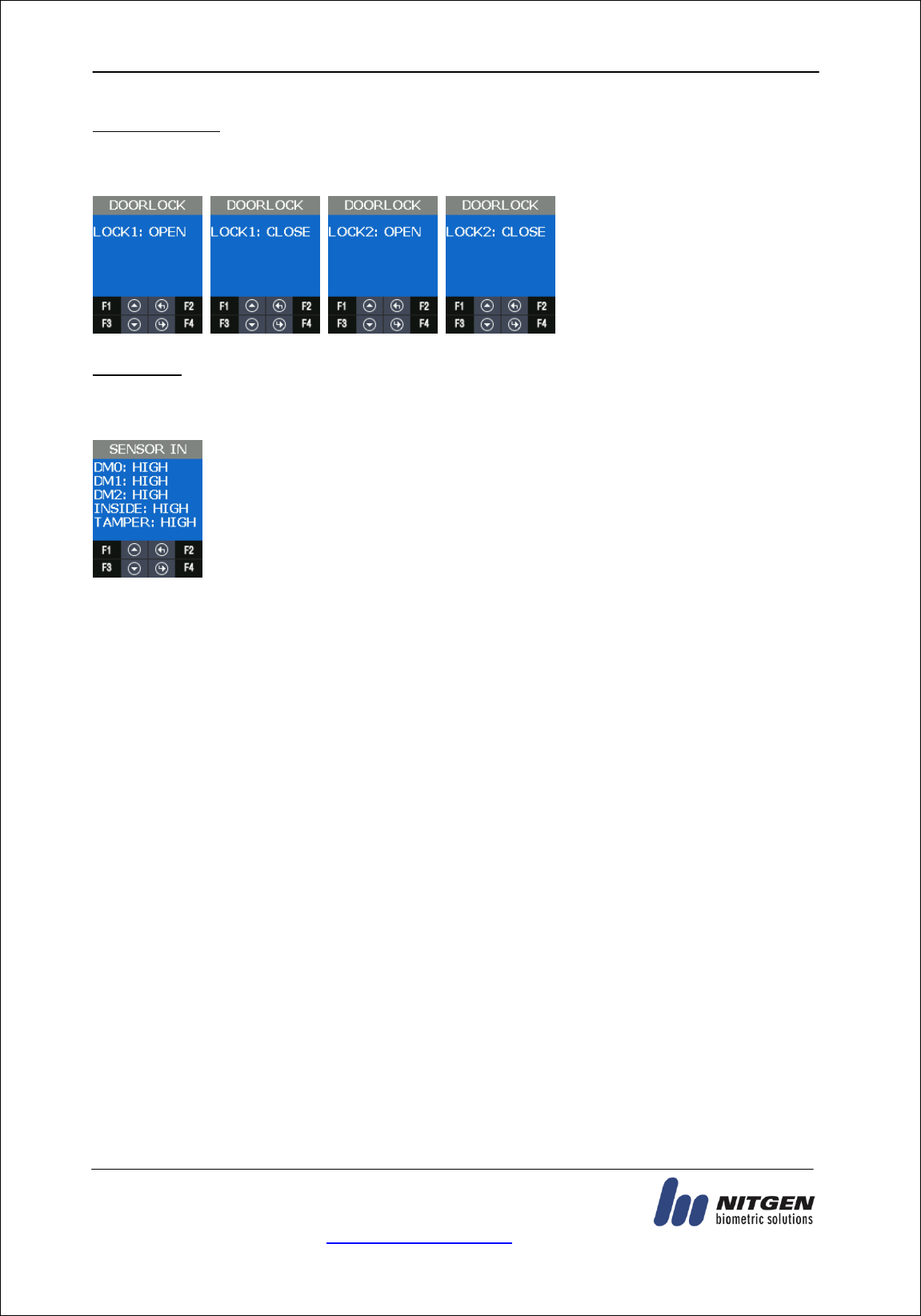

DOORLOCK
SENSOR IN
BACKUP
LOG EXPORT
USER EXPORT
USER IMPORT
FW UPDATE
REBOOT
eNBioAccess-T2 User Guide 39
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.6. USER
3.6.1. Menu Configuration
USER menu has the feature as follows.
Category
Explanation
ADD
Use to add user and admin with various certification conditions.
AUTO ADD
Use to add Card or Fingerprint user automatically.
MODIFY
Use to add certification conditions, card or fingerprint of registered
user.
DELETE
Use to delete a registered particular user.
DELETE ALL
Use to delete all registered users.
3.6.2. ADD
3.6.2.1. USER TYPE
If you press ADD in the menu, the screen asking the user type is displayed as follow.
USER TYPE
Explanation
USER
Only available for authentication
No Authorization to access menu
When selecting user, the screen is displayed as follow.
eNBioAccess-T2 User Guide 40
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
ADMIN
Available to add and delete user.
Available to access menu and modify it.
When selecting the administrator, the screen is displayed as follows.
3.6.2.2. AUTH TYPE
There are FP(Fingerprint), Card, and MCARD (Mobile card) in the menu.
But MCARD can only provide the check state, and do not provide checking or unchecking. For
checking or unchecking with MCARD, it is only available via Server and Admin App.
There are AND and OR in authentication conditions.
In AND, all authentication conditions should be satisfactory and then authentication succeeds.
In OR, one of authentication conditions should be satisfactory and authentication succeeds.
FP:0 ➔ FP is abbreviation of Finger Print.
0 means the registered FP number. (1FP means 2 fingerprints)
CD:0➔ CD is abbreviation of CARD.
0 means the registered CARD number.
Maximum card number is 1.
(U) ➔ Means your Registration Authority is general user(USER).
(A) ➔ Means your Registration Authority is administrator (ADMIN).
[FR Authentication]
[Card Authentication]
[FP or Card
Authentication]
[FP and Card
Authentication]
eNBioAccess-T2 User Guide 41
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.6.2.3. INPUT FP
Input the same fingerprint twice when you check the Fingerprint as authentication type. If
you want to add only one fingerprint, select 1. NO. If you input the fingerprint second times
and they are normal, INPUT OK is displayed. If you want to add more fingerprints, select 2.
YES. One user can register 20 people for maximum.
3.6.2.4. INPUT CARD
When you check Card as AUTH TYPE, you will follow steps as below. If you input CARD on
Waiting state, registration completes and INPUT OK screen is displayed.
EM CARD ex) Card No.(5byte): 08h 01h 16h 1Dh D6h
Card Format
Card No.
Display Method
Standard
02207638
(16001DD6)
(3+5)digits Decimal
[022(16h)+07638(1DD6h)]
SC CARD ex) Card No.(4byte): 52h 9Dh 06h E3h
Card Format
Card No.
Display Method
Standard
529D06E3
8digits Hex
3.6.3. AUTO ADD
AUTO ADD is used when you want to register general users (not admin user) consecutively
with card or fingerprint.
If you select FP, it adds users by increasing ID consecutively only with fingerprint.
If you select CARD, it adds users by increasing ID consecutively only with card.
eNBioAccess-T2 User Guide 42
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.6.3.1. AUTO ADD – 1. FP
This is the menu when registering the users continuously only by fingerprint.
Input fingerprint in twice and then the registration succeeded. If you want to add more users,
select 2. YES, and continue the registration. User ID increases automatically.
3.6.3.2. AUTO ADD
This is the menu when registering the users continuously only by card.
After inputting the card, INPUT OK is displayed on the screen.
If you want to add the other user, select 2. YES, and register the user.
User IDs increases automatically.
3.6.4. MODIFY
It is used when modifying the authentication type of the registered user.
In authentication type, authentication type (fingerprint, card) and authentication condition
(AND, OR) can be changed.
If the modification type is modified, authentication information about the authentication type
can be input.
eNBioAccess-T2 User Guide 43
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.6.5. DELETE
It is used when deleting the registered users.
3.6.6. DELETE ALL
It is used when deleting all the registered users. It should be careful when trying to delete, because all
the users (general user, administrator) are deleted.
eNBioAccess-T2 User Guide 44
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.7. Network Menu
3.7.1. Menu Configuration
Network menu has the following features.
Category
Explanation
Remarks
NO USE
Network not used
Standalone
USE
AUTH MODE
TERMINAL ID
TERMINAL
SERVER
Network mode
Operation Mode
Explanation
Standalone
This is the operation mode independently without server and
communication. The administrator can control all the functions of the
terminal.
Authentication log is saved in the terminal but is not sent to server.
After converting Standalone mode into Network mode and accessing in
server, the authentication log saved internally is sent to sever.
If you want to see the authentication log data in Standalone mode,
move RECOVERY > BACKUP > LOG EXPORT from main menu,
download it in USB through UDL module and check it by ACM Pro
program.
Network Mode
This is the operation mode by communicating with the server and it can
control the functions of the terminal by the remote-control.
Depending on the authentication mode, the order of authentication can
be different.
(Authentication order about whether trying to authenticate in the
terminal or the server first)
Authentication log is sent to the server if the network is connected
regardless of authentication mode.
eNBioAccess-T2 User Guide 45
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.7.2. AUTH Mode
Authentication mode means the authentication priority to determine whether authentication
processing is done in the terminal or the server when user-authentication.
It is a valid setting only when using the network. All authentication log is sent to server
through the network.
AUTH MODE
Explanation
Server/Terminal
Server Terminal
After trying to do server authentication at first, terminal authentication
is processed.
Terminal/Server
Terminal Server
After trying to do terminal authentication at first, server authentication
is processed.
Server
Server only
Authentication is processed only in server.
Terminal
Terminal only
Authentication is processed only in terminal.
Even if it is “Terminal Only”, authentication log is sent to server.
★ In Server Only” mode, if the network is disconnected, all the authentication is processed in
fail. If the mode is not “Server Only” (Server/Terminal, Terminal/Server, Terminal) and the
network is disconnected, authentication is processed in the base of DB in the terminal.
3.7.3. Terminal ID
Terminal ID is a valid information only when using the network, and it can be set in the range
of 1~200.
If a user registered in the terminal exist, you can’t change the Terminal ID.
eNBioAccess-T2 User Guide 46
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.7.4. Terminal
It is used when setting the network information in the terminal.
Network setting in the terminal can be set in Static IP and DHCP.
STATIC: Set the value as a user wants.
DHCP: Allocated flexibly. (It can be operated normally when using the router supporting
DHCP.)
If STATIC is used, it is used when setting IP, Subnet mark and Gateway address of the
terminal.
The following is the default setting value.
Category
Default Setting Value
Terminal IP
192.168.0.3
SUBNET MASK
255.255.255.0
GATEWAY
192.168.0.1
It can set the address value as follows.
Function Key
Function Explanation
F1
Increase the setting value
F3
Decrease the setting value
F2
Move to left
F4
Move to right
F4 Long
Save the setting value
eNBioAccess-T2 User Guide 47
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.7.5. Server
When the terminal accesses in server through the network, set the information.
Default setting value is as follows.
Category
Default Setting Value
Server IP
192.168.0.2
Port number
7332
eNBioAccess-T2 User Guide 48
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.8. Option Menu
3.8.1. Menu configuration
User menu has the same function as follows.
Category
Explanation
ATTEND
TYPE
AUTO TNA
SCREEN
LANGUAGE
SHOW ID
USER LOGO
USER ID LEN
DATE
SAVE
LOGO SAVE
IMAGE SAVE
TIMEOUT
RESULT
NET ERROR
PING
LOCKING
NO USE / USE
3.8.2. ATTEND
TNA related menu are configured.
Category
Explanation
TYPE
When Function Key is used in time and attendance option, it is used.
AUTO TNA
Use to determine whether to remain Function Key or not shown in the default
screen.
eNBioAccess-T2 User Guide 49
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.8.2.1. TYPE
It is used when setting ATTEND mode. If setting ATTEND mode, ATTEND mode is displayed in
the screen when pressing Function Key shortly (F1~F4) in the default screen.
Mode
Explanation
NONE
F00 is only displayed in default screen.
F1~F2
F1~F2 Function Key is recognized and F01, F02 are displayed in default
screen.
F1~F4
F1~F4 Function Key is recognized and, F01, F02, F03, F04 are displayed in
default screen.
F1~F49
F1~F4 Function Key is recognized and F01, F02, F03, F04, F11~F49 are
displayed.
Function Key
Meaning
F00
ACCESS MODE
F01
CLOCK-IN MODE
F02
CLOCK-OUT MODE
F03
CHECK-OUT MODE
F04
CHECK-IN MODE
F11~F49
EXPANDED MODE
TNA mode (F00~F49) is converted into F00 after 10 seconds if you don’t use AUTO TNA.
3.8.2.2. AUTO TNA
AUTO TNA is the menu to determine whether to remain continually the setting TNA mode or
not.
Category
Explanation
NO
The TNA mode is automatically returned into F00 after 10 seconds.
YES
The TNA mode is continuously displayed.
eNBioAccess-T2 User Guide 50
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.8.3. Screen
The screen display related menu is configured.
Category
Explanation
LANGUAGE
Change the language which is displayed in the screen and is spoken.
SHOW ID
When authentication succeeds, you can set whether showing ID or not.
USER LOGO
You can set whether the logo image for customers is used or not in the
default screen.
USER ID LEN
It is used when modifying the length of user’s ID.
DATE
It is used when modifying Year/ Month/ Day and time displayed in the
default screen.
3.8.3.1. Language
It is used to change the voice language and menu text displayed on the screen.
Voice guidance is available in English, Korean, Indonesian, Thai, Arabic, Spanish, Portuguese,
French, Russian, Farsi, Japanese, and Chinese.
Language support for all menu text is in English, Korean, Indonesian, Spanish, Portuguese,
French, Japanese and Chinese.
Language support for some text is in Farsi, Arabic, Thai and Russian.
3.8.3.2. SHOW ID
It is used to determine whether to show your ID at the time of authentication success window.
Category
Explanation
NO USE
Do not show your ID at the time of authentication success Screen Yes "****"
When authentication successes, it doesn’t show user’s ID on the screen.
For example, “****”.
eNBioAccess-T2 User Guide 51
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
USE
When authentication successes, it shows user’s ID on the screen.
For example, “****”.
3.8.3.3. USER LOGO
It is used to determine whether the displayed image shows the customer’s logo or not in the
default screen.
Category
Explanation
NO USE
Use basically the provided default image
USE
Use the customer’s logo image
To use the customer’s logo image, you should update the
customer’s image through the server first and then the
customer’s image is displayed in the default screen.
When editing the customer’s image, it should be edited in the
red box as the left picture. The full image size is 128 (W) x160 (H)
pixel, and the red box image size is 102 (W) x74 (H) pixel.
160
128
102
26
52
74
eNBioAccess-T2 User Guide 52
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.8.3.4. USER ID LEN
It is used to change the length of user’s ID. If changing the user’s ID, it should change in the
absence of a DB because it affects user’s DB that is internally registered. The setting range
can be set from 4 to 16.
If a user registered in the terminal exist, you can’t change the length of User ID.
3.8.3.5. DATE
It is used to select the order of Year, Month and Day displayed in the default screen.
YY: Year
MM: Month
DD: Day
Through SETTING, you can set current Year, Month, Day and Time.
3.8.4. SAVE
It is the menu including the function related to SAVE.
eNBioAccess-T2 User Guide 53
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.8.4.1. LOG SAVE
It is used to set whether to save the authentication log in memory or not.
The default setting is YES.
3.8.4.2. IMAGE SAVE
It is used to set whether to save the captured photo from camera when authentication
successes or fails. The default setting is Fail.
3.8.5. TIMEOUT
It is the menu that has the setting related with timeout.
3.8.5.1. RESULT
It is used to set the authentication result display how long it keeps for a seconds.
eNBioAccess-T2 User Guide 54
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
The setting range can be set from 0 to 5 seconds. If it set to 0, then don’t display the
authentication result.
3.8.5.2. NET ERROR
If it does not communicate with the server over a period of time, it is used to set whether
there is a network communication error.
If PING doesn’t come for a setting time in the server, it retries to connect the terminal.
The setting range is available for 60~600 seconds.
3.8.5.3. PING
It sets the cycle that terminal sets PING command to the server.
The setting range is available for 30~255 seconds.
3.8.6. LOCKING
Locking mode is the function that it rejects the authentication of all users until the
administrator enters the menu and releases the locking mode.
The default setting is NO USE.
eNBioAccess-T2 User Guide 55
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
The default screen is displayed as follows when setting to use locking mode.
eNBioAccess-T2 User Guide 56
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.9. INT DEVICE
3.9.1. Menu Configuration
INT DEVICE menu has the features as follows.
Category
Explanation
FP SENSOR
1:1 LEVEL
1: N LEVEL
LFD LEVEL
AUTH TIME
BEEP
Set Beep Sound.
VOICE
Set Voice Sound
BLE
BLE registration mode
TAMPER
Set the alarm when opening terminal case.
3.9.2. FP SENSOR
For the fingerprint recognition, it sets for the user registration and authentication about the
module installed inside.
3.9.2.1. 1:1 LEVEL
It is the authentication level used when it tries 1:1 fingerprint authentication.
eNBioAccess-T2 User Guide 57
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.9.2.2. 1: N LEVEL
It is the authentication level used when it tries 1: N fingerprint authentication.
3.9.2.3. LFD LEVEL
It sets LFD LEVEL to prevent the duress fingerprint.
If setting LFD LEVEL higher and higher, the ability to prevent the input of duress fingerprint
produced by rubber, paper, film, and silicon etc. reinforces but too dry fingerprint cannot be
input well. Also the authentication speed can be slow.
3.9.2.4. AUTH TIME
It means the maximum time to process 1: N authentication. If the authentication time
exceeds, authentication timeout occurs. The authentication time is 2 to 10 seconds, the default is 5
seconds.
eNBioAccess-T2 User Guide 58
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.9.3. BEEP
It informs key touch, authentication success, and failure as beep and sets the beep level. The
beep level is available from 0 to 3.
3.9.4. VOICE
It supports the notice such as authentication success/failure and authentication retrial. It sets
the authentication level. The voice level is available from 0 to 5.
3.9.5. BLE
When registering the terminal in Administrator’s App, this menu is required.
By using this menu, it can make the terminal BLE READY. Only if the terminal is BLE READY, it
can perform the registration procedure of the terminal after the administrator app accesses
the terminal.
When pressing F3 long in the default screen of the terminal, it performs same operation with
this menu.
Regarding the method to register the terminal in the administrator APP, please refer 3.2 How
to register the terminal in the administrator App.
eNBioAccess-T2 User Guide 59
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.9.6. TAMPER
When disassembling the terminal randomly, it sets whether to sound the alarm.
If selecting 1. NO ALARM, even if disassembling the terminal, the alarm doesn’t sound but
icon is displayed.
If selecting 2. ALARM, icon displays and the beep sounds in at regular intervals.
eNBioAccess-T2 User Guide 60
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.10. EXT DEVICE
3.10.1. Menu Configuration
EXT DEVICE has the features as follows.
Category
Explanation
DOORLOCK
It sets the control device to lock through the internal relay.
RS485
It sets the devices using RS485.
WIEGAND
It sets the device using WIEGAND.
3.10.2. DOORLOCK
It is the menu to set lock device (Strike, Motor type door lock) by using LOCK1 and LOCK2
port.
3.10.2.1. LOCK1 type
Category
Explanation
NONE
No Use
Strike/OK
When connecting the light to mark authentication success/failure or 2.
STRIKE/OK.
MOTOR1
When connecting Motor lock
eNBioAccess-T2 User Guide 61
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.10.2.2. LOCK1 OPEN TIME
It sets the time to give the signal when LOCK 1 sets 2. STRIKE/OK. Strike type means the
time from opening to locking the door after authenticating. The default value is 3 seconds and
the input range is 1 to 20 seconds.
3.10.2.3. LOCK2 type
NONE
When not using
FAIL IND
When connecting the light to mark authentication failure in Lock 2
MOTOR2
When connecting motor lock
3.10.2.4. LOCK2 OPEN TIME
If Lock 2 sets FAIL IND, it sets the time to give the signal. The default value is 3 seconds and the
input range is 1 to 20 seconds.
3.10.2.5. OPEN ALARM
When the door open time expires and the door open alarm time is exceeded, the alarm sounds.
The default value is 5seconds and the input range is 0 ~ 20 seconds. If it is set to 0, it will not beep. If it
is set to 1 ~ 20 seconds, it will beep.
Door open time
Open alarm time
DOOR OPEN state
alarm
eNBioAccess-T2 User Guide 62
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.10.2.6. DM0
DM0(Door Monitor 0) is the input port and it is used to detect the signal state of door open.
3.10.2.7. DM1
DM1(Door Monitor 1) is the input port and it is used to detect the signal state of lock.
3.10.2.8. DM2
DM2(Door Monitor 2) is the input port and it is used to detect a various of sensor and alarm.
For example, if connecting with fire sensor, it should set 4. FIRE N/O or 5. FIRE N/C and it
may cause fire alarm and icon in case of fire. In case of fire, the door automatically opens for
safety.
eNBioAccess-T2 User Guide 63
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.10.3. RS485
It is the setting for the device with RS485 communication to interface with external.
3.10.3.1. TYPE
TYPE
Explanation
NONE
It doesn’t use RS485.
LC010
Lock Controller
It controls LOCK through the other external module.
LC015
Lock Controller
It controls LOCK through the other external module.
SR100
FP Dummy Reader
When it installs the other FP dummy reader device in external and then
operates, it is used.
MCP040
Terminal operates as the dummy reader.
If Terminal is connected with MCP040 device, icon is displayed in the defa
ult screen. If Terminal is not connected with MCP040, icon is displayed.
The authentication result is determines whether or not successful by MCP040.
RS485ID uses 1~7.
eNBioAccess-T2 User Guide 64
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.10.3.2. DEV ID
DEV ID is the ID that distinguishes devices and it can be set up 0-7 during RS484
communication.
3.10.4. WIEGAND
WIEGAND supports each one of Input port and Output port.
3.10.4.1. WIE-INPUT
It is used to set the input type when working with the device connected into WIEGAND input
port.
Category
Explanation
NONE
WIEGAND input port is not used.
WIE26BIT
EM, HID26 Card Module
WIE34BIT
Mifare Card Modules
CUSTOM
Use Access Manager program and set Wiegand format.
eNBioAccess-T2 User Guide 65
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.10.4.2. WIE-OUTPUT
Category
Explanation
NONE
WIEGAND output port is not used.
WIE26BIT
EM, HID26 Card Module
WIE34BIT
Mifare Card Modules
CUSTOM
Use Access Manager program and set Wiegand format.
3.10.4.3. CUSTOM BIT LENGTH
It can set BIT length as 1~128.
3.10.4.4. SITE CODE
It is used to set the value of Site Code that is sent to WIEGAND output port.
3.10.4.5. SEND INFO
It is used to select the transmitting data by the output port.
eNBioAccess-T2 User Guide 66
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
SEND INFO
Type
None
USER ID
26 Bit
E.Parity(1)+ Site Code(8bit) + ID(16bit) + O.Parity(1)
34 Bit
E.Parity(1)+ Site Code(8bit) + ID(24bit) + O.Parity(1)
If the length of the User ID greater than 8, and sent in the
following format without site code:
E.Parity(1)+ ID(32bit) + O.Parity(1)
Card
26 Bit
E.Parity(1) + 24bit Card Number+ O.Parity(1)
34 Bit
E.Parity(1) + 32bit Card Number + O.Parity(1)
eNBioAccess-T2 User Guide 67
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.11. STATUS
3.11.1. Menu Configuration
STATE menu has the following features.
STATE information
Explanation
DB INFO
User DB, Authentication log data
NETWORK
The setting information related to network
OPTION
TNA, Screen setting, Saving, Time out, Lock mode
INT DEVICE
Display the setting state related to the internal device.
EXT DEVICE
Display the setting state related to the external device.
I/O PORT
Display the current signal of Input / Output port that interfaces with
outside.
VERSION
Display the version of the equipped device in the terminal.
3.11.2. DB INFO
It displays User’s DB information and the authentication log information.
3.11.3. NETWORK
It displays the network setting value.
eNBioAccess-T2 User Guide 68
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.11.4. OPTION
It displays the option setting value.
3.11.5. INT DEVICE
It displays the setting value related to the internal device.
3.11.6. EXT DEVICE
It displays the setting information related to the external device.
3.11.7. I/O PORT
It reflects the current I/O Port state and displays it on the screen.
Output Port: LOCK1, LOCK2
Input Port: DM0~DM2, W0IN, W1IN, INSIDE Open, Tamper
When the input port shorts GND, the signal modifies from HIGH to LOW.
eNBioAccess-T2 User Guide 69
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.11.8. VERSION
It displays the equipped module in the terminal and other version information.
eNBioAccess-T2 User Guide 70
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.12. RECOVERY
3.12.1. Menu Configuration
RECOVERY has the features as follows.
Category
Explanation
INITIALIZE
CONFIG
LOG DB
FACTORY
SELF TEST
INT DEVICE
EXT DEVICE
BACKUP
LOG EXPORT
USER EXPORT
USER IMPORT
FW UPDATE
REBOOT
REBOOT
3.12.2. INITIALIZE
It is used to initialize CONFIG, LOG DB, and FACTORY in the terminal.
3.12.2.1. CONFIG
It is used to initialize the modified setting value in the menu as the default value when shipping from
factory.
If a user registered in the terminal exist, you can’t initialize the configuration information.
eNBioAccess-T2 User Guide 71
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.12.2.2. LOG DB INIT
It is used to delete the user authentication log saved in the terminal.
3.12.2.3. FACTORY INIT
If trying FACTORY INIT, setting data, authentication log data, and user registration
information are initialized as setting state when shipping from factory.
★ It should be careful because the current data can be lost when you setting wrong.
3.12.3. SELF TEST
It is used when the terminal tests the operation state about internal & external device by itself.
eNBioAccess-T2 User Guide 72
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.12.3.1. INT DEVICE
It could test VOICE, CARD, FP SENSOR, CAMERA and LED equipped internally by itself.
Category
Explanation
VOICE
Voice output test
CARD
Card recognition test
FP SENSOR
Fingerprint recognition test
CAMERA
Camera equipment test
LED
LED output test
Voice Test
When authentication successes, it repeats and play voice guidance.
Card Test
As you see below, the screen displays “INPUT CARD” state at first.
When recognizing the card, “Success” screen displays and it returns “INPUT CARD” state
again. If you want to stop testing, press F2.
FP Sensor Test
FP Sensor Test is used to test the operation state of FP sensor from terminal.
Input your fingerprint twice, if they are same, it shows “Success” screen.
Otherwise, if not, it shows “Failure” screen.
eNBioAccess-T2 User Guide 73
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
Camera Test
It is used to check whether the camera state is normal in the terminal to capture photos.
LED Test
It is used to check whether the state is normal about RED, GREEN and BLUE LED used to
inform the operation state.
At intervals of 2 seconds, RED, GREEN and BLUE LED changes from ON to OFF.
3.12.3.2. EXT DEVICE
It can test the features related to the external device by itself.
Category
Explanation
DOORLOCK
Lock1, Lock2
SENSOR IN
DM0
DM1
DM2
INSIDE OPEN
TAMPER
eNBioAccess-T2 User Guide 74
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
DOORLOCK Test
It is used to check the state of LOCK1, LOCK2 OPEN /CLOSE from the terminal.
The procedure is as follows.
SENSOR IN
It is used to check the signal state about the input port.
When the port shorts GND, if signal changes LOW, it is normal.
eNBioAccess-T2 User Guide 75
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.12.4. BACKUP
When the saved data from the terminal sends to USB by using UDL device or brings the data
from USB memory and then applies it, it is used. It is available only when the UDL module is.
UDL is the option module, so it is not basically provided. If you want to get more information
about UDL module, please contact NITGEN customer service. USB memory recommends using
Sandisk.(NOTICE: UDL Device is not supported for all USB memory. UDL module may not work
depending on the USB memory size, manufacturer, and method.)
If Terminal detect UDL Device and USB memory, icon is displayed in the default screen.
If icon isn’t displayed, all backup function doesn’t operate.
3.12.4.1. LOG EXPORT
The saved log data from terminal saves in USB memory through UDL (User Data Downloader
module).
Only the log data in the selected period sends to USB and saves it through UDL.
The file name saved in USB memory is divided by period as follows.
1. 1Day: L1Day.NLG,
2. 1~30Day: L30Day.NLG
3. 1~90Day: L90Day.NLG
4. 1~180Day: L180Day.NLG
5. ALL: ALL.NLG
UDL
module
USB memory
eNBioAccess-T2 User Guide 76
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
or
3.12.4.2. USER EXPORT
The saved User DB from the terminal saves in USB memory through UDL.
It saves as USER.NDB file.
or
3.12.4.3. USER INPUT
It reads the user DB from USB memory through UDL and add it in terminal user DB.
If inputting user DB in the terminal, all existing user DB are deleted.
If you need the existing user DB saved in the terminal, back up first and try to input the user.
It opens USER.NDB file in USB memory and brings into the terminal through UDL.
The user registration data that you brought is reflected in the internal DB and added.
※ CAUTION: If you press F2 Key to stop in READ state, users loading will fail.
or
3.12.4.4. FW update
It is used when reading the firmware from USB memory through UDL and updating the
terminal firmware.
Firmware proceeds only when there is FW.NFW file name in USB memory.
. or
eNBioAccess-T2 User Guide 77
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
3.12.5. REBOOT
It is used when rebooting the terminal.
eNBioAccess-T2 User Guide 78
12F, Daemyung Valeon bldg., 127, Beobwon-ro,
Songpa-gu, Seoul, Korea (05836)
Tel : 02-6488-3232 , Fax : 02-6488-3099,
E-Mail :customer@nitgen.com http://www.nitgen.com
