UNION COMMUNITY XID-300 Access Controller User Manual

UNION COMMUNITY Access Controller Users Manual

UserManual.wiki >

UNION COMMUNITY >

XID 300 User Manual HTML Version

Users Manual

D-

-3

Version Eng-0.01

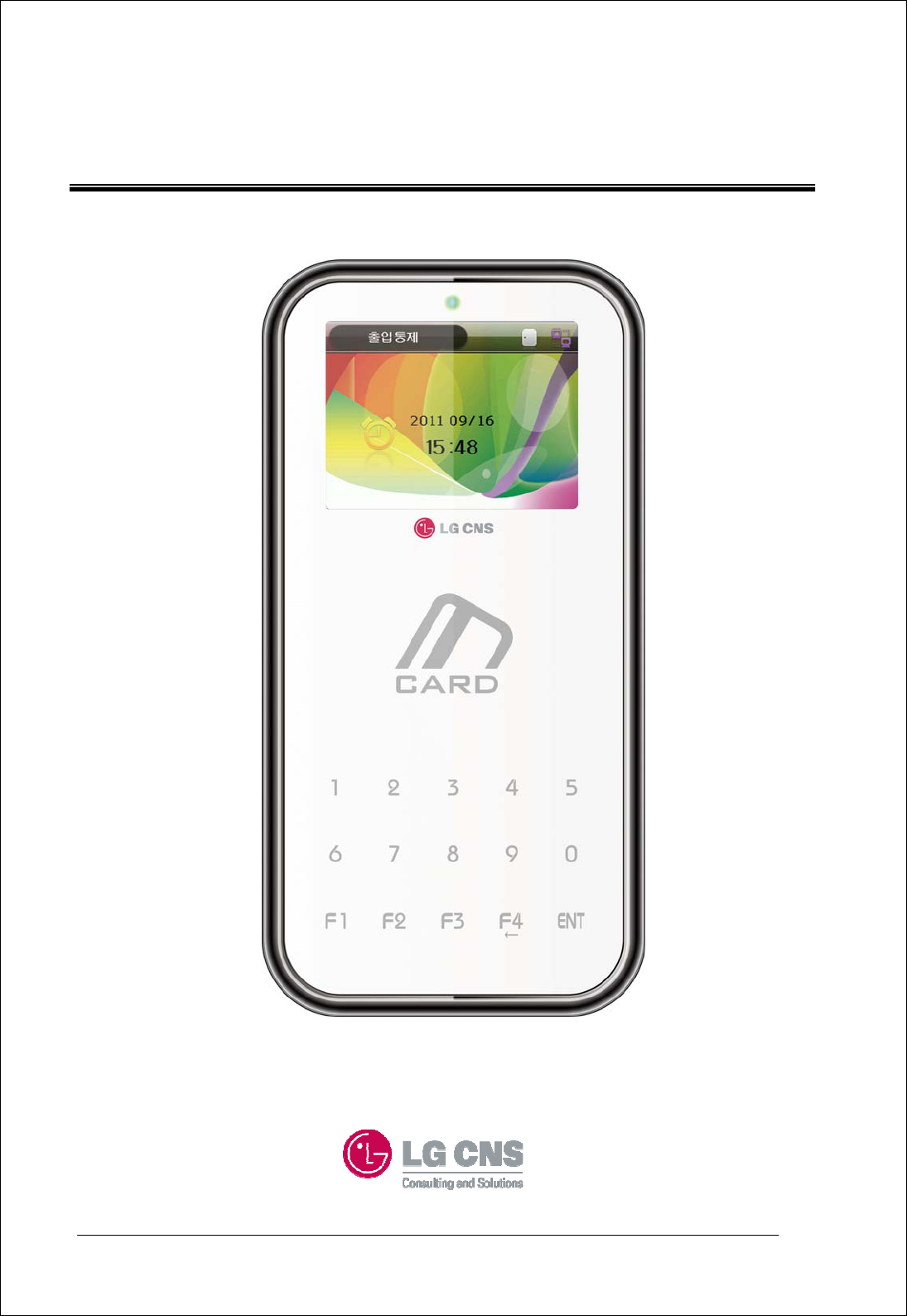

Safezone XID-300

< Contents >

1. Before Use ................................................................................................................................................ 3

1.1. Safety Precautions....................................................................................................................................................... 3

1.2. Terminal Description .................................................................................................................................................. 5

1.3. Screen Description (During Operation).............................................................................................................. 5

1.3.1 Icons Shown During Operation ................................................................................................................. 6

1.3.2 Message Shown During Operation ......................................................................................................... 6

1.3.3 LED Signal Shown During Operation ...................................................................................................... 7

1.3.4 Keys Used During Operation ...................................................................................................................... 7

1.3.5 Voices Used During Operation .................................................................................................................. 7

1.3.6 Buzzer Sounds Used During Operation ................................................................................................. 8

1.4. How to unplugged terminal power supply safely ......................................................................................... 8

2. Product Introduction .............................................................................................................................. 9

2.1. Features ........................................................................................................................................................................... 9

2.2. Block diagram ............................................................................................................................................................. 10

2.3. Specification ................................................................................................................................................................ 11

3. Environment Settings ........................................................................................................................... 12

3.1. Enter the Menu. ................................................................................................................................................ 12

3.1.1 When you forget password ...................................................................................................................... 12

3.1.2 Admin main menu ........................................................................................................................................ 12

3.2. Menu Configuration ................................................................................................................................................. 13

3.2.1 Network ............................................................................................................................................................. 14

3.2.1.1 Terminal IP and Server IP setting ........................................................................................................ 14

3.3.1 System Setting ................................................................................................................................................ 15

3.3.1.1 Language ....................................................................................................................................................... 15

3.3.1.2 Volume ........................................................................................................................................................... 15

3.3.1.3 Initialization .................................................................................................................................................. 16

3.3.1.4 Door Control ................................................................................................................................................ 17

3.3.1.5 Password ........................................................................................................................................................ 17

3.3.1.6 Background image .................................................................................................................................... 18

3.4.1 Application ....................................................................................................................................................... 18

3.5.1 Terminal Info ................................................................................................................................................... 19

3.6.1 Option ................................................................................................................................................................ 19

Safezone XID-300

1. Before Use

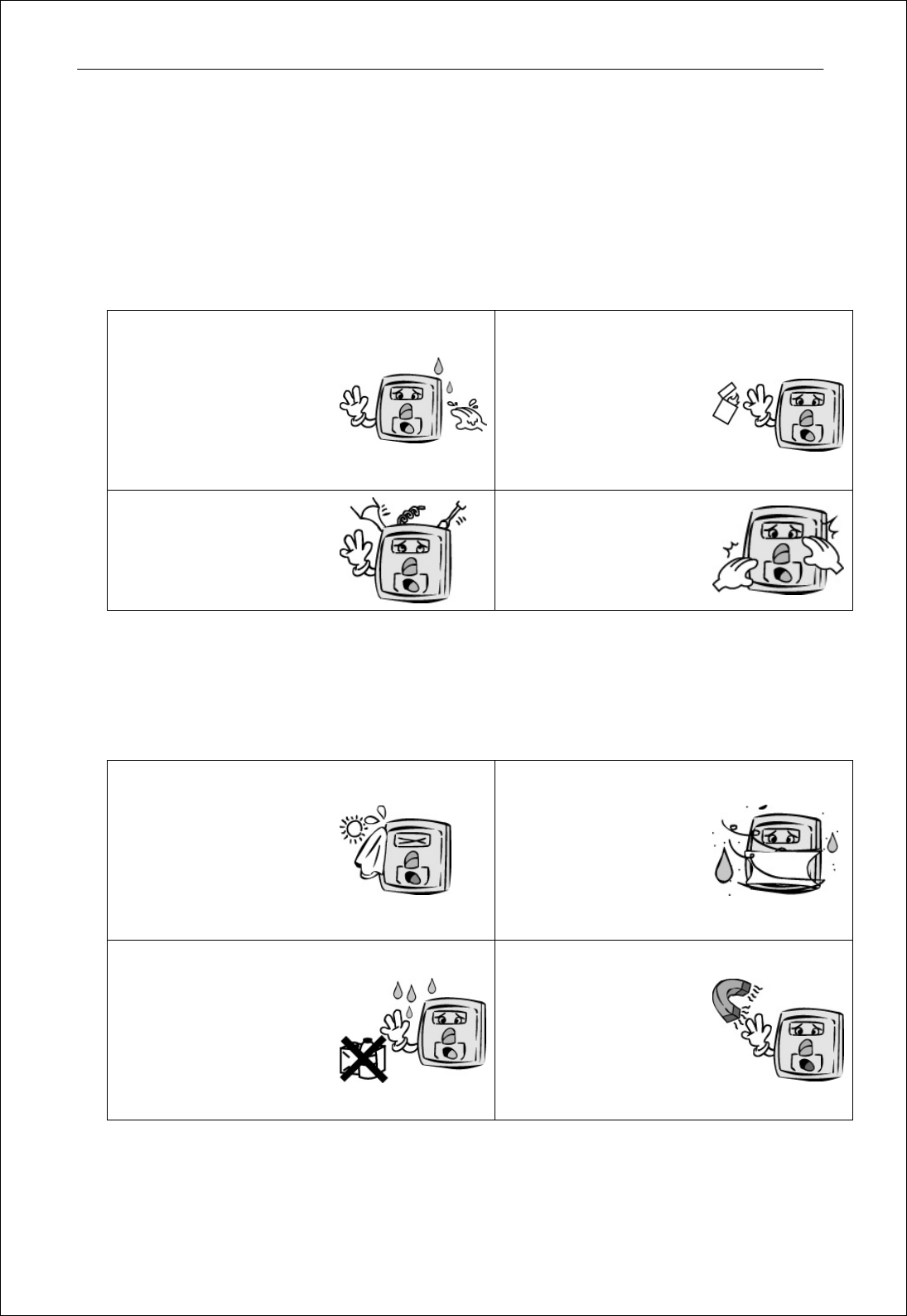

1.1. Safety Precautions

z Warning

Do not handle the unit

with wet hands and do not

allow liquid to flow into, or

on, it.

-> It may cause an

electric shock or damage.

Do not place a fire

source near the unit.

-> It may cause a fire.

Do not disassemble, repair,

or modify the unit.

-> It may cause an electric

shock, fire or damage.

Keep out of children’s

reach.

-> It may cause an

accident or damage.

- If the above warnings are ignored, it may result in death or serious injury.

z Cautions

Keep away from direct

sunlight

-> It may cause mal-

function, deformation or

change the colour of the

unit.

Avoid high humidity or

dust

->It may cause the unit

to malfunction.

Avoid using water,

benzene, thinner, or

alcohol for cleaning the

unit.

-> It may cause an electric

shock or fire.

Do not place a magnet

near the unit.

-> The unit may break

down or malfunction.

Safezone XID-300

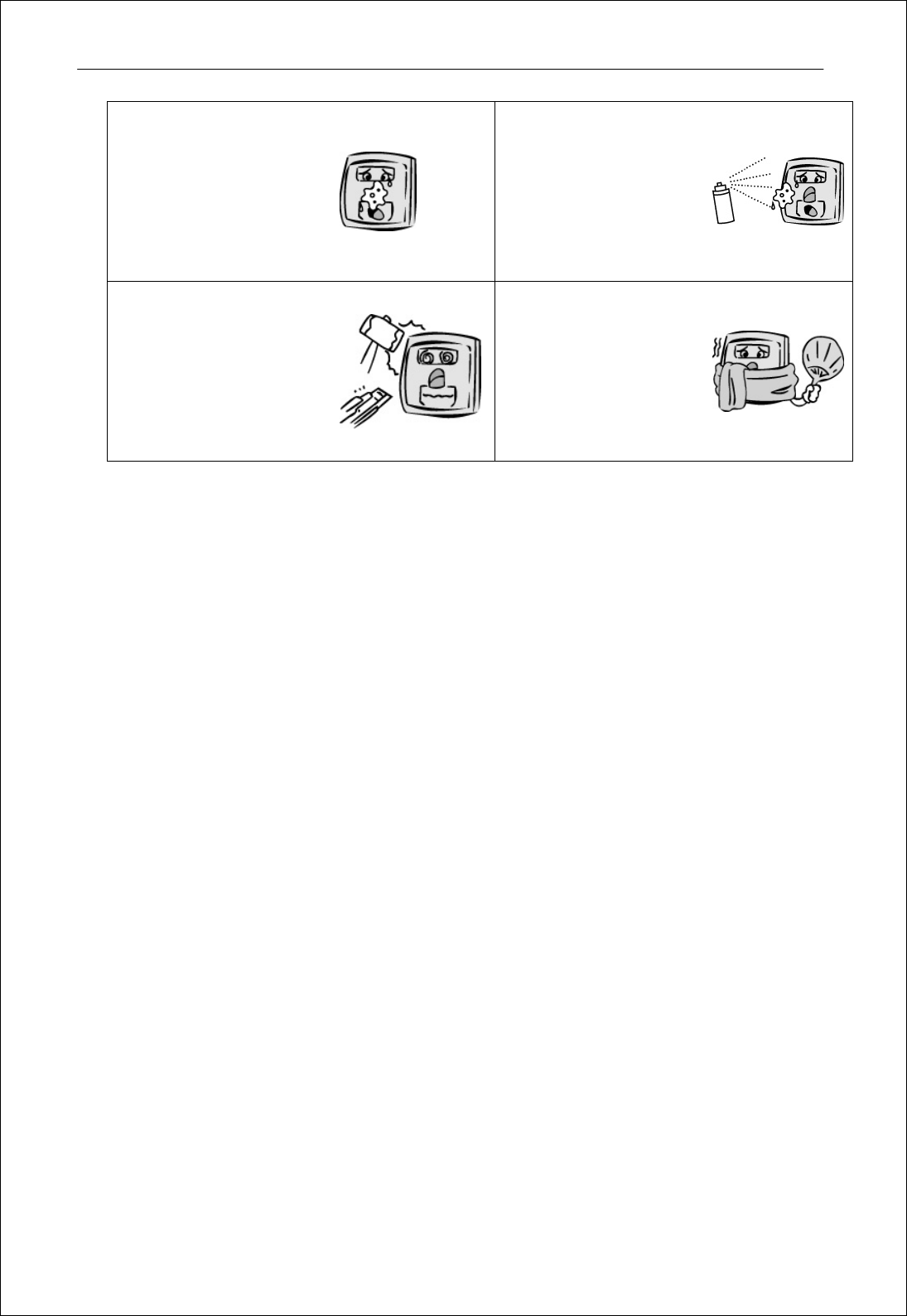

Avoid getting the

fingerprint input area dirty.

->It may prevent the unit

from recognising the

fingerprint.

Avoid using insecticides

or flammable sprays

near the unit.

-> It may result in the

deformation or change

the colour of the unit.

Avoid impact or using

sharp objects on the unit.

-> The unit may get

damaged and broken.

Avoid installing the unit

in a place where

temperature changes

severely.

It may cause the unit to

malfunction.

- If the above cautions are ignored, it may result in property damage or human injury.

※ Under no circumstances will Union Community be responsible for accidents or damages

caused by inappropriate use of the product and neglect of the precautions stated in the user

guide.

Safezone XID-300

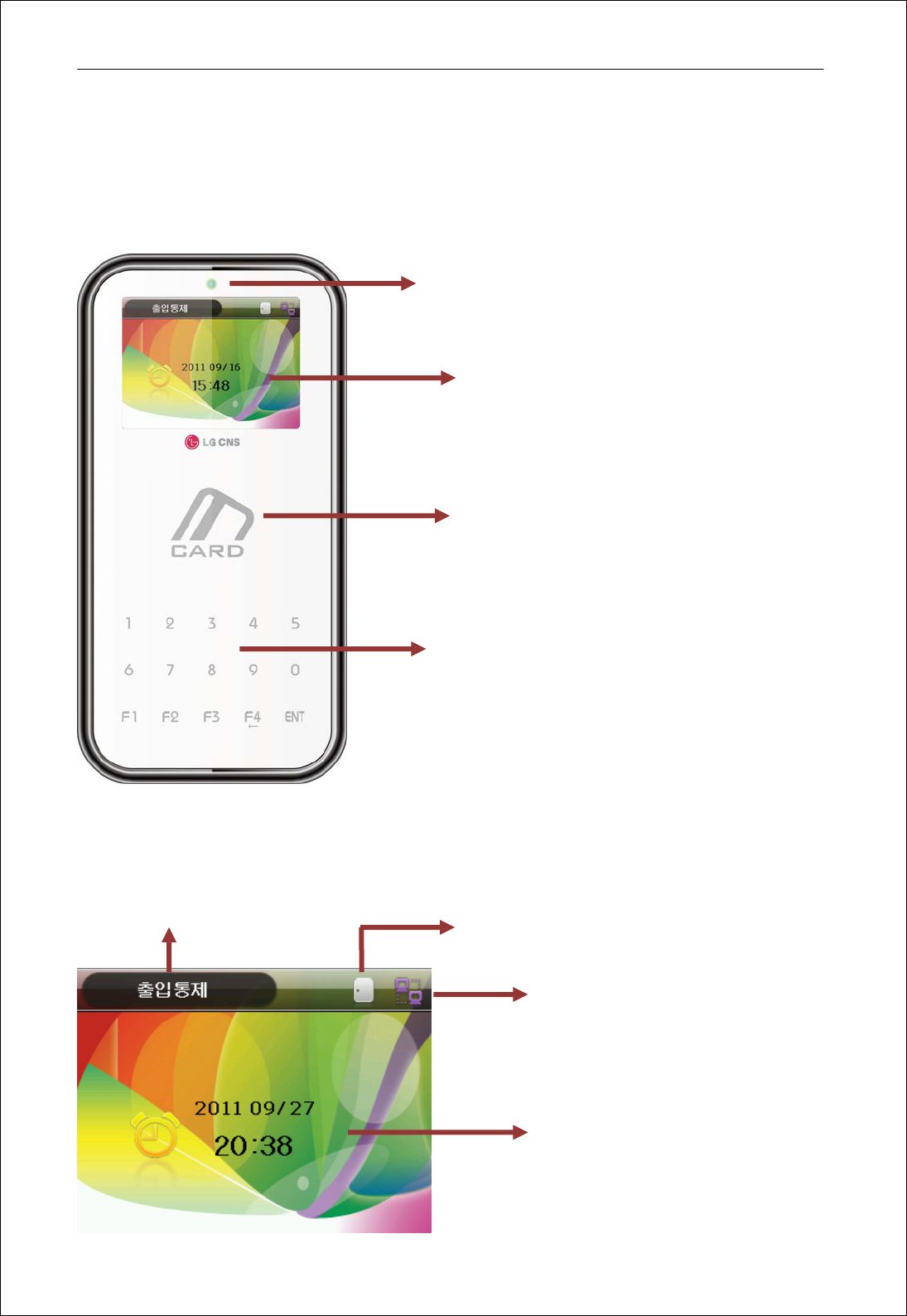

1.2. Terminal Description

1.3. Screen Description (During Operation)

State Display LED

LCD

Card Input Area

Touch Key

Normally, the figures are invisible as

the LED is off. LED turns on and the

figures illuminate when the user lightly

Current Time

Connection with Server

Door State

Safezone XID-300

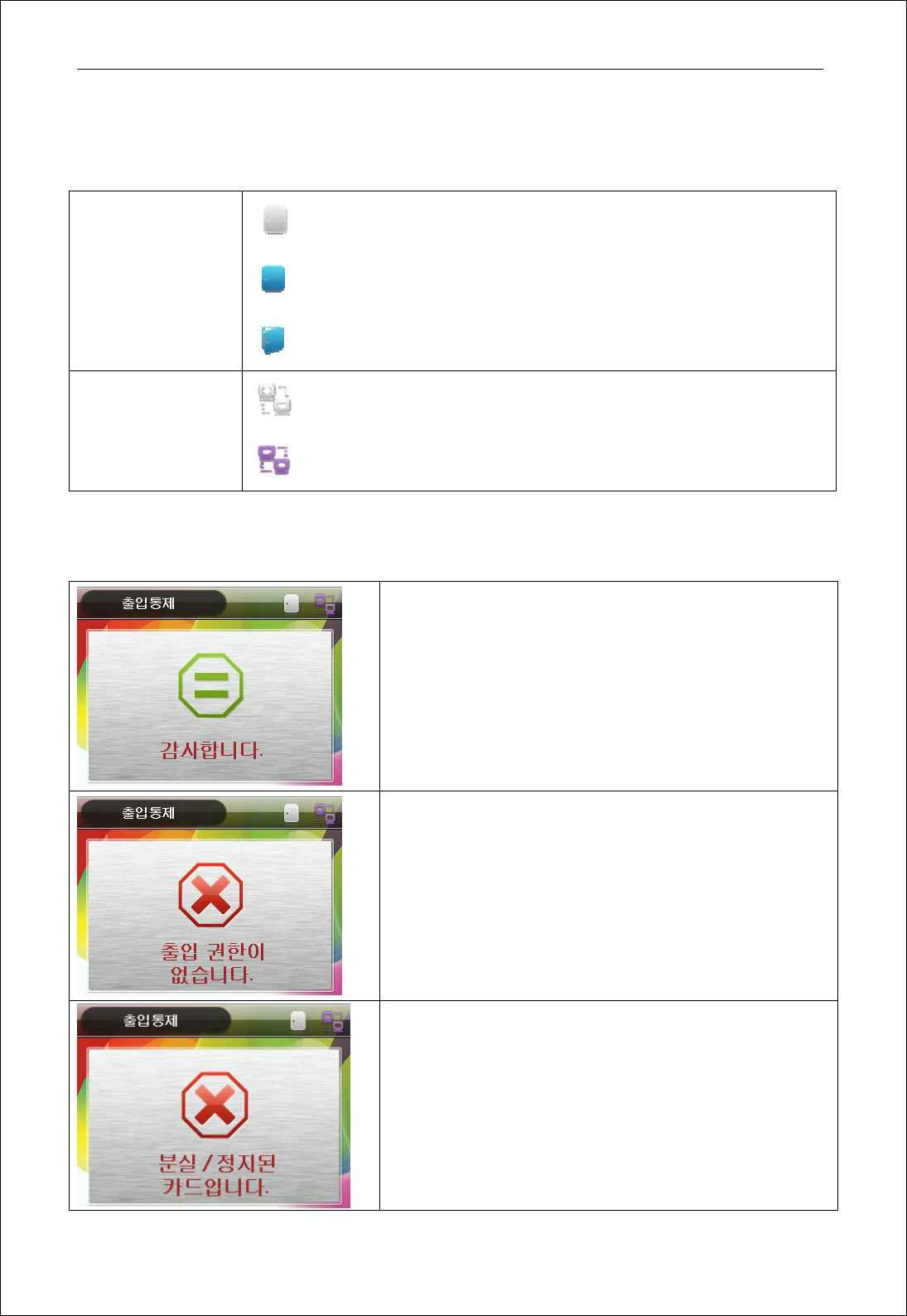

1.3.1 Icons Shown During Operation

Door Status

: Door status is unknown.

: Door is closed.

: Door is open.

Connection of

Server : LAN cable is connected, but not yet to the server.

: Connected with the server.

1.3.2 Message Shown During Operation

When authentication is successful.

When authentication has failed.

- As any unregistered card is input.

When authentication has failed.

- As card is registered at BL.

Safezone XID-300

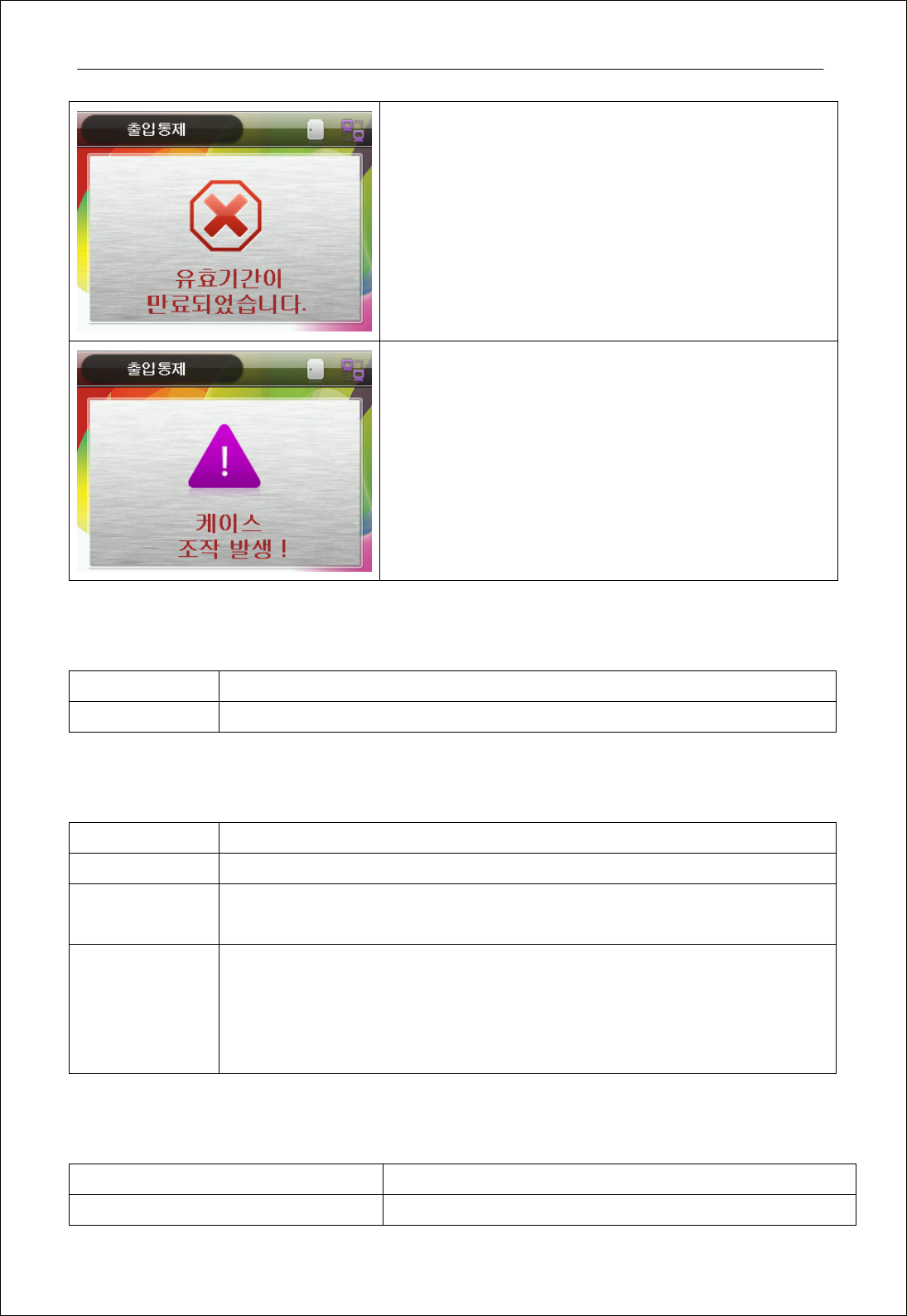

When authentication has failed.

- As card is expired.

When the lid of the terminal is opened

1.3.3 LED Signal Shown During Operation

Green When authentication has failed, when the lid of the terminal is opened

Red When authentication is successful.

1.3.4 Keys Used During Operation

[0] ~[9] - Keys used for numeric input.

[F1] - When put IP, it is used as dot (.)

[F4(Í)] - When you put numbers, it is used as Delete.

- Use the [F4 (←)] key to cancel input during setting

[ENT] - Used for accessing the menu when pressed on the initial screen

- Used for moving to set next value in main menu.

- Used to apply the configuration to the current screen in menu mode and

then exiting to the parent menu.

1.3.5 Voices Used During Operation

Type of Operation Voice

When authentication is successful Thank you.

Safezone XID-300

When authentication has failed. This card is not registered.

Please try again.

When terminal is Initialized Terminal is initializing

1.3.6 Buzzer Sounds Used During Operation

Beep When the key is pressed or card is read

Be peep when the lid of the terminal is opened

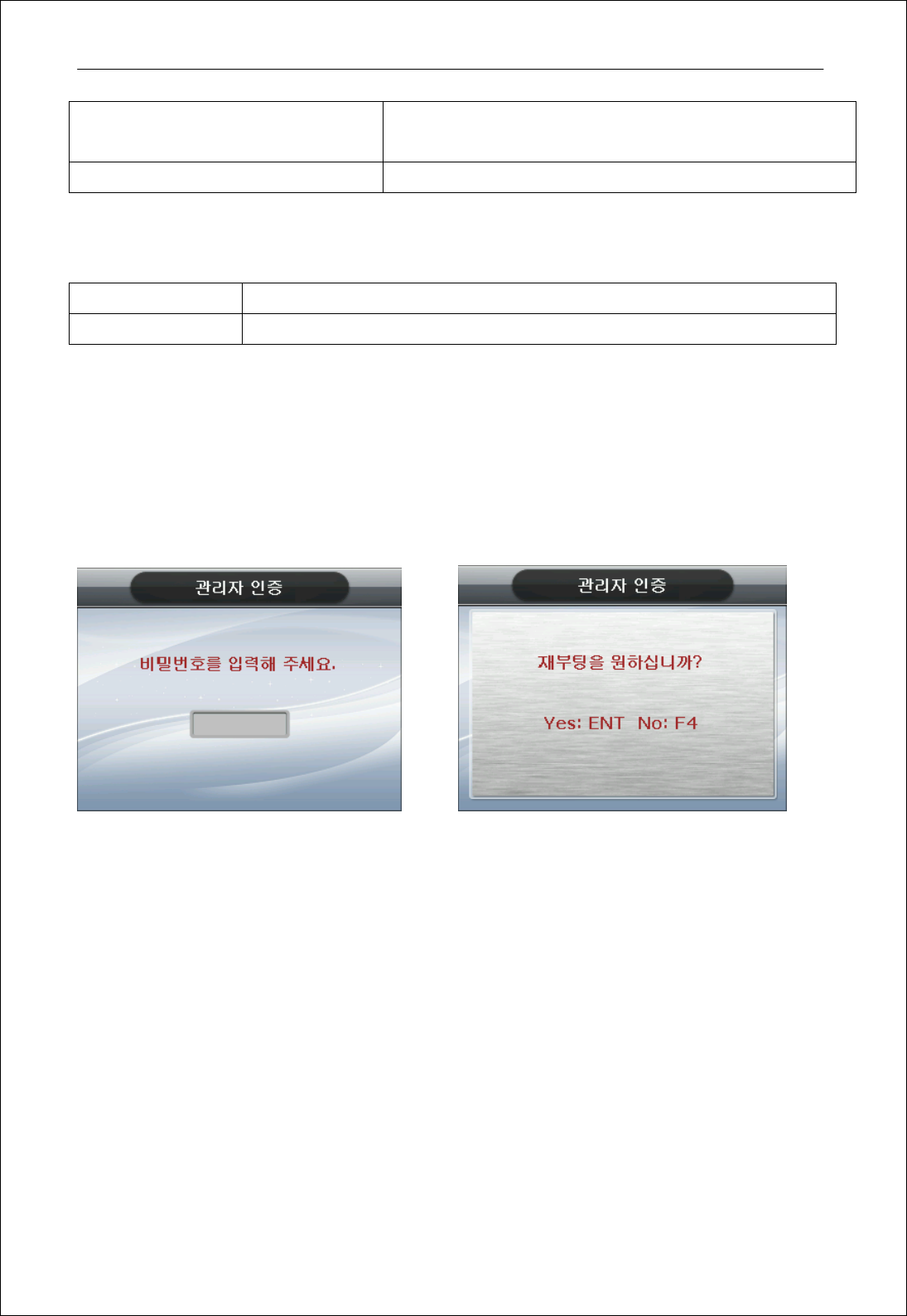

1.4. How to unplugged terminal power supply safely

When you put [ENT] for 3seconds, LED of keypad is off and then on with Beep sound. After taking

off your finger, the following left screen appears. If you press [F1] 4times and [ENT], the following

right screen appears. If you press [ENT], terminal is restart safely. At that time, you make it

disconnect.

Safezone XID-300

2. Product Introduction

2.1. Features

• Slim and polished design

- Easy to install as it is designed as a standalone type; Slim and elegant design using Colour LCD

and Touch Keys

• Change the LCD background image and voice using USB.

- Provides a variety of information messages via the colour LCD screen and voices. You can

download background images and voice messages suing USB. Also, the built-in LCD Screen

Backlight and Touch Key LED’s allow the screen to be read and keys to be operated in dark

conditions.

• Designed to IP65 rainproof specification – Outdoor installation is possible.

• Access Management System Using a Network (LAN)

- Communication is carried out between the fingerprint recognition device and authentication

server using TCP/IP protocol, and allows for easy expansion as it can be applied to the network

as is. 10/100 Mbps Auto Detection ensures high-speed operation. Enables easy management and

monitoring via the network.

• Provides a Diverse and Flexible Access Management

- Provides a perfect control function by granting entrance/access rights by user group.

Safezone XID-300

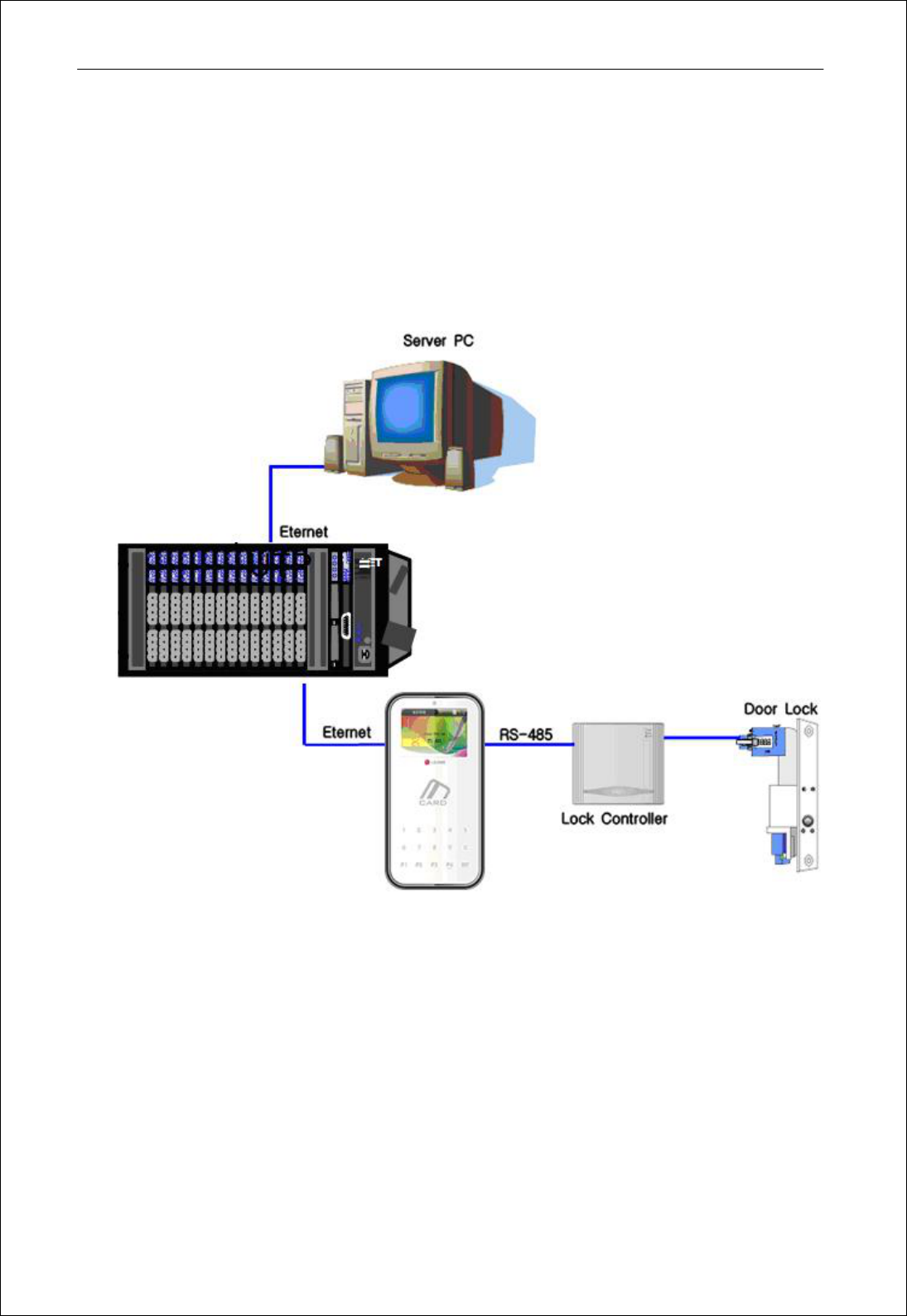

2.2. Block diagram

Safezone XID-300

2.3. Specification

Item Specification Remarks

CPU 32Bit RISC CPU(400MHz)

LCD 2.8” TFT Color (320*2400

Touch Key 15Key (0~9, F1~F4,Enter)

Memory 32M SDRAM

16M NOR FLASH

128M NAND FLASH

Temperature/

Humidity

-20 ~ 50 /

Lower than 90% RH

AC / DC Adapter INPUT : Universal AC100 ~ 250V

Output OUTPUT : DC 12V

Lock Controller

Communication

Communication Port RS485

Card Reader 13.56Mhz Smart Card

Size 88.0mm * 175.0mm * 43.4mm

Safezone XID-300

3. Environment Settings

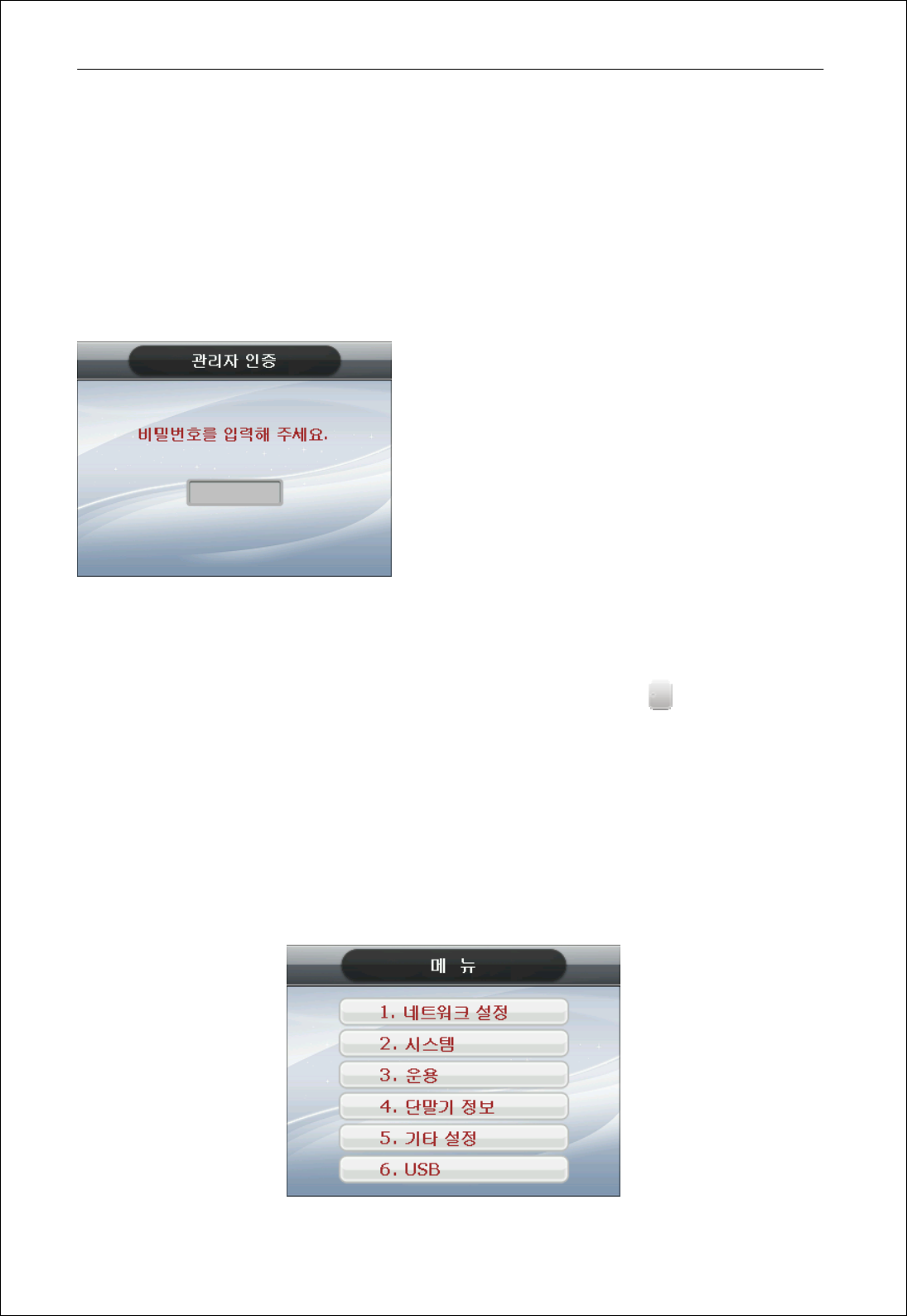

3.1. Enter the Menu.

When you put [ENT] for 3seconds, LED of keypad is off and then on with Beep sound. After taking

off your finger, the following screen appears. The initial password is 2345.

3.1.1 When you forget password

You make your terminal to be disconnect. Door state is changed to gray . (You can’t change

password while using terminal.) Make /xid30/pw folder in USB and connect USB and terminal.

After 10 seconds, put [F1],[1],[F2],[2] and [ENT] at admin main menu. If you do so, initial password

is changed.

3.1.2 Admin main menu

Safezone XID-300

3.2. Menu Configuration

1. Network 1. Terminal IP Terminal IP

Gateway

Subnet mask

2. Server IP Server IP

Server PORT

2. System 1. Language Korean

English

2. Volume Control 1. Voice Volume

2. Beeper Volume

3. Initialize 1. Setting Initialization

2. Data Initialization

3. Terminal Initialization

4. Door Control 1. Open duration

2. Door setting

5. Password change

6. Background change

3. Application - Access, TNA, Meal

Attendance, fire

4. Information - Door sate

- Version

Open / Close

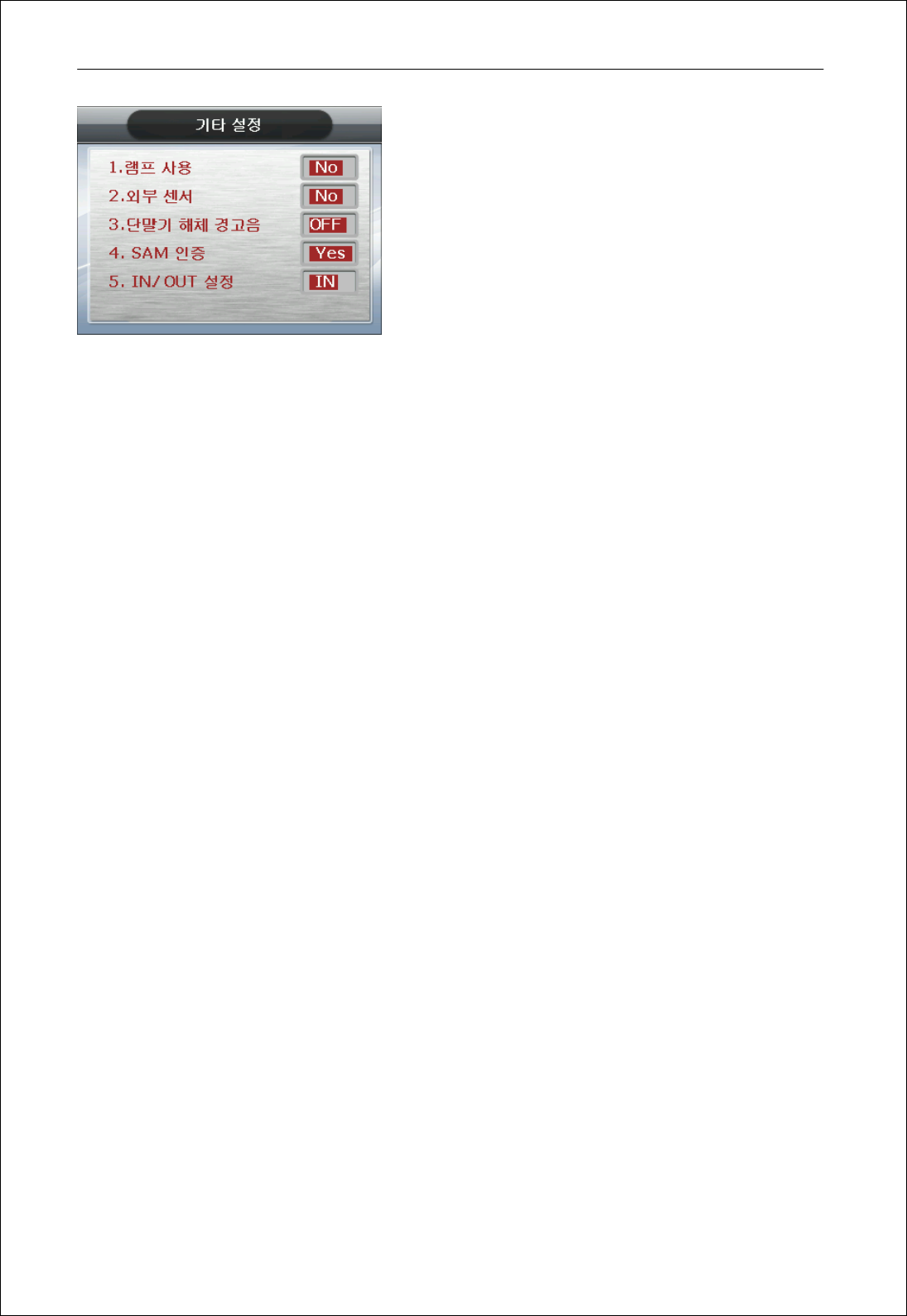

5. Option 1. Lamp

2. Sensor

3. Case Tamper Audible

4. SAM use

5. Terminal IN/OUT setting

Yes or No

ON or OFF

Yes or No

IN or OUT

Safezone XID-300

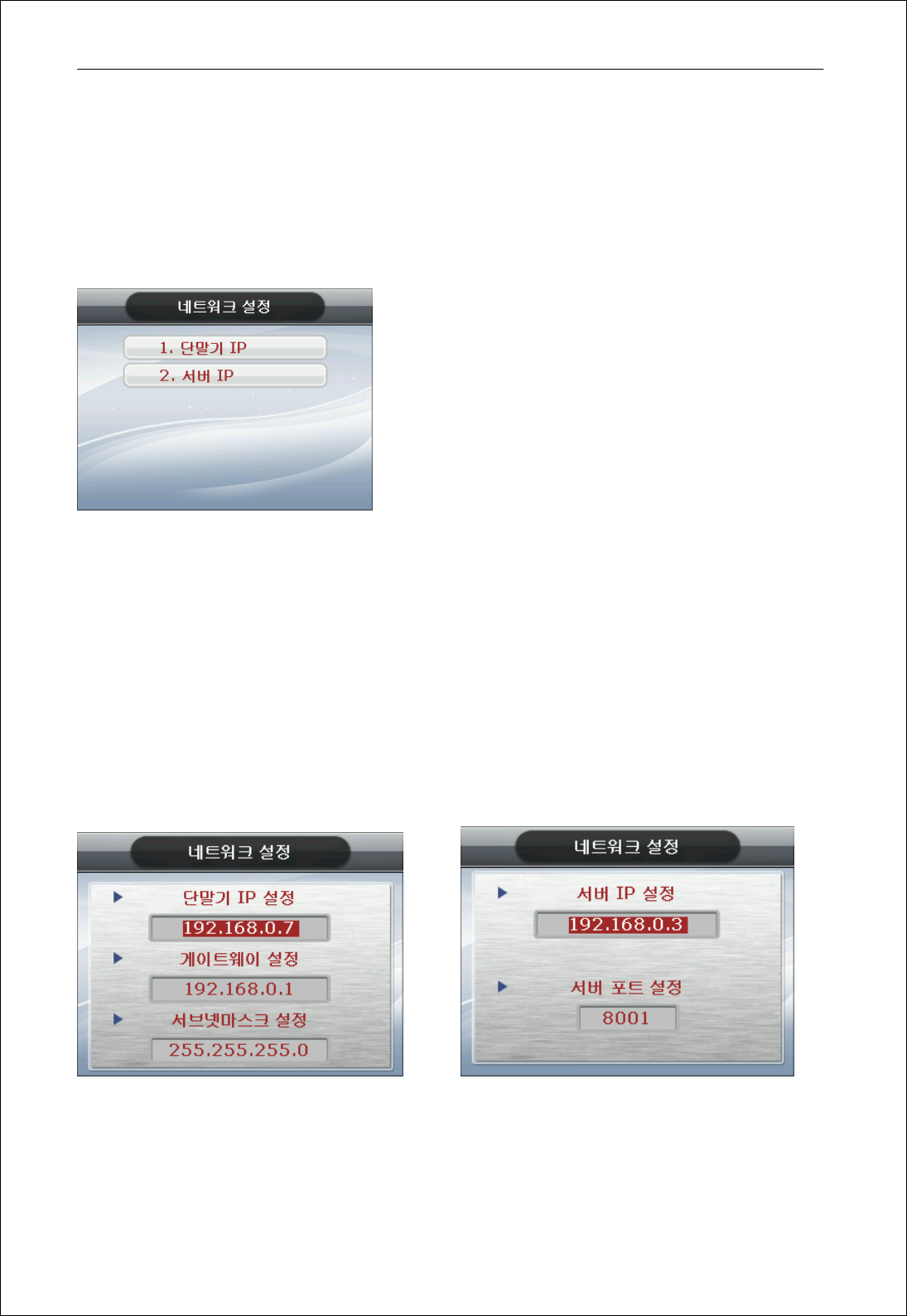

3.2.1 Network

- If pressing [1] at Admin main menu, the following screen appears

3.2.1.1 Terminal IP and Server IP setting

- If you want to change it, press [1] and select <1. Terminal IP>. When you set IP, [F1] is for “.”(dot)

The user can exit to the parent menu using the [ENT~] key to apply the changed values. Use the

[F4 (←)] key to cancel input during setting.

- After pressing [2] and select <2.Sever IP>, you can change it same as <1. Terminal IP>.

Safezone XID-300

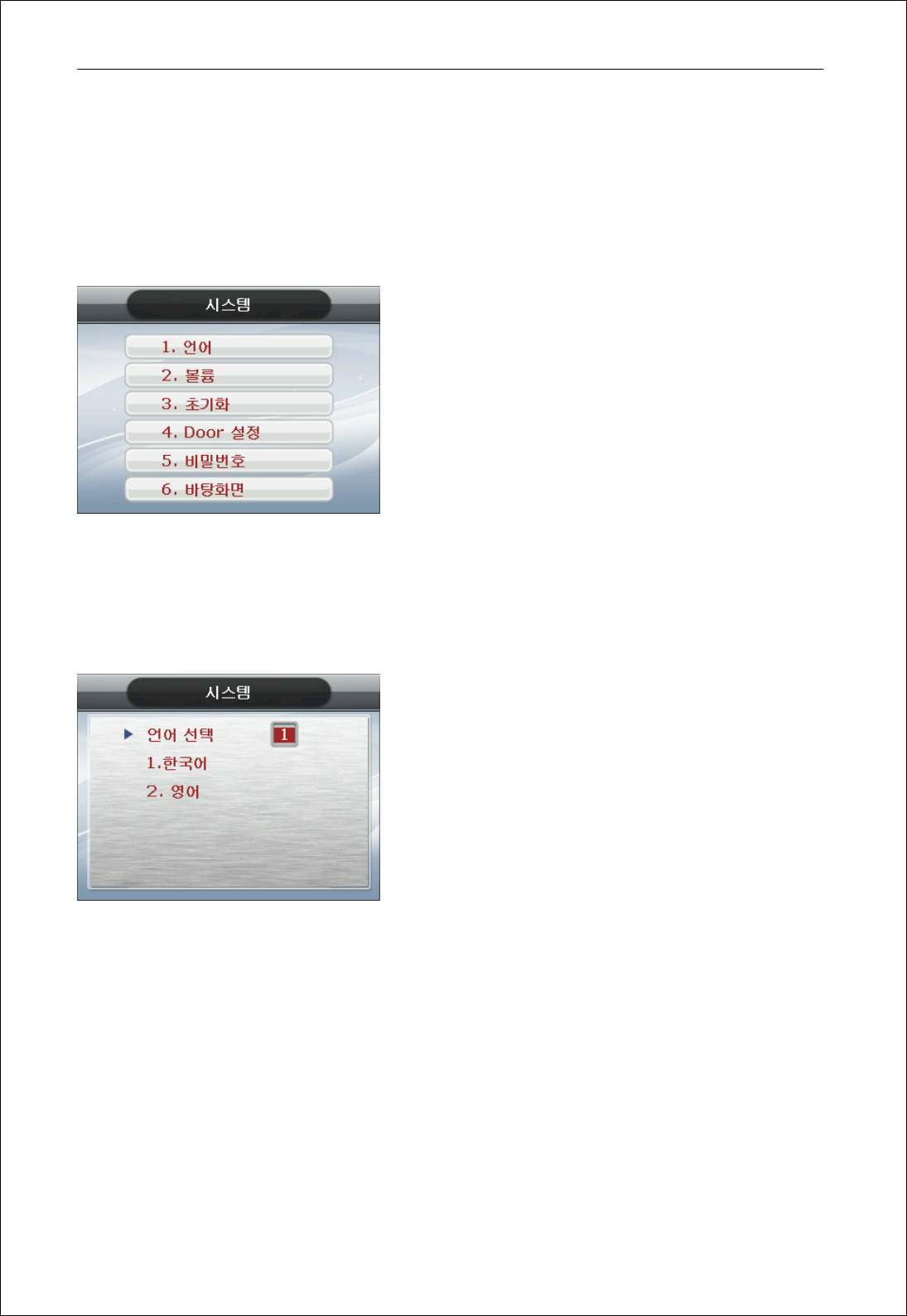

3.3.1 System Setting

- Put [2] at a main menu, and the following screen appears

3.3.1.1 Language

- Selete <1. Language> as putting [1]. You can change what you want as putting [1]or [2].

The user can exit to the parent menu using the [ENT~] key to apply the changed values. Use the

[F4 (←)] key to cancel input during setting.

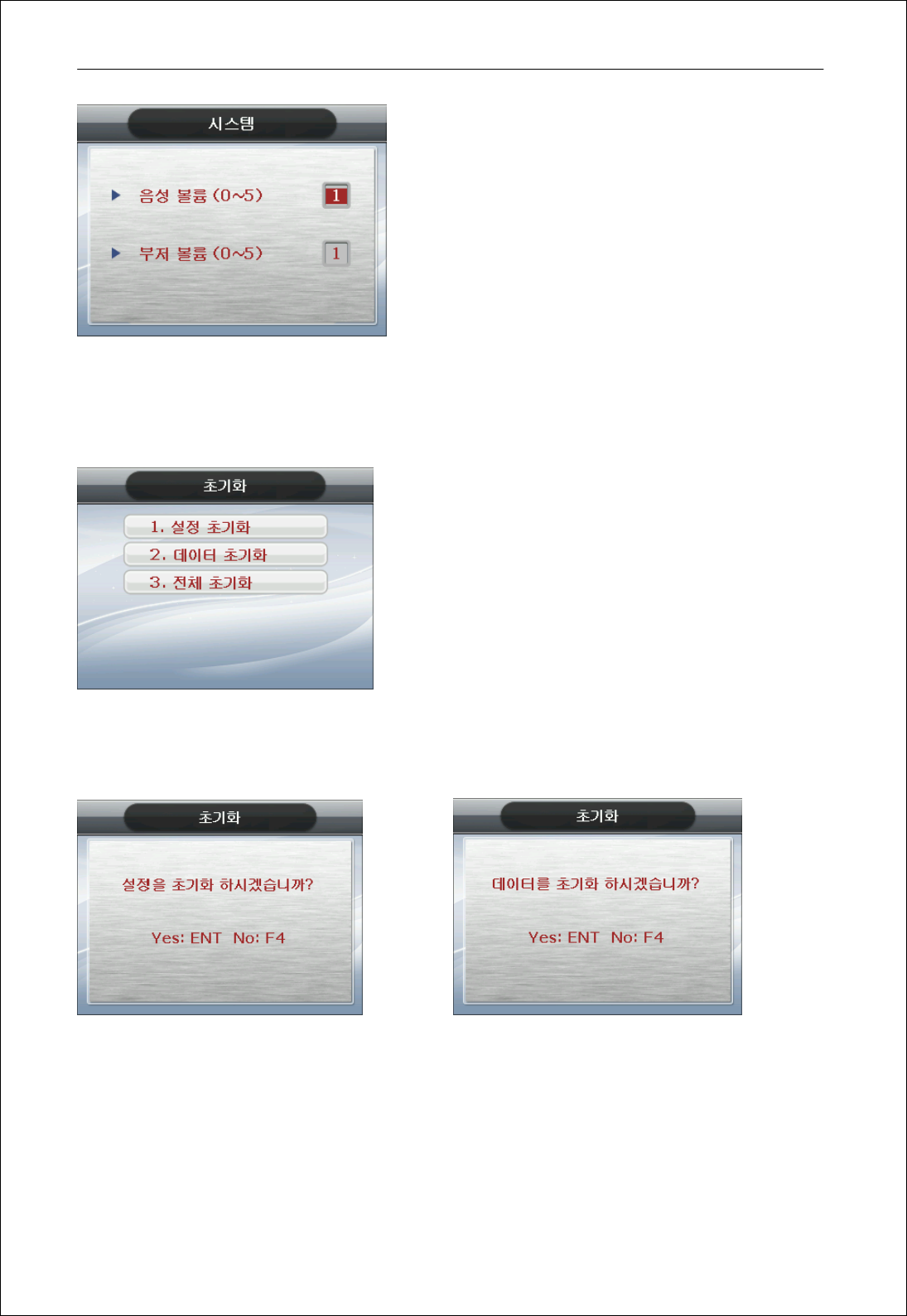

3.3.1.2 Volume

- You press [1] and select <2. Volume>. You can change what you want pressing [0] ~ [5]. The

user can exit to the parent menu using the [ENT~] key to apply the changed values. Use the [F4

(←)] key to cancel input during setting. If you select that volume is 0, sound or beep sound is not

output.

Safezone XID-300

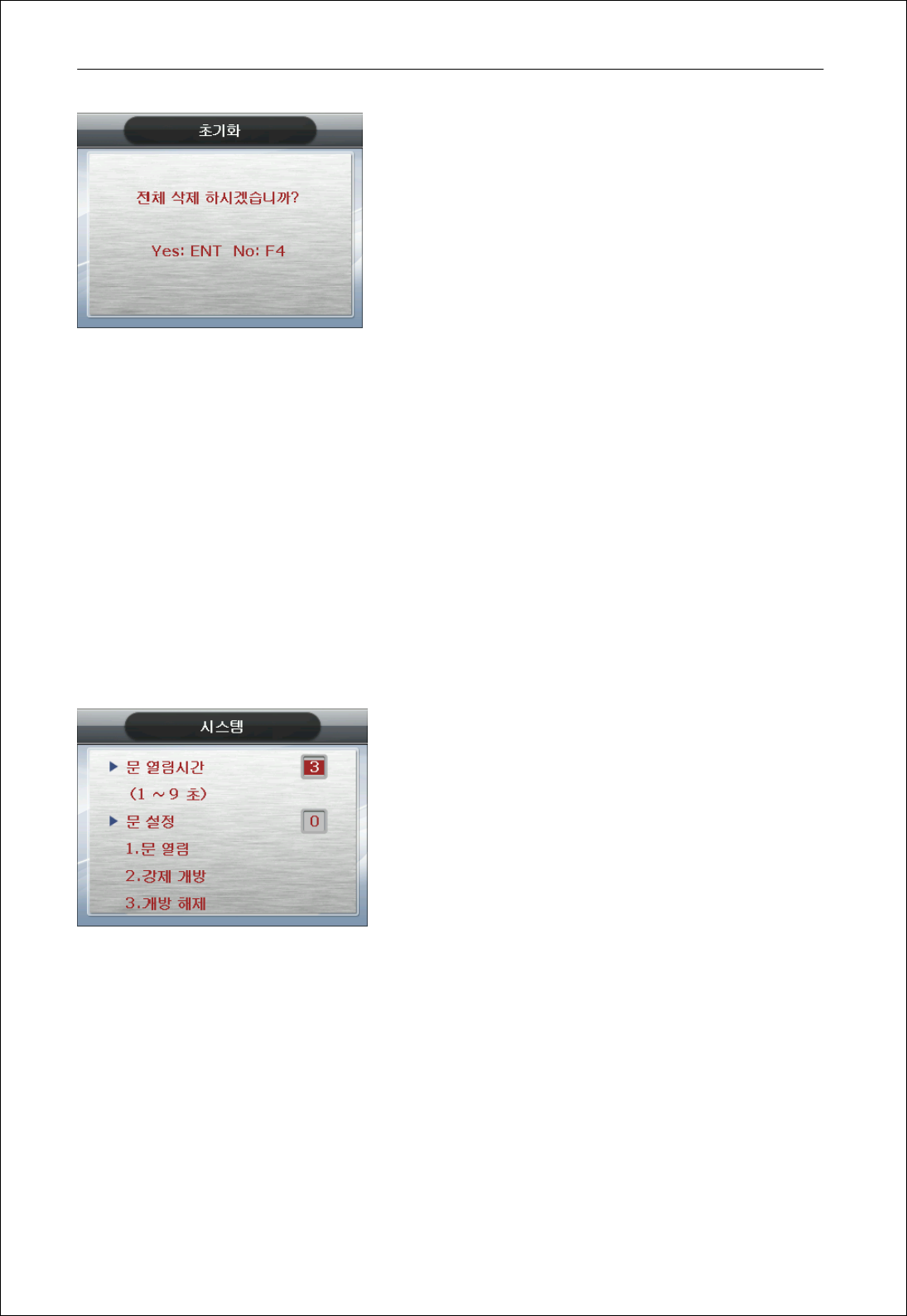

3.3.1.3 Initialization

- If you want to initialize what you set, press [1]. If you want to delete data, press [2]. If you want

to initialize terminal, press [3]

- When you press key you want, the following screens appear. If you want to initialize, press [ENT].

If you want to cancel it, press [F4Å]. If you select Initialization, terminal is reset after initializing.

- Setting initialization initializes all data of terminal without MAC address. However, it doesn’t

initialize files and logs related with authorization.

- Data initialization initializes files and logs related with authorization.

Safezone XID-300

- Terminal initialization initializes the whole of terminal.

3.3.1.4 Door Control

- Designates the time the door is opened and closed again when authentication is successful.

Minimum value is 1 sec and maximum value is 9sec.

- <1. Door open> is for that door opens and closes one time. <2. Door open by force> is for that

door is always opened. <3. Door open clear> is for that <2> is made to close.

- The user can exit to the parent menu using the [ENT~] key to apply the changed values. Use the

[F4 (←)] key to cancel input during setting.

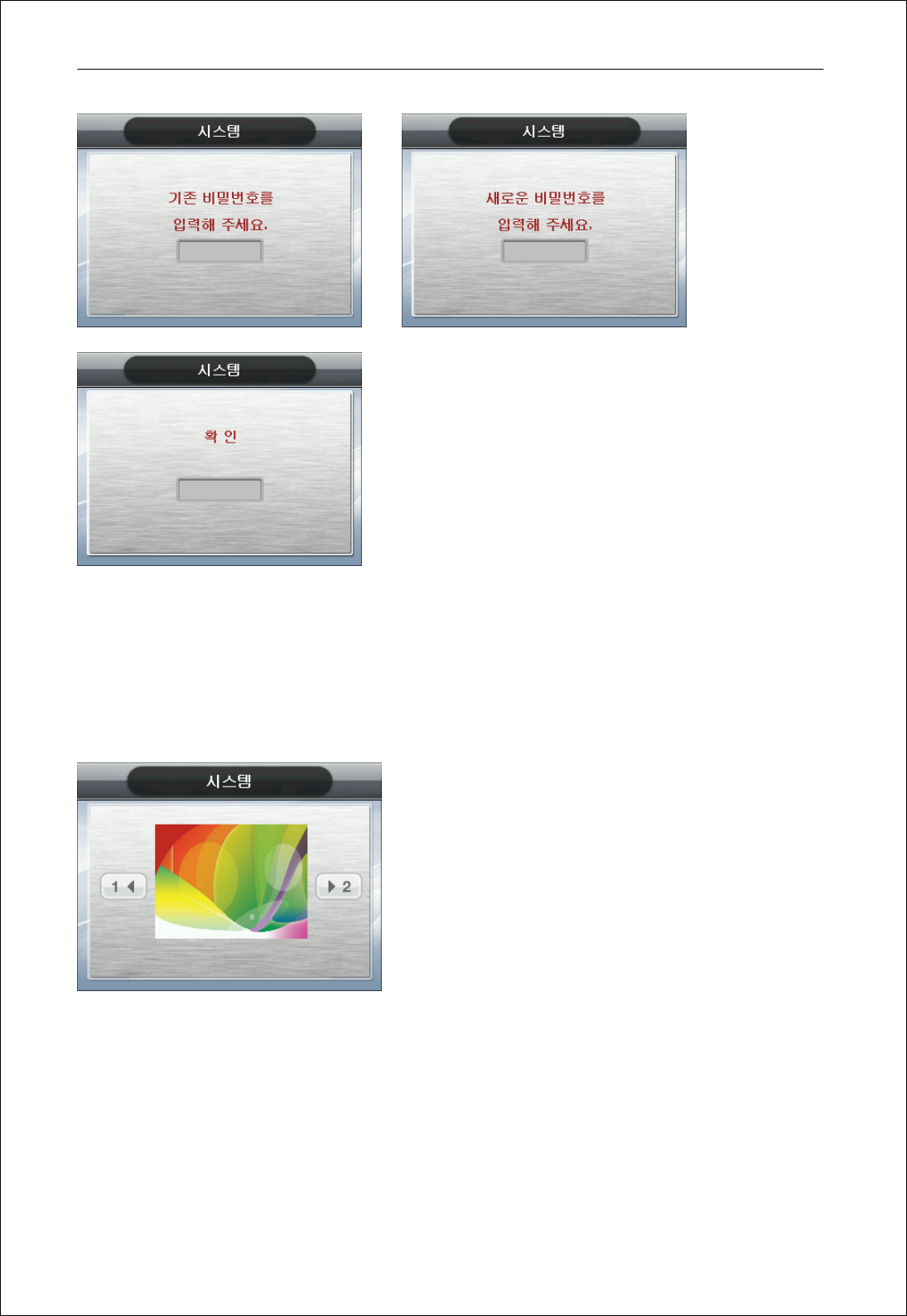

3.3.1.5 Password

-It’s for changing password. When you set password, you can set 4~8 digit using numbers 0 to 9.

The initial password is 2345.

Safezone XID-300

3.3.1.6 Background image

- It’s for changing background image. You can select it you want using [1],[2]. The user can exit to

the parent menu using the [ENT~] key to apply the changed values. Use the [F4 (←)] key to cancel

input during setting.

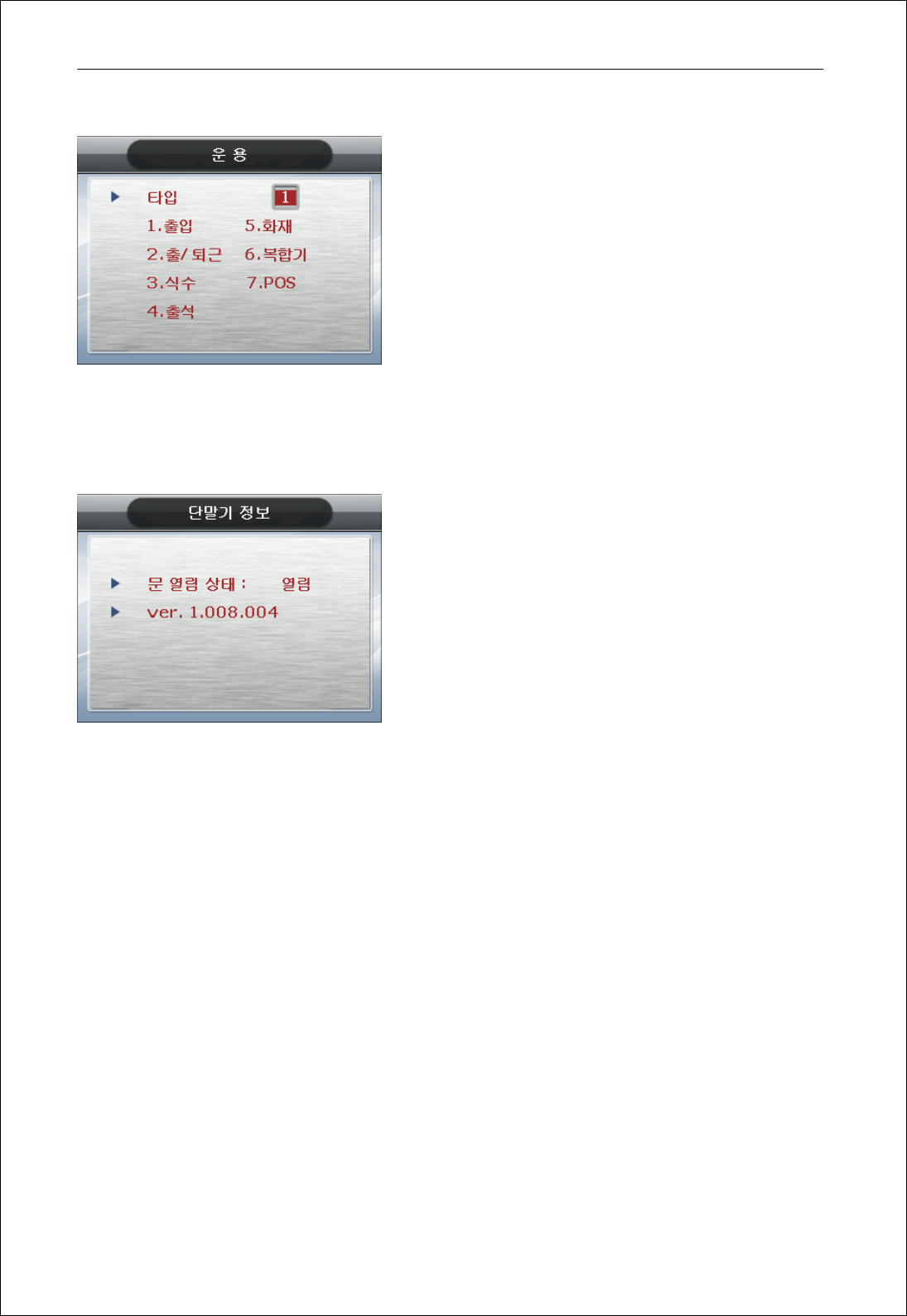

3.4.1 Application

- If pressing [3] at admin main menu, the following screen appears.

- You can select application type pressing number you want. The user can exit to the parent menu

using the [ENT~] key to apply the changed values. Use the [F4 (←)] key to cancel input during

setting. The initial value is attendance as 1.

Safezone XID-300

3.5.1 Terminal Info

- If you press [4] at Admin main menu, the following screen appears.

- You can check terminal version and Door open state from Terminal Info.

3.6.1 Option

- You can see the following screen appears if pressing [5].

- Lamp (Yes or No) : If setting that Lamp is yes and Look Controller is connected with it, when

authentication is successful, blue of lamp light is on and When authentication is fail, red of lamp

is on.

- External sensor (Yes or No) : If you set external sensor us Yes and Lock Controller is connected

with it, terminal can detect value of external sensor.

- Case Tamper Audible (ON or OFF) : When you set Case Tamper Audible is ON, If bracket

connected with terminal is disconnected, warning sound or message box appears.

- SAM authorization setting (Yes or No) : If you set SAM authorization setting is YES, when

authentication is only successful using card, door opens.

- IN/OUT setting(IN or OUT) : If you connect Lock Controller with two XID terminals, one terminal

is set as IN and the other one is set OUT.

Close Window

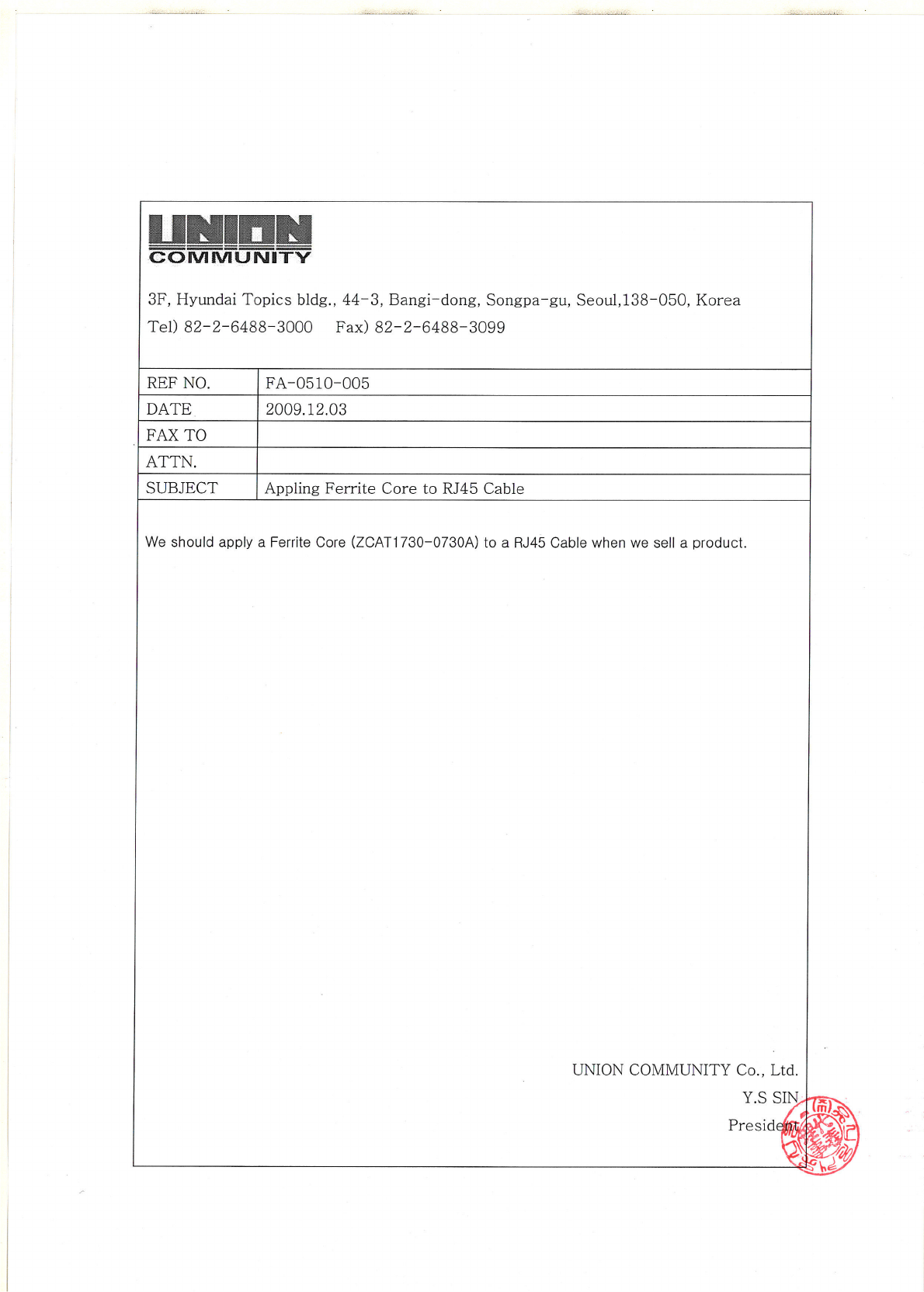

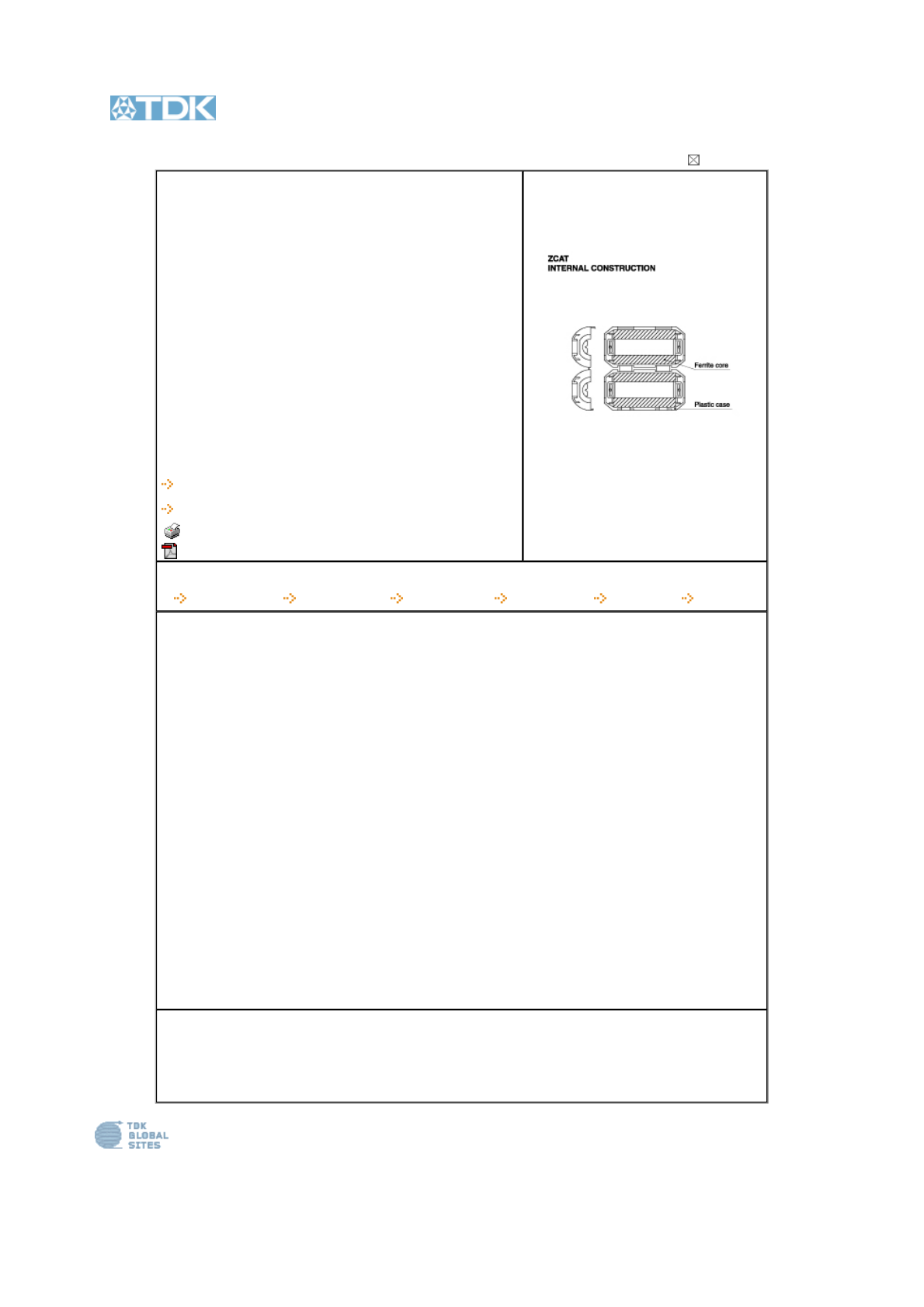

EMC Components

Clamp Filters (Ferrite Core with Case)

Part Number : ZCAT1730-0730A

Product Name : Clamp Filters

TDK Series Name : ZCAT Series

Application :

Personal computers, word processors, monitors, hard disk drives,

digital telephones, audio devices, electronic musical instruments,

video games, copiers and facsimiles.

Function :

A type means Cable fixed type( hold the cable to secure it with the

main body).Ferrite core provides excellent absorption of high-

frequency EMC.Highly effective as countermeasure against

common mode EMC without adverse effect on signal quality.Large

core size prevents saturation during large signal surges.

Description :

Unique plastic case ensures simple, convenient installation and

includes a self-holding mechanism to prevent slippage on cables.

Submit Sample Request

Check Distributor Inventory

Print Page

Download Adobe PDF Viewer

< Prev | Open PDF file | Next >

Additional Search Tools:

Application Catalog SEAT CCV TVCL Tech Notes

Property Name Property Description

Product Lifecycle Stage Production

Part Number Replacement No Data Available.

Surface Mount No

Lead (Pb) Free Yes

Body Length (L) Nom 30 mm

Outside Diameter Nom Nom 16.5 mm

Inside Diameter Nom Nom 7 mm

Body Height (T) Nom No Data Available.

Cable Diameter 4 to 7 mm

Cable Type Round/Oval Cable

Impedance Min 40 Ohm

Frequency of Impedance Nom 10 MHz

Category Temperature Range Min -40 Cel

Max 85 Cel

Storage Temperature Range Min -40 Cel

Max 85 Cel

Packing Box

Minumum Package Qty Nom 840 Pcs

Minimum Order Qty Nom 840 Pcs

Weight Nom 12 g

Disclaimer: This information is to be used for reference purposes only and is subject to change by TDK without notice. It reflects an

overview of the product characteristics/performance for the particular part number. For product specification information, please refer to

TDK's general product specification. Please note that this standard part is not designed or warranted to meet any specifications of any

intermediate or end user different from or in addition to the specifications set fort in TDK's general product specification. Note also that

this standard part has not been specially designed or manufactured for, nor is it intended or warranted for use in , or permitted to be

resold for, specialized applications such as aviation, medical, and/or governmental/military applications (collectively, "Excluded

Applications").

TDK Logo is a trademark or registered trademark of TDK Corporation.

Page 1 of 1TDK - EMC Components - Part No: ZCAT1730-0730A Characteristics

2009-12-04http://www.tdk.com/s

details.php?class

code=TJA105&item

roots

=ZCAT1730...

UNION COMMUNITY XID-300 Access Controller User Manual

UNION COMMUNITY Access Controller Users Manual

Users Manual

Navigation menu

Namespaces

Views

Navigation
