USBNET ZIV300K3 Stand alone HDD User Manual ZIV PORTABLE HARD DISK DRIVE
USBNET, INC. Stand alone HDD ZIV PORTABLE HARD DISK DRIVE
USBNET >
users manual
Information for ZIV(Portable electric storage hard
disk drive)
ZIV was designed in 2001 by who are well known as a designer and manufacturer
of different kind of professional computer storage device.
ZIV is portable electric storage hard disk drive developed for storing and carrying
huge data for presentation, hobby, keeping secrecy, and other purposes.
It is with USB interface, and very easy, convenience to use comparing with other
interface, that is, Plug and Play supported.
Our major customers are business man / marketing manager, graphic designer,
multimedia specialist, programmer and who using a lot of data.
If you install ZIV driver in the PC in your office and home, it is even not necessary
to carry laptop PC with you. Just carry ZIV with in your pocket, dress shirt and connect
to any PC you want to use together. Also, you can download ZIV install driver from our
web site www.usbnet.co.kr if you feel uncomfortable to carry ZIV driver CD.
If we have to carry with install CD drive, don’t worry about to carry, we support
specially designed install CD drive for your convenience. That means CD install drive
is just like your business card size making easy to carry in your wallet.
ZIV is one of most successful electric storage portable hard disk in the world
“Smaller in size ( 72.4(W)x118.5(D)x11(H) ), Lighter in weight and Bigger in capacity”.
ZIV is the smallest and the lightest one in this type of portable hard disk drive compare
with others, and we supply ZIV with 4 different capacities (6GB, 10GB, 15GB, and
20GB with the same physical size) and colors ( black rose, black, silver, blue and
violet ). Also, case was specially designed for convenience in use and removal.
Just one glance tells you that ZIV is very competitive in performance and even
in price and quality.
How Usbnet Inc. could develop ZIV portable hard disk drive, basically
capability to understand and practically use computer system, PLC system, OS system
and others. Usbnet Inc has capability and many years of technology experience in
computer storage system and our engineers have professional experience for computer
application fields. Our President, Jejung Ryu, developed portable electric storage hard
disk using USB Port with no power and hot plug. It is the first time showing small
size portable hard disk comparing with other products.
Ziv hard disk drive – Ziv is one of the smallest size, special design and
successful computer storage product we developed as a external storage device using
USB Port, and we expect the success not only local market but also in world market.
What is ZIV? ( - What is USB? )
a) USB(Universal Serial Bus)
- Faster and easier to use than parallel, serial, or PS/2 connection, and it lets you
plug in and unplug devices without rebooting or reconfiguring your PC.
- Has been standards on most PCs and Mac for well over 2 years.
- PC connector of the future.
b) USB 2.0
- Developed by the USB Promoter Group, consisting of Compaq, Hewlett-
Packard, Intel, Lucent, Microsoft, NEC, and Philips Semiconductors.
- Extend the speed of the peripherals to PC connection from 12 Mbps on USB 1.1
up to 480 Mbps on USB 2.0 - or 40 times over existing capabilities.
- Will support the most demanding PC user applications, such as digital image
creation and web publishing, where multiple high-speed peripherals will be
running simultaneously.
- The first USB 2.0-enabled systems and peripherals are expected in the
marketplace sooner or later as part of the initial ramp, and broad deployment is
anticipated in 2001.
- Usbnet, Inc has a plan to develop new version of ZIV to work in USB 2.0
specification, and we ensure the fastest portable hard disk drive shall be
available in the market by Usbnet Inc.
c) USB-Fire Wire(IEEE 1394) Debate
- Fire Wire can reach theoretical speeds of 400 Mbps, even though there are no
peripherals capable of testing that limit. And the specification will go up to 800
Mbps and 1,600 Mbps in the future.
- It comes with a licensing fee, and users must bear additional cost for that.
- Despite the fact that Fire Wire is fast and is here now, Intel is pushing USB 2.0
as the real connection standard for both low and high speed devices on
consumer PCs.
- Generally, USB 2.0 and IEEE 1394 primarily differ in terms of application
focus. The USB 2.0 Promoter group expects USB 2.0 to be the preferred
connection for most PC peripherals, whereas IEEE 1394's primary target is
audio / visual consumer electronic devices such as digital camcorders, digital
VCRs, DVD, and digital televisions.
- Both USB 2.0 and 1394 are expected to co-exist on many consumer systems in
the future. However, USB shall stay just besides consumer PC users.
2) Ziv hard disk drive : Pocket size portable hard disk drive
a) Ziv is the new brand name of portable hard disk drive we developed for
computer users who need mass external storage unit with frequent transfer
from PC to PC and back up to your private data.
b) It is also suitable to use as a way to expand existing hard disk capacity, and
good solution as a back-up storage media.
c) For professionals who have to present graphics, animation samples, or
business proposals in the type of document or drawing, and others we can
tell you that our product is the best supporter and a good partner for your
all of the work.
d) In addition to above features, ZIV is very convenient to carry in a pocket of
your suit and even in a dress shirt, because ZIV was specially designed by
your convenience. It is the smallest and lightest one available in the world
market. Therefore, it is not necessary to carry even notebook computer, but
just carry our ZIV drive. You can read and write data on ZIV using
computer with ZIV at any time you want and driver anywhere in the world.
You can download ZIV driver through Internet..
e) If you are a mania for music, movie, or animation, ZIV shall be a good
solution to store what you want to be with forever.
f) It may be used also to record huge amount of video data of Digital CC TV.
g) If you have data for your own use or if you want to keep secretly, ZIV will
be of good service.
h) ZIV is working in Windows 98/2000/ME, and Mac 8.6 and higher.
Next, we show you Benchmark Breakdown Result. ( See below)
Check Point External Hard Disk
Drive ( Parallel )
Removable Hard
Disk Drive ( VST )
Removable Hard
Disk Drive - ZIV
Buffered Read 103 MB/s 117 MB/s 100 MB/s
Sequential Read 264 kB/s 1158 kB/s 1168 kB/s
Random Read 184 kB/s 1067 kB/s 1095 kB/s
Buffered Write 6 MB/s 12 MB/s 108 MB/s
Sequential Write 224 kB/s 844 kB/s 843 kB/s
Random Write 1162 kB/s 973 kB/s 998 kB/s
Average Access
Time
105 ms (estimated) 15 ms (estimated) 13 ms (estimated)
EXHIBIT “ Trade mark”
PRODUCT DESCRIPTION
The ZIV is a portable electric storage hard disk drive that
connects to any Windows based personal computer or Macintosh computer
via the Universal Serial Bus (USB) port. The ZIV comes in black,
white, blue, silver and black rose colors and basically comes in
6gigabyte, 10 gigabyte, 15 gigabyte and 20 gigabyte capacities.
SHOW FINISHED PRODUCTS IMAGE.

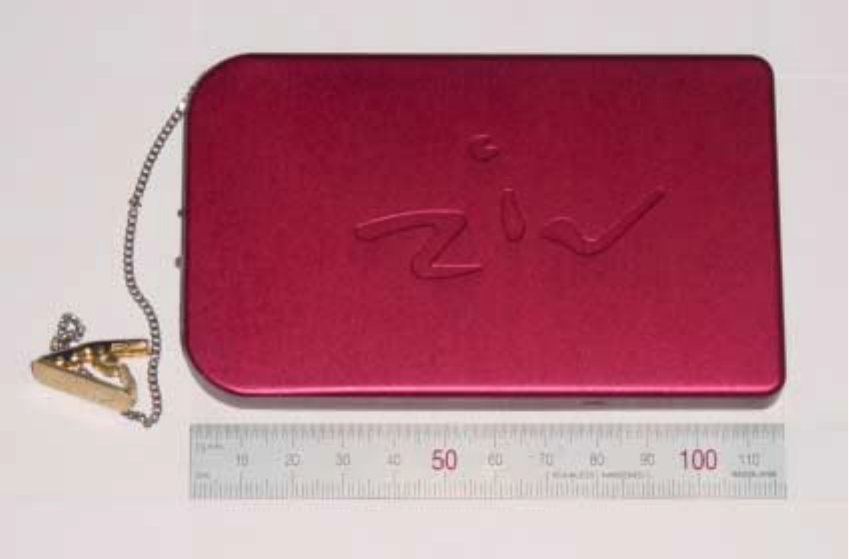

YOU CAN SEE REAL SIZE – ZIV HARD DISK DRIVE
118mm(D) x 72mm(W) x 11mm(H)
ZIV HARD DISK DRIVE SPECIALLY DESIGNED FOR CONVENIENCE
- SIZE IS JUST LIKE IN YOUR POCKET

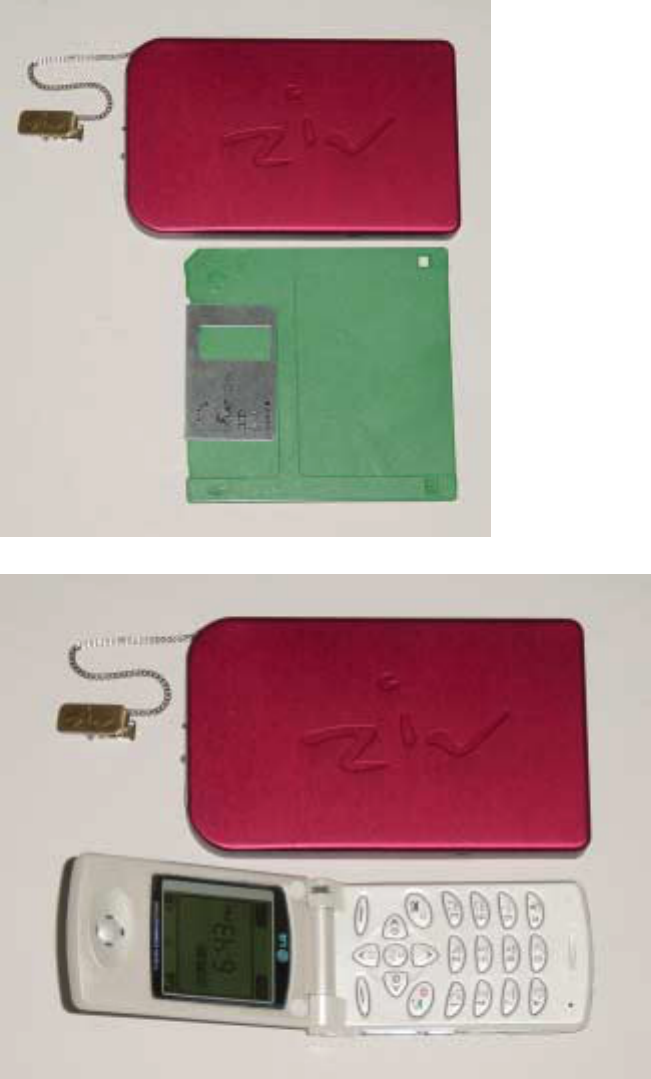

CHECK! COMPARE WITH YOUR FLOPPY DISK
- CAN YOU SEE HOW MUCH SMALL OUR NEW ZIV HARD DISK DRIVE
ZIV IS MUCH SMALL THAN YOUR MOBILE PHONE
WATCH PERFECTLY FIT IN YOUR HAND
- SPECIALLY DESIGNED FOR ALL OF CONVENIENCE ( FEELS GOOD! )

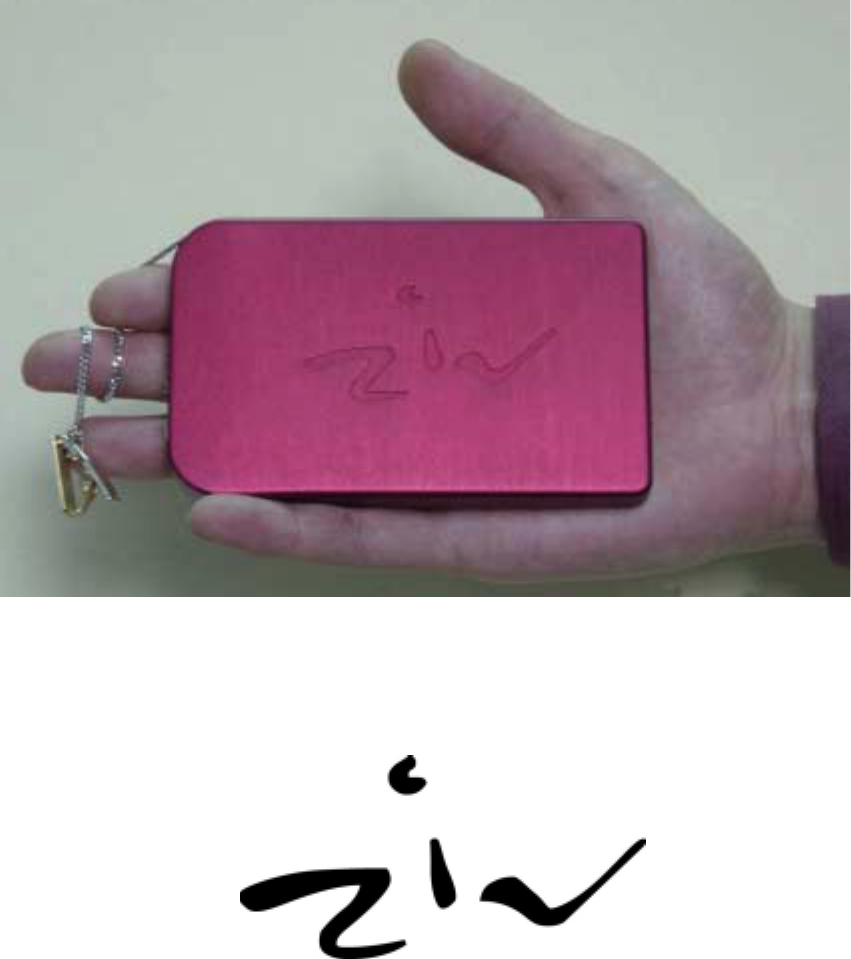

THE ZIV LOGO AND MEANING
The ZIV logo is shown below:
The ZIV means – “ Giving hope and vitality in everywhere”
TRADEMARK
The “ZIV” is a trademark of Usbnet, Inc. All right, title and
interest in and to the Usbnet, Inc shall at all times remain that of
Usbnet, Inc, including all rights in the nature of trademark,
copyright, patent, trade-secret, and other intellectual property and
proprietary rights with respect to the ZIV. The ZIV trademark is
registered with the Korea Patent and Trademark Office (serial number
40-2001-1559)
Continue next page
ZIV Specification
Product Specification ZIV Transportable Storage
Size
Weight
118mm x 72mm x 11mm
127g(With in HDD)
Package contains Ziv (With HDD 2.5”),
Install CD Drive, Connector Cable
Interface USB 1.1 (Universal Serial Bus)
Transfer Speed 12Mbit/Sec /1.5M-byte/Sec
Disk Capacity(as per HDD) 10GB,15GB,20GB
Shock resistance
Operating
Non-operating
300G / 2ms
1000G / 2ms
Operating system Win98, Win2000 NT,
MAC.8.6 or higher version
Manual – “ ZIV Install drive in your PC”
! APPENDIX : USERS’ MANUAL
Keep your private data
The data stored in this hard disk is not guaranteed by the hard disk manufacturer.
USBNET Inc. is not responsible for any loss of data. Always back up all data regularly.
Contents
• Before Starting
• Features
• Package Contents
• System Requirements
• Installation
• Hardware Installation
• Software Installation
• Operation
• Trouble Shooting
• Product Specifications
• Warranty
• Contact Us
• Regulatory Information
Before Starting
ZIVTM Drive Features
Thank you for purchasing the ZIVTM Drive. The JIVTM is the smallest, lightest, and most portable
hard disk drive available. The ZIVTM fits in your pocket so you can take it anywhere. It connects
to your computer via a USB cable. Because the USB cable also supplies power to the ZIVTM,
no external power source (A/C adapter or batteries) is necessary.
Plug and play, hot plug, and hot swappable features make the ZIVTM convenient and easy to use.
With a transfer rate of up to 1.5MByte/sec and disk space up to 20GB, the ZIVTM also delivers
powerful performance. With the ZIVTM , you can take all your files with you wherever you go! It’s
the “portable Hard Drive.” The ZIVTM is compatible with PCs or Macs, laptop or desktop.
The ZIVTM Package
Your ZIVTM package contains the following:
• The ZIVTM Drive
• One (1) USB cables
• User’s Manual
• CD ROM Installation Disk
System Requirements
Minimum system requirements for the ZIVTM :
• 586 Pentium® or higher IBM® compatible PC or Mac
• Microsoft Windows® 98/98SE/Me, Windows® 2000, Mac 8.6 or higher
• Available USB port
• CD Drive for driver installation or Internet connection for driver installation
download
Care and Handling of the ZIVTM
Special care and handling is required for the ZIVTM
• Please keep the ZIVTM in the protective using special nipper at all times, even
during use, so as to minimize damage.
• Before unplugging the ZIVTM or turning off your computer, turn the ZIVTM power
switch to the “OFF” position. Failure to do so may result in damage to the hard drive.
• Always back up your data from the ZIVTM onto another storage medium in the event
of data retrieval failure of the ZIVTM.
• Do not move or disconnect the ZIVTM from your computer while the ZIVTM is reading
or writing data. This may cause damage to the hard drive.
• No formatting is necessary. The ZIVTM is already formatted.
• Handle and transport the ZIVTM very carefully. Do not drop or aggressively handle
the ZIVTM as this may cause damage to the hard drive.
• Avoid exposing the ZIVTM to extreme temperatures or humidity. Either may cause
damage to the hard drive.
• Do not tear or remove any labels on the ZIVTM as it may damage the hard drive.
Installation
!
!!
! Windows® 98/98SE/Me/ Windows® 2000
Before you connect ZIVTM to your computer, install ZIVTM driver first as per following
procedure.

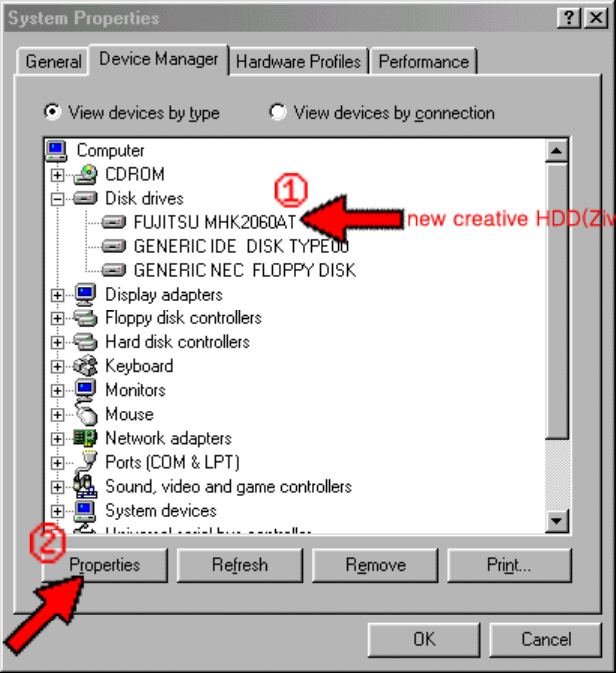

1) Turn on ZIV hard disk drive ( “on” )
2) Your PC is automatically recognize to “ Add New Hard ware Wizard ”
3) Click to “ Next” button.
4) Check option “ Search for the best drive for your device(Recommand)”
and then click “next”
5) Must check “ CD-ROM drive “ and then insert ZIV install CD drive in your PC.
And click to “ Next”
6) Your PC is automatically recognize install drive file from install CD drive.
And then click to “ Next”
7) It is a final step – click “ Finish”
8) Now you are ready to use your new ZIV hard disk drive.
To check if your computer recognize ZIVTM, double click “My Computer” and turn on the power
of your ZIV hard disk drive. Your PC will be showing new hard drive(ZIV), if you can see new
hard drive, your new ZIV install complete.
If your computer cannot recognize ZIVTM , then take the following steps
more.
Go to “Control Panel”
Enter “System” and click “Device Manager”
Double click “Disk drive”
Continue next page
Double click For example “FUJITSU/(HDD MODEL)”.
Check on “Removable” and click “OK”
Click “No”. Turn the ZIVTM ‘s power switch to the “OFF” position and then turn the power
switch to the “ON” position. Your computer should recognize the ZIVTM.
Turn off power in your ZIV and then turn on power again. It will be
showing below.

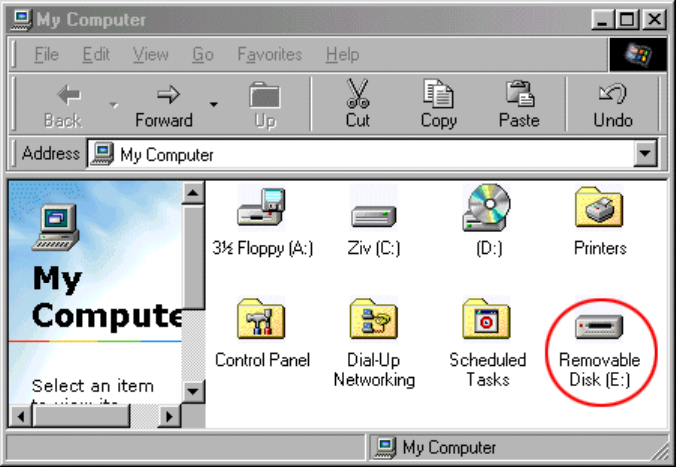

If you can see “ Removable Disk “, your Ziv is ready to use.
NOTE: Install the software drivers for every computer you plan to use with the ZIV™
as per the above installation procedure.
!
!!
! Mac OS
You are able to use ZIVTM with Mac 8.6 and higher system.
Installation procedure in Mac O/S is so simple.
1) Insert ZIVTM CD install drive into CD ROM driver of your computer.
2) Double click “Mac_Eng” file.
3) Showing this massage “ The disk with your preferred destination folder is currently
locked” and then must click “ OK” button.
4) You have to choice your personal location to new folder.
5) Double click new folder( ex-ziv )and double click “ISD USB-IDE Installer”
6) It will be showing “Install ISD USB-IDE Bridge” double click
7) “Installation was successful” – Double click and then click “ OK”
8) Turn on the power in your new ZIV.
Operation
• LED light
LED light color switch Status
Non Non Connecting Problem
Dark Red OFF PC to ZIV Ready
Red ON READY
Green ON DATA R / W
Yell o w ON PO LING
• USB Connection
• On/Off Switch
NOTE: Before unplugging the USB or turning off your computer, turn the ZIVTM power
switch to the “OFF” position. Also, do not move or disconnect the ZIVTM from
your computer while the ZIVTM is reading or writing data (showing the green
light). Failure to do either may result in damage to the hard drive.
Continue next page
Troubleshooting
For others, please refer to www.usbnet.co.kr
Product Specifications
Disk capacity 10GB/15GB/20GB
Interface USB (Universal Serial Bus)
Dimension 118(D) X 72(W) X 11(H) - mm
4.64(D) X 2.84(W) X 0.43(H) - inch
Weight 127g (with HDD)
USB Cable Length 900mm
Transfer Speed up to 1.5MB/sec
PROBLEM SOLUTION
Computer does not recognize the ZIVTM Make sure the USB cable is properly
connected to your computer and the
ZIVTM
Make sure the Power Switch on the
ZIVTM is “ON”
Install software drivers
Computer does not recognize the ZIVTM
when the Power Switch is “ON”
Turn the ZIVTM “OFF” and then “ON”
again
Reboot your computer to confirm the
connection to the ZIVTM
Re-install software drivers
Warranty
USBNET’s One-Year Limited Warranty
USBNET’s warranty obligations are limited to the terms set forth below:
USBNET Inc., as a manufacturer of a ZIVTM Drive, warrants this hardware
product against defects in materials and workmanship for a period of ONE(1) YEAR from the date
of original retail purchase.
If you discover a defect, USBNET will repair or replace, at no charge to you, provided you return it
during warranty period, with transportation charges prepaid, to the USBNET authorized reseller from
whom you purchased it. If your USBNET product was purchased from a USBNET authorized retailer,
you should return the product for repair, within the warranty period, to the appointed USBNET
authorized service provider within the country of original retail purchase.
To each product returned for warranty service, please attach your name, address, telephone number,
and a copy of the bill of sale bearing the appropriate JIVTM Drive serial numbers as proof of date of
original purchase.
This warranty applies only to hardware products manufactured by USBNET that can be identified by the
“USBNET” trademark, trade name, or logo affixed to them. This warranty does not apply if the product
has been damaged by accident, abuse, misuse, or misapplication; if the product has been modified
without written permission from USBNET; or if any USBNET serial number has been removed or
defaced.
The warranty and remedies set forth above are exclusive and in lieu of all others, whether oral or
written, expressed or implied. USBNET specifically disclaims any and all implied warranties, including,
without limitation, warranties of merchantability and fitness for a particular purpose. No USBNET
reseller, agent, or employee is authorized to make any modification, extension, or addition to this
warranty.
USBNET and its distributors and resellers are not responsible for special, incidental, or consequential
damages resulting from any breach of warranty, or under any other legal theory, including but not
limited to lost profits, downtime, goodwill, damage to or replacement of equipment and property, and
any costs of recovering, programming, or reproducing any program or data stored in or used with
USBNET products.
Some jurisdiction do not allow the exclusion or limitation of incidental or consequential damages or
exclusions of implied warranties, so the above limitations or exclusions may not apply to you. This
warranty gives you specific legal rights, and you may also have other rights that vary from jurisdiction to
jurisdiction.
Contact Us
▪ Manufacturer
USBNET Inc.
201, Wonmin Bldg., 135-15, Bangi-Ding, Songpa-Ku, Seoul, Korea
Tel : +82-2-414-8638 (Direct Call)
Fax : +82-2-418-1482
Website : www.usbnet.co.kr
Email : usbmaster@usbnet.co.kr
zivmaster@usbnet.co.kr
Regulatory Information
