UTC Fire and Security Americas 556M-PPANIC 60-452 User Manual

UTC Fire & Security Americas Corporation, Inc. 60-452

User Manual

P/N 45-546 • REV E • January 2011 1
Learn Mode Pendant Panic Sensor Installation
Instructions
Product summary
The Learn Mode™ Pendant Panic Sensor (60-452) is a
supervised, wireless device designed to be used throughout
the installation site. The sensor can be worn around the neck
with a removable cord (included) or on the user’s belt with an
optional leather belt holster.

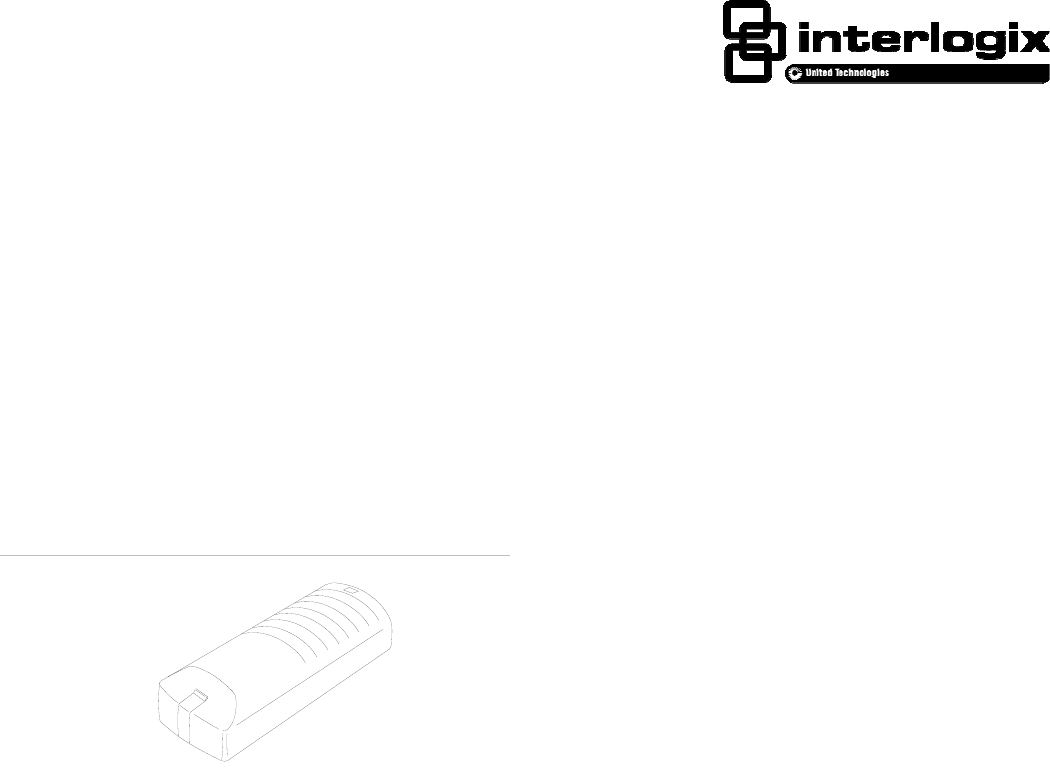

Figure 1: Learn Mode Pendant Panic Sensor
How it works
The sensor contains a transmitter and a “PUSH” activation
button. No switches or external wiring is required. An alarm is
activated by pressing the “PUSH” button, located on the end of
the sensor.
The sensor transmits a supervisory signal every 64 minutes.
When the sensor battery voltage is low, a low battery (trouble)
report is sent to the panel. The sensor has an estimated
battery life of one year.
Programming and installation guidelines
Try to keep sensors within 100 ft. of the panel. The 100
foot distance recommendation is given as a starting guide
line. The actual sensor range is determined during testing.
Do not expose the sensor to excessive moisture or high
humidity.
To allow users to take the sensor off-site without the panel
reporting a supervisory or failure condition, program the
sensor into an unsupervised sensor group.
Programming
The following steps describe the general guidelines for
programming (learning) the sensor into panel memory. Refer to
the specific panel documentation for complete programming
details.
1. Set the panel to program mode.
2. Proceed to LEARN SENSORS menu.
3. Select the appropriate sensor group number (00 through
07).
4. Select sensor number assignment.
5. When prompted by the panel to trip the sensor activate the
sensor by pressing the “PUSH” button on the pendant.
6. Exit program mode.
Testing
The following steps describe the general guidelines for
performing a dealer sensor test. Refer to the specific panel
documentation for complete testing details.
1. Use the panel touchpad to enter the dealer sensor test
mode.
2. Press the “PUSH” button on the sensor to activate it.
3. Listen for the appropriate siren response as described in
the panel documentation.
4. Test the sensor from several locations within the premises
to check for consistent response.
2 Learn Mode Pendant Panic Sensor Installation Instructions
Specifications
Compatibility All Interlogix Learn Mode Panels and Receivers
Power source One 3.6 VDC (Saft LS3) Lithium Battery
Temperature range 10 to 120 °F
Dimensions 3.75 x 1.50 x 1.00 in. (L x W x D)
Regulatory information
Manufacturer UTC Fire & Security Americas Corporation, Inc.
1275 Red Fox Rd., Arden Hills, MN 55112-6943,
USA
FCC compliance This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
Changes or modifications not expressly approved
by Interlogix can void the user’s authority to
operate the equipment.
FCC ID: B4Z-556M-PPANIC
IC compliance IC: 1175C-556PPANIC
This Class B digital apparatus complies with
Canadian ICES-003.
Cet appareil numérique de la classe B est
conforme à la norme NMB-003 du Canada.
Le fonctionnement est soumis aux deux
conditions suivantes : (1) cet appareil peut ne pas
provoquer d’interférences et (2) cet appareil doit
accepter toutes interférences, y compris les
interférences pouvant provoquer un
fonctionnement non désiré de l’appareil.
Contact information
For contact information, see www.utcfireandsecurity.com or
www.interlogix.com.
For technical support, toll-free: 888.437.3287 in the US
including Alaska, Hawaii, Puerto Rico, and Canada. Outside
the tool-free area, contact your dealer.
Copyright © 2014 Interlogix, a UTC Fire & Security Company.
All rights reserved.
