Learn Mode Handheld Panic Button Installation
Instructions
Overview
Portable, hand held “P anic” transmitters are typically used as
panic buttons to activate 24-hour “Police Emergency” alarms or
24-hour “Auxiliary” alarms.
The single button transmitter can be activated by pressing
anywhere within the “ALERT” box, and holding for one second.

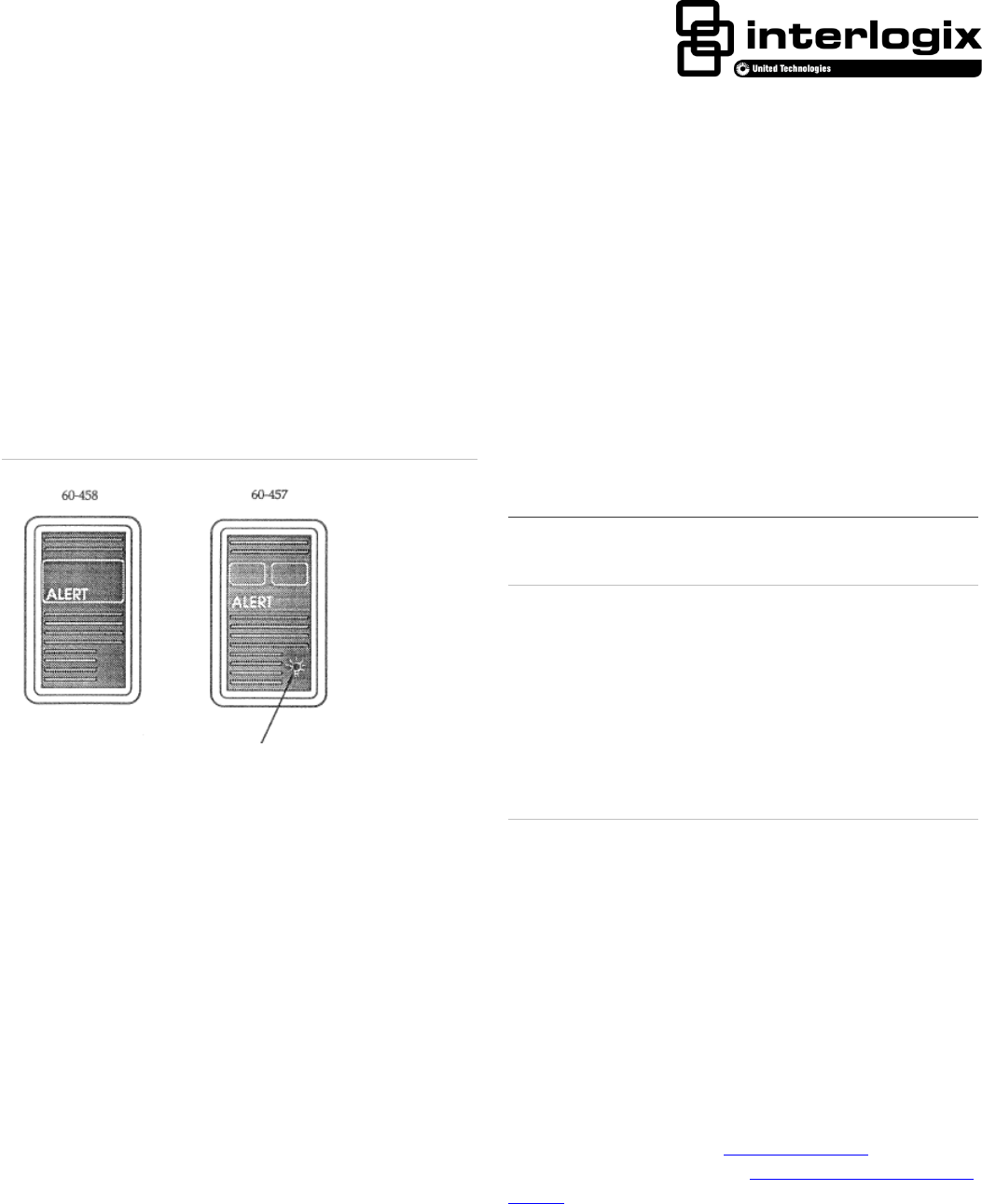

Figure 1: 60-458 and 60-457 Handheld Panic Button
Activate the dual button transmitter by pressing both alert
boxes at the same time for one second. The light control button
is for systems with optional X-10 modules installed (Not
investigated by UL)
Battery Power
The Single and Dual Button Alert Panic Transmitters are
powered by a 3.6 volt Lithium battery (Saft LS3), which should
last at least 1 year under normal circumstances.
Programming
General guidelines for programming this sensor are:
1. Set the CPU into Program Mode
2. Trip the panic by pressing the alert box(es) on panic.
3. Set the CPU to its normal operating mode.
Note: Refer to the appropriate CPU installation manual for
specific instructions for programming this sensor.
Testing
General guidelines for performing a Dealer Sensor Test are:
1. Using the appropriate touchpad for the CPU, enter the
applicable Dealer Sensor Test code.
2. Trip the panic by pressing the alert box(es) on panic.
3. Note the number of beeps from the CPU. These beeps
indicate how much of the panic button’s RF signal
(rounds) is being heard by the CPU.
Regulatory information
Manufacturer
UTC Fire & Security Americas Corporation, Inc.
1275 Red Fox Rd., Arden Hills, MN 55112-6943,
USA
FCC compliance
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
Changes or modifications not expressly approved
by Interlogix can void the user’s authority to
operate the equipment.
FCC ID: B4Z-715A-1PANIC
FCC ID: B4Z-715A-2PANIC
IC compliance
IC: 1175C-7151PANIC
IC: 1175C-7152PANIC
This Class B digital apparatus complies with
Canadian ICES-003.
Cet appareil numérique de la classe B est
conforme à la norme NMB-003 du Canada.
Le fonctionnement est soumis aux deux
conditions suivantes : (1) cet appareil peut ne pas
provoquer d’interférences et (2) cet appareil doit
accepter toutes interférences, y compris les
interférences pouvant provoquer un
fonctionnement non désiré de l’appareil.
Contact information
For general information, see www.interlogix.com. For
customer/technical support, see www.interlogix.com/customer-
support or call +1 855 286 8889.
© 2014 United Technologies Corporation. Interlogix is part of
UTC Building and Industrial Systems, a unit of United
Technologies Corporation. All rights reserved.
