UTC Fire & Security Americas Corporation, Inc. Hi-Tech Touchpad

Users Manual

1
,QVWDOODWLRQ,QVWUXFWLRQV
*(6HFXULW\
'
123
6
9
8
5
4
7
ST
0
BY
OFF STAY AWAY
NO DELAY
CHIME
STATUS BYPASS
COMMAND
8341G01A.DS4

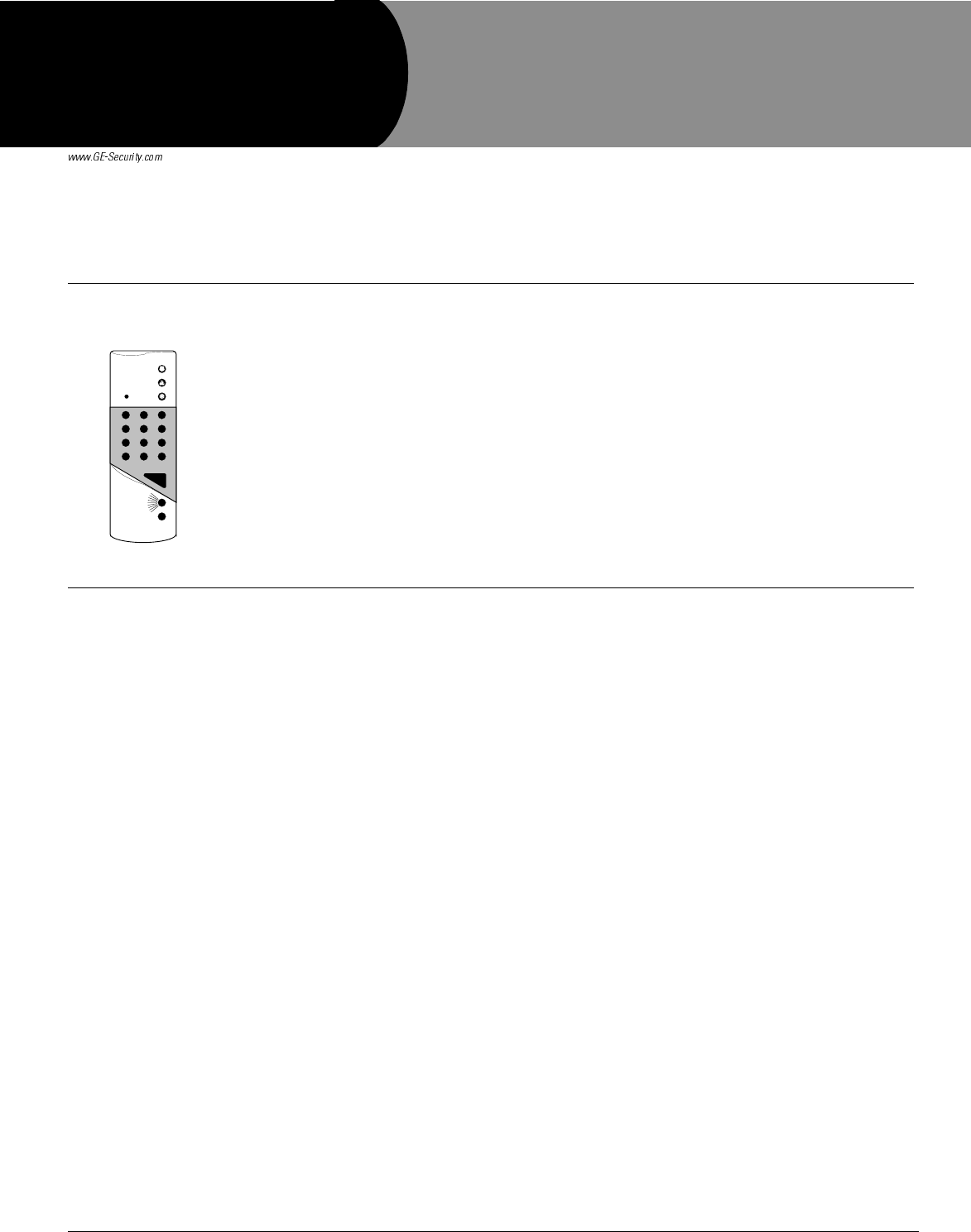

Product
Summary
The HiTech Handheld Wireless Touchpad is a lightweight, portable touchpad that lets you con-
trol compatible security systems (see “Specifications”).
The touchpad lets you arm/disarm the system, bypass sensors, control lights, activate emergency
alarms, and check the systems status.
The touchpad features include the following:
• Automatic low battery reports to the panel
• Red/Green indicator light that responds differently to regular keypresses and panic button
keypresses
• Police, Fire, and Auxiliary panic buttons
• Automatic supervisory reports to the panel every 64 minutes
• Long life (5–8 years) 3 VDC lithium battery
• Wall-mounting option
Installation Installation Guidelines
Observe the following guidelines when using and mounting the touchpad:
• Refer to the appropriate installation instructions for guidelines on typical range for using this
and other wireless devices.
• Avoid moist areas.
• Avoid excessive metal or electrical wiring, including furnace and utility rooms.
• Avoid exceeding the touchpad’s operating temperature limits of 10° to 120°F (-12° to 49°C)
Note
If the touchpad is wall mounted or always kept at the installation site, set upper sensor number 89 to
ON. If the touchpad will occasionally be removed from the site (i.e. kept in an automobile), set upper
sensor number 89 to OFF.
Installing the Battery
¾To install the battery:
Follow the diagrams in Figure 1.
'RFXPHQW1XPEHU5HY&
)HEUXDU\
+L7HFK+DQGKHOG:LUHOHVV
7RXFKSDG
Model No. 60-597
2HiTech Handheld Wireless Touchpad Installation Instructions
Preliminary 2/20/04

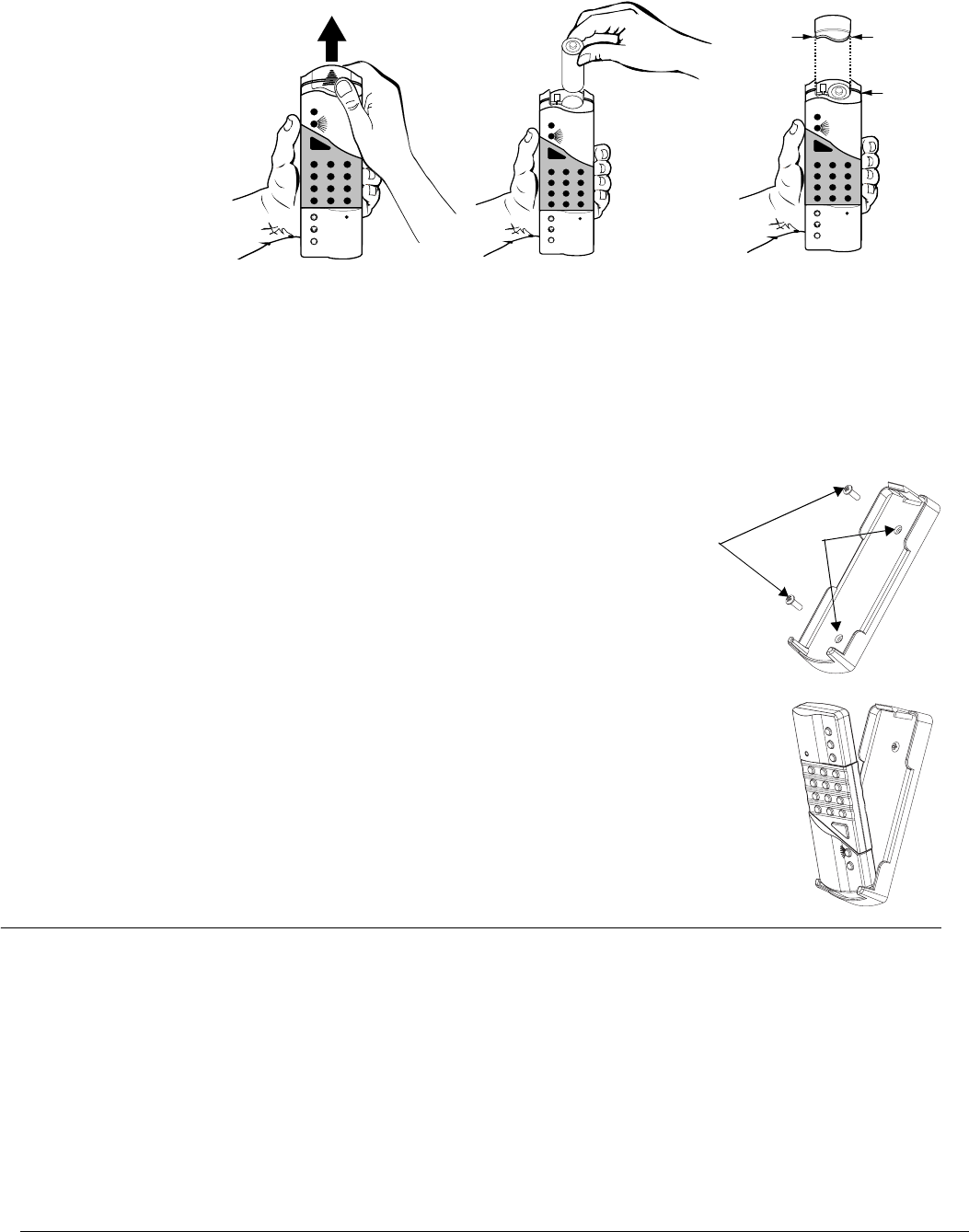

Figure 1.Installing the Battery
Adding the Touchpad to the Panel
Before the touchpad can communicate with a panel, you must add the touchpad to panel memory.
¾To add the Touchpad to panel memory:
1. Refer to the appropriate panel’s installation instructions on “entering program mode” and
“adding” or “programming a wireless touchpad.”
2. Press BYPASS when the procedure prompts for the touchpad activation.
Mounting the Touchpad
¾To mount the Touchpad:
1. Test the touchpad at the desired location before mounting and
evaluate the touchpad’s performance.
2. Secure the mounting bracket to the desired surface, using the
two screws from the accessory pack.
3. Place the bottom end of the touchpad into the bottom of the
mounting bracket and press the touchpad into place.
Testing Remind the user to test their system and this touchpad weekly. The Owner’s Manual describes
how to test the system.
Note
Refer to the appropriate
Owner’s Manual for instruc-
tions on using the touchpad
with a specific panel.
¾To test the Touchpad after installation:
1. To avoid an emergency response, notify the central station that you will be testing.
2. Arm and disarm the panel from various points to determine the touchpad’s range in the instal-
lation site.
Note
The green light flashes with each press of a number key or function key. The red/green light flashes with
each press of a panic button.
3. Press STATUS to check the current arming level.
4. Bypass sensors using direct and indirect bypass.
123
6
9
8
5
4
7
ST
0
BY
OFF STAY AWAY
NO DELAY
CHIME
STATUS BYPASS
COMMAND
123
6
9
8
5
4
7
ST
0
BY
OFF STAY AWAY
NO DELAY
CHIME
STATUS BYPASS
COMMAND
8341G03A DS4
AB
123
6
9
8
5
4
7
ST
0
BY
OFF STAY AWAY
NO DELAY
CHIME
STATUS BYPASS
COMMAND
8341G04A DS4
EXPOSED
TAB
TOUCHPAD
SEAM
EXPOSED
TAB
C
s
Mounting
Holes
3HiTech Handheld Wireless Touchpad Installation Instructions
Preliminary 2/20/04
5. Press and hold each panic button for two seconds, until the red/green indicator light stops
flashing and the appropriate alarm sounds.
6. To mute the touchpad: press the 1 and 2 buttons at the same time, until you hear confirma-
tion beeps.
7. Press various buttons to test the mute feature.
8. Turn off mute by pressing the 1 and 2 buttons at the same time, until you hear confirma-
tion beeps.
9. Turn all lights on or off by pressing COMMAND + 0 with the Security Pro 2000 or by
pressing LIGHTS-ON or LIGHTS-OFF twice with the Security Pro 4000.
10. Turn individual lights on or off with the Security Pro 4000 by pressing LIGHTS-ON or
LIGHTS-OFF + [unit number]. Unit numbers range from 1 to 9.
Note: Refer to the appropriate Owner’s Manual for instructions on using the touchpad with a spe-
cific panel.
Specifications Compatibility: ..........................All GE Interlogix Learn Mode Panels
Power Requirements: ..............3.0 VDC lithium battery
Storage Temperature:..............-40° to 140° F (-34° to 60° C)
Operating Temperature: .........10° to 120° F (-12° to 49° C)
Maximum Humidity:...............90% relative humidity, non-condensing
Dimensions: ..............................2.1 x 0.86 x 6.1 in. (W x D x H)
Installation:...............................Wall mounting
Listings:
FCC Notice
1. This device may not cause harmful interference.
2. This device must accept any interference that may be received, including interference that may cause undes-
ired operation.
Notices
)
*(6HFXULW\
4HiTech Handheld Wireless Touchpad Installation Instructions
Preliminary 2/20/04
