Micro Door/Window Sensor Installation Sheet
Description
The Micro Door/Window Sensor is a
supervised, wireless sensor that detects the
opening and closing of doors, windows, or
drawers. The sensor and magnet are mounted
using double-sided adhesive tape or screws
(included).
When activated, the sensor transmits an open
(trip) or close (restore) signal to the panel.
These are the signals the unit provides:
supervisory, tamper and low battery (as
needed).
The sensor is powered by a replaceable 3-
VDC, lithium coin-cell battery.
Installation guidelines
• Mounting the sensor on metal can reduce
its transmitting range. Therefore, test the
sensor from the desired location using the
dealer sensor test, before permanently
mounting it.
• Mount the sensor within 100 ft. of the
panel.
• Mount the sensor on the frame, and the
magnet on the door, window, or drawer. If
mounting on double doors, mount the
sensor on the least used door and the
magnet on the other door.
• Mount sensors at least 5 inches above the
floor to avoid damaging them.
Programming
The following steps describe the general
guidelines for programming (learning) the
sensor into panel memory. Refer to the
specific panel’s documentation for complete
programming details.
1. Set the panel to the program mode.
2. Proceed to the LEARN SENSORS menu.
3. Select the appropriate sensor group and
sensor number assignments.

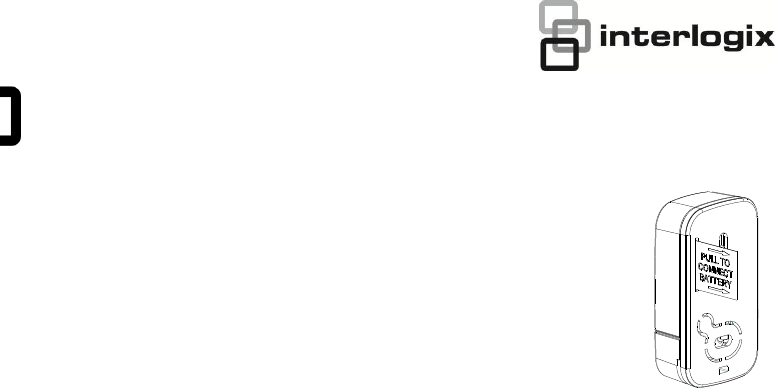

4. When prompted by the
panel to trip the sensor
for learning, remove the
battery pull tab or remove
the sensor cover. The
system should
acknowledge learning
the sensor by touchpad
display and/or audio
(depending on the panel).
5. Exit program mode.
Testing the sensor
1. Set the panel to the sensor test mode.
2. Take the sensor and magnet to the
desired mounting location, making sure to
line up their alignment marks with each
other.
3. Trip the sensor by pulling the magnet
away from the sensor.
4. Listen for the system siren beeps to
determine the appropriate response and
refer to the specific panel documentation.
Mounting the sensor
Mount the sensor after successful programming
and testing are completed, using the supplied
mounting screws for all UL installations. For non-
UL installations, using the supplied double-sided
tape is optional. Note: The gap between the
sensor and magnet should be a maximum of
3/8”.
Mounting screws (UL Installations)
1. Remove the sensor base from the sensor.
2. Place the sensor base in desired location
and mount the base with the supplied
screws. Attach the sensor to the base.
2 / 2 Micro Door/Window Sensor Installation Instructions
3. Mount the magnet into the desired
location using the supplied screw and lock
washer, making sure the alignment mark
lines up with the sensor’s.
Double-sided tape (optional for non-UL
installations)
1. Before applying double-sided tape,
ensure that the desired location is a
smooth, clean and dry surface.
Note: When applying the double-sided
tape, evenly apply pressure to ensure a
good surface contact.
2. Apply double-sided tape to the bottom of
the sensor and the magnet. Mount the
sensor and magnet at the desired
locations, ensuring the alignment marks
line up with each other.
3. Retest the sensor using the procedure in
the section “Testing the Sensor”.
For additional tamper security
1. Punch out the seal covering the screw
hole on the sensor cover.
2. With the sensor base secured to the
sensor, insert the smallest screw
supplied, securing the sensor base to the
sensor.
Replacing the battery
1. Remove the sensor from the base then
remove the inner cover, exposing the
battery.
2. Remove the bad battery and install the
new battery. NOTE: Observe polarity of
the battery.
3. Re-install the PC board, inner cover and
the sensor.
Specifications
Model no.
TX-1012-01-1 (white)
TX-1012-01-3 (brown)
RF frequency
319.5 MHz
Compatibility
Interlogix Learn Mode Panels
and Receivers
Battery type
3-VDC, lithium coin-cell battery
UL Approved Battery
Duracell DL2032
Varta CR2032
Panasonic CR2032
Operating
temperature range
32 to 120°F (0 to 49°C)
Storage temperature
range
-30 to 140°F (-34 to 60°C)
Relative humidity
0-85% non-condensing
Dimensions
(L x W x D)
1.9 x 1.0 x 0.50 in. (4.7 x 2.5 x
1.3 cm)
Regulatory information
Manufacturer
UTC Fire & Security Americas
Corporation, Inc.
1275 Red Fox Rd., Arden Hills, MN
55112-6943, USA
FCC
compliance
This device complies with part 15 of
the FCC Rules. Operation is subject to
the following two conditions: (1) This
device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation.
FCC ID: B4Z-983-UDWS
IC: 1175C-983UDWS
This Class B digital apparatus
complies with Canadian ICES-003.
Cet appareil numérique de la classe B
est conforme à la norme NMB-003 du
Canada.
UL
ANSI/UL 634 Connectors and
Switches for Use with Burglar-Alarm
Systems
UL 1023 – Household Burglar-Alarm
System Units.
ULC
C634-M1986 - Connectors and
Switches for Use with Burglar-Alarm
Systems
Contact information
For contact information, see
www.utcfireandsecurity.com,
www.interlogix.com or call +1 855 286 8889.
Trademark/Copyright
© 2013 UTC Fire & Security Americas
Corporation, Inc. Interlogix is part of UTC
Climate Controls & Security, a unit of United
Technologies Corporation. All rights reserved.
