4-Button Slimline Keyfob
Installation Instructions
Introduction
This is the GE 4-Button Slimline Keyfob Installation Instruc-
tions. The keyfob enables you to turn the system on and off after
exiting or before entering the home or to turn on the siren and
call the central monitoring station if there is an emergency. If
lamp modules have been installed, you can use the keyfob to turn
all system-controlled lights on or off.
The keyfob is a lithium coin battery-powered, wireless keyfob
designed to fit on a keychain, in a pocket, or in a purse. It
provides a convenient option for the following system
operations:
• Arm the system (doors, windows, and motion sensors).
• Arm the system with no entry delay (if programmed).
• Disarm the system.
• Trigger panic alarms.
• Turn system-controlled lights on or off.
• Open the garage door or turn outside lights on (if
programed).
Programming guidelines
Refer to your control panel documentation for instructions on
programming and sensor testing your keyfob. Use the following
guidelines to add keyfobs to the system:
• Program (learn) the keyfobs into the control panel as nonsu-
pervised sensors.
• Each learned keyfob uses one of the available sensor
numbers.
• Use sensor group number 01, 03, 06, or 07.
Keyfob test
Refer to your control panel documentation to initiate panel test
mode, then test the keyfob by pressing the keyfob buttons
(Figure 1):
Unlock button. Disarms the control panel. The doors,
windows, and motion sensors are disarmed.
Lock button. The following key presses will depend on
your control panel configuration.
• If pressed once, the control panel arms doors and
windows (stay mode).
• If pressed twice, the control panel arms motion
sensors, doors, and windows (away mode).
• If pressed three times, the control panel activates the
latchkey feature when this option is off (Simon 3 and
Simon XT only).
Lock and Unlock buttons. If the keyfob is programmed
(learned) as an intrusion, silent alarm, or emergency sensor
type, when you press the Lock and Unlock buttons simulta-
neously, the keyfob will activate alarm reports to the central
station. These two buttons are also used to test the sensor.
Light button. Toggles system-controlled lights on/off.
Star button. If used with the X-10 universal module, the
control panel will cause the garage door to open or close.

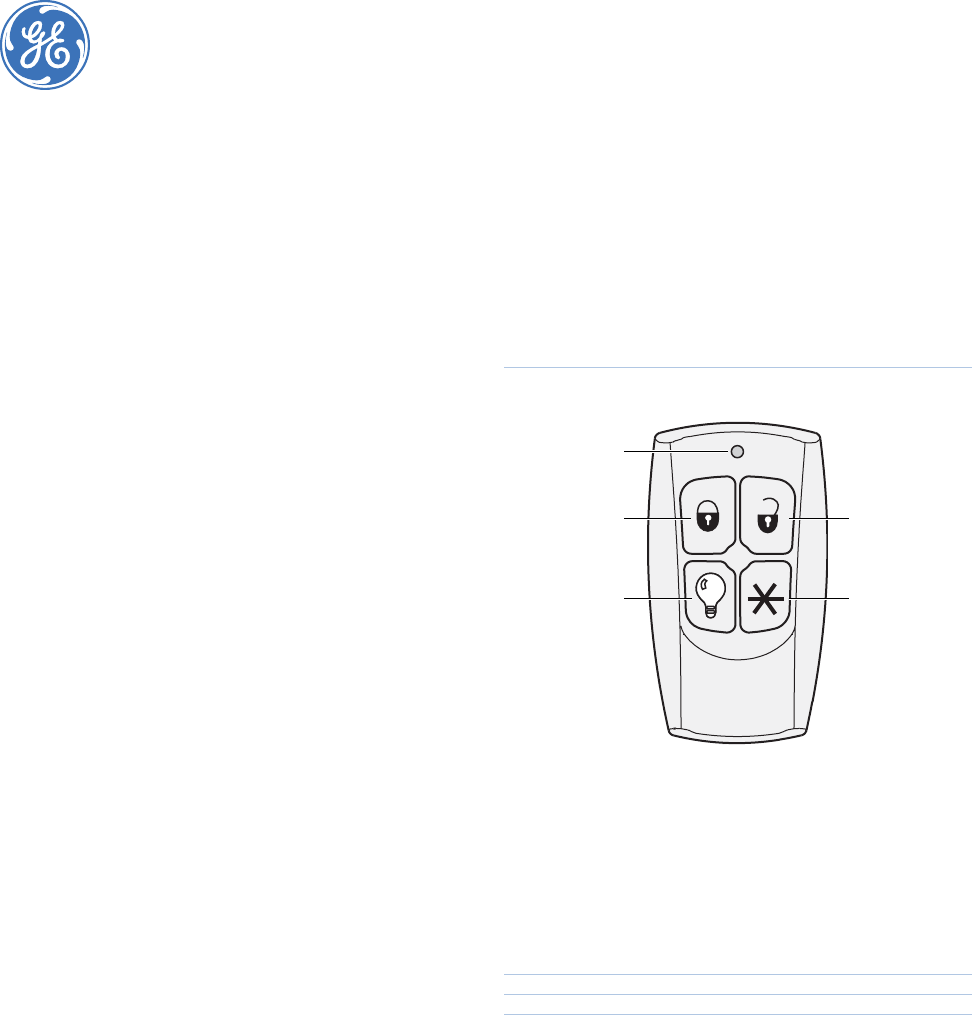

Figure 1. Keyfob buttons
FCC compliance
This device complies with part 15 of the FCC rules. Operation is subject to the
following conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference
that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Specifications
Power source CR2025 3V, 165 mAh lithium coin battery
Dimensions (L x W x H) 2.2 x 1.2 x 0.4 in. (57 x 32 x 11 mm)
Typical battery life 5 to 8 years
Operating temperature 32 to 120°F (0 to 49°C)
Unlock button
Star button
Lock button
Light button
LED
