gDesignLine Recessed Door Contact
Installation Instructions
Introduction
This is the GE DesignLine Recessed Door Contact Installation
Instructions for model TX-1510-01-1. The TX-1510-01-1 is the
industry’s most flexible supervised, recessed door contact
allowing a multitude of applications while hiding the transmitter
within a door frame. The contact uses a replaceable lithium
battery and should last five years under normal usage.
The contact comes with a standard flush-mount top and a flanged
top. Unscrew the top to access the battery or change to a different
top.
Battery installation
To install the battery, do the following:
1. Unscrew the top of the contact.
2. Carefully pull the circuit board out (Figure 1) of the contact.
Before removing the circuit board, notice that it fits inside a
channel on the inside of the case. Do not pull the circuit
board unit by the antenna wire.

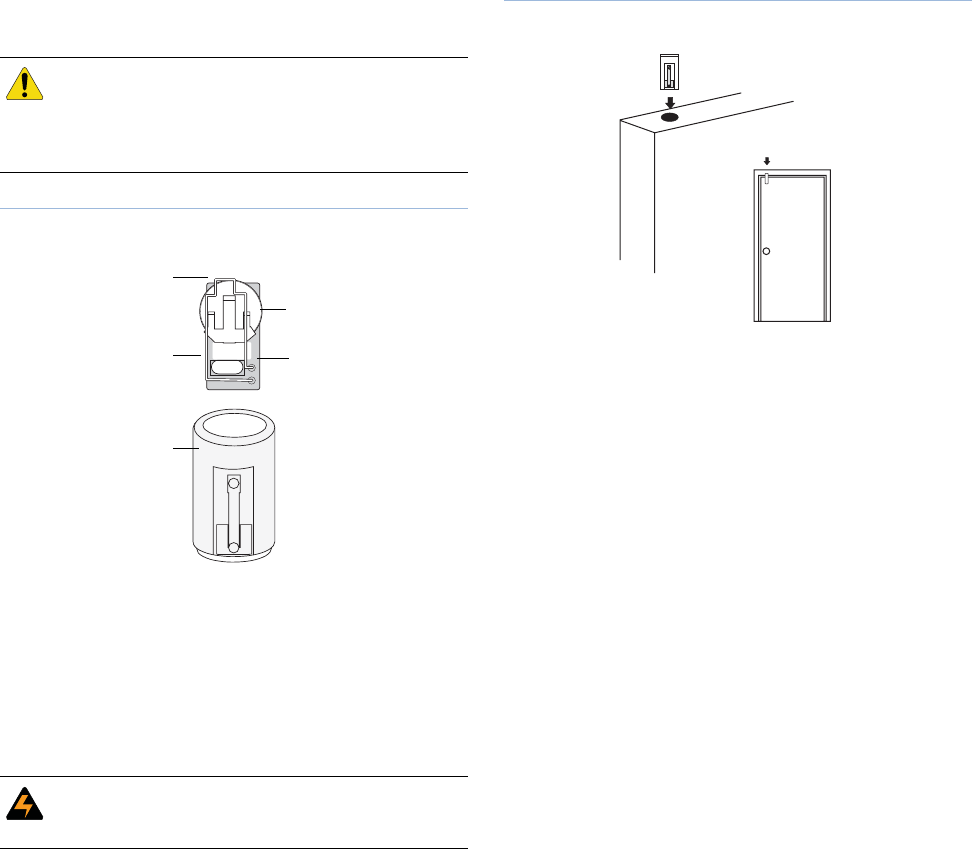

Figure 1. Battery installation
3. Slide the battery onto the circuit board unit with the plus (+)
side up.
4. Slide the circuit board unit into the contact. Make sure you
slide it back into the channel guides for proper fit with the
tamper switch facing up.
5. Screw the top back on the contact.
When replacing batteries, use only Panasonic Lithium CR23
batteries for replacement.
Mounting
It is important to select the proper placement of the recessed
transmitter and magnet. The transmitter has two separate tops
that allow a flush mount or screw mount in case you accidently
over drill the hole or require extra support to ensure the trans-
mitter does not move. The magnet does not have a second
flanged top so you must be careful to ensure that the magnet is
tightly in place once installed.
To mount the transmitter and magnet, do the following:
1. Install the CR2 battery if you have not already done so
(Figure 1).
2. Select a location on the door frame for the TX-1510-01-1
transmitter and magnet to be installed (Figure 2). Use a
marker to mark the placement and ensure that the two holes
you intend to drill are lined up directly across from each
other.
Figure 2. Mounting
Note: This is only one mounting option. You should select the
best mounting method based on the application.
3. Using an 7/8 in. drill bit, slowly drill the first hole for the
magnet. The TX-1510-01-1 was specifically designed to be
slightly larger than an 7/8 in. hole so you will need to care-
fully drill to fit by slowly routing the hole little by little to
ensure a snug fit.
4. Using a 7/8 in. drill bit, drill the mating hole for the trans-
mitter and use either the standard flush-mount cap and insert
the transmitter for a snug fit, or use the flanged cap and use
the screws provided to mount the transmitter to the door
frame.
CAUTION: You must be free of all static electricity
before handling sensor circuit baords. Touch a
grounded, bare metal surface before touching
cirucuit boards or wear a grounding strap.
WARNING: The battery may explode if mistreated. Do
not recharge, disassemble, or dispose of in fire.
Battery
Antenna Circuit
board
Contact
Tamper
switch
DesignLine Recessed Door Contact
Installation Instructions
2
Enrolling
The following section describes general guidelines for program-
ming (learning) the sensor into the panel’s memory. Refer to you
panel documentation for complete programming details.
To program (learn) the contact into the panel, do the following:
1. Unscrew the top of the contact.
2. Set the panel into program mode.
3. Refer to your panel documentation for instructions for
learning sensors.
4. Press and release the tamper switch on the top of the contact
circuit board (Figure 1 on page 1)until the panel responds.
5. Replace the contact top.
6. Exit program mode.
Specifications
Battery CR2032, 3 VDC, 225 mAh, Lithium Coin Cell
Typical battery life 5 to 8 years
Transmitter frequency 319.508 MHz (crystal-controlled)
Transmitter frequency tolerance ± 8 kHz
Bandwidth 24 kHz
Modulation type Amplitude shift key (ASK)
Unique ID codes 16 million
Peak field strength Typical 35,000 uV/m at 3 m
Supervisory interval 64 minutes
Operating temperature 10 to 120°F (-12 to 49°C)
Enclosure PC-540
Weight 0.63 oz. (18 g)
Dimensions (L x W x H) 1.70 x 1.10 x 0.91 in. (4.32 x 2.76 x 2.32 cm)
Color Belgian gray
FCC This device complies with part 15 of the FCC rules. Operation is
subject to the following conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
FCC ID: B4Z-TX-1510-01
Industry Canada ID: 1175C-TX151001
EMC European representative for manufacture (EMC):
GE Security, Kelvinstraat 7, 6003 DH Weert, Nederland
The European directive Waste Electrical and Electronic Equipment
(WEEE) aims to minimize the impact of electrical and electronic
equipment waste on the environment and human health. For proper
treatment, recovery, and recycling, return the equipment marked
with this symbol to your local supplier upon the purchase of equiva-
lent new equipment, or dispose of it in designated collection points.
For more information, visit www.recyclethis.com.
Technical support
Toll-free: 888.GESECURity (888.437.3287) in the US, including Alaska and Hawaii; Puerto Rico; Canada.
Outside the toll-free area: Contact your local dealer.
www.gesecurity.com
