UTStarcom Korea Technologies CDM7026 Cellular/ PCS CDMA Phone User Manual 7026C EN 070425 indd
UTStarcom Korea Technologies Ltd. Cellular/ PCS CDMA Phone 7026C EN 070425 indd
Users Manual
1
TABLE OF CONTENTS
CHAPTER 1. BEFORE USING YOUR PHONE
PACKAGE CONTENTS ............................................................................................ 6
HANDSET DESCRIPTION ........................................................................................ 7
BATTERY USAGE ................................................................................................. 11
POWER CONNECTION ....................................................................................................... 13
BATTERY HANDLING INFORMATION ..................................................................14
DO’s ................................................................................................................................... 14
DON’Ts ............................................................................................................................... 14
CHAPTER 2. BASIC OPERATION
TURNING THE PHONE ON / OFF .......................................................................... 16
TURNING THE PHONE ON .................................................................................................. 16
TURNING THE PHONE OFF ................................................................................................. 16
ACCESSING THE MENU ....................................................................................... 17
MENU SUMMARY ............................................................................................... 18
BASIC FUNCTIONS .............................................................................................. 20
MAKING A CALL ................................................................................................................ 20
ANSWERING CALLS ............................................................................................................ 20
SPEAKERPHONE ................................................................................................................. 21
WAIT/PAUSE FEATURE ....................................................................................................... 21
3-WAY CALLING ................................................................................................................. 22
CALLER ID FUNCTION ........................................................................................................ 22
CALL WAITING FUNCTION ................................................................................................. 22
ADJUSTING VOLUME .......................................................................................................... 23
DURING A CALL .................................................................................................. 24
MUTE (UNMUTE) ............................................................................................................... 24
SPEAKER ON ...................................................................................................................... 24
VOICE MEMO ..................................................................................................................... 24
CONTACTS ......................................................................................................................... 24
RECENT CALLS ................................................................................................................... 25
MESSAGING ....................................................................................................................... 25
MAKING AN EMERGENCY CALL .........................................................................26
911 IN LOCK MODE ........................................................................................................... 26
2
TABLE OF CONTENTS
911 USING ANY AVAILABLE SYSTEM ................................................................................. 26
CHAPTER 3. MEMORY FUNCTION
STORING A PHONE NUMBER .............................................................................. 28
ENTERING LETTERS, NUMBERS & SYMBOLS ....................................................... 29
STANDARD INPUT MODE ................................................................................................... 30
T9 INPUT MODE ................................................................................................................. 31
NUMERIC MODE ................................................................................................................ 32
SYMBOL MODE .................................................................................................................. 32
MAKING A CALL THROUGH THE CONTACT LIST .................................................. 33
ONE-TOUCH/TWO-TOUCH DIALING ................................................................................... 33
CONTACTS .......................................................................................................... 34
CREATE NEW ..................................................................................................................... 34
FIND ................................................................................................................................... 35
GROUPS ............................................................................................................................. 35
SPEED DIALS ...................................................................................................................... 37
SERVICE NUMBERS ............................................................................................................ 38
CHAPTER 4. MENU FUNCTION
RECENT CALLS .................................................................................................... 40
ALL CALLS .......................................................................................................................... 40
MISSED CALLS ................................................................................................................... 41
INCOMING CALLS .............................................................................................................. 42
OUTGOING CALLS .............................................................................................................. 43
CALL TIMERS ...................................................................................................................... 44
SETTINGS ............................................................................................................ 45
SOUND SETTINGS .............................................................................................................. 45
DISPLAY SETTINGS ............................................................................................................. 53
CALL .................................................................................................................................. 57
VR SETTINGS ...................................................................................................................... 61
SECURITY SETTINGS .......................................................................................................... 63
PHONE INFO ...................................................................................................................... 67
PHONE SETTINGS ............................................................................................................... 69
3
TABLE OF CONTENTS
CHAPTER 5. PERSONAL ORGANIZER
TOOLS ................................................................................................................. 72
VOICE MEMO ..................................................................................................................... 72
SCHEDULE .......................................................................................................................... 73
ALARM CLOCK ................................................................................................................... 75
WORLD CLOCK ................................................................................................................... 76
NOTEPAD ........................................................................................................................... 77
CALCULATOR ..................................................................................................................... 78
STOPWATCH ...................................................................................................................... 79
CONVERT UNIT .................................................................................................................. 80
CHAPTER 6. MESSAGE
MESSAGE ............................................................................................................82
NEW MSG .......................................................................................................................... 82
INBOX ................................................................................................................................ 83
OUTBOX ............................................................................................................................. 84
DRAFTS .............................................................................................................................. 84
VOICEMAIL ......................................................................................................................... 85
SETTINGS ........................................................................................................................... 85
CHAPTER 7. CRICKET CLICKS
CRICKET CLICKS .................................................................................................. 90
CHAPTER 8. SAFETY INFORMATION
SAFETY ................................................................................................................ 92
SAFETY INFORMATION FOR WIRELESS HANDHELD PHONES ............................................. 92
SAFETY INFORMATION FOR FCC RF EXPOSURE ................................................................ 96
SAR INFORMATION ............................................................................................................ 97
FDA CONSUMER UPDATE .................................................................................................. 99
EMERGENCY CALLS ......................................................................................................... 107
COMPLIANCE WITH OTHER FCC REGULATIONS ............................................................... 109
GENERAL SAFETY ............................................................................................................ 110
ANTENNA ......................................................................................................................... 111
4
TABLE OF CONTENTS
BATTERY .......................................................................................................................... 112
ADAPTER/CHARGER ......................................................................................................... 114
FCC HEARING-AID COMPATIBILITY (HAC) REGULATIONS FOR WIRELESS DEVICES ......... 115
GAMES ............................................................................................................................. 117
RECYCLE YOUR CELL PHONE! .......................................................................................... 118
WARRANTY ....................................................................................................... 119
MANUFACTURER’S WARRANTY ....................................................................................... 119
5
CHAPTER 1
BEFORE USING YOUR PHONE
This chapter provides important information about your
UTStarcom handset including:
Package Contents
Handset Description
Battery Usage
Battery Handling Information
CHAPTER 1
BEFORE
USING
YOUR PHONE
6

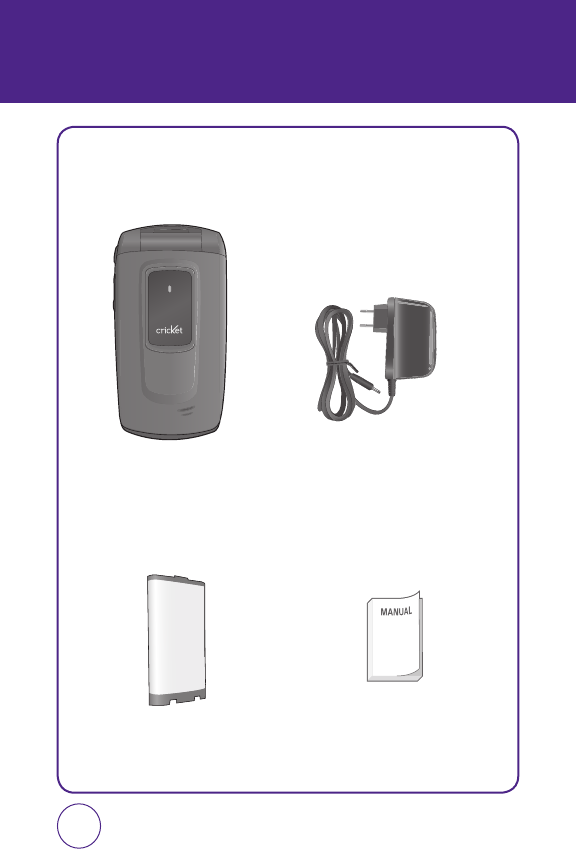

PACKAGE CONTENTS
This package should include all items pictured below.
If any are missing or different, immediately contact the retailer where
you purchased the phone.
AC Charger
Standard Battery Manual
Handset
7
HANDSET DESCRIPTION
Your CDM7026 weighs 3.2 ounces. The dimensions are 3.5"x1.9"x.8".
Clear Key
END/POWER Key
Microphone
SEND Key
Volume Keys
Earjack
Charger
jack
Navigation and OK Key
Left Option Button Right Option Button
Color STN Display
Earpiece
8
HANDSET DESCRIPTION
(THE FUNCTION KEYS)
Send Key
Press to make or receive a call or in idle mode, press to access the All Calls list.
NAVIGATION KEY
In Idle Mode:
Press
for Contacts,
for Schedule, for Voice
Command and
For Cricket Clicks.
Within a Menu:
Within a menu, use to scroll through menu or to select a
function displayed on the screen.
End Key
Press to terminate a call or to return to idle mode. Press and hold to turn the
phone on/off.
Left Option Button
Press to access Menu or function displayed on bottom line.
CLR Key
Press to clear a digit or press and hold to clear all digits from
the display. Press to return to the previous page.
Shift Key
Enters the asterisk [*] character for calling features. In text entry mode, press
to change the character input type. Press twice to display a plus sign (+) for
international dialing. Press and hold to turn on/off Vibrate mode.
Right Option Button
Press to access the Message Menu or function displayed on bottom line.
Space Key
In text entry mode, press to accept the word and add a space. Press and
hold to lock/unlock the phone.
Side Volume Key
Allows you to adjust the ringer volume in standby mode (with the flip open)
or adjust the voice volume during a call. The volume key can also be used to
scroll up or down to navigate through the different menu options. Press to
ignore an incoming call and mute the ringer.
0 Key
In T9 Mode, press to see other word choices.
9
HANDSET DESCRIPTION
(DISPLAY INDICATORS)
Text & Graphic area
Soft Key Indicators
Shows the functions currently assigned to each Option Button
and displays some icons.
Display Indicators
Display various icons.
The idle mode display appears when you are not on a call or using the
menu. You must be in the idle mode display to dial a phone number.
Roaming
Phone is out of home area.
Signal Strength
Current signal strength: the more lines, the stronger the signal.
No Service
Indicates the phone cannot receive a signal from the system.
TTY
Indicates your phone is active in TTY mode.
GPS Icon
Indicates the Location Service of your phone is disabled/enabled.
Battery
Battery charging level — the more blocks, the stronger the charge.
Battery Charging
10
HANDSET DESCRIPTION
(DISPLAY INDICATORS)
Download
Downloading is in progress.
Voicemail
Indicates you have voicemail messages.
New Messages
Indicates you have new text messages.
All Off
Indicates the ringer volume is set to off.
Silence
Phone is set to Silent - no sound will be made to notify you of incoming
calls or messages.
New Voice Messages
Indicates you have both text and voicemail messages.
Alarm
Appears when either a calendar or an alarm is set.
Vibrate Only
Phone will vibrate to notify you of an incoming call.
Emergency Call
Blinks when an emergency call is in progress.
11

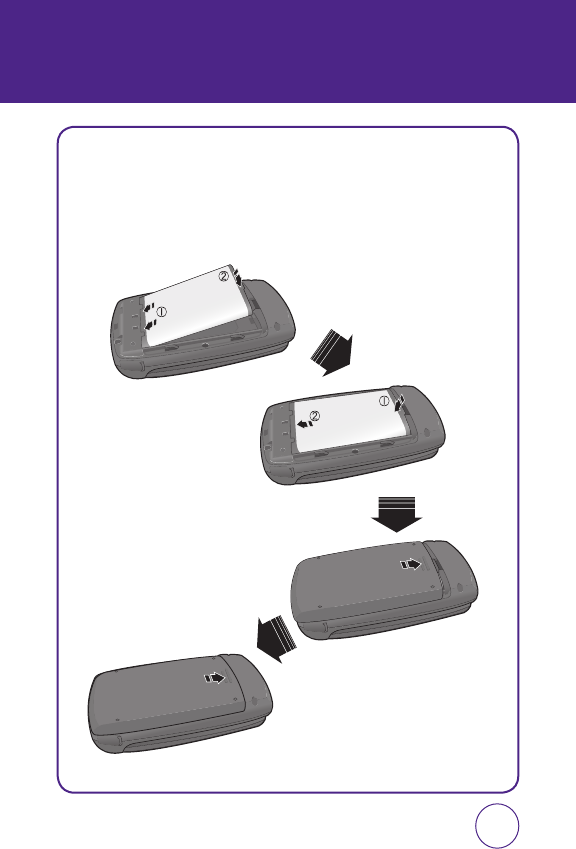

BATTERY USAGE
(BATTERY INSTALLATION)
1. Place the battery (label side up) on the back of the phone so the
metal contacts match up on the battery and in the battery cavity.
2. Slide the battery down into the battery cavity until it locks into place.
12
BATTERY USAGE
(BATTERY REMOVAL)
1.
Push down the release latch button, then slide the battery cover off
the phone.
2.
Lift the battery up and out of the battery cavity from the top of the
battery.
•
If the battery is not correctly placed in the compartment, the handset will
not turn on and/or the battery may detach during use.
Note
13
BATTERY USAGE
(BATTERY CHARGING)
POWER CONNECTION
1.
Plug the AC Charger into a standard outlet.
2.
Plug the other end of the AC Charger into the charging port on
your phone. The battery must be installed onto the phone to work
properly.
• When you charge the battery with the phone power off, you will see a
charging status screen. You cannot operate the phone until it is powered
on.
• The battery is not charged at the time of purchase.
• Fully charge the battery before use.
• It is more efficient to charge the battery with the handset powered off.
• The battery must be connected to the phone in order to charge it.
• Battery operating time gradually decreases over time.
• If the battery fails to perform normally, you may need to replace
the battery.
Hot Key
14
BATTERY HANDLING
INFORMATION
DO’s
l Only use the battery and charger approved by the manufacturer.
l Only use the battery for its original purpose.
l Try to keep batteries in a temperature between 41ºF (5ºC ) and 95ºF (35ºC).
l If the battery is stored in temperatures above or below the recommended
range, give it time to warm up or cool down before using.
l Completely drain the battery before recharging. It may take one to four
days to completely drain.
l Store the discharged battery in a cool, dark, and dry place.
l Purchase a new battery when its operating time gradually decreases after
fully charging.
l Properly dispose of the battery according to local laws.
DON’Ts
l Don’t attempt to disassemble the battery – it is a sealed unit with no
serviceable parts.
l Don’t accidentally short circuit the battery by carrying it in your pocket or
purse with other metallic objects such as coins, clips and pens. This may
critically damage the battery.
l Don’t leave the battery in hot or cold temps. Otherwise, it could
significantly reduce the capacity and lifetime of the battery.
l Don’t dispose of the battery into a fire.
15
CHAPTER 2
BASIC OPERATION
This chapter addresses and explains the basic features of
your phone including:
Turning the Phone On/Off
Accessing the Menu
Menu Summary
Basic Functions
During a Call
Making an Emergency Call
CHAPTER 2
BASIC OPERATION
16
TURNING THE PHONE ON / OFF
TURNING THE PHONE ON
1.
Press and hold until your “Welcome” logo appears and the
tone sounds.
TURNING THE PHONE OFF
1.
Press and hold until your “Goodbye” logo appears.
• If “Password” appears on the display enter your 4-digit password to
unlock your phone.
• The default password is the last 4 digit of your phone number.
Note
• Immediately change or recharge the battery when
“LOW BATTERY!! PHONE IS TURNING OFF!”appears on the display.
Memory may possibly be damaged if the phone turns off due to the
battery completely draining.
• Turn the phone off before removing or replacing the battery.
If the phone is on, unsaved data may be lost.
Note
17
Your phone can be customized via the menu. Each function can be
accessed by scrolling with the or by pressing the number that
corresponds with the menu item.
1.
To access the menu in the idle mode, press [Menu].
2.
Press / to scroll through the menu items.
Press / to scroll through the submenus for each menu item.
3.
To return to the previous page, press . To exit the current
menu and return to the idle mode, press .
4.
Press to enter a function when its main page is displayed or
press its assigned number to have direct access to the function.
Contacts
Voice Command
ScheduleCricket Clicks
ACCESSING THE MENU
18
MENU SUMMARY
5. SETTINGS
1. Sounds
1.1. Ringer Type
1.1.1. Ringer
1.1.2. Message
1.1.3. Voicemail
1.1.4. Alarm
1.1.5. Roam Ringer
1.2. Volume
1.2.1. Ringer
1.2.2. Key Tone
1.2.3. Speakerphone
1.2.4. Headset
1.2.5. Advanced
1.2.5.1. Messaging
1.2.5.2. Voicemail
1.2.5.3. Alarms
1.2.5.4. Power on/off
1.3. Alerts
1.3.1. Minute Beep
1.3.2. Roaming
1.3.3. Connect
1.3.4. Fade
1.4. Tone Length
2. Display
2.1. Wallpaper
2.1.1. Image
2.1.2. Clock Format
2.2. Screensaver
2.2.1. Time setting
2.2.2. Screensaver
2.3. Backlight
2.3.1. LCD
2.3.2. Keypad
1. MESSAGING
1. New Msg
2. Inbox
3. Outbox
4. Drafts
5. Voicemail
6. Settings
6.1. Notification
6.2. Auto Save
6.3. Auto Erase
6.4. Auto View
6.5. Entry Mode
6.6. Callback #
6.7. Voicemail #
6.8. Signature
6.9. Preset Msgs.
2. CONTACTS
1. Find
2. Create New
3. Group
4. Speed Dials
5. Service Numbers
3. RECENT CALLS
1. All Calls
2. Missed Calls
3. Incoming Calls
4. Outgoing Calls
5. Call Timers
4. CRICKET CLICKS
1. Cricket Clicks
19
7.3. Location
7.4. Set Mode
6. TOOLS
1. Voice Memo
2. Schedule
3. Alarm Clock
4. World Clock
5. Notepad
6. Calculator
7. Stopwatch
8. Convert Unit
2.4. Greeting
2.5. Contrast
2.6. Menu Style
3. Call
3.1. Abbrev. Dial
3.2. Contacts Match
3.3. Answer Mode
3.4. Auto Retry
3.5. TTY Mode
3.6. Speed Dial
3.7. Voice Privacy
3.8. Data Setting
4. VR Settings
4.1. Choice List
4.2. Train Voice
4.3. Prompts
4.4. Call Alert
5. Security
5.1. Lock Phone
5.2. Change Lock
5.3. Limit Use
5.3.1. Incoming Calls
5.3.2. Outgoing Calls
5.4. Erase Contects
5.5. Default Settings
5.6. Reset Phone
6. Phone Info
6.1. Phone Number
6.2. Help
6.3. Version
6.4. Advanced
6.5. ESN
7. Phone Settings
7.1. Language
7.2. Airplane Mode
MENU SUMMARY
20
MAKING A CALL
1.
Enter a phone number.
2.
Press .
3.
To end a call, press .
ANSWERING CALLS
1.
When your phone rings or vibrates, press to answer the
incoming call. (Depending on your phone’s settings, you may also
answer incoming calls by opening the phone or by pressing any
digit key. See page 58 for details.)
2.
To end a call, press .
BASIC FUNCTIONS
To modify the phone number you have entered :
• To erase one digit at a time press .
• To erase the entire number, press and hold .
Note
• If “CALL FAILED” appears on the display or the line is busy,
press or .
• If you activate the “AUTO RETRY” function, the phone will automatically
retry for the number of times you have selected.
• When you place or receive a call from stored phone numbers, only the
name will be displayed.
• If “Enter Lock Code” appears on the display enter your 4-digit password
to unlock your phone.
• Your default password is the last 4 digits of your phone number.
Note
• To ignore incoming calls, press [Ignore].
21
BASIC FUNCTIONS
SPEAKERPHONE
The speakerphone feature lets you hear audio through the speaker and
talk without holding the phone.
1.
To activate the speakerphone while answering or calling modes,
press .
2.
The phone returns to normal (SpeakerPhone Off) after ending a call
or when the phone is turned off and back on.
WAIT/PAUSE FEATURE
Pauses are used for automated systems (i.e., Voicemail, calling cards).
Insert a pause after a phone number then enter another group of
numbers. The second set of numbers is dialed automatically after the
pause. This feature is useful for dialing into systems that require a code.
1.
To insert a wait/pause, enter a phone number then press
[Options]. Select either a P-Hard Pause (“P” appears) or a T-2Sec
Pause (“T” appears).
2.
Press to dial or press [Done] to save phone number.
•
In Auto Answer Mode, a call is automatically answered after five
seconds of ring tones.
Note
22
BASIC FUNCTIONS
3-WAY CALLING
With 3-Way Calling, you can talk to two people at the same time.
When using this feature, the normal airtime rates will be applied for
each of the two calls.
1.
Enter a number you wish to call then press .
2.
Once you have established the connection, enter the second
number you wish to call then press .
3.
When you’re connected to the second party, press again to
begin your 3-Way call.
CALLER ID FUNCTION
Identifies caller by displaying their phone number. If the caller’s name and
number are already stored in your phone book, their name will appear.
This is a system dependent feature. Please contact your service provider for
details.
CALL WAITING FUNCTION
Notifies you of an incoming call when you are already on a call by sounding
a beep tone and displaying the caller’s phone number.
1.
To answer another call while on the phone, press
. This places the
first call on hold. To switch back to the first caller, press
again.
• Call Waiting is a system dependent feature. Please contact your service
provider for details.
Note
23
BASIC FUNCTIONS
ADJUSTING VOLUME
Adjusts the volume of the ringer, key beep and earpiece.
1.
Press [Menu] then press for the “Settings” menu.
Press “Sounds“ then press “Volume“. Select one of the
following options:
2.
Adjust the volume by pressing or press / , then press
to save the setting.
• Ringer: Controls the ringer volume.
• Key Tone: Controls the keypad volume.
• Speakerphone: Controls the speakerphone volume.
• Headset: Controls the earpiece volume.
• Advanced: Controls the volume for Message alert, Voicemail alert, Alarms, and
Power On/Off.
• To adjust earpiece volume during a call, press up or down.
• Press and hold down to turn off all sounds.
• Press and hold up to return to normal mode.
• In idle mode, press up/down to adjust the master volume.
• Press and hold the key to turn vibrate mode on/off.
Note
24
DURING A CALL
MUTE (UNMUTE)
If you press Mute during a call, the person you are speaking with cannot
hear you or any sounds from your side of the conversation.
However, you can still hear them.
To activate Mute during a call, press [Mute].
SPEAKER ON
To activate speakerphone during a call:
1.
Press [Options], then press .
VOICE MEMO
To record a voice memo during a call:
1.
Press [Options], then press .
CONTACTS
To view a phone number from your Contact list during a call:
1.
Press [Options], then press .
• To deactivate, press [Unmute].
• The phone will automatically unmute in Emergency Call or Callback Mode.
25
DURING A CALL
RECENT CALLS
To select a phone number from your Recent Calls List during a call:
1.
Press [Options], then press .
MESSAGING
To send a text message (SMS) during a call:
1.
Press [Options], then press .
26
MAKING AN EMERGENCY CALL
The 911 feature puts the phone in the Emergency Call Mode when you
dial the preprogrammed emergency number, 911. It also operates in
Lock Mode and outside the service area.
911 IN LOCK MODE
The 911 call service is available even in Lock Mode.
1.
Enter “911”, then press .
2.
The call connects.
3.
When the call ends, the phone returns to Lock Mode.
911 USING ANY AVAILABLE SYSTEM
1.
Enter “911”, then press .
2.
The call connects.
3.
The phone maintains the Emergency Mode and the phone can
receive an incoming call from any available system. However, it
can’t make a call.
• The 911 call does not appear in the recent call list.
Note
27
CHAPTER 3
MEMORY FUNCTION
This chapter addresses memory functions including:
Storing a Phone Number
Entering Letters, Numbers and Symbols
Making a Call Through the Contact List
Contacts
CHAPTER 3
MEMORY
FUNCTION
28
STORING A PHONE NUMBER
The phone book stores up to 500 entries.
1.
Enter phone number then press [Options], then press
“Save”.
2.
Select “Create New“ or “Update Existing“. If “Create New“ is
selected, the New Entry icon list appears. Press / to choose
the type of number you are adding. Press to select.
If “Update Existing” is selected, your contact list is displayed.
Choose the entry to add the number to,then press . Select the
type of number you are adding from the icon list, then press .
3.
Enter a name. To change the input mode, press [Options].
Press to enter information in other fields for the contact.
Fields include Name, Mobile 1, Mobile 2, Home, Work, Fax, Email 1,
Email 2, Group, Ringer, Memo.
4.
To store the entry in your contact list, press [Done].
Select Yes and press . “Contact Saved“ will be displayed.
• To select a group, scroll to Group field and press [Assign]. The group list will
be displayed. Select a group and press .
• To select a ringer for the contact, scroll to the Ringer field and press [Select].
To play a highlighted ringer, press [Play]. To select the ringer, press [Done].
• To enter a note for the contact, scroll to the Memo field and enter your text.
To change the input mode, press [Options].
29
ENTERING LETTERS,
NUMBERS & SYMBOLS
The input mode will automatically be activated when it is necessary
to enter letters and numbers. There are 4 available modes: Standard
Alphabet mode (Abc), T9 Mode (T9Word), Numeric mode (123) and
Symbol mode (Symbols). The input mode indicator appears on the lower
portion of the display when letters and numbers are entered. To select
the desired input mode, press [Options], then choose from the list
on screen.
KEY
KEY
Press to select the letter case: [Abc], [ABC], [abc]
/ [T9Word], [T9WORD], [T9word].
Press to change
mode.
[T9Word][Abc]
[123][Symbols]
In T9 mode, press
to view the next
matching word if the
highlighted word is
not the word you
intended.
Press to accept a word
and add a space.
Press to delete
a character to
the left of the
cursor.
30
ENTERING LETTERS,
NUMBERS & SYMBOLS
STANDARD INPUT MODE
Use the digit keys to enter letters, numbers and characters.
1.
Enter letters using the keypad. To change the input mode,
press [Options]. Standard input mode is listed as Alphabet.
2.
To enter a space, press . The cursor will automatically move to
the next column.
3.
Press each key until the desired letter appears.
4.
To delete one character, press .
To delete the entire entry, press and hold .
5.
To change from lowercase to uppercase, press .
Select Abc mode by pressing [Options], then Alphabet.
When you select this mode, the Abc icon appears as a visual confirmation.
- Find the key that corresponds to the letter you want to enter.
- Press it as many times as needed for the letter to appear on the screen.
- To enter the name “John”:
Press [ ] J
Press [ , , ] o
Press [ , ] h
Press [ , ] n
E.G.
31
ENTERING LETTERS,
NUMBERS & SYMBOLS
T9 INPUT MODE
T9 mode incorporates a built-in-dictionary to determine a word based
on the entered characters. A word can be entered more quickly by
pressing each key once per character.
1.
Select T9 mode by pressing [Options], then selecting “Entry
Mode.”
2.
Press a digit key once to enter the character you want then enter all
the characters to input the word you want.
3.
To view the next matching word, press .
4.
To accept the matching word then enter a space, press .
To enter “Funfare” in T9 mode:
- Press [Options] to select T9 mode.
- Press , , until you see “Fun” highlighted.
- Press to select “Fun”.
- Press , , , and you will see “ease” highlighted.
Press until you see "fare" highlighted. Press to select and add
a space.
E.G.
To enter a compound word:
• Enter the first part of the word then press to accept it without
adding a space after it.
• Enter the last part of the word then press to accept the word.
Note
32
ENTERING LETTERS,
NUMBERS & SYMBOLS
NUMERIC MODE
Allows you to enter numbers.
1.
Press [Options] and select “123“ for Numeric mode.
2.
To enter a number, press its digit key.
SYMBOL MODE
Allows you to enter symbols.
1.
Press [Options] and select “Symbol“ for Symbol mode.
2.
Select the symbol you want to enter with the , then
press .
33
MAKING A CALL THROUGH
THE CONTACT LIST
ONE-TOUCH/TWO-TOUCH DIALING
Ideal for frequently dialed numbers, this feature allows entries in your
contact list to be dialed via the keypad with only one or two key presses.
In order for One-Touch/Two-Touch Dialing to properly work, it must be
enabled. To activate this function, press [Menu], , , ,
then select On or Off using the . Press [Done].
ONE-TOUCH DIALING
2-9: Press and hold the corresponding memory number for more than 1
second.
TWO-TOUCH DIALING
10-99: Press and first digit and second digits of the memory number
short and long respectively.
• If no phone number is stored in the location entered, "Location is
empty" will appear on the screen.
• If One Touch Dial is set to Off:
Enter the speed dial location number then press .
• Location 1 is reserved for voicemail.
Location 2-99 are unassigned.
To assign a speed dial location, please see page 37.
Note
34
CONTACTS
Stores up to 500 entries, each of which can be assigned to a group.
Entries can be retrieved by name or group.
CREATE NEW
Adds a new entry.
1.
Press [Menu], then press “Contacts”, then "Create
New".
2.
Fill in the fields as they are selected. Press / to select a field.
3.
To save the entry, press [Done]. To return to the previous page,
press .
See page 28 for more detailed information about storing a number.
• If no name is saved for the contact, the primary phone number will be
displayed in the contact list.
Note
•
PHONE BOOK FIELDS:
Name/Mobile1/Mobile2/Home/Work/Fax/
E-Mail1/E-Mail2/Group/Ringer/Memo.
35
CONTACTS
FIND
Retrieves an entry by name and calls the primary number by simply
pressing . You can review all the entries stored in your contacts list
or quickly find an entry by entering a name or its character string.
1.
Press [Menu], then press “Contacts”, then “Find”.
2.
The list of names in your contacts is displayed alphabetically.
3.
Enter a name or its character string or scroll through the list by
pressing / .
4.
To edit the entry, press [Edit]. Press [Options] to “Create
New”, “Send Message”, “Call” or “Erase”.
5.
To show the entry details, press . From the View Contacts
screen press [Options] to “Send Message”, “Call”, or “Erase”.
6.
To call the selected number, press [Options] then select “Call”
or press .
GROUPS
Allows you to classify phone entries into groups. Existing groups include
No Group, Family, Friends, Work. A maximum of 30 groups is allowed.
ADD NEW GROUP
1.
Press [Menu], then press “Contacts”, then “Groups”.
2.
Press [Add] to add a new group name.
3.
Input a new group name.
36
CONTACTS
4.
To save it, press [Done].
5.
From the group list, press [Options] to “Rename”, “Change
Ringer”, or “Erase”.
CHANGE GROUP NAME
1.
Press [Menu], then press “Contacts”, then “Groups”.
2. Select an existing group name. The only group name that cannot be
changed is No Group.
3. Press [Options], then scroll to Rename and press .
4. Input a new group name.
5. Press [Done] to save the setting.
SEND TEXT MSG. GROUP
1.
Press [Menu], then press “Contacts”, then “Groups”.
2.
Select an existing group name that has phone numbers saved to it.
3.
Press [Options], then scroll to “Send Message” and press .
4.
Input your message. To add a graphic, sound or to use a preset
message, press [Options] and select Add.
5.
To send the message, press [Send].
To save the message, press [Options], select “Save As Draft”,
then press .
37
CONTACTS
ERASE GROUP
1.
Press [Menu], then press “Contacts”, then “Groups”.
2.
Select an existing group name.
3.
Press [Options], then scroll to Erase and press .
4.
“Erase?” will be displayed. Select Yes and press to erase the
group.
SPEED DIALS
In idle mode, calls can be placed to numbers stored in speed dial by
pressing & holding the location number on the key pad. For a 2-digit
location number, press the first number, then press and hold the second
number.
1.
Press [Menu], then press “Contacts”, then “Speed
Dial”.
2.
To assign a phone number to a location, select the location then
press [Assign].
3.
Scroll to the contact in the list.
• “Unassigned” appears if the location is available.
Note
• Speed Dial must be activated. See page 59 for additional information.
Note
38
CONTACTS
4.
If more than one number exists for the contact, press / to
select the phone number for the speed dial location. The numbers
will be displayed above the contact list.
5.
Press [Assign] to set the speed dial location.
SERVICE NUMBERS
Your Contacts list is preprogrammed with contact numbers for various
services.
1.
Press [Menu], then press "CONTACTS".
2.
Press "Service Numbers".
3.
Select number then press .
4.
Press to call.
39
CHAPTER 4
MENU FUNCTION
This chapter addresses accessing the menu and using its
functions and features to customize your phone.
Recent Calls
Settings
CHAPTER 4
MENU FUNCTION
40
RECENT CALLS
ALL CALLS
Displays information about the most recent received, dialed and missed
calls.
1.
Press [Menu], then press for the “Recent Calls” menu.
Press “All Calls”. If the number is already stored in your
contact list, only the name appears. If the number is not stored, the
number appears.
2.
To view details, press .
3.
Press [Options] and select “Save“ to save it to your contact list
or select “Erase“ to delete it.
• Call details include type of call, date, time and phone number.
Note
• Save: To store the phone number in your contact list.
• Send Msg.: To send a message to the highlighted phone number.
• Details: To view the caller's information.
• Lock/Unlock: To lock or unlock the highlighted phone number.
• Erase: To erase the highlighted phone number.
• Erase All: To erase all the phone numbers in the list.
• After the 270th received, dialed or missed calls, the oldest call will
automatically be erased from the history.
Note
41
RECENT CALLS
MISSED CALLS
Displays information about the 90 most recent missed calls.
Place a call to a missed call number by simply pressing .
1.
Press [Menu], then press for the “Recent Calls” menu.
Press “Missed Calls”. If the number is already stored in your
contact list, only the name appears. If the number is not stored, the
phone number appears.
2.
To view missed call details, press .
3.
Press [Options] and select “Save” to save it to your contact list
or select “Erase” to delete it.
• Call details include date, time and phone number.
Note
• Send Msg.: To send a message to the highlighted phone number.
• Details: To view the caller's information.
• Lock/Unlock: To lock or unlock the highlighted phone number.
• Erase: To erase the highlighted phone number.
• Erase All: To erase all the phone numbers in the list.
• After 90 missed calls, the oldest call will be automatically erased from
the history.
Note
42
RECENT CALLS
INCOMING CALLS
Displays information about the 90 most recently received calls.
Place a call to a incoming call number by simply pressing .
1.
Press [Menu], then press for the “Recent Calls” menu.
Press “Incoming calls“. If the number is already stored in your
contact list, only the name appears. If the number is not stored, the
number appears.
2.
To view incoming call details, press .
3.
Press [Options] and select “Save” to save it to your contact list
or select “Erase” to delete it.
• Call details include date, time and phone number.
Note
• Send Msg.: To send a message to the highlighted phone number.
• Details: To view the caller's information.
• Lock/Unlock: To lock or unlock the highlighted phone number.
• Erase: To erase the highlighted phone number.
• Erase All: To erase all the phone numbers in the list.
• After 90 incoming calls, the oldest call will automatically be erased from
the history.
Note
43
RECENT CALLS
OUTGOING CALLS
Displays information about the 90 most recently dialed numbers. Place a call
to a outgoing call by simply pressing .
1.
Press
[Menu], then press
for the “Recent Calls” menu.
Press
“
Outgoing Calls
“
. If the number is already stored in your
contact list, only the name appears. If the number is not stored, the
number appears.
2.
To view dialed call details, press .
3.
Press [Options] and select “Save” to save it to your contact list or
select “Erase” to delete it.
• Call details include type of call, date, time and phone number.
Note
• Send Msg.: To send a message to the highlighted phone number.
• Details: To view the caller's information.
• Lock/Unlock: To lock or unlock the highlighted phone number.
• Erase: To erase the highlighted phone number.
• Erase All: To erase all the phone numbers in the list.
• After 90 dialed calls, the oldest call will automatically be erased from the
history.
Note
44
RECENT CALLS
CALL TIMERS
Checks the usage time and manages your calls within the limit you set.
The 11 timers include (Last Call, All Calls, Incoming Calls, Outgoing Calls,
Roaming Calls, Transmit KB, Received KB, Total KB, Last Reset, Lifetime
Calls, Lifetime Data Counter):
1.
Press [Menu], then press for the “Recent Calls” menu.
Press “Call Timers”.
2.
To reset the selected timer, press [Options], then select “Reset”.
“Reset?” will be displayed.
Select Yes and press . To reset all timers, press [Options],
then select “Reset All”. “Reset All?” will be displayed. Select Yes
and press .
3.
To return to the previous page, press .
45
SETTINGS
Customizes your phone and optimizes performance through a variety of
settings.
SOUND SETTINGS
RINGER TYPE
Ringer
To select a ringer type for incoming calls:
1.
Press [Menu], then press for the “Settings” menu.
2.
Press “Sounds”, and “Ringer Type” then press
“Ringer”.
3.
Select your desired ringer type by pressing / .
4.
Press [Done] to save the setting.
• Press [Play] to play/stop the ringer.
46
SETTINGS
Messages
This setting allows you to select the alert type for text messages.
1.
Press [Menu], then press for the “Settings” menu.
2.
Press “Sounds”, and “Ringer Type” then press
“Messages”.
3.
Select your desired alert type by pressing / .
4.
Press [Done] to save the setting.
Voicemail
This setting allows you to select the alert type for voicemail messages.
1.
Press [Menu], then press for the “Settings” menu.
2.
Press “Sounds”, and “Ringer Type” then press
“Voicemail”.
3.
Select your desired alert type by pressing / .
4.
Press [Done] to save the setting.
• Press [Play] to play/stop the alert beep.
• Press [Play] to play/stop the alert beep.
47
SETTINGS
Alarm
1.
Press [Menu], then press for the “Settings” menu.
2.
Press “Sounds”, and “Ringer Type” then press
“Alarm”.
3.
Select your desired ringer type by pressing / .
4.
Press [Done] to save the setting.
Roam Ringer
1.
Press [Menu], then press for the “Settings” menu.
2.
Press “Sounds”, and “Ringer Type” then press
“Roam Ringer”.
3.
Select “Normal” or “Distinctive”.
4.
Press [Done] to save the setting.
• Press [Play] to play/stop the ringer.
48
SETTINGS
VOLUME
Ringer
To adjust Ringer volume:
1.
Press [Menu], then press for the “Settings” menu.
2.
Press “Sounds”, and “Volume” then press
“Ringer”.
3.
Select one of the following settings by pressing / .
4.
Press [Done] to save the setting.
Key Tone
To adjust Key tone volume:
1.
Press [Menu], then press for the “Settings” menu.
2.
Press “Sounds”, and “Volume” then press “Key
Tone”.
3.
Select one of the following settings by pressing / .
4.
Press [Done] to save the setting.
• Silence All, Ringer Off, Vibrate, Level 1~5
• Silence All, Level 1~5
49
SETTINGS
Speakerphone
To adjust Speakerphone volume:
1.
Press [Menu], then press for the “Settings” menu.
2.
Press “Sounds”, and “Volume” then press
“Speakerphone”.
3.
Select one of the following settings by pressing / .
4.
Press [Done] to save the setting.
Headset
To adjust Headset volume:
1.
Press [Menu], then press for the “Settings” menu.
2.
Press “Sounds”, and “Volume” then press
“Headset”.
3.
Select one of the following settings by pressing / .
4.
Press [Done] to save the setting.
• Level 1~5
• Level 1~5
50
SETTINGS
Advanced
1.
Press [Menu], then press for the “Settings” menu.
2.
Press “Sounds”, and “Volume” then press
“Advanced”.
3.
Select one of the following settings by pressing / .
4.
Press to highlight volume section. Then press / to
adjust the volume level.
5.
Press [Done] to save the setting.
• Messaging
• Voicemail
• Alarms
• Power On/Off
• Use Ringer
• Separate
51
SETTINGS
ALERTS
Minute Beep
Sounds an alert every minute during a call.
1.
Press [Menu], then press for the “Settings” menu.
2.
Press “Sounds”, and “Alerts” then press “Minute
Beep”.
3.
Select “On” or “Off”, then press [Done] to save the setting.
Roaming
Sounds an alert when leaving a service area and entering a roaming
service area.
1.
Press [Menu], then press for the “Settings” menu.
2.
Press “Sounds”, and “Alerts” then press
“Roaming”.
3.
Select “On” or “Off”, then press [Done] to save the setting.
52
SETTINGS
Connect
Notifies you that a call has been successfully placed.
1.
Press [Menu], then press for the “Settings” menu.
Press “Sounds”, and “Alerts”, then press
“Connect”.
2.
Select “On” or “Off”, then press [Done] to save the setting.
Fade
1.
Press [Menu], then press for the “Settings” menu.
Press “Sounds”, and “Alerts”, then press “Fade”.
2.
Select “On” or “Off”, then press [Done] to save the setting.
TONE LENGTH
1.
Press [Menu], then press for the “Settings” menu.
Press “Sounds”, and "Tone Length".
2.
Select “Normal” or “Long”, then press [Done] to save the
setting.
53
SETTINGS
DISPLAY SETTINGS
Allows you to customize the display.
WALLPAPER
1.
Press [Menu], then press for the “Settings” menu.
Press “Display”, then “Wallpaper” and then
“Image”.
2.
Select 1. Preset Image., 2. Download Image, or 3. EMS Image.
A list of images for the submenu will be shown. Press [View] to
view the image full screen.
3.
Press [Done] to save the image as your wallpaper.
Clock Format
1.
Press [Menu], then press for the “Settings” menu.
Press “Display”, then “Wallpaper” and then “Clock
Format”.
2.
The following options appear:
3.
Press [Done] to save the setting.
• Digital Clock, Analog Clock, Dual Time Clock, Calendar
54
SETTINGS
SCREENSAVER
Time setting
1.
Press [Menu], then press for the “Settings” menu.
Press “Display”, then “Screensaver” and then “Time
Setting”.
2.
Select one of the following options:
3.
Press [Done] to save the time setting.
Screensaver
1.
Press [Menu], then press for the “Settings” menu.
Press “Display”, then “Screensaver” and then
“Screensaver”.
2.
Select "On" or "Off" and press [Done].
If “On” is selected, choose one of the pre-installed images.
Press [View] to view the image full screen.
3.
Press [Done] to save the image as your screensaver.
• Off, 5sec, 10sec, 20sec, 30sec
55
SETTINGS
BACKLIGHT
Backlights the display and key pad for easy viewing in dark places.
LCD
1.
Press [Menu], then press for the “Settings” menu.
Press “Display”, “Backlight”, and then press “LCD”.
2.
Select one of the following options:
3.
Press [Done] to save the setting.
Keypad
1.
Press [Menu], then press for the “Settings” menu.
Press “Display”, “Backlight”, and then press
“Keypad”.
2.
Select one of the following options:
3.
Press [Done] to save the setting.
• 7sec, 15sec, 30sec, Always On, Always Off
• 7sec, 15sec, 30sec, Always On, Always Off
56
SETTINGS
GREETING
The greeting can be up to 16 characters and is displayed on your
phone’s screen in idle mode.
1.
Press [Menu], then press for the “Settings” menu.
Press “Display”, then “Greeting”.
2.
Enter your greeting. To change the input mode, press
[Options].
3.
Press [Done] to save the Greeting.
CONTRAST
To adjust the display contrast:
1.
Press [Menu], then press for the “Settings” menu.
Press “Display”, then “Contrast”.
2.
Select one of the following options:
3.
Press [Done] to save the setting.
• Level 0 - Level 5
57
SETTINGS
MENU STYLE
To select how the Menu appears on your phone:
1.
Press [Menu], then press for the “Settings” menu.
Press “Display”, then “Menu Style”.
2.
Select “Graphic” or “List”.
3.
Press [Done] to save the menu style.
CALL
ABBREV. DIAL
This function allows you to dial just the last 4 digits of the phone
number, instead of all the digits. If you have several phone numbers
that start with the same digits, you can enter the beginning numbers
here so when you dial the phone, all you enter is the last 4 digits.
1.
Press [Menu], then press for the “Settings” menu.
Press “Call“, then “Abbrev. Dial”.
2.
Select “Disable” or “Enable”, then press [Done] to save the
setting.
3.
If Enable is selected, a blank screen will appear. Enter the digits
that are common to several phone numbers you dial and press
[Done].
• You have 5 numbers you dial often that all begin with (516) 123. In the blank
screen that appears when you select "Enable", type in 516123.
• When you need to dial (516) 123-6652, simply press 6652 . Your phone will
show it is dialing (516) 123-6652.
58
SETTINGS
CONTACTS MATCH
This function will match your abbreviated dialed number with an entry
from your phone's contact list. So when you dial the 4 digits, your
phone will show the name of the contact you are dialing as well as the
phone number.
1.
Press [Menu], then press for the “Settings” menu.
Press “Call“, then “Contacts Match”.
2.
Select “Disable” or “Enable”, then press [Done] to save the
setting.
ANSWER MODE
To select an answer mode:
1.
Press [Menu], then press for the “Settings” menu.
Press “Call“, then “Answer Mode”.
2.
Select one of the following options:
3.
Press [Done] to save the setting.
• Talk Key: Answers an incoming call by pressing only.
• Any Key: Answers an incoming call by pressing any key except , ,
or .
• Folder Open: Answers an incoming calls by simply opening the phone.
59
SETTINGS
AUTO RETRY
Automatically redials a call up to 5 times after a set time interval.
1.
Press [Menu], then press for the “Settings” menu.
Press “Call“, then “Auto Retry”.
2.
Select “On” or “Off”, then press [Done] to save the setting.
TTY MODE
Your phone is able to operate with a TTY (Teletypewriter) device in
digital modes. This feature is system dependent and may not be
available in all areas.
1.
Press [Menu], then press for the “Settings” menu.
Press “Call“, then “TTY Mode”.
2.
Select one of the following options:
3.
Press [Done] to save the setting.
SPEED DIAL
Enables you to dial numbers in your speed dial list by pressing and
holding the 1 or 2 digit location number.
1.
Press [Menu], then press for the “Settings” menu.
Press “Call“, then “Speed Dial”.
2.
Select “On” or “Off”, then press [Done] to save the setting.
• TTY + Full
• TTY + Talk
• TTY + Hear
• TTY Off
61
SETTINGS
VR SETTINGS
CHOICE LIST
The “Choice List” option will allow you to choose if the Command
System prompts you with a list of potential matches. “On” will always
present you with a best match list of names or numbers. When multiple
matches are found, the system will prompt you to choose from a list of
matches. If the Choice List is set to “Off”, the voice command system
will select the best match.
1.
Press [Menu], then press for the “Settings” menu.
Press “VR Settings”.
2.
Press “Choice List”.
3.
Select “Automatic”, “On” or “Off”.
4.
Press [Done] to save it.
TRAIN VOICE
Train Voice is the process of optimizing the voice recognition software to
your voice. Train Voice requires that you make recordings of your voice,
which are then used to customize the voice recognition system. This
will take a few minutes and you should be in a quiet environment for
optimum training.
1.
Press [Menu], then press for the “Settings” menu.
Press “VR Settings”.
2.
Press “Train Voice”.
62
SETTINGS
3.
Select “Train Words” or “Train Digits”. You will be prompted to
speak the words listed on the screen. Say each word as you are
prompted.
4.
Press [Stop] to stop train voice.
PROMPT
The prompts settings, “Mode” or “Timeout", will allow you to set how
you are notified by the voice command system and the duration in
which you can respond. To access “Prompts:”
1.
Press [Menu], then press for the “Settings” menu.
Press “VR Settings”.
2.
Press “Prompt“.
3.
Select “Mode“ or “Timeout”.
4.
Press [Done] to save it.
CALL ALERT
The “Call Alert” setting controls how you are notified when receiving a
call. “Name + Ring” will first announce the name and then play the set
ring tone. “Ring only” will play the set ring tone only. “Name Repeat”
continuously states the name or number until the call is answered or
incoming call alert ends.
1.
Press [Menu], then press for the “Settings” menu.
Press “VR Settings”.
• Mode: Select "Prompt" or “Tones Only”.
• Timeout: Select “5 sec” or “10 sec”.
63
SETTINGS
2.
Press “Call Alert“.
3.
Select “Ring Only“, “Name+Ring“ or “Name Repeat”.
4.
Press [Done] to save it.
SECURITY SETTINGS
Prevents unauthorized use of your phone. The following settings can be
restricted:
LOCK PHONE
Prevents the phone from being used without entering the password first.
1.
Press [Menu], then press for the “Settings” menu.
Press “Security”. Enter your password.
2.
Press “Lock Phone”.
3.
Select “Lock”, “Unlock”, and “Power Up”. When the phone is
locked, will appear in the top row of the display.
4.
Press [Done] to save the setting.
• The default Lock code is the last 4 digit of your phone number.
• Lock: Lock the phone now.
• Power Up: Do not lock the phone now, but automatically lock when power is
recycled.
• Unlock: Do not lock the phone.
64
SETTINGS
CHANGE LOCK
Changes your 4-digit password.
1.
Press [Menu], then press for the “Settings” menu.
Press “Security”. Enter your password.
2.
Press “Change Lock”.
3.
Enter your lock code.
4.
“Enter New Lock Code” screen appears. Enter your new lock code.
5.
“Enter New Lock Code Again” screen appears. Enter your new lock
code again, then press [Done] to save the setting.
LIMIT USE
Incoming Calls
1.
Press [Menu], then press for the “Settings” menu.
Press “Security”. Enter your password.
2.
Press “Limit Use”, then “Incoming Calls”.
3.
Select “Allow” or “Restricted”, then press [Done] to save the
setting.
• The default Lock code is the last 4 digit of your phone number.
• The default Lock code is the last 4 digit of your phone number.
65
SETTINGS
Outgoing Calls
1.
Press [Menu], then press for the “Settings” menu.
Press “Security”. Enter your password.
2.
Press “Limit Use”, then “Outgoing Calls”.
3.
Select “Allow” or “Restricted”, then press [Done] to save the
setting.
ERASE CONTACTS
To erase all the names and phone numbers in your internal contact list:
1.
Press [Menu], then press for the “Settings” menu.
Press “Security”. Enter your password.
2.
Press “Erase Contacts”.
3.
Select “Yes” or “No“, then press [Done].
• The default Lock code is the last 4 digit of your phone number.
• The default Lock code is the last 4 digit of your phone number.
66
SETTINGS
DEFAULT SETTINGS
Preference setting will be set to factory defaults.
1.
Press [Menu], then press for the “Settings” menu.
Press “Security”. Enter your password.
2.
Press “Default Settings”.
3.
“Preference setting will be set to factory defaults" will be shown.
Press [Next].
4.
Select “Yes” or “No”, then press [Done].
RESET PHONE
All saved contents and preference setting will be reset to factory defaults.
1.
Press [Menu], then press for the “Settings” menu.
Press “Security”. Enter your password.
2.
Press “Reset Phone”.
3.
“All saved contents and preference setting will be set to factory
defaults" will be shown. Press [Next].
4.
Select “Yes” or “No”, then press [Done].
• The default Lock code is the last 4 digit of your phone number.
• The default Lock code is the last 4 digit of your phone number.
67
SETTINGS
PHONE INFO
Displays the information of your phone:
PHONE NUMBER
Displays your MDN and MIN.
1.
Press [Menu], then press for the “Settings” menu.
Press “Phone Info“, then press “Phone Number“.
2.
The MDN and MIN will be displayed along with your service
provider’s name.
3.
To return to the previous page, press .
HELP
1.
Press [Menu], then press for the “Settings” menu.
Press “Phone Info“, then press "Help".
2.
The indicator icons are displayed.
3.
To return to the previous page, press .
VERSION
Displays the PRL, SW Version, HW version:
1.
Press [Menu], then press for the “Settings” menu.
Press “Phone Info“, then press "Help".
2.
The PRL, software and hardware version information is displayed.
3.
To return to the previous page, press .
68
SETTINGS
ADVANCED
1.
Press [Menu], then press for the “Settings” menu.
Press “Phone Info“, then press "Advanced".
2.
The SID, Channel, Technology and Frequency information is
displayed.
3.
To return to the previous page, press .
ESN
1.
Press [Menu], then press for the “Settings” menu.
Press “Phone Info“, then press "ESN".
2.
The Hex and Dec information is displayed.
3.
To return to the previous page, press .
69
SETTINGS
PHONE SETTINGS
LANGUAGE
Selects the language in which letters are displayed on the screen.
1.
Press [Menu], then press for the “Settings” menu.
Press “Phone Settings”, then “Language”.
2.
Select “English” or “Spanish”.
3.
Press [Done] to save the language setting.
AIRPLANE MODE
Airplane Mode deactivates the wireless connectivity of your phone but
allows you to continue using non-network functions like the Calendar
and games.
1.
Press [Menu], then press for the “Settings” menu.
Press “Phone Settings”, then “Airplane Mode”.
2.
Select “On”, “Off” or “Power Up”, then press [Done] to save
the setting.
• You cannot make or receive calls or text messages when Airplane Mode
is On.
Note
70
SETTINGS
LOCATION
To set the location function:
1.
Press [Menu], then press for the “Settings” menu.
Press “Phone Settings”, then “Location”.
2.
Select “Location On” or “E911 Only”.
3.
Press [Done] to save the setting.
SET MODE
To set the mode function:
1.
Press [Menu], then press for the “Settings” menu.
Press “Phone Settings”, then “Set Mode”.
2.
Select “Home Only”, “Automatic A”, or “Automatic B.”
3.
Press [Done] to save the setting.
• If you have set Lock Mode for Location to “Lock”, you will need
to enter your location lock code before you can enter this menu.
The default value is the last 4-digits number of the phone number.
Note
• Location On: Your location is now available to the network.
• E911 Only: Your location will be hidden from network & application except 911.
• Home Only: Only within your home area or home affiliated area.
• Automatic A: Scan the radio channels based on the Automatic A setting.
• Automatic B: Scan the radio channels based on the Automatic B setting.
71
CHAPTER 5
PERSONAL ORGANIZER
This section shows you how to use these features to turn
your phone into a time management planner that helps you
keep up with your contacts, schedules and appointments.
CHAPTER 5
PERSONAL
ORGANIZER
72
TOOLS
VOICE MEMO
Voice Memo allows you to record a reminder message that can be up to
60 seconds. To record a memo:
1.
Press [Menu], then press for the “Tools” menu.
Press "Voice Memo".
2.
To record a voice memo, select “1. Record New“ and press
[Record].
3.
You will see “Press Start to start recording“ on the screen.
Press [Start] to begin recording your memo.
4.
To stop recording a voice memo, press [Stop]. Stopping the
recording will automatically save the entry. The list is sorted by the
date of the recording.
5.
To play voice memo, select the voice tag you want to play
then press [Play]. To erase one or all voice memos, press
[Options] to select one of the following options:
• Erase
• Erase All
73
TOOLS
SCHEDULE
Sets an event and reminds you of that event.
ADD NEW CALENDAR
1.
Press [Menu], then press for the “Tools” menu.
Press "Schedule".
2.
Press / / or to choose a date in the calendar, then
press [Add].
3.
The New Event screen will be displayed. Enter the event name.
Press to move to the next fields. In the Start Time field and End
Time field, enter the time. Press for AM or PM. In the Start
Date field and the End Date field, you can edit the date for the
event. In the Contents field, enter any notes for the event. In the
Notice field, enter when the alert should sound for the event (On
Time, before 10 min, before 20 min, before 30 min). In the Snooze
field, set the snooze time (5 min, 10 min, 15 min, 20 min). In the
Ringer field, press [Change] to select a ringer for the event.
Press [Done] when the ringer is selected.
4.
Press [Done] to save the event or to return to the
calendar.
5.
The date of the event will be marked on your calendar.
74
TOOLS
VIEW ADDED CALENDAR
1.
Press [Menu], then press for the “Tools” menu.
Press "Schedule".
2.
Scroll to a date in the calendar and press to view the event for
that day.
3.
Press [Options] to erase one event or all events in the calendar.
“Erase?” and “Erase All?” will be displayed. Select “Yes”, then
press .
Press [View] to see the details for the event and to edit or erase
the event.
75
TOOLS
ALARM CLOCK
1.
Press [Menu], then press for the “Tools” menu.
Press “Alarm Clock”.
2.
Select Alarm 1, 2 or 3 to set a new alarm. To edit an existing alarm,
select the alarm name. Press [Set].
3.
To save an alarm setting press [Done].
• Set: Press / to select alarm on or off.
• Time: Use the keypad to set a time for the alarm and to select “AM” or
“PM”.
• Repeat: Press / to select Daily/Once/Mon - Fri/Sat & Sun.
• Snooze: Press / to select 5Min/10Min/15Min/20Min.
• Ringer Type: Press [Change] to select a ringtone for the alarm sound.
76
TOOLS
WORLD CLOCK
1.
Press [Menu], then press for the “Tools” menu.
Press “World Clock”.
2.
The world map appears with the city, its date and time. Use the
to select another city.
• Press [Options] for 1. DST On or 2. Set Dual Time. DST stands for
Daylight Savings Time.
Note
77
TOOLS
NOTEPAD
Your phone includes an internal notepad that can be used to compose
and store reminders and notes.
ADD NEW MEMO
To compose a memo (there is an 80-letter limit):
1.
Press [Menu], then press for the “Tools” menu.
Press “Notepad”.
2.
To add a new memo, press [Add]. Input a new text memo.
3.
To save memo, press [Done].
VIEW MEMO
To view a saved memo:
1.
Press [Menu], then press for the “Tools” menu.
Press “Notepad”.
2.
The Notepad list of memos is displayed in the order they were
saved. To add a new memo, press [Add]. Highlight a memo
and press [Options] to 1. Edit, 2. Erase, or 3. Erase All.
3.
To view a memo, highlight it and press . Press [Erase]
to erase the memo or press [Edit] to edit the text, then press
[Done] to save the changes.
78
TOOLS
CALCULATOR
To access the calculator:
1.
Press [Menu], then press for the “Tools” menu.
Press “Calculator”.
2.
Enter the number using your keypad and perform one of the
following functions:
3.
Enter the numerical formula and press for Equals (=).
4.
To reset, press [AC].
• Press for Multiplication (x).
• Press for Division (÷).
• Press for Subtraction (-).
• Press for Addition (+).
• Press for a decimal point.
• Press for change the displayed number from positive (+) to negative (-)
and vice versa.
• Press to clear all numbers.
• Press to select left parenthesis or right parenthesis.
79
TOOLS
STOPWATCH
Simultaneously times up to ten different events. To operate the stop
watch:
1.
Press [Menu], then press for the “Tools” menu.
Press “Stopwatch”.
2.
To measure a time period:
• To start, press [Start].
• To stop a time period and continue measuring another one, press [Check].
• To stop the second and continue measuring a third one, press [Check].
• To measure up to ten time periods, repeat the above steps.
• To stop the stop watch, press [Stop].
• To review the results, press / .
• To reset it, press [Reset].
80
TOOLS
CONVERT UNIT
To access the conversion tool:
1.
Press [Menu], then press for the “Tools” menu.
Press “Convert Unit”.
2.
Select the desired type of measurement, and then press .
3.
To change the unit type (for example: m, cm), press / and
use the keypad to enter the unit to convert. If you need to change
the lower unit of measure (the unit you are converting into),
press to highlight that area.
• Length/Weight/Volume/Area/Temperature/Speed
81
CHAPTER 6
MESSAGE
This chapter addresses voicemail and text messaging.
CHAPTER 6
MESSAGE
82
MESSAGE
NEW MSG
To send a new message:
1.
Press [Message], then press “New Msg”.
2.
Under “TO”, input the phone number.
3.
Press . Under “Message”, input your message.
4.
If you want to add a graphic, sound or use a preset message, press
[Options], then select "Add".
5.
To save the Message, press [Options], then select “Save As
Draft”. Press [Options], then select “Priority”, select “Urgent”
or “Normal”, then press [Done].
6.
To send the message, press [Send].
By pressing [Options], you can choose from the following:
• Recent Calls: Search for the phone number which is stored in the recent calls list.
• Contacts: Search for the phone number which is stored in the contacts list.
• Group List: Search the group which is stored in the contacts list.
• Entry Mode: Change the text input mode for this field.
• Graphics: Inserts simple graphic image in message.
• Sound: Inserts sound in message.
• Preset MSG: Inserts already written sentences in message.
83
MESSAGE
INBOX
The Inbox manages received text/web alert messages.
To access:
1.
Press [Message], then press “Inbox”.
2.
Select a message, then press . The message is displayed. To
delete a message, press [Erase], then select “Yes” or “No”and
press .
By pressing [Options], you can choose from the following:
• Forward: To forward the message.
• Reply with copy: To reply to a received message and include the received
message into the message.
• Save Graphics: To save a picture.
• Save Sound: To save a sound
• Save Quick Text: Select to save received text message.
• Lock/Unlock: To lock or unlock the message.
• Add to Contacts: Select to save number to contacts.
• Message Info: To show received message information.
84
MESSAGE
OUTBOX
Manages sent messages.
1.
Press [Message], then press “Outbox”.
2.
Select a message, then press . The message is displayed.
DRAFTS
Draft Folder contains any draft messages or saved messages.
If message composition is interrupted by a voice call or other
interrupting event, the text of the current composition is automatically
saved in the drafts folder.
1.
Press [Message], then press “Drafts”.
2.
Select a message then press .
By pressing [Options], you can choose from the following:
• Forward: To forward the message.
• Resend: To resend the text message.
• Lock/Unlock: To lock or unlock the message.
• Add to Contacts: Select to save number to contacts.
By pressing [Options], you can choose from the following:
• Forward: To forward the message.
• Resend: To resend the text message.
• Lock/Unlock: To lock or unlock the message.
• Add to Contacts: Select to save number to contacts.
85
MESSAGE
VOICEMAIL
Displays the number of voicemails and accesses them by pressing .
CALL VOICEMAIL
1.
Press [Send] to dial voicemail”. From the idle screen, press
then [Send] to direct dial voicemail.
If the feature “Speed Dial” is enabled you can press and hold
to speed dial voicemail.
2.
Listen to the system prompts to hear your messages.
SETTINGS
NOTIFICATION
1.
Press [Message], then press "Settings".
Press "Notification".
2.
Select "MSG. & Icon" or "Only Icon" , then press [Done] to
save the setting.
AUTO SAVE
1.
Press [Message], then press "Settings".
Press "Auto Save".
2.
Select "Auto Save”, "Prompt" or “Do Not Save”, then press
[Done] to save the setting.
86
MESSAGE
AUTO ERASE
1.
Press [Message], then press "Settings".
Press "Auto Erase".
2. Select "On" or "Off".
3. Press [Done] to save the setting.
AUTO VIEW
1.
Press [Message], then press "Settings".
Press "Auto View".
2.
Select "On" or "Off" , then press [Done] to save the setting.
ENTRY MODE
Change the text input mode.
1.
Press [Message], then press "Settings".
Press "Entry Mode".
2.
Select "T9 Word”, "ABC", “Abc”, or “123” then press [Done]
to save the setting.
• On: Oldest message erased from inbox automatically when box is full.
• Off: Oldest message not erased from inbox automatically, user prompted when
box is full.
87
MESSAGE
CALL BACK #
1.
Press [Message], then press "Settings".
Press “Callback #”.
2.
Select "None”, "MDN", or “Custom” then press [Done] to save
the setting.
VOICEMAIL #
1.
Press [Message], then press "Settings".
Press "Voicemail".
2.
“Enter the desired voicemail access number.” Default setting is *99.
3.
Press [Done] to save the setting.
SIGNATURE
1.
Press [Message], then press "Settings".
Press "Signature".
2.
To activate Signature, highlight “Custom” then press [Edit].
The signature input screen appears.
3.
Input your signature and press [Done] to save and exit.
PRESET MSGS.
1.
Press [Message], then press "Settings".
Press "Preset Msgs.".
2.
The text messages are displayed.
88
MESSAGE
3.
Press [Options], then select one of the following options:
4.
Select the text message, then press .
• Add New: Write your own preset message and add to the list.
• Send MSG: Send a message with the highlighted preset message inserted.
• Erase: Erase the highlighted preset message.
• Erase All: Erase all the preset messages.
When the preset message screen is shown with the message:
• Edit: Press [Edit] to edit the message.
• Option: Press [Options] to 1. Send Msg., or 2. Erase.
89
Your phone provides a unique feature –Cricket Clicks-that
enables you to download melody ringers, wallpapers, games
and more from the network to your phone. Please contact
your service provider for the availability of these services or
visit mycricket.com to learn more.
CHAPTER 7
CRICKET CLICKS
CHAPTER 7
CRICKET CLICKS
90
CRICKET CLICKS
Cricket Clicks is a fun collection of features which you can access
directly from your phone - download ringtones, games, graphics, and
more. Charges apply.
1.
Press [Menu], then press for the “Cricket Clicks” menu.
Press “Cricket Clicks“.
2.
You will see 3 icons - Cricket Clicks, Settings, Help. To download
images, ringers, games, etc., select Cricket Clicks and press .
3.
Select from “Catalog“ and press . The server will launch.
Browse through the catalog and press to select an application
and price plan. Then follow the prompts to download the
application. Repeat this process for each additional application.
4.
To exit Cricket Clicks, press .
Settings: Select to Manage Apps. or Erase Downloads.
Help: Select to learn more about Cricket Clicks and how to use it.
91
Read this information before using your handheld
portable Cellular Telephone.
SAFETY
WARRANTY
CHAPTER 8
SAFETY
INFORMATION
CHAPTER 8
SAFETY INFORMATION
92
SAFETY
SAFETY INFORMATION FOR
WIRELESS HANDHELD PHONES
Read This Information Before Using Your Handheld
Portable Cellular Telephone
DRIVING SAFETY
Talking on the phone while driving is extremely dangerous and is illegal in
some states. Remember, safety comes first. Check the laws and regulations
on the use of phones in the areas where you drive. Always obey them.
If you must use your phone while driving, please:
• Give full attention to driving. Driving safely is your first responsibility.
• Use hands-free operation and/or one-touch, speed dialing, and auto
answer modes.
• Pull off the road and park before making or answering a call.
An air bag inflates with great force. DO NOT place objects, including either
installed or portable wireless equipment, in the area over the air bag or in
the air bag deployment area. If in-vehicle wireless equipment is improperly
installed and the air bag inflates, serious injury could result.
WARNING!:
Failure to follow these instructions could lead to
serious personal injury and possible property damage.
93
ELECTRONIC DEVICES
Your wireless handheld portable telephone is a low power radio transmitter
and receiver. When it is ON, it receives and also sends out radio frequency
(RF) signals.
Most modern electronic equipment is shielded from RF energy. However,
certain electronic equipment may not be shielded against the RF signals
from your wireless phone. Therefore, use of your phone must be restricted in
certain situations.
PACEMAKERS
The Health Industry Manufacturers Association recommends that a minimum
separation of six (6”) inches be maintained between a handheld
wireless phone and a pacemaker to avoid potential interference with the
pacemaker. These recommendations are consistent with the independent
research by and recommendations of Wireless Technology Research.
Never come closer than six (6) inches to a person with a heart pacemaker
implant when using your phone. Doing so could result in interference with
the function of the pacemaker.
Persons with pacemakers :
• ALWAYS keep the phone more than six inches from your pacemaker when
the phone is turned on.
• Do not carry the phone in a breast pocket.
• Use the ear opposite the pacemaker to minimize the potential for
interference.
• If you have any reason to suspect that interference is taking place, turn
your phone OFF immediately.
SAFETY
94
SAFETY
HEARING AIDS
Some digital wireless phones may interfere with some hearing aids. In
the event of such interference, you may want to consult your service
provider (or call the customer service line to discuss alternatives).
OTHER MEDICAL DEVICES
If you use any other personal medical device, consult the manufacturer
of your device to determine if they are adequately shielded from external
RF energy. Your physician may be able to assist you in obtaining this
information.
HOSPITALS AND HEALTH CARE FACILITIES
Turn your phone OFF in health care facilities when any regulations posted
in these areas instruct you to do so. Hospitals or healthcare facilities may
be using equipment that could be sensitive to external RF energy.
VEHICLES
RF signals may affect improperly installed or inadequately shielded
electronic systems in motor vehicles. Check with the manufacturer or
its representative regarding your vehicle. You should also consult the
manufacturer of any equipment that has been added to your vehicle.
POSTED FACILITIES
Turn your phone OFF where posted notices so require.
95
AIRCRAFT
FCC regulations prohibit using your phone while in the air. Turn your
phone OFF before boarding an aircraft. Always request and obtain prior
consent and approval of an authorized airline representative before
using your phone aboard an aircraft. Always follow the instructions of
the airline representative whenever using your phone aboard an aircraft,
to prevent any possible interference with airborne electronic equipment.
BLASTING AREAS
To avoid interfering with blasting operations, turn your phone OFF when
in a “blasting area” or in areas posted “Turn off two-way radio”. Obey
all signs and instructions.
POTENTIALLY EXPLOSIVE ATMOSPHERES
Turn your phone OFF when in any area with a potentially explosive
atmosphere and obey all signs and instructions. Sparks in such areas
could cause an explosion or fire resulting in bodily injury or even death.
Areas with a potentially explosive atmosphere are often, but not always,
clearly marked. They include fueling areas such as gas stations; below
deck on boats; fuel or chemical transfer or storage facilities; vehicles
using liquefied petroleum gas (such as propane or butane); areas where
the air contains chemicals or particles, such as grain, dust, or metal
powders; and any other area where you would normally be advised to
turn off your vehicle’s engine.
SAFETY
96
SAFETY
SAFETY INFORMATION FOR FCC
RF EXPOSURE
Warning! Read this information before using your phone.
In August 1996 the Federal Communications Commission (FCC) of the
United States with its action in Report and Order FCC 96-326 adopted
an updated safety standard for human exposure to radio frequency
electromagnetic energy emitted by FCC regulated transmitters. Those
guidelines are consistent with the safety standard previously set by
both U.S. and international standards bodies. The design of this phone
complies with the FCC guidelines and these international standards.
BODY-WORN OPERATION
T
his device was tested for typical body-worn operations with the back
of the phone k
ept 2.0 cm from the body with a beltclip that contains
metallic components. The use of accessories that do not satisfy
these requirements may not comply with FCC RF exposure
requirements, and should be avoided.
For more information about RF exposure, please visit the FCC website at
www.fcc.gov.
97
SAR INFORMATION
THIS MODEL PHONE MEETS THE GOVERNMENT’S
REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.
Your wireless phone is a radio transmitter and receiver. It is designed and
manufactured not to exceed the emission limits for exposure to radiofrequency
(RF) energy set by the Federal Communications Commission of the U.S.
Government. These limits are part of comprehensive guidelines and establish
permitted levels of RF energy for the general population. The guidelines
are based on standards that were developed by independent scientific
organizations through periodic and thorough evaluation of scientific
studies. The standards include a substantial safety margin designed to assure
the safety of all persons, regardless of age and health.
The exposure standard for wireless mobile phones employs a unit of
measurement known as the Specific Absorption Rate, or SAR. The SAR limit
set by the FCC is 1.6 W/kg. * Tests for SAR are conducted with the phone
transmitting at its highest certified power level in all tested frequency bands.
Although the SAR is determined at the highest certified power level, the actual
SAR level of the phone while operating can be well below the maximum value.
This is because the phone is designed to operate at multiple power levels so as
to use only the power required to reach the network. In general, the closer you
are to a wireless base station antenna, the lower the power output. Before a
phone model is available for sale to the public, it must be tested and certified
to the FCC that it does not exceed the limit established by the government
adopted requirement for safe exposure. The tests are performed in positions
and locations (e.g., at the ear and worn on the body) as required by the FCC
for each model.
SAFETY
98
SAFETY
T
he highest SAR value for this model phone when tested for use at the
ear is 1.01 W/Kg and when worn on the body, as described in this user
guide
, is 0.741 W/Kg. (Body-worn measurements differ among phone
models
, depending upon available accessories and FCC requirements).
While there may be differences between the SAR levels of v
arious
phones and at v
arious positions, they all meet the government
requirement for safe exposure
.
The FCC has granted an Equipment Authorization for this model phone
with all reported SAR levels evaluated as in compliance with the FCC
RF exposure guidelines. SAR information on this model phone is on file
with the FCC and can be found under the Display Grant section of http://
www.fcc.gov/oet/fccid after searching on O6Y-CDM7026.
Additional information on Specific Absorption Rates (SAR) can be found
on the Cellular Telecommunications & Internet Association (CTIA)
website at http://www.phonefacts.net.
* In the United States and Canada, the SAR limit for mobile phones
used by the public is 1.6 watts/kg (W/kg) averaged over one gram
of tissue. The standard incorporates a substantial margin of safety
to give additional protection for the public and to account for any
variations in measurements.
99
SAFETY
FDA CONSUMER
UPDATE
U.S. Food and Drug Administration Cell
Phone Facts Consumer Information on Wireless Phones
1. What kinds of phones are the subject of this update?
The term “wireless phone” refers here to handheld wireless phones with built-in
antennas, often called “cell,” “mobile,” or “PCS” phones. These types of wireless
phones can expose the user to measurable radiofrequency energy (RF) because of
the short distance between the phone and the user’s head. These RF exposures
are limited by Federal Communications Commission safety guidelines that were
developed with the advice of FDA and other federal health and safety agencies.
When the phone is located at greater distances from the user, the exposure to
RF is drastically lower because a person's RF exposure decreases rapidly with
increasing distance from the source. The so-called "cordless phones," which
have a base unit connected to the telephone wiring in a house, typically operate
at far lower power levels, and thus produce RF exposures well within the FCC's
compliance limits.
2. Do wireless phones pose a health hazard?
The available scientific evidence does not show that any health problems are
associated with using wireless phones. There is no proof, however, that wireless
phones are absolutely safe. Wireless phones emit low levels of radiofrequency
energy (RF) in the microwave range while being used. They also emit very low
levels of RF when in the standby mode. Whereas high levels of RF can produce
health effects (by heating tissue), exposure to low level RF that does not
produce heating effects causes no known adverse health effects. Many studies of
low level RF exposures have not found any biological effects. Some studies have
suggested that some biological effects may occur, but such findings have not
100
SAFETY
been confirmed by additional research. In some cases, other researchers have
had difficulty in reproducing those studies, or in determining the reasons for
inconsistent results.
3 . What is FDA's role concerning the safety of wireless phones?
Under the law, FDA does not review the safety of radiation-emitting consumer
products such as wireless phones before they can be sold, as it does with new
drugs or medical devices. However, the agency has authority to take action if
wireless phones are shown to emit radiofrequency energy (RF) at a level that is
hazardous to the user. In such a case, FDA could require the manufacturers of
wireless phones to notify users of the health hazard and to repair, replace or recall
the phones so that the hazard no longer exists.
Although the existing scientific data do not justify FDA regulatory actions, FDA
has urged the wireless phone industry to take a number of steps, including the
following:
• Support needed research into possible biological effects of RF of the type
emitted by wireless phones;
• Design wireless phones in a way that minimizes any RF exposure to the user
that is not necessary for device function; and
• Cooperate in providing users of wireless phones with the best possible
information on possible effects of wireless phone use on human health
FDA belongs to an interagency working group of the federal agencies that have
responsibility for different aspects of RF safety to ensure coordinated efforts at the
federal level. The following agencies belong to this working group:
101
• National Institute for Occupational Safety and Health
• Environmental Protection Agency
• Federal Communications Commission
• Occupational Safety and Health Administration
• National Telecommunications and Information Administration
The National Institutes of Health participates in some interagency working group
activities, as well.
FDA shares regulatory responsibilities for wireless phones with the Federal
Communications Commission (FCC). All phones that are sold in the United States
must comply with FCC safety guidelines that limit RF exposure. FCC relies on FDA
and other health agencies for safety questions about wireless phones.
FCC also regulates the base stations that the wireless phone networks rely upon.
While these base stations operate at higher power than do the wireless phones
themselves, the RF exposures that people get from these base stations are
typically thousands of times lower than those they can get from wireless phones.
Base stations are thus not the primary subject of the safety questions discussed
in this document.
4. What are the results of the research done already?
The research done thus far has produced conflicting results, and many studies
have suffered from flaws in their research methods. Animal experiments
investigating the effects of radiofrequency energy (RF) exposures characteristic of
wireless phones have yielded conflicting results that often cannot be repeated in
other laboratories. A few animal studies, however, have suggested that low levels
of RF could accelerate the development of cancer in laboratory animals. However,
many of the studies that showed increased tumor development used animals that
had been genetically engineered or treated with cancer-causing chemicals so as to
be pre-disposed to develop cancer in the absence of RF exposure.
SAFETY
102
SAFETY
Other studies exposed the animals to RF for up to 22 hours per day. These
conditions are not similar to the conditions under which people use wireless
phones, so we don’t know with certainty what the results of such studies mean
for human health.
Three large epidemiology studies have been published since December 2000.
Between them, the studies investigated any possible association between the use
of wireless phones and primary brain cancer, glioma, meningioma, or acoustic
neuroma, tumors of the brain or salivary gland, leukemia, or other cancers. None
of the studies demonstrated the existence of any harmful health effects from
wireless phone RF exposures. However, none of the studies can answer questions
about long-term exposures, since the average period of phone use in these studies
was around three years.
5. What research is needed to decide whether RF exposure from
wireless phones poses a health risk?
A combination of laboratory studies and epidemiological studies of people
actually using wireless phones would provide some of the data that are needed.
Lifetime animal exposure studies could be completed in a few years. However,
very large numbers of animals would be needed to provide reliable proof of a
cancer promoting effect if one exists. Epidemiological studies can provide data
that is directly applicable to human populations, but 10 or more years’ follow-up
may be needed to provide answers about some health effects, such as cancer.
This is because the interval between the time of exposure to a cancer-causing
agent and the time tumors develop - if they do - may be many, many years. The
interpretation of epidemiological studies is hampered by difficulties in measuring
actual RF exposure during day-to-day use of wireless phones. Many factors affect
this measurement, such as the angle at which the phone is held, or which model
of phone is used.
103
6. What is FDA doing to find out more about the possible health
effects of wireless phone RF?
FDA is working with the U.S. National Toxicology Program and with groups of
investigators around the world to ensure that high priority animal studies are
conducted to address important questions about the effects of exposure to
radiofrequency energy (RF).
FDA has been a leading participant in the World Health Organization International
Electromagnetic Fields (EMF) Project since its inception in 1996. An influential
result of this work has been the development of a detailed agenda of research
needs that has driven the establishment of new research programs around
the world. The Project has also helped develop a series of public information
documents on EMF issues.
FDA and the Cellular Telecommunications & Internet Association (CTIA) have
a formal Cooperative Research and Development Agreement (CRADA) to do
research on wireless phone safety. FDA provides the scientific
oversight, obtaining input from experts in government, industry, and academic
organizations. CTIA-funded research is conducted through contracts to
independent investigators. The initial research will include both laboratory
studies and studies of wireless phone users. The CRADA will also include a broad
assessment of additional research needs in the context of the latest research
developments around the world.
SAFETY
104
SAFETY
7. What steps can I take to reduce my exposure to radiofrequency
energy from my wireless phone?
If there is a risk from these products--and at this point we do not know that
there is--it is probably very small. But if you are concerned about avoiding even
potential risks, you can take a few simple steps to minimize your exposure to
radiofrequency energy (RF). Since time is a key factor in how much exposure a
person receives, reducing the amount of time spent using a wireless phone will
reduce RF exposure.
• If you must conduct extended conversations by wireless phone every day, you
could place more distance between your body and the source of the RF, since
the exposure level drops off dramatically with distance. For example, you could
use a headset and carry the wireless phone away from your body or use a
wireless phone connected to a remote antenna
Again, the scientific data do not demonstrate that wireless phones are harmful.
But if you are concerned about the RF exposure from these products, you can use
measures like those described above to reduce your RF exposure from wireless
phone use.
8. What about children using wireless phones?
The scientific evidence does not show a danger to users of wireless phones,
including children and teenagers. If you want to take steps to lower exposure
to radiofrequency energy (RF), the measures described above would apply to
children and teenagers using wireless phones. Reducing the time of wireless
phone use and increasing the distance between the user and the RF source will
reduce RF exposure.
Some groups sponsored by other national governments have advised that children
be discouraged from using wireless phones at all. For example, the government in
the United Kingdom distributed leaflets
105
containing such a recommendation in December 2000. They noted that no
evidence exists that using a wireless phone causes brain tumors or other ill
effects. Their recommendation to limit wireless phone use by children was strictly
precautionary; it was not based on scientific evidence that any health hazard
exists.
9. Do hands-free kits for wireless phones reduce risks from
exposure to RF emissions?
Since there are no known risks from exposure to RF emissions from wireless
phones, there is no reason to believe that hands-free kits reduce risks. Hands-
free kits can be used with wireless phones for convenience and comfort. These
systems reduce the absorption of RF energy in the head because the phone,
which is the source of the RF emissions, will not be placed against the head.
On the other hand, if the phone is mounted against the waist or other part of
the body during use, then that part of the body will absorb more RF energy.
Wireless phones marketed in the U.S. are required to meet safety requirements
regardless of whether they are used against the head or against the body. Either
configuration should result in compliance with the safety limit.
10. Do wireless phone accessories that claim to shield the head
from RF radiation work?
Since there are no known risks from exposure to RF emissions from
wireless phones, there is no reason to believe that accessories that claim to shield
the head from those emissions reduce risks. Some products that claim to shield
the user from RF absorption use special phone cases, while others involve nothing
more than a metallic accessory attached to the phone. Studies have shown that
these products generally do not work as advertised. Unlike "hand-free" kits,
these so-called "shields" may interfere with proper operation of the phone. The
phone may be forced to boost its power to compensate, leading to an increase
in RF absorption. In February 2002, the Federal trade Commission (FTC) charged
two companies that sold devices that claimed to protect wireless phone users
SAFETY
106
SAFETY
from radiation with making false and unsubstantiated claims. According to FTC,
these defendants lacked a reasonable basis to substantiate their claim.
11. What about wireless phone interference with medical
equipment?
Radiofrequency energy (RF) from wireless phones can interact with some
electronic devices. For this reason, FDA helped develop a detailed test method to
measure electromagnetic interference (EMI) of implanted cardiac pacemakers and
defibrillators from wireless telephones. This test method is now part of a standard
sponsored by the Association for the Advancement of Medical instrumentation
(AAMI). The final draft, a joint effort by FDA, medical device manufacturers,
and many other groups, was completed in late 2000. This standard will allow
manufacturers to ensure that cardiac pacemakers and defibrillators are safe from
wireless phone EMI.
FDA has tested hearing aids for interference from handheld wireless phones and
helped develop a voluntary standard sponsored by the Institute of Electrical and
Electronic Engineers (IEEE). This standard specifies test methods and performance
requirements for hearing aids and wireless phones so that that no interference
occurs when a person uses a “compatible” phone and a “compatible” hearing aid
at the same time. This standard was approved by the IEEE in 2000.
FDA continues to monitor the use of wireless phones for possible interactions with
other medical devices. Should harmful interference be found to occur, FDA will
conduct testing to assess the interference and work to resolve the problem.
Updated July 29, 2003
For more information, please visit the FDA website at http://www.fda.gov/
cellphones.
107
SAFETY
EMERGENCY CALLS
Never rely solely upon your wireless phone for essential communications (e.g.,
medical emergencies), if it can be avoided, since a wireless phone requires a
complex combination of radio signals, relay stations and landline networks for
its operation. Consequently, emergency calls may not always be possible under
all conditions on all wireless phone systems. Your wireless phone, however, may
sometimes be the only available means of communication at the scene of an
accident. When making an emergency call, always give the recipient all necessary
information as accurately as possible. Never terminate an emergency call until
you have received clearance to do so.
FCC ENHANCED 911 (E911) RULES
Background
The Federal Communications Commission (FCC) requires wireless carriers
to transmit specific latitude and longitude location (Automatic Location
Identification = ALI) information as well as “911” calls to Public Safety Answering
Points (PSAPs) to identify the location of the caller in case of emergency.
Generally, the rules require that carriers identify an E911 caller’s location within
50 meters of the actual location for 67 percent of calls and within 150 meters of
the actual location for 95 percent of calls.
CDM7026’s ALI Capability
The CDM7026 is an ALI-capable phone equipped with a GPS (Global Positioning
System) receiver supporting a satellite-based GPS ALI-capable network to comply
with the FCC’s ALI requirements.
108
SAFETY
The network compliance with the above FCC requirements is dependent on:
(a) the use of digital technology by the wireless network; (b) GPS satellite
signals being able to reach the handset (such transmissions do not always work
indoors, for example) ; and (c) handset signals reaching wireless “base stations”
(atmospheric and environmental conditions may cause variations in handset
receiving signal strength).
Also the transmission of the ALI information is subject, in part, to system
constraints within the wireless network to which the E911 signal is transmitted
and over which UT Starcom has no control.
Finally, customers are advised that the CDM7026’s ALI capability is to be used for
E911 purposes only.
This feature allows you to place an emergency call even if your phone is in “Phone
Lock” or “Restrict” mode when you dial the preprogrammed emergency number,
911, #911, or *911. It also operates in out-of-service areas. The phone maintains
the emergency mode until you press
after disconnecting an emergency
call. In emergency call mode, the phone can receive an incoming call from any
available system.
To call “911” in “Phone Lock” or “Restrict” mode.
1. Enter , , .
2. Press . “911” and “Emergency” will appear on the screen.
109
SAFETY
COMPLIANCE WITH OTHER FCC
REGULATIONS
OPERATING PROCEDURES
Never violate any of the following Rules and Regulations of the FCC when using
your Cellular Phone. Such violations are punishable by fine, imprisonment or both.
• Never use obscene, indecent, or profane language.
• Never use your Cellular Phone to send false distress calls.
• Never wiretap or otherwise intercept a phone call, unless you have first
obtained the consent of the parties participating in the call.
• Never make any anonymous calls to annoy, harass, or molest other people.
• Never charge another account without authorization, to avoid payment for
service.
• Never willfully or maliciously interfere with any other radio communications.
• Never refuse to yield the line when informed that it is needed for an
Emergency Call. Also, never take over a line by stating falsely that it is needed
for an emergency.
110
SAFETY
GENERAL SAFETY
PRECAUTIONS
Your Handheld Portable Telephone is a high quality piece of equipment. Before
operating, read all instructions and cautionary markings on the product, battery
and adapter/charger.
Failure to follow the directions below could result in serious bodily injury and/or
property damage due to battery liquid leakage, fire or rupture.
• DO NOT use or store this equipment in a place where it will be exposed to high
temperatures, such as near an open flame or heat-emitting equipment.
• DO NOT drop your device or subject it to severe shock. When not using, lay
down the unit to avoid possible damage due to instability.
• DO NOT expose this equipment to rain or spilled beverages.
• DO NOT use unauthorized accessories.
• DO NOT disassemble the phone or its accessories. If service or repair is required,
return unit to an authorized UTStarcom cellular service center. If unit is
disassembled, the risk of electric shock or fire may result.
111
SAFETY
ANTENNA
ANTENNA SAFETY
Use only the supplied or an approved replacement antenna. Unauthorized
antennas, modifications, or attachments could impair call quality, damage the
phone, or result in violation of FCC regulations. Please contact your local dealer
for replacement antenna.
Do not use the phone with a damaged antenna. If a damaged antenna comes
into contact with the skin, a minor burn may result. Please contact your local
dealer for replacement antenna.
112
SAFETY
BATTERY
BATTERY SAFETY
Your device uses a removable and rechargeable lithium ion battery. Please
contact customer service for assistance should you need a replacement battery.
DOs
• Only use the battery and charger approved by the manufacturer.
• Only use the battery for its original purpose.
• Try to keep batteries in a temperature between 41°F (5°C) and 95°F (35°C).
• If the battery is stored in temperatures above or below the recommended range,
give it time to warm up or cool down before using.
• Completely drain the battery before recharging. It may take one to four days to
completely drain.
• Store the discharged battery in a cool, dark, and dry place.
• Purchase a new battery when its operating time gradually decreases after fully
charging.
• Properly dispose of the battery according to local regulations.
113
SAFETY
DON’Ts
• Don’t attempt to disassemble the battery – it is a sealed unit with no
serviceable parts.
• Don’t expose the battery terminals to any other metal object (e.g., by carrying it
in your pocket or purse with other metallic objects such as coins, clips
and pens). This can short circuit and critically damage the battery.
• Don’t leave the battery in hot or cold temps. Otherwise, it could significantly
reduce the capacity and lifetime of the battery.
• Don’t dispose of the battery into a fire.
Lithium ion batteries are recyclable. When you replace your built-in battery,
please request the repair center to recycle the battery in accordance with RBRC
standards. When disposing of the battery by yourself, please call RBRC at (800)
822-8837 for proper disposal tips.
Never touch any fluid that might leak from the built-in battery. Such liquid when
in contact with the eyes or skin, could cause injury to the skin or eyes. Should the
liquid come into contact with the eyes, irrigate the eyes thoroughly with clean
water and immediately seek medical attention. In the event the liquid comes into
contact with the skin or clothing, wash it away immediately with clean water.
114
SAFETY
ADAPTER/CHARGER
CHARGER
The charger designed by UTStarcom for this unit requires the use of a standard
120 V AC power source for its operation.
• Never attempt to disassemble or repair a charger.
• Never use a charger if it has a damaged or worn power cord or plug.
Always contact a UTStarcom authorized service center, if repair or replacement
is required.
• Never alter the AC cord or plug on your charger. If the plug will not fit into the
available outlet, have a proper outlet installed by a qualified electrician.
• Never allow any liquids or water to spill on the charger when it is connected to
an AC power source. Always use the authorized UTStarcom charger to avoid
any risk of bodily injury or damage to your cellular phone or battery.
• Never attempt to connect or disconnect the charger with wet hands.
Always unplug the charger from the power source before attempting any
cleaning. Always use a soft cloth dampened with water to clean the equipment,
after it has been unplugged.
Handling the cord on this product or cords associated with accessories sold with
this product, will expose you to lead, a chemical known to the State of California
to cause birth defects or other reproductive harm. Wash hands after handling.
Always disconnect the charger from the power source when it is not in use.
Handling the cord on this product or cords associated with accessories sold with
this product, will expose you to lead, a chemical known to the State of California
to cause birth defects or other reproductive harm. Wash hands after handling.
Always disconnect the charger from the power source when it is not in use.
115
SAFETY
FCC HEARING-AID
COMPATIBILITY (HAC)
REGULATIONS FOR WIRELESS
DEVICES
On July 10, 2003, the U.S. Federal Communications Commission (FCC) Report
and Order in WT Docket 01-309 modified the exception of wireless phones under
the Hearing Aid Compatibility Act of 1988 (HAC Act) to require digital wireless
phones be compatible with hearing-aids. The intent of the HAC Act is to ensure
reasonable access to telecommunications services for persons with hearing
disabilities.
While some wireless phones are used near some hearing devices (hearing aids
and cochlear implants), users may detect a buzzing,humming, or whining noise.
Some hearing devices are more immune than others to this interference noise, and
phones also vary in the amount of interference they generate.
The wireless telephone industry has developed a rating system for wireless
phones, to assist hearing device users find phones that may be compatible with
their hearing devices. Not all phones have been rated. Phones that are rated
have the rating on their box or a label located on the box. The ratings are not
guarantees. Results will vary depending on the user’s hearing device and hearing
loss. If your hearing device happens to be vulnerable to interference, you may not
be able to use a rated phone successfully. Trying out the phone with your hearing
device is the best way to evaluate it for your personal needs.
M-Ratings: Phones rated M3 or M4 meet FCC requirements and are likely to
generate less interference to hearing devices than phones that are not labeled.
M4 is the better/higher of the two ratings.
Hearing devices may also be rated. Your hearing device manufacturer or hearing
health professional may help you find this rating. Higher ratings mean that the
116
SAFETY
aring device is relatively immune to interference noise. The hearing aid and
wireless phone rating values are then added together. A
sum of 5 is considered acceptable for normal use. A sum
of 6 is considered for best use. In the above example, if
a hearing aid meets the M2 level rating and the wireless
phone meets the M3 level rating, the sum of the two
values equal M5. This should provide the hearing aid user
with “normal usage” while using their hearing aid with the particular wireless
phone. “Normal usage” in this context is defined as a signal quality that is
acceptable for normal operation. The M mark is intended to be synonymous with
the U mark. The T mark is intended to be synonymous with the UT mark. The M
and T marks are recommended by the Alliance for Telecommunications Industries
Solutions (ATIS). The U and UT marks are referenced in Section 20.19 of the FCC
Rules. The HAC rating and measurement procedure are described in the American
National Standards Institute (ANSI) C63.19 standard.
For information about hearing aids and digital wireless
phone:
• FCC Hearing Aid Compatibility and Volume Control
http://www.fcc.gov/cgb/dro/hearing.html
• GallaudetUniversity,RERC
http://tap.gallaudet.edu/DigWireless.KS/DigWireless.htm
• Self Help for Hard of Hearing People Inc. [SHHH]
www.hearingloss.org/hat/TipsWirelessPhones.htm
• The Hearing Aid Compatibility FCC Order
http://hraunfoss.fcc.gov/edocs_public/attachmatch/ FCC-03-168A1.pdf
117
SAFETY
GAMES
SEIZURES/BLACKOUTS
Warning
A very small percentage of individuals may experience epileptic seizures when
exposed to certain light patterns or flashing lights. Exposure to certain patterns
or backgrounds on a computer screen, or while playing video games, may induce
an epileptic seizure in these individuals. Certain conditions may induce previously
undetected epileptic symptoms even in persons who have no history of prior
seizures or epilepsy.
If you, or anyone in your family, have an epileptic condition, consult your physician
prior to playing. If you experience any of the following symptoms while playing
a video or computer game -- dizziness, altered vision, eye or muscle twitches,
loss of awareness, disorientation, any involuntary movement, or convulsions --
IMMEDIATELY discontinue use and consult your physician before resuming play.
Repetitive Motion Injuries
When you play games on your phone, you may experience occasional discomfort
in your hands, arms, shoulders, neck, or other parts of your body. Follow these
instructions to avoid problems such as tendonitis, carpal tunnel syndrome, or
other musculoskeletal disorders:
• Take a minimum 15-minute break every hour of game playing.
• If your hands, wrists, or arms become tired or sore while playing, stop and rest
for several hours before playing again.
• If you continue to have sore hands, wrists, or arms during or after play, stop
playing and see a doctor.
118
SAFETY
RECYCLE YOUR CELL PHONE!
Carriers marketing this cell phone have an in-store phone take-back program.
Consumers can drop off their used wireless devices to specified carrier retail
outlets for recycling purposes. For a list of carrier members and collection sites,
visit the cellular industry’s recycling website www.recyclewirelessphones.com.
To mail in your old wireless device to UTStarcom Personal Communications for
recycling purposes, simply package your old wireless device and any accessories
(including discharged batteries) in appropriate shipping materials and mail to:
For Recycling UTStarcom Personal Communications LLC 555 Wireless Blvd.
Hauppauge, NY 11788
Wireless phones also can be donated to the Wireless Foundation’s DONATE A
PHONE® CALL TO PROTECT® campaign. This charitable cause collects wireless
phones to benefit victims of domestic violence. All donated phones are tax
deductible. You may mail the phone to: CALL TO PROTECT, 2555 Bishop Circle,
West Dexter, MI 48130.
-OR-
Drop the phone off at a local collection center. For a list of collection centers, visit
www.wirelessfoundation.org/CalltoProtect/dropoff.cfm
Before returning any wireless device for recycling purposes, please remember to
terminate your service on the device, clear the device of any stored information
and remove the device’s SIM card, if it has one (please contact your wireless
provider to find out if your device contains a SIM card and for assistance on how
to remove it).
119
WARRANTY
MANUFACTURER’S WARRANTY
12 MONTH LIMITED WARRANTY
UTStarcom Personal Communications (the Company) warrants to the original
retail purchaser of this UTStarcom handheld portable cellular telephone, that
should this product or any part thereof during normal consumer usage and
conditions, be proven defective in material or workmanship that results in product
failure within the first twelve (12) month period from the date of purchase, such
defect(s) will be repaired or replaced (with new or rebuilt parts) at the Company’s
option, without charge for parts or labor directly related to the defect(s).
The antenna, keypad, display, rechargeable battery and battery charger, if
included, are similarly warranted for twelve (12) months from date of purchase.
This Warranty extends only to consumers who purchase the product in the United
States or Canada and it is not transferable or assignable.
This Warranty does not apply to:
(a) Product subjected to abnormal use or conditions, accident, mishandling,
neglect, unauthorized alteration, misuse, improper installation or repair or
improper storage;
(b) Product whose mechanical serial number or electronic serial number has been
removed, altered or defaced.
(c) Damage from exposure to moisture, humidity, excessive temperatures or
extreme environmental conditions;
(d) Damage resulting from connection to, or use of any accessory or other product
not approved or authorized by the Company;
(e) Defects in appearance, cosmetic, decorative or structural items such as framing
and non-operative parts;
120
WARRANTY
(f) Product damaged from external causes such as fire, flooding, dirt, sand,
weather conditions, battery leakage, blown fuse, theft or improper usage of
any electrical source.
The Company disclaims liability for removal or reinstallation of the product,
for geographic coverage, for inadequate signal reception by the antenna or for
communications range or operation of the cellular system as a whole.
When sending your wireless device to UTStarcom Personal Communications
for repair or service, please note that any personal data or software stored
on the device may be inadvertently erased or altered. Therefore, we strongly
recommend you make a back up copy of all data and software contained on your
device before submitting it for repair or service. This includes all contact lists,
downloads (i.e. third-party software applications, ringtones, games and graphics)
and any other data added to your device. In addition, if your wireless device
utilizes a SIM or Multimedia card, please remove the card before submitting the
device and store for later use when your device is returned, UTStarcom Personal
Communications is not responsible for and does not guarantee restoration of
any third-party software, personal information or memory data contained in,
stored on, or integrated with any wireless device, whether under warranty or not,
returned to UTStarcom Personal Communications for repair or service.
To obtain repairs or replacement within the terms of this Warranty, the product
should be delivered with proof of Warranty coverage (e.g. dated bill of sale),
the consumer’s return address, daytime phone number and/or fax number and
complete description of the problem, transportation prepaid, to the Company at
the address shown below or to the place of purchase for repair or replacement
processing.
121
WARRANTY
In addition, for reference to an authorized Warranty station in your area, you may
telephone in the United States (800) 229-1235, and in Canada (800) 465-9672 (in
Ontario call 416-695-3060).
THE EXTENT OF THE COMPANY’S LIABILITY UNDER THIS WARRANTY IS LIMITED
TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO EVENT, SHALL
THE COMPANY’S LAIBILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER
FOR THE PRODUCT.
ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED
TO THE DURATION OF THIS WRITTEN WARRANTY. ANY ACTION FOR BREACH OF
ANY WARRANTY MUST BE BROUGHT WITHIN A PERIOD OF 18 MONTHS FROM
DATE OF ORIGINAL PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE
FOR AN SPECIAL CONSEQUENTIAL OR INCIDENTAL DAMAGES FOR BREACH
OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. THE
COMPANY SHALL NOT BE LIABLE FOR THE DELAY IN RENDERING SERVICE UNDER
THIS WARRANTY OR LOSS OF USE DURING THE TIME THE PRODUCT IS BEING
REPAIRED OR REPLACED.
No person or representative is authorized to assume for the Company any liability
other than expressed herein in connection with the sale of this product.
Some states or provinces do not allow limitations on how long an
implied warranty lasts or the exclusion or limitation of incidental or consequential
damage so the above limitation or exclusions may not apply to you. This Warranty
gives you specific legal rights, and you may also have other rights, which vary
from state to state or province to province.
122
WARRANTY
IN USA: UTStarcom Personal Communication
555 Wireless Blvd. Hauppauge, NY 11788
(800) 229-1235
IN CANADA:
UTStarcom Canada Company
5535 Eglinton Avenue West Suite# 234
Toronto, ON M9C 5K5
(800) 465-9675
123
MEMO
124
MEMO
U.S.A.
U.S.FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTERFERENCE STATEMENT
INFORMATION TO THE USER
NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
Interference in a residential installation This equipment generates, uses, and can radiate radio frequency energy
and, if Not installed and used in accordance with the instructions, may cause harmful Interference to radio
communications. However, there is no guarantee that interference will not occur in a particular Installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
*- Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
*- Connect the equipment into an outlet of a circuit different from that to which the receiver is
connected.
*- Consult the dealer or an experienced radio/TV technician for assistance.
Changes or modification not expressly approved by the party responsible for Compliance could void the user’s
authority to operate the equipment. Connecting of peripherals requires the use of grounded shielded signal
cables.
FCC Compliance Information
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received.
Including interference that may cause undesired operation.
