1. BEFORE USING UM100C
1.1 About this User’s Manual
You will find all the information you need to install and use the UM100C in this
user’s manual. Before using the UM100C, you must properly install the UM100C
by closely following the installation instructions.
Instructions
• Install the UM100C software before inserting the UM100C USB Device into
your PC. The installation software is included in the product package. Insert
the CD into your CD-ROM drive. Installation may take a few minutes.
• It is highly recommended that you read the safety precautions described in
this manual before using the UM100C.
1.2 Product Overview
Thank you for purchasing UM100C USB Modem.
The UM100C is a 3G wireless device that enables high-speed wireless
communication from your PC. The UM100C is simple to install and use.
1.3 Product Package Contents
The following items are included in the product package. If any of the items listed
below are missing, please contact the retail location where you purchased the
product.
- UM100C Wireless USB Modem
- Installation CD that contains software and this user’s manual
- USB Modem Extension Y Cable
- UM100C Screen Clip
- Quick Start Guide
1.4 Introduction to UM100C USB Modem
The UM100C is designed for your PC’s USB port, which is available in most
PC models. The UM100C can be used to access the Internet, your company’s
intranet, or you can use it to send and receive email. It is extremely useful when
you are away from the office, on the road, or wherever a wireline Internet access is
not readily available.
1
![](/img.php?id=907658&img=bg4.png)
2
1.5 Product Features
- Power management: The UM100C utilizes power management and system
overhead reduction functions provided by the USB interface for maximum power
savings.
- Antenna design: Efficient, innovative design optimizes data transfer rate and
sensitivity to network signals.

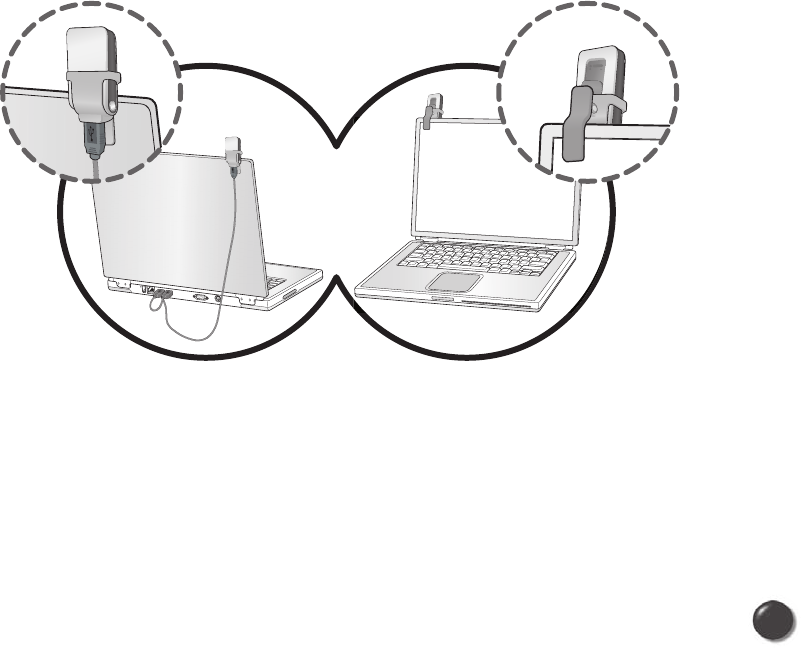

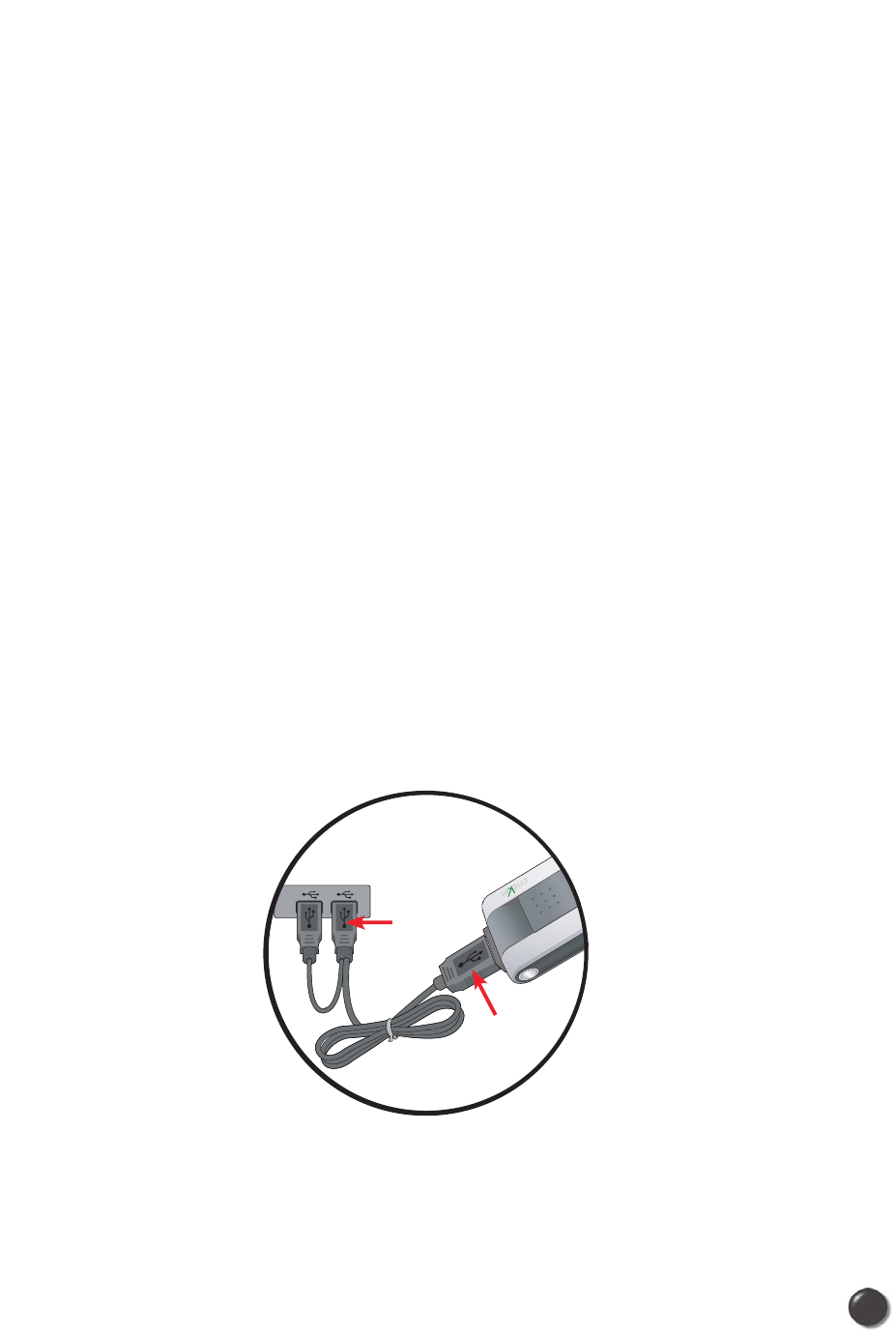

- Extension Y Cable connector: Simply insert the USB connector into the USB port
of your computer to deliver a power boost, increased RF performance, and to
solve clearance issues.
- USB Modem that supports Type A USB Port interface.
- Supports North American PCS (1900 MHz), Cellular (800 MHz) and
Aws (Tx 1700MHZ, Rx 2100MHZ) bands.
- Utilizes QUALCOMM MSM6801 A chip set.
- Supports 3G network technologies.
- Average Data Rate: Upto 3.1Mbps peak data down rate download, up to 1.8Mbps
peak data rate. *Actual data rate can be varied by user environment.
- Supports Windows 2000, XP and Vista systems with installed host software and
driver.
- Compatible with Mac OSX 10.3.9 or higher.
1.6 Product Handling
- Do not put any adhesive label on the USB connector. It may leave a sticky
residue that can cause problems inside the PC USB port.
- The UM100C USB device should easily slide into the USB port. Do not force the
UM100C into the USB port as it may cause damage to the modem and/or the
port.
- Keep the UM100C in a dry and clean place. (Storage temperature: -22°F to
149°F [- 30°C to 65°C]). Keep your device away from liquids, dust and excessive
heat.
1.7 Configuration
To use the UM100C, you should install the software included in the installation CD
and configure the UM100C USB device. See the next section for more information
on software installation and USB device configuration.
![](/img.php?id=907658&img=bg5.png)
3
2. INSTALLATION AND SETUP FOR QUICKLINK MOBILE
This section will guide you through the installation and setup process for QuickLink
Mobile. Before getting started, you should become familiar with the documentation
that came with your USB Modem.
CD’s
1. If you purchased a USB Modem, there is only one CD that contains QuickLink
Mobile and the USB Modem drivers.
Getting Started
To install QuickLink Mobile:
1. Turn on your computer then close all applications.
2. Insert the CD-ROM into your CD drive.
3. If set up does not automatically start, click the Start button on the taskbar then
choose Run. Type D:\Start (where D is the letter of your CD-ROM drive) then
click OK.
4. Follow the steps in the next section.
* QuickLink Mobile software must be installed before you insert the USB Modem in
to the computer for the first time. Only after the software has been installed can
Windows successfully install and configure the USB Modem.
2.1 QuickLink Mobile Setup Program
STEP 1: The “Welcome” screen appears. Click the “Next” button to continue with the
installation process.
![](/img.php?id=907658&img=bg6.png)
STEP 2: After the Welcome screen you will see QuickLink Mobile License Agreement.
In order to install and use this product you must agree with the terms of this
agreement. Select “I agree with this software license agreement”, then click
the “Next” button to continue. If you do not agree with this agreement, click
the “Cancel” button to exit.
STEP 3: You are now ready to select the location on your computer where QuickLink
Mobile should be installed. It is recommended that you do not modify the
default destination folder. Click the “Next” button to continue.
STEP 4: During this step the components of QuickLink Mobile product are being
installed onto your computer. Installation will occur to the destination folder
specified in Step 3 above.
5
4
![](/img.php?id=907658&img=bg7.png)

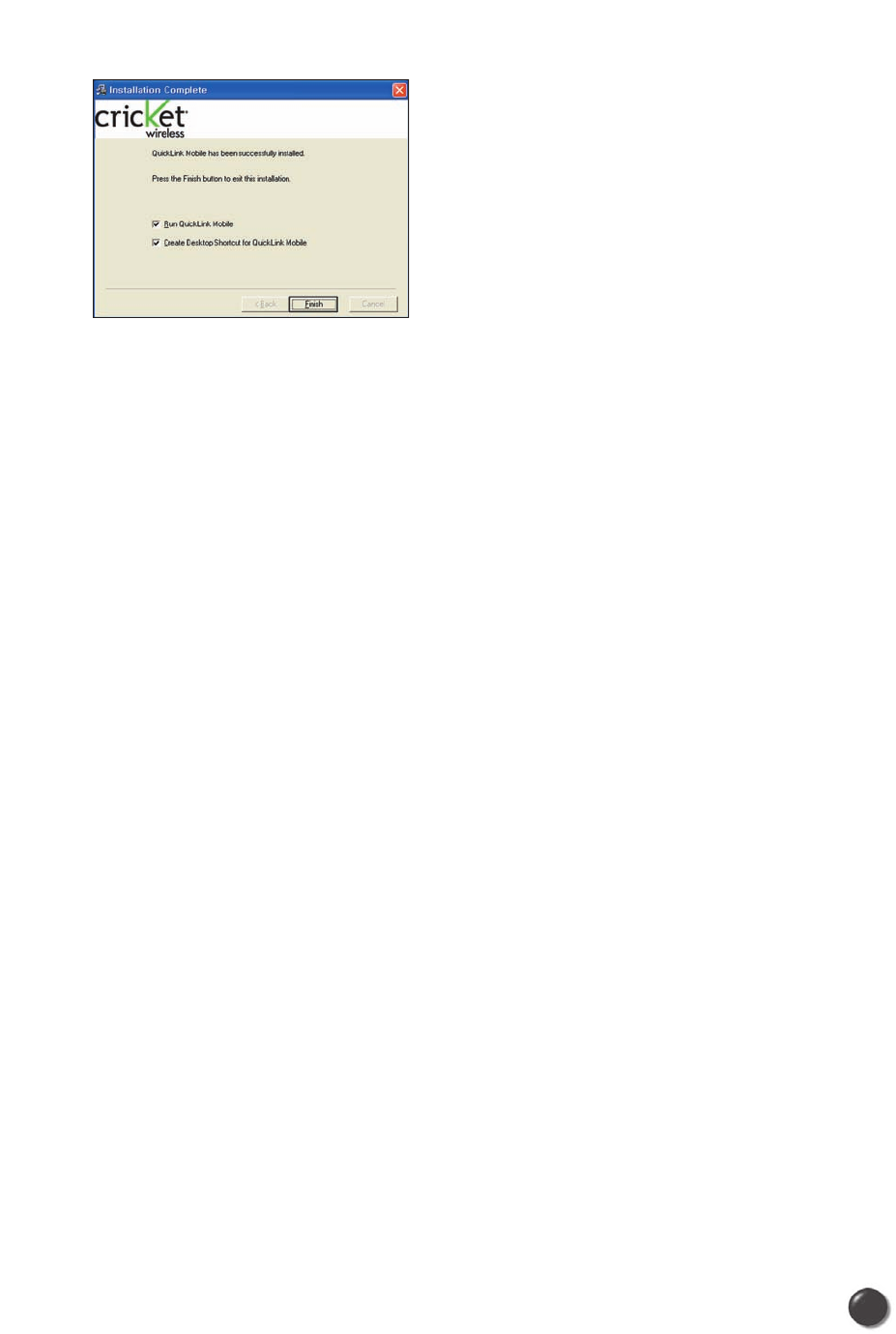

STEP 5: Installation is now complete. Click the “Finish” button to leave the QuickLink
Mobile setup program and begin using your new software.
* The setup program will automatically create a QuickLink Mobile shortcut on
your desktop.
5
4
![](/img.php?id=907658&img=bg8.png)
2.2 QuickLink Mobile Setup Wizard
After you have successfully completed the installation process of QuickLink
Mobile, you are ready to start QuickLink Mobile program and begin your initial
setup. The steps in the Setup Wizard are critical to the proper operation of
QuickLink Mobile.

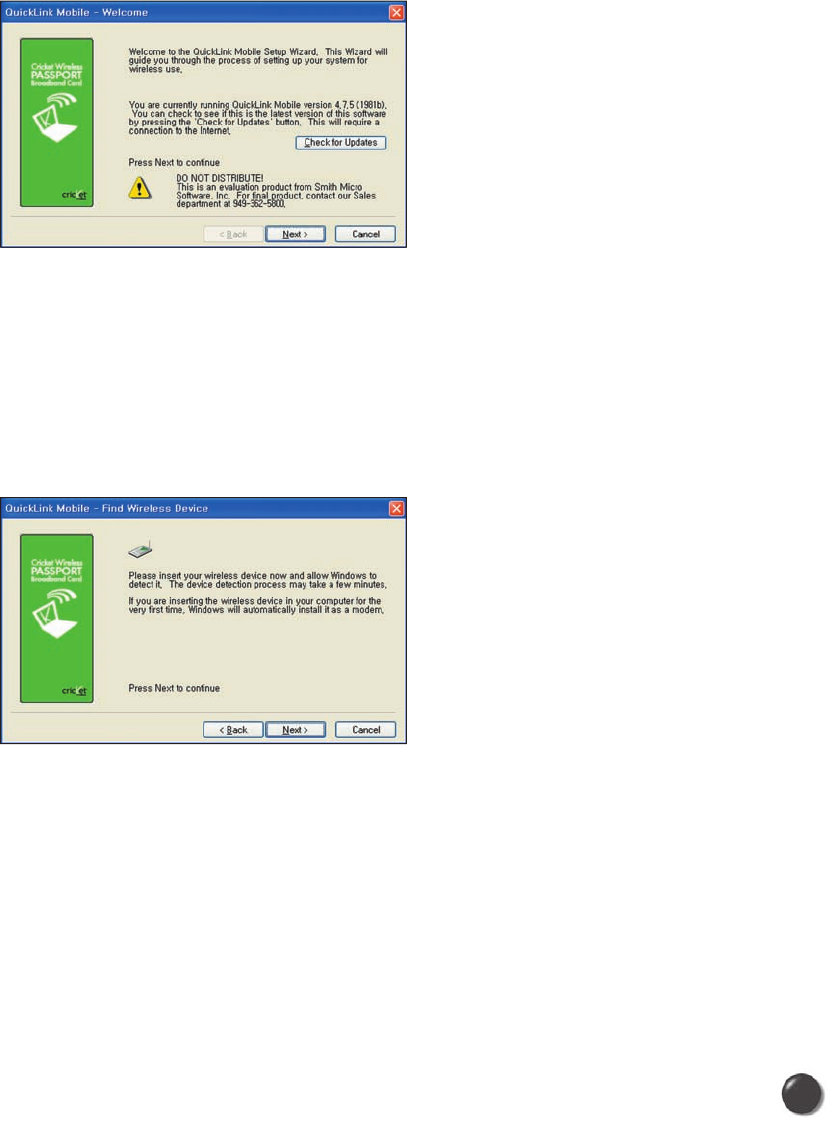

STEP 1: On first-run of QuickLink Mobile the Setup Wizard will automatically run.
The “Welcome” screen appears.
If you have an Internet connection, it is recommended that you check to see if you are
running the latest version of QuickLink Mobile. Click the “Check for Updates” button to
perform this check.
Click “Next” to continue.
STEP 2: USB device users would insert their USB device now, and wait for Windows
to detect and install drivers for the device.

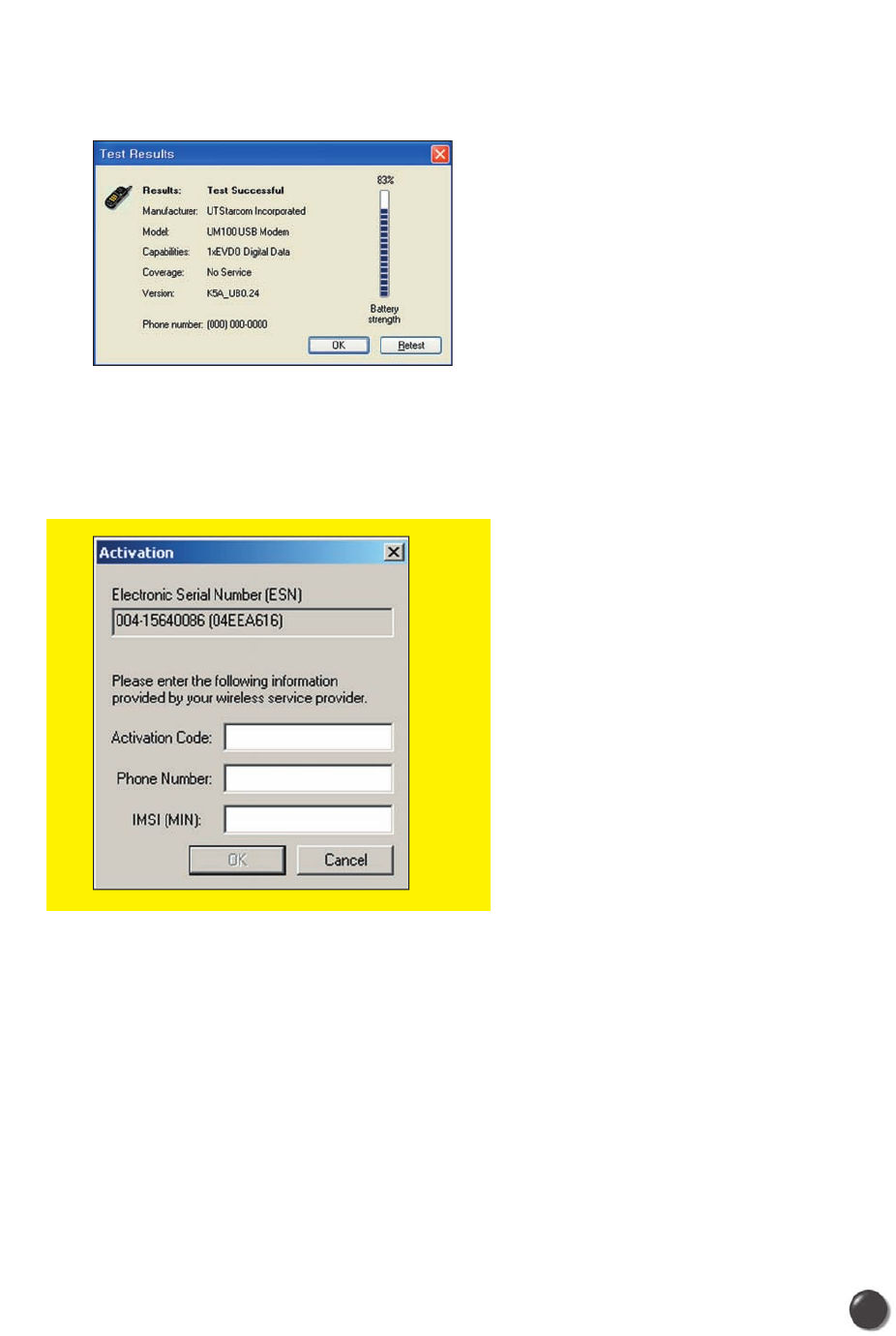

Note: If the Card has already been activated, the screen above will not
appear. You will need to use the “Activate” menu in the connection manager
window under Tools> Activation.
7
6
![](/img.php?id=907658&img=bg9.png)
STEP 3: The detection and configuration process for your wireless device is now
complete. In this step you can elect to run QuickLink Mobile automatically
every time you start your computer. Click “Finish” when complete.
Please familiarize yourself with the information in the “Using QuickLink Mobile” and
“Connecting to the Internet” sections of this guide.
7
6
![](/img.php?id=907658&img=bga.png)
3. USING QUICKLINK MOBILE
Today’s online world offers more services everyday and Wireless gives you
the tools you need to take advantage of the best in connectivity solutions. With
QuickLink Mobile, enjoy the freedom and convenience of wireless Internet
connectivity from your notebook computer!
3.1 Features
WWAN (Wireless Wide Area Network, 1xEV-DO/1xRTT/CDMA) Specific
Features:
• Configures your PC to use your USB Modem.
• Creates a Data Connection if using an EVDO capable USB Modem.
• Copies utility to create wireless copies of your dial-up connections, if
supported by your device.
• Test function for WWAN device.
* A WWAN capable device is required to use the WWAN features. Individual
WWAN features are also device dependent as described in the WWAN section
above.
Other Features:
• Logs connections used, duration and bytes sent and received.
• It also supports SMS messaging.
• See the section “Additional Features” for more information about the features
of QuickLink Mobile.
3.2 Getting Started
Double click on QuickLink Mobile icon on your desktop or click on the Windows
Start menu and select QuickLink Mobile from the list of Programs.
About the Wireless Networks View
QuickLink Mobile will open the Wireless Networks window by default.
This view is where you manage your wireless connections.
The Wireless Networks window displays all currently available network
connections.
9
8
![](/img.php?id=907658&img=bgb.png)
At a glance you can see the signal strength and battery level.
Select “Refresh Networks” from the “Tools” menu to update the information in this
panel. Your current connection state and the elapsed time of the connection are
displayed along the bottom of the status bar.
If your expected connection does not appear after starting QuickLink Mobile, select
“Refresh Networks” from the “Tools” menu.
* If you change USB Modems, you will need to run the Setup Wizard again.
To do this, select “Run Wizard” from the “Tools” menu.
3.3 Connecting
Once your device is properly configured, connecting to the Internet is as simple as
selecting the network connection type shown in the list and clicking the “Networks”
button.
1. Select Data Connection.
2. Click the “Connect” button when it becomes enabled.
Once connected, the “Connect” button will change to “Disconnect”. Simply click
this to end your current connection. To connect to any other network shown, select
it, and then select “Connect”.

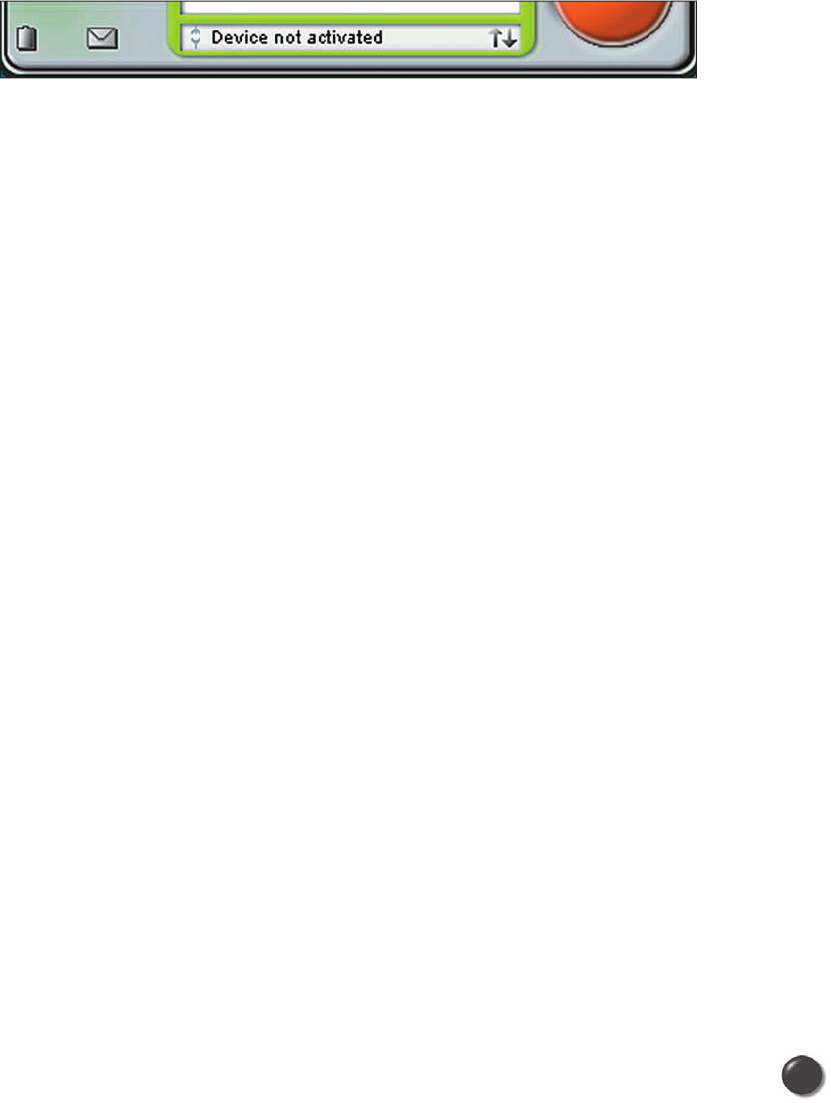

The Status Bar
Information regarding your current network connection can be seen in the status
bar along the bottom of QuickLink Mobile interface. For more information on this
status bar, see the section “The Status Bar” in the “Additional Features” section.
* The first time you connect with the Data Connection, a connectivity warning
message will appear. You have the option to suppress these warning messages
when they are displayed.
9
8
![](/img.php?id=907658&img=bgc.png)
QuickLink Mobile will display status information at the bottom during the
connection process as well as while connected. When not connected, the status
text in the lower left corner will display “Not connected” for the currently selected
network. The timer will display “00:00:00”. Once connected, the status text will
display “Connected” and the elapsed timer will begin to run.
The pop up status can be turned off, if desired, by selecting “Options”,
“Preferences”, “Options” tab, then un-checking “Show popup status windows by
tray”. Right clicking on the tray icon provides various options and double clicking
on it will always show the application. Placing your cursor on it will display the
current connection status.
Based on your preferences, your browser, e-mail or VPN program can be launched
automatically, or you can launch whatever software you want to use.

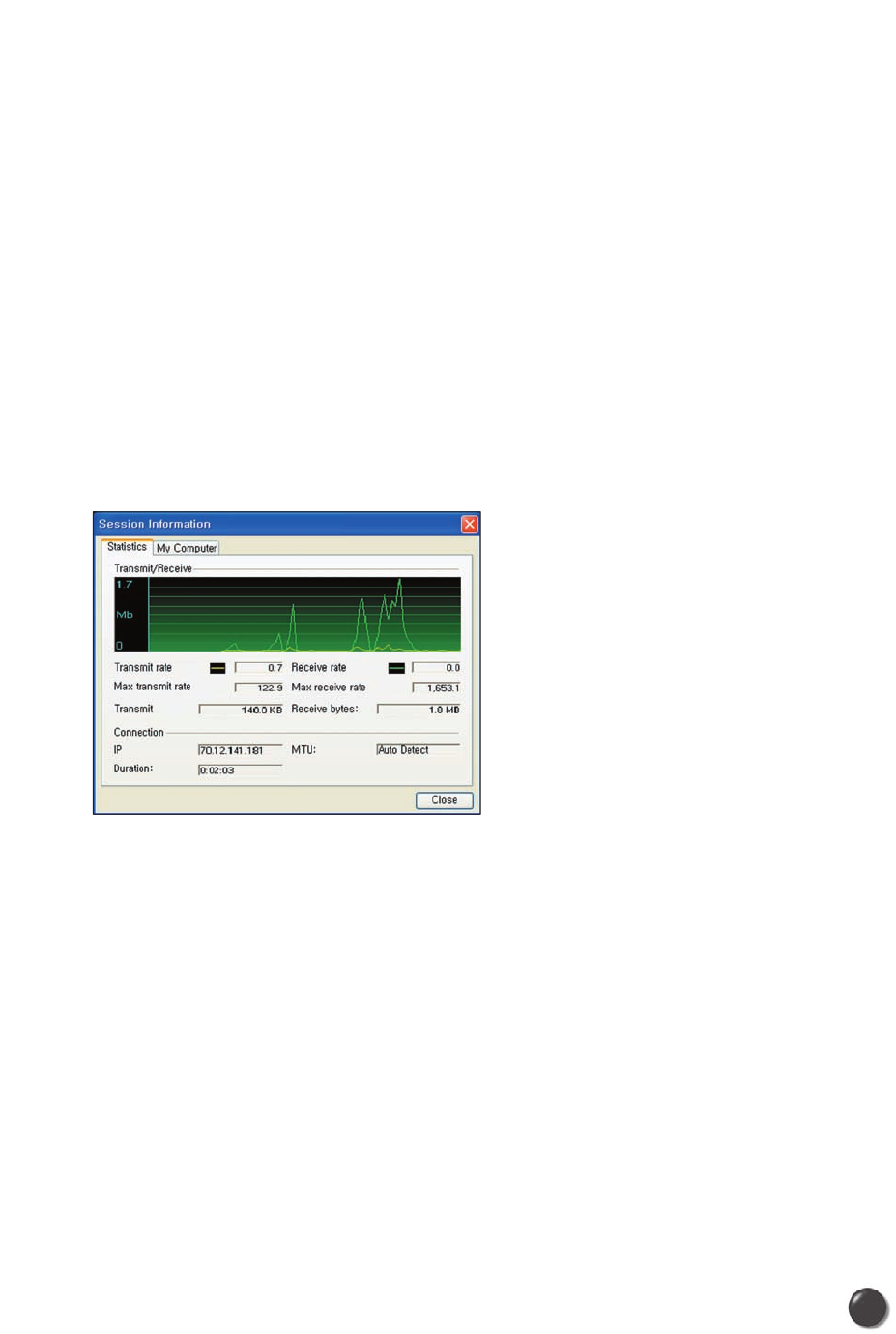

At any time during your connection you can check your current connection speed
and throughput stats in the Statistics tab of the Session Information window.
To see this window, select “Statistics” from the “Session” menu.
The Session Information window will also contain a My Computer tab if applicable.
The My Computer tab contains detailed information about your computer.
This information is helpful when troubleshooting a problem.
When using the “Data” connection:
By default Quicklink Mobile enables the software for the Data connections.
If your connection fails when you try to connect, with QuickLink Mobile returning to
its idle state, you should try to connect again. If you feel you may have incorrectly
entered your wireless telephone number during initial setup, select “Tools”, then
“Run Wizard”.
11
10
![](/img.php?id=907658&img=bgd.png)
Dormancy:
The data session becomes dormant if you are not sending or receiving any data.
As soon as you resume sending or receiving data, the data session will return to
an active state.
Depending on your device and service plan, your data session may disconnect
during a dormant state.
3.4 SMS Messaging
QuickLink Mobile supports SMS Messaging for certain wireless devices only.
Receiving SMS Messages

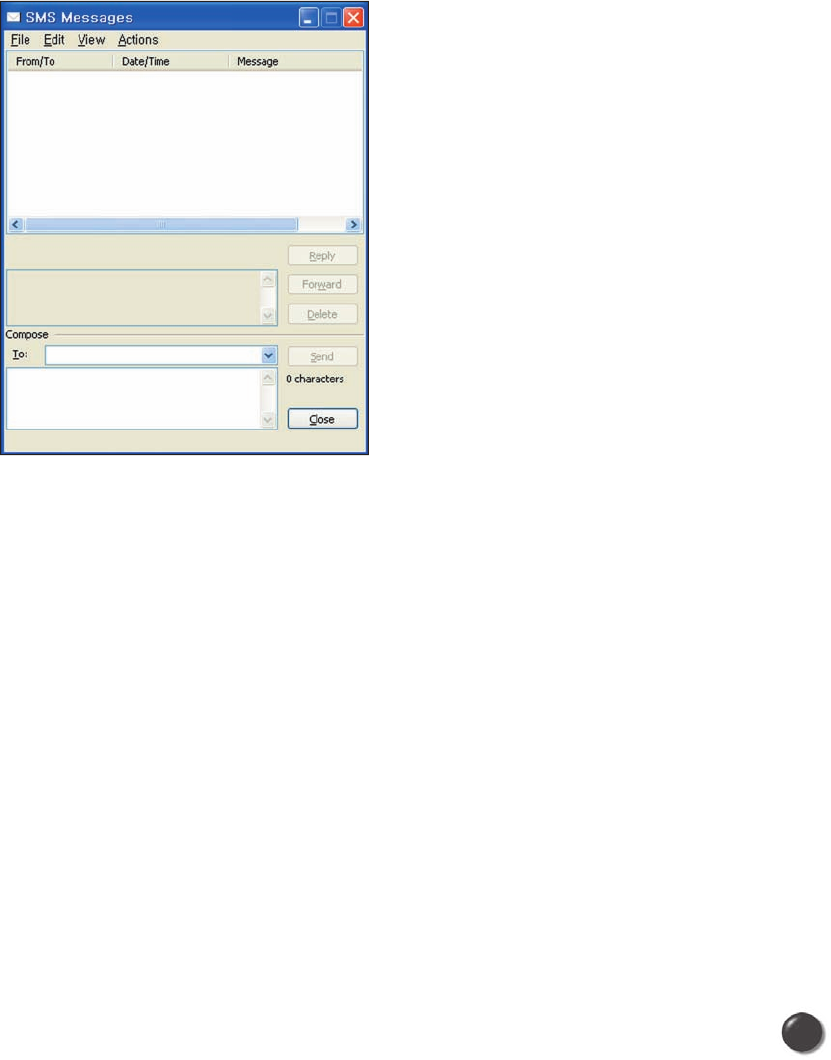

• All of your SMS messages will appear in the list box at the top of the SMS
messaging view. By default, all sent and received messages will appear.
• To view only certain messages, click on the “View” toolbar button and select
“Received Messages,” “Sent Messages” or “All Messages.”
• If you are in the SMS Messaging view and a new message arrives, the
message will automatically appear in the list formatted in bold.
• To view a long SMS message, select the message in the list view. The details
of the message will appear below the list.
• If you are not in the SMS Messaging view and a new message arrives, a
SMS icon will appear in the status bar showing that new messages are
available. There is also a SMS preference option that can automatically
switch QuickLink Mobile to the SMS view when new messages arrive. By
default, this feature is turned off.
• To reply to an inbound message, select the message and press the “Reply”
button. The phone number of the sender will be populated in the send area
below. Enter your new message and press the “Send” button to send the
message.
11
10
![](/img.php?id=907658&img=bge.png)
• To forward an inbound message, select the message and press “Forward”
button. The message will be populated in the send area below prefixed with a
“FW:.” Press the “Send” button to send the message.
• To resend a sent message, select the message and press the “Resend”
button. The phone number and message will be populated in the send area
below. Press the “Send” button to send the message again.
Sending SMS Messages
• While using the UM100, to send a text message to:
— A US-based wireless number, enter: +, 1, then the wireless number.
— A wireless number outside the US, enter: +, 011, the country code, then
the wireless number.
• To send a SMS message to one or more subscribers, enter their 10-digit
mobile numbers separated by semi-colons in the “To...” field.
(Ex: 555-555-5555; 555-555-5556).
• With some devices that support SMS messaging contact lists, you may be
able to click on the “ ” button to open your contact list.
• The phone number and the message fields are required.
• The Character counter counts up from 0 to 160 and counts all of the
characters typed in the message field.
• Click the “Send” button.
13
12
![](/img.php?id=907658&img=bgf.png)
13
12
4. QUICKLINK MOBILE PREFERENCES
4.1 General Preferences
Options Tab
Click on “Options”, then “Preferences”.
Minimize application into tray: When you minimize the application it will now appear
in the Windows task bar. To restore the application click on QuickLink Mobile tray icon,
and select “Show Application”.
Show popup status windows by tray: Displays small popup sliding windows in
the lower right corner of the screen when connections are made, and when network
connections are lost.
Run QuickLink Mobile at Startup: Automatically launches QuickLink Mobile
whenever you start your computer.
Updates Tab
![](/img.php?id=907658&img=bg10.png)
14
This feature allows QuickLink Mobile to automatically check for software updates.
If an update is available, you will be notified of its size and approximate download
times.
You will be given the choice to download or cancel. If you select download, a
display appears that shows the progress as the update is downloading with the
option to cancel if desired. You do not need to download the updates wirelessly;
you can use any connection to the Internet.
Note: If you download the updates wirelessly, normal usage charges apply.
You can allow the software to automatically check for updates, daily, weekly
(default), or monthly. It only checks when the application is running and when it
detects that you are connected and able to access the Internet. If desired, you
can select “Manually” and the software will only check for updates when you
select “Update Now” (pictured above), or when you select “Help”, then “Check for
Updates” from QuickLink Mobile’s main screen.
4.2 WWAN Specific Settings
WWAN Preferences
Click on “Options”, then “Preferences”.
WWAN Options
Set Options . . . : This is used to set various WWAN connection settings. See below.
Automatically Connect: If desired, you can select to have QuickLink Mobile
automatically connect at application startup.
![](/img.php?id=907658&img=bg11.png)
15
Connect Tab
When you select the “Set Options” button from the screen above, the following
options will appear (“Options”, “Preferences”, “WWAN tab”, “Set Options. . . “) :
Do not open my browser: With this option selected, when you connect to a WWAN
network, QuickLink Mobile will not automatically launch your default web browser.
Open my browser to my default home page: With this option selected, when you
connect to a WWAN network, QuickLink Mobile will automatically launch your default
web browser and your home page will load.
Open my browser to this URL: With this option selected, when you connect to a
WWAN network, QuickLink Mobile will automatically launch your default web browser
but do it in such a way that the URL you specify will load instead of your home page.
Turn off graphics: If you select this it will turn off graphics in Internet Explorer.
With these options off, web pages will load faster but you will have to right click and
select “show picture” to view any pictures.
Run program on connection: This allows automatically running a program when you
use QuickLink Mobile to connect to a WWAN network. Select the browse button, , to
browse to the desired application you want to run when you connect to a WWAN network
using QuickLink Mobile. The application will run for all WWAN connections made from
QuickLink Mobile.
![](/img.php?id=907658&img=bg12.png)

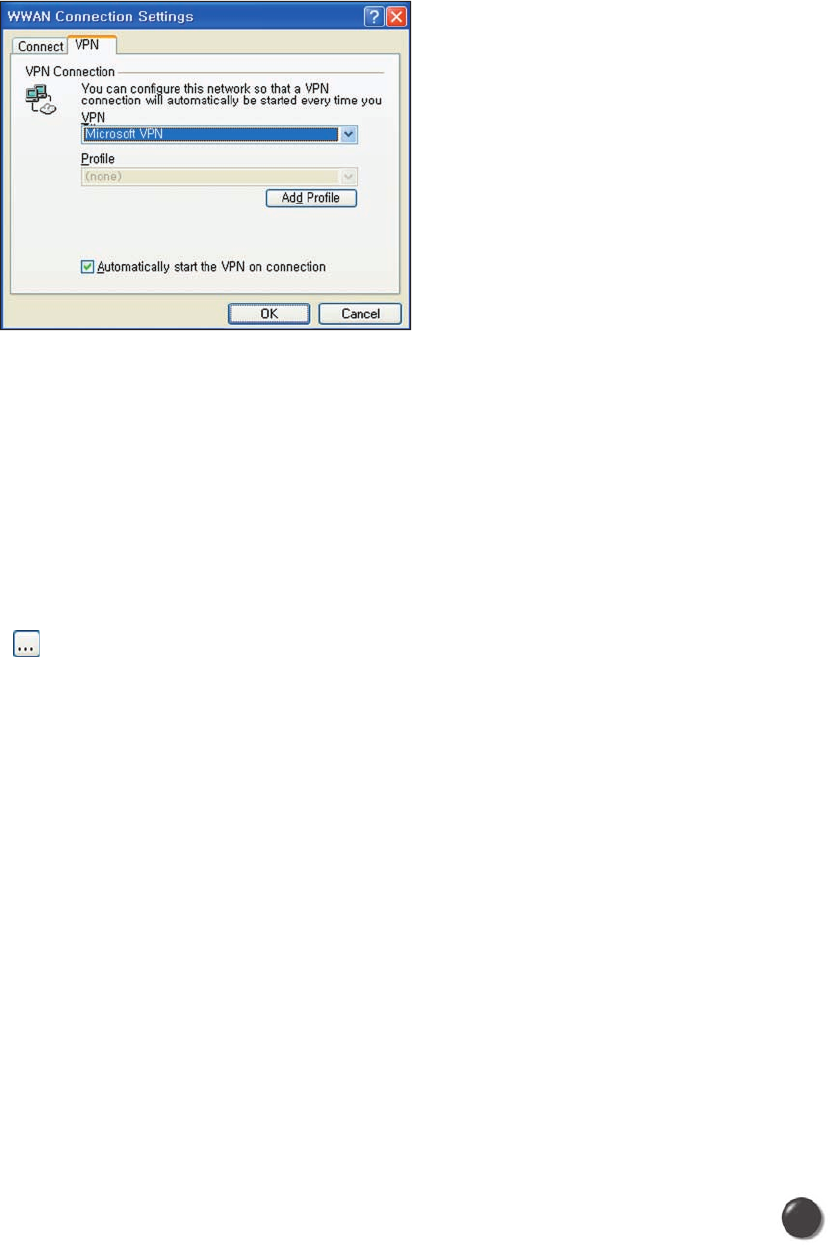

VPN Tab
The following options exist on the VPN tab (“Options”, “Preferences”, “WWAN” tab,
“Set Options. . . “, “VPN” tab) :
VPN Client: QuickLink Mobile automatically detects if certain VPN clients like
Microsoft, Cisco, CheckPoint, etc are installed on the computer and allows you to
select the one you wish to use. Check with your network administrator to setup your
VPN connection.
If the VPN client you wish to use does not appear in the list, you can select “Other
VPN Application”.
Other VPN Application: This allows running a VPN program when QuickLink Mobile
connects to a network. Enter the full path to an executable, or select the browse
button, , to find the path to the desired application.
16
![](/img.php?id=907658&img=bg13.png)
17
4.3 SMS Settings
SMS (Short Text Message Service) is a messaging application for your
wireless device which allows you to compose and send text messages to
other wireless phones and email accounts.

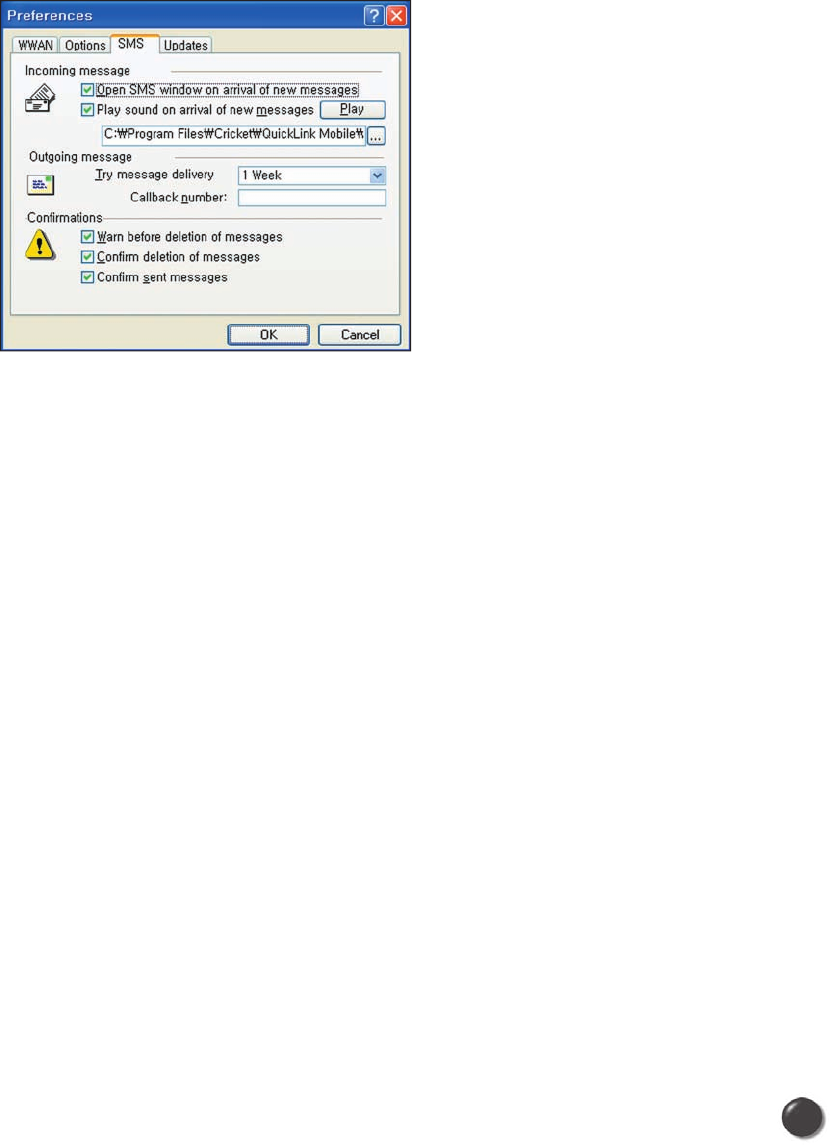

The SMS tab in the preferences dialog allows you to configure certain text
message delivery options. These options include:
Incoming Message Options
• Open SMS window on arrival of new message: Enable/disable automatic
opening of the SMS window on arrival of new text messages
• Play sound on arrival of new messages: Play a sound upon receipt of new
SMS messages
Outgoing Message Options
• Message delivery duration: Includes settings to automatically resend returned
or undelivered messages for a period of time. The default is a duration of 1
week.
Confirmations
The following confirmation dialogs can be turned on or off:
• Warn before deletion of messages.
• Confirm deletion of messages.
• Confirm sent messages.
![](/img.php?id=907658&img=bg14.png)
18
4.4 Additional Features
In addition to the basic features mentioned in previous sections, QuickLink Mobile
has the additional features listed below.
The Status Bar
The details of your current connection can be seen in the status bar at the bottom
of QuickLink Mobile interface. This status bar is always visible when the interface
is fully expanded.
You can see the service area as an icon appearing on the left bottom of the
QuickLink Mobile interface. You can be seen the 1X icon when you are in a 1X
coverage area, a DO icon when you are in EVDO Rev.0 coverage area, and a rA
icon when you are in EVDO Rev.A coverage.
Connection Status
The text on the status bar reflects your current state. During an active connection,
this text will change to “Connected”. If you are not connected, it will display “Not
Connected”.
WWAN USB Modem Status Area
The text can change to the following:
• Device not inserted: Your WWAN USB Modem is removed from the laptop.
• Device not activated: Your USB Modem needs to be activated. Select
“Activation” from the Tools menu.
Coverage
For USB Modems, an icon will display if you are in Broadband coverage.
Hover the mouse to see the tool tip showing the name of the current network.
Throughput
The amount of data that you have sent and received since the current network
connection was initiated can be seen by holding the mouse over the green up and
down arrows on the left side of the status bar.
Elapsed Time
The amount of time that has elapsed since the current network connection was
initiated is tracked on the lower left side of the status bar.
![](/img.php?id=907658&img=bg15.png)
19
The Session Menu

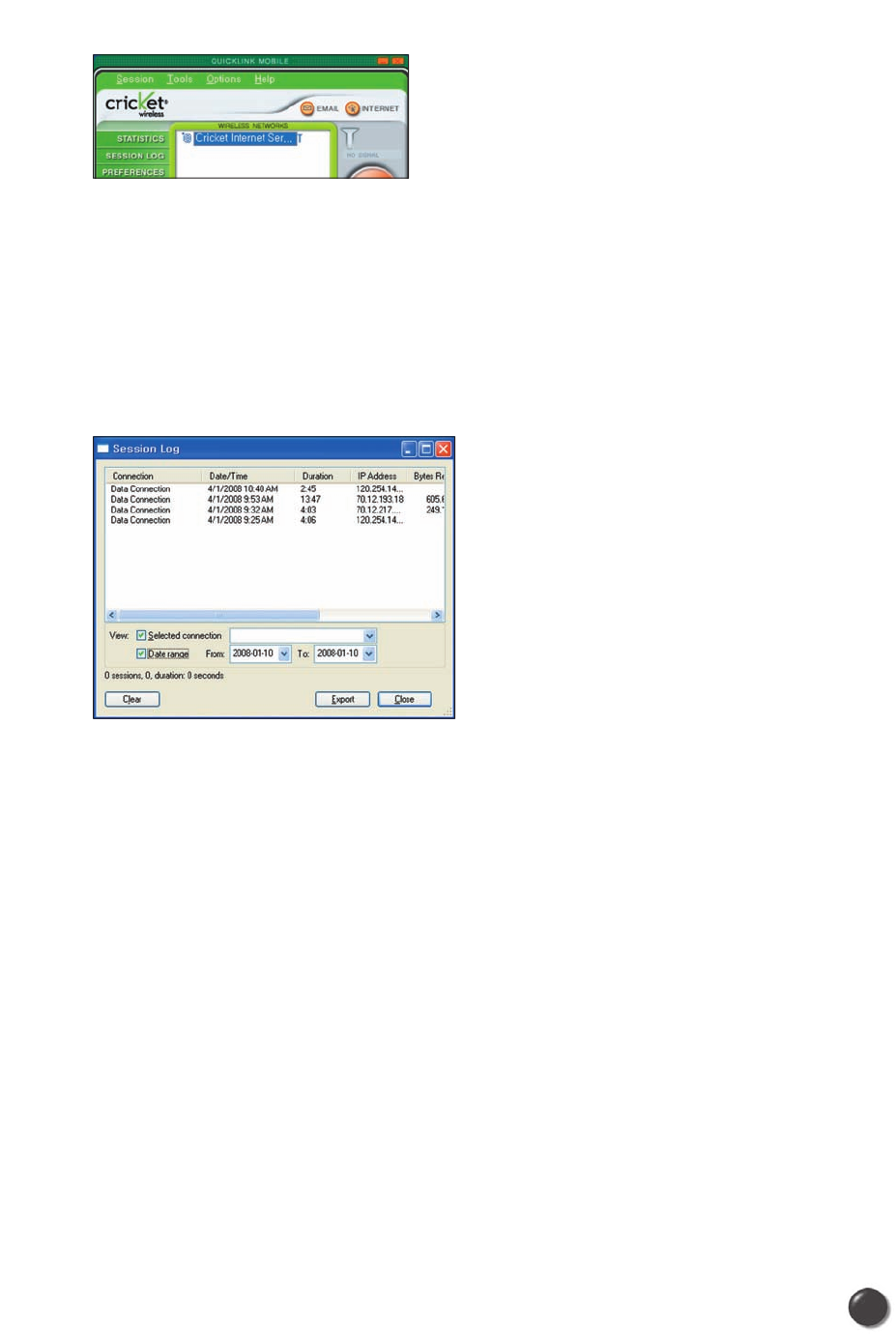

Connect / Disconnect: You can connect or disconnect the wireless networks.
Log: This provides a concise session log of your network activity. Click on a column
heading to sort the log. This window also displays the total number of sessions as well
as the total time connected.
The information displayed in the Usage log can be customized using the controls
that appear just below the list.
To view only the connection history of a specific network type, check the “Selected
connection” checkbox and select the desired type from the drop-down list. To
view only the connections made during a specific interval, check the “Date range”
checkbox and specify the date in the “From:” and “To:” fields.
To export this log as a CSV file, click the Export button that is immediately above
the log. To clear the log, press the Clear button. Note that clearing the log cannot
be undone.
Close: Exit the application.
![](/img.php?id=907658&img=bg16.png)
The Tools Menu
Test WWAN Device: Retrieve and display detailed information about your WWAN
device (1xEV-DO/1xRTT/CDMA USB Modem) such as manufacturer, model, version,
etc. This information can be valuable when troubleshooting a problem.
Run Wizard: Runs the Setup Wizard again. Useful if you need to reconfigure
QuickLink Mobile to use a new USB Modem.
Activation: Programs the activation code, phone number, and IMSI(MIN) to the
USB Modem.
Data Setup: Please contact the service provider for details.
21
20
![](/img.php?id=907658&img=bg17.png)
21
20
The Options Menu
Control Panels: From this menu you have access to your systems “Modem”, “Network
and Dial-Up Connections”, and “Internet” control panels. You can also see all control
panels by selecting “All”.
Preferences: This is used to select preferences for settings related with connection.
Please see WWAN Specific Settings for details.
Always on Top: When checked, QuickLink Mobile window displays in front of all other
open application windows, even if another window is placed over QuickLink Mobile
Software window.
The “Internet” button
Launches the default web browser on your computer.
The “Email” button
Launches the default email application on your computer.
The Help Menu
The Connection Manager has a Help section.
Please see the Help section for additional questions.
“Email” Button “Internet” Button
![](/img.php?id=907658&img=bg18.png)
5. INSTALLING UM100C
5.1 Precautions
1) Do not insert the UM100C before installing the software on the
computer. When you complete the software installation, the system
will prompt you to insert the UM100C into the USB port.
2) Once the card has been inserted into the PC, do not remove it from
your PC without first completing the unplugging/ejection process.
5.2 Recommended System Requirements
To successfully install and use the UM100C USB device in your PC, the following
system specifications are required.
* The UM100C is useful for Pocket PCs that include a USB port. Voice service is
not supported.
23
22
Required Specification
Item
Operating system
Port
Processor
Disk drive
Memory
Disk space
Dial-up networking
Type A USB port
150MHz or faster
CD-ROM
32 MB
14MB
DUN bound to TCP/IP
Windows® Vista / Windows® XP / Windows® 2000 /
Mac OSX 10.3.9 or higher.
![](/img.php?id=907658&img=bg19.png)
23
22
5.3 Installing Software
5.3.1 Warnings
• Make sure to complete the unplugging/ejection process before removing the
UM100C. If you remove the device improperly, the product may be damaged.
• Before inserting the UM100C into your PC’s USB port, remove the
Installation CD from the CD-ROM drive.
5.3.2 Notes
• If you have inserted the device properly, Windows will inform you of the new
hardware. Wait until Windows completes the “Found New Hardware” task. In
Windows 2000, several windows similar to “Found New Hardware” window
can appear and disappear automatically. In Windows XP, several tool tips
similar to the “Found New Hardware” function will appear and disappear in
the system tray automatically. In Windows Vista, several tool tips similar to
the “Installing device driver software” function will appear and disappear in the
system tray automatically. Once hardware detection is complete, you will be
prompted to start activation.
• It is normal to hear a short beep sound each time you insert or remove
the UM100C. It is an audible notification that your PC recognizes the new
hardware.
![](/img.php?id=907658&img=bg1a.png)
5.3.3 Using the Device

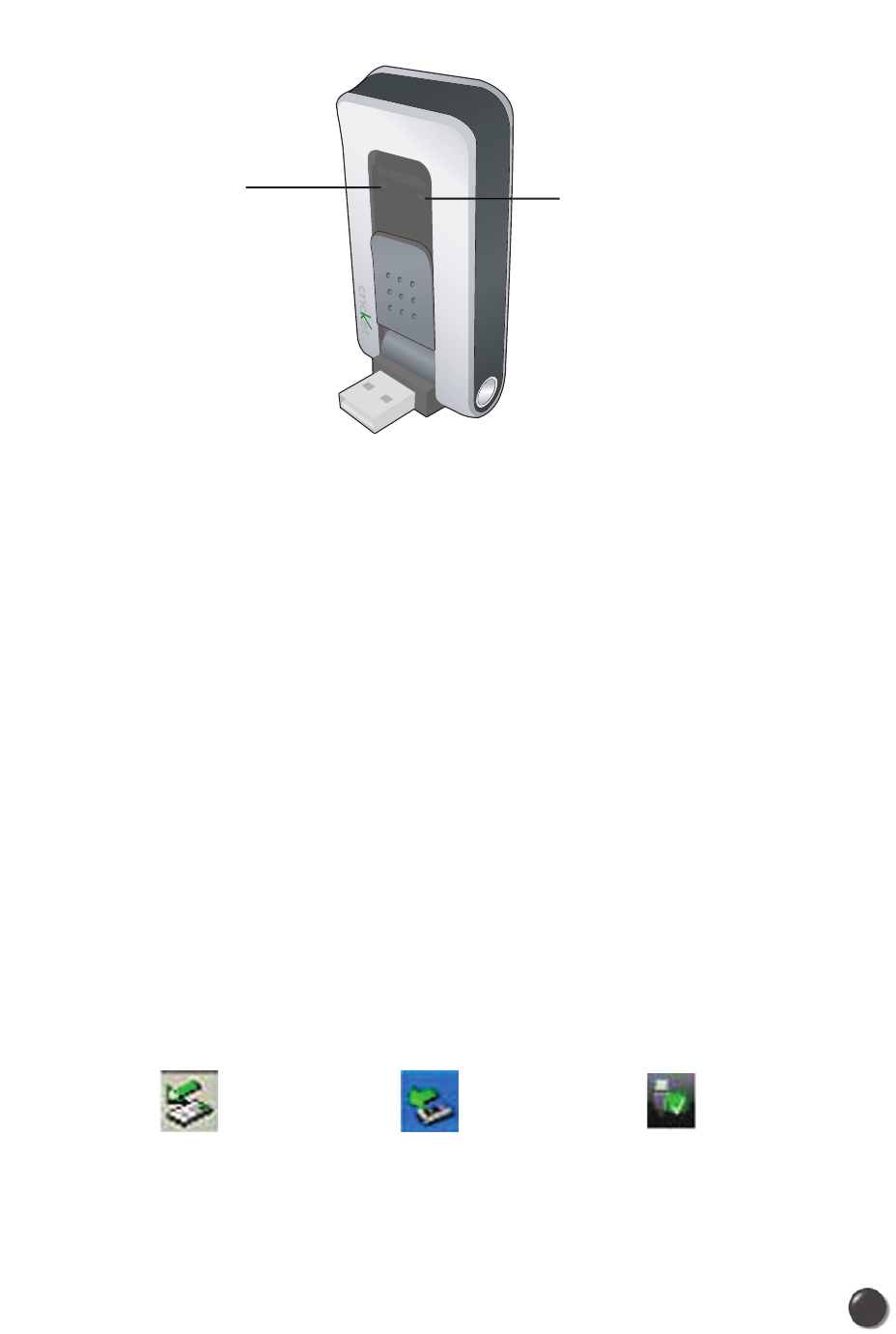

Power statue LED
• Green: Power OK.
• Red: Not enough power. If you see Red on the power status LED it is
recommend that you use the USB modem extension Y cable.
Signal strength indicator
• 0~4: weak or no signal strength, 4: high signal strength.
Note: Make sure to complete the unplugging/ejection process before
removing the UM100C. If you remove the device improperly, the product may
be damaged.
25
24
5.3.4 Unplugging or Ejecting the Card
• Make sure to complete the unplug/eject process on your computer before
removing the UM100C from your PC. If you remove the USB device
improperly, the product may be damaged.

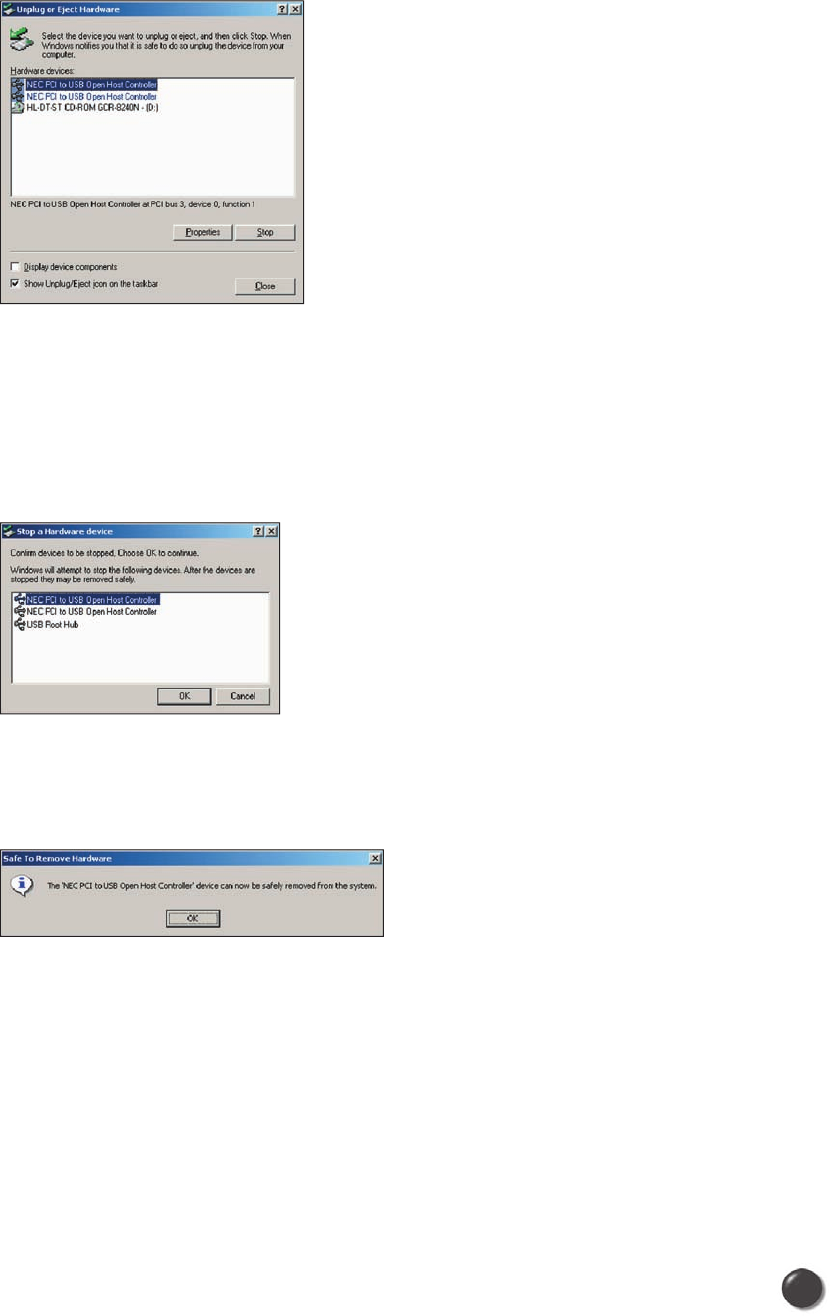

• Double click the Unplug/Eject Hardware icon in the system tray.
Windows 2000 Windows XP Windows Vista
Power status
LED Signal strength
indicator
![](/img.php?id=907658&img=bg1b.png)
25
24

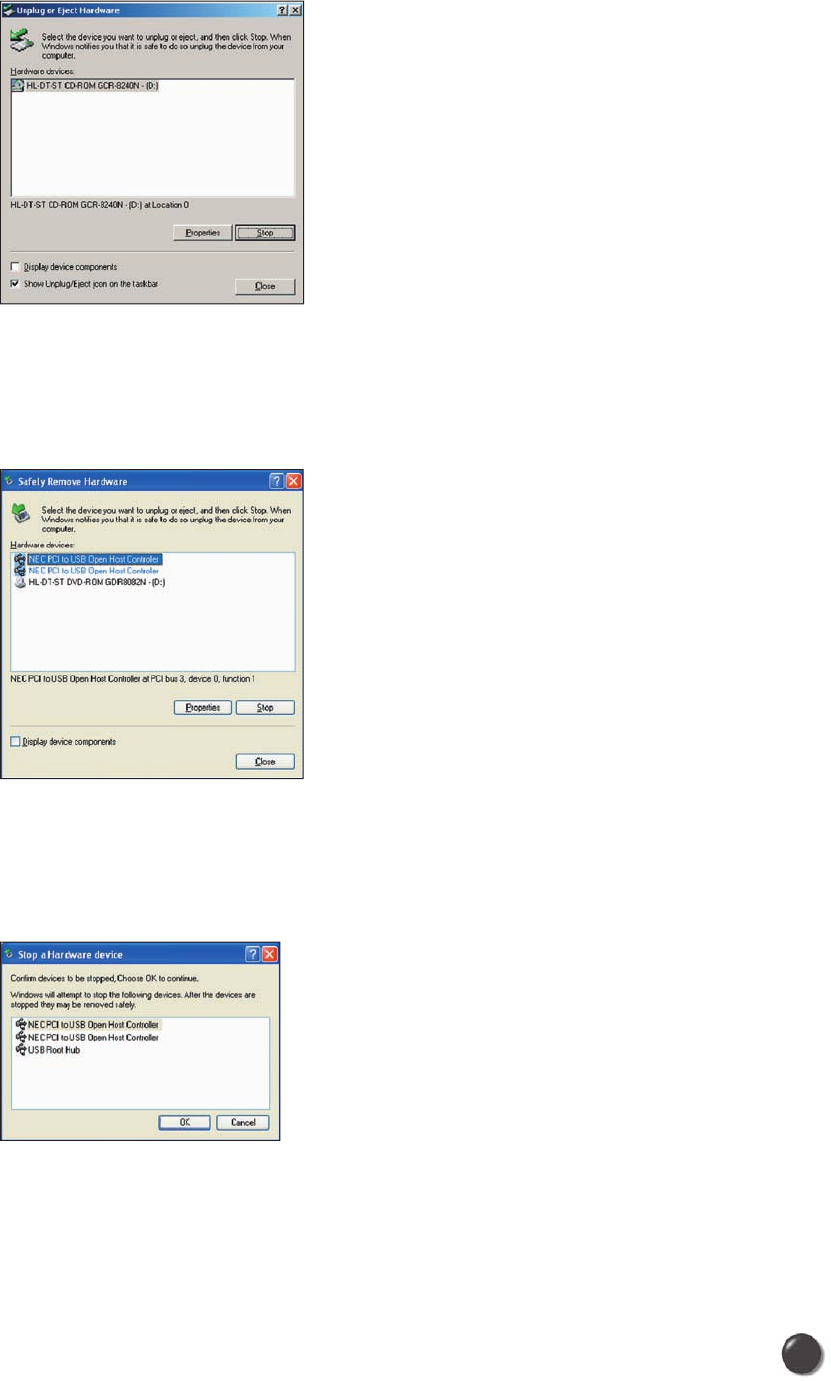

1) Unplug or Eject Hardware with Windows 2000
• As shown in the above figure, two “NEC PCI to USB Open Host Controller”
options will be displayed in the Hardware devices list of Win2000. However,
one of them is disabled and marked with “V”.
Select the device with no “V” mark. If you select it and click the “Stop” button,
the following window will appear:
• Select either of the “NEC PCI to USB Open Host Controller” and click the
[OK] button.
• The dialog box above will appear. Click the [OK] button.
![](/img.php?id=907658&img=bg1c.png)
27
26
• Then, the above window will appear. It is now safe to unplug the UM100C.

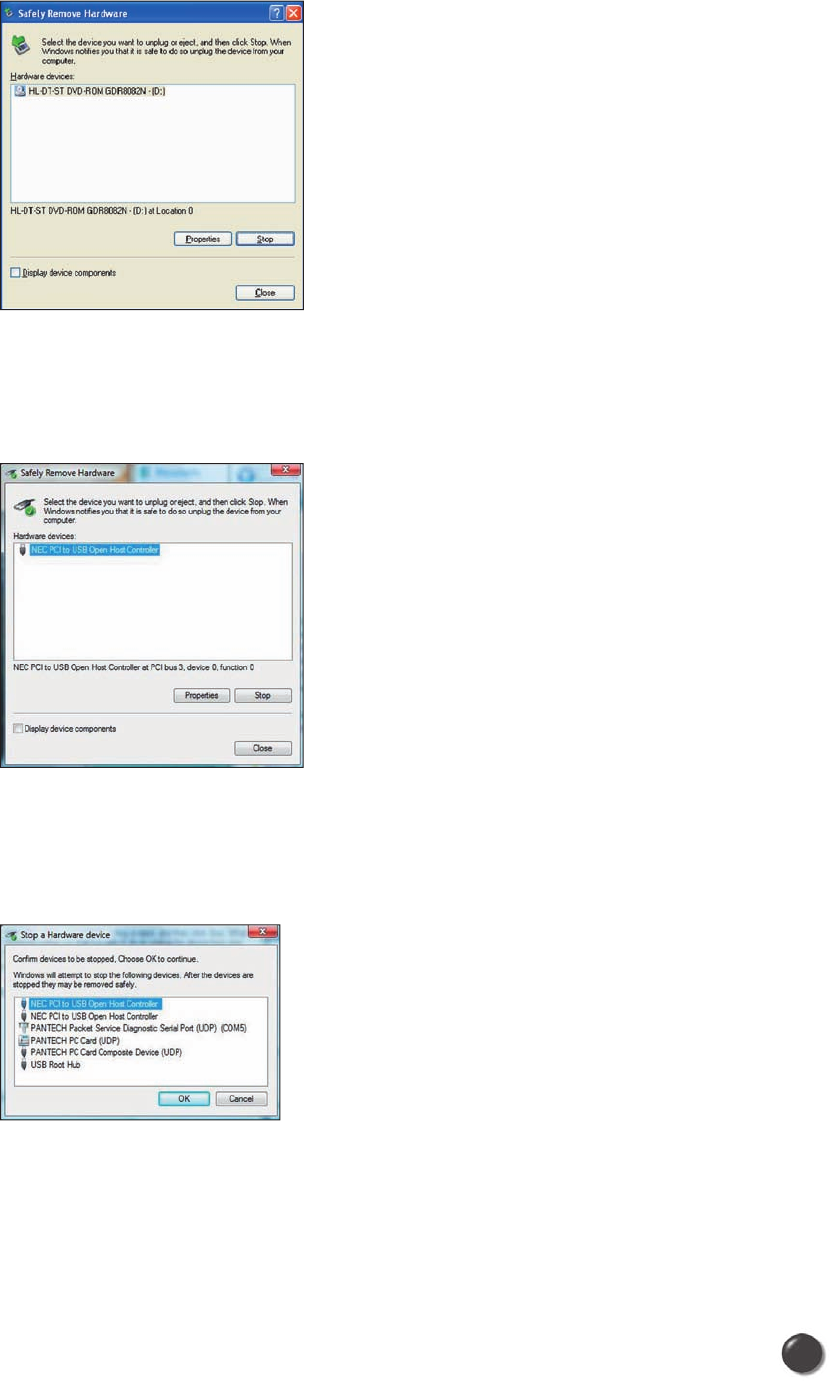

2) Unplug or Eject Hardware with Windows XP
• As shown above, only one “NEC PCI to USB Open Host Controller” option
will be displayed in Windows XP.
Select “NEC PCI to USB Open Host Controller” and click the “Stop” button.
• Then, two “NEC PCI to USB Open Host Controller” options will be displayed.
Select either one of them and click the [OK] button.
![](/img.php?id=907658&img=bg1d.png)
27
26
• Click the [Close] button. It is now safe to unplug the UM100C.
3) Unplug or Eject Hardware with Windows Vista
• As shown above, only one “NEC PCI to USB Open Host Controller” option
will be displayed in Windows Vista.
Select “NEC PCI to USB Open Host Controller” and click the “Stop” button.
• Then, two “NEC PCI to USB Open Host Controller” options will be displayed.
Select one of them and click the [OK] button.
![](/img.php?id=907658&img=bg1e.png)
29
28
• Click the [Close] button. It is now safe to unplug the UM100C.
5.3.5 Remove the UM100C from your laptop
• Remove the UM100C from your laptop. When removing the UM100C,
always grip the top and bottom of the modem and push/pull carefully.
A
B
#1
#2
![](/img.php?id=907658&img=bg1f.png)
29
28
5.3.6 Using the USB Modem Extension Y Cable
• The UM100C Modem package includes an extension USB Y-shaped cable.
Although the Y cable is not required for use with your UM100C Modem,
it offers increased performance for your UM100C Modem under certain
operating conditions. Simply insert the USB connector into the USB port of
your computing device to deliver power boost, increased RF performance,
and to solve clearance issues.
Using the USB Modem Extension Y Cable:
1) Plug the single end of the Y-shaped cable into the UM100C Modem. [A]
2) Depending on the condition you are trying to solve (power boost, increased
RF performance, or clearance issues), plug either one of the two connected
ends of the USB modem extension Y cable into the Type A USB port(s) on your
computer. [B]
Note: The USB modem extension Y cable connector labeled #1, is the primary
data power cable used to either extend the UM100C modem away from your
computer allowing you to locate the modem in a more optimum signal location
or solve any computer USB port clearance issues. The USB modem extension
Y cable connector labeled #2, is a power boost Y cable and must be used with
connector #1 to provide the modem up to 1Amp of current for use in weaker signal
areas.
3) The device is connected to and powered by the computer as soon as the USB Y
cable is plugged properly into the appropriate Type A USB port(s).
4) Click Connect.
A
B
#1
#2
![](/img.php?id=907658&img=bg20.png)
6. REGULATORY AND SAFETY INFORMATION
6.1 Regulatory Notices
UM100C complies with Parts 15, 22, and 24 of the FCC rules. It has been
tested with the typical personal computer with a USB port. This USB device
must not be co-located or operated in conjunction with any other antenna
or transmitter. If you use this USB device in any other configuration, the
FCC RF Exposure compliance limit can be exceeded.
6.2 Operating Conditions
1) This device may not cause harmful interference, and this device must
accept any interference received, including interference that may cause
undesirable operations.
2) The manufacturer stipulates that the antenna should be more than 1.5
cm (0.60”) from by-standers and 1.0cm (0.39”) from the user.
6.3 Warnings and Cautions
1) Modifying or changing this USB device without express authorization
can nullify compliance with RF exposure guidelines.
2) This USB device has been tested and found to comply with the limits
pursuant to Part 15, 22, and 24 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference
when appropriately installed. This USB device generates, uses, and
can radiate radio frequency and, if not installed and used according to
the instructions provided, it may cause harmful interference to radio
communication. However, there is no guarantee that interference will not
occur in any particular installation.
31
30
![](/img.php?id=907658&img=bg21.png)
31
30
3) If this USB device does cause harmful interference with radio or
television signals (determine this by turning the USB device off and on),
attempt to correct the interference by trying one or more of the following:
• Reorient or relocate the antenna.
• Increase the separation between the USB device and receiver.
• Connect the USB device into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
4) This USB device does not exceed the Class B limits for radio noise
emissions from digital apparatus as set out in the interference causing
equipment standard entitled “Digital Apparatus”, ICES-003 of the
Department of Communications.
5) If you have purchased this product under a United States Government
contract, it shall be subject to restrictions as set forth in subparagraph
(C)(1)(ii) of Defense Federal Acquisitions Regulations (DFARs) Section
252.227-7013 for Department of Defense contracts, and as set forth in
Federal Acquisitions Regulations (FARs) Section 52.227-19 for civilian
agency contracts or any successor regulations. If further government
regulations apply, it is your responsibility to ensure compliance with such
regulations.
6.4 Safety Precautions
1) Data transmission and reception cannot be guaranteed because of the
nature of wireless communications. Data can be delayed, corrupted
or lost during transmission. Even though it is quite rare that significant
data delay or loss occurs if the USB device is used in a normal manner,
this USB device should not be used in cases that data transmission
or reception failure could result in damage of any kind to the user or
another party, including but not limited to personal injury, death or loss
of personal property. UTStarcom bears no responsibility for damages or
losses of any kind resulting from delays or errors in data transmission
using the USB device, or for failure of the USB device to transmit or
receive such data.
![](/img.php?id=907658&img=bg22.png)
2) Do not use this USB device in areas where blasting is in progress,
where explosive atmospheres may be present, near medical equipment,
life support equipment, or any equipment which may be susceptible to
any form of radio interference. Turn off this USB device in these areas,
since it can transmit signals that could interfere with this equipment.
3) Do not use this USB device in any aircraft whether the aircraft is on
the ground or in flight. Make sure to turn off this USB device in aircraft.
If used in an aircraft, it can transmit signals that could interfere with
various aircraft systems.
4) Do not use this USB device while driving a car, since it can distract
driver’s driving. In some area, using the communication device while
driving a car is illegal.
* WARNING: This product contains a chemical known to the State of
California to cause cancer.
* WARNING: This product contains a chemical known to the State of
California to cause birth defects or other reproductive harm.
32
![](/img.php?id=907658&img=bg23.png)
16
UM150 User’s Manual 16
UM150 User’s Manual
5. SPECIFIC ABSORPTION RATES (SAR)
Maximum: 0.579 W/kg CDMA835 BODY SAR
1.24 W/kg AWS1700 BODY SAR/ 1.04 W/kg PCS1900 BODY SAR
THIS MODEL PHONE MEETS THE GOVERNMENT’S REQUIREMENTS
FOR EXPOSURE TO RADIO WAVES.
Your wireless phone is a radio transmitter and receiver. It is designed and
manufactured not to exceed the emission limits for exposure to radiofrequency (RF)
energy set by the Federal Communications Commission of the U.S. Government.
These limits are part of comprehensive guidelines and establish permitted levels
of RF energy for the general population. The guidelines are based on standards
that were developed by independent scientific organizations through periodic and
thorough evaluation of scientific studies. The standards include a substantial safety
margin designed to assure the safety of all persons, regardless of age and health. The
exposure standard for wireless mobile phones employs a unit of measurement known
as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. *
Tests for SAR are conducted with the phone transmitting at its highest certified power
level in all tested frequency bands. Although the SAR is determined at the highest
certified power level, the actual SAR level of the phone while operating can be well
below the maximum value. This is because the phone is designed to operate at
multiple power levels so as to use only the power required to reach the network. In
general, the closer you are to a wireless base station antenna, the lower the power
output. Before a phone model is available for sale to the public, it must be tested and
certified to the FCC that it does not exceed the limit established by the government
adopted requirement for safe exposure. The tests are performed in positions and
locations (e.g., at the ear and worn on the body) as required by the FCC for each
model. The highest SAR value for this model phone when tested for use at the
when worn on the body , as described in this user guide, is 1.24 W/Kg. (Body-worn
measurements differ among phone models, depending upon available accessories
and FCC requirements). While there may be differences between the SAR levels of
various phones and at various positions, they all meet the government requirement for
safe exposure. The FCC has granted an Equipment Authorization for this model phone
with all reported SAR levels evaluated as in compliance with the FCC RF exposure
guidelines. SAR information on this model phone is on file with the FCC and can be
found under the Display Grant section of http://www.fcc.gov/ oet/fccid after searching
on FCC ID: O6Y-UM100.
Additional information on Specific Absorption Rates (SAR) can be found on the
Cellular Telecommunications Industry Asso-ciation (CTIA) web-site at
http://www.wow-com.com.
* In the United States and Canada, the SAR limit for mobile phones used by the public is
1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a sub-
stantial margin of safety to give additional protection for the public and to account for any
variations in measurements.
![](/img.php?id=907658&img=bg24.png)
17
UM150 User’s Manual 17
UM150 User’s Manual
SAFETY INFORMATION FOR RF EXPOSURE
Body worn operation
This device was tested in multiple notebook computer configurations with USB
port configurations for typical near-body operations with the back of the USB
Modem kept 10mm from the body. To maintain compliance with FCC RF exposure
requirements it can be used in notebook computers with substantially similar physical
dimensions,construction, and electrical and RF characteristics,and that maintain a
minimum 10mm separation distance between the user’s body and the back of the USB
Modem, including the antenna. The antenna(s) used for this USB Modem must not be
co-located or must not operate in conjunction with any other antenna or transmitter
within a host device.
Safety Information
SAFETY INFORMATION FOR FIXED WIRELESS TERMINALS POTENTIALLY
EXPLOSIVE ATMOSPHERES
Turn your phone OFF when in any area with a potentially explosive atmosphere and
obey all signs and instructions. Sparks in such areas could cause an explosion or fire
resulting in bodily injury or even death.
INTERFERENCE TO MEDICAL DIVICES
Certain electronic equipment may be shielded against RF signal from you wireless
phone. (pacemakers, Hearing Aids, and so on) Turn your phone OFF in health c are
facilities when any regulations posted in these areas instruct you to do so. RF signals
may affect improperly installed or inadequately shielded electronic system in motor
vehicles.
EXPOSURE TO RF ENERGY
Use only the supplied or an approved replacement antenna. Do not touch the antenna
unnecessarily when the phone is in use. Do not move the antenna close to, or
couching any exposed part of the body when making a call.
FCC Compliance Information
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received.
Including interference that may cause undesired operation.
![](/img.php?id=907658&img=bg25.png)
U.S.A.
U.S.FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTERFERENCE STATEMENT
INFORMATION TO THE USER
NOTE : This equipment has been tested and found to comply with the limits for a Class
B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful Interference in a residential installation
This equipment generates, uses, and can radiate radio frequency energy and, if Not
installed and used in accordance with the instructions, may cause harmful Interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular Installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
*- Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
*- Connect the equipment into an outlet of a circuit different from that to which the
receiver is connected.
*- Consult the dealer or an experienced radio/TV technician for assistance.
Changes or modification not expressly approved by the party responsible for
Compliance could void the user’s authority to operate the equipment. Connecting
of peripherals requires the use of grounded shielded signal cables.
18
UM150 User’s Manual 18
UM150 User’s Manual
