UTStarcom Korea Technologies UTS-708J UTS-708J User Manual Manual
UTStarcom Korea Technologies Ltd. UTS-708J Manual
Manual
Personal Station (PS)
Model UTS-708J
INSTRUCTION MANUAL
i
This wireless hand phone has been tested and complies with the Federal
Communications Commission (FCC) RF exposure limits for general
population/uncontrolled exposure environment. In addition, it complies
with the following standards and guidelines:
- FCC 96-326, Guidelines for Evaluating the Environmental Effets of
Radio Frequency Radiation.
- FCC OET Bulletin 65 Edition 97-01 (1997) Supplement C, Evaluating
Compliance with FCC Guidelines for Human Exposure to Radio Frequency
Electromagnetic Fields.
- ANSI/IEEE C95.1-1992, IEEE Standard for Safety Levels with Respect
to Human Exposure to Radio Frequency Electromagnetic Fields, 3 KHz
to 300 GHz.
- ANSI/IEEE C95.3-1992, IEEE Recommended Practice for the
Measurement of Potentially Hazardous Electromagnetic Fields - RF and
Microwave.
●SAFETY INFORMATION
ii
BEFORE USING THIS
PRODUCT
EXPLANATION OF ALERT SYNBOLS
USED IN THIS MANUAL ..........2
FOR SAFE OPERATION-IT IS
IMPORTANT YOU READ THIS
....3
CAUTION OF USING ............... 10
FEATURES OF PERSONAL STATION
(PS) UTS-708J .................... 11
CHECK PACKAGE CONTENTS ...12
NAMES AND FUNCTIONS OF
COMPONENTS .................... 14
DISPLAY OWN PHONE NUMBER
AND NUMBER OF EACH
OPRATION MODE (F00).......... 16
SETTING FUNCTIONS............... 16
FUNCTOIN MENU LIST............. 18
BECOMING FAMILIAR WITH YOUR
PHONE .............................. 19
Liquid crystal display (LCD) ....... 19
Attaching the hand strap ......... 21
Using the antenna................... 21
Using the Earphone/Microphone
terminal ............................... 21
CHARGING THE BATTERY PACK ...
22
Loading and removing the battery
pack.................................... 22
Preparing the battery charger .. 23
Charging ............................... 24
Turning power on.................... 24
SETTING OPERATION MODES (F51)..
25
USE AS A PHS PHONE
BEFORE USING AS A PHS PHONE...
28
PLACING A CALL....................29
Placing/ending a call ............... 29
Using dial memo ..................... 31
Using redial key to place calls ... 32
Deleting individual memorized
numbers .............................. 33
Deleting all the content of redial,
call memory or dial memo ...... 34
RECEIVING A CALL .................35
OPERATIONS DURING CALLS ...37
Placing a call on hold ............... 37
Adjusting the receiver volume ... 37
Using the conversation memo
function (communication log) ....
38
Using the hands-free/speaker
function ............................... 39
Using the Flash function........... 40
CHARACTER INPUT METHOD ...41
Switching input character types
... 41
USING PHONE BOOK ............. 43
Registering a phone book entry ....
44
Registering numbers that are
stored in radial, call memory or
dial memo ............................ 48
Placing a call by search ........... 49
Placing a call using two touch
dialing ................................. 52
Placing a call using three touch
dialing ................................. 53
Correcting phone book entries .. 53
Changing the group name (F92)
.. 54
Deleting contents of phone book
individually ............................ 54
Deleting all entries in phone book
(F32)................................... 55
●CONTENTS
iii
USING THE ANSWER MESSAGE
FUNCTION.......................... 56
Answering message (F24)........ 56
Deleting and changing original
answering message (F24) ...... 57
Setting the answening message...
58
Canceling the answering message .....
59
Listening to and deleting messages ...
59
Deleting all the stored left
messages ............................ 60
Setting the response time from
receiving the incoming call to
answering (F25).................... 61
Taking a call when it is received in
answering message mode ...... 61
Setting answering message when
receiving an incoming call ....... 61
MORE EFFECTIVE USE
SETTING THE CLOCK AND ALARM ...
64
Setting the clock (F62) ............ 64
Setting the alarm and auto power
off (F09) .............................. 65
ADJUSTING THE SOUND .............
67
Selecting the ring-tone volume and
type .................................... 67
Selecting the incoming call
notification method (F11) ....... 67
Selecting the hold-tone (F14) .... 69
Setting and Canceling manner
mode .................................. 69
List of ring-tone melody numbers ...
70
USING THE VOICE RECORDER (VOICE
MEMO) FUNCTION ...................
72
LIST OF OPERATIONS THAT CAN BE
PERFORMED BY FUNCTION KEY ....
74
USING THE SCHEDULE
FUNCTION
USING THE SCHEDULE FUNCTION ..
76
Registering a schedule ............ 76
When the specified time arrives ..
78
Confirming or revising the registered
content of a schedule ............ 79
Deleting the registered content of
schedules individually ............. 80
Confirming or deleting old schedules
(6 or more weeks old) ..............
81
Deleting all the registered
schedules ............................ 82
OTHERS
USING THE 32KBPS HIGH SPEED
DATA TRANSFER SERVICE.........
84
Preparing for 32kbps high speed
data transfer ........................ 84
Sending data by 32kbps high speed
data transfer ........................ 85
Receiving data by 32kbps high
speed data transfer............... 86
USING MODEM FOR DATA/FAX
COMMUNICATION ....................
87
Setting modem communication
(F95)................................... 88
Performing modem communication ...
88
USING THE SHORT MESSAGE SERVICE ...
89
Making an original message
(Write Draft Text).................. 89
Insart the made message into the
original message ................... 90
Deleting the contents of original
message (Draft Text) individually..
90
iv
Deleting the all contents of original
message (Draft Text) ............. 91
Send the message .................. 91
Receive a message ................. 92
Read the received message...... 93
Deleting the received message . 94
SETTING OTHER FUNCTIONS... 95
Dial lock ................................ 95
Key lock ................................ 96
Phone book lock (F30) ............. 96
Caller number notification (F60) ...
97
Owner Name Record (F63) ...... 98
Back light (F65) ...................... 98
LCD contrast (F66) ................. 99
Any key answer (F67) .............. 99
Registering a password number
(F71)................................. 100
Set default values (F72) ......... 101
Key touch tone (F80)............. 102
Out of service area alarm (F81)...
102
Connecting (link) sound (F82)...
103
Hand-over tone(F83) ............. 103
USING PHONE AS A TRANSCEIVER ..
104
Things to check before using ...
104
Registering a transceiver group
(F55)................................. 104
Calling the other party ........... 105
Receiving a call..................... 106
APPENDIX
BEFORE ASSUMING IT'S BROKEN ..
108
MAINTENANCE ....................110
Maintenance ........................ 110
SPECIFICATIONS.................. 111
●CONTENTS (cont.)
1
BEFORE USING
THIS PRODUCT
●
EXPLANATION OF ALERT SYMBOLS USED IN THIS MANUAL
..P2
●
FOR SAFE OPERATION - IT IS IMPORTANT YOU READ THIS
..P3
●CAUTION OF USING ................... P10
●
FEATURES OF PERSONAL STATION (PS)
UTS-708J..P11

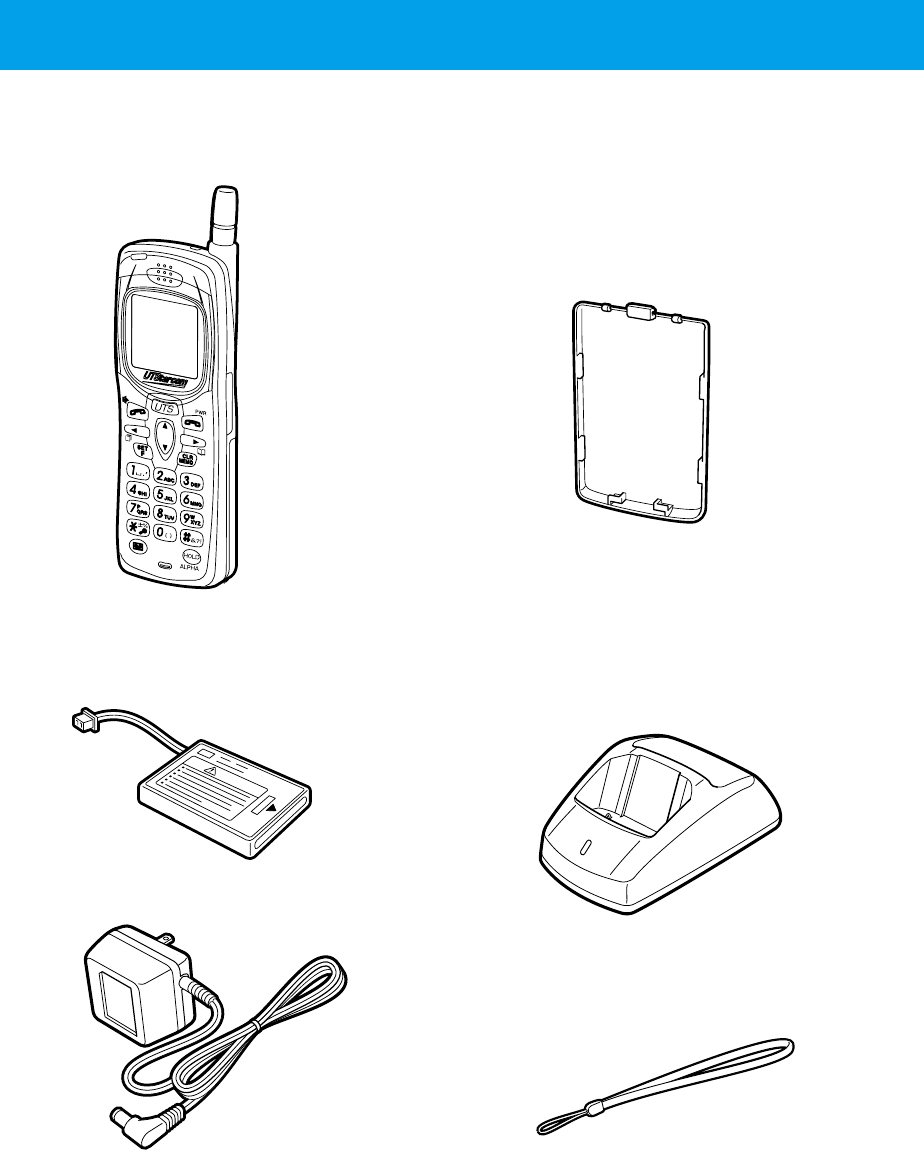

●CHECK PACKAGE CONTENTS ......P12
●
