Introduction
Introduction
Thank you for purchasing the Ubiquiti Networks® airFiber® 5 GHz
Carrier Backhaul Radio. This Quick Start Guide is designed to guide
you through the installation, show you how to access the airFiber
Configuration Interface, and explain how to set up an airFiber link.
This Quick Start Guide also includes the warranty terms, and is for
use with airFiber X, model AF-5X.

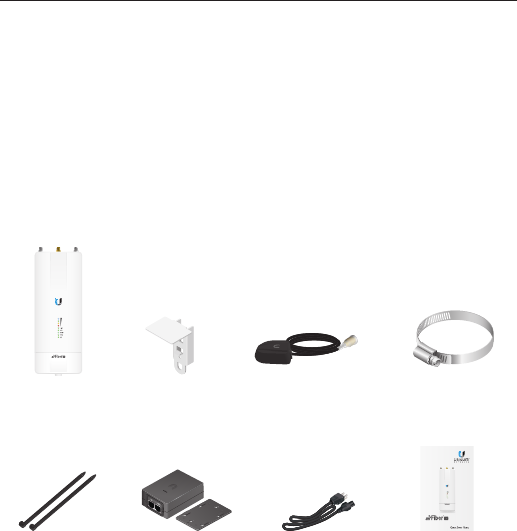

Package Contents
airFiber AF-5X GPS Antenna
Mount
External GPS Antenna Metal Strap
5 GHz Carrier
Backhaul Radio
Model: AF-5X
DATA
MGMT
GPS
LINK
DATA
MGMT
GPS
LINK
Cable Ties
(Qty. 2)
Gigabit PoE Adapter
with Mounting Bracket
(24V, 1A)
Power Cord Quick Start Guide
TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and
earth grounding must be used as conditions of product warranty. TOUGHCable™ is designed for
outdoor installations. It is the customer’s responsibility to follow local country regulations, including
operation within legal frequency channels, output power, and Dynamic Frequency Selection (DFS)
requirements.
2
airFiber® AF-5X Quick Start Guide

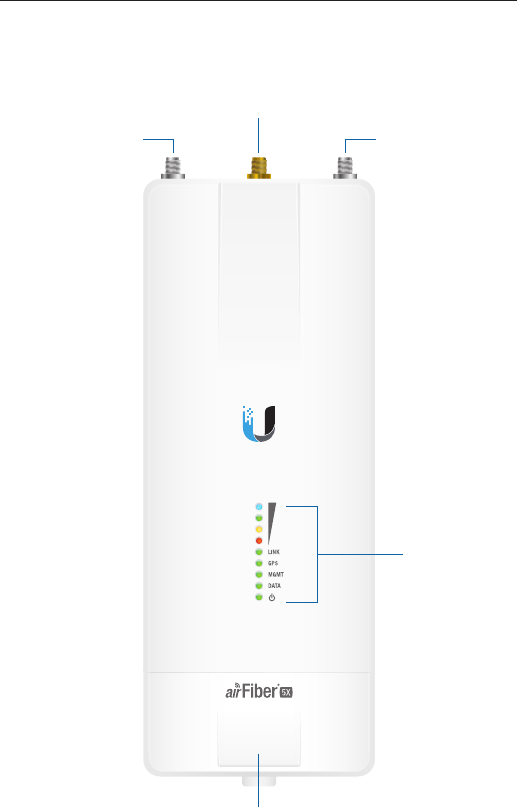

Hardware Overview
Port Cover
LED Panel
Connects to External
GPS Antenna
Chain 0: Connects to
+45° on
airFiber Antenna
Chain 1: Connects to
-45° on
airFiber Antenna
3
Hardware Overview

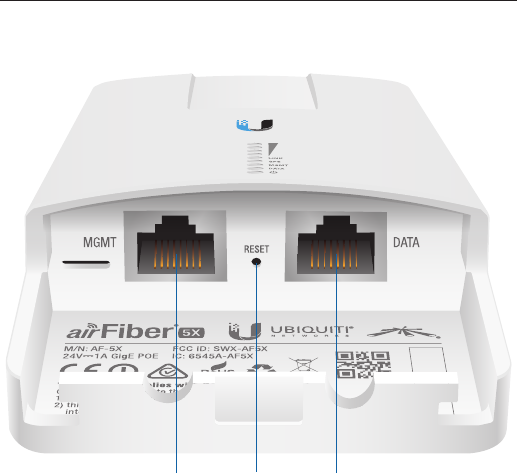

Ports
Reset
Button
Management
Port
Data
Port
Management Port 10/100 Mbps, secured Ethernet port for
configuration. In-Band Management is enabled by default in the
airFiber Configuration Interface. When In-Band Management
is disabled, the MGMT port is the only port that can monitor,
configure, and/or update firmware.
Reset Button To reset to factory defaults, press and hold the
Reset button for more than 10 seconds while the device is already
poweredon.
Data Port Gigabit PoE port for handling all user traffic and
powering the device.
4
airFiber® AF-5X Quick Start Guide
LEDs

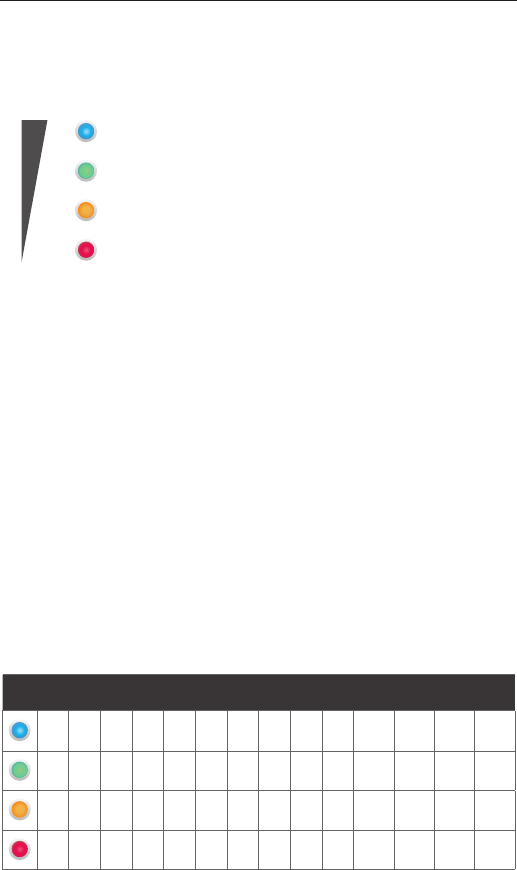

Signal LEDs
Signal 4 LED will light blue when on.
Signal 3 LED will light green when on.
Signal 2 LED will light yellow when on.
Signal 1 LED will light red when on.
Bootup to airOS When powering on, the Power, GPS, Link, and
Signal 1-4 LEDs light on. Once the CPU code takes over, the GPS,
Link, and Signal 1-3 LEDs turn off. Signal 4 LED remains on to
indicate the boot sequence is underway.
Initializing airFiber Software When the airFiber application
begins to boot under airOS, the Signal 4 LED goes from solidly
on to a 2.5 Hz flash. This continues until the airFiber AF-5X is fully
booted.
Signal Level Once fully booted, the Signal 1-4 LEDs act as a bar
graph showing how close the airFiber AF-5X is to ideal aiming. This
is auto-scaled based on the link range, the antenna gains, and the
configured TX power of the remote airFiber AF-5X. Each Signal
LED has three possible states: On, Flashing, and Off. All Signal LEDs
would be solidly on in an ideal link. If the link has a 1 dB loss, the
Signal4 LED will flash; a 2 dB loss and the Signal 4 LED will turn off.
The full bar graph LED states are shown below.
dB
loss 0 -1 -2 -3 -4 -5 -6 -7 -8 -9 -10 -11 -12 -13
1 F 0 0 0 0 0 0 0 0 0 0 0 0
1 1 1 F 0 0 0 0 0 0 0 0 0 0
1 1 1 1 1 F F 0 0 0 0 0 0 0
1111111111 F F F 0
0 = Off, 1 = On, F = Flashing
5
Hardware Overview
Additional LEDs
LED State Status
LINK
Off RF Off
Short Flash* Syncing
Normal Flash* Beaconing
Long Flash* Registering
On Operational
GPS
Off No GPS Synchronization
Normal Flash* Non-Operational (Weak Signal)
On Operational (Strong Signal)
MGMT
Off No Ethernet Link
On Ethernet Link Established
Random Flashing Ethernet Activity
DATA
Off No Ethernet Link
On Ethernet Link Established
Random Flashing Ethernet Activity
Off No Power
On Powered On
* Short Flash (1:3 on/off cycle)
Normal Flash (1:1 on/off cycle)
Long Flash (3:1 on/off cycle)
6
airFiber® AF-5X Quick Start Guide
Installation Requirements
The airFiber AF-5X radio operates only with an airFiber antenna or
a retrofitted RocketDish™ antenna.
Available airFiber antenna models:
• AF-5G23-S45
• AF-5G30-S45
• AF-5G34-S45
Available retrofit accessory for RocketDish (RD-5G30/RD-5G34):
• AF-5G-OMT-S45
Other Requirements
• Clear line of sight between airFiber radios
• Clear view of the sky for proper GPS operation
• Vertical mounting orientation
• Mounting point:
• At least 1 m below the highest point on the structure
• For tower installations, at least 3 m below the top of thetower
• Ground wires – min. 10 AWG (5 mm2) and max. length: 1m. Asa
safety precaution, ground the airFiber radio to grounded masts,
poles, towers, or grounding bars.
WARNING: Failure to properly ground your airFiber
radio will void your warranty.
• (Recommended) 2 Outdoor Gigabit PoE surge protectors
Note: For guidelines about grounding and lightning
protection, follow your local electrical regulatory codes.
• Outdoor, shielded Category 6 (or above) cabling and
shielded RJ-45 connectors are required for all wired Ethernet
connections.
7
Installation Overview
Installation Overview
We recommend that you configure your paired airFiber AF-
5X radios before site installation. Below is an overview of the
installation with specific details in the following instructions:
• Connect Power over Ethernet to the DATA port, and connect an
Ethernet cable between your computer and the MGMTport.
• Configure the device settings in the airFiber Configuration
Interface.
• Install a ground wire and mount the airFiber AF-5X to an airFiber
compatible antenna.
• At the installation site, install the dish antenna (see the
antenna's Quick Start Guide for installation instructions).
• Secure the ground wire and mount the GPS antenna.
• Establish and optimize the RF link.
Connecting Power over Ethernet

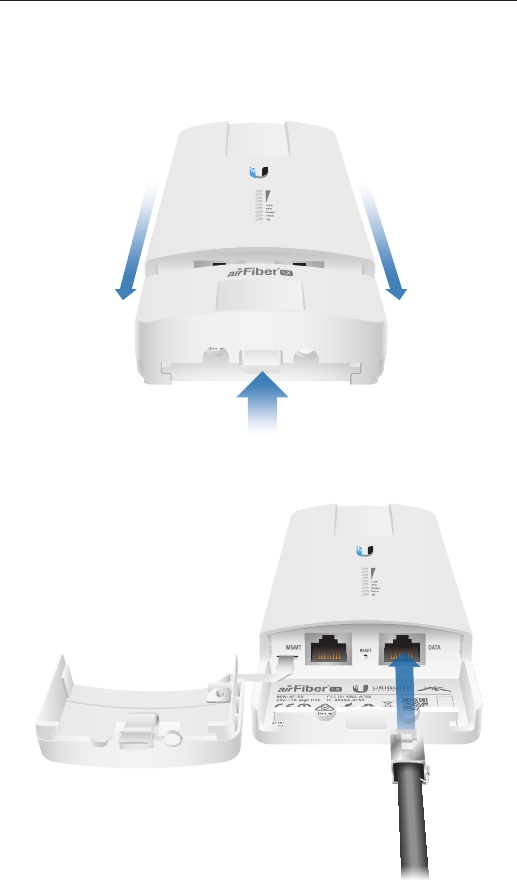

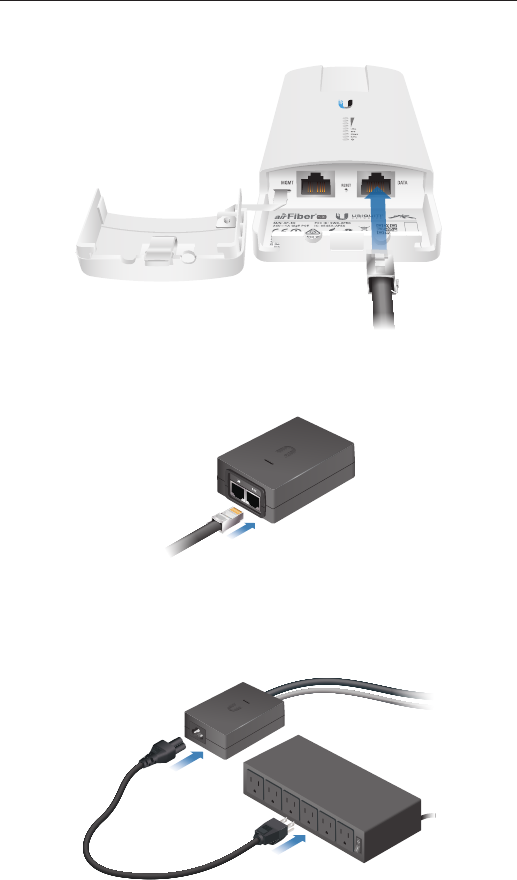

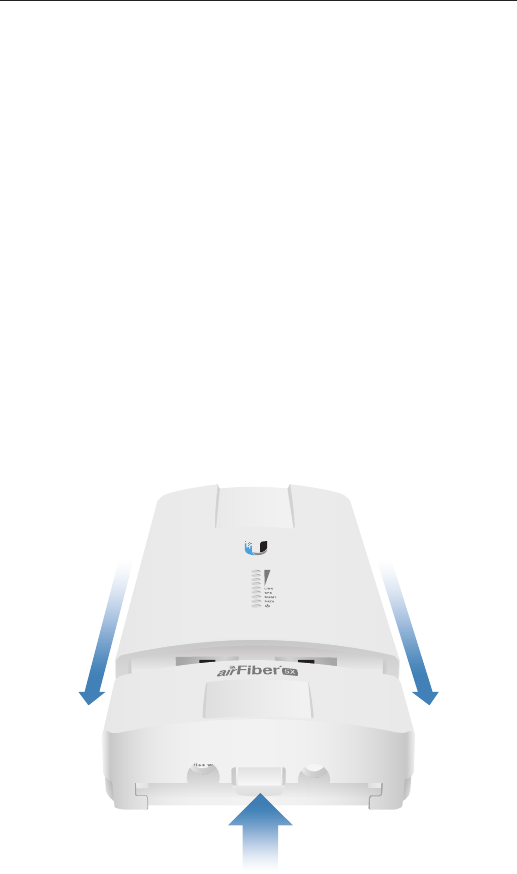

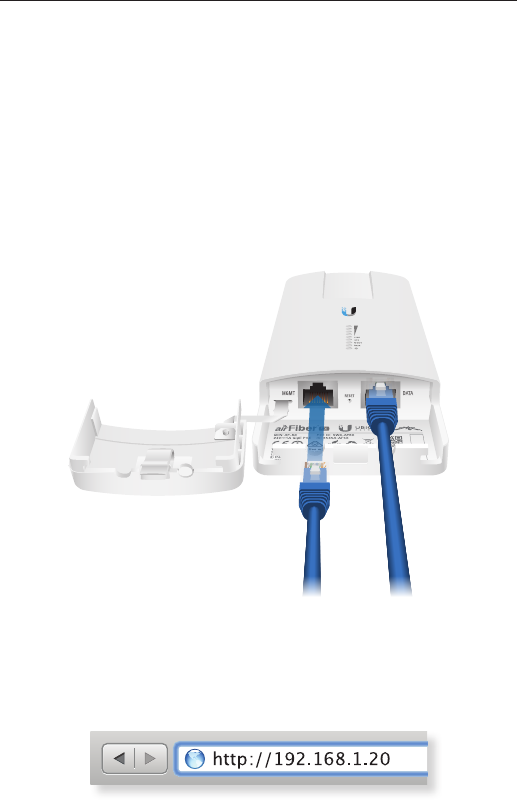

1. Lift the release latch on the bottom of the airFiber AF-5X and
slide the Port Cover off.
8
airFiber® AF-5X Quick Start Guide

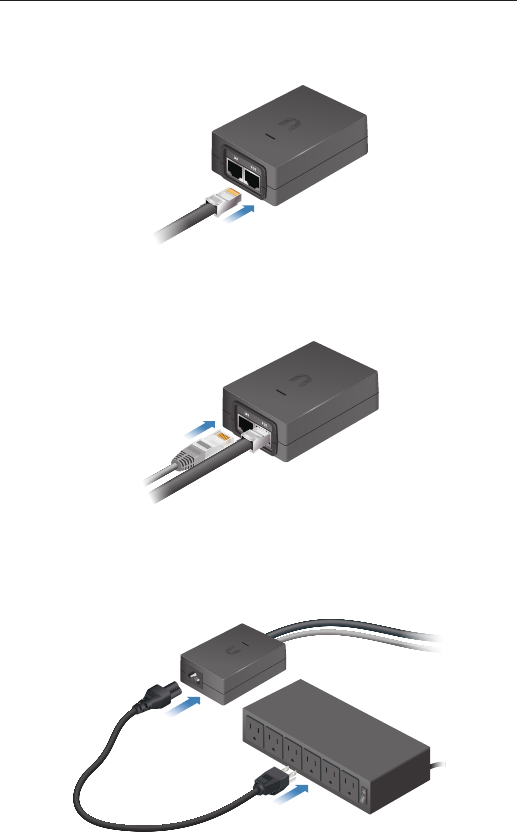

2. Connect an Ethernet cable to the DATA port.
3. Connect the Ethernet cable from the DATA port to the Ethernet
port labeled POE on the Gigabit PoE Adapter.
4. Connect the Power Cord to the power port on the Gigabit
PoE Adapter. Connect the other end of the Power Cord to a
powersource.
9
airFiber Configuration
airFiber Configuration
The instructions in this section explain how to access the airFiber
Configuration Interface and configure the following settings:
• Wireless Mode Configure one airFiber AF-5X as the Master and
the other as the Slave.
• Frequency Setting The operating Frequency must be the same
on both the Master and the Slave.
1. Connect an Ethernet cable from your computer to the MGMT
port on the airFiber AF-5X.
2. Configure the Ethernet adapter on your computer with a static
IP address on the 192.168.1.x subnet.
3. Launch your web browser. Type http://192.168.1.20 in the
address field and press enter (PC) or return (Mac).
10
airFiber® AF-5X Quick Start Guide

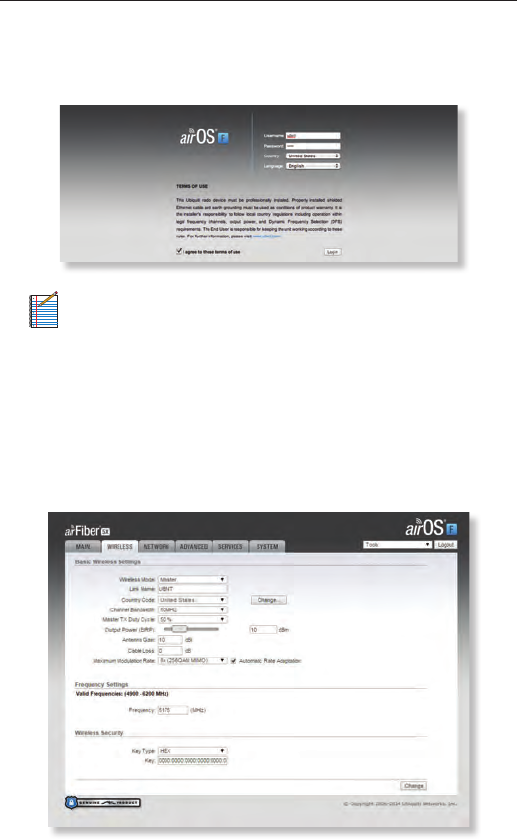

4. The login screen will appear. Enter ubnt in the Username and
Password fields. Select your Country and Language. You must
agree to the Terms of Use to use the product. Click Login.
Note: U.S. product versions are locked to the U.S. Country
Code to ensure compliance with FCC regulations.
5. The Main tab will appear. Click the Tools drop-down and
select Link Calculator. This tool will guide you on how to best
minimize bandwidth and power/interference issues.
6. Enter the requirements of your link, and then click Calculate.
Adjust the values as needed to get the optimal result, and then
write down the settings needed for your configuration.
7. Click the Wireless tab.
11
airFiber Configuration
8. Configure the Basic Wireless Settings:
a. For one airFiber AF-5X, select Master as the Wireless Mode.
For the other airFiber AF-5X, keep the default,Slave.
b. Enter a name in the Link Name field. This should be the
same on both the Master and the Slave.
c. If needed, change the Channel Bandwidth, (Master) Duty
Cycle, Output Power and/or Maximum Modulation Rate
settings.
9. Configure the Frequency Setting. The selected Frequency must
be the same on both airFiber radios.
10. Configure the Wireless Security:
a. Select the AES Key Type, HEX or ASCII.
b. For the Key field:
- HEX Enter 16 bytes (eight, 16-bit HEX values: 0-9, A-F, or
a-f). You can omit zeroes and use colons, similar to the
IPv6 format.
Note: The airFiber Configuration Interface supports
IPv6 formats excluding dotted quad and "::"
(double-colon) notation.
- ASCII Enter a combination of alphanumeric characters (0-9,
A-Z, or a-z).
11. Click Change and then click Apply.
12
airFiber® AF-5X Quick Start Guide
12. In-Band Management is enabled by default, so each airFiber
radio must have a unique IP Address. ( If the airFiber radios use
the same IP Address, then you may lose access to the airFiber
radios via the DATA ports.) Click the Network tab.
a. For the Management IP Address option:
- DHCP Keep the default, DHCP, to use DHCP reservation on
your router to assign a unique IP Address.
- Static Change the IP Address, Netmask, and other settings
to make them compatible with your network.
b. Click Change and then click Apply.
Repeat the instructions in the airFiber Configuration section on
your other airFiber AF-5X. After you have configured the airFiber
radios, disconnect them and move them to your installation site.
13
Hardware Installation
Hardware Installation
Install a Ground Wire

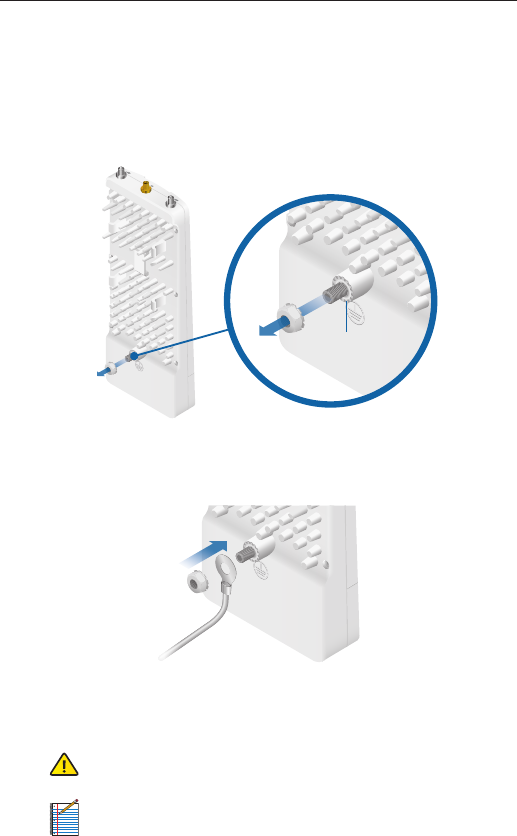

1. Remove the nut from the Ground Bonding Point located on the
back of the airFiber AF-5X.
Ground
Bonding
Point
2. Attach a ground wire (min. 8 AWG or 10 mm2) to the lug and
replace the nut to secure the wire.
3. At the installation site, secure the other end of the ground wire
to a grounded mast, pole, tower, or grounding bar.
WARNING: Failure to properly ground your
airFiberAF-5X will void your warranty.
Note: The ground wire should be as short as possible
and no longer than one meter in length.
14
airFiber® AF-5X Quick Start Guide
Mount to an Antenna
The airFiber AF-5X can be mounted to an airFiber antenna or a
retrofitted RocketDish. The airFiber Antenna (AF-5G30-S45) is
shown in the following steps:
1. Attach the airFiber AF-5X to the Mounting Bracket.
a. Align the mounting tabs on the back of the airFiber AF-5X
with the Mounting Bracket.
b. Slide the airFiber AF-5X down to lock it into place.
15
Hardware Installation

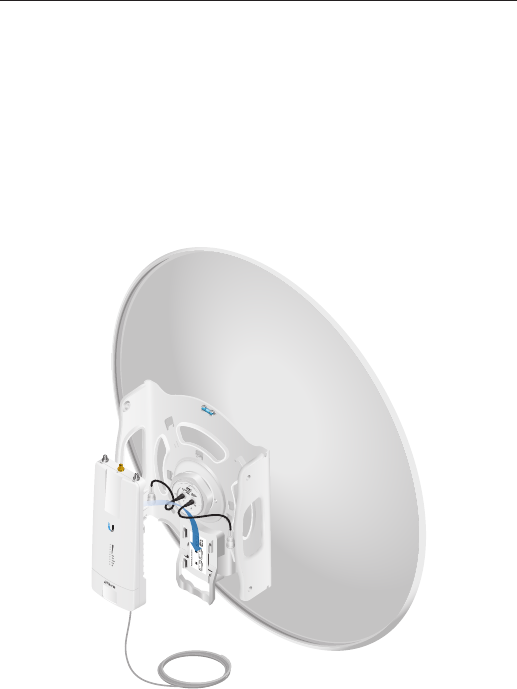

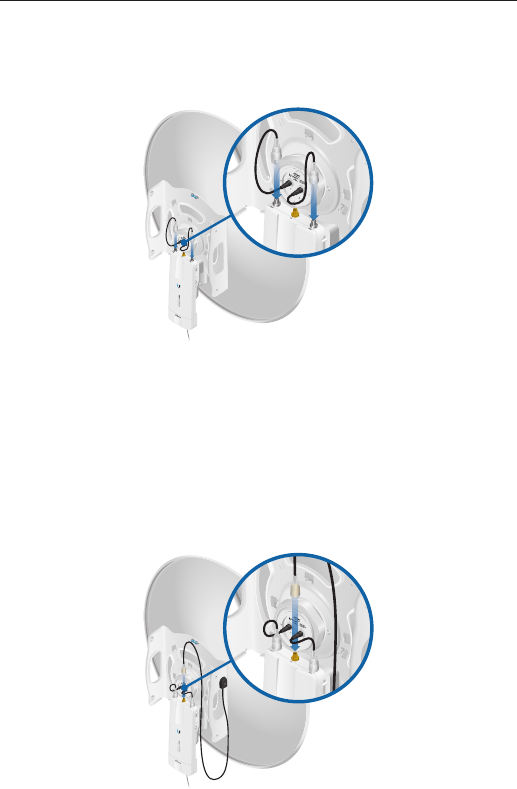

2. Attach the RF Cables from the antenna feed to the RF
connectors on the airFiber AF-5X in this combination: +45° to
Chain 0 and -45° to Chain 1.

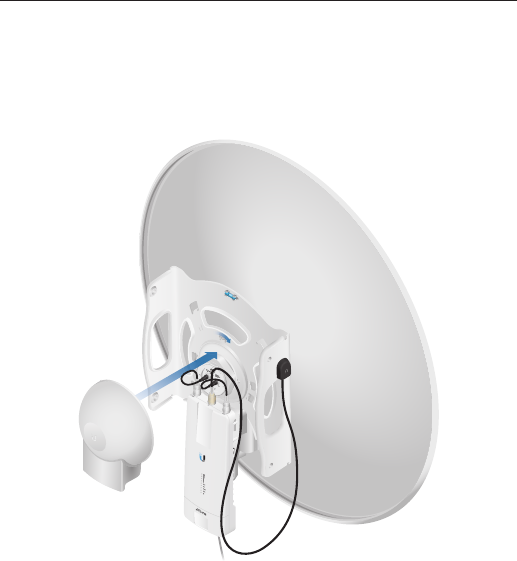

3. Attach the External GPS Antenna to the RF connector labeled
GPS. Then place the magnetic External GPS Antenna on the
bracket (this is temporary; you will mount the External GPS
Antenna on the GPS Antenna Mount at the site).
16
airFiber® AF-5X Quick Start Guide
4. Attach the protective shroud.
a. Align the hash mark on the top of the shroud with the notch
on the dish antenna.
b. Rotate the shroud clockwise until it locks into place.
17
Hardware Installation

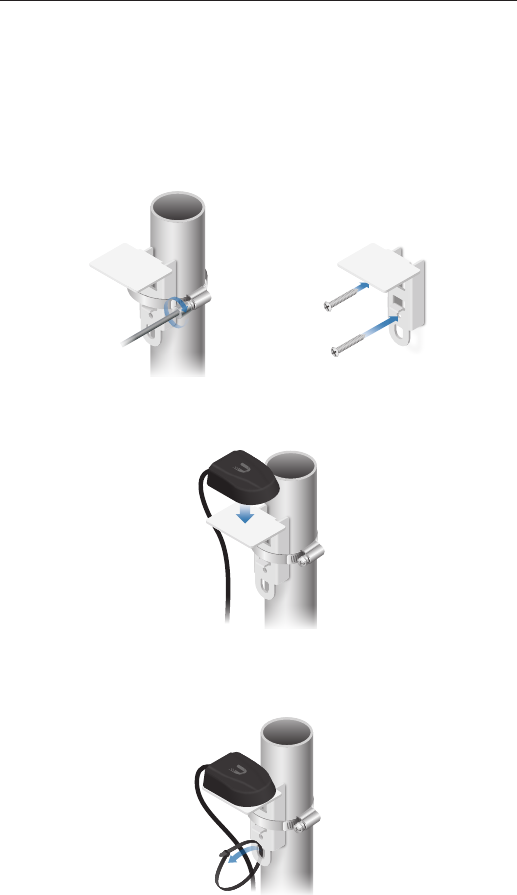

Mount the External GPS Antenna
Locate a mounting point that has a clear view to the sky, and is
above and as far away as possible from the airFiber AF-5X.
1. Attach the GPS Antenna Mount to the pole using the metal
strap, or attach it to a wall using the appropriate fasteners
(notincluded).
2. Place the External GPS Antenna on the mount.
3. Secure the cable of the External GPS Antenna to the mount with
a Cable Tie.
18
airFiber® AF-5X Quick Start Guide
Connecting Power over Ethernet
1. Lift the release latch on the bottom of the airFiber AF-5X and
slide the Port Cover off.
2. Connect an outdoor, shielded Ethernet cable to the DATA port.
19
Hardware Installation
3. Connect the other end of the cable from the DATA port to the
Ethernet port labeled POE on the Gigabit PoE Adapter.
4. Connect an Ethernet cable from your network to the Ethernet
port labeled LAN on the Gigabit PoE Adapter.
5. Connect the Power Cord to the power port on the Gigabit PoE
Adapter. Connect the other end of the Power Cord to a power
source.
20
airFiber® AF-5X Quick Start Guide

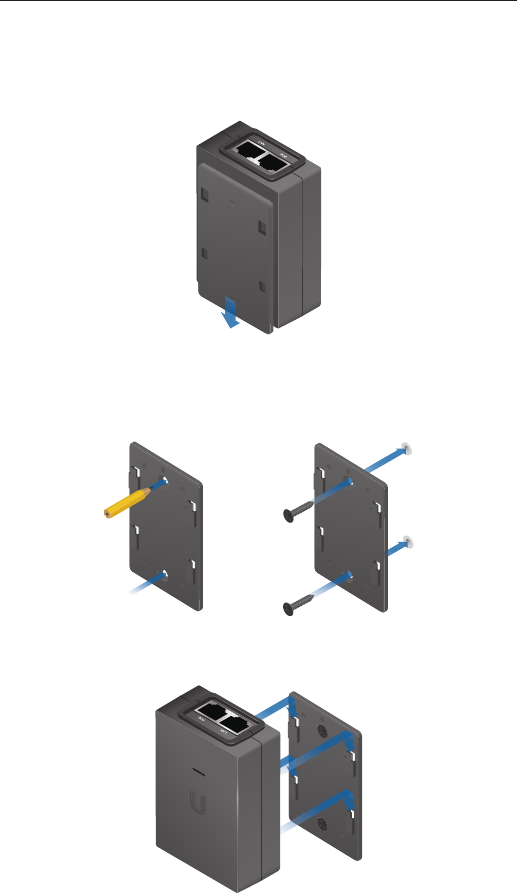

Mount the PoE Adapter (Optional)
1. Remove the Mounting Bracket from the adapter by sliding the
bracket downward.
2. Place the Mounting Bracket at the desired location and mark
the holes for the fasteners. Pre-drill the holes if necessary, then
secure the bracket to wall using two fasteners (not included).
3. Attach the Gigabit PoE Adapter to the bracket by aligning the
four slots and tabs, and then slide the adapter downward.
21
Hardware Installation
Surge Protection
For added protection, install two surge suppressors, such as the
Ubiquiti Ethernet Surge Protector, model ETH-SP, at the end of
each link. Install the first surge protector within one meter of
the airFiber DATA port, and install the second surge protector
at the ingress point of the location housing the wired network
equipment.
Ground to Pole, Tower,
or Grounding Block:
Max. 1 m from AF-5X
Max. 1 m
Gigabit
PoE Adapter
EdgeRouter™
Power Source
ETH-SP
GPS Antenna
ETH-SP
AF-5X
Mounted on
AF-5G30-S45
22
airFiber® AF-5X Quick Start Guide
Alignment
Tips
• To accurately align the airFiber radios for best performance, you
MUST align only one end of the link at a time.
• You may need to use additional hardware to compensate for
issues such as the improper orientation of a mounting pole or
significant elevation differences between airFiber radios.
Establishing a Link
Adjust the positions of the Master and the Slave to establish a link.
The following guide features the airFiber antenna, AF-5G30-S45:
Note: The Master must be aimed first at the Slave because
the Slave does not transmit any RF signal until it detects
transmissions from the Master.

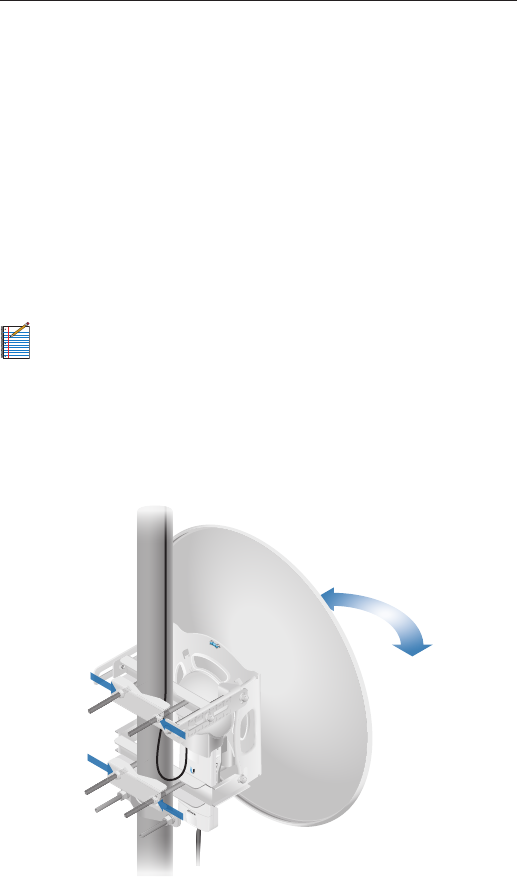

1. Master Visually aim the Master at the Slave. To adjust the
Master's position:
a. Loosen the four pole clamp nuts, and rotate the airFiber
antenna on the pole to align the azimuth.
23
Alignment

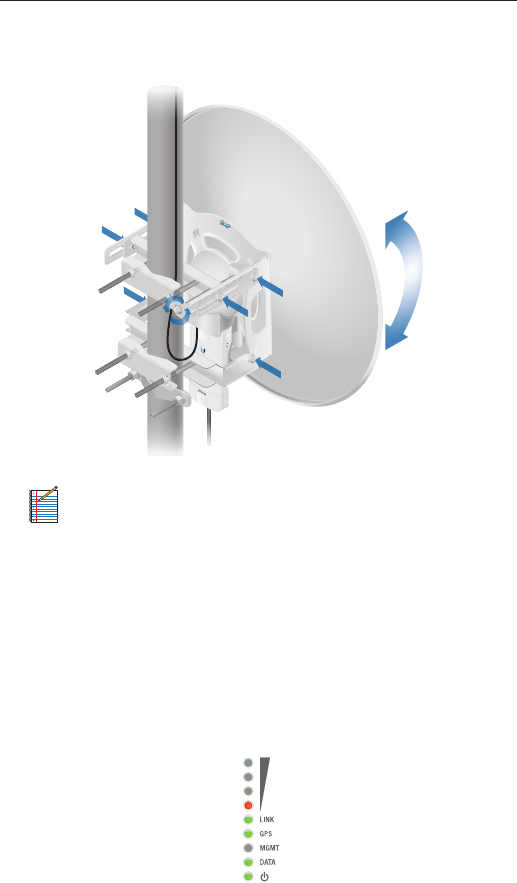

b. Loosen the six elevation bolts, and use the hex nut on the
elevation rod to adjust the elevation.
Note: Do NOT make simultaneous adjustments on the
Master and Slave.
2. Slave Visually aim the Slave at the Master. To adjust the Slave's
position:
a. Loosen the four pole clamp nuts, and rotate the airFiber
antenna on the pole to align the azimuth.
b. Loosen the six elevation bolts, and use the hex nut on the
elevation rod to adjust the elevation.
3. Check to see if a link is established. Ensure that the LINK LED is
solidly lit green and the Signal LEDs of the Slave are displaying
signal levels.
24
airFiber® AF-5X Quick Start Guide
4. Slave Aim the Slave at the Master to achieve the strongest
signal level on the Master.
Note: Refer to the Signal Level table on page 4 for details
on the signal values.
Note: Maximum signal strength can best be achieved
by iteratively sweeping through both azimuth and
elevation.
5. Master Aim the Master at the Slave to achieve the strongest
signal level on the Slave.
6. Repeat steps 4 and 5 until you achieve an optimal link, with all
four Signal LEDs solidly lit. This ensures the best possible data
rate between the airFiber radios.
7. Lock the alignment on both airFiber antennas by tightening all
the nuts and bolts.
8. Observe the Signal LEDs of each airFiber radio to ensure that
the values remain constant while tightening the nuts and bolts.
If any LED value changes during the locking process, loosen
the nuts and bolts, finalize the alignment of each airFiber
antenna again, and retighten the nuts and bolts.
Refer to the airFiber AF-5X User Guide for details on the airFiber
Configuration Interface.
25
Installer Compliance Responsibility
Installer Compliance Responsibility
Devices must be professionally installed and it is the professional
installer’s responsibility to make sure the device is operated within
local country regulatory requirements.
The Output Power, Antenna Gain, Cable Loss, and Frequency fields
are provided to the professional installer to assist in meeting
regulatory requirements.
26
airFiber® AF-5X Quick Start Guide
Specifications
airFiber AF-5X
Dimensions 224 x 82 x 48 mm (8.82 x 3.23 x 1.89")
Weight 0.35 kg (0.77 lb)
RF Connectors (2) RP-SMA Weatherproof (CH0, CH1)
(1) SMA Weatherproof (GPS)
GPS Antenna External, Magnetic Base
Max. Conducted TX Power 26 dBm
(Depending on Regulatory Region)
Power Supply 24V, 1A PoE Gigabit Adapter (Included)
Power Method Passive Power over Ethernet
Mounting Rocket Mount Compatible
GPS Pole Mount (Included)
Certications FCC Part 15.407
CE EN 302502 v1.2.1, EN 301 893 v1.7.1
Operating Temperature -40 to 55° C (-40 to 131° F)
Networking Interface
Data Port (1) 10/100/1000 Ethernet Port
Management Port (1) 10/100 Ethernet Port
System
Maximum Throughput 500 Mbps
Encryption 128-bit AES
OS airOS F
Wireless Modes Master/Slave
Radio
Operating Frequency 5150-5925 MHz
(Depends on Regulatory Region)
Frequency Accuracy ± 2.5 ppm without GPS Synchronization
± 0.2 ppm with GPS Synchronization
Channel Bandwidth 10 MHz, 20 MHz, 30 MHz, 40 MHz, 50 MHz
Selectable
27
Electrical Safety Information
Safety Notices
1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by the manufacturer.
WARNING: Do not use this product in location that can be
submerged by water.
WARNING: Avoid using this product during an electrical storm.
There may be a remote risk of electric shock from lightning.
Electrical Safety Information
1. Compliance is required with respect to voltage, frequency, and current
requirements indicated on the manufacturer’s label. Connection to a
different power source than those specified may result in improper
operation, damage to the equipment or pose a fire hazard if the
limitations are not followed.
2. There are no operator serviceable parts inside this equipment. Service
should be provided only by a qualified service technician.
3. This equipment is provided with a detachable power cord which has an
integral safety ground wire intended for connection to a grounded safety
outlet.
a. Do not substitute the power cord with one that is not the provided
approved type. Never use an adapter plug to connect to a 2-wire
outlet as this will defeat the continuity of the grounding wire.
b. The equipment requires the use of the ground wire as a part of the
safety certification, modification or misuse can provide a shock
hazard that can result in serious injury or death.
c. Contact a qualified electrician or the manufacturer if there are
questions about the installation prior to connecting the equipment.
d. Protective earthing is provided by Listed AC adapter. Building
installation shall provide appropriate short-circuit backup protection.
e. Protective bonding must be installed in accordance with local
national wiring rules and regulations.
28
airFiber® AF-5X Quick Start Guide
Limited Warranty
UBIQUITI NETWORKS, Inc (“UBIQUITI NETWORKS”) warrants that the
product(s) furnished hereunder (the “Product(s)”) shall be free from defects
in material and workmanship for a period of one (1) year from the date of
shipment by UBIQUITI NETWORKS under normal use and operation. UBIQUITI
NETWORKS’ sole and exclusive obligation and liability under the foregoing
warranty shall be for UBIQUITI NETWORKS, at its discretion, to repair or
replace any Product that fails to conform to the above warranty during the
above warranty period. The expense of removal and reinstallation of any
Product is not included in this warranty. The warranty period of any repaired
or replaced Product shall not extend beyond its original term.
Warranty Conditions
The above warranty does not apply if the Product:
(I) has been modified and/or altered, or an addition made thereto, except
by Ubiquiti Networks, or Ubiquiti Networks’ authorized representatives,
or as approved by Ubiquiti Networks in writing;
(II) has been painted, rebranded or physically modified in any way;
(III) has been damaged due to errors or defects in cabling;
(IV) has been subjected to misuse, abuse, negligence, abnormal physical,
electromagnetic or electrical stress, including lightning strikes, or
accident;
(V) has been damaged or impaired as a result of using third party firmware;
(VI) has no original Ubiquiti MAC label, or is missing any other original
Ubiquiti label(s); or
(VII) has not been received by Ubiquiti within 30 days of issuance of the
RMA.
In addition, the above warranty shall apply only if: the product has been
properly installed and used at all times in accordance, and in all material
respects, with the applicable Product documentation; all Ethernet cabling
runs use CAT5 (or above), and for outdoor installations, shielded Ethernet
cabling is used, and for indoor installations, indoor cabling requirements are
followed.
WARNING: Failure to properly ground your airFiber AF-
5X will void your warranty. (Please follow the instructions
on page 12 for installation of the ground wires.)
Returns
No Products will be accepted for replacement or repair without obtaining
a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS
during the warranty period, and the Products being received at UBIQUITI
NETWORKS’ facility freight prepaid in accordance with the RMA process of
UBIQUITI NETWORKS. Products returned without an RMA number will not
be processed and will be returned freight collect or subject to disposal.
Information on the RMA process and obtaining an RMA number can be found
at: www.ubnt.com/support/warranty.
29
Limited Warranty
Disclaimer
EXCEPT FOR ANY EXPRESS WARRANTIES PROVIDED HEREIN, UBIQUITI
NETWORKS, ITS AFFILIATES, AND ITS AND THEIR THIRD PARTY Data, SERVICE,
SOFTWARE AND HARDWARE PROVIDERS HEREBY DISCLAIM AND MAKE NO
OTHER REPRESENTATION OR WARRANTY OF ANY KIND, EXPRESS, IMPLIED
OR STATUTORY, INCLUDING, BUT NOT LIMITED TO, REPRESENTATIONS,
GUARANTEES, OR WARRANTIES OF MERCHANTABILITY, ACCURACY, QUALITY
OF SERVICE OR RESULTS, AVAILABILITY, SATISFACTORY QUALITY, LACK
OF VIRUSES, QUIET ENJOYMENT, FITNESS FOR A PARTICULAR PURPOSE
AND NON-INFRINGEMENT AND ANY WARRANTIES ARISING FROM ANY
COURSE OF DEALING, USAGE OR TRADE PRACTICE IN CONNECTION WITH
SUCH PRODUCTS AND SERVICES. BUYER ACKNOWLEDGES THAT NEITHER
UBIQUITI NETWORKS NOR ITS THIRD PARTY PROVIDERS CONTROL BUYER’S
EQUIPMENT OR THE TRANSFER OF Data OVER COMMUNICATIONS FACILITIES,
INCLUDING THE INTERNET, AND THAT THE PRODUCTS AND SERVICES MAY
BE SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS
AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS
FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD
PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS,
DELAYS, CANCELLATIONS, DELIVERY FAILURES, Data LOSS, CONTENT
CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY
OF THE FOREGOING. In addition, UBIQUITI NETWORKS does not warrant
that the operation of the Products will be error-free or that operation will
be uninterrupted. In no event shall UBIQUITI NETWORKS be responsible
for damages or claims of any nature or description relating to system
performance, including coverage, buyer’s selection of products (including
the Products) for buyer’s application and/or failure of products (including the
Products) to meet government or regulatory requirements.
Limitation of Liability
EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL
UBIQUITI OR ITS SUBSIDIARIES, AFFILIATES OR SUPPLIERS BE LIABLE FOR
DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES
(INCLUDING LOST PROFIT, LOST Data, OR DOWNTIME COSTS), ARISING OUT
OF THE USE, INABILITY TO USE, OR THE RESULTS OF USE OF THE PRODUCT,
WHETHER BASED IN WARRANTY, CONTRACT, TORT OR OTHER LEGAL THEORY,
AND WHETHER OR NOT ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Note
Some countries, states and provinces do not allow exclusions of implied
warranties or conditions, so the above exclusion may not apply to you. You
may have other rights that vary from country to country, state to state, or
province to province. Some countries, states and provinces do not allow the
exclusion or limitation of liability for incidental or consequential damages, so
the above limitation may not apply to you. EXCEPT TO THE EXTENT ALLOWED
BY LOCAL LAW, THESE WARRANTY TERMS DO NOT EXCLUDE, RESTRICT OR
MODIFY, AND ARE IN ADDITION TO, THE MANDATORY STATUTORY RIGHTS
APPLICABLE TO THE LICENSE OF ANY SOFTWARE (EMBEDDED IN THE
PRODUCT) TO YOU. The United Nations Convention on Contracts for the
International Sale of Goods shall not apply to any transactions regarding the
sale of the Products.
30
airFiber® AF-5X Quick Start Guide
Compliance
FCC
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions.
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference
that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Operations of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the
interference at his own expense.
This radio transmitter (FCC: SWX-AF5X) has been approved by FCC to operate
with the antenna types listed below with the maximum permissible gain
and required antenna impedance for each antenna type indicated. Antenna
types not included in this list, having a gain greater than the maximum gain
indicated for that type, are strictly prohibited for use with this device.
•Dish model: AF-5G23-S45, gain: 23dBi, type: Parabolic
DFS Regulatory Regions
Operation in DFS regulatory regions requires an antenna with minimum gain
of 23 dBi.
• Dish model(s): AF-5G30-S45/RD-5G30(w/ AF-5G-OMT),
gain: 30dBi, type: Parabolic
• Dish model(s): AF-5G34-S45/RD-5G34(w/ AF-5G-OMT),
gain: 34dBi, type: Parabolic
31
Compliance
Industry Canada
CAN ICES-3(B)/NMB-3(B)
To reduce potential radio interference to other users, the antenna type and
its gain should be so chosen that the equivalent isotropically radiated power
(e.i.r.p.) is not more than that permitted for successful communication.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that may
cause undesired operation of the device.
Users should also be advised that high-power radars are allocated as primary
users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz
and that these radars could cause interference and/or damage to LE-LAN
devices. This radio transmitter (IC: 6545A- AF5X) has been approved by
Industry Canada to operate with the antenna types listed below with the
maximum permissible gain and required antenna impedance for each
antenna type indicated. Antenna types not included in this list, having a gain
greater than the maximum gain indicated for that type, are strictly prohibited
for use with this device.
DFS Regulatory Regions
Operation in DFS regulatory regions requires an antenna with minimum gain
of 23 dBi.
CAN ICES-3(B)/NMB-3(B)
Pour réduire le risque d’interférence aux autres utilisateurs, le type d’antenne
et son gain doivent être choisies de façon que la puissance isotrope
rayonnée équivalente (PIRE) ne dépasse pas ce qui est nécessaire pour une
communication réussie.
Cet appareil est conforme à la norme RSS Industrie Canada exempts de
licence norme(s). Son fonctionnement est soumis aux deux conditions
suivantes:
1. Cet appareil ne peut pas provoquer d’interférences et
2. Cet appareil doit accepter toute interférence, y compris les interférences
qui peuvent causer un mauvais fonctionnement du dispositif.
•Dish model: AF-5G23-S45, gain: 23dBi, type: Parabolic
• Dish model(s): AF-5G30-S45/RD-5G30(w/ AF-5G-OMT),
gain: 30dBi, type: Parabolic
• Dish model(s): AF-5G34-S45/RD-5G34(w/ AF-5G-OMT),
gain: 34dBi, type: Parabolic
32
airFiber® AF-5X Quick Start Guide
Les utilisateurs devraient également noter que radars haute puissants
sont alloués comme principaux utilisateurs (c’est-à-dire les utilisateurs de
priorité) des bandes 5250-5350 MHz et 5650 à 5850 MHz et que ces radars
pourraient causer des interférences ou dommages aux dispositifs LAN. Cet
émetteur radio (IC: IC: 6545A-AF5X) a été approuvée par Industrie Canada
pour l’exploitation avec l’antenne types énumérés ci-dessous avec le gain
maximal admissible et requis l’impédance de l’antenne pour chaque type
d’antenne indiqué. Types d’antenne non inclus dans cette liste, ayant un gain
supérieur au gain maximal indiqué pour ce type, sont strictement interdits
pour une utilisation avec cet appareil. Immédiatement suite à la remarque,
le fabricant doit fournir une liste de tous les types d’antenne approuvé pour
une utilisation avec l’émetteur, ce qui indique le gain maximal d’antenne
permis (en dBi) et requis d’impédance pour chacun.
Régions Réglementaires DFS
Opération dans les régions réglementaires DFS nécessite une antenne avec
un gain minimum de 23 dBi.
RF Exposure Warning
The antennas used for this transmitter must be installed to provide a
separation distance of at least 126 cm from all persons and must not be
located or operating in conjunction with any other antenna or transmitter.
Les antennes utilisées pour ce transmetteur doivent être installé en
considérant une distance de séparation de toute personnes d’au moins
126cm et ne doivent pas être localisé ou utilisé en conflit avec tout autre
antenne ou transmetteur.
Australia and New Zealand
Warning: This is a Class B product. In a domestic environment this
product may cause radio interference in which case the user may be
required to take adequate measures.
CE Marking
CE marking on this product represents the product is in compliance with all
directives that are applicable to it.
Alert Sign (!) Follows CE Marking
Alert sign must be indicated if a restriction on use applied to the product and
it must follow the CE marking.
•Parabolique modéle: AF-5G23-S45, gain: 23dBi, type: Parabolique
• Parabolique modéle(s): AF-5G30-S45/RD-5G30(w/ AF-5G-OMT),
gain: 30dBi, type: Parabolique
• Parabolique modéle(s): AF-5G34-S45/RD-5G34(w/ AF-5G-OMT),
gain: 34dBi, type: Parabolique
33
Compliance
RoHS/WEEE Compliance Statement
English
European Directive 2002/96/EC requires that the equipment bearing this
symbol on the product and/or its packaging must not be disposed of with
unsorted municipal waste. The symbol indicates that this product should
be disposed of separately from regular household waste streams. It is your
responsibility to dispose of this and other electric and electronic equipment
via designated collection facilities appointed by the government or local
authorities. Correct disposal and recycling will help prevent potential
negative consequences to the environment and human health. For more
detailed information about the disposal of your old equipment, please
contact your local authorities, waste disposal service, or the shop where you
purchased the product.
Deutsch
Die Europäische Richtlinie 2002/96/EC verlangt, dass technische
Ausrüstung, die direkt am Gerät und/oder an der Verpackung mit diesem
Symbol versehen ist, nicht zusammen mit unsortiertem Gemeindeabfall
entsorgt werden darf. Das Symbol weist darauf hin, dass das Produkt von
regulärem Haushaltmüll getrennt entsorgt werden sollte. Es liegt in Ihrer
Verantwortung, dieses Gerät und andere elektrische und elektronische
Geräte über die dafür zuständigen und von der Regierung oder örtlichen
Behörden dazu bestimmten Sammelstellen zu entsorgen. Ordnungsgemäßes
Entsorgen und Recyceln trägt dazu bei, potentielle negative Folgen für
Umwelt und die menschliche Gesundheit zu vermeiden. Wenn Sie weitere
Informationen zur Entsorgung Ihrer Altgeräte benötigen, wenden Sie sich
bitte an die örtlichen Behörden oder städtischen Entsorgungsdienste oder an
den Händler, bei dem Sie das Produkt erworben haben.
Español
La Directiva 2002/96/CE de la UE exige que los equipos que lleven este
símbolo en el propio aparato y/o en su embalaje no deben eliminarse
junto con otros residuos urbanos no seleccionados. El símbolo indica
que el producto en cuestión debe separarse de los residuos domésticos
convencionales con vistas a su eliminación. Es responsabilidad suya
desechar este y cualesquiera otros aparatos eléctricos y electrónicos a
través de los puntos de recogida que ponen a su disposición el gobierno y
las autoridades locales. Al desechar y reciclar correctamente estos aparatos
estará contribuyendo a evitar posibles consecuencias negativas para el
medio ambiente y la salud de las personas. Si desea obtener información
más detallada sobre la eliminación segura de su aparato usado, consulte a las
autoridades locales, al servicio de recogida y eliminación de residuos de su
zona o pregunte en la tienda donde adquirió el producto.
34
airFiber® AF-5X Quick Start Guide
Français
La directive européenne 2002/96/CE exige que l’équipement sur lequel
est apposé ce symbole sur le produit et/ou son emballage ne soit pas jeté
avec les autres ordures ménagères. Ce symbole indique que le produit doit
être éliminé dans un circuit distinct de celui pour les déchets des ménages.
Il est de votre responsabilité de jeter ce matériel ainsi que tout autre
matériel électrique ou électronique par les moyens de collecte indiqués
par le gouvernement et les pouvoirs publics des collectivités territoriales.
L’élimination et le recyclage en bonne et due forme ont pour but de lutter
contre l’impact néfaste potentiel de ce type de produits sur l’environnement
et la santé publique. Pour plus d’informations sur le mode d’élimination de
votre ancien équipement, veuillez prendre contact avec les pouvoirs publics
locaux, le service de traitement des déchets, ou l’endroit où vous avez acheté
le produit.
Italiano
La direttiva europea 2002/96/EC richiede che le apparecchiature
contrassegnate con questo simbolo sul prodotto e/o sull’imballaggio non
siano smaltite insieme ai rifiuti urbani non differenziati. Il simbolo indica
che questo prodotto non deve essere smaltito insieme ai normali rifiuti
domestici. È responsabilità del proprietario smaltire sia questi prodotti sia
le altre apparecchiature elettriche ed elettroniche mediante le specifiche
strutture di raccolta indicate dal governo o dagli enti pubblici locali. Il
corretto smaltimento ed il riciclaggio aiuteranno a prevenire conseguenze
potenzialmente negative per l’ambiente e per la salute dell’essere umano.
Per ricevere informazioni più dettagliate circa lo smaltimento delle vecchie
apparecchiature in Vostro possesso, Vi invitiamo a contattare gli enti pubblici
di competenza, il servizio di smaltimento rifiuti o il negozio nel quale avete
acquistato il prodotto.
35
Declaration of Conformity
Declaration of Conformity
Česky
[Czech]
UBIQUITI NETWORKS tímto prohla uje, e tento UBIQUITI
NETWORKS device, je ve shod se základními po adavky a dal ími p
íslu n mi ustanoveními sm rnice 1999/5/ES.
Dansk
[Danish]
Undertegnede UBIQUITI NETWORKS erklærer herved, at følgende
udstyr UBIQUITI NETWORKS device, overholder de væsentlige krav
og øvrige relevante krav i direktiv 1999/5/EF.
Nederlands
[Dutch]
Hierbij verklaart UBIQUITI NETWORKS dat het toestel UBIQUITI
NETWORKS device, in overeenstemming is met de essentiële eisen
en de andere relevante bepalingen van richtlijn 1999/5/EG.
Bij deze verklaart UBIQUITI NETWORKS dat deze UBIQUITI
NETWORKS device, voldoet aan de essentiële eisen en aan de
overige relevante bepalingen van Richtlijn 1999/5/EC.
English
Hereby, UBIQUITI NETWORKS, declares that this UBIQUITI
NETWORKS device, is in compliance with the essential requirements
and other relevant provisions of Directive 1999/5/EC.
Eesti
[Estonian]
Käesolevaga kinnitab UBIQUITI NETWORKS seadme UBIQUITI
NETWORKS device, vastavust direktiivi 1999/5/EÜ põhinõuetele ja
nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
Suomi
[Finnish]
UBIQUITI NETWORKS vakuuttaa täten että UBIQUITI NETWORKS
device, tyyppinen laite on direktiivin 1999/5/EY oleellisten
vaatimusten ja sitä koskevien direktiivin muiden ehtojen
mukainen.
Français
[French]
Par la présente UBIQUITI NETWORKS déclare que l’appareil
UBIQUITI NETWORKS, device est conforme aux exigences
essentielles et aux autres dispositions pertinentes de la directive
1999/5/CE.
Deutsch
[German]
Hiermit erklärt UBIQUITI NETWORKS, dass sich dieses UBIQUITI
NETWORKS Gerät in Übereinstimmung mit den grundlegenden
Anforderungen und den anderen relevanten Vorschriften der
Richtlinie 1999/5/EG befindet. (BMWi)
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ UBIQUITI NETWORKS ΔΗΛΩΝΕΙ ΟΤΙ UBIQUITI
NETWORKS device, ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ
ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ
1995/5/ΕΚ.
Magyar
[Hungarian]
Alulírott, UBIQUITI NETWORKS nyilatkozom, hogy a
UBIQUITI NETWORKS device, megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Íslenska
[Icelandic]
Hér me l sir UBIQUITI NETWORKS yfir ví a UBIQUITI NETWORKS
device, er í samræmi vi grunnkröfur og a rar kröfur, sem ger ar eru í
tilskipun 1999/5/EC.
36
airFiber® AF-5X Quick Start Guide
Italiano
[Italian]
Con la presente UBIQUITI NETWORKS dichiara che questo UBIQUITI
NETWORKS device, è conforme ai requisiti essenziali ed alle altre
disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latviski
[Latvian]
Ar o UBIQUITI NETWORKS deklarē, ka UBIQUITI NETWORKS ierīce,
atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to
saistītajiem noteikumiem.
Lietuviškai
[Lithuanian]
UBIQUITI NETWORKS deklaruoja, kad šis UBIQUITI NETWORKS
įrenginys atitinka esminius reikalavimus ir kitas 1999/5/EB
Direktyvos nuostatas.
Malti
[Maltese]
Hawnhekk, UBIQUITI NETWORKS, jiddikjara li dan UBIQUITI
NETWORKS device, jikkonforma mal- ti ijiet essenzjali u ma
provvedimenti o rajn relevanti li hemm fid-Dirrettiva 1999/5/EC.
Norsk
[Norwegian]
UBIQUITI NETWORKS erklærer herved at utstyret UBIQUITI
NETWORKS device, er i samsvar med de grunnleggende krav og
øvrige relevante krav i direktiv 1999/5/EF.
Slovensky
[Slovak]
UBIQUITI NETWORKS t mto vyhlasuje, e UBIQUITI NETWORKS
device, sp a základné po iadavky a v etky príslu né ustanovenia
Smernice 1999/5/ES.
Svenska
[Swedish]
Härmed intygar UBIQUITI NETWORKS att denna UBIQUITI
NETWORKS device, står I överensstämmelse med de väsentliga
egenskapskrav och övriga relevanta bestämmelser som framgår av
direktiv 1999/5/EG.
Español
[Spanish]
Por medio de la presente UBIQUITI NETWORKS declara que el
UBIQUITI NETWORKS device, cumple con los requisitos esenciales
y cualesquiera otras disposiciones aplicables o exigibles de la
Directiva 1999/5/CE.
Polski
[Polish]
Niniejszym, firma UBIQUITI NETWORKS o wiadcza, e produkt serii
UBIQUITI NETWORKS device, spełnia zasadnicze wymagania i inne
istotne postanowienia Dyrektywy 1999/5/EC.
Português
[Portuguese]
UBIQUITI NETWORKS declara que este UBIQUITI NETWORKS device,
está conforme com os requisitos essenciais e outras disposições da
Directiva 1999/5/CE.
Română
[Romanian]
Prin prezenta, UBIQUITI NETWORKS declară că acest dispozitiv
UBIQUITI NETWORKS este în conformitate cu cerințele esențiale și
alte prevederi relevante ale Directivei 1999/5/CE.
PH020315
© 2015 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, UbiquitiNetworks, the UbiquitiU
logo, the Ubiquiti beam logo, airFiber, airOS, RocketDish, TOUGHCable, and xRT are
trademarks or registered trademarks of UbiquitiNetworks,Inc. in the United States and
inother countries. All other trademarks are the property of their respective owners.
Support support.ubnt.com
Community community.ubnt.com
Downloads downloads.ubnt.com
www.ubnt.com
*640-00158-01*
640-00158-01

Navigation menu
