Ubiquiti M5 Outdoor M5 User Manual user guide

Ubiquiti Networks, Inc. Outdoor M5 user guide

Contents

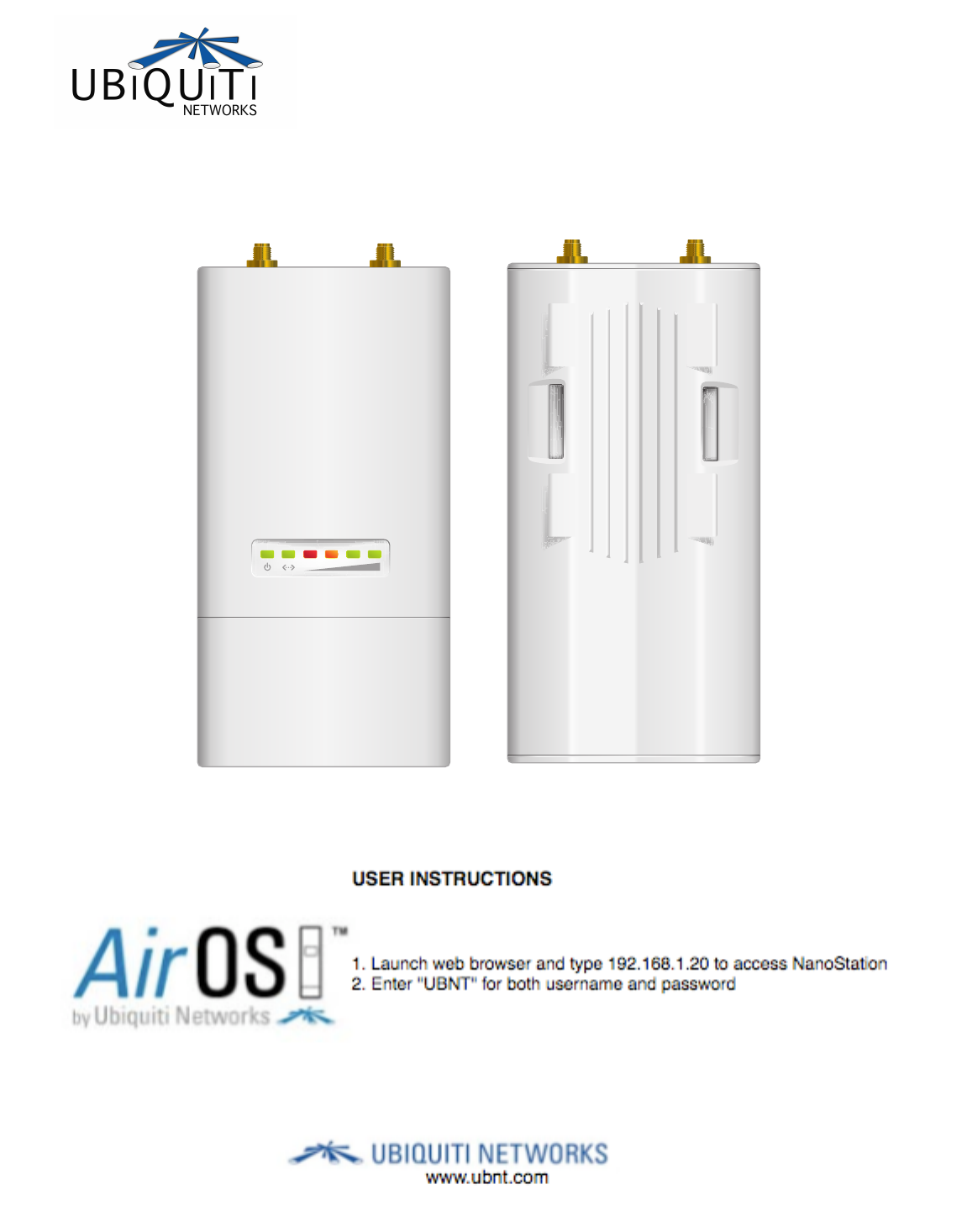

Users Manual

M5
OEM Users Guide
DataRate Avg. TX Tolerance DataRate Sensitivity Tolerance
1-24Mbps 27 dBm +/-2dB 24Mbps -83 dBm +/-2dB
36Mbps 25 dBm +/-2dB 36Mbps -80 dBm +/-2dB
48Mbps 23 dBm +/-2dB 48Mbps -77 dBm +/-2dB
54Mbps 22 dBm +/-2dB 54Mbps -75 dBm +/-2dB
MCS0 27 dBm +/-2dB MCS0 -96 dBm +/-2dB
MCS1 27 dBm +/-2dB MCS1 -95 dBm +/-2dB
MCS2 27 dBm +/-2dB MCS2 -92 dBm +/-2dB
MCS3 27 dBm +/-2dB MCS3 -90 dBm +/-2dB
MCS4 26 dBm +/-2dB MCS4 -86 dBm +/-2dB
MCS5 24 dBm +/-2dB MCS5 -83 dBm +/-2dB
MCS6 22 dBm +/-2dB MCS6 -77 dBm +/-2dB
MCS7 21 dBm +/-2dB MCS7 -74 dBm +/-2dB
MCS8 27 dBm +/-2dB MCS8 -95 dBm +/-2dB
MCS9 27 dBm +/-2dB MCS9 -93 dBm +/-2dB
MCS10 27 dBm +/-2dB MCS10 -90 dBm +/-2dB
MCS11 27 dBm +/-2dB MCS11 -87 dBm +/-2dB
MCS12 26 dBm +/-2dB MCS12 -84 dBm +/-2dB
MCS13 24 dBm +/-2dB MCS13 -79 dBm +/-2dB
MCS14 22 dBm +/-2dB MCS14 -78 dBm +/-2dB
MCS15 21 dBm +/-2dB MCS15 -75 dBm +/-2dB
Operating Temperature
-30C to 75C
YES
Networking Interface
1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
SYSTEM INFORMATION
Processor Specs
Atheros MIPS 24KC, 400MHz
Memory Information
64MB SDRAM, 8MB Flash
REGULATORY / COMPLIANCE INFORMATION
Wireless Approvals
FCC Part 15.247, IC RS210, CE
RoHS Compliance
OPERATING FREQUENCY 5745MHz-5825MHz
5GHz TX POWER SPECIFICATIONS
5GHz RX SPECIFICATIONS
11a
11a
5GHz 11n
5GHz 11n
Enclosure Characteristics
Outdoor UV Stabalized Plastic
Mounting Kit
Pole Mounting Kit included
PHYSICAL / ELECTRICAL / ENVIRONMENTAL
Enclosure Size
16cm length x 8cm width x 3cm height
Weight
0.5 kg
Operating Humidity
5 to 95% Condensing
Shock and Vibration
ETSI300-019-1.4
Max Power Consumption
6.5 Watts
Power Supply
24V, 1A POE Supply Included
Power Method
Passive Power over Ethernet (pairs 4,5+; 7,8 return)
TECH SPECS
COMPLIANCE INFORMATION
FCC
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to pro-vide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his own expense.
!
The antennas used for this transmitter must be installed to provide a separation
distance of at least 252cm from all persons and must not be located or
operating in conjunction with any other antenna or transmitter.
!
INDUSTRY CANADA
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à! la norme NMB-003 du
Canada.
!
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
!!
To reduce potential radio interference to other users, the antenna type and its
gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.)
is not more than that permitted for successful communication.!
This equipment is required to be professionally installed
The device has been designed to operate with the antennas listed below and having a
maximum gain of 30dBi. Antennas not included in this list or having a gain greater than
30dBi are strictly prohibited for use with this device. The required antenna impedance is
50 ohms
2x2 Point-To-Point Use
Ubiquiti RD-5G-30
Ubiquiti RP-5G-24
Ubiquiti AMS-5G-20
1x1 Point-To-Point Use
Ubiquiti AG-5G-30
2x2 Point-To-MultiPoitn Use
Ubiquiti O-5G-7
Operation is restricted to Point-To-Point use for antenass other than the Ubiquiti O-5G-7
listed above.
