Ubiquiti M5L 802.11n radio User Manual user guide

Ubiquiti Networks, Inc. 802.11n radio user guide

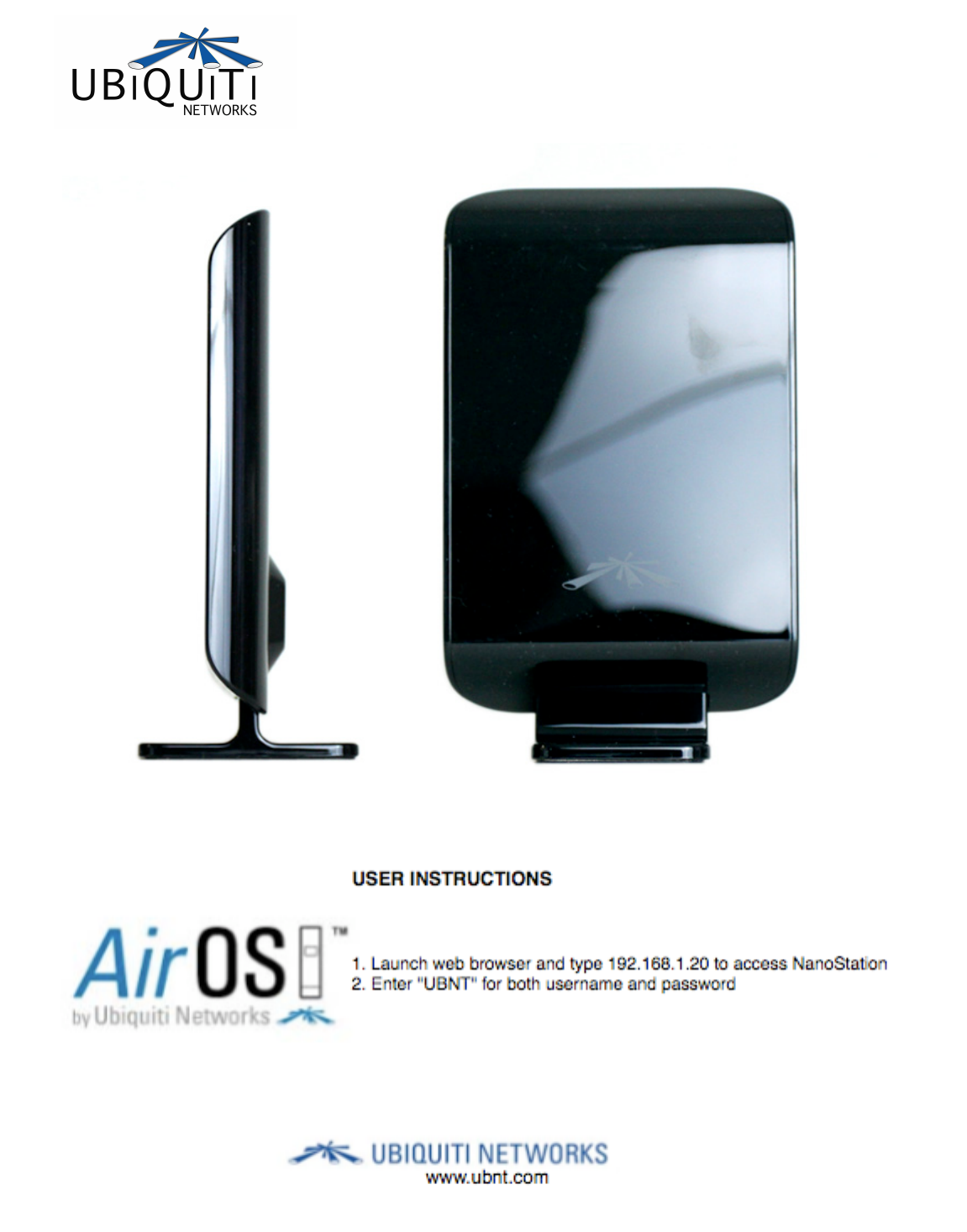

User Manual

M5L
OEM Users Guide
TECH SPECS
DataRate Avg. TX Tolerance DataRate Sensitivity Tolerance
1-24Mbps 23 dBm +/-2dB 24Mbps -83 dBm +/-2dB
36Mbps 21 dBm +/-2dB 36Mbps -80 dBm +/-2dB
48Mbps 19 dBm +/-2dB 48Mbps -77 dBm +/-2dB
54Mbps 18 dBm +/-2dB 54Mbps -75 dBm +/-2dB
MCS0 23 dBm +/-2dB MCS0 -96 dBm +/-2dB
MCS1 23 dBm +/-2dB MCS1 -95 dBm +/-2dB
MCS2 23 dBm +/-2dB MCS2 -92 dBm +/-2dB
MCS3 23 dBm +/-2dB MCS3 -90 dBm +/-2dB
MCS4 22 dBm +/-2dB MCS4 -86 dBm +/-2dB
MCS5 20 dBm +/-2dB MCS5 -83 dBm +/-2dB
MCS6 18 dBm +/-2dB MCS6 -77 dBm +/-2dB
MCS7 17 dBm +/-2dB MCS7 -74 dBm +/-2dB
MCS8 23 dBm +/-2dB MCS8 -95 dBm +/-2dB
MCS9 23 dBm +/-2dB MCS9 -93 dBm +/-2dB
MCS10 23 dBm +/-2dB MCS10 -90 dBm +/-2dB
MCS11 23 dBm +/-2dB MCS11 -87 dBm +/-2dB
MCS12 22 dBm +/-2dB MCS12 -84 dBm +/-2dB
MCS13 20 dBm +/-2dB MCS13 -79 dBm +/-2dB
MCS14 18 dBm +/-2dB MCS14 -78 dBm +/-2dB
MCS15 17 dBm +/-2dB MCS15 -75 dBm +/-2dB
SYSTEM INFORMATION
Processor Specs
Atheros MIPS 24KC, 400MHz
Memory Information
32MB SDRAM, 8MB Flash
Networking Interface
1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
REGULATORY / COMPLIANCE INFORMATION
Wireless Approvals
FCC Part 15.247, IC RS210, CE
RoHS Compliance
YES
OPERATING FREQUENCY 5470MHz-5825MHz
5GHz TX POWER SPECIFICATIONS
5GHz RX SPECIFICATIONS
11a
11a
5GHz 11n / AirMax
5GHz 11n / AirMax
PHYSICAL / ELECTRICAL / ENVIRONMENTAL
Enclosure Size
445 x 416 x 34mm
Weight
3.82kg
Enclosure Characteristics
Outdoor UV Stabalized Plastic
Mounting Kit
Pole Mounting Kit included
Max Power Consumption
5.5 Watts
Power Supply
24V, 0.5A surge portection integrated POE adapter included
Power Method
Passive Power over Ethernet (pairs 4,5+; 7,8 return)
Operating Temperature
-30C to +80C
Operating Humidity
5 to 95% Condensing
Shock and Vibration
ETSI300-019-1.4
COMPLIANCE INFORMATION
FCC
Changes or modifications not expressly approved by the party responsible for
compliance could void the users authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to pro-vide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the
interference at his own expense.
!
The internal 13dBi antenna used for this transmitter must be installed to provide a
separation distance of at least 20cm from all persons and must not be located or
operating in conjunction with any other antenna or transmitter.
!
INDUSTRY CANADA
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à! la norme NMB-003 du
Canada.
!
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
!!
To reduce potential radio interference to other users, the antenna type and its
gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.)
is not more than that permitted for successful communication.!
This equipment is required to be professionally installed
