User Manual

Quad-Radio 802.11ac
Wave 2 Access Point
with Dedicated Security
Model: UAP-XG
Introduction
Thank you for purchasing the Ubiquiti Networks® UniFi®
Quad‑Radio 802.11ac Wave 2 Access Point with Dedicated
Security. This Quick Start Guide is designed to guide you
through installation and includes warranty terms.
IMPORTANT: The UAP‑XG requires the UniFi Controller
v5.7 or higher, available at:
www.ubnt.com/download/unifi

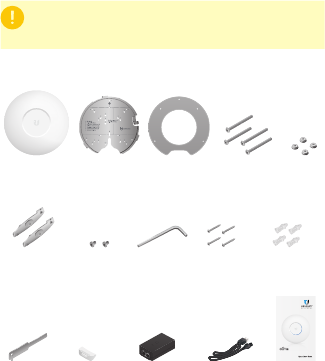

Package Contents
UniFi AP XG Mounting
Plate
Ceiling Backing
Plate
Ceiling Screws
(Qty. 4)
Keps Nuts
(Qty. 4)
T‑Bar Mounts
(Qty. 2)
T‑Bar Screws
(Qty. 2)
Allen
Wrench
Wall Screws
(Qty. 4)
Screw Anchors
(Qty. 4)
Quad-Radio 802.11ac
Wave 2 Access Point
with Dedicated Security
Model: UAP-XG
Release
Tool
Cable
Feed Plug
Gigabit PoE
(50V, 1.2A)*
Power
Cord*
Quick Start
Guide
*Gigabit PoE and Power Cord are not included with UAP‑XG 5‑pack
TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable
and earth grounding must be used as conditions of product warranty. It is the professional
installer’s responsibility to follow local country regulations, including operation within legal
frequency channels, output power, and Dynamic Frequency Selection (DFS) requirements.
Installation Requirements
Phillips screwdriver
Drill and drill bit (8 mm for wall mounting or 3 mm for ceiling
tile mounting)
Optional: Drywall or keyhole saw (to cut 18 mm hole for
Ethernet cable feed)
Cat6A UTP cable for indoor installations
Outdoor Installation Requirements
IMPORTANT: The UAP‑XG may be installed outdoors
under an eave or other protected location. Do not
install the UniFi AP in an open environment.
Mounting location should be at least 60 cm (2 ft) from the
edge of the eave or ceiling.
Cable feed opening must be directed away from the open
environment.
Cable feed must be pointed downwards when wall‑mounted.
Shielded Category 6 (or above) cabling should be used
for all outdoor wired Ethernet connections and should be
grounded through the AC ground of the PoE.
System Requirements
Linux, MacOSX, or Microsoft Windows 7/8/10
Java Runtime Environment 1.6 (1.8 or newer recommended)
Web Browser: Google Chrome (Other browsers may have
limited functionality.)
UniFi Controller software v5.7 or newer (available at:
www.ubnt.com/download/unifi)
Network Topology Requirements
A DHCP‑enabled network (for the AP to obtain an IP address
as well as for the wireless clients after deployment)
A UniFi Cloud Key or management station running the UniFi
Controller v5.7 (or newer) software, located either on‑site
and connected to the same Layer 2 network, or off‑site in the
cloud or NOC
USG-PRO-4
(DHCP Server)
Internet
LAN
WAN
Remote Access to
UniFi Controller
US-16-XG
UAP-AC-M-PRO
UniFi Hybrid
Cloud Install
DOWNLOAD THROUGHPUT & LATENCY DEVICES ON 2.4 GHZ CHANNEL
DEVICES ON 5 GHZ CHANNEL
UPLOAD THROUGHPUT & LATENCY
LATENCY THROUGHPUT
SPEED TEST
msec Mbps
70.94 1
2.33
25 22
597
0.9 116
200+0700+0
0.01 413
2290.2
2118
547
ACTIVE DEVICE
WAN
Inacve 0
Pending
0
Inacve 0
Pending
0
7
ACTIVE DEVICES
Inacve 0
Pending
0
118
ACTIVE DEVICES
LAN WLAN
DEEP PACKET INSPECTIONCLIENTSDEVICES
250
200
150
100
50
0
10
8
6
4
2
0
24 HRS 12 HRS NOW
Avg/Max Throughput Latency
Latency [msec]
Throughput [Mbps]
100
80
60
40
20
0
10
8
6
4
2
0
24 HRS 12 HRS NOW
Latency [msec]
Throughput [Mbps]
Network Protocols
Streaming Media
Web / Web 2.0
File Transfer
Social Network
Other
Motorola
Lenovo
SamsungE
Dell
Acer
Other
WLAN
LAN
WAN
118
7
1
582 GB
23.3 GB
22.7 GB
8.47 GB
3.6 GB
5.46 GB
258
241
220
213
130
110
126
DEVICES
645 GB
TRAFFIC
1172
CLIENTS
1 2 3 4 5 6 7 8 9 10 11
36 40 44 48 52 56 60 64
100 104 108 112 116 120 124 128
132 136 140 144 149 153 157 161 165
CURRENT SITE
Default
USERNAME
admin
UAP-AC-PRO
UAP-XG
UniFi Switch
DOWNLOAD THROUGHPUT & LATENCY DEVICES ON 2.4 GHZ CHANNEL
DEVICES ON 5 GHZ CHANNEL
UPLOAD THROUGHPUT & LATENCY
LATENCY THROUGHPUT
SPEED TEST
msec Mbps
7 0.94 1
2.33
25 22
597
0.9 116
200+0 700+0
0.01 413
2290.2
2 118
547
ACTIVE DEVICE
WAN
Inacve 0
Pending
0
Inacve 0
Pending
0
7
ACTIVE DEVICES
Inacve 0
Pending
0
118
ACTIVE DEVICES
LAN WLAN
DEEP PACKET INSPECTIONCLIENTSDEVICES
250
200
150
100
50
0
10
8
6
4
2
0
24 HRS 12 HRS NOW
Avg/Max Throughput Latency
Latency [msec]
Throughput [Mbps]
100
80
60
40
20
0
10
8
6
4
2
0
24 HRS 12 HRS NOW
Latency [msec]
Throughput [Mbps]
Network Protocols
Streaming Media
Web / Web 2.0
File Transfer
Social Network
Other
Motorola
Lenovo
SamsungE
Dell
Acer
Other
WLAN
LAN
WAN
118
7
1
582 GB
23.3 GB
22.7 GB
8.47 GB
3.6 GB
5.46 GB
258
241
220
213
130
110
126
DEVICES
645 GB
TRAFFIC
1172
CLIENTS
1 2 3 4 5 6 7 8 9 10 11
36 40 44 48 52 56 60 64
100 104 108 112 116 120 124 128
132 136 140 144 149 153 157 161 165
CURRENT SITE
Default
USERNAME
admin

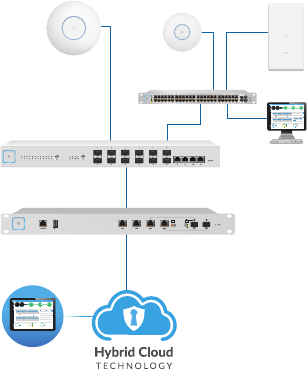

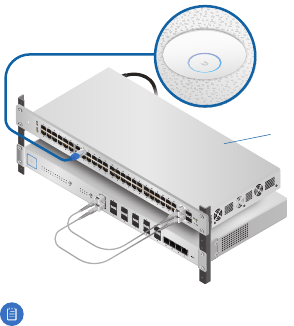

Sample Network Diagram
All UniFi devices support off‑site management controllers. For
setup details, see the User Guide on the website:
www.ubnt.com/download/unifi
Hardware Overview

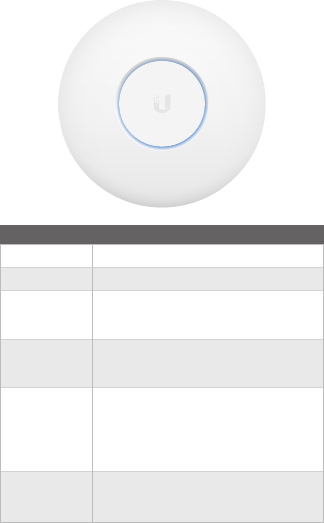

LED
LED Color Status
White Factory default, waiting to be integrated.
Flashing White Initializing.
Alternating
White/Blue
Device is busy; do not touch or unplug it.
This usually indicates that a process such
as a firmware upgrade is taking place.
Blue
Indicates the device has been successfully
integrated into a network and is working
properly.
Quickly
Flashing Blue
This is used to locate an AP.
When you click Locate in the UniFi
Controller software, the AP will flash.
Itwill also display the location of the AP
on the map.
Steady Blue
with Occasional
Flashing
Indicates the device is in an isolated state
(all WLANs are brought down until an
uplink is found).

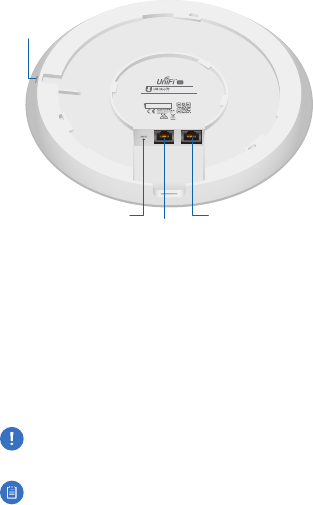

Ports
IC: 6545A-UAPXG
Contains IC: 6545A-M442G
Contains IC: 6545A-M445GL
Contains IC: 6545A-M445GH
FCC ID: SWX-UAPXG
Contains FCC ID: SWX-M442G
Contains FCC ID: SWX-M445GL
Contains FCC ID: SWX-M445GH
M/N: UAP-XG
802.3bt PoE
Security
Slot
1 GbE Port
10 GbE
Port
Reset
Button
Reset The Reset button serves two functions for the UniFi AP:
Restart Press and release the Reset button quickly.
Restore to Factory Default Settings Press and hold the
Reset button for more than five seconds.
1 GbE The 1 GbE port is a 10/100/1000 Ethernet port used for
bridging. It can also be used to connect the power.
10 GbE The 10 GbE port is a 1/10 Gbps Ethernet port used to
connect the power and should be connected to the LAN and
DHCPserver. For 10 Gbps operation, connect the UAP-XG to
an 802.3bt POE switch.
Note: The UAP‑XG can also be powered using the
included Gigabit PoE adapter. For instructions on using
the adapter, see Powering the UniFi AP.
Note: If you need to remove the UniFi AP from the
Mounting Plate, insert the included Release Tool in the
Security Slot to release the Lock Tab and turn the UniFi
AP counterclockwise.
Mounting Plate
The Mounting Plate offers a variety of mounting holes for
different applications. The legend printed on the Mounting
Plate identifies the holes used for each application.
Upgrade from UAP‑AC‑PRO
The UAP‑XG is compatible with the UAP‑AC‑PRO mounting
hardware, so you only need to remove the UAP‑AC‑PRO and
replace it with the UAP‑XG. To begin the upgrade:
1. Insert the Release Tool into the UAP‑AC‑PRO Security
Slot to disengage the lock. Then turn the UAP‑AC‑PRO
counterclockwise and lift it off of the mounting bracket.

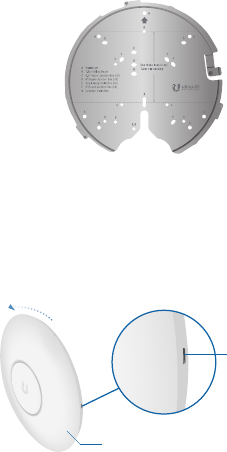

Security Slot
UAP-AC-PRO (Wall Mount Installation)
2. Unplug the Ethernet cable from the Main port.
3. Go to the Connecting Ethernet section.
Hardware Installation

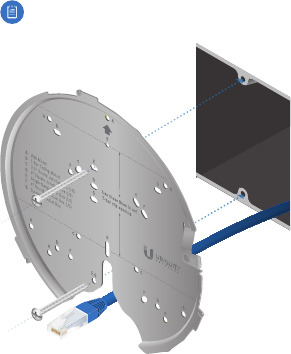

The UniFi AP can be mounted on a wall, ceiling tile, drop
ceiling T‑rail (up to 40 mm), or electrical junction box. Perform
the steps for the appropriate installation.
Note for UniFi AP replacement: The holes marked “A” on
the Mounting Plate line up with the holes of mounting
brackets used for previous UniFi AP models.
Wall Mount
1. Position the Mounting Plate at the desired location on the
wall with the Arrow pointing up.

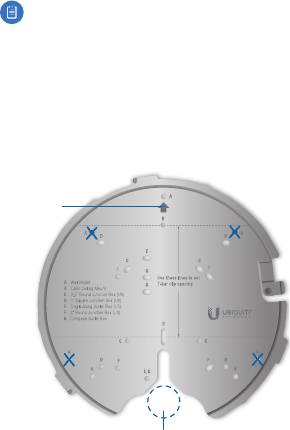

2. Mark the four mounting holes marked “A”, and use an
8mm drill bit to drill the holes. If your Ethernet cable feeds
through the wall, cut or drill a hole approximately 18 mm in
diameter. Then feed the CAT6A cable through the hole.
Arrow
Optional 18 mm Hole for
Ethernet Cable Feed through the Wall
*640-00341-01*
640-00341-01
3. Insert the Screw Anchors into the holes. Secure the
Mounting Plate to the wall by inserting the Wall Screws into
the anchors.
4. Go to the Connecting Ethernet section, and then return to
step 5.

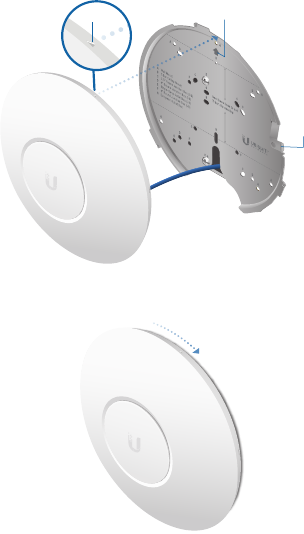

5. Align the Arrow on the top edge of the UniFi AP with the
Arrow on the Mounting Plate.
Arrow
Lock Tab
Arrow
6. Rotate the UniFi AP clockwise until the tabs lock into place
and the Lock Tab engages.
Ceiling Mount
1. Remove the ceiling tile.

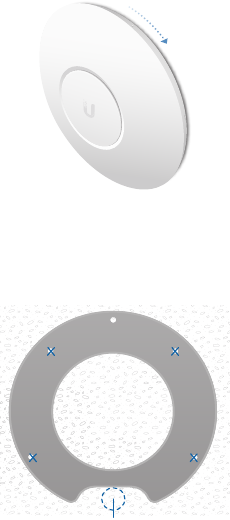

2. Place the Ceiling Backing Plate in the center of the ceiling
tile. Mark the four mounting screw holes and an 18 mm
hole for the Ethernet cable feed.
Optional 18 mm Hole for Ethernet Cable
Feed through the Ceiling Tile
3. Use a 3 mm drill bit to drill the screw holes, and cut or drill
the 18 mm hole for the Ethernet cable feed.

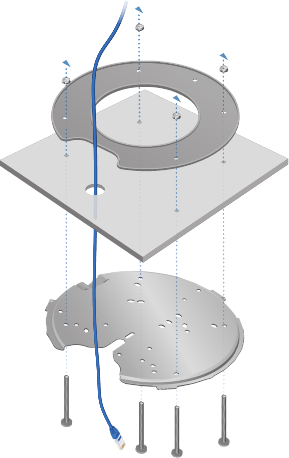

4. Insert the Ceiling Screws through the Mounting Plate, ceiling
tile, and Ceiling Backing Plate. Fasten the screws using the
Keps Nuts. Then feed the Ethernet cable through the tile
and bracket.
5. Perform the steps in the Connecting Ethernet section, and
then return to step 6.

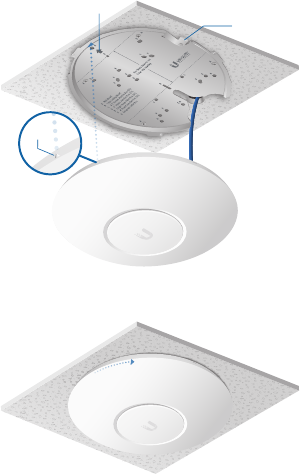

6. Align the Arrow on the top edge of the UniFi AP with the
Arrow on the Mounting Plate.
Lock Tab
Arrow
Arrow
7. Rotate the UniFi AP clockwise until the tabs lock into place
and the Lock Tab engages.
8. Set the ceiling tile back into place.

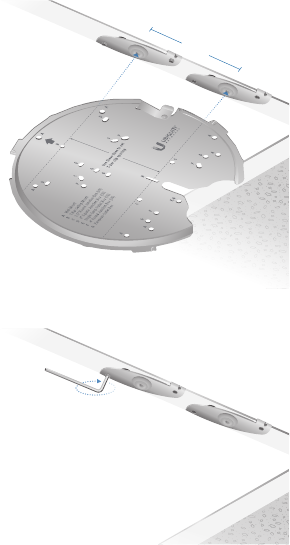

T‑Bar Mount
1. Remove the ceiling tiles on both sides of the T‑bar you will
use for mounting.

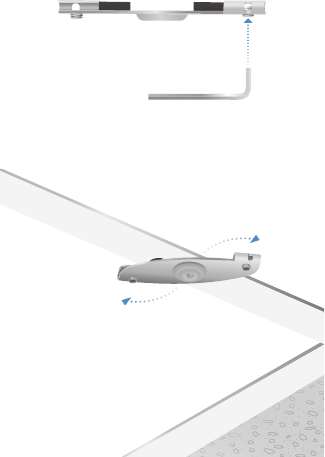

2. Loosen the set screws of the T-Bar Mounts.
3. Insert the T‑bar into a T-Bar Mount, and turn the T-Bar
Mount clockwise to attach it. Use the included Allen Wrench
to tighten the two set screws to secure the T-Bar Mount.
4. Attach the second T-Bar Mount but do not tighten the
setscrews.
5. Use the two dashed lines on the Mounting Plate to space
the T-Bar Mounts 77 mm (3") apart.
77 mm
6. Tighten the two setscrews on the second T-Bar Mount.
7. Insert the included T-Bar Screws into the holes marked “B”
on the Mounting Plate, and then secure the plate to the
T-Bar Mounts.
8. Drop the Ethernet cable between the plate and T‑bar.
9. Perform the steps in the Connecting Ethernet section, and
then return to step 10.
10. Align the Arrow on the top edge of the UniFi AP with the
Arrow on the Mounting Plate.
Arrow
Arrow
Lock Tab
11. Rotate the UniFi AP clockwise until the tabs lock into place
and the Lock Tab engages.
12. Set the ceiling tiles back into place.
Junction or Outlet Box Mount
1. Use the legend printed on the Mounting Plate to select the
appropriate mounting holes for your installation.
2. Pull the Ethernet cable through the Mounting Plate, and
attach the Mounting Plate to the junction or outlet box
using at least two screws (not included).
Note: For in‑wall applications, position the Mounting
Plate with the Arrow pointing upwards.
3. Perform the steps in the Connecting Ethernet section, and
then return to step 4.
4. Align the Arrow on the top edge of the UniFi AP with the
Arrow on the Mounting Plate.
Lock Tab
Arrow
Arrow
5. Rotate the UniFi AP clockwise until the tabs lock into place
and the Lock Tab engages.

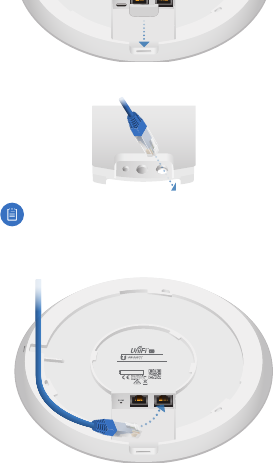

Connecting Ethernet
1. Remove the rubber port cover from the UniFi AP.
2. If the Ethernet cable runs along the mounting surface, skip
to step 3. If the Ethernet cable is fed through the wall or
ceiling, insert the Cable Feed Plug.
3. Feed the Ethernet cable through the port cover.
Note: The feed hole will stretch to accommodate the
RJ45 connector, and then seal around the cable.
4. Connect the Ethernet cable to the 10GbE port and replace
the port cover. Return to the appropriate instructions.
IC: 6545A-UAPXG
Contains IC: 6545A-M442G
Contains IC: 6545A-M445GL
Contains IC: 6545A-M445GH
FCC ID: SWX-UAPXG
Contains FCC ID: SWX-M442G
Contains FCC ID: SWX-M445GL
Contains FCC ID: SWX-M445GH
M/N: UAP-XG
802.3bt PoE
Powering the UniFi AP
The UAP‑XG features auto‑sensing 802.3bt PoE support and
can be powered by any 802.3bt PoE compliant switch.
To power the UniFi AP, connect the Ethernet cable from the
UniFiAP directly to a PoE+ port on the switch.
802.3bt PoE
Switch
Note: If you do not have an 802.3bt PoE compliant
switch, use the included Gigabit PoE adapter to power
the UniFi AP as follows:
1. Connect the Ethernet cable from the 10GbE port of
the UAP-XG to a 10GbE (or 1 GbE) switch port.
2. Connect an Ethernet cable from the 1GbE port of
the UAP‑XG to the adapter’s PoE port.
3. Connect the Power Cord to the adapter’s power
port. Connect the other end of the Power Cord to a
power outlet.
Software Installation
Download and install the latest version of the UniFi Controller
software. Launch it and follow the on‑screen instructions. The
software and step‑by‑step instructions in the User Guide are
available at: www.ubnt.com/download/unifi
After you have installed the software and run the UniFi
Installation Wizard, a login screen will appear for the UniFi
Controller management interface. Enter the Admin Name and
Password that you created and click Log In.
You can manage your wireless network and view network
statistics using the UniFi Controller management interface.
For information on configuring and using the UniFi Controller
software, refer to the User Guide.
Mobile App Installation
Ubiquiti Networks also offers the UniFi mobile app, which
is available from the App Store (iOS) or Google Play Store
(Android). You can use it to provision a UniFi AP for basic
functionality without configuring a UniFi Controller. It also
allows seamless provisioning of APs for remote controllers
(controllers not on the same Layer 2 network) and easy access
to local controllers and those monitored on unifi.ubnt.com
Specifications
UAP‑XG
Dimensions 228 x 228 x 50 mm
(8.98 x 8.98 x 1.97")
Weight
without Mount 1300 g (2.87 lb)
Networking Interface (1) 10/100/1000 RJ45 Ethernet Port
(1) 1/10 Gbps ICM Ethernet Port
Buttons Reset
Power Method PoE+ 802.3bt
Max. Power Consumption 31W
Supported Voltage Range 44‑57VDC
Max. TX Power
2.4 GHz
5 GHz
25 dBm
25 dBm
MIMO
2.4 GHz
5 GHz
4 x 4
4 x 4
Throughput Speeds
2.4 GHz
5 GHz
800 Mbps
1.7 Gbps
Antennas Integrated Internal Antenna
Antenna Gain
2.4 GHz
5 GHz
6 dBi
8 dBi
Wi‑Fi Standards 802.11 a/b/g/n/ac/ac-wave2
Wireless Security WEP, WPA‑PSK,
WPA-Enterprise (WPA/WPA2, TKIP/AES)
Mounting Wall/Ceiling/Junction Box (Kits Included)
Operating Temperature ‑10 to 60° C (14 to 140° F)
Operating Humidity 5 to 95% Noncondensing
Certications CE, FCC, IC
Safety Notices
1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by the manufacturer.
WARNING: Do not use this product in a location that can
be submerged by water.
WARNING: Avoid using this product during an electrical
storm. There may be a remote risk of electric shock from
lightning.
Electrical Safety Information
1. Compliance is required with respect to voltage, frequency, and current
requirements indicated on the manufacturer’s label. Connection to a
different power source than those specified may result in improper
operation, damage to the equipment or pose a fire hazard if the
limitations are not followed.
2. There are no operator serviceable parts inside this equipment. Service
should be provided only by a qualified service technician.
Limited Warranty
UBIQUITI NETWORKS, Inc (“UBIQUITI NETWORKS”) warrants that the
product(s) furnished hereunder (the “Product(s)”) shall be free from defects
in material and workmanship for a period of one (1) year from the date
of shipment by UBIQUITI NETWORKS under normal use and operation.
UBIQUITI NETWORKS’ sole and exclusive obligation and liability under
the foregoing warranty shall be for UBIQUITI NETWORKS, at its discretion,
to repair or replace any Product that fails to conform to the above
warranty during the above warranty period. The expense of removal and
reinstallation of any Product is not included in this warranty. The warranty
period of any repaired or replaced Product shall not extend beyond its
original term.
Warranty Conditions
The above warranty does not apply if the Product:
(I) has been modified and/or altered, or an addition made thereto,
except by Ubiquiti Networks, or Ubiquiti Networks’ authorized
representatives, or as approved by Ubiquiti Networks in writing;
(II) has been painted, rebranded or physically modified in any way;
(III) has been damaged due to errors or defects in cabling;
(IV) has been subjected to misuse, abuse, negligence, abnormal
physical, electromagnetic or electrical stress, including lightning
strikes, or accident;
(V) has been damaged or impaired as a result of using third party
firmware;
(VI) has no original Ubiquiti MAC label, or is missing any other original
Ubiquiti label(s); or
(VII) has not been received by Ubiquiti within 30 days of issuance of
the RMA.
In addition, the above warranty shall apply only if: the product has been
properly installed and used at all times in accordance, and in all material
respects, with the applicable Product documentation; all Ethernet cabling
runs use CAT6A (or above), and for outdoor installations, shielded Ethernet
cabling is used, and for indoor installations, indoor cabling requirements
are followed.
Returns
No Products will be accepted for replacement or repair without obtaining
a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS
during the warranty period, and the Products being received at UBIQUITI
NETWORKS’ facility freight prepaid in accordance with the RMA process of
UBIQUITI NETWORKS. Products returned without an RMA number will not
be processed and will be returned freight collect or subject to disposal.
Information on the RMA process and obtaining an RMA number can be
found at: www.ubnt.com/support/warranty
Disclaimer
EXCEPT FOR ANY EXPRESS WARRANTIES PROVIDED HEREIN, UBIQUITI
NETWORKS, ITS AFFILIATES, AND ITS AND THEIR THIRD PARTY DATA,
SERVICE, SOFTWARE AND HARDWARE PROVIDERS HEREBY DISCLAIM
AND MAKE NO OTHER REPRESENTATION OR WARRANTY OF ANY KIND,
EXPRESS, IMPLIED OR STATUTORY, INCLUDING, BUT NOT LIMITED TO,
REPRESENTATIONS, GUARANTEES, OR WARRANTIES OF MERCHANTABILITY,
ACCURACY, QUALITY OF SERVICE OR RESULTS, AVAILABILITY,
SATISFACTORY QUALITY, LACK OF VIRUSES, QUIET ENJOYMENT, FITNESS
FOR A PARTICULAR PURPOSE AND NON‑INFRINGEMENT AND ANY
WARRANTIES ARISING FROM ANY COURSE OF DEALING, USAGE OR
TRADE PRACTICE IN CONNECTION WITH SUCH PRODUCTS AND SERVICES.
BUYER ACKNOWLEDGES THAT NEITHER UBIQUITI NETWORKS NOR
ITS THIRD PARTY PROVIDERS CONTROL BUYER’S EQUIPMENT OR THE
TRANSFER OF DATA OVER COMMUNICATIONS FACILITIES, INCLUDING
THE INTERNET, AND THAT THE PRODUCTS AND SERVICES MAY BE
SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS
AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS
FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD
PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS,
DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT
CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY
OF THE FOREGOING. In addition, UBIQUITI NETWORKS does not warrant
that the operation of the Products will be error‑free or that operation will
be uninterrupted. In no event shall UBIQUITI NETWORKS be responsible
for damages or claims of any nature or description relating to system
performance, including coverage, buyers selection of products (including
the Products) for buyer’s application and/or failure of products (including
the Products) to meet government or regulatory requirements.
Limitation of Liability
EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL
UBIQUITI OR ITS SUBSIDIARIES, AFFILIATES OR SUPPLIERS BE LIABLE FOR
DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES
(INCLUDING LOST PROFIT, LOST DATA, OR DOWNTIME COSTS), ARISING
OUT OF THE USE, INABILITY TO USE, OR THE RESULTS OF USE OF THE
PRODUCT, WHETHER BASED IN WARRANTY, CONTRACT, TORT OR OTHER
LEGAL THEORY, AND WHETHER OR NOT ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES.
Note
Some countries, states and provinces do not allow exclusions of implied
warranties or conditions, so the above exclusion may not apply to you.
You may have other rights that vary from country to country, state to
state, or province to province. Some countries, states and provinces do not
allow the exclusion or limitation of liability for incidental or consequential
damages, so the above limitation may not apply to you. EXCEPT TO
THE EXTENT ALLOWED BY LOCAL LAW, THESE WARRANTY TERMS DO
NOT EXCLUDE, RESTRICT OR MODIFY, AND ARE IN ADDITION TO, THE
MANDATORY STATUTORY RIGHTS APPLICABLE TO THE LICENSE OF ANY
SOFTWARE (EMBEDDED IN THE PRODUCT) TO YOU. The United Nations
Convention on Contracts for the International Sale of Goods shall not apply
to any transactions regarding the sale of the Products.
Compliance
FCC
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions.
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operations of this
equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own
expense.
This radio transmitters (FCC ID: SWX‑UAPXG, FCC ID: SWX‑M442G,
FCCID:SWX-M445GL and FCCID: SWX-M445GH) have been approved
by FCC.
ISED Canada
CAN ICES-3(A)/NMB-3(A)
This device complies with ISED Canada licence‑exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that
may cause undesired operation of the device.
The radio transmitters (IC: 6545A‑UAPXG, IC: 6545A‑M442G,
IC:6545A-M445GL and IC: 6545A-M445GH) have been approved by ISED
Canada.
CAN ICES-3(A)/NMB-3(A)
Le présent appareil est conforme aux CNR d’ISDE Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes :
1. l’appareil ne doit pas produire de brouillage;
2. l’appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre le fonctionnement.
Les présents émetteurs radio (IC : 6545A‑UAPXG, IC : 6545A‑M442G,
IC:6545A-M445GL et IC : 6545A-M445GH) ont été approuvé par ISDE
Canada.
RF Exposure Warning
The antennas used for this transmitter must be installed to provide a
separation distance of at least 28 cm from all persons and must not be lo
cated or operating in conjunction with any other antenna or trans mitter,
except as listed for this product’s certification.
Les antennes utilisées pour cet émetteur doit être installé pour fournir une
distance de séparation d’au moins 28 cm de toutes les personnes et ne doit
pas être situé ou opérant en conjonction avec une autre antenne ou un
autre émetteur, sauf dans les cas énumérés à la certifi cation de ce produit.
Australia and New Zealand
Warning: This is a Class A product. In a domestic environment this
product may cause radio interference in which case the user may
be required to take adequate measures.
CE Marking
CE marking on this product represents the product is in compliance with all
directives that are applicable to it.
RoHS/WEEE Compliance Statement
English
European Directive 2012/19/EU requires that the equipment bearing
this symbol on the product and/or its packaging must not be disposed
of with unsorted municipal waste. The symbol indicates that this
product should be disposed of separately from regular household waste
streams. It is your responsibility to dispose of this and other electric and
electronic equipment via designated collection facilities appointed by the
government or local authorities. Correct disposal and recycling will help
prevent potential negative consequences to the environment and human
health. For more detailed information about the disposal of your old
equipment, please contact your local authorities, waste disposal service, or
the shop where you purchased the product.
Deutsch
Die Europäische Richtlinie 2012/19/EU verlangt, dass technische
Ausrüstung, die direkt am Gerät und/oder an der Verpackung mit diesem
Symbol versehen ist, nicht zusammen mit unsortiertem Gemeindeabfall
entsorgt werden darf. Das Symbol weist darauf hin, dass das Produkt
von regulärem Haushaltmüll getrennt entsorgt werden sollte. Es
liegt in Ihrer Verantwortung, dieses Gerät und andere elektrische
und elektronische Geräte über die dafür zuständigen und von der
Regierung oder örtlichen Behörden dazu bestimmten Sammelstellen zu
entsorgen. Ordnungsgemäßes Entsorgen und Recyceln trägt dazu bei,
potentielle negative Folgen für Umwelt und die menschliche Gesundheit
zu vermeiden. Wenn Sie weitere Informationen zur Entsorgung Ihrer
Altgeräte benötigen, wenden Sie sich bitte an die örtlichen Behörden oder
städtischen Entsorgungsdienste oder an den Händler, bei dem Sie das
Produkt erworben haben.
Español
La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en
el propio aparato y/o en su embalaje no deben eliminarse junto con otros
residuos urbanos no seleccionados. El símbolo indica que el producto
en cuestión debe separarse de los residuos domésticos convencionales
con vistas a su eliminación. Es responsabilidad suya desechar este y
cualesquiera otros aparatos eléctricos y electrónicos a través de los puntos
de recogida que ponen a su disposición el gobierno y las autoridades
locales. Al desechar y reciclar correctamente estos aparatos estará
contribuyendo a evitar posibles consecuencias negativas para el medio
ambiente y la salud de las personas. Si desea obtener información más
detallada sobre la eliminación segura de su aparato usado, consulte a las
autoridades locales, al servicio de recogida y eliminación de residuos de su
zona o pregunte en la tienda donde adquirió el producto.
Français
La directive européenne 2012/19/UE exige que l’équipement sur lequel
est apposé ce symbole sur le produit et/ou son emballage ne soit pas jeté
avec les autres ordures ménagères. Ce symbole indique que le produit
doit être éliminé dans un circuit distinct de celui pour les déchets des
ménages. Il est de votre responsabilité de jeter ce matériel ainsi que tout
autre matériel électrique ou électronique par les moyens de collecte
indiqués par le gouvernement et les pouvoirs publics des collectivités
territoriales. L’élimination et le recyclage en bonne et due forme ont pour
but de lutter contre l’impact néfaste potentiel de ce type de produits
sur l’environnement et la santé publique. Pour plus d’informations sur le
mode d’élimination de votre ancien équipement, veuillez prendre contact
avec les pouvoirs publics locaux, le service de traitement des déchets, ou
l’endroit où vous avez acheté le produit.
Italiano
La direttiva europea 2012/19/UE richiede che le apparecchiature
contrassegnate con questo simbolo sul prodotto e/o sull’imballaggio non
siano smaltite insieme ai rifiuti urbani non differenziati. Il simbolo indica
che questo prodotto non deve essere smaltito insieme ai normali rifiuti
domestici. È responsabilità del proprietario smaltire sia questi prodotti sia
le altre apparecchiature elettriche ed elettroniche mediante le specifiche
strutture di raccolta indicate dal governo o dagli enti pubblici locali. Il
corretto smaltimento ed il riciclaggio aiuteranno a prevenire conseguenze
potenzialmente negative per l’ambiente e per la salute dell’essere umano.
Per ricevere informazioni più dettagliate circa lo smaltimento delle vecchie
apparecchiature in Vostro possesso, Vi invitiamo a contattare gli enti
pubblici di competenza, il servizio di smaltimento rifiuti o il negozio nel
quale avete acquistato il prodotto.
Declaration of Conformity
български [Bulgarian] С настоящото UBIQUITI NETWORKS декларира, че този тип
радиосъоръжение UAP-XG е в съответствие с Директива 2014/53/ЕС. Цялостният текст
на ЕС декларацията за съответствие може да се намери на следния интернет адрес:
www.ubnt.com/compliance
Hrvatski [Croatian] UBIQUITI NETWORKS ovime izjavljuje da je radijska oprema tipa UAP-XG u
skladu s Direktivom 2014/53/EU. Cjeloviti tekst EU izjave o sukladnosti dostupan je na sljedećoj
internetskoj adresi:
www.ubnt.com/compliance
Čeština [Czech] Tímto UBIQUITI NETWORKS prohlašuje, že typ rádiového zařízení UAP-XG je
v souladu se směrnicí 2014/53/EU. Úplné znění EU prohlášení o shodě je k dispozici na této
internetové adrese:
www.ubnt.com/compliance
Dansk [Danish] Hermed erklærer UBIQUITI NETWORKS, at radioudstyrstypen UAP-XG er i
overensstemmelse med direktiv 2014/53/EU. EU-overensstemmelseserklæringens fulde tekst kan
findes på følgende internetadresse:
www.ubnt.com/compliance
Nederlands [Dutch] Hierbij verklaar ik, UBIQUITI NETWORKS, dat het type radioapparatuur
UAP-XG conform is met Richtlijn 2014/53/EU. De volledige tekst van de EU-conformiteitsverklaring
kan worden geraadpleegd op het volgende internetadres:
www.ubnt.com/compliance
English
Hereby, UBIQUITI NETWORKS declares that the radio equipment type
UAP-XG
is in
compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is
available at the following internet address: www.ubnt.com/compliance
Eesti keel [Estonian] Käesolevaga deklareerib UBIQUITI NETWORKS, et käesolev raadioseadme
tüüp UAP-XG vastab direktiivi 2014/53/EL nõuetele. ELi vastavusdeklaratsiooni täielik tekst on
kättesaadav järgmisel internetiaadressil:
www.ubnt.com/compliance
Suomi [Finnish] UBIQUITI NETWORKS vakuuttaa, että radiolaitetyyppi UAP-XG on direktiivin
2014/53/EU mukainen. EU-vaatimustenmukaisuusvakuutuksen täysimittainen teksti on saatavilla
seuraavassa internetosoitteessa:
www.ubnt.com/compliance
Français [French] Le soussigné, UBIQUITI NETWORKS, déclare que l’équipement radioélectrique
du type UAP-XG est conforme à la directive 2014/53/UE. Le texte complet de la déclaration UE de
conformité est disponible à l’adresse internet suivante:
www.ubnt.com/compliance
Deutsch [German] Hiermit erklärt UBIQUITI NETWORKS, dass der Funkanlagentyp UAP-XG der
Richtlinie 2014/53/EU entspricht. Der vollständige Text der EU-Konformitätserklärung ist unter der
folgenden Internetadresse verfügbar:
www.ubnt.com/compliance
Ελληνικά [Greek] Με την παρούσα ο/η UBIQUITI NETWORKS, δηλώνει ότι ο ραδιοεξοπλισμός
UAP-XG πληροί την οδηγία 2014/53/ΕΕ. Το πλήρες κείμενο της δήλωσης συμμόρφωσης ΕΕ
διατίθεται στην ακόλουθη ιστοσελίδα στο διαδίκτυο:
www.ubnt.com/compliance
Magyar [Hungarian] UBIQUITI NETWORKS igazolja, hogy a UAP-XG típusú rádióberendezés
megfelel a 2014/53/EU irányelvnek. Az EU-megfelelőségi nyilatkozat teljes szövege elérhető a
következő internetes címen:
www.ubnt.com/compliance
Íslenska [Icelandic] Hér með lýsir UBIQUITI NETWORKS yfir því að UAP-XG er í samræmi
við grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 2014/53/EU. Fullur texti ESB
samræmisyfirlýsing er að finna á eftirfarandi netfangi:
www.ubnt.com/compliance
Italiano [Italian] Il fabbricante, UBIQUITI NETWORKS, dichiara che il tipo di apparecchiatura
radio UAP-XG èconforme alla direttiva 2014/53/UE. Il testo completo della dichiarazione di
conformità UE è disponibile al seguente indirizzo Internet:
www.ubnt.com/compliance
Latvių kalba [Latvian] Ar šo UBIQUITI NETWORKS deklarē, ka radioiekārta UAP-XG atbilst
Direktīvai 2014/53/ES. Pilns ES atbilstības deklarācijas teksts ir pieejams šādā interneta vietnē:
www.ubnt.com/compliance
Lietuvių kalba [Lithuanian] Aš, UBIQUITI NETWORKS, patvirtinu, kad radijo įrenginių tipas UAP-XG
atitinka Direktyvą 2014/53/ES. Visas ES atitikties deklaracijos tekstas prieinamas šiuo interneto
adresu:
www.ubnt.com/compliance
Malti [Maltese]
B’dan, UBIQUITI NETWORKS, niddikjara li dan it-tip ta’ tagħmir tar-radju
UAP-XG
huwa konformi mad-Direttiva 2014/53/UE. Id-dikjarazzjoni tal-konformità tista’ tiġi kkonsultata
minn www.ubnt.com/compliance
Norsk [Norwegian]
UBIQUITI NETWORKS erklærer herved at utstyret
UAP-XG
er i
samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 2014/53/EU. Den
fulle teksten til EU-samsvarserklæringen er tilgjengelig på følgende internettadresse:
www.ubnt.com/compliance
Polski [Polish] UBIQUITI NETWORKS niniejszym oświadcza, że typ urządzenia radiowego
UAP-XG jest zgodny z dyrektywą 2014/53/UE. Pełny tekst deklaracji zgodności UE jest dostępny
pod następującym adresem internetowym:
www.ubnt.com/compliance
Português [Portuguese] O(a) abaixo assinado(a) UBIQUITI NETWORKS declara que o presente
tipo de equipamento de rádio UAP-XG está em conformidade com a Diretiva 2014/53/UE.
Otexto integral da declaração de conformidade está disponível no seguinte endereço de
Internet:
www.ubnt.com/compliance
Română [Romanian] Prin prezenta, UBIQUITI NETWORKS declară că tipul de echipamente
radio UAP-XG este în conformitate cu Directiva 2014/53/UE. Textul integral al declarației UE de
conformitate este disponibil la următoarea adresă internet:
www.ubnt.com/compliance
Slovenčina [Slovak]
UBIQUITI NETWORKS
týmto vyhlasuje, že rádiové zariadenie typu UAP-XG je v
súlade so smernicou 2014/53/EÚ. Úplné EÚ vyhlásenie o zhode je k dispozícii na tejto internetovej
adrese:
www.ubnt.com/compliance
Slovenščina [Slovenian]
UBIQUITI NETWORKS potrjuje, da je tip radijske opreme
UAP-XG
skladen
z Direktivo 2014/53/EU. Celotno besedilo izjave EU o skladnosti je na voljo na naslednjem spletnem
naslovu: www.ubnt.com/compliance
Español [Spanish] Por la presente, UBIQUITI NETWORKS declara que el tipo de equipo
radioeléctrico UAP-XG es conforme con la Directiva 2014/53/UE. El texto completo de
la declaración UE de conformidad está disponible en la dirección Internet siguiente:
www.ubnt.com/compliance
Svenska [Swedish] Härmed försäkrar UBIQUITI NETWORKS att denna typ av radioutrustning
UAP-XG överensstämmer med direktiv 2014/53/EU. Den fullständiga texten till EU-försäkran om
överensstämmelse finns på följande webbadress:
www.ubnt.com/compliance
©2017 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti
Networks, the Ubiquiti U logo, the Ubiquiti beam logo, and UniFi are
trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United
States and in other countries. All other trademarks are the property of their
respective owners. AI091417
Online Resources
Support help.ubnt.com
Community community.ubnt.com
Downloads downloads.ubnt.com
Ubiquiti Networks, Inc.
685 Third Avenue, 27th Floor
New York, NY 10017
USA
www.ubnt.com

Navigation menu
