Ubiquiti UFOLT UFiber OLT User Manual U Fiber UF OLT Quick Start Guide
Ubiquiti Networks, Inc. UFiber OLT U Fiber UF OLT Quick Start Guide
Ubiquiti >
User Manual
8-Port GPON Optical Line
Terminal with SFP+
Model: UF-OLT
Introduction
Thank you for purchasing the Ubiquiti Networks® U®FiberOLT.
This Quick Start Guide is designed to guide you through
installation and also includes warrantyterms.

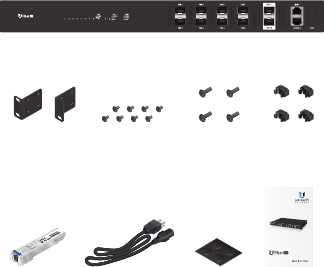

Package Contents
U FiberOLT
Mounting Brackets
(Qty. 2)
Bracket Screws
(Qty. 8)
Mounting Screws
(Qty. 4)
Cage Nuts
(Qty. 4)
8-Port GPON Optical Line
Terminal with SFP+
Model: UF-OLT
GPON SFP
Transceiver
(UF-GP-B+)
Power Cord Rubber Feet
(Qty. 4)
Quick Start
Guide
TERMS OF USE: All Ethernet cabling runs must use CAT5 (or above). It is the customer’s
responsibility to follow local country regulations, including operation within legal frequency
channels, output power, indoor cabling requirements, and Dynamic Frequency Selection
(DFS) requirements.
System Requirements
• Linux, MacOSX, or Microsoft Windows 7/8/10
• Web Browser: Google Chrome (Other browsers may have
limited functionality)
Installation Requirements
• Phillips screwdriver (for rack- or wall-mounting)
• Standard-sized, 19" wide rack with a minimum of 1U height
available (for rack-mounting)
• Compatible PON SFP and SFP+ transceivers with appropriate
fiber optic cabling. For information about compatible fiber
transceivers, visit: community.ubnt.com/edgemax
Hardware Overview
Front Panel Ports
Console Port Reset
Button
SFP+
Ports
GPON Ports
(PON1-PON8)
MGMT
Port
Interface Description
GPON Ports
(PON 1-PON 8)
Gigabit Passive Optical Network ports
support up to 128 clients on each port.
SFP+ Ports Hot-swappable SFP+ ports support 1G
or 10G connections.
MGMT Port 10/100/1000 Ethernet port used for
out-of-band management.
Console Port
RJ45 serial console port for Command
Line Interface (CLI) management. Use an
RJ45-to-DB9, serial console cable, also
known as a rollover cable, to connect the
Console port to your computer. (If your
computer does not have a DB9 port,
then you will also need a DB9 adapter.)
Then configure the following settings
as needed:
• Baud rate 57600
• Data bits 8
• Parity NONE
• Stop bits 1
• Flow control NONE
Interface Description
Reset Button
There are two methods to reset the
U FiberOLT to factory defaults:
• Runtime reset (recommended) The
U FiberOLT should be running after
bootup is complete. Press and hold
the Reset button for about 10seconds
until the MGMT LED starts flashing and
then becomes solidly lit. After a few
seconds, the LED will turn off, and the
U FiberOLT will automatically reboot.
Note: To press the Reset button,
insert a straightened paper
clip (or similar object) into the
hole shown above. Do not use
an object that can break and
become lodged in the hole.
• Power-on reset Disconnect the Power
Cord from the U FiberOLT. Press
and hold the Reset button while
connecting the Power Cord to the
U FiberOLT. Keep holding the button
until the MGMT LED starts flashing
and then stops flashing after a few
seconds.
Front Panel LEDs
PON (1-8) SFP+ (1-2)
MGMT
System
LED State Status
System
Blue/Flashing Initializing/Booting Up
White Ready for Use
PON 1-8
Off No Link
White/Flashing GPON Link/Activity
SFP+ (1-2)
Off No Link
Green/Flashing 1G Link/Activity
White/Flashing 10G Link/Activity
MGMT
Off No Link
Amber/Flashing 10/100 Link/Activity
Green/Flashing 1000 Link/Activity
*640-00269-04*
640-00269-04
Back Panel
AC/DC PSU
Module
PSU 2
Module Bay
Fans
Side Panels
Ventilation Holes
Ventilation Holes
WARNING: FAILURE TO PROVIDE PROPER VENTILATION
MAY CAUSE FIRE HAZARD. KEEP AT LEAST 20 MM OF
CLEARANCE NEXT TO THE FANS AND VENTILATION
HOLES FOR ADEQUATE AIRFLOW.
Hardware Installation
The U FiberOLT can be placed on a horizontal surface,
mounted on a wall, or mounted in a rack.

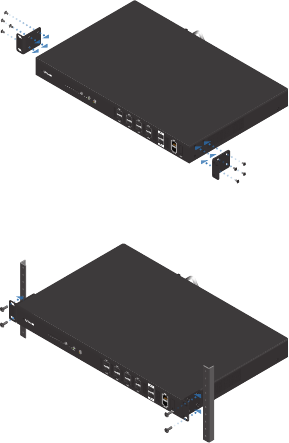

1. Attach the Mounting Brackets to the U FiberOLT using the
eight Bracket Screws.
2. Attach the U FiberOLT to the rack using the four Mounting
Screws. (If the rack has square slots, then use the Cage Nuts
with the Mounting Screws.)

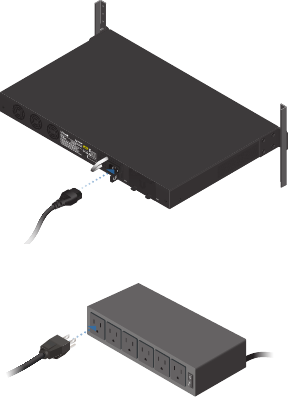

3. Connect the Power Cord to the AC/DC PSU Module.
4. Connect the other end of the Power Cord to a power outlet.

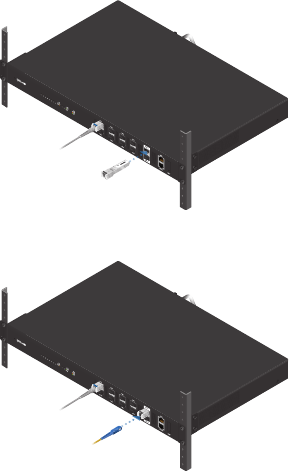

Connecting PON
1. Remove the protective plug covering a PON port.
2. Insert the GPON SFP Transceiver into the PON port.
3. Connect a fiber optic cable to the GPON SFP Transceiver.
Then connect the other end of the cable to a Passive
Optical Splitter (POS).
4. Repeat steps 1-3 to connect additional PON ports.
Note: One GPON SFP transceiver (model UF-GP-B+) is
included. Use compatible PON SFP transceivers with the
appropriate fiber optic cabling at each PON port.

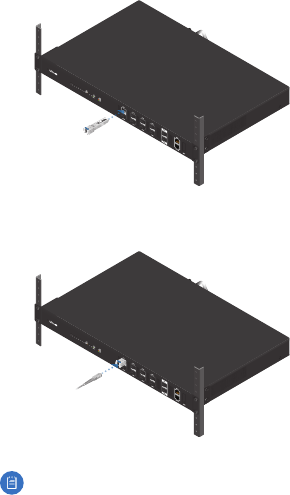

Connecting SFP+
1. Remove the protective plug covering an SFP+ port.
2. Insert a compatible SFP transceiver into the SFP+ port.
1000Mbps SM/SC 20KM DDM
Tx1550nm/Rx1310nm
3. Connect the fiber optic cable to the SFP transceiver. Then
connect the other end of the cable to an SFP device.

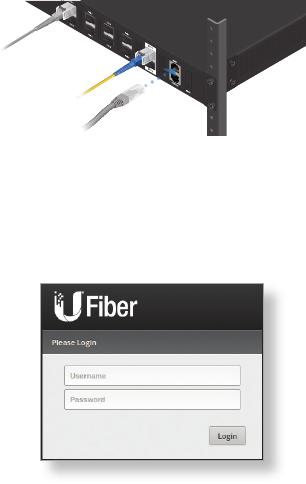

Accessing the Configuration Interface
1. Connect an Ethernet cable from your computer to the
MGMT port on the U FiberOLT.
2. Configure the Ethernet adapter on your host system with a
static IP address on the 192.168.1.x subnet.
3. Launch your web browser. Type https://192.168.1.1 in the
address field. Press enter (PC) or return (Mac).
4. The login screen will appear. Enter ubnt in the Username
and Password fields. Read the Ubiquiti License Agreement,
and check the box next to I agree to the terms of this License
Agreement to accept it. Click Login.
The U Fiber Configuration Interface will appear, allowing you to
customize your settings as needed.
Installing UNMS™
The Ubiquiti Network Management System (UNMS) is a
Linux-based controller software used to centrally manage the
U FiberOLT and U Fiber Nano G clients.
For the latest UNMS version and installation guide, visit:
www.ubnt.com/software
Specifications
U FiberOLT
Dimensions 442.4 x 285.6 x 43.7 mm
(17.42 x 11.24 x 1.72")
Weight
Without Mount Brackets
With Mount Brackets
4.400 kg (9.70 lb)
4.495 kg (9.91 lb)
Max. Power Consumption 40W (Excluding SFP Transceivers)
Power Method 110 - 240VAC Modular PSU
Power Supply (1) Hot-Swappable AC/DC 100W PSU
(Included)
Supported Voltage Range AC Input: 100 to 240VAC
Button Reset
Processor MIPS 1004Kc 880 MHz Dual-Core
System Memory 512 MB DDR3, 512 MB NAND
LEDs
System
PON Data Ports
SFP+ Data Ports
RJ45 (MGMT) Port
Status
Link/Activity
Link/Activity
Link/Activity
Interfaces
Data Ports
Serial Console Port
(8) GPON Ports (2.488 Gbps TX/
1.244 Gbps RX per Port)
(2) 1G/10G SFP+ Ports
(1) RJ45 Ethernet Port
(1) RJ45 Serial Port
Certications CE, FCC, IC
Rackmount Yes
Operating Temperature -10 to 45° C (14 to 113° F)
Operating Humidity 10 - 90% Noncondensing
GPON SFP OLT Transceiver
(UF-GP-B+ )
Single Fiber, SM SC, 20 km,
1490 nm TX/1310 nm RX,
ITU-T G984.2 Class B+
Safety Notices
1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by the manufacturer.
WARNING: Do not use this product in location that can
be submerged by water.
WARNING: Avoid using this product during an electrical
storm. There may be a remote risk of electric shock from
lightning.
WARNING: CLASS 1 LASER PRODUCT - Do not look into
the ends of the fiber optic cable or SFP modules while
converters are powered.
Electrical Safety Information
1. Compliance is required with respect to voltage, frequency, and current
requirements indicated on the manufacturer’s label. Connection to a
different power source than those specified may result in improper
operation, damage to the equipment or pose a fire hazard if the
limitations are not followed.
2. There are no operator serviceable parts inside this equipment. Service
should be provided only by a qualified service technician.
3. This equipment is provided with a detachable power cord which has
an integral safety ground wire intended for connection to a grounded
safety outlet.
a. Do not substitute the power cord with one that is not the provided
approved type. Never use an adapter plug to connect to a 2-wire
outlet as this will defeat the continuity of the grounding wire.
b. The equipment requires the use of the ground wire as a part of the
safety certification, modification or misuse can provide a shock
hazard that can result in serious injury or death.
c. Contact a qualified electrician or the manufacturer if there
are questions about the installation prior to connecting the
equipment.
d. Protective earthing is provided by Listed AC adapter. Building
installation shall provide appropriate short-circuit backup
protection.
e. Protective bonding must be installed in accordance with local
national wiring rules and regulations.
Limited Warranty
UBIQUITI NETWORKS, Inc (“UBIQUITI NETWORKS”) warrants that the
product(s) furnished hereunder (the “Product(s)”) shall be free from defects
in material and workmanship for a period of one (1) year from the date
of shipment by UBIQUITI NETWORKS under normal use and operation.
UBIQUITI NETWORKS’ sole and exclusive obligation and liability under
the foregoing warranty shall be for UBIQUITI NETWORKS, at its discretion,
to repair or replace any Product that fails to conform to the above
warranty during the above warranty period. The expense of removal and
reinstallation of any Product is not included in this warranty. The warranty
period of any repaired or replaced Product shall not extend beyond its
original term.
Warranty Conditions
The above warranty does not apply if the Product:
(I) has been modified and/or altered, or an addition made thereto,
except by Ubiquiti Networks, or Ubiquiti Networks’ authorized
representatives, or as approved by Ubiquiti Networks in writing;
(II) has been painted, rebranded or physically modified in any way;
(III) has been damaged due to errors or defects in cabling;
(IV) has been subjected to misuse, abuse, negligence, abnormal physical,
electromagnetic or electrical stress, including lightning strikes, or
accident;
(V) has been damaged or impaired as a result of using third party
firmware;
(VI) has no original Ubiquiti MAC label, or is missing any other original
Ubiquiti label(s); or
(VII) has not been received by Ubiquiti within 30 days of issuance of
the RMA.
In addition, the above warranty shall apply only if: the product has been
properly installed and used at all times in accordance, and in all material
respects, with the applicable Product documentation; all Ethernet cabling
runs use CAT5 (or above), and for outdoor installations, shielded Ethernet
cabling is used, and for indoor installations, indoor cabling requirements
are followed.
Returns
No Products will be accepted for replacement or repair without obtaining
a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS
during the warranty period, and the Products being received at UBIQUITI
NETWORKS’ facility freight prepaid in accordance with the RMA process of
UBIQUITI NETWORKS. Products returned without an RMA number will not
be processed and will be returned freight collect or subject to disposal.
Information on the RMA process and obtaining an RMA number can be
found at: www.ubnt.com/support/warranty
Disclaimer
EXCEPT FOR ANY EXPRESS WARRANTIES PROVIDED HEREIN, UBIQUITI
NETWORKS, ITS AFFILIATES, AND ITS AND THEIR THIRD PARTY DATA, SERVICE,
SOFTWARE AND HARDWARE PROVIDERS HEREBY DISCLAIM AND MAKE NO
OTHER REPRESENTATION OR WARRANTY OF ANY KIND, EXPRESS, IMPLIED
OR STATUTORY, INCLUDING, BUT NOT LIMITED TO, REPRESENTATIONS,
GUARANTEES, OR WARRANTIES OF MERCHANTABILITY, ACCURACY, QUALITY
OF SERVICE OR RESULTS, AVAILABILITY, SATISFACTORY QUALITY, LACK OF
VIRUSES, QUIET ENJOYMENT, FITNESS FOR A PARTICULAR PURPOSE AND
NON-INFRINGEMENT AND ANY WARRANTIES ARISING FROM ANY COURSE
OF DEALING, USAGE OR TRADE PRACTICE IN CONNECTION WITH SUCH
PRODUCTS AND SERVICES. BUYER ACKNOWLEDGES THAT NEITHER UBIQUITI
NETWORKS NOR ITS THIRD PARTY PROVIDERS CONTROL BUYER’S EQUIPMENT
OR THE TRANSFER OF DATA OVER COMMUNICATIONS FACILITIES, INCLUDING
THE INTERNET, AND THAT THE PRODUCTS AND SERVICES MAY BE SUBJECT
TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER
PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI
NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS
ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS,
DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR
OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING. In addition,
UBIQUITI NETWORKS does not warrant that the operation of the Products
will be error-free or that operation will be uninterrupted. In no event shall
UBIQUITI NETWORKS be responsible for damages or claims of any nature
or description relating to system performance, including coverage, buyer’s
selection of products (including the Products) for buyer’s application and/or
failure of products (including the Products) to meet government or regulatory
requirements.
Limitation of Liability
EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL
UBIQUITI OR ITS SUBSIDIARIES, AFFILIATES OR SUPPLIERS BE LIABLE FOR
DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES
(INCLUDING LOST PROFIT, LOST DATA, OR DOWNTIME COSTS), ARISING OUT
OF THE USE, INABILITY TO USE, OR THE RESULTS OF USE OF THE PRODUCT,
WHETHER BASED IN WARRANTY, CONTRACT, TORT OR OTHER LEGAL THEORY,
AND WHETHER OR NOT ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Note
Some countries, states and provinces do not allow exclusions of implied
warranties or conditions, so the above exclusion may not apply to you. You may
have other rights that vary from country to country, state to state, or province
to province. Some countries, states and provinces do not allow the exclusion
or limitation of liability for incidental or consequential damages, so the above
limitation may not apply to you. EXCEPT TO THE EXTENT ALLOWED BY LOCAL
LAW, THESE WARRANTY TERMS DO NOT EXCLUDE, RESTRICT OR MODIFY, AND
ARE IN ADDITION TO, THE MANDATORY STATUTORY RIGHTS APPLICABLE TO
THE LICENSE OF ANY SOFTWARE (EMBEDDED IN THE PRODUCT) TO YOU. The
United Nations Convention on Contracts for the International Sale of Goods
shall not apply to any transactions regarding the sale of the Products.
Compliance
FCC
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operations of this
equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own
expense.
This radio transmitter FCC ID: SWX-UFOLT has been approved by FCC.
Industry Canada
CAN ICES-3(A)/NMB-3(A)
This Class A digital apparatus complies with Canadian CAN ICES-003.
To reduce potential radio interference to other users, the antenna
type and its gain should be so chosen that the equivalent isotropically
radiated power (e.i.r.p.) is not more than that permitted for successful
communication.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that
may cause undesired operation of the device.
This radio transmitter (IC: 6545A-UFOLT) has been approved by Industry
Canada.
CAN ICES-3(A)/NMB-3(A)
Cet appareil numérique de la classe A est conforme à la norme NMB-003
du Canada.
Pour réduire le risque d’interférence aux autres utilisateurs, le type
d’antenne et son gain doivent être choisies de façon que la puissance
isotrope rayonnée équivalente (PIRE) ne dépasse pas ce qui est nécessaire
pour une communication réussie.
Cet appareil est conforme à la norme RSS Industrie Canada exempts de
licence norme(s). Son fonctionnement est soumis aux deux conditions
suivantes:
1. Cet appareil ne peut pas provoquer d’interférences et
2. Cet appareil doit accepter toute interférence, y compris les
interférences qui peuvent causer un mauvais fonctionnement du
dispositif.
Cet émetteur radio (IC: 6545A-UFOLT) a été approuvée par Industrie
Canada pour l’exploitation avec l’antenne types énumérés ci-dessous avec
le gain maximal admissible et requis l’impédance de l’antenne pour chaque
type d’antenne indiqué. Types d’antenne non inclus dans cette liste, ayant
un gain supérieur au gain maximal indiqué pour ce type, sont strictement
interdits pour une utilisation avec cet appareil.
RF Exposure Warning
The antennas used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be
located or operating in conjunction with any other antenna or transmitter.
Les antennes utilisées pour ce transmetteur doivent être installé en
considérant une distance de séparation de toute personnes d’au moins
20cm et ne doivent pas être localisé ou utilisé en conflit avec tout autre
antenne ou transmetteur.
Australia and New Zealand
Warning: This is a Class A product. In a domestic environment this
product may cause radio interference in which case the user may
be required to take adequate measures.
CE Marking
CE marking on this product represents the product is in compliance with all
directives that are applicable to it.
RoHS/WEEE Compliance Statement
English
European Directive 2012/19/EU requires that the equipment bearing
this symbol on the product and/or its packaging must not be disposed
of with unsorted municipal waste. The symbol indicates that this
product should be disposed of separately from regular household waste
streams. It is your responsibility to dispose of this and other electric and
electronic equipment via designated collection facilities appointed by the
government or local authorities. Correct disposal and recycling will help
prevent potential negative consequences to the environment and human
health. For more detailed information about the disposal of your old
equipment, please contact your local authorities, waste disposal service, or
the shop where you purchased the product.
Deutsch
Die Europäische Richtlinie 2012/19/EU verlangt, dass technische
Ausrüstung, die direkt am Gerät und/oder an der Verpackung mit diesem
Symbol versehen ist, nicht zusammen mit unsortiertem Gemeindeabfall
entsorgt werden darf. Das Symbol weist darauf hin, dass das Produkt
von regulärem Haushaltmüll getrennt entsorgt werden sollte. Es
liegt in Ihrer Verantwortung, dieses Gerät und andere elektrische
und elektronische Geräte über die dafür zuständigen und von der
Regierung oder örtlichen Behörden dazu bestimmten Sammelstellen zu
entsorgen. Ordnungsgemäßes Entsorgen und Recyceln trägt dazu bei,
potentielle negative Folgen für Umwelt und die menschliche Gesundheit
zu vermeiden. Wenn Sie weitere Informationen zur Entsorgung Ihrer
Altgeräte benötigen, wenden Sie sich bitte an die örtlichen Behörden oder
städtischen Entsorgungsdienste oder an den Händler, bei dem Sie das
Produkt erworben haben.
Español
La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en
el propio aparato y/o en su embalaje no deben eliminarse junto con otros
residuos urbanos no seleccionados. El símbolo indica que el producto
en cuestión debe separarse de los residuos domésticos convencionales
con vistas a su eliminación. Es responsabilidad suya desechar este y
cualesquiera otros aparatos eléctricos y electrónicos a través de los puntos
de recogida que ponen a su disposición el gobierno y las autoridades
locales. Al desechar y reciclar correctamente estos aparatos estará
contribuyendo a evitar posibles consecuencias negativas para el medio
ambiente y la salud de las personas. Si desea obtener información más
detallada sobre la eliminación segura de su aparato usado, consulte a las
autoridades locales, al servicio de recogida y eliminación de residuos de su
zona o pregunte en la tienda donde adquirió el producto.
Français
La directive européenne 2012/19/UE exige que l’équipement sur lequel
est apposé ce symbole sur le produit et/ou son emballage ne soit pas jeté
avec les autres ordures ménagères. Ce symbole indique que le produit
doit être éliminé dans un circuit distinct de celui pour les déchets des
ménages. Il est de votre responsabilité de jeter ce matériel ainsi que tout
autre matériel électrique ou électronique par les moyens de collecte
indiqués par le gouvernement et les pouvoirs publics des collectivités
territoriales. L’élimination et le recyclage en bonne et due forme ont pour
but de lutter contre l’impact néfaste potentiel de ce type de produits
sur l’environnement et la santé publique. Pour plus d’informations sur le
mode d’élimination de votre ancien équipement, veuillez prendre contact
avec les pouvoirs publics locaux, le service de traitement des déchets, ou
l’endroit où vous avez acheté le produit.
Italiano
La direttiva europea 2012/19/UE richiede che le apparecchiature
contrassegnate con questo simbolo sul prodotto e/o sull’imballaggio non
siano smaltite insieme ai rifiuti urbani non differenziati. Il simbolo indica
che questo prodotto non deve essere smaltito insieme ai normali rifiuti
domestici. È responsabilità del proprietario smaltire sia questi prodotti sia
le altre apparecchiature elettriche ed elettroniche mediante le specifiche
strutture di raccolta indicate dal governo o dagli enti pubblici locali. Il
corretto smaltimento ed il riciclaggio aiuteranno a prevenire conseguenze
potenzialmente negative per l’ambiente e per la salute dell’essere umano.
Per ricevere informazioni più dettagliate circa lo smaltimento delle vecchie
apparecchiature in Vostro possesso, Vi invitiamo a contattare gli enti
pubblici di competenza, il servizio di smaltimento rifiuti o il negozio nel
quale avete acquistato il prodotto.
Declaration of Conformity
Česky
[Czech]
UBIQUITI NETWORKS tímto prohlašuje, že toto UBIQUITI
NETWORKS zařízení, je ve shodě se základními požadavky a dalšími
příslušnými ustanoveními směrnice 1999/5/ES.
Dansk
[Danish]
Hermed, UBIQUITI NETWORKS, erklærer at denne UBIQUITI
NETWORKS enhed, er i overensstemmelse med de væsentlige krav
og øvrige relevante krav i direktiv 1999/5/EF.
Nederlands
[Dutch]
Hierbij verklaart UBIQUITI NETWORKS, dat deze UBIQUITI
NETWORKS apparaat, in overeenstemming is met de essentiële
eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.
English
Hereby, UBIQUITI NETWORKS, declares that this UBIQUITI
NETWORKS device, is in compliance with the essential requirements
and other relevant provisions of Directive 1999/5/EC.
Eesti
[Estonian]
Käesolevaga UBIQUITI NETWORKS kinnitab, et antud UBIQUITI
NETWORKS seade, on vastavus olulistele nõuetele ja teistele
asjakohastele sätetele direktiivi 1999/5/EÜ.
Suomi
[Finnish]
Täten UBIQUITI NETWORKS vakuuttaa, että tämä UBIQUITI
NETWORKS laite, on yhdenmukainen olennaisten vaatimusten ja
muiden sitä koskevien direktiivin 1999/5/EY.
Français
[French]
Par la présente UBIQUITI NETWORKS déclare que l’appareil
UBIQUITI NETWORKS, est conforme aux exigences essentielles et
aux autres dispositions pertinentes de la directive 1999/5/CE.
Deutsch
[German]
Hiermit erklärt UBIQUITI NETWORKS, dass sich dieses UBIQUITI
NETWORKS Gerät, in Übereinstimmung mit den grundlegenden
Anforderungen und den anderen relevanten Vorschriften der
Richtlinie 1999/5/EG befindet.
Ελληνική
[Greek]
Δια του παρόντος, UBIQUITI NETWORKS, δηλώνει ότι αυτή η
συσκευή UBIQUITI NETWORKS, είναι σε συμμόρφωση με τις
βασικές απαιτήσεις και τις λοιπές σχετικές διατάξεις της οδηγίας
1995/5/ΕΚ.
Magyar
[Hungarian]
Ezennel UBIQUITI NETWORKS kijelenti, hogy ez a UBIQUITI
NETWORKS készülék megfelel az alapvető követelményeknek és
más vonatkozó 1999/5/EK irányelv rendelkezéseit.
Íslenska
[Icelandic]
Hér, UBIQUITI NETWORKS, því yfir að þetta UBIQUITI NETWORKS
tæki er í samræmi við grunnkröfur og önnur viðeigandi ákvæði
tilskipun 1999/5/EB.
Italiano
[Italian]
Con la presente, UBIQUITI NETWORKS, dichiara che questo
dispositivo UBIQUITI NETWORKS, è conforme ai requisiti essenziali
ed alle altre disposizioni pertinenti della direttiva 1999/5/CE.
Latviski
[Latvian]
Ar šo, UBIQUITI NETWORKS, deklarē, ka UBIQUITI NETWORKS
ierīce, ir saskaņā ar būtiskajām prasībām un citiem attiecīgiem
noteikumiem Direktīvā 1999/5/EK.
Lietuviškai
[Lithuanian]
UBIQUITI NETWORKS deklaruoja, kad šis UBIQUITI NETWORKS
įrenginys atitinka esminius reikalavimus ir kitas 1999/5/EB
Direktyvos nuostatas.
Malti
[Maltese]
Hawnhekk, UBIQUITI NETWORKS, tiddikjara li dan il-mezz
UBIQUITI NETWORKS huwa konformi mar-rekwiżiti essenzjali u
dispożizzjonijiet rilevanti oħrajn ta ‘Direttiva 1999/5/KE.
Norsk
[Norwegian]
Herved UBIQUITI NETWORKS, erklærer at denne UBIQUITI
NETWORKS enheten, er i samsvar med de grunnleggende kravene
og andre relevante bestemmelser i direktiv
1999/5/EF.
Polski
[Polish]
Niniejszym, Ubiquiti Networks, oświadcza, że urządzenie UBIQUITI
NETWORKS, jest zgodny z zasadniczymi wymaganiami oraz
pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/WE.
Português
[Portuguese]
UBIQUITI NETWORKS declara que este dispositivo UBIQUITI
NETWORKS, está conforme com os requisitos essenciais e outras
disposições da Directiva 1999/5/CE.
Română
[Romanian]
Prin prezenta, UBIQUITI NETWORKS declară că acest dispozitiv
UBIQUITI NETWORKS este în conformitate cu cerințele esențiale și
alte prevederi relevante ale Directivei 1999/5/CE.
Slovensky
[Slovak]
Týmto
UBIQUITI NETWORKS
, prehlasuje, že toto
UBIQUITI
NETWORKS
zariadenie, je v súlade so základnými požiadavkami a
ďalšími relevantnými ustanoveniami smernice 1999/5/ES.
Español
[Spanish]
Por medio de la presente UBIQUITI NETWORKS declara que este
dispositivo UBIQUITI NETWORKS, cumple con los requisitos
esenciales y cualesquiera otras disposiciones aplicables o exigibles
de la Directiva 1999/5/CE.
Svenska
[Swedish]
Härmed UBIQUITI NETWORKS, intygar att denna UBIQUITI
NETWORKS enhet är i överensstämmelse med de väsentliga
egenskapskrav och övriga relevanta bestämmelser som framgår
av direktiv 1999/5/EG.
Online Resources
Support help.ubnt.com
Community community.ubnt.com
Downloads downloads.ubnt.com
©2017 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, UbiquitiNetworks,
the Ubiquiti U logo, the Ubiquiti beam logo, U Fiber, and UNMS are
trademarks or registered trademarks of UbiquitiNetworks,Inc. in the United
States and in other countries. All other trademarks are the property of their
respective owners. AJPH042517
www.ubnt.com
