The WS5 hi-power mini-PCI 802.11a radio card module has been specifically
designed for use in outdoor wireless applications where additional link gain is
critical. It is compatible with existing Atheros linux drivers and is capable of
operation in the 5725-5850 MHz frequency range. Power and frequency limits
are hard programmed into the radio card EEPROM, but card compatibility can
be achieved with any Atheros Linux based software.
It is necessary that the system integrators perform all applicable retesting and
certification for their final system configurations.

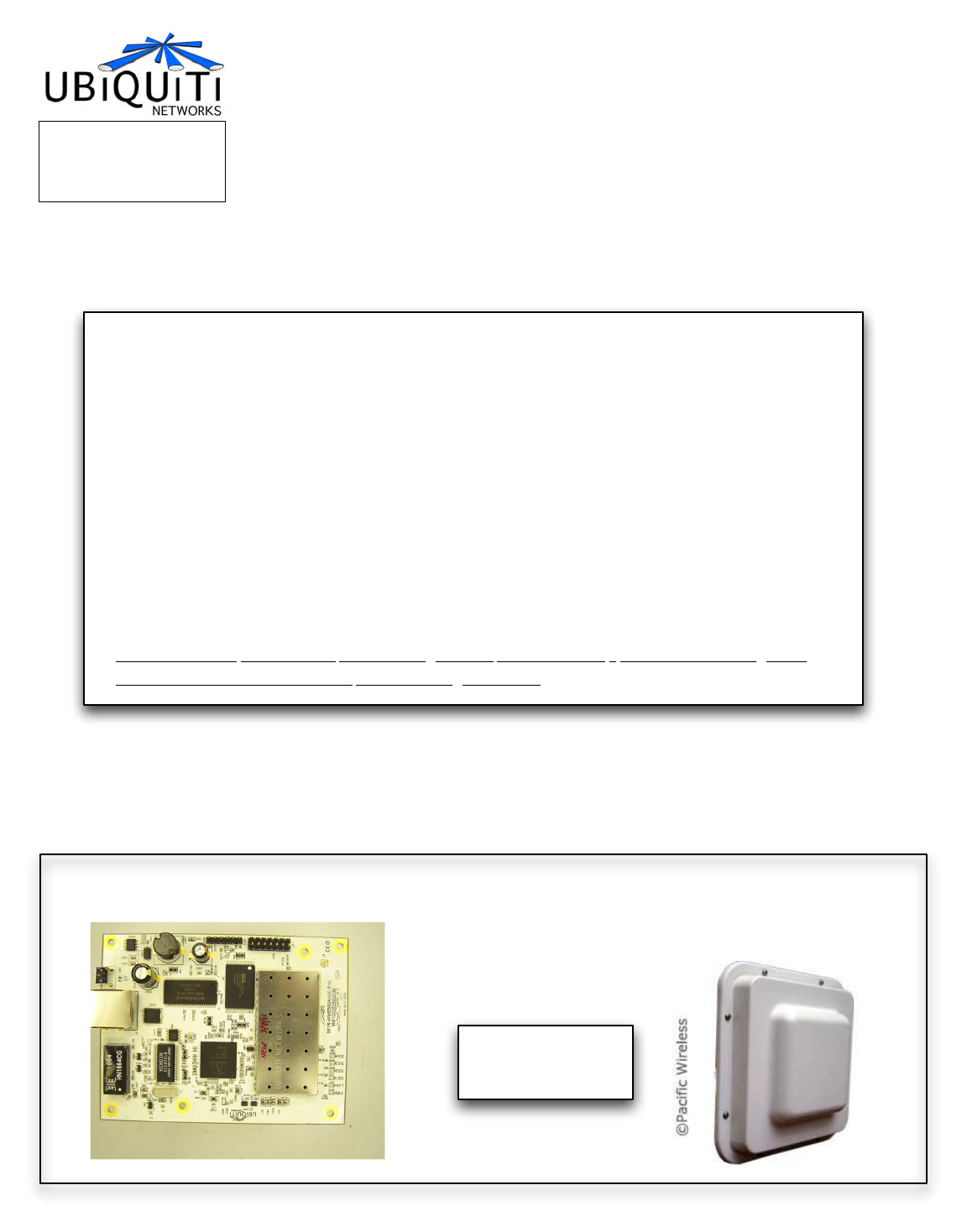

EXAMPLE OEM SYSTEM USAGE
MODULAR USAGE
PC ENGINES
WRAP Wireless
Router Board
ATHEROS
PUBLIC
MADWIFI Driver
Ubiquiti Networks, Inc.
778 N. First St.
San Jose, CA 95112
(408)-385-1103
WS 5
Pac Wireless Roo Tenna
Antenna/Enclosure
Software Driver
802.11a Long-Range 5GHz Station
WS5 IMPORTANT MODULAR APPROVAL INFORMATION
This device is intended only form OEM integrator under the following conditions:
1) The antenna must be installed such that 86.2 cm is maintained between the antenna and
users, and
2) The transmitter module may not be co-located with any other transmitter or antenna.
IMPORTANT NOTE: In the event that these conditions cannot be met (for example
certain laptop configurations or co-location with another transmitter), then the FCC
authorization is no longer considered valid and the FCC ID cannot be used on the final
product. In these circumstances, the OEM integrator will be responsible for re-evaluating
the end product (including the transmitter) and obtaining a separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in devices where the antenna may be
installed such that 86.2 cm may be maintained between the antenna and users (for example
access points, routers, wireless ADSL modems, and similar equipment). The final end
product must be labeled in visible area with the following:
“Contains TX FCC ID SWX-WS5:
End Product Manual Information
The user manual for end users must include the following information in a prominent
location “IMPORTANT NOTE: To comply with FCC RF exposure compliance
requirements, the antenna used for this transmitter must be installed to provide a
separation distance of at least 86.2 cm from all persons and must not be co-located or
operating in conjunction with any other antenna or transmitter.”

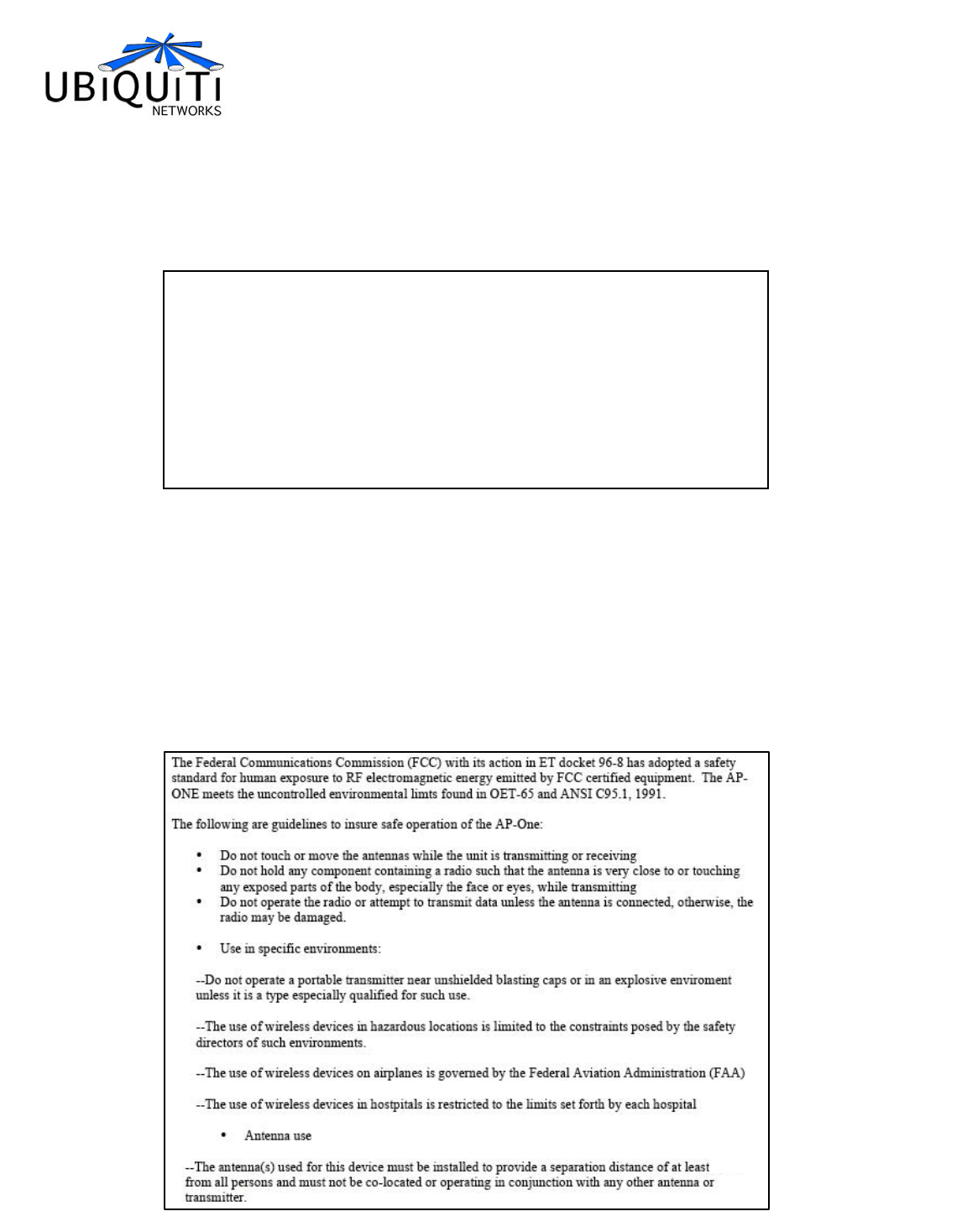

WS5 IMPORTANT OPERATION INFORMATION
Safety Information
86.2 cm
NOTE: This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Opera-
tion of this equipment in a residential area is likely to cause harmful interfer-
ence in which case the user will be required to correct the interference at his
own expense.
FCC Notice to Users and Operators
