OEM Guide

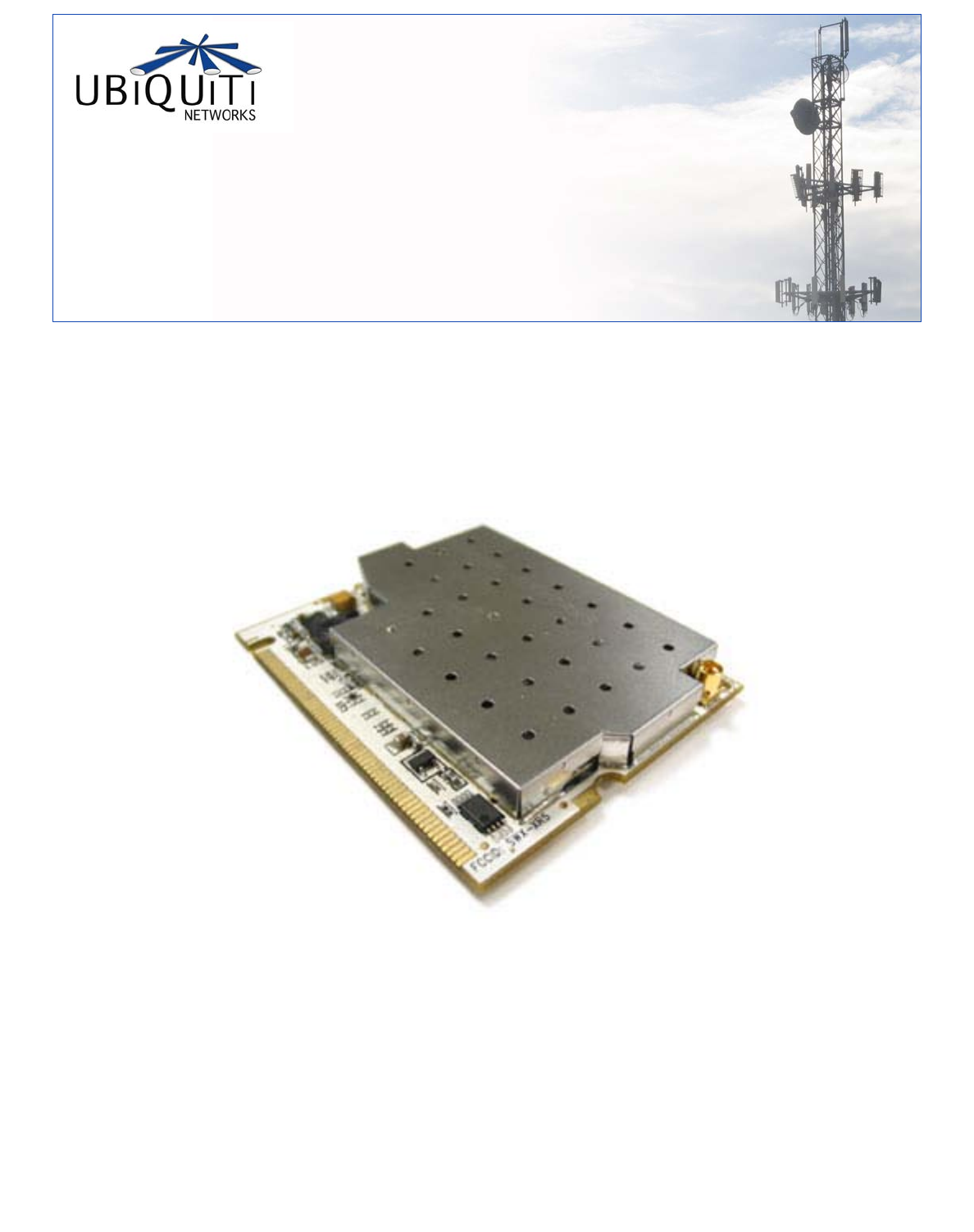

XTREMERange5
OEM INTEGRATION GUIDE
Carrier-Class 5GHz 802.11a Radio Module
TECHNICAL SPECIFICATIONS
XTREMERange5
DataRate Avg.Power Tolerance DataRate Sensitivity Tolerance
6Mbps 28 dBm +/-1.5dB 6Mbps -94 dBm +/-1.5dB
9Mbps 28 dBm +/-1.5dB 9Mbps -93 dBm +/-1.5dB
12Mbps 28 dBm +/-1.5dB 12Mbps -91 dBm +/-1.5dB
18Mbps 28 dBm +/-1.5dB 18Mbps -90 dBm +/-1.5dB
24Mbps 28 dBm +/-1.5dB 24Mbps -86 dBm +/-1.5dB
36Mbps 26 dBm +/-1.5dB 36Mbps -83 dBm +/-1.5dB
48Mbps 24 dBm +/-1.5dB 48Mbps -77 dBm +/-1.5dB
54Mbps 23 dBm +/-1.5dB 54Mbps -74 dBm +/-1.5dB
DataRate Current Tolerance DataRate Current Tolerance
6Mbps 1.80 A +/-100 mA 6Mbps 300 mA +/-100 mA
9Mbps 1.80 A +/-100 mA 9Mbps 300 mA +/-100 mA
12Mbps 1.80 A +/-100 mA 12Mbps 300 mA +/-100 mA
18Mbps 1.80 A +/-100 mA 18Mbps 300 mA +/-100 mA
24Mbps 1.80 A +/-100 mA 24Mbps 300 mA +/-100 mA
36Mbps 1.50 A +/-100 mA 36Mbps 300 mA +/-100 mA
48Mbps 1.30 A +/-100 mA 48Mbps 300 mA +/-100 mA
54Mbps 1.10 A +/-100 mA 54Mbps 300 mA +/-100 mA
Indoor (Antenna Dependent):
Outdoor (Antenna Dependent):
CARD INFORMATION
Radio Operation
IEEE 802.11a, 5GHz
Interface
32-bit mini-PCI Type IIIA
Operation Voltage
3.3VDC
Antenna Ports
Single MMCX
Temperature Range
-40C to +80C (extended temp version up to +95C)
Security
WPA, WPA2, AES-CCM & TKIP Encryption, 802.1x, 64/128/152bit WEP
Data Rates
6Mbps, 9Mbps, 12Mbps, 24Mbps, 36Mbps, 48Mbps. 54Mbps
RoHS Compliance
YES
REGULATORY INFORMATION
Wireless Modular Approvals
FCC Part 15.247 (23dBi Antenna), IC RS210, CE with Notified Body Number
RADIO OPERATING FREQUENCY 5.20-5.825GHz
TX SPECIFICATIONS
RX SPECIFICATIONS
Up to 150meters
802.11a OFDM
802.11a OFDM
Over 50km
40MHz (Turbo)
20MHz
ADJUSTABLE CHANNEL SIZE SUPPORT (Increase Channel Capacity or Increase Throughput)
RANGE PERFORMANCE
RX CURRENT CONSUMPTION
TX CURRENT CONSUMPTION
802.11a OFDM
802.11a OFDM
CURRENT CONSUMPTION INFORMATION
DRIVER INFORMATION
Operating System Support
Linux MADWIFI, WindowsXP, Windows2000
For help with MADWIFI or other Special Driver Support, Please e-mail support@ubnt.com
Chipset
Atheros, 6th Generation, AR5414 with SuperA/Turbo Support
TX Channel Width Support
5MHz / 10MHz / 20MHz / 40MHz
Advanced Mobility / QuickHandoff
WindowsXP/2000 Utility with Enhanced Mobility Driver from Ubiquiti
Cisco Support
CCX 4.0 Certified Driver/Utility also available from Ubiquiti

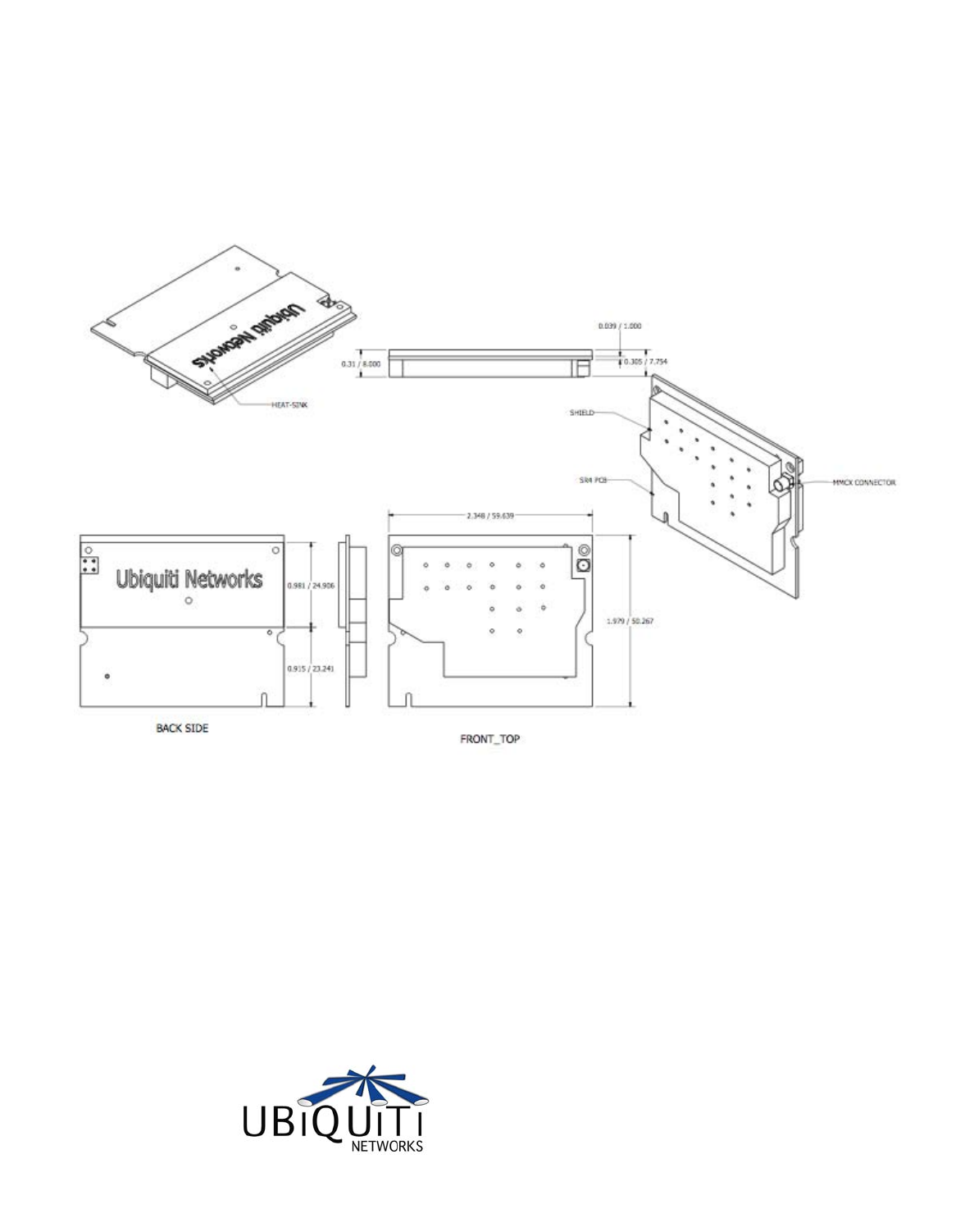

MECHANICAL DIMENSIONS
495-499 Montague Expwy.
Milpitas, CA 95035
San Jose, CA 95112
T (408)-942-3085
F (408)-351-4973
http://www.ubnt.com
XTREMERange5
