The following diagrams provide you a basic installation
for your PC54G (MS-6825), which is suitable for most
desktop PCs. For more information about the PCI slot,
please refer to the user’s manual of your mainboard.

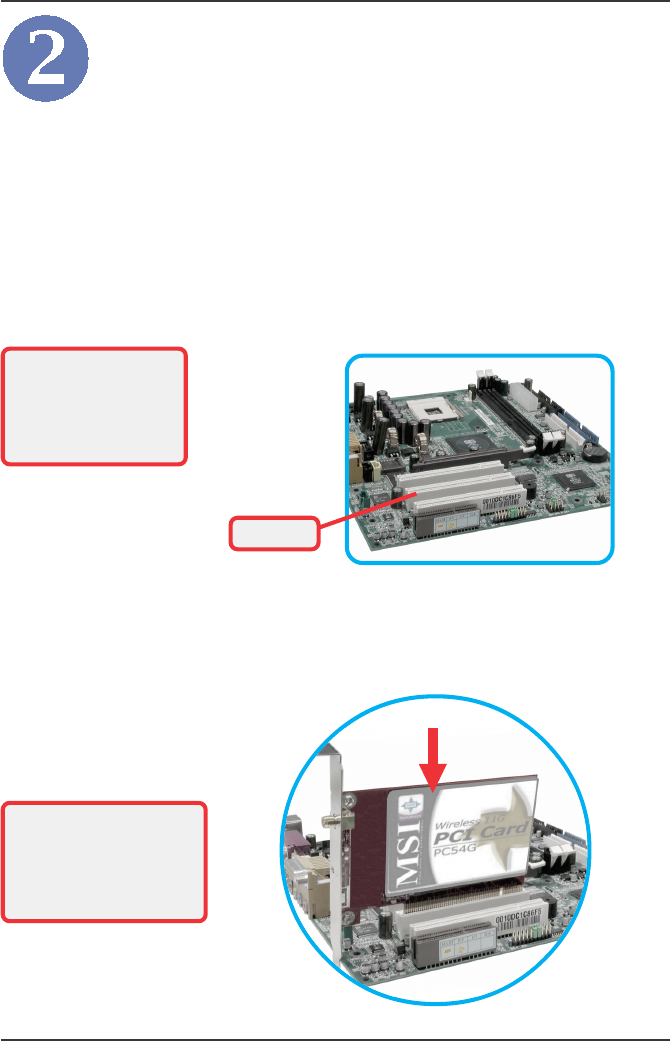

Remove the computer cover. Locate the available PCI
slot on your mainboard.
Step 1.
NOTE: Turn off your
system and disconnect
the power cable before
installing the PC54G
(MS-6825).
PCI slot
Put the PC54G (MS-6825) directly over the PCI slot and
press it into the slot firmly.
Step 2.
Do not hold the PC54G
(MS-6825) on the golden
finger while installing;
doing this may cause
interference or damage.
Hardware Installation
9
Replace the computer cover after securing the PC54G
(MS-6825) with a bracket screw.

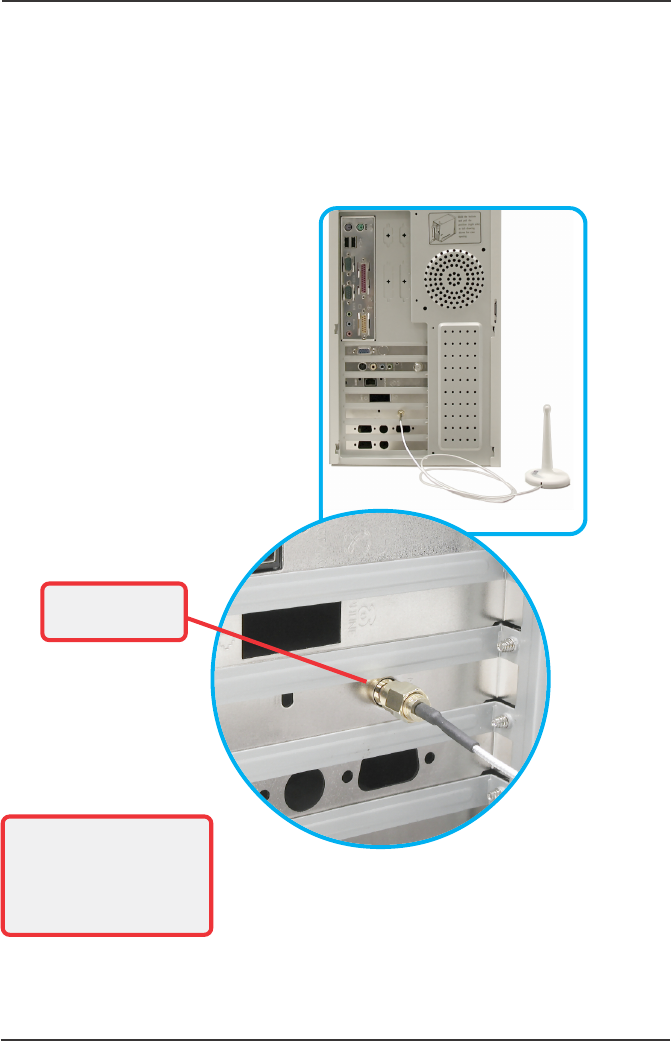

Connect the external antenna to the connector on the
PC54G’s (MS-6825) bracket.
Step 3.
Step 4.
If your are not skilled at
installing the PCI adapter,
please ask the vendor or
an experienced technician
for help.
Connecting the
external antenna
